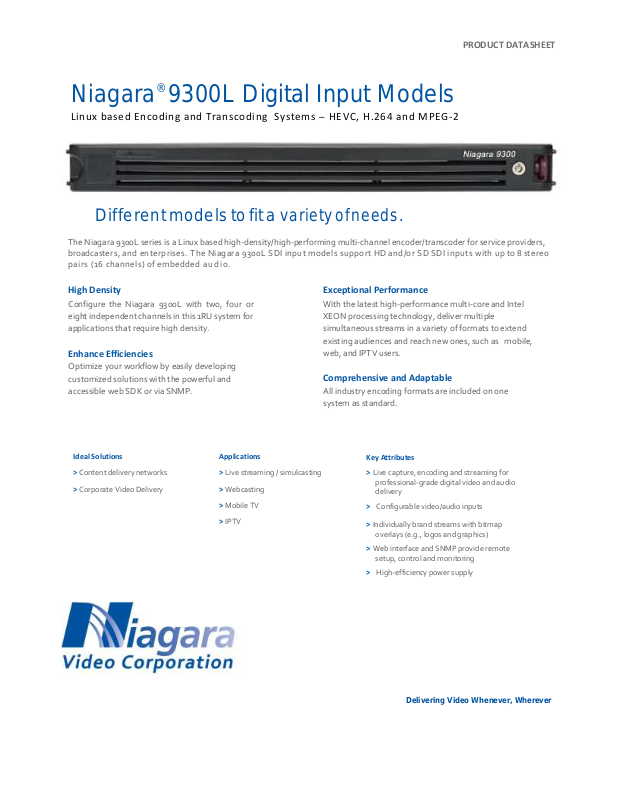

Page 1
PRODUCT DATASHEET
Niagara® 9300L Digital Input Models
Linux based Encoding and Transcoding Systems – HEVC, H.264 and MPEG-2
Different models to fit a
The Niagara 9300L series is a Linux based high-density/high-performing multi-channel encoder/transcoder for service providers,
broadcasters, and enterprises. The Niagara 9300L SDI input models support HD and/or SD SDI inputs with up to 8 stereo
pairs (16 channels) of embedded a ud io.
High Density
Configure the Niagara 9300L with two, four or
eight independent channels in this 1RU system for
applications that require high density.
Enhance Efficiencies
Optimize your workflow by easily developing
customized solutions with the powerful and
accessible web SDK or via SNMP.
Ideal Solutions
> Content delivery networks
> Corporate Video Delivery
Applications
> Live streaming / simulcasting
> Webcasting
> Mobile TV
> IPTV
variety of needs.
Exceptional Performance
With the latest high-performance multi-core and Intel
XEON processing technology, deliver multiple
simultaneous streams in a variety of formats to extend
existing audiences and reach new ones, such as mobile,
web, and IPTV users.
Comprehensive and Adaptable
All industry encoding formats are included on one
system as standard.
Key Attributes
> Live capture, encoding and streaming for
professional-grade digital video and audio
delivery
> Configurable video/audio inputs
> Individually brand streams with bitmap
overlays (e.g., logos and graphics)
> Web interface and SNMP provide remote
setup, control and monitoring
> High-efficiency power supply
Delivering Video Whenever, Wherever
Page 2
Niagara® 9300L Digital Models
Encoder/Transcoder
Niagara 9300L-TR
Transcode only – MPEG-TS Inputs
Niagara 9300L-2D
Video: - 2 HD or SD SDI (2 x DIN)
Audio: - Embedded SDI
(8 stereo pair per SDI input)
Niagara 9300L-4D
Video: - 4 HD or SD SDI (4 x DIN)
Audio: - Embedded SDI
(8 stereo pair per SDI input)
Niagara 9300L-8D
Video: - 8 HD or SD SDI (8 x DIN)
Audio: - Embedded SDI
(8 stereo pair per SDI input
Back View
Back View
Back View
Back View
SDI Inputs comply with SMPTE 259M, 292M and 424M
Specifications
Encoding Formats:
• Adobe® Flash® H.264* (RTMP)
• Apple® HTTP Live Streaming (HLS)
• Dynamic Adaptive Streaming over HTTP (MPEG-DASH)
• Microsoft® Live IIS Smooth Streaming
• MPEG 2 Transport Stream (UDP or RTP/FEC)
• H.264 and HEVC codecs, MPEG 2 future release
Transcoding:
• Video Codec Inputs: MPEG-2, H.264 and HEVC
• Audio Codec Inputs: MPEG-1 Layer II, AAC-LC, HE-AAC v1/v2,
Dolby Digital (AC-3), Dolby Digital Plus (E-AC-3)
• Transcoding Inputs: MPEG-TS, RTMP, RTSP, HLS
Pre-Processing:
• Adaptive de-interlacing
• Video cropping and rescaling
• Aspect-ratio conversion or pass-through
• Frame rate down and up-conversion
• Video preview
• Logo & Slate insertion
• Time code/Date&Time insertion
• Closed-caption support
Software:
• SCX-L
• SNMP - monitoring
• Web SDK (REST API)
Connectivity:
• 2 front panel USB ports
• 1 GB Ethernet Management
• 2x1GB Ethernet Streaming
• Optional SFP cages
Dimensions:
1U rack mount appliance (1RU x 17” W x 27.8” D)
Weight:
• 41 lbs. (18.6 Kgs)
Power:
• 750 W redundant power supplies
• NEMA 5-15 type connector
© 2017 Niagara Video Corporation Niagara®, GoStream® and Niagara SCX® (and design)
is a trademark of Adobe Systems Inc. iPad, iPod and iPhone are registered trademarks of Apple Inc. All other trademarks are the property of
their respective owners. Product specifications and availability may change without notice.
PHONE 925.399.7201 www.niagara-video.com
TM
are registered trademarks of Niagara Video. Flash
Delivering Video Whenever, Wherever
N9300L_ds_A18v1
