PRODUCT DATASHEET
Niagara® 9200 Digital Input Models
Encoding and Transcoding Systems – H.264 and MPEG-2
Now with support for HEVC up to 4K/UHD
Different models to fit a

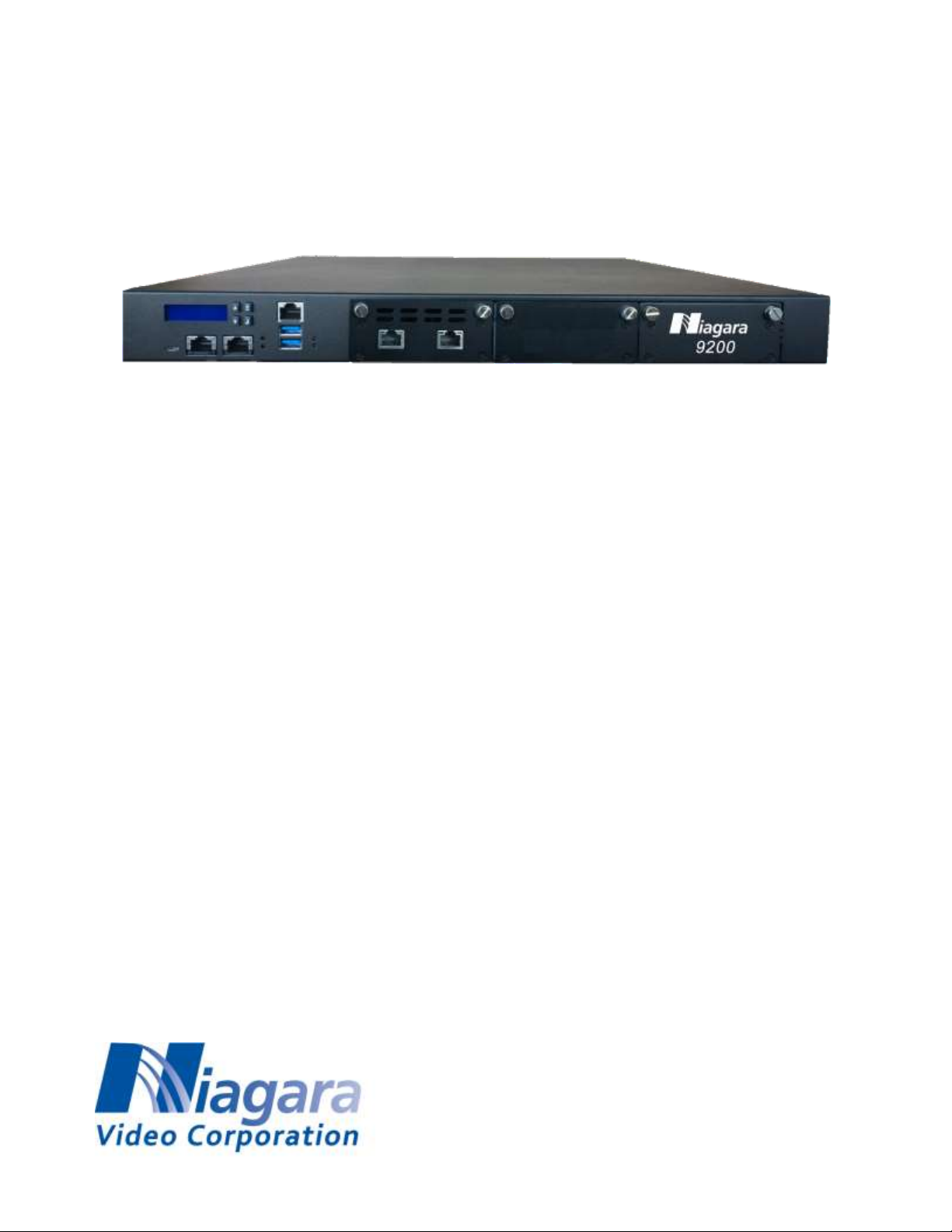

The Niagara 9200 series is a high-density/high-performing multi-channel encoder/transcoder for service providers,
broadcasters, and enterprises. The Niagara 9200 SDI input models support 4K, UHD, HD and/or SD SDI inputs with up to
8 stereo pairs (16 channels) of embedded a udi o.
High Density
Configure the Niagara 9200 with two, four or eight
independent channels in this 1RU system for
applications that require high density at a
reasonable cost.
Enhance Efficiencies
Optimize your workflow by easily developing
customized solutions with the powerful and
accessible web SDK or via SNMP.
variety of needs.
Exceptional Performance
With the latest high-performance multi-core and Intel
GPU processing technology, deliver multiple
simultaneous streams in a variety of formats to extend
existing audiences and reach new ones, such as mobile,
web, and IPTV users.
Comprehensive and Adaptable
All industry streaming protocols are included on one
system as standard.
Ideal Solutions
> Content delivery networks
> Corporate Video Delivery
> Teleport turn-around
Applications
> Live streaming / simulcasting
> Webcasting
> Mobile TV
> IPTV
Key Attributes
> Live capture, encoding and transcoding for
professional-grade digital video and audio
delivery
> Configurable video/audio inputs
> Input, output and device level redundancy
> Individually brand streams with bitmap
overlays (e.g., logos and graphics)
> Web interface and SNMP provide remote
setup, control and monitoring
> High-efficiency redundant power supplies
Delivering Video Whenever, Wherever
Page 2
Niagara® 9200 Digital Models
Encoder/Transcoder
Niagara 9200-TR
Transcode only – MPEG-TS Inputs
Niagara 9200-2D
Video: - 2 HD or SD SDI (2 x DIN)
Audio: - Embedded SDI
(8 stereo pair per SDI input)
Back View
Back View
Niagara 9200-4D/Niagara 4K
Video: - 4 HD/SD SDI (4 x DIN) or 1 4K
Audio: - Embedded SDI
(8 stereo pair per SDI input)
Niagara 9200-8D
Back View
Video: - 8 HD or SD SDI (8 x DIN)
Audio: - Embedded SDI
(8 stereo pair per SDI input)
SDI Inputs comply with SMPTE 259M, 292M and 424M
Specifications
Encoding Formats:
• Adobe® Flash® H.264* (RTMP)
• Apple® HTTP Live Streaming (HLS)
• Dynamic Adaptive Streaming over HTTP (MPEG-DASH)
• Microsoft® Live IIS Smooth Streaming
• MPEG 2 Transport Stream (UDP or RTP/FEC)
• H.264, HEVC and MPEG 2 codecs
Transcoding:
• Video Codec Inputs: HEVC, MPEG-2 and H.264
• Audio Codec Inputs: MPEG-1 Layer II, AAC-LC, HE-AAC v1/v2,
Dolby Digital (AC-3), Dolby Digital Plus (E-AC-3)
• Transport Inputs: MPEG-TS/UDP and RTP/UDP (FEC)
Pre-Processing:
• Adaptive de-interlacing
• Video cropping and rescaling (up and down)
• Aspect-ratio conversion or pass-through
• Frame rate down and up-conversion
• Video monitoring
• Logo & Slate insertion
• Closed-caption and Teletext
Software:
• SCX+ LIVE
• SNMP - monitoring
• REST Web SDK
Network and Data Connectivity:
• 2 front panel USB ports
• 1 GB Ethernet Management
• 4x1GB Ethernet Streaming
Dimensions:
1U rack mount appliance (1RU x 17” W x 19” D)
Weight:
• 20 lbs. (7 Kgs)
Power:
• 280 W redundant power supplies
• NEMA 5-15 type connector
Back View
© 2017 Niagara Video Corporation Niagara®, GoStream® and Niagara SCX® (and design)
is a trademark of Adobe Systems Inc. iPad, iPod and iPhone are registered trademarks of Apple Inc. All other trademarks are the property of
their respective owners. Product specifications and availability may change without notice.
www.niagara-video.com PHONE 925.399.7201
TM
are registered trademarks of Niagara Video. Flash
Delivering Video Whenever, Wherever
N9200D_ds_A17v3
