Ver.1.0.20110218
User Manual
2
Contents
1. For your Safety ............................ 5
2. Mobile Phone Profile .................. 8
3. Preparation before Use ............. 10
Install SIM Card ...................................... 10
Install Memory card ............................... 12
Install Battery ......................................... 13
Charge Battery ....................................... 14
Notices on using the battery ................... 15
PIN code ................................................. 16
4. Use of Menu Functions ............. 18
Phonebook .............................................. 18
Messaging .............................................. 21
Camera ................................................... 28
Image viewer .......................................... 29
Music ...................................................... 30
Video player............................................ 32
Wi-Fi ....................................................... 32
Facebook ................................................ 34
Call center............................................... 34
Settings ................................................... 40
Email....................................................... 46
User Manual
3
Services ................................................... 47
Opera Mini ............................................. 49
Java ........................................................ 50
Games .................................................... 51
File Manager .......................................... 51
Organizer ................................................ 53
Calculator ............................................... 56
Bluetooth ................................................ 57
Alarm ...................................................... 60
FM radio ................................................. 60
Slide Show .............................................. 61
Photo editor ............................................ 62
Tasks ....................................................... 62
Sound recorder ....................................... 62
Video recorder ........................................ 63
Calendar ................................................. 63
Ebook reader .......................................... 64
5. Editor Operation ....................... 64
Basic letter input .................................... 64
Number input ......................................... 64
Symbol input ........................................... 64
6. Use of USB ................................ 78

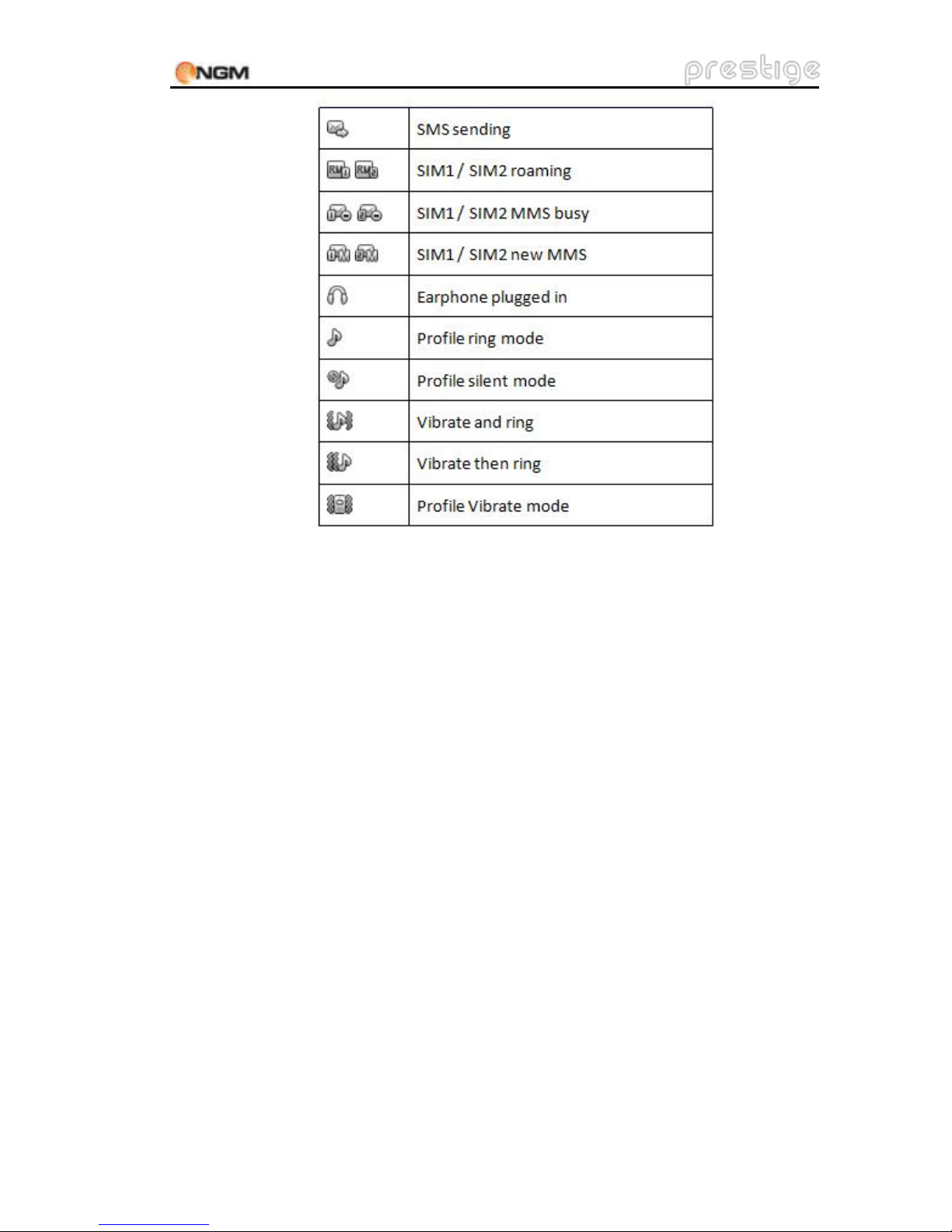

7. Icons ......................................... 79
8. Maintenance & Safety ............... 80
After sales service ................................... 80
Charger and Adapter Safety ................... 81
User Manual
4
Battery Information and Care ................. 81
General Notice ........................................ 81
Troubleshooting ..................................... 83
9. Abbreviations ............................ 86
10. Certifications ........................... 88
User Manual
5
1. For your Safety
For your safety and proper use of the
mobile phone, please read the following
guidelines carefully: Do not switch the mobile
phone on when close to chemical factory, gas
station or other explosive objects.
During driving, please use headset for safety
purpose; unless otherwise in emergency,
always stop the car on roadside to have a call
conversation.
Because the use of the mobile phone can
cause interference in the aircraft, never use
the mobile phone in aircraft. The use of the
mobile phone is dangerous and illegal; do
switch off the mobile phone before boarding.
Pay special attention to the use of the mobile
phone near heart pacemaker, deaf-aid and
some other medical equipments, because
the mobile phone can cause interference
with them.
None-original factory’s accessories and parts
will lose guarantee.
User Manual
6
Do not dismantle the mobile phone without
permission. In case of failure, please contract
the supplier as soon as possible.
Do not plug the charger into the mobile
phone and charge without battery. Always
power off the mobile phone when taking out
the battery; otherwise the memory of the
phone may be damaged.
When charging the mobile phone, always
keep it in the place with good ventilation,
heat sink and away from flammable and
explosive objects.
In order to avoid demagnetization, always
keep the mobile phone away from magnetic
objects such as CD, credit card etc.
Ensure the mobile phone not to contact any
liquid; once such case occurs, remove the
battery and contact the supplier
immediately.
Do not use the mobile phone in the
environment at too high or too low
temperature, never expose the mobile
phone under strong sunshine or too wet
environment. The suitable temperature for
the phone and accessories is 0℃-40℃. The
height to use the phone shall be less than
User Manual
7
2,000m.
Do not use liquid or wet cloth with strong
cleanser to clean the mobile phone.
This mobile phone has shooting, videoing
and audio recording functions, which shall be
used as per the related laws and regulations.
Always keep the mobile phone out of
children’s reach. Do not throw or vibrate the
mobile phone because violent treatment to
the mobile phone may damage the inner
circuits and precise structures.
Please do not discard the waste battery into
general household garbage. Please deal with
the waste battery according to provisions
where they are definitely made.
Tip: This user manual is based on simplified
Chinese operation mode; so it may vary in English
operation mode.
Warning: We will not be bear any responsibility
for any incompliance with the above guidelines
or improper use of the mobile phone. Our
company keeps the right to make modifications
to any of the content here in this user guide
without public announcement in advance. The
content of this manual may vary from the actual
content displayed in the mobile phone. In such
User Manual
8
case, the latter shall govern.
2. Mobile Phone Profile
This phone is the finger touch function, you’re
your finger slide on the screen you can choose
the related function. Below is the front of the
mobile phone.
1
2
4
3
5
User Manual
9
1.
Receiver
5
End talk key
2.
LCD 6
Camera
3.
Options Key
7 Speaker
4.
Call Key
8 Power On/off
7
6
8
User Manual
10
3. Preparation before Use
Install SIM Card
When registering mobile phone number,
you can apply for two different phone numbers,
two different mobile phone network service
providers and thus obtain two SIM (Subscriber
Identification Module) cards.
With these two SIM cards, you can use all
functions of your mobile phone. The SIM cards
save the parameters needed for communications
and personal data, including PIN (Personal
Identification Number) code, phonebook, short
message and other extra system services.
Warning: Do not distort or scratch the SIM card
nor let it contact static, dust or moisture. If it is
lost, please contact immediately your network
operator for help.
Before SIM card installation, please switch off
the mobile phone. The SIM card is installed on
the back of the mobile phone.
Follow the following diagram to install the
SIM card. Please insert the host SIM card into the
User Manual
11
SIM1 slot and the slave SIM card into the SIM2
slot.
Note: If SIM card is inserted only into the
SIM1 slot, then only the host works; likely, If SIM
card is inserted only into the SIM2 slot, then only
the slave works. When two SIM cards are
inserted into the SIM1 slot and SIM2 slot
respectively, you can choose work mode freely as
you wish.
Note: As the SIM card is small object, keep it out
of children’s touch or prevent children gulping it!
SIM 1
SIM 2
User Manual
12
Install Memory card
As the mobile phone does not have enough
storage space, to use some functions, you need
to install a memory card (This mobile phone use
T-FLASH card.)
Install T-FLASH card: Open the back cover to
take out the battery, release the T-Flash card lock,
insert the T-Flash card into its slot, and restore
the lock and the battery before restarting the
mobile phone.
Memory Card
User Manual
13
Note: As the T-FLASH card is small object, keep it
out of children’s touch or prevent children
gulping it!
Install Battery
The mobile phone is suitable for original
battery and accessories. When the battery is idle,
it is recommended to put it into the protection
box.
Follow the following diagram to install the
battery.
Note: Do install the battery as per the diagram so
as prevent the battery contact patch being
damaged.
Battery
User Manual
14
Charge Battery
The new battery cannot reach the optimal
efficiency unless it has undergone several
continuous complete charges and discharges.
When the battery is used up, charge it in
time. Over-discharge can damage the battery.
After the battery is charged full, cut off the
connection of charger with the AC power supply
and the connection with the mobile phone.
Follow the following diagram to connect the
charger.
During charging, the battery capacity icon
on the screen flickers from the right to the left.
After the battery is charged full, the icon is full of
bars. Slight heat during charging is normal.
Warning: When a travel charger and its
accessories are used to charge the battery, please
firstly check if they are original or recognized by
the original manufacturer. The use of other
accessories may damage your mobile phone and
Charger Port / Earphone
User Manual
15
cause risks! Always use them indoor and dry
places.
Notices on using the battery
The performance of the battery is affected
by many factors, including radio barrier network
settings, signal strength, signal strength, work
temperature, chosen and used functions or
settings as well as phone accessories, tone, data
or other applications.
For optimal performances, please follow the
rules below:
New battery or the battery having been idle
for long need charging for long. The standard
voltage scope for the battery is 3.6V-4.2V.
During charging, keep the battery at room
temperature or similar temperature.
With time passing by, the battery will
gradually be worn and thus need longer time
to charge. This is normal. However, after
normal charging, if call duration decreases
but charging time increases, you need to buy
another battery from the original
manufacturer or authorized by the original
manufacturer. The battery of interior quality
User Manual
16
can damage your mobile phone and cause
danger!
If the phone is overused at low battery when
charging, there might need a longer time for
the charge indicator to be shown on the
screen.
Note: Please dispose the battery according to the
local regulations. Try to recycle the battery as
possible. Do not treat the waste battery as
common waste.
Warning: Do not throw the battery into fire so as
to prevent fire. The broken battery may cause
explosion.
Warning
Charging the mobile phone by
improper means can cause to explosion.
Always refer to the related regulations for
the disposal of the battery.
PIN code
PIN1 Code: It is the personal identification
number used to enter SIM and able to prevent
others using SIM1 without permission. If the
mobile phone has activated the PIN1 code
User Manual
17
protection, when the mobile phone is switched
on, the screen will display “Input PIN”. In the
process of inputting PIN1 code, the screen will
use “*” to represent the input content. While
obtaining SIM, you can obtain its PIN1 code.
PIN2 Code: It is the personal identification
number used for some special functions such as
paid call etc.
PUK Code and PUK2 Code(8-digit)
To change the locked PIN code, you need to
use PUK (Personal Unblocking Key) code. To
change the locked PIN2 code, you need to use
PUK2 code. If these two codes are not provided
together with the SIM cards, ask the local service
provider for them.
Warning: If the PIN code is input wrongly for
successively three times, the SIM card will be
locked. Please contact the network operator
immediately for help. Attempt to unlock the code
may make the SIM card ineffective forever!
User Manual
18
4. Use of Menu Functions
Phonebook
The mobile phone is provided with the
business card folder type phonebook. The
information of every contact saved on the mobile
phone include three phone numbers (mobile
phone, home phone and company phone),
company name, e-mail, fax, birthday, big-head
sticker, tone, callers’ group (five types: family,
friends, VIPs, colleagues and others). Every
contact saved into SIM1 and SIM2 can only
include name and number. The mobile phone
supports 1000 groups of numbers.
View
You can browse the details of the contract.
Send message
Input the message, and you can sent to the
contract. .
SIM voice call
You can make a phone call of the contract by
User Manual
19
pressing this option
Edit
You can edit the name and the number of the
contract.
Copy
You can have the modes regarding deletion:
from SIM1, from SIM2, from phone.
Delete
You can have four modes regarding deletion:
from SIM1,from SIM2, from phone and one by
one.
Move
You can move the contract from the phone to
SIM Card or to SIM card 2
Send contract
You can send the contract as the phone
guides, as text message, as multimedia message,
as email and via Bluetooth.
User Manual
20
Caller groups
You can set call tone, photo and members
for five callers’ groups. Callers’ group member
can only come from the number saved on phone.
Phonebook settings
Name Filter: You can choose which
phonebook (SIM1, SIM2, phone, or all the
possible mix) to show.
Speed dial: On or Off
My number: You can edit and send my
business card.
Vcard version: Including vcard 2.1 and vcard
3.0
Extra number: Have the related choice to
have the option.
Memory Status: You can view the current use
status of the phonebook, including SIM1,
SIM2 and phone memory. The display format
is “Used/Total”.
Copy contacts: You can copy the contact
from SIM1 to phone, from phone to SIM1,
from SIM2 to phone, from phone to SIM2,
from SIM1 to SIM2, from SIM2 to SIM1.
Move contacts: You can move the contact
User Manual
21
from SIM1 to phone, from phone to SIM1,
from SIM2 to phone, from phone to SIM2,
from SIM1 to SIM2, from SIM2 to SIM1.
Delete all contacts: You can have four modes
regarding deletion: from SIM1, from SIM2,
from phone and one by one.
Messaging
SMS is a kind of network service that cannot
be used to send and receive short messages until
you apply to the network operator.
Both SIM cards of the mobile phone can
send and receive SMS. The SMS is sent to the
SMS center of the network and then sent by the
network to the target user (GSM user). If the user
does not switch on the mobile phone or the
mobile phone cannot receive the SMS (the
memory is full), the network will save the SMS
temporarily. The duration of storage depends on
sender’s settings and network service provider.
With this function, the mobile phone can
send and receive chain text messages, which may
affect the message fees. For more information,
please consult the service provider.
When the SMS capacity is full, there will be
an SMS icon flickering on the standby interface.
The full capacity can affect SMS reception. Delete
User Manual
22
some SMS to solve the problem.
If the other party has received SMS, you will
hear the alert sound from the mobile phone (if
such alert function is set as ON)
Note: When sending SMS via the SMS network,
the mobile phone display “Message sent”. It
indicates that the SMS has been sent to the SMS
center inbox set in the mobile phone but does
not mean the receiver has received the SMS. For
more information, please consult the service
provider.
Write Message
You can write message in this menu.
The mobile phone can send the chain SMS
more than characters (limit for common text
messages). To write SMS, use the virtual
keyboard; press “sym” key to select Symbol.
If the SMS contains more than 140 English
characters, then the SMS will be split into 2pcs or
more. You can insert images, cartoons, rings etc
into SMS. However, the SMS will not be received
and displayed unless the network and the
receiving mobile phone support.
You can enter the phone number or choose
a number from the phonebook to send the SMS.
In dual-SIM standby mode, you can choose to
User Manual
23
send the SMS via SIM1or SIM2.
Inbox
You can see the SMS/ MMS in the inbox.
View: You can view the selected SMS/MMS.
Reply: You can reply to the received
SMS/MMS.
Call sender: You can call the message’s
sender.
Forward: You can directly forward this
SMS/MMS to others.
Delete: Delete the current SMS/MMS.
Delete All: You can delete all SMS /MMS in
inbox.
Mark as unread: You can mark the messages
as read or as unread.
Advanced: This includes the functions: Copy
to Phone/SIM, Move to Phone/SIM, Copy all
and Move all.
Drafts
If you are editing the message and the messages are
not sent out immediately, the messages will be save
here. You can send, edit, delete or use the advanced
User Manual
24
functions.
Outbox
While sending SMS/MMS, you can choose
“Save and Send”, and you can save the SMS/MMS
into the Outbox. You can directly save the edited
SMS into the Outbox, in such case; the Outbox
will display “No number”, i.e. no target number. If
you fail to send the SMS/MMS, it will be saved in
the Outbox. Also, you can have such operations
as send from SIM1, send from SIM2, edit, delete,
copy to phone move to phone, delete all, copy all,
move all, use number ，use URL， Use USSD and
Use email address.
Sent messages
When the message is sent out not
successfully, then the messages are saved here.
Archive
The Inbox messages can be moved here for
storage.
Junk box
The unwanted messages can be saved in
this folder.
User Manual
25
Delete messages
Here you can delete the related choice as
you enter the interface.
Email
Before sending or receiving emails, you need
to create and activate an email account.
Before use, you need to set the e-mail in the
“E-mail accounts” menu. Via this menu, you can
receive and send e-mail.
Send and receive: You can send/receive
the e-mail from the specified mailbox.
Write Email: You can edit e-mails.
Inbox: You can see the received e-mails.
Outbox: You can see the sent e-mails.
Sent: You can send e-mails.
Drafts: You can see the drafts in the
specified mailbox.
Clear mailbox: You can clear the e-mails in
the specified mailbox, including inbox,
outbox, sent e-mail backup and drafts, or
clear all e-mails.
Delete Marked emails: You can change the
status of all e-mails to deleting status,
Email accounts: You can set up you new
User Manual
26
account.
Templates: you can pre-edit some common
phrases, which is convenient for quick
editing.
Broadcast message
Cell broadcast is a kind of information
service such as weather report, traffic etc that
the network operator sends to the GSM users
within certain area. In dual-SIM mode, you can
separately set SIM1 and SIM2.
Receive Mode: You can ON/OFF such
function.
Read Message: You cannot read the received
information until you open such function.
Languages: You can set the language for the
received information.
Channel Settings: You can choose, add and
edit and delete channel number.
Templates
With it, you can pre-edit some common
phrases, which is convenient for quick SMS
editing.
User Manual
27
Message Settings
Text message
You can set some parameters of the SIM1
SMS or SIM2 SMS in the menu.
Profile Settings: To send SMS, you must input
the SMS center number.
Note: The SMS center number is provided by
the network operator.
Voicemail server: Edit the related options.
Common Settings
o Delivery Report: The network will
inform you whether the other party has
received the SMS and what the time is.
o Reply Path: You can send the reply path
to the network terminal. This function
needs the support from the SMS
center.
Memory Status: You can view the capacity of
the SIM card or the phone for SMS.
Preferred Storage: You can set the storage
position (SIM or phone) for SMS.
Multimedia message
Profiles: Choose one of the media to have
the MMS functions.
User Manual
28
Common settings: Compose Sending,
Retrieval and Memory status.
Camera
With this function, you can use the inbuilt
camera to take photos. The lens of the camera is
located on the back of the slide and the screen is
used as the viewing window. All photos taken are
in JPG form. After downloading the photos onto
PC, you need some software to view them.
If the storage space of the mobile phone is
insufficient to store the taken photos, it is
necessary to delete some old photos or other
files in “File Management” function list to release
more space.
Description of Mobile Phone Options:
Options
Description
Photos
To view the saved photos.
Camera Settings
Shutter Sound: sound 1, sound 2, sound 3 and
Off.
EV: EV-4 ——EV+4.
Contrast: High, Medium, Low.
Banding: 50Hz(default), 60Hz.
User Manual
29
Delay Time: 5s, 10s, 15s or Off.
Cont.Shot: 1 Shot , 3 Shot , 5 Shot and Off.
Image Settings
Size: 320x240, 640x480, 800x600, 1600x1200,
2048x1536..
Quality: High, Normal, Low.
White Balance
Auto, Daylight, Tungsten, Fluorescent, Cloud,
Incandescence.
Scene Mode
Auto, Night.
Effect Settings
Normal, Grayscale, Sepia, Sepia green, Sepia
blue, Color invert.
Storage
Phone, Memory Card.
Restore Default
You can restore the recorder to factory settings.
Image viewer
All photos taken are saved in the album.
Options
Description
View
You can view the selected photos.
Edit
You can edit the pictures as the phone
guides.
Browse Style
There are two browse styles, i.e. list and
matrix.
Send
As multimedia message; as email; via
Bluetooth.
Use as
You can send photo to Wallpaper, Screen
saver, Power on display, Power off display,
Call picture.
Rename
You can rename the selected photo.
User Manual
30
Delete
You can delete the selected photo.
Delete All files
You can delete all photos in the album.
Sort by
For convenience of search, you can rank
them as per name, type, time and size or
choose “None”.
Storage
You can choose photos storage path (to
phone or memory card).
Music
If the operation system is Windows 2000
above, no driver needs installing. To download
music, you must insert the T-Flash card into the
mobile phone, switch off the mobile phone,
connect the mobile phone and PC with USB cable,
then the PC will detect the new hardware and
create a new mobile HD. Download the chosen
MP3 file to under "My Music" of the mobile disk
rather than in such folders as Audio, Images and
Photos; otherwise, the file cannot be played.
(Only the music in MP3, AMR and MIDI are
supportable).
Description of audio player options:
Playlist
Play the current chosen music. You can
touch the screen to choose the music you want
User Manual
31
to play.
Artists
View the artists here.
Albums
View the albums here
Genre
View the genre here.
Refresh list
Enter the track list and update it (e.g. the
deleted music in the file management will not
disappear until update is conducted.)
Settings
Player settings: Pre. Playlist, Repeat,
Shuffle.
Display settings: Lyrics display On or Off.
Sound effects: Audio effect, Bass
enhancement, Play speed.
Bluetooth settings: Stereo output, Stereo
headset.
Download
Input the net address, then you can download the
music from the net.
User Manual
32
Video player
It supports the videos in 3GP and MP4.
Options of the player
Options
Description
Play
It supports the videos in 3GP and AVI; iIt
won’t be limited by file size. Click the play
interface to play.
Use as
You can send video to Screen saver, Power on
display or Power off display.
Send
As multimedia message; as email; via
Bluetooth.
Rename
You can rename the specified video.
Delete
You can delete the specified videos.
Delete all files
You can delete all files.
Sort by
For convenience of search, you can rank them
as per name, type, time and size or choose
“None”.
URL streaming
You can view streaming video clips from
YouTube (default) or some other URL.
Network
Profiles
You can select a profile from the list.
Storage
You can choose video storage path (to phone
or memory card).
Wi-Fi
A WLAN (Wireless Local Area Network)
links devices via a wireless distribution method
User Manual
33
(typically spread- spectrum or OFDM radio), and
usually provides a connection through an access
point to the wider internet. This gives users the
mobility to move around within a local coverage
area and still be connected to the network
Enable WLAN / Disable WLAN
You can set the WLAN status of connectivity.
WLAN status
Here you can see the status of the connectivity. If
the WIFI is on, you can see the MAC address, and
once connected to the network, you can check the
related information.
Search for networks
Search the networks, and connect to the network. If
the network is for free, you can surf the net free, if
not, you need to input the password.
Access point settings
Here you can add a new WLAN network address.
Input the related information and save them, and
then you can be linked to the net automatically in
future.
After you set the WLAN, go to the service, choose
User Manual
34
the Internet service, and the set the profiles and the
data accounts as the WLAN.
Facebook
By pressing this menu, you will be connected to
Facebook. Then, you can enjoy accessing the well
known Facebook social networking.
Call center
Call center includes Call history and Call
Settings. In dual-SIM mode, you can separately
search the call register of SIM1 and SIM2 and set
separately some operations corresponding to
SIM1 and SIM2. In mono-SIM standby mode, you
can set the available SIM card and see its call
register.
Call history includes missed calls, dialed calls
and received calls, delete call log, call time, call
cost, SMS counter, GPRS counter, etc.
In missed calls, received calls and dialed calls
function list, you can see the date and time of the
call, edit or delete the phone number in the list,
save the number to phonebook or send SMS and
MMS to the number, etc.
Note: SIM1 and SIM2 contain respectively 20
User Manual
35
entries. Choose any entry from missed calls,
received calls and dialed calls, press the Send key
to dial the number directly.
Call history
Missed calls
Last Call: With this function, you can view
the last call time.
Dialed calls: With function, you can view the
duration of all dialed calls.
Received calls: With the function, you can
view the duration of all received calls.
Reset all: With this function, you can clear all
duration records of calls.
Note: The actual call duration and service time in
the bill of the service provider may be different
from them, which depends on the network
functions, accounting rounding and tax etc.
Call Cost
This needs the support of the network service
provider.
Last Call Cost: With this function, you can
view the fees of the last call.
Total Cost: With this function, you can view
the fees of all calls.
User Manual
36
Reset Cost: With this function, you can clear
all fee records.
Max Cost: With this function, you can limit
call fees in the specified pricing unit or
currency unit. PIN2 code must be input to set
call cost.
Price Per Unit: This function needs network
support. For more details, please consult the
network operator.
SIM text message Counter
With this function, you can see and preset
the number of sent messages and received
messages.
GPRS Counter
Last Sent: You can view the sending traffic of
last link.
Last Received: You can view the reception
traffic of last link.
All Sent: You can view the sending traffic of
all links.
All Received: You can view the reception
traffic of all links.
Reset Counter: You can clear all link traffic.
User Manual
37
Call settings
[SIM Card settings]
Caller ID: Including set by Network, hides ID and
send ID.
Set by Network: While having a call
conversation, you can send my caller
ID in the form preset by the system.
Hide ID: While having a call
conversation, you will not send my
caller ID. If the system does not
support such function, call may fail.
Send ID: While having a call
conversation, you can send my caller
ID to the system.
Note: This function needs network support.
Call Waiting: You can set this function On or Off.
The call hold and multi-party call cannot be active
unless this function is activated. This needs
network support.
Call Divert: This is a kind of network function,
which cannot be used unless you apply to the
network operator for it. With this function, you
can divert calls meeting he conditions to another
number.
User Manual
38
Name
Description
Divert All
Voice Calls
The network will divert all
voice calls without
conditions.
Divert if
Unreachable
When the network cannot
find your mobile phone
(switched-off or out of the
service area), it will divert
the calls.
Divert if no
Answer
When the mobile phone
does not answer the call,
the network will
automatically divert it.
Divert if Busy
When you are on line, the
network will divert the
call.
Divert All
Data Calls
Network support needed.
Cancel All
Diverts
Cancel all divert functions.
Call Barring
Outgoing Calls:
1. All Calls: You can bar all
outgoing calls.
2. International Calls: You can bar
international calls.
3. International Calls Except To
Home PLMN: When abroad,
you can dial the calls of the
User Manual
39
current country and the original
country (the service providers
allows to do so).
Incoming Calls:
1. All Calls: You can bar all
incoming calls.
2. When Roaming: You can bar all
calls except the calls of the local
service area.
Cancel All: You can cancel call
barring settings and dial/receive
calls normally.
Change Barring Password: You can
apply to the network to change
the password for call barring.
[Advance settings]
Call Firewall setup: You can set here the black list,
the white list, the block of unknown numbers and
the block of anonymous numbers.
Auto Redial: You can set it as On or Off. After the
first automatic redial fails, you can have at most
ten times to connect a phone number.
Background sound: You can set a background
sound to be used during conversations.
Call time Display: You can set whether to display
call duration during call conversation.
User Manual
40
Call Time Reminder: You can set one alert tone
or periodic alert tone for several round minutes
during call conversation so that you can
understand call time. You can turn off the alert
tone.
Reject by SMS: You can have this function as
choose it On/Off.
Note: Some settings need network support. For
example, call barring can not be used unless the
local network and SIM card open it.
Settings
Dual SIM settings
You can in any place and at any time set the
dual-mode mobile phone as the following modes
according to your own demand:
Dual SIM open
Only SIM1 open
Only SIM2 open
Flight mode
User profiles
Your mobile phone is provided with multiple
profiles so that you can customize some settings
in different cases for different events. Firstly, as
User Manual
41
per your personal hobby, have individualized
settings on profile and then activate it. You can
have such profiles as General, Meeting, Outdoor,
Indoor, Headset, Headset and Bluetooth.
The content can be edited at every profiles mode
as following:
Tone Setup: Include Incoming Call, power-on,
power-off, Message Tone and Key Tone.
Volume: Set the volume of Ring and Key
Tone.
Alert type: You can choose any one from
Ring, Vibration, Vibration and Ring ，
Vibration then Ring as the current ring
mode.
Ring Type: You can choose any one from
single, repeat and ascending as the current
ring type.
Extra Tone: You can have on/off settings on
Warning Tone, Error Tone, camp on Tone and
Call Connect Tone so as to have
corresponding tone tips.
Answer Mode: You can choose whether to
use any key to answer.
After individualized settings, choose “Activate” in
“Select” to start profiles.
Note: After the headset is inserted into the
User Manual
42
mobile phone, the mobile phone will
automatically change into headset profile. Unplug
the headset to return to the previous profile.
In standby state, you can press # key to switch to
silence profile and again to the previous profile.
Phone settings
In such menu, you can set phone language,
standby wallpaper, time etc.
Time and Date: With this function, you can
set city, time and date format and the time
of specific place.
Set Home City: You can set
different cities.
Note: This option must be used together with
auto update of time and date. Auto update of
time and data cannot be conducted unless the
network supports.
Set Time and Date: You can set the
current time and date.
Set Format: You can set the display
format for time and date.
Note: If the battery is taken from the mobile
phone or the battery is used up for long time,
when switching on the mobile phone after
reinstalling the battery or charging the battery,
User Manual
43
you need to reset the time and date.
Schedule Power on/off: You can set the
time for schedule Power on/off.
Special Note: In the area forbidding using mobile
phone (such as cabinet), you must confirm to
inactivate this function before entering this area
so as to prevent accident.
Language: You can choose the desired
language for phone display.
Preferred Input Methods: You can set the
input methods of the mobile phone
according to your operation habit.
Display characteristic: You can set standby
menu display as wallpaper, screen saver,
power on display, power off display,
whether to display time and date and
owner number (if set in the phonebook).
Greeting text: You can set the greeting text
displayed on the main screen.
Auto update of date and time: To set the
mobile phone to automatically update
time and date according to the current
time zone, choose “Activate”. Auto update
of time and date will not affect the alarm
clock, calendar or alarm clock memo
setting time, which will be subject to the
User Manual
44
time and date when created. However,
auto update of time and date may make
some set alarm clocks out of date.
G-Sensor Switch: You can set On or Off the
phone’s accelerometer.
UART Settings: You can select SIM1 or
SIM2 for accessing the PC software
Misc. Settings: You can adjust the brightness
and time of LCD backlight.
Network settings
Network Selection: You can search the
network again. Select your favorite network and
choose to register the network automatically or
manually.
Preferences: You can set the preferred
registered network for SIM card.
Security settings
SIM Lock: You can set SIM lock (PIN code)
as on/off. When this option is chosen, it is
necessary to input PIN code for every
insert of the SIM card.
Phone Lock: You can set it as On or Off. It is
a password of 4-8 digits and the defaulted
one is 1122. You can change it.
User Manual
45
Auto Keypad Lock: You can set it as On or
Off. The mobile phone has keypad lock
function. When it lasts certain time, the
keypad will be locked, including such
options as Off, 5s, 30s, 60s and 5min.
Change Password: You can change the
defaulted phone password “1122” into
4-8-digit number easy to remember. If the
phone lock is activated, when switched on,
the mobile phone will hint “Phone locked”.
To unlock it, you can input the phone lock
password and click OK.
Certificate manager: You can browse the
certificate as the phone guides.
Privacy firewall: You can set encryption for
text messages, phonebook, call log and
keypad.
Connectivity
For Bluetooth and WLAN, please see under the
related paragraphs.
Connection management
You can easily smonitor from here your current
connections.
User Manual
46
Data account
GSM Data—You can set the number, name DNS
etc.
GPRS—You can set the name, APN, user name,
password, Auth. type, DNS.
Note: For related charging standard and detailed
settings, please consult the local network
service operator. Different network service
providers provide different services.
Consult the local network operator.
Restore Factory Settings
You can restore the factory settings of the
mobile phone. The factory setting password is
1122.
Sounds effects
You can set from here the audio effects and
the bass enhancement.
Email
Before sending or receiving emails, you need
to create and activate an email account.
Before use, you need to set the e-mail in the
“E-mail accounts” menu. Via this menu, you can
receive and send e-mail.
User Manual
47
Send and receive: You can send/receive
the e-mail from the specified mailbox.
Write Email: You can edit e-mails.
Inbox: You can see the received e-mails.
Outbox: You can see the sent e-mails.
Sent: You can send e-mails.
Drafts: You can see the drafts in the
specified mailbox.
Clear mailbox: You can clear the e-mails in
the specified mailbox, including inbox,
outbox, sent e-mail backup and drafts, or
clear all e-mails.
Delete Marked emails: You can change the
status of all e-mails to deleting status,
Email accounts: You can set up you new
account.
Templates: you can pre-edit some common
phrases, which is convenient for quick
editing.
Services
Internet service
Homepage-- Start the website chosen in the
connection settings file.
User Manual
48
Bookmarks—Google as default. Enter the
options menu and have the following operations
on the bookmark:
Go to: Log into the chosen website.
Edit: Edit the chosen bookmark
name and website.
Send: Send the bookmark as text
message or multimedia message.
Delete: Delete the chosen
bookmark.
Delete all: Delete all bookmarks.
Add bookmark: Add new
bookmarks.
Recent pages: Record the latest 10 web pages
browsed.
Offline pages: You can view these pages when
you offline.
Input address: Input the website to be logged
in.
Service Inbox: The mobile phone can receive
the service information (“Recommended”
information) sent by the service provider. For
example, the service information can be the
notice of related news headlines, which can
include one piece of news or a service website.
Settings:
User Manual
49
Select SIM: Always ask/SIM1/SIM2
Edit account: By this function you can edit
the account.
Browser options-- You set whether to
display images during waiting time and
when browsing WebPages.
Service message settings-- You can choose
ON or OFF to enable the push or not and
you can choose the disable or always in
the Trust settings. Set SL settings functions
as follow: Never, confirm, without confirm.
Add new trust list including: number, IP
address, Domain name.
Clear cache-- You can clear cache. When
the data of the cache are excessive,
network surfing speed can be affected.
Clear cookies-- You can clear personal data.
Trusted certificates--Entrust.net WAP CA
©1999 Limited liability. See
www.entrust.net/wapcps; US VeriSign, Inc.
Class 3 Public, primary certification
authority.
Opera Mini
This application is a web browser, that you
User Manual
50
can possible open a Website through your phone.
Just put a web site address and press OK to visit
the web site.
For further information, you can get it in
http://www.opera.com
Java
This phone default java is Face book Mobile and
Opera Mini, which are equipped with the Java
platform, so that you can install and run Java
applications on the phone. To access the feature,
choose Menu >fun and games > Java, and a list of
applications which have been installed will be
displayed. To run an application is simply by
navigating into the application and click OK.
You should set the parameters required to run the
application as most of Java application will access
the network. As such, you need to set the
parameters correctly based on the SIM card you are
using. To set the parameters, you are kindly go to
Menu > Services > Data account > GPRS. Please
consult to the operator to have the correct setting.
Facebook Mobile: This is a friendly tools and
very popular in the international. You can
access this after with correct setting of JAVA.
User Manual
51
Opera Mini: This is a browser working on Java
platform, and you can enter the URL enter the
internet as you need. Before to use need with
correct setting of the JAVA.
Games
[Java settings]
Java audio: you can select 1~7 and off.
Java backlight: On or Off.
Java vibration: On or Off.
Select SIM: SIM1 or SIM2..
Java profile: select the profile you want (for
SIM1 and SIM2)
Heap size: default size is 3145728 bytes
[Java default security]
It contains third party, untrusted domain,
restore settings and domain options.
[Games]
This mobile phone provides various inbuilt
games. Please refer to the operation instructions
attached to the games.
File Manager
You can manage Audio, Images and EBook.
User Manual
52
[Phone]-- The storage body is the phone.
[Memory card] – The storage body is the
Memory card.
Phone
Open: You can open the folders Audio, Images,
EBook, My Music, Photos, Videos, Answering
Machine, etc.
Open: You can open a file inside a folder.
New folder: Under the root directory, you
can create a new folder.
Rename: You can rename the folders.
Delete: You can delete the current folder.
Sort by: You can rank folders as per name,
type, time and size or choose “None”.
Format: Formatting can clear all files in the
mobile phone and on the memory card. After
formatting, you need to restart the mobile phone
and the Audio folder and Images folder will
restore automatically and Photos folder will
automatically occur after the first photo is taken.
Memory card
Open: You can open the folders inside the
memory card.
Format: You can clear all files and all folders
in thememory card.
Rename: You can rename the folders.
User Manual
53
Dettagli: You can view the available space on
the memory card.
Organizer
Calendar
With this function, you can set the alarm
clock to remind you of your schedule and record
your schedule. Roll the highlight block to the
desired date and then the current date will be
highlighted in green. If the date is set with memo
function, then this date will be highlighted in red.
To view all memos of one day, press OK to see the
schedule. You can have the following operations:
View: You can view the schedule of the date
where the cursor is on and set the time,
date, content and whether to activate alarm
on this schedule of today. When editing the
schedule, you can choose alarm type with
the left and right direction keys. In addition,
you can have such operations as Delete,
Delete and Add on the schedule.
View all: You can view the entire schedule of
the date where the cursor is on and set the
time, date, content and whether to activate
User Manual
54
alarm on this schedule.
Add event: you can select task type as
reminder, meeting, course.
Delete event: You can delete the task as the
phone guides.
Jump to Date: You can move to the calendar
of the specified date.
Tasks
You can have such operations as Create
Memo, Browse, Add, Edit, Delete, Delete All and
Send on memos. You can choose between the
three categories: Date, Call and Anniversary.
If you have set alarm for the memo, when
the set time is reached, the mobile phone will
ring and display the memo content.
Alarm
The time format for the alarm clock is
identical to that of clock. When the mobile phone
is off, the alarm clock can still work provided the
battery is sufficient. The system has set 5 alarm
clock options and the defaulted is off. You can
activate one option or all options according to
the actual demand. Every alarm clock option can
set independent time and date. When the time is
User Manual
55
reached, the mobile phone will give out alert
tone and flicker the current time and date on the
screen. Press Stop to stop alarm clock; press
Sleep, then the mobile phone will pause ringing
and continue after 4 minutes.
If alarm time is reached but the mobile
phone is switched off, then the mobile phone will
be switch on automatically and ring. If Stop is
pressed, then the mobile phone will ask you
whether to switch on the mobile phone. Press
“No” to switch off the mobile phone and “Yes” to
register at the network and switch on the mobile
phone.
World clock
Press the left and right direction keys to
view the current time of every country
corresponding to every time zone.
Ebook reader
In standby, choose [Menu/Extras/E-book
Reader]. After e-book is activated, the e-book list
will be displayed. If no e-book, click Options to
have such submenus as Clean Up Bookshelf and
Global Settings.
If there are e-books (txt format compatible
only), you can choose one e-book and press
Options to have such submenus as Open E-book,
User Manual
56
Update, System Preset, Details, Delete, Delete All,
Ranking, Execute System Preset and Help.
Open E-book: Activate the current e-book
and enter the reading menu.
Clean up bookshelf:
Global settings: You can set Font Style, Font
Size, Scroll By, Auto Scroll, Scroll Speed, Full
Screen, Encoding, alignment and Storage
Priority.
Book info: Display the detailed information
about the current e-book.
Delete: Delete the current e-book.
Delete All files: Delete all e-books.
Sort by: You can have such options as As per
Name, As per Type, As per Time, As per Size
or None to rank e-books.
Apply global settings: You can execute the
options for the preset system.
Calculator
Use the keypad to input numbers and arithmetic
operators.
Note: The precision of this calculator is limited
and can be used for simple calculation.
User Manual
57
Bluetooth
The mobile phone supports the Bluetooth
function. You can use Bluetooth wireless
technology to set wireless connection with other
compatible devices, including mobile phone,
computer, headset, in-car accessories etc. With
Bluetooth function, you can send photo, video
segment, audio segment, personal business card
and memo. You can also establish wireless
connection with the compatible PC to transmit
files and connect to web by dialing number via
SIM.
As the device supporting Bluetooth wireless
technology performs communications via
wireless wave, you need no keeping the device
opposite to other devices but keep the distance
between tem not more than 10m (about 33”).
However, Bluetooth connection can be affected
by wall or other electronic equipments etc. To
ensure mutual operation between this device
and other devices supporting Bluetooth wireless
technology, consult the manufacturer to confirm
whether the device by it is compatible with this
device. Do not use Bluetooth function in hospital
and aircraft etc.
User Manual
58
Bluetooth Menu
Power: Before using Bluetooth function, you
need to activate this option. When Bluetooth
function or other functions are being used,
allowing this function to operate in the back desk
will consume more power. It is recommended to
close this function when it is idle.
Inquiry audio device: With this function,
you can inquiry audio device. For other devices,
enter My Devices to search.
My Device: After entering this option, you
will see the Bluetooth devices compatible with
the mobile phone. Entering options, you can have
necessary operations on the desired Bluetooth
device or search the incompatible Bluetooth
devices.
Active Devices: With this function, you can
see all devices connected with the mobile phone
and their link service type. You can interrupt the
specified link service.
Settings: Before using Bluetooth function,
enter this menu to have corresponding settings.
If your mobile phone’s Bluetooth function is not
activated, you can have activation confirmation.
Visibility: After this option is activated,
other peripheral devices supporting
User Manual
59
Bluetooth wireless technology can see
your device and its name via search. After
the step audio play service is activated, this
device will be unable to be searched.
Change Device Name: You can edit my
device name.
Authentication: After this option is
activated, matching is needed when
peripheral device accesses my device via
Bluetooth (for matched devices as well).
After closing the option, no matching is
needed for the matched devices.
Audio Path: You can leave the audio on my
device or send to other hand-free devices
via Bluetooth. If using Bluetooth to have a
call, set this path as hand-free devices.
FTP Settings: You can set the file directory
shared by my device and the access right
to online Bluetooth devices.
About: Here, you can see the name of my
device, my device’s Bluetooth device address and
the Bluetooth services supported by my device.
Tip: When searching Bluetooth devices, make
sure that the peripheral Bluetooth devices are
within the signal cover range and can be
searched. To match the searched devices, you
User Manual
60
need to discuss with the user of this device about
a pair of matching passwords. To match the
hand-free device, you must input its matching
password. After matching, this device will be
saved in my device view.
Alarm
See under Organizer.
FM radio
Your mobile phone supports FM radio. To
use the mobile phone to listen to radio, insert the
headset connection cable into the headset port
on the mobile phone. The headset connection
cable functions as the antenna of the FM radio,
so it should hang freely. While listening to radio,
you can dial or receive a call normally. During call
conversation, the radio will turn mute
automatically. If some applications are using
GPRS or CSD to send or receive data, they may
interfere with the radio.
When the FM radio is activated, the mobile
phone will display the number and name (if
having been saved) and frequency of the radio
channel. If you have saved some radio channels
(at most 9 channels) in the mobile phone, you
can roll to choose the desired channel or press
User Manual
61
any of number keys 1-9 to choose the
corresponding channel.
Option menu
Channel list: You can edit and save 9
channels.
Manual input: You can edit the specified
radio frequency band. The frequency of the
radio is between 87.5mHz and 108.0mHz.
Preset Auto Search: You can have automatic
search and save the searched channels into
the list.
Settings: You can set background play, loud
speaker, record format, audio quality and
record storage.
Record: You can record new files.
Append: You can have annex record for the
files of the superior level (only for the record
files in AMR).
File list: the record files
Slide Show
You can browser pictures as Slide show. Select
the files or pictures to browse.
This mobile phone provides some inbuilt
games. Please refer to the operation instructions
attached to the games.
User Manual
62
Photo editor
Here you can edit your photos and other
images as the phone guides.
Tasks
See under Organizer.
Sound recorder
After choosing “Sound Recorder”, press
“OK” to enter; you can hear the previously
recorded files. Press “Options” to have the
following operations:
New Record: You can record new files.
Play: You can play the selected file.
Append: You can have annex record for the
files of the superior level (only for the record
files in AMR).
Rename: You can rename the chosen file.
Delete: You can delete the chosen file.
Delete All files: You can delete all files.
Use as: you can use as user profiles.
Send: You send the record file to Bluetooth,
email and multimedia message.
Settings: You can set the storage position for
User Manual
63
record files, including phone and memory card.
Also you can set the format of the record file,
including AMR and WAV.
Video recorder
Press the key at the bottom to start video
recording. The duration of recording depends on
the time limit set and file management capacity.
Entering the options, you can have the following
settings:
Options
Description
Camcorder
Settings
You can set EV, Night Mode and Banding
for your recorder so as to have
high-quality videos.
Video Settings
You can set Video Quality, Size Limit,
Time Limit and Audio.
White Balance
settings
Auto, Daylight, Tungsten, Fluorescence,
Cloud, Incandescence.
Effect Setting
Normal, Gray scale, Sepia, Sepia green,
Sepia blue, Color Invert.
Storage
Store the video to Phone or SIM card
Restore Default
You can restore the recorder to factory
settings.
Calendar
See under Organizer.
User Manual
64
Ebook reader
See under Organizer.
5. Editor Operation
The mobile phone provides multiple
convenient input modes, which can support the
use of other functions.
Basic letter input
After “abc”/“ABC” is chosen, input your
desired letters with the virtual keypad.
Number input
This mode is mainly used to input phone
numbers etc. After “number” is chosen, you can
input digit into the place where the cursor is
flickering. To get into this mode, you should
press “123” key.
Symbol input
In any of the above input modes, you are
provided with symbol input. Press “SYM” key to
User Manual
65
access the symbol library.
XT9 Smart Input
Overview
T9 software has set the bar for mobile
usability, creating mobile user experiences
that help drive consumer demand for and use
of mobile communications devices and
services. The T9 portfolio now includes XT9
Smart Input: a first of its kind multi-modal
user interface solution for feature-rich
smartphones and advanced mobile devices.
This pioneering user interface is designed to
enable users to easily switch between input
modes, as well as alternate between
numbers, letters, symbols and languages,
making it faster and easier to input text.
The following the main innovations introduced
into XT9 software:
- Form Factor Versatility:
XT9 software is a powerful text entry
solution that works on a wide variety
of form factors. This includes
traditional 12-key phone keypad, hard
User Manual
66
and soft QWERTY keyboard,
half-QWERTY keyboard and
handwriting.
- Mode transitions:
XT9 software makes it easy to switch
between input modes on devices that
have more than one way of entering
text. For example, XT9 will support a
device with both traditional 12-key
input and a touch screen. Users have
access to XT9 in all modes on the
device, making it faster and easier to
input text regardless of how they
enter it. Switching between numbers,
letters and symbols is also easy. And
XT9 supports auto-accenting of words,
a plus for typing in many European
languages, like French, Spanish and
Italian.
- Regional error correction
Typing on the little QWERTY keyboard
found on most mobile devices, it's
easy to hit a wrong key. XT9
compensates for the challenge
presented to big fingers by tiny keys.
For example, if you inadvertently type
User Manual
67
in "m-o-o-b," XT9 presents "moon"
because the "b" is just one key away
from the "n," and the word "moon" is
a more likely choice.
- Extensive Language Support
An expert linguistics team, native
language speakers, and other
researchers participate in carefully
constructing and testing T9 language
databases. New language databases
are continually in development to
make T9 products available to as many
people as possible worldwide. XT9
Smart Input is available in over 60
languages: in this device we choose
English, Italian, French, Spain and
German.
Settings
User Manual
68
The write method settings allow the user
what aid to enable and can configure XT9 in
general directly from the Options menu of the
message end user is writing. It will be possible to
access to the Preferences menu and suggested
settings. In the first, you can select one of the
the following options:
The second one allows to determine the level of
automatic correction of the text and after how
many keystrokes to enter the auto-complete
function of the word.
User Manual
69
Input text XT9
Writing language menu you can select the
languages you want the support of the dictionary
when entering text.
From the Preferences menu you can choose
different settings for text entry such as:
- Shift automatic: automatically capitalize the first
letter of a new sentence
- Automatic Punctuation: press the spacing twice
at the end of a word for a dot
- Automatic Reselection: Shows the list again for
selecting a word previously entered.
From the Setup menu suggestions, you can
choose the following options:
User Manual
70
- Auto correction: automatically corrects typing
errors and spelling (High, Low and Off)
- Completion of the word sets the number of
times a button is pressed before displaying
the completion of words (can be
activated after entering
the key from one to 6 times)
Text input
The XT9 IME for Android supports ambiguous
and explicit text entry. For all alphabetic
languages, both methods are available.
The keyboard layouts share common keys that
make it easy for the user to get to access
languages, numbers, symbols, input methods, etc.
The diagram below displays most of these keys:
When selected as the XT9 input method, a
horizontal bar appears on top of the keyboard
where the suggestions are displayed in the
sequence of key presses.
User Manual
71
The visible selection list is a feature of the XT9
IME where words appear in a horizontal list
above the keyboard. As the user enters
characters, the XT9 IME examines available
databases for words that best match the input.
The XT9 IME takes into consideration features
such as word completion, regional error
correction, and spell correction that may or may
not be enabled. How frequently and how recently
words have been used are also factored into how
words are prioritized.
Although the first word in the selection list is
always the exact match of the characters entered,
the best match is highlighted in the list.
Using selection list
The visible selection list is a feature of the XT9
Exact match
Best match
Desidered word
User Manual
72
IME where words appear in a horizontal list
above the keyboard. As the user enters
characters, the XT9 IME examines available
databases for words that best match the input.
Although the first word in the selection list is
always the exact match of the characters entered,
the best match is highlighted in the list.
Once the desired word or phrase appears in the
selection list, the user can press it to select it and
add it to the input sequence.
Left and right arrows are displayed on either end
to indicate more candidates. By sweeping a finger,
the user can move the list to the left or right.
The XT9 IME takes into consideration features
such as word completion, regional error
correction, and spell correction that may or may
not be enabled. How frequently and how recently
words have been used are also factored into how
words are prioritized.
The visible selection list is a feature of the XT9
IME where words appear in a horizontal list
above the keyboard. As the user enters
characters, the XT9 IME examines available
databases for words that best match the input.
Although the first word in the selection list is
User Manual
73
always the exact match of the characters entered,
the best match is highlighted in the list.
Once the desired word or phrase appears in the
selection list, the user can press it to select it and
add it to the input sequence.
Left and right arrows are displayed on either end
to indicate more candidates. By sweeping a finger,
the user can move the list to the left or right.
The XT9 IME takes into consideration features
such as word completion, regional error
correction, and spell correction that may or may
not be enabled. How frequently and how recently
words have been used are also factored into how
words are prioritized.
Real input sequence
Best match
Error correction
suggestion
User Manual
74
Word completion
The XT9 IME can complete words automatically
after you’ve entered just a few letters. As the
user enters a new word, the XT9 IME will offer
word candidates based on likely matches from
the databases. The number of letters required to
begin word completion is specified in the
settings.
For instance, the user may press b-e-a and the
XT9 IME would return the word “beautiful” as a
candidate. This saves the user the time when
entering longer words.
Word reselection
Even after a word has been accepted, the XT9
Suggestion for word
completion
Real input sequence
Best match
User Manual
75
IME allows the user to go back to the word and
reselect it. By placing the cursor at the end of the
word and pressing the delete key once, the word
is highlighted and the original selection list is
displayed.
This is useful in situations where a user will go
back to correct or modify a word. Rather than
retyping an entire word, the selection list based
on the original word attributes is made available.
The user can choose a word from the selection
list or modify the reselected text to update it.
For instance, the user may want to enter “That
was good food last night!” but doesn’t notice
until after the sentence is written that an error
has been made. By reselecting the word, the user
can choose the correct word from the selection
list rather than deleting one character at a time
Reselected word
Desidered word
User Manual
76
and retyping.
Ambiguous text entry
Ambiguous text entry automatically determines
which letters the user is trying to enter on
keyboard layouts where more than one letter is
assigned to each key. Therefore, ambiguous text
entry pertains to reduced keyboard and phone
keypad layouts.
Ambiguous text entry enables the user to press
the key containing the desired character once
rather than repeatedly pressing to cycle to that
character.
For instance, on a phone keypad, the user would
press 6-3-3-8-4-6-4 in order to input the word
“meeting” rather than having to press each key
multiple times to cycle through the characters.
Explicit text entry
Explicit text entry enables the user to select a
specific character. This can be done by repeatedly
cycling through characters on a keys until the
desired character is reached or by selecting the
character from a menu or list, such as selecting
an emoticon.
On a reduced keyboard and a phone keypad, the
multitap toggle key enables the user to move out
of ambiguous text entry and into multitap explicit
User Manual
77
text entry.
Note: Because there is only one character per key
on full keyboard, it only uses explicit text entry.
In multitap mode, users repeatedly press a
text-entry key to cycle around to the desired
character. Text entry in multitap mode will not
have regional error correction, word completion,
next word prediction, spell correction. This mode
assumes that the user is entering the exact
characters desired.
Multitap mode is useful for entering words that
are not likely to be present in a word database,
such as names of people and places, E-mail
addresses, abbreviations, etc.
To enter text in Multitap mode, the user presses
or taps a text-entry key. The XT9 IME displays the
first character mapped to that key and a timer is
set. If the user presses or taps the same key again
before the timer expires, the XT9 IME replaces
the character with the next one mapped to the
key and a new timer begins. If the timer expires
and the user has not pressed the key again, the
XT9 IME assumes the current character is the
desired one.
User Manual
78
6. Use of USB
Notices before use
Always connect and stop USB device
correctly.
Never use Windows formatting command to
format the mobile disk of the mobile phone;
otherwise, it will be damaged severely.
USB work environment:
o Windows2000 / XP.
o For other operation systems, the
connection between PC and the mobile
phone cannot be conducted unless USB
driver is installed.
User Manual
79
7. Icons
User Manual
80
8. Maintenance & Safety
Please read and observe the following
information for safe and proper use of your
phone and to prevent damage. Also, keep the
user guide in an accessible place at all the times
after reading it.
After sales service
You are kindly refer to the Warranty Card
provided in the sales package box.
User Manual
81
Charger and Adapter Safety
Charger and adapter are designed for indoor use
only.
Battery Information and Care
o Please dispose of your battery properly.
o Do not disassemble or short-circuit the
battery.
o Keep the battery’s metal contacts clean.
o Recharge the battery after long periods of
non-use to maximize battery life.
o Battery life will vary due to usage patterns
and environmental conditions.
o The self-protection function of the battery
cuts the power of the phone when its
operation is in an abnormal status. In this
case, remove the battery from the phone,
reinsert it, and turn the phone on.
General Notice
o Using a damaged battery or placing a
User Manual
82
battery in your mouth may cause serious
injury.
o Do not place items containing magnetic
components such as a credit card, phone
card, bank book, or subway ticket near your
phone. The magnetism of the phone may
damage the data stored in the magnetic
strip.
o Talking on your phone for long period of
time may reduce call quality due to heat
generated during use.
o When the phone is not used for a long
period time, store it in a safe place with the
power cord unplugged.
o Using the phone in proximity to receiving
equipment (i.e. TV or Radio) may cause
interference to the phone.
o Do not immerse your phone in water. If this
happens, remove the battery and take it to
nexian Authorized Service Center.
o Do not paint your phone.
o The data saved in your phone might be
deleted due to careless use, repair of the
phone, or upgrade of the software. Please
backup your important phone numbers.
(Ring tones, text messages, voice messages,
User Manual
83
picture, and videos could also be deleted.)
The manufacturer is not liable for damage
due to the loss of data.
o Do not turn your phone on or off when the
phone is close to your ear.
Troubleshooting
Phenomena
Possible Causes
Unable to
switch on
1. Does the battery
have power?
2. Is the battery placed
correctly
SIM failed
1. The SIM card is
dirty. Clean it.
2. Reinstall the SIM
card.
3. The SIM card is
damaged. Replace
it.
User Manual
84
Poor signals
Check the signal strength
icon on the screen. If the
icon contains 4 bars, it
indicates the signal is the
strongest; if below 1 bars, it
indicates the signal is very
poor.
Unable to dial
out
1. Maybe you have set
Hide My Caller ID
but your network
operator does not
provide this service
for you.
2. Strong interference
exists around you.
3. Maybe you have
activated the call
restriction function.
4. Maybe you have
activated Line 2 but
your network
operator does not
provide this service
for you.
User Manual
85
Unable to
charge the
battery
1. The battery may
discharge too much;
so it cannot be
charged until it is
connected for
certain time.
2. Its performance has
worsened.
Unable to
register to the
network
1. Too weak signals or
strong interference.
2. SIM card installed
properly? Bad
contact or SIM card
damaged? If the
SIM card is broken,
please contact the
network operator to
replace it.
Unable to
access service
menus.
Maybe the SIM card does
not support service
function.
User Manual
86
Only part of
the photo set
as standby
photo can be
seen.
The size of the photo may
be too big. The
recommended size is
220*176
9. Abbreviations
SMS
Short Message Service
EMS
Enhanced Message Service
SIM
Subscriber Identity Module
GSM
Global System for Mobile
Communication
PIN
Personal Identity Number
PUK
PIN Unblocking Key
IMEI
International Mobile Equipment
Identity
CB
Cell Broadcast
GPRS
General Packet Radio Service
MMS
Multimedia Message service
User Manual
87
Card
1
Host card (the card inserted in SIM1
slot)
Card
2
Slave card (the card inserted in SIM2
slot)
User Manual
88
10. Certifications
Declaration of Conformity (R&TTE)
We, NGM Italia
declare under our sole responsibility that the product identified as:
GSM Mobile Phone: Prestige
conforms to the following standards and specifications:
Health EN 50360, EN 62209-1
Safety EN 60950-1+A11
EMC EN 301 489-1/ -7/ -17
Radio EN 301 511
EN 300 328
We declare that [all the series of fundamental radio test have been conducted
and that] the aforesaid product meets all the essential requirements of the
Directive 1999/5/EC.
The conformity assessment procedure referred to in Article 10 and detailed in
Annex IV of Directive 1999/5/EC has been followed with the involvement of the
following notified bodies:
PHOENIX TESTLAB GmbH
Königswinkel 10,
D-32825 Blomberg, Germany
User Manual
89
Technical documentation preserved at: NGM Italia S.r.l.
Available Upon Request.
(Legal representative in EU)
NGM Italia S.r.l.
V ia L. Da Vinci, 7 – Ponticelli
56020 Santa Maria a Monte (Pi)
SAR certification information (Specific Absorption Rate)
This phone meets European Union (EU) requirements concerning exposure to
radio waves coming from telecommunication and radio devices. The exposure
standard for mobile phones employs a unit of measurement known as SAR
(Specific Absorption Rate). The SAR limit recommended by the EU Council is 2.0
W/kg averaged over ten grams of body tissue.
The highest SAR value for this model phone when tested for use at the ear was
0,574 watt /kg. Although the SAR is determined at the highest certified power
level, the actual SAR of the phone while operating can be well below the
maximum value. This is because the phone is designed to operate at multiple
power levels so as to use only the power required to reach the network. In
general, the closer you are to a base station, the lower the power output of the
phone. The Declaration of Conformity here above proves that the designated
product is in compliance with the essential requirements and other relevant
provisions of the R&TTE - Directive (European Radio & Terminal
Telecommunications Equipment)1999/5/EC.
Loading...
