Ver.1.0.20110405
BILLY
BILLY User Manual
2
Contents
1. For your Safety ............................ 4
2. Mobile Phone Profile .................. 7
3. Preparation before Use ............... 9
Insertion and Removal of SIM cards ................... 9
Insertion and Removal of the Memory Card ....... 9
Installation and Removal of the Battery ........... 10
Battery Charging .............................................. 11
4. General Instructions .................. 12
Dial key ............................................................ 12
Switch-on/off key /End key .............................. 12
Standard keypad .............................................. 12
Keypad lock ...................................................... 13
Icons in Standby State ...................................... 13
Services ............................................................ 13
Callers’ group ................................................... 14
5. Basic operation ......................... 14
Switch on ......................................................... 14
Switch off ......................................................... 15
Dial a Call ......................................................... 15
Adjust Receiver Volume ................................... 16
Answer a Call ................................................... 16
Send DTMF Signal ............................................ 17
Dial Hold .......................................................... 17
Fast Read SMS ................................................. 18
Missed Calls ..................................................... 18
BILLY User Manual
3
Connect to Voice mail ...................................... 19
6. Use of Menu Functions ................ 19
Multimedia ...................................................... 19
Phonebook ....................................................... 24
Call center ........................................................ 27
Services ............................................................ 33
WAP ................................................................. 33
Data account ................................................... 35
Messages ......................................................... 35
Facebook ......................................................... 46
Twitter ............................................................. 46
Organizer ......................................................... 46
Fun & Games ................................................... 50
File Manager .................................................... 50
Profiles ............................................................. 53
Settings ............................................................ 55
7. Editor Operation ....................... 60
Basic letter input .............................................. 60
Number input ................................................... 60
Symbol input .................................................... 60
8. Coffer Function ......................... 61
9. Maintenance & Safety.................. 64
Charger and Adapter Safety ............................. 65
Battery Information and Care .......................... 65
General Notice ................................................. 65
Troubleshooting ............................................... 67
10. Abbreviations ............................. 70
11. Certifications .............................. 71
BILLY User Manual
4
1. For your Safety
For your safety and proper use of the
mobile phone, please read the following
guidelines carefully: Do not switch the mobile
phone on when close to chemical factory, gas
station or other explosive objects.
During driving, please use headset for safety
purpose; unless otherwise in emergency,
always stop the car on roadside to have a call
conversation.
Because the use of the mobile phone can
cause interference in the aircraft, never use
the mobile phone in aircraft. The use of the
mobile phone is dangerous and illegal; do
switch off the mobile phone before boarding.
Pay special attention to the use of the mobile
phone near heart pacemaker, deaf-aid and
some other medical equipment, because the
mobile phone can cause interference with
them.
None-original factory’s accessories and parts
will lose guarantee.
Do not dismantle the mobile phone without
permission. In case of failure, please contact
BILLY User Manual
5
the supplier as soon as possible.
Do not plug the charger into the mobile
phone and charge without battery. Always
power off the mobile phone when taking out
the battery; otherwise the memory of the
phone may be damaged.
When charging the mobile phone, always
keep it in the place with good ventilation,
heat sink and away from flammable and
explosive objects.
In order to avoid demagnetization, always
keep the mobile phone away from magnetic
objects such as CD, credit card etc.
Ensure the mobile phone not to contact any
liquid; once such case occurs, remove the
battery and contact the supplier
immediately.
Do not use the mobile phone in the
environment at too high or too low
temperature, never expose the mobile
phone under strong sunshine or too wet
environment. The suitable temperature for
the phone and accessories is 0℃-40℃. The
height to use the phone shall be less than
2,000m.
Do not use liquid or wet cloth with strong
BILLY User Manual
6
cleanser to clean the mobile phone.
This mobile phone has shooting, videoing
and audio recording functions, which shall be
used as per the related laws and regulations.
Always keep the mobile phone out of
children’s reach. Do not throw or vibrate the
mobile phone because violent treatment to
the mobile phone may damage the inner
circuits and precise structures.
Please do not discard the waste battery into
general household garbage. Please deal with
the waste battery according to provisions
where they are definitely made.
Warning: We will not be bear any responsibility
for any incompliance with the above guidelines
or improper use of the mobile phone. Our
company keeps the right to make modifications
to any of the content here in this user guide
without public announcement in advance. The
content of this manual may vary from the actual
content displayed in the mobile phone. In such
case, the latter shall govern.
BILLY User Manual
7
2. Mobile Phone Profile
The mobile phone has the main keys on the
keypad, including single screen， one vibration
motor, one charger/ data common transmission
port. (Below is the front of the mobile phone).
1
2
3
4
5
6
7
8
9
10
BILLY User Manual
8
1.
Receiver
7.
Keypad
2.
LCD
8 Back key
3.
OK key
9.
Key to SMS
4.
SEND 1key
10.
End key
5.
Main menu
11
Speaker
6.
SEND 2key
12
Camera
11
12
BILLY User Manual
9
3. Preparation before Use

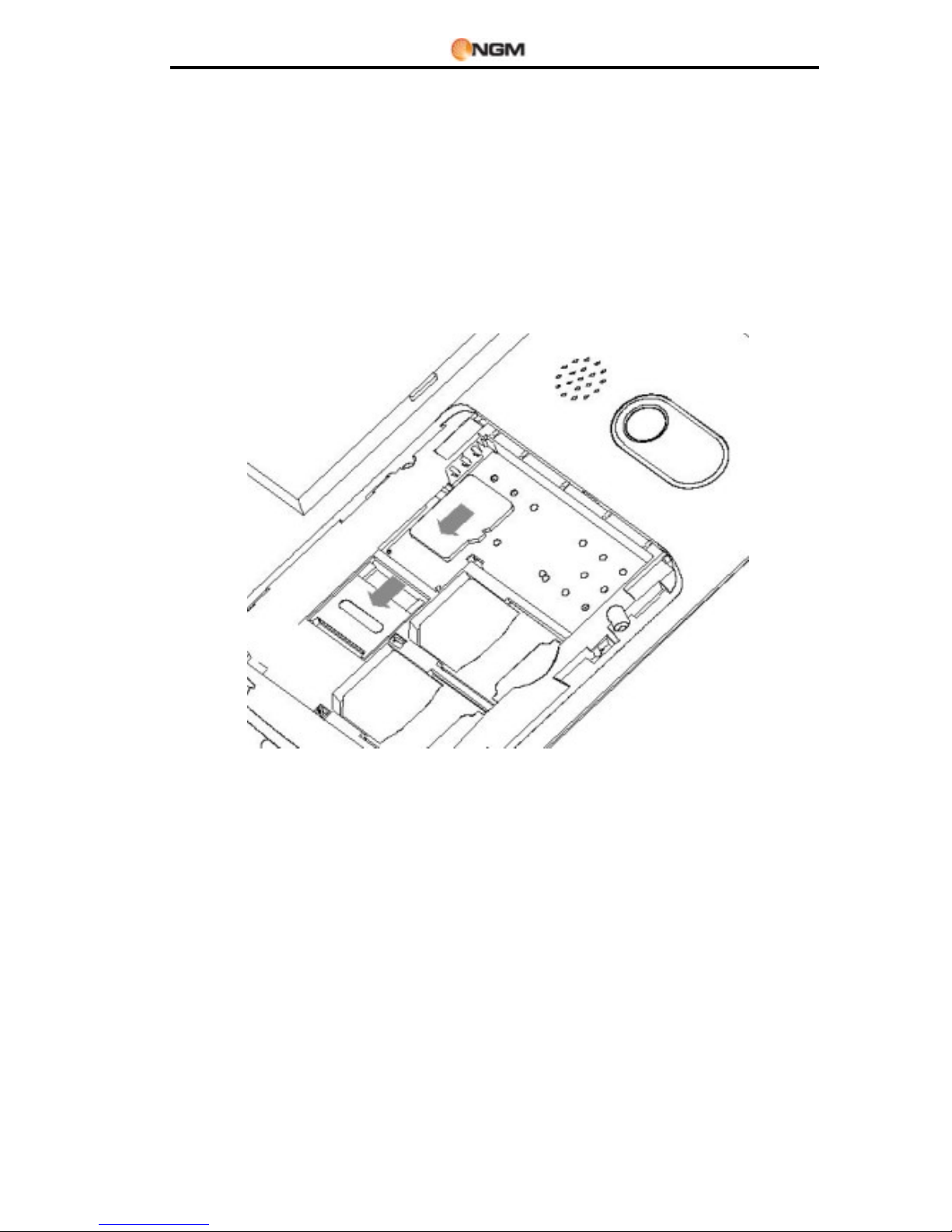

Insertion and Removal of SIM cards
Turn off the phone; remove the battery and
unplug other external power sources.
Insert the SIM1 and SIM2 cards into the SIM1
and SIM2 slots, respectively, as shown in the
following picture.
When you need to remove a SIM card, please
first turn off the phone, remove the battery,
then remove the SIM card
Insertion and Removal of the Memory Card
Turn off the phone; remove the battery and
SIM 1
SIM /2
Battery cover
Battery
T-card
BILLY User Manual
10
unplug other external power sources.
Put the Memory Card into the Memory Card
trough.
When you need to remove the Memory card,
please first turn off the phone, remove the
battery, then remove the Memory card.
Installation and Removal of the Battery
When removing the battery follow the
following steps:
Push the battery cover towards bottom;
Take out the battery from the
mobile-phone. You can find a lit on right
of the battery to ease you to take the
BILLY User Manual
11
battery.
When installing the battery follow the
following steps:
Observe the terminal of the battery and
it should be placed on the battery
terminal on you mobile phone.
Push the battery to inset mobile-phone.
Cover with the battery cover and push
the battery cover towards top.
Warning: You must turn off your mobile phone
before removing the battery.
Battery Charging
Plug the charger into the electrical outlet.
Plug the charger connector into the charge
interface of the phone.
The mobile phone and charger warm during
charging and this is normal.
When charging is complete, unplug the
charge connector from the electrical outlet
and the mobile phone.
Charging must be performed in a
well-ventilated area with a temperature
between -10C and +55C.
BILLY User Manual
12
4. General Instructions
Dial key
It is used to dial a call (with phone number
entered or in phonebook state) or receive an
incoming call. In standby state, press this key to
display the latest call register (SIM1 and SIM2
support respectively 20 call entries, including
received calls, missed calls and dialed calls). In
dual-SIM standby mode, press this key to have an
option menu on which you can choose to operate
via SIM1 or via SIM2.
Switch-on/off key /End key
In call state, it is used to interrupt a call; in
call conversation state, it is used to end a call or
exit from the current menu and back to the
standby state. Hold this key for 4~5s to switch
on/off the mobile phone.
Standard keypad
On the keypad, you can see A-Z （ 0-9
number keys ）number keys, * key and # key,
totally 35 keys.
BILLY User Manual
13
Press these keys to input phone number,
password, English letters, and symbols or choose
menus.
Keypad lock
When in standby interface, if the mobile
phone is idle for certain time, it can be locked an
unlocked by pressing Long press space key to
release. After the mobile phone is locked, the
keypad cannot be activated easily; in case of
incoming call, likewise, press the answer key to
receive it; after that, the keypad will be locked
automatically.
Icons in Standby State
Signal strength
Keypad Unlocked
Alarm clock
Vibrate then ring
Sending message(s)
Ring only
Missed call(s)
Vibrate only
Battery level
Vibrate and ring
Services
Services are provided with SIM kit. The
mobile phone support service function. The
BILLY User Manual
14
detailed menu items depend on SIM card and the
network. When the network provides such
function and your SIM card supports such
function, the service menu will automatically be
posted in the services of the mobile phone.
Callers’ group
The callers’ group in the mobile phone
includes friends, family, VIP, Business and others
etc. You can set different call tone and photo for
different callers’ group.
5. Basic operation
Switch on
Press the switch-on/off key to start the
mobile phone, then the screen will display
switch-on image. Then you can enter Settings
menu to set phone modes, including SIM1 &
SIM2 On, Only SIM1 On, Only SIM2 On and Flight.
The defaulted one is SIM1 & SIM2 On.
After insert SIM card, the mobile phone will
automatically check the SIM card availability, and
then it will be shown information as following on
the display by sequence:
BILLY User Manual
15
1. “Input phone password”——If you have set
the password.
2. “Input PIN” —— If you set SIM card
password.
3. “No service”—Indicates fail to make register
and cannot make any calls.
4. “Emergency calls only”—indicates has
registered to other network and only can
make call to 112.
5. “Searching”—the mobile phone is searching
network until find appropriate network;
6. “Operator name”—Indicates network
successfully registered.
Note: If you do not know PIN code, please
contact the network service provider.
The defaulted phone password is 1122.
Switch off
To switch off the mobile phone, press the
end key. When the screen displays switch-off
cartoon, the host and the slave will be off at the
same time. Do not take out the battery to switch
off the mobile phone. If so, the SIM card can be
damaged easily and some data will be lost.
Dial a Call
With the number keypad, you can enter
BILLY User Manual
16
phone numbers (if wrong characters are
input, press the clear key to delete them).
Press the dial key to dial the phone number.
In SIM1 and SIM2 On state, you can choose
to dial a call via SIM1 or SIM2. To end a call,
press the end key; or to cancel a dial, press
the Cancel key or the switch-on/off key. After
the call is connected, you can see the call
timer on the screen.
Dial a call via phonebook: Enter the
phonebook and search the desired
name/phone number, and then press dial
key to dial call.
Redial latest dialed number: In standby state,
press dial key to view the list of the latest
dialed 20 phone number or names. Roll to
the desired phone number or name and
press dial key to dial call.
Adjust Receiver Volume
In call conversation, press the “left direct
key” and “right direct key” to adjust the volume
of the receiver.
Answer a Call
When there is a call, as per the settings of
BILLY User Manual
17
the mobile phone, you will be alerted with ring,
vibration, vibration and ring as well as ring after
vibration.
To receive a call, press Dial/Call Key.
To refuse a call, press Switch-on/off key or
the end key directly.
If the CLI (Call Line Identity) is opened, the
phone number of the caller will occur on the
screen. If this number has been saved in the
phonebook, the name corresponding to this
number will be displayed on the screen.
Send DTMF Signal
When this function is set, in call
conversation, press the desired number key and *
key and # key to send DTMF signals to the other
party. If such function is inactive, then extension
call will become impossible.
Dial Hold
If you have applied for dial hold, in the call
conversation process, press “Options” to have the
following function menus:
Pause: Pause the current call but with the
line keeping connected.
End: End the current call conversation.
New Call: Enter the dial interface, dial
another call.
BILLY User Manual
18
Phonebook: Enter the directory of the
phonebook.
SMS: Enter the directory of the SMS.
Record: While having call conversation, you
can record the call.
Activate/Inactivate Hand free: You can
activate/inactivate the speaker.
DTMF: You can set whether to send DTMF
signals.
Note: Some menu items need the support of the
local network or can occur in special cases, such
as Conference and New Call. Consult the local
network operator for details.
Fast Read SMS
When the user receives unread SMS, the
screen will display an icon of unread SMS. Press
Read to enter and read the SMS. The SIM card 1
unread SMS icon is marked with “1” and SIM card
2 unread SMS icon is marked with “2”.
Missed Calls
When there is a missed call incoming, the
screen will display a missed call icon. And press
Read to enter and read missed calls.
BILLY User Manual
19
Connect to Voice mail
The mobile phone allows connecting the
incoming call into the voice mail and then you
can receive a notice about voice message. (The
voice mail number must be preset).
6. Use of Menu Functions
Multimedia
Camera
With this function, you can use the inbuilt camera to
take photos. The lens of the camera is located on the
back of the slide and the screen is used as the
viewing window. All photos taken are in JPG form.
After downloading the photos onto PC, you need
some software to view them.
If the storage space of the mobile phone is
insufficient to store the taken photos, it is necessary
to delete some old photos or other files in “File
Management” function list to release more space.
Description of Mobile Phone Options:
BILLY User Manual
20
Options
Description
Photos
To view the saved photos.
Camera Settings
Shutter Sound: sound 1, sound 2, sound 3 and
Off.
EV: EV-4 ——EV+4.
Contrast: High, Medium, Low.
Banding: 50Hz(default), 60Hz.
Delay Time: 5s, 10s, 15s or Off.
Cont.Shot: 1 Shot , 3 Shot , 5 Shot and Off.
Image Settings
Size: 176x144 or 352x288.
Quality: High, Normal, Low.
White Balance
Auto, Daylight, Fluorescent, Incandescence.
Scene Mode
Auto, Night.
Effect Settings
Normal, Grayscale, Sepia, Sepia green, Sepia blue
Storage
Phone, Memory Card.
Restore Default
You can restore the recorder to factory settings.
Image viewer
All photos taken are saved in the album.
Options
Description
View
You can view the selected photos.
Use as
You can send photo to wallpaper ,Screen
saver, power on display, power off display.
BILLY User Manual
21
Send
As multimedia message.
Rename
You can rename the selected photo.
Delete
You can delete the selected photo.
Delete All files
You can delete all photos in the album.
Sort by
For convenience of search, you can rank
them as per name, type, time and size or
choose “None”.
Storage
You can choose photos storage path (to
phone or memory card).
Audio player
To download music, you must insert the T-Flash card
into the PC’s memory card reader (or use a USB
adaptor to connect it). Download the chosen MP3
files under "My Music" folder of the memory card
rather than in such folders as Audio, Images and
Photos; otherwise, the files cannot be played from
the audio player. (Only the music in MP3, AMR and
MIDI are supportable).
Description of audio player options:
Options
Description
Play
Play the current chosen music.
Details
View file name, track, SQ, file size, music
duration, music name, singer, music special a
music type etc.
Add to
Ringtones
Add the chosen music into the ring base.
Refresh
list
Enter the tracklist and update it (e.g. the
deleted music in the file management will not
disappear until update is conducted.
BILLY User Manual
22
Settings
Play Settings: Tracklist path, automatic tracklist,
repeat, shuffle ,background play.
Sound Recorder
After choosing ‘Sound Recorder’ and press ‘OK’ to
enter, you can the previous record files. Press
‘Options’ to have the following operations:
Record: You can record new files.
Play: You can play the selected file.
Append: You can have annex record for the
files of the superior level (only for the
record files in AMR).
Rename: You can rename the chosen file.
Delete: You can delete the chosen file.
Delete All files: You can delete all files.
Settings: You can set the storage position
for record files, including phone and
memory card. Also you can set the format
of the record file, including AMR and WAV.
Use as: You can used as user profiles.
Send: You send the record file to Bluetooth,
email and multimedia message.
BILLY User Manual
23
FM Radio
Your mobile phone supports FM radio. To use the
mobile phone to listen to radio, insert the headset
connection cable into the headset port on the
mobile phone. The headset connection cable
functions as the antenna of the FM radio, so it
should hang freely. While listening to radio, you can
dial or receive a call normally. During call
conversation, the radio will turn mute automatically.
If some applications are using GPRS or CSD to send
or receive data, they may interfere with the radio.
When the FM radio is activated, the mobile phone
will display the number and name (if having been
saved) and frequency of the radio channel. If you
have saved some radio channels (at most 9 channels)
in the mobile phone, you can roll to choose the
desired channel or press any of number keys 1-20 to
choose the corresponding channel.
Option menu
Channel list: You can edit and save 20
channels.
Manual input: You can edit the specified
radio frequency band. The frequency of the
radio is between 87.5mHz and 108.0mHz.
BILLY User Manual
24
Preset Auto Search: You can have automatic
search and save the searched channels into
the list.
Settings: You can set background play, loud
speaker, record format, audio quality and
record storage.
Record: You can record new files.
Append: You can have annex record for the
files of the superior level (only for the
record files in AMR).
File list: the record files
Schedule FM record
You can schedule to record certain FM Radio
channel at any time, so that you will not miss the
program.
Phonebook
The mobile phone is provided with the business
card folder type phonebook. The information of
every contact saved on the mobile phone include
three phone numbers (mobile phone, home phone
and company phone), company name, e-mail, fax,
BILLY User Manual
25
birthday, big-head sticker, tone, callers’ group (five
types: family, friends, VIPs, colleagues and others).
Every contact saved into SIM1 and SIM2 can only
include name and number. The mobile phone
supports 1,000 groups of numbers.
Quick Search
You can Input the English letter in the position
where the cursor is flickering to position the contact
from these contacts that meets the conditions.
Search contact
Input the name to be searched, press “Search” in
the phonebook, then you can find the matching
name.
Add New Contact
You can save phone numbers onto SIM card,
phone, or existing contact. On SIM card, one
entry has only name and phone number. On the
phone, one contact can include Name, Number,
Home Number, Company Name, E-mail Address,
Office Number, Fax Number, Birthday, Associate
Picture, Associate Sound and Caller Group. On
existing contacts can add numbers to existing
contact earlier.
BILLY User Manual
26
Tip: If one contact is set with photo link, tone link
and callers’ group at the same time, then the callers’
group function will be inactive.
Copy all
You can copy the contacts from the phone to SIM
Card or from the SIM card to phone.
Delete
You can delete the contacts from the phone or
from SIM Card.
Caller Groups
You can set call tone, photo and members for five
callers’ groups. Callers’ group member can only
come from the number saved on phone.
Extra Numbers
You can separately set SIM1 and SIM2’s My
Caller ID, service numbers and emergency
numbers (the latter two needs the support of the
SIM card, consult the network operator for
details).
Phonebook Settings
Memory Status: You can view the current use
status of the phonebook, including SIM1,
BILLY User Manual
27
SIM2 and phone memory. The display format
is “Used/Total”.
Preferred Storage: You can choose the
storage path for the current number.
Fields: You can choose the display items in
the phonebook and the display items in the
Add Contact interface.
My vCard: You can edit and send my business
card.
Vcard version:including vcard 2.1 and vcard
3.0
Call center
Call center includes Call history and Call Settings.
In dual-SIM mode, you can separately search the
call register of SIM1 and SIM2 and set separately
some operations corresponding to SIM1 and
SIM2. In mono-SIM standby mode, you can set
the available SIM card and see its call
registration.
Call history
It includes missed calls, dialed calls and received
calls, delete call log, call time, call cost, SMS
counter, GPRS counter etc.
BILLY User Manual
28
In missed calls, received calls and dialed calls
function list, you can see the date and time of the
call, edit or delete the phone number in the list,
save the number to phonebook or send SMS and
MMS to the number, etc.
Note: SIM1 and SIM2 contains respectively 20
entries. Choose any entry from missed calls,
received calls and dialed calls, press the Send key
to dial the number directly.
Call timers
Last Call: With this function, you can view
the last call time.
Dialed calls: With this function, you can
view the duration of all dialed calls.
Received calls: With this function, you can
view the duration of all received calls.
Reset all: With this function, you can clear
all duration records of calls.
Note: The actual call duration and service time in
the bill of the service provider may be different from
them, which depends on the network functions,
accounting rounding and tax etc.
Call Cost
This needs the support of the network service
BILLY User Manual
29
provider.
Last Call Cost: With this function, you can
view the fees of the last call.
Total Cost: With this function, you can view
the fees of all calls.
Reset Cost: With this function, you can clear
all fee records.
Max Cost: With this function, you can limit
call fees in the specified pricing unit or
currency unit. PIN2 code must be input to
set call cost.
Price Per Unit: This function needs network
support. For more details, please consult
the network operator.
SIM text message Counter
With this function, you can see and preset the
number of sent messages and received messages.
GPRS Counter
Last Sent: You can view the sending traffic
of last link.
Last Received: You can view the reception
traffic of last link.
All Sent: You can view the sending traffic of
BILLY User Manual
30
all links.
All Received: You can view the reception
traffic of all links.
Reset Counter: You can clear all link traffic.
General Call settings
[SIM Card settings]
Caller ID: Including set by Network, hides ID and
send ID.
Set by Network: While having a call
conversation, you can send my caller ID in
the form preset by the system.
Hide ID: While having a call conversation,
you will not send my caller ID. If the system
does not support such function, call may
fail.
Send ID: While having a call conversation,
you can send my caller ID to the system.
Note: This function needs network support.
Call Waiting: You can set this function to On or
Off. The call hold and multi-party call cannot be
active unless this function is activated. This needs
network support.
Call Divert: This is a kind of network function,
which cannot be used unless you apply to the
BILLY User Manual
31
network operator for it. With this function, you
can divert call to another number.
Name
Description
Divert All
Voice Calls
The network will divert all
voice calls without conditions.
Divert if
Unreachable
When the network cannot
find your mobile phone
(switched-off or out of the
service area), it will divert the
calls.
Divert if no
Answer
When the mobile phone does
not answer the call, the
network will automatically
divert it.
Divert if
Busy
When you are on line, the
network will divert the call.
Divert All
Data Calls
Network support needed.
Cancel All
Diverts
Cancel all divert functions.
Call Barring
Outgoing Calls:
All Calls: You can bar all outgoing calls.
International Calls: You can bar
international calls.
BILLY User Manual
32
International Calls Except To Home PLMN:
When abroad, you can dial the calls of the
current country and the original country
(the service providers allows to do so).
Incoming Calls:
All Calls: You can bar all incoming calls.
When Roaming: You can bar all calls except
the calls of the local service area.
Cancel All: You can cancel call barring settings
and dial/receive calls normally.
Change Barring Password: You can apply to the
network to change the password for call barring.
[More]
Call setup Firewall: You can set the firewall
as the phone guides.
Auto Redial: You can set it as On or Off.
After the first automatic redial fails, you can
have at most ten times to connect a phone
number.
Speed dial: Set the function On or Off.
Call time display: Set the function On or
Off.
Call time reminder: Set the function On or
Off.
Note: Some settings need network support. For
BILLY User Manual
33
example, call barring cannot be used unless the local
network and SIM card open it.
Services
WAP
Homepage-- Start the website chosen in the
connection settings file.
Bookmarks—WAP, Enter the options menu and
have the following operations on the bookmark:
Go to: Log into the chosen website.
Edit: Edit the chosen bookmark
name and website.
Send: Send the bookmark as text
message or multimedia message.
Delete: Delete the chosen
bookmark.
Delete all: Delete all bookmarks.
Add bookmark: Add new
bookmarks.
Recent pages: Record the latest 10 web pages
browsed.
Offline pages: You can view these pages when
you offline.
Input address: Input the website to be logged
in.
BILLY User Manual
34
Service Inbox: The mobile phone can receive
the service information (“Recommended”
information) sent by the service provider. For
example, the service information can be the
notice of related news headlines, which can
include one piece of news or a service website.
Settings:
Select SIM: Always ask/SIM1/SIM2
Edit account: By this function you can edit
the account.
Browser options-- You set whether to
display images during waiting time and
when browsing WebPages.
Service message settings-- You can choose
ON or OFF to enable the push or not and
you can choose the disable or always in
the Trust settings. Set SL settings functions
as follow: Never, confirm, without confirm.
Add new trust list including: number, IP
address, Domain name.
Clear cache-- You can clear cache. When
the data of the cache are excessive,
network surfing speed can be affected.
Clear cookies-- You can clear personal data.
BILLY User Manual
35
Data account
GSM Data—You can set the number, name DNS
etc.
GPRS—You can set the name, APN, user name,
password, Auth. type, DNS.
Note: For related charging standard and detailed
settings, please consult the local network
service operator. Different network service
providers provide different services.
Consult the local network operator.
To set up your WAP service, you have to go
through two steps. Step 1 is to set up a Data
Account. The next is to set up your browser and
link to the Data Account you have set up.
Messages
Text message
SMS is a kind of network service that cannot be
used to send and receive short messages until you
apply to the network operator
Both SIM cards of the mobile phone can send
and receive SMS. The SMS is sent to the SMS center
of the network and then sent by the network to the
target user (GSM user). If the user does not switch
BILLY User Manual
36
on the mobile phone or the mobile phone cannot
receive the SMS (the memory is full), the network
will save the SMS temporarily. The duration of
storage depends on sender’s settings and network
service provider.
With this function, the mobile phone can send
and receive chain text messages, which may affect
the message fees. For more information, please
consult the service provider.
When the SMS capacity is full, there will be an
SMS icon flickering on the standby interface. The full
capacity can affect SMS reception. Delete some SMS
to solve the problem.
If the other party has received SMS, you will
hear the alert sound from the mobile phone (if such
alert function is set as ON)
Note: When sending SMS via the SMS network, the
mobile phone may display “Message sent”. It
indicates that the SMS has been sent to the SMS
center inbox set in the mobile phone but does not
mean the receiver has received the SMS. For more
information, please consult the service provider.
Write Message
You can write message in this menu.
Every SMS can contain 160 word length English
characters. To write SMS, press “#” key to switch
BILLY User Manual
37
input modes, “*” key to select Symbol; press “Clear”
key to clear one character before the cursor, long
press “Clear” key to delete all characters; press the
end key to back to the standby interface, press the
upper and down direction key to choose characters.
The mobile phone can send the chain SMS
more than 160 characters (limit for common text
messages). If the SMS contains more than 160
characters, then the SMS will be split into 2pcs or
more. You can insert Picture, My picture, Predefined
animation, My animation, Melody, My melody,
Predefined sound into SMS. However, the SMS will
not be received and displayed unless the network
and the receiving mobile phone support.
You can enter the phone number or choose a
number from the phonebook to send the SMS. In
dual-SIM standby mode, you can choose to send the
SMS via SIM1or SIM2.
Inbox
You can see the SMS in the SIM1/SIM2 inbox.
Reply: You can reply to the received SMS.
Delete: Delete the current SMS.
Forward: You can directly forward this SMS to
others.
Copy to phone: You can copy the entries in SIM
card onto the phone.
BILLY User Manual
38
Move to phone: You can move the entries in
SIM card onto the phone.
Chat: You can chat with the sender after set a
chat room.
Delete all: You can delete all SMS in inbox.
Copy all: You can have two options, i.e. copy all
entries on the SIM card in the inbox onto the
phone or vice versa.
Move all: You can have two options, i.e. move
all entries on the SIM card in the inbox onto the
phone or vice versa.
Use number: You can extract the number in the
SMS and save it or dial a call.
Use URL: You can link to the website contained
in the received SMS.
Outbox
While sending SMS, if choosing “Save and send”,
you can save the SMS into the Outbox. You can
directly save the edited SMS into the Outbox, in such
case; the Outbox will display “No number”, i.e. no
target number. If you fail to send the SMS, it will be
saved in the Outbox. Also, you can have such
operations as Send from SIM1/SIM2, Edit, Delete,
Copy to phone, Move to phone, Delete all, Copy all,
Move all, Use number, Use URL.
Junkbox
BILLY User Manual
39
If an SMS is coming from a blacklisted number (see
chap. Settings), it will be automatically saved in the
Junkbox.
Templates
With it, you can pre-edit some common phrases,
which is convenient for quick SMS editing.
SMS settings
You can set some parameters of the SIM1 SMS
or SIM2 SMS in the menu.
Profile settings: To send SMS, you must
input the SMS center number.
Note: The SMS center number is provided by the
network operator.
Common settings
Delivery report: The network will
inform you whether the other party
has received the SMS and what the
time is.
Reply path: You can send the reply
path to the network terminal. This
function needs the support from the
SMS center.
Memory status: You can view the capacity
of the SIM card or the phone for SMS by
number.
Preferred storage: You can set the storage
position (SIM or phone) for SMS.
BILLY User Manual
40
MMS
MMS can contain words, sound and photos. If
the MMS is out of the limit, the mobile phone will be
unable to receive the MMS. If the SMS contains
photos, the mobile phone will adjust photos so as to
display them on the screen completely.
The display effect of MMS depends on
reception devices.
Note: You cannot use photo messages unless the
network operator or service provider supports to do
so. You cannot receive and display MMS unless the
mobile phone has the compatible MMS or e-mail
function.
Write message
To
Add Number-- Input the number of the
receiver.
Add E-mail-- Input the e-mail of the
receiver.
Cc
Add Number-- Input the number of the
receiver.
Add E-mail-- Input the e-mail of the
receiver.
Bcc
BILLY User Manual
41
Add Number-- Input the number of the
receiver.
Add E-mail-- Input the e-mail of the
receiver.
Subject: You can edit the subject of the MMS.
Edit content
Press Edit key to have the following options:
Add text: You can write you want to
say.
Add picture: You can insert you desired
picture.
Add audio: You can insert your desired
audio.
Add attachment: You can insert you
desired attachment.
Add slide before: You can add a slide
before the current page.
Add slide after: You can add a slide
after the current page.
Preview: You can preview the editing
effect of the current MMS.
Slid timing: You can set the play time
of every slide.
After editing, you can press “Done” key to finish
the MMS, in this option you can send the MSM as
following methods: send only, save and send, save to
BILLY User Manual
42
drafts or save as template, you can also set functions
including: Validity period, Delivery report, Read
report, Priority.
Inbox
You can see the MMS in the inbox and have the
following operations:
View: You can view the MMS and save photos,
audio and annex.
Reply: Reply the sender with MMS Reply by
SMS: Reply the sender with SMS.
Reply all: If the MMS you received has been
sent to many receivers by the sender, with such
function, you can send a reply MMS to the same
receivers.
Forward: You can directly forward this MMS to
others.
Delete: Delete the current MMS.
Delete all: You can delete all MMS in inbox.
Save as template: You can save the MMS as
template.
Properties: View the detailed information of the
current message.
Use details: You can extract the number in the
MMS and save it or dial a call. You can also use
the URL in the MMS.
Outbox
BILLY User Manual
43
You can view the MMS send and saved in the
Outbox and failed and have such operations as View,
Send, Delete and Delete all, Save as template,
Properties and Use details.
Drafts
You can save the edited MMS into the drafts,
and also you can have such operations as View, Send,
Edit, Delete and Delete all, Save as template,
Properties and Use details on the MMS in the drafts.
Templates
There are 5pcs preset MMS in the mobile
phone and you can have such operations as View,
Write message and Properties from Template. There
will be the templates which user defined.
Message settings: You can set some parameters of
the MMS in the menu.
Compose:
Creation mode-- "Free" and
“Restricted ".
Picture resizing-- You can reduce the
size of the inserted photo, including:
160*120,320*240 and Off.
Best slide duration-- You can set On or
Off to activate such function.
Auto Signature-- You can set On or Off
to activate such function.
BILLY User Manual
44
Signature-- You can edit the content of
the automatic signature.
Send:
Validity period-- You can set the time
to save in the MMS service center and
send, including Maximum,1hour,
6hours, 12hours, 1day, 1week.
Delivery report--You can On or Off to
activate such function.
Read report-- You can On or Off to
activate such function.
Priority-- Including Medium, High, Low.
Slide timing-- You can set the interval
of the receiver to see the MMS,
defaulted as 5s
Delivery time --Immediate, 1hour later,
12 hours later and 24 hours later.
Retrieve:
Home network—Immediate and
Rejected, Delayed.
Roaming -- The same as to the main
network, including and As home,
Delayed and Rejected,.
Read report—On request, Send, Never
send
Delivery report—You can set On or Off
BILLY User Manual
45
to activate such function.
Filter:
Anonymous -- Allow and Reject.
Advertisement-- Allow and Reject.
Server profile:
In dual-SIM mode, you can separately set SIM1
and SIM2. After choosing Settings, you can have the
following settings:
Activate account.
View account: You will view the
Account name, MMSC address, Data
account, Connection type, User name
and Password of the account.
Memory Status:
You can see the utilization rate of the mobile
phone, including the used space and the usable
space. The sub menu should show SMS capacity in
Numbers.
Broadcast Message
Cell broadcast is a kind of information service
such as weather report, traffic etc that the network
operator sends to the GSM users within certain area.
In dual-SIM mode, you can separately set SIM1 and
SIM2.
Receive mode: You can ON/OFF to activate
BILLY User Manual
46
such function.
Read message: You cannot read the received
information until you open such function.
Languages: You can set the language for the
received information. The defined is All
languages.
Channel settings: You can Select, Add and Edit
and Delete channel number.
Facebook
By pressing this menu, you will be connected to face
book. Then, you can enjoy accessing the well known
face book social networking.
Twitter
By pressing this menu, you will be connected to
twitter. Then, you can enjoy accessing the well
known social networking
Organizer
Calendar
With this function, you can set the alarm
clock to remind you of your schedule and record
your schedule. Roll the highlight block to the
desired date and then the current date will be
BILLY User Manual
47
highlighted in green. If the date is set with memo
function, then this date will be highlighted in red.
To view all memos of one day, press OK to see the
schedule. You can have the following operations:
View today: You can view the schedule of the
date where the cursor is on and set the time,
date, content and whether to activate alarm
on this schedule of today’s. When editing the
schedule, you can choose alarm type with
the left and right direction keys. In addition,
you can have such operations as Delete,
Delete and Add on the schedule.
View all: You can view the entire schedule of
the date where the cursor is on and set the
time, date, content and whether to activate
alarm on this schedule.
Add event: you can select task type as
reminder, meeting, course.
Delete event: You can delete the task as the
phone guides.
Jump to Date: You can move to the calendar
of the specified date.
Go to weekly view: You can go to weekly and
monthly view.
Tasks
You can have such operations as Date, Call,
BILLY User Manual
48
and Anniversary.
If you have set alarm for the date, when the
set time is reached, the mobile phone will ring
and display the memo content.
Alarm
The time format for the alarm clock is
identical to that of clock. When the mobile phone
is off, the alarm clock can still work provided the
battery is sufficient. The system has set 5 alarm
clock options and the defaulted is off. You can
activate one option or all options according to
the actual demand. Every alarm clock option can
set independent time and date. When the time is
reached, the mobile phone will give out alert
tone and flicker the current time and date on the
screen. Press Stop to stop alarm clock; press
Sleep, then the mobile phone will pause ringing
and continue after 4min.
If alarm time is reached but the mobile
phone is switched off, then the mobile phone will
be switch on automatically and ring. If Stop is
pressed, then the mobile phone will ask you
whether to switch on the mobile phone. Press
“No” to switch off the mobile phone and “Yes” to
register at the network and switch on the mobile
phone.
BILLY User Manual
49
World clock
Press the left and right direction keys to
view the current time of every country
corresponding to every time zone.
Calculator
The upper direction key for “+” and the
lower direction key for “－”, the left direction
key for "×" and the right direction key for "÷";
Press the clear key to clear the latest inputs
or results digit by digit; press the clear key
long to clear all content or result;
Press “OK” key to obtain the result.
Note: The precision of this calculator is limited
and can be used for simple calculation.
Currency Converter
To save exchange rate, press “OK”, then
choose to set exchange rate. Choose one
exchange rate from the displayed options. After
that, press “OK” to confirm. Then the exchange
rate will be saved in the memory until you enter
a new one to replace it. To convert currency,
enter the sum to be converted, press “OK” and
then choose to local currency or foreign currency.
BILLY User Manual
50
Fun & Games
This mobile phone provides one inbuilt games.
Please refer to the operation instructions
attached to the games.
Game settings
BGM: On or off background audio.
Sound effect: On or off audio.
Vibration: On or off Vibration
Volume: Up and Low Volume
File Manager
You can manage photos, MP3 and folders.
[Phone]-- The storage body is phone.
[Memory Card]: You can open Images, Audio,
Photos, Received, etc..
Audio—Audio folder
Play: You can play the selected content.
Use as: You can send audio to Profiles.
Send: You can send audio to MMS
Details: You can see the date and size of the
file.
Rename: You can rename the file.
Copy: You can copy the file into Audio,
Images, My Music, Photos, Video or
specified folders.
BILLY User Manual
51
Move: You can move the file into Images, My
Music, Photos, Video or specified folders.
Delete: You can delete the current record.
Delete All files: You can delete all records in
all current folders.
Sort by: You can rank files as per name, type,
time and size or choose “None”.
Images—Images Folder
View: You can see the current image.
Use as: You can send images to wallpaper,
Screen saver, power on display, power off
display.
Send: You can send images to MMS .
Details: You can see the date and size of the
file.
Rename: You can rename the file.
Copy: You can copy the file into Audio,
Images, My Music, Photos, Video or
specified folders.
Move: You can move the file into Audio, My
Music, Images, Photos, Video or specified
folders.
Delete: You can delete the current record.
Delete All files: You can delete all records in
all current folders.
BILLY User Manual
52
Sort by: You can rank files as per name, type,
time and size or choose “None”.
My Music—MP3 Folder
Play: You can play the current MP3.
Use as: You can send music to Profiles.
Send: You can send music to MMS.
Details: You can see the date and size of the
file.
Rename: You can rename the file.
Copy: You can copy the file into Audio,
Images, Photos, Video r specified folders.
Move: You can move the file into Audio,
Images, Photos, Video or specified folders.
Delete: You can delete the current record.
Delete All files: You can delete all records in
all current folders.
Sort by: You can rank files as per name, type,
time and size or choose “None”.
Photos—Photo Folder
View: You can see the current photo.
Use as: You can send the photo to Profiles.
Send: You can send photos MMS.
Details: You can see the date and size of the
file.
Rename: You can rename the file.
BILLY User Manual
53
Copy: You can copy the file into Audio,
Images, My Music, Photos, Video or
specified folders.
Move: You can move the file into Audio, My
Music, Images, Video or specified folders.
Delete: You can delete the current record.
Delete All files: You can delete all records in
all current folders.
Sort by: You can rank files as per name, type,
time and size or choose “None”.
New Folder: Under the root directory, you can
create a new folder to save more detailed files.
Format: Formatting can clear all files in the
mobile phone and newly created folders. After
formatting, you need to restart the mobile phone
and the Audio folder and Images folder will
restore automatically and Photos folder will
automatically occur after the first photo is taken.
Rename: You can rename the folder.
Details: You can see the available space on the
folder.
Profiles
Your mobile phone is provided with multiple
profiles so that you can customize some settings
in different cases for different events. Firstly, as
BILLY User Manual
54
per your personal hobby, have individualized
settings on profile and then activate it. You can
have such profiles as General, Meeting, Outdoor,
Indoor, Headset.
The content can be edited at every profiles mode
as following:
Tone Setup: Include Incoming Call, power-on,
power-off, Message Tone and Key Tone.
Volume: Set the volume of Ring and Key
Tone.
Alert type: You can choose any one from
Ring, Vibration, Vibration and Ring ，
Vibration then Ring as the current ring
mode.
Ring Type: You can choose any one from
single, repeat and ascending as the current
ring type.
Extra Tone: You can have on/off settings on
Warning Tone, Error Tone, camp on Tone and
Call Connect Tone so as to have
corresponding tone tips.
Answer Mode: You can choose whether to
use any key to answer.
After individualized settings, choose “Activate” in
“Select” to start profiles.
Note: After the headset is inserted into the
BILLY User Manual
55
mobile phone, the mobile phone will
automatically change into headset profile. Unplug
the headset to return to the previous profile.
In standby state, you can press silence key ($) to
switch to silence profile and again to the previous
profile.
Settings
Dual SIM settings
You can in any place and at any time set the
dual-mode mobile phone as the following modes
according to your own demand:
o Dual SIM open
o Only SIM1 open
o Only SIM2 open
o Flight mode
Phone Setup
In such menu, you can set phone language, standby
wallpaper, time etc.
Time and Date: With this function, you can
set city, time and date format and the time
of specific place.
o Set Home City: You can set
different cities.
BILLY User Manual
56
Note: This option must be used together with auto
update of time and date. Auto update of time and
data cannot be conducted unless there is network
support.
o Set Time and Date: You can
set the current time and
date.
o Set Format: You can set the
display format for time and
date.
Note: If the battery is taken from the mobile phone
or the battery is used up for a long time, when
switching on the mobile phone after reinstalling the
battery or charging the battery, you need to reset
the time and date.
Schedule Power on/off: You can set the
time for schedule Power on/off.
Special Note: In the area forbidding using mobile
phone (such as cabinet), you must confirm to
inactivate this function before entering this area so
as to prevent accident.
Language: You can choose the desired
language for phone display.
Display characteristic: You can set standby
BILLY User Manual
57
menu display as wallpaper, screen saver,
power on display, power off display,
whether to display time and date and
owner number (if set in the phonebook)
Greeting text: You can set the greeting text
displayed on the main screen.
Navigation keys: To set a function for each
one of the navigation keys.
Update with time zone: To set the mobile
phone to automatically update time and
date according to the current time zone,
choose ‘Activate’. Auto update of time and
date will not affect the alarm clock,
calendar or alarm clock memo setting time,
which will be subject to the time and date
when created. However, auto update of
time and date may make some set alarm
clocks out of date.
Misc. Settings: You can adjust the
brightness and time of LCD backlight.
Network Settings
Network Selection: You can search the network
again. Select your favorite network and choose to
register the network automatically or manually.
Preferences: You can set the preferred registered
BILLY User Manual
58
network for SIM card.
Security Setup
SIM Security Setup
SIM Lock: You can set SIM lock (PIN
code) as on/off. When this option is
chosen, it is necessary to input PIN
code for every insert of the SIM
card.
Fixed Dial: This function needs the
support of the SIM card and the
network operator. When it is
activated, you can only dial the
phone numbers saved in host fixed
dial list. To activate it, you need to
input host PIN2 code.
Barred Dial: You can set barring all
or some dials. (SIM card support
needed)
Change Password: You can change
the default phone password ‘1234’
into 4-8-digit number that is easy to
remember. If the phone lock is
activated, when switched on, the
mobile phone will hint.
Phone Lock: You can set it as On or Off. It is
BILLY User Manual
59
a password of 4-8 digits and the default
one is 1122. You can change it.
Auto Keypad Lock: You can set it as On or
Off. The mobile phone has keypad lock
function. When it lasts certain time, the
keypad will be locked, including such
options as Off, 5s, 30s, 60s and 5min.
Change Password: You can change the
default phone password ‘1234’ into
4-8-digit number that is easy to remember.
If the phone lock is activated, when
switched on, the mobile phone will hint.
Message Firewall: Set and save the
Blacklist and the White list, and you can
set the message firewall.
Privacy firewall：Input the password and
you can enter the function to set the
Privacy Phonebook, Privacy Message lock
and Privacy Call History lock.
Restore Factory Settings
You can restore the factory settings of the mobile
phone. The default password is 1122.
BILLY User Manual
60
7. Editor Operation
The mobile phone provides multiple
convenient input modes, which can support the
use of other functions.
Basic letter input
After “abc”/“ABC” is chosen, input your
desired letters with the standard keypad. By
pressing “Aa” key you will change from one input
method to another. You can type a capital letter
by pressing ”” key followed by the letter you
wish to type in capital letter.
Number input
This mode is mainly used to input phone
numbers etc. After “number” is chosen, you can
input digit into the place where the cursor is
flickering. To get into this mode, you should
press “Aa” key several times until the phone goes
into this input mode.
Symbol input
In any of the above input modes, you are
BILLY User Manual
61
provided with symbol input (“alt” + key). If you
cannot see symbols, press “sym” key to see them.
If you want one symbol, press the
up/down/left/right key to choose.
8. Coffer Function
You can access the Coffer function only
aftyer entering the password from the standby
interface.
All call history, SMS etc produced by the
contacts saved in the coffer will be saved in the
coffer and no hint is left out of the coffer. When
the coffer receives SMS, there will be SMS
envelope hint and message alert tone rather than
message alert menu occurring in the standby
menu
The characteristics of the phonebook, SMS
and MMS etc in the coffer not mentioned are the
same as those out of the coffer.
Enter the coffer:
In the standby interface, input “*”, coffer
password (initial value is 0000, able to be
modified) and then “#” to enter the coffer.
Coffer phonebook
The coffer phonebook supports 10 private
contacts.
BILLY User Manual
62
Browse
You call see all contacts on the phonebook.
Press the left softkey to enter the option menu of
a contact and then you can have such operations
as Send, View, Edit, Delete, Delete All and Save
etc. Saving is to move the contact into the
phonebook out of the coffer.
Press the dial key to dial a call. If the contact
has false name or false phone number, then
screen will display false name or number and the
call history this time can be saved in the coffer.
Add Calls
In this interface, you can add name, number,
false name or false number.
Note: For outgoing calls, incoming calls or SMS
reception, if one contact sets false name and
number, then the false name will be displayed; if
not, “Unknown contact” will be displayed.
Settings
View Capacity: You can view the use status in
the coffer phonebook. The display format is
“Used space/Total space”.
Delete All: You can clear the coffer phonebook.
Coffer SMS
Create SMS
You can create new SMS in this menu of
1,224 English characters.
BILLY User Manual
63
Inbox
The inbox supports 20pcs SMS. You can see
the received SMS in the inbox.
Reply: You can have a text message reply
to the received SMS.
Edit: You can edit the current SMS and
send it after editing.
Delete: You can delete the current SMS.
Delete All: You can delete all SMS not
locked in the inbox.
Note: In the coffer, to choose the contacts for
SMS sending, you can see only the phonebook
contacts in the coffer.
Tip: When the inbox is full, the new messages
will automatically cover the earliest messages.
Outbox
The outbox supports 10 SMS. If choosing
“Save and Send” to send SMS, you can SMS will
be saved into the coffer outbox. And you can
have such operations as Edit, Send, Delete,
Delete All on the SMS saved in the outbox.
Draftbox
The Coffer SMS Tone Mode lets you
enable/disable the tone for the Coffer SMS.
Coffer Call Log
It can record the missed calls, received calls
and dialed calls related to the contacts in the
BILLY User Manual
64
coffer phonebook. Its capacity is 30 records. In
the register list, press the dial key to dial a call.
Tip: When the mobile phone displays the alert
message of the missed calls, press “Read” to
enter the missed call list directly. It is possible to
display false name or number. If false alert
message occurs, press “Read” to display a blank.
Change Coffer Lock
You can change the password, which can be
of 4-8 digits, into the coffer.
Note: You must remember the coffer password in
mind; otherwise, you will be unable to access the
coffer and all data cannot be restored.
Block Incoming Call
To enable/disable a block for all the calls coming
from the contacts in the Coffer.
Password Remind
You can save here your numbers for personal
accounts, passwords, ATM, etc.. Five storage
positions are available.
9. Maintenance & Safety
Please read and observe the following
information for safe and proper use of your
phone and to prevent damage. Also, keep the
BILLY User Manual
65
user guide in an accessible place at all the times
after reading it.
Charger and Adapter Safety
Charger and adapter are designed for indoor use
only.
Battery Information and Care
o Please dispose of your battery properly.
o Do not disassemble or short-circuit the
battery.
o Keep the battery’s metal contacts clean.
o Recharge the battery after long periods of
non-use to maximize battery life.
o Battery life will vary due to usage patterns
and environmental conditions.
o The self-protection function of the battery
cuts the power of the phone when its
operation is in an abnormal status. In this
case, remove the battery from the phone,
reinsert it, and turn the phone on.
General Notice
o Using a damaged battery or placing a
battery in your mouth may cause serious
BILLY User Manual
66
injury.
o Do not place items containing magnetic
components such as a credit card, phone
card, bank book, or subway ticket near your
phone. The magnetism of the phone may
damage the data stored in the magnetic
strip.
o Talking on your phone for long period of
time may reduce call quality due to heat
generated during use.
o When the phone is not used for a long
period time, store it in a safe place with the
power cord unplugged.
o Using the phone in proximity to receiving
equipment (i.e. TV or Radio) may cause
interference to the phone.
o Do not immerse your phone in water. If this
happens, remove the battery and take it to
Authorized Service Center.
o Do not paint your phone.
o The data saved in your phone might be
deleted due to careless use, repair of the
phone, or upgrade of the software. Please
backup your important phone numbers.
(Ring tones, text messages, voice messages,
picture, and videos could also be deleted.)
The manufacturer is not liable for damage
BILLY User Manual
67
due to the loss of data.
o Do not turn your phone on or off when the
phone is close to your ear.
Troubleshooting
Phenomena
Possible Causes
Unable to
switch on
1. Does the battery have
power?
2. Is the battery placed
correctly
SIM failed
1. The SIM card is dirty.
Clean it.
2. Reinstall the SIM card.
3. The SIM card is
damaged. Replace it.
Poor signals
Check the signal strength icon
on the screen. If the icon
contains 4 bars, it indicates the
signal is the strongest; if below 1
bars, it indicates the signal is
very poor.
BILLY User Manual
68
Unable to
dial out
1. Maybe you have set Hide
My Caller ID but your
network operator does
not provide this service
for you.
2. Strong interference exists
around you.
3. Maybe you have
activated the call
restriction function.
4. Maybe you have
activated Line 2 but your
network operator does
not provide this service
for you.
Unable to
charge the
battery
1. The battery may
discharge too much; so it
cannot be charged until
it is connected for certain
time.
2. Its performance has
worsened.
BILLY User Manual
69
Unable to
register to
the network
1. Too weak signals or
strong interference.
2. SIM card installed
properly? Bad contact or
SIM card damaged? If
the SIM card is broken,
please contact the
network operator to
replace it.
Photos taken
are too dark
1. Check if the too low
photo brightness is set.
2. Check if ambient ray is
too dark.
Photos taken
are too
unclear
1. Check if the object taken
is moving.
2. Check if the mobile
phone shivers slightly
while you press shutter.
Unable to
access
service
menus.
Maybe the SIM card does not
support service function.
BILLY User Manual
70
10. Abbreviations
SMS
Short Message Service
EMS
Enhanced Message Service
SIM
Subscriber Identity Module
GSM
Global System for Mobile
Communication
PIN
Personal Identity Number
PUK
PIN Unblocking Key
IMEI
International Mobile Equipment Identity
CB
Cell Broadcast
GPRS
General Packet Radio Service
MMS
Multimedia Message service
Card 1
Host card (the card inserted in SIM1
slot)
Card 2
Slave card (the card inserted in SIM2
slot)
BILLY User Manual
71
11. Certifications
Declaration of Conformity (R&TTE)
We, NGM Italia
declare under our sole responsibility that the product identified as:
GSM Mobile Phone: Billy
conforms to the following standards and specifications:
Health EN 50360, EN 62209-1
Safety EN 60950-1+A11
EMC EN 301 489-1/ -7/ -17
Radio EN 301 511
EN 300 328
We declare that [all the series of fundamental radio test have been conducted
and that] the aforesaid product meets all the essential requirements of the
Directive 1999/5/EC.
The conformity assessment procedure referred to in Article 10 and detailed in
Annex IV of Directive 1999/5/EC has been followed with the involvement of the
following notified bodies:
PHOENIX TESTLAB GmbH
Königswinkel 10,
D-32825 Blomberg, Germany
0700
BILLY User Manual
72
Technical documentation preserved at: NGM Italia S.r.l.
Available Upon Request.
(Legal representative in EU)
NGM Italia S.r.l.
V ia L. Da Vinci, 7 – Ponticelli
56020 Santa Maria a Monte (Pi)
SAR certification information (Specific Absorption Rate)
This phone meets European Union (EU) requirements concerning exposure to
radio waves coming from telecommunication and radio devices. The exposure
standard for mobile phones employs a unit of measurement known as SAR
(Specific Absorption Rate). The SAR limit recommended by the EU Council is 2.0
W/kg averaged over ten grams of body tissue.
The highest SAR value for this model phone when tested for use at the ear was
0,927 watt /kg. Although the SAR is determined at the highest certified power
level, the actual SAR of the phone while operating can be well below the
maximum value. This is because the phone is designed to operate at multiple
power levels so as to use only the power required to reach the network. In
general, the closer you are to a base station, the lower the power output of the
phone. The Declaration of Conformity here above proves that the designated
product is in compliance with the essential requirements and other relevant
provisions of the R&TTE - Directive (European Radio & Terminal
Telecommunications Equipment)1999/5/EC.
Loading...
