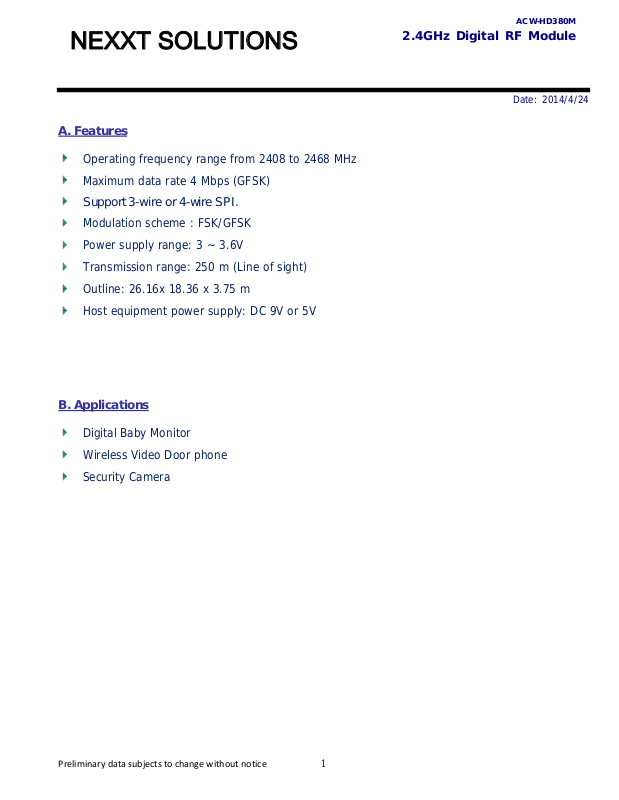

NEXXT SOLUTIONS STRYC Users Manual
NEXXT SOLUTIONS
A. Features
Operating frequency range from 2408 to 2468 MHz
Maximum data rate 4 Mbps (GFSK)
Support 3-wire or 4-wire SPI.
Modulation scheme : FSK/GFSK
Power supply range: 3 ~ 3.6V
Transmission range: 250 m (Line of sight)
Outline: 26.16x 18.36 x 3.75 m
Host equipment power supply: DC 9V or 5V
ACW-HD380M
2.4GHz Digital RF Module
Date: 2014/4/24
B. Applications
Digital Baby Monitor
Wireless Video Door phone
Security Camera
Preliminaryda
tasubjectstochangewithoutnotice
1
NEXXT SOLUTIONS
2.4GHz Digital RF Module
C: Specification
Parameter Min. Typ. Max. Unit
Electrical Section
Supply Voltage 3 3.3 3.6 V
Supply current in TX mode TBD mA
Supply current in RX mode TBD mA
Crystal 16M Hz
RF Section
ACW-HD380M
Date: 2014/4/24
Modulation Mode FSK/GFSK
Operating Frequency(Note1) 2400 ~ 2483.5 MHz
Data Rate 4M bps
Transmitter Section
Transmission Power +17 dBm
Power control range
0~19 dB
Receiver Section
Sensitivity -85 -88 dBm
Operation
Operating Temperature -20 ~ +70
Storage Temperature -40 ~ +85
Note: 1. 2.4GHz ISM Band
℃
℃

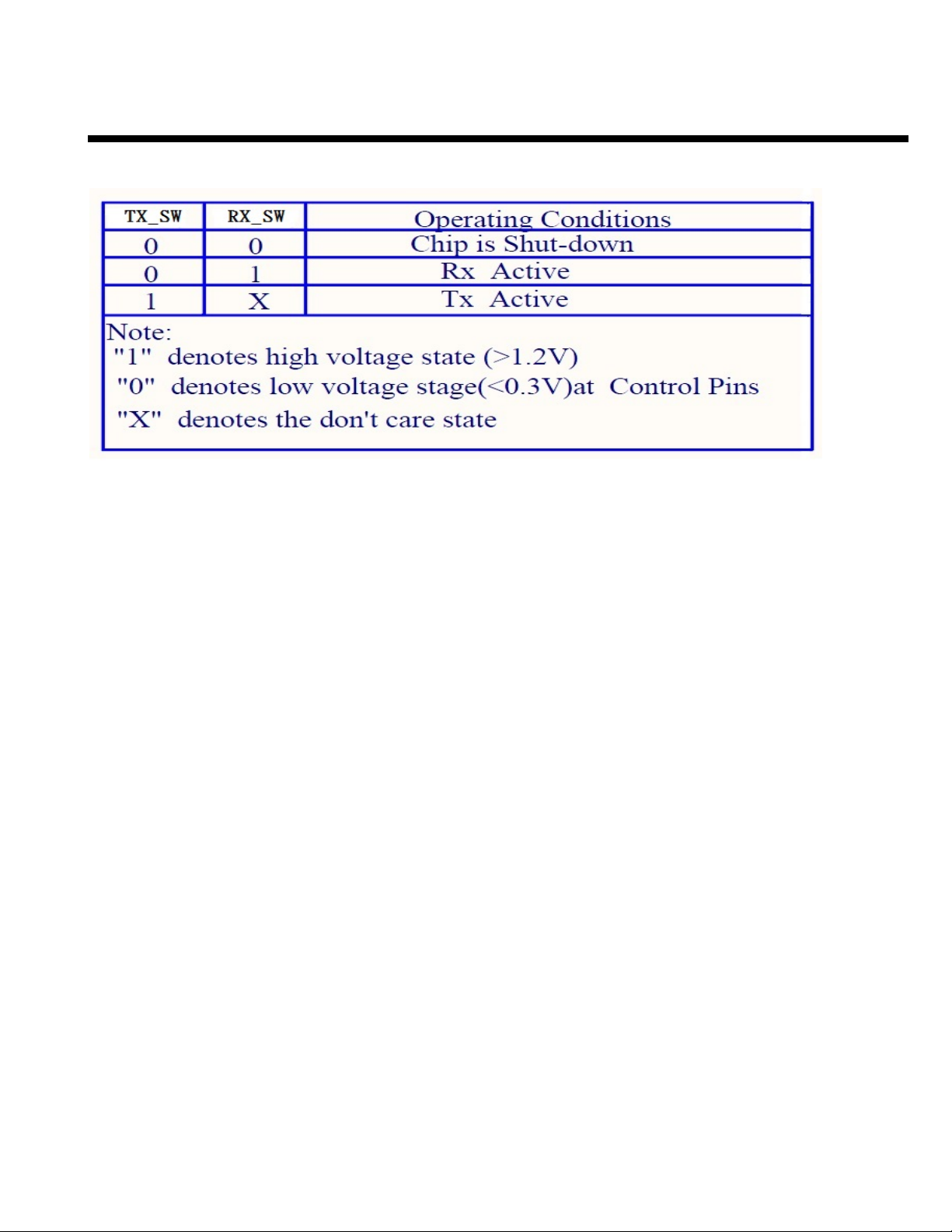

Preliminaryda
tasubjectstochangewithoutnotice
2
