Nexcom NSA 7145 User Manual

NEXCOM International Co., Ltd.

Network and Communication Solutions

Network Security Appliance NSA 7145

User Manual

NEXCOM International Co., Ltd.

Published May 2019

www.nexcom.com

Content

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer .............................................................................................. iv

Acknowledgements ............................................................................... iv

Regulatory Compliance Statements ........................................................ iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................viii

Installation Recommendations ...............................................................viii

Safety Precautions .................................................................................. ix

Technical Support and Assistance ............................................................ x

Conventions Used in this Manual ............................................................ x

Global Service Contact Information ........................................................ xi

Package Contents ................................................................................. xiii

Ordering Information ............................................................................xiv

Chapter 1: Product Introduction

Overview ................................................................................................1

Key Features ...........................................................................................1

Hardware Specifications ..........................................................................2

Knowing Your NSA 7145 ........................................................................ 3

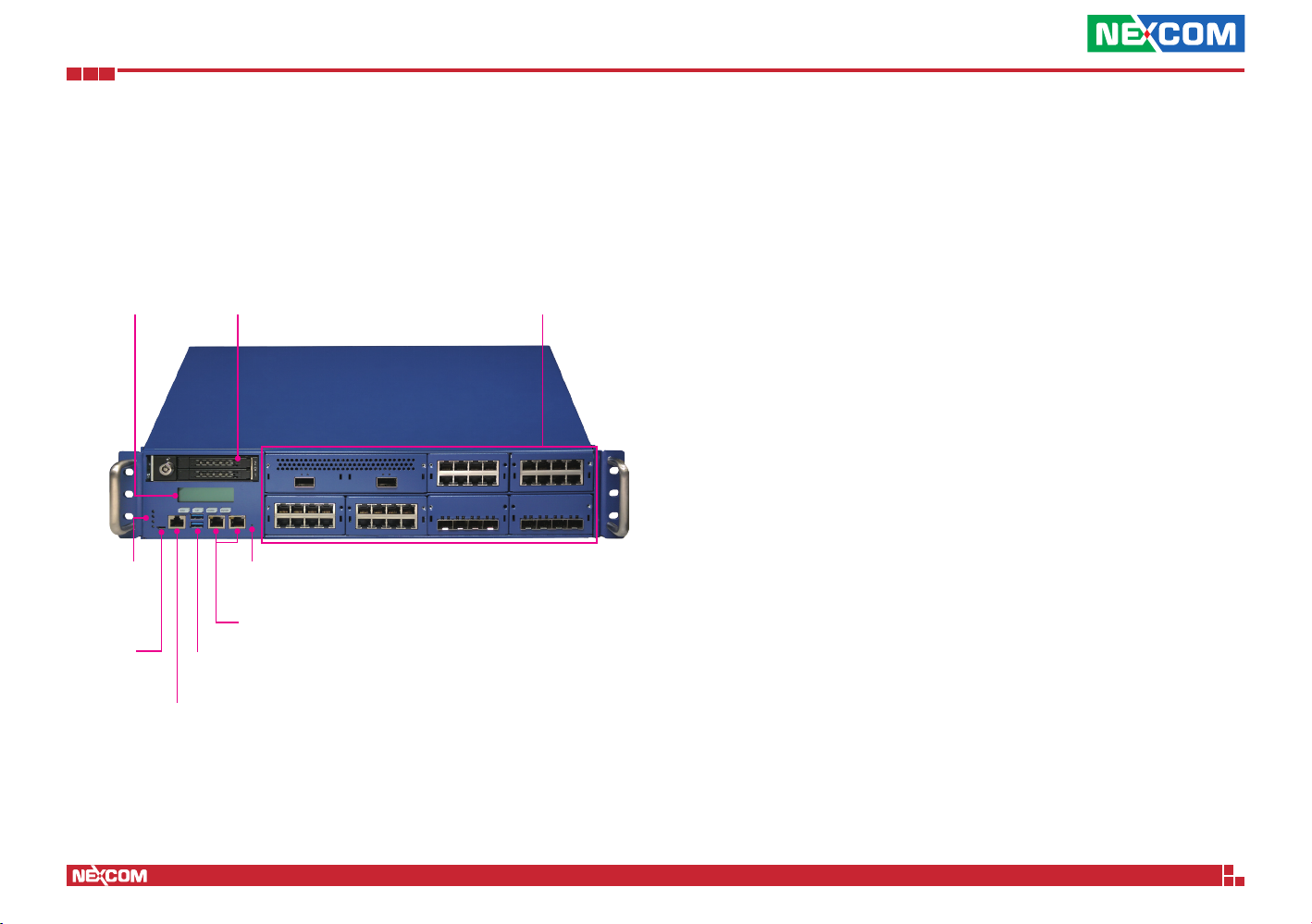

Front Panel ..........................................................................................3

Rear Panel ...........................................................................................4

Chapter 2: Jumpers and Connectors

Before You Begin ....................................................................................5

Precautions ............................................................................................5

Jumper Settings ......................................................................................6

Locations of the Jumpers and Connectors ............................................... 7

Jumper ...................................................................................................8

RTC Clear ............................................................................................ 8

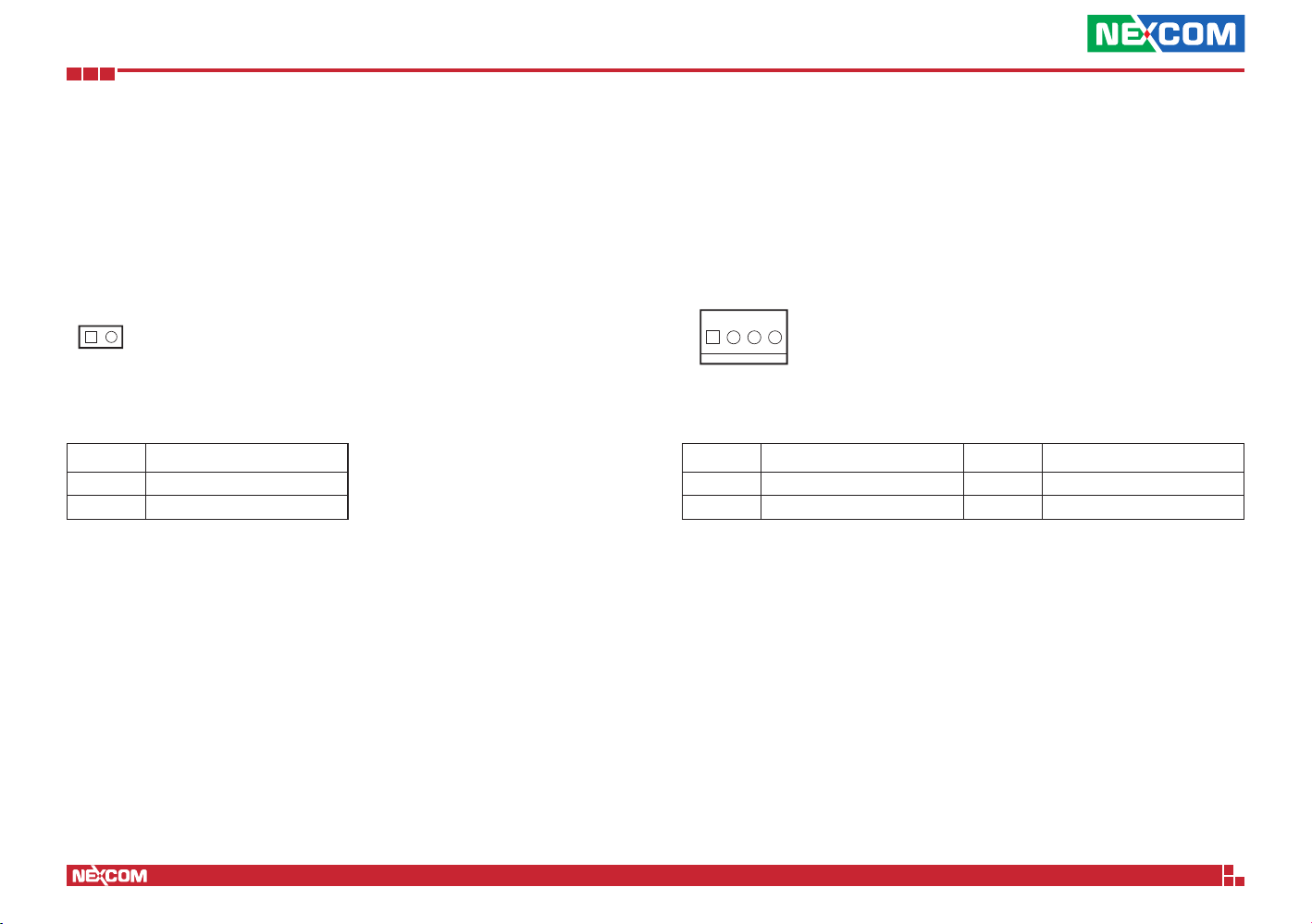

Internal Connectors ............................................................................. 9

Power Button Header ....................................................................... 9

CPU Fan Connectors ........................................................................9

System Fan Connectors .................................................................. 10

Console .........................................................................................10

USB 2.0 Connectors ....................................................................... 11

Internal Power Connector ..............................................................11

VGA Connector .............................................................................12

ATX 12V Internal Power Connector ................................................12

Internal Power Connector ..............................................................13

SATA Connectors ...........................................................................13

Front I/O Connector .......................................................................14

Block Diagram ......................................................................................16

Chapter 3: System Setup

Removing the Chassis Cover .................................................................17

Installing a LAN Module ........................................................................ 18

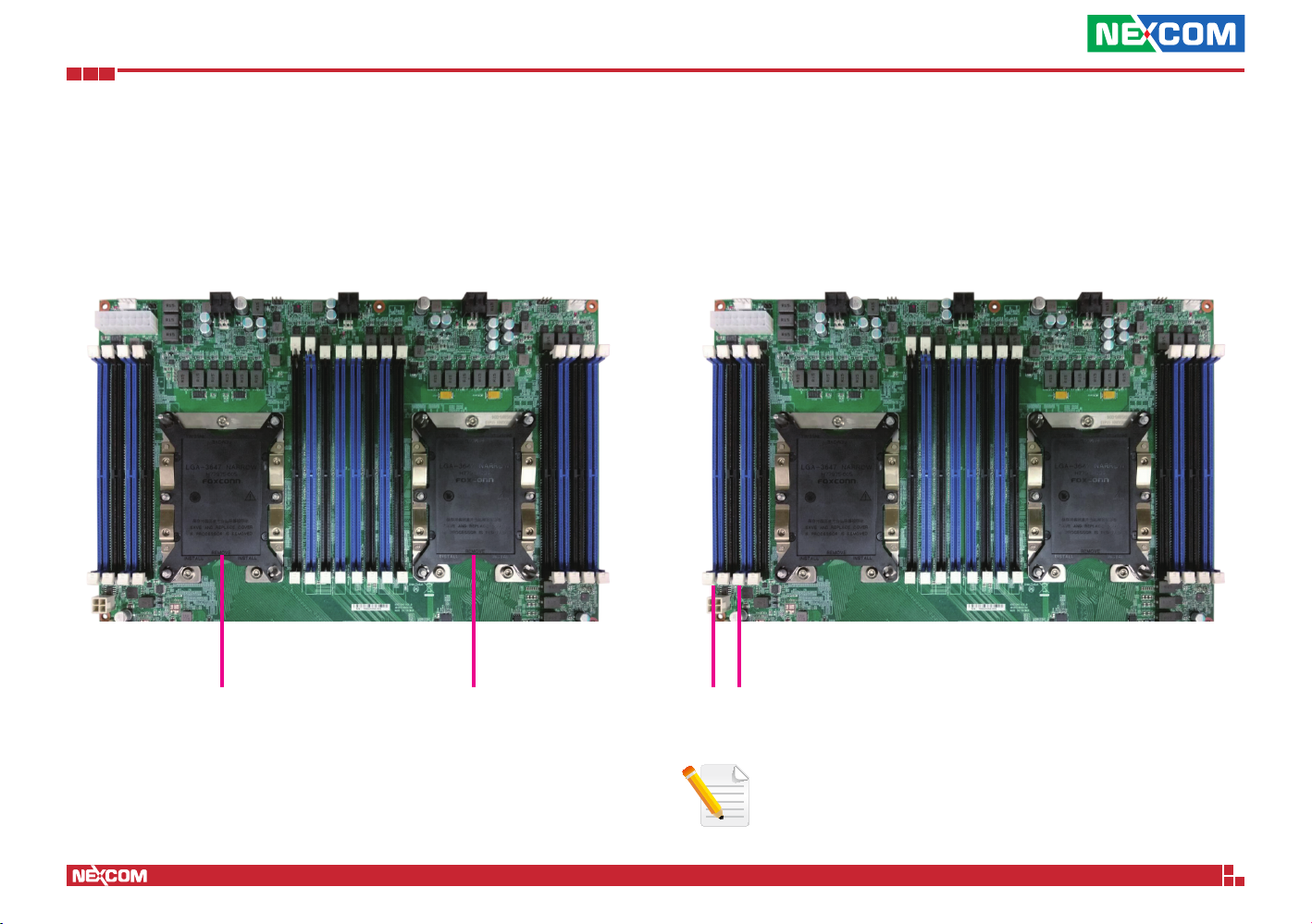

Installation Sequence of CPU and Memory ............................................ 20

ii

NSA 7145 User Manual

Content

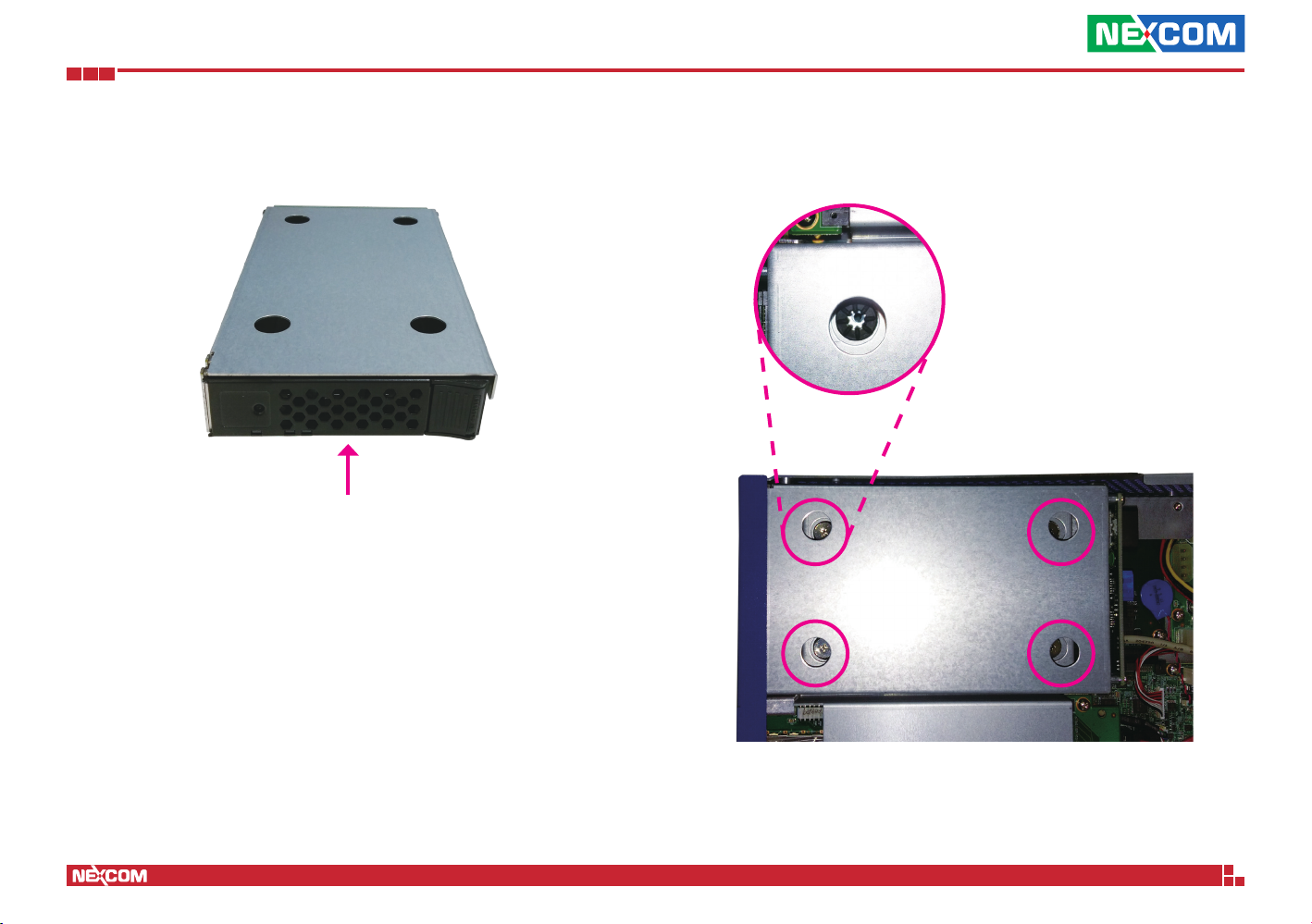

Assembling the 2.5” Removable Drive Bay ............................................ 21

Assembling the 3.5” Removable Drive Bay ............................................ 26

Chapter 4: BIOS Setup

About BIOS Setup ................................................................................. 32

When to Configure the BIOS .................................................................32

Default Configuration ........................................................................... 33

Entering Setup ...................................................................................... 33

Legends ................................................................................................ 33

BIOS Setup Utility .................................................................................. 35

Main .................................................................................................35

Advanced ......................................................................................... 36

Platform Configuration ...................................................................... 45

Socket Configuration .........................................................................50

Server Mgmt .....................................................................................73

Security .............................................................................................78

Boot .................................................................................................. 79

Save & Exit ........................................................................................80

iii

NSA 7145 User Manual

Preface

PrefaCe

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

NSA 7145 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

iv

NSA 7145 User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green

products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2011/65/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <

0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2013 will be RoHS compliant. They will use the usual NEXCOM naming convention.

v

NSA 7145 User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

▪ Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

▪ Customers must collect all the information about the problems

encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

▪ Customers can send back the faulty products with or without accessories

(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

▪ Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

▪ Any products returned by NEXCOM to other locations besides the

customers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

▪ Component fee: NEXCOM will only charge for main components such as

SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

▪ Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

▪ Replace with 3rd party products if needed.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

Board Level

▪ Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

vi

NSA 7145 User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

vii

NSA 7145 User Manual

Preface

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully.

▪ Do not place the unit on an unstable surface, cart, or stand.

▪ Follow all warnings and cautions in this manual.

▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

▪ A Philips screwdriver

▪ A flat-tipped screwdriver

▪ A grounding strap

▪ An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

viii

NSA 7145 User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the

equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or

letting it fall may cause damage.

7. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting

the equipment to the power outlet.

9. Place the power cord in a way so that people will not step on it. Do not

place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical shock.

13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work

according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.

15. Do not place heavy objects on the equipment.

16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

ix

NSA 7145 User Manual

Preface

CAUTION!

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

x

NSA 7145 User Manual

Preface

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

9F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

Asia

Taiwan NexAIoT Co., Ltd.

Taipei Office

13F, No.920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: [email protected] www.nexcom.com.tw

NexAIoT Co., Ltd. Taichung Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: [email protected] www.nexcom.com.tw

NexCOBOT Taiwan Co., Ltd.

13F, No.916, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: [email protected] www.nexcom.com.tw

GreenBase Technology Corp.

13F, No.922,Chung-Cheng Rd., Zhonghe Dist., New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7900 Email:[email protected] www.nexcom.com.tw

China NEXSEC Incorporated

Floor 5, No.4, No.7 fengxian middle Rd., (Beike Industrial Park), Haidian District, Beijing, 100094, China Tel: +86-10-5704-2680 Fax: +86-10-5704-2681 Email: [email protected] www.nexcom.cn

xi

NSA 7145 User Manual

Preface

NEXCOM Shanghai

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No. 609, Yunlin East Rd., Shanghai, 200062, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: [email protected] www.nexcom.cn

NEXCOM Surveillance Technology Corp.

Floor 5, Building C, ZhenHan Industrial Zone, GanKeng Community, Buji Street, LongGang District, ShenZhen, 518112, China Tel: +86-755-8364-7768 Fax: +86-755-8364-7738 Email: [email protected] www.nexcom.cn

NEXCOM United System Service

Room 603/604, Huiyinmingzun Plaza Bldg. 1, No. 609, Yunlin East Rd., Shanghai, 200062, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: [email protected] www.nexcom.cn

NEXGOL

1st Floor, Building B4, Electronic 2nd Area, (Phoenix Lake Industrial Park), Yongchuan Dist., Chongqing City, 402160, China Tel: +86-23-4960-9080 Fax: +86-23-4966-5855 Email: [email protected] www.nexgol.com/NexGoL

Beijing NexGemo Technology Co.,Ltd.

5th Floor, Gemotech Building, No.1, Development Rd., Changping International Information Industry Base, Changping District, Beijing,102206, China Tel: +86-10-8190-9399 Fax:+86-10-8190-9456

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: [email protected] www.nexcom-jp.com

Europe

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: [email protected] www.nexcom.eu

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: [email protected] www.nexcom.com

xii

NSA 7145 User Manual

Preface

Package Contents

Before continuing, verify that the NSA 7145 package that you received is complete. Your package should have all the items listed in the following table.

Item Part Number Name Description Qty

1 6023309081X00 Cable EDI:232091081804-RS COM Port. DB9 Female to RJ45 8P8C L:1800mm 1 2 6012200053X00 PE Zipper Bag #3 100x70mm, w/China RoHS Symbol 1 3 6012200052X00 PE Zipper Bag #8 170x240mm, w/China RoHS Symbol 1 4 5044440031X00 Rubber Foot Kang Yang:RF20-5-4P 19.8x18x5.0mm 4 5 5040150001X00 NSA 7135 AL Handle VER:A PANADVANCE 78x58x8mm 1 6 50311F0512X00 F Head Screw Long Fei:F2.5x6L ISO Black+Nylok F2.5x6L ISO Black+Nylok 8 7 50311F0162X00 Round Head Screw GW/Washer Long Fei P4x8 iso/w NI 1 8 50311F0110X00 Flat Head Screw Long Fei:F3x5ISO+NYLOK NIGP F3x5 NI Nylok 8 9 50311F0100X00 Round Head Screw w/Spring+Flat Washer Long Fei:P3x6L P3x6 iso/SW6x0.5 NI 1

10 19S00714500X0 NSA 7145 ASSY 1

xiii

NSA 7145 User Manual

Preface

Ordering Information

The following information below provides ordering information for NSA 7145.

Barebone NSA 7145 (P/N: 10S00714500X0)

2U Intel® Xeon® PCH C621, with LCM, 2 swappable 2.5” HDD tray, 3 swappable system fans, 8 LAN module (NI/ NX series) bays, 700W PSU

LAN Modules

Model P/N Interface Type Port Number Bypass/Segment Expansion Slot Location Slot

NX 140F 10S20140F01X0 XL710-BM1 PCIe x8 4 SFP+ None None All Slot

NX 142F 10S20142F01X0 XL710-BM1 PCIe x8 4 SFP+ 2 bypass None All Slot

NX 142F-LR 10S20142F03X0 XL710-BM1 PCIe x8 4 SFP+ 2 bypass None All Slot

NX 120F 10S20120F00X0 X710-BM2 PCIe x8 2 SFP+ None None All Slot

NI 140F 10SK000NI02X0 i350AM4x1 PCIe x8 4 SFP None None All Slot

NI 180F 10S10180F01X0 i350AM4x2 PCIe x8 8 SFP None None All Slot

NI 142C 10SK000NI03X0 i350AM4x1 PCIe x8 4 Copper 2 bypass None All Slot

NI 180C 10S10180C01X0 i350AM4x2 PCIe x8 8 Copper None None All Slot

NI 184C 10S10184C01X0 i350AM4x2 PCIe x8 8 Copper 4 bypass None All Slot

NI 142F 10S10142F01X0 i350AM4x1 PCIe x8 4 SFP 2 bypass None All Slot

NI 121F 10S10121F01X0 i350AM2x1 PCIe x8 2 SFP 1 bypass None All Slot

NI 140C 10S10140C01X0 i350AM4x1 PCIe x8 4 Copper None None All Slot

NV 120F 10S50120F01X0 XXV710-AM2 PCIe x8 2 QSFP None None All Slot

NC220Q28M 10S30022002X0 MT27708A0-FDCF-CE PCIe x16 2 QSFP28 None None 1,2/ 3,4/ 5,6/ 7,8

xiv

NSA 7145 User Manual

Chapter 1: Product Introduction

ChaPter 1: ProduCt IntroduCtIon

Overview

Key Features

▪ Dual Intel® Xeon® Scalable Processor family

▪ Support processor-FPGA solution

▪ Support up to 512GB of DDR4 2133/ 2400/ 2666 ECC & REG memory

▪ Up to 8 slots for PCIe LAN modules

▪ 2x 2.5” SATA/ SAS HDD (Swappable)

▪ CRPS (1 + 1) redundant power supply

▪ Support BMC with IPMI 2.0 and out-of-band management

▪ Optional TPM 1.2/ 2.0 module

1

NSA 7145 User Manual

Chapter 1: Product Introduction

Hardware Specifications

Main Board

▪ NSB 7145 ▪ Dual Intel

®

Xeon® processor scalable family

▪ Support 9.6 GT/s QPI speed

®

▪ Intel

C621

LAN Features

▪ Swappable LAN modules ▪ Support Intel

®

i350/ Intel® XL710 Copper/Fiber ports ▪ Support 10/100/1000/10G link speed ▪ LAN Bypass: ** please see LAN module list information

I/O Interface-Front

▪ Support 2 x 20 characters LCD module, SIO interface ▪ Power status/ HDD status/ GPIO status/ system failure status LEDs ▪ 2 x 2.5” HDD swappable bays ▪ 8 x LAN module bays ▪ 2 x USB 3.0 ports ▪ 1 x micro USB type console port ▪ 1 x RJ45 type console port ▪ 2 x Management LAN ports

I/O Interface-Rear

▪ 3 x Swappable system FANs ▪ 1 x Power button switch ▪ 1 x VGA Port ▪ 2 x USB 2.0 ports

Main Memory

▪ 16 x 284-pin DDR4 2133/ 2400/ 2666 DIMM sockets, up to 512GB ECC

& REG SDRAM

Devices

▪ 1 x on-board CFast socket

Power Input

▪ 700W 1+1 CRPS redundant power supply

Chassis Dimensions

▪ Chassis dimension: 438 mm x 570 mm x 88 mm ▪ Carton dimension: 774 mm x 636 mm x 293 mm

Weight

▪ Without packing: 19kg ▪ With packing: 25kg

Environment

▪ Operating temperature: 0°C~40°C ▪ Storage temperature: -20°C~75°C ▪ Relative humidity: 10%~90% non-condensing

Certifications

▪ CE approval ▪ FCC Class A ▪ UL

2

NSA 7145 User Manual

Chapter 1: Product Introduction

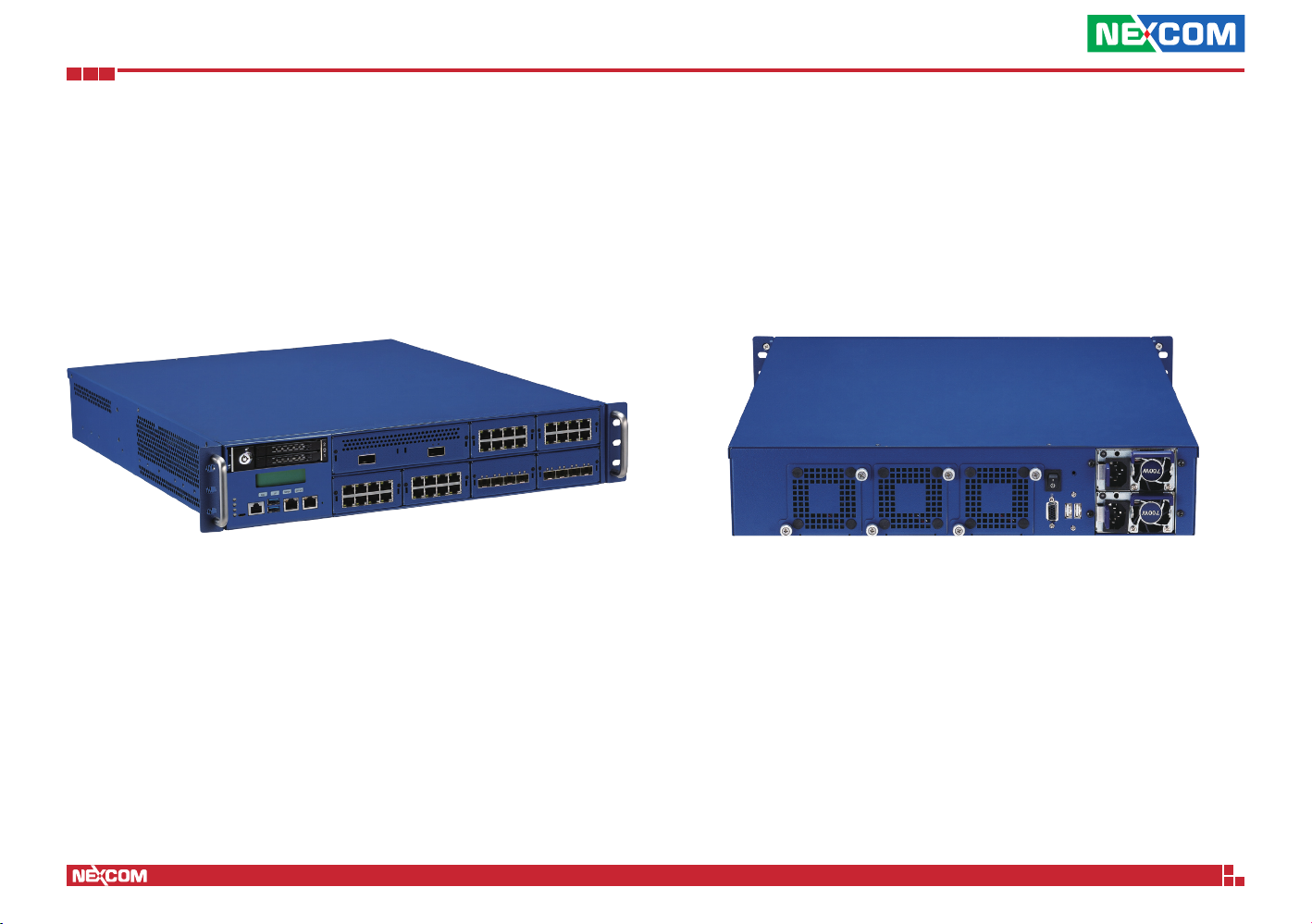

Knowing Your NSA 7145

Front Panel

LCD

LED

indicators

Micro

USB

HDD bays LAN modules

Reset button

Management LAN

USB ports

LCD

2x20 characters LCD module, SIO interface.

HDD Bays

Two 2.5” HDD swappable bays for installing HDDs.

LED Indicators

Indicates the power status, system failure status, hard drive and GPIO activity of the system.

RJ45/Micro USB Type Console Serial Port

Used to connect console devices with RJ45/Micro USB type connection.

USB Ports

Used to connect USB 3.0/2.0/1.1 devices.

Management LAN Ports

Two LAN ports used for managing the system.

Reset Button

Press to restart the system.

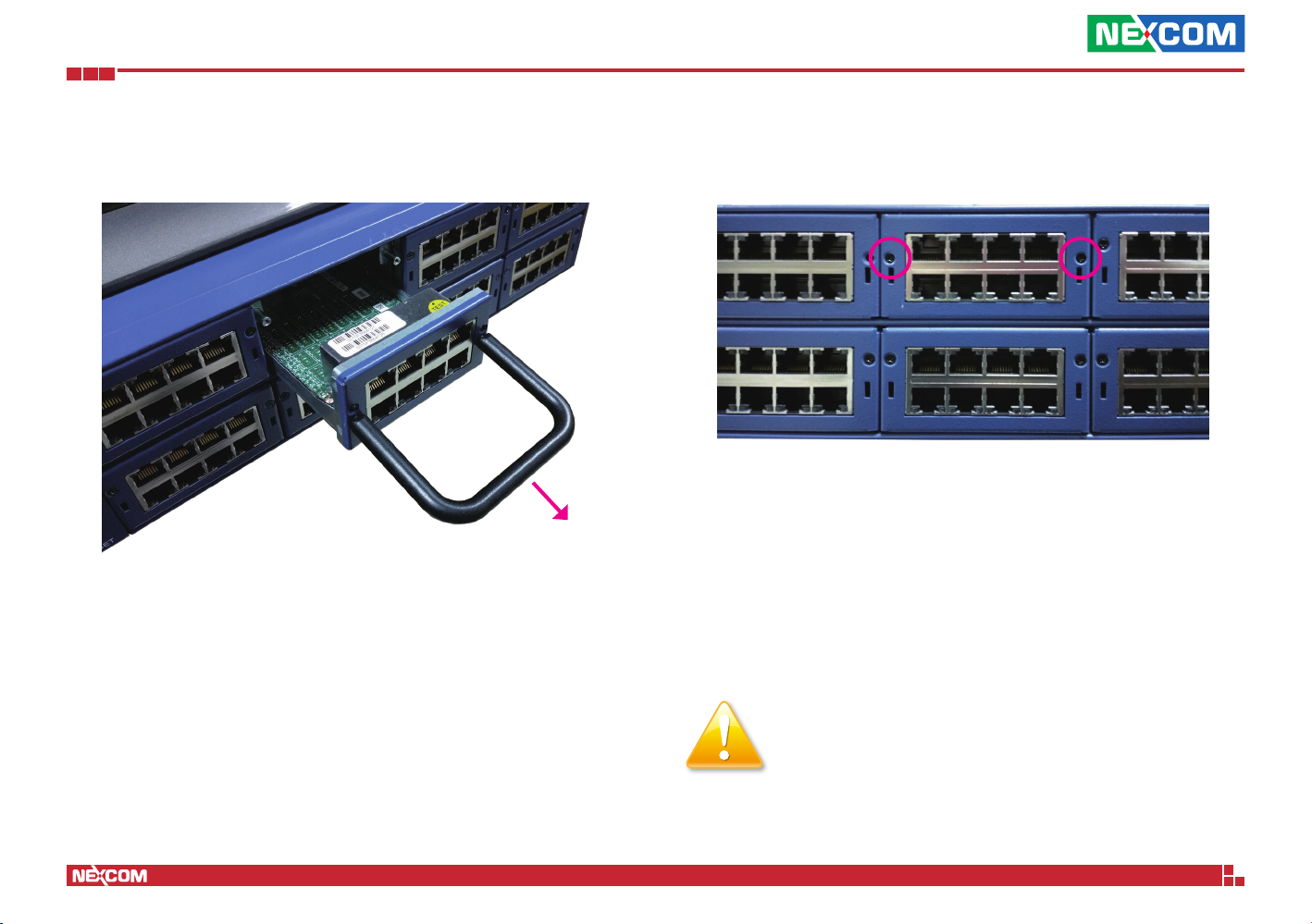

LAN Modules

Eight LAN module bays.

RJ45 type

console port

3

NSA 7145 User Manual

Chapter 1: Product Introduction

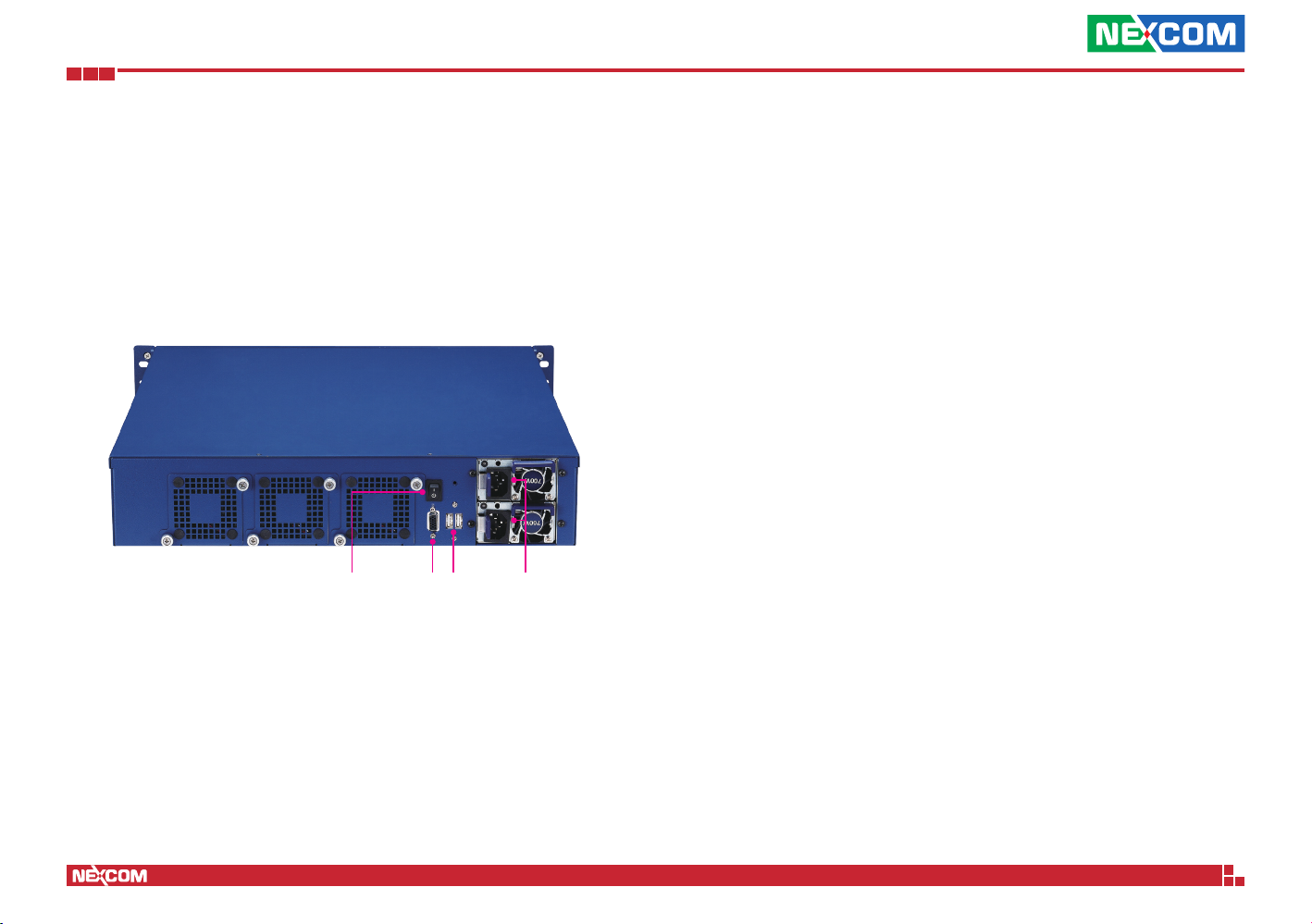

Rear Panel

Power switch

VGA USB

ports

Power Switch

Press to power-on or power-off the system.

VGA

Used to connect an analog VGA monitor.

USB Ports

Used to connect USB 2.0/1.1 devices.

AC Power Sockets

Dual redundant power supply sockets, plug an AC power cord here before turning on the system.

AC power sockets

4

NSA 7145 User Manual

Chapter 2: Jumpers and Connectors

ChaPter 2: JumPers and ConneCtors

This chapter describes how to set the jumpers and connectors on the NSA 7145 motherboard.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: – A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

▪ Before working on internal components, make sure that the power is off.

Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environments tend to have less static electricity than

dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside the

computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they shipped

with until they are ready for installation.

▪ Use correct screws and do not over tighten screws.

5

NSA 7145 User Manual

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 are Short

3

2

1

3

2

6

NSA 7145 User Manual

Chapter 2: Jumpers and Connectors

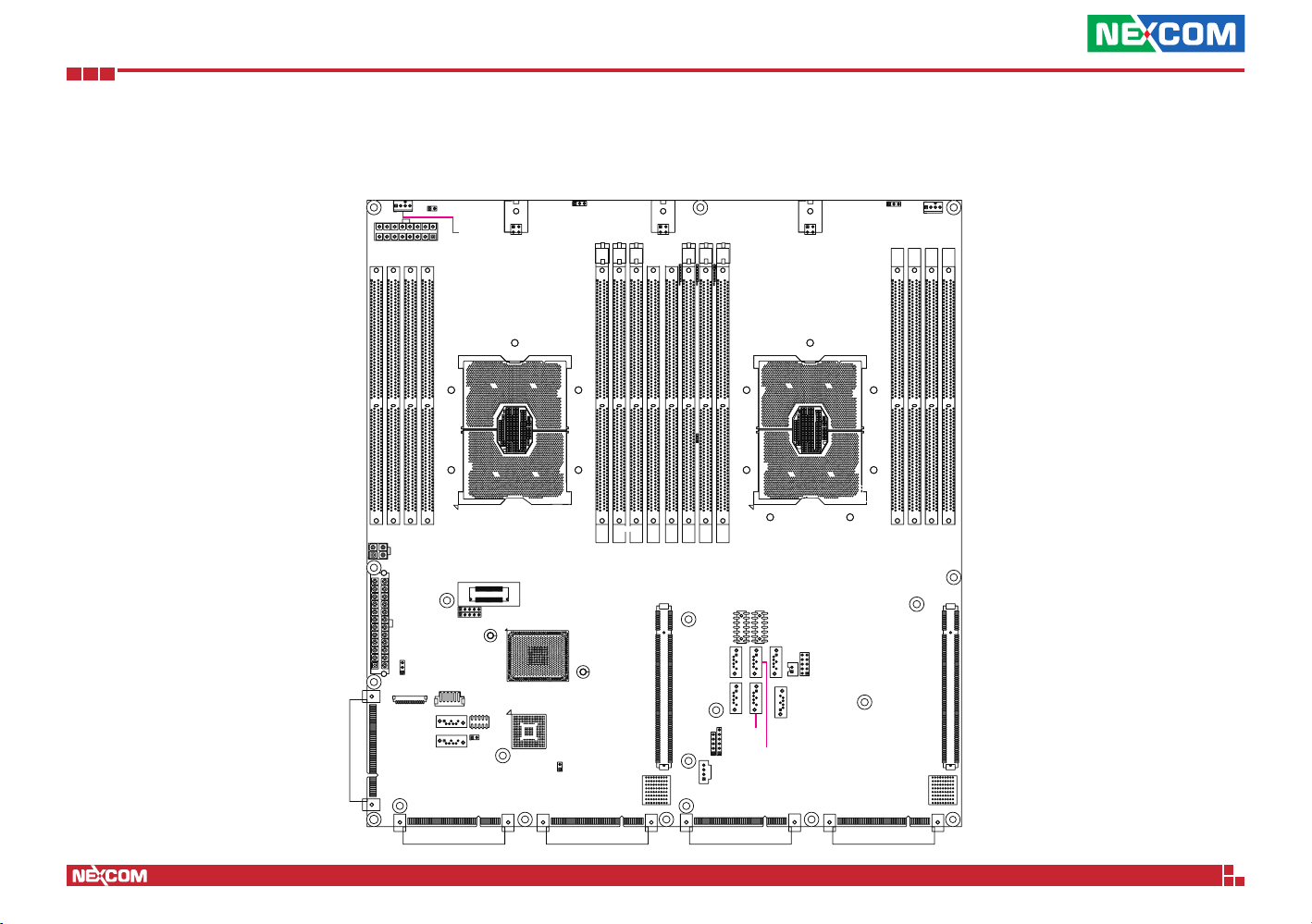

Locations of the Jumpers and Connectors

The figure below shows the location of the jumpers and connectors.

1

3

JP1

3

4

L13

L14

1

145

1

145

2

146

2

77

DA

EE

CN

U70

30

455055

40

35

21

22

191715

9

U96

JP14

287

143

287

288 220

144

DIMM1_D

DIMM1_E

DIMM0_D

60

65

70

2

1

CON5

H31

B49

B12

JP18

DIMM0_B

77143

2

1

12

1

H23

16

8

1

2

144

145

146

220

287

288

3

H18

B49

JP13

B12

B11

B1

CON1

DIMM1_B

1

145

2

77

287

143

144

4

CON2

24

CON3

+

13

16

4

DIMM0_A

145

1

146220288

2

220 146

77

287

143

288

144

3

JP8

1

J3

SATA1

SATA2

B49

JPWRBTN1

12

9

1

DIMM1_A

145287

146

143 77 1

288

144 2

CN7

1

6

1

JP17

1

2

CN1

CN3

85

83

81

79

77

75

73

71

69

67

65

63

61

59

57

55

53

51

BY

49

47

45

43

41

39

37

35

33

AY

31

29

27

25

23

21

19

17

15

13

11

9

7 5

3

1

AJU

AE

AN

U40

BA

CPU0

JP3

1259

60

5

1

JP4

1

5

JP5

1

10 15 2520

A

1

CN8

175

2

10

A

C E

G

J

7

1

9

L

N

7

1

2

AB

JP10

B1

B12

B11

288 220 146

B11

1

77

C2226

143

L15

145

2

220 146

287

288

144

DIMM0_E

B1

CN4

177143

2

144

B12

1

145

287

PCIE1

B1

B11

B82

3

4

2

145

1

146

2

287

144

DIMM0_H

DIMM1_H

A1

A11 A12

A82

ABCDEFGHI

1

2

3

4

5

6

7

8

146

C2045

220

288

145

177

146

2

C2134

C2090C2085

C316

220288

287

143

144

DIMM0_G

SATA5

SATA4

4

1

CN9

B49

H2

1

2

77

143

144

145

1

146220288

C2011 C2126 R2388

C318

77

143

287

DIMM1_G

JP111

5

1

JP12

145287

2

146288

144

14

S

6

SATA3

JP16

JP6

2

1

7

1

7

85

83

81

79

77

75

73

71

69

67

65

63

61

59

57

55

53

51

49

47

45

43

41

39

37

35

33

31

29

27

25

23

21

19

17

15

13

11

9

7 5

3

1

U41

AJU

JP7

14

13

1

2

1

7

1

7

SATA6

B12

AE

H16

13

SATA8

1

7

1

7

SATA7

1

B11

B1

4

3

1

JP2

1

3

1

4

2

CN5

CN

DA

DJ

CE

DUDYEE

BJ

BU

BX

AX

AN

BA

CPU1

9

10

J2

CN6

1

2

CN2

145

1

145

2

146

DIMM0_K

DIMM1_K

143 1

287

144

DIMM0_L

DIMM1_L

220 146

77

143 77 1

143

287

143 77 1

287

288

144

288

144

288

144

B1

A1

A11

B11

A12

PCIE2

A82

B82

IHGFEDCBA

1

2

3

4

5

CON4

6

7

8

B1

B11

B12

JP19

7

NSA 7145 User Manual

Chapter 2: Jumpers and Connectors

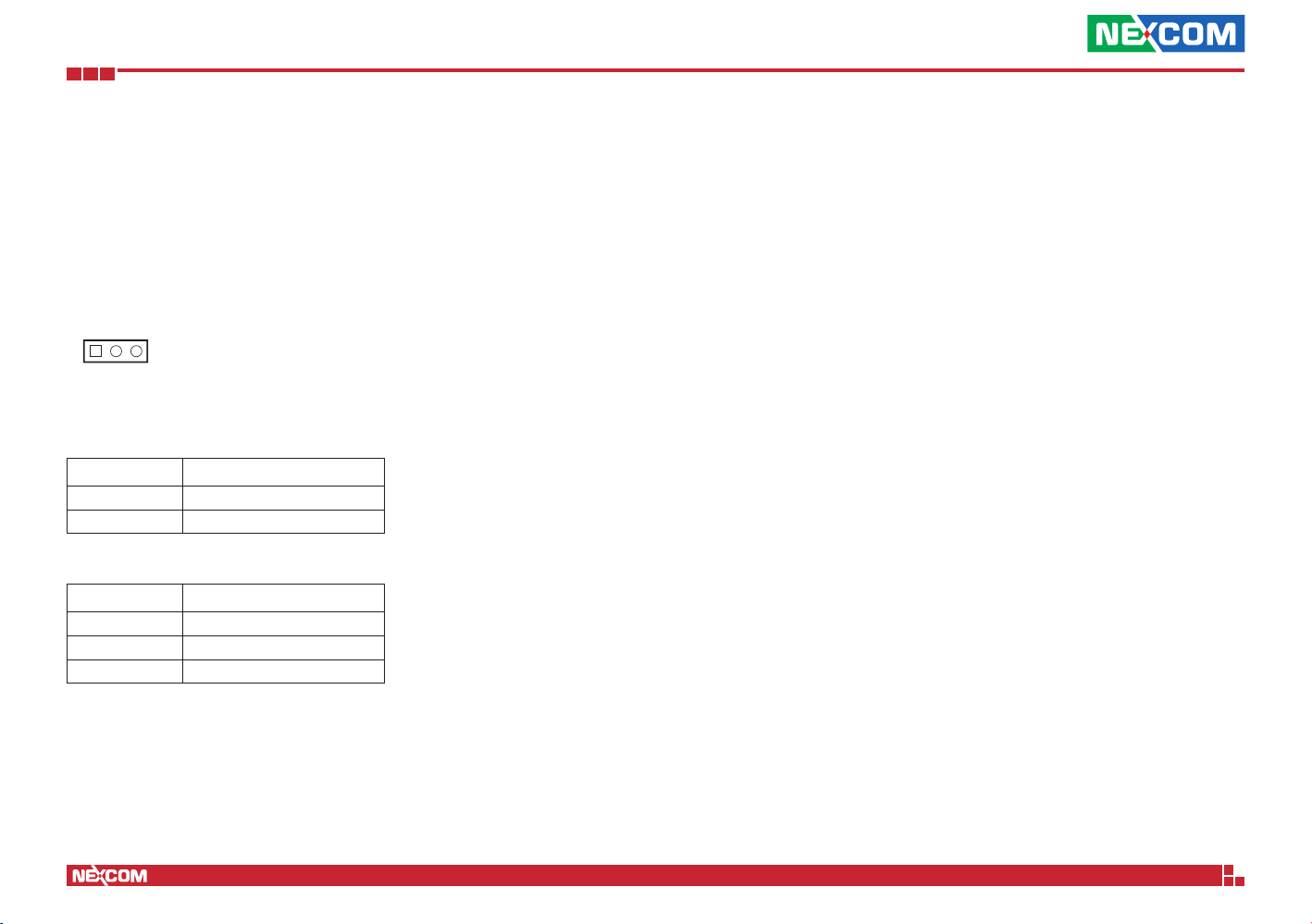

Jumper

RTC Clear

Connector type: 1x3 3-pin header Connector location: JP8

1 3

Pin Function

1-2 On Normal 2-3 On Clear CMOS

1-2 On: default

Pin Definition

1 NC 2 RST_RTCRST_N 3 GND

8

NSA 7145 User Manual

Chapter 2: Jumpers and Connectors

12

Internal Connectors

Power Button Header

Connector type: 1x2 2-pin header Connector location: JPWRBTN1

Pin Definition

1 PWRBTN 2 GND

CPU Fan Connectors

Connector type: 1x4 4-pin Wafer Connector location: CN1 and CN2

1 4

Pin Definition Pin Definition

1 GND 2 P12V 3 TACH 4 PWM

9

NSA 7145 User Manual

Chapter 2: Jumpers and Connectors

13

24

12

System Fan Connectors

Connector type: 2x2 4-pin header Connector location: CN3, CN4 and CN5

Pin Definition Pin Definition

1 GND 2 TACH 3 PWM 4 P12V

Console

Connector type: 1x2 2-pin header Connector location: JP10

Pin Definition

1 BMC_COM_SW 2 GND

10

NSA 7145 User Manual

Chapter 2: Jumpers and Connectors

9

1

16

8

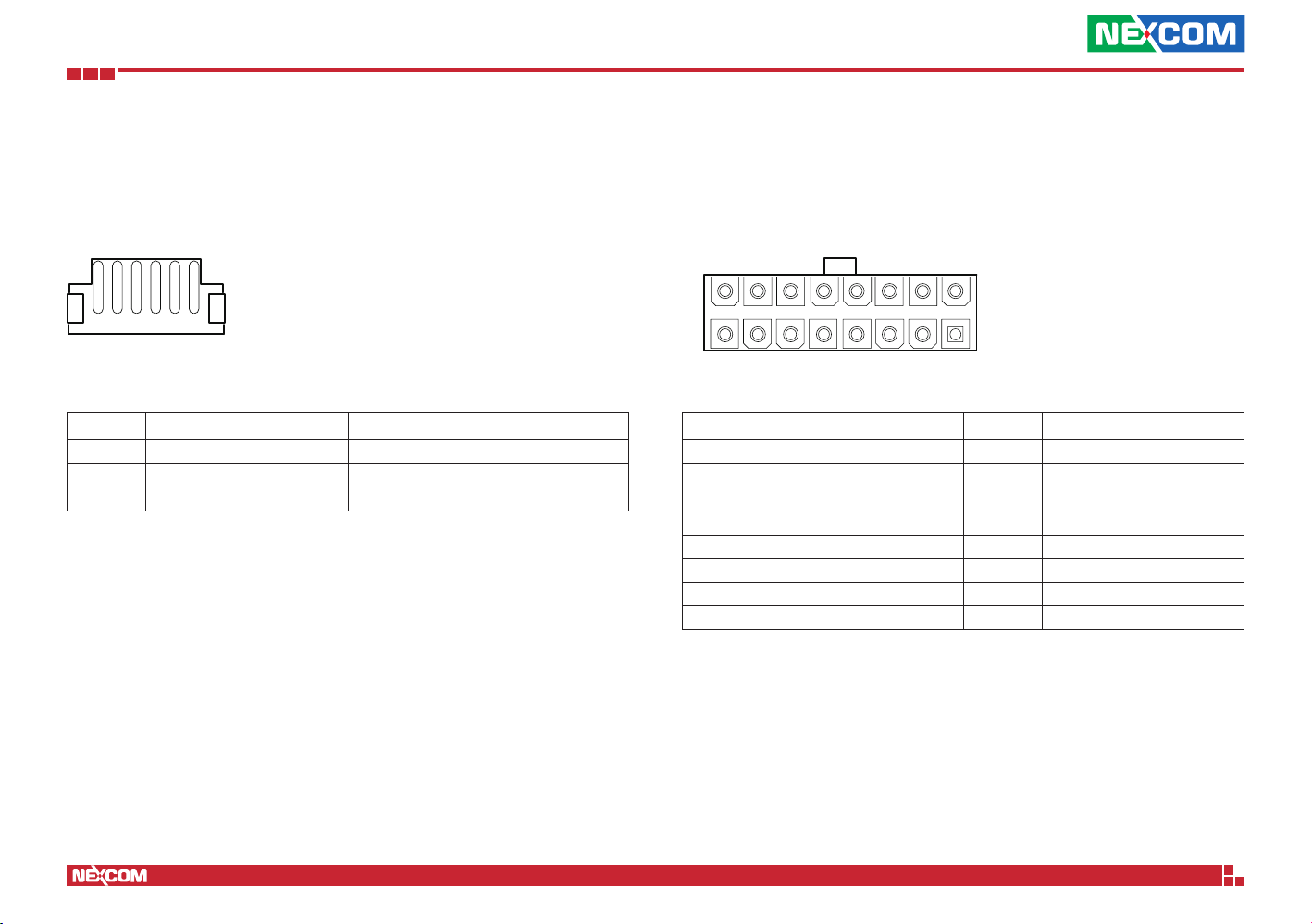

USB 2.0 Connectors

Connector type: 1x6 6-pin header Connector location: CN7

16

Pin Definition Pin Definition

1 P5V 2 USB2N3 3 USB2P3 4 USB2N4 5 USB2P4 6 GND

Internal Power Connector

Connector type: 2x8 16-pin header Connector location: CON1

Pin Definition Pin Definition

1 P12V 2 P12V 3 P12V 4 P12V 5 P12V 6 P12V 7 P12V 8 P12V

9 GND 10 GND 11 GND 12 GND 13 GND 14 GND 15 GND 16 GND

11

NSA 7145 User Manual

Chapter 2: Jumpers and Connectors

12

34

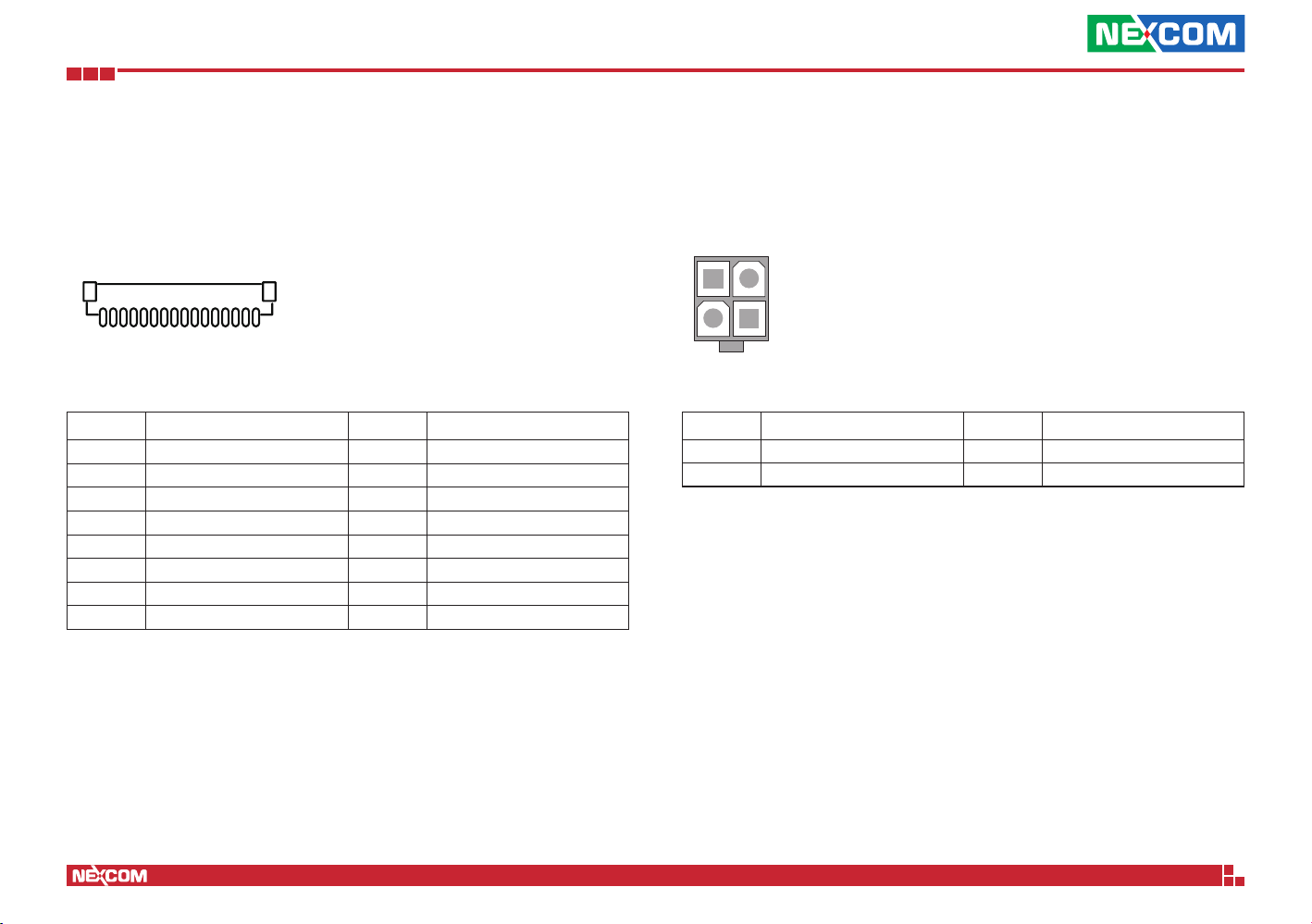

VGA Connector

Connector type: 1x16 16-pin header Connector location: J3

16 1

Pin Definition Pin Definition

1 DACROA_B 2 DACGOA_B 3 DACBOA_B 4 NC 5 Chassis_GND 6 Chassis_GND 7 Chassis_GND 8 Chassis_GND

9 VGA_VCC 10 Chassis_GND 11 NC 12 DDC_DATAO_B 13 AHSYNCO_B 14 AVSYNCO_B 15 DDC_CLKO_B 16 NC

ATX 12V Internal Power Connector

Connector type: 2x2 4-pin header Connector location: CON2

Pin Definition Pin Definition

1 GND 2 GND 3 P12V 4 P12V

12

NSA 7145 User Manual

Chapter 2: Jumpers and Connectors

112

13 24

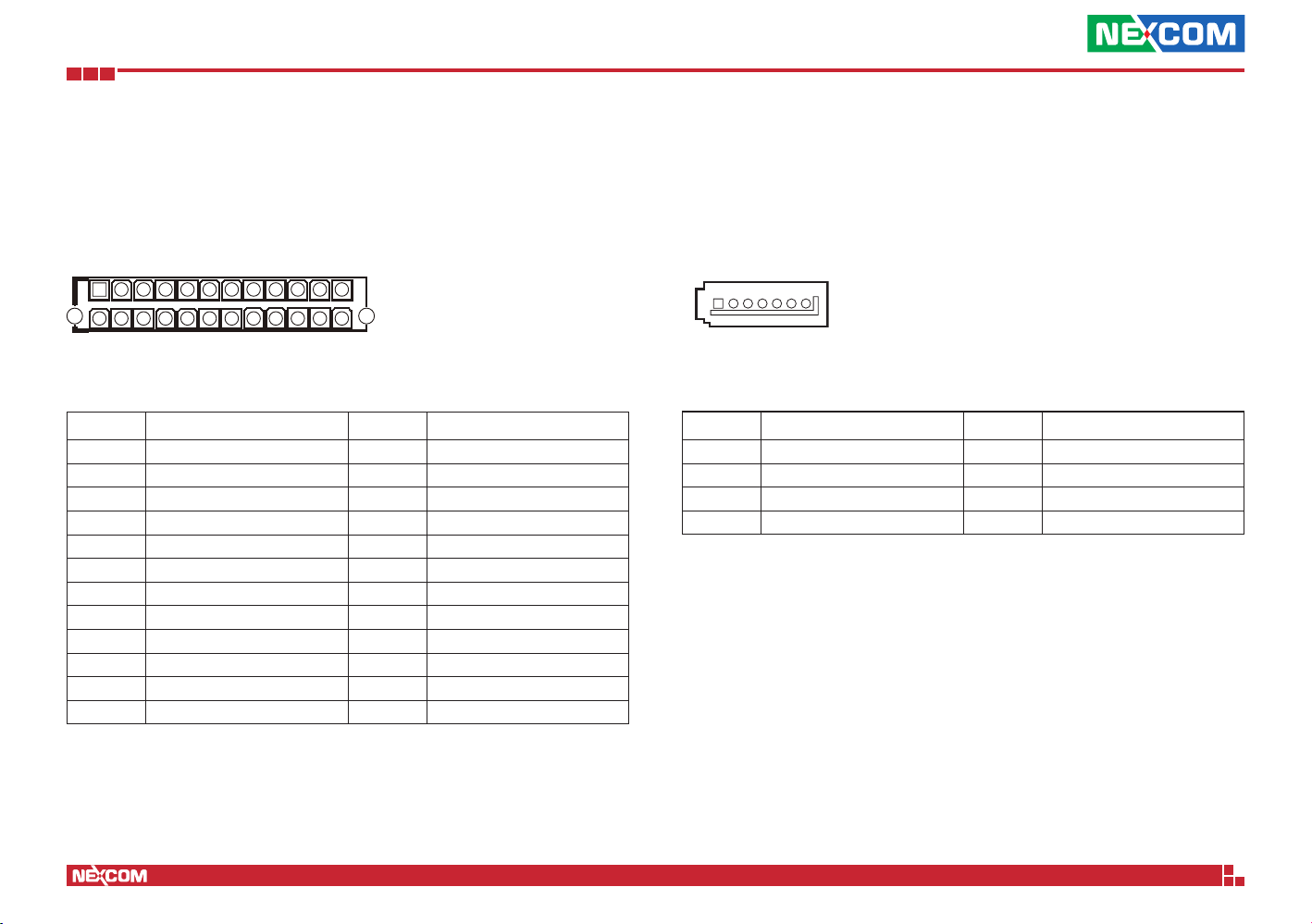

Internal Power Connector

Connector type: 2x12 24-pin header Connector location: CON3

Pin Definition Pin Definition

1 +3.3V 2 +3.3V

3 GND 4 +5V

5 GND 6 +5V

7 GND 8 PW-OK

9 +5VSB 10 +12V 11 +12V 12 +3.3V 13 +3.3V 14 -12V 15 GND 16 PS-ON 17 GND 18 GND 19 GND 20 RES/-5V 21 +5V 22 +5V 23 +5V 24 GND

SATA Connectors

Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180) Connector location: SATA1 to SATA8

1

Pin Definition Pin Definition

1 GND 2 SATA6G_P5_TX_DP 3 SATA6G_P5_TX_DN 4 GND 5 SATA6G_P5_RX_DN 6 SATA6G_P5_RX_DP 7 GND

7

13

NSA 7145 User Manual

Chapter 2: Jumpers and Connectors

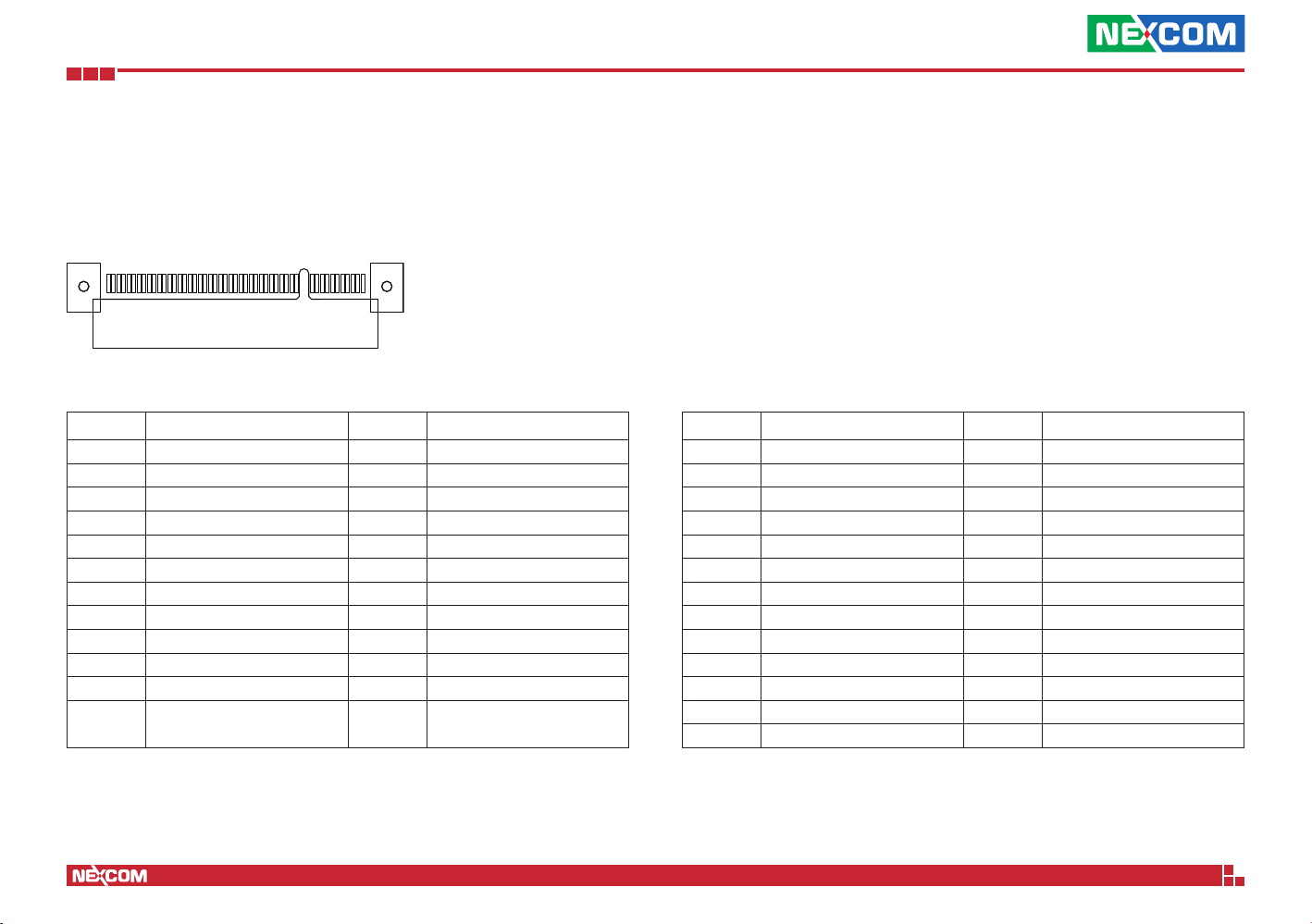

Front I/O Connector

Connector type: 1x49 49-pin header Connector location: JP13

B1B11B12B49

Pin Definition Pin Definition

A1 GND A2 COM1_TXD A3 COM1_RXD A4 NC A5 IBMC_LCM_LED_KR A6 IBMC_LCM_LED_KG A7 IBMC_LCM_TXD A8 IBMC_LCM_RXD A9 P5V A10 GND

A11 P5V A12 P5V A13 GND A14 GND A15 CONSOLE_VBUS A16 SP_TXD1_R A17 SP_RXD1_R A18 GND A19 NC A20 NC A21 GND A22 STATUS1_LED_P

A23 STATUS2_LED_P A24 LED_STATUS1_C

14

Pin Definition Pin Definition

A25 LED_STATUS2_C A26 GND A27 GND A28 USB3_P01_ESD_RXN A29 USB3_P01_ESD_RXP A30 GND A31 USB3_P01_ESD_TXN A32 USB3_P01_ESD_TXP A33 GND A34 USB2_P01_ESD_DN A35 USB2_P01_ESD_DP A36 GND A37 P5V_USB_P01 A38 P5V_USB_P01 A39 GND A40 USB3_P02_ESD_RXN A41 USB3_P02_ESD_RXP A42 GND A43 USB3_P02_ESD_TXN A44 USB3_P02_ESD_TXP A45 GND A46 USB2_P02_ESD_DN A47 USB2_P02_ESD_DP A48 GND A49 GND

NSA 7145 User Manual

Chapter 2: Jumpers and Connectors

Pin Definition Pin Definition

B1 GND B2 PHYA_MXP0 B3 PHYA_MXN0 B4 GND B5 PHYA_MXP1 B6 PHYA_MXN1 B7 GND B8 PHYA_MXP2 B9 PHYA_MXN2 B10 GND

B11 GND B12 PHY_MXP3 B13 PHY_MXN3 B14 GND B15 LANA_LED_LINK100_N B16 LANA_LED_LINK1G_N B17 LANA_LED_ACT_N B18 GND B19 GND B20 P3V3_AUX B21 P3V3_AUX B22 GND

B23 PHYB_MXP0_1 B24 PHYB_MXN0_1

Pin Definition Pin Definition

B25 GND B26 PHYB_MXP1_1 B27 PHYB_MXN1_1 B28 GND B29 PHYB_MXP2_1 B30 PHYB_MXN2_1 B31 GND B32 PHYB_MXP3_1 B33 PHYB_MXN3_1 B34 GND B35 LANB_LED_LINK100_N_1 B36 LANB_LED_LINK1G_N_1 B37 LANB_LED_ACT_N_1 B38 GND B39 LED_PWR+ B40 LED_ERR+ B41 LED_STBY+ B42 LED_HDD+ B43 GND B44 LED_PWRB45 LED_ERR- B46 LED_STBYB47 LED_HDD- B48 GND B49 FP_RST_BTN_N

15

NSA 7145 User Manual

Chapter 2: Jumpers and Connectors

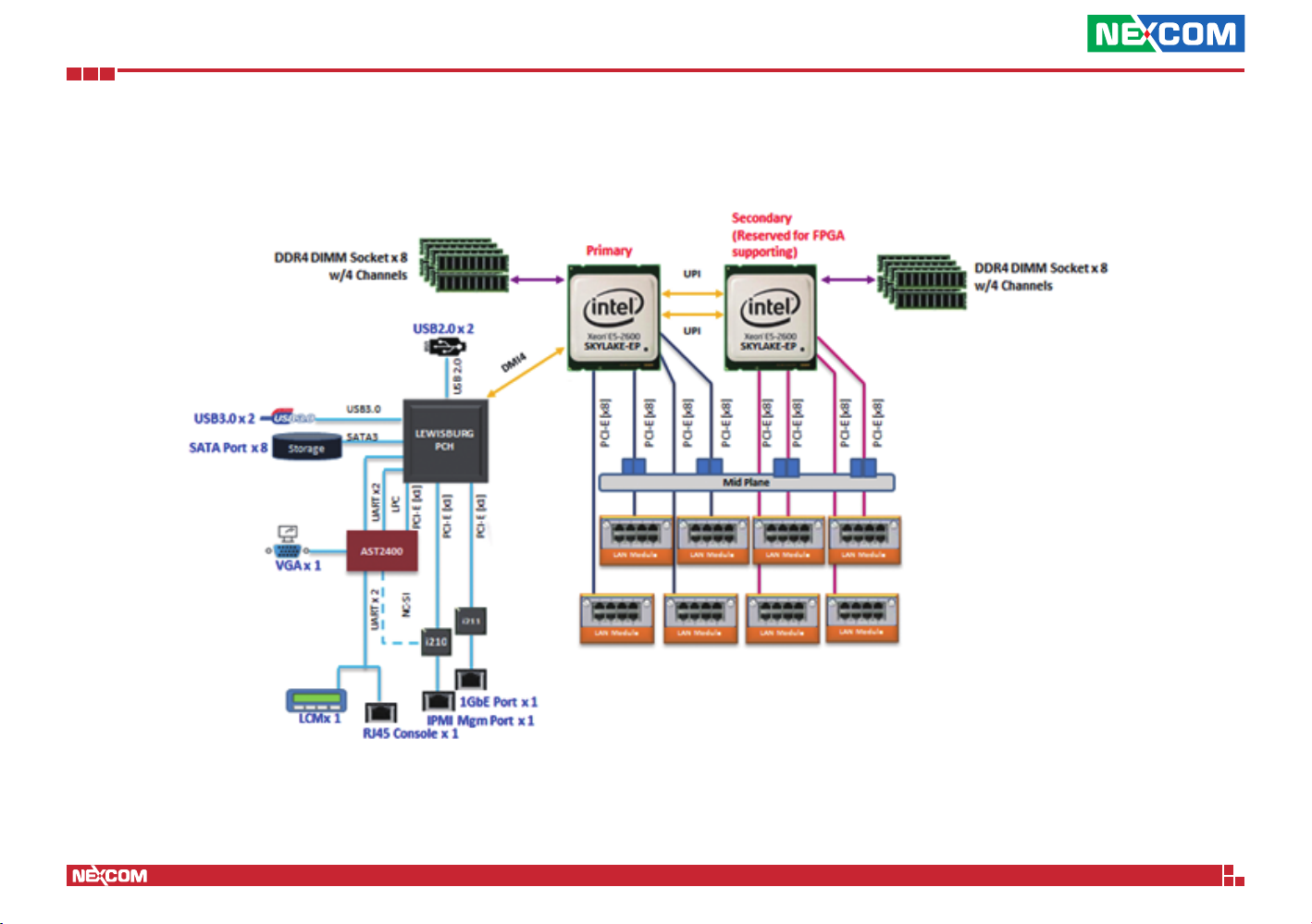

Block Diagram

16

NSA 7145 User Manual

Chapter 3: System Setup

CAUTION!

ChaPter 3: system setuP

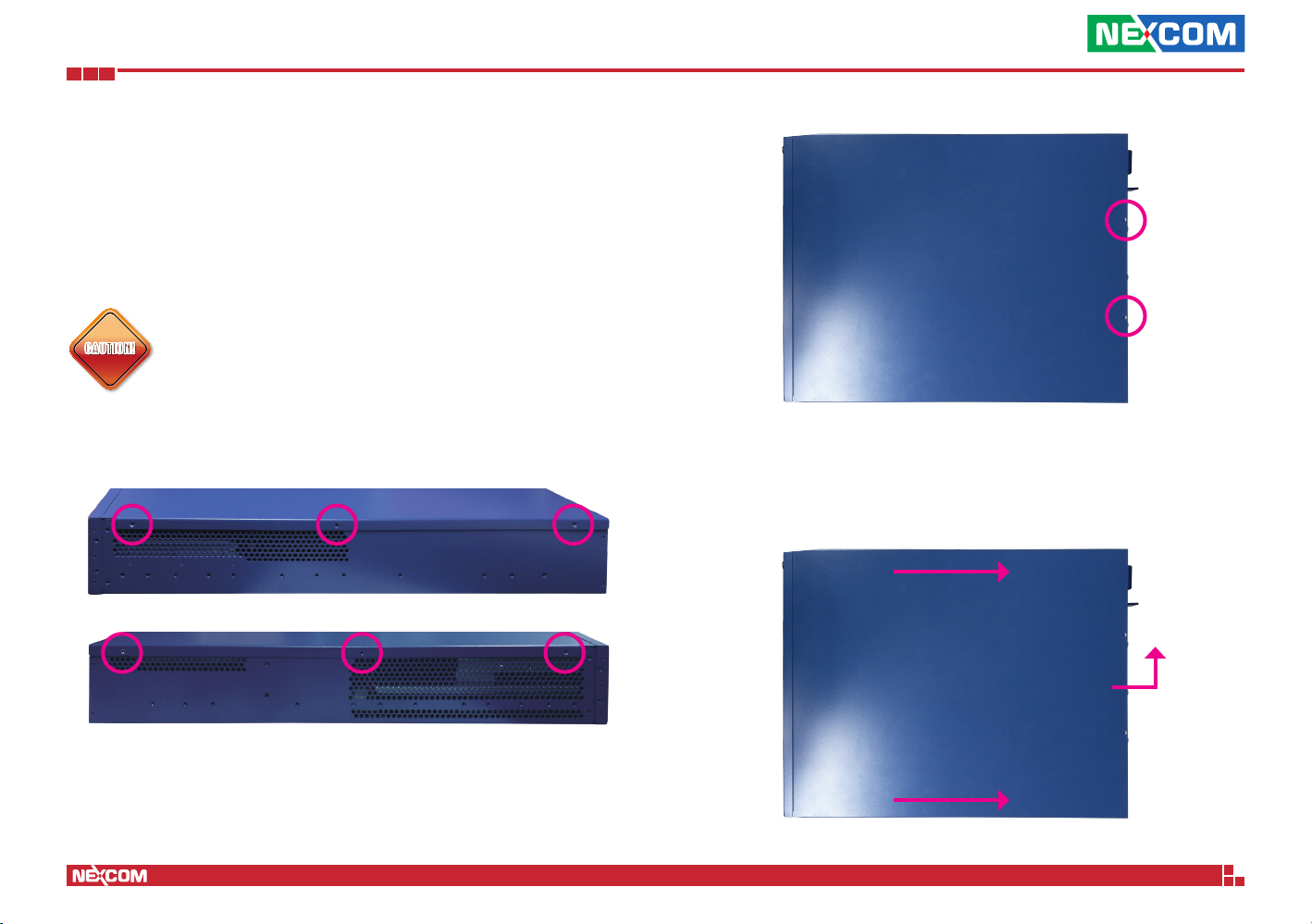

Removing the Chassis Cover

Prior to removing the chassis cover, make sure the unit’s power

CAUTION!CAUTION!

is off and disconnected from the power sources to prevent electric shock or system damage.

1. The screws on the bottom and sides are used to secure the cover to the chassis. Remove these screws and put them in a safe place for later use.

Screws on the sides

Screws on the top

2. With the screws removed, gently slide the cover outwards and then lift up the cover to remove it.

Lift here

17

NSA 7145 User Manual

Chapter 3: System Setup

CAUTION!

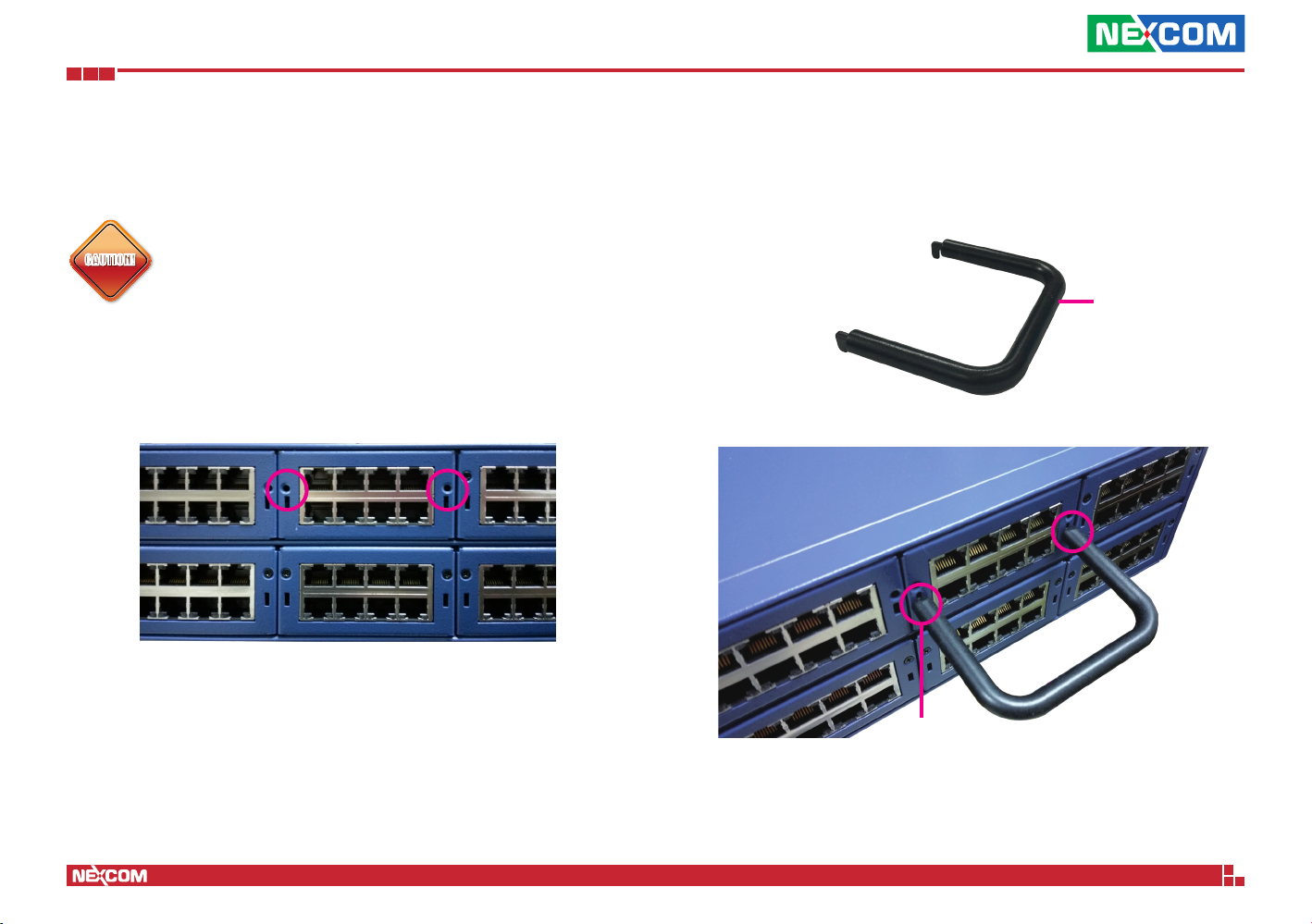

Installing a LAN Module

Please correctly follow the below instructions and noted items to avoid making unnecessary damages. Make sure the power

CAUTION!CAUTION!

1. Remove the screw on the LAN module then put them in a safe place for later use.

supply is switched off and disconnected from the power sources before replacing or adding LAN modules to prevent electric shock or system damage.

2. Use the handle provided, and insert the handle into the two holes on the LAN module.

Handle

18

Insert here

NSA 7145 User Manual

Chapter 3: System Setup

3. Once the handle is firmly secured in position, pull the handle outwards to remove the LAN module.

4. Insert the new LAN module into the slot and secure the module with screws.

19

Important:

Before using Optical fiber for transferring data, make sure you have connected an approved Optical Transceiver Module. User needs to install appropriate and UL approved Laser Class I Transceivers, rated 3.3Vdc, max. 1W.

NSA 7145 User Manual

Chapter 3: System Setup

Installation Sequence of CPU and Memory

CPU Installation

When installing a CPU into the system, please install it into socket CPU 0 first as depicted below.

Socket CPU 0

Socket CPU 1

Memory Installation

When installing memory modules into the system, please install the first and second memory module into the memory slots in the numerical sequence as depicted below.



20

Note: The system may not boot if the first memory module is not installed in slot 1 labeled above.

NSA 7145 User Manual

Chapter 3: System Setup

Assembling the 2.5” Removable Drive Bay

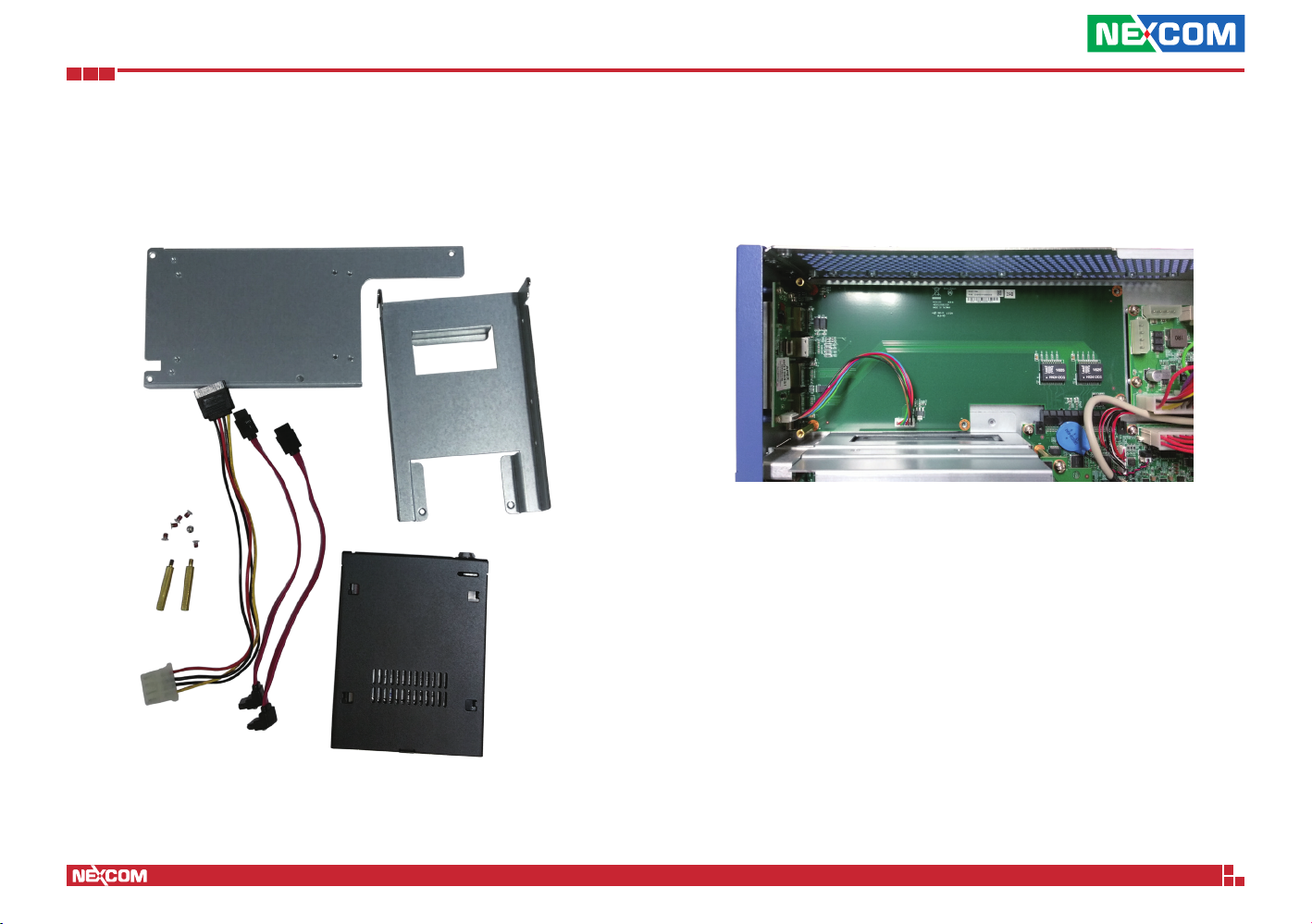

The 2.5” removable drive bay kit contains the parts pictured below: 1. Locate the installation location for the drive bay kit.

21

NSA 7145 User Manual

Chapter 3: System Setup

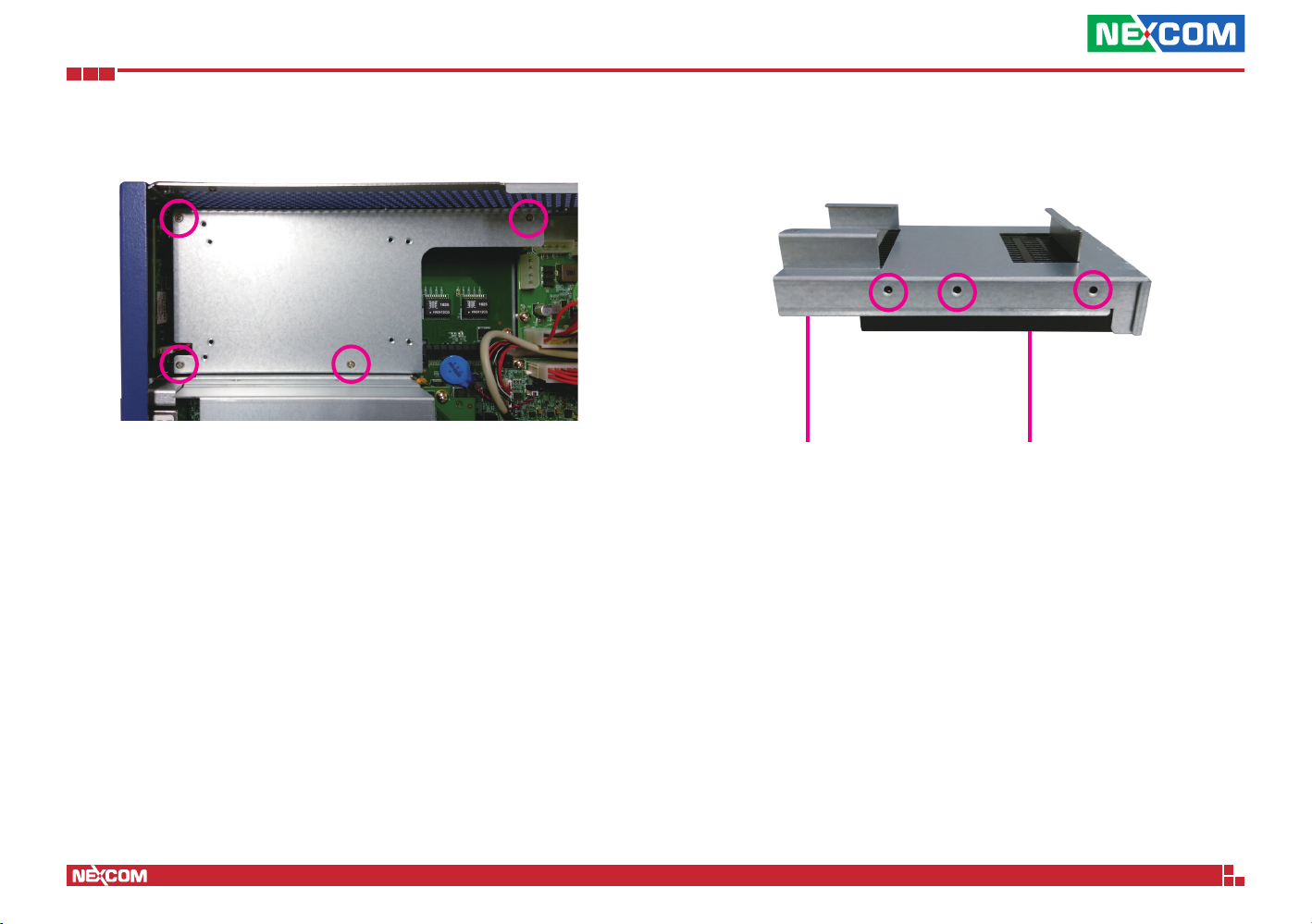

2. Install the two copper standoffs to the location circled below. 3. Align the mounting holes on the base plate to the copper standoffs.

22

NSA 7145 User Manual

Chapter 3: System Setup

4. Secure the base plate to the standoffs with screws. 5. Align the mounting holes on the drive bay enclosure to the mounting holes on the drive bay bracket.

23

Drive Bay Bracket

Drive Bay Enclosure

NSA 7145 User Manual

Chapter 3: System Setup

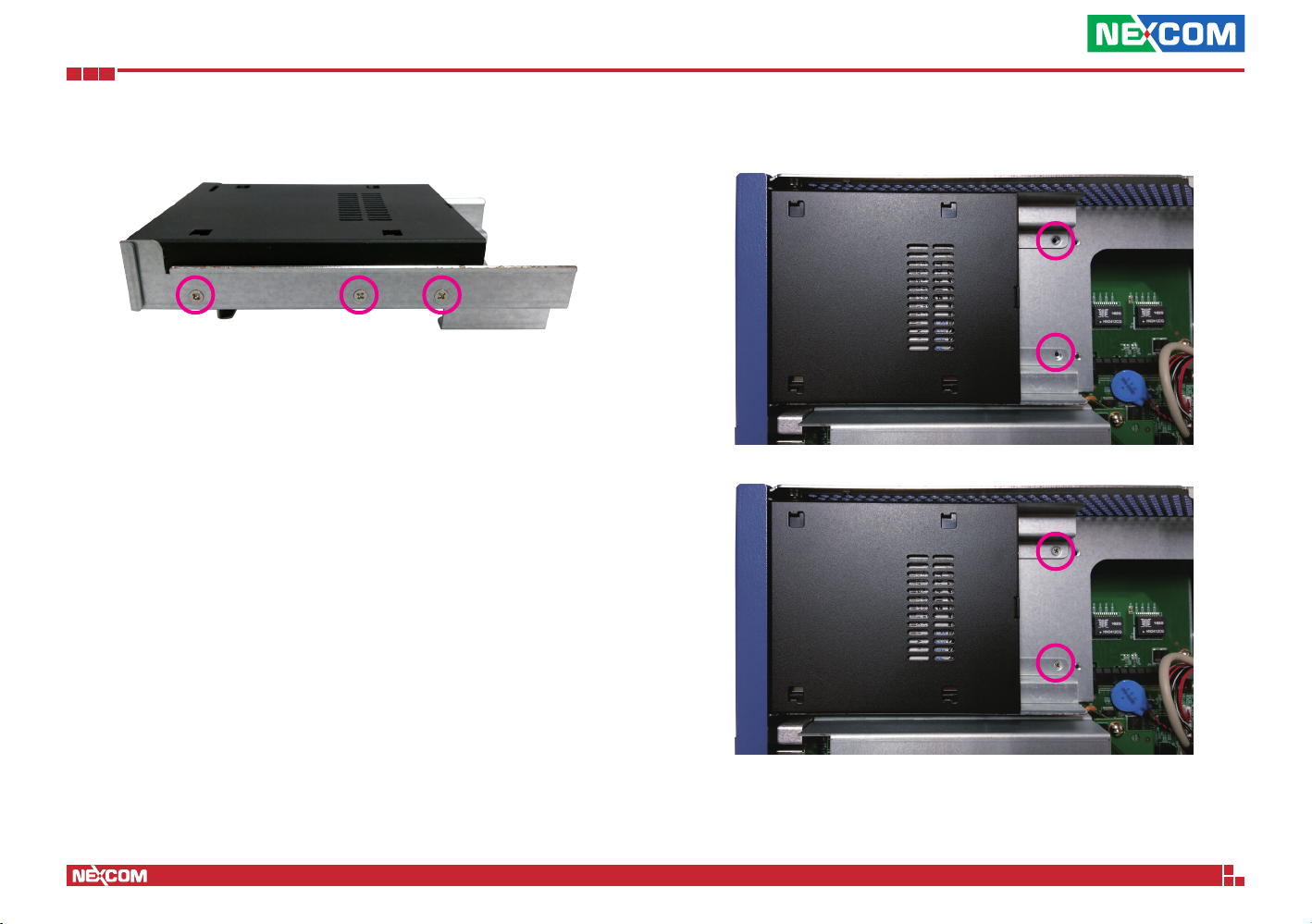

6. Secure the drive bay enclosure to the bracket with screws. 8. Fix the drive bay bracket to the base plate with screws.

7. Repeat step 6 for securing the screws on the other side of the bracket.

24

NSA 7145 User Manual

Chapter 3: System Setup

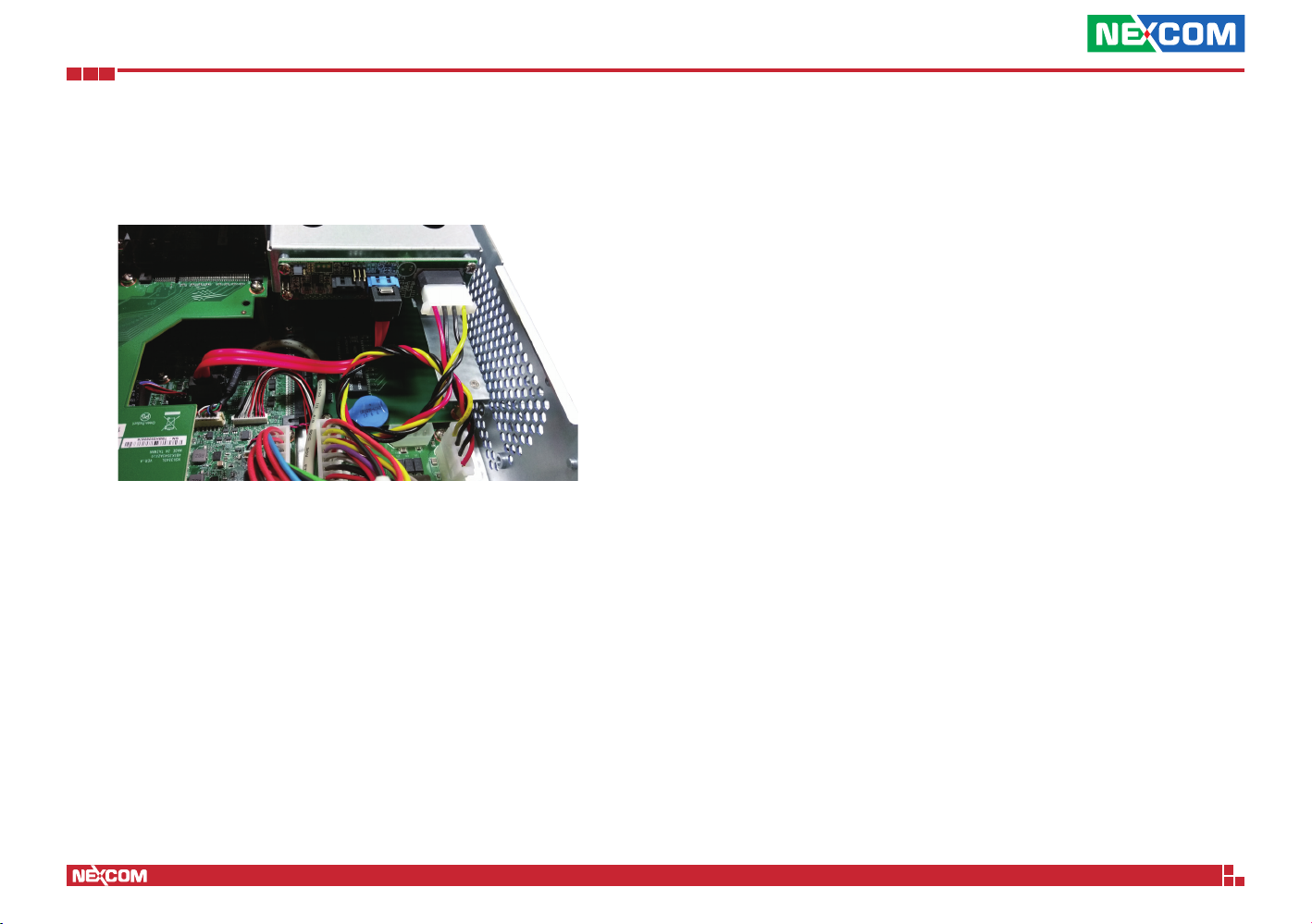

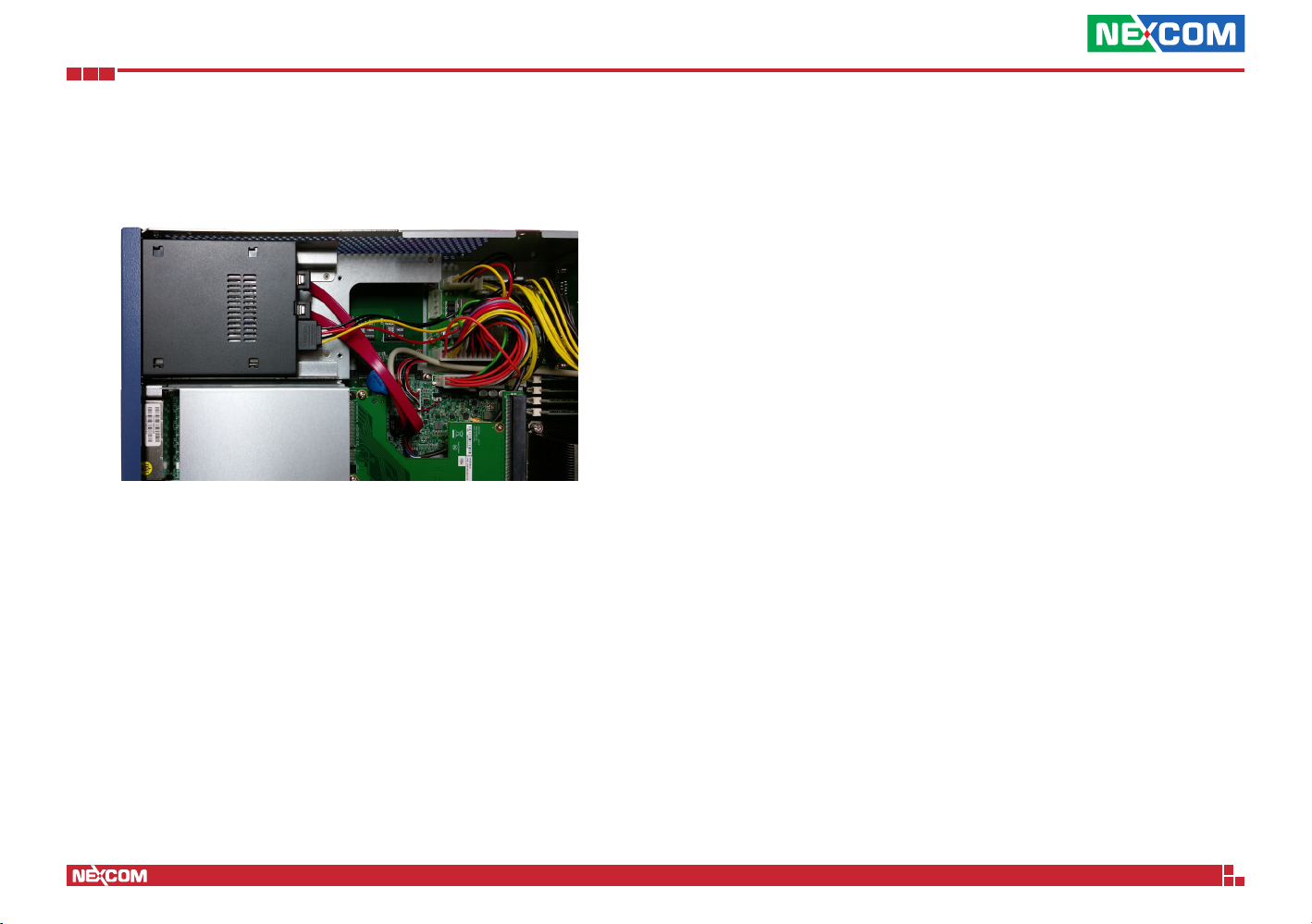

9. Connect the SATA data and power cables to the respective connectors

on the board and the other ends of the cables to the connectors on the drive bay enclosure.

25

NSA 7145 User Manual

Chapter 3: System Setup

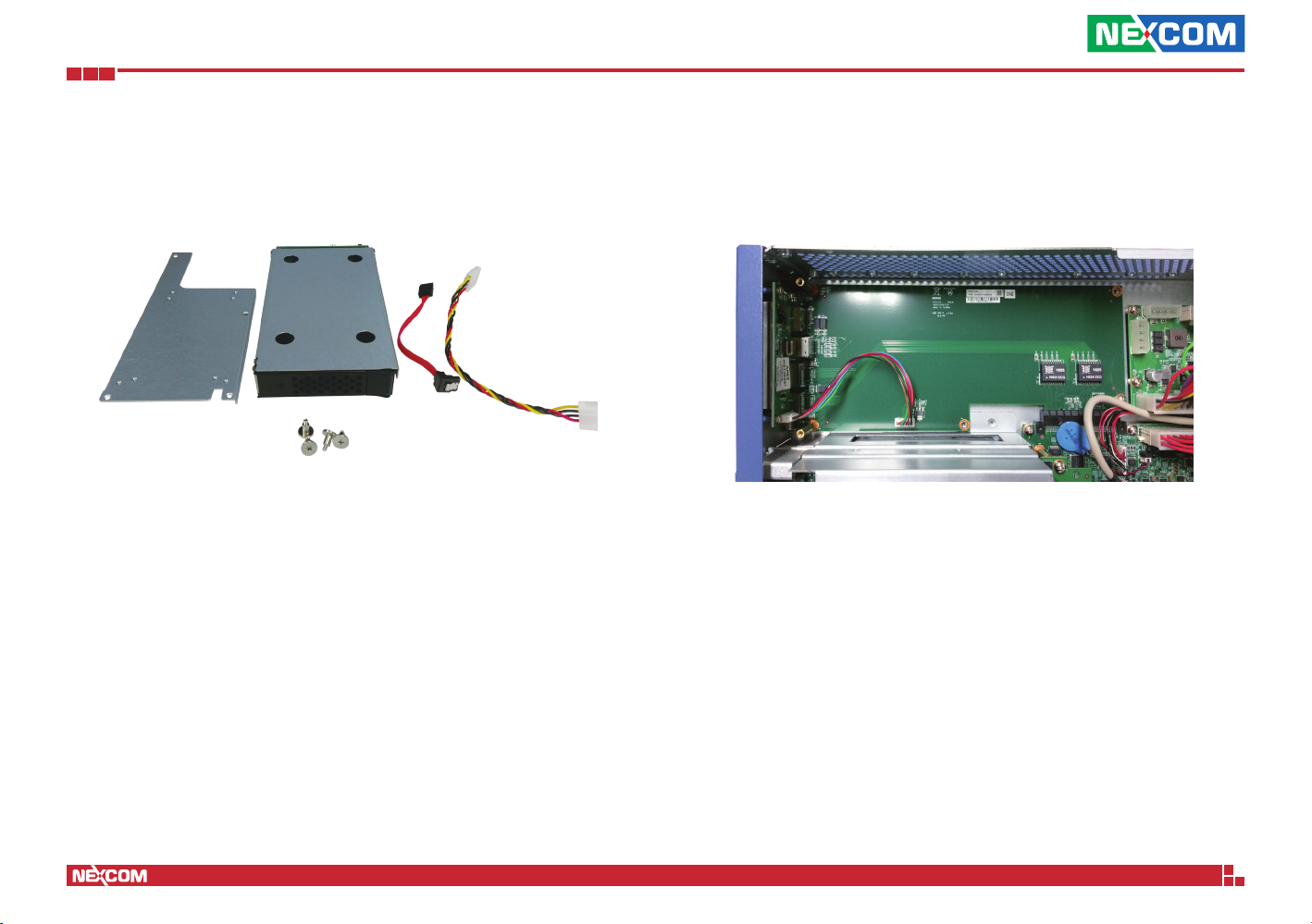

Assembling the 3.5” Removable Drive Bay

The 3.5” removable drive bay kit contains the parts pictured below:

1. Locate the installation location for the drive bay kit.

26

NSA 7145 User Manual

Chapter 3: System Setup

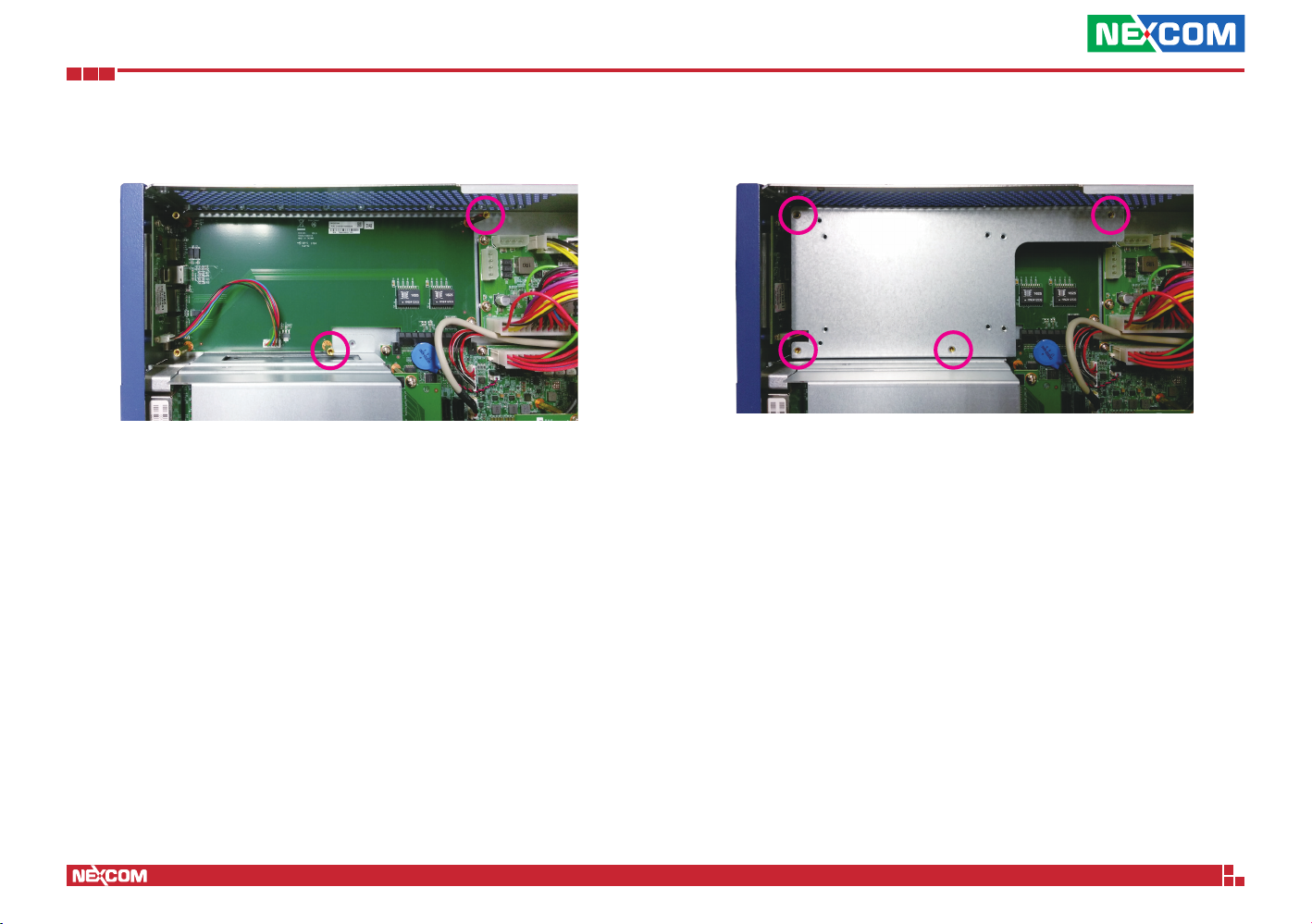

2. Install the two copper standoffs to the location circled below. 3. Align the mounting holes on the base plate to the copper standoffs.

27

NSA 7145 User Manual

Chapter 3: System Setup

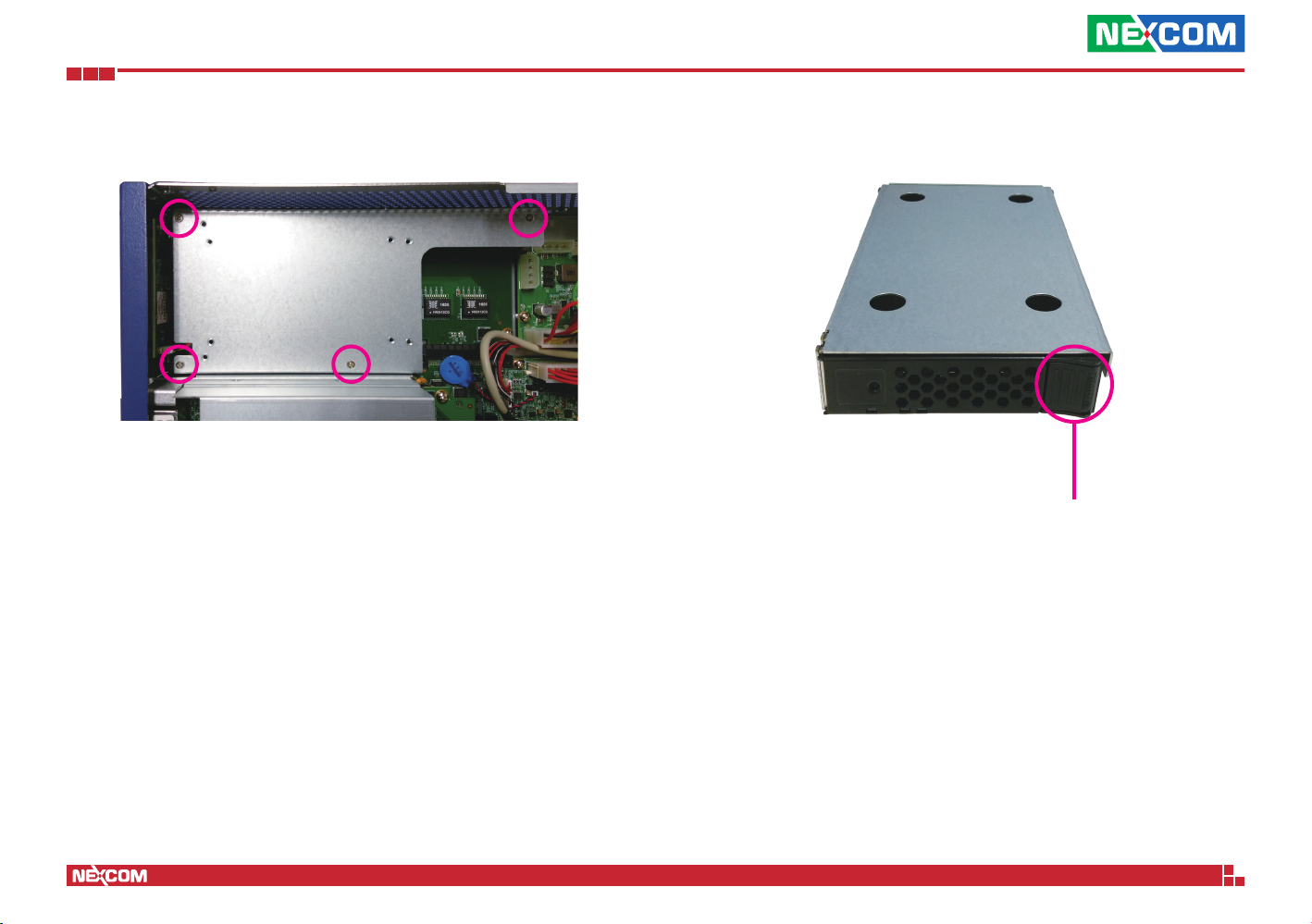

4. Secure the base plate to the standoffs with screws. 5. Push the eject button on the HDD drive tray to release the latch.

Eject button

28

NSA 7145 User Manual

Chapter 3: System Setup

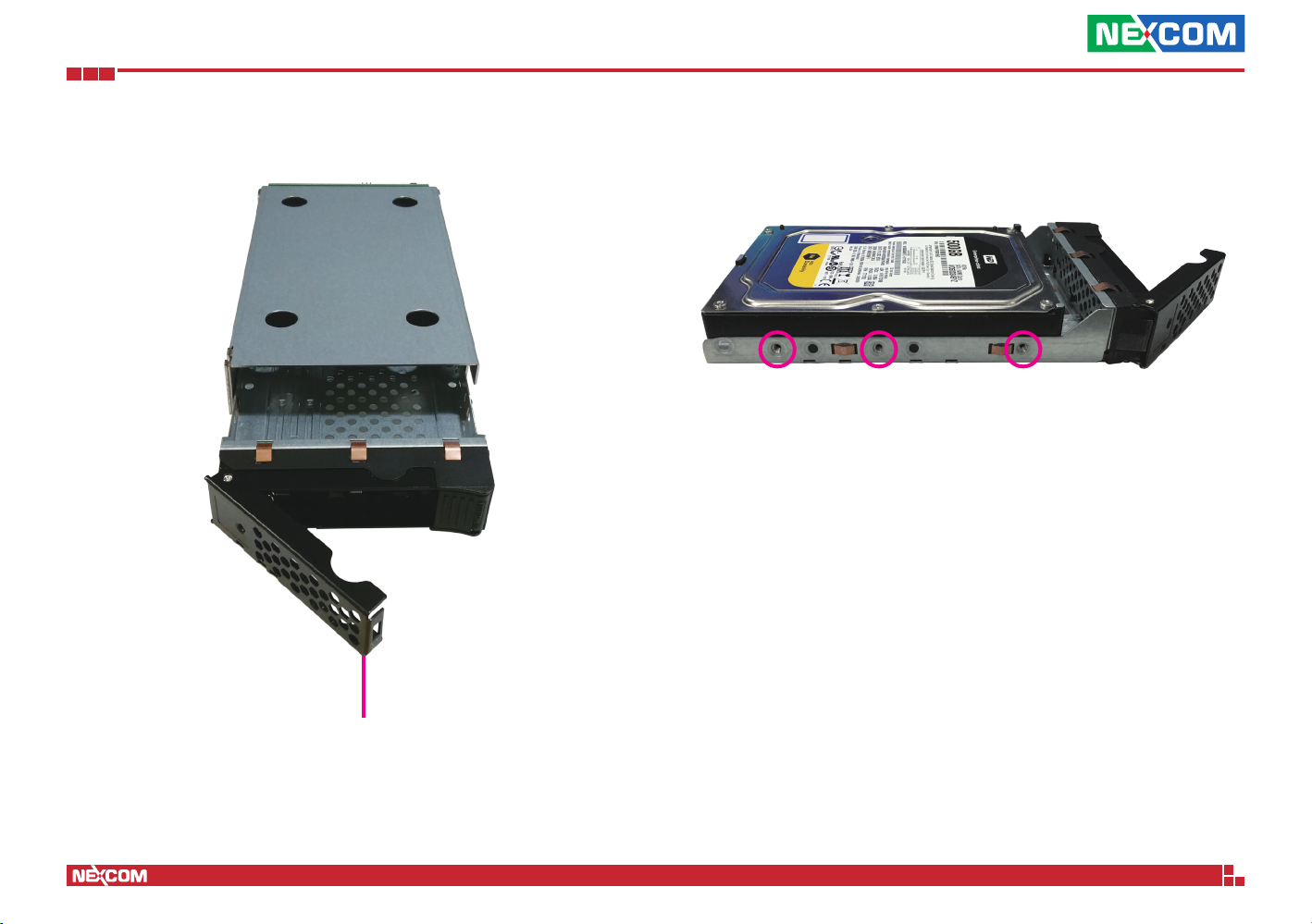

6. Grab on the latch and pull the drive tray out gently.

7. Place the SATA drive onto the tray and align the mounting holes on the drive with the mounting holes on the tray, then secure the drive in place with screws.

8. Repeat step 7 for securing the screws on the other side of the HDD tray.

Latch

29

NSA 7145 User Manual

Chapter 3: System Setup

9. Slide the tray back into the drive bay enclosure, and push firmly until you hear a distinctive click sound.

10. Fix the drive bay enclosure to the base plate with screws.

30

NSA 7145 User Manual

Chapter 3: System Setup

11. Connect the SATA data and power cables to the respective connectors

on the board and the other ends of the cables to the connectors on the drive bay enclosure.

31

NSA 7145 User Manual

Chapter 4: BIOS Setup

ChaPter 4: BIos setuP

This chapter describes how to use the BIOS setup program for NSA 7145. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM website at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals

▪ Video display type and display options

▪ Password protection from unauthorized use

▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

▪ This program should be executed under the following conditions:

▪ When changing the system configuration

▪ When a configuration error is detected by the system and you are

prompted to make changes to the setup program

▪ When resetting the system clock

▪ When redefining the communication ports to prevent any conflicts

▪ When making changes to the Power Management configuration

▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

32

NSA 7145 User Manual

Chapter 4: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series of beeps

will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing allows you to enter Setup.

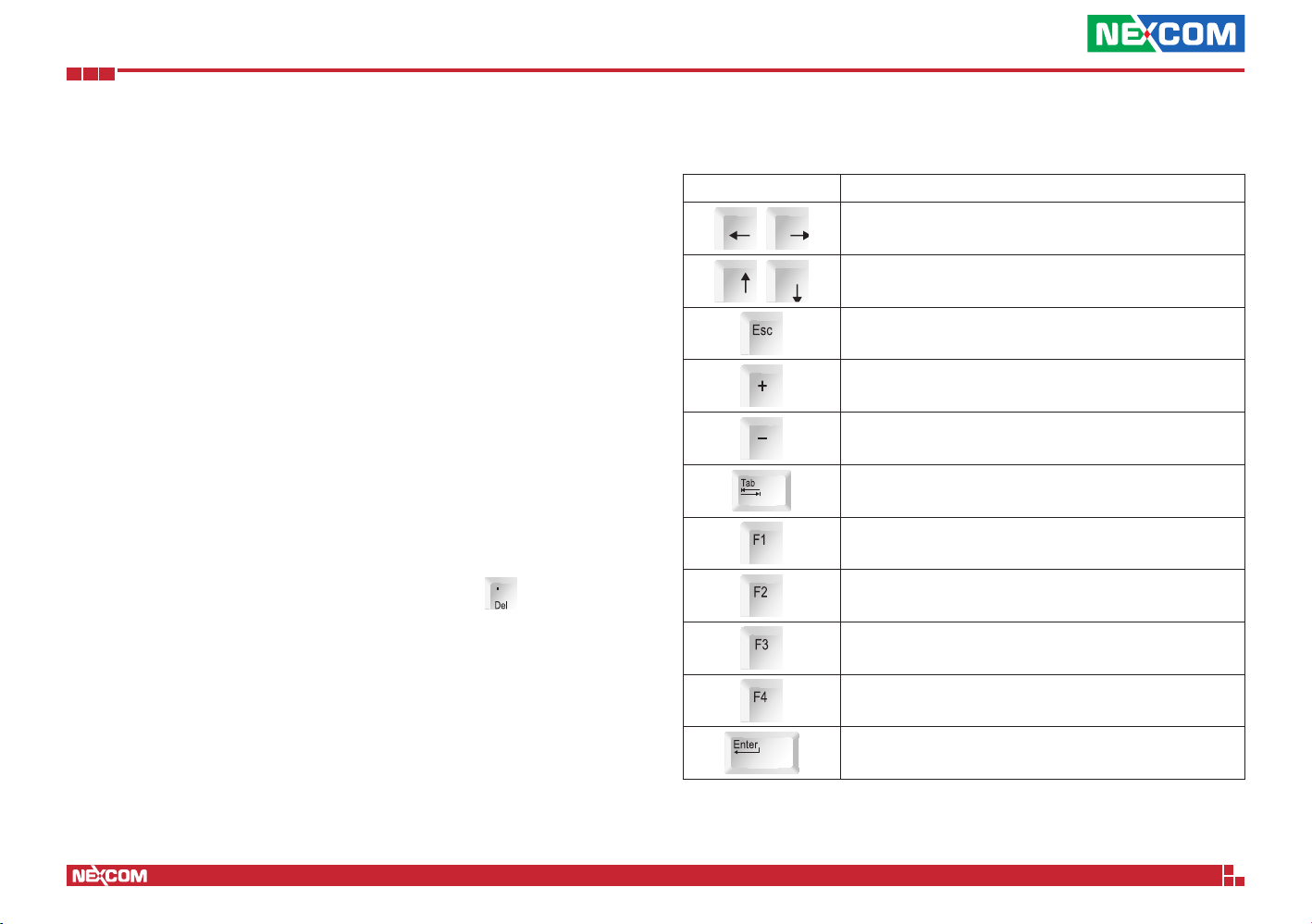

Legends

Key Function

Moves the highlight left or right to select a menu.

Moves the highlight up or down between sub-menu or fields.

Exits the BIOS Setup Utility.

Scrolls forward through the values or options of the highlighted field.

Scrolls backward through the values or options of the highlighted field.

Selects a field.

Displays General Help.

Load previous values.

Load optimized default values.

33

Saves and exits the Setup program.

Press <Enter> to enter the highlighted sub-menu

NSA 7145 User Manual

Chapter 4: BIOS Setup

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press .

34

NSA 7145 User Manual

Chapter 4: BIOS Setup

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from several setup functions and one exit. Use arrow keys to select among the items and press to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

BIOS Information

BIOS Vendor Core Version Compliancy Project Version Build Date and Time Current BIOS

Access Level

Memory Information

Total Memory

System Date

System Time

American Megatrends

5.12 UEFI 2.5; PI 1.4 G745- 0.01 x64 12/18/2017 17:33:37 BIOS1 Administrator

4096 MB

[Fri 12/01/2017] [04:56:43]

Set the Date. Use Tab to switch between Date elements. Default Ranges: Year: 2005-2099 Months: 1-12 Days: dependent on month

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Monday to Sunday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 2005 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

35

NSA 7145 User Manual

Chapter 4: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.



Trusted Computing



AST2400 Super IO Conguration



Hardware Monitor



Serial Port Console Redirection



PCI Subsystem Settings



Network Stack Conguration



CSM Conguration



USB Conguration

Server MgmtAdvanced Platform Conguration Socket CongurationMain

USB Conguration Parameters

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Trusted Computing

This section is used to configure Trusted Platform Module (TPM) settings.

Advanced

Conguration

Security Device Support

NO Security Device

[Enable]

Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Security Device Support

Enables or disables BIOS support for security device. O.S will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

36

NSA 7145 User Manual

Chapter 4: BIOS Setup

AST2400 Super IO Configuration

This section is used to configure the serial port.

Advanced

AST2400 Super IO Conguration

Super IO Chip



Serial Port 1 Conguration

AST2400

Super IO Chip

Displays the Super I/O chip used on the board.

Serial Port 1 Configuration

Configuration settings for serial port 1.

Set Parameters of Serial Port 1 (COMA)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Serial Port 1 Configuration

This section is used to configure serial port 1.

Advanced

Serial Port 1 Conguration

Serial Port

Device Settings

Change Settings

[Enabled]

IO=3F8h; IRQ=4;

[Auto]

Serial Port

Enables or disables the serial port.

Change Settings

Selects an optimal setting for the Super IO device.

Enable or Disable Serial Port (COM)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

37

NSA 7145 User Manual

Chapter 4: BIOS Setup

Hardware Monitor

This section is used to monitor hardware status such as temperature, fan speed and voltages.

Advanced

Pc Health Status

P12V_SCALED P3V3_AUX_SCALED P5V_AUX_SCALED P1V05_PCH_AUX PVNN_PCH_AUX VCC_CPU0_SCALED VCC_CPU1_SCALED PVDDQ_ABC PVDDQ_DEF PVDDQ_GHJ PVDDQ_KLM P3V_VBAT SYS_FAN1_TP SYS_FAN2_TP SYS_FAN3_TP CPU_FAN0_TP

+11.40 V +3.30 V +4.95 V +1.06 V +0.90 V +1.79 V +1.77 V +1.23 V +1.24 V +1.24 V +1.24 V +2.84 V 0 RPM 0 RPM 0 RPM 4100 RPM

▲ ▲

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

▼ ▼

P12V_SCALED to CPU_FAN0_TP

Detects and displays the output voltages and fan speeds.

Advanced

Pc Health Status

PVNN_PCH_AUX VCC_CPU0_SCALED VCC_CPU1_SCALED PVDDQ_ABC PVDDQ_DEF PVDDQ_GHJ PVDDQ_KLM P3V_VBAT SYS_FAN1_TP SYS_FAN2_TP SYS_FAN3_TP CPU_FAN0_TP CPU_FAN1_TP SMB_TMP0 SMB_TMP1 PECI_IBMC PECI_IBMC2 PSU0_VOL

+0.90 V +1.79 V +1.77 V +1.23 V +1.24 V +1.24 V +1.24 V +2.84 V 0 RPM 0 RPM 0 RPM 4100 RPM 2200 RPM 32 C 31 C 56 C 44 C +0.10 V

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PVNN_PCH_AUX to PSU0_VOL

Detects and displays the output voltages and fan speeds.

38

NSA 7145 User Manual

Chapter 4: BIOS Setup

Serial Port Console Redirection

This section is used to configure the serial port that will be used for console redirection.

Advanced

Console Redirection Enable or

COM0

Console Redirection

Console Redirection Settings

►

Legacy Console Redirection

►

Legacy Console Redirection Settings

Serial Port for Out-of-Band Management / Windows Emergency Management Services (EMS)

Console Redirection Console Redirection Settings

►

[Enabled]

Disable.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Console Redirection (COM0/EMS)

Enables or disables console redirection for COM0/EMS.

Console Redirection Settings (COM0)

Specifies how the host computer and the remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings.

Advanced

COM0

Console Redirection Settings

Terminal Type

Bits per second Data Bits Parity Stop Bits Flow Control VT-UTF8 Combo Key Sup Recorder Mode Resolution 100x31 Legacy OS Redirection Putty KeyPad Redirection After BIO

[ANSI]

[115200] [8] [None] [1] [None] [Enabled] [Disabled] [Disabled] [80x24] [VT100] [Always Enable]

Emulation: ANSI: Extended ASCII char set. VT100: ASCII char set. VT100+: Extends VT100 to support color, function keys, etc. VT-UTF8: Uses UTF8 encoding to map Unicode chars onto 1

or more

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Terminal Type

ANSI Extended ASCII character set. VT100 ASCII character set. VT100+ Extends VT100 to support color, function keys, etc. VT-UTF8 Uses UTF8 encoding to map Unicode characters onto 1 or more bytes.

Bits Per Second

Selects the serial port transmission speed. The speed must match the other side. Long or noisy lines may require a lower speed.

39

NSA 7145 User Manual

Chapter 4: BIOS Setup

Data Bits

The options are 7 and 8.

Parity

A parity bit can be sent with the data bits to detect some transmission errors.

Even Parity bit is 0 if the number of 1’s in the data bits is even. Odd Parity bit is 0 if number of 1’s in the data bits is odd.

Stop Bits

Stop bits indicate the end of a serial data packet. (A start bit indicates the beginning). The standard setting is 1 stop bit. Communication with slow devices may require more than 1 stop bit.

Flow Control

Flow control can prevent data loss from buffer overflow. When sending data and the receiving buffers are full, a “stop” signal can be sent to stop the data flow.

VT-UTF8 Combo Key Support

Enables or disables VT-UTF8 combo key support.

Recorder Mode

When this field is enabled, only text will be sent. This is to capture the terminal data.

Resolution 100x31

Enables or disables extended terminal resolution.

Legacy OS Redirection

Selects the number of rows and columns that support redirection.

Legacy Console Redirection Settings

Advanced

Legacy Serial Redirection Port

[COM0]

Select a COM port to display redirection of Legacy OS and Legacy OPROM Messages

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Legacy Serial Redirection Port

Configures the COM port to display redirection of legacy OS and legacy OPROM messages.

Putty KeyPad

Selects the Putty keyboard emulation type.

Redirection After BIOS POST

Enables or disables redirection after BIOS POST.

40

NSA 7145 User Manual

Chapter 4: BIOS Setup

Serial Port for Out-of-Band Management / Windows EMS

Advanced

Out-of-Band Mgmt Port

Terminal Type

Bits per second Flow Control

Data Bits Parity Stop Bits

COM0

[VT-UTF8]

[115200] [None]

8

None

1

VT-UTF8 is the preferred terminal type for out-of-band management. The next best choice is VT100+ and then VT100. See above, in Console Redirection Settings

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Terminal Type

ANSI Extended ASCII character set. VT100 ASCII character set. VT100+ Extends VT100 to support color, function keys, etc. VT-UTF8 Uses UTF8 encoding to map Unicode characters onto 1 or more bytes.

Flow Control

Flow control can prevent data loss from buffer overflow. When sending data and the receiving buffers are full, a “stop” signal can be sent to stop the data flow.

Bits per second

Selects the serial port transmission speed. The speed must match the other side. Long or noisy lines may require a lower speed.

41

NSA 7145 User Manual

Chapter 4: BIOS Setup

PCI Subsystem Settings

This section is used to configure the PCI.

Advanced

PCI Bus Driver Versio

PCI Devices Common Settings:

Above 4G Decoding

SR-IOV Support

A5.01.12

[Enabled]

Enables or Disables 64bit capable Devices to be Decoded in Above 4G Address Space (Only if System Supports 64 bit PCI Decoding).

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Above 4G Decoding

Enables or disables decoding of 64-bit devices in 4G address space. (Only if the system supports 64-bit PCI decoding.)

Network Stack Configuration

This section is used to configure the network stack.

Advanced

Network Stack

[Disabled]

Network Stack

Enables or disables UEFI network stack.

Enable/Disable UEFI network

stack

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

SR-IOV Support

Enables or disables SR-IOV support.

42

NSA 7145 User Manual

Chapter 4: BIOS Setup

CSM Configuration

This section is used to configure the compatibility support module features.

Advanced

Compatibility Support Module Conguration

CSM Support

CSM16 Module Version

GateA20 Active Option ROM Messages INT19 Trap Response

Option ROM execution

Network

Storage

Video Other PCI devices

[Enabled]

07.81

[Upon Request] [Force BIOS] [Immediate]

[Do not launch] [Legacy] [Legacy] [Do not launch]

Enable/Disable CSM Support.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CSM Support

This field is used to enable or disable CSM support, if Auto option is selected, based on OS, CSM will be enabled or disabled automatically.

Option ROM Messages

This field is used to set display mode for Option ROM. The options are Force BIOS and Keep Current.

INT19 Trap Response

Allows Option ROMs to trap Interrupt 19 when enabled.

Immediate Execute the trap right away. Postponed Execute the trap during legacy boot.

Network

Controls the execution of UEFI and Legacy PXE OpROM.

Storage

Controls the execution of UEFI and Legacy Storage OpROM.

Video

Controls the execution of UEFI and Legacy Video OpROM.

Other PCI Devices

Configures the OpROM execution policy for devices other than Network, Storage or Video.

GateA20 Active

Upon Request GA20 can be disabled using BIOS services. Always Do not allow disabling of GA20; this option is useful when any RT code is executed above 1MB.

43

NSA 7145 User Manual

Chapter 4: BIOS Setup

USB Configuration

This section is used to configure the USB.

Advanced

USB Conguration

USB Module Version

USB Controllers:

1 XHCI

USB Devices:

6 Drives, 2 Keyboards, 2 Mice, 2 Hubs

Legacy USB Support

XHCI Hand-off USB Mass Storage Driver Support Port 60/64 Emulation

USB hardware delays and time-outs:

USB transfer time-out Device reset time-out Device power-up delay

17

[Enabled]

[Enabled] [Enabled] [Enabled]

[20 sec] [20 sec] [Auto]

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Legacy USB Support

Enable Enables Legacy USB. Auto Disables support for Legacy when no USB devices are connected. Disable Keeps USB devices available only for EFI applications.

USB Mass Storage Driver Support

Enables or disables USB mass storage device driver support.

Port 60/64 Emulation

Enables I/O port 60h/64h emulation support. This should be enabled for complete USB keyboard legacy support for non-USB aware OS.

USB Transfer Time-out

The time-out value for control, bulk, and Interrupt transfers.

Device Reset Time-out

Selects the USB mass storage device’s start unit command timeout.

Device Power-up Delay

Maximum time the value will take before it properly reports itself to the Host Controller. “Auto” uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor.

XHCI Hand-off

This is a workaround for OSs that does not support XHCI hand-off. The XHCI ownership change should be claimed by the XHCI driver.

44

NSA 7145 User Manual

Chapter 4: BIOS Setup

Platform Configuration

►

PCH Conguration

►

Network Conguration Server ME Debug Conguration

►

PCH Configuration

Enters the PCH Configuration submenu.

Network Configuration

Enters the Network Configuration submenu.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Displays and provides option to change the PCH Settings

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCH Configuration

PCH Conguration

----------------------------------------------------------------------------------...

PCH Devices

►

PCI Express Conguration

►

PCH SATA Conguration

►

USB Conguration

►

PCH Devices

Enters the PCH Devices submenu.

PCI Express Configuration

Enters the PCI Express Configuration submenu.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Enable/Disable Intel(R) IO Controller Hub devices

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Server ME Debug Configuration

Enters the Server ME Debug Configuration submenu.

PCH SATA Configuration

Enters the PCH SATA Configuration submenu.

USB Configuration

Enters the USB Configuration submenu.

45

NSA 7145 User Manual

Chapter 4: BIOS Setup

PCH Devices PCI Express Configuration

Server MgmtAdvanced Platform Conguration Socket CongurationMain

External SSC Enable -

PCH state after G3 Pcie Pll SSC

[Disable]

[S0] [Disable]

Enable Spread Spectrum - only affects external clock generator

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

External SSC Enable

Enables or disables spread spectrum clock. Only affects external clock generator.

PCH state after G3

Configures the PCH state after G3.

Max Read Request Size

[MRRS 1024B]

Max Read Request Size

Configures the PCIe max read request size.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

PCIE Max Read Request Size Selection.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Pcie Pll SSC

Enables or disables PCIe Phase Locked Loop for spread spectrum clock.

46

NSA 7145 User Manual

Chapter 4: BIOS Setup

PCH SATA Configuration

PCH SATA Conguration

----------------------------------------------------------------------------------------

SATA Controller

Congure SATA as

SATA Port 0 Software Preserve

Port 0 Hot Plug

SATA Port 1 Software Preserve

Port 1 Hot Plug

SATA Port 2 Software Preserve

Port 2 Hot Plug

[Enable]

[AHCI]

[Not Installed] Unknown

[Enable] [Enable]

[Not Installed] Unknown

[Enable] [Enable]

[Not Installed] Unknown

[Enable] [Enable]

SATA Controller(s)

Enables or disables the SATA controller.

Configure SATA as

Configures the SATA mode.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

▲ ▲

Enable or Disable SATA

Controller

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

▼ ▼

SATA Port 3 Software Preserve

Port 3 Hot Plug

SATA Port 4 Software Preserve

Port 4 Hot Plug

SATA Port 5 Software Preserve

Port 5 Hot Plug

SATA Port 6 Software Preserve

Port 6

Hot Plug

SATA Port 7 Software Preserve

[Not Installed] Unknown

[Enable] [Enable]

[Not Installed] Unknown

[Enable] [Enable]

[Not Installed] Unknown

[Enable] [Enable]

[Not Installed] Unknown

[Enable]

[Not Installed] Unknown

Port 0 to Port 6

Enables or disables SATA port 0 to port 6.

Hot Plug

Enables or disables hot plugging feature on SATA port 0 to port 6.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Designates this port as Hot Pluggable.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

AHCI This option configures the Serial ATA drives to use AHCI (Advanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance.

47

NSA 7145 User Manual

Chapter 4: BIOS Setup

USB Configuration (PCH) Network Configuration

Server MgmtAdvanced Platform Conguration Socket CongurationMain

XHCI Manual Mode

USB Per-Connector Dis

[Disable]

Use by validation, not for end-user.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

XHCI Manual Mode

Enables or disables XHCI manual mode.

USB Per-Connector Disable

Provides the option to enable or disable each USB connector.

Network Conguration

-----------------------------------------------------------------------------------ByPass Auto Detect [Enable]

If all the PCIE slots don't insert the Lan Module or all the Lan Modules don't support ByPass function, the options of the ByPass will not be shown!!

ByPass Auto Detect

Enables or disables automatic LAN Bypass function.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Switch ByPass Auto Detect to Enable/Disable

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

48

NSA 7145 User Manual

Chapter 4: BIOS Setup

Server ME Debug Configuration Server ME General Configuration

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Server ME General Conguration

► ►

Switch ME basic features conguration

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Server ME General Configuration

Enters the Server ME General Configuration submenu.

Override ICC Clock Settings

Enters the Override ICC Clock Settings submenu.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Override the default ICC Set Clock Settings.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

49

NSA 7145 User Manual

Chapter 4: BIOS Setup

Override ICC Clock Settings

Override ICC Clock Se

ICC Clock Spread Spec

Override ICC Clock Settings

[Enabled]

[Disabled]

Server MgmtAdvanced Platform Conguration Socket CongurationMain

This option allows customization of clock settings.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Provides the option to allow customization of clock settings.

ICC Clock Spread Spectrum

Enables or disables ICC Clock Spread Spectrum.

Socket Configuration

►

Processor Conguration

►

Common RefCode Conguration UPI Conguration

►

Memory Conguration

►

IIO Conguration

►

Advanced Power Management Conguration

►

Processor Configuration

Enters the Processor Configuration submenu.

Common RefCode Configuration

Enters the Common RefCode Configuration submenu.

Displays and provides option to change the Processor Settings

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Server MgmtAdvanced Platform Conguration Socket CongurationMain

UPI Configuration and Memory Configuration

Enters the UPI Configuration and Memory Configuration submenu.

IIO Configuration and Advanced Power Management Configuration

Enters the IIO Configuration and Advanced Power Management Configuration submenu.

50

NSA 7145 User Manual

Chapter 4: BIOS Setup

Processor Configuration

Processor Conguration

-----------------------------------------------------------------------------------

Per-Socket Conguration

►

Processor BSP Revisio 50654 - SKX H0 Processor Socket Socket 0 Socket 1 Processor ID 00050654* | 00050654 Processor Frequency 2.500GHz | 2.500GHz Processor Max Ratio 19AH | 19AH Processor Min Ratio 0AH | 0AH Microcode Revision 02000026 | L1 Cache RAM 64KB | 64KB L2 Cache RAM 1024KB | 1024KB L3 Cache RAM 39424KB | 39424KB Processor 0 Version Intel (R) Xeon (R) Platinum 8180 CPU @ 2.50GHz Processor 1 Version Intel (R) Xeon (R) Platinum 8180 CPU @ 2.50GHz

Hyper-Threading [ALL]

Enables or disables hyper-threading technology.

Hardware Prefetcher

Enables or disables the MLC streamer prefetcher.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

▲ ▲

Change Per-Socket Settings

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

▼ ▼

Processor Socket Socket 0 Socket 1 Processor ID 00050654* | 00050654 Processor Frequency 2.500GHz | 2.500GHz Processor Max Ratio 19AH | 19AH Processor Min Ratio 0AH | 0AH Microcode Revision 02000026 | L1 Cache RAM 64KB | 64KB L2 Cache RAM 1024KB | 1024KB L3 Cache RAM 39424KB | 39424KB Processor 0 Version Intel (R) Xeon (R) Platinum 8180 CPU @ 2.50GHz Processor 1 Version Intel (R) Xeon (R) Platinum 8180 CPU @ 2.50GHz

Hyper-Threading [ALL] Hardware Prefetcher Adjacent Cache Prefetcher

Extended APIC

[Disable] [Disable] [Enable]

[Disable]

Adjacent Cache Prefetcher

Enables or disables prefetching of adjacent cache lines.

Extended APIC

Enables or disables extended APIC support.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Enable/disable extended APIC support

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

51

NSA 7145 User Manual

Chapter 4: BIOS Setup

Per-Socket Configuration CPU Socket 0 Configuration

►

CPU Socket 0 Conguration

CPU Socket 1 Conguration

►

CPU Socket 0 Configuration

Processor settings for the CPU on socket 0.

CPU Socket 1 Configuration

Processor settings for the CPU on socket 1.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Server MgmtAdvanced Platform Conguration Socket CongurationMain

CPU Socket 0 Conguration

-----------------------------------------------------------------------------------...

Core Disable Bitmap(H

IOT Cfg [Disable]

0

0: Enable all cores. FFFFFFF: Disable all cores

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Cores Disable Bitmap

Provides the option to enable or disable all cores. 0 means enable all cores. FFFFFFF means disable all cores.

IOT Cfg

Enables or disables IOT Cfg.

52

NSA 7145 User Manual

Chapter 4: BIOS Setup

CPU Socket 1 Configuration Common RefCode Configuration

Server MgmtAdvanced Platform Conguration Socket CongurationMain

CPU Socket 1 Conguration

-----------------------------------------------------------------------------------...

Core Disable Bitmap(H

IOT Cfg [Disable]

0

0: Enable all cores. FFFFFFF: Disable all cores

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Cores Disable Bitmap

Provides the option to enable or disable all cores. 0 means enable all cores. FFFFFFF means disable all cores.

IOT Cfg

Enables or disables IOT Cfg.

Common RefCode Conguration

-----------------------------------------------------------------------------------...

Isoc

Numa

[Disable]

[Enable]

Isoc: Disable,Enable

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Isoc

Enables or disables Isochronous support.

Numa

Enables or disables Non-Uniform Memory Access support.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

53

NSA 7145 User Manual

Chapter 4: BIOS Setup

UPI Configuration UPI General Configuration

UPI Conguration

-----------------------------------------------------------------------------------...

►

UPI General Conguration

UPI Per Socket Conguration

►

UPI General Configuration

Enters the UPI General Configuration submenu.

UPI Per Socket Configuration

Enters the UPI Per Socket Configuration submenu.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Displays and provides option to change the UPI General Settings

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

UPI General Conguration

-----------------------------------------------------------------------------------...

UPI Status

►

Link Speed Mode Link Frequency Select

[Fast] [Auto]

UPI Status Help

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

UPI Status

Displays information on the current UPI configuration.

Link Speed Mode

Configures the link speed mode.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Link Frequency Select

Configures the UPI frequency.

54

NSA 7145 User Manual

Chapter 4: BIOS Setup

UPI Per Socket Configuration UPI Per Socket Configuration CPU 0

Server MgmtAdvanced Platform Conguration Socket CongurationMain

UPI Per Socket Conguration

-----------------------------------------------------------------------------------...

► ►

CPU 0

CPU 1

► ►

CPU 0 Conguration Silk Screen Equivalent->CPU 1

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CPU 0

Enters the CPU 0 submenu.

CPU 1

Enters the CPU 1 submenu.

CPU 0

-----------------------------------------------------------------------------------...

CPU 0 UPI Port 0

CPU 0 UPI Port 1 CPU 0 UPI Port 2

►

CPU 0 UPI Port 0

Enters the CPU 0 UPI Port 0 configuration submenu.

CPU 0 UPI Port 1

Enters the CPU 0 UPI Port 1 configuration submenu.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

CPU 0 UPI Port 0 Conguration

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CPU 0 UPI Port 2

Enters the CPU 0 UPI Port 1 configuration submenu.

55

NSA 7145 User Manual

Chapter 4: BIOS Setup

UPI Per Socket Configuration CPU 1 CPU 0 UPI Port 0

CPU 0

-----------------------------------------------------------------------------------...

►

CPU 1 UPI Port 0

CPU 1 UPI Port 1

►

CPU 1 UPI Port 2

►

CPU 1 UPI Port 0

Enters the CPU 1 UPI Port 0 configuration submenu.

CPU 1 UPI Port 1

Enters the CPU 1 UPI Port 1 configuration submenu.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

CPU 1 UPI Port 0 Conguration

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CPU 0 UPI Port 0

-----------------------------------------------------------------------------------...

Link Disable

UPI VNA Credit Overri

Current UPI Link Spee

[No]

7f

[Auto]

Link Disable

Enables or disables the UPI link.

Current UPI Link Speed

Configures the current UPI link speed.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

UPI Link Disable

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CPU 1 UPI Port 2

Enters the CPU 1 UPI Port 1 configuration submenu.

56

NSA 7145 User Manual

Chapter 4: BIOS Setup

CPU 0 UPI Port 1 CPU 0 UPI Port 2

CPU 0 UPI Port 1

-----------------------------------------------------------------------------------...

Link Disable

UPI VNA Credit Overri

Current UPI Link Spee

[No]

7f

[Auto]

Link Disable

Enables or disables the UPI link.

Current UPI Link Speed

Configures the current UPI link speed.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

UPI Link Disable

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CPU 0 UPI Port 2

-----------------------------------------------------------------------------------...

Link Disable

UPI VNA Credit Overri

Current UPI Link Spee

[No]

7f

[Auto]

Link Disable

Enables or disables the UPI link.

Current UPI Link Speed

Configures the current UPI link speed.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

UPI Link Disable

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

57

NSA 7145 User Manual

Chapter 4: BIOS Setup

CPU 1 UPI Port 0 CPU 1 UPI Port 1

CPU 1 UPI Port 0

-----------------------------------------------------------------------------------...

Link Disable

UPI VNA Credit Overri

Current UPI Link Spee

[No]

7f

[Auto]

Link Disable

Enables or disables the UPI link.

Current UPI Link Speed

Configures the current UPI link speed.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

UPI Link Disable

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CPU 1 UPI Port 1

-----------------------------------------------------------------------------------...

Link Disable

UPI VNA Credit Overri

Current UPI Link Spee

[No]

7f

[Auto]

Link Disable

Enables or disables the UPI link.

Current UPI Link Speed

Configures the current UPI link speed.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

UPI Link Disable

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

58

NSA 7145 User Manual

Chapter 4: BIOS Setup

CPU 1 UPI Port 2

-----------------------------------------------------------------------------------...

Link Disable

UPI VNA Credit Overri

Current UPI Link Spee

[No]

7f

[Auto]

Link Disable

Enables or disables the UPI link.

Current UPI Link Speed

Configures the current UPI link speed.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

UPI Link Disable

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Memory Configuration

-----------------------------------------------------------------------------------... Integrated Memory Controller (iMC)

-----------------------------------------------------------------------------------...

Memory Frequency

Memory Topology

►

[Auto]

Memory Frequency

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Maximum Memory Frequency Selections in Mhz. Do not select Reserved

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Configures the maximum frequency of the memory. Do not select Reserved.

59

NSA 7145 User Manual

Chapter 4: BIOS Setup

Memory Topology IIO Configuration

Server MgmtAdvanced Platform Conguration Socket CongurationMain

-----------------------------------------------------------------------------------... Socket0.ChB.Dimm0: DIMM is Present. DIM St...

Empty Empty Empty Empty Empty Empty Empty Empty Empty Empty Empty Empty Empty Empty

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Detects and displays the information on the memory installed.

IIO Conguration

-----------------------------------------------------------------------------------...

Socket0 Conguration

►

Socket1 Conguration

►

IOAT Conguration

►

IIO General Conguration

► ►

Intel® VT for Directed I/O (VT-d)

IIO-PCIE Express Global Options ============================================

PCIe Max Read Request

[1024B]

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Socket0 Configuration and Socket1 Configuration

Enters the Socket0 and Socket1 Configuration submenu.

IOAT Configuration

Enters the IOAT Configuration submenu.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

IIO General Configuration

Enters the IIO General Configuration submenu.

Intel® VT for Directed I/O (VT-d)

Enters the Intel® VT for Directed I/O (VT-d) submenu.

60

NSA 7145 User Manual

Chapter 4: BIOS Setup

Socket0 Configuration Socket 0 PcieBr0D00F0 - Port 0/DMI

IOU0 (IIO PCIe Br1)

IOU1 (IIO PCIe Br2) IOU2 (IIO PCIe Br3) Socket 0 PcieBr0D00F0 - Port 0/DMI

►

Socket 0 PcieBr1D00F0 - Port 1A

►

Socket 0 PcieBr1D02F0 - Port 1C

►

Socket 0 PcieBr2D00F0 - Port 2A

► ►

Socket 0 PcieBr2D02F0 - Port 2C

►

Socket 0 PcieBr3D00F0 - Port 3A

►

Socket 0 PcieBr3D02F0 - Port 3C

IIO0 Redriver Control

[Auto]

[Auto] [Auto]

[Auto Detect]

IOU0 (IIO PCIe Br1)

Port Bifurcation settings for IOU 0.

IOU1 (IIO PCIe Br2)

Port Bifurcation settings for IOU 1.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Selects PCIe port Bifurcation for selected slot(s)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Socket 0 PcieBr0D00F0 - Port 0/DMI

-----------------------------------------------------------------------------------...

Link Speed

Override Max Link Wid PCI-E Port DeEmphasis

PCI-E Port Link Statu PCI-E Port Link Max PCI-E Port Link Speed

PCI-E Port Max Payloa

[Auto]

[Auto] [-6.0 dB]

Linked as x4 Max Width x4 Gen 3 (8.0 GT/s)

[256B]

Choose Link Speed for this PCIe port

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Link Speed

Configures the link speed for the PCIe port.

Override Max Link Width

Configures the link speed to override the max link width set by bifurcation.

IOU2 (IIO PCIe Br3)

Port Bifurcation settings for IOU 2.

IIO0 Redriver Control

Configures the redriver options for IIO0.

PCI-E Port DeEmphasis

Configures the de-emphasis control for the PCIe port.

PCI-E Port Max Payload

Configures the PCIe port maximum payload size.

61

NSA 7145 User Manual

Chapter 4: BIOS Setup

Socket 0 PcieBr1D00F0 - Port 1A Socket 0 PcieBr1D02F0 - Port 1C

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Socket 0 PcieBr1D00F0 - Port 1A

-----------------------------------------------------------------------------------...

PCI-E Port

Link Speed Override Max Link Wid PCI-E Port DeEmphasis

PCI-E Port Link Statu PCI-E Port Link Max PCI-E Port Link Speed

PCI-E Port Max Payloa

[Enable]

[Auto] [Auto] [-6.0 dB]

Link Did Not Train Max Width x8 Link Did Not Train

[256B]

In auto mode the BIOS will remove the EXP port if there is no device or errors on that device and the device is not HP capable. Disable is used to disable the port and hide its CFG space.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCI-E Port

Enables or disables the PCIe port. In auto mode the BIOS will remove the EXP port if there is no device or errors on that device and the device is not HP capable. Disable is used to disable the port and hide its CFG space.

Link Speed

Configures the link speed for the PCIe port.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Socket 0 PcieBr1D02F0 - Port 1C

-----------------------------------------------------------------------------------...

PCI-E Port

Link Speed Override Max Link Wid PCI-E Port DeEmphasis

PCI-E Port Link Statu PCI-E Port Link Max PCI-E Port Link Speed

PCI-E Port Max Payloa

[Enable]

[Auto] [Auto] [-6.0 dB]

Link Did Not Train Max Width x8 Link Did Not Train

[256B]

In auto mode the BIOS will remove the EXP port if there is no device or errors on that device and the device is not HP capable. Disable is used to disable the port and hide its CFG space.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCI-E Port

Enables or disables the PCIe port. In auto mode the BIOS will remove the EXP port if there is no device or errors on that device and the device is not HP capable. Disable is used to disable the port and hide its CFG space.

Link Speed

Configures the link speed for the PCIe port.

Override Max Link Width

Configures the link speed to override the max link width set by bifurcation.

PCI-E Port DeEmphasis

Configures the de-emphasis control for the PCIe port.

PCI-E Port Max Payload

Configures the PCIe port maximum payload size.

Override Max Link Width

Configures the link speed to override the max link width set by bifurcation.

PCI-E Port DeEmphasis

Configures the de-emphasis control for the PCIe port.

PCI-E Port Max Payload

Configures the PCIe port maximum payload size.

62

NSA 7145 User Manual

Chapter 4: BIOS Setup

Socket 0 PcieBr2D00F0 - Port 2A Socket 0 PcieBr2D02F0 - Port 2C

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Socket 0 PcieBr2D00F0 - Port 2A

-----------------------------------------------------------------------------------...

PCI-E Port

Link Speed Override Max Link Wid PCI-E Port DeEmphasis

PCI-E Port Link Statu PCI-E Port Link Max PCI-E Port Link Speed

PCI-E Port Max Payloa

[Enable]

[Auto] [Auto] [-6.0 dB]

Link Did Not Train Max Width x8 Link Did Not Train

[256B]

In auto mode the BIOS will remove the EXP port if there is no device or errors on that device and the device is not HP capable. Disable is used to disable the port and hide its CFG space.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCI-E Port

Enables or disables the PCIe port. In auto mode the BIOS will remove the EXP port if there is no device or errors on that device and the device is not HP capable. Disable is used to disable the port and hide its CFG space.

Link Speed

Configures the link speed for the PCIe port.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Socket 0 PcieBr2D02F0 - Port 2C

-----------------------------------------------------------------------------------...

PCI-E Port

Link Speed Override Max Link Wid PCI-E Port DeEmphasis

PCI-E Port Link Statu PCI-E Port Link Max PCI-E Port Link Speed

PCI-E Port Max Payloa

[Enable]

[Auto] [Auto] [-6.0 dB]

Link Did Not Train Max Width x8 Link Did Not Train

[256B]

In auto mode the BIOS will remove the EXP port if there is no device or errors on that device and the device is not HP capable. Disable is used to disable the port and hide its CFG space.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCI-E Port

Enables or disables the PCIe port. In auto mode the BIOS will remove the EXP port if there is no device or errors on that device and the device is not HP capable. Disable is used to disable the port and hide its CFG space.

Link Speed

Configures the link speed for the PCIe port.

Override Max Link Width

Configures the link speed to override the max link width set by bifurcation.

PCI-E Port DeEmphasis

Configures the de-emphasis control for the PCIe port.

PCI-E Port Max Payload

Configures the PCIe port maximum payload size.

Override Max Link Width

Configures the link speed to override the max link width set by bifurcation.

PCI-E Port DeEmphasis

Configures the de-emphasis control for the PCIe port.

PCI-E Port Max Payload

Configures the PCIe port maximum payload size.

63

NSA 7145 User Manual

Chapter 4: BIOS Setup

Socket 0 PcieBr3D00F0 - Port 3A Socket 0 PcieBr3D02F0 - Port 3C

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Socket 0 PcieBr3D00F0 - Port 3A

-----------------------------------------------------------------------------------...

PCI-E Port

Link Speed Override Max Link Wid PCI-E Port DeEmphasis

PCI-E Port Link Statu PCI-E Port Link Max PCI-E Port Link Speed

PCI-E Port Max Payloa

[Enable]

[Auto] [Auto] [-6.0 dB]

Linked as x1 Max Width x8 Gen 3 (8.0 GT/s)

[256B]

In auto mode the BIOS will remove the EXP port if there is no device or errors on that device and the device is not HP capable. Disable is used to disable the port and hide its CFG space.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCI-E Port

Enables or disables the PCIe port. In auto mode the BIOS will remove the EXP port if there is no device or errors on that device and the device is not HP capable. Disable is used to disable the port and hide its CFG space.

Link Speed

Configures the link speed for the PCIe port.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Socket 0 PcieBr3D02F0 - Port 3C

-----------------------------------------------------------------------------------...

PCI-E Port

Link Speed Override Max Link Wid PCI-E Port DeEmphasis

PCI-E Port Link Statu PCI-E Port Link Max PCI-E Port Link Speed

PCI-E Port Max Payloa

[Enable]

[Auto] [Auto] [-6.0 dB]

Link Did Not Train Max Width x8 Link Did Not Train

[256B]

In auto mode the BIOS will remove the EXP port if there is no device or errors on that device and the device is not HP capable. Disable is used to disable the port and hide its CFG space.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCI-E Port

Enables or disables the PCIe port. In auto mode the BIOS will remove the EXP port if there is no device or errors on that device and the device is not HP capable. Disable is used to disable the port and hide its CFG space.

Link Speed

Configures the link speed for the PCIe port.

Override Max Link Width

Configures the link speed to override the max link width set by bifurcation.

PCI-E Port DeEmphasis

Configures the de-emphasis control for the PCIe port.

PCI-E Port Max Payload

Configures the PCIe port maximum payload size.

Override Max Link Width

Configures the link speed to override the max link width set by bifurcation.

PCI-E Port DeEmphasis

Configures the de-emphasis control for the PCIe port.

PCI-E Port Max Payload

Configures the PCIe port maximum payload size.

64

NSA 7145 User Manual

Chapter 4: BIOS Setup

Socket1 Configuration

IOU0 (IIO PCIe Br1)

IOU1 (IIO PCIe Br2) Socket 1 PcieBr1D00F0 - Port 1A

►

Socket 1 PcieBr1D02F0 - Port 1C

►

Socket 1 PcieBr2D00F0 - Port 2A

►

Socket 1 PcieBr2D02F0 - Port 2C

►

[Auto]

IOU0 (IIO PCIe Br1)

Port Bifurcation settings for IOU 0.

IOU1 (IIO PCIe Br2)

Port Bifurcation settings for IOU 1.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Selects PCIe port Bifurcation for selected slot(s)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Socket 1 PcieBr1D00F0 - Port 1A

-----------------------------------------------------------------------------------...

PCI-E Port

Link Speed Override Max Link Wid PCI-E Port DeEmphasis

PCI-E Port Link Statu PCI-E Port Link Max PCI-E Port Link Speed

PCI-E Port Max Payloa

[Enable]

[Auto] [Auto] [-6.0 dB]

Link Did Not Train Max Width x8 Link Did Not Train

[256B]

PCI-E Port

Server MgmtAdvanced Platform Conguration Socket CongurationMain

In auto mode the BIOS will remove the EXP port if there is no device or errors on that device and the device is not HP capable. Disable is used to disable the port and hide its CFG space.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enables or disables the PCIe port. In auto mode the BIOS will remove the EXP port if there is no device or errors on that device and the device is not HP capable. Disable is used to disable the port and hide its CFG space.

Link Speed

Configures the link speed for the PCIe port.

Override Max Link Width

Configures the link speed to override the max link width set by bifurcation.

PCI-E Port DeEmphasis

Configures the de-emphasis control for the PCIe port.

PCI-E Port Max Payload

Configures the PCIe port maximum payload size.

65

NSA 7145 User Manual

Chapter 4: BIOS Setup

Socket 1 PcieBr1D02F0 - Port 1C Socket 1 PcieBr2D00F0 - Port 2A

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Socket 1 PcieBr1D02F0 - Port 1C

-----------------------------------------------------------------------------------...

PCI-E Port

Link Speed Override Max Link Wid PCI-E Port DeEmphasis

PCI-E Port Link Statu PCI-E Port Link Max PCI-E Port Link Speed

PCI-E Port Max Payloa

[Enable]

[Auto] [Auto] [-6.0 dB]

Link Did Not Train Max Width x8 Link Did Not Train

[256B]

In auto mode the BIOS will remove the EXP port if there is no device or errors on that device and the device is not HP capable. Disable is used to disable the port and hide its CFG space.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCI-E Port

Enables or disables the PCIe port. In auto mode the BIOS will remove the EXP port if there is no device or errors on that device and the device is not HP capable. Disable is used to disable the port and hide its CFG space.

Link Speed

Configures the link speed for the PCIe port.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Socket 1 PcieBr2D00F0 - Port 2A

-----------------------------------------------------------------------------------...

PCI-E Port

Link Speed Override Max Link Wid PCI-E Port DeEmphasis

PCI-E Port Link Statu PCI-E Port Link Max PCI-E Port Link Speed

PCI-E Port Max Payloa

[Enable]

[Auto] [Auto] [-6.0 dB]

Link Did Not Train Max Width x8 Link Did Not Train

[256B]

In auto mode the BIOS will remove the EXP port if there is no device or errors on that device and the device is not HP capable. Disable is used to disable the port and hide its CFG space.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCI-E Port

Enables or disables the PCIe port. In auto mode the BIOS will remove the EXP port if there is no device or errors on that device and the device is not HP capable. Disable is used to disable the port and hide its CFG space.

Link Speed

Configures the link speed for the PCIe port.

Override Max Link Width

Configures the link speed to override the max link width set by bifurcation.

PCI-E Port DeEmphasis

Configures the de-emphasis control for the PCIe port.

PCI-E Port Max Payload

Configures the PCIe port maximum payload size.

Override Max Link Width

Configures the link speed to override the max link width set by bifurcation.

PCI-E Port DeEmphasis

Configures the de-emphasis control for the PCIe port.

PCI-E Port Max Payload

Configures the PCIe port maximum payload size.

66

NSA 7145 User Manual

Chapter 4: BIOS Setup

Socket 1 PcieBr2D02F0 - Port 2C

-----------------------------------------------------------------------------------...

PCI-E Port

Link Speed Override Max Link Wid PCI-E Port DeEmphasis

PCI-E Port Link Statu PCI-E Port Link Max PCI-E Port Link Speed

PCI-E Port Max Payloa

[Enable]

[Auto] [Auto] [-6.0 dB]

Link Did Not Train Max Width x8 Link Did Not Train

[256B]

PCI-E Port

Server MgmtAdvanced Platform Conguration Socket CongurationMain

In auto mode the BIOS will remove the EXP port if there is no device or errors on that device and the device is not HP capable. Disable is used to disable the port and hide its CFG space.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enables or disables the PCIe port. In auto mode the BIOS will remove the EXP port if there is no device or errors on that device and the device is not HP capable. Disable is used to disable the port and hide its CFG space.

Link Speed

Configures the link speed for the PCIe port.

IIO Configuration

Sck0 IOAT Cong

►

Sck1 IOAT Cong

►

Sck0 IOAT Config and Sck1 IOAT Config

Server MgmtAdvanced Platform Conguration Socket CongurationMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enters the Socket0 and Socket1 IOAT Configuration submenu.

Override Max Link Width

Configures the link speed to override the max link width set by bifurcation.

PCI-E Port DeEmphasis

Configures the de-emphasis control for the PCIe port.

PCI-E Port Max Payload

Configures the PCIe port maximum payload size.

67

NSA 7145 User Manual

Chapter 4: BIOS Setup

Sck0 IOAT Config

DCA

IOAT Function 0 Items ====== ====== ======= ====== ====== ======= ====

DMA No Snoop

IOAT Function 1 Items ====== ====== ======= ====== ====== ======= ====

DMA No Snoop

IOAT Function 2 Items ====== ====== ======= ====== ====== ======= ====

DMA No Snoop

[Disable]

[Enable] [Disable]

IOAT Function 3 Items

DCA

Enables or disables DCA for this specific socket.

DMA

Enables or disables DMA.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

▲ ▲

DCA Enable/Disable for this specic socket

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

====== ====== ======= ====== ====== ======= ====

DMA No Snoop

IOAT Function 4 Items ====== ====== ======= ====== ====== ======= ====

DMA No Snoop

IOAT Function 5 Items ====== ====== ======= ====== ====== ======= ====

DMA No Snoop

IOAT Function 6 Items ====== ====== ======= ====== ====== ======= ====

DMA

No Snoop

[Enable] [Disable]

[Enable]

[Disable]

▼ ▼

Server MgmtAdvanced Platform Conguration Socket CongurationMain

No Snoop Enable/Disable for each CB device

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

No Snoop

Enables or disables No Snoop function for each CB device.

68

NSA 7145 User Manual

Chapter 4: BIOS Setup

Sck0 IOAT Config Cont.

====== ====== ======= ====== ====== ======= ====

DMA No Snoop

IOAT Function 5 Items ====== ====== ======= ====== ====== ======= ====

DMA No Snoop

IOAT Function 6 Items ====== ====== ======= ====== ====== ======= ====

DMA No Snoop

IOAT Function 7 Items ====== ====== ======= ====== ====== ======= ====

DMA

No Snoop

[Enable] [Disable]

[Enable]

[Disable]

DCA

Enables or disables DCA for this specific socket.

DMA

Enables or disables DMA.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

▲

No Snoop Enable/Disable for each CB device

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

▼

Sck1 IOAT Config

DCA

IOAT Function 0 Items ====== ====== ======= ====== ====== ======= ====

DMA No Snoop

IOAT Function 1 Items ====== ====== ======= ====== ====== ======= ====

DMA No Snoop

IOAT Function 2 Items ====== ====== ======= ====== ====== ======= ====

DMA No Snoop

IOAT Function 3 Items

[Disable]

[Enable] [Disable]

DCA

Enables or disables DCA for this specific socket.

DMA

Enables or disables DMA.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

▲

DCA Enable/Disable for this specic socket

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

▼

No Snoop

Enables or disables No Snoop function for each CB device.

No Snoop

Enables or disables No Snoop function for each CB device.

69

NSA 7145 User Manual

Chapter 4: BIOS Setup

Sck1 IOAT Config Cont.

====== ====== ======= ====== ====== ======= ====

DMA No Snoop

IOAT Function 4 Items ====== ====== ======= ====== ====== ======= ====

DMA No Snoop

IOAT Function 5 Items ====== ====== ======= ====== ====== ======= ====

DMA No Snoop

IOAT Function 6 Items ====== ====== ======= ====== ====== ======= ====

DMA

No Snoop

[Enable] [Disable]

[Enable]

[Disable]

DCA

Enables or disables DCA for this specific socket.

DMA

Enables or disables DMA.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

No Snoop Enable/Disable for each CB device

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

====== ====== ======= ====== ====== ======= ====

DMA No Snoop

IOAT Function 5 Items ====== ====== ======= ====== ====== ======= ====

DMA No Snoop

IOAT Function 6 Items ====== ====== ======= ====== ====== ======= ====

DMA No Snoop

IOAT Function 7 Items ====== ====== ======= ====== ====== ======= ====

DMA

No Snoop

[Enable] [Disable]

[Enable]

[Disable]

Server MgmtAdvanced Platform Conguration Socket CongurationMain

▲▲

No Snoop Enable/Disable for each CB device

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

▼▼

No Snoop

Enables or disables No Snoop function for each CB device.

70

NSA 7145 User Manual

Chapter 4: BIOS Setup

Sck1 IOAT Config Intel® VT for Directed I/O (VT-d)

Server MgmtAdvanced Platform Conguration Socket CongurationMain

▲

----------------------------------------------------------------------------------Socket0 Conguration

-----------------------------------------------------------------------------------

IIO IOAPIC Stack 0

IIO IOAPIC Stack 1 IIO IOAPIC Stack 2 IIO IOAPIC Stack 3 IIO IOAPIC Stack 4 IIO IOAPIC Stack 5

----------------------------------------------------------------------------------Socket1 Conguration

-----------------------------------------------------------------------------------

IIO IOAPIC Stack 0 IIO IOAPIC Stack 1 IIO IOAPIC Stack 2 IIO IOAPIC Stack 3 IIO IOAPIC Stack 4 IIO IOAPIC Stack 5

-----------------------------------------------------------------------------------

[Enable]

[Enable] [Enable] [Enable] [Enable] [Enable]

[Enable] [Enable] [Enable] [Enable] [Enable] [Enable]

Enable / Disable the IIO IOAPIC

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

▼

IIO IOAPIC Stack 0 to IIO IOAPIC Stack 5

Enables or disables I/O Advanced Power Interface Configuration (IIOAPIC) for Stack 0 to Stack 5 of Socket 0 and Socket 1.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Intel VT for Directed I/O (VT-d)

-----------------------------------------------------------------------------------...

Intel VT for Directed I/O

[Disable]

Enable/Disable Intel Virtualization Technology for Directed I/O (VT-d) by reporting the I/O device assignment to VMM through DMAR ACPI Tables.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Intel VT for Directed I/O

Enables or disables Intel® Virtualization Technology for Directed I/O (VT-d) by reporting the I/O device assignment to VMM through DMAR ACPI tables.

71

NSA 7145 User Manual

Chapter 4: BIOS Setup

Advanced Power Management Configuration CPU P State Control

Advanced Power Management Conguration

-----------------------------------------------------------------------------------...

CPU P State Control

►

Hardware PM State Control

CPU P State Control

Enters the CPU P State Control submenu.

Hardware PM State Control

Enters the Hardware PM State Control submenu.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

P State Control Conguration Sub Menu, include Turbo, XE and etc.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CPU P State Control

SpeedStep (Pstates)

[Disable]

SpeedStep (Pstates)

Enables or disables Intel® SpeedStep technology.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Enable/Disable EIST (P-States)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

72

NSA 7145 User Manual

Chapter 4: BIOS Setup

Hardware PM State Control

Hardware P-States

[Disable]

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Disable: Hardware chooses a P-state based on OS Request (Legacy P-States) Native Mode: Hardware chooses a P-state based on OS guidance Out of Band

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Disable Hardware chooses a P-state based on OS Request. (Legacy P-States). Native Mode Hardware chooses a P-state based on OS guidance. Out of Band Mode Hardware autonomously chooses a P-state (no OS guidance).

Server Mgmt

BMC Self Test Status BMC Device ID BMC Device Revision BMC Firmware Revision IPMI Version

BMC Support

RJ45 Console Port

►

System Event Log

►

BMC network conguration

►

View System Event Log

►

BMC User Settings BMC Warm Reset

PASSED 32 1

7.2

2.0

[Enabled]

[Normal Console Port]

BMC Support

Enables or disables interfaces to communicate with BMC.

RJ45 Console Port

Configures the RJ45 console port mode.

BMC Warm Reset

To perform a BMC warm reset, select this field then press <Enter>.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Enable/Disable interfaces to communicate with BMC

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

73

NSA 7145 User Manual

Chapter 4: BIOS Setup

System Event Log

Enabling/Disabling Options

SEL Components

Erasing Settings

Erase SEL When SEL is Full

Custom EFI Logging Options

Log EFI Status Codes

NOTE: All values changed here do not take ef. . . until computer is restarted.

SEL Components

[Enabled]

[No] [Do Nothing]

[Error code]

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Change this to enable or disable all features of System Event Logging during boot.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enables or disables all the features of system event logging during boot.

Erase SEL

Configures the options for erasing SEL.

BMC Network Configuration

--BMC network conguration-********************** Congure IPV4 support **********************

Lan channel 1

Conguration Address

Current Conguration Station IP address Subnet mask Station MAC address Router IP address Router MAC address

Lan channel 2

Conguration Address

Current Conguration Station IP address

Configuration Address

[Unspecied]

DynamicAddressBmcDhcp

0.0.0.0

0.0.0.0 00-00-00-00-00-00

[Unspecied]

DynamicAddressBmcDhcp

0.0.0.0

▲

▼

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Select to congure LAN channel parameters statically or dynamically(by BIOS or BMC). Unspecied option will not modify any BMC network parameters during BIOS phase

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Select to configure LAN channel parameters statically or dynamically (by BIOS or BMC). Unspecified option will not modify any BMC network parameters during BIOS phase.

When SEL is Full

Configures the action to perform when SEL is full.

Log EFI Status Codes

Configures the options for logging EFI status codes.

74

NSA 7145 User Manual

Chapter 4: BIOS Setup

BMC Network Configuration Cont.

Subnet mask Station MAC address Router IP address Router MAC address

********************** Congure IPV6 support **********************

0.0.0.0 00-00-00-00-00-00

▲ ▲

Lan Channel 1

IPV6 Support

Conguration Address

Current Conguration

Station IPV6 address ::

[Enabled]

[Unspecied]

DynamicAddressBmcDhcp

▼ ▼

IPV6 Support (LAN Channel 1)

Enables or disables IPv6 support for LAN channel 1.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Select to congure LAN channel parameters statically or dynamically(by BIOS or BMC). Unspecied option will not modify any BMC network parameters during BIOS phase

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Prex Length 0

IPV6 Router1 IP Address ::

IPV6 address status IPV6 DHCP Algorithm

Lan Channel 2

IPV6 Support

Conguration Address

Current Conguration

Station IPV6 address

Active DHCPv6

[Enabled]

[Unspecied]

DynamicAddressBmcDhcp

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Select to congure LAN channel parameters statically or dynamically(by BIOS or BMC). Unspecied option will not modify any BMC network parameters during BIOS phase

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

75

NSA 7145 User Manual

Chapter 4: BIOS Setup

BMC Network Configuration Cont. BMC User Settings

Lan Channel 2

IPV6 Support

Conguration Address

Current Conguration

Station IPV6 address ::

Prex Length 0

IPV6 Router1 IP Address ::

IPV6 address status IPV6 DHCP Algorithm

[Enabled]

[Unspecied]

DynamicAddressBmcDhcp

Active DHCPv6

▲

▼

IPV6 Support (LAN Channel 2)

Enables or disables IPv6 support for LAN channel 2.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Select to congure LAN channel parameters statically or dynamically(by BIOS or BMC). Unspecied option will not modify any BMC network parameters during BIOS phase

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BMC User Settings

Add User

►

Delete User

Change User Settings

►

Add User

Option to add a user.

Delete User

Option to delete a user.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Press <Enter> to Add a User.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Change User Settings

Option to change user settings.

76

NSA 7145 User Manual

Chapter 4: BIOS Setup

Add User Delete User

Server MgmtAdvanced Platform Conguration Socket CongurationMain

BMC Add User Details

User Name

User Password Channel No User Privilege Limit

0 [Reserved]

Enter BMC User Name

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

User Name and User Password

Configures the login username and password of the BMC user account.

Channel No and User Privilege Limit

Configures the BMC channel number and account access rights.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

BMC Delete User Details

User Name

User Password

Enter BMC User Name

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

User Name and User Password

Specify the login username and password of the BMC user account to delete.

77

NSA 7145 User Manual

Chapter 4: BIOS Setup

Change User Setting

BMC Change User Settings

User Name

User Password User Change User Password Channel No User Privilege Limit

[Disable]

0 [Reserved]

User Name and User Password

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Enter BMC User Name

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enter the login username and password of the BMC user account that needs to be changed.

User

Enables or disables this account.

Security

Password Description

If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. The password length must be in the following range:

Minimum length 3 Maximum length 20

Administrator Password

Select this to reconfigure the administrator’s password.

Security

BootSecurity

Save & ExitBoot Save & Exit

Set Administrator Password

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Change User Password

Reconfigures a new password for the account.

Channel No and User Privilege Limit

Reconfigures the BMC channel number and account access rights.

78

NSA 7145 User Manual

Chapter 4: BIOS Setup

Boot

Boot Conguration

Setup Prompt Timeout

Bootup NumLock State Quiet Boot

AMI Virtual Devices

Boot mode select

FIXED BOOT ORDER Priorities

Boot Option #1 Boot Option #2 Boot Option #3 Boot Option #4 Boot Option #5 Boot Option #6 Boot Option #7 Boot Option #8

Setup Prompt Timeout

Configures the number of seconds to wait for setup activation key. 65535 (0xFFFF) means indefinite waiting.

Security

1

[On] [Disabled]

[Disabled] [LEGACY]

[Hard Disk] [CD/DVD] [USB Hard Disk] [USB CD/DVD] [USB Key:KingstonDat...] [USB Floppy] [USB Lan] [Network]

BootSecurity

Save & ExitBoot Save & Exit

Number of seconds to wait for setup activation key. 65535(0xFFFF) means indenite waiting.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Quiet Boot

Enabled Displays OEM logo instead of the POST messages. Disabled Displays normal POST messages.

AMI Virtual Devices

Enables or disables AMI virtual devices.

Boot Mode Select

Configures the boot mode option.

Fixed Boot Order Priorities

Adjust the boot sequence of the system. Boot Option #1 is the first boot device that the system will boot from, next will be #2 and so forth.

Bootup NumLock State

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

79

NSA 7145 User Manual

Chapter 4: BIOS Setup

Save & Exit

Save Options

Save Changes and Reset

Discard Changes and Reset

Default Options

Restore Defaults

Boot Override

KingstonDataTraveler 3.0 Launch EFI Shell from lesystem device

Security

BootSecurity

Save & ExitBoot Save & Exit

Reset the system after saving the changes.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Save Changes and Reset

To save the changes and reset, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Discard Changes and Reset

To exit the Setup utility and reset without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting.

Restore Defaults

To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Launch EFI Shell from Filesystem Device

To launch EFI shell from a filesystem device, select this field and press <Enter>.

80
