Page 1

NEXCOM International Co., Ltd.

Network and Communication Solutions

Network Security Appliance NSA 5181

User Manual

NEXCOM International Co., Ltd.

Published December 2019

www.nexcom.com

Page 2

Content

Contents

Preface

Disclaimer .............................................................................................. iv

Acknowledgements ............................................................................... iv

Regulatory Compliance Statements ........................................................ iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................viii

Installation Recommendations ...............................................................viii

Safety Precautions .................................................................................. ix

Technical Support and Assistance ............................................................ x

Conventions Used in this Manual ............................................................ x

Global Service Contact Information ........................................................ xi

Package Contents ................................................................................. xiii

Ordering Information ............................................................................xiv

Chapter 1: Product Introduction

Overview ................................................................................................1

Key Features ...........................................................................................1

Hardware Specifications ..........................................................................2

Knowing Your NSA 5181 ........................................................................ 3

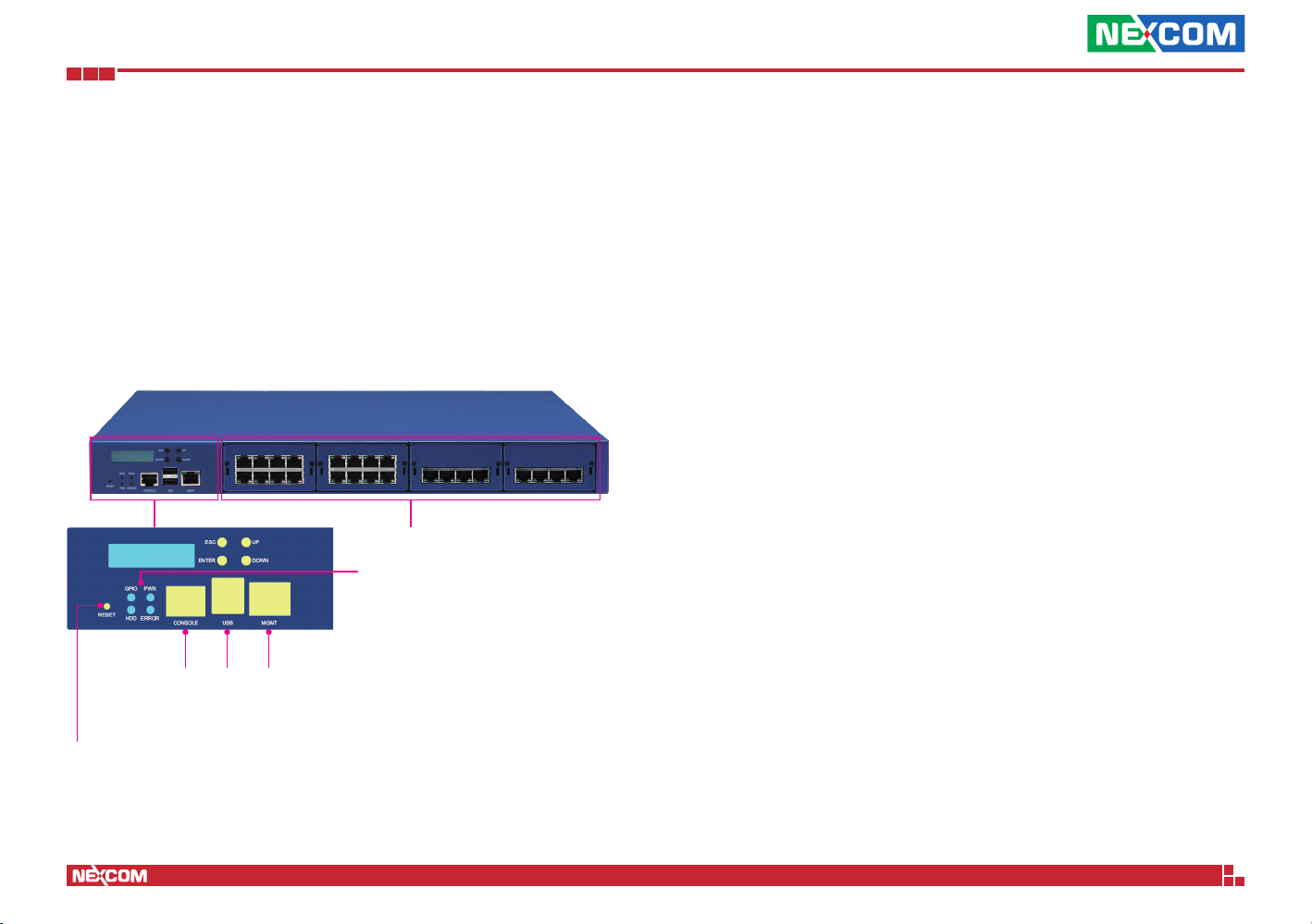

Front Panel ..........................................................................................3

Rear Panel ...........................................................................................4

Chapter 2: Jumpers and Connectors

Before You Begin ....................................................................................5

Precautions ............................................................................................5

Jumper Settings ......................................................................................6

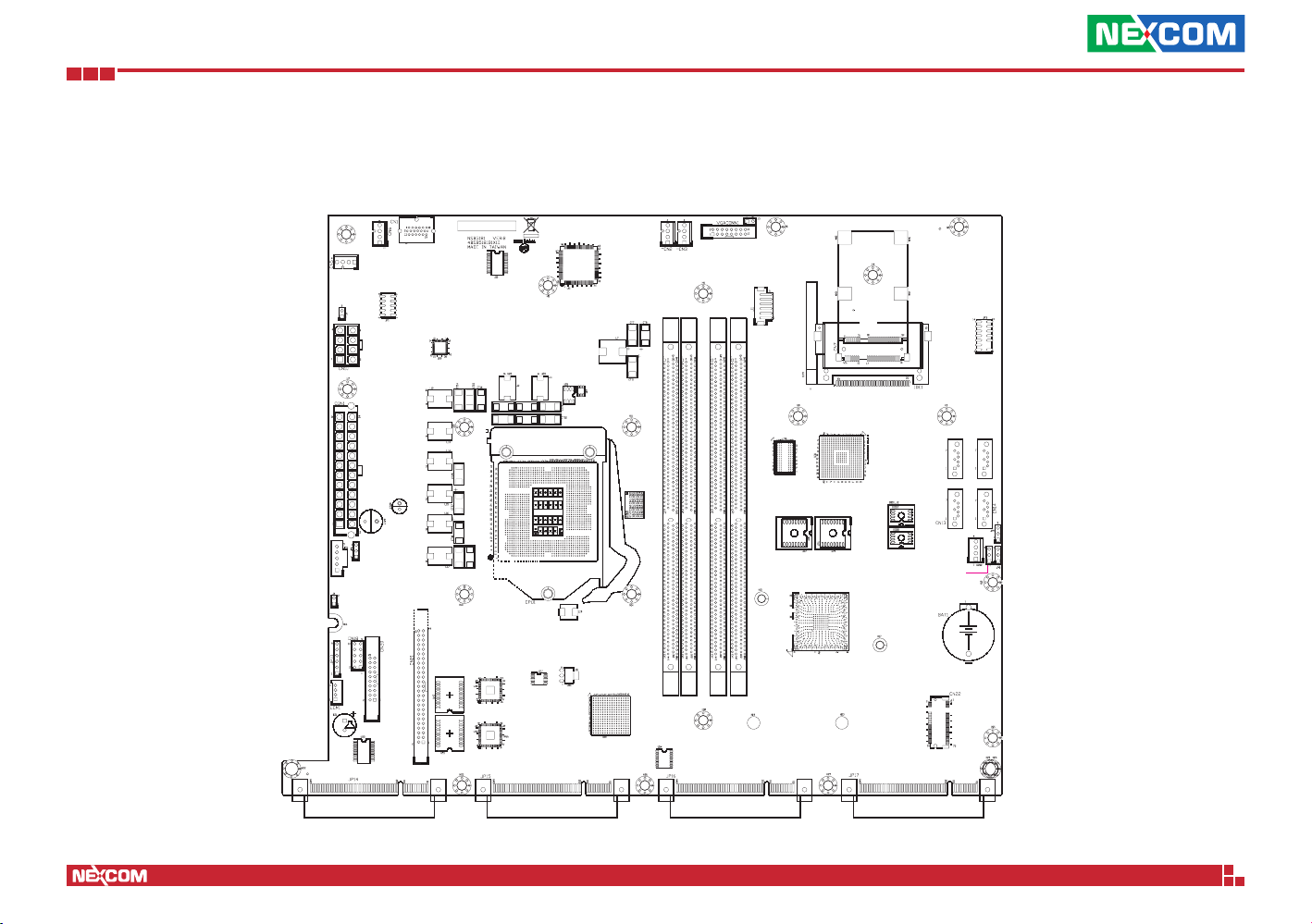

Locations of the Jumpers and Connectors ............................................... 7

Jumpers .................................................................................................. 8

AT/ATX Mode Select ............................................................................8

Protected RTC .....................................................................................8

CMOS Clear ........................................................................................9

Connector Pin Definitions .....................................................................10

Internal Connectors ........................................................................... 10

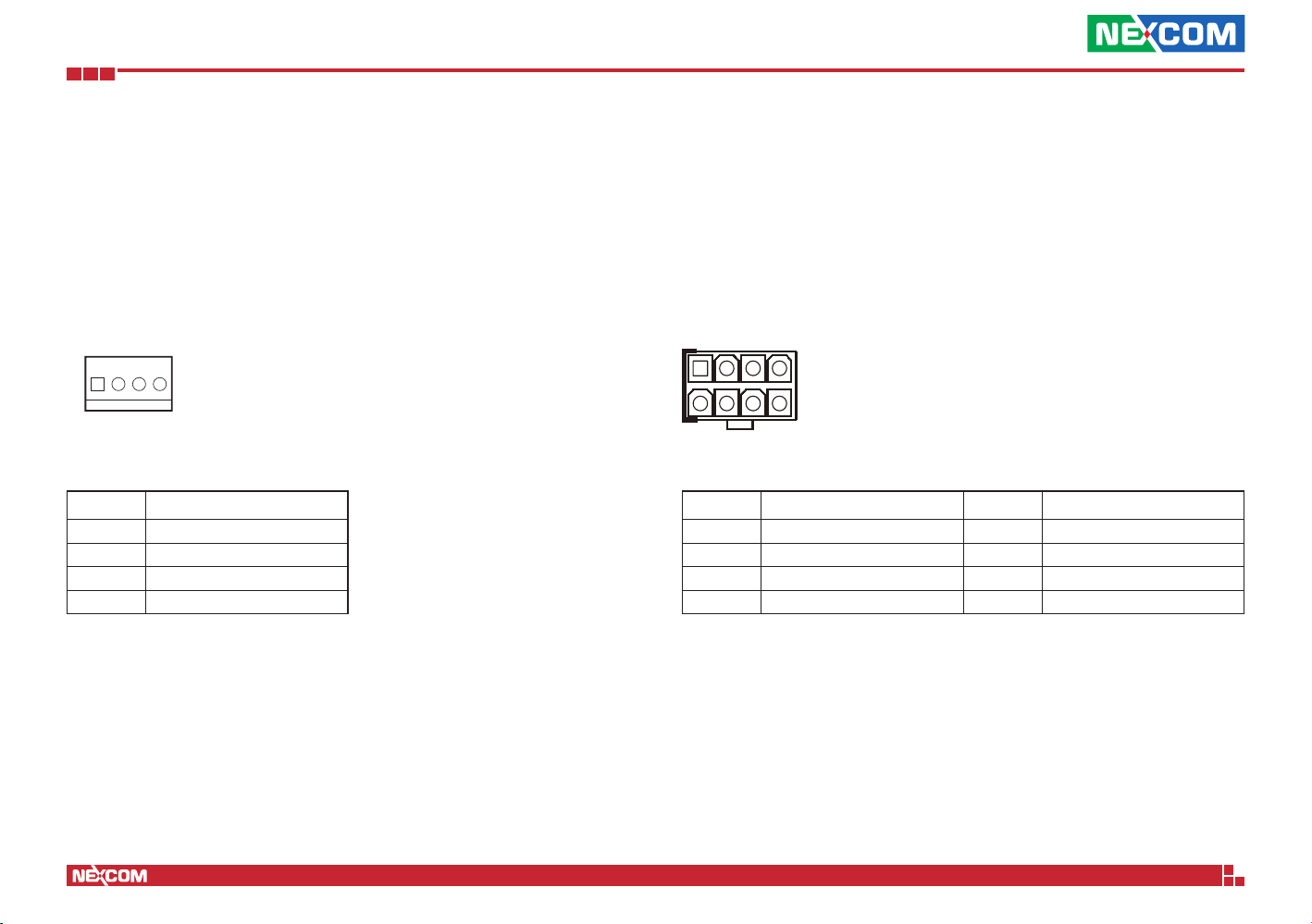

Fan Connectors .............................................................................. 10

8-pin Internal 12V Power Connector .............................................. 10

SATA Connectors ...........................................................................11

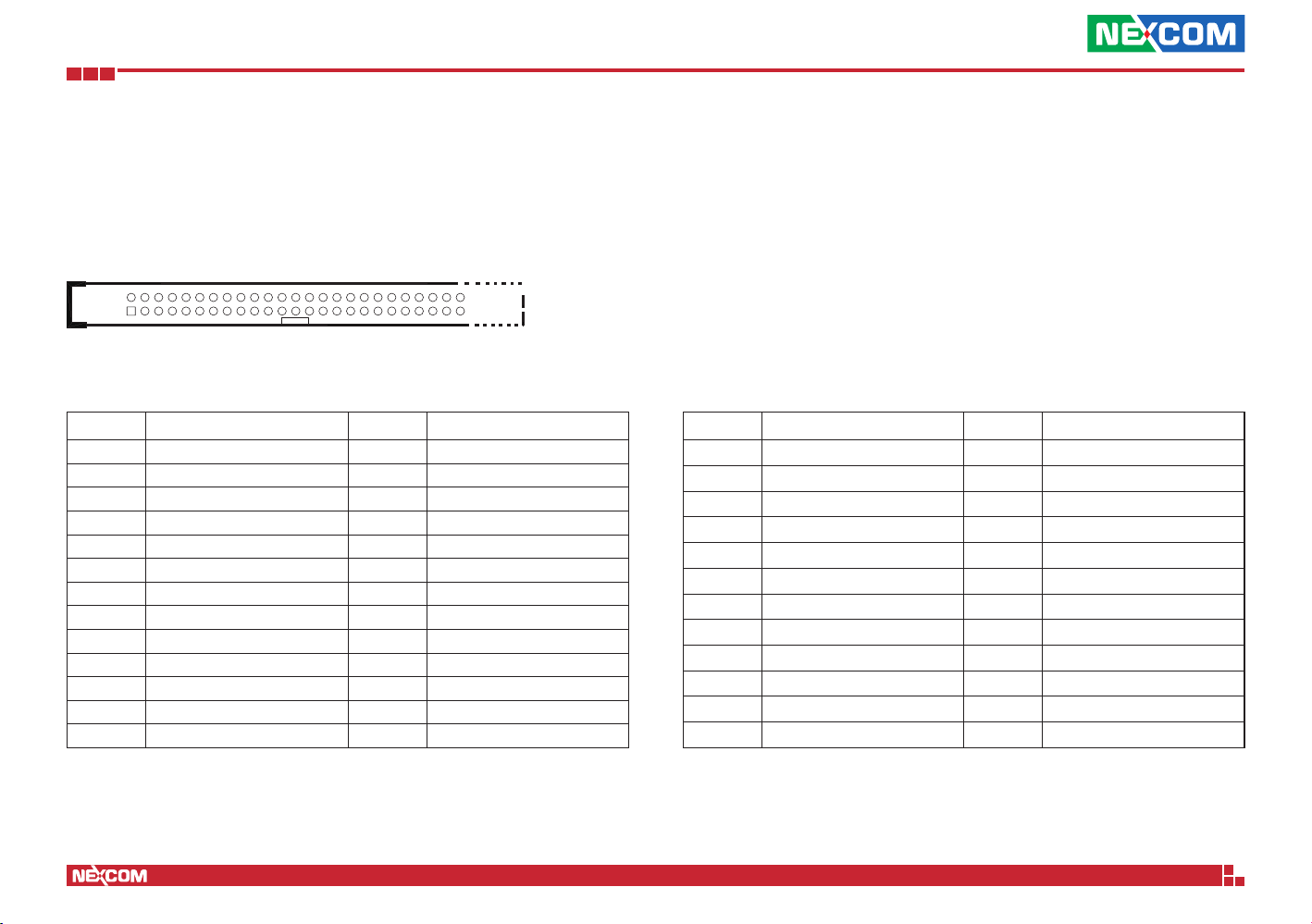

IO Board Connector .......................................................................11

IO Board Connector .......................................................................12

24-pin Internal ATX Power Connector ............................................13

SATA Power Connector ..................................................................13

VGA Connector .............................................................................14

Rear USB 2.0 Connector .................................................................14

Power Button ................................................................................. 15

GPIO Pin Header ............................................................................15

TPM Header ................................................................................... 16

PMBUS ...........................................................................................16

CPLD JTAG Pin Header ...................................................................17

NSA 5181 User Manual

Page 3

Content

LCM ...............................................................................................17

Mini-PCIe Connector (mSATA) ........................................................18

M.2 B-Key Connector .....................................................................19

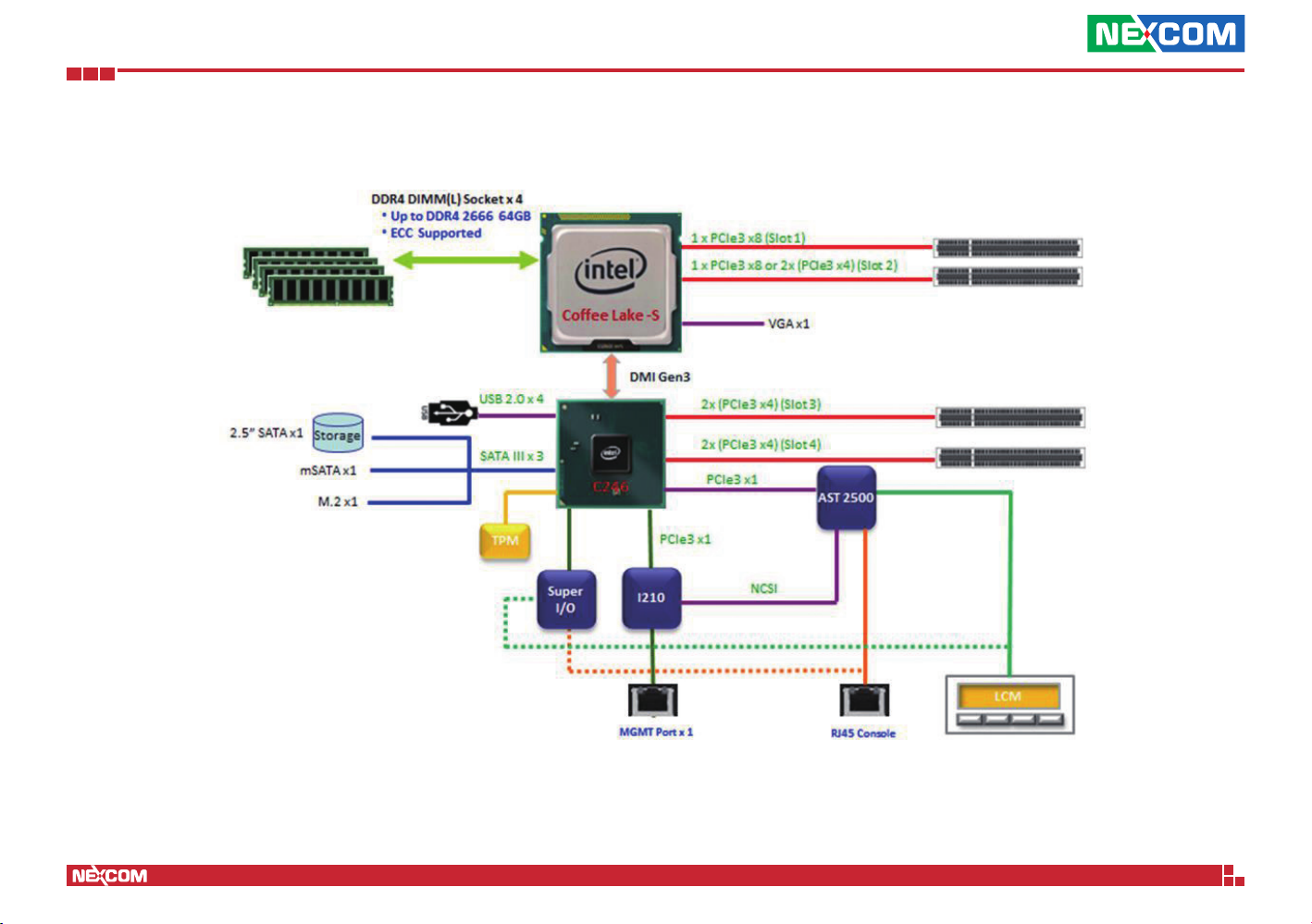

Block Diagram ......................................................................................20

Chapter 3: System Setup

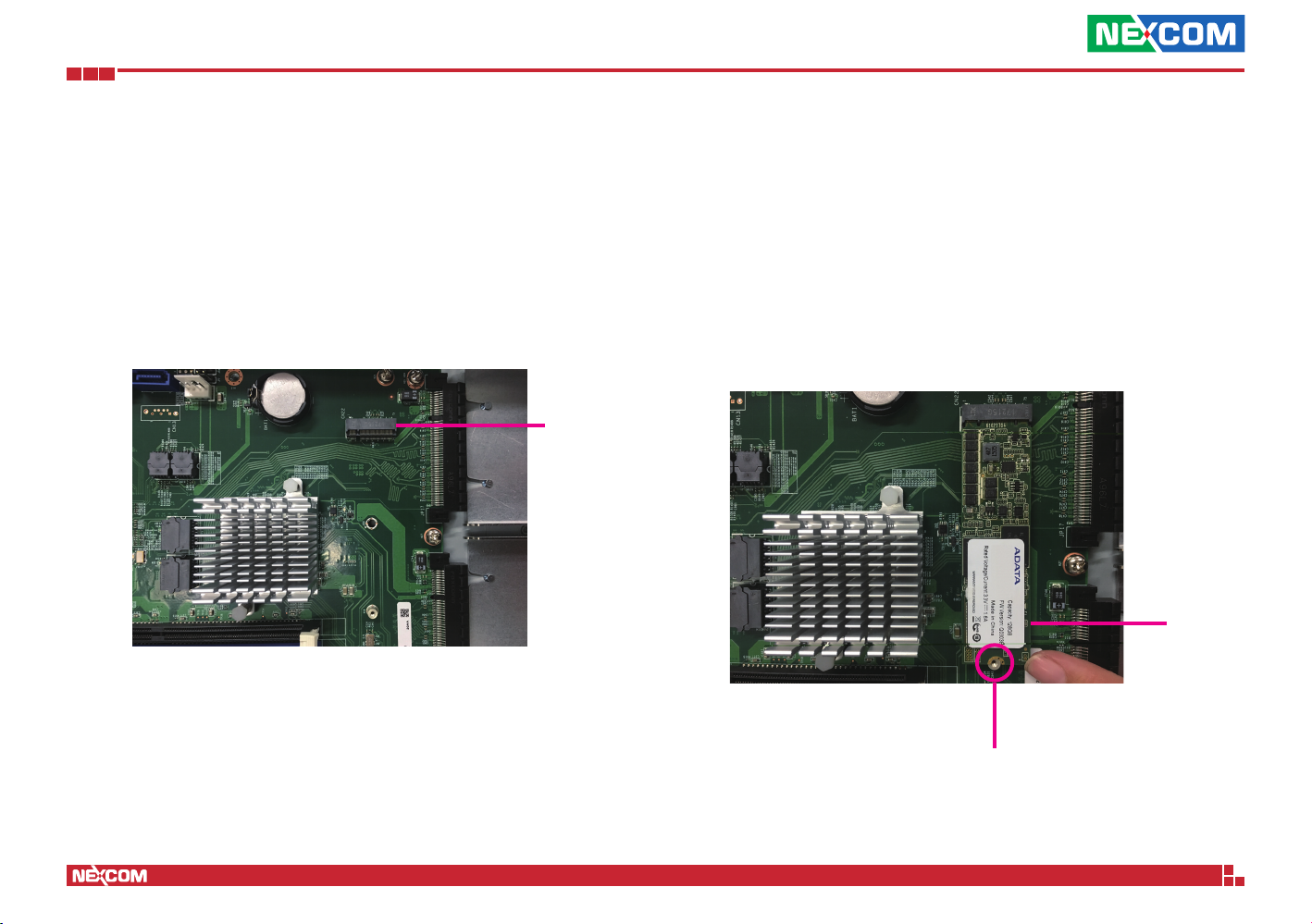

Installing an M.2 Module ......................................................................21

Installing a Mini-PCIe Module ................................................................ 22

Installing a CPU .....................................................................................23

Installing DIMM Memory Modules ........................................................25

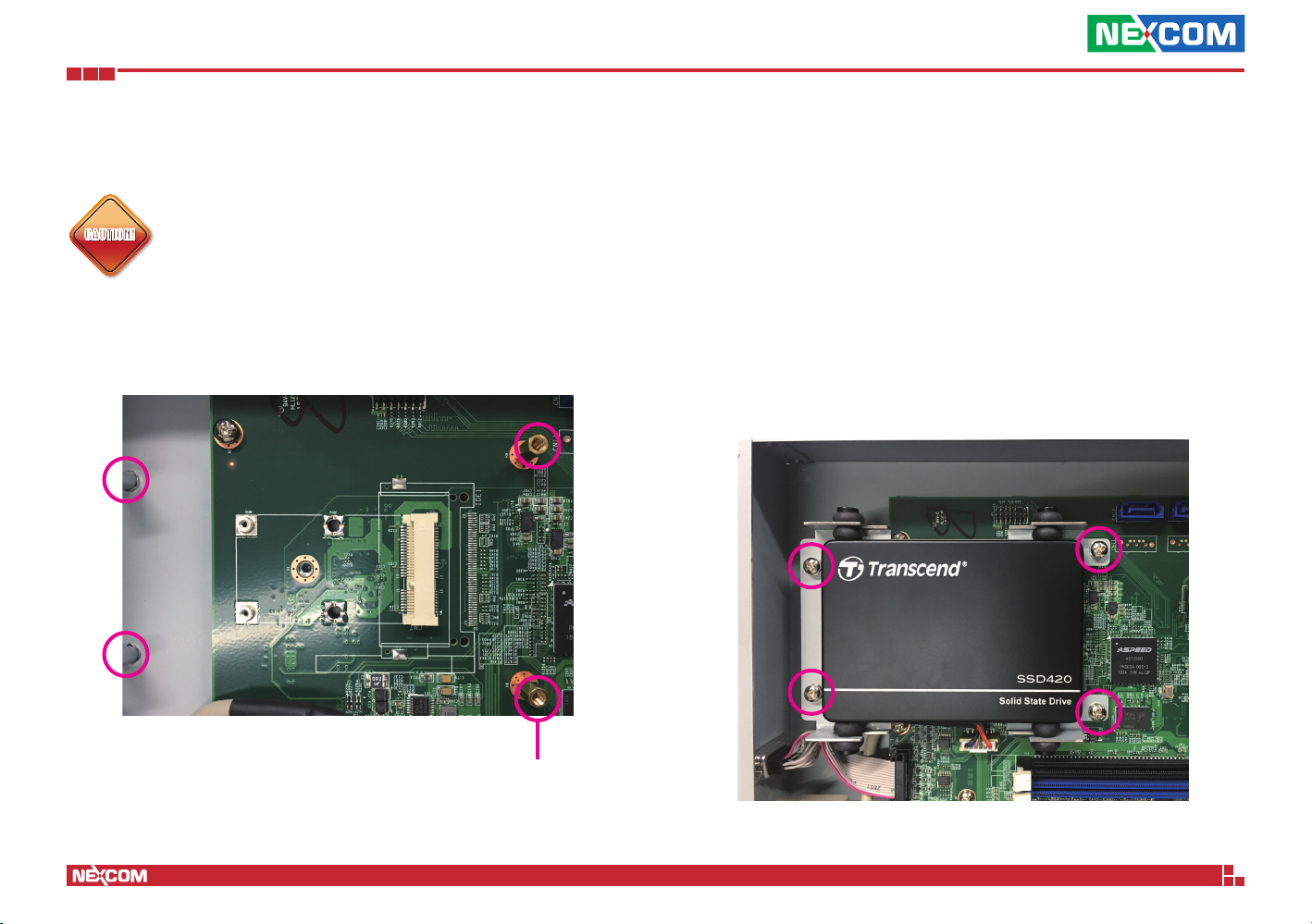

Installing a 2.5” SATA Storage Drive ......................................................26

Chapter 4: BIOS Setup

About BIOS Setup ................................................................................. 27

When to Configure the BIOS .................................................................27

Default Configuration ........................................................................... 28

Entering Setup ...................................................................................... 28

Legends ................................................................................................ 28

BIOS Setup Utility .................................................................................. 30

Main .................................................................................................30

Advanced ......................................................................................... 31

Chipset ..............................................................................................40

Security .............................................................................................44

Boot .................................................................................................. 45

Save & Exit ........................................................................................46

Server Mgmt .....................................................................................47

iii

NSA 5181 User Manual

Page 4

Preface

PrefaCe

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

NSA 5181 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

NSA 5181 User Manual

Page 5

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green

products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2011/65/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <

0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2013 will be RoHS compliant. They will use the usual NEXCOM naming convention.

NSA 5181 User Manual

Page 6

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

▪ Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

▪ Customers must collect all the information about the problems

encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

▪ Customers can send back the faulty products with or without accessories

(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

▪ Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

▪ Any products returned by NEXCOM to other locations besides the

customers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

▪ Component fee: NEXCOM will only charge for main components such as

SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

▪ Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

▪ Replace with 3rd party products if needed.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

Board Level

▪ Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

NSA 5181 User Manual

Page 7

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

vii

NSA 5181 User Manual

Page 8

Preface

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully.

▪ Do not place the unit on an unstable surface, cart, or stand.

▪ Follow all warnings and cautions in this manual.

▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

▪ A Philips screwdriver

▪ A flat-tipped screwdriver

▪ A grounding strap

▪ An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

viii

NSA 5181 User Manual

Page 9

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the

equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or

letting it fall may cause damage.

7. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting

the equipment to the power outlet.

9. Place the power cord in a way so that people will not step on it. Do not

place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical shock.

13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work

according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.

15. Do not place heavy objects on the equipment.

16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

NSA 5181 User Manual

Page 10

Preface

CAUTION!

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

NSA 5181 User Manual

Page 11

Preface

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

9F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

Asia

Taiwan NexAIoT Co., Ltd.

Taipei Office

13F, No.920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: [email protected] www.nexcom.com.tw

NexAIoT Co., Ltd. Taichung Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: [email protected] www.nexcom.com.tw

NexCOBOT Taiwan Co., Ltd.

13F, No.916, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: [email protected] www.nexcom.com.tw

GreenBase Technology Corp.

13F, No.922,Chung-Cheng Rd., Zhonghe Dist., New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7900 Email:[email protected] www.nexcom.com.tw

China NEXSEC Incorporated

Floor 5, No.4, No.7 fengxian middle Rd., (Beike Industrial Park), Haidian District, Beijing, 100094, China Tel: +86-10-5704-2680 Fax: +86-10-5704-2681 Email: [email protected] www.nexcom.cn

NSA 5181 User Manual

Page 12

Preface

NEXCOM Shanghai

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No. 609, Yunlin East Rd., Shanghai, 200062, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: [email protected] www.nexcom.cn

NEXCOM Surveillance Technology Corp.

Floor 5, Building C, ZhenHan Industrial Zone, GanKeng Community, Buji Street, LongGang District, ShenZhen, 518112, China Tel: +86-755-8364-7768 Fax: +86-755-8364-7738 Email: [email protected] www.nexcom.cn

NEXCOM United System Service

Room 603/604, Huiyinmingzun Plaza Bldg. 1, No. 609, Yunlin East Rd., Shanghai, 200062, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: [email protected] www.nexcom.cn

NEXGOL

1st Floor, Building B4, Electronic 2nd Area, (Phoenix Lake Industrial Park), Yongchuan Dist., Chongqing City, 402160, China Tel: +86-23-4960-9080 Fax: +86-23-4966-5855 Email: [email protected] www.nexgol.com/NexGoL

Beijing NexGemo Technology Co.,Ltd.

5th Floor, Gemotech Building, No.1, Development Rd., Changping International Information Industry Base, Changping District, Beijing,102206, China Tel: +86-10-8190-9399 Fax:+86-10-8190-9456

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: [email protected] www.nexcom-jp.com

Europe

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: [email protected] www.nexcom.eu

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: [email protected] www.nexcom.com

xii

NSA 5181 User Manual

Page 13

Preface

Package Contents

Before continuing, verify that the NSA 5181 package that you received is complete. Your package should have all the items listed in the following table.

Item Part Number Name Description Qty

1 19S00518100X0 NSA 5181 ASSY 1 2 50311F0206X00 P Head Screw M2x5L Long Fei Head DIA5.4 w/Washer Nylok NI 3 3 5044440031X00 Rubber Foot Kang Yang:RF20-5-4P 19.8x18x5.0mm 4 4 6012200052X00 PE Zipper Bag #8 170x240mm, w/China RoHS Symbol 1 5 6012200053X00 PE Zipper Bag #3 100x70mm, w/China RoHS Symbol 1 6 6023309081X00 Cable EDI:232091081804-RS COM Port. DB9 Female to RJ45 8P8C L:1800mm 1 7 5040210036X00 Ear Set for NSA 5181 VER:A Panadvance 53.85x43x22mm SECC T=2.0mm Panting Pantone 295U 1 8 5040150001X00 NSA 7135 AL Handle VER:A Panadvance 78x58x8mm 1 9 6014605965X00 Outside Carton Label for NSA 5181 VER:A Label Jet 60x60mm ART Paper 2

xiii

NSA 5181 User Manual

Page 14

Preface

Ordering Information

The following below provides ordering information for NSA 5181.

Barebone NSA 5181 (P/N: TBC)

Supports 8th generation Intel® Xeon®/Core™/Pentium® processors, 4 DDR4 memory slots, M.2/mSATA socket, USB ports, HDMI port, 4 PCIe x8 LAN expansion slots (front), w/o LCM and single ATX PSU

Model P/N Controller Interface Type Port Number Bypass/Segment Expansion Slot Location Slot

NX 140F 10S20140F01X0 XL710-BM1 PCIe x8 4 SFP+ None None 1,2

NX 142F 10S20142F01X0 XL710-BM1 PCIe x8 4 SFP+ 2 bypass None 1,2

NX 120F 10S20120F00X0 X710-BM2 PCIe x8 2 SFP+ None None 1,2

NI 140F 10SK000NI02X0 i350AM4x1 PCIe x8 4 SFP None None All Slot

NI 180F 10S10180F01X0 i350AM4x2 PCIe x8 8 SFP None None 2

NI 142C 10SK000NI03X0 i350AM4x1 PCIe x8 4 Copper 2 bypass None All Slot

NI 180C 10S10180C01X0 i350AM4x2 PCIe x8 8 Copper None None 2

NI 184C 10S10184C01X0 i350AM4x2 PCIe x8 8 Copper 4 bypass None 2

NI 142F 10S10142F01X0 i350AM4x1 PCIe x8 4 SFP 2 bypass None All Slot

NI 121F 10S10121F01X0 i350AM2x1 PCIe x8 2 SFP 1 bypass None All Slot

NI 140C 10S10140C01X0 i350AM4x1 PCIe x8 4 Copper None None All Slot

NC220Q28M 10S30022002X0

MT27708A0-

FDCF-CE

PCIe x16 2 QSFP28 None None 1,2

xiv

NSA 5181 User Manual

Page 15

Chapter 1: Product Introduction

ChaPter 1: ProduCt IntroduCtIon

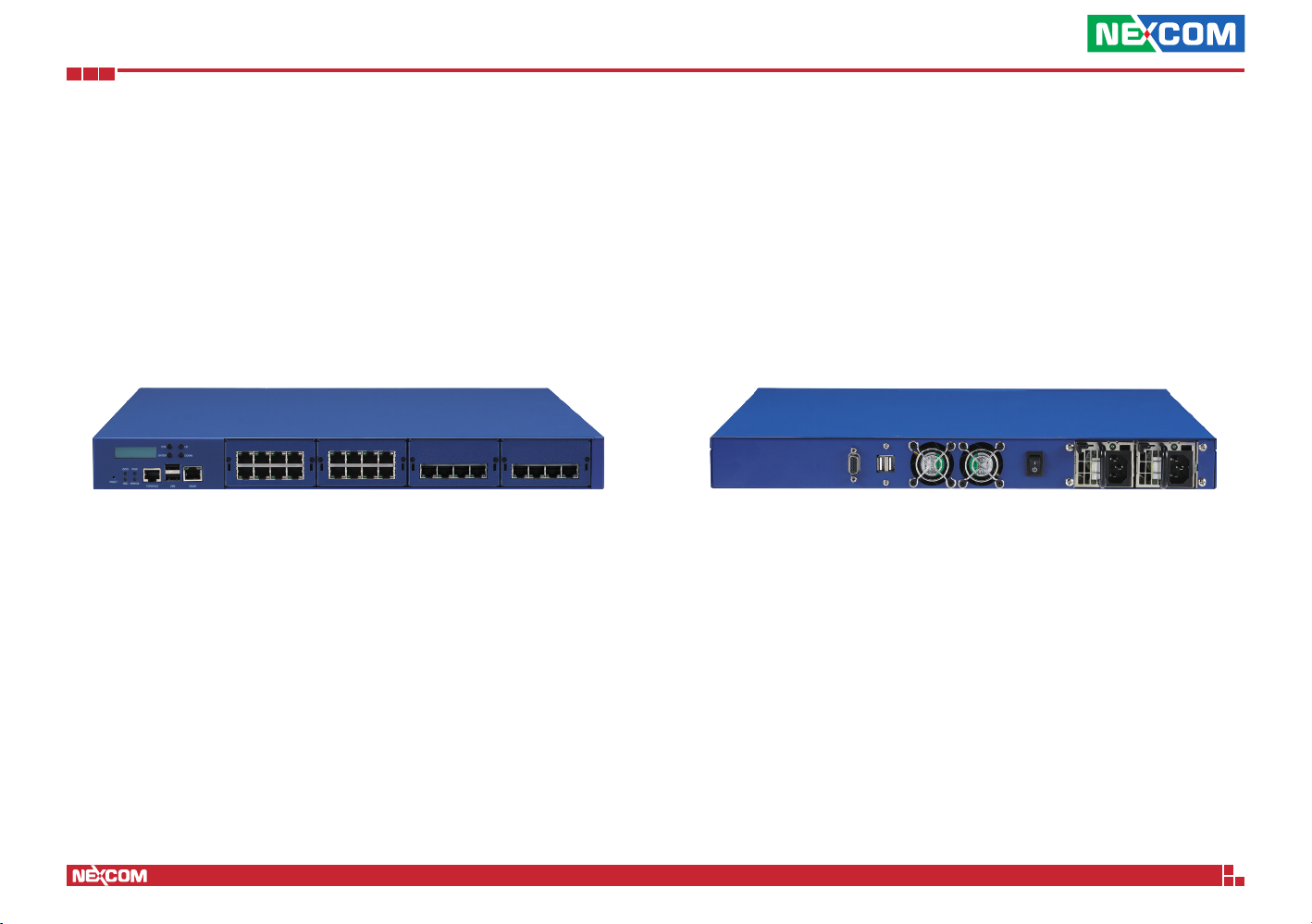

Overview

Key Features

▪ 1U and 19” workstation rack mount system

▪ 8th generation Intel

▪ Support up to four LAN modules

Xeon®/Core™/Pentium

▪ Optional (1+1) redundant PSU

▪ Support IPMI 2.0

▪ Support Intel

RST® ready

NSA 5181 User Manual

Page 16

Chapter 1: Product Introduction

Hardware Specifications

Main Board

▪ NSB 5180 ▪ Support 8th generation Intel® Xeon®/Core™/Pentium® processors ▪ Intel® C246 ▪ Support IPMI 2.0 (optional)

Main Memory

▪ 4 x DDR4 2666 memory DIMM support ECC/non-ECC memory,

max. 64GB

LAN Features

▪ Swappable LAN modules ▪ Support Intel® i350/Intel® XL710 copper/fiber ports ▪ Support 10/100/1000/10G/100G link speed ▪ LAN bypass

* Please see LAN module list for more information

I/O Interface-Front

▪ Power status/HDD status/2 x GPIO status LEDs ▪ 2 x Management ports (LAN chip: Intel® i210) ▪ 2 x USB 2.0 ports ▪ 1 x RJ45 type console port ▪ 1 x Reset button ▪ 4 x PCIe Gen.3 LAN module slots (x8, x8 or x4x4, x4, x4)

Storage

▪ 1 x 2.5” HDD/SSD internal bay ▪ 1 x M.2 slot (B-Key) ▪ 1 x mSATA slot

Power Input

▪ 250W single ATX PSU (main SKU) ▪ 220W (1+1) redundant PSU (optional SKU)

Chassis Dimensions

▪ Chassis dimension: 438 mm x 480mm x 44mm ▪ Carton dimension : 550 mm x 655 mm x 225mm

Weight

▪ Without packing: 7.5kg ▪ With packing: 10.5kg

Certifications

▪ CE approval ▪ FCC Class A ▪ UL

I/O Interface-Rear

▪ 1 x HDMI port ▪ 1 x Power button switch ▪ 1 x USB 2.0 port

NSA 5181 User Manual

Page 17

Chapter 1: Product Introduction

Knowing Your NSA 5181

Front Panel

LAN Modules

LED Indicators

Reset Button

Press to restart the system.

LED Indicators

Indicates the power, storage drive and GPIO activity of the system.

RJ45 Type Console Serial Port

Used to connect RJ45 type console devices.

USB Ports

Used to connect USB 2.0 devices.

Management LAN Port

Management LAN port used for managing the system.

LAN Modules

Four LAN module bays to install add-on network modules.

RJ45 Type

Console Port

Reset Button

USB

Ports

Management LAN

NSA 5181 User Manual

Page 18

Chapter 1: Product Introduction

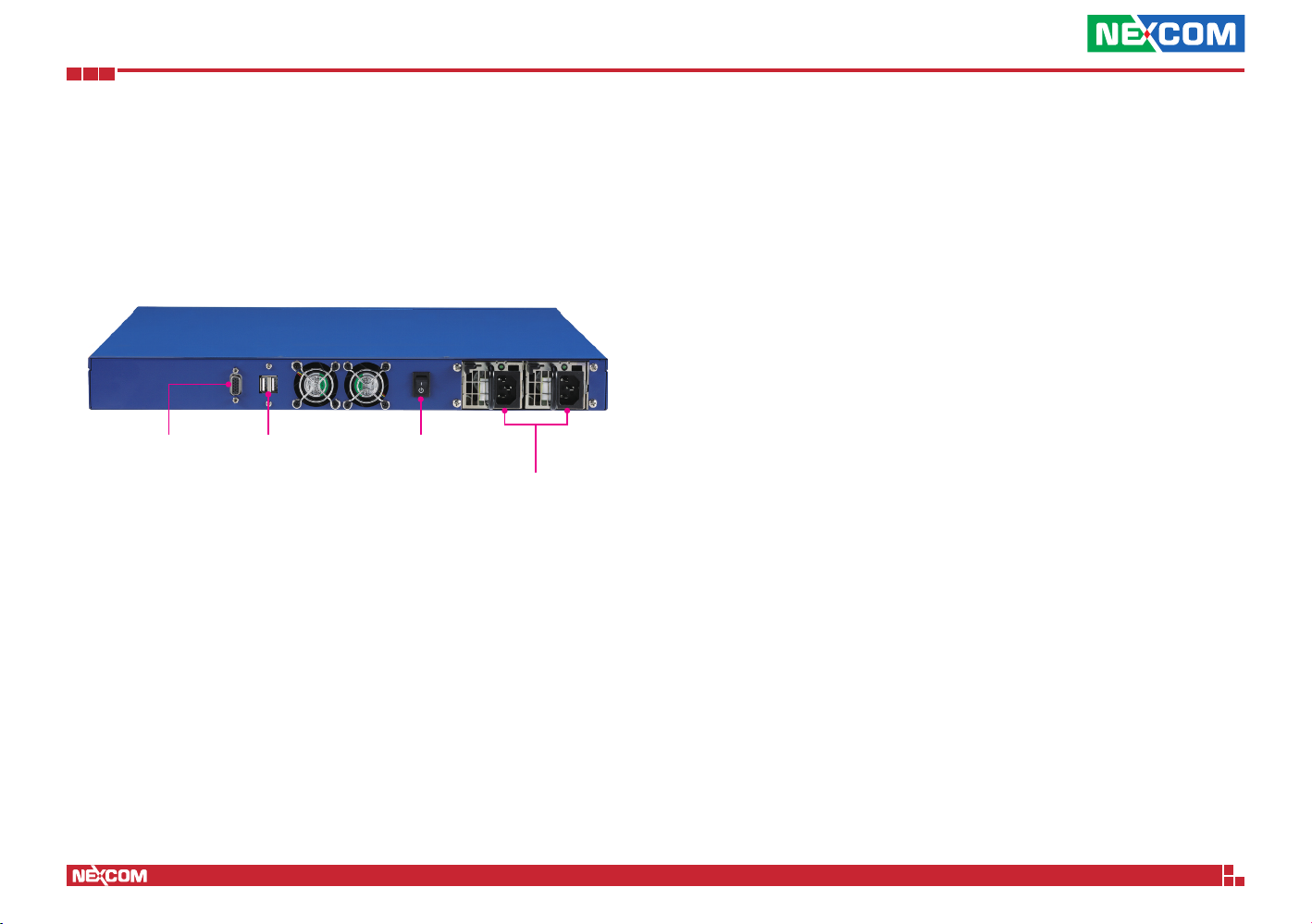

Rear Panel

VGA

Used to connect an analog VGA monitor.

USB Ports

Used to connect USB 2.0/1.1 devices.

Power Switch (Optional)

Press to power-on or power-off the system.

AC Power Sockets (Optional Dual PSU)

Used to plug an AC power cord to power the system. Default configuration is a single ATX power supply unit (PSU). Dual redundant PSU is optional.

Power SwitchVGA USB Ports

AC Power Sockets

(Optional Dual PSU)

NSA 5181 User Manual

Page 19

Chapter 2: Jumpers and Connectors

ChaPter 2: JumPers and ConneCtors

This chapter describes how to set the jumpers and connectors on the NSA 5181 motherboard.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: – A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

▪ Before working on internal components, make sure that the power is off.

Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environments tend to have less static electricity than

dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside the

computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they shipped

with until they are ready for installation.

▪ Use correct screws and do not over tighten screws.

NSA 5181 User Manual

Page 20

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 are Short

NSA 5181 User Manual

Page 21

Chapter 2: Jumpers and Connectors

Locations of the Jumpers and Connectors

The figure below shows the location of the jumpers and connectors.

JP9

JP10

LCM1

CN5

CN10

CON1

JP6

CN20

CN6

JP1

CN21

CN2

CN3

VGACONN1

CN7

JP3

CN11

CN14

CON2

CN22

JP8

JP7

NSA 5181 User Manual

Page 22

Chapter 2: Jumpers and Connectors

Jumpers

AT/ATX Mode Select

Connector type: 1x3 3-pin header Connector location: JP6

1 3 1 3

Pin Settings

1-2 On ATX Mode 2-3 On AT Mode

Pin Definition

1 +3V3_CPLD 2 AT_ATX_SEL 3 GND

Protected RTC

Connector type: 1x3 3-pin header Connector location: JP7

Pin Definition

1 NC 2 SRTCRST_N 3 GND

NSA 5181 User Manual

Page 23

Chapter 2: Jumpers and Connectors

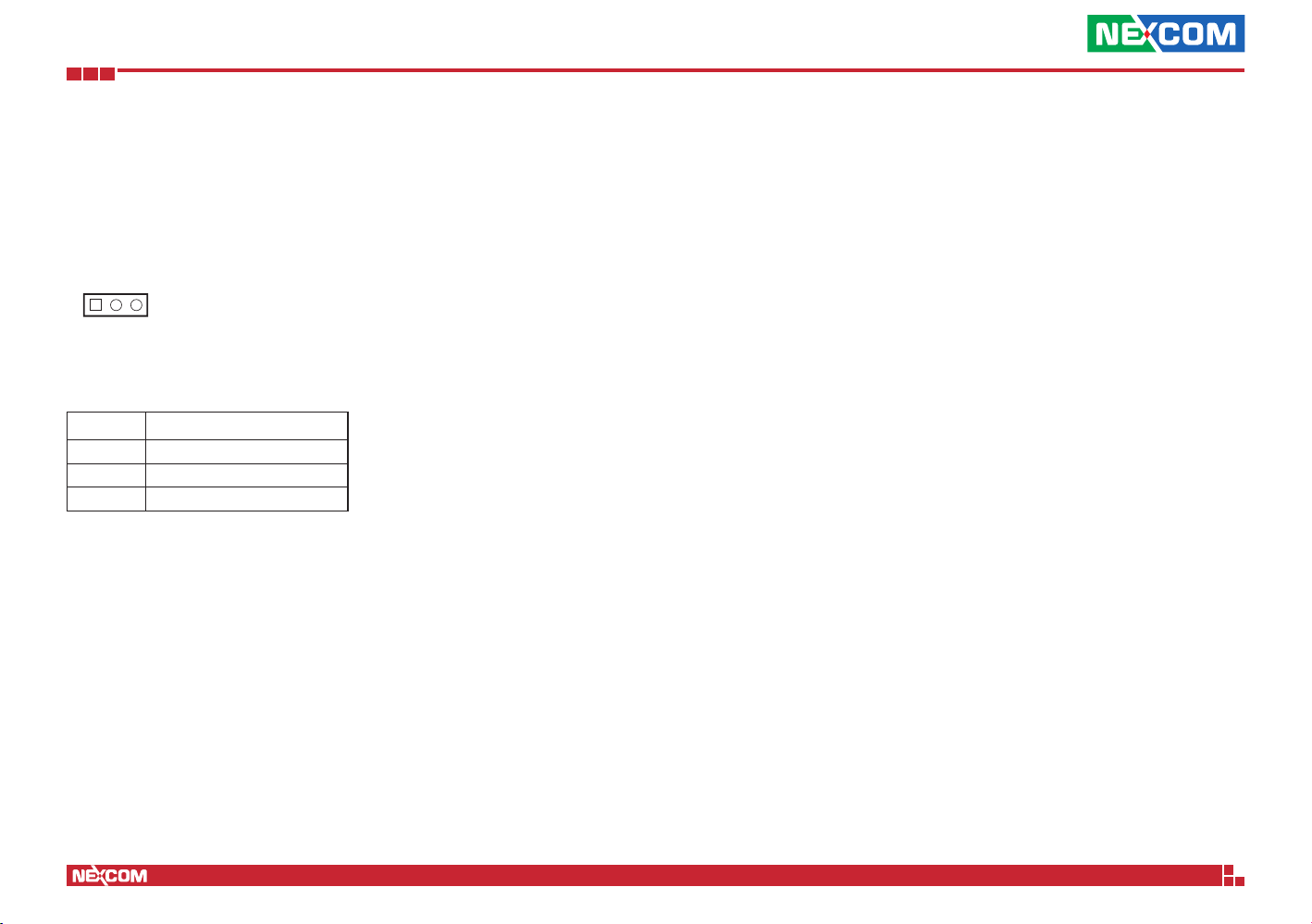

CMOS Clear

Connector type: 1x3 3-pin header Connector location: JP8

1 3

Pin Definition

1 NC 2 RTCRST_N 3 GND

NSA 5181 User Manual

Page 24

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

Internal Connectors

Fan Connectors

Connector type: 1x4 4-pin Wafer, 2.54mm pitch Connector location: CN2, CN3, CN5 and CN6

1 4

Pin Definition

1 GND 2 +P12V 3 SYSFAN_TACH 4 SYSFAN_CTL

8-pin Internal 12V Power Connector

Connector type: 2x4 8-pin boxed header, 4.2mm pitch Connector location: CN10

1 4

5 8

Pin Definition Pin Definition

1 GND 2 GND 3 GND 4 GND 5 +P12V 6 +P12V 7 +P12V 8 +P12V

NSA 5181 User Manual

Page 25

Chapter 2: Jumpers and Connectors

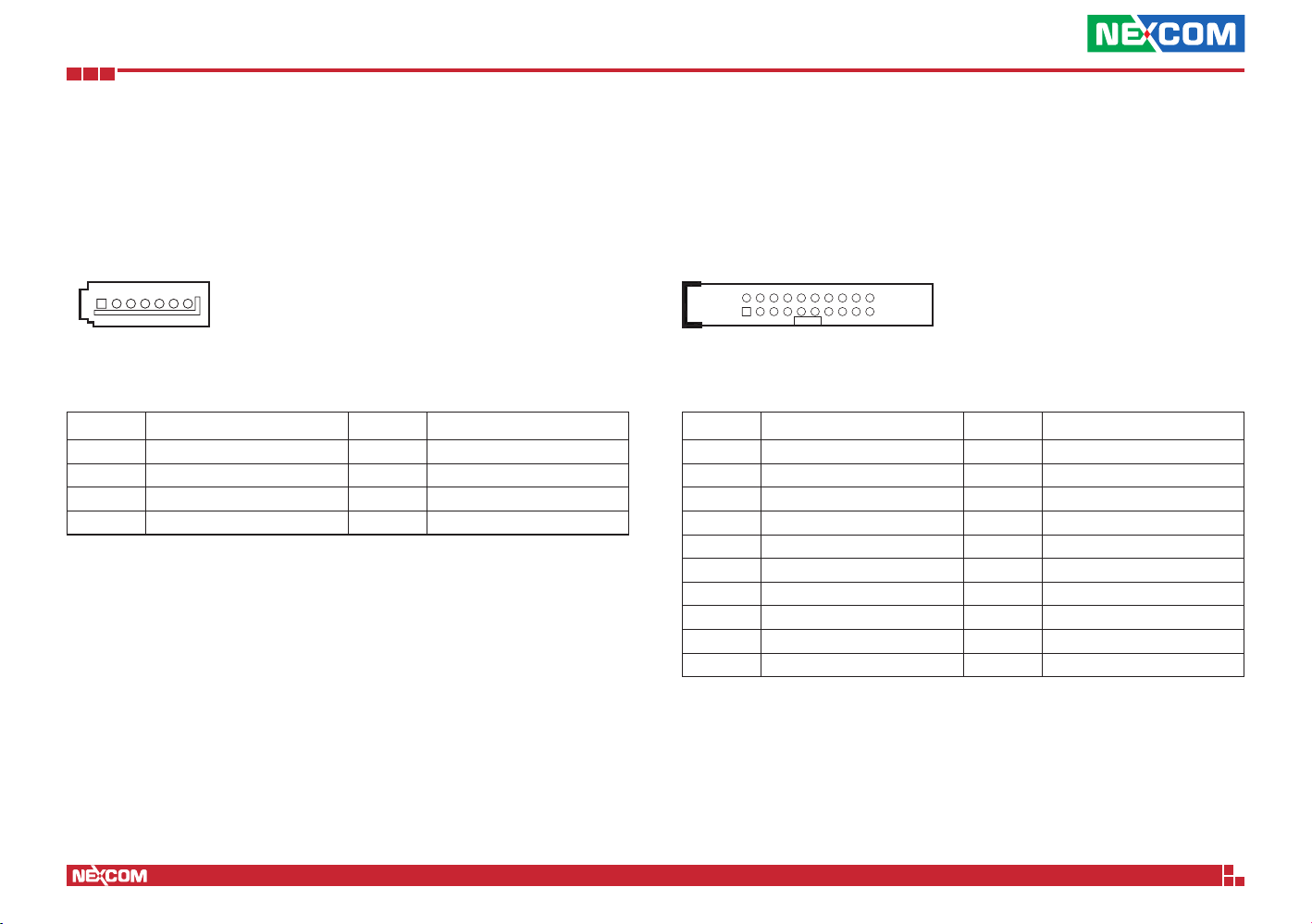

SATA Connectors

Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180) Connector location: CN11 and CN14

1 7

Pin Definition Pin Definition

1 GND 2 TXP 3 TXN 4 GND 5 RXN 6 RXP 7 GND

IO Board Connector

Connector type: 2x10 20-pin header, 2.0mm pitch Connector location: CN20

202

1 19

Pin Definition Pin Definition

1 GND 2 +P3V3 3 +P3V3 4 GND 5 Reset BTN 6 NA 7 NA 8 NA

9 NA 10 NA 11 Error LED 12 NA 13 GPIO LED 14 NA 15 HDD LED 16 LAN 1G LED 17 Power LED 18 GND 19 +P5V 20 +P5V

NSA 5181 User Manual

Page 26

Chapter 2: Jumpers and Connectors

IO Board Connector

Connector type: 2x25 50-pin header, 2.0mm pitch Connector location: CN21

1 49

502

Pin Definition Pin Definition

1 GND 2 PHY_MXP0 3 PHY_MXN0 4 GND 5 PHY_MXN1 6 PHY_MXP1 7 GND 8 PHY_MXP2

9 PHY_MXN2 10 GND 11 PHY_MXN3 12 PHY_MXP3 13 GND 14 LAN ACT LED 15 LAN 100M LED 16 GND 17 NA 18 NA 19 GND 20 NA 21 NA 22 GND 23 NA 24 NA 25 GND 26 NA

Pin Definition Pin Definition

27 NA 28 GND 29 NA 30 NA 31 +P3V3 32 +P5V 33 +P5V 34 +P5V 35 +P5V 36 +P5V 37 GND 38 USB2_2P 39 USB2_2N 40 GND 41 USB2_3P 42 USB2_3N 43 GND 44 RJ45_CTS 45 RJ45_DSR 46 RJ45_DTR 47 RJ45_RXD 48 RJ45_RTS 49 RJ45_TXD 50 RJ45_DCD

NSA 5181 User Manual

Page 27

Chapter 2: Jumpers and Connectors

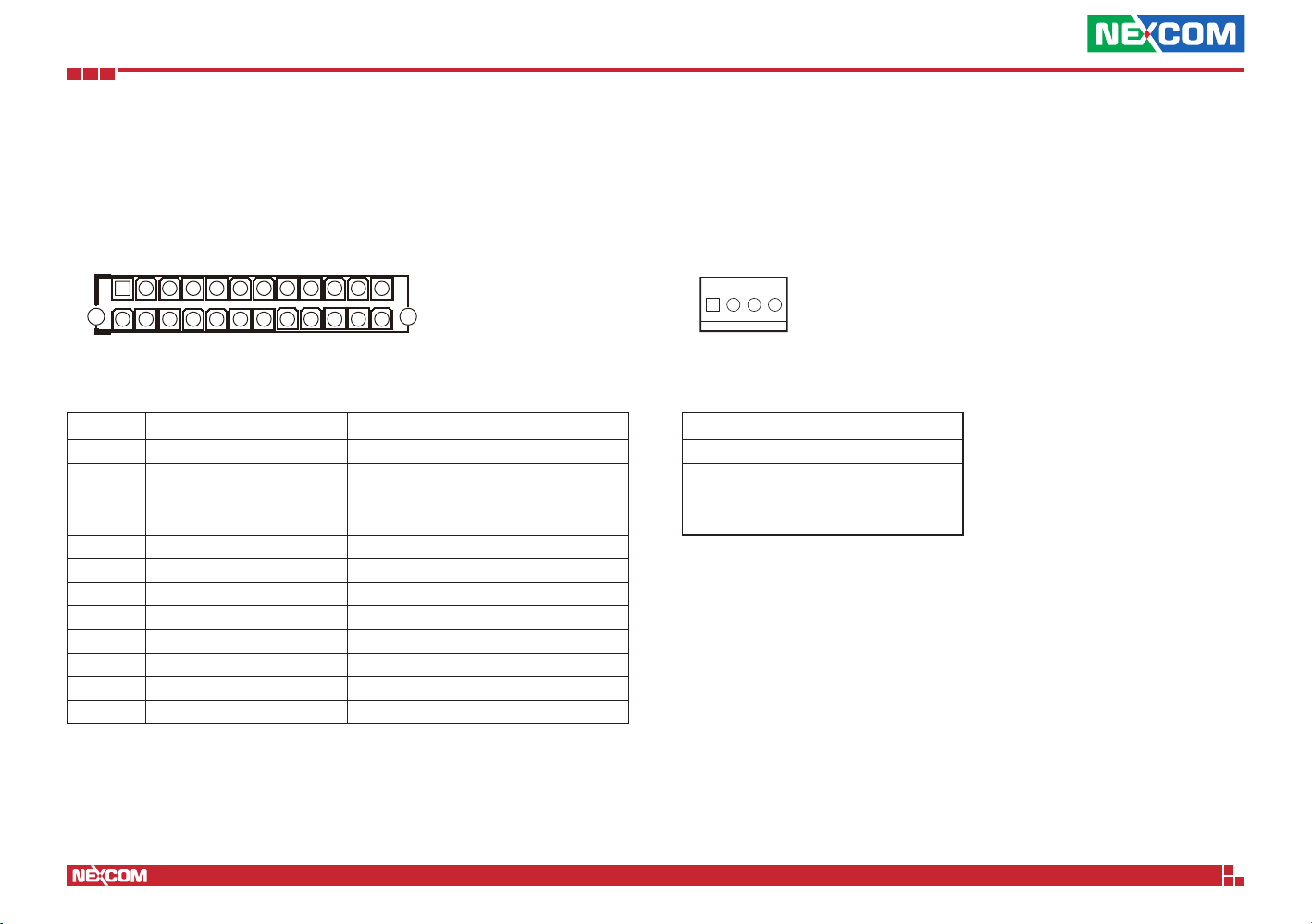

24-pin Internal ATX Power Connector

Connector type: 2x12 24-pin boxed header, 4.2mm pitch Connector location: CON1

1 12

2413

Pin Definition Pin Definition

1 +P3.3V 2 +P3.3V

3 GND 4 +P5V

5 GND 6 +P5V

7 GND 8 PW-OK

9 +P5_AUX 10 +P12V

11 +P12V 12 +P3.3V 13 +P3.3V 14 NC 15 GND 16 PS-ON 17 GND 18 GND 19 GND 20 NC 21 +P5V 22 +P5V 23 +P5V 24 GND

SATA Power Connector

Connector type: 1x4 4-pin Wafer, 2.54mm pitch Connector location: CON2

1 4

Pin Definition

1 +P12V 2 GND 3 GND 4 +P5V

NSA 5181 User Manual

Page 28

Chapter 2: Jumpers and Connectors

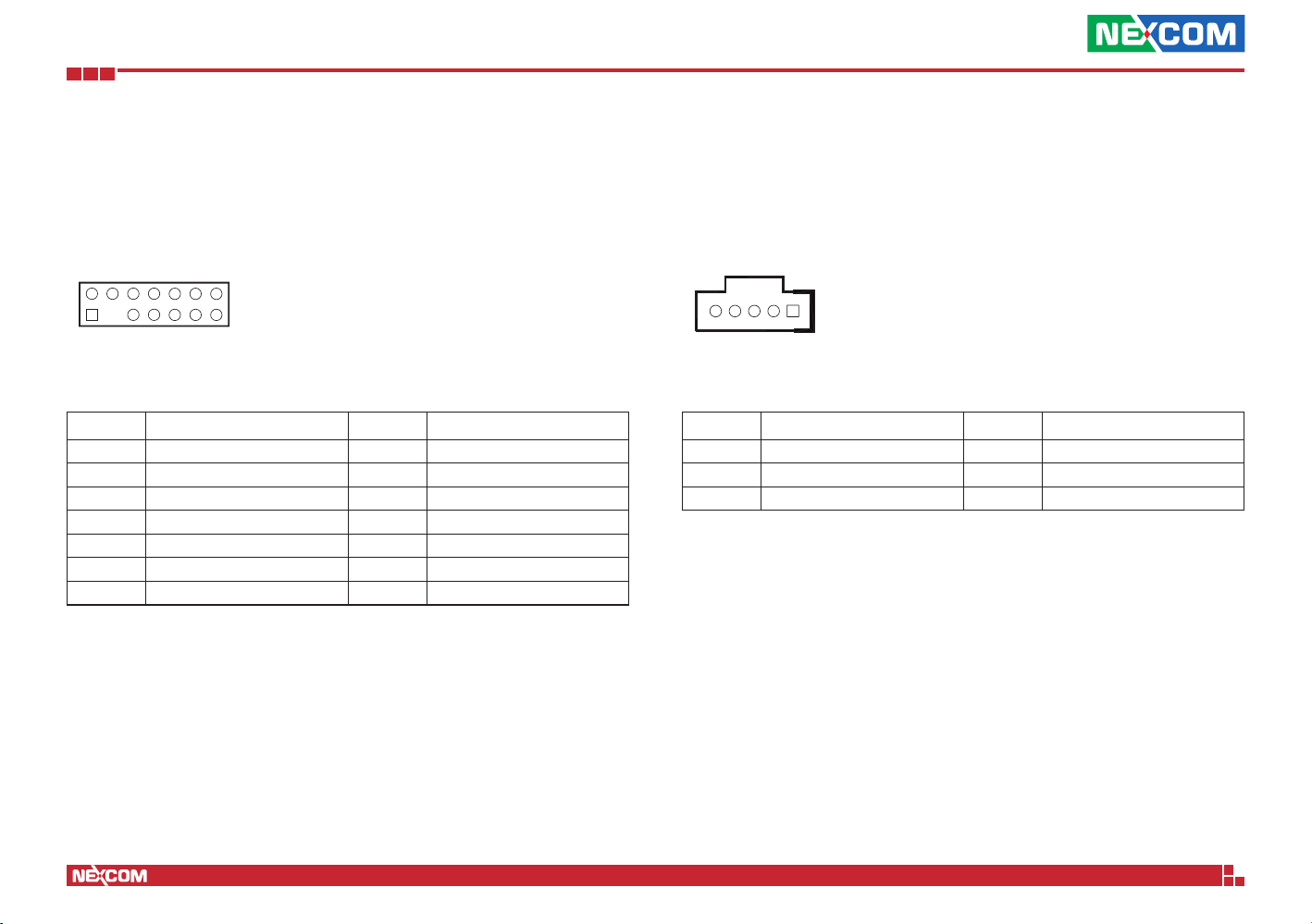

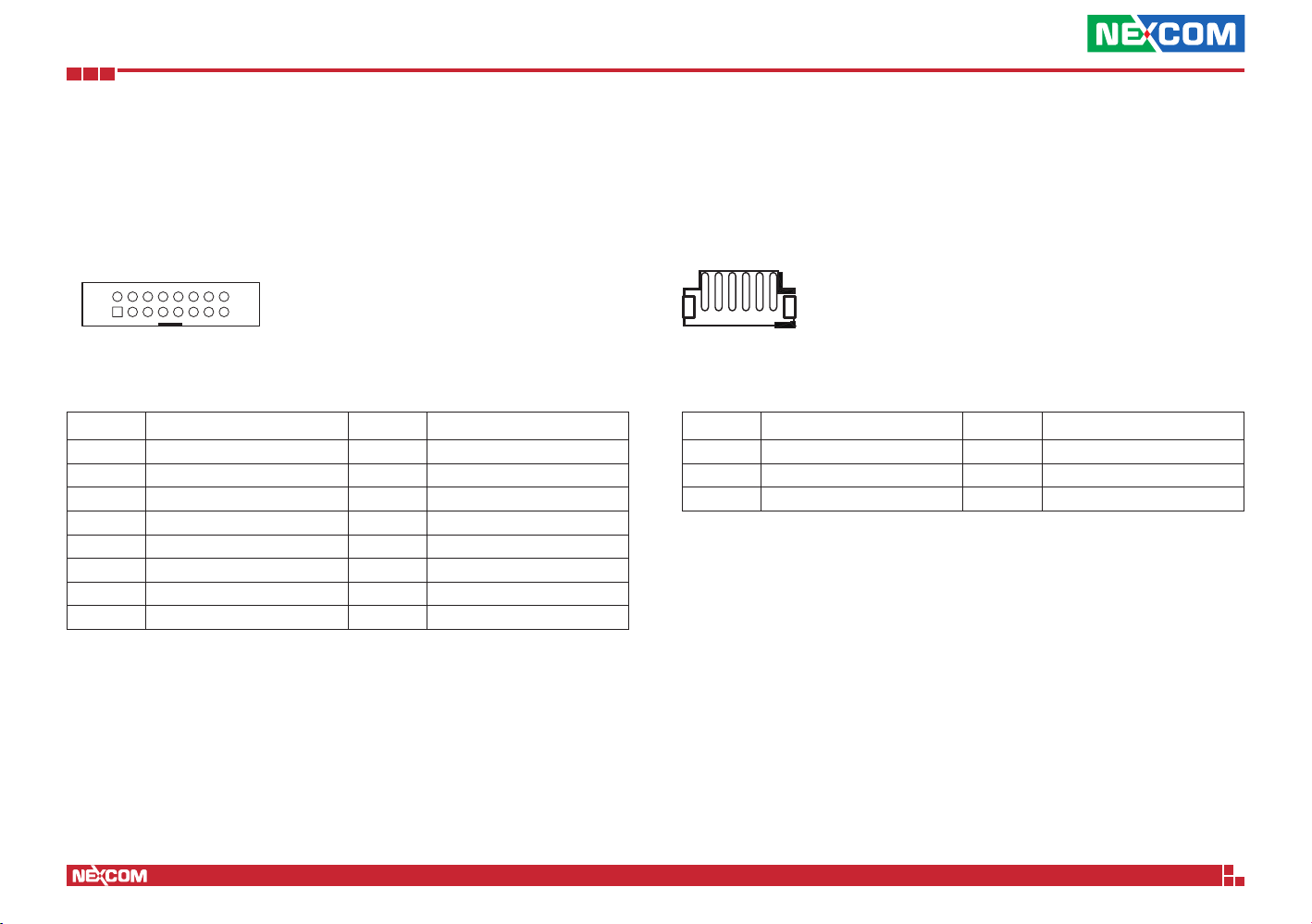

VGA Connector

Connector type: 2x8 16-pin header, 2.0mm pitch Connector location: VGACONN1

2 1

Pin Definition Pin Definition

1 DACROA_B 2 DACGOA_B

3 DACBOA_B 4 NC

5 GND 6 GND

7 GND 8 GND

9 VGA_5V 10 GND

11 NC 12 DDC_DATAO_B 13 AHSYNCO_B 14 AVSYNCO_B 15 DDC_CLKO_B 16 NC

16 15

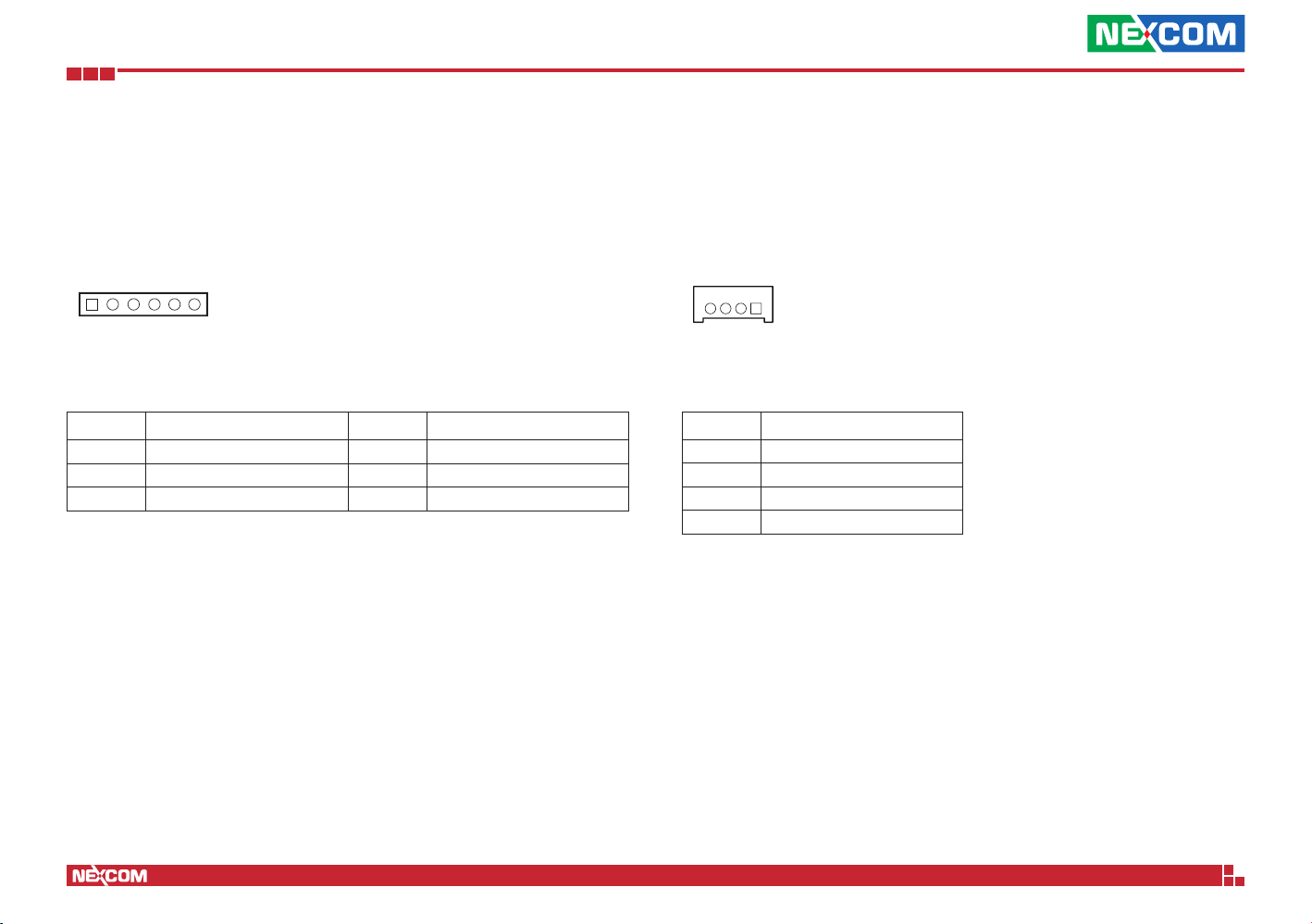

Rear USB 2.0 Connector

Connector type: 1x6 6-pin header, 2.0mm pitch Connector location: J1

6 1

Pin Definition Pin Definition

1 +P5V_USB_P01 2 USB2N0_C 3 USB2P0_C 4 USB2N1_C 5 USB2P1_C 6 GND

NSA 5181 User Manual

Page 29

Chapter 2: Jumpers and Connectors

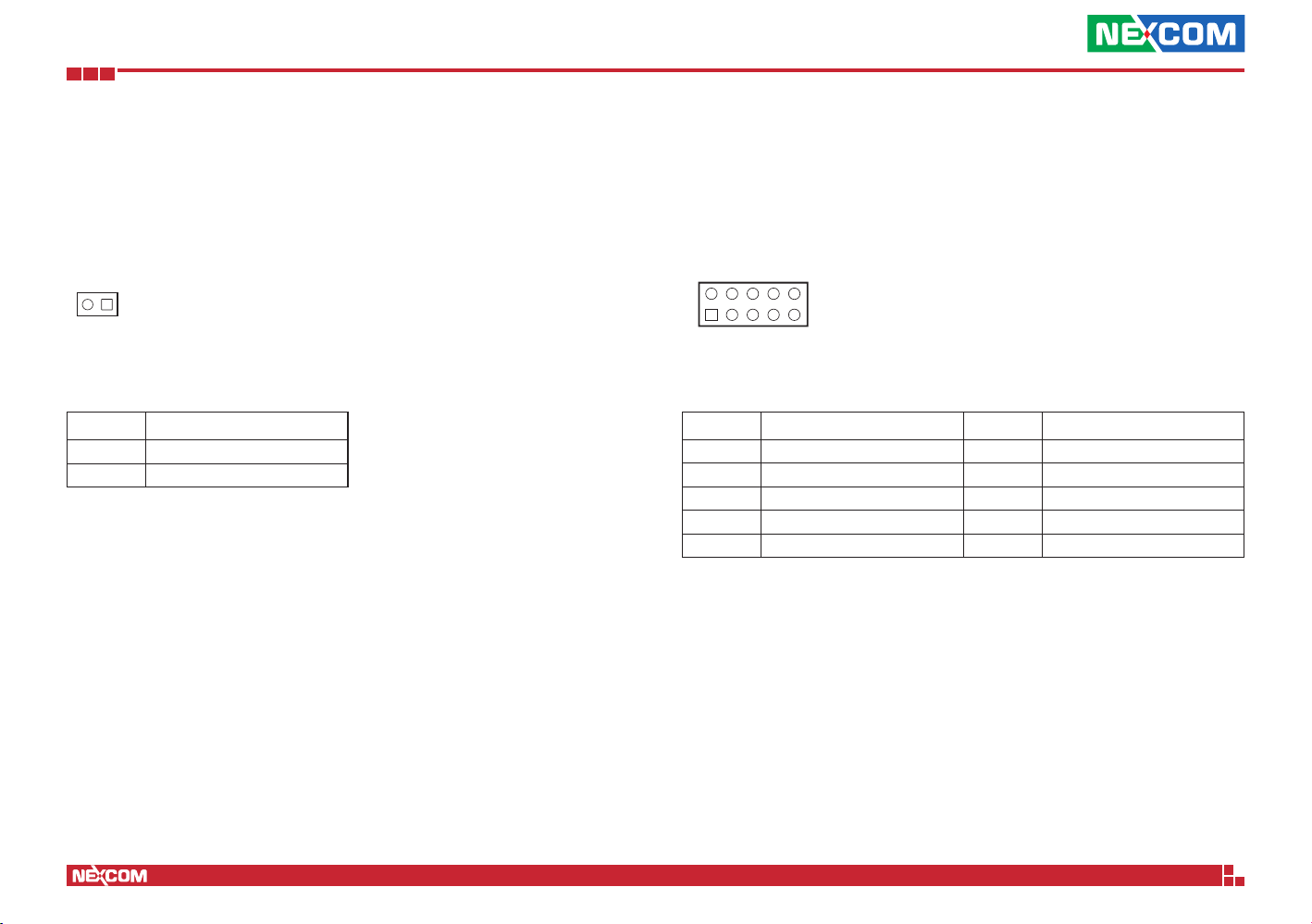

Power Button

Connector type: 1x2 2-pin header, 2.54mm pitch Connector location: J2

Pin Definition

1 GND

2 FP_PWR_BTN_N

GPIO Pin Header

Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: JP1

Pin Definition Pin Definition

1 +P3V3 2 GND 3 SW_GPIN1 4 SW_GPOUT1 5 SW_GPIN2 6 SW_GPOUT2 7 SW_GPIN3 8 SW_GPOUT3 9 SW_GPIN4 10 SW_GPOUT4

NSA 5181 User Manual

Page 30

Chapter 2: Jumpers and Connectors

TPM Header

Connector type: 2x7 14-pin header, 2.0mm pitch Connector location: JP3

Pin Definition Pin Definition

1 GND 2 CLK_LPC_TPM_R

3 4 LPC_FRAME_R1_N

5 LPC_AD2_R1 6 RST_TPM_R1_N

7 LPC_AD1_R1 8 LPC_AD3_R1

9 GND 10 LPC_AD0_R1

11 INT_SERIRQ_R1 12 +P3V3 13 GND 14 GND

PMBUS

Connector type: 1x5 5-pin header, 2.54mm pitch Connector location: JP9

5 1

Pin Definition Pin Definition

1 PSU_PMB_CLK 2 PSU_PMB_DAT 3 NC 4 GND 5 NC

NSA 5181 User Manual

Page 31

Chapter 2: Jumpers and Connectors

CPLD JTAG Pin Header

Connector type: 1x6 6-pin header, 2.54mm pitch Connector location: JP10

Pin Definition Pin Definition

1 +P3V3_CPLD 2 GND

3 JTAG_PLD_TCK 4 JTAG_PLD_TDO

5 JTAG_PLD_TDI 6 JTAG_PLD_TMS

LCM

Connector type: 1x4 4-pin header, 2.0mm pitch Connector location: LCM1

Pin Definition

1 GND 2 SP_LCM_RXD 3 SP_LCM_TXD 4 +P5V

NSA 5181 User Manual

Page 32

Chapter 2: Jumpers and Connectors

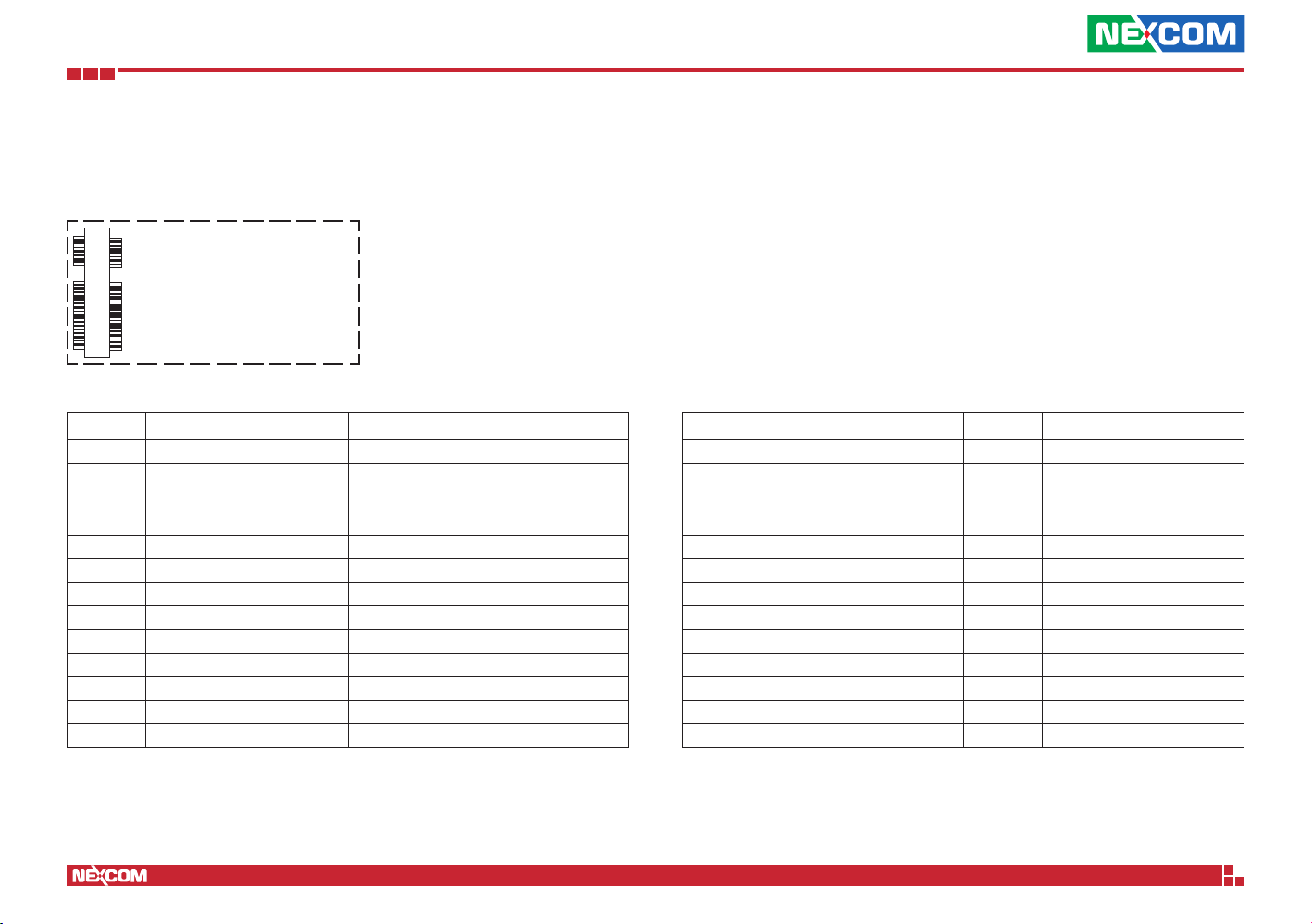

Mini-PCIe Connector (mSATA)

Connector location: CN7

51 52

Pin Definition Pin Definition

1 WAKE# 2 3.3VSB

3 COEX1 4 GND

5 COEX2 6 1.5V_3

7 CLKREQ# 8 UIM_PWR

9 GND 10 UIM_DATA

11 REFCLK- 12 UIM_CLK 13 REFCLK+ 14 UIM_RESET 15 GND 16 UIM_VPP 17 REV10/UIM_C8 18 GND 19 REV9/UIM_C4 20 WDISABLE# 21 GND 22 PERST 23 mSATA_RP 24 3.3VSB_1 25 mSATA_RN 26 GND

Pin Definition Pin Definition

27 GND 28 1.5V_2 29 GND 30 SMB_CLK 31 mSATA_TN 32 SMB_DAT 33 mSATA_TP 34 GND 35 GND 36 USB_D37 GND 38 USB_D+ 39 3.3VSB_4 40 GND 41 3.3VSB_5 42 LED_WWAN# 43 GND 44 LED_WLAN# 45 REV4 46 LED_WPAN# 47 REV3 48 1.5V_1 49 REV2 50 GND 51 REV1 52 3.3VSB_2

NSA 5181 User Manual

Page 33

Chapter 2: Jumpers and Connectors

74 75

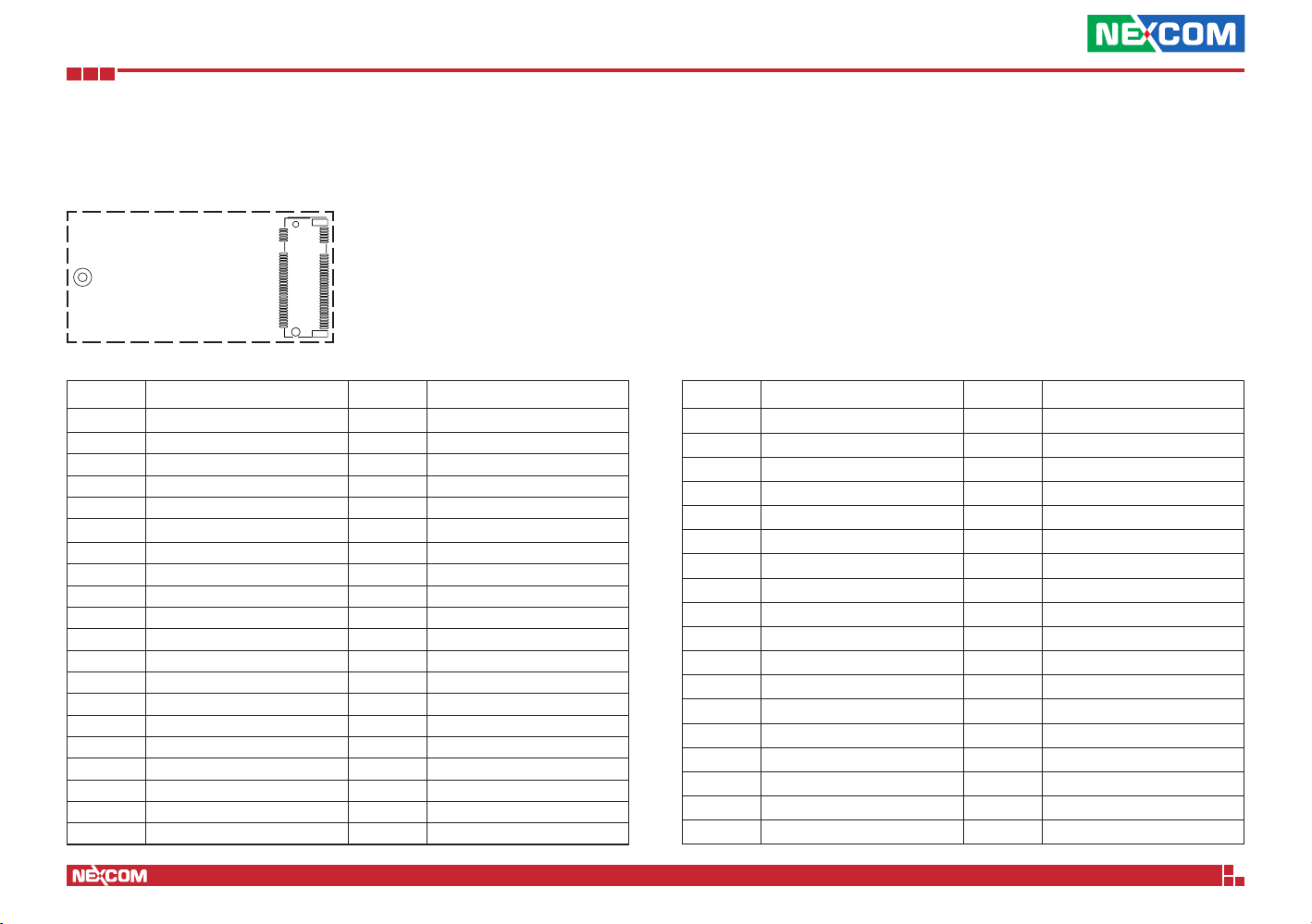

M.2 B-Key Connector

Connector location: CN22

Pin Definition Pin Definition

1 CONFIG_3 2 3.3V_1

3 GND 4 3.3V_2

5 GND 6 POWER_OFF#

7 USB_D+ 8 W_DISABLE1#

9 USB_D- 10 GPIO_9/DAS/DSS#

11 REFCLK- 12 B KEY

13 B KEY 14 B KEY 15 B KEY 16 B KEY 17 B KEY 18 B KEY 19 B KEY 20 GPIO_5 21 CONFIG_0 22 GPIO_6 23 GPIO_11 24 GPIO_7 25 DPR 26 GPIO_10 27 GND 28 GPIO_8 29 PERn1/USB3.00-Rx-/SSIC-RxN 30 UIM_RESET 31 PERp1/USB3.00-Rx+/SSIC-RxP 32 UIM_CLK 33 GND 34 UIM_DATA 35 PERn1/USB3.00-Tx-/SSIC-TxN 36 UIM_PWR 37 PERp1/USB3.00-Tx+/SSIC-TxP 38 M2_DEVSLP_R 39 GND 40 GPIO_0

Pin Definition Pin Definition

41 PERn0/SATA-B+ 42 GPIO_1

43 PERp0/SATA-B- 44 GPIO_2

45 GND 46 GPIO_3

47 PERn0/SATA-A- 48 GPIO_4

49 PERp0/SATA-A+ 50 PERST#

51 GND 52 CLKREQ#

53 REFCLKn 54 PEWAKE#

55 REFCLKp 56 NC

57 GND 58 NC

59 ANTCTL0 60 COEX3

61 ANTCTL1 62 COEX2

63 ANTCTL2 64 COEX1

65 ANTCTL3 66 SIM_DETECT

67 RESET# 68 SUSCLK(32KhZ)

69 CONFIG_1 70 3.3V_3

71 GND 72 3.3V_4

73 GND 74 3.3V_5

75 CONFIG_2

NSA 5181 User Manual

Page 34

Chapter 2: Jumpers and Connectors

Block Diagram

NSA 5181 User Manual

Page 35

Chapter 3: System Setup

ChaPter 3: system setuP

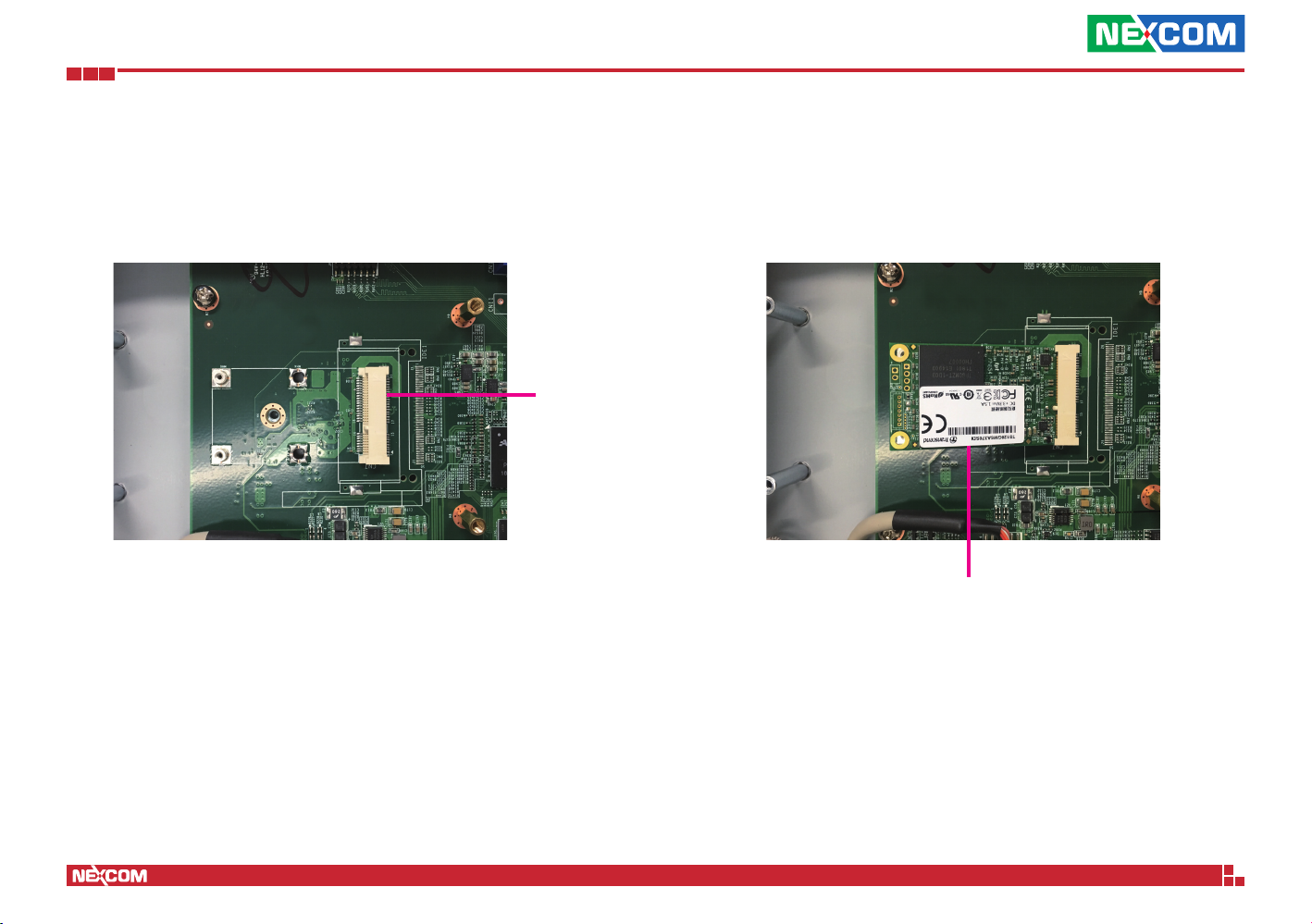

Installing an M.2 Module

1. With the chassis cover removed, locate the M.2 slot on the motherboard.

M.2 Slot

2. Insert the M.2 module until it is completely seated into the slot and secure the module with a screw.

M.2 Module

Screw Here

NSA 5181 User Manual

Page 36

Chapter 3: System Setup

Installing a Mini-PCIe Module

1. With the chassis cover removed, locate the mini-PCIe slot on the motherboard.

Mini-PCIe Slot

2. Insert the mini-PCIe module until it is completely seated into the slot and secure the module with a screw.

Mini-PCIe

Module

NSA 5181 User Manual

Page 37

Chapter 3: System Setup

CAUTION!

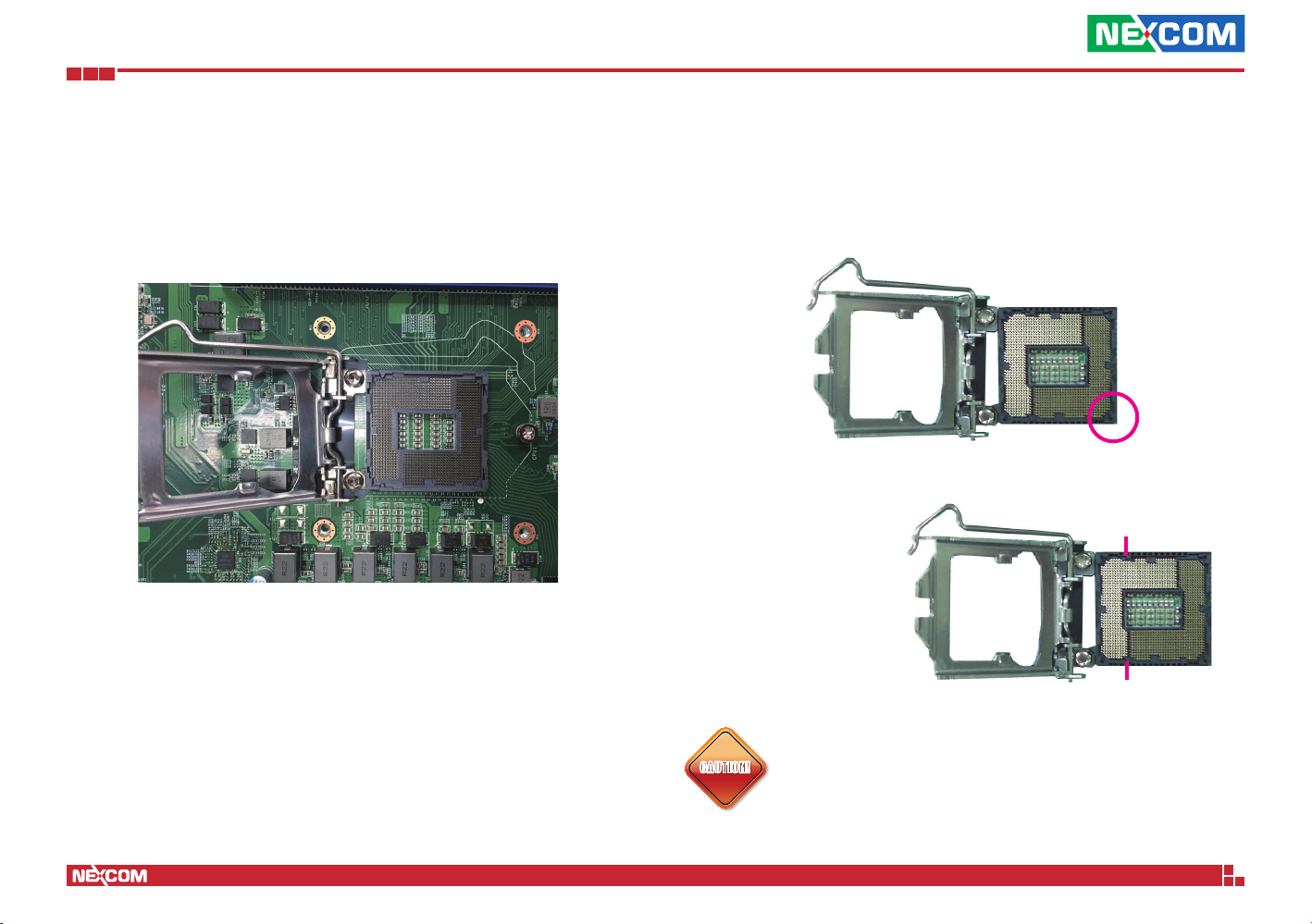

Installing a CPU

1. Locate the CPU socket and unlock it by pushing the load lever down, moving it sideways until it is released from the retention tab; then lift the load lever up.

2. Insert the CPU into the socket. The triangular edge on the CPU must align with the corner of the CPU socket shown on the photo.

Alignment Key

The CPU’s notch will at

the same time fit into the socket’s alignment key.

Alignment Key

CAUTION!CAUTION!

▪ Handle the CPU by its edges and avoid touching the pins. ▪ The CPU will fit in only one orientation and can easily be

inserted without exerting any force.

NSA 5181 User Manual

Page 38

Chapter 3: System Setup

CAUTION!

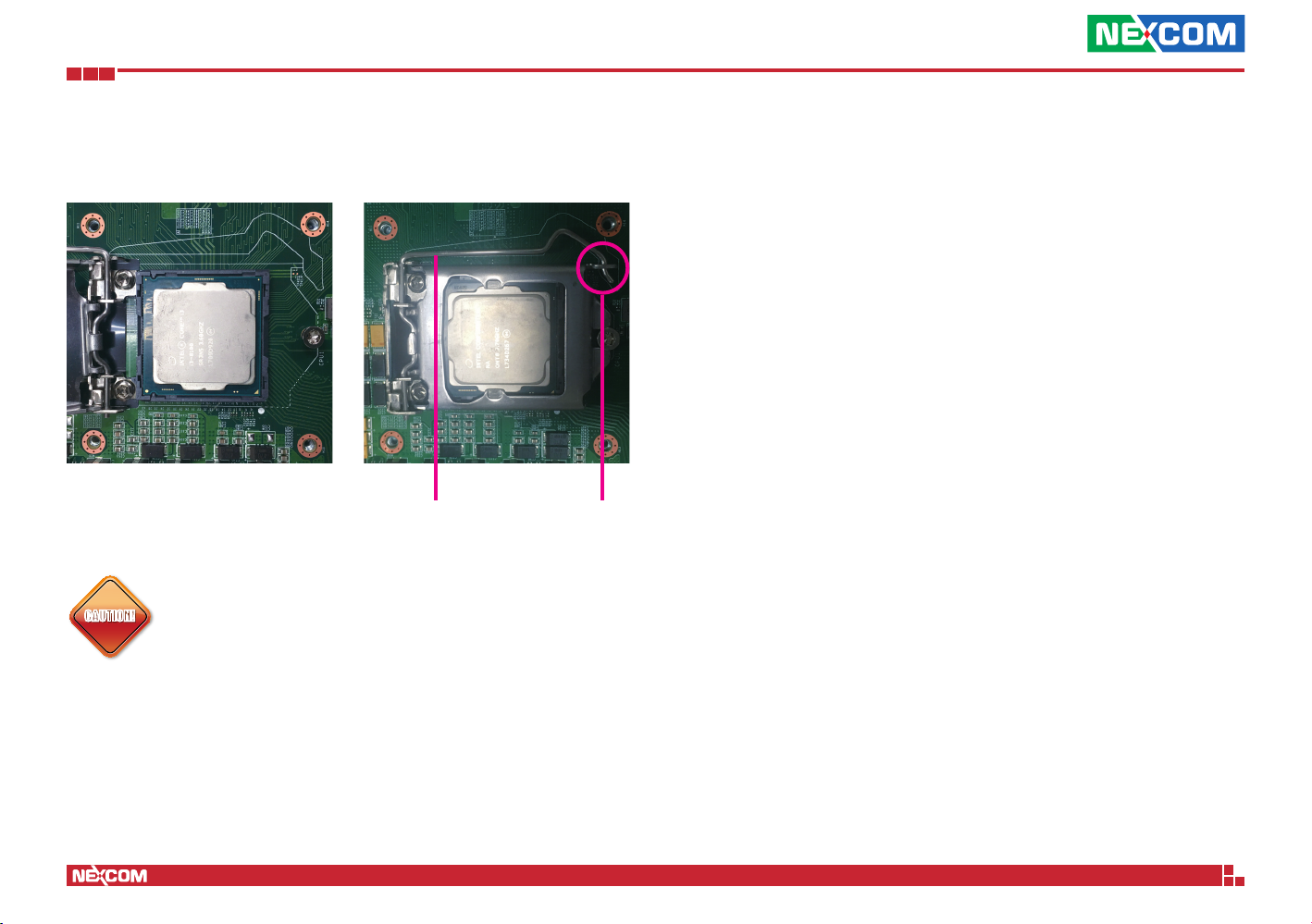

3. Close the load plate and then hook the load lever under the retention tab.

Retention TabLoad Lever

CAUTION!CAUTION!

Do not force the CPU into the socket. Forcing the CPU into the socket may bend the pins and damage the CPU.

NSA 5181 User Manual

Page 39

Chapter 3: System Setup

Installing DIMM Memory Modules

1. Locate the DIMM sockets on the motherboard and release the locks. 2. Insert the module into the socket at an 90 degree angle. Apply firm even

pressure to each end of the module until it slips into the socket.

3. While pushing the module into position, the locks will close automatically.

NSA 5181 User Manual

Page 40

Chapter 3: System Setup

CAUTION!

Installing a 2.5” SATA Storage Drive

CAUTION!CAUTION!

Please correctly follow the below instructions and noted items to avoid making unnecessary damages.

1. Install the SATA storage drive onto the storage drive bracket and align the mounting holes on the bracket to the standoffs in the chassis.

2. With the mounting holes aligned, secure the bracket to the chassis with mounting screws. Connect the SATA data and power cables to the respective connectors on the motherboard and the other ends of the cables to the connectors on the storage drive.

Standoff

NSA 5181 User Manual

Page 41

Chapter 4: BIOS Setup

ChaPter 4: BIos setuP

This chapter describes how to use the BIOS setup program for NSA 5181. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM website at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals

▪ Video display type and display options

▪ Password protection from unauthorized use

▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

▪ This program should be executed under the following conditions:

▪ When changing the system configuration

▪ When a configuration error is detected by the system and you are

prompted to make changes to the setup program

▪ When resetting the system clock

▪ When redefining the communication ports to prevent any conflicts

▪ When making changes to the Power Management configuration

▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

NSA 5181 User Manual

Page 42

Chapter 4: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series of beeps

will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing allows you to enter Setup.

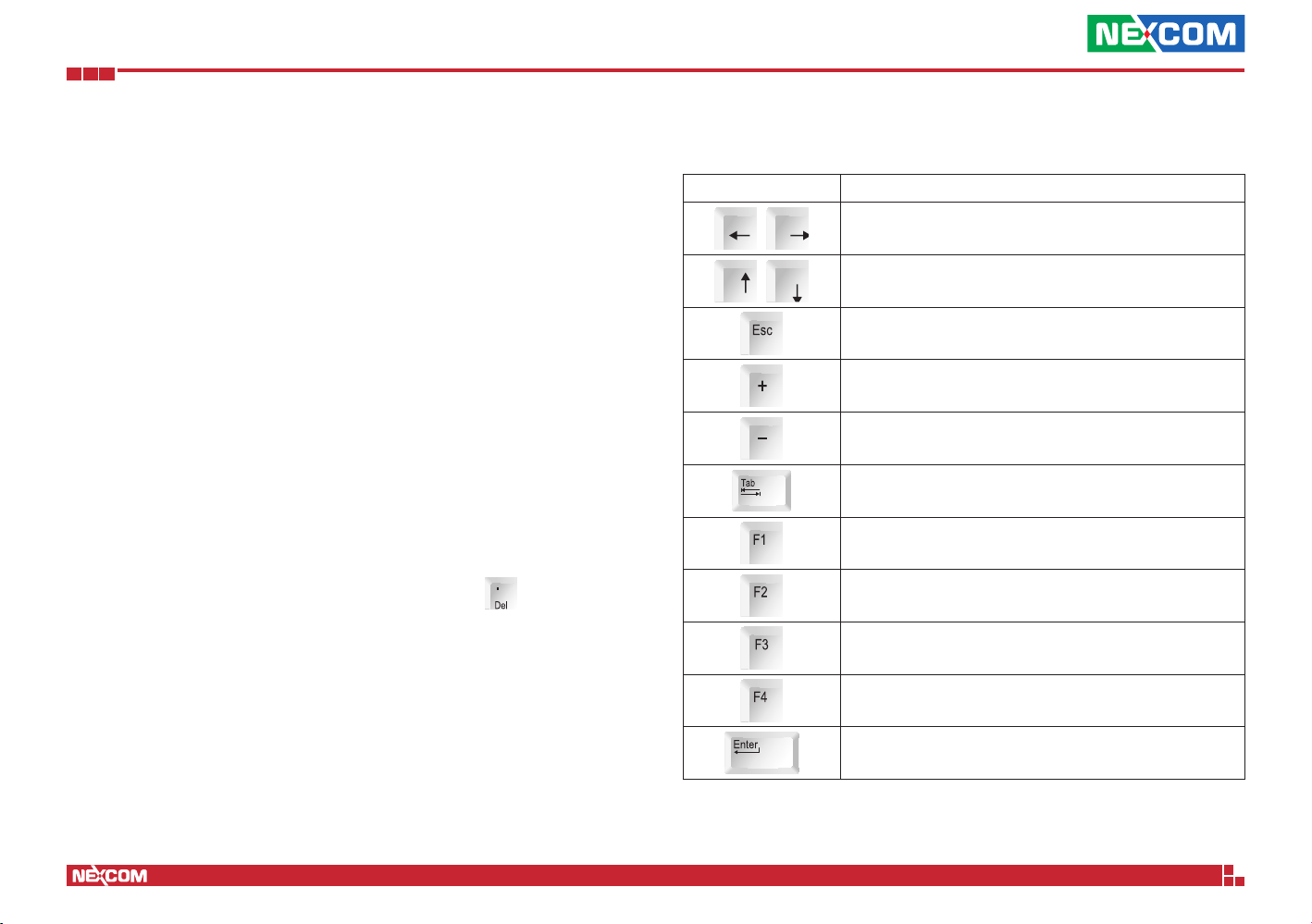

Legends

Key Function

Moves the highlight left or right to select a menu.

Moves the highlight up or down between sub-menu or fields.

Exits the BIOS Setup Utility.

Scrolls forward through the values or options of the highlighted field.

Scrolls backward through the values or options of the highlighted field.

Selects a field.

Displays General Help.

Load previous values.

Load optimized default values.

Saves and exits the Setup program.

Press <Enter> to enter the highlighted sub-menu

NSA 5181 User Manual

Page 43

Chapter 4: BIOS Setup

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press .

NSA 5181 User Manual

Page 44

Chapter 4: BIOS Setup

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from several setup functions and one exit. Use arrow keys to select among the items and press to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

BIOS Information

BIOS Vendor Core Version Compliancy Project Version Build Date and Time Current BIOS

System Date

System Time

American Megatrends

5.13 UEFI 2.7; PI 1.6 G777- 0.03 x64 10/22/2019 14:49:17 BIOS1

[Mon 01/01/2018] [00:03:39]

Save & ExitAdvanced Chipset Security BootMain

Server Mgmt

Set the Date. Use Tab to switch between Date elements. Default Ranges: Year: 2005-2099 Months: 1-12 Days: dependent on month

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Monday to Sunday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 2005 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

NSA 5181 User Manual

Page 45

Chapter 4: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.



CPU Conguration



Power & Performance



PCH-FW Conguration



Trusted Computing



AST2500 Super IO Conguration



Serial Port Console Redirection



PCI Subsystem Settings



USB Conguration



Network Stack Conguration



CSM Conguration

Save & ExitAdvanced Chipset Security BootMain

Server Mgmt

CPU Conguration Parameters

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CPU Configuration

This section is used to configure the CPU.

Advanced

CPU Conguration

Type

ID Speed L1 Data Cache L1 Instruction Cache L2 Cache L3 Cache L4 Cache VMX SMX/TXT Microcode Revision

Hardware Prefetcher

Intel (VMX) Virtualization Technology Hyper-Threading

Intel(R) Xeon(R) E-2144G CPU @ 3.60GHz 0x906EA 3600 MHz 32 KB x 4 32 KB x 4 256 KB x 4 8 MB N/A Supported Supported B4

[Enabled]

To turn on/off the MLC streamer prefetcher.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Hardware Prefetcher

Turns on or off the MLC streamer prefetcher.

Intel (VMX) Virtualization Technology

When this field is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

Hyper-Threading

Enables or disables hyper-threading technology.

NSA 5181 User Manual

Page 46

Chapter 4: BIOS Setup

Power & Performance

This section is used to configure the CPU power management features.

Advanced

Power & Performance



CPU - Power Management Control

CPU - Power Management Control Options

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CPU - Power Management Control

Enters the CPU - Power Management Control submenu.

CPU - Power Management Control

Advanced

CPU - Power Management Control

Intel(R) SpeedStep(tm)

C states

Intel® SpeedStep

[Disabled]

Allows more than two frequency ranges to be supported.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enables or disables Intel SpeedStep.

C States

Enables or disables C-States support for power saving.

NSA 5181 User Manual

Page 47

Chapter 4: BIOS Setup

PCH-FW Configuration

This section is used to configure the firmware update options.

Advanced

ME Firmware Version ME Firmware Mode ME Firmware SKU ME Firmware Status 1 ME Firmware Status 2

ME State

12.0.45.1509 Normal Mode Corporate SKU 0x90000255 0x8B108106

[Enabled]

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

ME State

Displays the status of ME state. When the status is disabled, ME will be placed into ME Temporarily Disabled Mode.

Trusted Computing

This section is used to configure Trusted Platform Module (TPM) settings.

Advanced

Conguration

Security Device Support

NO Security Device Found

[Enable]

Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Security Device Support

Enables or disables BIOS support for security device. O.S will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

NSA 5181 User Manual

Page 48

Chapter 4: BIOS Setup

AST2500 Super IO Configuration

This section is used to configure the serial port.

Advanced

AST2500 Super IO Conguration

Super IO Chip



Serial Port 2 Conguration

AST2500

Super IO Chip

Displays the Super I/O chip used on the board.

Serial Port 2 Configuration

Configuration settings for serial port 2.

Set Parameters of Serial Port 2 (COMB)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Serial Port 2 Configuration

This section is used to configure serial port 2.

Advanced

Serial Port 2 Conguration

Serial Port

Device Settings

Change Settings

[Enabled]

IO=2E8h; IRQ=3;

[IO=2E8h; IRQ=3,4,5,6,7, 9,10,11,12;]

Serial Port

Enables or disables the serial port.

Change Settings

Selects an optimal setting for the Super IO device.

Enable or Disable Serial Port (COM)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

NSA 5181 User Manual

Page 49

Chapter 4: BIOS Setup

Serial Port Console Redirection

This section is used to configure the serial port that will be used for console redirection.

Advanced

Console Redirection Enable or

COM0(Pci Bus0,Dev30,Func0,Port1)

Console Redirection

Console Redirection Settings

►

Legacy Console Redirection

Legacy Console Redirection Settings

►

Serial Port for Out-of-Band Management / Windows Emergency Management Services (EMS)

Console Redirection

Console Redirection Settings

►

[Enabled]

[Disabled]

Disable.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Console Redirection

Enables or disables console redirection.

Console Redirection Settings (COM0)

Specifies how the host computer and the remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings.

Advanced

COM0(Pci Bus0,Dev30,Func0,Port1)

Console Redirection Settings

Terminal Type

Bits per second Data Bits Parity Stop Bits Flow Control VT-UTF8 Combo Key Support Recorder Mode Resolution 100x31 Putty KeyPad

[VT100+]

[115200] [8] [None] [1] [None] [Enabled] [Disabled] [Disabled] [VT100]

Emulation: ANSI: Extended ASCII char set. VT100: ASCII char set. VT100+: Extends VT100 to support color, function keys, etc. VT-UTF8: Uses UTF8 encoding to map Unicode chars onto 1 or more

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Terminal Type

ANSI Extended ASCII character set. VT100 ASCII character set. VT100+ Extends VT100 to support color, function keys, etc. VT-UTF8 Uses UTF8 encoding to map Unicode characters onto 1 or more bytes.

NSA 5181 User Manual

Page 50

Chapter 4: BIOS Setup

Bits Per Second

Selects the serial port transmission speed. The speed must match the other side. Long or noisy lines may require a lower speed.

Data Bits

The options are 7 and 8.

Parity

A parity bit can be sent with the data bits to detect some transmission errors.

Even Parity bit is 0 if the number of 1’s in the data bits is even. Odd Parity bit is 0 if number of 1’s in the data bits is odd.

Stop Bits

Stop bits indicate the end of a serial data packet. (A start bit indicates the beginning). The standard setting is 1 stop bit. Communication with slow devices may require more than 1 stop bit.

Flow Control

Flow control can prevent data loss from buffer overflow. When sending data and the receiving buffers are full, a “stop” signal can be sent to stop the data flow.

VT-UTF8 Combo Key Support

Enables or disables VT-UTF8 combo key support.

Recorder Mode

When this field is enabled, only text will be sent. This is to capture the terminal data.

PCI Subsystem Settings

This section is used to configure the PCI.

Advanced

AMI PCI Bus Driver Version :

PCI Settings Common for all Devices:

Above 4G Decoding

SR-IOV Support BME DMA Mitigation

Change Settings of the Following PCI Devices:

WARNING: Changing PCI Device(s) settings may have unwanted side effects! System may HANG! PROCEED WITH CAUTION.

A5.01.17

[Disabled]

[Enabled] [Disabled]

Globally Enables or Disables 64bit capable Devices to be Decoded in Above 4G Address Space (Only if System Supports 64 bit PCI Decoding).

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Above 4G Decoding

Enables or disables decoding of 64-bit devices in 4G address space.

SR-IOV Support

Enables or disables SR-IOV support.

Resolution 100x31

Enables or disables extended terminal resolution.

Putty Keypad

Selects the Putty keyboard emulation type.

BME DMA Mitigation

Enables or disables the function to re-enable bus master attribute during PCI enumeration for PCI bridges after SMM is locked.

NSA 5181 User Manual

Page 51

Chapter 4: BIOS Setup

USB Configuration

This section is used to configure the USB.

Advanced

USB Conguration

USB Module Version

USB Controllers:

1 XHCI

USB Devices:

10 Drives, 2 Keyboards, 1 Mouse, 1 Hub

Legacy USB Support

XHCI Hand-off USB Mass Storage Driver Support

USB hardware delays and time-outs:

USB transfer time-out Device reset time-out Device power-up delay

Mass Storage Devices:

SanDisk AMI Virtual CDROM0 1.00 AMI Virtual HDisk0 1.00

[Enabled]

[Enabled] [Enabled]

[20 sec] [20 sec] [Auto]

[Auto] [Auto] [Auto]

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Legacy USB Support

Enable Enables Legacy USB. Auto Disables support for Legacy when no USB devices are connected. Disable Keeps USB devices available only for EFI applications.

USB Mass Storage Driver Support

Enables or disables USB mass storage driver support.

USB transfer time-out

The time-out value for control, bulk, and Interrupt transfers.

Device reset time-out

Selects the USB mass storage device’s start unit command timeout.

Device power-up delay

Maximum time the value will take before it properly reports itself to the Host Controller. “Auto” uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor.

XHCI Hand-off

This is a workaround for OSs that does not support XHCI hand-off. The XHCI ownership change should be claimed by the XHCI driver.

NSA 5181 User Manual

Page 52

Chapter 4: BIOS Setup

Network Stack

This section is used to configure the network stack.

Advanced

Network Stack

Ipv4 PXE Support Ipv6 PXE Support

IPSEC Certicate

PXE boot wait time Media detect count

[Enabled]

[Disabled] [Disabled] [Enabled] 0 1

Network Stack

Enables or disables UEFI network stack.

Enable/Disable UEFI Network Stack

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

IPSEC Certificate

Enables or disables IPSEC certificate.

PXE boot wait time

Configures the wait time to press the ESC key to abort the PXE boot.

Media detect count

Configures the number of times the media will be checked.

Ipv4 PXE Support

Enables or disables IPv4 PXE support. If disabled, the IPv4 boot option will not be created.

Ipv6 PXE Support

Enables or disables IPv6 PXE support. If disabled, the IPv6 boot option will not be created.

NSA 5181 User Manual

Page 53

Chapter 4: BIOS Setup

CSM Configuration

This section is used to configure the compatibility support module features.

Advanced

Compatibility Support Module Conguration

CSM Support

CSM16 Module Version

Boot option lter

Option ROM execution

Network Storage Video Other PCI devices

[Enabled]

07.82

[UEFI and Legacy]

[Do not launch] [Legacy] [Legacy] [UEFI]

Enable/Disable CSM Support.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CSM Support

This field is used to enable or disable CSM support, if Auto option is selected, based on OS, CSM will be enabled or disabled automatically.

Storage

Controls the execution of UEFI and Legacy Storage OpROM.

Video

Controls the execution of UEFI and Legacy Video OpROM.

Other PCI devices

Configures the OpROM execution policy for devices other than Network, Storage or Video.

Boot option filter

Configures which devices the system will boot from.

Network

Controls the execution of UEFI and Legacy PXE OpROM.

NSA 5181 User Manual

Page 54

Chapter 4: BIOS Setup

Chipset

This section gives you functions to configure the system based on the specific features of the chipset. The chipset manages bus speeds and access to system memory resources.

Save & ExitAdvanced Chipset Security BootMain

System Agent (SA) Conguration

►

PCH-IO Conguration

►

System Agent (SA) Configuration

This field is used to configure System Agent (SA) parameters.

PCH-IO Configuration

This field is used to configure PCH parameters.

Server Mgmt

System Agent (SA) Parameters

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System Agent (SA) Configuration

Advanced Chipset Boot SecurityMain

System Agent (SA) Conguration

SA PCIe Code Version VT-d

Memory Conguration

►

Graphics Conguration

►

PEG Port Conguration

►

VT-d X2APIC Opt Out

7.0.81.65 Supported

[Enabled] [Disabled]

Memory Configuration

Configures the memory settings.

Graphics Configuration

Configures the graphics chip settings.

PEG Port Configuration

Configures the PEG Port settings.

VT-d

Enables or disables VT-d function on MCH.

Save & Exit

Memory Conguration

Parameters

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

X2APIC Opt Out

Enables or disables X2APIC mode.

NSA 5181 User Manual

Page 55

Chapter 4: BIOS Setup

Memory Configuration

Chipset

Memory Conguration

Memory RC Version Memory Frequency Memory Timings (tCL-tRCD-tRP-tRAS)

Channel 0 Slot 0 Size Number of Ranks Manufacturer Channel 0 Slot 1 Channel 1 Slot 0 Channel 1 Slot 1

Memory ratio/reference clock options moved to Overclock->Memory->Custom

Prole menu

MRC ULT Safe Cong

0.7.1.95 2400 Mhz 17-17-17-39

Populated & Enabled 4096 MB (DDR4) 1 Adata Not Populated / Disabled Not Populated / Disabled Not Populated / Disabled

[Disabled]

MRC ULT Safe Cong for PO

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Memory Configuration

Detects and displays information of the memory installed in the system.

MRC ULT Safe Config

Enables or disables MRC ULT Safe Config for PO.

Graphics Configuration

Chipset

Graphics Configuration

Internal Graphics

GTT Size Aperture Size PSMI SUPPORT DVMT Pre-Allocated DVMT Total Gfx Mem

[Disabled]

[8MB] [256MB] [Disabled] [32M] [256M]

Keep IGFX enabled based on the setup options.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Internal Graphics

Keep IGD enabled based on the setup options.

GTT Size and Aperture Size

Configures the GTT memory size and the Aperture size.

PSMI SUPPORT

Enables or disables Power Supply Management Interface (PSMI) support.

DVMT Pre-Allocated

Configures the DVMT 5.0 pre-allocated (fixed) graphics memory size used by the internal graphics device.

DVMT Total Gfx Mem

Configures the DVMT 5.0 total graphic memory size used by the IGD.

NSA 5181 User Manual

Page 56

Chapter 4: BIOS Setup

PEG Port Configuration

Chipset

PEG Port Conguration

PEG 0:1:0

Enable Root Port

Max Link Speed

PEG 0:1:1

Enable Root Port Max Link Speed

PEG 0:1:2

Enable Root Port Max Link Speed

PCIe Spread Spectrum Clocking

Not Present

[Enabled]

[Auto]

Not Present

[Enabled] [Auto]

Not Present

[Enabled] [Auto]

[Enabled]

Enable or Disable the Root Port

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable Root Port (PEG 0:1:0, 0:1:1 and 0:1:2)

Enables or disables the root port.

Max Link Speed

(PEG 0:1:0, 0:1:1 and 0:1:2)

Configures the maximum link speed of the PEG device.

PCH-IO Configuration

Chipset

PCH-IO Conguration

SATA and RST Conguration

►

NETWORK CONFIGURATION

►

State After G3

Show Power Type Status

[Last State]

ATX

SATA and RST Configuration

Enters the SATA and RST configuration sub-menu.

NETWORK CONFIGURATION

Enters the network configuration sub-menu.

SATA Device Options Settings

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCIe Spread Spectrum Clocking

Enables or disables PCIe Spread Spectrum Clocking for compliance testing.

State After G3

Configures the PCH state after G3.

NSA 5181 User Manual

Page 57

Chapter 4: BIOS Setup

SATA And RST Configuration

Advanced

SATA And RST Conguration

SATA Controller(s)

SATA Mode Selection

Serial ATA Port 0

Port 0 Hot Plug SATA Device Type

Serial ATA Port 2

Port 2 Hot Plug SATA Device Type

Serial ATA Port 5

Port 5 Hot Plug

SATA Device Type

Chipset Chipset

▲ ▲

Identify the SATA port is connected to Solid State Drive

[Enabled]

[AHCI]

Empty

[Enabled] [Disabled] [Hard Disk Drive]

Empty

[Enabled] [Disabled] [Hard Disk Drive]

Empty

[Enabled] [Disabled]

[Hard Disk Drive]

or Hard Disk Drive

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

▼ ▼

SATA Controller(s)

Enables or disables the SATA controller.

SATA Mode Selection

Configures the SATA mode.

Port 0, Port 2, Port 5 and Port 7

Enables or disables SATA port 0, port 2, port 5 and port 7.

Advanced

Identify the SATA port is

SATA Device Type

Serial ATA Port 2

Port 2 Hot Plug SATA Device Type

Serial ATA Port 5

Port 5 Hot Plug SATA Device Type

Serial ATA Port 7

Port 7 Hot Plug

SATA Device Type

[Hard Disk Drive]

Empty

[Enabled] [Disabled] [Hard Disk Drive]

Empty

[Enabled] [Disabled] [Hard Disk Drive]

Empty

[Enabled] [Disabled]

[Hard Disk Drive]

connected to Solid State Drive or Hard Disk Drive

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Hot Plug

Enables or disables hot plugging feature on SATA port 0, port 2, port 5 and port 7.

SATA Device Type

Identifies what type of SATA device is connected.

NSA 5181 User Manual

Page 58

Chapter 4: BIOS Setup

NETWORK CONFIGURATION

Chipset

Slot1 Model Name: Slot2 Model Name: Slot3 Model Name: Slot4 Model Name:

Power_ON ByPass Mode

Power_OFF ByPass Mode

Device is Not Found Device is Not Found Device is Not Found Device is Not Found

[Disabled]

Switch all ByPass Mode to Enable/Disable after power on

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Power_ON ByPass Mode

Enables or disables the LAN module bypass mode after the system powers on.

Power_OFF ByPass Mode

Enables or disables the LAN module bypass mode after the system powers off.

Security

Password Description

If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User Will have Administrator rights. The password length must be in the following range:

Minimum length 3 Maximum length 20

Administrator Password

Select this to reconfigure the administrator’s password.

Security

BootMain

Save & ExitAdvanced Chipset

Set Administrator Password

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Server Mgmt

NSA 5181 User Manual

Page 59

Chapter 4: BIOS Setup

Boot

Boot Conguration

Setup Prompt Timeout

Bootup NumLock State Quiet Boot

AMI Virtual Devices

Boot mode select

FIXED BOOT ORDER Priorities

Boot Option #1 Boot Option #2 Boot Option #3

Boot Option #4 Boot Option #5 Boot Option #6 Boot Option #7 Boot Option #8

UEFI USB Key Drive BBS Priorities

►

Setup Prompt Timeout

Selects the number of seconds to wait for the setup activation key. 65535(0xFFFF) denotes indefinite waiting.

Security

[On] [Disabled]

[Disable]

[UEFI]

[USB Hard Disk] [USB CD/DVD] [USB Key:UEFI: SanDisk, Partition 1] [USB Floppy] [USB Lan] [Hard Disk] [CD/DVD] [Network]

BootMain

Save & ExitAdvanced Chipset

Number of seconds to wait for setup activation key. 65535

(0xFFFF) means indenite

waiting.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Server Mgmt

Quiet Boot

Enabled Displays OEM logo instead of the POST messages. Disabled Displays normal POST messages.

AMI Virtual Devices

Enables or disables AMI virtual devices.

Boot mode select

Configures the boot mode option.

Fixed Boot Order Priorities

Adjust the boot sequence of the system. Boot Option #1 is the first boot device that the system will boot from, next will be #2 and so forth.

UEFI USB Key Drive BBS Priorities

Configures the boot device priority sequence from available UEFI USB key drives.

Bootup NumLock State

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

NSA 5181 User Manual

Page 60

Chapter 4: BIOS Setup

Save & Exit

Save & ExitAdvanced Chipset Security BootMain

Save Options

Save Changes and Reset

Discard Changes and Reset

Default Options

Restore Defaults

Boot Override

UEFI: SanDisk, Partition 1 UEFI: Built-in EFI Shell

Launch EFI Shell from lesystem device

Save Changes and Reset

To save the changes and reset, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Server Mgmt

Reset the system after saving the changes.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Boot Override

To bypass the boot sequence from the Boot Option List and boot from a particular device, select the desired device and press <Enter>.

Launch EFI Shell From Filesystem Device

To launch EFI shell from a filesystem device, select this field and press <Enter>.

Discard Changes and Reset

To exit the Setup utility and reset without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting.

Restore Defaults

To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

NSA 5181 User Manual

Page 61

Chapter 4: BIOS Setup

Server Mgmt

Save & ExitAdvanced Chipset Security BootMain

BMC Self Test Status BMC Device ID BMC Device Revision BMC Firmware Revision IPMI Version BMC Interface(s)

BMC Support

System Event Log

►

BMC network conguration

►

View System Event Log

►

BMC User Settings

►

BMC Warm Reset

PASSED 32 1

1.01

2.0 KCS, USB

[Enabled]

BMC Support

Enables or disables interfaces to communicate with BMC.

BMC Warm Reset

To perform a BMC warm reset, select this field then press <Enter>.

Server Mgmt

Reset the system after saving the changes.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System Event Log

Enabling/Disabling Options

SEL Components

Erasing Settings

Erase SEL When SEL is Full

Custom EFI Logging Options

Log EFI Status Codes

NOTE: All values changed here do not take effect until computer is restarted.

SEL Components

[Enabled]

[No] [Do Nothing]

[Error code]

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Change this to enable or disable event logging for error/progress codes during boot.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enables or disables event logging for error/progress codes during boot.

Erase SEL

Configures the options for erasing SEL.

When SEL is Full

Configures the action to perform when SEL is full.

Log EFI Status Codes

Configures the options for logging EFI status codes.

NSA 5181 User Manual

Page 62

Chapter 4: BIOS Setup

BMC Network Configuration

--BMC network conguration--

**********************

Congure IPV4 support

**********************

Lan channel 1

Conguration Address source

Current Conguration

Station IP address Subnet mask Station MAC address Router IP address Router MAC address

**********************

Congure IPv6 support

Configuration Address source

[Unspecied]

DynamicAddressBmcDhcp

0.0.0.0

0.0.0.0 00-10-F3-8E-8E-FC

0.0.0.0 00-00-00-00-00-00

▲

▼

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Select to congure LAN

channel parameters statically or dynamically(by BIOS or

BMC). Unspecied option will

not modify any BMC network parameters during BIOS phase

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Select to configure LAN channel parameters statically or dynamically (by BIOS or BMC). Unspecified option will not modify any BMC network parameters during BIOS phase.

BMC Network Configuration Cont.

**********************

▲

Lan channel 1

IPv6 Support

Conguration Address source

Current Conguration

Address source

Station IPv6 address ::

Prex Length

IPv6 Router1 IP Address ::

IPv6 address status IPv6 DHCP Algorithm

[Enabled]

[Unspecied]

DynamicAddressBmcDhcp

Active DHCPv6

▼

IPv6 Support

Enables or disables IPv6 support for LAN channel 1.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Select to congure LAN

channel parameters statically or dynamically(by BIOS or

BMC). Unspecied option will

not modify any BMC network parameters during BIOS phase

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

NSA 5181 User Manual

Page 63

Chapter 4: BIOS Setup

BMC User Settings

Add User

►

Delete User

Change User Settings

►

Add User

Option to add a user.

Delete User

Option to delete a user.

Server MgmtAdvanced Platform Conguration Socket CongurationMain

Press <Enter> to Add a User.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Change User Settings

Option to change user settings.

NSA 5181 User Manual
