Nexcom NSA 3170, NSA 3170A User Manual

Download

Page 1

NEXCOM International Co., Ltd.

Network and Communication Solutions

Network Security Appliance NSA 3170 Series

User Manual

NEXCOM International Co., Ltd.

Published May 2019

www.nexcom.com

Page 2

Content

Contents

Preface

Disclaimer .............................................................................................. iv

Acknowledgements ............................................................................... iv

Regulatory Compliance Statements ........................................................ iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................viii

Installation Recommendations ...............................................................viii

Safety Precautions .................................................................................. ix

Technical Support and Assistance ............................................................ x

Conventions Used in this Manual ............................................................ x

Global Service Contact Information ........................................................ xi

Package Contents ................................................................................. xiii

Ordering Information ............................................................................xiv

Chapter 1: Product Introduction

Overview ................................................................................................1

Key Features ...........................................................................................1

Hardware Specifications ..........................................................................2

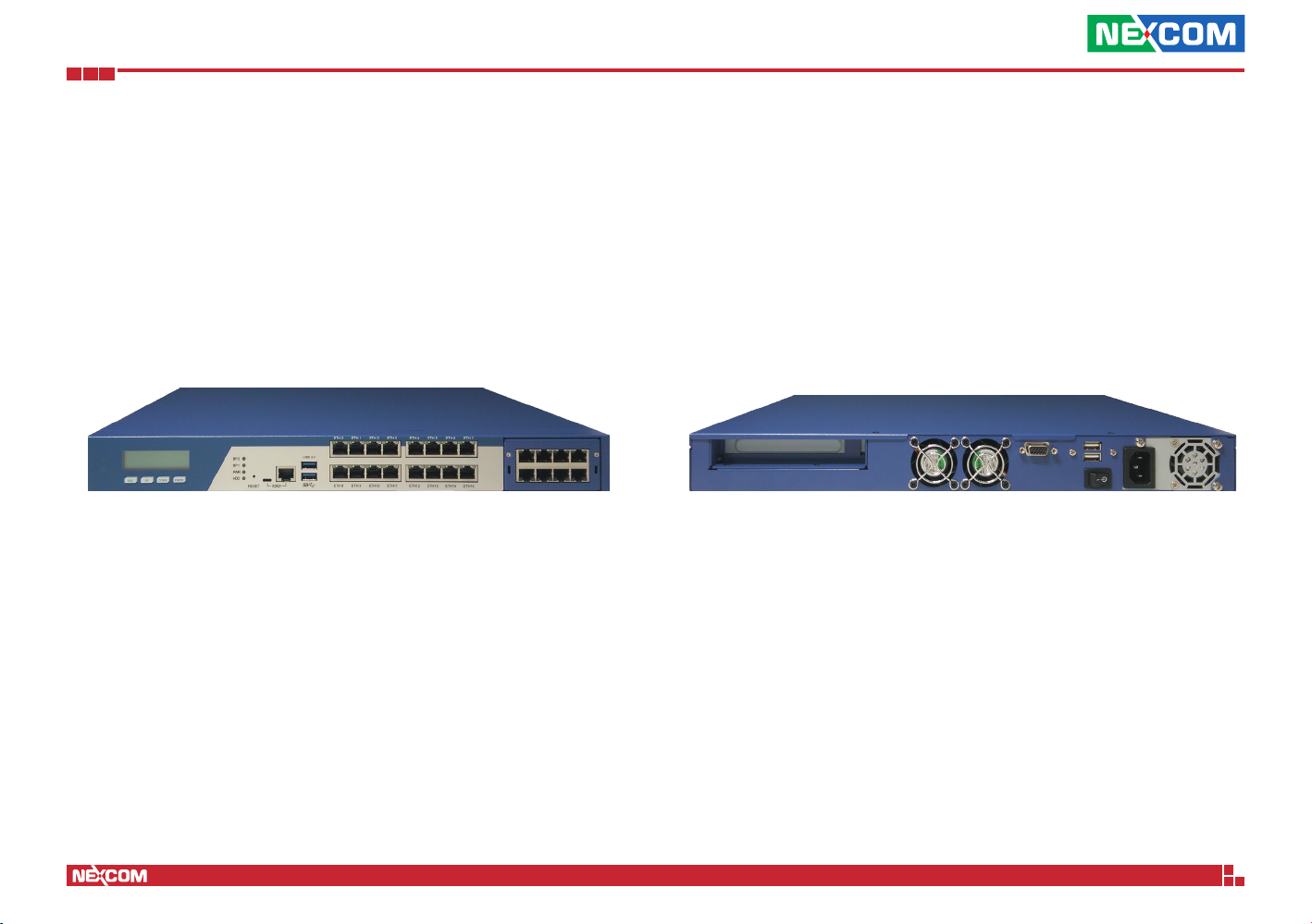

Knowing Your NSA 3170 ........................................................................ 3

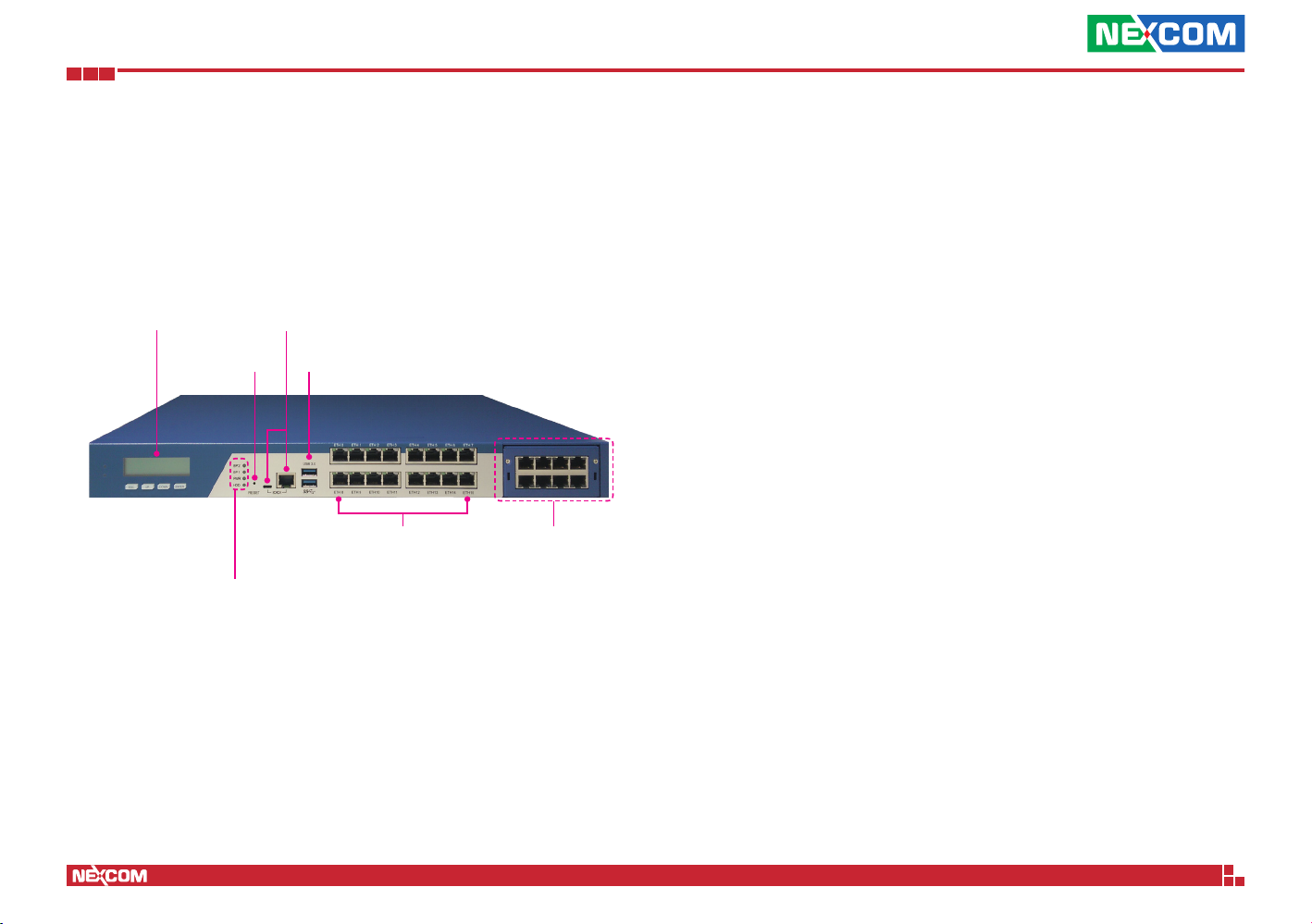

Front Panel ..........................................................................................3

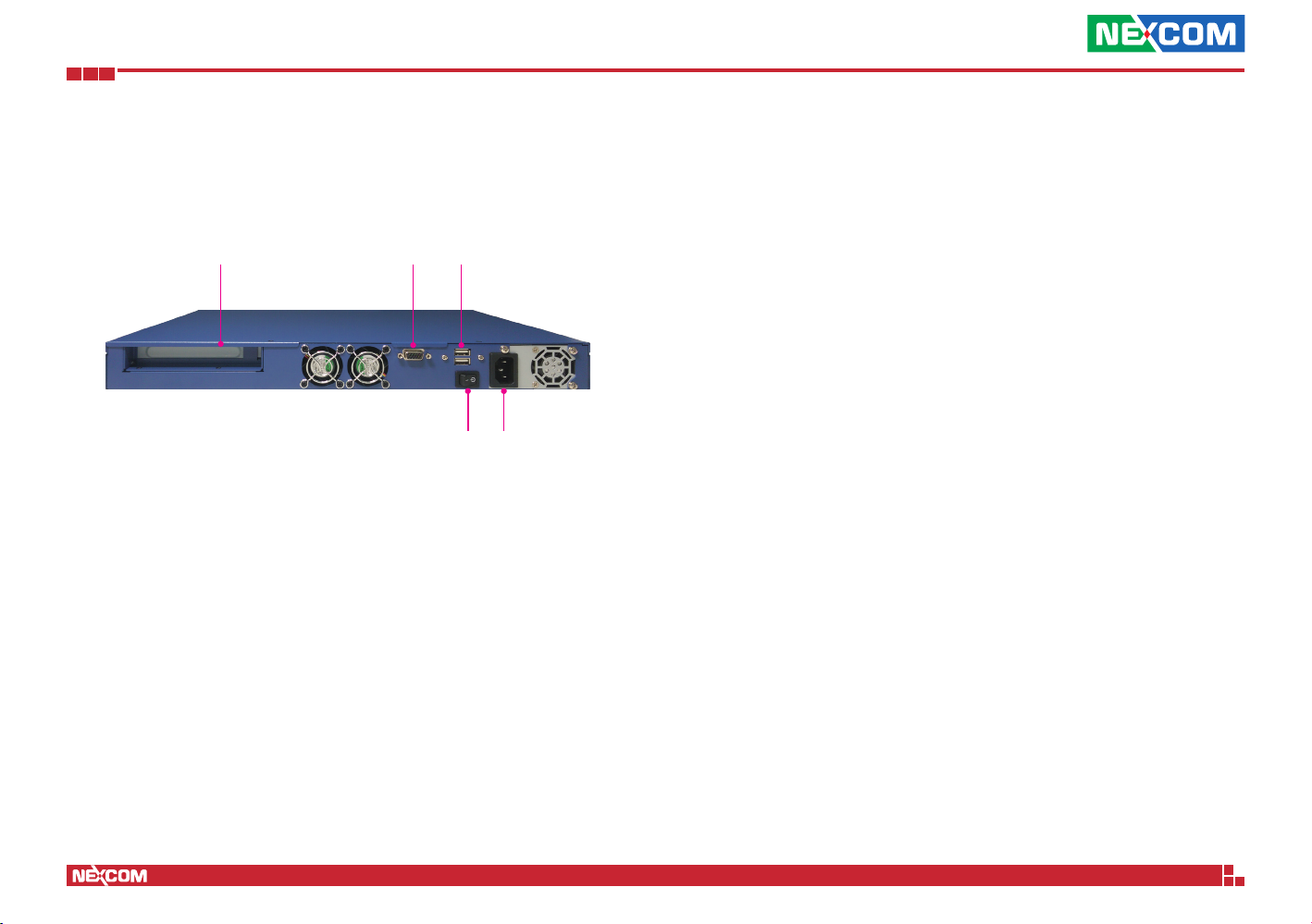

Rear Panel ...........................................................................................4

Chapter 2: Jumpers and Connectors

Before You Begin ....................................................................................5

Precautions ............................................................................................5

Jumper Settings ......................................................................................6

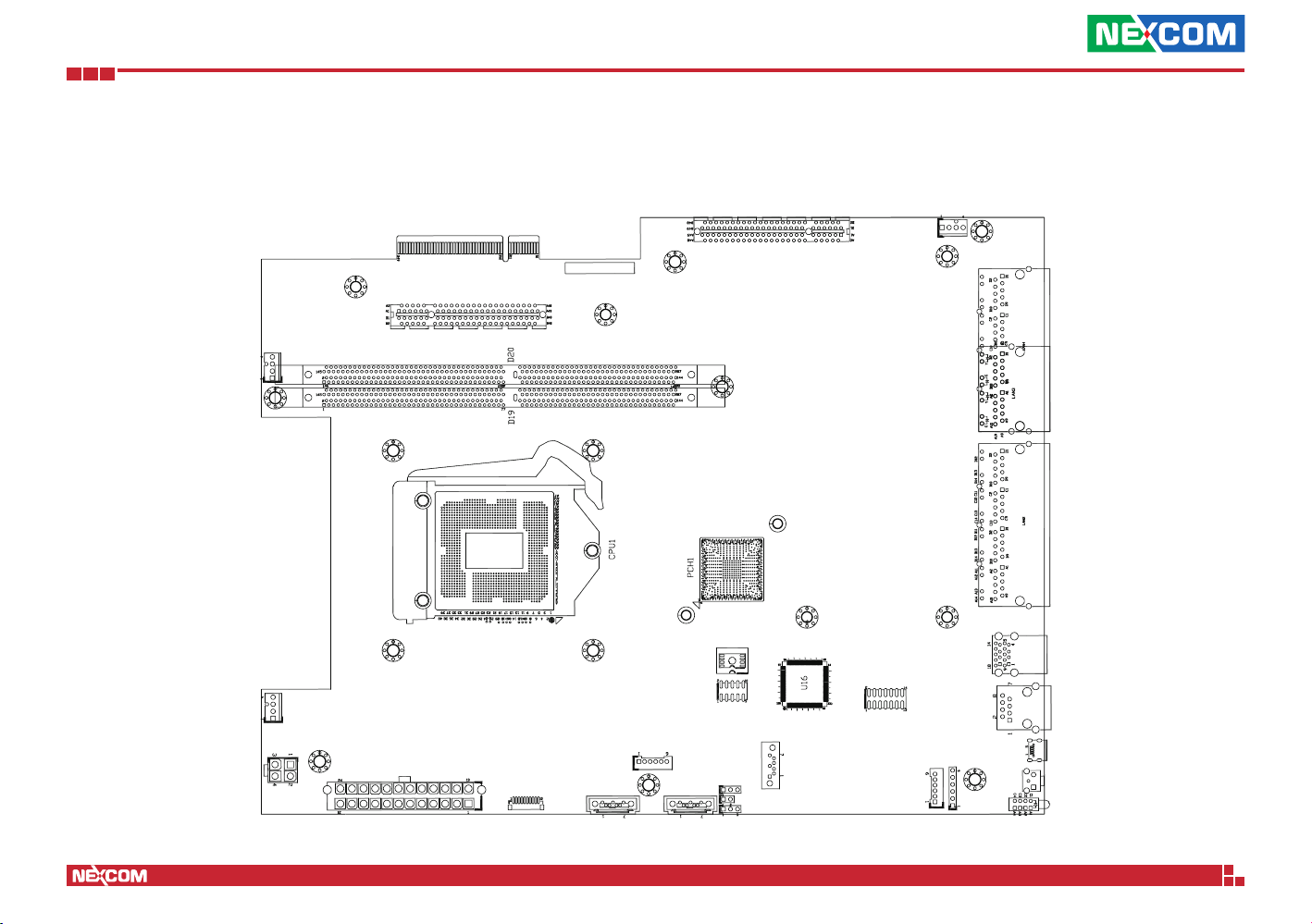

Locations of the Jumpers and Connectors ............................................... 7

Jumpers .................................................................................................. 8

AT/ATX Mode Select ............................................................................8

Clear CMOS Function .......................................................................... 8

Connector Pin Definitions .......................................................................9

External I/O Interfaces - Front Panel .....................................................9

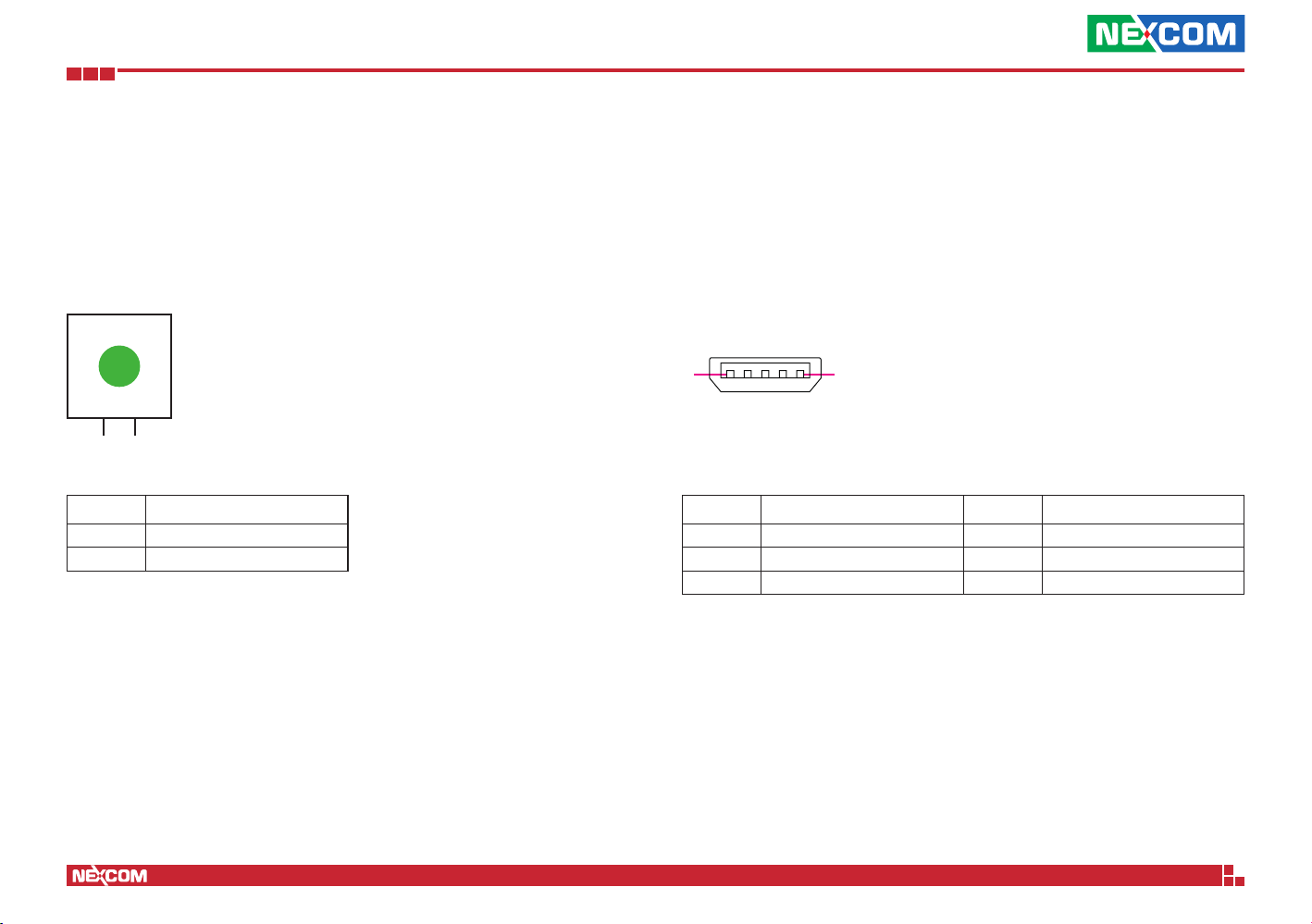

Reset Button ....................................................................................9

Micro USB Port (For Console Connection) .........................................9

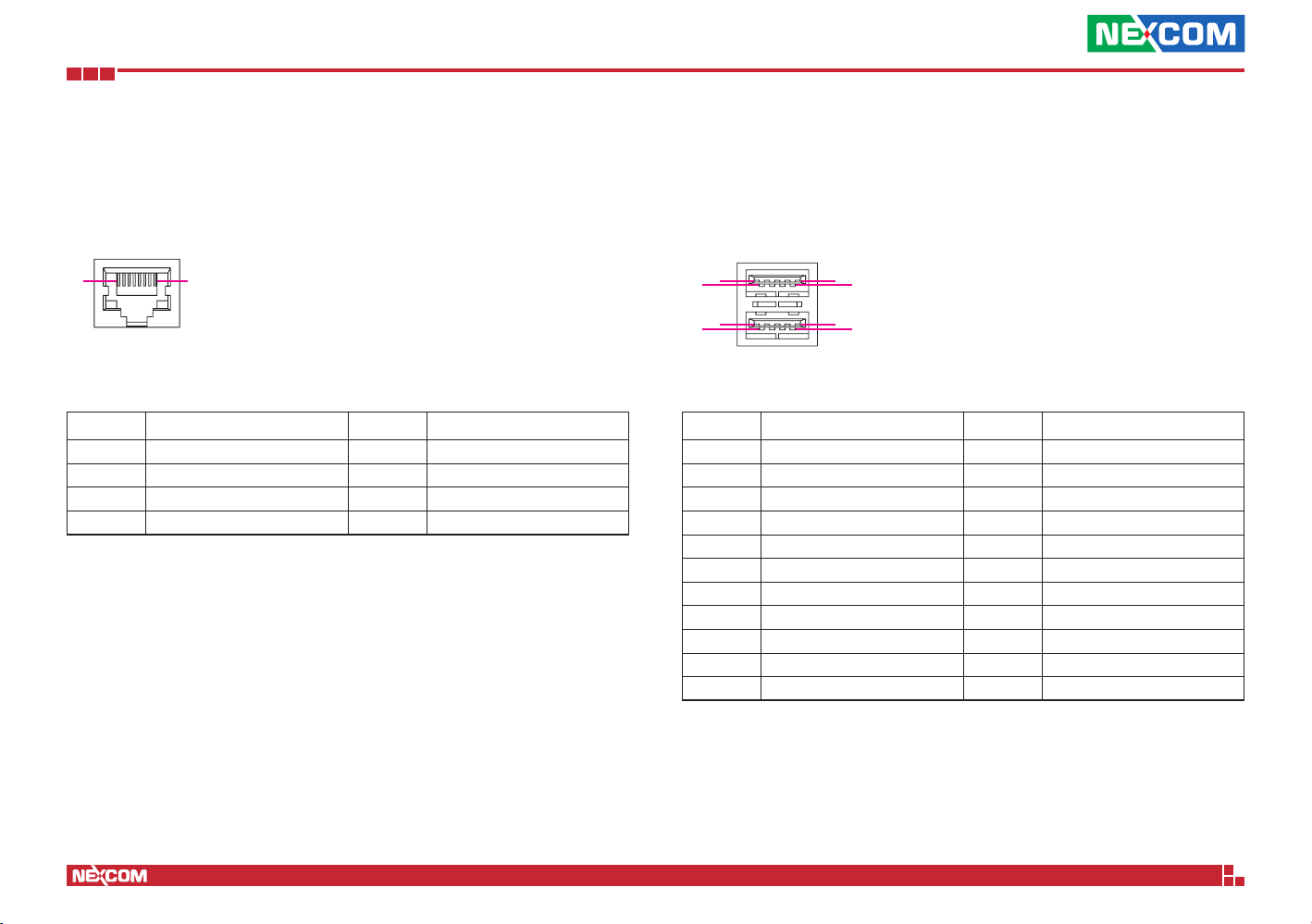

RJ45 Console Port (Co-layout with Micro USB) ...............................10

USB 3.0 Ports ................................................................................. 10

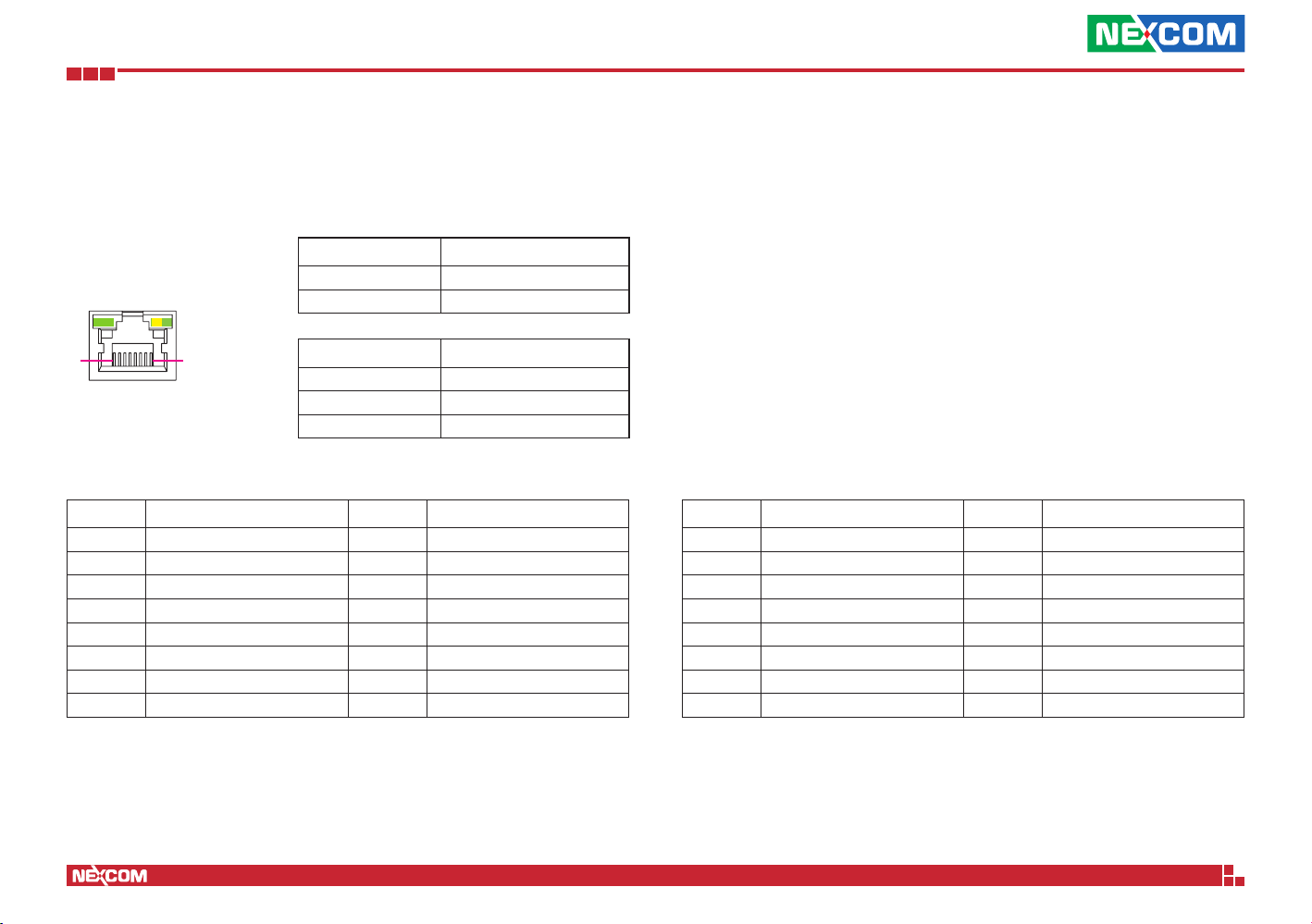

LAN1 to LAN8 Ports .......................................................................11

LAN9 to LAN16 Ports .....................................................................13

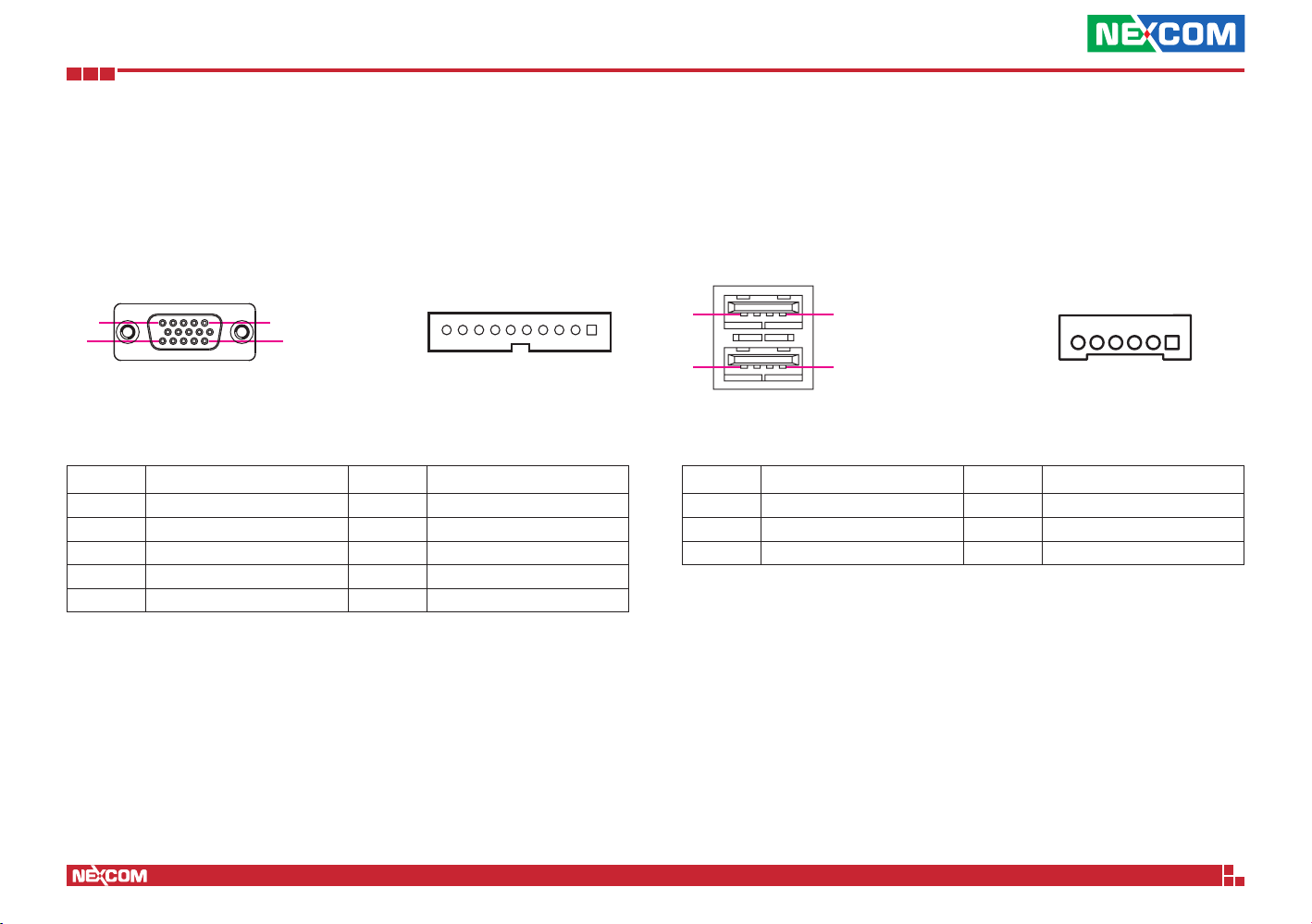

External I/O Interfaces - Rear Panel.....................................................15

VGA Port (Co-layout with CN1) ...................................................... 15

Dual USB 2.0 Port (Co-layout with J3) ............................................15

Connector Pin Definitions .....................................................................16

Internal Connectors ........................................................................... 16

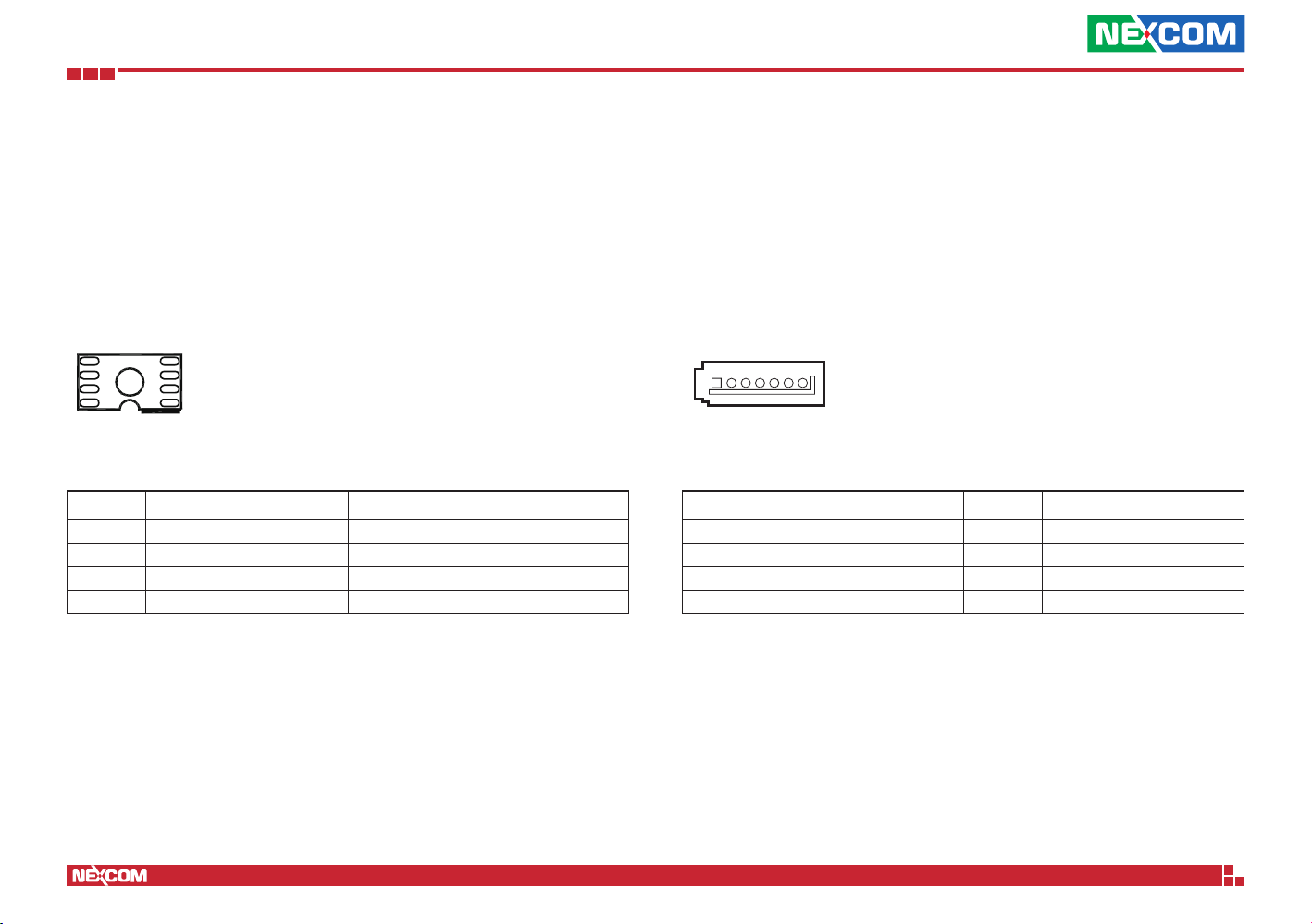

BIOS Socket ...................................................................................16

SATA Connectors ...........................................................................16

SATA DOM Connector ...................................................................17

GPIO Pin Header ............................................................................17

CPLD JTAG Pin Header ...................................................................18

NSA 3170 Series User Manual

Page 3

Content

TPM Function ................................................................................. 18

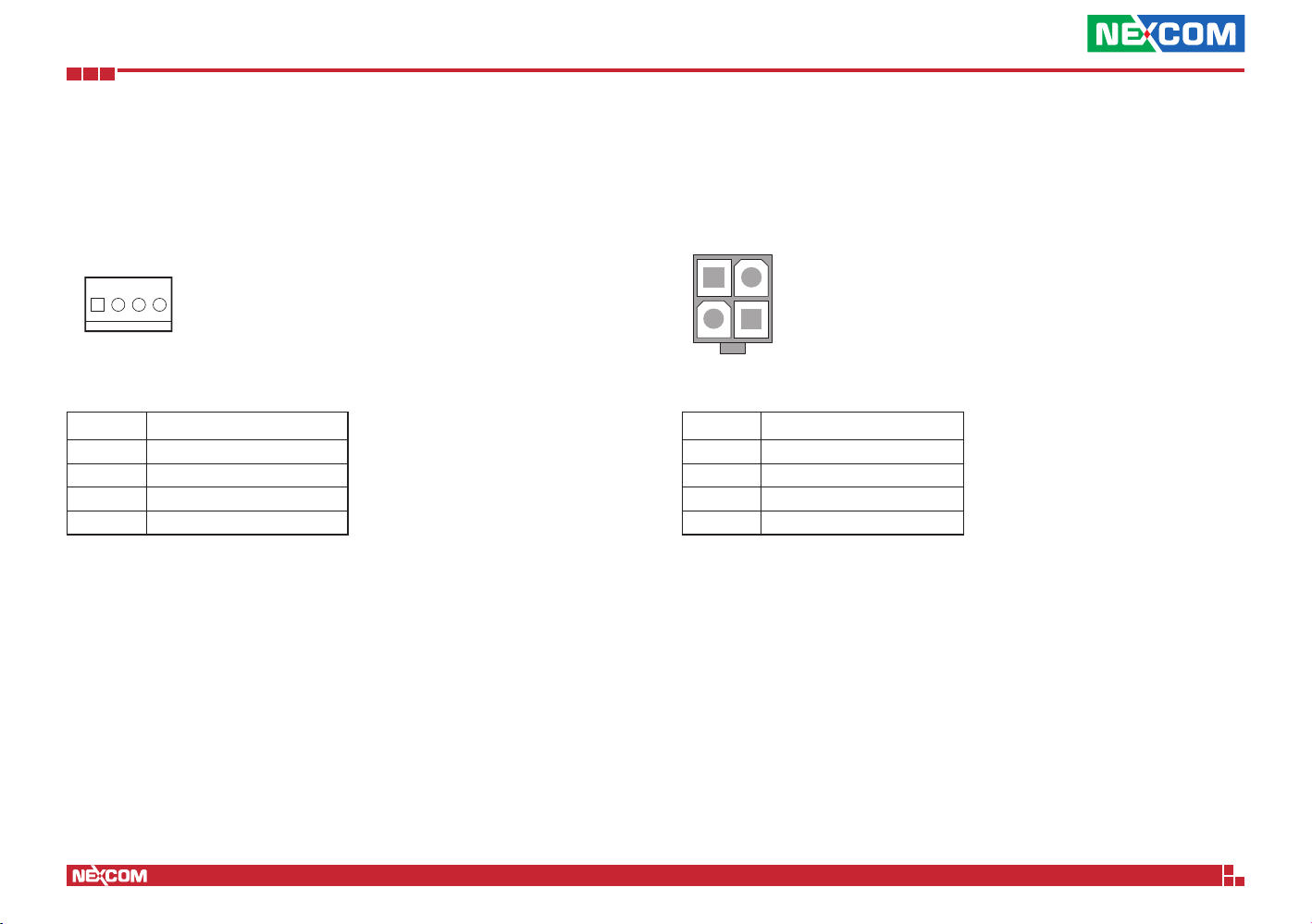

System Fan Connectors .................................................................. 19

4-Pin 12V Power Connector ........................................................... 19

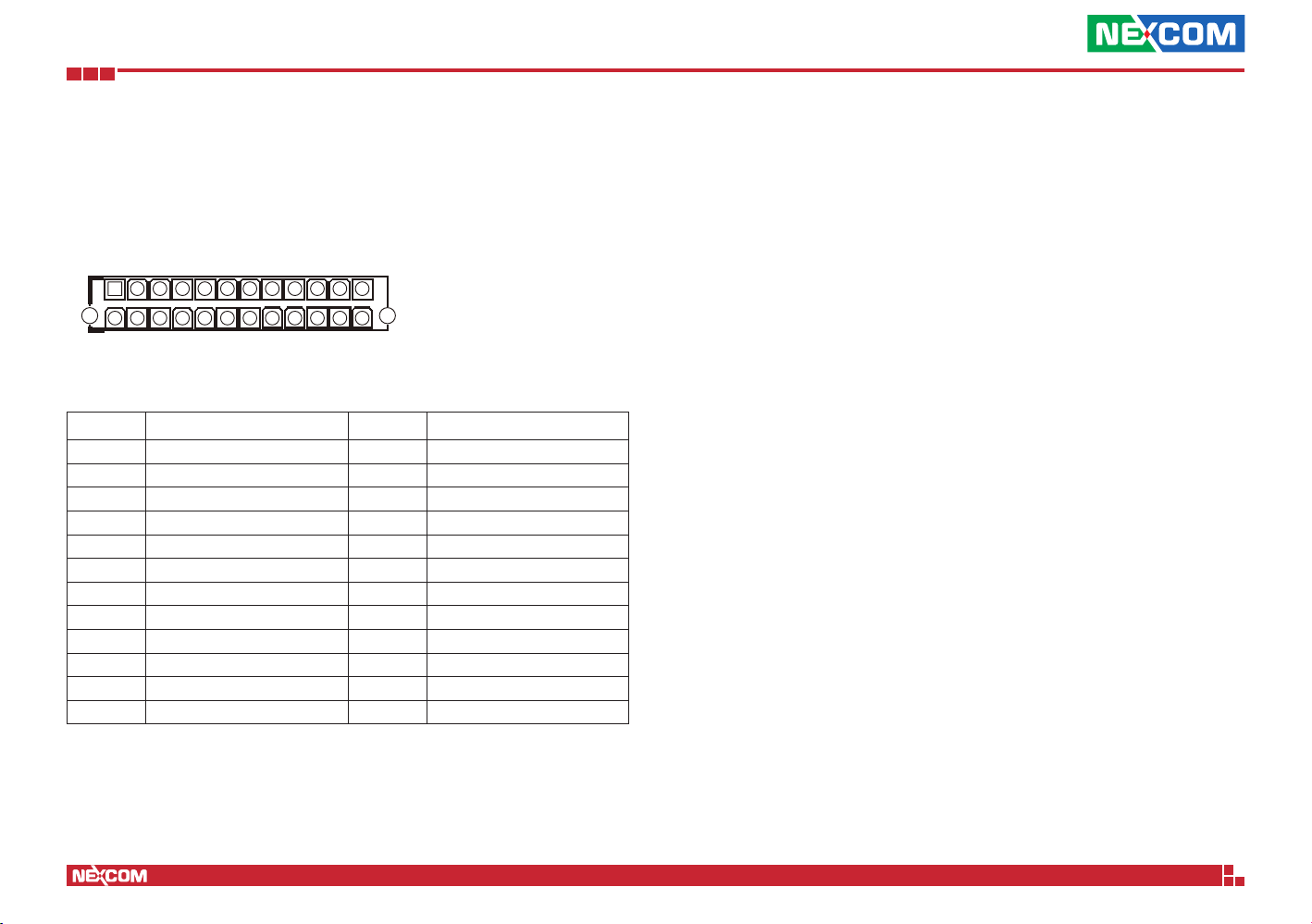

24-Pin ATX Power Connector .........................................................20

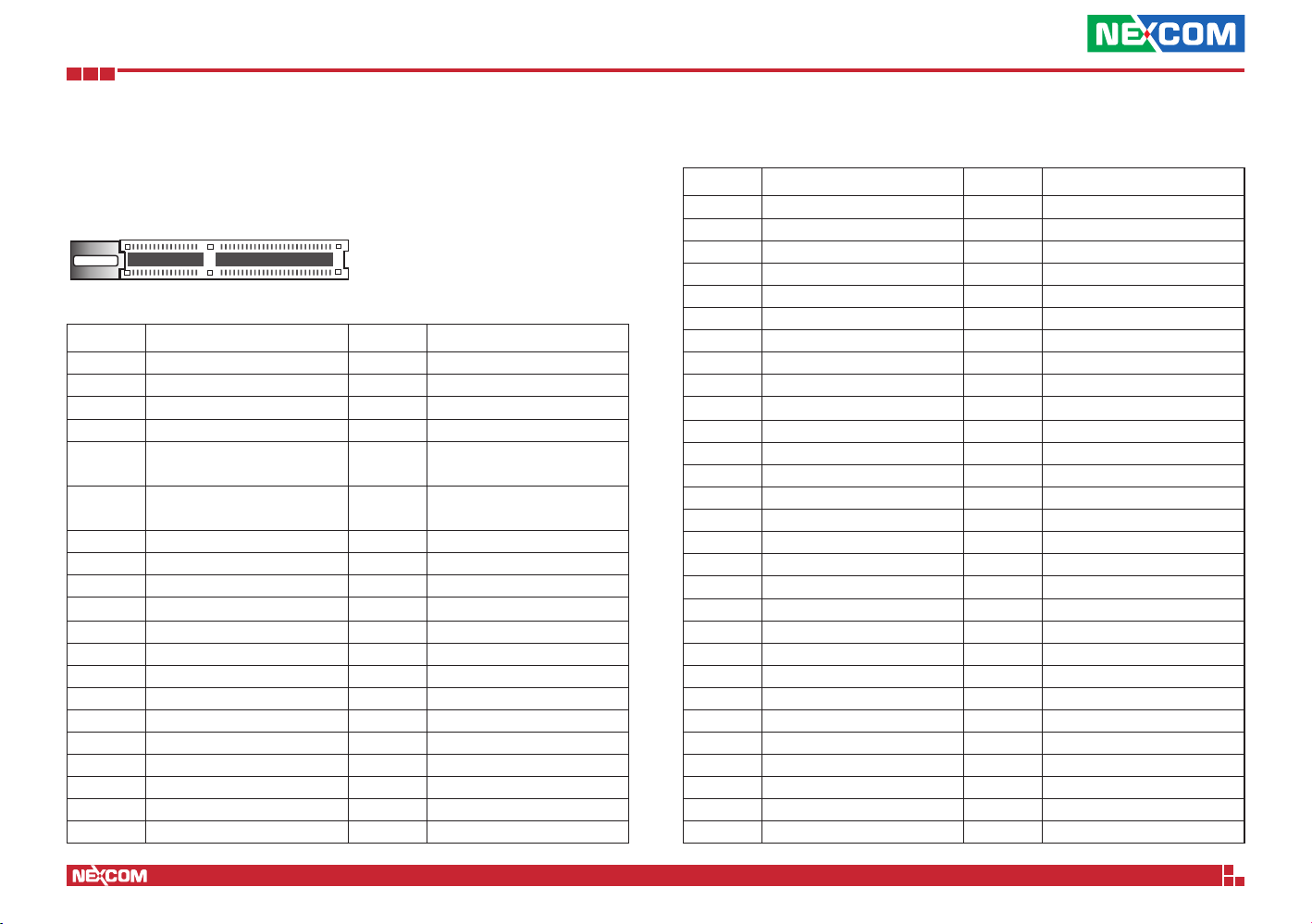

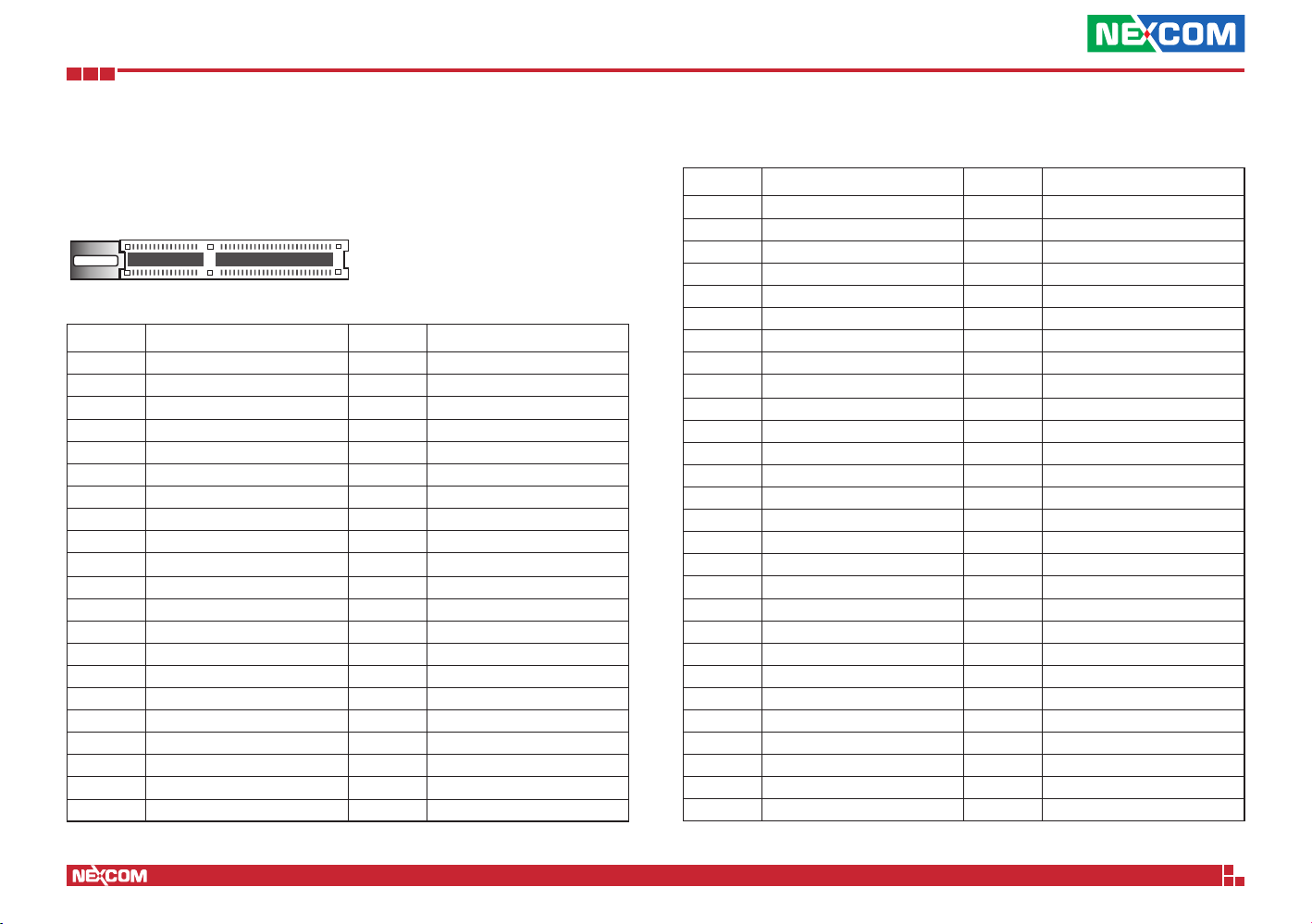

PCIe x8 Slot ....................................................................................21

PCIe x8 Slot (For Rear Side) ............................................................. 22

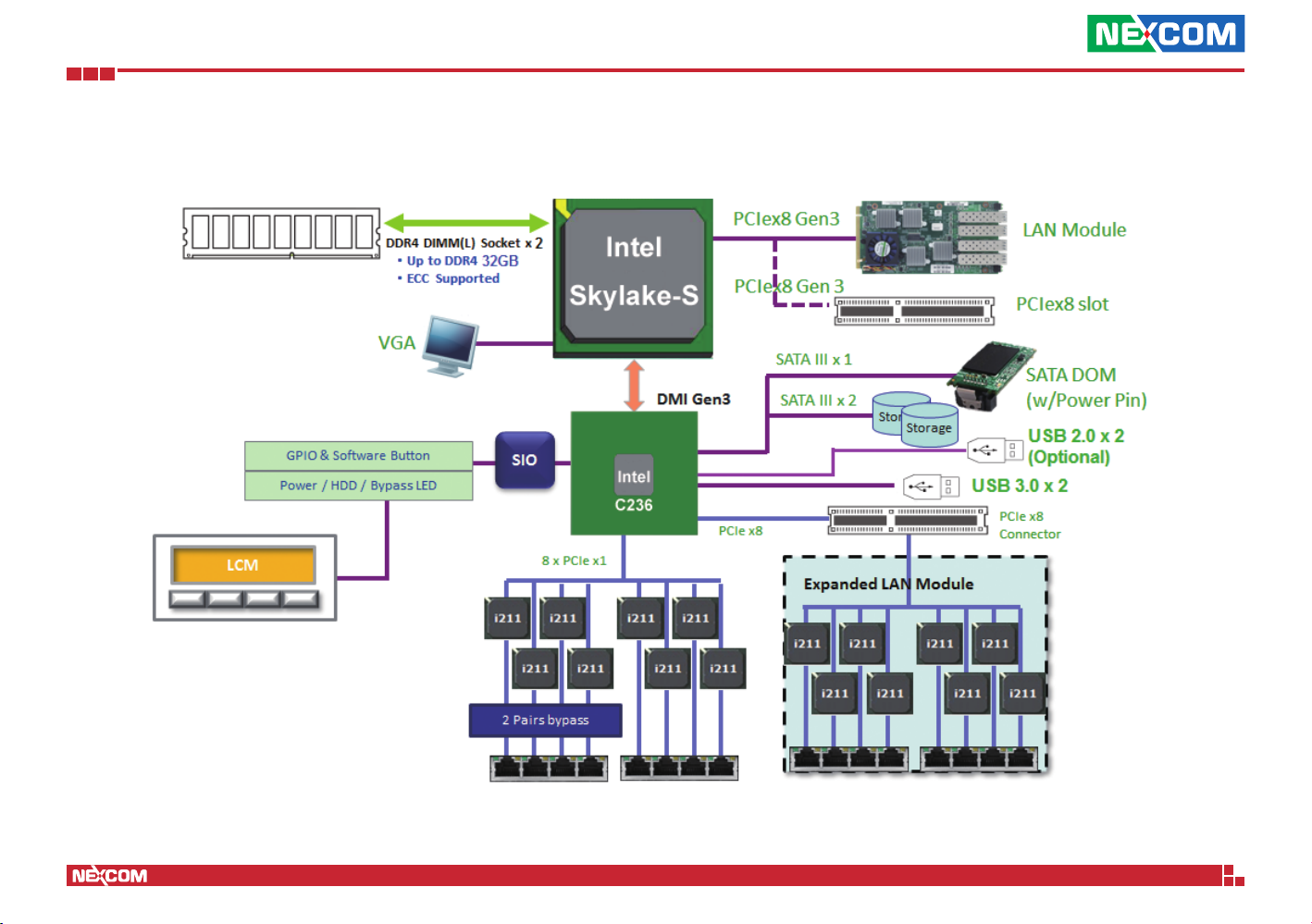

Block Diagram ......................................................................................23

Chapter 3: System Setup

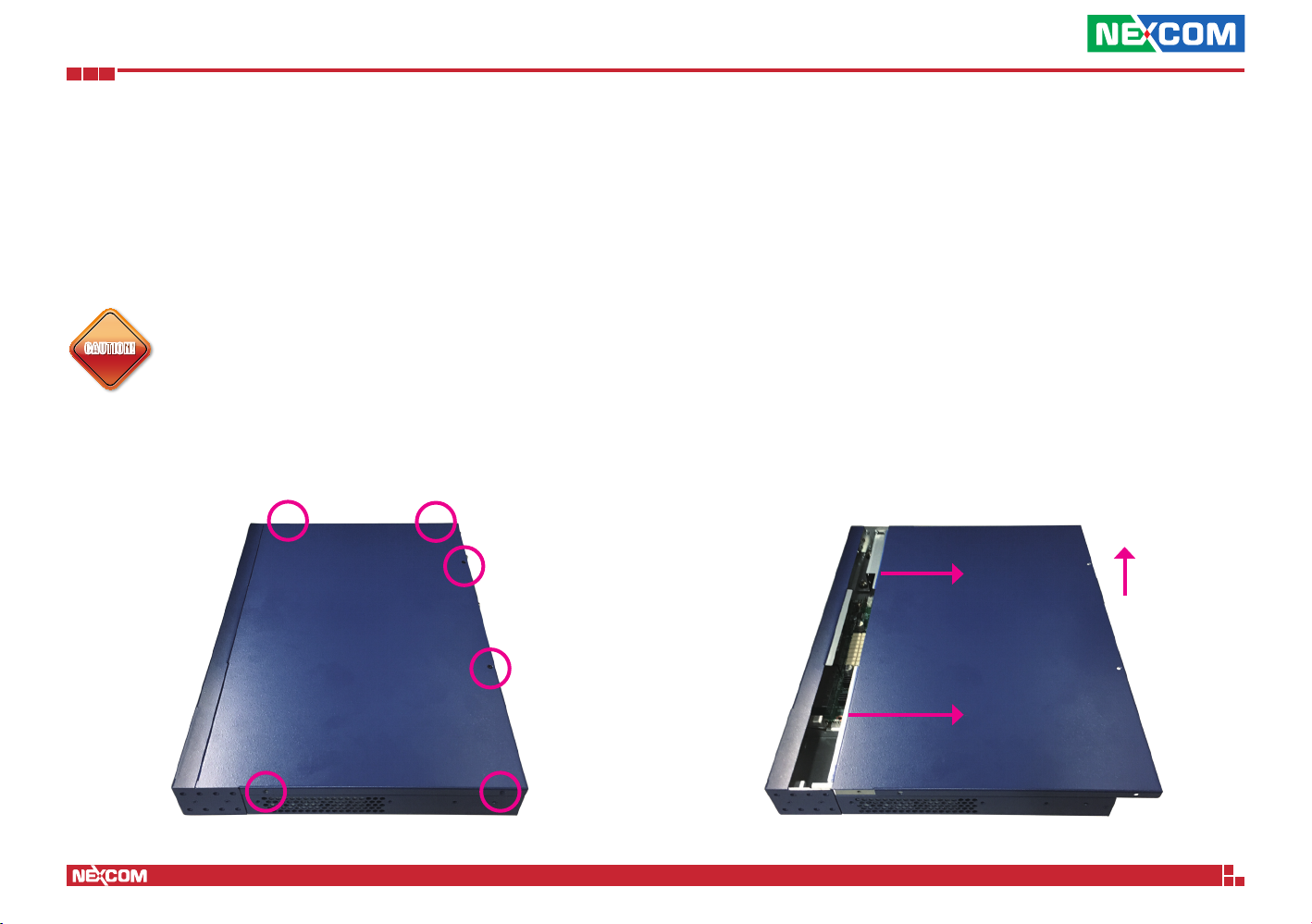

Removing the Chassis Cover .................................................................24

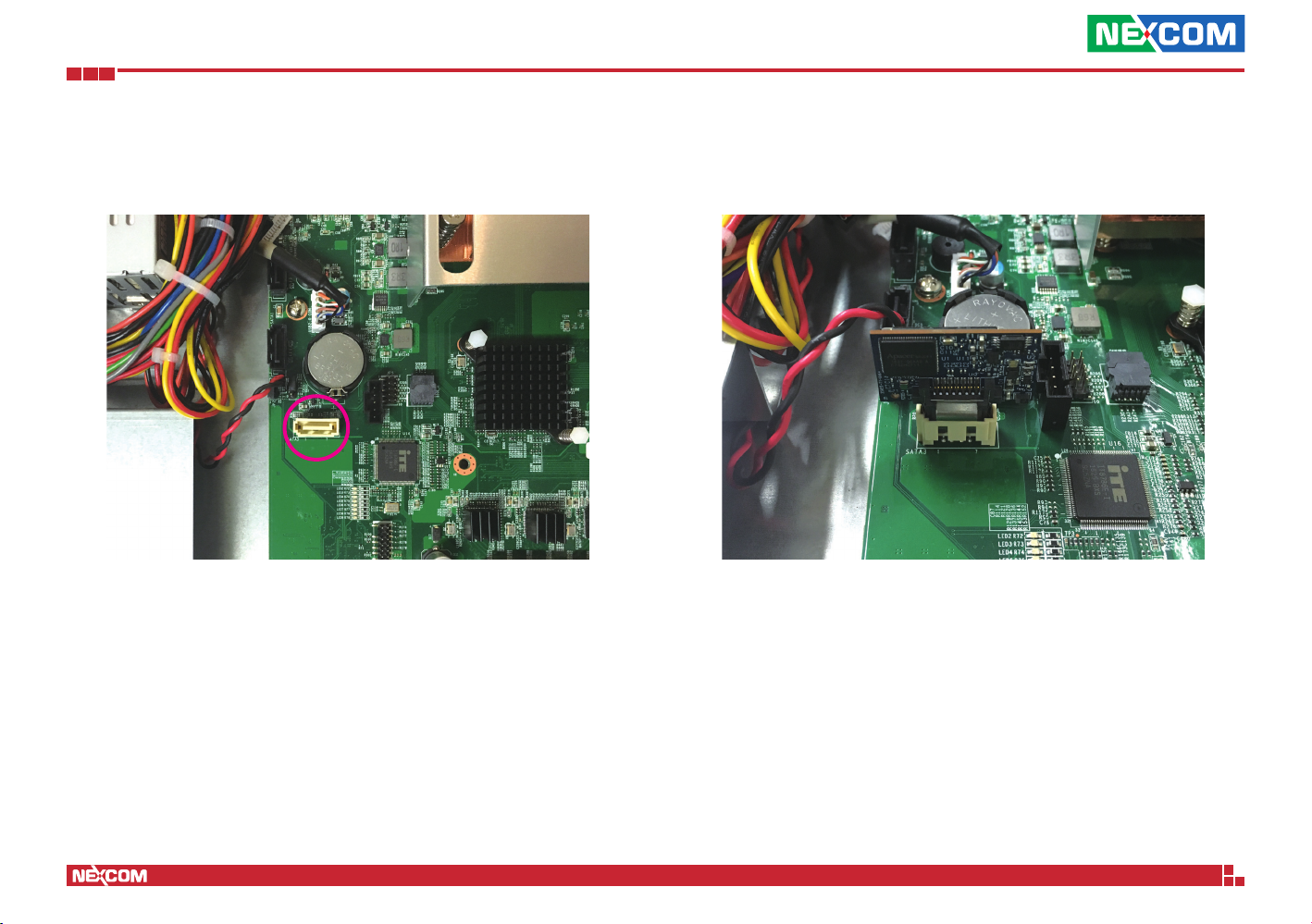

Installing a SATA DOM ..........................................................................25

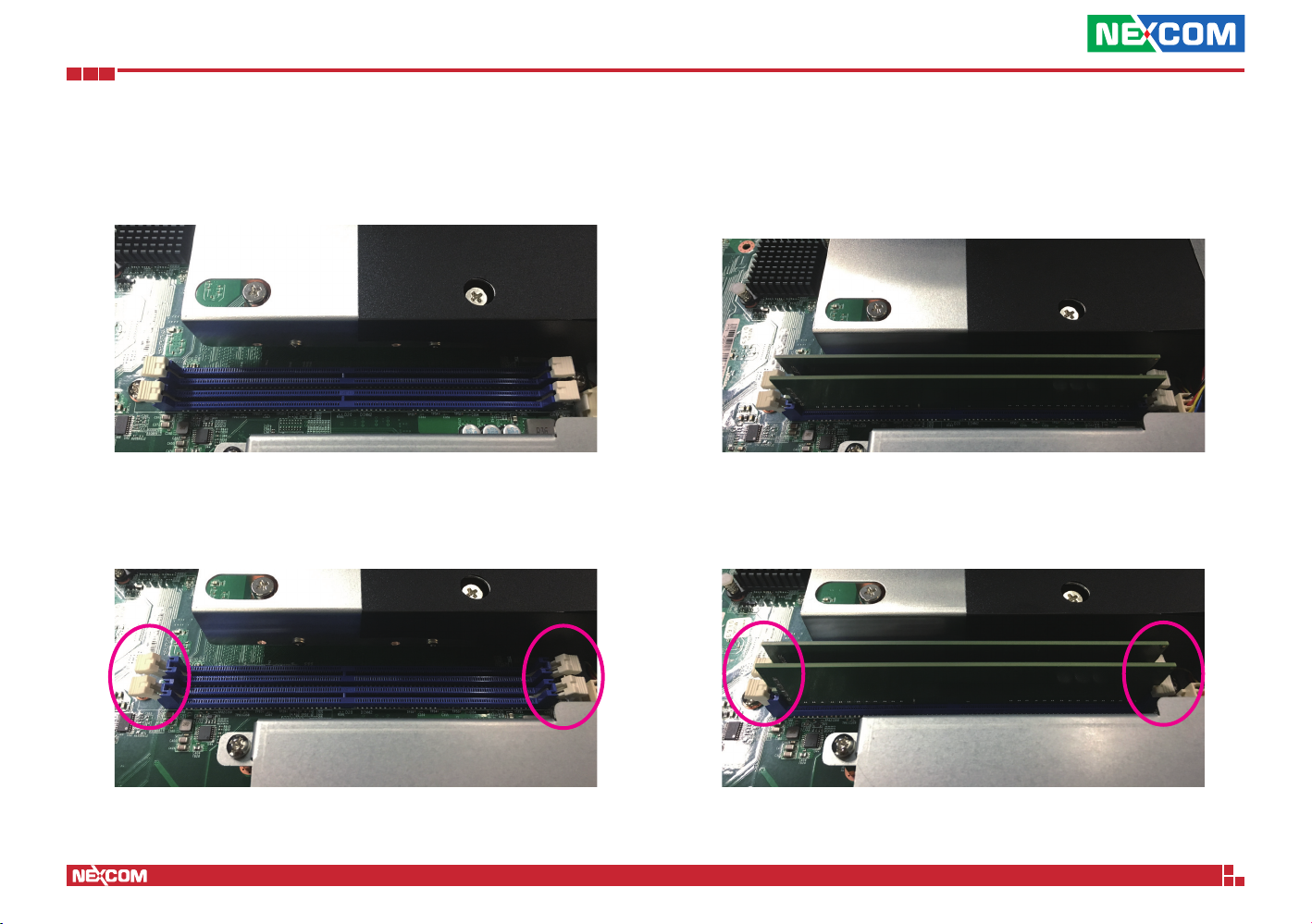

Installing DIMM Memory Modules ........................................................26

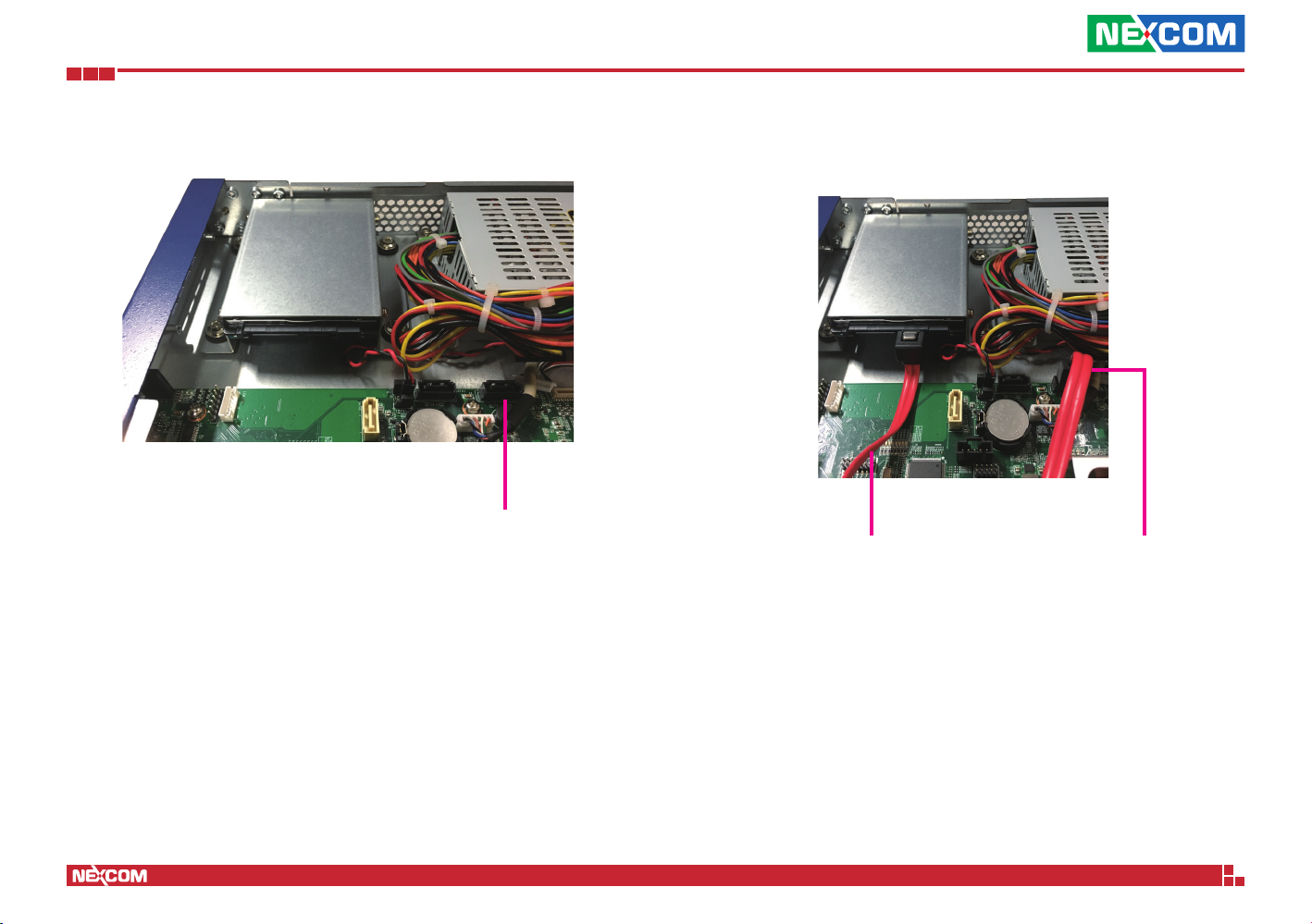

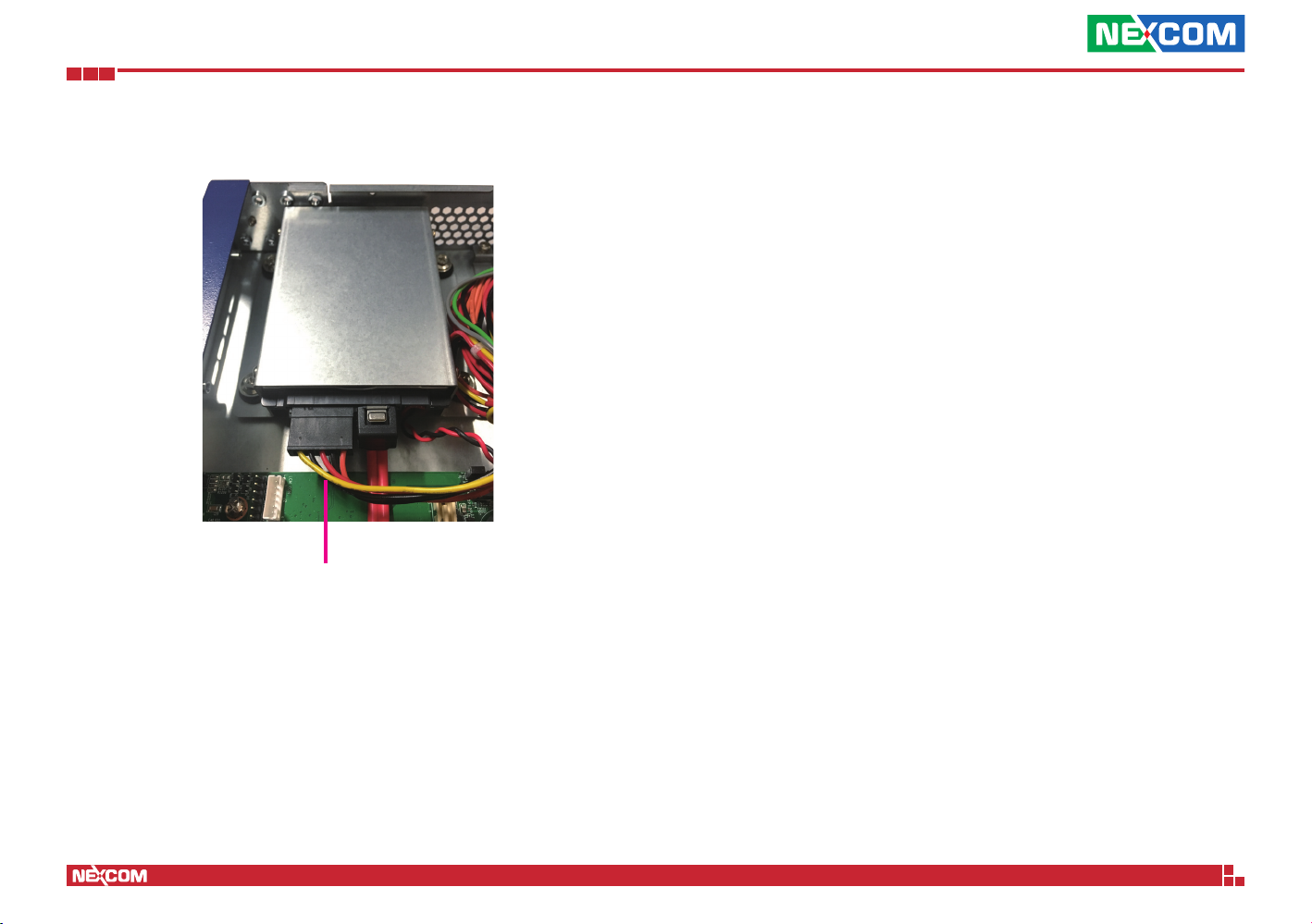

Installing a 2.5” SATA Hard Drive ..........................................................27

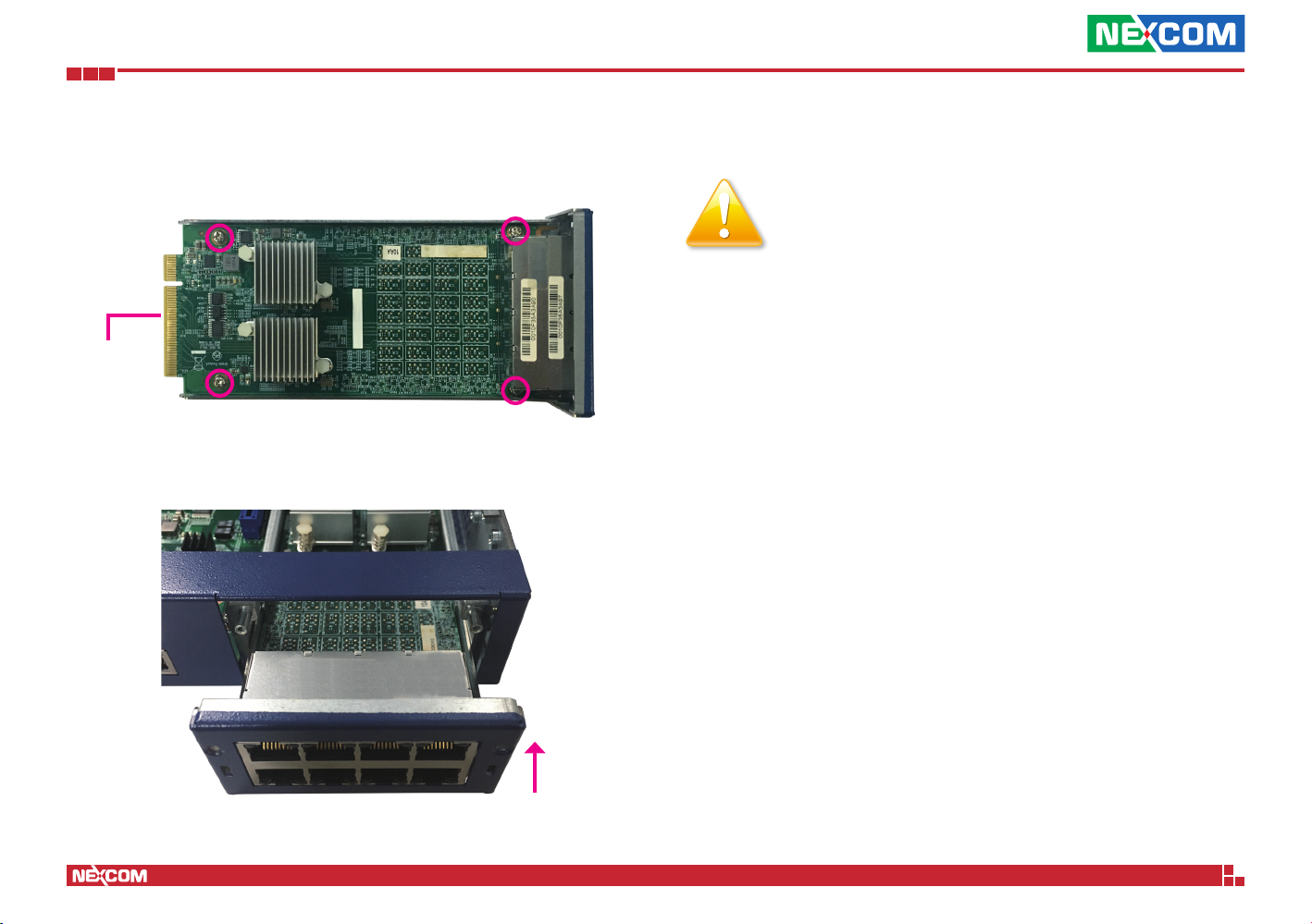

Installing a LAN Module ........................................................................ 31

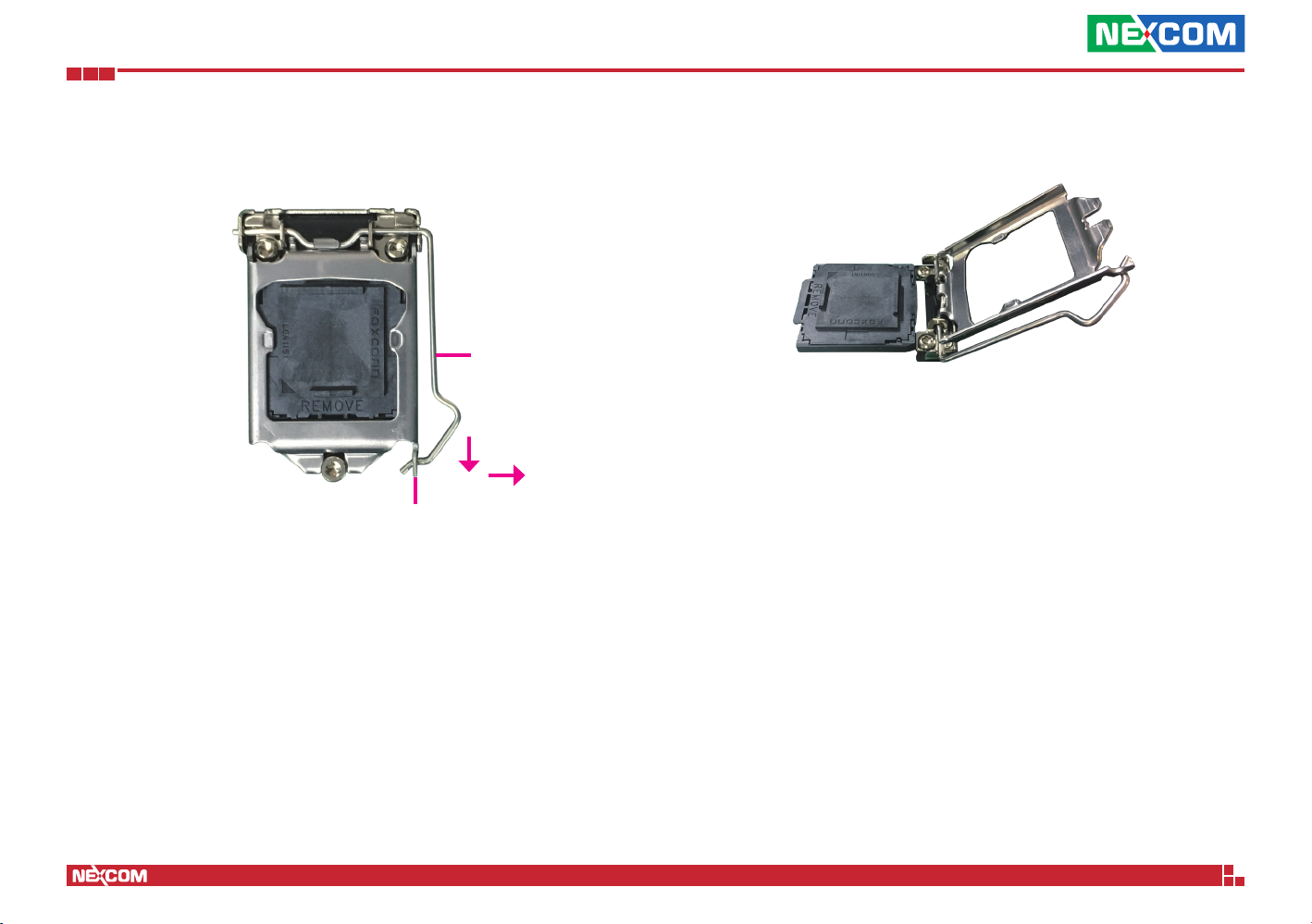

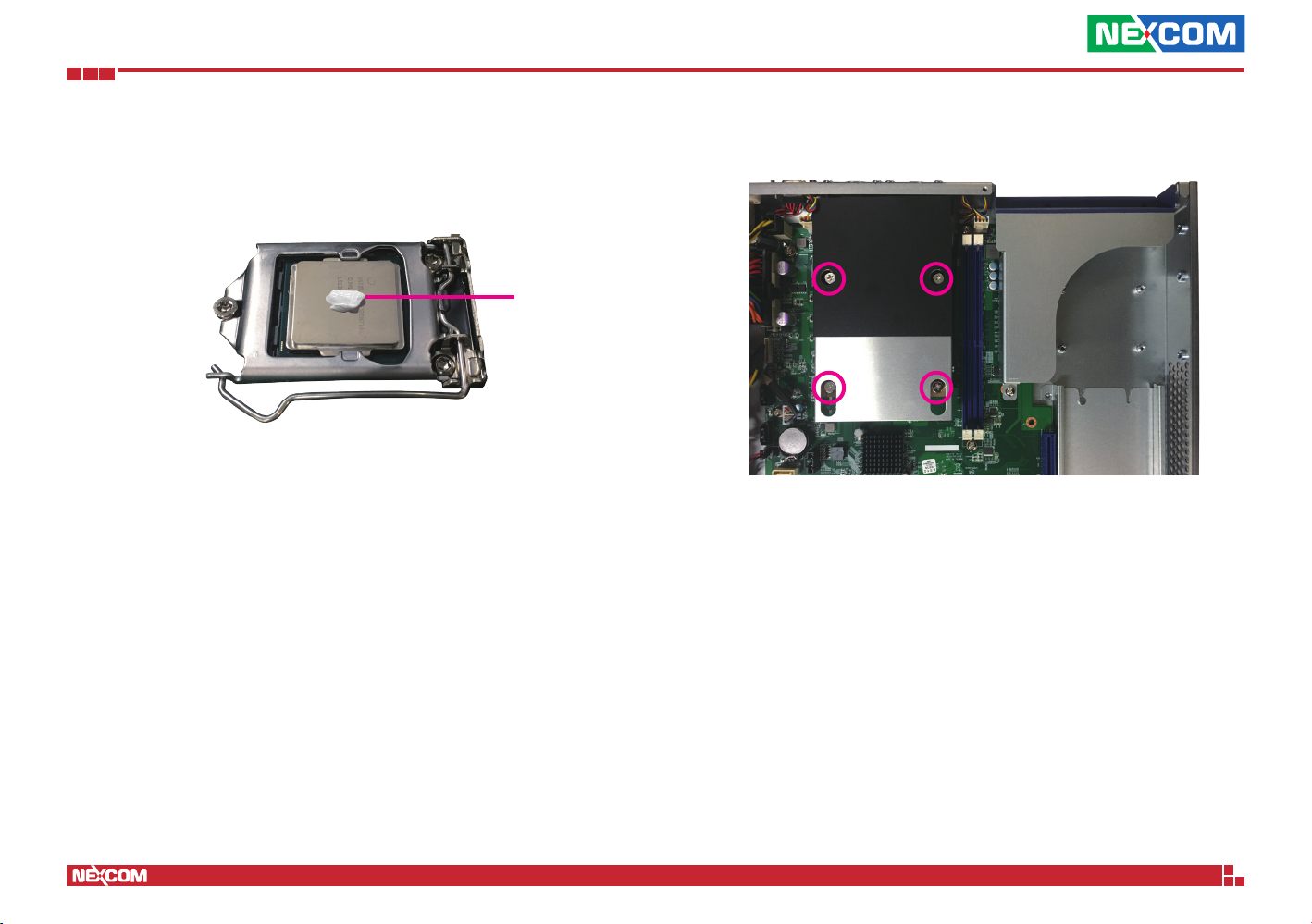

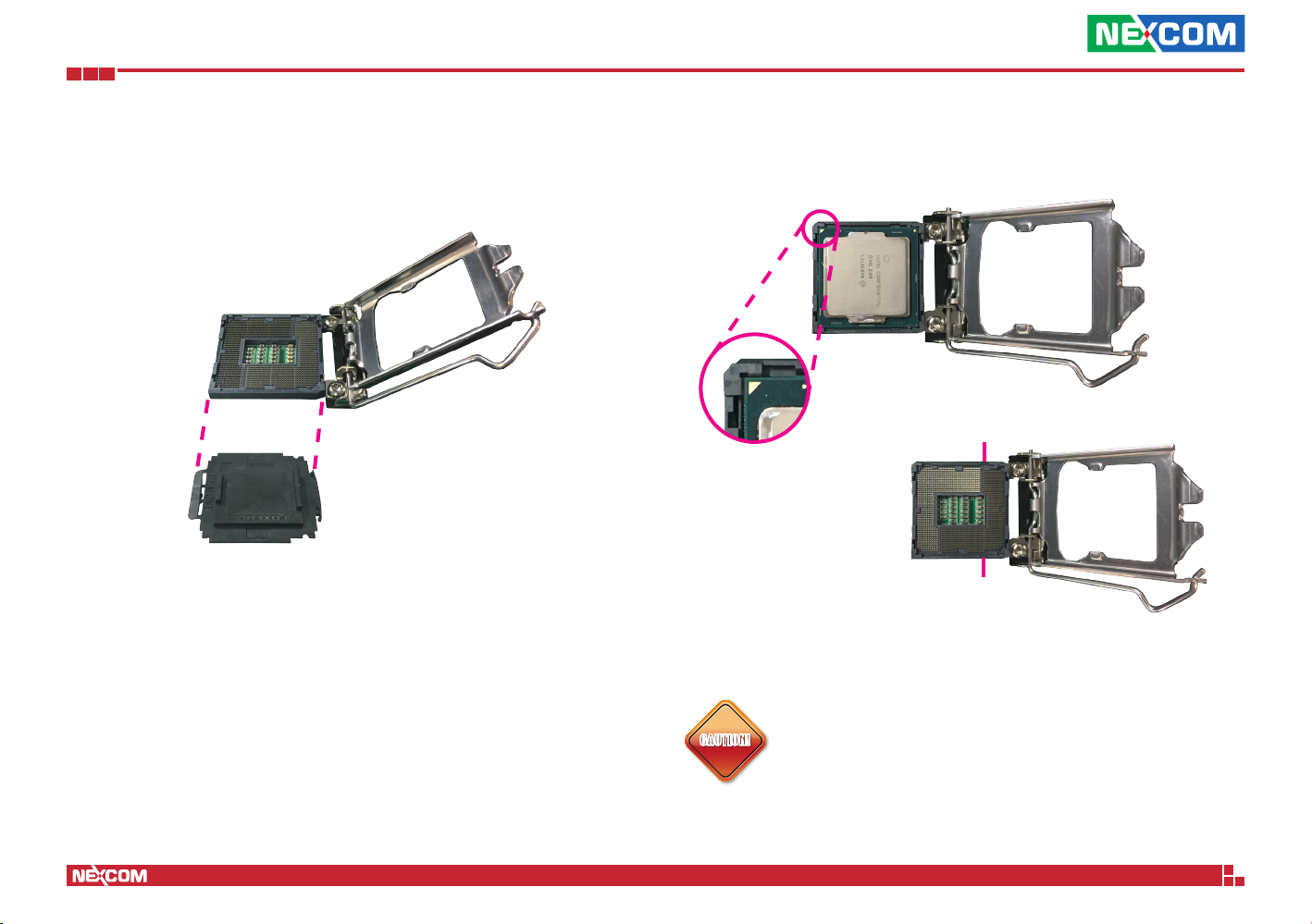

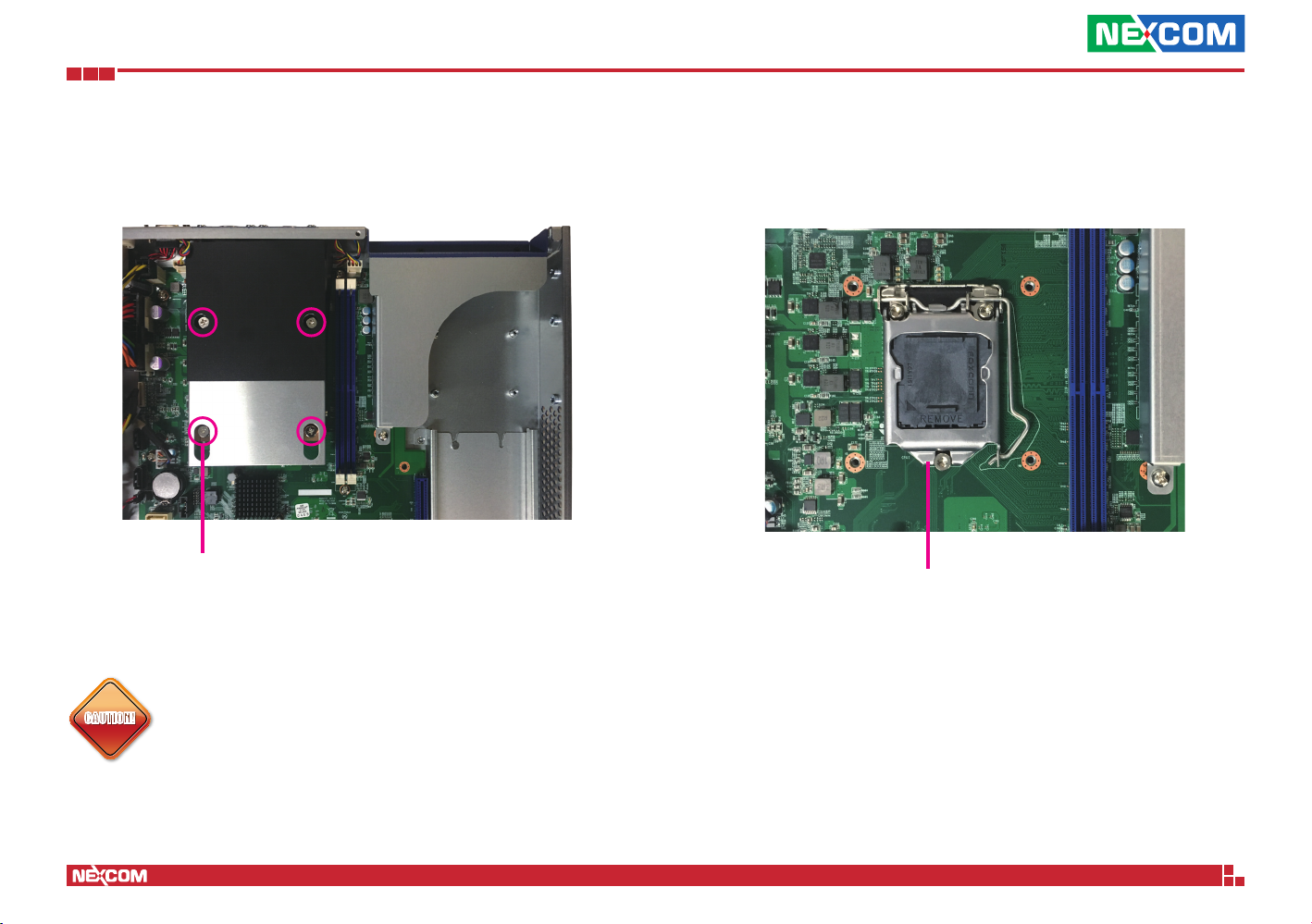

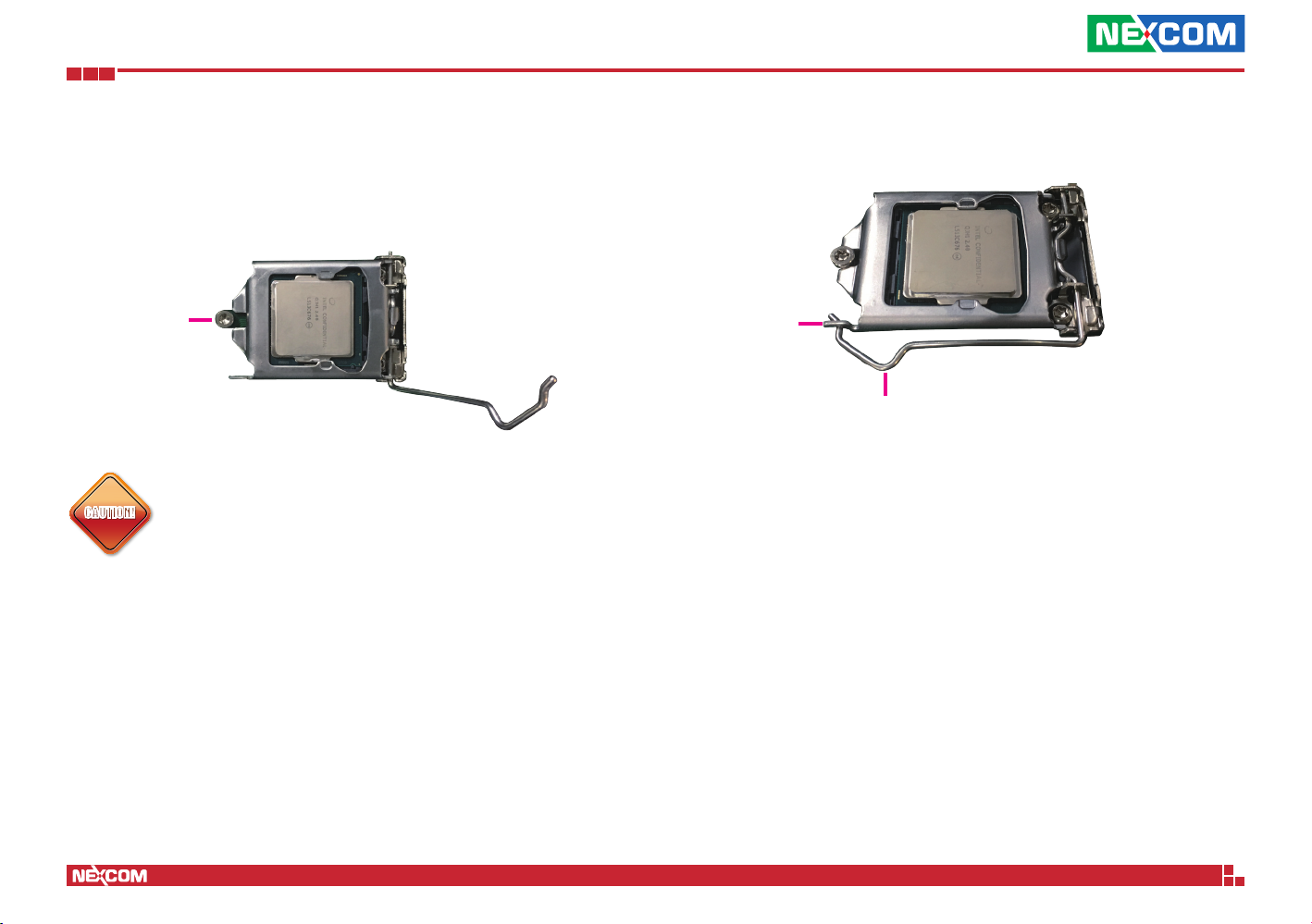

Installing a CPU .....................................................................................33

Chapter 4: BIOS Setup

About BIOS Setup ................................................................................. 38

When to Configure the BIOS .................................................................38

Default Configuration ........................................................................... 39

Entering Setup ...................................................................................... 39

Legends ................................................................................................ 39

BIOS Setup Utility .................................................................................. 41

Main .................................................................................................41

Advanced ......................................................................................... 42

Chipset ..............................................................................................53

Security .............................................................................................56

Boot .................................................................................................. 57

Save & Exit ........................................................................................58

iii

NSA 3170 Series User Manual

Page 4

Preface

PrefaCe

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

The NSA 3170 series is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

NSA 3170 Series User Manual

Page 5

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green

products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2011/65/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <

0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2013 will be RoHS compliant. They will use the usual NEXCOM naming convention.

NSA 3170 Series User Manual

Page 6

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

▪ Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

▪ Customers must collect all the information about the problems

encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

▪ Customers can send back the faulty products with or without accessories

(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

▪ Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

▪ Any products returned by NEXCOM to other locations besides the

customers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

▪ Component fee: NEXCOM will only charge for main components such as

SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

▪ Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

▪ Replace with 3rd party products if needed.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

Board Level

▪ Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

NSA 3170 Series User Manual

Page 7

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

vii

NSA 3170 Series User Manual

Page 8

Preface

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully.

▪ Do not place the unit on an unstable surface, cart, or stand.

▪ Follow all warnings and cautions in this manual.

▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

▪ A Philips screwdriver

▪ A flat-tipped screwdriver

▪ A grounding strap

▪ An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

viii

NSA 3170 Series User Manual

Page 9

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the

equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or

letting it fall may cause damage.

7. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting

the equipment to the power outlet.

9. Place the power cord in a way so that people will not step on it. Do not

place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical shock.

13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work

according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.

15. Do not place heavy objects on the equipment.

16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

NSA 3170 Series User Manual

Page 10

Preface

CAUTION!

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

NSA 3170 Series User Manual

Page 11

Preface

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

9F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

Asia

Taiwan NexAIoT Co., Ltd.

Taipei Office

13F, No.920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: [email protected] www.nexcom.com.tw

NexAIoT Co., Ltd. Taichung Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: [email protected] www.nexcom.com.tw

NexCOBOT Taiwan Co., Ltd.

13F, No.916, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: [email protected] www.nexcom.com.tw

GreenBase Technology Corp.

13F, No.922,Chung-Cheng Rd., Zhonghe Dist., New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7900 Email:[email protected] www.nexcom.com.tw

China NEXSEC Incorporated

Floor 5, No.4, No.7 fengxian middle Rd., (Beike Industrial Park), Haidian District, Beijing, 100094, China Tel: +86-10-5704-2680 Fax: +86-10-5704-2681 Email: [email protected] www.nexcom.cn

NSA 3170 Series User Manual

Page 12

Preface

NEXCOM Shanghai

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No. 609, Yunlin East Rd., Shanghai, 200062, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: [email protected] www.nexcom.cn

NEXCOM Surveillance Technology Corp.

Floor 5, Building C, ZhenHan Industrial Zone, GanKeng Community, Buji Street, LongGang District, ShenZhen, 518112, China Tel: +86-755-8364-7768 Fax: +86-755-8364-7738 Email: [email protected] www.nexcom.cn

NEXCOM United System Service

Room 603/604, Huiyinmingzun Plaza Bldg. 1, No. 609, Yunlin East Rd., Shanghai, 200062, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: [email protected] www.nexcom.cn

NEXGOL

1st Floor, Building B4, Electronic 2nd Area, (Phoenix Lake Industrial Park), Yongchuan Dist., Chongqing City, 402160, China Tel: +86-23-4960-9080 Fax: +86-23-4966-5855 Email: [email protected] www.nexgol.com/NexGoL

Beijing NexGemo Technology Co.,Ltd.

5th Floor, Gemotech Building, No.1, Development Rd., Changping International Information Industry Base, Changping District, Beijing,102206, China Tel: +86-10-8190-9399 Fax:+86-10-8190-9456

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: [email protected] www.nexcom-jp.com

Europe

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: [email protected] www.nexcom.eu

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: [email protected] www.nexcom.com

xii

NSA 3170 Series User Manual

Page 13

Preface

Package Contents

Before continuing, verify that the NSA 3170 package that you received is complete. Your package should have all the items listed in the following table.

Item Part Number Name Qty

1 5044440031X00 Rubber Foot KANG YANG: RF20-5-4P 19.8x18x5.0mm 4 2 6012200052X00 PE Zipper Bag #8 170x240mm, w/China RoHS Symbol 1 3 6012200053X00 PE Zipper Bag #3 100x70mm, w/China RoHS Symbol 1 4 6023309081X00 Cable EDI:232091081804-RS COM Port. DB9 Female to RJ45 8P8C L:1800mm 1 5 50311F0100X00 Round Head Screw w/Spring + Flat Washer LONG FEI:P3x6L P3x6 iso/SW6x0.5 NI 8 6 60233AT133X00 SATA Cable ST:MD-6102042 SATA 7P 180D(LOCK) to 7P 90D(LOCK) L=135mm 2 7 5060900301X00 NSA 5130 EAR SETS VER:A CHYUAN-JYH 79.5x43.5x26mm AL PANTONE 295U 1 8 5040150001X00 NSA 7135 AL Handle VER:A PANADVANCE 78X58X8mm 1

xiii

NSA 3170 Series User Manual

Page 14

Preface

Ordering Information

The following below provides ordering information for NSA 3170.

Barebone NSA 3170 (P/N: 10S00317000X0)

Intel® H110 PCH, supporting Intel® 6th gen. Core™/Pentium® processors, 2 DDR4 memory slots, 6GbE copper LAN ports, SATA DOM, USB ports, VGA port, one PCIe x8 LAN expansion slot (front), w/o LCM

NSA 3170A (P/N: 10S00317001X0)

Intel® C236 PCH, supporting Intel® 6th gen. Xeon®/Core™/Pentium® processors, 2 DDR4 memory slots, 16GbE copper LAN ports, SATA DOM, USB ports, VGA port, one PCIe x8 LAN expansion slot (front), w/o LCM

NI 180F

Intel® I350 module 8 fiber ports with PCIe x8 interface with PKG

NI 142C

Intel® I350 module 4 copper ports with 2 bypass segment by PCIe x8 interface with PKG

NI 180C

Intel® I350 module 8 copper ports by PCIe x8 interface with PKG

NSK 1170 (P/N: 20SK0117000X0)

PCIe x8 riser card for NSA 3170A Internal LAN I/O module (For NSA 3170A only)

NX 140F

Intel® XL710-BM1 10GbE module 4 fiber ports by PCIe x8 interface with PKG

NX 142F

Intel® XL710-BM1 10GbE module 4 fiber ports with 2 bypass segment (multi mode) by PCIe x8 interface with PKG

NI 140F

Intel® I350 module 4 fiber ports with PCIe x8 interface with PKG

NI 184C

Intel® I350 module 8 copper ports with 4 bypass segment by PCIe x8 interface with PKG

NI 142F

Intel® I350 module 4 fiber ports with 2 bypass segment by PCIe x8 interface with PKG

NI 121F

Intel® I350 module 2 fiber ports with 1 bypass segment by PCIe x8 interface with PKG

xiv

NSA 3170 Series User Manual

Page 15

Preface

Model P/N Controller Interface Type Port Number Bypass/Segment Expansion Slot Location Slot

NX 140F 10S20140F01X0 XL710-BM1 PCIe x8 4 SFP+ None None All Slot

NX 142F 10S20142F01X0 XL710-BM1 PCIe x8 4 SFP+

2 bypass

(multi mode)

None All Slot

NI 140F 10SK000NI02X0 i350AM4x1 PCIe x8 4 SFP None None All Slot

NI 180F 10S10180F01X0 i350AM4x2 PCIe x8 8 SFP None None All Slot

NI 142C 10SK000NI03X0 i350AM4x1 PCIe x8 4 Copper 2 bypass None All Slot

NI 180C 10S10180C01X0 i350AM4x2 PCIe x8 8 Copper None None All Slot

NI 184C 10S10184C01X0 i350AM4x2 PCIe x8 8 Copper 4 bypass None All Slot

NI 142F 10S10142F01X0 i350AM4x1 PCIe x8 4 SFP 2 bypass None All Slot

NI 121F 10S10121F01X0 i350AM2x1 PCIe x8 4 SFP 1 bypass None All Slot

NSA 3170 Series User Manual

Page 16

Chapter 1: Product Introduction

ChaPter 1: ProduCt IntroduCtIon

Overview

Key Features

▪ 1U rackmount network platform

▪ Support Intel

▪ Support DDR4 2400 ECC & REG, up to 32GB

6th gen. Xeon®/Core™/Pentium® processors

▪ Support one PCIe x8 expansion

▪ Internal two 2.5” HDD bays

▪ Single 300 watt PSU

NSA 3170 Series User Manual

Page 17

Chapter 1: Product Introduction

Hardware Specifications

Main Board

▪ NSB 3170 ▪ Supports Intel® 6th gen. Xeon®/Core™/Pentium® processors

(codenamed Skylake-S)

▪ Intel® H110/Intel® C236 chipset

Main Memory

▪ 2x DDR4 2400 memory DIMM, support ECC/non-ECC memory,

Max 32GB

LAN Features

▪ LAN Chip: Intel® i211-AT ▪ Support 10/100/1000/10G link speed ▪ LAN Bypass: 2 pairs

I/O Interface-Front

▪ Power status/HDD status/LAN status/bypass status LEDs ▪ 2x USB 3.0 ports ▪ 1x micro USB console port (optional) ▪ 1x RJ45 type console port ▪ Max. 16x copper LAN ports ▪ 1x Reset button

I/O Interface-Rear

▪ 1x Rear PCIe x8 expansion slot (optional) ▪ 1x VGA Port ▪ 1x Power button switch (optional) ▪ 2x USB 3.0 ports (optional)

Devices

▪ 1x SATA DOM (power pin reserved) ▪ 2x 2.5” HDD bay

Power Input

▪ ATX power supply 300W

Chassis Dimensions

▪ Chassis dimension: 438 mm x 300mm x 44mm ▪ Carton dimension: TBC

Weight

▪ Without packing: TBC ▪ With packing: TBC

Environment

▪ Operating temperatures: 0°C~40°C ▪ Storage temperature: -20°C~75°C ▪ Relative humidity: 10%~90% non-condensing

Certifications

▪ CE approval ▪ FCC Class A ▪ UL

NSA 3170 Series User Manual

Page 18

Chapter 1: Product Introduction

Knowing Your NSA 3170

Front Panel

LCD

RJ45/Micro USB

type console port

Reset button

Power/HDD/ Bypass LEDs

USB 3.0 ports

Copper LAN ports

LAN Module

LCD

128x32 characters LCD module.

Power/HDD/Bypass LED Indicators

Indicates the LAN bypass status, power status and hard drive activity of the system.

Reset Button

Press to restart the system.

RJ45/Micro USB Type Console Serial Port

Used to connect console devices with RJ45/Micro USB type connection.

USB 3.0 Ports

Used to connect USB 3.0/2.0/1.1 devices.

Copper LAN Ports

16 LAN ports used to connect network devices.

LAN Module

LAN module bay used to install add-on network modules.

NSA 3170 Series User Manual

Page 19

Chapter 1: Product Introduction

Rear Panel

Expansion slot

VGA USB 2.0

Expansion Slot

Used to install a PCI Express add-on card.

VGA

Used to connect an analog VGA monitor.

USB 2.0 Ports

Used to connect USB 2.0/1.1 devices.

Power Switch

Press to power-on or power-off the system.

AC Power SocketPower Switch

AC Power Socket

Plug an AC power cord here before turning on the system.

NSA 3170 Series User Manual

Page 20

Chapter 2: Jumpers and Connectors

ChaPter 2: JumPers and ConneCtors

This chapter describes how to set the jumpers and connectors on the NSA 3170 series motherboard.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: – A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

▪ Before working on internal components, make sure that the power is off.

Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environments tend to have less static electricity than

dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside the

computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they shipped

with until they are ready for installation.

▪ Use correct screws and do not over tighten screws.

NSA 3170 Series User Manual

Page 21

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 are Short

NSA 3170 Series User Manual

Page 22

Chapter 2: Jumpers and Connectors

Locations of the Jumpers and Connectors

The figure below shows the location of the jumpers and connectors.

CN7

CN6

CN4

CN3

CON2

CON1

CN5

CN1 SATA 1SATA2

BIOS_J1

JP5

JP1

JP2

SATA 3

JP4

LAN4

LAN3

LAN2

CON3

LAN1

JP3

CN2

SW1

LED1

NSA 3170 Series User Manual

Page 23

Chapter 2: Jumpers and Connectors

Jumpers

AT/ATX Mode Select

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP2

1 3

Pin Definition

1 GND 2 GND 3 AT_ATX_SEL

Clear CMOS Function

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP1

1 3

Pin Definition

1 NC 2 RST_RTCRST_N 3 GND

NSA 3170 Series User Manual

Page 24

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External I/O Interfaces - Front Panel

Reset Button

Connector location: SW1

1 2

Pin Definition

1 GND 2 FP_SYS_RESET_N

Micro USB Port (For Console Connection)

Connector location: CN2

Pin Definition Pin Definition

1 CONSOLE_VBUS 2 SP_TXD1_R 3 SP_RXD1_R 4 CGND 5 CGND

NSA 3170 Series User Manual

Page 25

Chapter 2: Jumpers and Connectors

RJ45 Console Port (Co-layout with Micro USB)

Connector location: LAN1

Pin Definition Pin Definition

1 RJ45_RTS 2 RJ45_DTR 3 RJ45_TXD 4 GND 5 RJ45_DCD 6 RJ45_RXD 7 RJ45_DSR 8 RJ45_CTS

USB 3.0 Ports

Connector type: Dual USB 3.0 ports Connector location: CON3

10 13

Pin Definition Pin Definition

1 P5V_USB_P01 2 USB2N0_C 3 USB2P0_C 4 GND 5 USB3RN1_C 6 USB3RP1_C 7 GND 8 USB3TN1_C

9 USB3TP1_C 10 P5V_USB_P01 11 USB2N1_C 12 USB2P1_C 13 GND 14 USB3RN2_C 15 USB3RP2_C 16 GND 17 USB3TN2_C 18 USB3TP2_C

MH1 GND MH2 GND MH3 GND MH4 GND

1418

NSA 3170 Series User Manual

Page 26

Chapter 2: Jumpers and Connectors

ACT LINK

LAN1 to LAN8 Ports

Connector type: RJ45 with LEDs Connector location: LAN2A, LAN2B, LAN2C and LAN2D

Act Status

Flashing Green Data activity

Off No activity

LAN2A

Link Status

Steady Green 1G network link

Steady Yellow 100Mbps network link

Off 10Mbps or no link

Pin Definition Pin Definition

A1 P_LAN0_MDI0P A2 P_LAN0_MDI0N A3 P_LAN0_MDI1P A4 P_LAN0_MDI1N A5 GND A6 NC (V1P5_LAN0) A7 P_LAN0_MDI2P A8 P_LAN0_MDI2N

A9 P_LAN0_MDI3P A10 P_LAN0_MDI3N A11 LAN0_LED_LINK1G# A12 LAN0_LED_LINK# A13 LAN0_LED_ACT# A14 VCC3_LAN0

MH1 GND

LAN2B

Pin Definition Pin Definition

B1 P_LAN1_MDI0P B2 P_LAN1_MDI0N B3 P_LAN1_MDI1P B4 P_LAN1_MDI1N B5 GND B6 NC (V1P5_LAN1) B7 P_LAN1_MDI2P B8 P_LAN1_MDI2N

B9 P_LAN1_MDI3P B10 P_LAN1_MDI3N B11 LAN1_LED_LINK1G# B12 LAN1_LED_LINK# B13 LAN1_LED_ACT# B14 V3P3_LAN1

MH2 GND

NSA 3170 Series User Manual

Page 27

Chapter 2: Jumpers and Connectors

LAN2C

Pin Definition Pin Definition

C1 P_LAN2_MDI0P C2 P_LAN2_MDI0N C3 P_LAN2_MDI1P C4 P_LAN2_MDI1N C5 GND C6 NC (V1P5_LAN2) C7 P_LAN2_MDI2P C8 P_LAN2_MDI2N

C9 P_LAN2_MDI3P C10 P_LAN2_MDI3N C11 LAN2_LED_LINK1G# C12 LAN2_LED_LINK# C13 LAN2_LED_ACT# C14 V3P3_LAN2

MH3 GND

LAN2D

Pin Definition Pin Definition

D1 P_LAN3_MDI0P D2 P_LAN3_MDI0N D3 P_LAN3_MDI1P D4 P_LAN3_MDI1N D5 GND D6 NC (V1P5_LAN3) D7 P_LAN3_MDI2P D8 P_LAN3_MDI2N

D9 P_LAN3_MDI3P D10 P_LAN3_MDI3N D11 LAN3_LED_LINK1G# D12 LAN3_LED_LINK# D13 LAN3_LED_ACT# D14 V3P3_LAN3

MH4 GND MH5 GND

NSA 3170 Series User Manual

Page 28

Chapter 2: Jumpers and Connectors

ACT LINK

LAN9 to LAN16 Ports

Connector type: RJ45 with LEDs Connector location: LAN3A, LAN3B, LAN4C and LAN4D

Act Status

Flashing Green Data activity

Off No activity

LAN3A

Link Status

Steady Green 1G network link

Steady Yellow 100Mbps network link

Off 10Mbps or no link

Pin Definition Pin Definition

A1 LAN4_MDI0P A2 LAN4_MDI0N A3 LAN4_MDI1P A4 LAN4_MDI1N A5 LAN4_A5 (V1P5_LAN4) A6 LAN4_A6 A7 LAN4_MDI2P A8 LAN4_MDI2N

A9 LAN4_MDI3P A10 LAN4_MDI3N A11 LAN4_LED_LINK1G# A12 LAN4_LED_LINK# A13 LAN4_LED_PIN13 A14 LAN4_LED_PIN14

MH1 CGND

LAN3B

Pin Definition Pin Definition

B1 LAN5_MDI0P B2 LAN5_MDI0N B3 LAN5_MDI1P B4 LAN5_MDI1N B5 LAN5_B5 (V1P5_LAN5) B6 LAN5_B6 B7 LAN5_MDI2P B8 LAN5_MDI2N

B9 LAN5_MDI3P B10 LAN5_MDI3N B11 LAN5_LED_LINK1G# B12 LAN5_LED_LINK# B13 LAN5_LED_PIN13 B14 LAN5_LED_PIN14

MH2 GND

NSA 3170 Series User Manual

Page 29

Chapter 2: Jumpers and Connectors

LAN4C

Pin Definition Pin Definition

C1 LAN6_MDI0P C2 LAN6_MDI0N C3 LAN6_MDI1P C4 LAN6_MDI1N C5 GND C6 NC (V1P5_LAN6) C7 LAN6_MDI2P C8 LAN6_MDI2N

C9 LAN6_MDI3P C10 LAN6_MDI3N C11 LAN6_LED_LINK1G# C12 LAN6_LED_LINK# C13 LAN6_LED_ACT# C14 V3P3_LAN6

MH3 GND

LAN4D

Pin Definition Pin Definition

D1 LAN7_MDI0P D2 LAN7_MDI0N D3 LAN7_MDI1P D4 LAN7_MDI1N D5 GND D6 NC (V1P5_LAN7) D7 LAN7_MDI2P D8 LAN7_MDI2N

D9 LAN7_MDI3P D10 LAN7_MDI3N D11 LAN7_LED_LINK1G# D12 LAN7_LED_LINK# D13 LAN7_LED_ACT# D14 V3P3_LAN7

MH4 GND MH5 GND

NSA 3170 Series User Manual

Page 30

Chapter 2: Jumpers and Connectors

External I/O Interfaces - Rear Panel

VGA Port (Co-layout with CN1)

Connector type: DB-15 port, 15-pin D-Sub. 1x10 10-pin header, 1.0mm pitch Connector location: CN1

CN1

Pin Definition Pin Definition

1 VGA_5V_FB6 2 DDC_CLKO 3 VSYNC_VGA 4 HSYNC_VGA 5 DDC_DATAO 6 VGADET 7 VGA_GND 8 BLUE_VGA 9 GREEN_VGA 10 RED_VGA

CN1

Dual USB 2.0 Port (Co-layout with J3)

Connector type: USB 2.0 Port, Type A. 1x6 6-pin header, 2.0mm pitch Connector location: J3

1 4

110

Pin Definition Pin Definition

1 P5V_USB_P23 2 USB2N2_C 3 USB2P2_C 4 USB2N3_C 5 USB2P3_C 6 USB23GND

NSA 3170 Series User Manual

Page 31

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

Internal Connectors

BIOS Socket

Connector type: 2x4 8-pin header Connector location: BIOS_J1

Pin Definition Pin Definition

1 SPI_CS0# 2 BIOS_SO 3 BIOS_WP# 4 GND 5 P3V3_AUX 6 BIOS_HOLD# 7 BIOS_SCK 8 BIOS_SI

SATA Connectors

Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180) Connector location: SATA1 and SATA2

1 7

Pin Definition Pin Definition

1 GND1 2 TXP 3 TXN 4 GND2 5 RXN 6 RXP 7 GND3

NSA 3170 Series User Manual

Page 32

Chapter 2: Jumpers and Connectors

SATA DOM Connector

Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180) Connector location: SATA3

1 7

Pin Definition Pin Definition

1 GND2 2 TXP 3 TXN 4 GND3 5 RXN 6 RXP 7 GND4

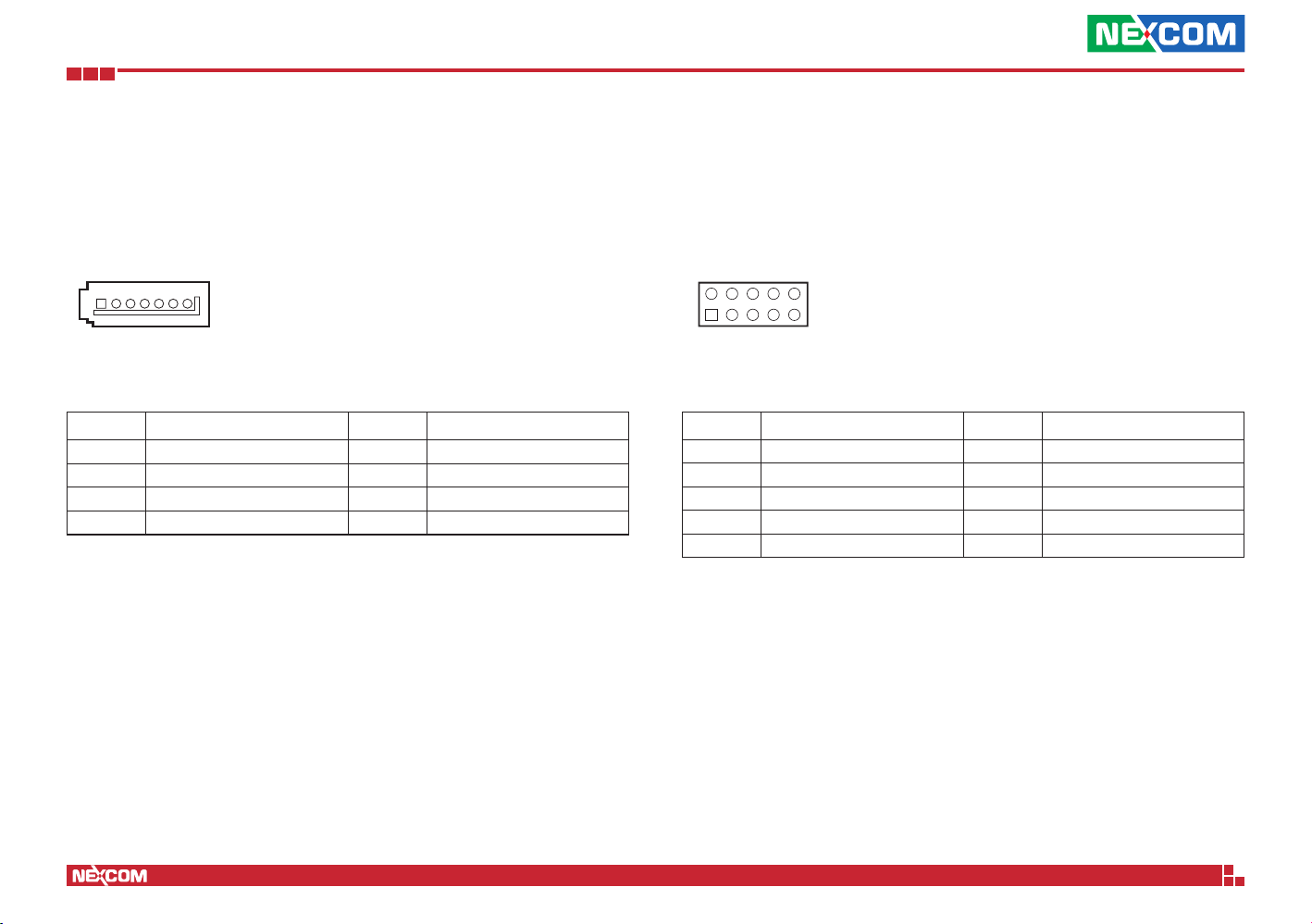

GPIO Pin Header

Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: JP5

Pin Definition Pin Definition

1 P3V3_AUX 2 GND 3 SIO_GPIN1 4 SIO_GPOUT1 5 SIO_GPIN2 6 SIO_GPOUT2 7 SIO_GPIN3 8 SIO_GPOUT3 9 SIO_GPIN4 10 SIO_GPOUT4

NSA 3170 Series User Manual

Page 33

Chapter 2: Jumpers and Connectors

CPLD JTAG Pin Header

Connector type: 1x6 6-pin header, 2.54mm pitch Connector location: JP3

Pin Definition Pin Definition

1 P3V3_CPLD 2 GND 3 JTAG_PLD_TCK 4 JTAG_PLD_TDO 5 JTAG_PLD_TDI 6 JTAG_PLD_TMS

TPM Function

Connector type: 2x7 14-pin header, 2.0mm pitch Connector location: JP4

Pin Definition Pin Definition

1 GND 2 CLK_PCI_TPM_CPLD 3 NC 4 LPC_FRAME# 5 LPC_AD2 6 RST_TPM_N 7 LPC_AD1 8 LPC_AD3

9 GND 10 LPC_AD0 11 INT_SERIRQ 12 P3V3 13 GND 14 GND

NSA 3170 Series User Manual

Page 34

Chapter 2: Jumpers and Connectors

System Fan Connectors

Connector type: 1x4 4-pin Wafer, 2.54mm pitch Connector location: CN3 (FAN1), CN4 (FAN2) and CN7 (FAN3)

1 4

Pin Definition

1 GND 2 P12V 3 SYSFAN_TAC_[1:3] 4 SYSFAN_CTL_[1:3]

4-Pin 12V Power Connector

Connector type: 2x2 4-pin header, 4.2mm pitch Connector location: CON2

3 4

Pin Definition

1 GND

2 GND

3 P12V

4 P12V

NSA 3170 Series User Manual

Page 35

Chapter 2: Jumpers and Connectors

24-Pin ATX Power Connector

Connector type: 2x12 24-pin header, 4.2mm pitch Connector location: CON1

13 24

Pin Definition Pin Definition

1 P3V3 2 P3V3 3 GND 4 P5V 5 GND 6 P5V 7 GND 8 PS_PWROK_R

9 P5V_AUX 10 P12V 11 P12V 12 P3V3 13 P3V3 14 NC 15 GND 16 FM_PS_EN_PSU_N 17 GND 18 GND 19 GND 20 NC 21 P5V 22 P5V 23 P5V 24 GND

NSA 3170 Series User Manual

Page 36

Chapter 2: Jumpers and Connectors

PCIe x8 Slot

Connector type: PCIe x8 Slot Connector location: CN6

Pin Definition Pin Definition

A1 GND B1 P12V A2 P12V B2 P12V A3 P12V B3 P12V A4 GND B4 GND

A7 NA B7 GND A8 NA B8 VCC3 A9 VCC3 B9 PD_SLOT0_JAG1 (GND)

A10 VCC3 B10 P3V3_AUX A11 PCIE_SLOT0_RST_N B11 WAKE_N A12 GND B12 NC A13 CLK_PCIE_X8_SLOT0_P B13 GND A14 CLK_PCIE_X8_SLOT0_N B14 PE_PCH_X8_TXP0 A15 GND B15 PE_PCH_X8_TXN0 A16 REP_SLOT0_RX0P B16 GND A17 REP_SLOT0_RX0N B17 PD_PCIE0_1_PRESENT_L A18 GND B18 GND A19 NC B19 PE_PCH_X8_TXP1 A20 GND B20 PE_PCH_X8_TXN1

A11

B11

A12

B12

A49

B49

SMBDAT_TX_REDRIVER_

SLOT0

SMBCLK_TX_REDRIVER_

SLOT0

B5 SMB_CLK_SLOT

B6 SMB_DAT_SLOT

Pin Definition Pin Definition

A21 REP_SLOT0_RX1P B21 GND A22 REP_SLOT0_RX1N B22 GND A23 GND B23 PE_PCH_X8_TXP2 A24 GND B24 PE_PCH_X8_TXN2 A25 REP_SLOT0_RX2P B25 GND A26 REP_SLOT0_RX2N B26 GND A27 GND B27 PE_PCH_X8_TXP3 A28 GND B28 PE_PCH_X8_TXN3 A29 REP_SLOT0_RX3P B29 GND A30 REP_SLOT0_RX3N B30 NC A31 GND B31 PD_PCIE0_2_PRESENT_L A32 NC B32 GND A33 NC B33 PE_PCH_X8_TXP4 A34 GND B34 PE_PCH_X8_TXN4 A35 REP_SLOT0_RX4P B35 GND A36 REP_SLOT0_RX4N B36 GND A37 GND B37 PE_PCH_X8_TXP5 A38 GND B38 PE_PCH_X8_TXN5 A39 REP_SLOT0_RX5P B39 GND A40 REP_SLOT0_RX5N B40 GND A41 GND B41 PE_PCH_X8_TXP6 A42 GND B42 PE_PCH_X8_TXN6 A43 REP_SLOT0_RX6P B43 GND A44 REP_SLOT0_RX6N B44 GND A45 GND B45 PE_PCH_X8_TXP7 A46 GND B46 PE_PCH_X8_TXN7 A47 REP_SLOT0_RX7P B47 GND A48 REP_SLOT0_RX7N B48 NC A49 GND B49 GND

NSA 3170 Series User Manual

Page 37

Chapter 2: Jumpers and Connectors

PCIe x8 Slot (For Rear Side)

Connector type: PCIe x8 Slot Connector location: CN5

Pin Definition Pin Definition

A1 GND B1 P12V A2 P12V B2 P12V A3 P12V B3 P12V A4 GND B4 GND A5 NC B5 SMB_CLK_SLOT A6 NC B6 SMB_DAT_SLOT A7 NC B7 GND A8 NC B8 P3V3 A9 P3V3 B9 PD_SLOT1_JAG1 (GND)

A10 P3V3 B10 P3V3_AUX A11 PCIE_SLOT1_RST_N B11 WAKE_N A12 GND B12 NC A13 CLK_PCIE_X8_SLOT1_P B13 GND A14 CLK_PCIE_X8_SLOT1_N B14 REP_SLOT1_TX0P A15 GND B15 REP_SLOT1_TX0N A16 REP_SLOT1_RX0P B16 GND A17 REP_SLOT1_RX0N B17 PD_PCIE1_1_PRESENT_L A18 GND B18 GND A19 NC B19 REP_SLOT1_TX1P A20 GND B20 REP_SLOT1_TX1N A21 REP_SLOT0_RX1P B21 GND

A11

B11

A12

B12

A49

B49

Pin Definition Pin Definition

A22 REP_SLOT1_RX1N B22 GND A23 GND B23 REP_SLOT1_TX2P A24 GND B24 REP_SLOT1_TX2N A25 REP_SLOT1_RX2P B25 GND A26 REP_SLOT1_RX2N B26 GND A27 GND B27 REP_SLOT1_TX3P A28 GND B28 REP_SLOT1_TX3N A29 REP_SLOT1_RX3P B29 GND A30 REP_SLOT1_RX3N B30 NC A31 GND B31 PD_PCIE1_2_PRESENT_L A32 NC B32 GND A33 NC B33 REP_SLOT1_TX4P A34 GND B34 REP_SLOT1_TX4N A35 REP_SLOT1_RX4P B35 GND A36 REP_SLOT1_RX4N B36 GND A37 GND B37 REP_SLOT1_TX5P A38 GND B38 REP_SLOT1_TX5N A39 REP_SLOT1_RX5P B39 GND A40 REP_SLOT1_RX5N B40 GND A41 GND B41 REP_SLOT1_TX6P A42 GND B42 REP_SLOT1_TX6N A43 REP_SLOT1_RX6P B43 GND A44 REP_SLOT1_RX6N B44 GND A45 GND B45 REP_SLOT1_TX7P A46 GND B46 REP_SLOT1_TX7N A47 REP_SLOT1_RX7P B47 GND A48 REP_SLOT1_RX7N B48 NC A49 GND B49 GND

NSA 3170 Series User Manual

Page 38

Chapter 2: Jumpers and Connectors

Block Diagram

NSA 3170 Series User Manual

Page 39

Chapter 3: System Setup

CAUTION!

ChaPter 3: system setuP

Removing the Chassis Cover

Prior to removing the chassis cover, make sure the unit’s power

CAUTION!CAUTION!

is off and disconnected from the power sources to prevent electric shock or system damage.

1. Remove the screws on the chassis cover then put them in a safe place for later use.

2. Gently slide the cover outwards, then lift up the cover to remove it.

Lift here

NSA 3170 Series User Manual

Page 40

Chapter 3: System Setup

Installing a SATA DOM

1. Locate the SATA DOM connector on the board.

2. Install the SATA DOM module to the connector.

NSA 3170 Series User Manual

Page 41

Chapter 3: System Setup

Installing DIMM Memory Modules

1. Locate the DIMM sockets on the board.

2. Release the locks on the DIMM sockets.

3. Insert the modules into the socket at an 90 degree angle. Apply firm even pressure to each end of the modules until they slip into the socket.

4. While pushing the modules into position, the lock will close automatically.

NSA 3170 Series User Manual

Page 42

Chapter 3: System Setup

CAUTION!

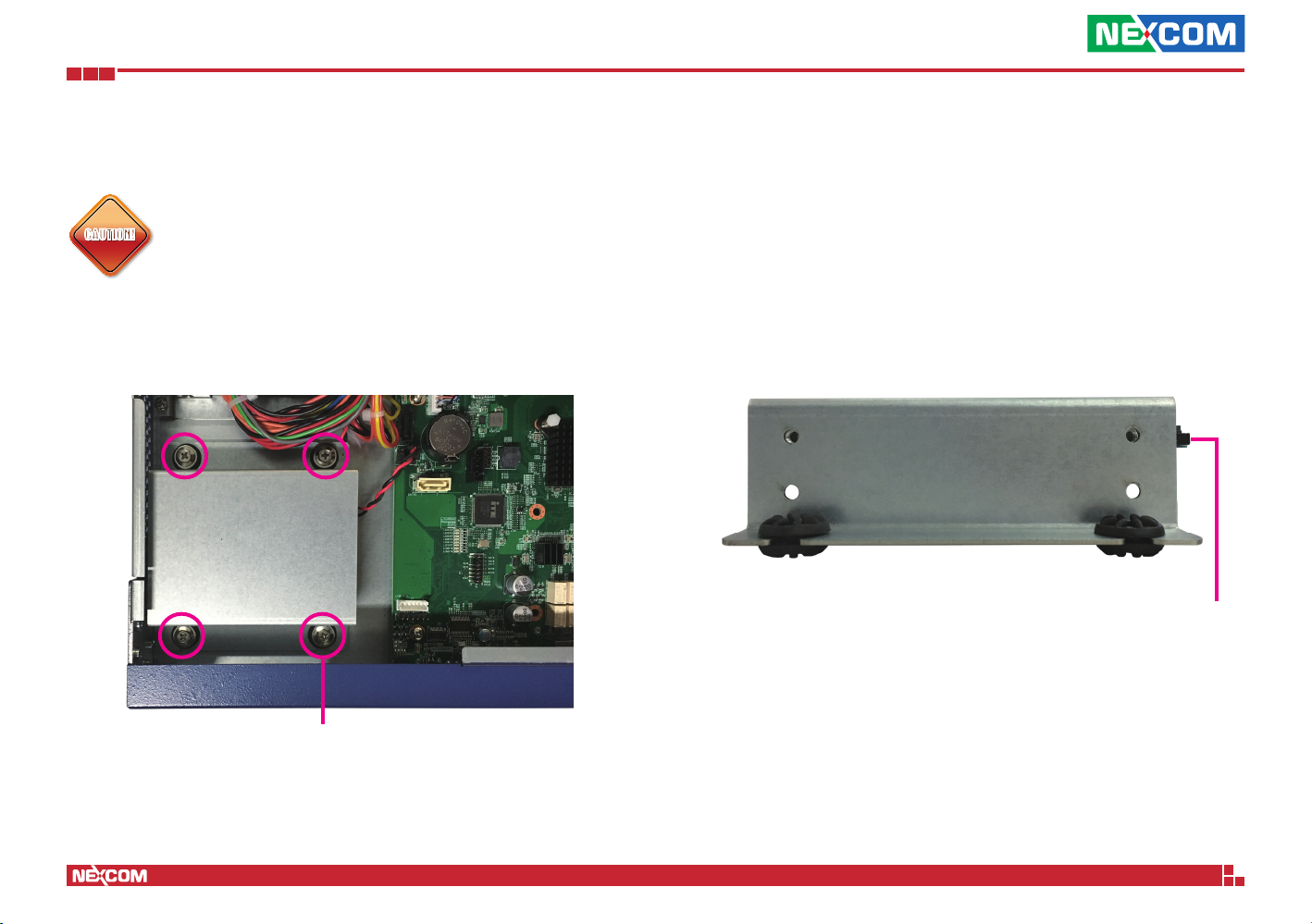

Installing a 2.5” SATA Hard Drive

CAUTION!CAUTION!

Please correctly follow the below instructions and noted items to avoid making unnecessary damages.

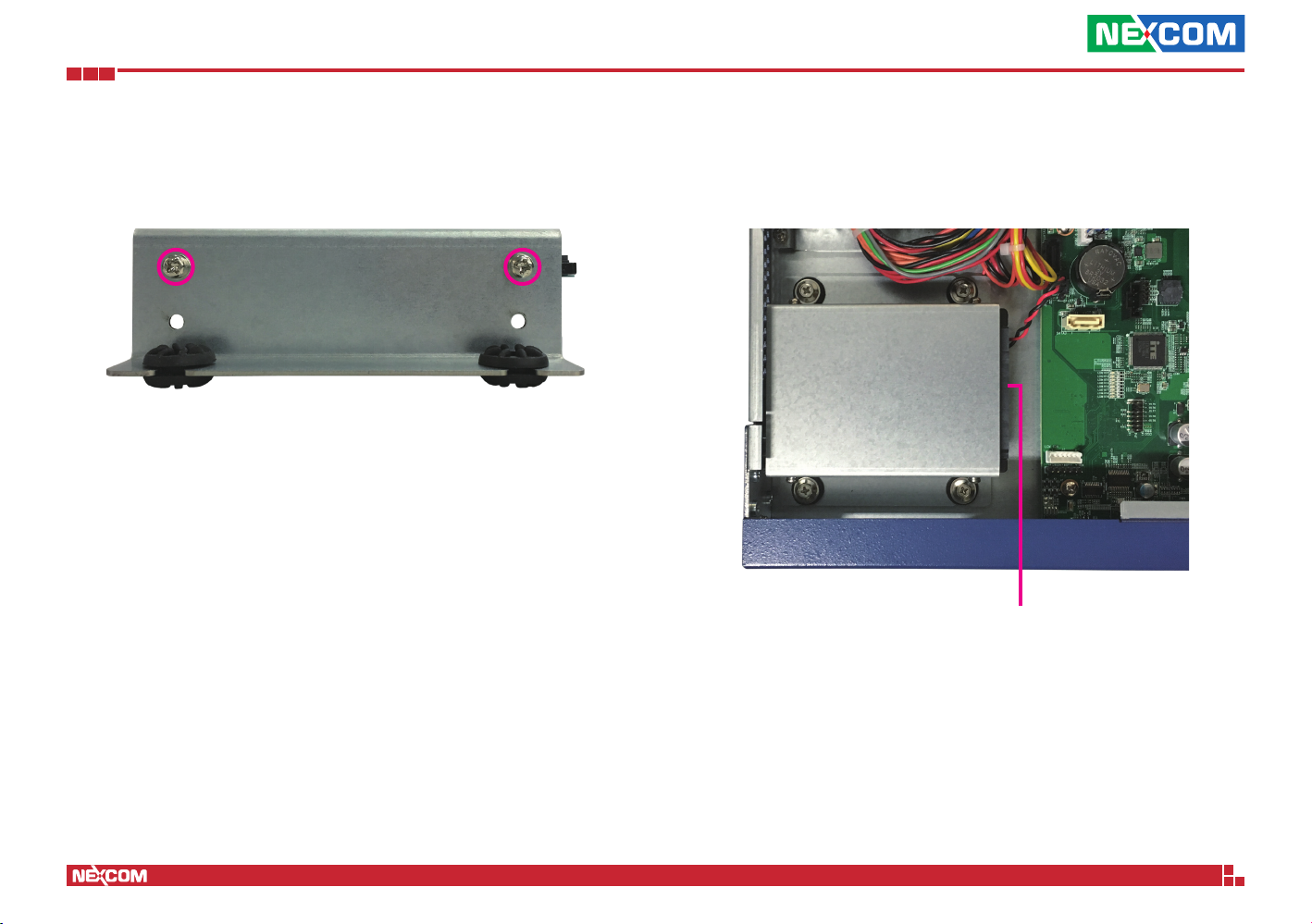

1. Remove the mounting screws that secure the hard drive bracket to the chassis.

Mounting screw

2. Place the SATA hard drive into the hard drive bracket with the SATA connector facing outwards.

SATA data and power connector

NSA 3170 Series User Manual

Page 43

Chapter 3: System Setup

3. Align the mounting holes that are on the sides of the SATA drive with the mounting holes on the hard drive bracket. Then use the provided mounting screws to secure the SATA drive in place.

4. Repeat step 3 for securing the screws on the other side of the hard drive bracket.

5. Place the drive into the chassis with the connector side facing the board, and then use the provided mounting screws to secure the hard drive bracket in place.

Connector side

NSA 3170 Series User Manual

Page 44

Chapter 3: System Setup

6. Locate the SATA data connector on the board.

7. Plug the SATA data cable onto the connector, then plug the other end to the SATA data connector on the hard drive.

SATA data connector

SATA data cable SATA data connector

NSA 3170 Series User Manual

Page 45

Chapter 3: System Setup

8. Plug the SATA power cable to the SATA power connector on the hard drive.

SATA power cable

NSA 3170 Series User Manual

Page 46

Chapter 3: System Setup

CAUTION!

Installing a LAN Module

The system is equipped with 1 LAN module bay. To install a LAN module, please follow the instructions below.

Please correctly follow the below instructions and noted items to avoid making unnecessary damages. Make sure the power

CAUTION!CAUTION!

supply is switched off and disconnected from the power sources before replacing or adding LAN modules to prevent electric shock or system damage.

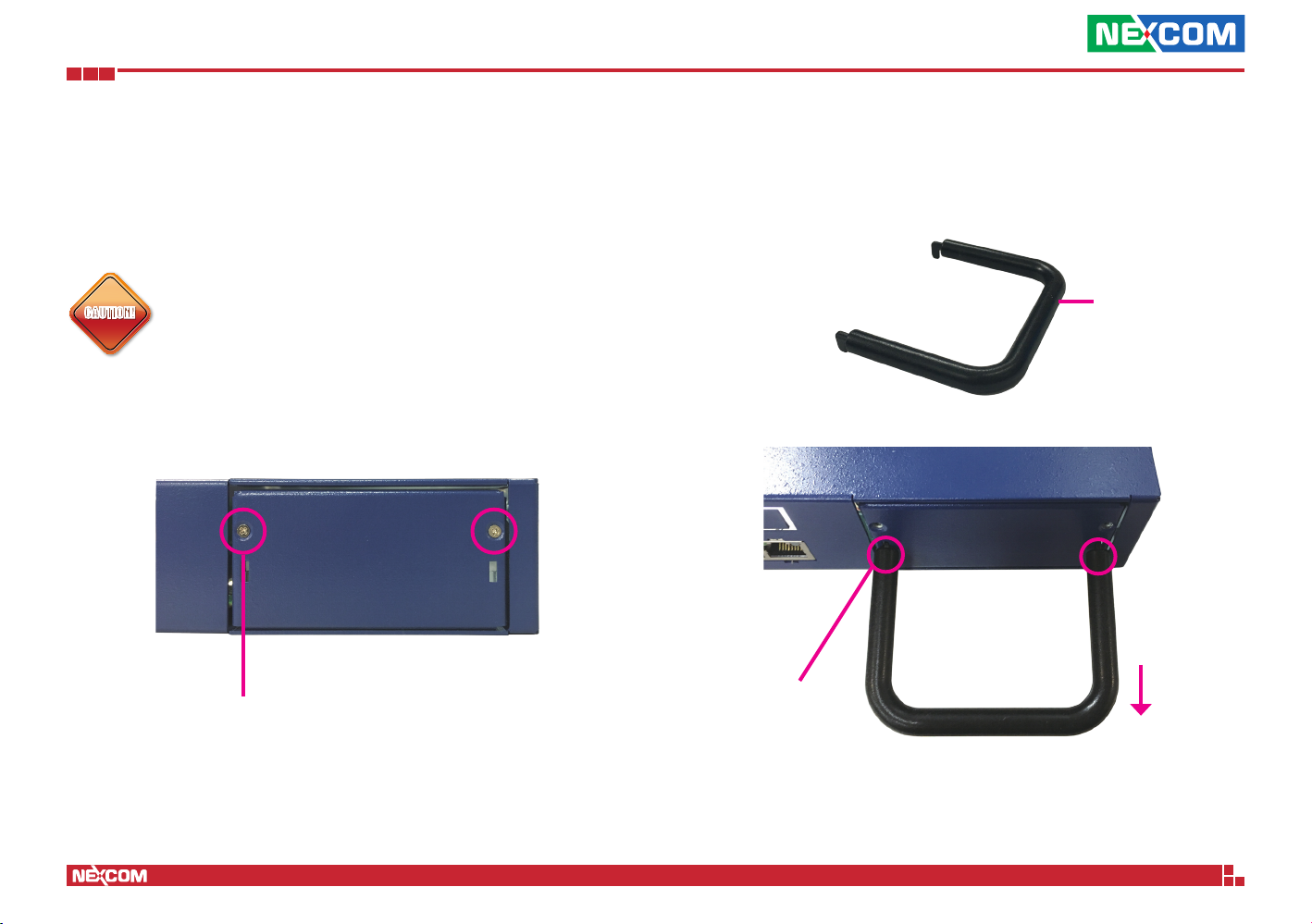

1. Remove the screw on the cover plate of the LAN module then put them in a safe place for later use.

Mounting screw

2. Use the handle provided, and insert the handle into the two holes on the LAN module cover.

Handle

Insert here

3. Once the handle is firmly secured in position, pull the handle outwards to remove the LAN module tray.

NSA 3170 Series User Manual

Page 47

Chapter 3: System Setup

4. Place the LAN module into the tray making sure the connector side of the module is at the rear side of the tray.

Connector

side

5. Secure the module in place with screws, and slide the tray back into the bay.

Important:

Before using Optical fiber for transferring data, make sure you have connected an approved Optical Transceiver Module. User needs to install appropriate and UL approved Laser Class I Transceivers, rated 3.3Vdc, max. 1W.

NSA 3170 Series User Manual

Page 48

Chapter 3: System Setup

CAUTION!

Installing a CPU

1. Remove the mounting screws that secure the heat sink to the chassis.

Mounting screw

▪ Before you proceed, make sure (1) the CPU socket

comes with a protective cap, (2) the cap is not damaged and (3) the socket’s contact pins are not bent.

▪ Make sure all power cables are unplugged before you

CAUTION!CAUTION!

install the CPU.

▪ The CPU socket must not come in contact with

anything other than the CPU. Avoid unnecessary exposure. Remove the protective cap only when you are about to install the CPU.

2. The CPU socket is readily accessible after you have removed the heat sink.

CPU socket

NSA 3170 Series User Manual

Page 49

Chapter 3: System Setup

3. Unlock the socket by pushing the load lever down (1), moving it sideways (2) until it is released from the retention tab; then lift the load lever up.

Load lever

Retention tab

4. Lifting the load lever will at the same time lift the load plate.

NSA 3170 Series User Manual

Page 50

Chapter 3: System Setup

CAUTION!

5. Remove the protective cap from the CPU socket. The cap is used to protect the CPU socket against dust and harmful particles. Remove the protective cap only when you are about to install the CPU.

Protective cap

6. Insert the CPU into the socket. The triangular edge on the CPU must align with the corner of the CPU socket shown on the photo.

Alignment key

The CPU’s notch will at

the same time fit into the socket’s alignment key.

Alignment key

CAUTION!CAUTION!

▪ Handle the CPU by its edges and avoid touching the pins. ▪ The CPU will fit in only one orientation and can easily be

inserted without exerting any force.

NSA 3170 Series User Manual

Page 51

Chapter 3: System Setup

CAUTION!

7. Close the load plate and then push the load lever down.

While closing the load plate, make sure the front edge of the load plate

slides under the retention knob.

Retention

knob

CAUTION!CAUTION!

Do not force the CPU into the socket. Forcing the CPU into the socket may bend the pins and damage the CPU.

8. Hook the load lever under the retention tab.

Retention

tab

Load lever

NSA 3170 Series User Manual

Page 52

Chapter 3: System Setup

9. Apply thermal compound on top of the CPU. Do not spread the compound all over the surface. When you later place the heat sink on top of the CPU, the compound will disperse evenly.

Thermal compound on the CPU

10. Tighten the screws to secure the heat sink in place.

NSA 3170 Series User Manual

Page 53

Chapter 4: BIOS Setup

ChaPter 4: BIos setuP

This chapter describes how to use the BIOS setup program for the NSA 3170 series. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM website at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals

▪ Video display type and display options

▪ Password protection from unauthorized use

▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

▪ This program should be executed under the following conditions:

▪ When changing the system configuration

▪ When a configuration error is detected by the system and you are

prompted to make changes to the setup program

▪ When resetting the system clock

▪ When redefining the communication ports to prevent any conflicts

▪ When making changes to the Power Management configuration

▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

NSA 3170 Series User Manual

Page 54

Chapter 4: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series of beeps

will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing allows you to enter Setup.

Legends

Key Function

Moves the highlight left or right to select a menu.

Moves the highlight up or down between sub-menu or fields.

Exits the BIOS Setup Utility.

Scrolls forward through the values or options of the highlighted field.

Scrolls backward through the values or options of the highlighted field.

Selects a field.

Displays General Help.

Load previous values.

Load optimized default values.

Saves and exits the Setup program.

Press <Enter> to enter the highlighted sub-menu

NSA 3170 Series User Manual

Page 55

Chapter 4: BIOS Setup

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press .

NSA 3170 Series User Manual

Page 56

Chapter 4: BIOS Setup

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from several setup functions and one exit. Use arrow keys to select among the items and press to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Save & ExitAdvanced Chipset Security BootMain

▲

BIOS Information

BIOS Vendor Core Version Compliancy Project Version Build Date and Time Access Level

Processor Information

Name Brand String

Frequency Processor ID Stepping Number of Processors Microcode Revision GT Info

IGFX VBIOS Version Memory RC Version

American Megatrends

5.11 UEFI 2.4; PI 1.3 G761- 0.05 x64 11/24/2016 15:38:41 Administrator

SkyLake DT Intel(R) Core(TM) i7-6700 CPU @ 3.40GHz 3400 MHz 506E3 R0/S0/N0 4Core(s) / 8Thread(s) 7C GT2

1036

1.9.0.0

Choose the system default language

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

▼

Save & ExitAdvanced Chipset Security BootMain

▲

Total Memory Memory Frequency

PCH Information

Name PCH SKU Stepping

ME FW Version ME Firmware SKU

System Language

System Date

System Time

16384 MB 2133 MHz

SKL PCH-H PCH-H Desktop H110 SKU 31/D1

11.0.0.1202 Corporate SKU

[English]

[Fri 01/01/2016] [21:54:03]

Set the Time. Use Tab to switch between Time elements.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

▼

System Language

Selects the language of the system.

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Monday to Sunday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

NSA 3170 Series User Manual

Page 57

Chapter 4: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.

Save & ExitAdvanced Chipset Security BootMain



Trusted Computing



IT8786 Super IO Conguration



Hardware Monitor



Serial Port Console Redirection



CPU Conguration



SATA Conguration



Network Stack Conguration



CSM Conguration



USB Conguration

USB Conguration Parameters

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Trusted Computing

This section is used to configure Trusted Platform Module (TPM) settings.

Advanced

Conguration

Security Device Support

NO Security Device Found

[Enable]

Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Security Device Support

Enables or disables BIOS support for security device. O.S will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

NSA 3170 Series User Manual

Page 58

Chapter 4: BIOS Setup

IT8786 Super IO Configuration

This section is used to configure the serial ports.

Advanced

IT8786 Super IO Conguration

Super IO Chip



Serial Port 3 Conguration



Serial Port 4 Conguration

IT8786

Super IO Chip

Displays the Super I/O chip used on the board.

Serial Port 3 Configuration

Configuration settings for serial port 3.

Set Parameters of Serial Port 3 (COMC)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Serial Port 3 Configuration

This section is used to configure serial port 3.

Advanced

Serial Port 3 Conguration

Serial Port

Device Settings

Change Settings

[Enabled]

IO=3E8h; IRQ=7;

[Auto]

Serial Port

Enables or disables the serial port.

Change Settings

Selects an optimal setting for the Super IO device.

Enable or Disable Serial Port (COM)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Serial Port 4 Configuration

Configuration settings for serial port 4.

NSA 3170 Series User Manual

Page 59

Chapter 4: BIOS Setup

Serial Port 4 Configuration

This section is used to configure serial port 4.

Advanced

Serial Port 4 Conguration

Serial Port

Device Settings

Change Settings

[Enabled]

IO=3F8h; IRQ=4;

[Auto]

Serial Port

Enables or disables the serial port.

Change Settings

Selects an optimal setting for the Super IO device.

Enable or Disable Serial Port (COM)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Hardware Monitor

This section is used to monitor hardware status such as temperature, fan speed and voltages.

Advanced

Pc Health Status

CPU Temperature System Temperature CPU FAN Speed SYS Fan2 Speed SYS Fan3 Speed CPU:Vcore

3.3V 12V 5V

1.2V

: +35 C : +40 C : N/A : N/A : 1412 RPM : +1.128 V : +3.366 V : +12.240 V : +5.040 V : +1.212 V

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CPU and System Temperature

Detects and displays the current CPU and system temperature.

CPU FAN Speed

Detects and displays the current CPU fan speed.

SYS Fan2 and Fan3 Speed

Detects and displays the current system fan2 and fan3 speed.

CPU:Vcore to 1.2V

Detects and displays the output voltages.

NSA 3170 Series User Manual

Page 60

Chapter 4: BIOS Setup

Serial Port Console Redirection

This section is used to configure the serial port that will be used for console redirection.

Advanced

Console Redirection Enable

COM0

Console Redirection

Console Redirection Settings

►

COM1

Console Redirection

►

Console Redirection Settings

Legacy Console Redirection

Legacy Console Redirection Settings

►

Serial Port for Out-of-Band Management / Windows Emergency Management Services (EMS)

Console Redirection Console Redirection Settings

►

[Disabled]

[Enabled]

or Disable

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Console Redirection (COM0/COM1/EMS)

Enables or disables console redirection for COM0/COM1/EMS.

NSA 3170 Series User Manual

Page 61

Chapter 4: BIOS Setup

Console Redirection Settings (COM1)

Specifies how the host computer and the remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings.

Advanced

COM1

Console Redirection Settings

Terminal Type

Bits per second Data Bits Parity Stop Bits Flow Control VT-UTF8 Combo Key Sup Recorder Mode Resolution 100x31 Legacy OS Redirection Putty KeyPad Redirection After BIO

[VT100+]

[115200] [8] [None] [1] [None] [Enabled] [Disabled] [Disabled] [80x24] [VT100] [Always Enable]

Emulation: ANSI: Extended ASCII char set. VT100: ASCII char set. VT100+: Extends VT100 to support color, function keys, etc. VT-UTF8: Uses UTF8 encoding to map Unicode chars onto 1 or more

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Terminal Type

ANSI Extended ASCII character set. VT100 ASCII character set. VT100+ Extends VT100 to support color, function keys, etc. VT-UTF8 Uses UTF8 encoding to map Unicode characters onto 1 or more bytes.

Bits Per Second

Selects the serial port transmission speed. The speed must match the other side. Long or noisy lines may require a lower speed.

Data Bits

The options are 7 and 8.

Parity

A parity bit can be sent with the data bits to detect some transmission errors.

Even Parity bit is 0 if the number of 1’s in the data bits is even. Odd Parity bit is 0 if number of 1’s in the data bits is odd.

Stop Bits

Stop bits indicate the end of a serial data packet. (A start bit indicates the beginning). The standard setting is 1 stop bit. Communication with slow devices may require more than 1 stop bit.

Flow Control

Flow control can prevent data loss from buffer overflow. When sending data and the receiving buffers are full, a “stop” signal can be sent to stop the data flow.

VT-UTF8 Combo Key Support

Enables or disables VT-UTF8 combo key support.

Recorder Mode

When this field is enabled, only text will be sent. This is to capture the terminal data.

Resolution 100x31

Enables or disables extended terminal resolution.

Legacy OS Redirection

Selects the number of rows and columns that support redirection.

Putty Keypad

Selects the Putty keyboard emulation type.

Redirection After BIOS POST

Enables or disables redirection after BIOS POST.

NSA 3170 Series User Manual

Page 62

Chapter 4: BIOS Setup

Serial Port for Out-of-Band Management

Advanced

Out-of-Band Mgmt Port

Terminal Type Bits per second Flow Control

Data Bits Parity Stop Bits

[COM1]

[VT-UTF8] [115200] [None]

8 None 1

Microsoft Windows Emergency Management Services (EMS) allows for remote management of a Windows Server OS through a serial port.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Out-of-Band Mgmt Port

Configures the out-of-band management port. Microsoft Windows Emergency Management Services (EMS) allows for remote management of a Windows Server OS via a serial port.

Terminal Type

ANSI Extended ASCII character set. VT100 ASCII character set. VT100+ Extends VT100 to support color, function keys, etc. VT-UTF8 Uses UTF8 encoding to map Unicode characters onto 1 or more bytes.

Bits Per Second

Selects the serial port transmission speed. The speed must match the other side. Long or noisy lines may require a lower speed.

Flow Control

Flow control can prevent data loss from buffer overflow. When sending data and the receiving buffers are full, a “stop” signal can be sent to stop the data flow.

Legacy Console Redirection Settings

Advanced

Legacy Serial Redirection Port

[COM1]

Select a COM port to display redirection of Legacy OS and Legacy OPROM Messages

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Legacy Serial Redirection Port

Configures the COM port to display redirection of legacy OS and legacy OPROM messages.

NSA 3170 Series User Manual

Page 63

Chapter 4: BIOS Setup

CPU Configuration

This section is used to configure the CPU.

Advanced

▲

CPU Conguration

Intel(R) Core(TM) i7-6700 CPU @ 3.40GHz

CPU Signature Microcode Patch Max CPU Speed Min CPU Speed CPU Speed Processor Cores Hyper Threading Technology Intel VT-x Technology Intel SMX Technology 64-bit EIST Technology CPU C3 state CPU C6 state CPU C7 state CPU C8 state CPU C9 state CPU C10 state

506E3 7C 3400 MHz 800 MHz 3400 MHz 4 Supported Supported Supported Supported Supported Supported Supported Supported Supported Not Supported Not Supported

Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). When Disabled only one thread per enabled core is enabled.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

▼

Hyper-Threading

Enable this field for Windows XP and Linux which are optimized for HyperThreading technology. Select disabled for other OSes not optimized for Hyper-Threading technology. When disabled, only one thread per enabled core is enabled.

Advanced

CPU C6 state CPU C7 state CPU C8 state CPU C9 state CPU C10 state

L1 Data Cache L1 Code Cache L2 Cache L3 Cache L4 Cache

Hyper-threading Intel Virtualization Technology Hardware Prefetcher Intel(R) SpeedStep(tm)

CPU C states

Supported Supported Supported Not Supported Not Supported

32 kB x 4 32 kB x 4 256 kB x 4 8 MB Not Present

[Enabled] [Enabled] [Enabled] [Disabled]

[Disabled]

Hardware Prefetcher

Turns on or off the MLC streamer prefetcher.

Intel® SpeedStep

Enables or disables Intel SpeedStep.

▲

Enable or disable CPU C states

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

▼

Intel® Virtualization Technology

When this field is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

CPU C States

Enables or disables CPU C-States support for power saving. It is recommended to keep C3, C6 and C7 all enabled for better power saving.

NSA 3170 Series User Manual

Page 64

Chapter 4: BIOS Setup

SATA Configuration

This section is used to configure the SATA drives.

Advanced

SATA Controller(s)

SATA Mode Selection

Serial ATA Port 1 Software Preserve

Port 0 Hot Plug External SATA Spin Up Device SATA Device Type Topology Device Sleep

SATA DEVSLEP Idle Timeout Cong

Serial ATA Port 2 Software Preserve

Port 2 Hot Plug External SATA Spin Up Device SATA Device Type Topology Device Sleep

[Enabled]

[AHCI]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Disabled] [Hard Disk Drive] [Unknown] [Disabled] [Disabled]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Disabled] [Hard Disk Drive] [Unknown] [Disabled]

SATA Controller(s)

Enables or disables the SATA controller.

SATA Mode Selection

Configures the SATA mode.

Advanced

▲ ▲

Enable or disable SATA Device.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

▼ ▼

Hot Plug External SATA Spin Up Device SATA Device Type Topology Device Sleep

SATA DEVSLEP Idle Timeout Cong

Serial ATA Port 3 Software Preserve

Port 3

Hot Plug External SATA Spin Up Device SATA Device Type Topology Device Sleep

SATA DEVSLEP Idle Timeout Cong

[Disabled] [Disabled] [Disabled] [Hard Disk Drive] [Unknown] [Disabled] [Disabled]

Empty Unknown

[Enabled]

[Disabled] [Disabled] [Disabled] [Hard Disk Drive] [Unknown] [Disabled] [Disabled]

Port 0, Port 2 and Port 3

Enables or disables SATA port 0, port 2 and port 3.

Hot Plug

Enables or disables hot plugging feature on SATA port 0, port 2 and port 3.

Enable or disable SATA Device.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

AHCI This option configures the Serial ATA drives to use AHCI (Advanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance.

External SATA

Enables or disables the external SATA option on SATA port 0, port 2 and port 3.

NSA 3170 Series User Manual

Page 65

Chapter 4: BIOS Setup

Spin Up Device

Enables or disables staggered spin up on devices connected to SATA port 0, port 2 and port 3.

SATA Device Type

Identifies what type of SATA device is connected.

Topology

Identifies what type of SATA connection is used.

Device Sleep

Enables or disables SATA device sleep support.

SATA DEVSLEP Idle Timeout Config

Enables or disables SATA DEVSLEP Idle Timeout Config.

Network Stack Configuration

This section is used to configure the network stack.

Advanced

Network Stack

[Disabled]

Network Stack

Enables or disables UEFI network stack.

Enable/Disable UEFI network stack

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

NSA 3170 Series User Manual

Page 66

Chapter 4: BIOS Setup

CSM Configuration

This section is used to configure the compatibility support module features.

Advanced

Compatibility Support Module Conguration

CSM Support

CSM16 Module Version

Boot option lter

Option ROM execution

Network Storage Video Other PCI devices

[Enabled]

07.79

[Legacy only]

[Do not launch] [UEFI] [Legacy] [UEFI]

Enable/Disable CSM Support.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CSM Support

This field is used to enable or disable CSM support, if Auto option is selected, based on OS, CSM will be enabled or disabled automatically.

Storage

Controls the execution of UEFI and Legacy Storage OpROM.

Video

Controls the execution of UEFI and Legacy Video OpROM.

Other PCI Devices

Configures the OpROM execution policy for devices other than Network, Storage or Video.

Boot Option Filter

Configures which devices the system will boot from.

Network

Controls the execution of UEFI and Legacy PXE OpROM.

NSA 3170 Series User Manual

Page 67

Chapter 4: BIOS Setup

USB Configuration

This section is used to configure the USB.

Advanced

USB Conguration

USB Module Version

USB Controllers:

1 XHCI

USB Devices:

1 Keyboard, 1 Hub

Legacy USB Support

XHCI Hand-off USB Mass Storage Driver Support Port 60/64 Emulation

USB hardware delays and time-outs:

USB transfer time-out Device reset time-out Device power-up delay

[Enabled]

[Enabled] [Enabled] [Disabled]

[20 sec] [20 sec] [Auto]

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Legacy USB Support

Enable Enables Legacy USB. Auto Disables support for Legacy when no USB devices are connected. Disable Keeps USB devices available only for EFI applications.

USB Mass Storage Driver Support

Enables or disables USB mass storage device driver support.

Port 60/64 Emulation

Enables I/O port 60h/64h emulation support. This should be enabled for complete USB keyboard legacy support for non-USB aware OS.

USB Transfer Time-out

The time-out value for control, bulk, and Interrupt transfers.

Device Reset Time-out

Selects the USB mass storage device’s start unit command timeout.

Device Power-up Delay

Maximum time the value will take before it properly reports itself to the Host Controller. “Auto” uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor.

XHCI Hand-off

This is a workaround for OSs that does not support XHCI hand-off. The XHCI ownership change should be claimed by the XHCI driver.

NSA 3170 Series User Manual

Page 68

Chapter 4: BIOS Setup

Chipset

This section gives you functions to configure the system based on the specific features of the chipset. The chipset manages bus speeds and access to system memory resources.

Save & ExitAdvanced Chipset Security BootMain

System Agent (SA) Conguration

►

PCH-IO Conguration

►

System Agent (SA) Configuration

Enters the System Agent (SA) parameters sub-menu.

PCH-IO Configuration

Enters the PCH parameters sub-menu.

System Agent (SA) Parameters

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System Agent (SA) Configuration

Advanced Chipset Boot SecurityMain

System Agent Bridge Name SA PCIe Code Version

VT-d

Graphics Conguration

►

PEG Port Conguration

►

Memory Conguration

►

Skylake

1.9.0.0

[Enabled]

VT-d

Enables or disables VT-d function on MCH.

Graphics Configuration

Configures the graphics chip settings.

PEG Port Configuration

Configures the PEG Port settings.

Memory Configuration

Configures the memory settings.

Save & Exit

VT-d capability

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

NSA 3170 Series User Manual

Page 69

Chapter 4: BIOS Setup

Graphics Configuration

Chipset

Graphics Configuration

IGFX VBIOS Version

Graphics Turbo IMON Current

Internal Graphics GTT Size Aperture Size DVMT Total Gfx Mem

1036

[Auto] [8MB] [256MB] [256M]

Graphics turbo IMON current values supported (14-31)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Graphics Turbo IMON Current

Configures the graphics turbo IMON value. The supported range is 14 to 31.

Internal Graphics

Keep IGD enabled based on the setup options.

GTT Size

Configures the GTT memory size.

PEG Port Configuration

Chipset

PEG Port Conguration

PEG 0:1:0

Enable Root Port

Max Link Speed

PEG 0:1:1

Enable Root Port

Max Link Speed

PEG 0:1:2

Enable Root Port

Max Link Speed

Not Present

[Enabled]

[Auto]

Not Present

[Enabled]

[Auto]

Not Present

[Enabled]

[Auto]

Enable or Disable the Root Port

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable Root Port (PEG 0:1:0, 0:1:1 and 0:1:2)

Enables or disables the root port.

Max Link Speed

(PEG 0:1:0, 0:1:1 and 0:1:2)

Configures the maximum link speed of the PEG device.

Aperture Size

Configures the Aperture size.

DVMT Total Gfx Mem

Configures the DVMT 5.0 Total Graphic Memory size used by the IGD.

NSA 3170 Series User Manual

Page 70

Chapter 4: BIOS Setup

Memory Configuration

Chipset

Memory Information

Memory RC Version Memory Frequency Total Memory VDD DIMM#0 DIMM#1 Memory Timings (tCL-tRCD-tRP-tRAS)

Maximum Memory Frequency

1.9.0.0 2133 Mhz 16384 MB 1200 16384 MB Not Present 15-35

[Auto]

Maximum Memory Frequency

Configures the maximum frequency of the memory.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCH-IO Configuration

Chipset

Intel PCH RC Version Intel PCH SKU Name Intel PCH Rev ID

NETWORK CONFIGURATION

►

State After G3

Power Supply Type

1.9.0.0 PCH-H Desktop H110 SKU 31/D1

[Last State]

ATX

Network Configuration

Enters the network configuration sub-menu.

State After G3

Configures the PCH state after G3.

NETWORK CONFIGURATION

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

NSA 3170 Series User Manual

Page 71

Chapter 4: BIOS Setup

Network Configuration

Chipset

Slot1 Model Name:

Power_ON ByPass Mode

Power_OFF ByPass Mode

Device is Not Found

[Disabled]

NETWORK CONFIGURATION

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Power_ON ByPass Mode

Enables or disables the LAN module bypass mode after the system powers on.

Power_OFF ByPass Mode

Enables or disables the LAN module bypass mode after the system powers off.

Security

Password Description

If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User Will have Administrator rights. The password length must be in the following range:

Minimum length 3 Maximum length 20

Administrator Password

User Password

Administrator Password

Select this to reconfigure the administrator’s password.

User Password

Select this to reconfigure the user’s password.

Security

BootMain

Save & ExitAdvanced Chipset

Set Administrator Password

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

NSA 3170 Series User Manual

Page 72

Chapter 4: BIOS Setup

Boot

Advanced Chipset

Boot Conguration

Setup Prompt Timeout

Bootup NumLock State

Driver Option Priorities

Boot mode select

FIXED BOOT ORDER Priorities

Boot Option #1 Boot Option #2 Boot Option #3 Boot Option #4 Boot Option #5 Boot Option #6 Boot Option #7 Boot Option #8

Security

[On]

[LEGACY]

[Hard Disk] [CD/DVD] [USB Hard Disk] [USB CD/DVD] [USB Key] [USB Floppy] [USB Lan] [Network]

Setup Prompt Timeout

Configures the number of seconds to wait for setup activation key. 65535 (0xFFFF) means indefinite waiting.

BootMain

Save & Exit

Number of seconds to wait for setup activation key.

65535(0xFFFF) means indenite

waiting.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Boot Mode Select

Configures the boot mode option.

Fixed Boot Order Priorities

Adjust the boot sequence of the system. Boot Option #1 is the first boot device that the system will boot from, next will be #2 and so forth.

Bootup NumLock State

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

NSA 3170 Series User Manual

Page 73

Chapter 4: BIOS Setup

Save & Exit

Save & ExitAdvanced Chipset Security BootMain

Save Options

Save Changes and Reset

Discard Changes and Reset

Default Options

Restore Defaults

Boot Override

Launch EFI Shell from lesystem device

Save Changes and Reset

To save the changes and reset, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Reset the system after saving the changes.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Discard Changes and Reset

To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting.

Restore Defaults

To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Launch EFI Shell from Filesystem Device

To launch EFI shell from a filesystem device, select this field and press <Enter>.

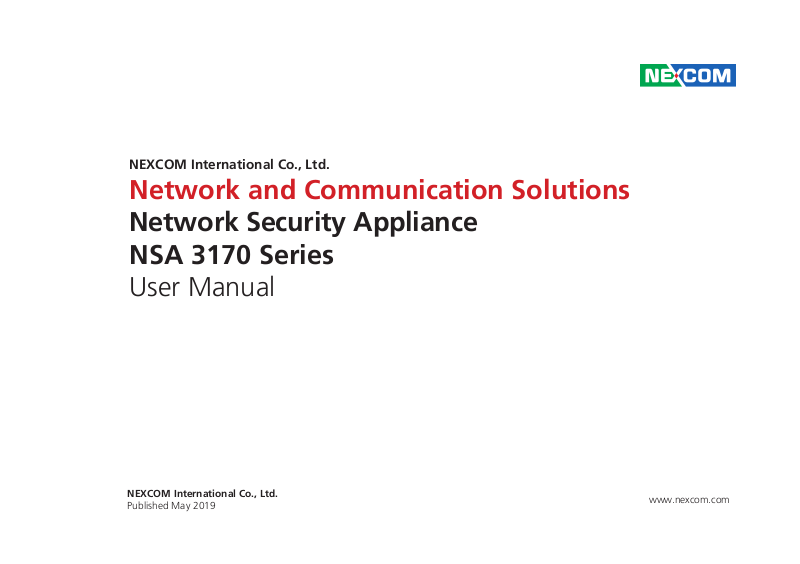

NSA 3170 Series User Manual
