Nexcom NISE 4200 User Manual

NEXCOM International Co., Ltd.

IoT Automation Solutions Business Group

Fan-less Computer NISE 4200

User Manual

NEXCOM International Co., Ltd.

Published October 2019

www.nexcom.com

Content

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer .............................................................................................. iv

Acknowledgements ............................................................................... iv

Regulatory Compliance Statements ........................................................ iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................viii

Installation Recommendations ...............................................................viii

Safety Precautions .................................................................................. ix

Technical Support and Assistance ............................................................ x

Conventions Used in this Manual ............................................................ x

Global Service Contact Information ........................................................ xi

Package Contents ................................................................................. xiii

Ordering Information ............................................................................xiv

Chapter 1: Product Introduction

Overview ................................................................................................1

Key Features ........................................................................................1

Hardware Specifications ..........................................................................2

Knowing Your NISE 4200 ....................................................................... 4

Front Panel ..........................................................................................4

Rear Panel ...........................................................................................5

Mechanical Dimensions ...........................................................................6

Chapter 2: Jumpers and Connectors

Before You Begin ....................................................................................7

Precautions ............................................................................................7

Jumper Settings ......................................................................................8

Locations of the Jumpers and Connectors for NISB 4200 ......................... 9

NISB 4200 ...............................................................................................9

Jumpers ................................................................................................ 10

Clear CMOS ......................................................................................10

Mini Card PCIe/SATA Select ...............................................................10

Connector Pin Definitions .....................................................................11

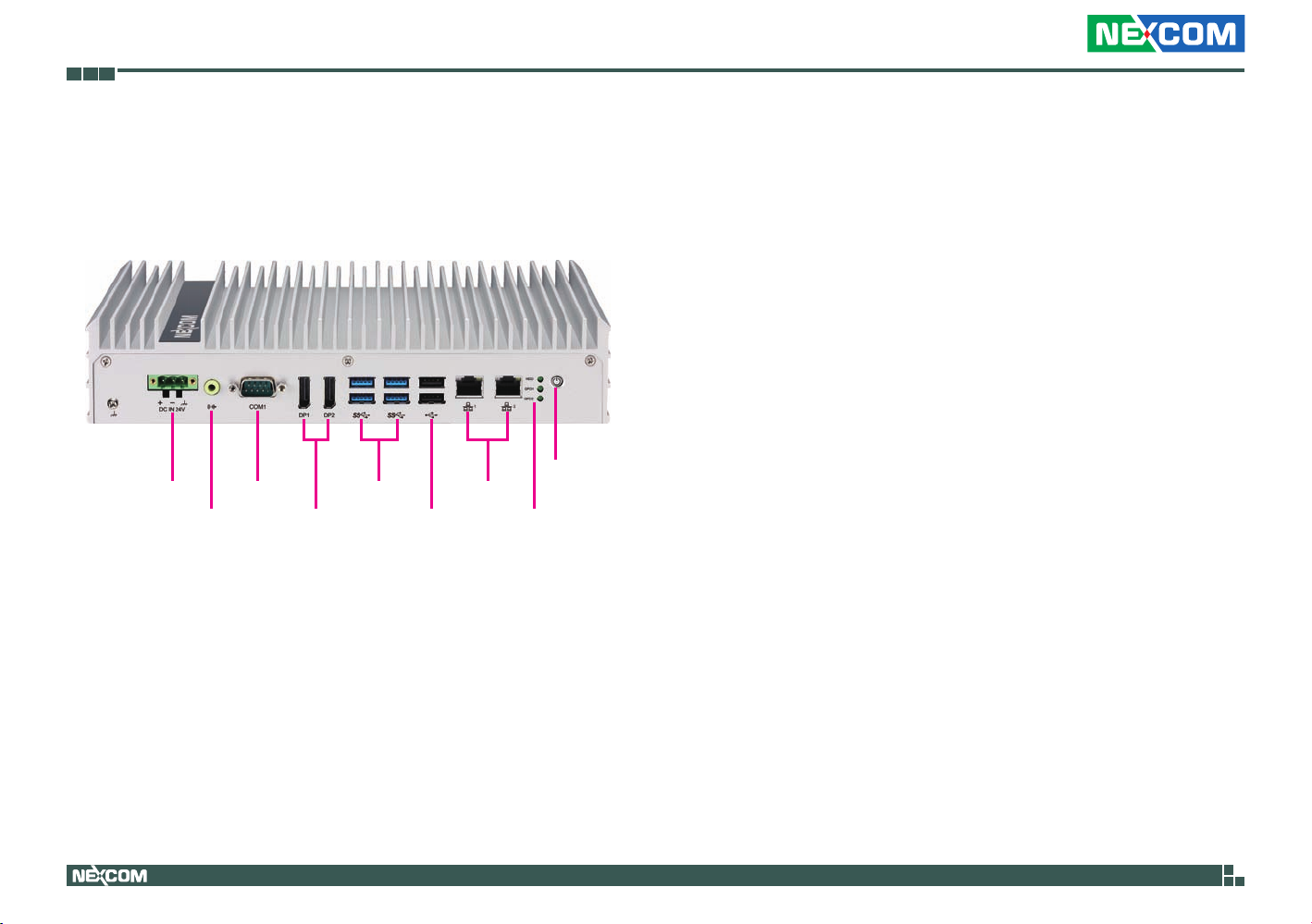

External I/O Interfaces - Front Panel ...................................................11

DC Power Input .............................................................................11

Line-out Connector ........................................................................ 11

DisplayPort ..................................................................................... 12

USB 3.0 Ports (USB1/2 and USB3/4) ................................................ 12

USB 2.0 Ports (USB5/6) ................................................................... 13

LAN1 and LAN2 Ports .....................................................................13

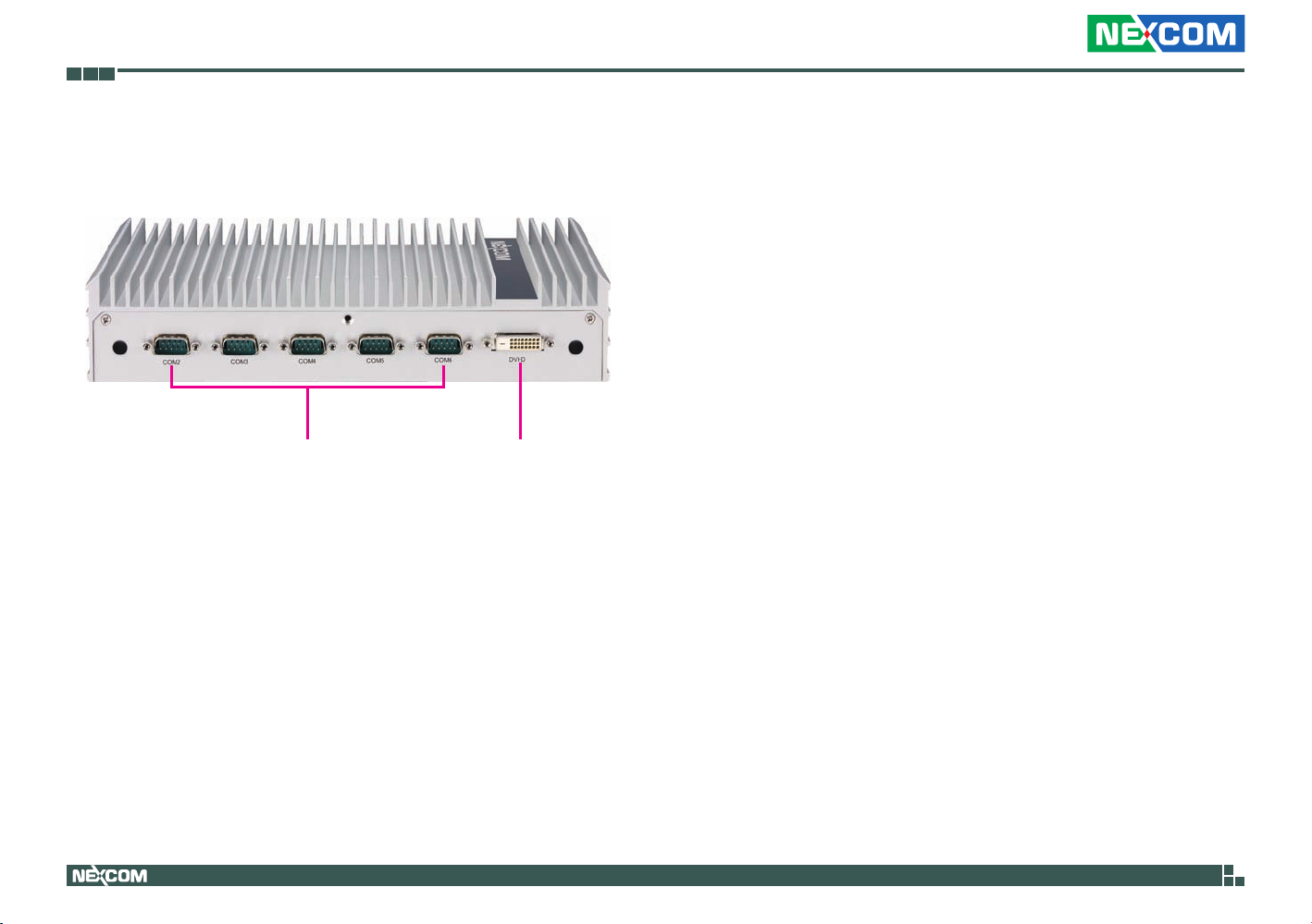

External I/O Interfaces - Rear Panel.....................................................14

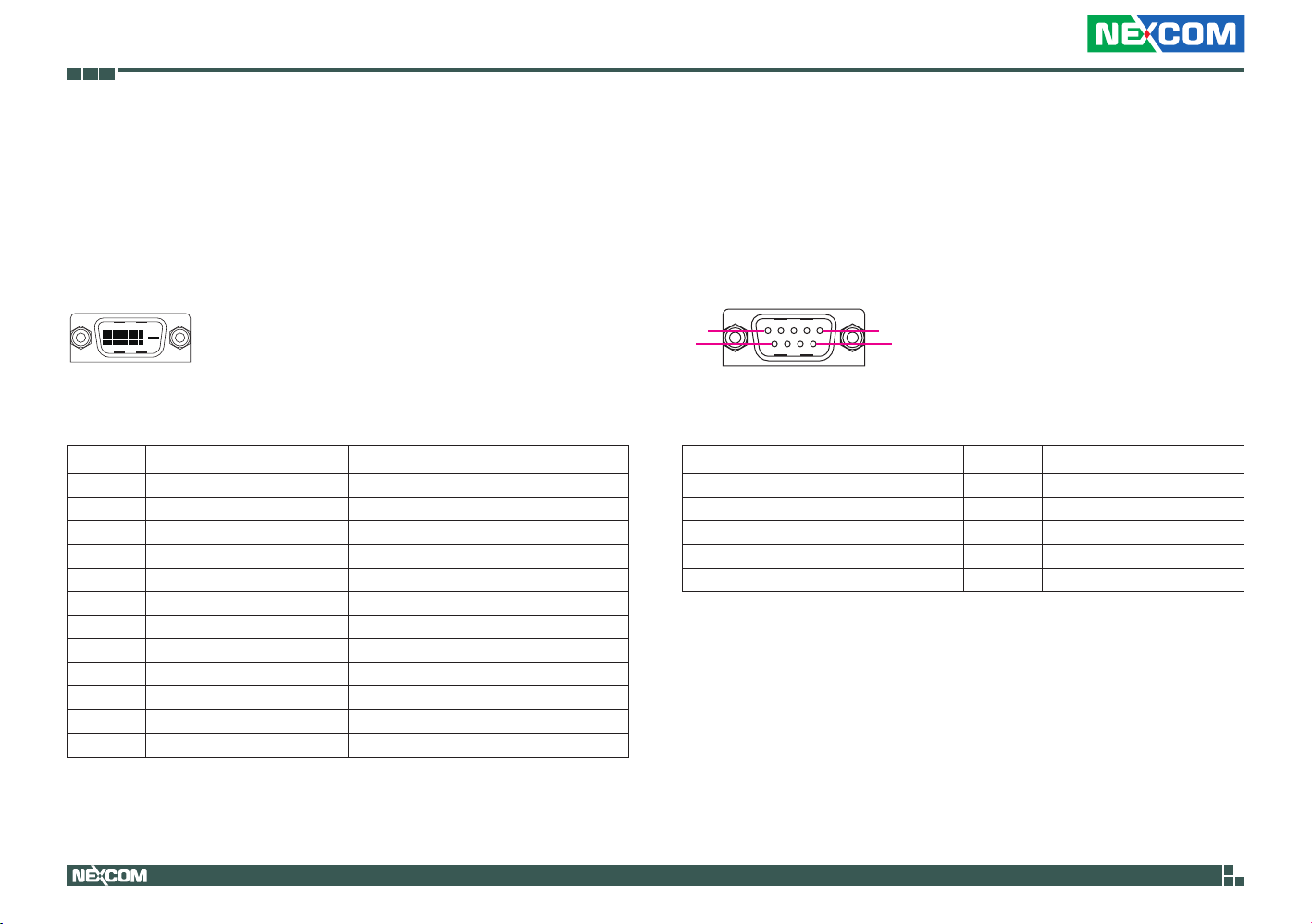

DVI-D Connector ............................................................................14

COM1 to COM6 Ports (RS232) ....................................................... 14

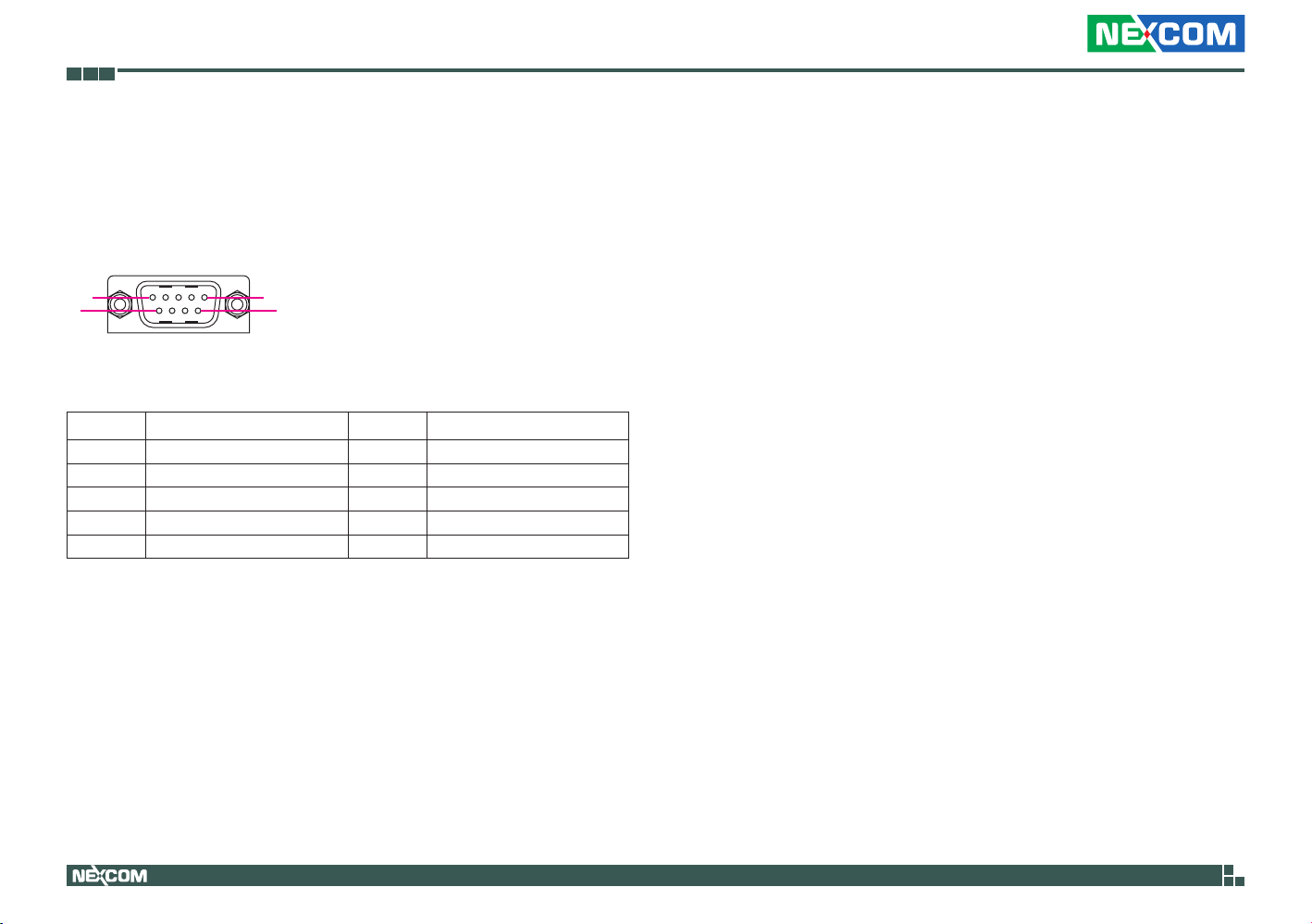

COM1 to COM2 Ports (Full RS485/RS422) ...................................... 15

Internal Connectors ........................................................................... 16

TOUCH1 Header ............................................................................16

SATA Connector .............................................................................16

Mic-in Connector ........................................................................... 17

ii

NISE 4200 User Manual

Content

SATA Power Connector ..................................................................17

Power Out Connector ....................................................................18

Port 80 Connector .........................................................................18

SPI Header .....................................................................................19

GPIO Header .................................................................................. 19

PWRON1 Connector ......................................................................20

EDP1 Data Connector ....................................................................20

Mini-PCIe Slots ............................................................................... 21

M.2 Key Connector ........................................................................ 22

Chapter 3: System Setup

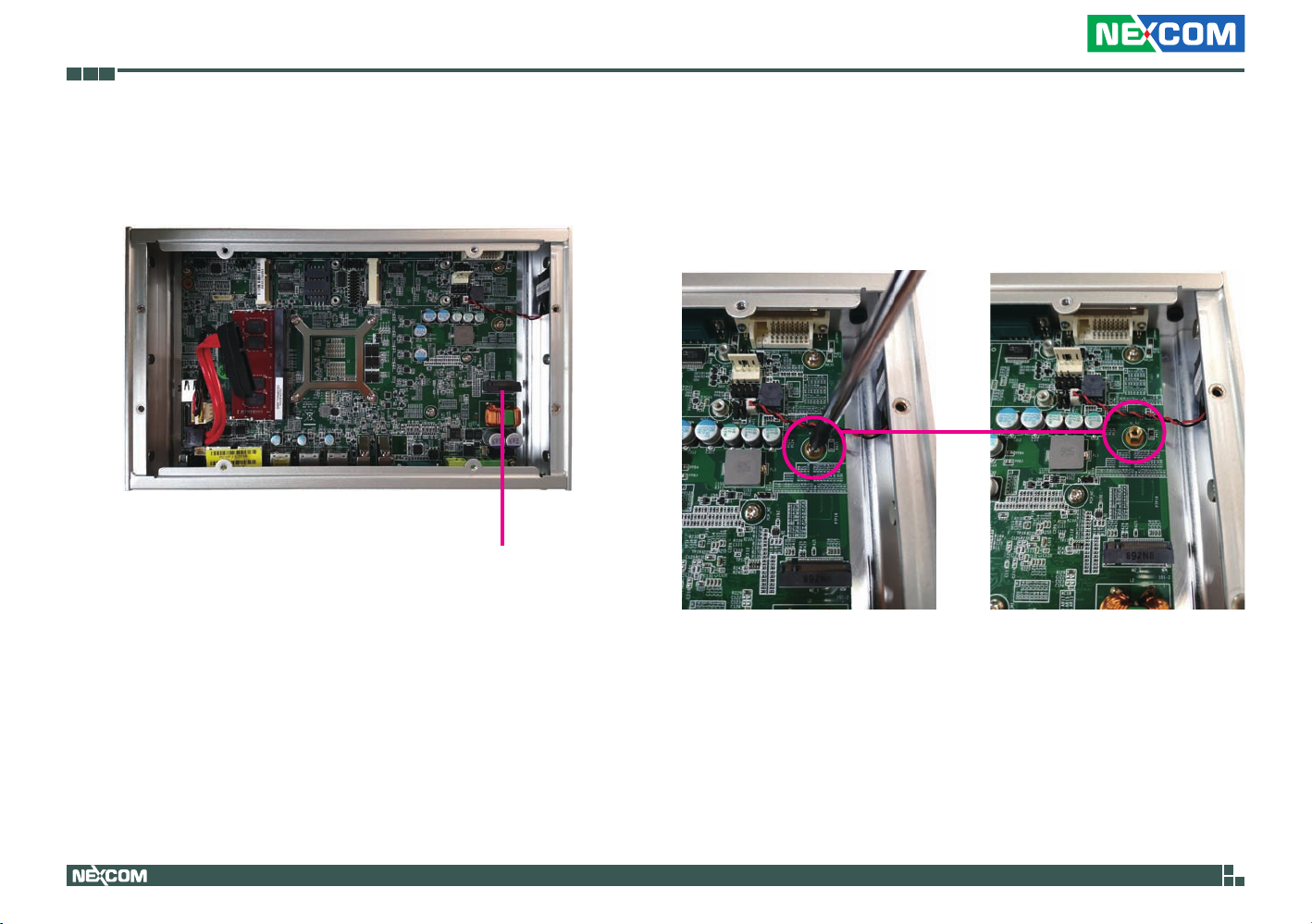

Removing the Chassis Bottom Cover ..................................................... 23

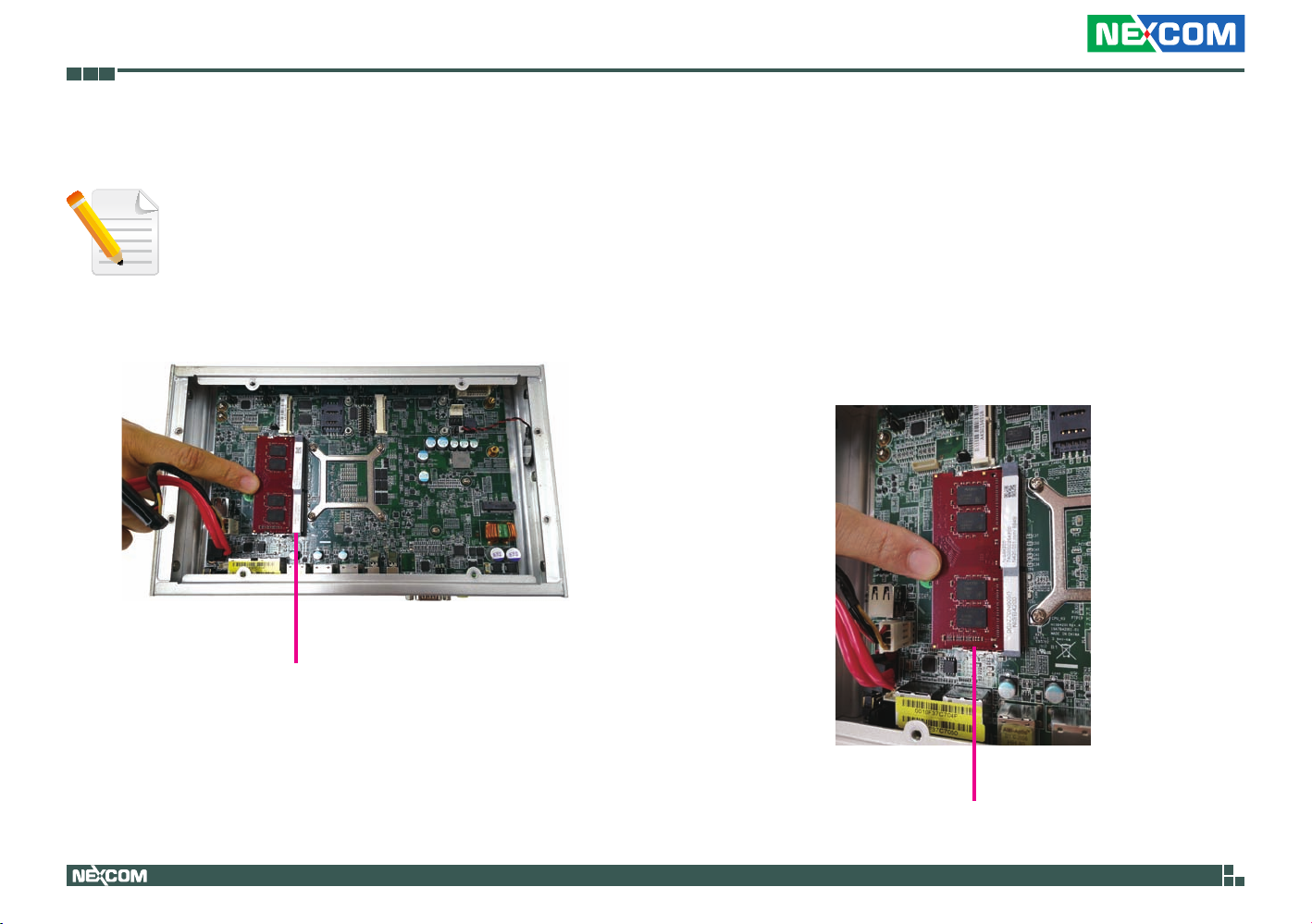

Installing a SO-DIMM Memory Module .................................................24

Installing an M.2 Storage Module (M Key 2240 & 2280) ......................25

Installing a Mini-PCIe Storage/Wi-Fi/LTE Module (Full-Size) .....................28

Installing a Mini-PCIe Module (Half-size) ................................................ 30

Installing a SIM Card .............................................................................32

Installing a Storage Drive ....................................................................... 34

Wall Mounting Instructions ...................................................................38

Chapter 4: BIOS Setup

About BIOS Setup ................................................................................. 39

When to Configure the BIOS .................................................................39

Default Configuration ........................................................................... 40

Entering Setup ...................................................................................... 40

Legends ................................................................................................ 40

BIOS Setup Utility .................................................................................. 42

Main .................................................................................................42

Advanced ......................................................................................... 43

Chipset ..............................................................................................50

Security .............................................................................................54

Boot .................................................................................................. 54

Save & Exit ........................................................................................55

iii

NISE 4200 User Manual

Preface

PrefaCe

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

NISE 4200 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

iv

NISE 4200 User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green

products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2011/65/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2013 will be RoHS compliant. They will use the usual NEXCOM naming convention.

v

NISE 4200 User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

▪ Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

▪ Customers must collect all the information about the problems

encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

▪ Customers can send back the faulty products with or without accessories

(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

▪ Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

▪ Any products returned by NEXCOM to other locations besides the

customers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

▪ Component fee: NEXCOM will only charge for main components such as

SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

▪ Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

▪ Replace with 3rd party products if needed.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

Board Level

▪ Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

vi

NISE 4200 User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

vii

NISE 4200 User Manual

Preface

CAUTION!

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully.

▪ Do not place the unit on an unstable surface, cart, or stand.

▪ Follow all warnings and cautions in this manual.

▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Danger of explosion if battery is incorrectly replaced.

CAUTION!CAUTION!

Replace with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

▪ A Philips screwdriver

▪ A flat-tipped screwdriver

▪ A grounding strap

▪ An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

viii

NISE 4200 User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the

equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or

letting it fall may cause damage.

7. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting

the equipment to the power outlet.

9. Place the power cord in a way so that people will not step on it. Do not

place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical shock.

13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified skilled person.

14. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work

according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.

15. Do not place heavy objects on the equipment.

16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

17. This equipment is not suitable for use in locations where children are likely to be present.

18. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

ix

NISE 4200 User Manual

Preface

CAUTION!

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

x

NISE 4200 User Manual

Preface

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

9F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

Asia

Taiwan NexAIoT Co., Ltd.

Taipei Office

13F, No.920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: [email protected] www.nexcom.com.tw

NexAIoT Co., Ltd. Taichung Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: [email protected] www.nexcom.com.tw

NexCOBOT Taiwan Co., Ltd.

13F, No.916, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: [email protected] www.nexcom.com.tw

GreenBase Technology Corp.

13F, No.922,Chung-Cheng Rd., Zhonghe Dist., New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7900 Email:[email protected] www.nexcom.com.tw

China NEXSEC Incorporated

Floor 5, No.4, No.7 fengxian middle Rd., (Beike Industrial Park), Haidian District, Beijing, 100094, China Tel: +86-10-5704-2680 Fax: +86-10-5704-2681 Email: [email protected] www.nexcom.cn

xi

NISE 4200 User Manual

Preface

NEXCOM Shanghai

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No. 609, Yunlin East Rd., Shanghai, 200062, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: [email protected] www.nexcom.cn

NEXCOM Surveillance Technology Corp.

Floor 5, Building C, ZhenHan Industrial Zone, GanKeng Community, Buji Street, LongGang District, ShenZhen, 518112, China Tel: +86-755-8364-7768 Fax: +86-755-8364-7738 Email: [email protected] www.nexcom.cn

NEXCOM United System Service

Room 603/604, Huiyinmingzun Plaza Bldg. 1, No. 609, Yunlin East Rd., Shanghai, 200062, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: [email protected] www.nexcom.cn

NEXGOL

1st Floor, Building B4, Electronic 2nd Area, (Phoenix Lake Industrial Park), Yongchuan Dist., Chongqing City, 402160, China Tel: +86-23-4960-9080 Fax: +86-23-4966-5855 Email: [email protected] www.nexgol.com/NexGoL

Beijing NexGemo Technology Co.,Ltd.

5th Floor, Gemotech Building, No.1, Development Rd., Changping International Information Industry Base, Changping District, Beijing,102206, China Tel: +86-10-8190-9399 Fax:+86-10-8190-9456

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: [email protected] www.nexcom-jp.com

Europe

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: [email protected] www.nexcom.eu

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: [email protected] www.nexcom.com

xii

NISE 4200 User Manual

Preface

Package Contents

Before continuing, verify that the NISE 4200 package that you received is complete. Your package should have all the items listed in the following table.

Item Part Number Description Qty

1 60177A0711X00 NISE 4200 Series Quick Reference Guide VER:A 1 2 602DCD1609X00 NISE 4200 DVD Driver VER:1.0 1 3 50311F0326X00 Screws for HDD (Flat Head Screw Long Fei:F3x5) 4 4 50311F0329X00 Screws for Mini-PCIe Card (Round Head Screw Long Fei:P2.5x3) 4 5 50311F0330X00 Screws for Half Mini-PCIe Card (Round Head Screw Long Fei:P2x3) 4 6 50311F0593X00 Screws for Mini-PCIe Bracket (F Head Screw Long Fei F2.5x4) 4 7 50344C0034X00 Copper Standoff for M.2 (Copper Post Long Fei:6.5x5xM3) 1 8 5044440090X00 Thermal Pad for CPU 1 9 5060900226X00 Mini-PCIe Bracket 2

10 4NCPF00316X00 Terminal Blocks 3P Phoenix Contact 1

xiii

NISE 4200 User Manual

Preface

Ordering Information

The following information below provides ordering information for NISE 4200.

NISE 4200Q-6442EQ System (P/N: 10J00420002X0)

6th generation Intel

®

Core™ i5 fanless system with iAMT supported

NISE 4200H-6102E System (P/N: 10J00420005X0)

6th generation Intel

®

Core™ i3 fanless system w/o iAMT supported

• 24V, 120W AC to DC power adapter w/o power cord (P/N: TBD)

xiv

NISE 4200 User Manual

Chapter 1: Product Introduction

ChaPter 1: ProduCt IntroduCtIon

Overview

Front View

Rear View

Key Features

▪ Support 6th generation Intel® Core™ i5/i3 BGA type embedded

processor

®

QM170/HM170 PCH

▪ Intel

▪ Support 1 x 2.5” SATA HDD or SSD

▪ 1 x DVI-D, 2 x DP with independent display support

®

▪ 2 x Intel

(For NISE 4200Q-6442EQ SKU)

▪ 1 x M.2 socket and 1 x SIM card socket

▪ 4 x USB 3.0, 2 x USB 2.0, 2 x RS232/422/485 with auto flow control,

4 x RS232

▪ 2 x Internal mini-PCIe sockets support optional Wi-Fi/3.5G/LTE/mSATA

▪ Support 24V +/- 20% DC input; ATX power mode

GbE LAN ports; support WoL, iAMT

1

NISE 4200 User Manual

Chapter 1: Product Introduction

Hardware Specifications

CPU Support

▪ Support 6th generation Intel® Core™ i5/i3 BGA type embedded processor

▪ Turbo-boost disabled by default

®

– Intel

Core™ i5-6442EQ, Quad Core, 1.9GHz, 6M Cache

®

– Intel

Core™ i3-6102E, Dual Core, 1.9GHz, 4M Cache

▪ 24V +/- 20% DC input ▪ LAN1: Intel

®

I210-IT GbE LAN ports; support WoL and PXE

▪ LAN2: 1 x Intel® I219-LM GbE LAN, support Intel® AMT 11

(NISE 4200Q-6442EQ)

Main Memory

▪ 2 x DDR4 SO-DIMM sockets, support up to 32GB with un-buffered and

non-ECC

Display Option

▪ Three independent display

– DP + DP + DVI-D

▪ Dual independent display

– DP + DVI-D

Front I/O Interface Status LEDs

▪ 2 x LAN active LEDs ▪ 2 x GPO status/COM1/2 TX/RX LEDs ▪ 1 x HDD access LEDs

Front I/O Interface

▪ 1 x ATX power on/off switch ▪ 2 x DP 1.2 ▪ 1 x Line-out ▪ 1 x DB9 for COM1

COM1: RS232/422/485 (BIOS selectable)

▪ 4 x USB 3.0 ports (900mA per each) ▪ 2 x USB 2.0 ports (500mA per each)

Rear I/O Interface

▪ 5 x DB9 for COM2 & COM3~6

– COM2: RS232/422/485 auto flow control – COM3: RS232 – COM4: RS232 – COM5: RS232 – COM6: RS232

▪ 1 x DVI-D port

Internal I/O

▪ 1 x USB 2.0 type A connector ▪ 1 x USB 2.0 box header ▪ 16CH GPIO: internal pin header, support 8x GPO and 8x GPI, TTL 5V level ▪ Onboard TPM2.0 (SLB9665) for data encryption purposes

Storage Device

▪ 1 x mSATA (SATA 3.0) ▪ 1 x 2.5” HDD (SATA 3.0)

Expansion Slot

▪ 2 x Internal mini-PCIe sockets support optional Wi-Fi/3.5G/mSATA ▪ 1 x 2280 or 2240 B+M Key M.2 slot

2

NISE 4200 User Manual

Chapter 1: Product Introduction

Power Requirements

▪ AT/ATX power mode (default: ATX power mode) ▪ Power input: 24V +/- 20% DC input ▪ Power adapter: optional AC to DC power adapter (24V DC, 120W)

Dimensions

▪ 269 mm (W) x 157mm (D) x 56mm (H) without wall mount bracket

Construction

▪ Aluminum chassis with fanless design

Environment

▪ Operating temperature: Ambient with air flow: -20°C to 70°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

▪ Storage temperature: -20°C to 80°C

▪ Relative humidity: 10% to 93% (non-condensing)

▪ Shock protection:

– HDD: 20G, half sine, 11ms, IEC60068-2-27 – M.2: 50G, half sine, 11ms, IEC60068-2-27

▪ Vibration protection with HDD condition:

– Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 – Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6

▪ Vibration protection with SSD & M.2 condition:

– Random: 2Grms @ 5~500 Hz, IEC60068-2-64 – Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6

OS Support List

▪ Windows 7 32-bit and 64-bit ▪ Windows 10 64-bit

Weight Information

▪ Gross weight: 2.8kg ▪ Net weight: 2.1kg

Certifications

▪ CE approval-EN55032/EN55024

▪ FCC Class A

3

NISE 4200 User Manual

Chapter 1: Product Introduction

Knowing Your NISE 4200

Front Panel

USB 3.0

Line-out DisplayPort1

&

DisplayPort2

LAN1 & LAN2DC Input COM1

USB 2.0

Power Switch

LED

Indicators

DC Input

Used to plug a DC power cord.

Line-out

Used to connect a headphone or a speaker.

COM1

DB9 port used to connect RS232/422/485 compatible devices.

DisplayPort1 and DisplayPort2

Used to connect DisplayPort interface displays.

USB 3.0

USB 3.0 ports to connect the system with USB 3.0/2.0 devices.

USB 2.0

USB 2.0 ports to connect the system with USB 2.0/1.1 devices.

LAN1 and LAN2

Used to connect the system to a local area network.

LED Indicators

Indicates the storage activity and GPO activity of the system.

Power Switch

Press to power-on or power-off the system.

4

NISE 4200 User Manual

Chapter 1: Product Introduction

Rear Panel

COM2 to COM6

Five DB9 ports used to connect serial devices.

– COM2: RS232/422/485 auto flow control – COM3: RS232 – COM4: RS232 – COM5: RS232 – COM6: RS232

DVI-D

Used to connect a DVI-D interface monitor.

DVI-DCOM2 to COM6

5

NISE 4200 User Manual

Chapter 1: Product Introduction

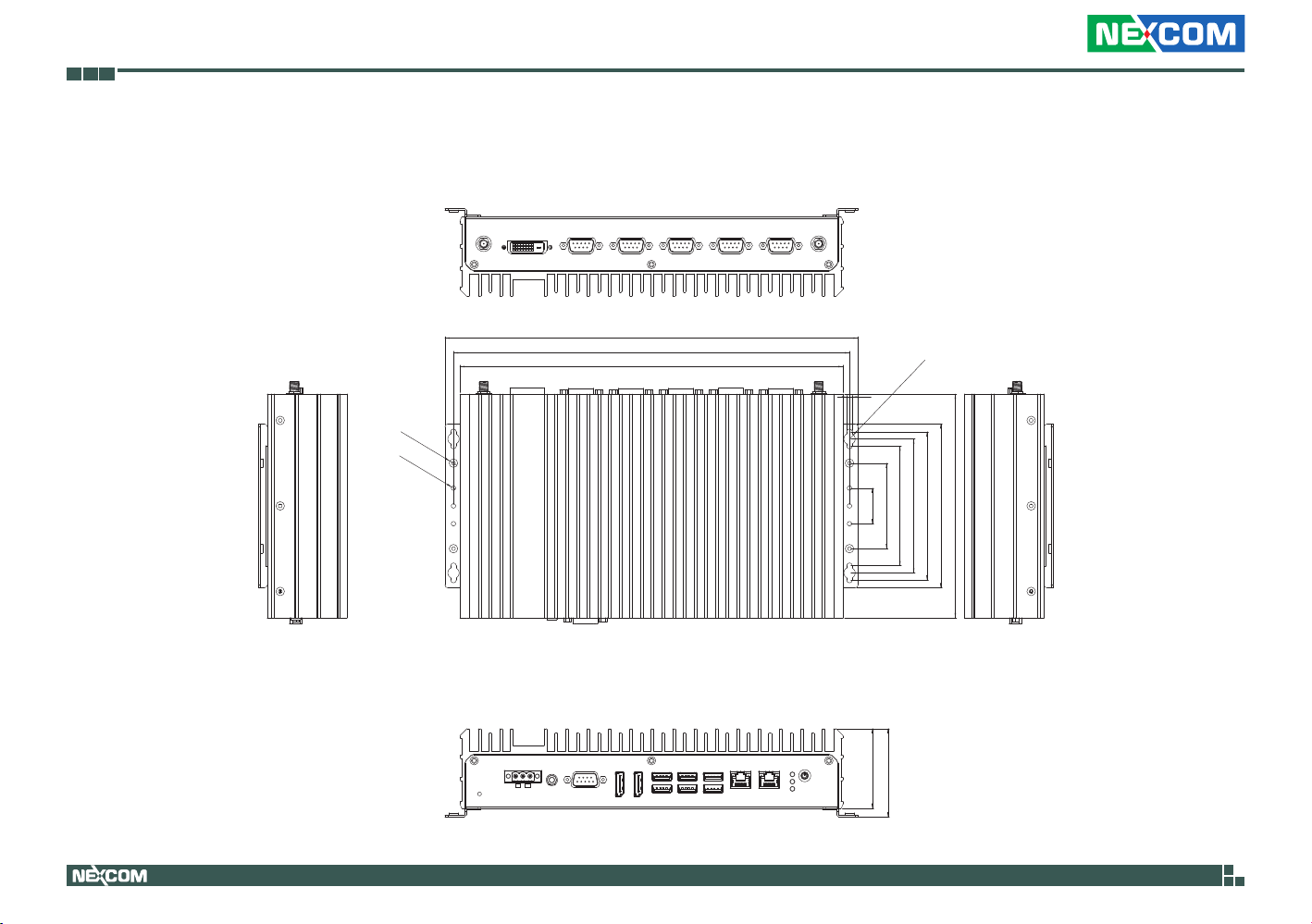

Mechanical Dimensions

#6-32

Ă3.20

289.81

277.81

268.80

4.00

25.00

R4.00

60.00

84.00

94.00

104.00

115.00

157.00

55.90

61.90

6

NISE 4200 User Manual

Chapter 2: Jumpers and Connectors

ChaPter 2: JumPers and ConneCtors

This chapter describes how to set the jumpers and connectors on the NISE 4200 motherboard.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: – A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

▪ Before working on internal components, make sure that the power is off.

Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environments tend to have less static electricity than

dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside the

computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they shipped

with until they are ready for installation.

▪ Use correct screws and do not over tighten screws.

7

NISE 4200 User Manual

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 are Short

3

2

1

3

2

8

NISE 4200 User Manual

Chapter 2: Jumpers and Connectors

Locations of the Jumpers and Connectors for NISB 4200

NISB 4200

The following figures are the top and bottom view of the NISB 4200 main board which is the main board used in NISE 4200. It shows the locations of the jumpers and connectors.

COM2 COM3 COM4 COM5 COM6

JCOMPWR2

JLPC1

1

JCOMPWR3

JSATA1

1

MINI_CARD1 MINI_CARD2

JCOMPWR4

JCOMPWR5

1

JDIO1

RST1

EDP1

TOUCH1

DIMMA1

DIMMB1

A

138

CPU1

DONGLE1

JBKL1

SATAPW1

1

PWRBTN1

SATA1

1

LED1

PWRON1

1

(USB 3.0)

LAN2 LAN1 USB5/6 USB3/4

1

(USB 3.0)

USB1/2

1

DP2DP1 COM1

1

JSATA2

1

JCOMPWR1

1

PCH1

1

BD

A

1

JSMB1

JCMOS1

1

MICIN1

1

LINEOUT1

DVI-D1

JCOMPWR6

PWROUT1

SPI2

BAT1

CN1

1

45 1

1

DCIN1

1

M2_1

9

NISE 4200 User Manual

Chapter 2: Jumpers and Connectors

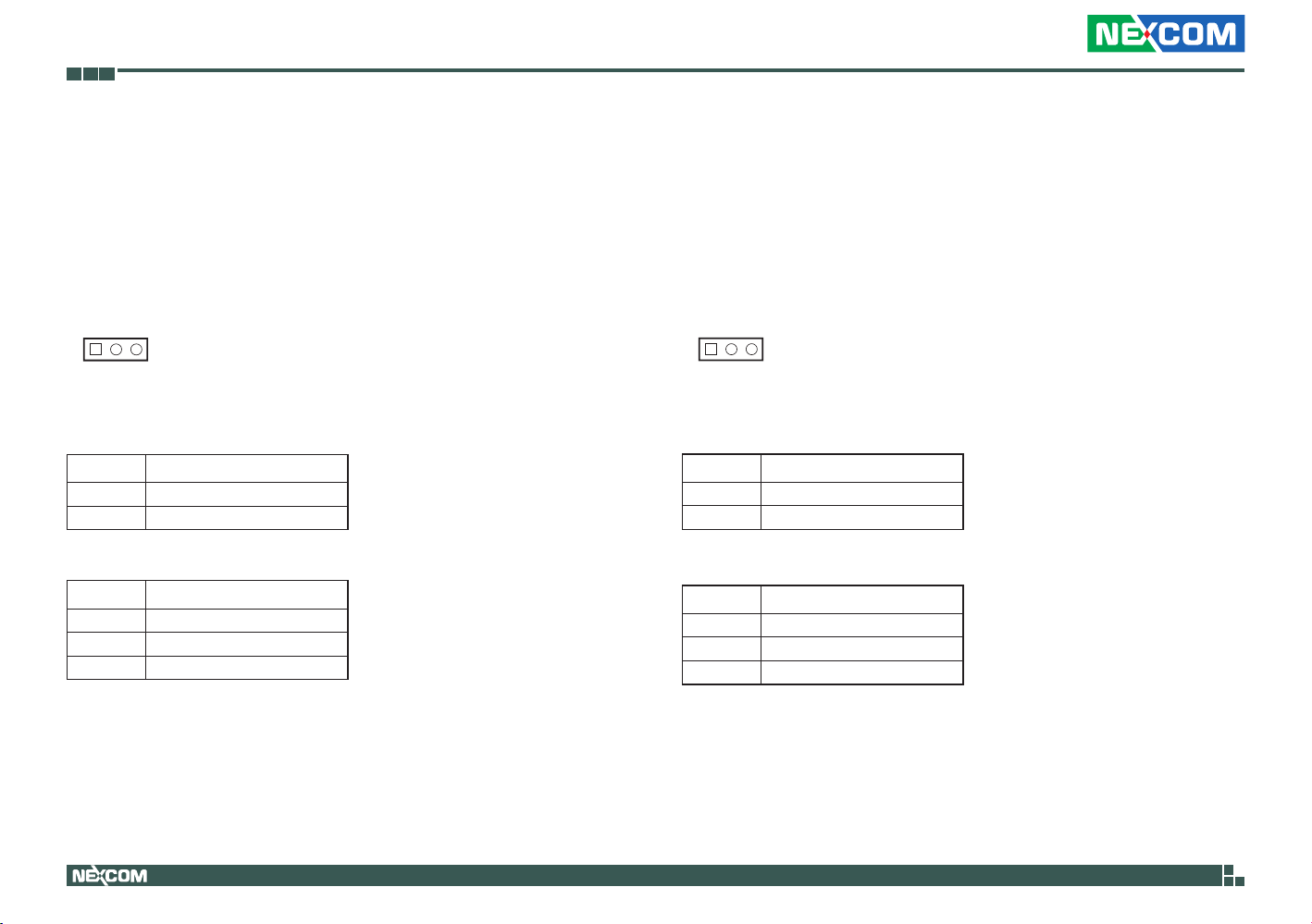

Jumpers

Clear CMOS

Connector type: 1x3 3-pin header Connector location: JCMOS1

1 3

Pin Function

1-2* Normal

2-3 Clear CMOS

1-2 On: default

Pin Definition

1 NC 2 RTCRST 3 GND

Mini Card PCIe/SATA Select

Connector type: 1x3 3-pin header Connector location: JSATA1 and JSATA2

1 3

Pin Function

1-2* Auto

2-3 mS ATA

1-2 On: default

Pin Definition

1 MS ATA 2 PCIE_SATA 3 GND

10

NISE 4200 User Manual

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External I/O Interfaces - Front Panel

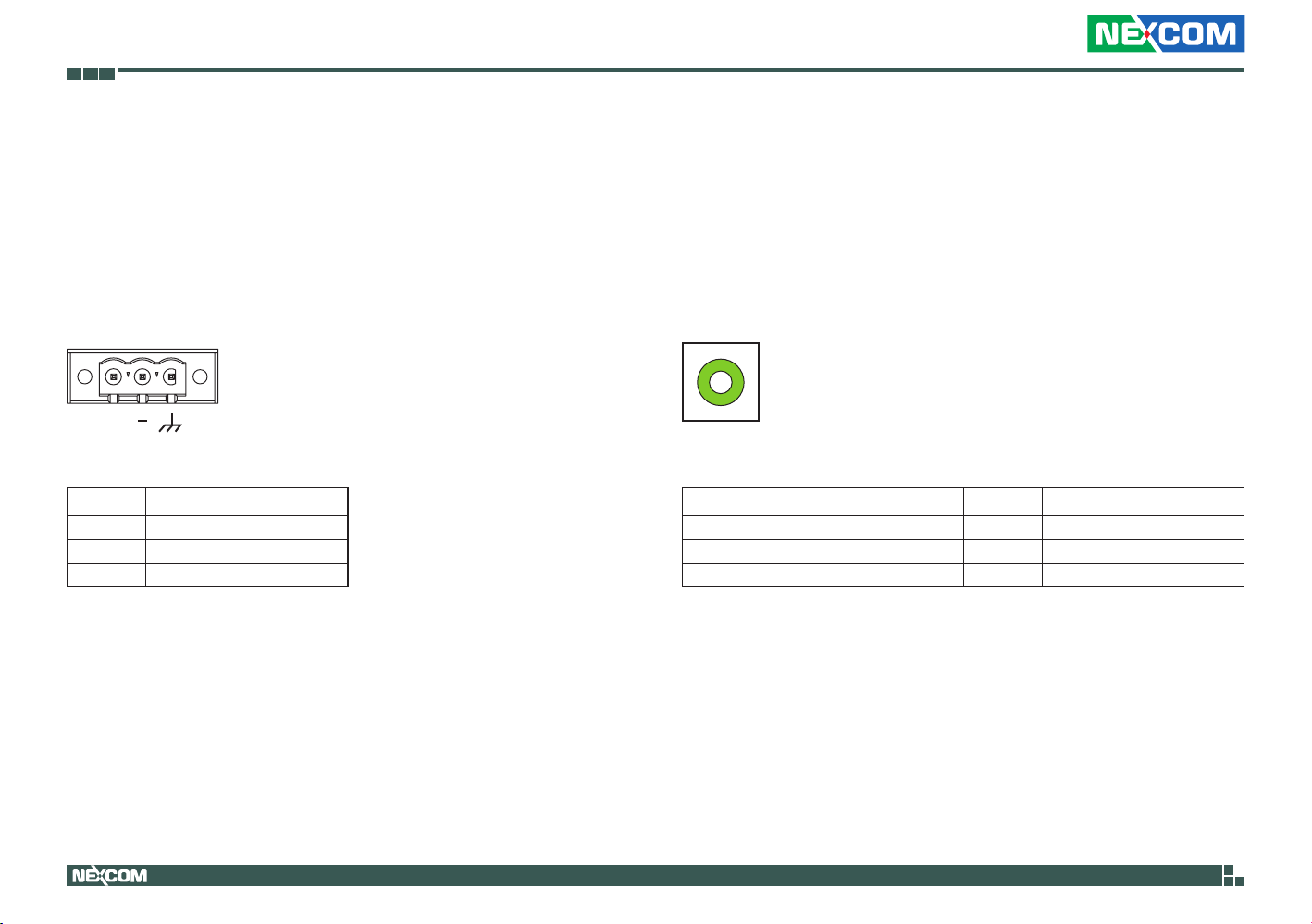

DC Power Input

Connector type: 3-pin terminal block Connector location: DCIN1

1 3

+

Pin Definition

1 DCIN+ 2 DCIN3 H4_GND

Line-out Connector

Connector type: 1x 3.5mm TRS Connector location: LINEOUT1

Pin Definition Pin Definition

1 AGND 2 LINEOL 3 detect 4 AGND 5 LINEOR

11

NISE 4200 User Manual

Chapter 2: Jumpers and Connectors

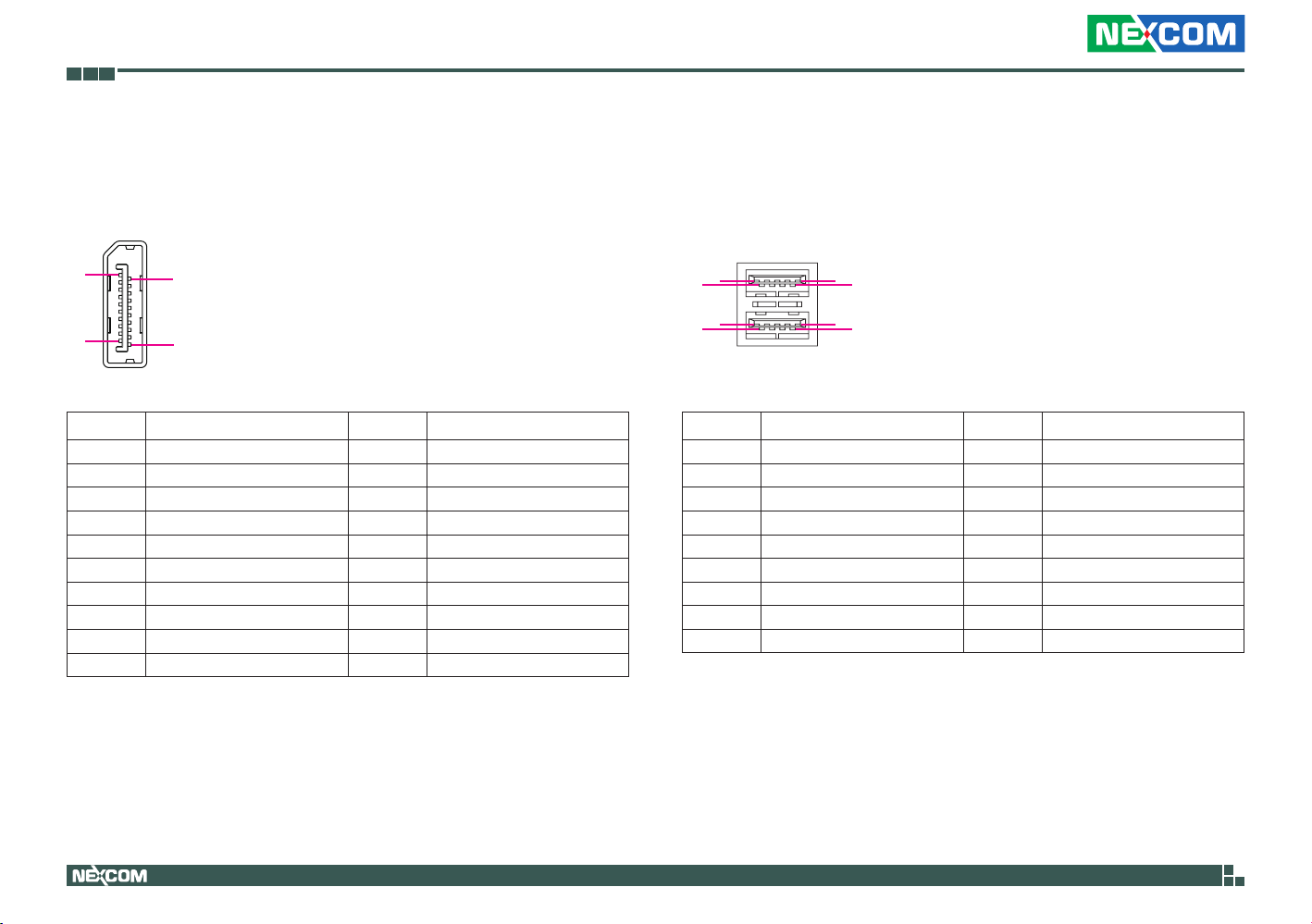

DisplayPort

Connector type: DisplayPort Connector location: DP1 and DP2

20

2

Pin Definition Pin Definition

1 DP0 2 GND 3 DN0 4 DP1 5 GND 6 DN1 7 DP2 8 GND

9 DN2 10 DP3 11 GND 12 DN3 13 DP/HDMI detect 14 GND 15 AUXP 16 GND 17 AUXN 18 HPD 19 GND 20 3.3V

19

1

USB 3.0 Ports (USB1/2 and USB3/4)

Connector type: Dual USB 3.0 ports Connector location: USB1/2 and USB3/4

9

1

10 13

Pin Definition Pin Definition

1 VBUS1 2 USB13 USB1+ 4 GND 5 USB3_RX_N1 6 USB3_RX_P1 7 GND 8 USB3_TX_N1

9 USB3_TX_P1 10 VBUS2 11 USB2- 12 USB2+ 13 GND 14 USB3_RX_N2 15 USB3_RX_P2 16 GND 17 USB3_TX_N2 18 USB3_TX_P2

5

4

1418

12

NISE 4200 User Manual

Chapter 2: Jumpers and Connectors

ACTLINK

USB 2.0 Ports (USB5/6)

Connector type: Dual USB 2.0 ports Connector location: USB5/6

1 4

5

Pin Definition Pin Definition

1 VBUS1 2 USB13 USB1+ 4 GND 5 VBUS2 6 USB27 USB2+ 8 GND

8

LAN1 and LAN2 Ports

Connector type: RJ45 port Connector location: LAN1 and LAN2

8 1

Pin Definition Pin Definition

1 CTAP 2 MDI0+

3 MDI0- 4 MDI1+

5 MDI1- 6 MDI2+

7 MDI2- 8 MDI3+

9 MDI3- 10 GND

L1 speed led+/- L2 speed led+/-

L3 3.3V_LAN L4 active led H1 NC H2 NC H3 GND_R H4 GND_R

13

NISE 4200 User Manual

Chapter 2: Jumpers and Connectors

External I/O Interfaces - Rear Panel

DVI-D Connector

Connector type: 24-pin D-Sub, 2.0mm-M-180 (DVI) Connector location: DVI-D1

1 8

17 24

Pin Definition Pin Definition

1 DN2 2 DP2 3 GND 4 NC 5 NC 6 DDCCLK 7 DDCDAT 8 NC

9 DN1 10 DP1 11 GND 12 NC 13 NC 14 VCC 15 GND 16 HPD 17 DN0 18 DP0 19 GND 20 NC 21 NC 22 GND 23 CKP 24 CKN

COM1 to COM6 Ports (RS232)

Connector type: DB-9 port, 9-pin D-Sub Connector location: COM1 to COM6

1

6

Pin Definition Pin Definition

1 DCD 2 RX 3 TX 4 DTR 5 GND_COM1 6 DSR 7 RTS 8 CTS 9 RI / Power select

All 6 COM ports share a maximum 5W power under 5V power input. All 6 COM ports share a maximum 12W power under 12V power input.

5

9

14

NISE 4200 User Manual

Chapter 2: Jumpers and Connectors

COM1 to COM2 Ports (Full RS485/RS422)

Connector type: DB-9 port, 9-pin D-Sub Connector location: COM1 and COM2

1

6

5

9

Pin Definition Pin Definition

1 TX- 2 TX+

3 RX+ 4 RX-

5 GND_COM1 6 NC

7 NC 8 NC

9 NC

15

NISE 4200 User Manual

Chapter 2: Jumpers and Connectors

Internal Connectors

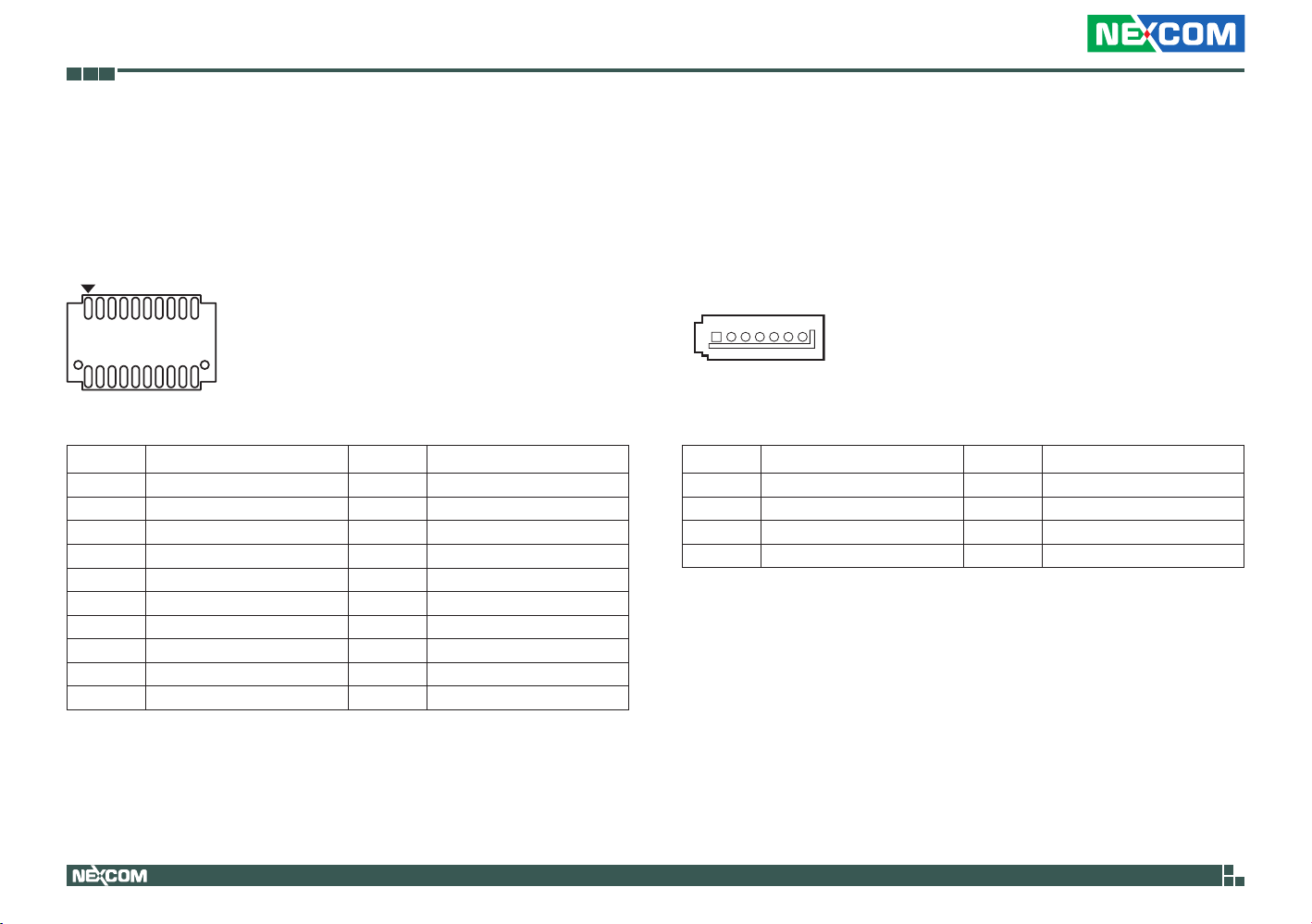

TOUCH1 Header

Connector type: 2x10 20-pin header Connector location: TOUCH1

1

2 20

Pin Definition Pin Definition

1 D+ 2 Ground

3 D- 4 OC

5 Ground 6 GPIO1

7 D+ 8 GPIO2

9 D- 10 Ground 11 Ground 12 Ground 13 +3.3V 14 +3.3VSB 15 +5V 16 +3.3VSB 17 +12V 18 +5VSB 19 +12V 20 +5VSB

19

SATA Connector

Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180) Connector location: SATA1

1 7

Pin Definition Pin Definition

1 GND 2 TXP 3 TXN 4 GND 5 RXN 6 RXP 7 GND

16

NISE 4200 User Manual

Chapter 2: Jumpers and Connectors

14

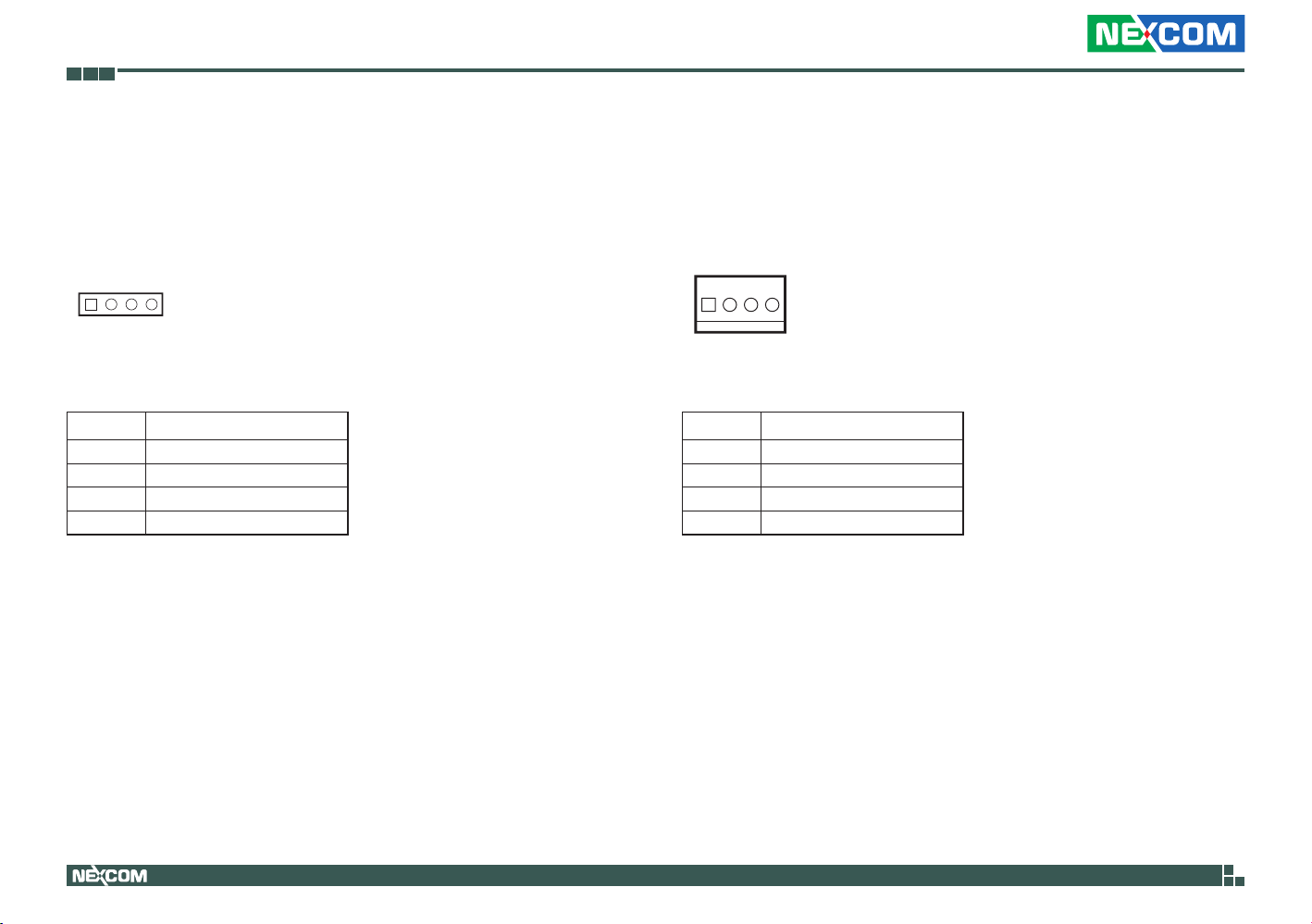

Mic-in Connector

Connector type: 1x4 4-pin header Connector location: MICIN1

Pin Definition

1 L

2 AGND

3 JD

4 R

SATA Power Connector

Connector type: 1x4 4-pin header Connector location: SATAPW1

Pin Definition

1 +12V 2 GND 3 GND 4 +5V

17

NISE 4200 User Manual

Chapter 2: Jumpers and Connectors

14

10 1

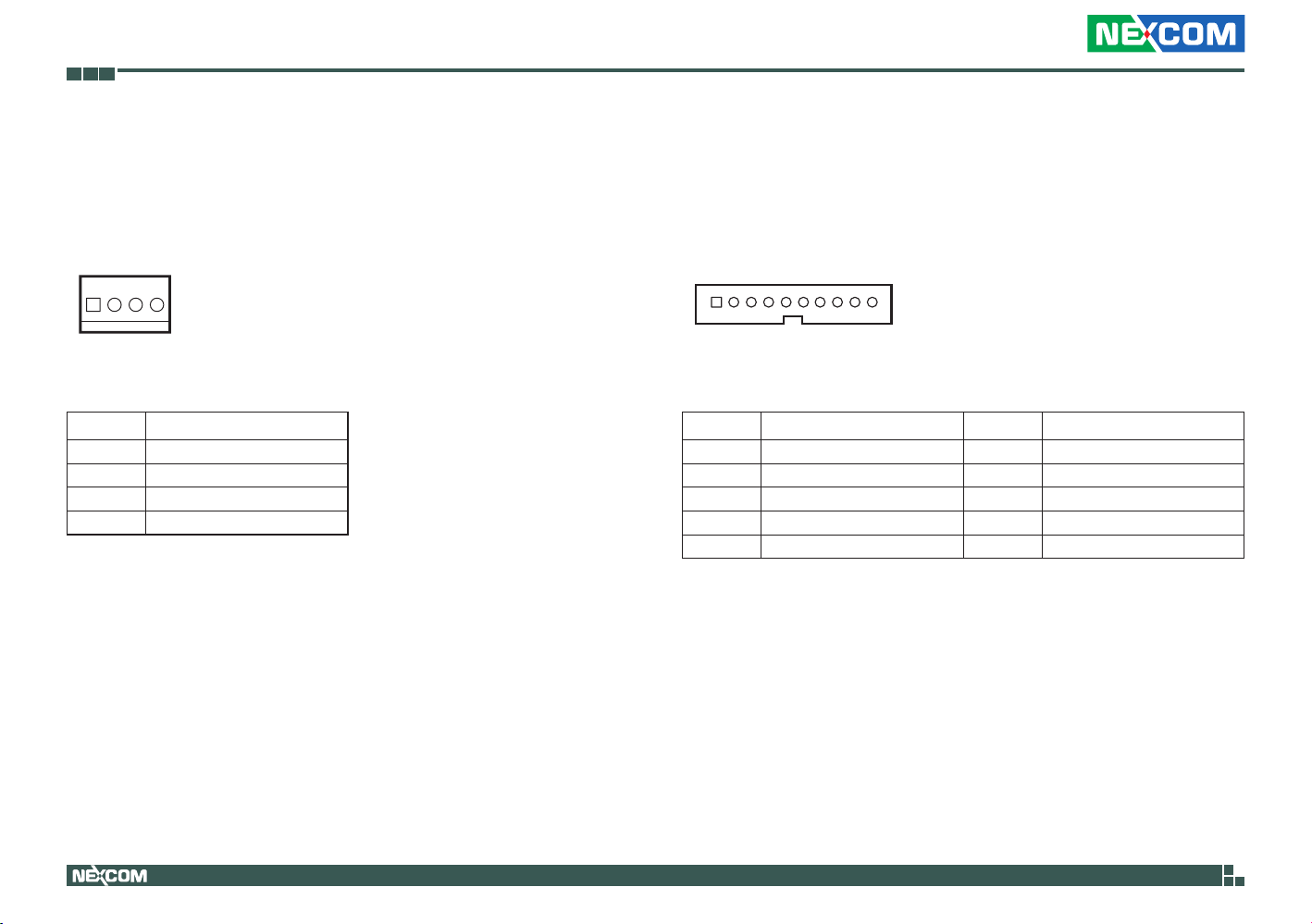

Power Out Connector

Connector type: 1x4 4-pin header Connector location: PWROUT1

Pin Definition

1 +12V

2 GND

3 GND

4 +5V

Port 80 Connector

Connector type: 1x10 10-pin header Connector location: JLPC1

1 10

Pin Definition Pin Definition

1 GND 2 PLTRST 3 CLK24M 4 LPC_FRAME# 5 LPC_AD3 6 LPC_AD2 7 LPC_AD1 8 LPC_AD0 9 SERIRQ 10 +3.3V

18

NISE 4200 User Manual

Chapter 2: Jumpers and Connectors

17

28

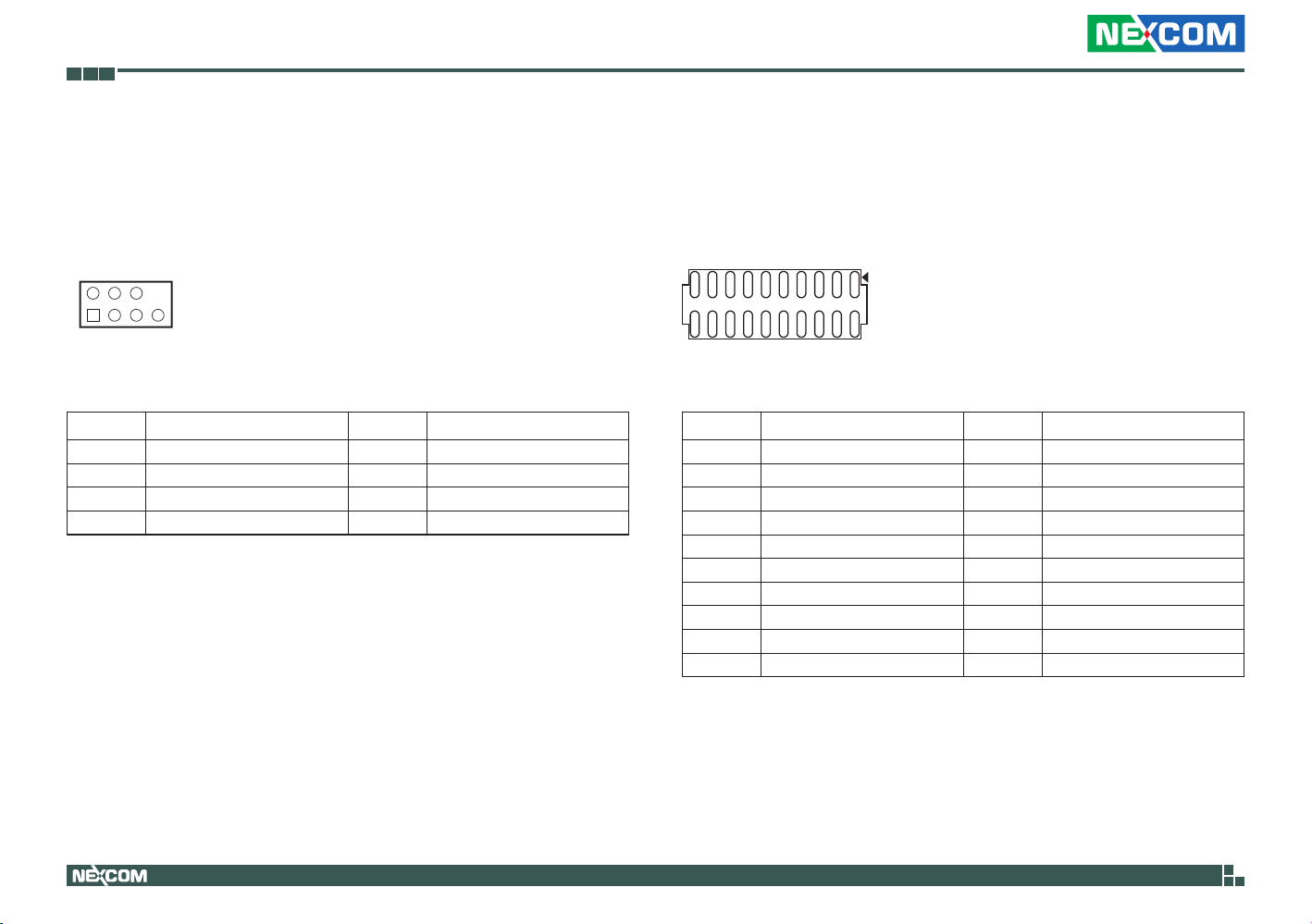

SPI Header

Connector type: 2x4 8-pin header Connector location: SPI2

Pin Definition Pin Definition

1 VCC3 2 GND

3 SPI_CS# 4 SPI_CLK

5 SPI_MISO 6 SPI_MOSI

7 HOLD# 8 Key

GPIO Header

Connector type: 2x10 20-pin header Connector location: JDIO1

19

Pin Definition Pin Definition

1 +5VSB 2 GND 3 GPI0 4 GPI1 5 GPI2 6 GPI3 7 GPI4 8 GPI5

9 GPI6 10 GPI7 11 GPO0 12 GPO1 13 GPO2 14 GPO3 15 GPO4 16 GPO5 17 GPO6 18 GPO7 19 NC 20 NC

1

220

19

NISE 4200 User Manual

Chapter 2: Jumpers and Connectors

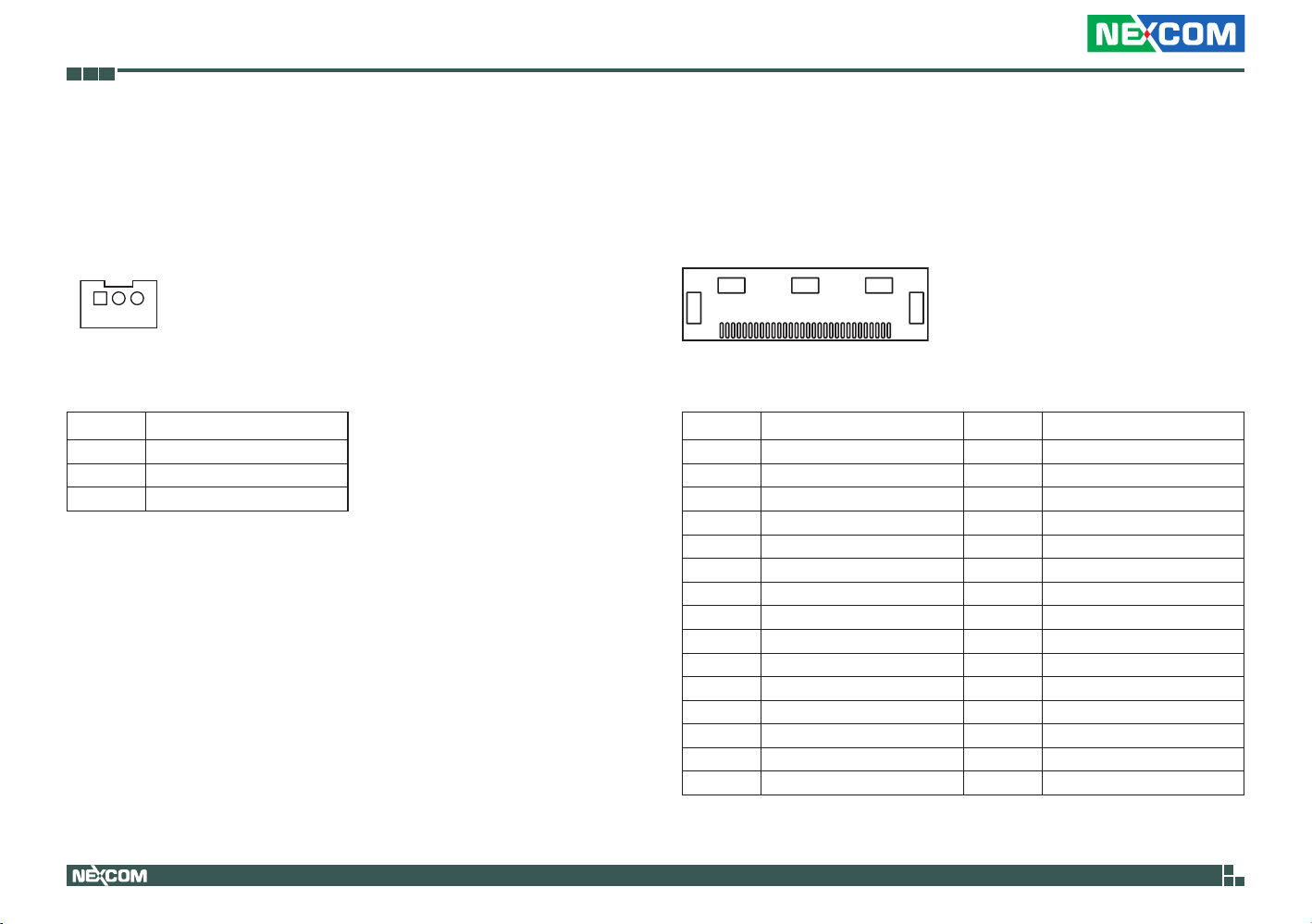

PWRON1 Connector

Connector type: 1x3 3-pin header Connector location: PWRON1

1 3

Pin Definition

1 PWRBTN 2 GND 3 SLP_S3#

EDP1 Data Connector

Connector type: 1x30 30-pin header Connector location: EDP1

301

Pin Definition Pin Definition

1 EDP_DN1 2 EDP_DP1

3 GND 4 EDP_DN0

5 EDP_DP0 6 GND

7 EDP_AUXP 8 EDP_AUXN

9 GND 10 SMB_CLK 11 SMB_DATA 12 GND 13 HPD 14 BRIGHT 15 BL_EN 16 PLTRST 17 +3.3V 18 +3.3V 19 +3.3V 20 GND 21 GND 22 +5V 23 +5V 24 +5V 25 GND 26 GND 27 +12V 28 +12V 29 +12V 30 GND

20

NISE 4200 User Manual

Chapter 2: Jumpers and Connectors

12

Mini-PCIe Slots

Connector location: MINI_CARD1 and MINI_CARD2

51 52

Pin Definition Pin Definition

1 WAKE 2 +3.3VSB 3 Reserved 4 GND 5 Reserved 6 1.5V 7 CLKREQ 8 SIM_PWR

9 GND 10 SIM_DATA 11 CLK_N 12 SIM_CLK 13 CLK_P 14 SIM_RESET 15 GND 16 SIM_VPP 17 Reserved 18 GND 19 Reserved 20 Reserved 21 GND 22 PLTRST 23 B+ 24 +3.3VSB 25 B- 26 GND

21

Pin Definition Pin Definition

27 GND 28 1.5V 29 GND 30 SMB_CLK 31 A- 32 SMB_DATA 33 A+ 34 GND 35 GND 36 USB_37 GND 38 USB_+ 39 +3.3VSB 40 GND 41 +3.3VSB 42 Reserved 43 GND 44 Reserved 45 Reserved 46 Reserved 47 Reserved 48 1.5V 49 Reserved 50 GND 51 Presence Detection 52 +3.3VSB

NISE 4200 User Manual

Chapter 2: Jumpers and Connectors

7475

12

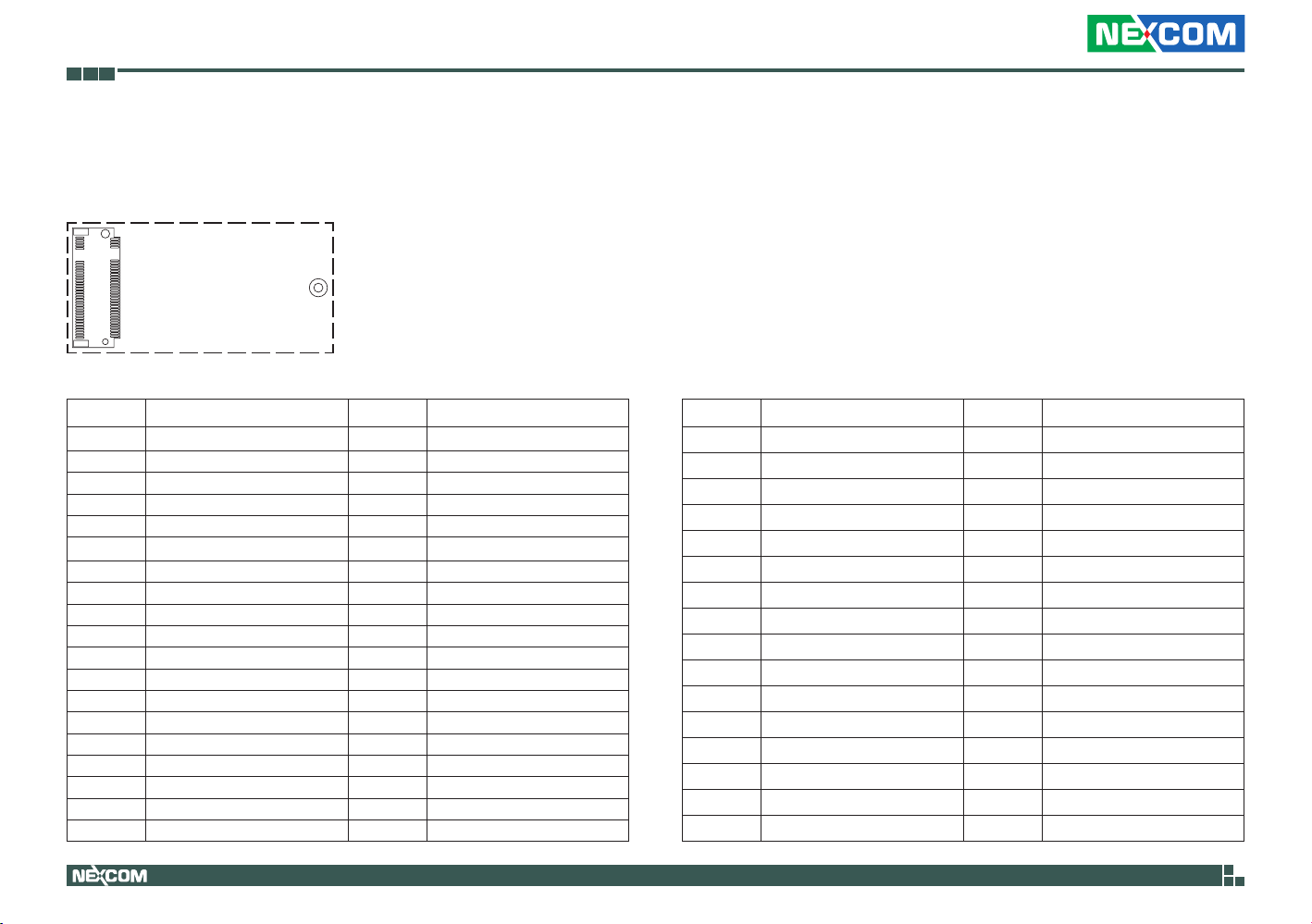

M.2 Key Connector

Connector location: M2_1

Pin Definition Pin Definition

1 GND 2 +3.3V

3 GND 4 +3.3V

5 PERN3 6 NC

7 PERP3 8 NC

9 GND 10 M2_LED#

11 PETN3 12 +3.3V

13 PETP3 14 +3.3V 15 GND 16 +3.3V 17 PERN2 18 +3.3V 19 PERP2 20 NC 21 GND 22 NC 23 PETN2 24 NC 25 PETP2 26 NC 27 GND 28 NC 29 PERN1 30 NC 31 PERP1 32 NC 33 GND 34 NC 35 PETN1 36 NC 37 PETP1 38 SSD_SATA_DEVSLP

22

Pin Definition Pin Definition

39 GND 40 NC

41 SATA_RX(+) 42 NC

43 SATA_RX(-) 44 NC

45 GND 46 NC

47 SATA_TX(-) 48 NC

49 SATA_TX(+) 50 PLTRST#_M2

51 GND 52 M2_CLK_REQ#

53 CLK(-) 54 PCIE_WAKE#

55 CLK(+) 56 NC

57 GND 58 NC

59-65 Key 60-66 Key

67 NC 68 PCH_SUSCLK

69 SATA_PCIE_DET 70 +3.3V

71 GND 72 +3.3V

73 GND 74 +3.3V

75 GND

NISE 4200 User Manual

Chapter 3: System Setup

CAUTION!

ChaPter 3: system setuP

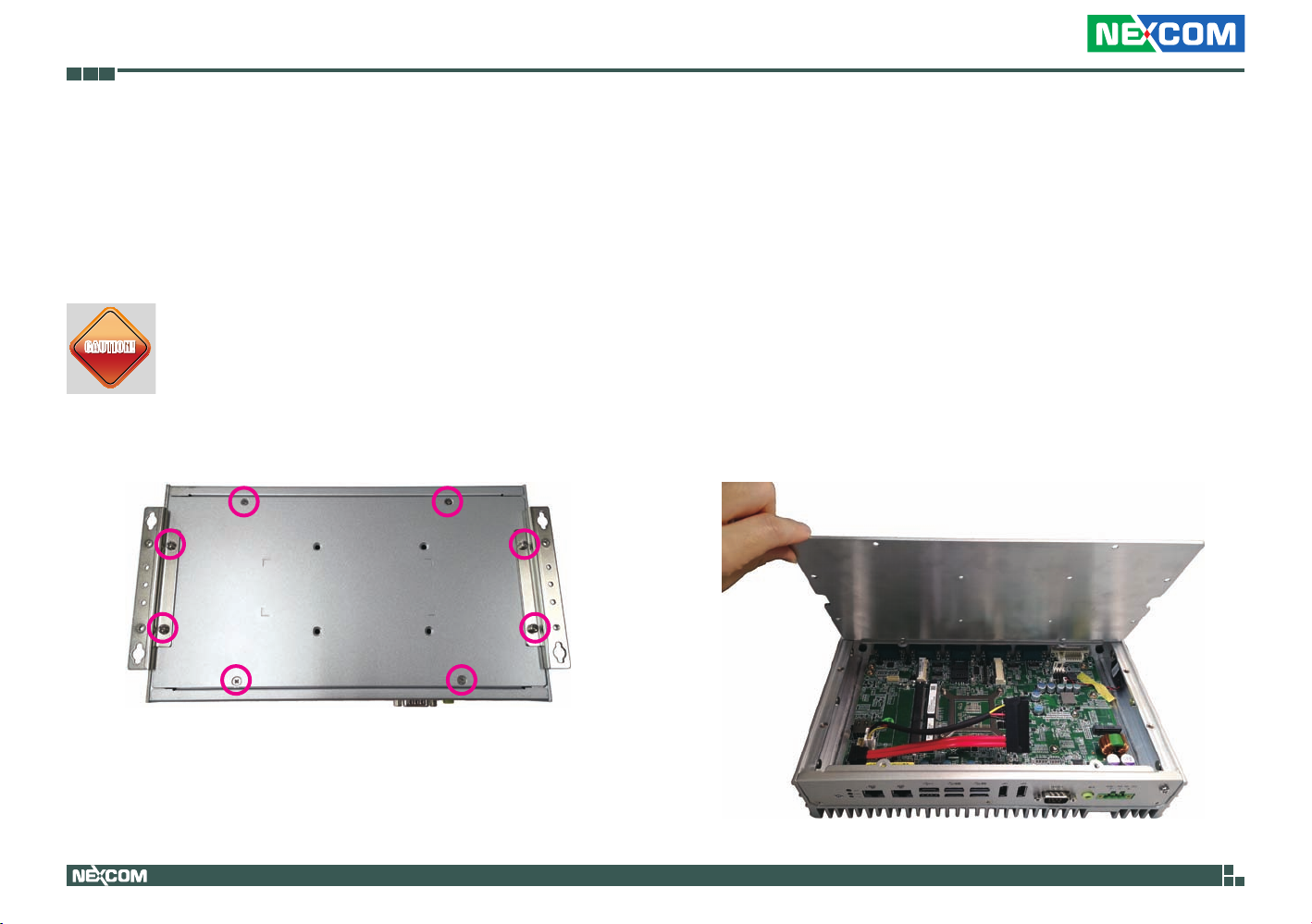

Removing the Chassis Bottom Cover

Prior to removing the chassis cover, make sure the unit’s power

CAUTION!CAUTION!

1. Remove the eight mounting screws from the bottom cover. 2. With the screws removed, lift up the cover and remove it from the chassis.

is off and disconnected from the power sources to prevent electric shock or system damage.

23

NISE 4200 User Manual

Chapter 3: System Setup

Installing a SO-DIMM Memory Module

Remove the bottom cover before installing a SO-DIMM.

1. Locate the SO-DIMM socket.

SO-DIMM Socket

2. Insert the module into the socket at an approximately 30 degrees angle. The ejector tabs at the ends of the socket will automatically snap into the locked position to hold the module in place.

Memory Module

24

NISE 4200 User Manual

Chapter 3: System Setup

Installing an M.2 Storage Module (M Key 2240 & 2280)

1. Locate the M.2 M key slot on the board. 2. Remove the screw on the board and replace it with a copper standoff. Store the screw in a safe place for later use.

M.2 2240

M.2 M Key Slot

25

NISE 4200 User Manual

Chapter 3: System Setup

M.2 2280

3. Insert the M.2 module into the M.2 slot at a 45-degree angle until the gold-plated connector on the edge of the module completely disappears into the slot.

M.2 2240

M.2 2280

26

NISE 4200 User Manual

Chapter 3: System Setup

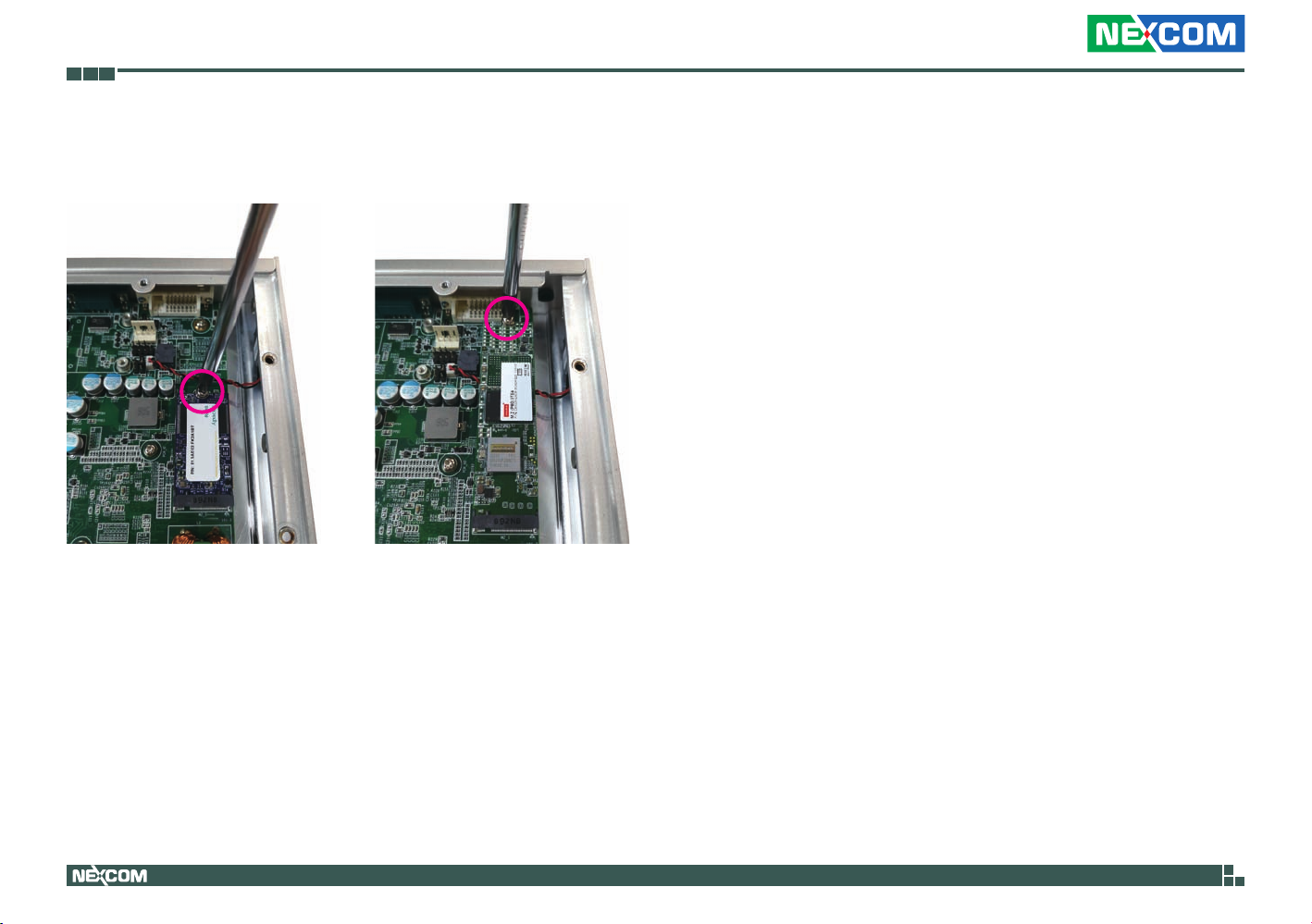

4. Push the module down and secure it with the screw removed in step 2.

M.2 2240 M.2 2280

5. When installing an M.2 storage, it is recommended that a dedicated thermal pad is placed on top of the chipset of the M.2 module for better heat dissipation.

27

NISE 4200 User Manual

Chapter 3: System Setup

Installing a Mini-PCIe Storage/Wi-Fi/LTE Module (Full-Size)

1. Locate the mini-PCIe slot on the board.

Mini-PCIe Slot

2. Insert the mini-PCIe module into the mini-PCIe slot at a 45 degree angle until the gold-plated connector on the edge of the module completely disappears inside the slot.

28

NISE 4200 User Manual

Chapter 3: System Setup

3. Push the module down and then secure it with mounting screws.

29

NISE 4200 User Manual

Chapter 3: System Setup

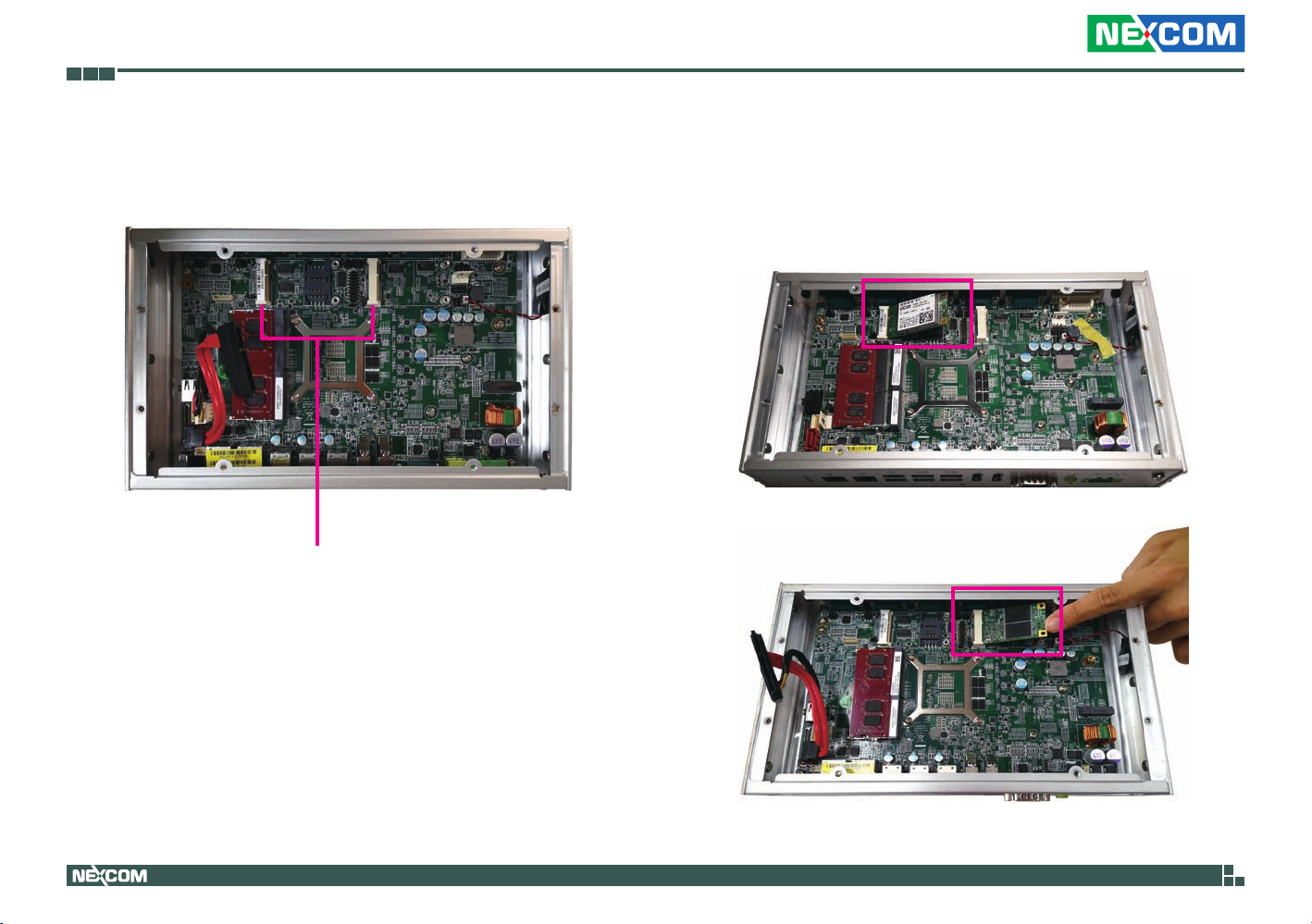

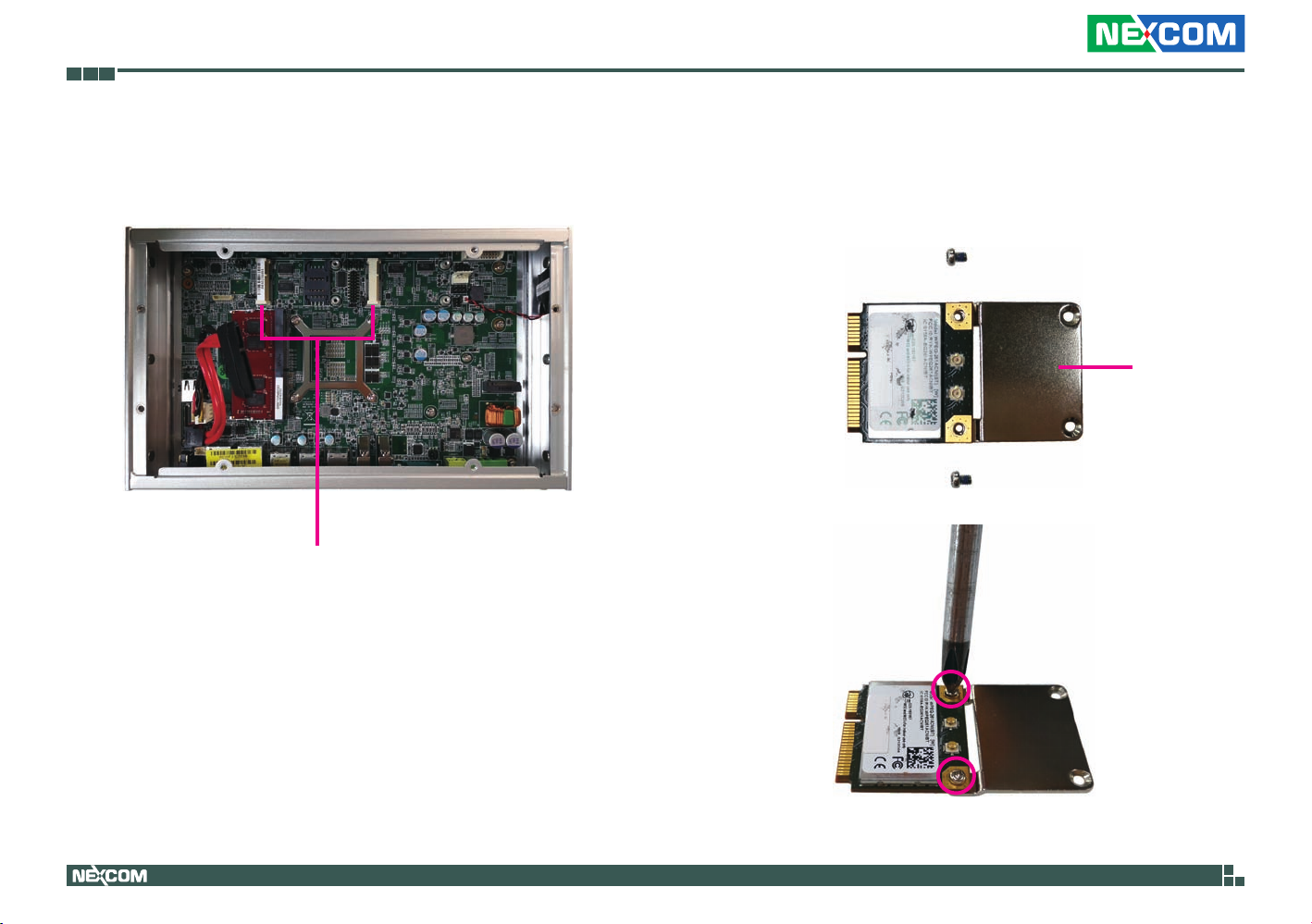

Installing a Mini-PCIe Module (Half-size)

1. Locate the mini-PCIe slot on the board. 2. Align the mini-PCIe module to the module bracket and secure both together with screws.

Module Bracket

Mini-PCIe Slot

30

NISE 4200 User Manual

Chapter 3: System Setup

3. Insert the mini-PCIe module into the mini-PCIe slot at 45 degree angle

until the gold-plated connector on the edge of the module completely disappears into the slot.

4. Push the module down and then secure it with mounting screws.

31

NISE 4200 User Manual

Chapter 3: System Setup

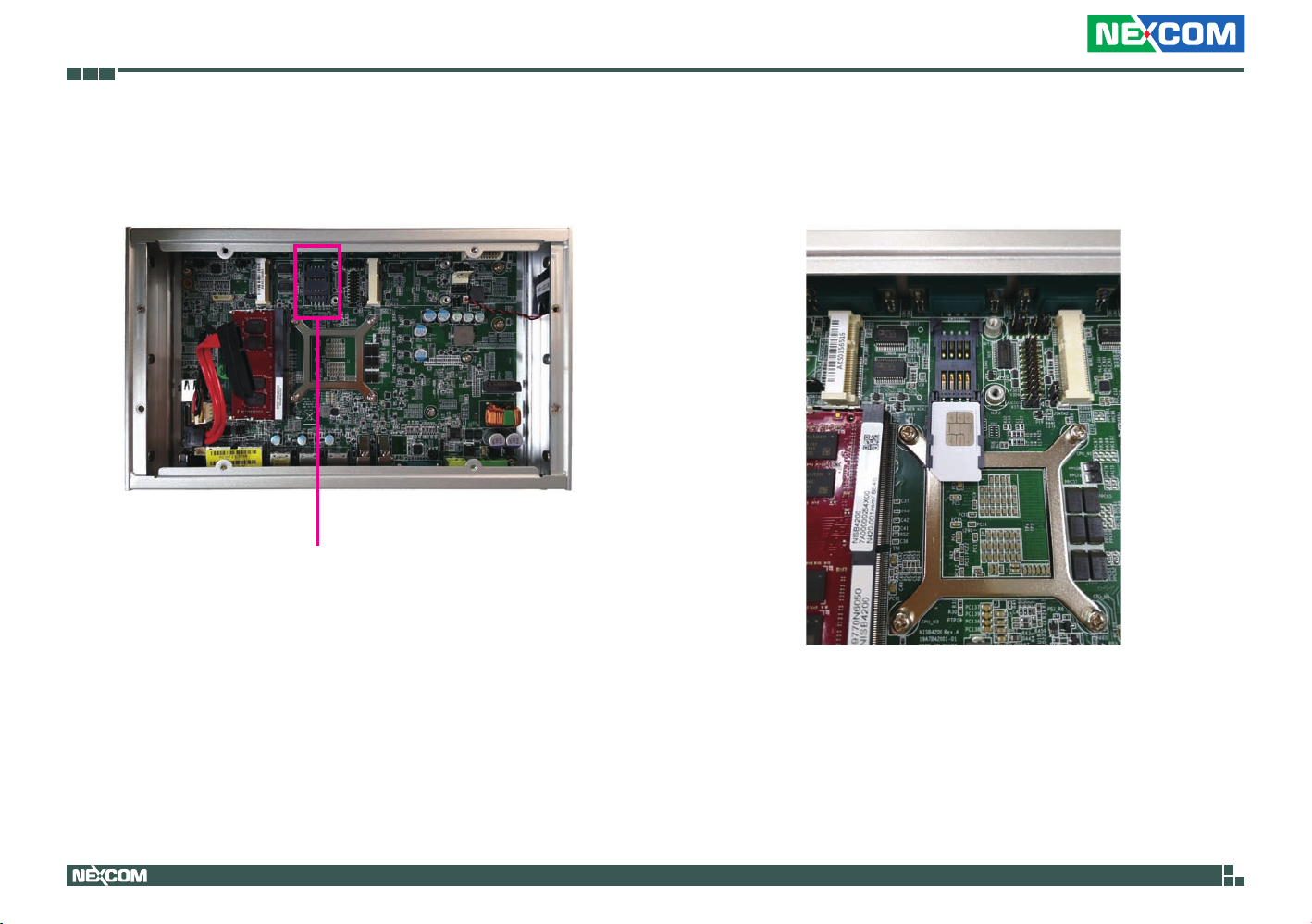

Installing a SIM Card

1. Locate the SIM card holder and release the cover.

SIM Card Cover

2. Place the SIM card into the holder.

32

NISE 4200 User Manual

Chapter 3: System Setup

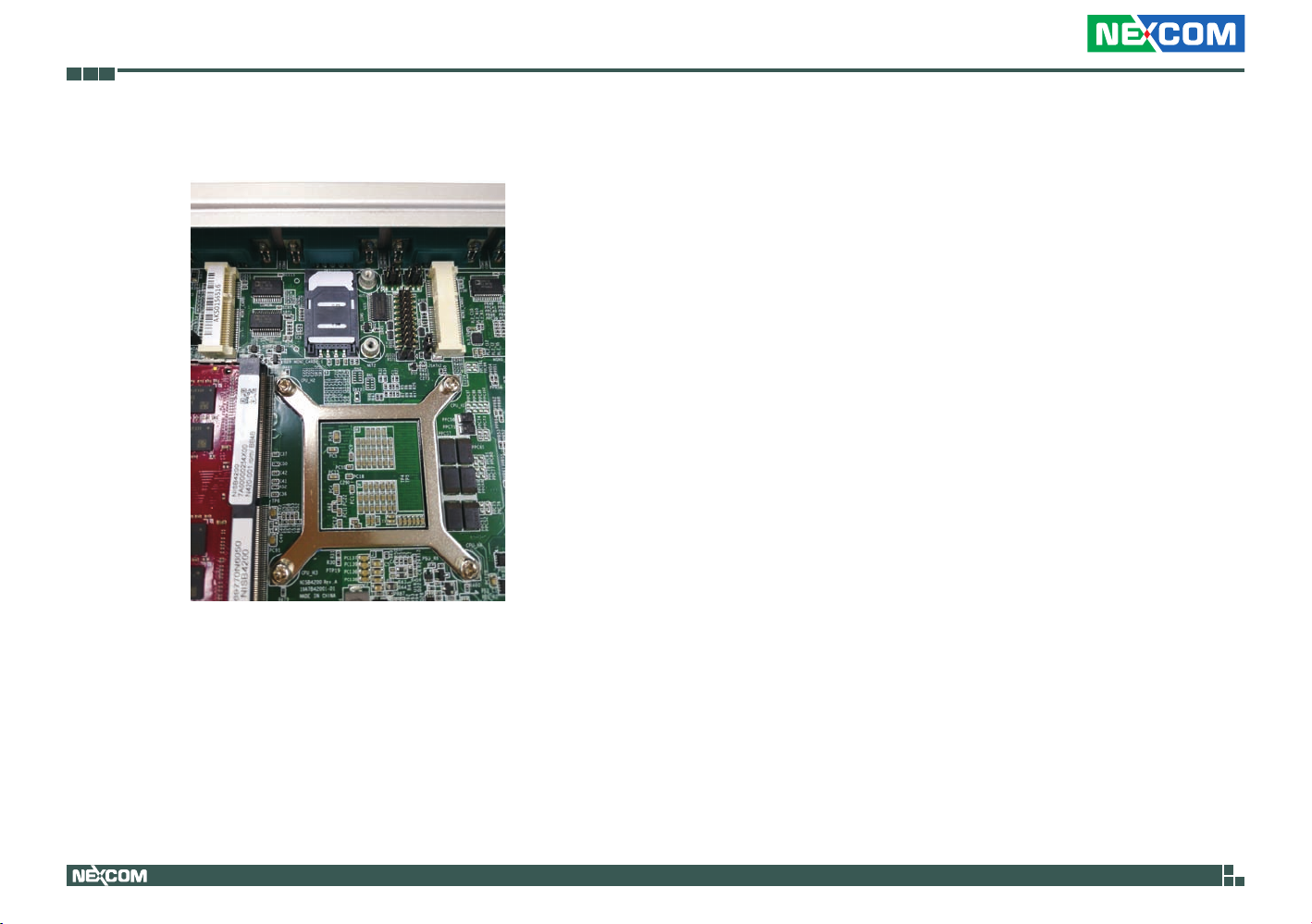

3. Close the cover and secure it to the original position.

33

NISE 4200 User Manual

Chapter 3: System Setup

Installing a Storage Drive

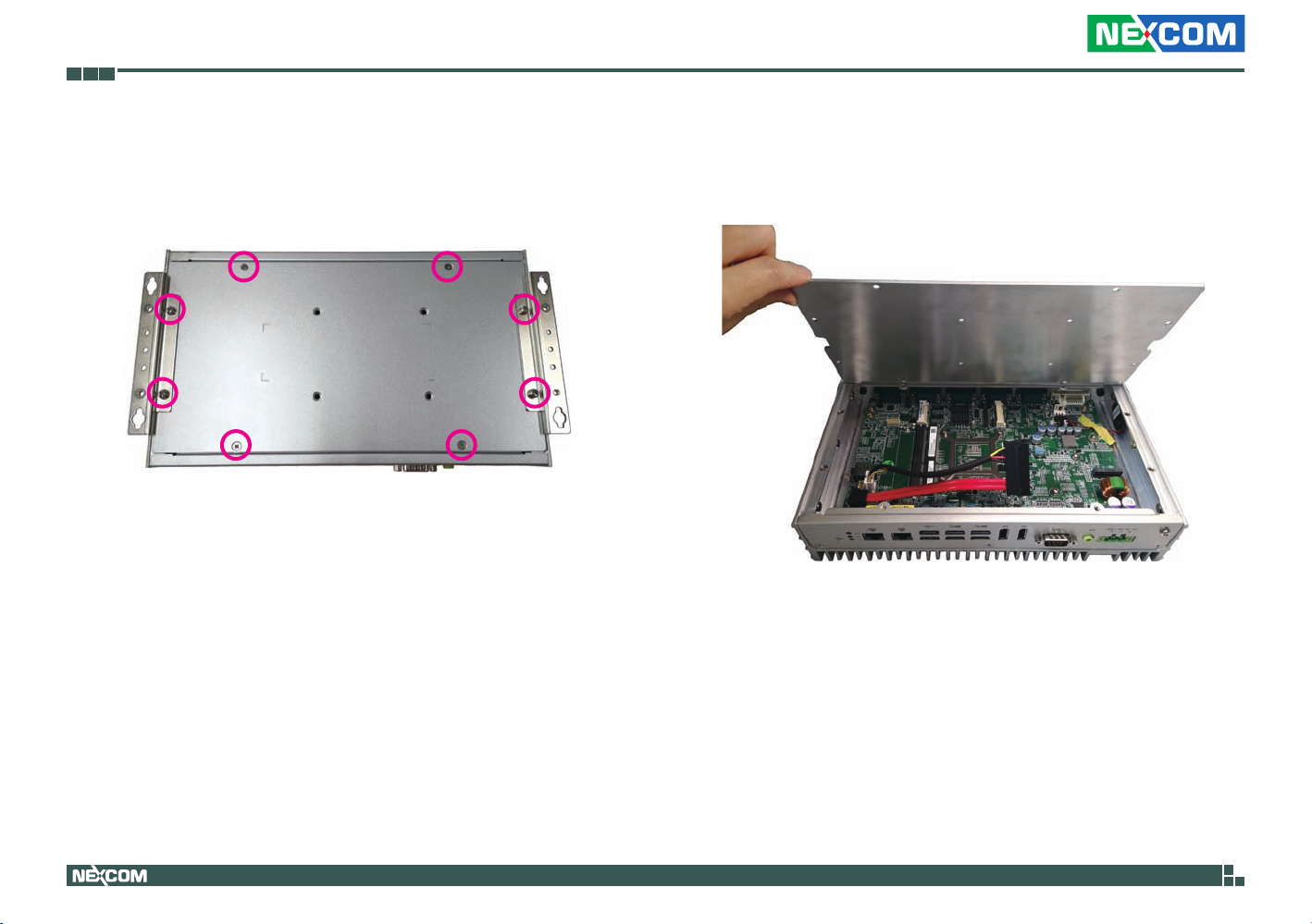

1. With the bottom side of the chassis facing up, unscrew the eight

mounting screws from the bottom cover.

2. With the screws removed, lift up the cover and remove it from the chassis.

34

NISE 4200 User Manual

Chapter 3: System Setup

3. Turn the cover to the other side. This will be the internal side of the cover.

Make sure the direction of the storage drive and bottom cover is in the correct direction.

Gold-plated

Connector

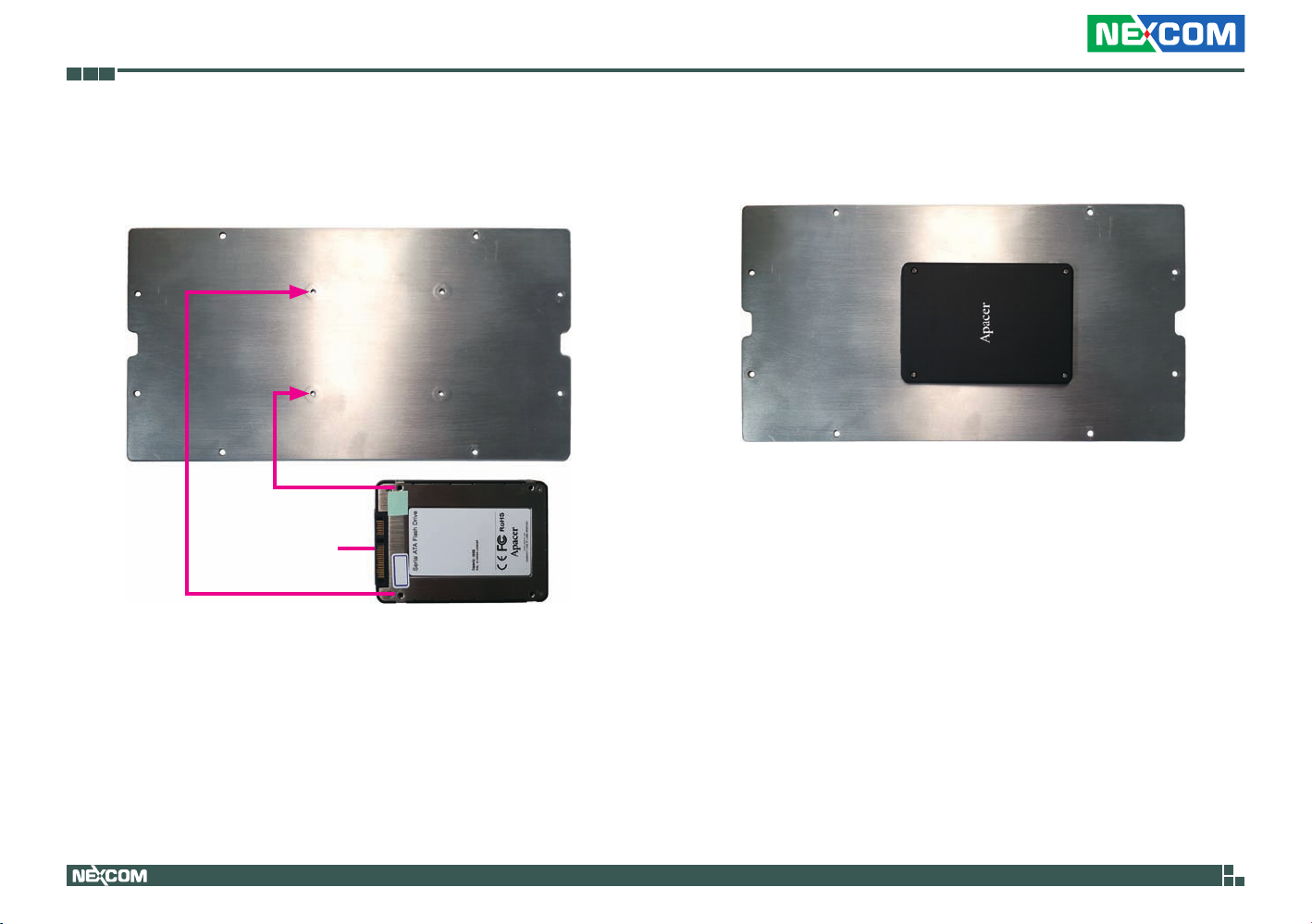

4. On the internal side of the cover, align the mounting holes of the storage drive with the mounting holes on the cover.

35

NISE 4200 User Manual

Chapter 3: System Setup

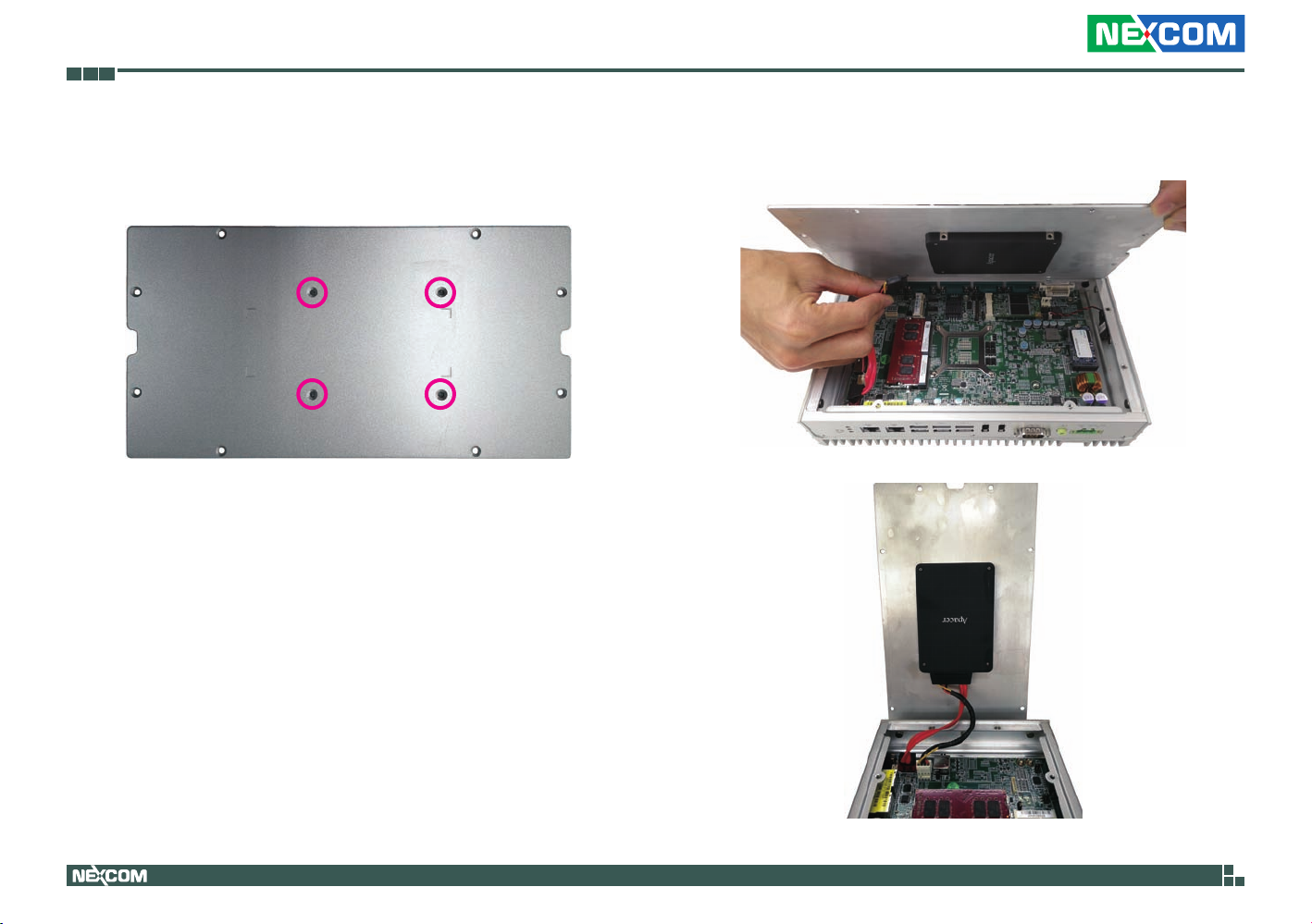

5. While supporting the storage drive, turn the cover to the other side. This will be the outer side of the cover. From outside of the bottom cover, use the provided screws to secure the drive in place.

6. Connect the SATA data and power cables to the storage drive.

36

NISE 4200 User Manual

Chapter 3: System Setup

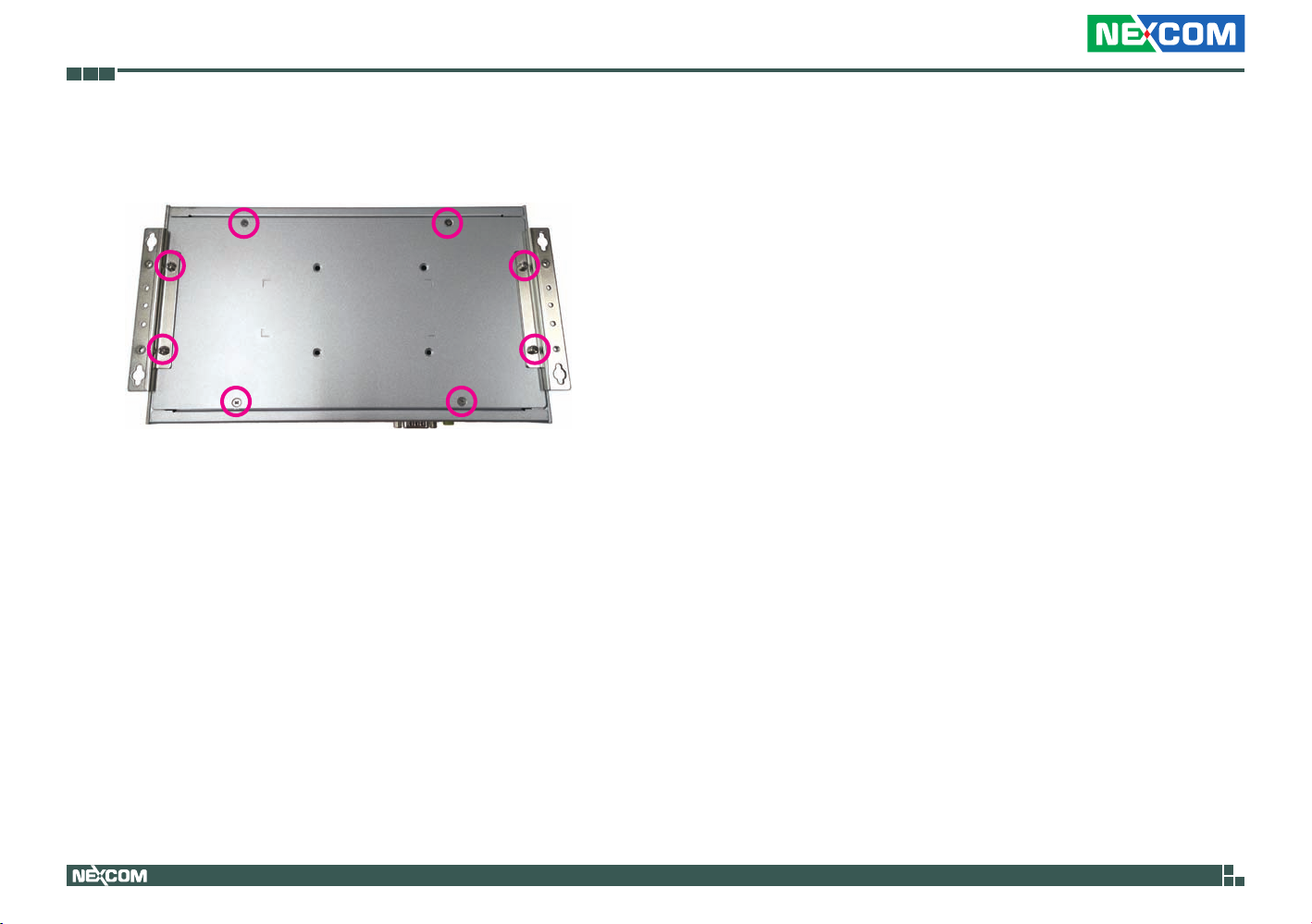

7. Secure the bottom cover with the storage drive to the chassis with the eight screws.

37

NISE 4200 User Manual

Chapter 3: System Setup

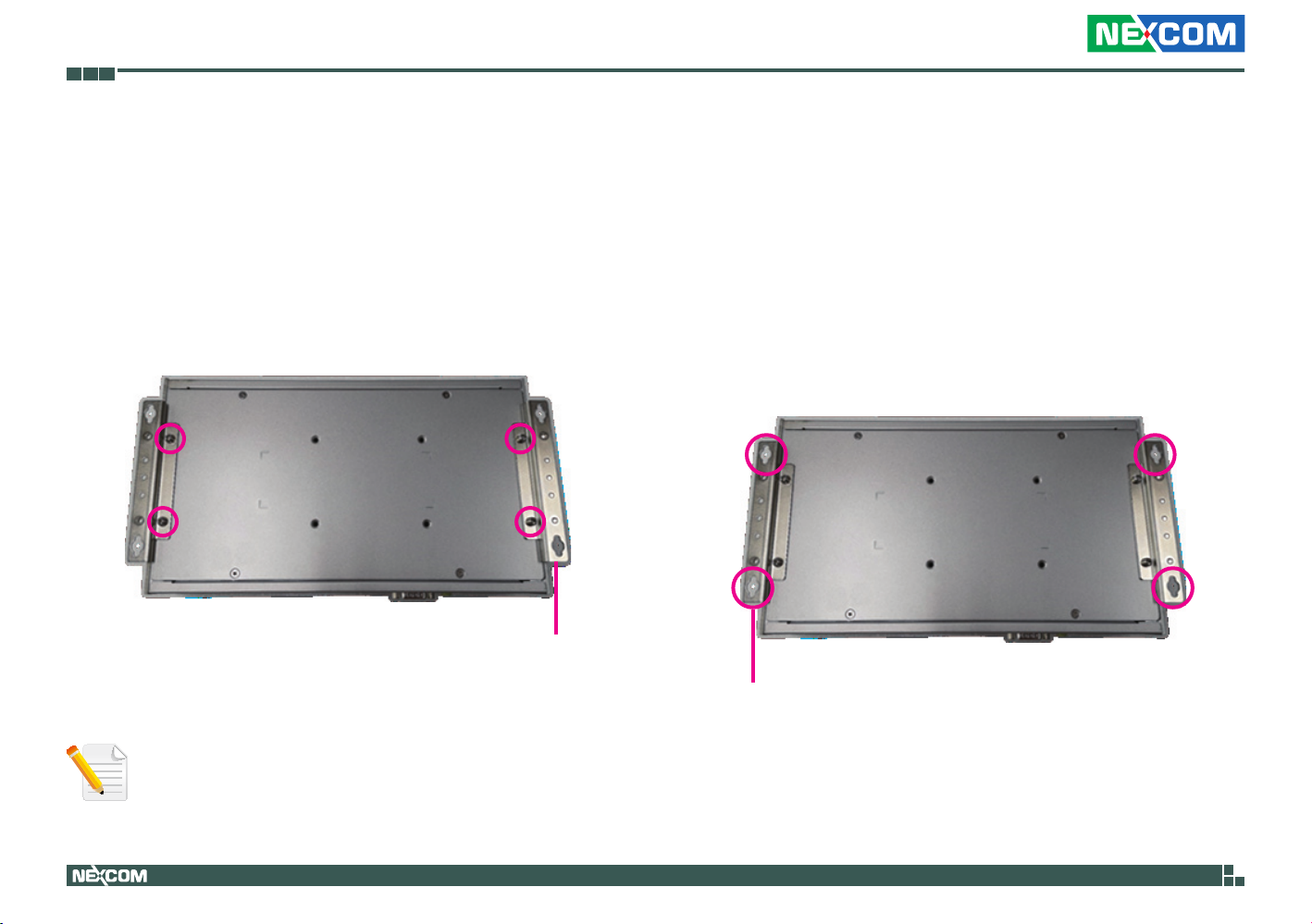

Wall Mounting Instructions

To mount the system on to a wall or some other surface using the two mounting brackets, please follow the steps below.

1. Turn the system over. Align the two retention screw holes in each bracket with the retention screw holes on the sides of the bottom surface.

2. Secure the brackets to the system by inserting two retention screws into each bracket.

Wall Mount Bracket

Specification of the wall mount screw: Round Head Screw Long Fei:P6#32TX8L_w/Spring+Flat Washer

3. Drill holes in the intended installation surface.

4. Align the mounting holes on the sides of the mounting brackets with the predrilled holes on the mounting surface.

5. Insert four retention screws, two in each bracket, to secure the system to the wall.

Fasten screws to mount the system to the wall

38

NISE 4200 User Manual

Chapter 4: BIOS Setup

ChaPter 4: BIos setuP

This chapter describes how to use the BIOS setup program for NISE 4200. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM web site at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals

▪ Video display type and display options

▪ Password protection from unauthorized use

▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

▪ This program should be executed under the following conditions:

▪ When changing the system configuration

▪ When a configuration error is detected by the system and you are

prompted to make changes to the setup program

▪ When resetting the system clock

▪ When redefining the communication ports to prevent any conflicts

▪ When making changes to the Power Management configuration

▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

39

NISE 4200 User Manual

Chapter 4: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series of beeps

will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

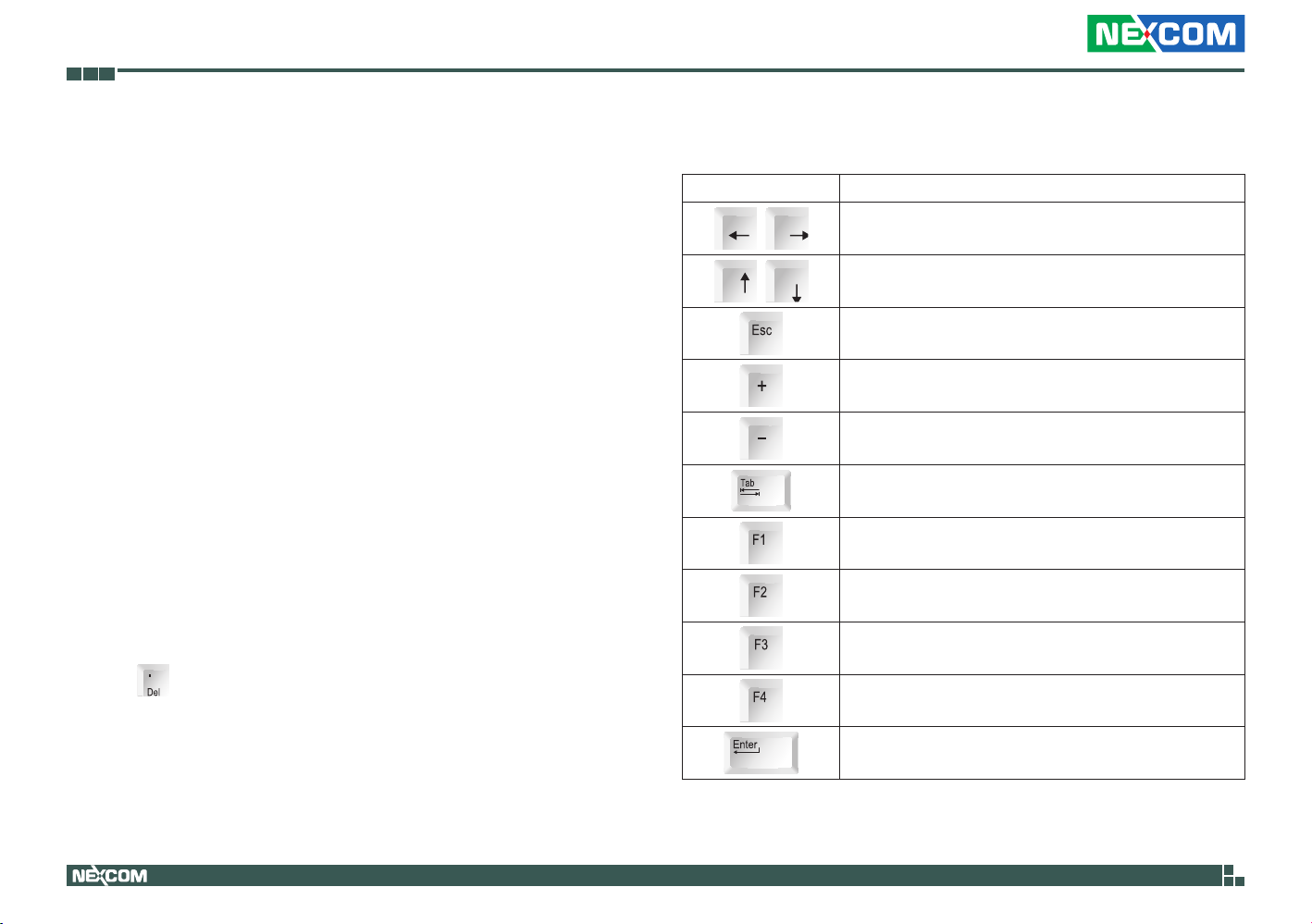

Powering on the computer and immediately pressing <Del> allows you to enter Setup.

Legends

Key Function

Moves the highlight left or right to select a menu.

Moves the highlight up or down between sub-menus or fields.

Exits the BIOS Setup Utility.

Scrolls forward through the values or options of the highlighted field.

Scrolls backward through the values or options of the highlighted field.

Selects a field.

Displays General Help.

Load previous values.

Load optimized default values.

Press the

key to enter Setup:

40

Saves and exits the Setup program.

Press <Enter> to enter the highlighted sub-menu.

NISE 4200 User Manual

Chapter 4: BIOS Setup

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press .

41

NISE 4200 User Manual

Chapter 4: BIOS Setup

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from several setup functions and one exit. Use arrow keys to select among the items and press to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Save & ExitAdvanced Chipset Security BootMain

▲

BIOS Information BIOS Vendor Core Version Compliancy Project Version Build Date and Time Access Level

Board Information Board ID Fab ID LAN PHY Revision

Processor Information Name Type

Speed ID Stepping Package Number of Processors Microcode Revision GT Info eDRAM Size

American Megatrends

5.12 UEFI 2.7; PI 1.6 TEST- 0.06 x64 01/17/2019 15:13:15 Administrator

Default string Default string A6 (B2 Stepping)

Skylake Halo Intel(R) Core(TM) i5-6442EQ CPU @ 1.90GHz 1900 MHz 0x506E3 R0/S0/N0 Not Implemented Yet 4Core(s) / 4Thread(s) C6 GT2 (0x191B) N/A

Choose the system default language

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

▼

System Language

Selects the language of the system.

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Monday to Sunday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

42

NISE 4200 User Manual

Chapter 4: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.

Main

►

CPU Conguration

►

Power & Performance

►

Trusted Computing

►

NCT6106D Super IO Conguration

►

NCT6106D HW Monitor

►

Network Stack Conguration

►

CSM Conguration

►

USB Conguration

Save & ExitAdvanced Chipset Security Boot

CPU Conguration Parameters

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CPU Configuration

This section is used to configure the CPU.

Advanced

CPU Conguration

Type

ID Speed L1 Data Cache L1 Instruction Cache L2 Cache L3 Cache L4 Cache VMX SMX/TXT

Intel (VMX) Virtualization Technology

Active Processor Cores Hyper-Threading

Intel(R) Core(TM) i5-6442EQ CPU @ 1.90GHz 0x506E3 1900 MHz 32 KB x 4 32 KB x 4 256 KB x 4 6 MB N/A Supported Supported

[Enabled]

[All] [Enabled]

When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Intel® (VMX) Virtualization Technology

Enables or disables Intel Virtualization technology.

Active Processors Cores

Select the number of cores to enable in each processor package.

Hyper-Threading

Enables or disables hyper-threading technology.

43

NISE 4200 User Manual

Chapter 4: BIOS Setup

Power & Performance

This section is used to configure the power management features of the CPU.

Advanced

CPU - Power Management Control

Intel(R) SpeedStep(tm)

C states

Intel® SpeedStep

TM

[Disabled]

Allows more than two frequency ranges to be supported.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enables or disables Intel SpeedStep technology.

C states

Enables or disables CPU C states support for power saving.

Trusted Computing

This section is used to configure Trusted Platform Module (TPM) settings.

Advanced

TPM20 Device Found Firmware Version: Vendor:

Security Device Support

Active PCR banks Available PCR banks

SHA-1 PCR Bank SHA256 PCR Bank

Pending operation Platform Hierarchy Storage Hierarchy Endorsement Hierarchy TPM2.0 UEFI Spec Version Physical Presence Spec Version

TPM 20 InterfaceType

Device Select

0.0

[Enable]

SHA-1 SHA-1

[Disabled] [Disabled]

[None] [Enabled] [Enabled] [Enabled] [TCG_2] [1.3]

[CRB]

[Auto]

Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Security Device Support

Enables or disables BIOS support for security device. O.S will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

SHA-1 PCR Bank

Enables or disables SHA-1 PCR Bank.

SHA256 PCR Bank

Enables or disables SHA256 PCR Bank.

44

NISE 4200 User Manual

Chapter 4: BIOS Setup

Pending operation

Schedules an operation for the security device.

Platform Hierarchy

Enables or disables platform hierarchy.

Storage Hierarchy

Enables or disables storage hierarchy.

Endorsement Hierarchy

Enables or disables endorsement hierarchy.

TPM2.0 UEFI Spec Version

Configures the TPM 2.0 UEFI spec version.

Physical Presence Spec Version

Configures the physical presence spec version.

Device Select

Configures the TPM version. TPM 1.2 will restrict support to TPM 1.2 devices and TPM 2.0 will restrict support to TPM 2.0 devices. Auto will support both TPM 1.2 and 2.0 devices with the default set to TPM 2.0 devices if not found, and TPM 1.2 devices will be enumerated.

NCT6106D Super IO Configuration

This section is used to configure the serial ports.

Advanced

NCT6106D Super IO Conguration

Super IO Chip



Serial Port 1 Conguration



Serial Port 2 Conguration



Serial Port 3 Conguration



Serial Port 4 Conguration



Serial Port 5 Conguration



Serial Port 6 Conguration

NCT6106D

Super IO Chip

Displays the Super I/O chip used on the board.

Set Parameters of Serial Port 1 (COMA)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

45

NISE 4200 User Manual

Chapter 4: BIOS Setup

Serial Port 1 Configuration

This section is used to configure serial port 1.

Advanced

Serial Port 1 Conguration

Serial Port

Device Settings

Onboard Serial Port Mode

[Enabled]

IO=3F8h; IRQ=4;

[RS232]

Serial Port

Enables or disables the serial port.

Enable or Disable Serial Port (COM)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Serial Port 3 Configuration

This section is used to configure serial port 3.

Advanced

Serial Port 3 Conguration

Serial Port

Device Settings

[Enabled]

IO=3E8h; IRQ=7;

Serial Port

Enables or disables the serial port.

Enable or Disable Serial Port (COM)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Onboard Serial Port Mode

Configures the serial port mode.

46

NISE 4200 User Manual

Chapter 4: BIOS Setup

NCT6106D HW Monitor

This section is used to monitor hardware status such as temperature, fan speed and voltages.

Advanced

Pc Health Status

System temperature CPU Temperature VCORE +12V +5V +5VSB

: +31.5 °c : +36.0 °c : +0.880 V : +12.288 V : +5.056 V : +5.056 V

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System temperature

Detects and displays the current system temperature.

+12V

Detects and displays 12V voltage.

+5V

Detects and displays 5V voltage.

+5VSB

Detects and displays 5VSB voltage.

CPU Temperature

Detects and displays the current CPU temperature.

VCORE

Detects and displays the VCORE CPU voltage.

47

NISE 4200 User Manual

Chapter 4: BIOS Setup

Network Stack Configuration

This section is used to configure the network stack settings.

Advanced

Network Stack

[Disabled]

Enable/Disable UEFI Network Stack

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Network Stack

Enables or disables UEFI network stack.

CSM Configuration

This section is used to configure the compatibility support module features.

Advanced

Compatibility Support Module Conguration

CSM Support

CSM16 Module Version

GateA20 Active Option ROM Messages INT19 Trap Response

Boot option lter

Option ROM execution

Network Storage Video Other PCI devices

[Enabled]

07.81

[Upon Request] [Force BIOS] [Immediate]

[UEFI and Legacy]

[Do not launch] [Legacy] [Legacy] [Legacy]

Enable/Disable CSM Support.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CSM Support

This field is used to enable or disable CSM support, if Auto option is selected, based on OS, CSM will be enabled or disabled automatically.

GateA20 Active

Upon Request GA20 can be disabled using BIOS services. Always Do not allow disabling GA20; this option is useful when any RT code is executed above 1MB.

48

NISE 4200 User Manual

Chapter 4: BIOS Setup

Option ROM Messages

This field is used to set display mode for Option ROM. The options are Force BIOS and Keep Current.

INT19 Trap Response

Allows Option ROMs to trap Interrupt 19 when enabled.

Immediate Execute the trap right away. Postponed Execute the trap during legacy boot.

Boot Option Filter

Configures which drives the system can boot from.

Network

Enables or disables the boot option for legacy network devices.

Storage

Enables or disables the boot option for legacy storage devices.

Video

Enables or disables the boot option for legacy video devices.

Other PCI Devices

Enables or disables the boot option for legacy PCI devices.

USB Configuration

This section is used to configure the USB.

Advanced

USB Conguration

USB Module Version

USB Controllers: 1 XHCI USB Devices: 1 Keyboard

Legacy USB Support

XHCI Hand-off

USB hardware delays and time-outs:

Device reset time-out

19

[Enabled]

[20 sec]

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Legacy USB Support

Enabled Enables Legacy USB. Auto Disables support for Legacy when no USB devices are connected. Disabled Keeps USB devices available only for EFI applications.

XHCI Hand-off

This is a workaround for OSs that does not support XHCI hand-off. The XHCI ownership change should be claimed by the XHCI driver.

Device reset time-out

Selects the USB mass storage device’s start unit command timeout.

49

NISE 4200 User Manual

Chapter 4: BIOS Setup

Chipset

This section gives you functions to configure the system based on the specific features of the chipset. The chipset manages bus speeds and access to system memory resources.

Advanced Chipset Security BootMain

System Agent (SA) Conguration

►

PCH-IO Conguration

►

Save & Exit

System Agent (SA) Parameters

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System Agent (SA) Configuration

This section is used to configure the System Agent (SA) configuration.

Chipset

System Agent (SA) Configuration

SA PCIe Code Version VT-d

Graphics Conguration

►

VT-d

3.6.2.0 Supported

[Enabled]

Graphics Conguration

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

VT-d

Enables or disables VT-d function on MCH.

System Agent (SA) Configuration

System Agent (SA) parameters.

PCH-IO Configuration

PCH-IO parameters.

50

NISE 4200 User Manual

Chapter 4: BIOS Setup

Graphics Configuration

Chipset

Graphics Configuration

DVMT Total Gfx Mem

[256M]

Select DVMT5.0 Total Graphic Memory size used by the Internal Graphics Device.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

DVMT Total Gfx Mem

Selects the DVMT5.0 Total Graphic Memory size used by the Internal Graphics Device.

PCH-IO Configuration

This section is used to configure PCH-IO configuration.

Chipset

PCH-IO Conguration

SATA And RST Conguration

►

Security Conguration

►

HD Audio Conguration

►

PCH LAN Controller State After G3 USB2.0 Power State in Standby USB3.0 Power State in Standby

LAN1 MINI_CARD1 MINI_CARD2

[Enabled] [S0 State] [Power Off] [Power On]

[Enabled] [Enabled] [Enabled]

SATA Device Options Settings

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCH LAN Controller

Enables or disables onboard NIC.

State After G3

Configures the power state when power is re-applied after a power failure (G3 state).

USB2.0 Power State in Standby

Configures the USB 2.0 power state in standby mode.

USB3.0 Power State in Standby

Configures the USB 3.0 power state in standby mode.

51

NISE 4200 User Manual

Chapter 4: BIOS Setup

LAN1

Enables or disables LAN1 controller.

MINI_CARD1 and MINI_CARD2

Enables or disables the the MINI_CARD1 and MINI_CARD2 slots.

SATA And RST Configuration

Chipset

SATA And RST Conguration

SATA Controller(s)

SATA Mode Selection

M2_1 SATA1

[Enabled]

[AHCI]

Empty Empty

SATA Controller(s)

Enables or disables SATA device.

SATA Mode Selection

Configures the SATA as AHCI mode.

Enable/Disable SATA Device.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

AHCI This option configures the Serial ATA drives to use AHCI (Advanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance.

52

NISE 4200 User Manual

Chapter 4: BIOS Setup

Security Configuration

Chipset

Security Conguration

RTC Lock [Enabled]

Enable will lock bytes 38h-3Fh in the lower/upper 128-byte bank of RTC RAM

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

RTC Lock

Enables or disables bytes 38h-3Fh in the upper and lower 128-byte bank of RTC RAM.

HD Audio Configuration

Chipset

HD Audio Subsystem Conguration Settings

HD Audio

[Enabled]

Control Detection of the HD-Audio device. Disabled = HDA will be unconditionally disabled Enabled = HDA will be unconditionally enabled Auto = HDA will be enabled if present, disabled otherwise.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

HD Audio

Control detection of the HD audio device.

Disabled HD audio will be unconditionally disabled. Enabled HD audio will be unconditionally enabled. Auto HD audio will be enabled if present, disabled otherwise.

53

NISE 4200 User Manual

Chapter 4: BIOS Setup

Security

Advanced Chipset Security BootMain

Password Description

If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20

Administrator Password

User Password

Administrator Password

Select this to reconfigure the administrator’s password.

User Password

Select this to reconfigure the user’s password.

Save & Exit

Set Administrator Password

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Boot

BootMain

Boot Configuration

Setup Prompt Timeout

Bootup NumLock State Quiet Boot

Boot Option Priorities

Boot Option #1

Fast Boot

Security

1

[On] [Disabled]

[UEFI: Built-in EFI Shell] [Disabled]

Setup Prompt Timeout

Selects the number of seconds to wait for the setup activation key. 65535(0xFFFF) denotes indefinite waiting.

Bootup NumLock State

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

Save & ExitAdvanced Chipset

Number of seconds to wait for setup activation key.

65535(0xFFFF) means indenite

waiting.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

54

NISE 4200 User Manual

Chapter 4: BIOS Setup

Quiet Boot

Enabled Displays OEM logo instead of the POST messages. Disabled Displays normal POST messages.

Boot Option Priorities

Adjusts the boot sequence of the system. Boot Option #1 is the first boot device that the system will boot from, next will be #2 and so forth.

Fast Boot

Enables or disables fast boot technology to speed up the system boot time. This is achieved by skipping specific tests during BIOS POST routine.

Save & Exit

Save & ExitAdvanced Chipset Security BootMain

Save Options

Save Changes and Exit

Discard Changes and Exit

Save Changes and Reset Discard Changes and Reset

Save Changes Discard Changes

Default Options

Restore Defaults Save as User Defaults Restore User Defaults

Boot Override

UEFI: Built-in EFI Shell

Launch EFI Shell from lesystem device

Save Changes and Exit

To save the changes and exit the Setup utility, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes. You can also press <F4> to save and exit Setup.

Discard Changes and Exit

To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting. You can also press <ESC> to exit without saving the changes.

Exit system setup after saving the changes.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Save Changes and Reset

To save the changes and reset, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

55

NISE 4200 User Manual

Chapter 4: BIOS Setup

Discard Changes and Reset

To exit the Setup utility and reset without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting.

Save Changes

To save changes and continue configuring the BIOS, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Discard Changes

To discard the changes, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes to discard all changes made and restore the previously saved settings.

Restore Defaults

To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Save as User Defaults

To use the current configurations as user default settings for the BIOS, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Restore User Defaults

To restore the BIOS to user default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecing Yes.

Boot Override

To bypass the boot sequence from the Boot Option List and boot from a particular device, select the desired device and press <Enter>.

Launch EFI Shell from filesystem device

To launch EFI shell from a filesystem device, select this field and press <Enter>.

56
