Nexcom NDiS M535 User Manual

NEXCOM International Co., Ltd.

Multi-Media Solutions

Digital Signage Platform NDiS M535

User Manual

NEXCOM International Co., Ltd.

Published May 2016

www.nexcom.com

Content

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer .............................................................................................. iv

Acknowledgements ............................................................................... iv

Regulatory Compliance Statements ........................................................ iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................viii

Installation Recommendations ...............................................................viii

Safety Precautions .................................................................................. ix

Technical Support and Assistance ............................................................ x

Conventions Used in this Manual ............................................................ x

Global Service Contact Information ........................................................ xi

Package Contents ................................................................................. xiii

Ordering Information ............................................................................xiv

Chapter 1: Product Introduction

Overview ................................................................................................1

Key Features ...........................................................................................1

Physical Features .....................................................................................2

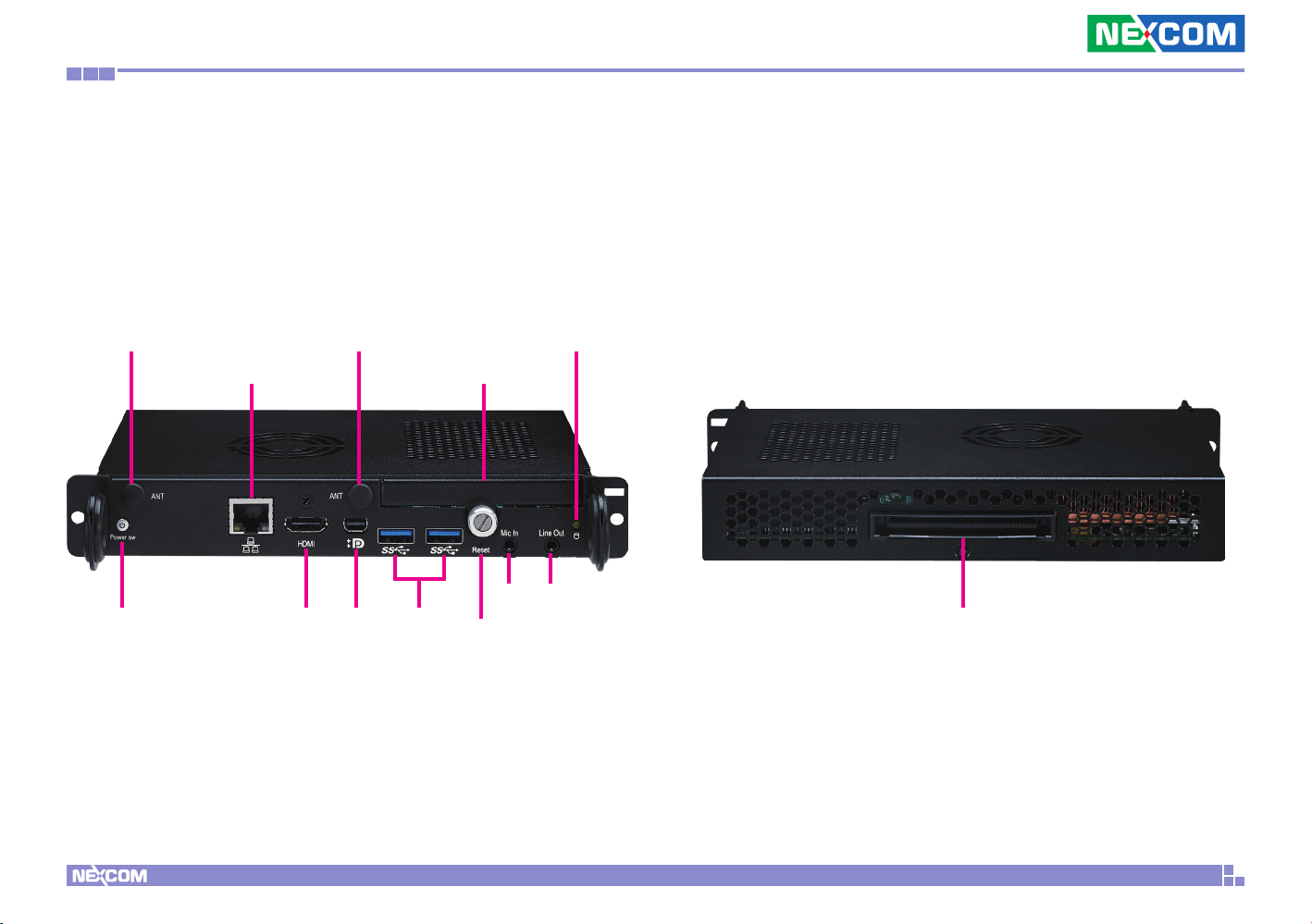

Front Panel ..........................................................................................2

Rear Panel ...........................................................................................2

Hardware Specifications ..........................................................................3

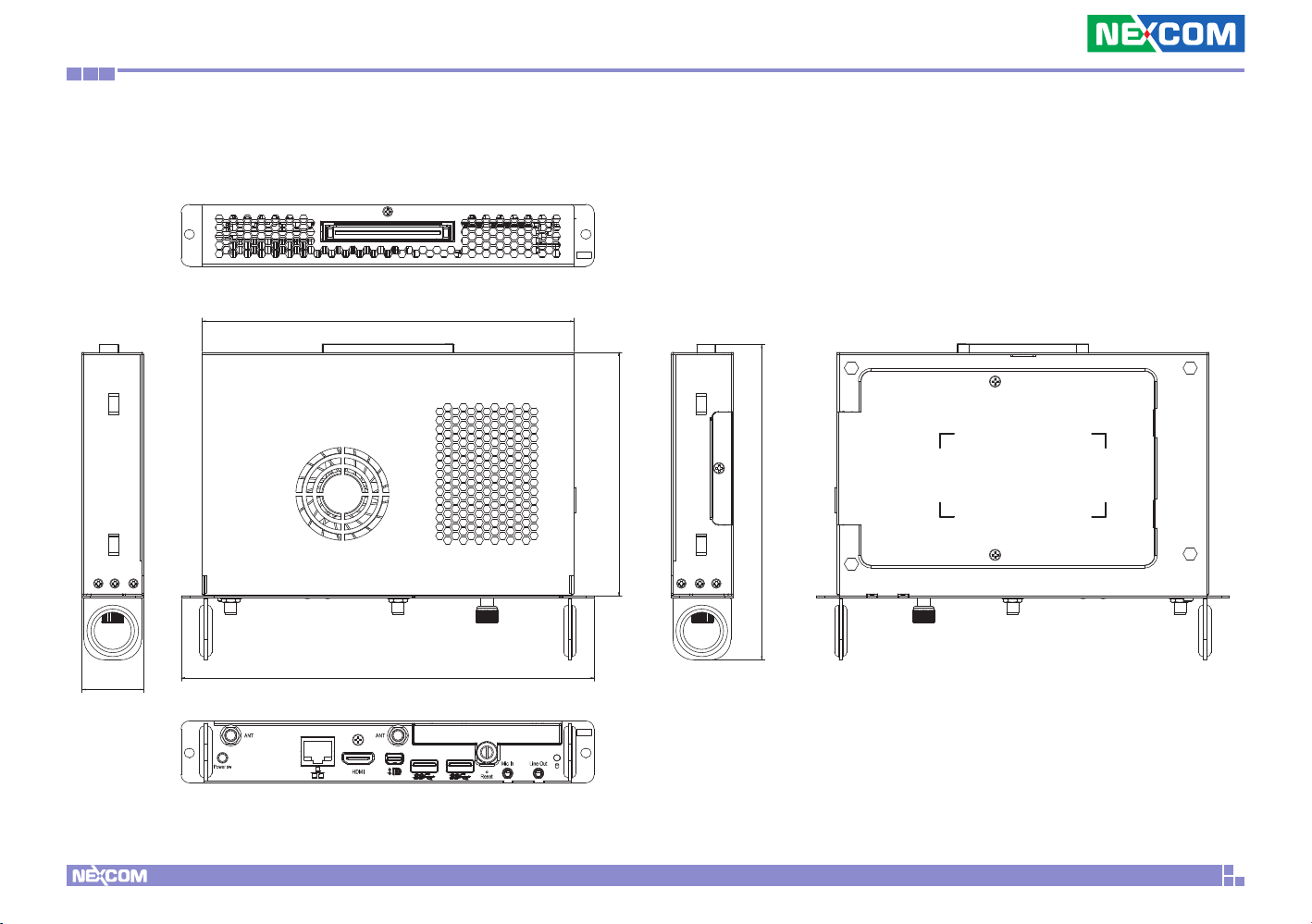

Mechanical Dimensions ...........................................................................4

Chapter 2: Jumpers and Connectors

Before You Begin ....................................................................................5

Precautions ............................................................................................5

Locations of the Jumpers and Connectors for NDiB M535 ....................... 6

NDiB M535 .........................................................................................6

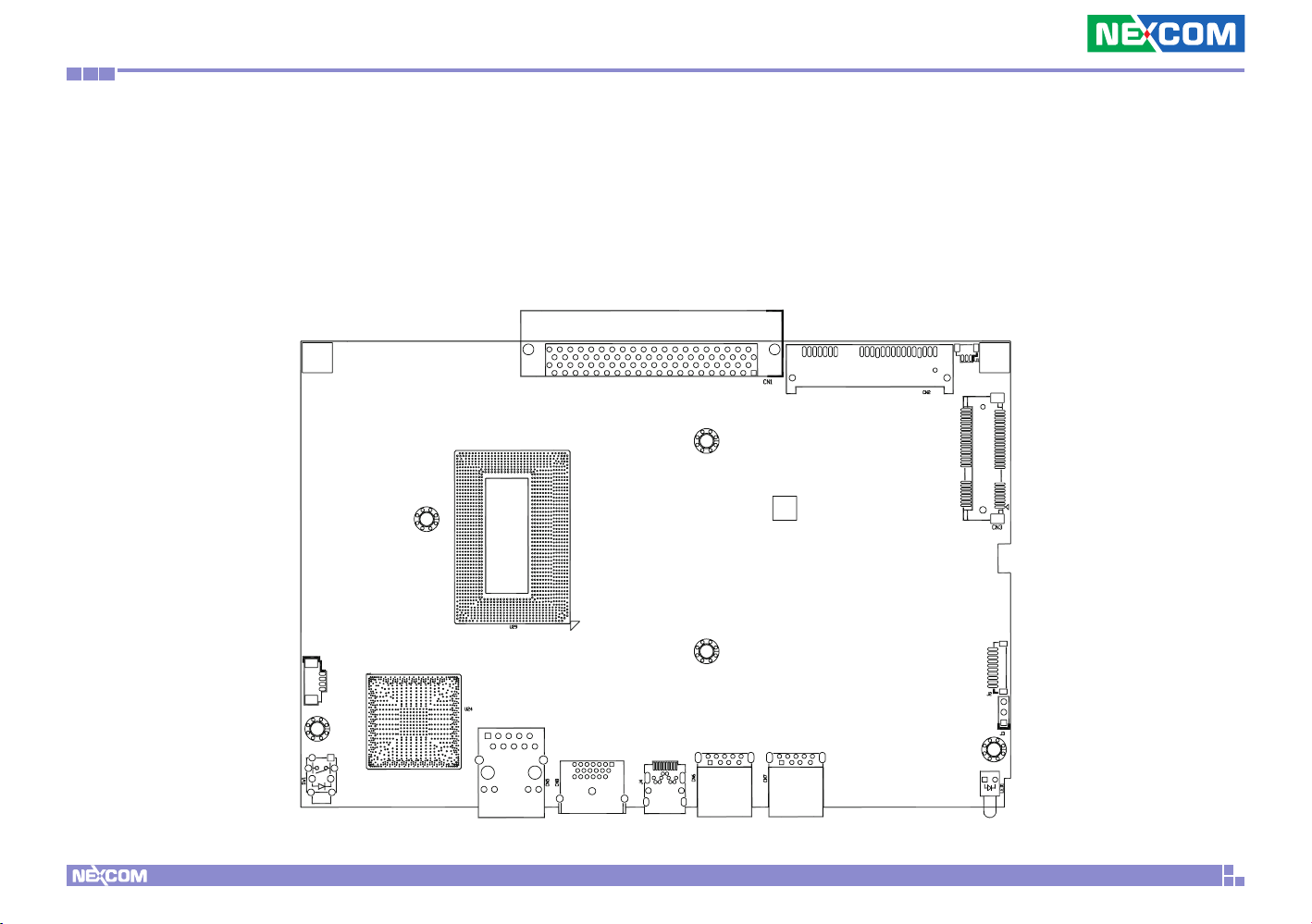

Top View .......................................................................................... 6

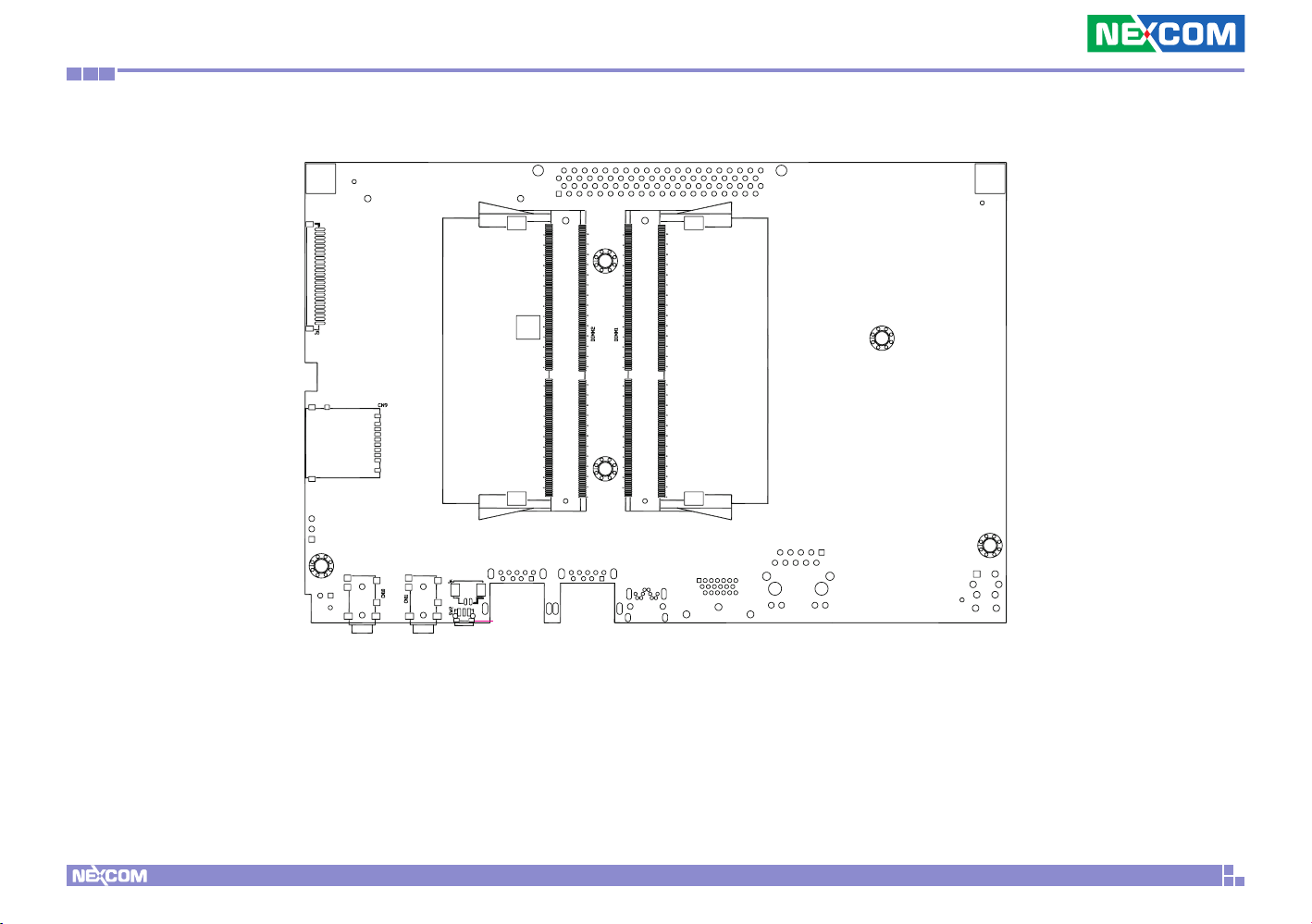

Bottom View .................................................................................... 7

Jumper Settings ......................................................................................8

Jumpers .................................................................................................. 9

RTC Control Connector .......................................................................9

Connector Pin Definitions .....................................................................10

External I/O Interfaces ........................................................................ 10

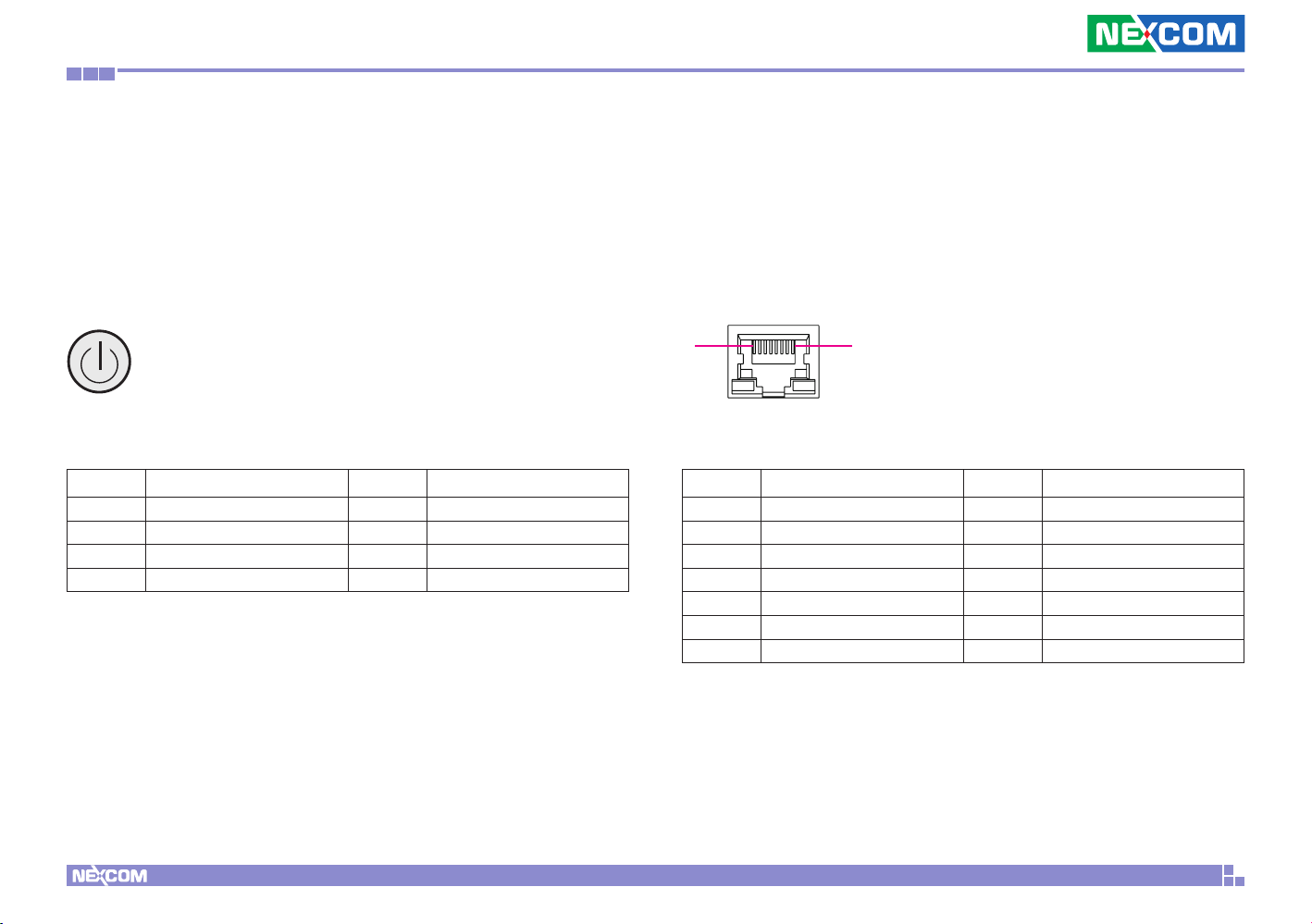

Power Button ................................................................................. 10

LAN Port ........................................................................................10

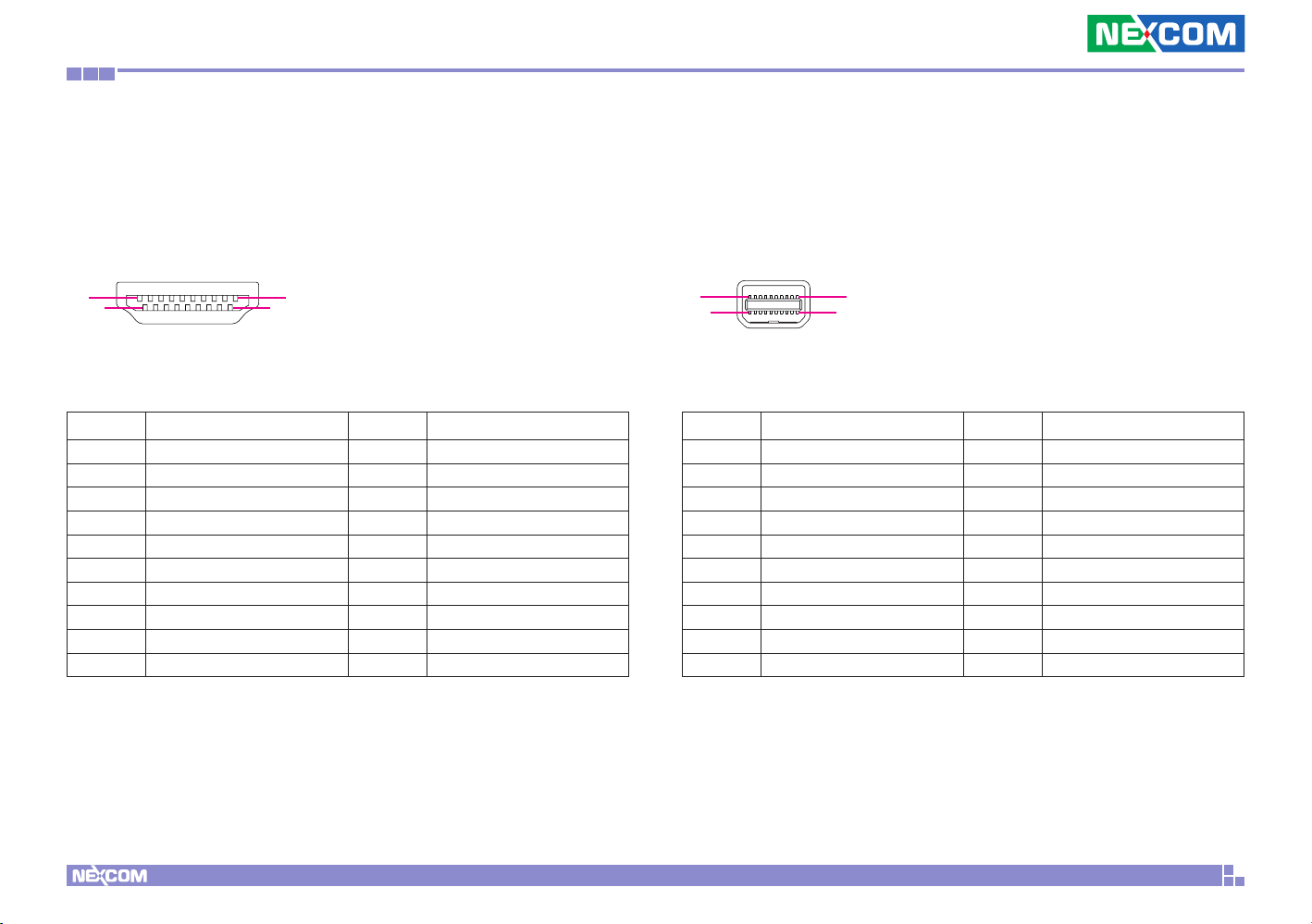

HDMI Port ...................................................................................... 11

Mini DisplayPort ............................................................................. 11

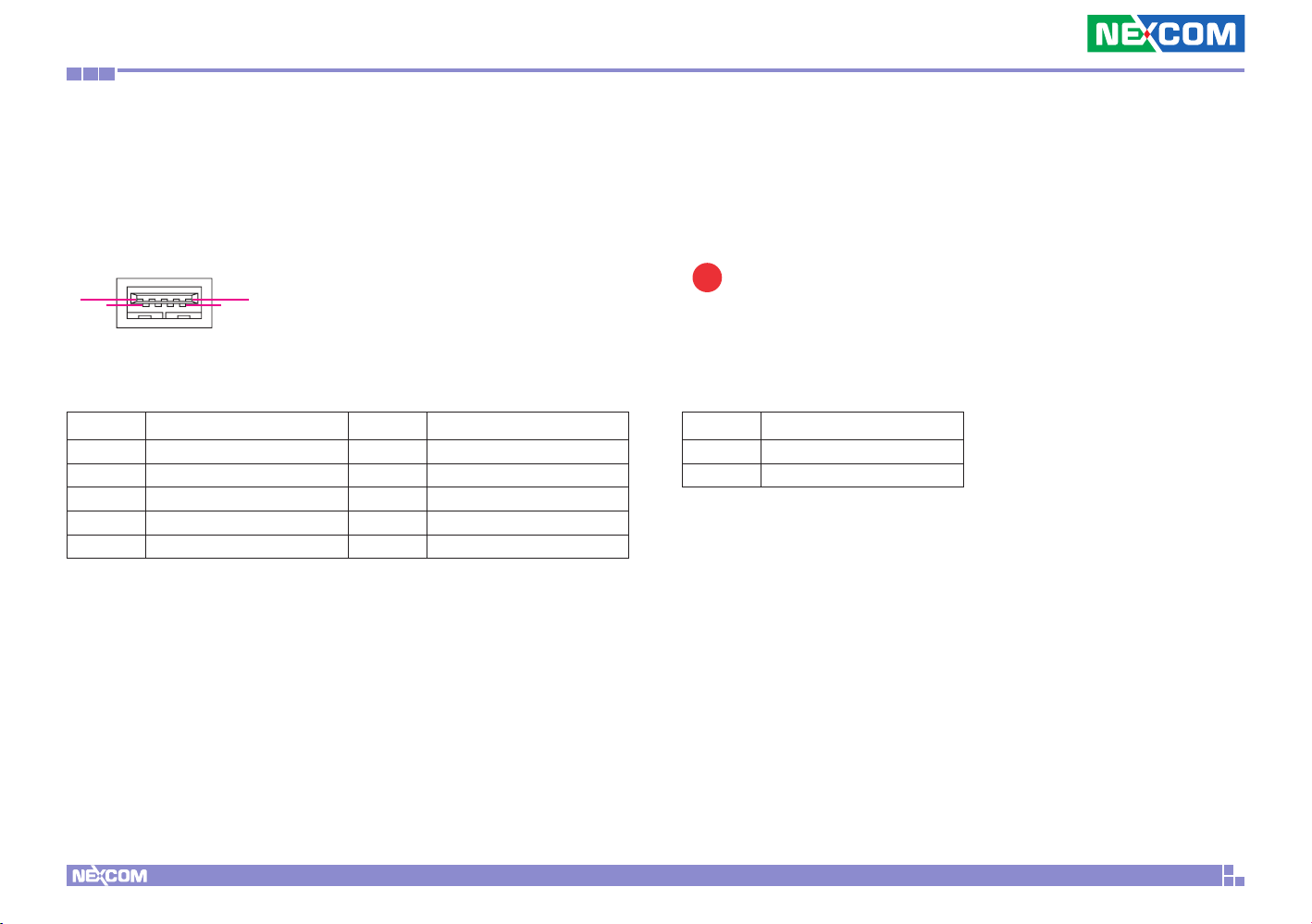

USB 3.0 Ports ................................................................................. 12

LED Connector ............................................................................... 12

Reset Button ..................................................................................13

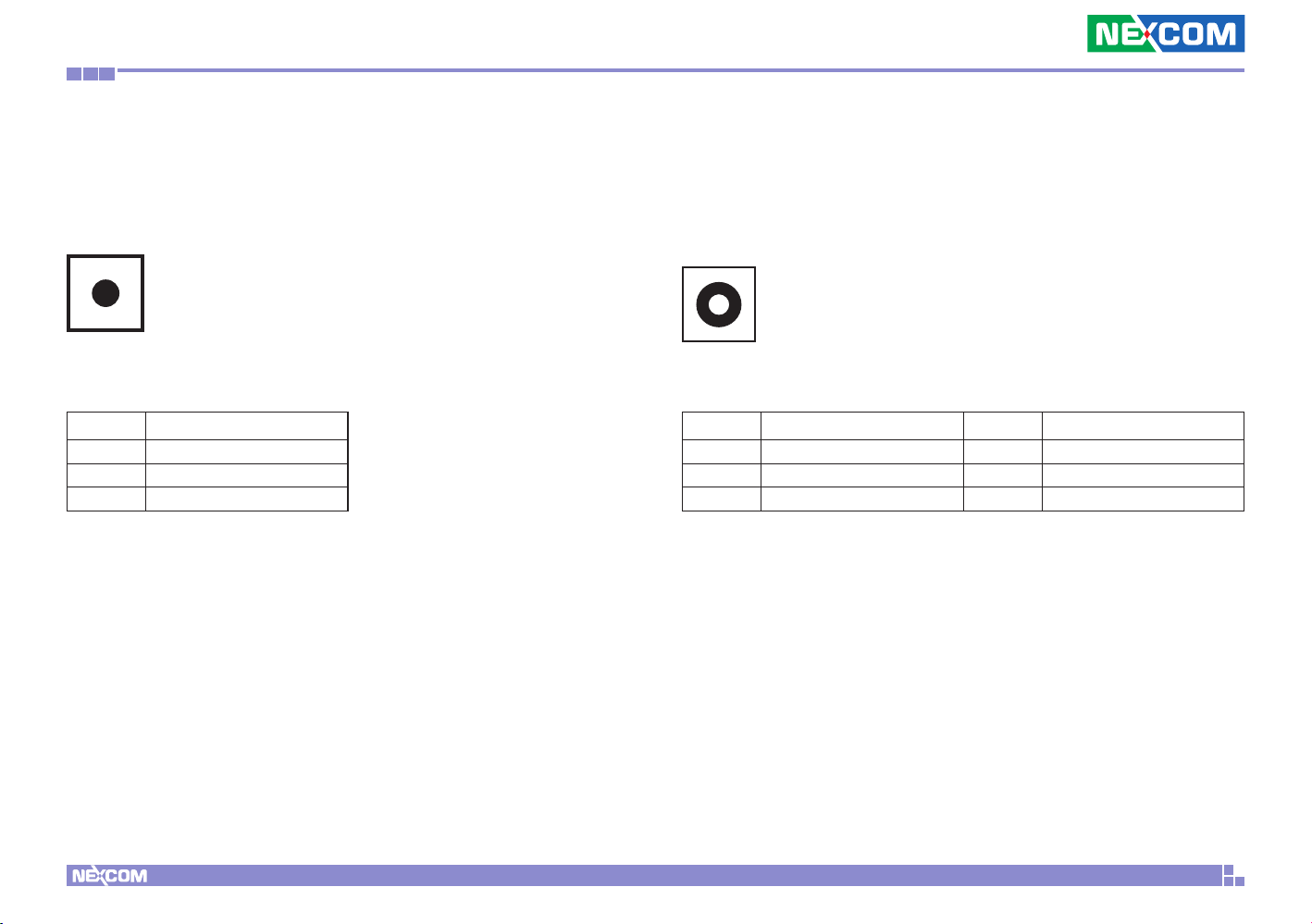

Mic-in Connector ........................................................................... 13

Line-out Connector ........................................................................ 14

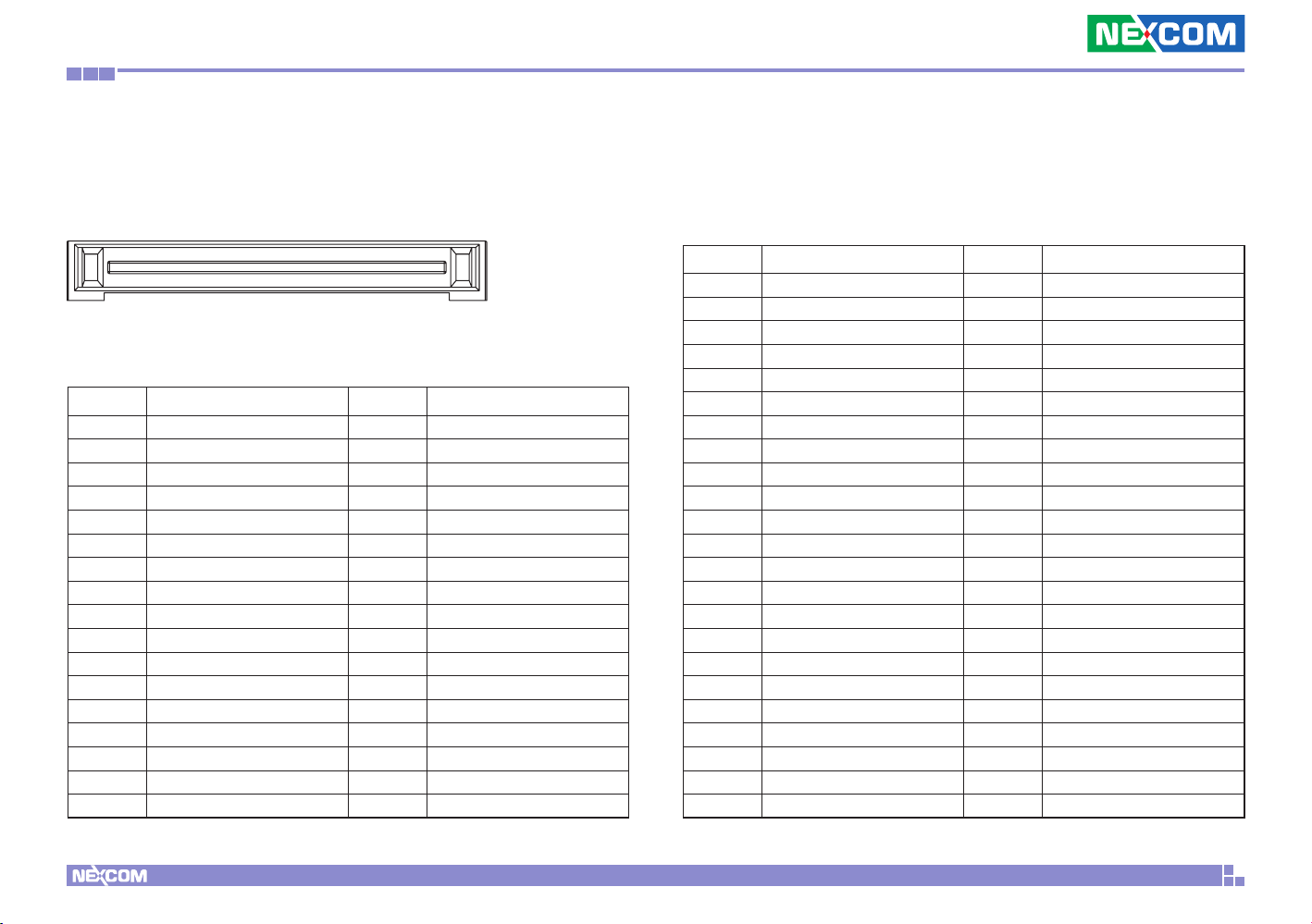

JAE-TX25 Connector ...................................................................... 15

Internal Connectors ........................................................................... 16

SATA Connector (7-pin and 15-pin) ................................................16

RTC Battery Connector ...................................................................16

Port 80 Connector .........................................................................17

ii

NDiS M535 User Manual

Content

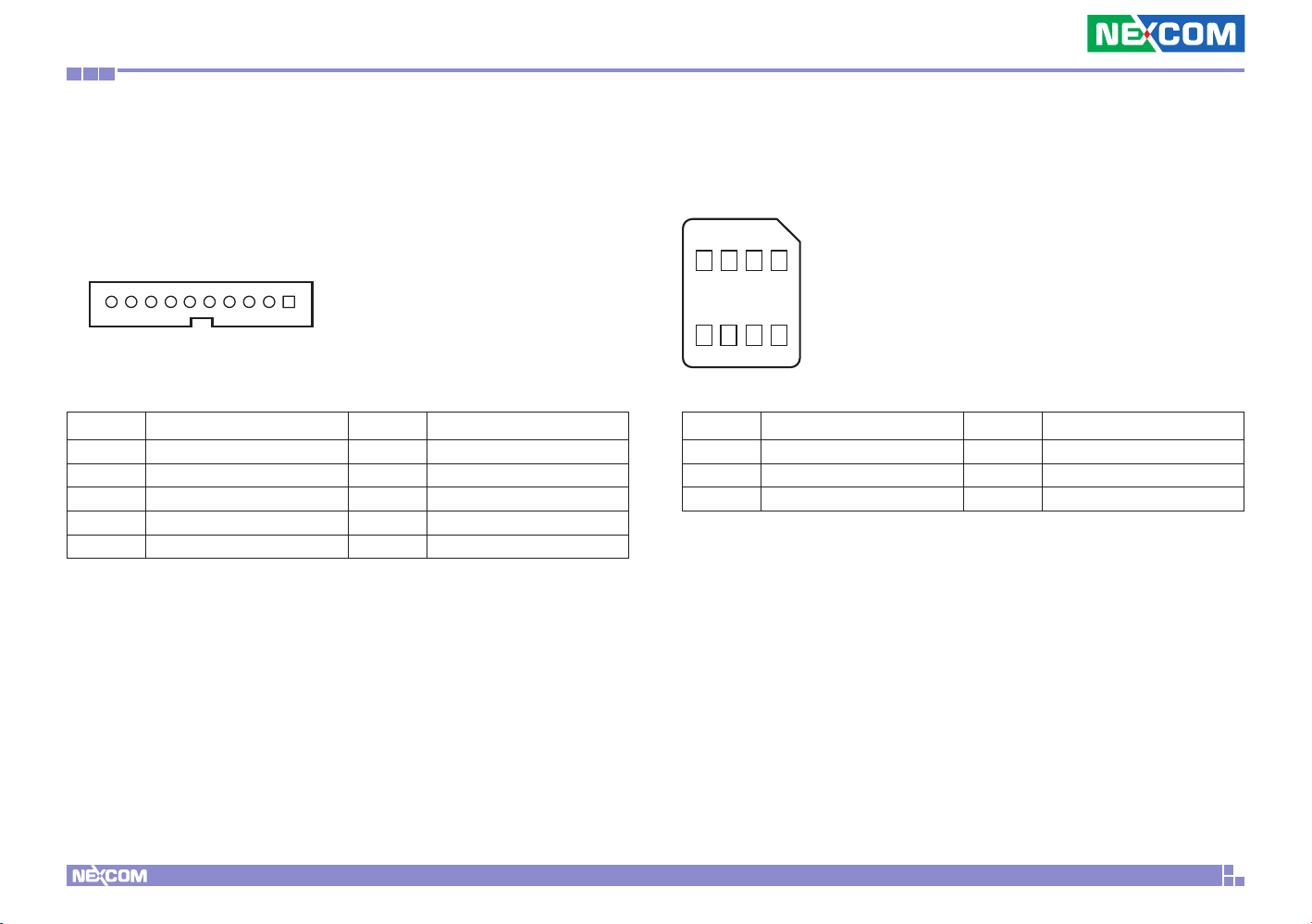

SIM Card Reader ............................................................................17

Mini-PCIe Connector ...................................................................... 18

Chapter 3: System Setup

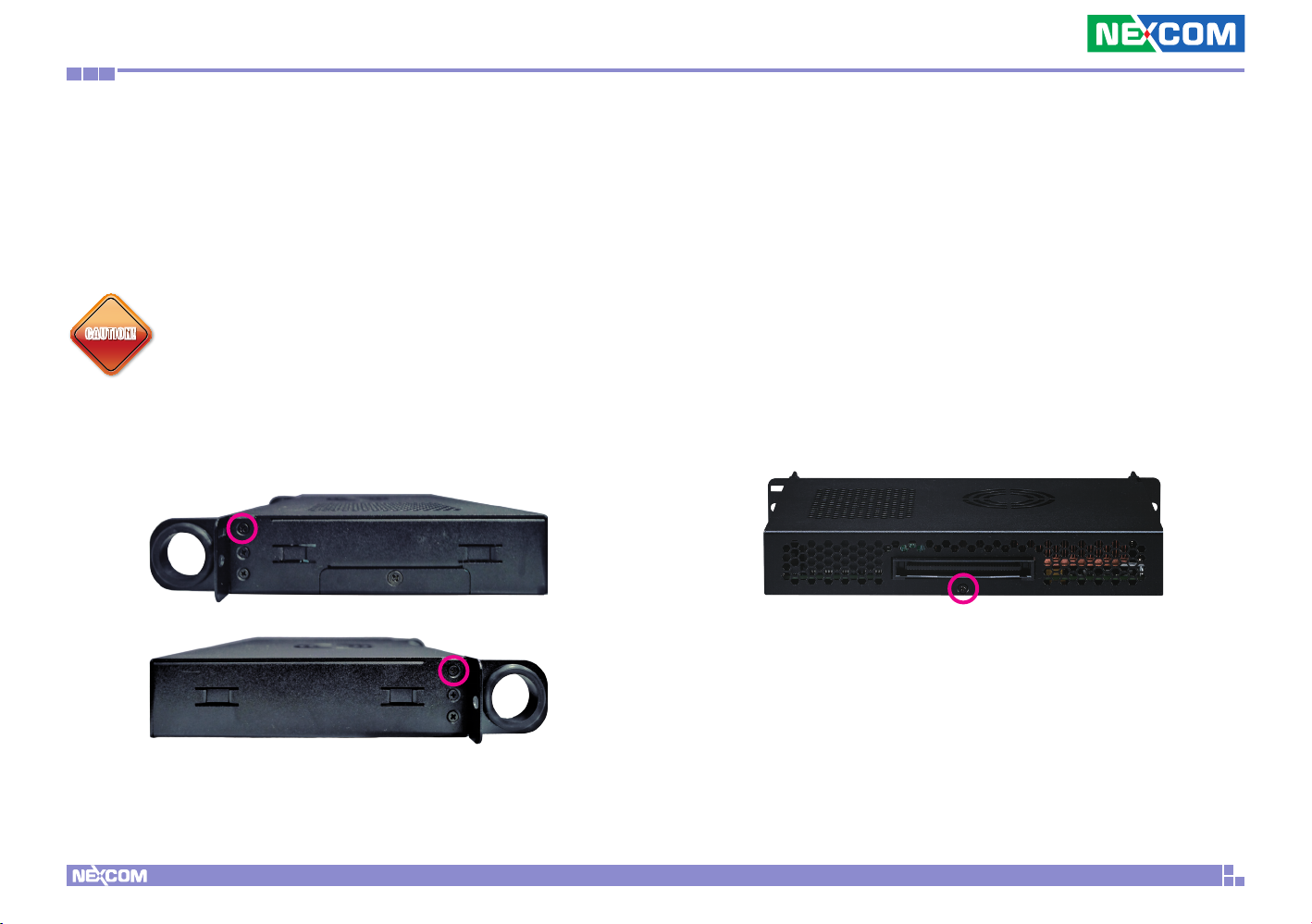

Removing the Chassis Cover ................................................................19

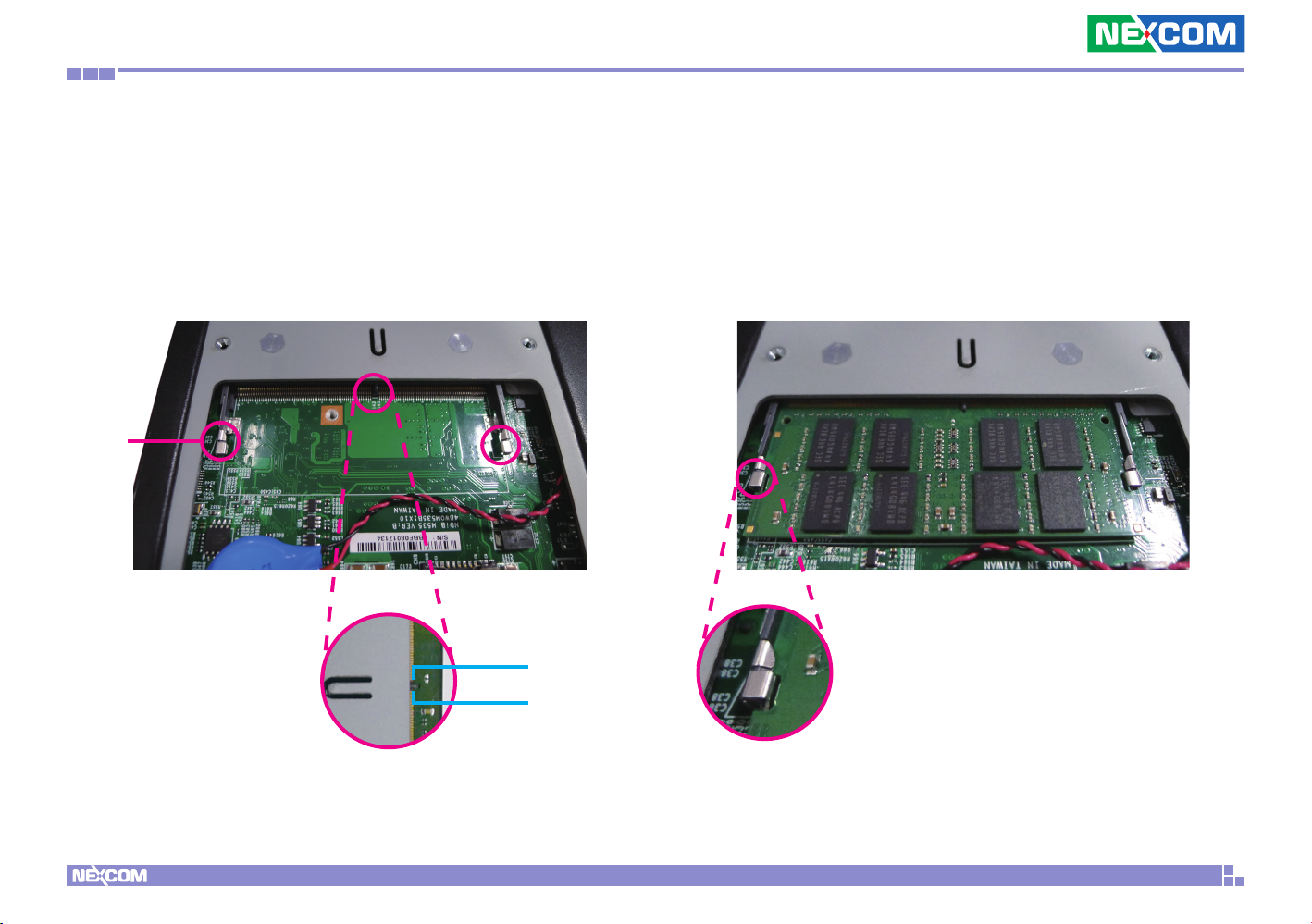

Installing a SO-DIMM Memory Module .................................................20

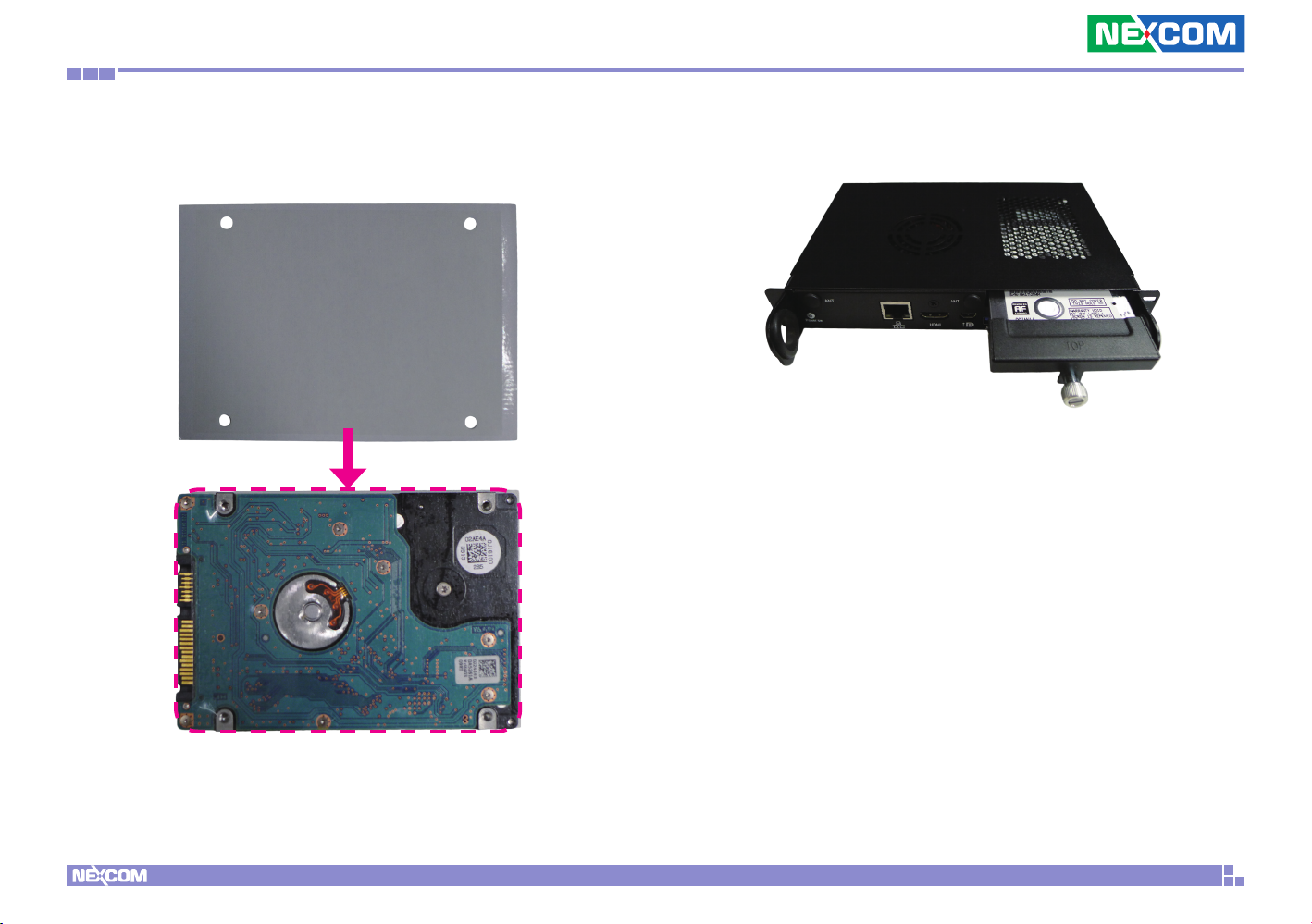

Installing a 2.5” SSD/HDD Storage ........................................................22

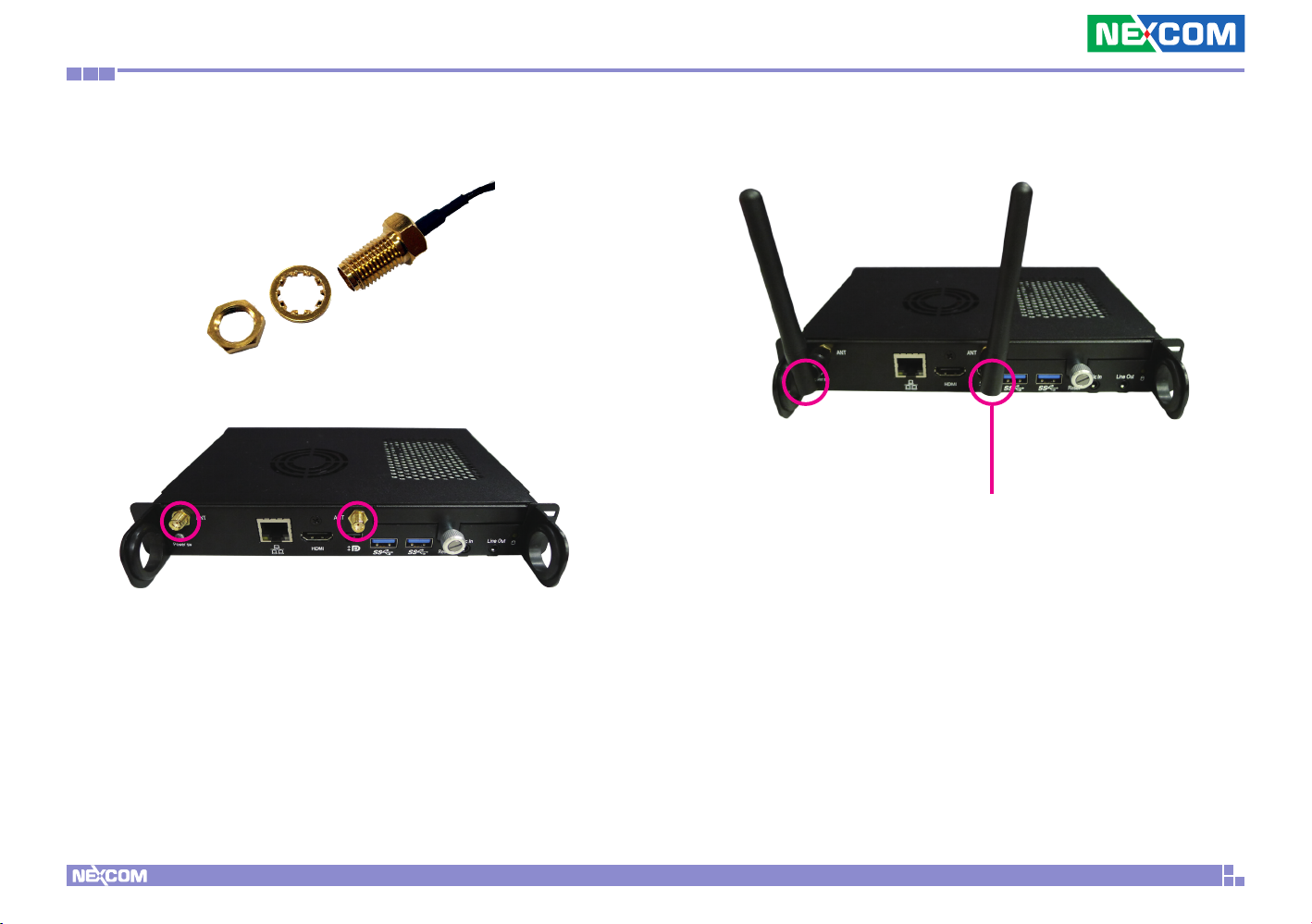

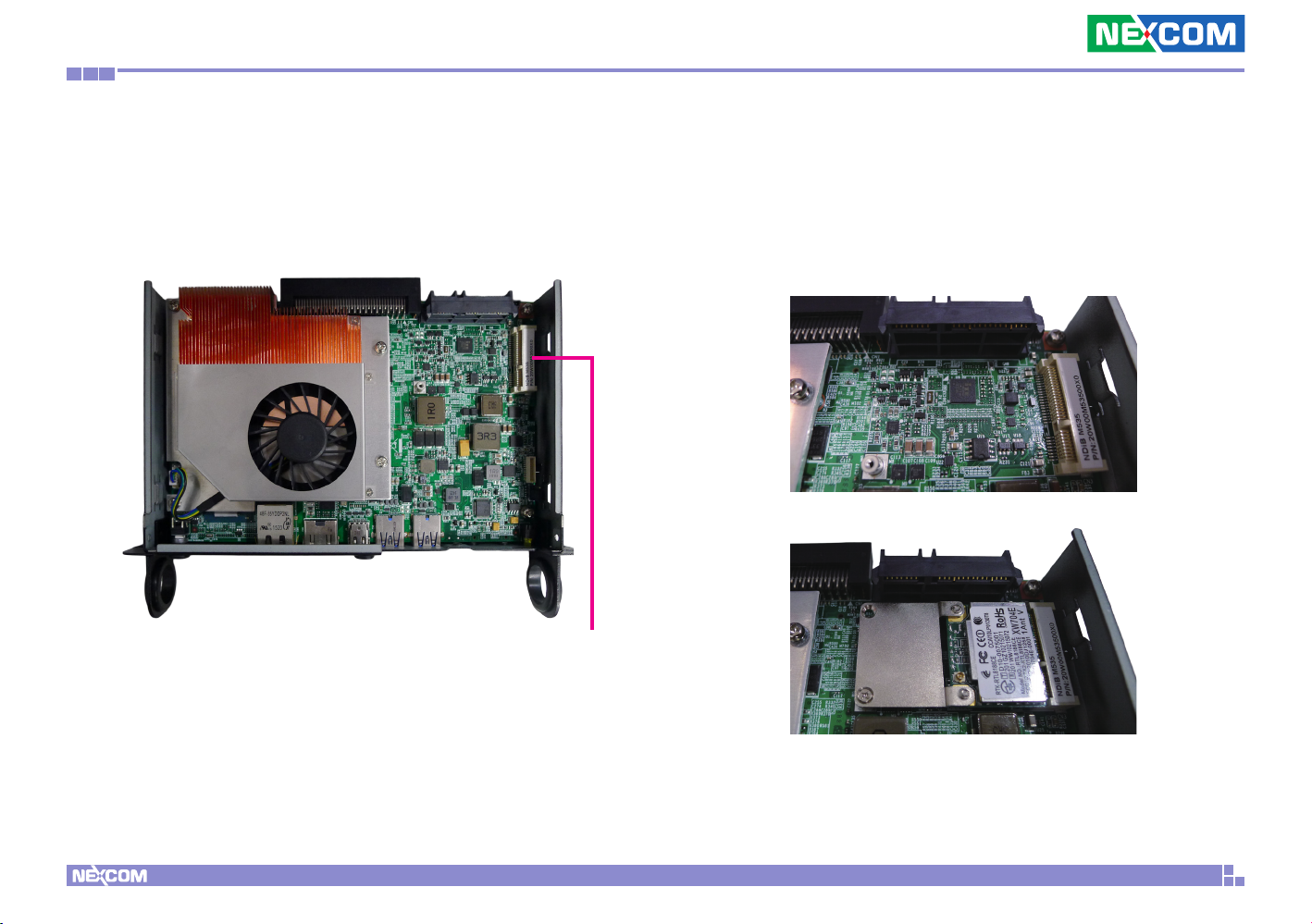

Installing a Wireless LAN Module ..........................................................24

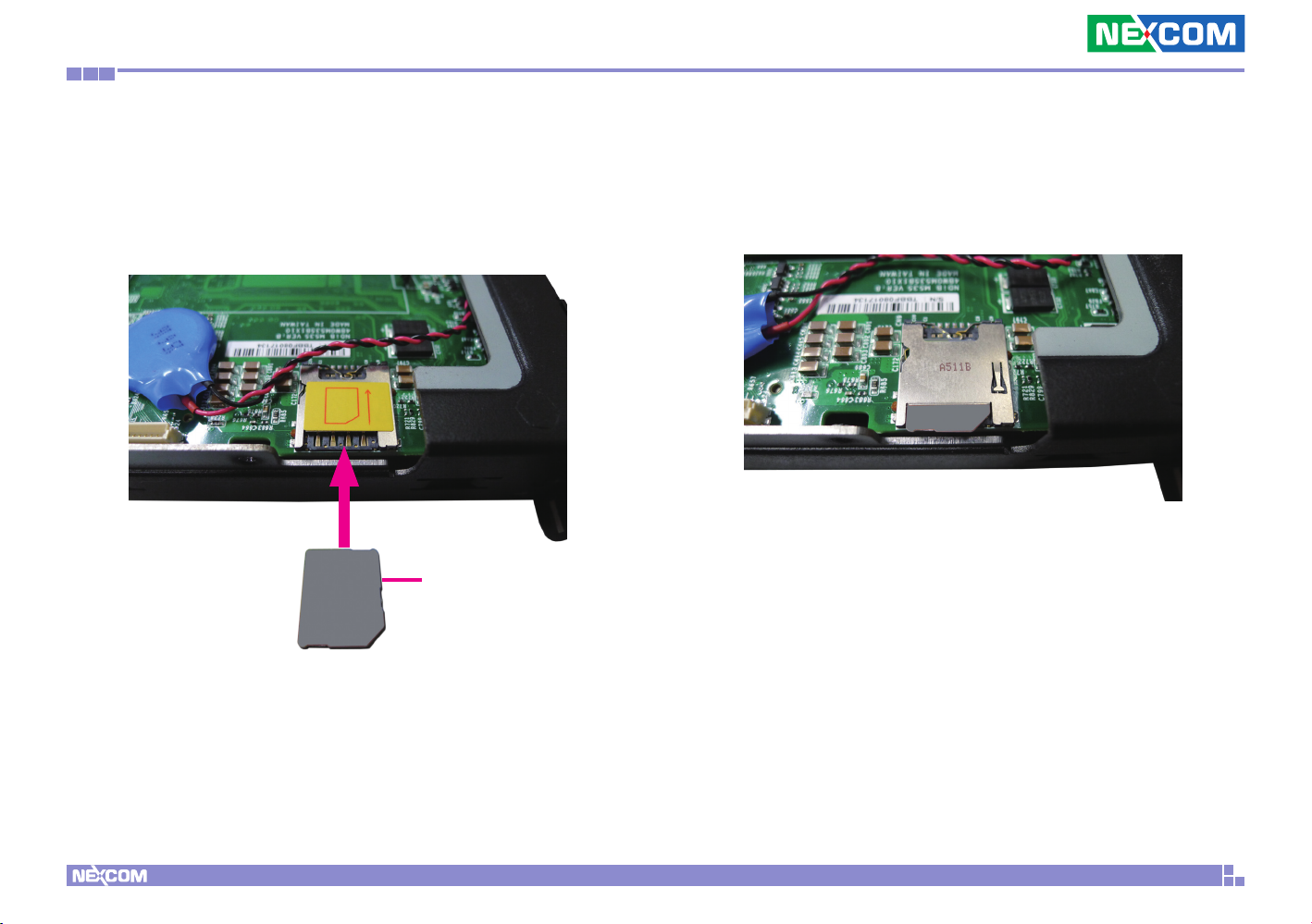

Installing a SIM Card .............................................................................27

Chapter 4: BIOS Setup

About BIOS Setup ................................................................................. 28

When to Configure the BIOS .................................................................28

Default Configuration ........................................................................... 29

Entering Setup ...................................................................................... 29

Legends ................................................................................................ 29

BIOS Setup Utility .................................................................................. 31

Main .................................................................................................31

Advanced .......................................................................................... 32

Security .............................................................................................39

Boot .................................................................................................. 39

Save & Exit ........................................................................................40

Appendix A: Watchdog Timer ...............................41

iii

NDiS M535 User Manual

Preface

PrefaCe

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

NDiS M535 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

iv

NDiS M535 User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green

products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2011/65/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2013 will be RoHS compliant. They will use the usual NEXCOM naming convention.

v

NDiS M535 User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

▪ Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

▪ Customers must collect all the information about the problems

encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

▪ Customers can send back the faulty products with or without accessories

(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

▪ Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

▪ Any products returned by NEXCOM to other locations besides the

customers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

▪ Component fee: NEXCOM will only charge for main components such as

SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

▪ Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

▪ Replace with 3rd party products if needed.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

Board Level

▪ Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

vi

NDiS M535 User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

vii

NDiS M535 User Manual

Preface

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully.

▪ Do not place the unit on an unstable surface, cart, or stand.

▪ Follow all warnings and cautions in this manual.

▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

▪ A Philips screwdriver

▪ A flat-tipped screwdriver

▪ A grounding strap

▪ An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

viii

NDiS M535 User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the

equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or

letting it fall may cause damage.

7. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting

the equipment to the power outlet.

9. Place the power cord in a way so that people will not step on it. Do not

place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical shock.

13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work

according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.

15. Do not place heavy objects on the equipment.

16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

ix

NDiS M535 User Manual

Preface

CAUTION!

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

x

NDiS M535 User Manual

Preface

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

9F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: [email protected] www.nexcom.com

Asia

Taiwan NEXCOM Intelligent Systems

Taipei Office

13F, No.920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: [email protected]

www.nexcom.com.tw

NEXCOM Intelligent Systems Taichung Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: [email protected] www.nexcom.com.tw

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: [email protected] www.nexcom-jp.com

China

NEXCOM China

1F & 2F, Block A, No. 16 Yonyou Software Park, No. 68 Beiqing Road, Haidian District, Beijing, 100094, China Tel: +86-10-5704-2680 Fax: +86-10-5704-2681 Email: [email protected] www.nexcom.cn

xi

NDiS M535 User Manual

Preface

NEXCOM Shanghai

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200333, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: [email protected] www.nexcom.cn

NEXCOM Surveillance Technology

Room202, Building B, the GuangMing Industrial Zone Zhonghua Rd., Minzhi Street, Longhua District, Shenzhen, 518000, China Tel: +86-755-8364-7768 Fax: +86-755-8364-7738 Email: [email protected] www.nexcom.cn

NEXCOM United System Service

Hui Yin Ming Zun Building Room 1108, Building No. 11, 599 Yunling Road, Putuo District, Shanghai, 200062, China Tel: +86-21-6125-8282 Fax: +86-21-6125-8281 Email: [email protected] www.nexcom.cn

Europe

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: [email protected] www.nexcom.eu

Italy NEXCOM ITALIA S.r.l

Via Lanino 42, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9625570 Email: [email protected] www.nexcomitalia.it

xii

NDiS M535 User Manual

Preface

Package Contents

Before continuing, verify that the NDiS M535 package that you received is complete. Your package should have all the items listed in the following table.

Item Part Number Name Description Qty

1 50311F0112X00 (H)Flat Head Screw Long Fei: F3 x 4iso For SPC-150 M3 x 4mm (Nylok) Black 2 2 50311F0295X00 Flat Head Screw Long Fei: F2 x 4 NYLOK NIGP F2 x 4 NIGP Nylok 2 3 5040420019X00 Mini-card Bracket for NDIS M323 VER: A CHYUAN-JYH 29 x 30 x 2.1mm t= 1.0mm SPCC+NI 1 4 5060600171X00 (H)2.5 HDD Mylar E-LIN 96.2 x 70 x 0.1mm 1 5 6013300521X00 NDiS M533 Cable kit EPE VER: A Sentenel 230 x 200 x 15mm 1 6 6013300709X00 EPE for NDiS M335 VER: A Sentenel 227 x 200 x 75mm 1 7 602DCD1117X00 NDiS M535 DVD Driver Manual VER:1.0 JCL 1

xiii

NDiS M535 User Manual

Preface

Ordering Information

The following below provides ordering information for NDiS M535.

NDiS M535 (P/N: 10W00M53500X0)

6th generation Intel

®

Intel

QM170 chipset

®

Core™ i5-6440EQ BGA type processor OPS,

NDiS M535-6820EQ (P/N: 10W00M53501X0)

6th generation Intel

®

Intel

QM170 chipset

®

Core™ i7-6820EQ BGA type processor OPS,

xiv

NDiS M535 User Manual

Chapter 1: Product Introduction

ChaPter 1: ProduCt IntroduCtIon

Overview

NDiS M535 is an OPS-compliant media player powered by 6th generation

®

Intel

Core™ processors. Following open pluggable standard, NDiS M535 can perfectly fit into a myriad of OPS-panels and is compact in size. Yet, NDiS M535 has high scalability, allowing for easy storage capacity expansion through pluggable 2.5” storage unit and effortless functional extension through mini card expansion modules. Changing system memory is also made simple. In addition, NDiS M535 leverages the future generation

®

Intel

Core™ processors to deliver outstanding graphics with support for 3 independent 4K2K video outputs. The superb but power-efficient NDiS M535 can therefore maximize visual impacts for digital signage applications.

Key Features

▪ 6th generation Intel® Core™ Processor

®

▪ Integrated Intel

▪ Support 3 independent 4K2K video outputs

▪ Dual DDR4 SO-DIMM support

▪ WWAN/WLAN/TV Tuner support

®

▪ DirectX

12 support

HD 530 graphics

1

NDiS M535 User Manual

Chapter 1: Product Introduction

Physical Features

Front Panel Rear Panel

Antenna Antenna

LAN

Power

Button

HDMI mDP USB 3.0

HDD Slot

Mic-in

Reset

Button

HDD LED

Line-out

JAE TX25 80Pin

2

NDiS M535 User Manual

Chapter 1: Product Introduction

Hardware Specifications

CPU Support

▪ 6th generation Intel® Core™ i5-6440EQ 2.7GHz BGA type processor ▪ 6th generation Intel

Chipset

▪ Intel® QM170 PCH

Graphics

▪ Integrated Intel® HD 530 graphics

Main Memory

▪ 2x 260pin SO-DIMM sockets, support DDR4 1866/2133 MHz non-ECC,

un-buffered memory up to 32G (Single socket max. 16GB)

I/O Interface-Front

▪ 1x Power button with LED ▪ 1x Reset button ▪ 1x RJ45 with LEDs for Gigabit LAN ▪ 1x HDMI 2.0 (A type), 1x Mini DP ▪ 2x USB 3.0 ▪ 1x 2.5” HDD/SSD slot ▪ 1x HDD Active LED ▪ 2x Antenna hole ▪ 1x Mic-in phone jack ▪ 1x Line-out phone jack

I/O Interface-Rear

▪ 1x TMDS (HDMI) ▪ 1x USB 3.0 ▪ 2x USB 2.0 ▪ 1x UART (TX/RX)

®

Core™ i7-6820EQ 2.8GHz BGA type processor

▪ 1x Audio out L/R ▪ DC input +12V~+19V ▪ Control signals (PWR_STATUS, PS_ON#, PB_DET, CEC, SYS_FAN)

Storage Device

▪ 1x SATA 2.5” HDD/SSD

Expansion

▪ 1x Mini-PCIe for optional WLAN/TV tuner module ▪ 1x Micro SIM Slot

Dimensions

▪ 200mm (W) x 119mm (D) x 30mm (H) (7.8” x 4.7” x 1.1”)

Power Supply

▪ DC power input +12V ~ +19V

Environment

▪ Operating temperature: ambient with air flow from 0°C to 45°C ▪ Storage temperature: -20°C to 80°C ▪ Humidity: 10 to 90% (non-condensing)

Certification

▪ CE/FCC Class A

Operating System

▪ Windows 7 (32-bit/64-bit) / Windows 8.1 (64-bit)/ Windows 10 (64-bit)

3

NDiS M535 User Manual

Chapter 1: Product Introduction

Mechanical Dimensions

180.00

118.00

152.90

30.00

200.00

4

NDiS M535 User Manual

Chapter 2: Jumpers and Connectors

ChaPter 2: JumPers and ConneCtors

This chapter describes how to set the jumpers and connectors on the NDiS M535 motherboard.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: – A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

▪ Before working on internal components, make sure that the power is off.

Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environments tend to have less static electricity than

dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside the

computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they shipped

with until they are ready for installation.

▪ Use correct screws and do not over tighten screws.

5

NDiS M535 User Manual

Chapter 2: Jumpers and Connectors

Locations of the Jumpers and Connectors for NDiB M535

NDiB M535

The figure below is the top and bottom view of the NDiB M535 mainboard which is the mainboard used in NDiS M535. It shows the locations of the jumpers and connectors.

Top View

SW1

CN5

CN1

CN8 J4

6

CN2

CN3

J2

J3

CN6 CN7

LED1

NDiS M535 User Manual

Chapter 2: Jumpers and Connectors

Bottom View

CN9

CN10

CN11

J6

SW2

7

NDiS M535 User Manual

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

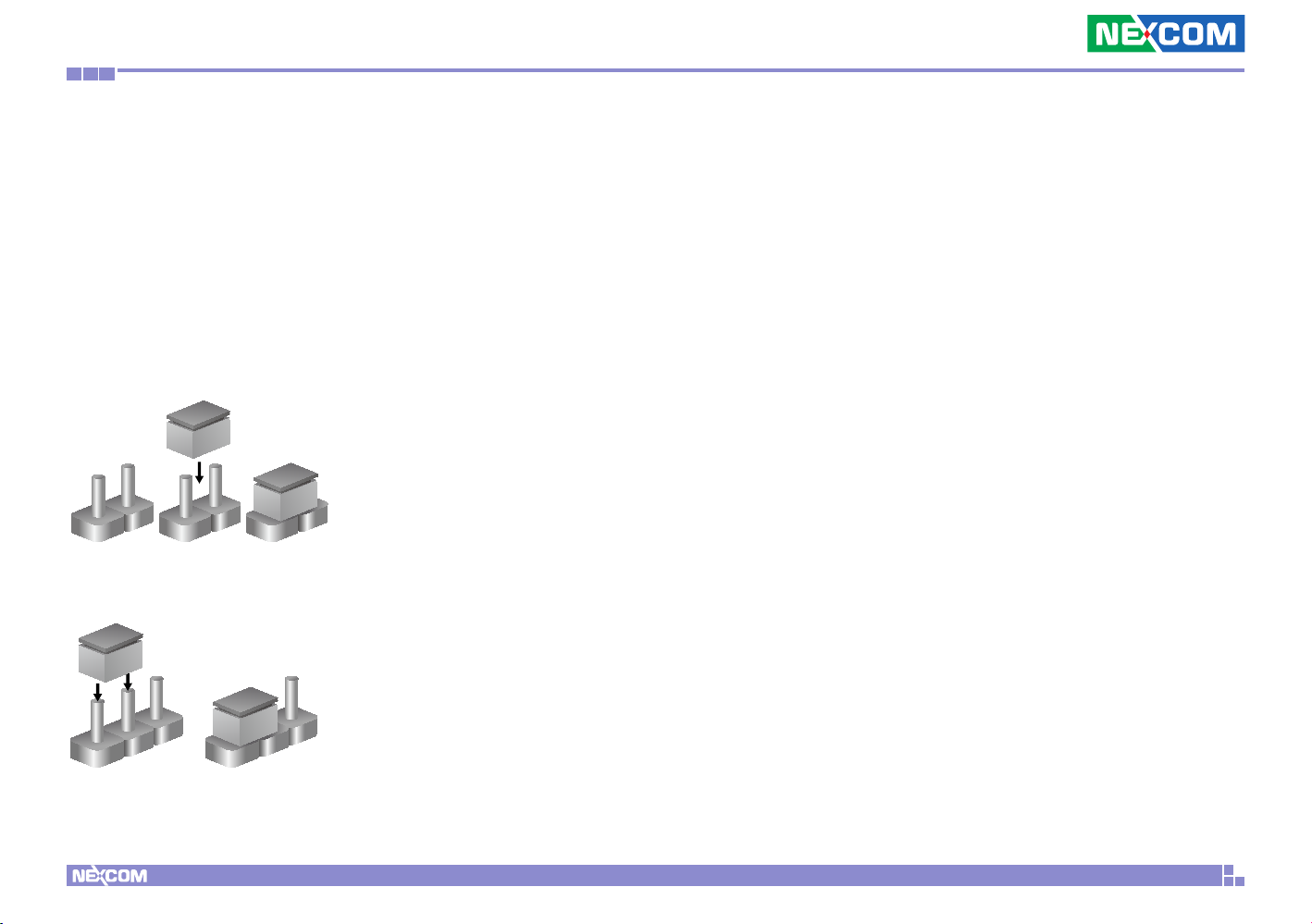

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 are Short

3

2

1

3

2

8

NDiS M535 User Manual

Chapter 2: Jumpers and Connectors

Jumpers

RTC Control Connector

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: J3

1 3

Pin Settings

1-2 On Normal 2-3 On Clear CMOS

1-2 On: default

Pin Definition

1 RTC_RST#_PU 2 RTC_RST# 3 CLR_CMOS

9

NDiS M535 User Manual

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External I/O Interfaces

Power Button

Connector location: SW1

Pin Definition Pin Definition

1 GND 2 PBT_PU 3 PBT_PU 4 GND

A1 PWRLED_N C1 PWRLED_P

MH1 NC MH2 NC

LAN Port

Connector type: RJ45 port with LEDs Connector location: CN5

1 8

Pin Definition Pin Definition

1 TCT 2 MID33 MID3+ 4 MID25 MID2+ 6 MID17 MID1+ 8 MID0-

9 MID0+ 10 GND 11 LED+ 12 LAN_ACTLED#_C 13 LAN1_LED2P 14 LAN1_LED3P

10

NDiS M535 User Manual

Chapter 2: Jumpers and Connectors

HDMI Port

Connector type: HDMI port Connector location: CN8

119

18

Pin Definition Pin Definition

1 TMDS DATA2+ 2 GND 3 TMDS DATA2- 4 TMDS DATA1+ 5 GND 6 TMDS DATA17 TMDS DATA0+ 8 GND

9 TMDS DATA0- 10 TMDS CLOCK+ 11 GND 12 TMDS CLOCK13 CEC 14 NC 15 SCL 16 SDA 17 DDC 18 +5V 19 HOT PLUG DETECT

2

Mini DisplayPort

Connector type: Mini DisplayPort Connector location: J4

119

20

Pin Definition Pin Definition

1 GND 2 HPD 3 LANE0_P 4 CONFIG1 5 LANE0_N 6 CONFIG2 7 GND 8 GND

9 LANE1_P 10 LANE3_P 11 LANE1_P 12 LANE3_N 13 GND 14 GND 15 LANE2_P 16 AUXP 17 LANE2_N 18 AUXN 19 GND 20 PWR

2

11

NDiS M535 User Manual

Chapter 2: Jumpers and Connectors

USB 3.0 Ports

Connector type: USB 3.0 port, Type A Connector location: CN6 and CN7

9

1

Pin Definition Pin Definition

1 VBUS 2 D3 D+ 4 GND 5 SSRX- 6 SSRX+ 7 GND 8 SSTX9 SSTX+

5

4

LED Connector

Connector location: LED1

HDD

Pin Definition

A POWER

C HD_LEDN

12

NDiS M535 User Manual

Chapter 2: Jumpers and Connectors

Reset Button

Connector location: SW2

Pin Definition

1 GND 2 RST_BTN# 3 GND

Mic-in Connector

Connector type: 3.5mm TRS Connector location: CN11

Pin Definition Pin Definition

1 GND 2 GND

3 MIC_IN_R 4 MIC_IN_L

5 JD

13

NDiS M535 User Manual

Chapter 2: Jumpers and Connectors

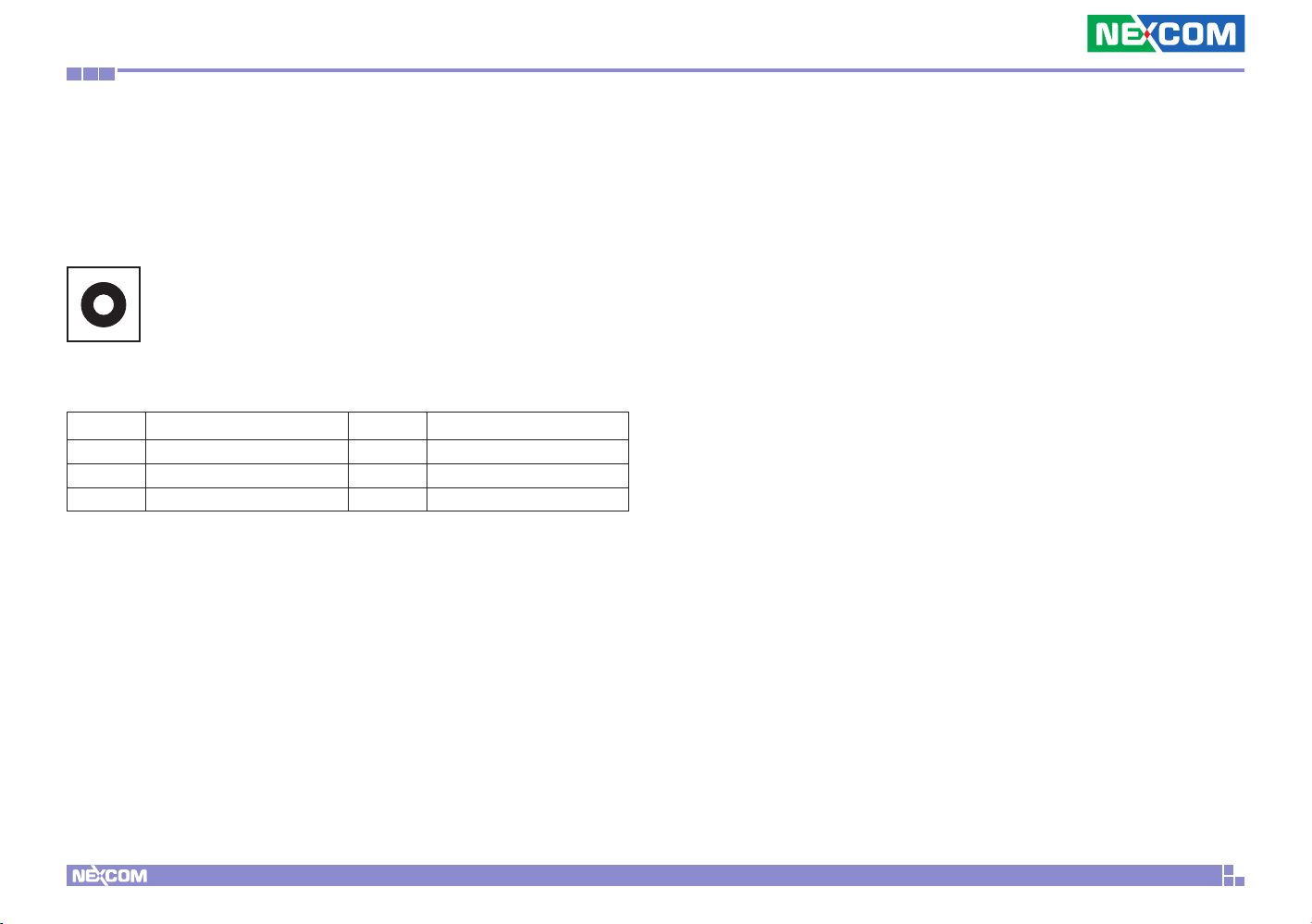

Line-out Connector

Connector type: 3.5mm TRS Connector location: CN10

Pin Definition Pin Definition

1 GND 2 GND 3 LINE2_OUT_R_FB 4 LINE2_OUT_L_FB 5 JD

14

NDiS M535 User Manual

Chapter 2: Jumpers and Connectors

JAE-TX25 Connector

Connector location: CN1

Pin Definition Pin Definition

1 DDP_3N 18 TMDS_CLK+ 2 DDP_3P 19 GND 3 GND 20 TMDS04 DDP_2N 21 TMDS0+ 5 DDP_2P 22 GND 6 GND 23 TMDS17 DDP_1N 24 TMDS1+ 8 DDP_1P 25 GND

9 GND 26 TMDS210 DDP_0N 27 TMDS2+ 11 DDP_0P 28 GND 12 GND 29 DVI_DDC_DATA 13 DDP_AUXN 30 DVI_DDC_CLK 14 DDP_AUXP 31 DVI_HPD 15 DDP_HPD 32 GND 16 GND 33 +12V~+19V 17 TMDS_CLK- 34 +12V~+19V

Pin Definition Pin Definition

35 +12V~+19V 58 StdA_SSTX+ 36 +12V~+19V 59 GND 37 +12V~+19V 60 USB_DN2 38 +12V~+19V 61 USB_DP2 39 +12V~+19V 62 GND 40 +12V~+19V 63 USB_PN1 41 RSVD 64 USB_PP1 42 RSVD 65 GND 43 RSVD 66 USB_PN0 44 RSVD 67 USB_PP0 45 RSVD 68 GND 46 RSVD 69 AZ_LINEOUT_L 47 RSVD 70 AZ_LINEOUT_R 48 RSVD 71 CEC 49 RSVD 72 PB_DET 50 SYS_FAN 73 PS_ON# 51 UART_RXD 74 PWR_STATUS 52 UART_TXD 75 GND 53 GND 76 GND 54 StdA_SSRX- 77 GND 55 StdA_SSRX+ 78 GND 56 GND 79 GND 57 StdA_SSTX- 80 GND

15

NDiS M535 User Manual

Chapter 2: Jumpers and Connectors

Internal Connectors

SATA Connector (7-pin and 15-pin)

Connector type: Standard Serial ATA 7P and 15P Connector location: CN2

S1P15

Pin Definition Pin Definition

S1 GND S2 SATA_TXPO_C S3 SATA_TXNO_C S4 GND S5 SATA_RXNO_C S6 SATA_RXNO_C S7 GND P1 NC P2 NC P3 NC P4 GND P5 GND P6 GND P7 VCC5 P8 VCC5 P9 VCC5

P10 GND P11 NC P12 GND P13 SATA_V12 P14 SATA_V12 P15 SATA_V12

MH1 GND MH2 GND

RTC Battery Connector

Connector type: 1x2 2-pin header JST, 1.25mm pitch Connector location: J6

1 2

Pin Definition Pin Definition

1 GND 2 VBAT1

MH1 GND MH2 GND

16

NDiS M535 User Manual

Chapter 2: Jumpers and Connectors

Port 80 Connector

Connector type: 1x10 10-pin header JST, 1.0mm pitch Connector location: J2

110

Pin Definition Pin Definition

1 VCC3 2 VCC3

3 LPC_AD0 4 LPC_AD1

5 LPC_AD2 6 LPC_AD3

7 LPC_FRAME# 8 LPC_CLK0

9 SIO_RST# 10 GND

SIM Card Reader

Connector location: CN9

C5 C6 C7 C8

C1 C2 C3 C4

Pin Definition Pin Definition

C1 UIM_PWR C2 UIM_RST C3 UIM_CLK C4 UIM_DAT C5 GND

17

NDiS M535 User Manual

Chapter 2: Jumpers and Connectors

12

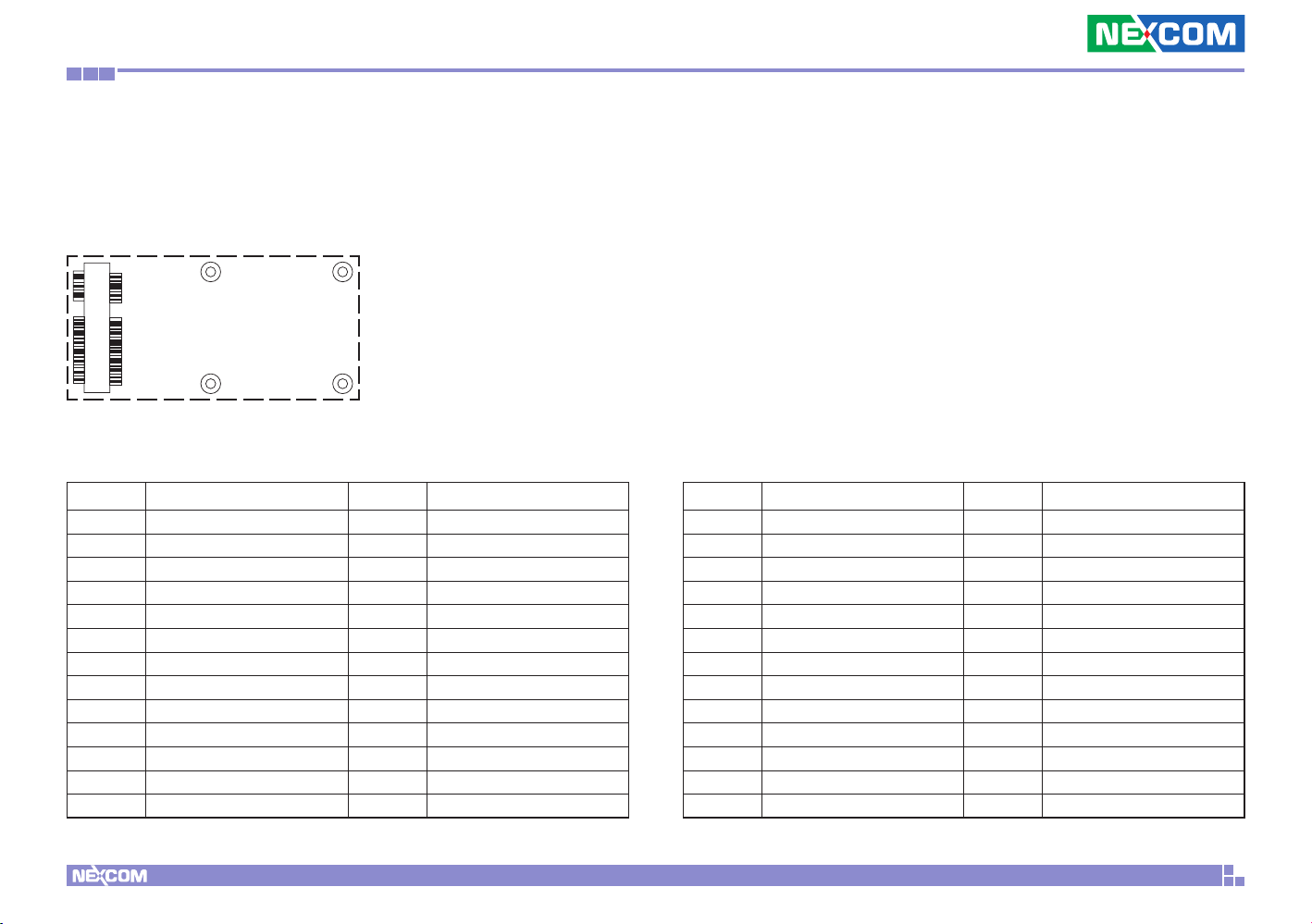

Mini-PCIe Connector

Connector location: CN3

51 52

Pin Definition Pin Definition

1 PCIE_WAKE# 2 +3.3B_MINI

3 NC 4 GND

5 NC 6 D15VS

7 CLKREQ# 8 UIM_PWR

9 GND 10 UIM_DATA

11 MC_PCIE_CLK_N 12 UIM_CLK 13 MC_PCIE_CLK_P 14 UIM_RESET 15 GND 16 UIM_VPP 17 NC 18 GND 19 NC 20 MINICARD1_DIS# 21 GND 22 WLAN_RESET# 23 mPCIE_RX_N 24 +3.3B_MINI 25 mPCIE_RX_P 26 GND

18

Pin Definition Pin Definition

27 GND 28 D15VS 29 GND 30 SMB_CLK 31 mPCIE_TX_N 32 SMB_DATA 33 mPCIE_TX_P 34 GND 35 GND 36 USB_IN 37 NC 38 USB_IP 39 +3.3B_MINI 40 GND 41 +3.3B_MINI 42 NC 43 GND 44 LED_WLAN# 45 NC 46 NC 47 NC 48 D15VS 49 NC 50 GND 51 PRE-DEC 52 +3.3B_MINI

NDiS M535 User Manual

Chapter 3: System Setup

CAUTION!

ChaPter 3: system setuP

Removing the Chassis Cover

Prior to removing the chassis cover, make sure the unit’s power

CAUTION!CAUTION!

is off and disconnected from the power sources to prevent electric shock or system damage.

1. The screws on the back and sides are used to secure the cover to the chassis. Remove these screws and put them in a safe place for later use.

Screws on the sides

2. With the screws removed, lift up the cover and remove it from the chassis.

Screw on the back

19

NDiS M535 User Manual

Chapter 3: System Setup

Installing a SO-DIMM Memory Module

1. At the bottom of the system, loosen the screws on the bottom cover and on the side, then remove the cover from the chassis.

Screw

20

DIMM1 DIMM2

NDiS M535 User Manual

Chapter 3: System Setup

2. Push the ejector tabs which are at the ends of the socket outward. This indicates that the socket is unlocked.

Note how the module is keyed to the socket. Grasping the module by

its edges, align the module with the socket so that the “notch” on the module is aligned with the “key” on the socket. The key ensures the module can be plugged into the socket in only one direction.

Ejector

tab

Key

3. Insert the module into the socket at an approximately 30 degree angle. Apply firm even pressure to each end of the module until it slips down into the socket. The contact fingers on the edge of the module will almost completely disappear inside the socket.

The ejector tabs at the ends of the socket will automatically snap into the locked position to hold the module in place.

Notch

21

NDiS M535 User Manual

Chapter 3: System Setup

CAUTION!

Installing a 2.5” SSD/HDD Storage

The system is equipped with a removable 2.5” HDD drive bay. To install a HDD, please follow the instructions below.

Before installing a 2.5” HDD, please make sure the top

CAUTION!CAUTION!

1. Remove the HDD cover located at the front panel by loosening the screw.

OPS cover is secured firmly with screws, otherwise the HDD connector on the mainboard may be damaged.

Screw

2. Gently take the cover out.

3. Align the mounting holes on the front of the HDD to the mounting holes on the cover, then tighten screws on both sides to secure it. Make sure the connector side of the HDD is facing outwards.

Screw

22

NDiS M535 User Manual

Chapter 3: System Setup

4. Stick the protective pad on the bottom of the HDD to prevent short circuiting with the chassis.

5. Place the HDD back into the slot, then tighten the screw to secure it.

23

NDiS M535 User Manual

Chapter 3: System Setup

Installing a Wireless LAN Module

1. With the chassis cover removed, locate the mini-PCIe slot on the mainboard.

Mini-PCIe slot

2. Insert the Wi-Fi module into the mini-PCI Express slot at a 45 degree angle until the gold-plated connector on the edge of the module completely disappears inside the slot.

24

NDiS M535 User Manual

Chapter 3: System Setup

3. With the module fully inserted, tighten a screw into the mounting hole on the module to secure it.

Screw

4. Attach the RF cables onto the Wi-Fi module and insert the antenna jack end of the cable through the antenna hole.

RF cable

25

NDiS M535 User Manual

Chapter 3: System Setup

5. Insert the 2 rings (ring 1 then ring 2) into the Wi-Fi antenna jacks. 6. Connect the external antennas to the Wi-Fi antenna jacks.

Ring1

Ring2

Antenna

26

NDiS M535 User Manual

Chapter 3: System Setup

Installing a SIM Card

1. With the chassis bottom cover removed, locate the SIM card slot on the mainboard.

Please insert the SIM card in the correct direction

2. Insert the SIM card into the slot.

27

NDiS M535 User Manual

Chapter 4: BIOS Setup

ChaPter 4: BIos setuP

This chapter describes how to use the BIOS setup program for the NDiS M535. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure items such as:

▪ Hard drives, diskette drives, and peripherals

▪ Video display type and display options

▪ Password protection from unauthorized use

▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

▪ This program should be executed under the following conditions:

▪ When changing the system configuration

▪ When a configuration error is detected by the system and you are

prompted to make changes to the setup program

▪ When resetting the system clock

▪ When redefining the communication ports to prevent any conflicts

▪ When making changes to the Power Management configuration

▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

28

NDiS M535 User Manual

Chapter 4: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series of beeps

will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing <Del> allows you to enter Setup.

Legends

Key Function

Moves the highlight left or right to select a menu.

Moves the highlight up or down between submenus or fields.

Exits the BIOS Setup Utility.

Scrolls forward through the values or options of the highlighted field.

Scrolls backward through the values or options of the highlighted field.

Selects a field.

Displays General Help.

Load previous values.

Load optimized default values.

Press the

key to enter Setup:

29

Saves and exits the Setup program.

Press <Enter> to enter the highlighted sub-menu

NDiS M535 User Manual

Chapter 4: BIOS Setup

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press .

30

NDiS M535 User Manual

Chapter 4: BIOS Setup

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from several setup functions and one exit. Use arrow keys to select among the items and press to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Advanced Security Boot Save & ExitMain

BIOS Information BIOS Vendor Production Name BIOS Version Build Date and Time

Processor Information Brand String Processor ID GT Info

Total Memory Memory Frequency

PCH Information PCH SKU Stepping ME FW Version GOP Driver Version EC Version PCB Version

System Date

System Time

American Megatrends NDiS-M535 D535M029 x64 03/02/2016 13:10:12

Intel(R) Core(TM) i7-. . . 506E3 GT2

4096 MB 2133 MHz

PCH-H Mobile QM170 31/D1

11.0.0.1191 [9.0.1040] D535_R05

[Fri 03/18/2016] [08:42:14]

Set the Time. Use Tab to switch between Time elements.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Monday to Sunday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

31

NDiS M535 User Manual

Chapter 4: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.

Advanced Security Boot Save & ExitMain

ACPI Settings

Module Management

AMT Conguration IT8528 Super IO Conguration

Hardware Monitor RTC Wake Settings

CPU Conguration Graphics Conguration SATA Conguration USB Conguration

System ACPI Parameters.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

ACPI Settings

This section is used to configure ACPI settings.

Main

ACPI Settings

Enable Hibernation [Enabled]

ACPI Sleep State [S3 (Suspend to RAM)]

Advanced Chipset PCIPnP Security

Exit

Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable Hibernation

Enables or disables system ability to hibernate (OS/S4 Sleep State). This option may not be effective with some OS.

ACPI Sleep State

Select the highest ACPI sleep state the system will enter when the suspend button is pressed. The options are Suspend Disabled and S3 (Suspend to RAM).

32

NDiS M535 User Manual

Chapter 4: BIOS Setup

Module Management

This section is used to configure onboard module settings.

Main

Onboard Module Setting

Mini Card [Enabled]

Restore on AC Power Loss [S3 (Suspend to RAM)] USB Wake Up [Enabled]

Advanced Chipset PCIPnP Security

Exit

Enables or disables boot for Mini Card.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Mini Card

Enables or disables boot for mini card.

AMT Configuration

This section is used to configure Active Management Technology (AMT) options.

Advanced Boot Security Save & ExitMain

Intel AMT

Un-Congure ME

[Enabled]

[Disabled]

Enable/Disable Intel (R) Active Management Technology BIOS Extension. Note : iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled, this requires

additional rmware in the SPI

device

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Intel® AMT

Enables or disables Intel® Active Management Technology.

Restore on AC Power Loss

Select AC power state when power is re-applied after a power failure.

USB Wake Up

Enables or disables wake up from USB devices.

Un-Configure ME

Enables or disables un-configure ME without password. Enabled will clear all ME settings.

33

NDiS M535 User Manual

Chapter 4: BIOS Setup

IT8528 Super IO Configuration

This section is used to configure serial port 2.

Advanced

IT8528 Super IO Conguration

Serial Port 2 Conguration

Serial Port 2 Configuration

Enters the sub-menu of serial port 2 configuration.

Set Parameters of Serial Port 2 (COMB)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Serial Port 2 Configuration

Advanced

Serial Port 2 Conguration

Serial Port

Device Settings

[Enabled]

IO=2F8h; IRQ=3;

Serial Port

Enables or disables the serial port.

Device Settings

Displays the IO address and IRQ of serial port 2.

Enable or Disable Serial Port (COM)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

34

NDiS M535 User Manual

Chapter 4: BIOS Setup

Hardware Monitor

This section is used to monitor hardware status such as temperature, fan speed and voltages.

Advanced

Hardware Monitor

FAN Mode

FAN Level

System FAN Mode

CPU Temperature(DTS) System Temperature VCORE VCC5 VCC3 FAN Speed

[Smart FAN]

[Disabled ( 0%)]

[System FAN Disabled]

: +41 °c : +35 °c : +1.008 V : +5.083 V : +3.304 V : 2264 RPM

FAN Mode Setting

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

FAN Mode

Configures the fan mode. The options are Disabled ( 0%), Smart Fan, Programmable Fan and FAN Full On.

CPU Temperature(DTS)

Detects and displays the current CPU temperature.

System Temperature

Detects and displays the internal temperature of the system.

VCORE to VCC3

Detects and displays the output voltages.

FAN Speed

Detects and displays the current fan speed.

System FAN Speed

Enables or disables fan speed control of the system.

35

NDiS M535 User Manual

Chapter 4: BIOS Setup

RTC Wake Settings

This section is used to configure RTC Wake settings.

Main

Wake system from S5 [Disabled]

Advanced Chipset PCIPnP Security

Exit

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Wake System from S5

Enables or disables system wake on alarm event. When enabled, system will wake on the hr::min::sec specified.

Graphics Configuration

Configures the graphics chip settings.

Main

Graphics Configuration

Primary IGFX Boot Display [HDMI(Internal)]

Secondary IGFX Boot Display [Disabled]

Advanced Chipset PCIPnP Security

Exit

Select the Video Device which will be activated during POST. This has no effect if external graphics present. Secondary boot display selection will appear based on your selection. VGA modes will be supported only on primary display

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Primary IGFX Boot Display

Selects the video device which will be activated during POST. Has no effect if external graphics is present. Secondary boot display selection will appear based on your selection. VGA modes will be supported only on primary display.

Secondary IGFX Boot Display

Selects the secondary display device.

36

NDiS M535 User Manual

Chapter 4: BIOS Setup

CPU Configuration

This section is used to configure the CPU.

Main

CPU Conguration

Intel(R) Core(TM) i7-6820EQ CPU @ 2.80GHz CPU Signature 506E3 Microcode Patch 74 Processor Cores 4 Hyper Threading Technology Supported Intel VT-x Technology Supported Intel SMX Technology Supported 64-bit Supported EIST Technology Supported

L1 Data Cache 32 kB x 4 L1 Code Cache 32 kB x 4 L2 Cache 256 kB x 4 L3 Cache 8 MB L4 Cache Not Present

Hyper-threading [Enabled]

Intel Virtualization Technology [Enabled] CPU AES [Enabled] Intel(R) SpeedStep(tm) [Enabled] Turbo Mode [Enabled]

Advanced Chipset PCIPnP Security

Hyper Threading

Enables or disables hyper-threading technology.

Exit

Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). When Disabled only one thread per enabled core is enabled.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Intel

®

SpeedStep

TM

Enables or disables Intel SpeedStep.

Turbo Mode

Enables or disables turbo mode.

Intel® Virtualization Technology

When this field is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

CPU AES

Enables or disables Advanced Encryption Standard instruction set.

37

NDiS M535 User Manual

Chapter 4: BIOS Setup

SATA Configuration

This section is used to configure the SATA drives.

Advanced Boot Security Save & ExitMain

SATA Controller(s)

SATA Mode Selection

SATA Test Mode

Serial ATA Port 2 Software Preserve

Port 2 Hot Plug

[Enabled]

[AHCI]

[Disabled]

Empty Unknown

[Enabled] [Disabled]

SATA Controller(s)

Enables or disables the SATA controller.

SATA Test Mode

Enables or disables SATA test mode.

Port 2

Enables or disables Serial ATA port 2.

Enables or disables SATA device.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

USB Configuration

This section is used to configure the USB.

Advanced

USB Conguration

USB Devices: 1 Keyboard, 1 Mouse

Legacy USB Support

XHCI Hand-off

[Enabled]

[Disabled]

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Legacy USB Support

Enabled Enables Legacy USB. Auto Disables support for Legacy when no USB devices are connected. Disabled Keeps USB devices available only for EFI applications.

XHCI Hand-off

This is a workaround for OSs that does not support XHCI hand-off. The XHCI ownership change should be claimed by the XHCI driver.

Hot Plug

Enables or disables hot plugging feature on Serial ATA port 2.

38

NDiS M535 User Manual

Chapter 4: BIOS Setup

Security

Advanced Security Boot Save & ExitMain

Password Description

If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20

Administrator Password

User Password

Administrator Password

Select this to reconfigure the administrator’s password.

User Password

Select this to reconfigure the user’s password.

Set Administrator Password

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Boot

Advanced

Boot Configuration

Bootup NumLock State

Boot Mode

Launch PXE OpROM

Boot Option Priorities

Bootup NumLock State

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

Security

Boot

[On]

[UEFI Mode]

[Disabled]

Save & ExitMain

Select the keyboard NumLock state

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Boot Mode

Configures the boot mode as Legacy BIOS or UEFI BIOS Mode.

Launch PXE OpROM

Enables or disables the boot option for legacy network devices.

39

NDiS M535 User Manual

Chapter 4: BIOS Setup

Save & Exit

Advanced Security Boot Save & ExitMain

Save Options

Save Changes and Exit

Discard Changes and Exit

Restore Defaults

Save & Exit

Exit system setup after saving the changes.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Save Changes and Exit

To save the changes and exit the Setup utility, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes. You can also press <F4> to save and exit Setup.

Discard Changes and Exit

To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting. You can also press <ESC> to exit without saving the changes.

Restore Defaults

To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

40

NDiS M535 User Manual

Appendix A: Watchdog Timer

aPPendIx a: WatChdog tImer

Use the GPF4 as the watchdog output for connecting to system reset. The watchdog settings can be configured using the BRAM interface with 1 control bit and 1 watchdog timer value. The timer supports values ranging from 3 to 255 seconds and 1 to 255 minutes. The BRAM addresses and corresponding functions for configuring through BIOS and applications are listed in the table below.

BRAM: Block 1 Index: 0x0A30 Data: 0x0A31

Name Data Length Offset Address Range

Bit 7: WDT enable 0: Disable WDT 1: Enable WDT

WDT_CONTROL 1 0x68

WDT_TIMEOUT 1 0x69

Bit 0: WDT timeout value unit 0: Second 1: Minute Default: 0x00

Second: 3~255 seconds Minute: 1~255 minutes Default: 3

41
