NEXCOM DNA 125B User Manual

NEXCOM International Co., Ltd.

Network and Communication Solutions

Network Security Appliance DNA 125B

User Manual

NEXCOM International Co., Ltd.

Published March 2015

www.nexcom.com

Content

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer .............................................................................................. iv

Acknowledgements ............................................................................... iv

Regulatory Compliance Statements ........................................................ iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................viii

Installation Recommendations ...............................................................viii

Safety Precautions .................................................................................. ix

Technical Support and Assistance ............................................................ x

Conventions Used in this Manual ............................................................ x

Global Service Contact Information ........................................................ xi

Package Contents ................................................................................. xiii

Ordering Information ............................................................................xiv

Chapter 1: Product Introduction

Overview ................................................................................................1

DNA 125B ........................................................................................... 1

Key Features ........................................................................................1

Hardware Specifications ..........................................................................2

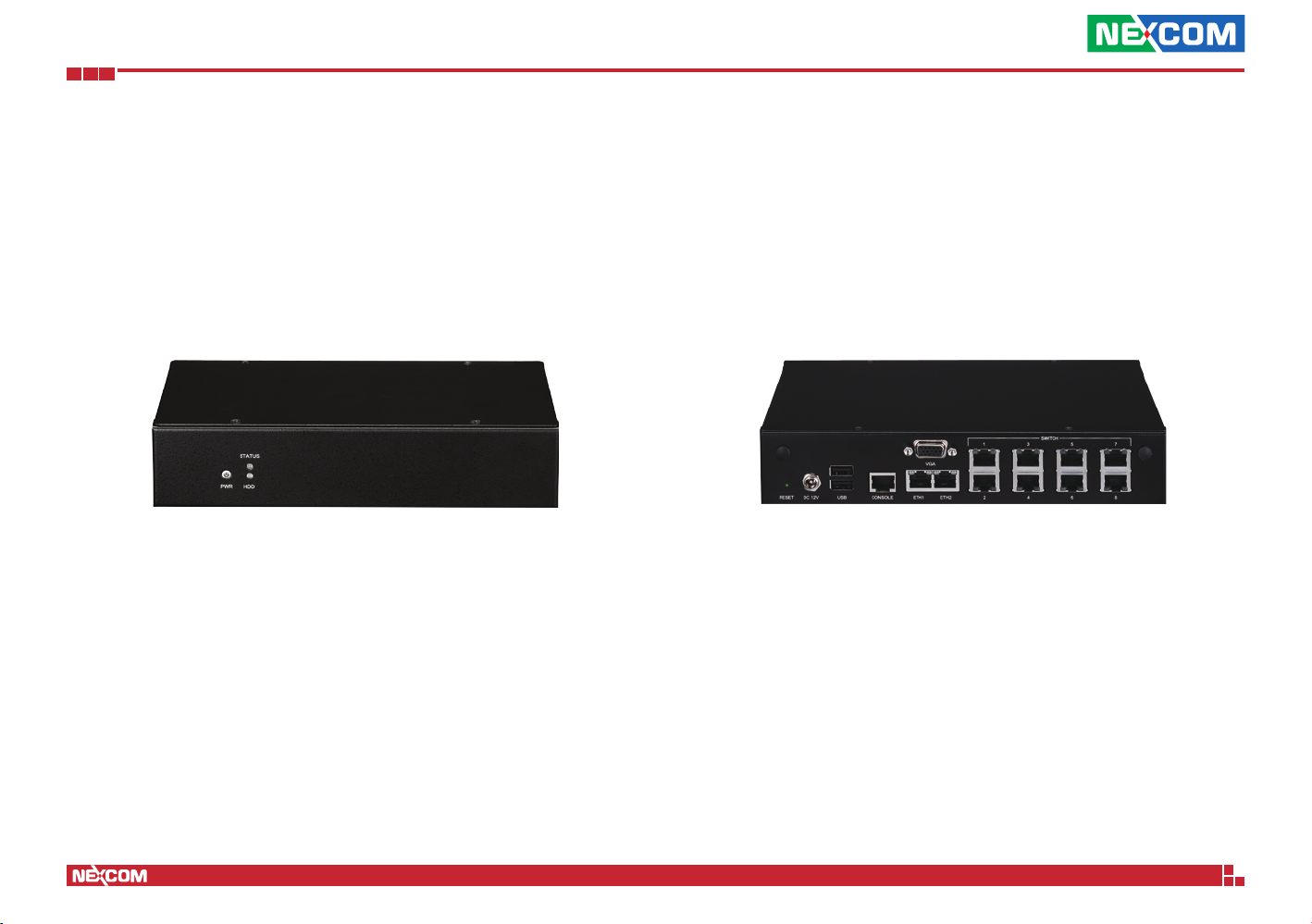

Knowing Your DNA 125B .......................................................................3

Front Panel ..........................................................................................3

Rear Panel ...........................................................................................3

Chapter 2: Jumpers and Connectors

Before You Begin ....................................................................................4

Precautions ............................................................................................4

Jumper Settings ......................................................................................5

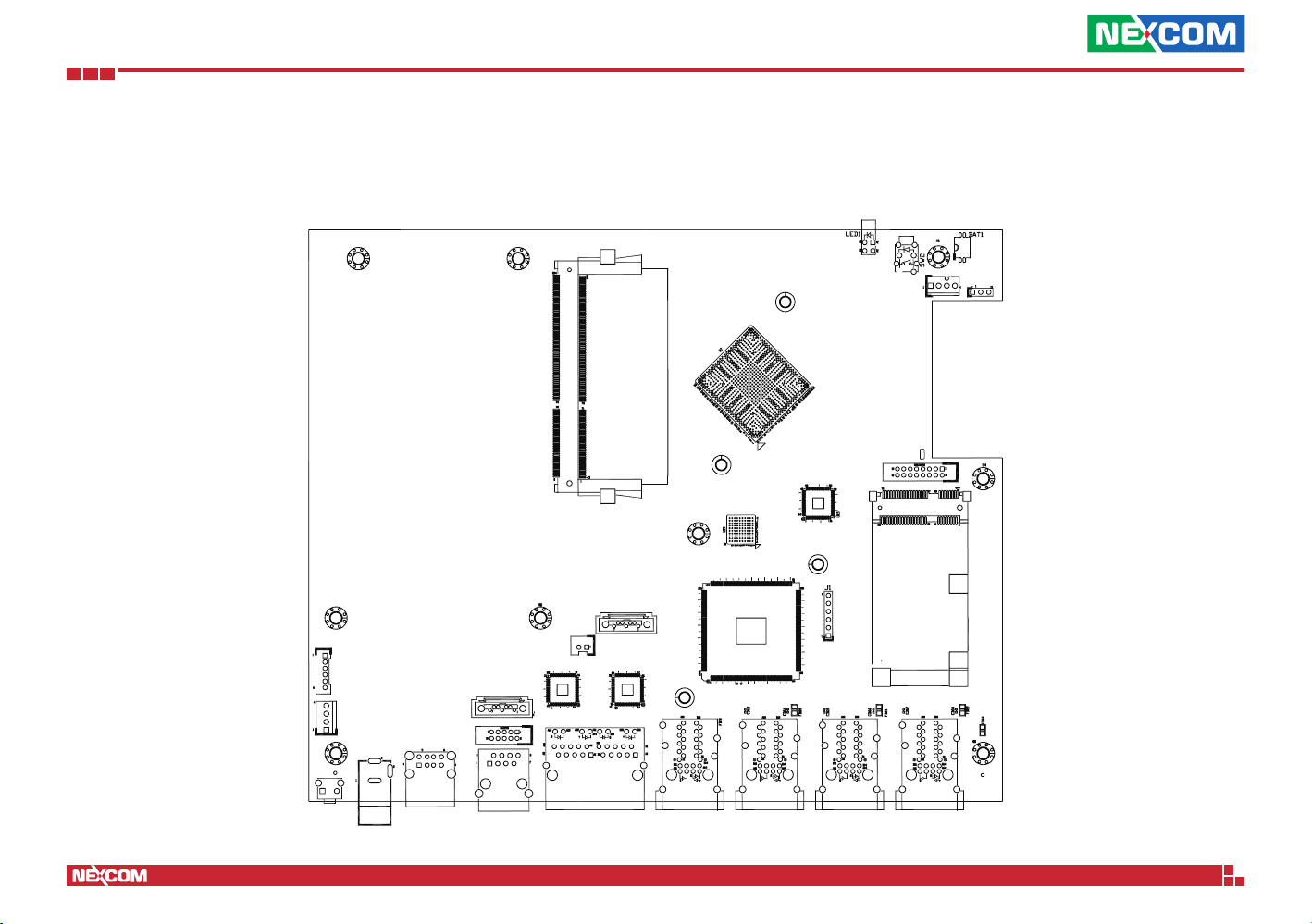

Locations of the Jumpers and Connectors ............................................... 6

Jumpers and DIP Switch Settings ............................................................. 7

ATX/AT Select ......................................................................................7

Clear CMOS ..................................................................................... 7

Connector Pin Definitions .......................................................................8

External Connectors ............................................................................8

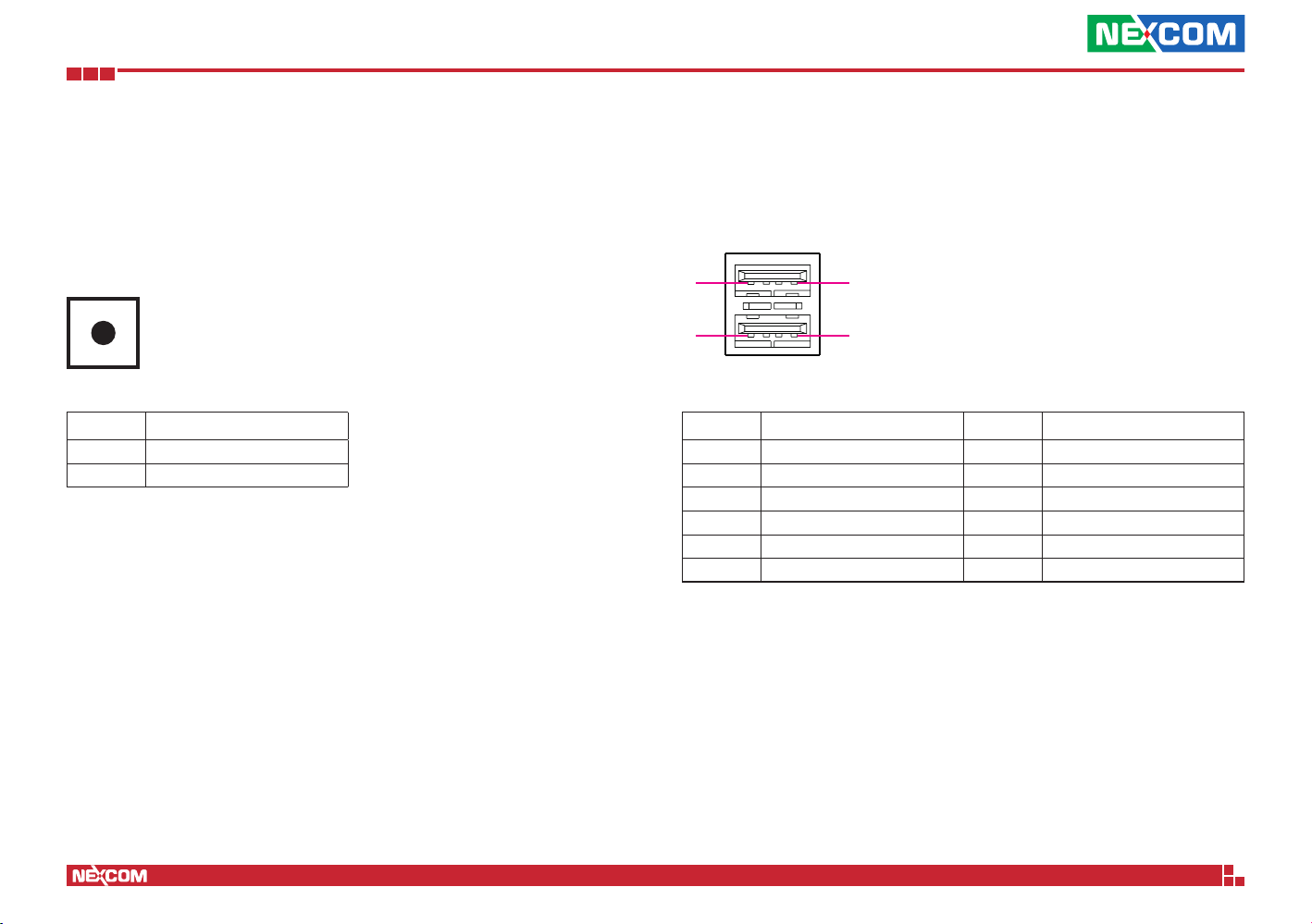

Hardware Reset Button ....................................................................8

USB 2.0 Ports ................................................................................... 8

Console Port ....................................................................................9

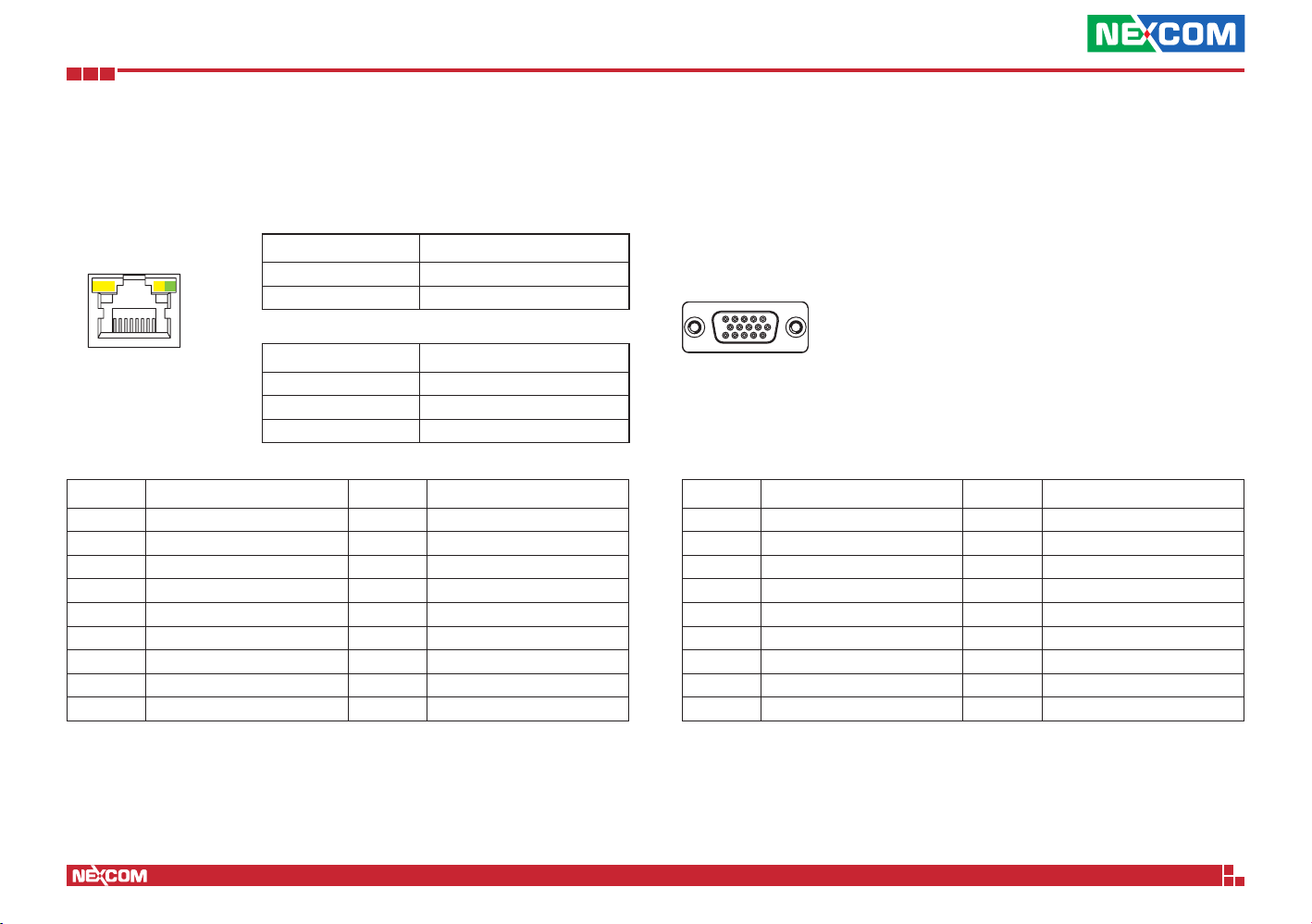

Dual Gigabit LAN .............................................................................9

LAN 1 to LAN 8 Switch Ports .......................................................... 10

VGA ...............................................................................................10

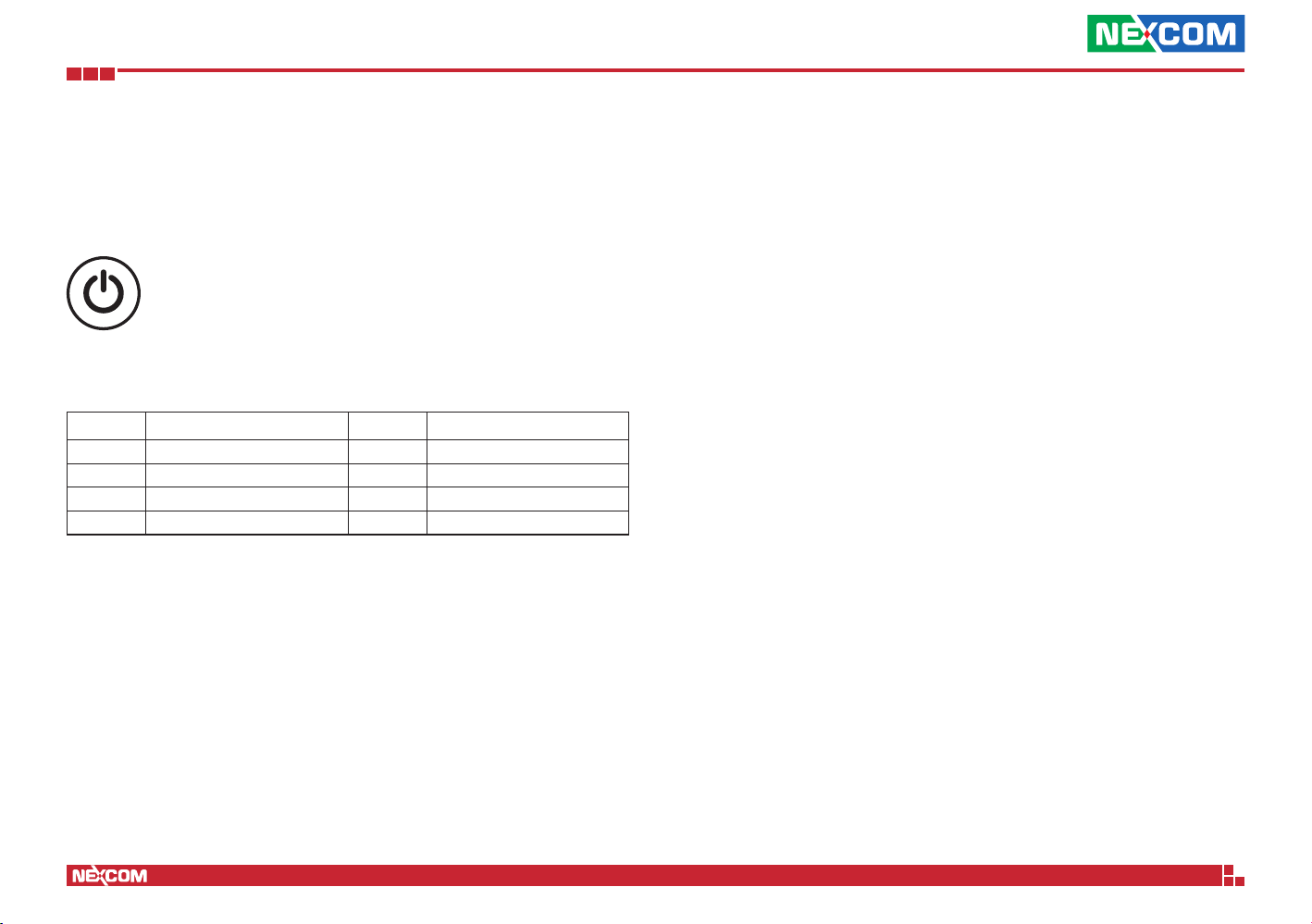

Power Button ................................................................................. 11

Connector Pin Definitions .....................................................................12

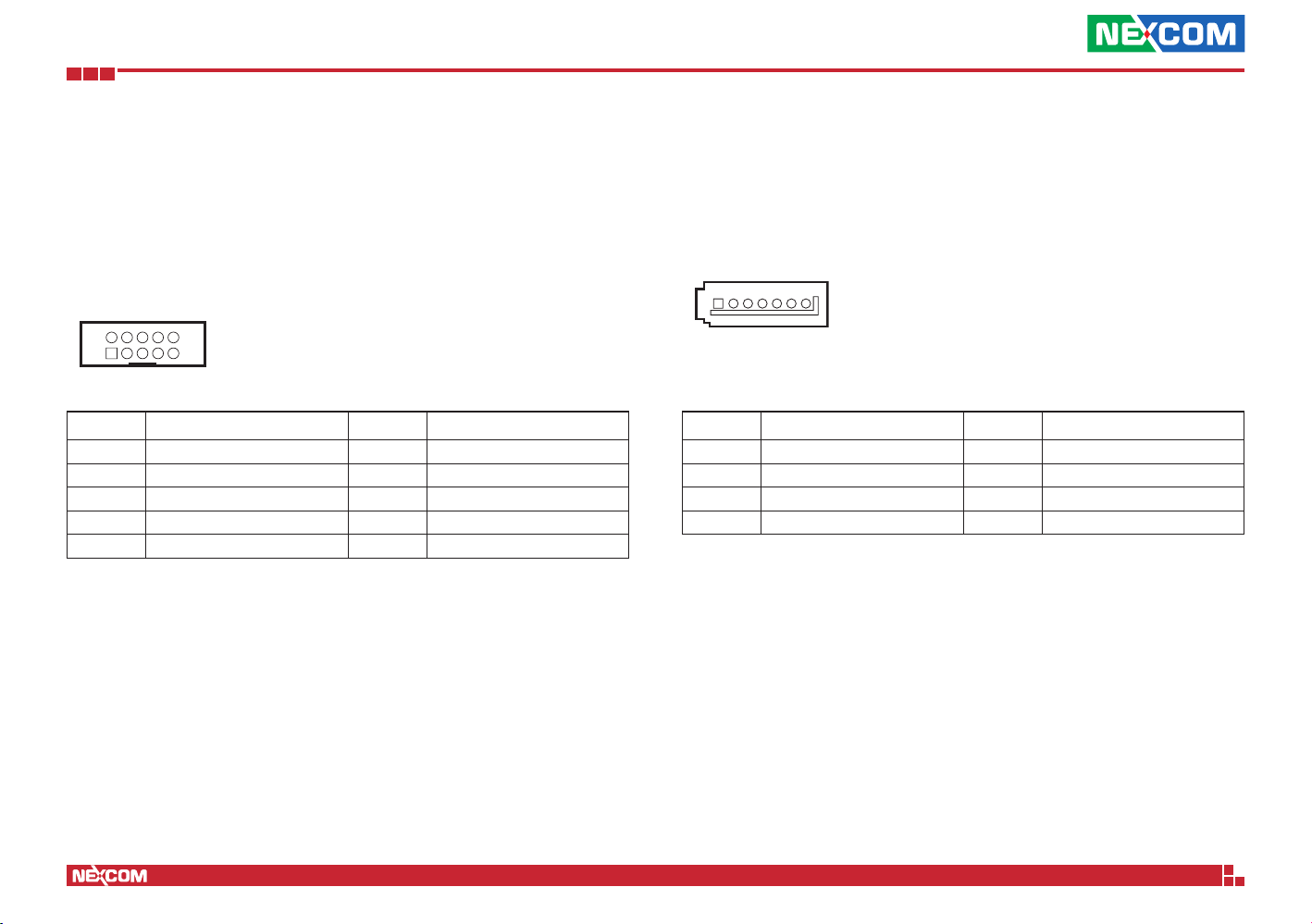

Internal Connectors ........................................................................... 12

COM Port (RS-232) ........................................................................12

SATA Connectors ...........................................................................12

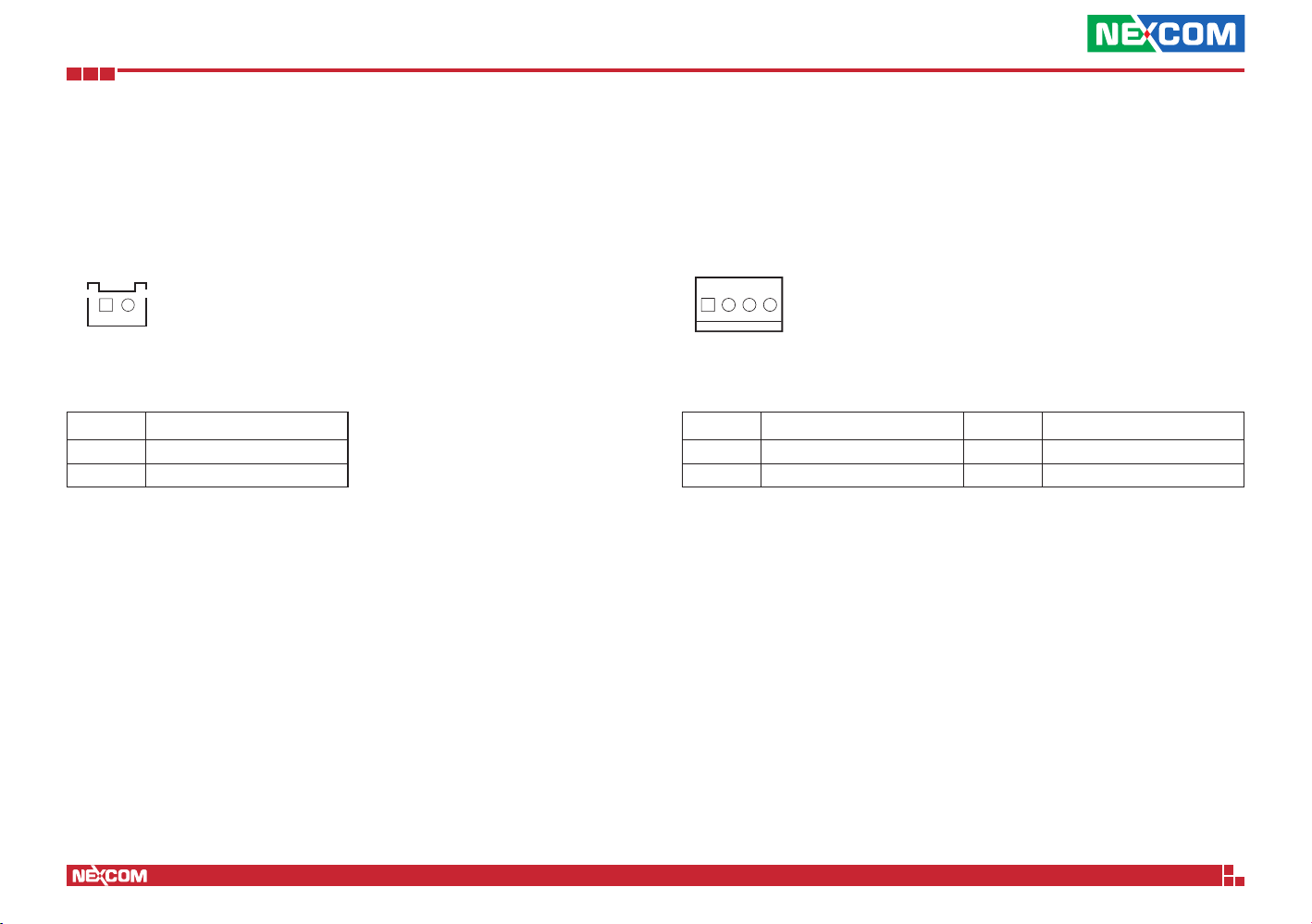

SATA DOM Power Connector .........................................................13

SATA Power Connector ..................................................................13

USB JST Port ...................................................................................14

CPLD Port ......................................................................................14

ii

DNA 125B User Manual

Content

4-Pin Fan Connector ......................................................................15

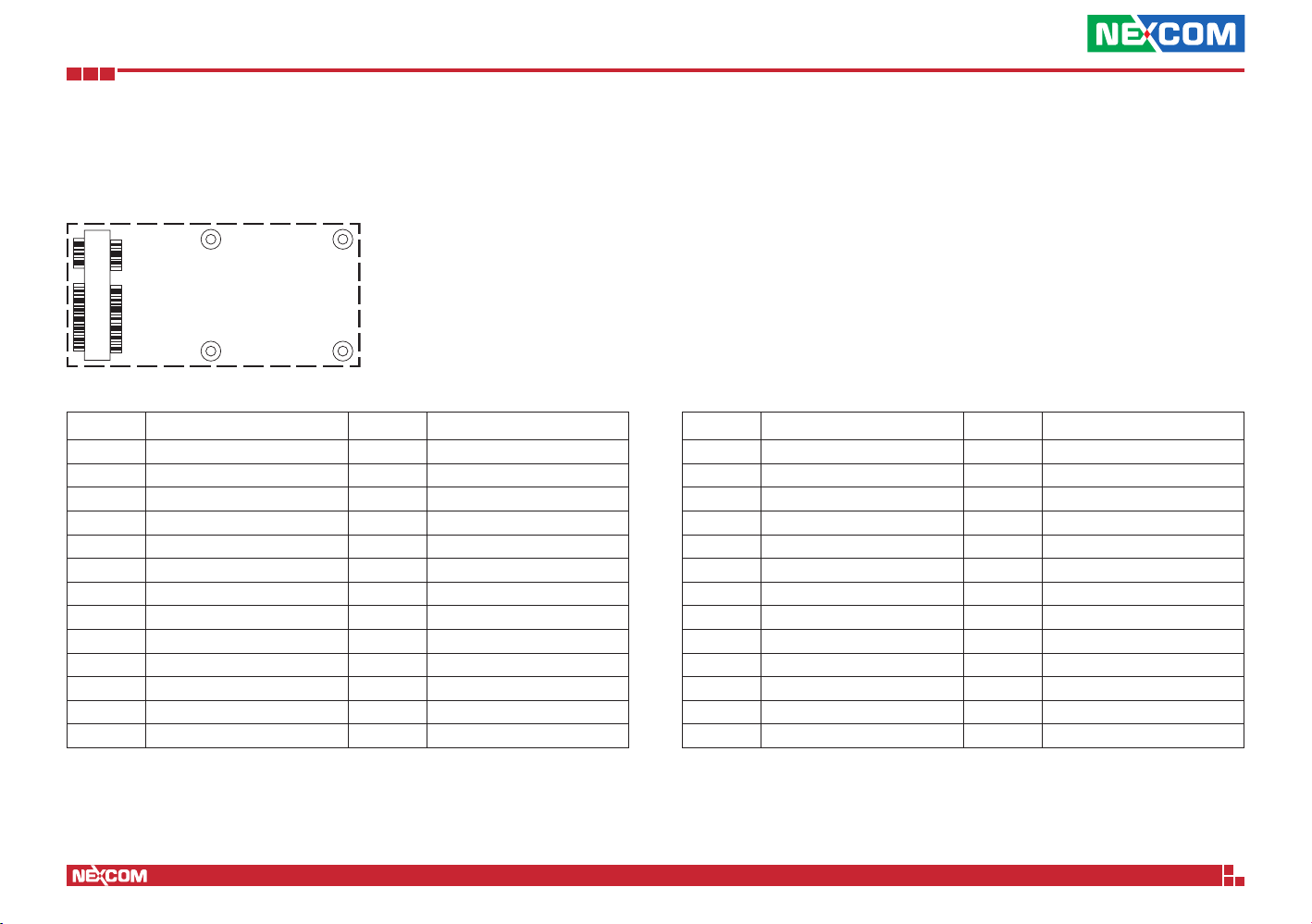

Mini-PCIe Connector ...................................................................... 16

Chapter 3: System Setup

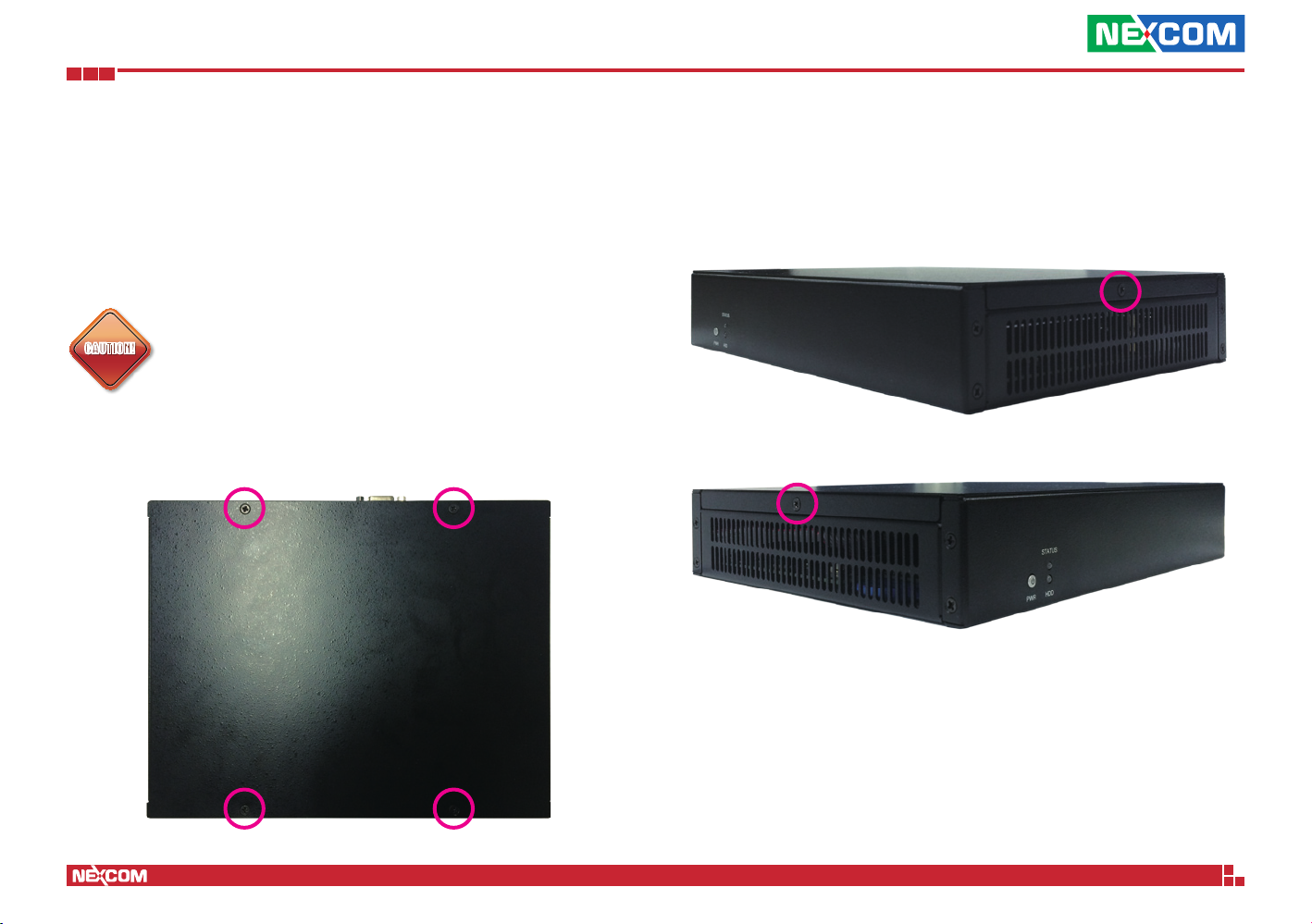

Removing the Chassis Cover .................................................................17

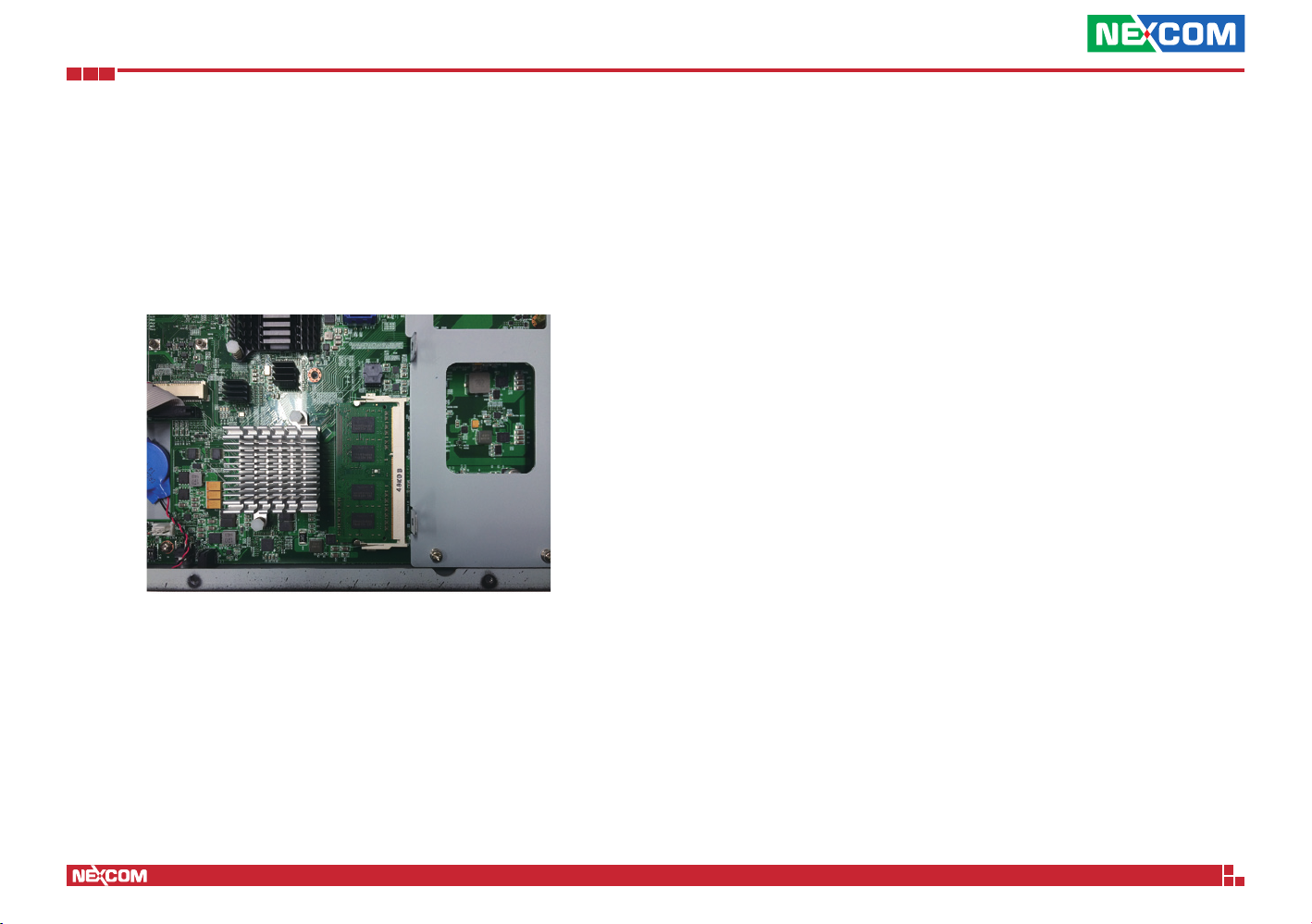

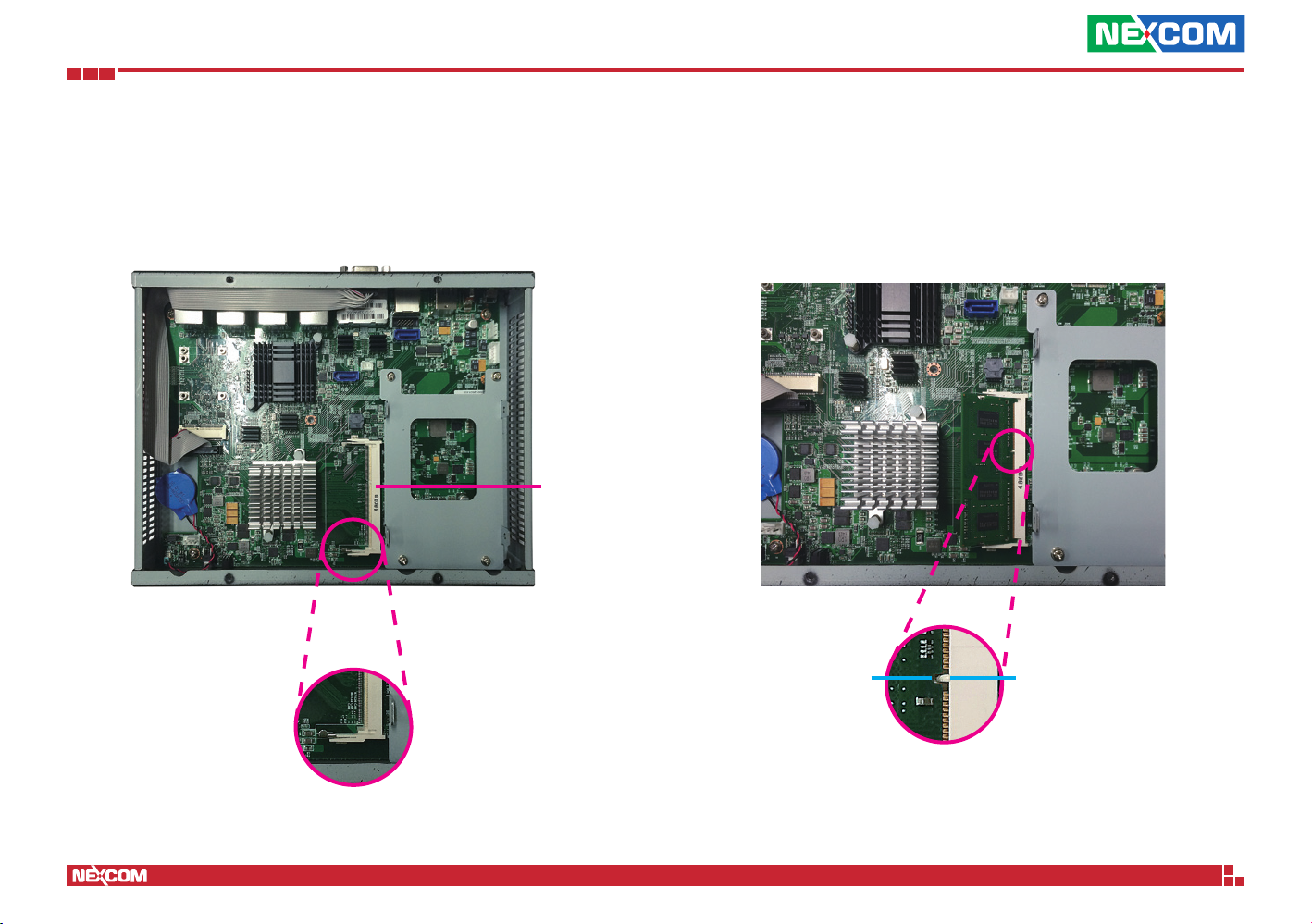

Installing a SO-DIMM Memory Module .................................................18

Installing a SATA DOM ..........................................................................20

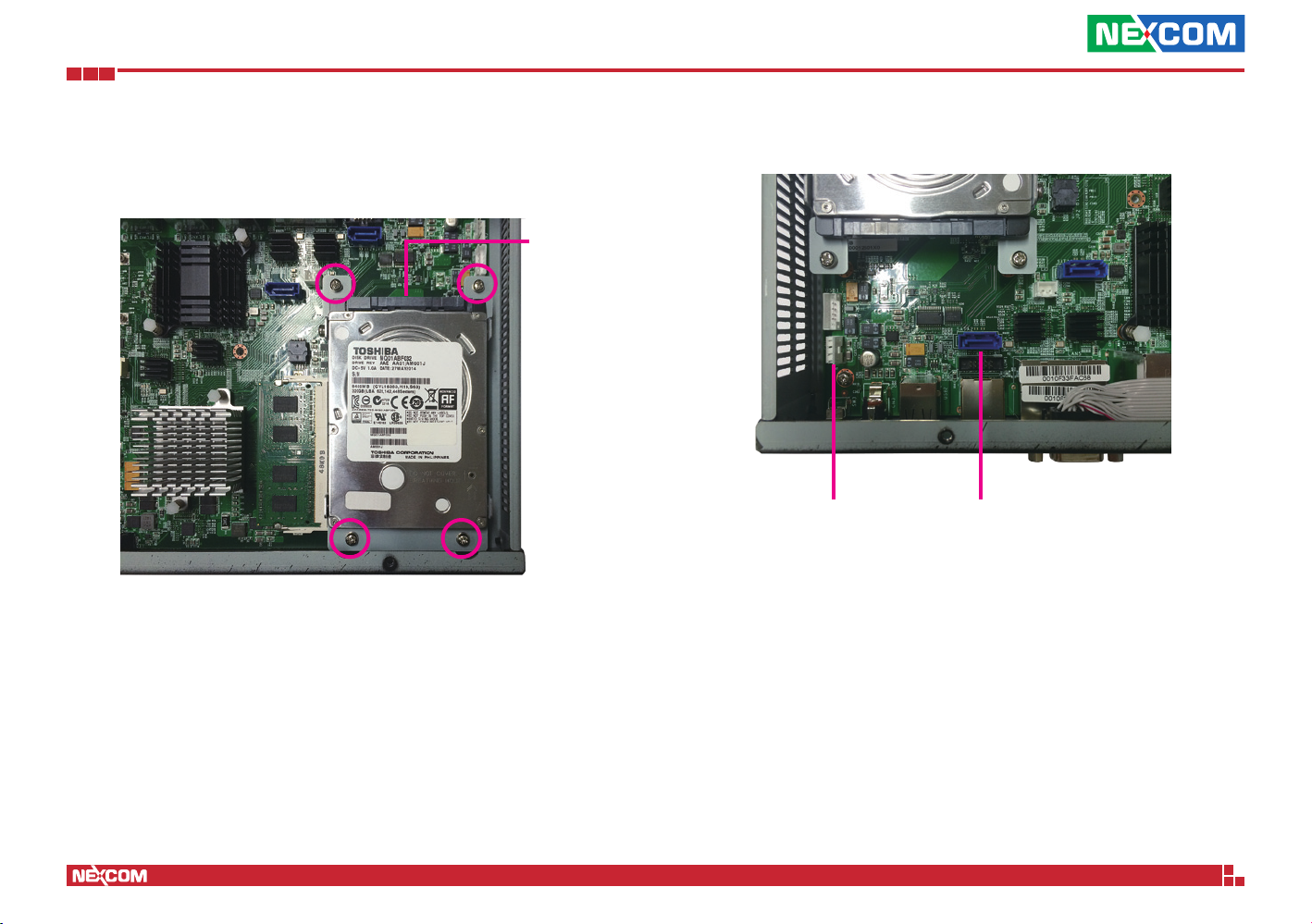

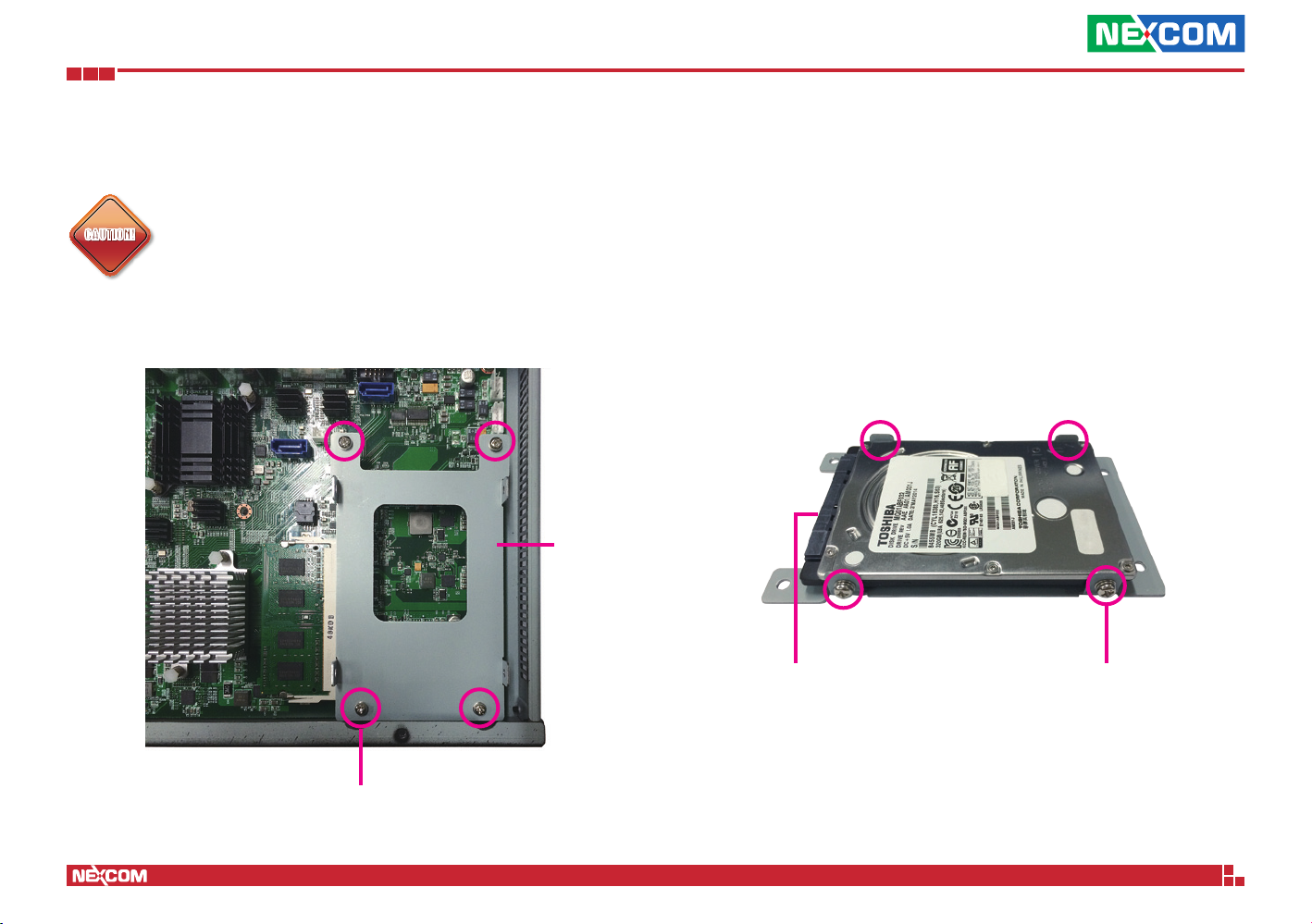

Installing a 2.5” SATA Hard Drive ..........................................................22

Chapter 4: BIOS Setup

About BIOS Setup ................................................................................. 25

When to Configure the BIOS .................................................................25

Default Configuration ........................................................................... 26

Entering Setup ...................................................................................... 26

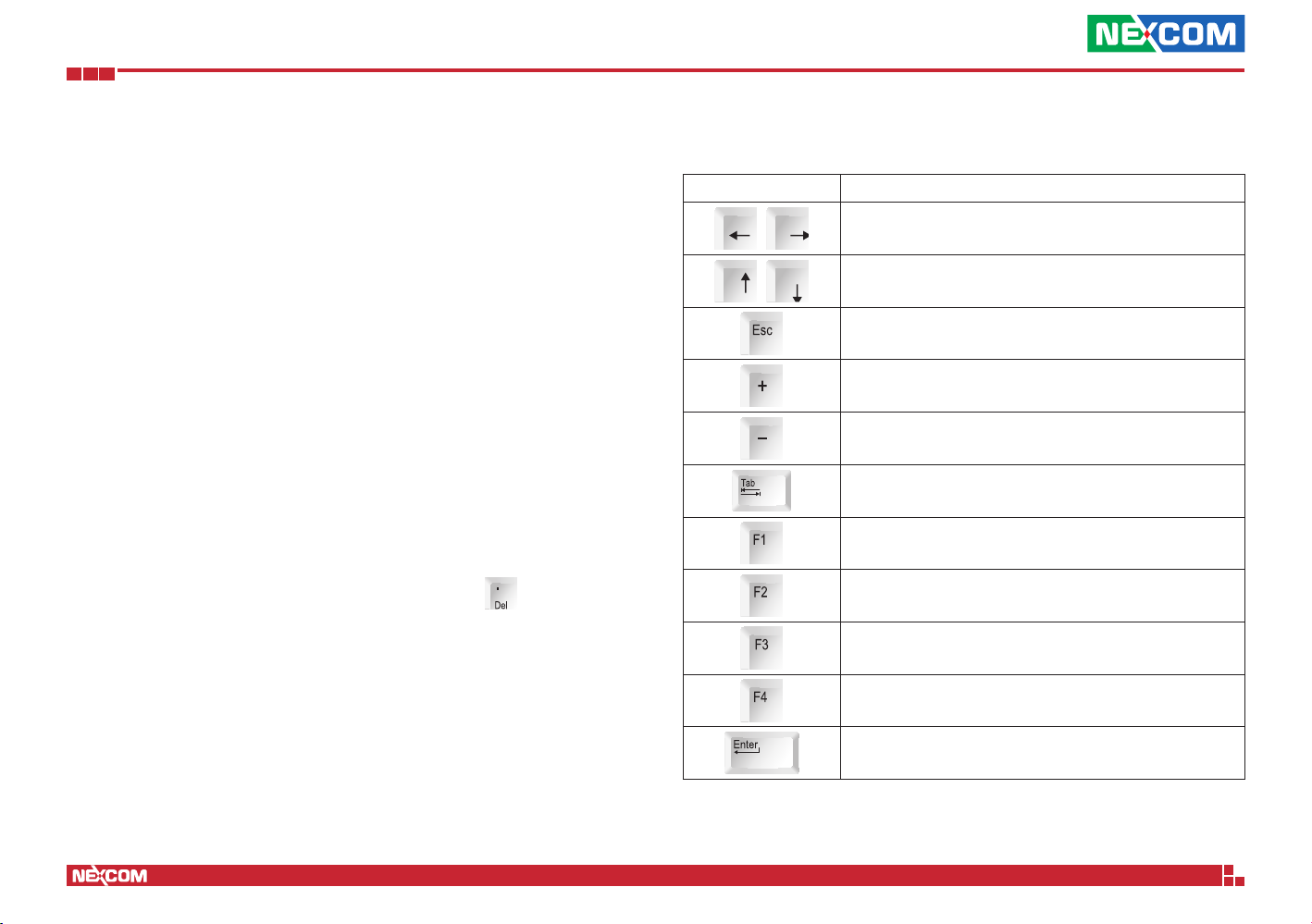

Legends ................................................................................................ 26

BIOS Setup Utility .................................................................................. 28

Main .................................................................................................28

Advanced ......................................................................................... 29

Chipset ..............................................................................................37

Security .............................................................................................39

Boot .................................................................................................. 40

Save & Exit ........................................................................................41

iii

DNA 125B User Manual

Preface

PrefaCe

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

DNA 125B is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class B devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

iv

DNA 125B User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green

products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2011/65/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <

0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2013 will be RoHS compliant. They will use the usual NEXCOM naming convention.

v

DNA 125B User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

▪ Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

▪ Customers must collect all the information about the problems

encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

▪ Customers can send back the faulty products with or without accessories

(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

▪ Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

▪ Any products returned by NEXCOM to other locations besides the

customers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

▪ Component fee: NEXCOM will only charge for main components such as

SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

▪ Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

▪ Replace with 3rd party products if needed.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

Board Level

▪ Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

vi

DNA 125B User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

vii

DNA 125B User Manual

Preface

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully.

▪ Do not place the unit on an unstable surface, cart, or stand.

▪ Follow all warnings and cautions in this manual.

▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

▪ A Philips screwdriver

▪ A flat-tipped screwdriver

▪ A grounding strap

▪ An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

viii

DNA 125B User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the

equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or

letting it fall may cause damage.

7. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting

the equipment to the power outlet.

9. Place the power cord in a way so that people will not step on it. Do not

place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical shock.

13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work

according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.

15. Do not place heavy objects on the equipment.

16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

ix

DNA 125B User Manual

Preface

CAUTION!

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

x

DNA 125B User Manual

Preface

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

15F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: [email protected] www.nexcom.com

Asia

Taiwan NEXCOM Intelligent Systems

Taipei Office

13F, No.920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: [email protected]

www.nexcom.com.tw

NEXCOM Intelligent Systems Taichung Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: [email protected] www.nexcom.com.tw

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: [email protected] www.nexcom-jp.com

China

NEXCOM China

1F & 2F, Block A, No. 16 Yonyou Software Park, No. 68 Beiqing Road, Haidian District, Beijing, 100094, China Tel: +86-010-5704-2680 Fax: +86-010-5704-2681 Email: [email protected] www.nexcom.cn

xi

DNA 125B User Manual

Preface

Chengdu Office

9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061, China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 Email: [email protected] www.nexcom.cn

Shanghai Office

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200333, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: [email protected] www.nexcom.cn

Shenzhen Office

Room1707, North Block, Pines Bldg., No.7 Tairan Rd., Futian Area, Shenzhen, 518040, China Tel: +86-755-8332-7203 Fax: +86-755-8332-7213 Email: [email protected] www.nexcom.cn

Wuhan Office

1-C1804/1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 Email: [email protected] www.nexcom.cn

Europe

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: [email protected] www.nexcom.eu

Italy NEXCOM ITALIA S.r.l

Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9625570 Email: [email protected] www.nexcomitalia.it

xii

DNA 125B User Manual

Preface

Package Contents

Before continuing, verify that the DNA 125B package that you received is complete. Your package should have all the items listed in the following table.

Item Part Number Name Description Qty

1 19L00012501X0 DNA125B ASSY 1 2 7400040002X00 (X)Power Adapter FSP:FSP040-DGAA1(N09001) 40W 12V/ 3.33A for NXG50 1 3 6023309081X00 Cable EDI:232091081804-RS COM PORT. DB9 Female to RJ45 8P8C L:1800mm 1 4 6012200053X00 PE Zipper Bag #3 100x70mm, w/China RoHS Symbol 1 5 6012200052X00 PE Zipper Bag #8 170x240mm, w/China RoHS Symbol 1

6 60233PW154X00 SATA DOM Power Cable EDI:355202020071-RS

7 602DCD0838X00 DNA 125B CD Driver VER:1.0 JCL 1 8 60233AT123X00 SATA Cable ST:MD-6102043 SATA 7P 180D (Lock) to 7P 180D (Lock) L=70mm 1

9 60233PW197X00 SATA Power Cable BEST:900-0415-070R Female Connector 15P to Housing 4P PIT:2.54mm L:70mm 1 10 50311F0100X00 (H)Round Head Screw w/Spring+Flat Washer Long FEI:P3x6L P3x6 iso/SW6x0.5 NI 4 11 5044440197X00 Rubber Foot KANG YANG:RF9-3.5 9x3.5mm 4

JST2.5 2-pin Pitch 2.5mm to MOX1.25 2-pin Pitch 1.0mm L=70mm

1

xiii

DNA 125B User Manual

Preface

Ordering Information

The following below provides ordering information for DNA 125B.

Barebone DNA 125B (P/N: 10L00012501X0)

Intel® Bay Trail SoC E3815 single core, BGA type, 1 DDR3 SO-DIMM slot, 2 Gigabit LAN ports, SATA DOM socket, USB ports, VGA port, Mini-PCIe slot

xiv

DNA 125B User Manual

Chapter 1: Product Introduction

ChaPter 1: ProduCt IntroduCtIon

Overview

DNA 125B

Key Features

▪ Intel® Atom™ processor E3815, BGA type

▪ DDR3L SO-DIMM memory, Max. 8GB

▪ Support 2 Gigabit LAN ports

▪ Support 8 GbE switch ports

▪ Support one Mini-PCIe slot

1

DNA 125B User Manual

Chapter 1: Product Introduction

Hardware Specifications

Main Board

▪ DNB125B

®

▪ Intel

Atom™ processor E3815, BGA type

Main Memory

▪ DDR3L 1066 SO-DIMM memory, max. 8GB

LAN Features

▪ 2x LAN Chips: Intel® i211-AT ▪ 8x Broadcom 53128 switch ports ▪ Support 10/100/1000 link speed

Expansion

▪ 1x Mini-PCIe slot (optional)

I/O Interface-Front

▪ Power status/HDD status/Power button

I/O Interface-Rear

▪ 2x USB 2.0 ports ▪ 1x RJ45 type console port ▪ 2x Gigabit ports ▪ 8x Switch ports ▪ 1x VGA port ▪ 1x DC power input ▪ 1x Reset button

Devices

▪ 1x Internal SATA DOM ▪ 1x 2.5” HDD

Power Input

▪ 40W power adapter

Dimensions

▪ Chassis Dimension: 232mm x 184mm x 44mm ▪ Carton Dimension: 303mm x 435mm x 176mm

Weight

▪ Without Packing: 2kg ▪ With Packing: 4kg

Standards/Certifications

▪ CE approval ▪ FCC Class B ▪ UL

2

DNA 125B User Manual

Chapter 1: Product Introduction

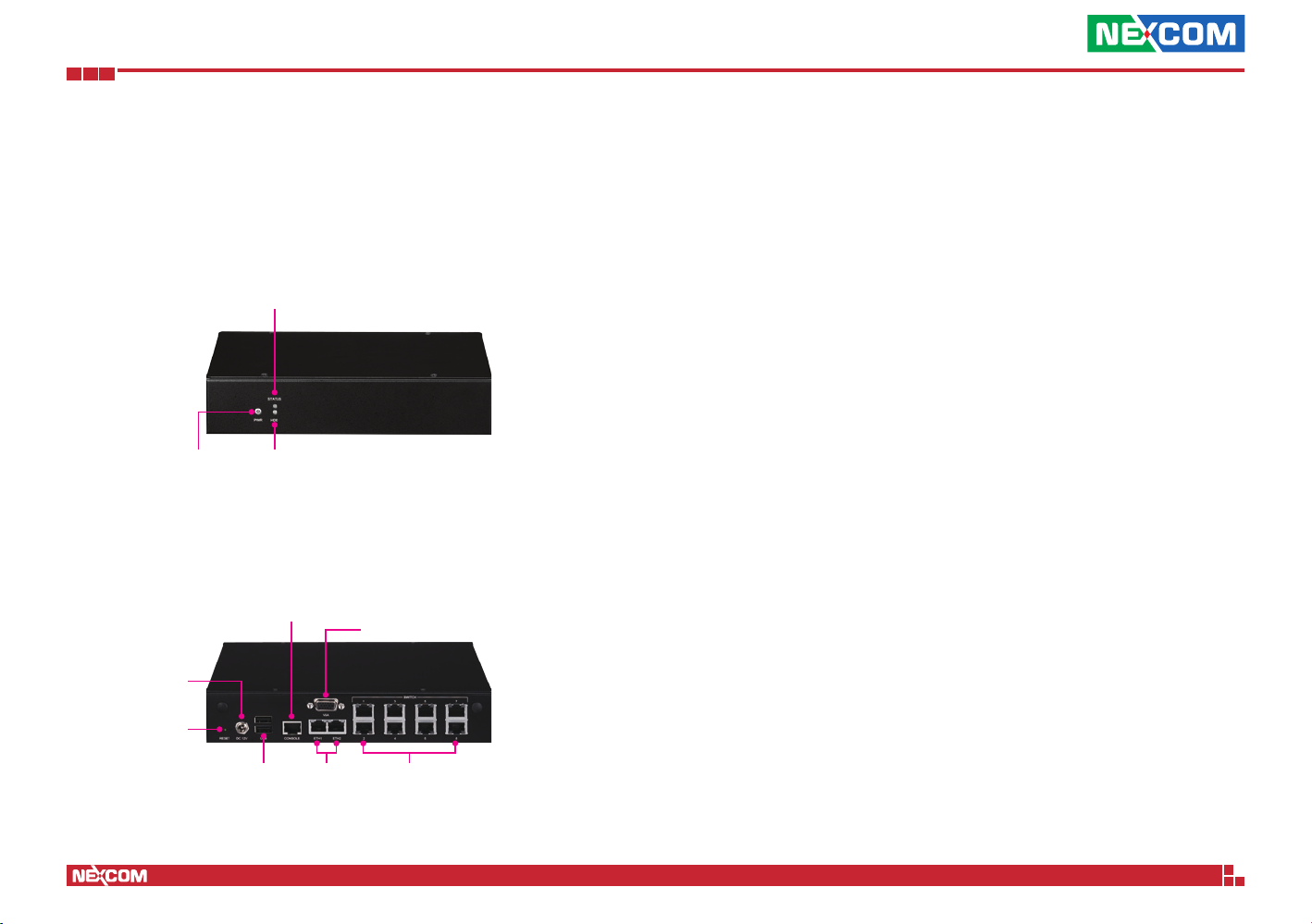

Knowing Your DNA 125B

Front Panel

Power LED

HDD LEDPower

Button

Power Button

Press to power-on or power-off the system.

Power LED

Indicates the power status of the system.

HDD LED

Indicates the hard drive activity.

Reset Button

Press this button to restart the system.

12V DC Input

Used to plug a DC power cord.

Rear Panel

RJ45 Console

VGA

12V DC

Input

Reset

Button

USB 2.0

Ports

Dual

GbE LAN

LAN 1 to LAN 8 Ports

RJ45 Console Port

Used to connect RJ45 type console port.

USB 2.0 Ports

Used to connect USB 2.0 devices.

VGA

Used to connect an analog VGA monitor.

Dual Gigabit LAN and LAN 1 to LAN 8 Ports

Used to connect network devices.

3

DNA 125B User Manual

Chapter 2: Jumpers and Connectors

ChaPter 2: JumPers and ConneCtors

This chapter describes how to set the jumpers and connectors on the DNA 125B motherboard.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: – A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

▪ Before working on internal components, make sure that the power is off.

Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environments tend to have less static electricity than

dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside the

computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they shipped

with until they are ready for installation.

▪ Use correct screws and do not over tighten screws.

4

DNA 125B User Manual

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 are Short

3

2

1

3

2

5

DNA 125B User Manual

Chapter 2: Jumpers and Connectors

SW2

Locations of the Jumpers and Connectors

The figure below shows the location of the jumpers and connectors.

DIMM1

FAN1

CN1

MINI_PCIE1

SW1

JP1

USB1

CN2

SW3

CN3

SATA 2

COM1

USB2

SATA 1

J2

COM2 LAN5 LAN1 LAN2 LAN3 LAN4

J1

6

DNA 125B User Manual

Chapter 2: Jumpers and Connectors

Jumpers and DIP Switch Settings

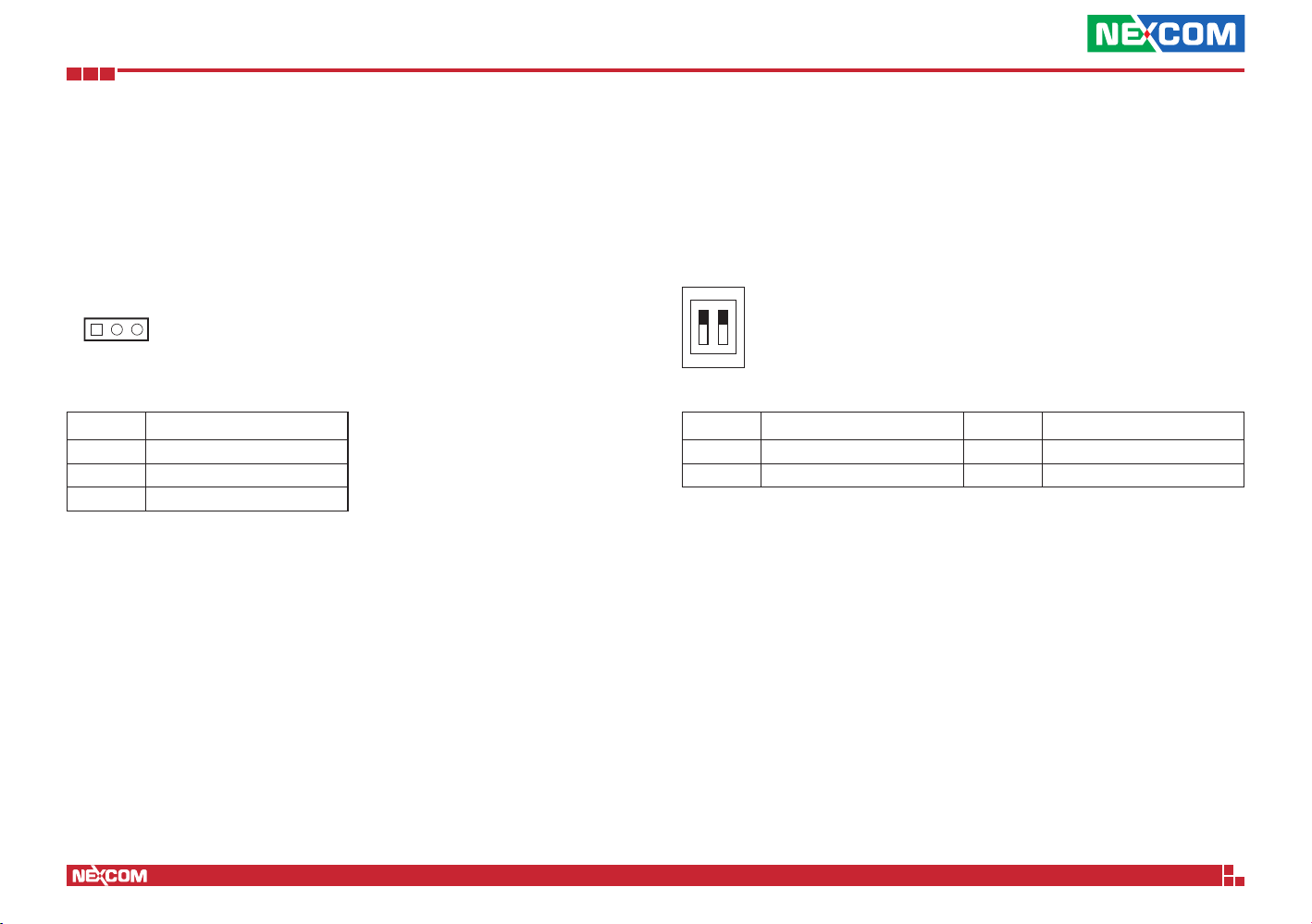

ATX/AT Select

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP1

1 3

Pin Definition

1 SWITCH_PWRBTN# 2 MCU_PWRBTN# 3 N16910676

Clear CMOS

Connector type: 1x2 2-pin DIP switch Connector location: SW1

O

N

1

2

Pin Definition Pin Definition

1 RTC_TEST# 2 SRTC_RST# 3 GND 4 GND

7

DNA 125B User Manual

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External Connectors

Hardware Reset Button

Connector location: SW3

Pin Definition

1 GND 2 RST_BTN#

USB 2.0 Ports

Connector type: USB 2.0 ports, Type A Connector location: USB2

1

5

Pin Definition Pin Definition

1 USB2_5V 2 USB_0N_C 3 USB_0P_C 4 GND 5 USB2_5V 6 USB_1N_L

7 USB_1P_L 8 GND MH1 USBCH_GND MH2 USBCH_GND MH3 USBCH_GND MH4 USBCH_GND

4

8

DNA 125B User Manual

Chapter 2: Jumpers and Connectors

ACT LINK

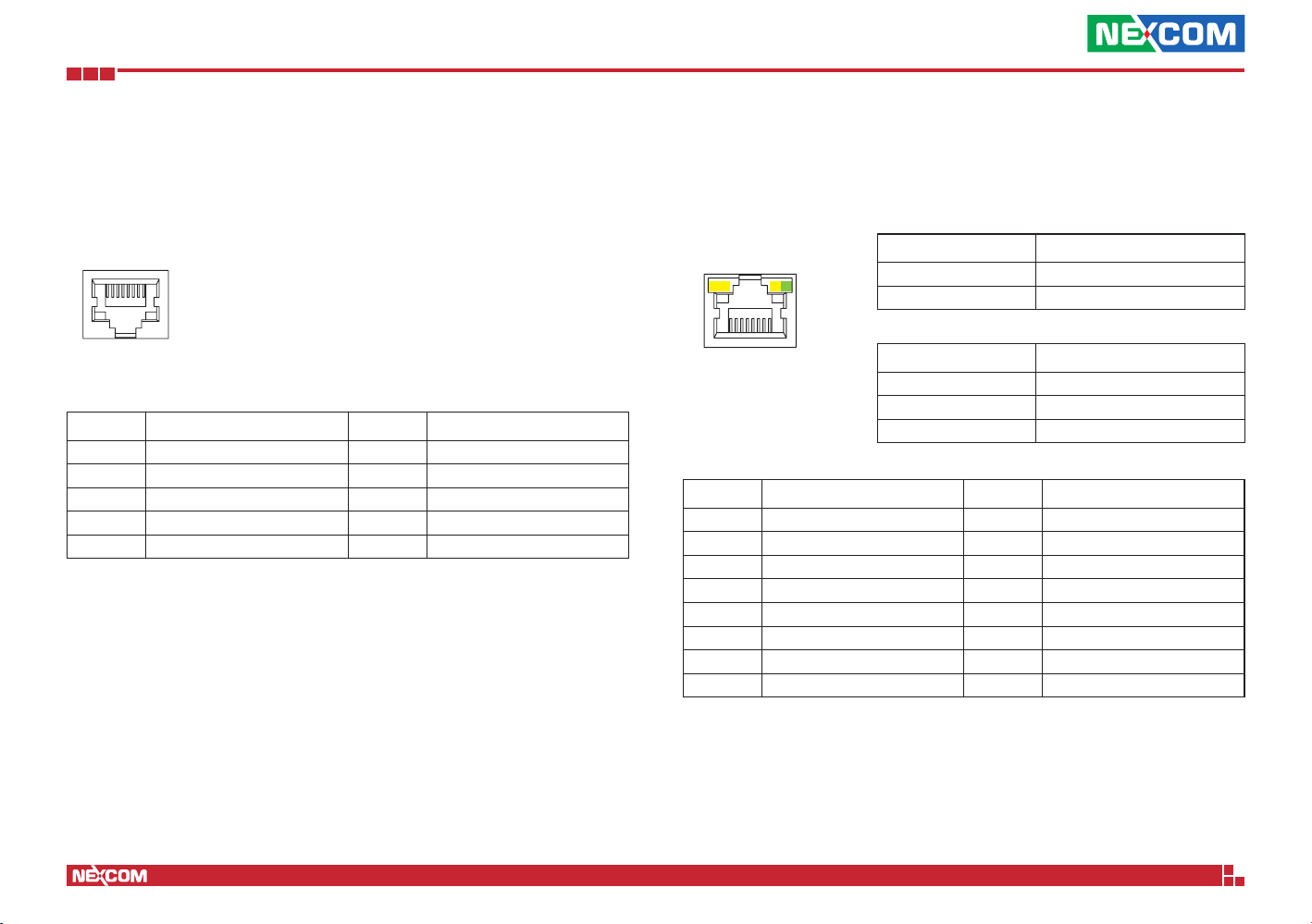

Console Port

Connector type: RJ45 port Connector location: COM2

81

Pin Definition Pin Definition

1 SIO_RTS_0 2 N/A 3 SIO_TXD_0 4 GND 5 N/A 6 SIO_RXD_0 7 N/A 8 SIO_RXD_0

MH1 COM1_GND MH2 COM1_GND

Dual Gigabit LAN

Connector type: RJ45 port with LEDs Connector location: LAN5

Act Status

Flashing Yellow Data activity

Off No activity

8

Pin Definition Pin Definition

1 LAN0_MDI0P 2 LAN0_MDI0N

3 LAN1_MDI1P 4 LAN1_MDI1N

5 LAN0_A5 6 LAN0_A6

7 LAN2_MDI2P 8 LAN2_MDI2N

9 LAN3_MDI3P 10 LAN3_MDI3N

11 LAN0_LED_LINK1G# 12 LAN0_LED_LINK# 13 LAN0_LED_ACT# 14 VCC3_LAN0

MH1 CGND

1

Link Status

Steady Green 1G network link

Steady Yellow 100Mbps network link

Off 10Mbps or no link

9

DNA 125B User Manual

Chapter 2: Jumpers and Connectors

ACT LINK

LAN 1 to LAN 8 Switch Ports

Connector type: RJ45 port with LEDs Connector location: LAN1, LAN2, LAN3 and LAN4

Act Status

Flashing Yellow Data activity

Off No activity

8

Pin Definition Pin Definition

1 LAN_DMI0P 2 LAN_DMI0N 3 LAN_DMI1P 4 LAN_DMI1N 5 LAN_DMI2P 6 LAN_DMI2N 7 LAN_DMI3P 8 LAN_DMI3N

9 N/A 10 GND 11 LAN_ACT 12 GND 13 LAN_100M 14 LAN_1G

MH1 CGND MH2 CGND MH3 CGND

1

Link Status

Steady Green 1G network link

Steady Yellow 100Mbps network link

Off 10Mbps or no link

VGA

Connector type: DB-15 port, 15-pin D-Sub

5

1

15 11

Pin Definition Pin Definition

1 VGA_RED 2 VGA_GREEN 3 VGA_BLUE 4 NC 5 VGA_GND 6 VGA_GND 7 VGA_GND 8 VGA_GND

9 VGA_+5V 10 VGA_GND 11 NC 12 VGA_DATA 13 VGA_HS 14 VGA_VS 15 VGA_CLK MH1 VGA_GND

MH2 VGA_GND

10

DNA 125B User Manual

Chapter 2: Jumpers and Connectors

Power Button

Connector location: SW2

Pin Definition Pin Definition

1 GND 2 PBT_PU 3 PBT_PU 4 GND

A1 PWRLED_N C1 N16670343

MH1 GND MH2 GND

11

DNA 125B User Manual

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

Internal Connectors

COM Port (RS-232)

Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: COM1

2 1

Pin Definition Pin Definition

1 N/A 2 SIO_RXD_1 3 SIO_TXD_1 4 N/A 5 GND 6 N/A 7 SIO_RTS_1 8 SIO_CTS_1 9 N/A 10 GND

10 9

SATA Connectors

Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180) Connector location: SATA1 and SATA2

1

Pin Definition Pin Definition

1 GND 2 SATA_TX0P_C

3 SATA_TX0N_C 4 GND

5 SATA_RX0N_C 6 SATA_RX0P_C

7 GND

7

12

DNA 125B User Manual

Chapter 2: Jumpers and Connectors

14

SATA DOM Power Connector

Connector type: 1x2 2-pin header, 2.5mm pitch Connector location: J2

1

Pin Definition

2

1 VCC5 2 GND

SATA Power Connector

Connector type: 1x4 4-pin Wafer Connector location: CN2

Pin Definition Pin Definition

1 V12S 2 GND

3 GND 4 VCC5

13

DNA 125B User Manual

Chapter 2: Jumpers and Connectors

16

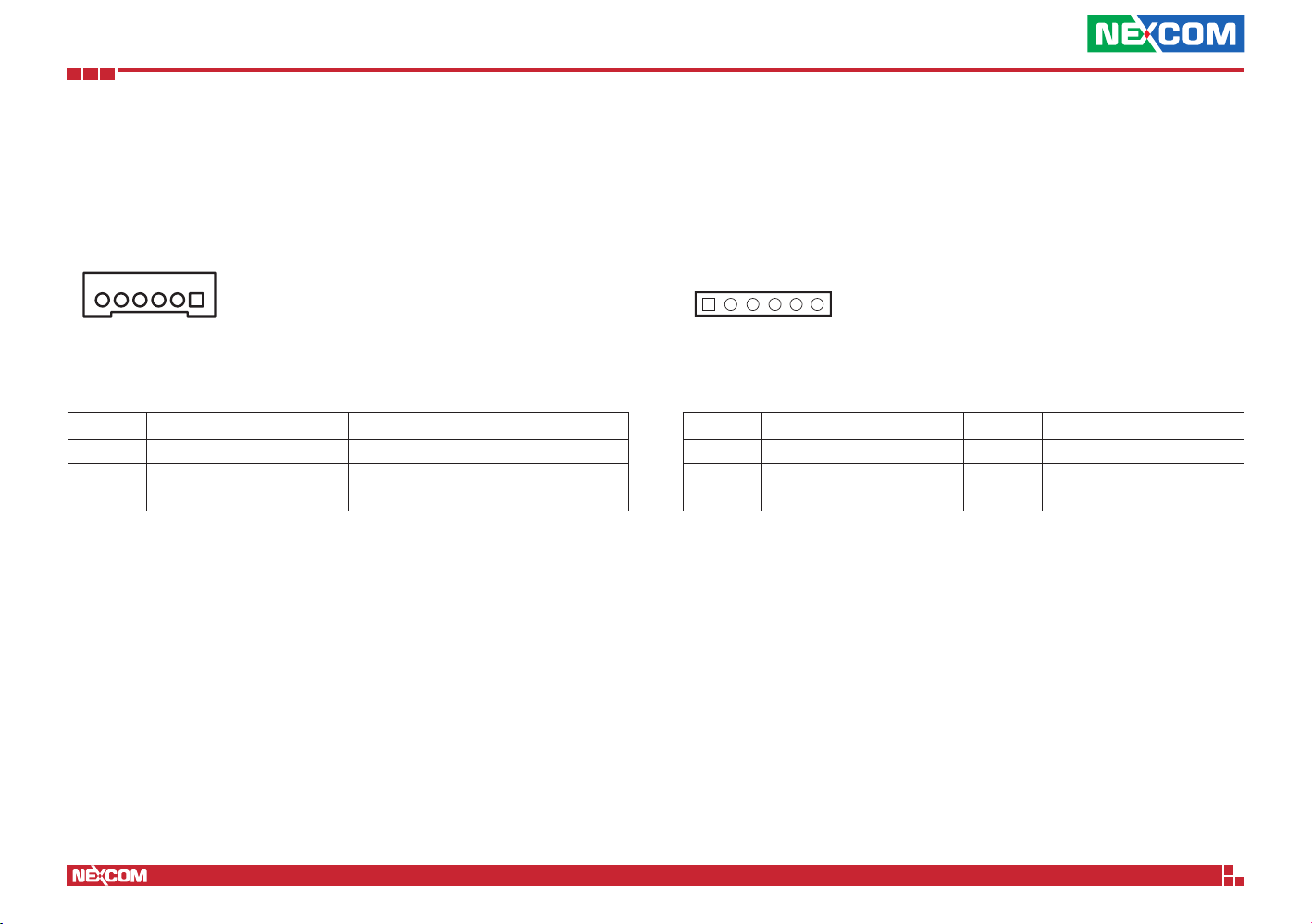

USB JST Port

Connector type: 1x6 6-pin header, 2.0mm pitch Connector location: USB1

16

Pin Definition Pin Definition

1 P5V_USB_P23 2 USB_3N_C 3 USB_3P_C 4 N/A 5 N/A 6 GND

CPLD Port

Connector type: 1x6 6-pin header, 2.54mm pitch Connector location: J1

Pin Definition Pin Definition

1 P3V_SB 2 GND

3 GAL_TCK 4 GAL_TDO

5 GAL_TDI 6 GAL_TMS

14

DNA 125B User Manual

Chapter 2: Jumpers and Connectors

14

4-Pin Fan Connector

Connector type: 1x4 4-pin Wafer, 2.54mm pitch Connector location: FAN1

Pin Definition Pin Definition

1 GND 2 V12S 3 FAN1_R 4 FANPWM1_R

15

DNA 125B User Manual

Chapter 2: Jumpers and Connectors

Mini-PCIe Connector

Connector location: MINI_PCIE1

12

51 52

Pin Definition Pin Definition

1 MPCIE_WAKE# 2 3VSB 3 N/A 4 GND 5 N/A 6 P1V5_STBY 7 CLKREQ# 8 N/A

9 GND 10 N/A 11 PCIE_MINI_CLK_N 12 N/A 13 PCIE_MINI_CLK_P 14 N/A 15 GND 16 N/A 17 N/A 18 GND 19 N/A 20 MPCIE_DIS# 21 GND 22 MPCIE_RST_R 23 PCIE_RXN2_MINI 24 3VSB 25 PCIE_RXP2_MINI 26 GND

16

Pin Definition Pin Definition

27 GND 28 P1V5_STBY 29 GND 30 EXP_CLK 31 PCIE_TXN2_MINI 32 EXP_DATA 33 PCIE_TXP2_MINI 34 GND 35 GND 36 USB_2N 37 GND 38 USB_2P 39 3VSB 40 GND 41 3VSB 42 N/A 43 GND 44 N/A 45 N/A 46 N/A 47 N/A 48 P1V5_STBY 49 N/A 50 GND 51 N/A 52 3VSB

DNA 125B User Manual

Chapter 3: System Setup

CAUTION!

Chapter 3: System Setup

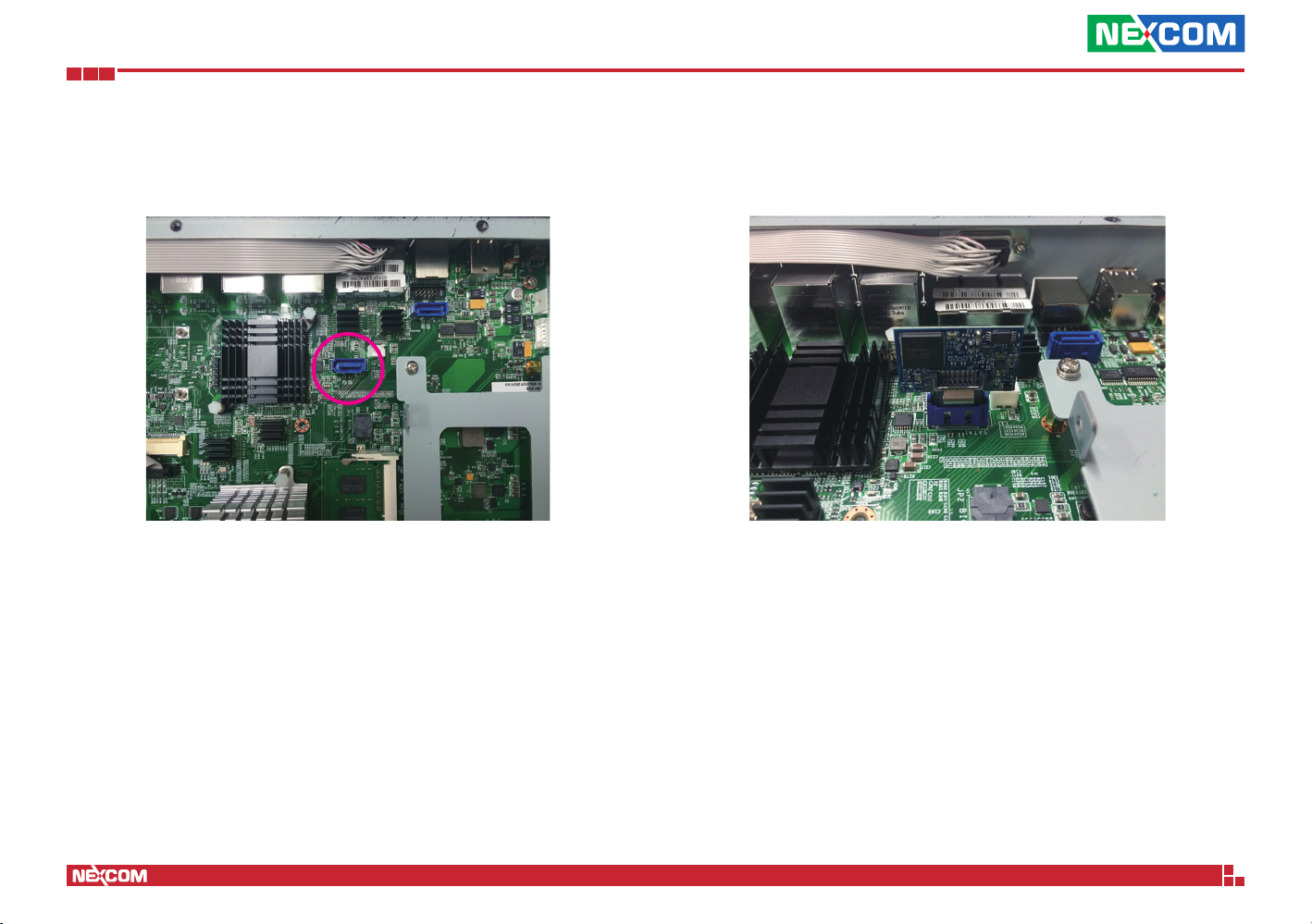

Removing the Chassis Cover

Prior to removing the chassis cover, make sure the unit’s power

CAUTION!CAUTION!

1. The screws around the cover are used to secure the cover to the chassis. Remove these screws and put them in a safe place for later use.

is off and disconnected from the power sources to prevent electric shock or system damage.

17

Screws on the sides

DNA 125B User Manual

Chapter 3: System Setup

Installing a SO-DIMM Memory Module

1. Push the ejector tabs which are at the ends of the socket outward. This indicates that the socket is unlocked.

SO-DIMM socket

2. Note how the module is keyed to the socket. Grasping the module by its edges, align the module with the socket so that the “notch” on the module is aligned with the “key” on the socket. The key ensures the module can be plugged into the socket in only one direction.

Notch on the module Key on the socket

18

DNA 125B User Manual

Chapter 3: System Setup

3. Insert the module into the socket at an approximately 30 degrees angle. Apply firm even pressure to each end of the module until it slips down into the socket. The contact fingers on the edge of the module will almost completely disappear inside the socket.

The ejector tabs at the ends of the socket will automatically snap into the

locked position to hold the module in place.

19

DNA 125B User Manual

Chapter 3: System Setup

Installing a SATA DOM

1. Locate the SATA connector on the board.

2. Install the SATA DOM to the connector.

20

DNA 125B User Manual

Chapter 3: System Setup

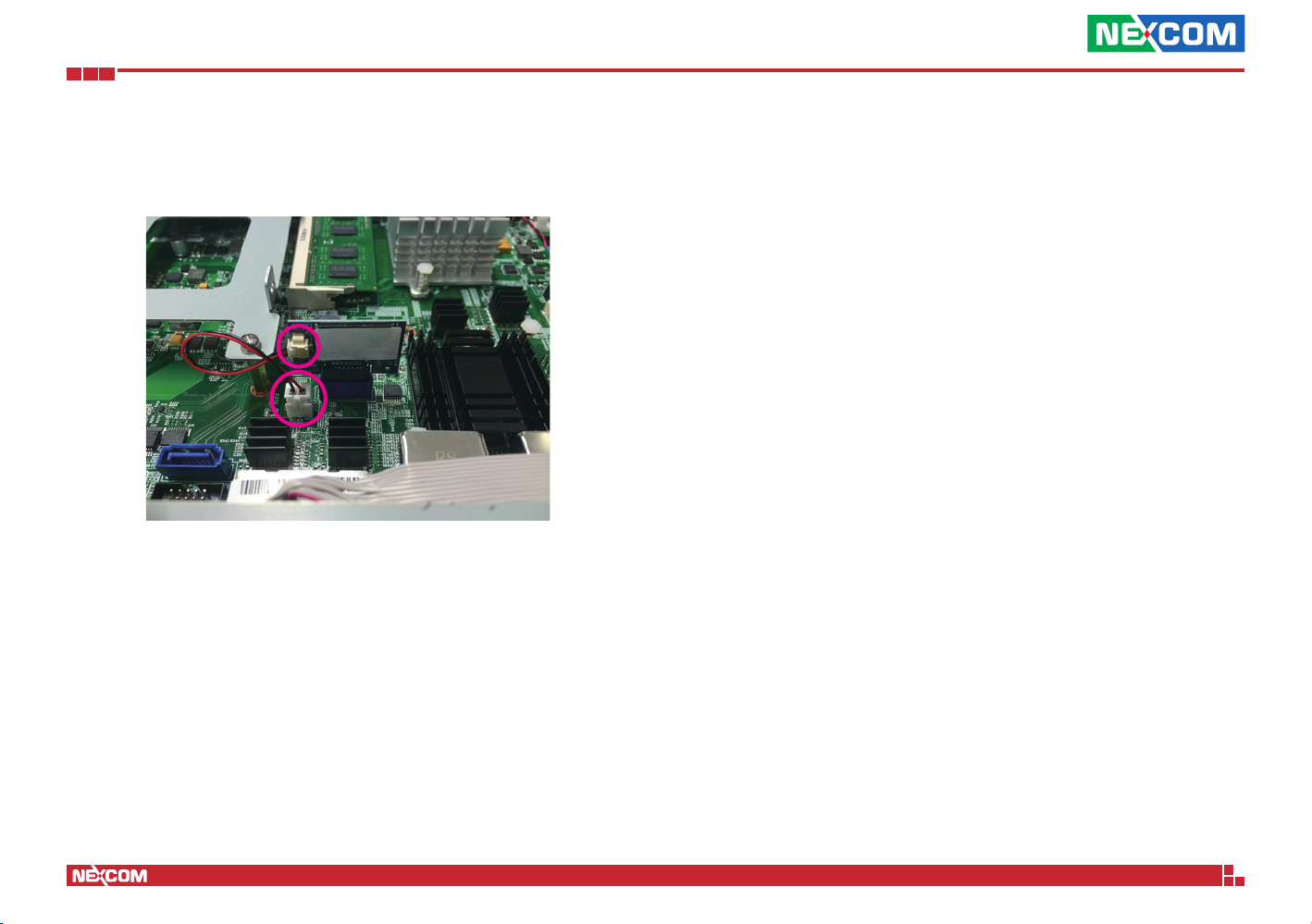

3. Connect one end of the power cable to the connector on the module and then connect the other end of the cable to the connector on the board.

21

DNA 125B User Manual

Chapter 3: System Setup

CAUTION!

Installing a 2.5” SATA Hard Drive

CAUTION!CAUTION!

Please correctly follow the below instructions and noted items to avoid making unnecessary damages.

1. Remove the screws on the hard drive bracket.

2. Place the SATA hard drive onto the hard drive bracket with the SATA data and power connector facing outwards. Align the mounting holes on the bracket to the mounting holes on the HDD, then secure the HDD with screws.

HDD bracket

ScrewsSATA data and power connector

Screws

22

DNA 125B User Manual

Chapter 3: System Setup

3. Place the hard drive bracket back in the chassis with the connector side facing the board, and then use the mounting screws to secure the bracket in place.

Connector side

4. Locate the SATA data and power connector on the board.

SATA power connector SATA data connector

23

DNA 125B User Manual

Chapter 3: System Setup

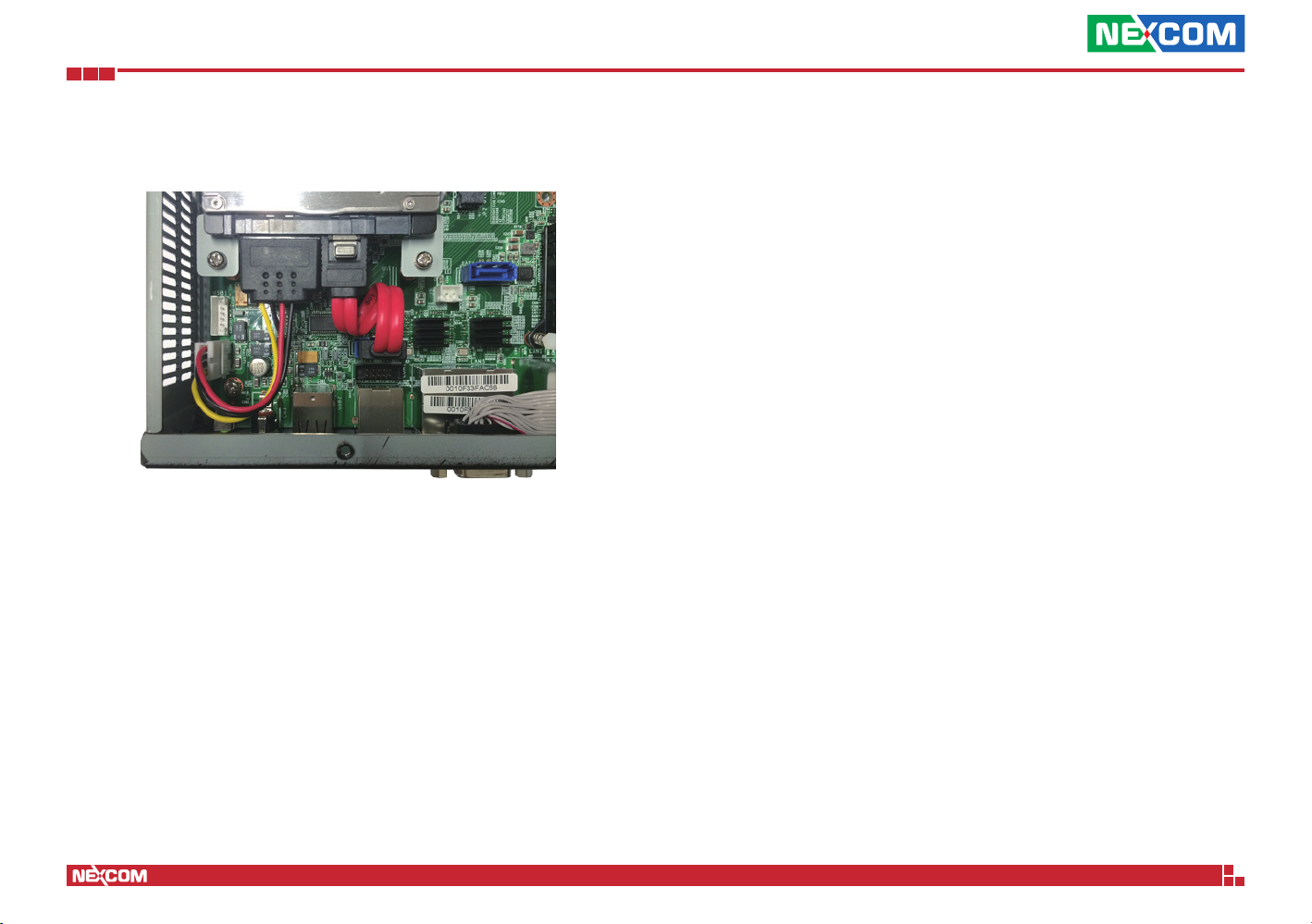

5. Connect the SATA data and power cable onto the board and other ends to the hard drive.

24

DNA 125B User Manual

Chapter 4: BIOS Setup

ChaPter 4: BIos setuP

This chapter describes how to use the BIOS setup program for the DNA 125B. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals

▪ Video display type and display options

▪ Password protection from unauthorized use

▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

▪ This program should be executed under the following conditions:

▪ When changing the system configuration

▪ When a configuration error is detected by the system and you are

prompted to make changes to the setup program

▪ When resetting the system clock

▪ When redefining the communication ports to prevent any conflicts

▪ When making changes to the Power Management configuration

▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

25

DNA 125B User Manual

Chapter 4: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series of beeps

will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing allows you to enter Setup.

Legends

Key Function

Moves the highlight left or right to select a menu.

Moves the highlight up or down between sub-menu or fields.

Exits the BIOS Setup Utility.

Scrolls forward through the values or options of the highlighted field.

Scrolls backward through the values or options of the highlighted field.

Selects a field.

Displays General Help.

Load previous values.

Load optimized default values.

26

Saves and exits the Setup program.

Press <Enter> to enter the highlighted sub-menu

DNA 125B User Manual

Chapter 4: BIOS Setup

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press .

27

DNA 125B User Manual

Chapter 4: BIOS Setup

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from several setup functions and one exit. Use arrow keys to select among the items and press to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Advanced Chipset Security BootMain

BIOS Information

BIOS Vendor Core Version Compliancy Project Version Build Date and Time

CPU Conguration

Microcode Patch BayTrail SoC

System Date

System Time

Access Level

American Megatrends

5.009 UEFI 2.3; PI 1.2 G121- 0.05 03/24/2014 13:03:25

31e B3 Stepping

[Sun 01/22/2012] [15:57:56]

Administrator

Save & Exit

Set the Date. Use Tab to switch between Date elements.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Monday to Sunday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

Access Level

Displays the access level of the current user in the BIOS.

28

DNA 125B User Manual

Chapter 4: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.

Advanced Chipset Security BootMain



ACPI Settings



NCT7802Y HW Monitor



Serial Port Console Redirection



CPU Conguration



IDE Conguration



Network Stack Conguration



CSM Conguration



USB Conguration

Save & Exit

System ACPI Parameters.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

ACPI Settings

This section is used to configure ACPI Settings.

Main

ACPI Settings

Enable ACPI Auto Conguration

Lock Legacy Resources

Advanced Chipset PCIPnP Security

[Disabled]

Enable ACPI Auto Configuration

Enables or disables BIOS ACPI auto configuration.

Lock Legacy Resources

Enables or disables lock of legacy resources.

Exit

Enables or Disables BIOS ACPI

Auto Conguration.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

29

DNA 125B User Manual

Chapter 4: BIOS Setup

NCT7802Y HW Monitor

This section is used to monitor hardware status such as temperature, fan speed and voltages.

Advanced

Pc Health Status

cpu temperature System temperature VCC VCORE VCC5 VCC3

: +41 C : +27.9 C : +3.356 V : +0.792 V : +5.226 V : +3.336 V

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CPU Temperature

Detects and displays the current CPU temperature.

Serial Port Console Redirection

This section is used to configure the serial port that will be used for console redirection.

Advanced

Console Redirection Enable

COM0

Console Redirection

Console Redirection Settings

►

Serial Port for Out-of-Band Management / Windows Emergency Management Services (EMS)

Console Redirection

Console Redirection Settings

►

[Enabled]

[Disabled]

or Disable

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Console Redirection

Enables or disables the console redirection.

System Temperature

Detects and displays the current system temperature.

VCC to VCC3

Detects and displays the output voltages.

30

DNA 125B User Manual

Chapter 4: BIOS Setup

Console Redirection Settings

Specifies how the host computer and the remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings.

Advanced

COM0

Console Redirection Settings

Terminal Type

Bits per second Data Bits Parity Stop Bits Flow Control VT-UTF8 Combo Key Sup Recorder Mode Resolution 100x31 Legacy OS Redirection Putty KeyPad Redirection After BIO

[ANSI]

[115200] [8] [None] [1] [None] [Enabled] [Disabled] [Disabled] [80x24] [VT100] [Always Enable]

Emulation: ANSI: Extended ASCII char set. VT100: ASCII char set. VT100+: Extends VT100 to support color, function keys, etc. VT-UTF8: Uses UTF8 encoding to map Unicode chars onto 1 or more

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Terminal Type

ANSI Extended ASCII character set. VT100 ASCII character set. VT100+ Extends VT100 to support color, function keys, etc. VT-UTF8 Uses UTF8 encoding to map Unicode characters onto 1 or more bytes.

Bits Per Second

Selects the serial port transmission speed. The speed must match the other side. Long or noisy lines may require a lower speed.

Data Bits

The options are 7 and 8.

Parity

A parity bit can be sent with the data bits to detect some transmission errors.

Even Parity bit is 0 if the number of 1’s in the data bits is even. Odd Parity bit is 0 if number of 1’s in the data bits is odd.

Stop Bits

Stop bits indicate the end of a serial data packet. (A start bit indicates the beginning). The standard setting is 1 stop bit. Communication with slow devices may require more than 1 stop bit.

Flow Control

Flow control can prevent data loss from buffer overflow. When sending data and the receiving buffers are full, a “stop” signal can be sent to stop the data flow.

VT-UTF8 Combo Key Support

Enables or disables VT-UTF8 combo key support.

Recorder Mode

When this field is enabled, only text will be sent. This is to capture the terminal data.

Resolution 100x31

Enables or disables extended terminal resolution.

Legacy OS Redirection

Selects the number of rows and columns that support redirection.

Putty Keypad

Selects the Putty keyboard emulation type.

Redirection After BIOS POST

Enables or disables redirection after BIOS POST.

31

DNA 125B User Manual

Chapter 4: BIOS Setup

CPU Configuration

This section is used to configure the CPU.

Advanced

CPU Conguration

Socket 0 CPU Information

►

CPU Speed 64-bit

Limit CPUID Maximum Execute Disable Bit Hardware Prefetcher Adjacent Cache Line Prefetcher Intel Virtualization Power Technology

1467 MHz Supported

[Disabled] [Enabled] [Enabled] [Enabled] [Enabled] [Disable]

Socket specic CPU Information

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Limit CPUID Maximum

The CPUID instruction of some newer CPUs will return a value greater than

3. The default is Disabled because this problem does not exist in the Windows

series operating systems. If you are using an operating system other than Windows, this problem may occur. To avoid this problem, enable this field to limit the return value to 3 or lesser than 3.

Hardware Prefetcher

The options are Enabled and Disabled.

Adjacent Cache Line Prefetch

The options are Enabled and Disabled.

Intel® Virtualization Technology

When this field is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

Power Technology

Configures the power management features.

Execute Disable Bit

When this field is set to Disabled, it will force the XD feature flag to always return to 0.

32

DNA 125B User Manual

Chapter 4: BIOS Setup

IDE Configuration

This section is used to configure the SATA drives.

Advanced

IDE Conguration

Serial-ATA (SATA)

SATA Test Mode

SATA Speed Support SATA Mode

Serial-ATA Port 0

Serial-ATA Port 1

SATA Port0 Not Present

SATA Port1 Not Present

[Enabled]

[Disabled]

[Gen2] [AHCI Mode]

[Enabled]

Serial-ATA (SATA)

Enables or disables SATA device.

Enable/Disable SATA Device

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

SATA Mode

Configures the SATA as IDE, AHCI or RAID mode.

IDE This option configures the Serial ATA drives as Parallel ATA physical storage device. AHCI This option configures the Serial ATA drives to use AHCI (Advanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance.

Serial-ATA Port 0 and Serial-ATA Port 1

Enables or disables SATA port 0 and SATA port 1.

SATA Test Mode

Enables or disables SATA test mode.

SATA Speed Support

Configures the SATA controller to Gen1 or Gen2 speed.

33

DNA 125B User Manual

Chapter 4: BIOS Setup

Network Stack

This section is used to configure the network stack.

Advanced

Network stack

[Disabled]

Network Stack

Enables or disables UEFI network stack.

Enable/Disable UEFI network stack

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CSM Configuration

This section is used to configure the compatibility support module features.

Advanced

Compatibility Support Module Conguration

CSM Support

CSM16 Module Version

GateA20 Active Option ROM Messages INT19 Trap Response

Boot option lter

Option ROM execution order

Network Storage Video Other PCI devices

[Enabled]

07.71

[Upon Request] [Force BIOS] [Immediate]

[UEFI and Legacy]

[Do not launch] [UEFI only] [Legacy only] [UEFI only]

Enable/Disable CSM Support.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CSM Support

This field is used to enable or disable CSM support, if Auto option is selected, based on OS, CSM will be enabled or disabled automatically.

GateA20 Active

Upon Request GA20 can be disabled using BIOS services. Always Do not allow disabling GA20; this option is useful when any RT code is executed above 1MB.

34

DNA 125B User Manual

Chapter 4: BIOS Setup

Option ROM Messages

This field is used to set display mode for Option ROM. The options are Force BIOS and Keep Current.

INT19 Trap Response

Allows Option ROMs to trap Interrupt 19 when enabled.

Immediate Execute the trap right away. Postponed Execute the trap during legacy boot.

Boot Option Filter

Configures which drives the system can boot from.

Network

Enables or disables the boot option for legacy network devices.

Storage

Enables or disables the boot option for legacy storage devices.

Video

Enables or disables the boot option for legacy video devices.

Other PCI Devices

Enables or disables the boot option for legacy PCI devices.

35

DNA 125B User Manual

Chapter 4: BIOS Setup

USB Configuration

This section is used to configure the USB.

Advanced

USB Conguration

USB Module Version

USB Devices:

1 Keyboard, 1 Hub

Legacy USB Support

XHCI Hand-off EHCI Hand-off USB Mass Storage Driver

USB hardware delays a

USB transfer time-out Device reset time-out Device power-up delay

8.11.01

[Enabled]

[Enabled] [Disabled] [Enabled]

[20 sec] [20 sec] [Auto]

Enables Legacy USB support. AUTO option disables legacy Support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Legacy USB Support

Enable Enables Legacy USB. Auto Disables support for Legacy when no USB devices are connected. Disable Keeps USB devices available only for EFI applications.

EHCI Hand-Off

This is a workaround for OSs that does not support EHCI hand-off. The EHCI ownership change should be claimed by the EHCI driver.

USB Mass Storage Driver

Enables or disables USB mass storage driver support.

USB Transfer Time-out

The time-out value for control, bulk, and Interrupt transfers.

Device Reset Time-out

Selects the USB mass storage device’s start unit command timeout.

Device Power-up Delay

Maximum time the value will take before it properly reports it self to the Host Controller. “Auto” uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor.

XHCI Hand-Off

This is a workaround for OSs that does not support XHCI hand-off. The XHCI ownership change should be claimed by the XHCI driver.

36

DNA 125B User Manual

Chapter 4: BIOS Setup

Chipset

This section gives you functions to configure the system based on the specific features of the chipset. The chipset manages bus speeds and access to system memory resources.

North Bridge

►

South Bridge

►

Advanced Chipset Security BootMain

Save & Exit

North Bridge Parameters

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

North Bridge

Advanced Chipset Boot SecurityMain

Memory Information

Total Memory

Max TOLUD

4096 MB (LPDDR3)

[Dynamic]

Max TOLUD

Configures the maximum value of TOLUD.

Save & Exit

Maximum Value of TOLUD.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

North Bridge

This field is used to configure North Bridge Parameters.

South Bridge

This field is used to configure South Bridge Parameters.

37

DNA 125B User Manual

Chapter 4: BIOS Setup

South Bridge

Chipset

PCI Express Conguration

►

High Precision Timer Restore AC Power Loss

[Enabled] [Power On]

PCI Express Conguration

settings

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

High Precision Timer

Enables or disables the high precision event timer.

Restore AC Power Loss

Select AC power state when power is re-applied after a power failure.

PCI Express Ports Configuration

Chipset

PCI Express Conguration

PCI Express Port 0

Speed

PCI Express Port 1 Speed

PCI Express Port 2 Speed

PCI Express Port 3 Speed

[Enabled]

[Gen 1]

[Enabled] [Gen 1]

PCI Express Port 1 to PCI Express Port 4

Enables or disables the PCI Express port.

Speed

Configures the speed of the PCI Express ports.

Enable or disable the PCI Express Port 0 in the Chipset.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

38

DNA 125B User Manual

Chapter 4: BIOS Setup

Security

Advanced Chipset Security BootMain

Password Description

The password length must be in the following range:

Minimum length 3 Maximum length 20

Administrator Password

Save & Exit

Set Administrator Password

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Administrator Password

Select this to reconfigure the administrator’s password.

39

DNA 125B User Manual

Chapter 4: BIOS Setup

Boot

This section is used to configure the boot features.

Advanced

Boot Conguration

Setup Prompt Timeout

Bootup NumLock State

Quiet Boot

Boot mode select

FIXED BOOT ORDER Priorities

Boot Option #1 Boot Option #2 Boot Option #3 Boot Option #4 Boot Option #5 Boot Option #6 Boot Option #7

Setup Prompt Timeout

Selects the number of seconds to wait for the setup activation key. 65535(0xFFFF) denotes indefinite waiting.

Chipset

Security

1

[On]

[Disabled]

[LEGACY]

[USB CD/DVD] [USB Key] [Hard Disk] [USB Hard Disk] [CD/DVD] [USB Floppy] [Network]

BootMain

Save & Exit

Number of seconds to wait for setup activation key. 65535

(0xFFFF) means indenite

waiting.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Quiet Boot

Enabled Displays OEM logo instead of the POST messages. Disabled Displays normal POST messages.

Boot Mode Select

Configures the boot mode option.

Boot Option #1 to Boot Option #7

Adjust the boot sequence of the system. Boot Option #1 is the first boot device that the system will boot from, next will be Boot Option #2 and so forth.

Bootup NumLock State

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

40

DNA 125B User Manual

Chapter 4: BIOS Setup

Save & Exit

Advanced Chipset Security BootMain

Save Changes and Reset

Discard Changes and Reset

Restore Defaults

Boot Override

Launch EFI Shell from lesystem device

Save Changes and Reset

To save the changes and exit the Setup utility, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes. You can also press <F4> to save and exit Setup.

Save & Exit

Reset the system after saving the changes.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Restore User Defaults

To restore the BIOS to user default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecing Yes.

Boot Override

To bypass the boot sequence from the Boot Option List and boot from a particular device, select the desired device and press <Enter>.

Launch EFI Shell From Filesystem Device

Launches the EFI shell.

Discard Changes and Reset

To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting. You can also press <ESC> to exit without saving the changes.

41
