Nex 720-0312, 730-0312 Installation Guide
ASSEMBLY & OPERATING INSTRUCTIONS
400
300
500
600
200
100
700
800
Model: 720-0312
FOR PROPANE GAS USE ONLY
PLEASE CONTACT 1-800–648–5864 FOR ASSISTANCE
ABOUT ASSEMBLY OR GRILL OPERATION
DO NOT RETURN TO THE PLACE OF PURCHASE
FOR OUTDOOR USE ONLY
G18Y06P-1
MESSAGE TO OUR CONSUMERS
Thank you for selecting our stainless steel gas grill.
Because this appliance contains features which may not be found on other grills, we
recommend that you read this entire booklet before your first use. Keep it in a handy
place as it has answers to questions that may occur during future use.
Read this booklet carefully and be sure your gas grill is properly assembled, installed and
maintained. Failure to follow these instructions could result in serious bodily injury and/or
property damage. This gas grill is intended for outdoor use only and is not intended to be
installed in or on recreational vehicles or boats.
NOTE TO INSTALLER: Leave these instructions with the consumer after installation.
NOTE TO CONSUMER: Retain for future reference.
IMPORTANCE
Danger
I f you smell gas:
1 S hut off gas to the appliance.
2 Extinguish any open flame.
3 Open lid
4 If odor continues, keep away from the appliance
and immediately call you gas supplier or your fire
department.
WARNING
Combustion byproducts produced when using this
product contain chemicals kno wn to the State
of California to cause cancer, birth defects, or
other reproductive harm.
Your grill will get very hot. Never lean over the cooking area while using your grill. Do not touch cooking
surfaces, grill housing, Lid or any other grill parts while the grill is in operation, or until the gas grill has
cooled down after use.
1.Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
2.An LP cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
Failure to comply with these instructions could result
in a fire or explosion that could cause serious bodily
injury, death, or property damage.
WARNING
Warning
WARNING
WARNING
Do not try to light this appliance without first reading the “LIGHTING INSTRUCTIONS”
section in this manual.
G18Y06P-1
TABLE OF CONTENTS
SECTION ONE
Table of Contents & Importance-------------Precautions----------------------------------------1-2
Placement of the Grill--------------------------- 3
SECTION TWO
Side Shelf Assembly---------------------------4-5
Side Burner Ass embly--------------------------6-7
Rotisserie Burner Assembly
----------------------8
SECTION FOUR
Care & Maintenance-------------------21-22
SECTION FIVE
Trouble Shooting-------------------------23-24
Part List-----------------------------------25-26
Operating Parts-------------------------27
Rotisserie Kit & Spice Tray Assembly ------9
Gas Holder & Propane Tank Assembly-----10
Gas Hook Up-----------------------------------11-12
Installer Final Check Lis t ------------------------12
Leak Testing------------ -----------------------13-14
SECTION THREE
Operating Instruction--------------------------15-16
Grill Lighting Instruction-------------16-17-18-19
Lighting Illustration-----------------------------20
SECTION SEVEN
Grilling Hints &
Grill Cooking Chart---------------------28-29-30
SECTION EIGHT
Grill Recipe Suggestions--------------31-32-33
SECTION NINE
Limited Warranty------------------------34
G18Y06P-1
PRECAUTIONS
WARNING
Do not try to light this appliance without
first reading the “LIGHTING
INSTRUCTIONS” section in this manual.
TESTED IN ACCORDANCE WITH ANSI
Z21.58 •CSA 1.6 STANDARD FOR
OUTDOOR COOKING GAS APPLIANCES.
THIS GRILL IS FOR OUTDOOR USE ONLY.
Check your local building codes for the
proper method of installation. In the
absence of local codes, this unit should be
installed in accordance with the National
Fuel Gas Code ANSI Z223.1/NFPA 54,
ANSI/NFPA 58 OR CSA B149.1 Natural
Gas and Propane Installation Code, and
the National Electrical Code, ANSI/NFPA
70, or Propane storage and handling code,
B149.2.
CALIFORNIA PROPOSITION 65-WARNING
The burning of gas fuel generates some by-
products, which are on the list of
substances, which are known by the State
of California to cause cancer or
reproductive harm. California law requires
businesses to warn customers of potential
exposure to such substances. To minimize
exposure to these substances, always
operate this unit according to the use and
care manual, ensuring you provide good
ventilation when cooking with gas.
SAFETY PRACTICES TO AVOID PERSONAL
INJURY
When properly cared for, your stainless
steel grill will give safe, reliable service for
many years. However, extreme care must
be used since the grill produces intense
heat and that can increase accident
potential. When using this appliance basic
safety practices must be followed, including
he following:
Read this Care and Use Manual carefully
and completely before using your grill to
reduce the risk of fire, burn hazard or other
injury.
Do not repair or replace any part of the grill
unless specifically recommended in this
manual. All other service should be referred
to a qualified technician.
CHILDREN SHOULD NOT BE LEFT
ALONE OR UNATTENDED IN AN AREA
WHERE THE GRILL IS BEING USED.
NEVER ALLOW THEM TO SIT, STAND
OR PLAY ON OR AROUND THE GRILL
AT ANY TIME.
G18Y06P-1
1
PRECAUTIONS
DO NOT STORE ITEMS OF INTEREST
TO CHILDREN AROUND OR BELOW
THE GRILL OR IN THE CART. NEVER
ALLOW CHILDREN TO CRAWL INSIDE
OF THE CART.
Never let clothing, pot holders or other
flammable materials come in contact with
or too close to any grate, burner or hot
surface until it has cooled. Fabric may
ignite and result in personal injury.
For personal safety, wear proper apparel.
Loose fitting garments or sleeves should
never be worn while using this appliance.
Some synthetic fabrics are highly
flammable and should not be worn while
cooking.
Only certain types of glass, heat-proof
glass ceramic, earthenware, or other
glazed utensils are suitable for grill use.
These types of materials may break with
sudden temperature changes. Use only on
low or medium heat settings according to
the manufacturer’s directions.
Do not heat unopened food containers as
a build-up of pressure may cause the
container to burst.
Use a covered hand when opening the
grill lid. Never lean over an open grill.
WHEN LIGHTING A BURNER, ALWAYS
PAY CLOSE ATTENTION TO WHAT
YOU ARE DOING. BE CERTAIN YOU
ARE TURNING THE IGNITER LABELED
FOR THE BURNER YOU INTEND ON
USING.
When using the grill, do not touch the grill
rack, burner grate or immediate
surroundings as these areas become
extremely hot and could cause burns. Use
only dry potholders.
Moist or damp potholders on hot surfaces
may cause burns from steam. Do not use a
towel or bulky cloth in place of potholders.
Do not let potholders touch hot portions of
the grill rack.
Grease is flammable. Let hot grease cool
before attempting to handle it. Avoid letting
excess grease deposits collect in the
grease tray at the bottom of the grill’s
firebox. Clean often.
DO NOT USE ALUMINUM FOIL TO LINE
THE GRILL RACKS OR GRILL BOTTOM.
This can severely upset combustion air flow
or trap excessive heat in the control area.
For proper lighting and performance of the
burners keep the burner ports clean. It is
necessary to clean them periodically for
optimum performance. The burners will
only operate in one position and must be
mounted correctly for safe operation.
Clean the grill with caution. Avoid steam
burns; do not use a wet sponge or cloth to
clean the grill while it is hot. Some cleaners
produce noxious fumes or can ignite if
applied to a hot surface.
INSECT WARNING!!! Spiders and insects
can nest in the burners of this and any
other grill, and cause the gas to flow
improperly. This is a very dangerous
condition which can cause a fire to occur
behind the valve panel, thereby damaging
the grill and making it unsafe to operate.
Inspect the grill twice a year.
Be sure all grill controls are turned off and
the grill is cool before using any type of
aerosol cleaner on or around the grill. The
chemical that produces the spraying action
could, in the presence of heat, ignite or
cause metal parts to corrode.
G18Y06P-1
2
PRECAUTIONS
Do not use the grill for cooking
excessively fatty meats or products which
promote flare-ups. Do not operate the grill
under unprotected combustible
construction. Use only in well ventilated
areas. Do not use in buildings, garages,
sheds, breezeways or other such
enclosed areas. THIS UNIT IS FOR
OUTDOOR USE ONLY.
Keep the area surrounding the grill free
from combustible materials, trash, or
combustible fluids and vapors such as
gasoline or charcoal lighter fluid. Please
check the surrounding area before use.
And keep a minimum of 24”(61cm)
clearance from combustible material. Do
not obstruct the flow of combustion and
ventilation air. Keep the ventilation
openings of the cylinder enclosure free
and clear from debris. This must be
checked before each use. If the unit is
stored indoors ensure that it is cool. If
propane is used, the cylinder must be
unhooked and the propane cylinder stored
outside in a well ventilated area, out of the
reach of children.
DO NOT USE BRIQUETTES OF ANY
KIND IN THE GRILL.
This stainless steel grill is designed for
optimum performance without the use of
briquettes. Do not place briquettes on the
flame tamer as this will block off the area
for the grill burners to vent. Adding
briquettes can damage ignition components
and knobs, and void the warranty.
Keep the back of the cart free and clear
from debris. Keep any electrical supply
cord, or the rotisserie motor cord away
from the heated areas of the grill.
Never use the grill in extremely windy
conditions. If located in a consistently windy
area (oceanfront, mountaintop, etc.) a
windbreak will be required (see below).
Always adhere to the specified clearance.
NEVER USE A DENTED OR RUSTY
PROPANE TANK.
PLACEMENT OF THE GRILL
CLEARANCE
To Non-Combustible Construction
A minimum of 24”(61cm) clearance from the
back of the grill to non-combustible
construction is required for the lid to open
fully.
DO NOT INSTALL THIS UNIT INTO
COMBUSTIBLE ENCLOSURES!
LOCATION
When determining a suitable location take
into account concerns such as exposure to
wind, proximity to traffic paths and keeping
any gas supply lines as short as possible.
Locate the grill only in a well-ventilated area.
Never locate the grill in a building, garage,
breezeway, shed or other such enclosed areas
without an approved ventilation system. During
heavy use, the grill will produce a lot of smoke.
Lock the wheels after the grill is placed in a
suitable position according to the sticker
located behind the right door. Keep any
electrical supply cord and the fuel supply hose
away from any heated surfaces. Storage of an
outdoor gas cooking appliance indoors is
permissible only if the cylinder is disconnected
and removed from the appliance.
This outdoor cooking gas appliance shall be
used only outdoor and shall not be used in a
building, garage or any other enclosed area.
This appliance is not intended to be installed
on or on recreational vehicles and/or boats
G18Y06P-1
3
ASSEMBLE INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
PLEASE READ THE INSTRUCTIONS CAREFULLY AND FOLLOW STEP BY STEP.
TOOLS REQUIRED:
(1) PHILIPS HEAD SCREWDRIVER – NOT PROVIDED
STEP 1:The screws used to attach the side shelf and side shelf control panel are already
screwed into the side shelf control panel(see the figure below). Remove the screws from the side
shelf control panel, align with the holes in the side shelf, and then re-screw into the holes on the
side shelf. Please follow the same procedure for the side burner shelf.
G18Y06P-1
4
ASSEMBLY INSTRUCTIONS
STEP 2:
A. The screws used to attach the side shelf are already screwed into the side panel, remove the
screws from the side panel, and align the side shelf holes to the side panel holes. Insert the
screws and tighten securely.
B. The screws used to attach the side burner are already screwed into the side panels. Remove
the screws from the side panels. Align the holes of the right side burner with those in the side
panels, insert the screws and tighten. The top two screws insert from inside the fire box while
the bottom two screws insert from under the right side burner. Secure the side burner hose
with the two clips located under the side burner shelf.
500
600
400
300
700
800
200
100
Gas Hose For Side Burner
G18Y06P-1
5
ASSEMBLY INSTRUCTIONS
STEP 3: Please insert valve venturi into the side burner venturi and tighten securely using an
adjustable wrench, then clip the side burner hose on the bracket behind the side burner control
panel
400
300
500
600
200
100
700
800
G18Y06P-1
6
ASSEMBLY INSTRUCTIONS
STEP4: Unwrap the ignition wire and clip it behind the brackets provided. Plug the end on to
the spade connector on the side burner valve behind the side burner control panel.
400
300
500
600
200
100
700
800
G18Y06P-1
7
ASSEMBLY INSTRUCTIONS
STEP 5: Battery is inserted for the Rotisserie burner . To install the battery, turn the ignition
button cap counterclockwise and remove it. Replace the ignition button cap after the battery is
installed.
400
300
500
600
200
100
700
800
G18Y06P-1
8
ASSEMBLY INSTRUCTIONS

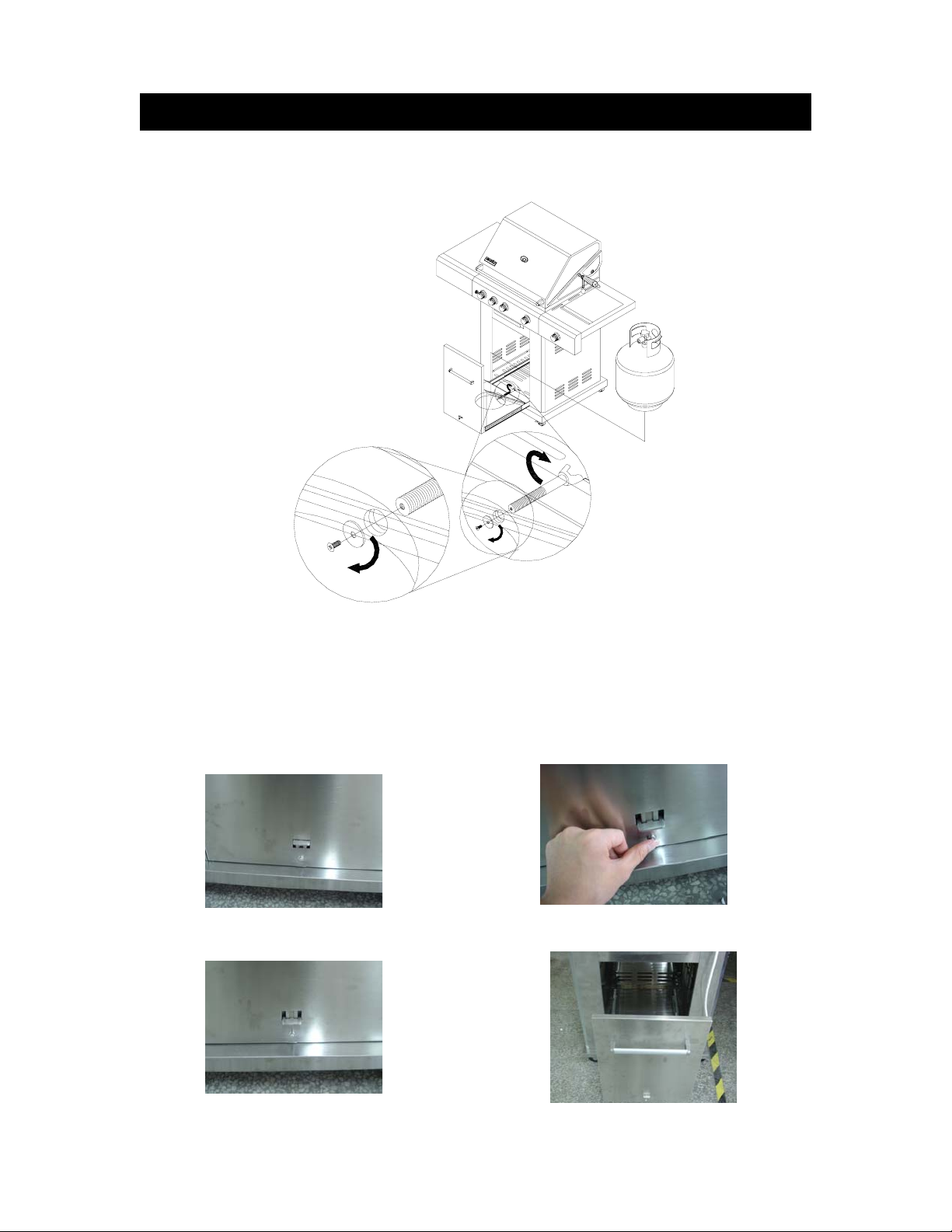

STEP 6: The screws for the rotisserie drive motor bracket are screwed into the right side of the
grill housing. Remove the screws and install the rotisserie motor bracket as shown in the figure
below. Assemble the rotisserie skewer as shown in the figure below.

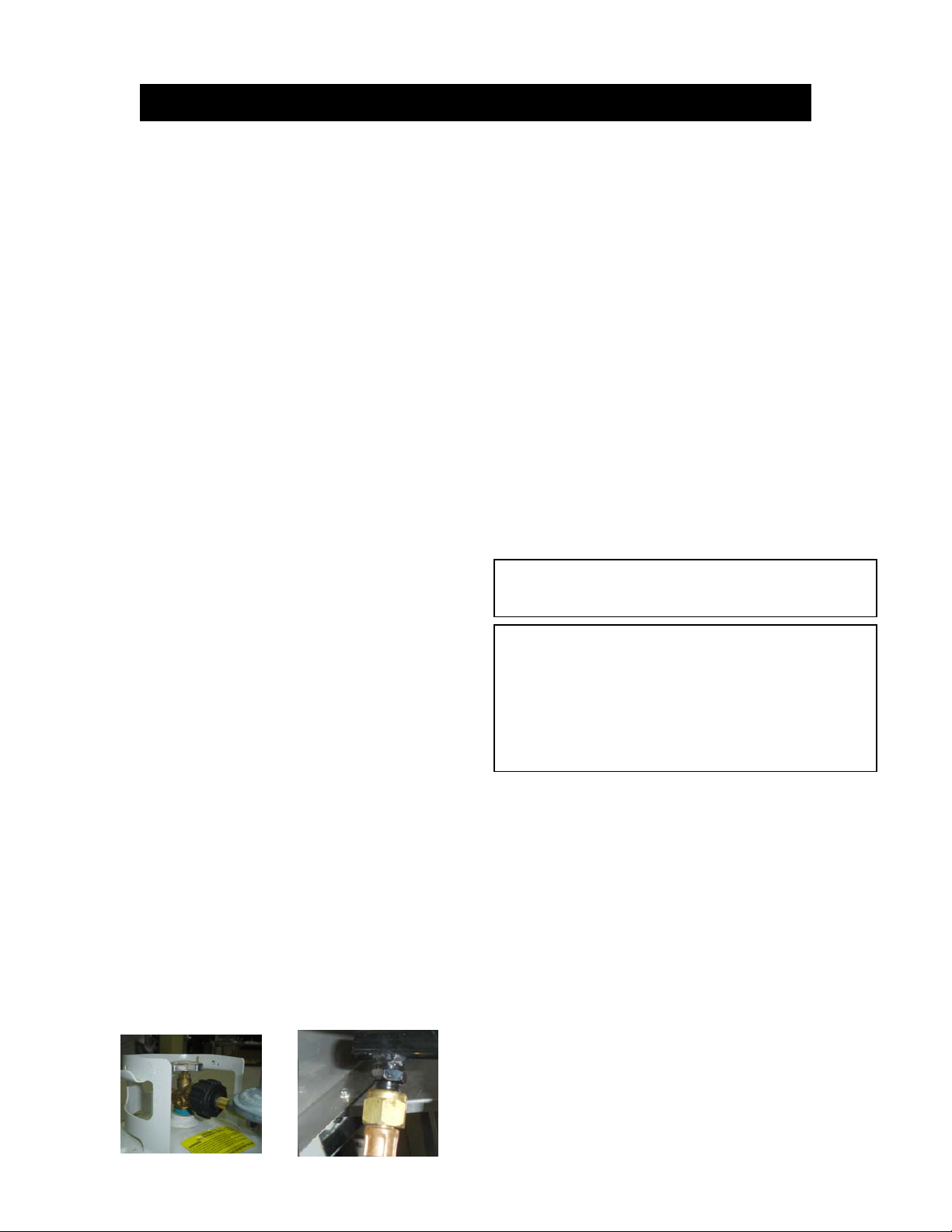

STEP 7: Attach propane gas tank to regulator inlet fitting by turning the quick coupling
nut clockwise as shown in figure below. LP gas cylinder must be fitted with a listed
overfill prevention device (OPD). Secure liquid propone gas cylinder to the slide out tray
using the gas cylinder retention screw.
G18Y06P-1
9
Loading...
