H-02 User Manual
Thank you for purchasing Bluetooth Headphone from us. Please read the following instructions to learn
how to configure and use more effectively your product.

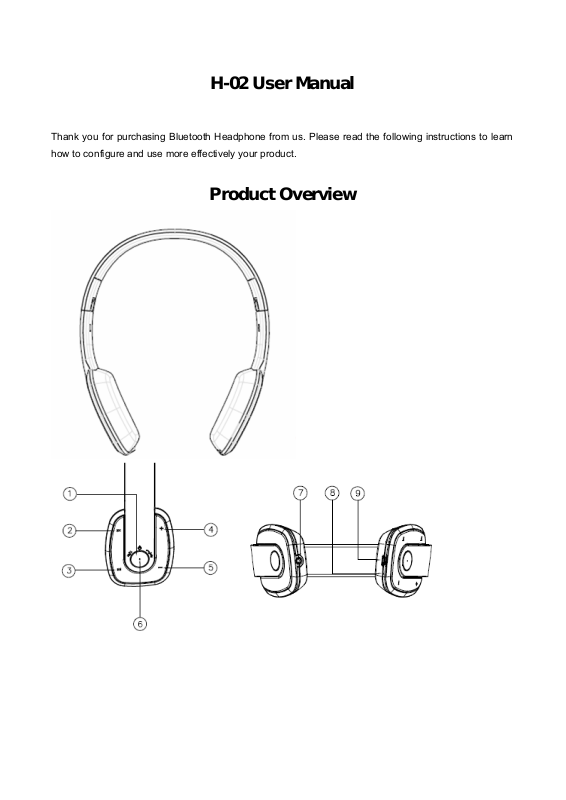

Product Overview
1
○
2
○
3
○
4
○
5
○
6
○
7
○
Power/Play/Pause/Hands-free: Keep pressing the button for 2S to power on, blue LED lights on
after headphone is turned on; keep pressing the button for 2S to power off. Under Bluetooth
mode, short press to play, pause music, answer or end phone calls.
Back:
a. short press to go back to last track
b. long press to enter Bluetooth re-pairing mode
Forth: short press to move to next track
Volume up: long press to make headphone louder
Volume down: long press to turn down headphone
LED indicator:
AUX/LINE IN
Microphone
8
○
MICRO USB charging connector
9
○
Working LED light indicator
1. Headphone enters Bluetooth mode after being switched on with blue LED light blinks quickly. Blue
LED light turns solid after headphone succeeds connecting with Bluetooth enabled devices, it blinks
slowly when headphone plays music and turns solid when headphone pauses.
2. Charging mode: red LED light turns solid when headphone is being charged and turns off after being
fully charged.
Bluetooth
Turn on headphone, Bluetooth works spontaneously, searching previous pairing Bluetooth set. If
headphone fails to connect, it starts pairing other Bluetooth devices. In this case, turn on your Bluetooth
device to search headphone. PIN code is “0000”. Music streams after pairing successfully. When
headphone is connected with mobile phone, you can short press
reject calls, if there is incoming call.
to receive calls, long press to
LINE/AUX IN
Turn on headphone. Plug one end of 3.5mm cable into LINE/AUX IN slot of headphone and the other end
into audio slot of Mobile Phone, Notebook, Tablet PC, MP3/MP4 Player etc. After that, you’ll be able to
enjoy the music. (Note: when headphone is on, you plug 3.5mm audio cable into LINE/AUX IN connector,
headphone enters LIND/AUX IN mode and turns off automatically to save power. To resume to ON mode,
please unplug cable and long press power button.)
Charging
Plug the charging cable into Micro USB slot of headphone, USB slot of PC or other USB slot of chargers
to get charged. When the headphone is being charged, the indicator light turns red. Once it if fully
charged, the indicator light turns off. (We’d suggest the users turning off while charging. It takes longer
time to get fully charged if it works when being charged.)
Warnings
1. If headphone cannot on after switching on, or it turns off on turning on, please check whether it is
powered. If it’s out of power, please get it charged and try again later. If headphone is powered but
still cannot be turned on, please check if LINE/AUX IN cable is plugged. If it’s plugged, please unplug
and turn on again.
2. Please get headphone charged with DC 5V/500MA adaptor or USB slot of PC. It would make
headphone fail to work or even damage headphone if not charged in recommended voltage.
3. When headphone works under LINE/AUX IN mode, please do not increase the volume of your Mobile
Phone, PC, MP3/MP4 Player, CD, DVD etc to a large extend, or sonic boom or sound distortion may
occur. In case of sonic boom or sound distortion, please decrease volume either of Mobile Phone, PC,
MP3/MP4 Player, CD, DVD or headphone. The sound gets normal soon.
Technical Specification
Sound track stereo
Function Bluetooth, LINE/AUX IN, Hands-free
Bluetooth version V3.0
Wireless connection 33 feet
Battery 3.7V Polymer 400MAH battery
Playback time
Charging time
Output 3.5mW
Frequencty 20Hz-20KHz
Driver unit 40mm
Impedance 32Ω
SNR ≥95dB
Audio connector 3.5mm
Charging connector MICRO USB
Material PC+ABS plastic
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
≤20 hours at max volume
≤3 hours (DC 5V/500MA adaptor)
