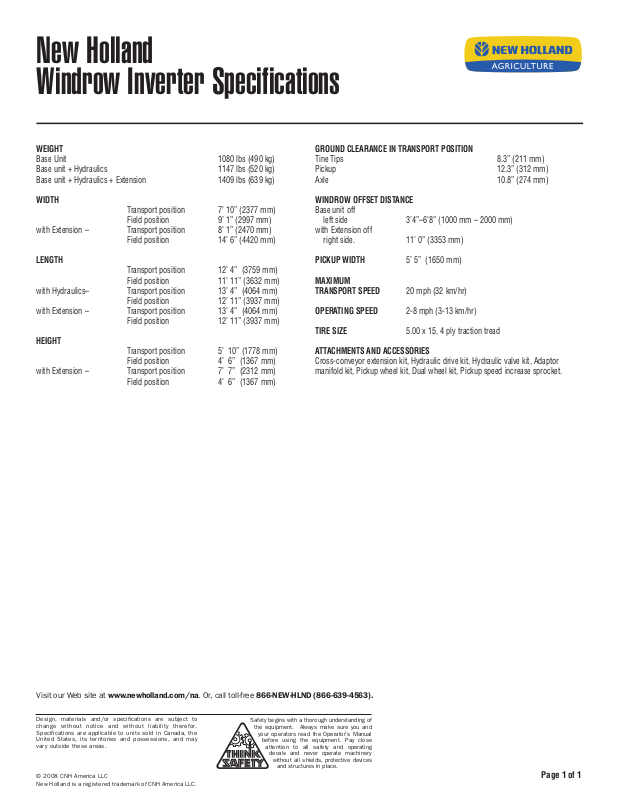

New Holland Windrow Inverter Specifications

WEIGHT

ase Unit 1080 lbs (490 kg)

B Base unit + Hydraulics 1147 lbs (520 kg) Base unit + Hydraulics + Extension 1409 lbs (639 kg)

WIDTH

with Extension – Transport position 8’ 1” (2470 mm)

LENGTH

with Hydraulics– Transport position 13’ 4” (4064 mm)

with Extension – Transport position 13’ 4” (4064 mm)

HEIGHT

with Extension – Transport position 7’ 7” (2312 mm)

Transport position 7’ 10” (2377 mm) Field position 9’ 1” (2997 mm)

Field position 14’ 6” (4420 mm)

Transport position 12’ 4” (3759 mm) Field position 11’ 11” (3632 mm)

Field position 12’ 11” (3937 mm)

Transport position 5’ 10” (1778 mm) Field position 4’ 6” (1367 mm)

Field position 4’ 6” (1367 mm)

GROUND CLEARANCE IN TRANSPORT POSITION

ine Tips 8.3” (211 mm)

T Pickup 12.3” (312 mm) Axle 10.8” (274 mm)

WINDROW OFFSET DISTANCE

Base unit off

left side 3’4”–6’8” (1000 mm – 2000 mm)

with Extension off

right side. 11’ 0” (3353 mm)

PICKUP WIDTH 5’ 5” (1650 mm)

MAXIMUM TRANSPORT SPEED 20 mph (32 km/hr)

OPERATING SPEED 2-8 mph (3-13 km/hr)

TIRE SIZE 5.00 x 15, 4 ply traction tread

ATTACHMENTS AND ACCESSORIES

Cross-conveyor extension kit, Hydraulic drive kit, Hydraulic valve kit, Adaptor manifold kit, Pickup wheel kit, Dual wheel kit, Pickup speed increase sprocket.
