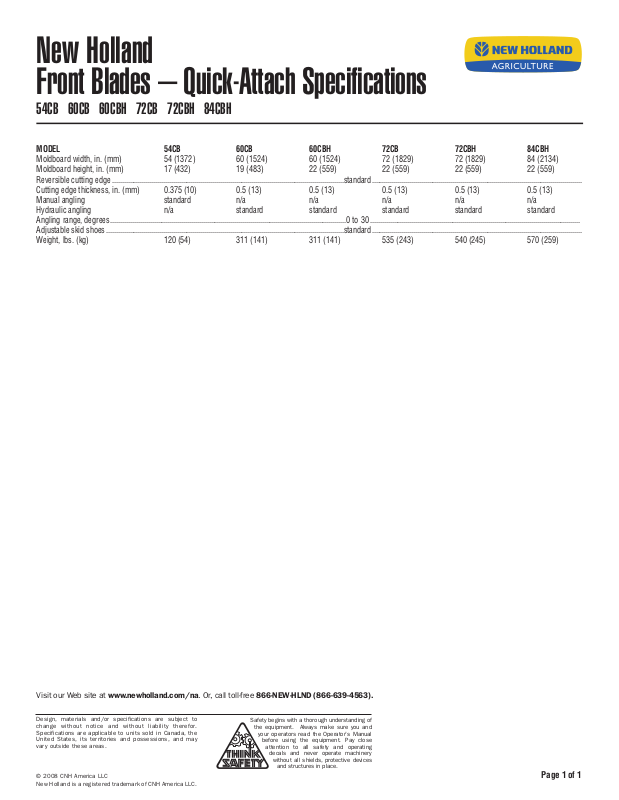

New Holland Front Blades – Quick-Attach Specifications

54CB 60CB 60CBH 72CB 72CBH 84CBH

MODEL 54CB 60CB 60CBH 72CB 72CBH 84CBH

oldboard width, in. (mm) 54 (1372) 60 (1524) 60 (1524) 72 (1829) 72 (1829) 84 (2134)

M Moldboard height, in. (mm) 17 (432) 19 (483) 22 (559) 22 (559) 22 (559) 22 (559)

Reversible cutting edge ......................................................................................................................standard...........................................................................................................

Cutting edge thickness, in. (mm) 0.375 (10) 0.5 (13) 0.5 (13) 0.5 (13) 0.5 (13) 0.5 (13) Manual angling standard n/a n/a n/a n/a n/a Hydraulic angling n/a standard standard standard standard standard

Angling range, degrees........................................................................................................................0 to 30 ...........................................................................................................

Adjustable skid shoes.........................................................................................................................standard...........................................................................................................

Weight, lbs. (kg) 120 (54) 311 (141) 311 (141) 535 (243) 540 (245) 570 (259)

Visit our Web site at www.newholland.com/na. Or, call toll-free 866-NEW-HLND (866-639-4563).

Design, materials and/o r spe cifications ar e sub ject to chan ge w ithout no tice and with out liabi lity ther efor. Specificat ions are applicable to units sold in Canada, the United Stat es, its territo ries and possessio ns, and may var y ou tside these areas .

Safety begins with a thorough understanding of

the equipment. Always make sure you and

your operators read the Operator’s Manual

before using the equipment. Pay close

attention to all safety and operating

decals and never operate machinery

without all shields, protective devices

and structures in place.
