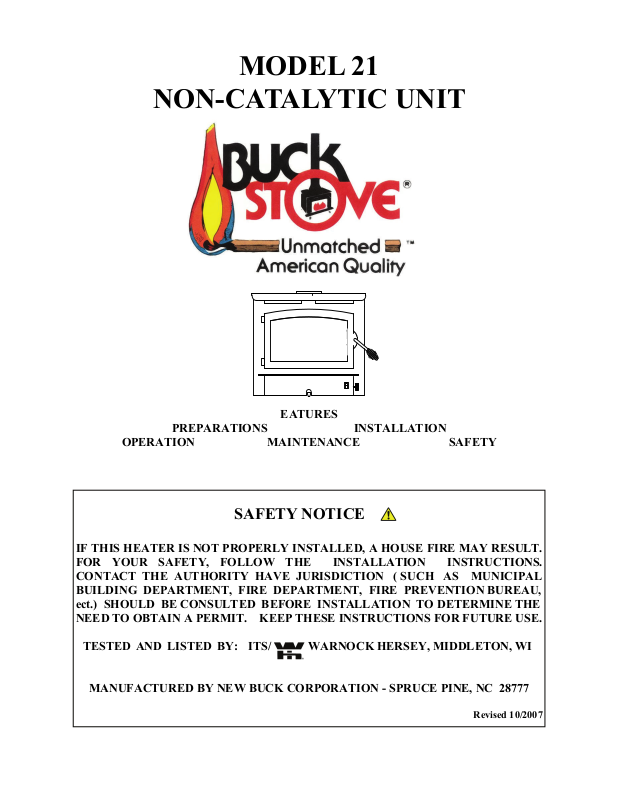

Page 1
MODEL 21
NON-CATALYTIC UNIT
MODEL 21
NON-CAT
Buck
Stove
EATURES
PREPARATIONS INSTALLATION
OPERATION MAINTENANCE SAFETY
SAFETY NOTICE
IF THIS HEATER IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT.
FOR YOUR SAFETY, FOLLOW THE INSTALLATION INSTRUCTIONS.
CONTACT THE AUTHORITY HAVE JURISDICTION ( SUCH AS MUNICIPAL
BUILDING DEPARTMENT, FIRE DEPARTMENT, FIRE PREVENTION BUREAU,
ect.) SHOULD BE CONSULTED BEFORE INSTALLATION TO DETERMINE THE
NEED TO OBTAIN A PERMIT. KEEP THESE INSTRUCTIONS FOR FUTURE USE.
TESTED AND LISTED BY: ITS/ WARNOCK HERSEY, MIDDLETON, WI
MANUFACTURED BY NEW BUCK CORPORATION - SPRUCE PINE, NC 28777
Revised 10/2007
Page 2
Page 3
TABLE OF CONTENTS
1
Important Instructions ……………………………………………………………………………2
SECTION I: Introduction ………………………………………………………………………..3
SECTION II: Masonry Insert Installation………………………………………………………..4
Floor Protection ………………………………………………………………………………….5
Masonry Insert Installation options …….……..…………………………………………………6

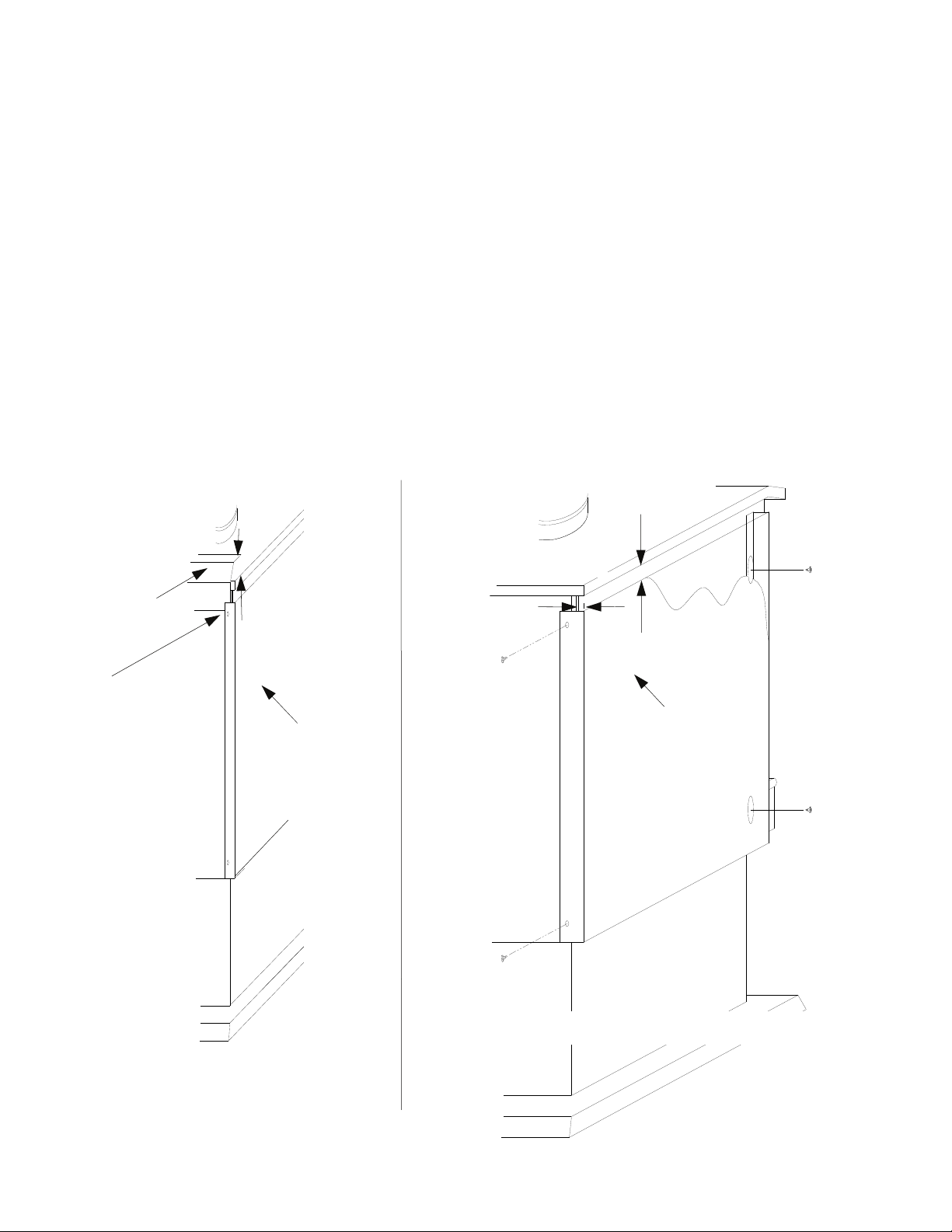

Mounting the Trim Panels ……………………………………………………………………….8
SECTION III: Pre-Fab Insert Installation ………………………………………………………11

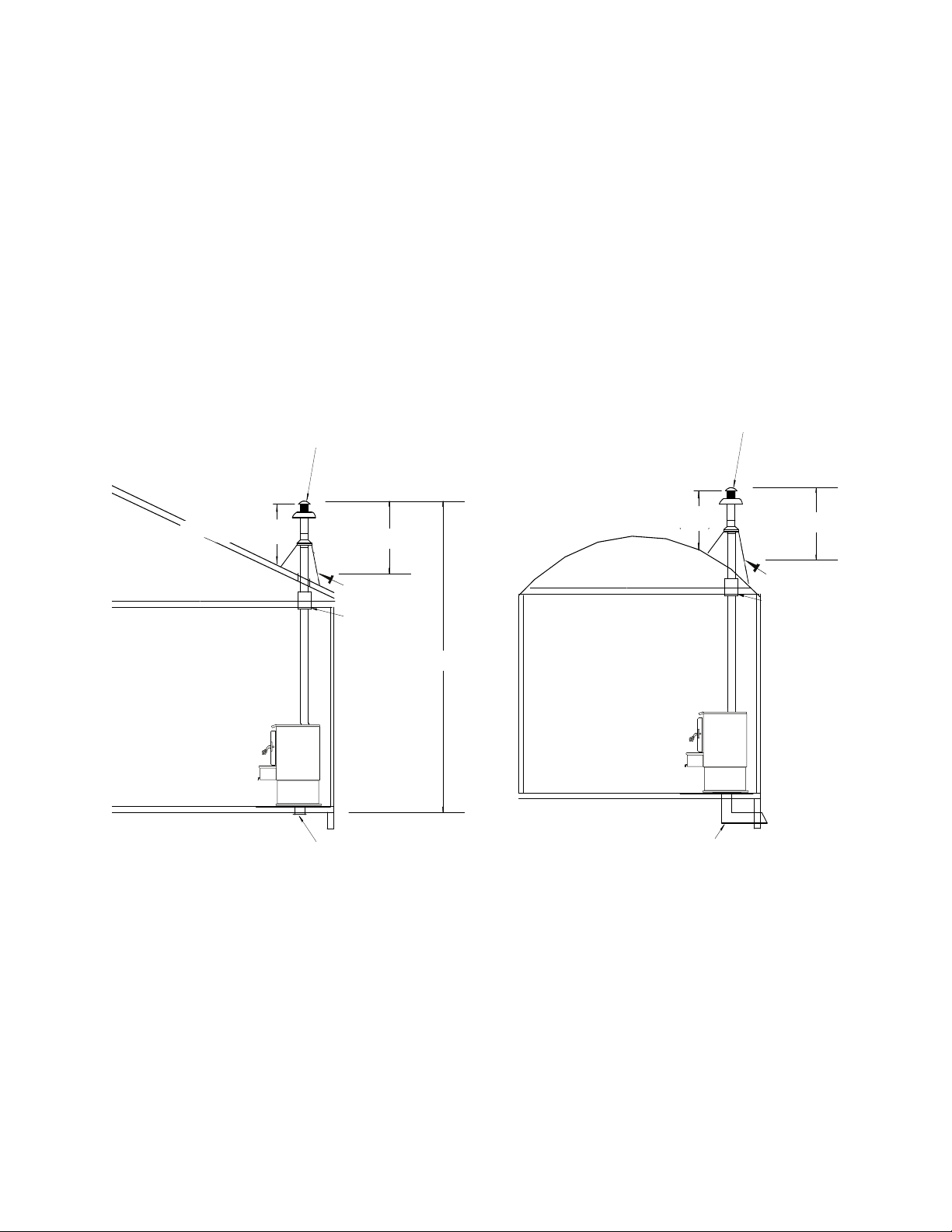

SECTION IV: Residential and Mobil Home Freestanding Installation ………………………..12
Floor Protection ……………………………………………………………………………….13

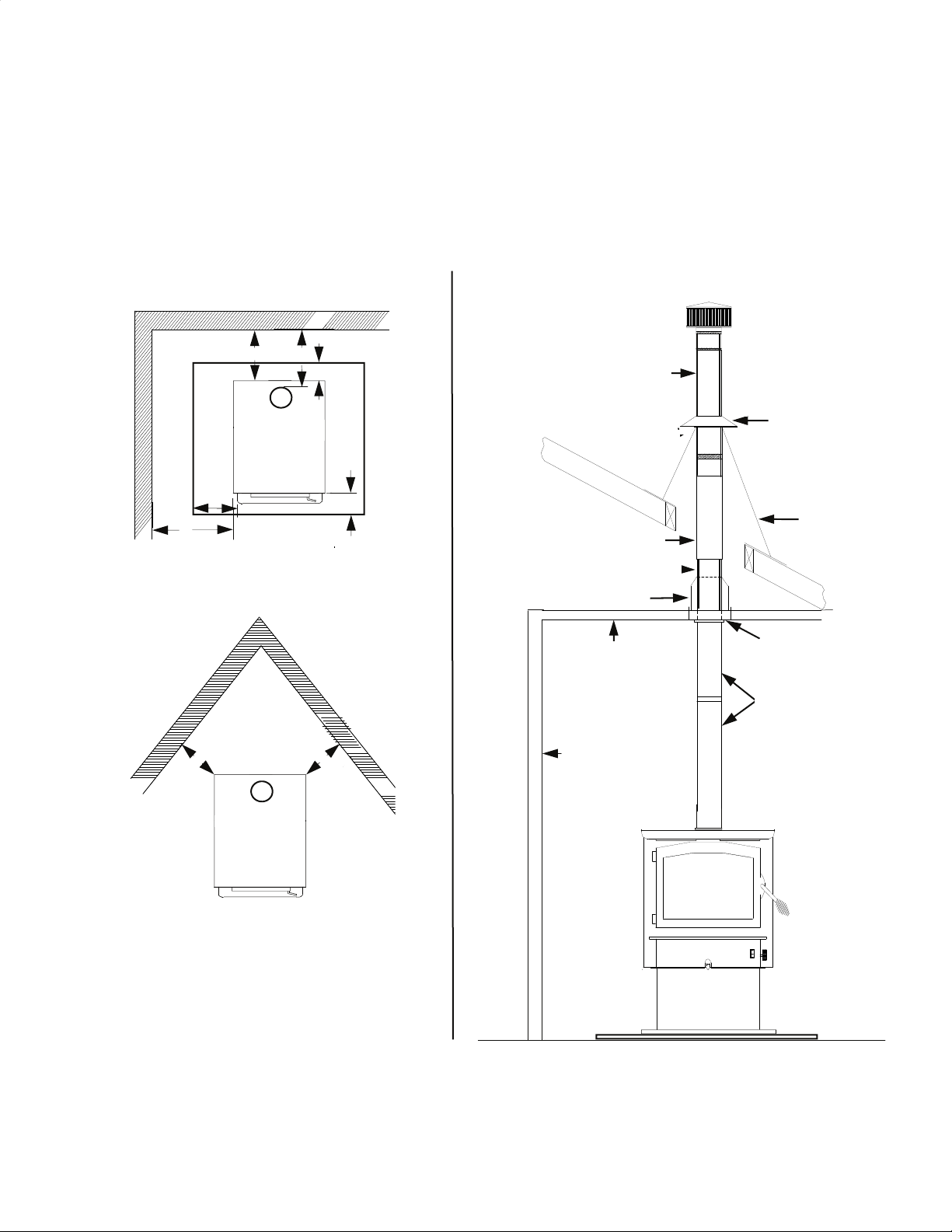

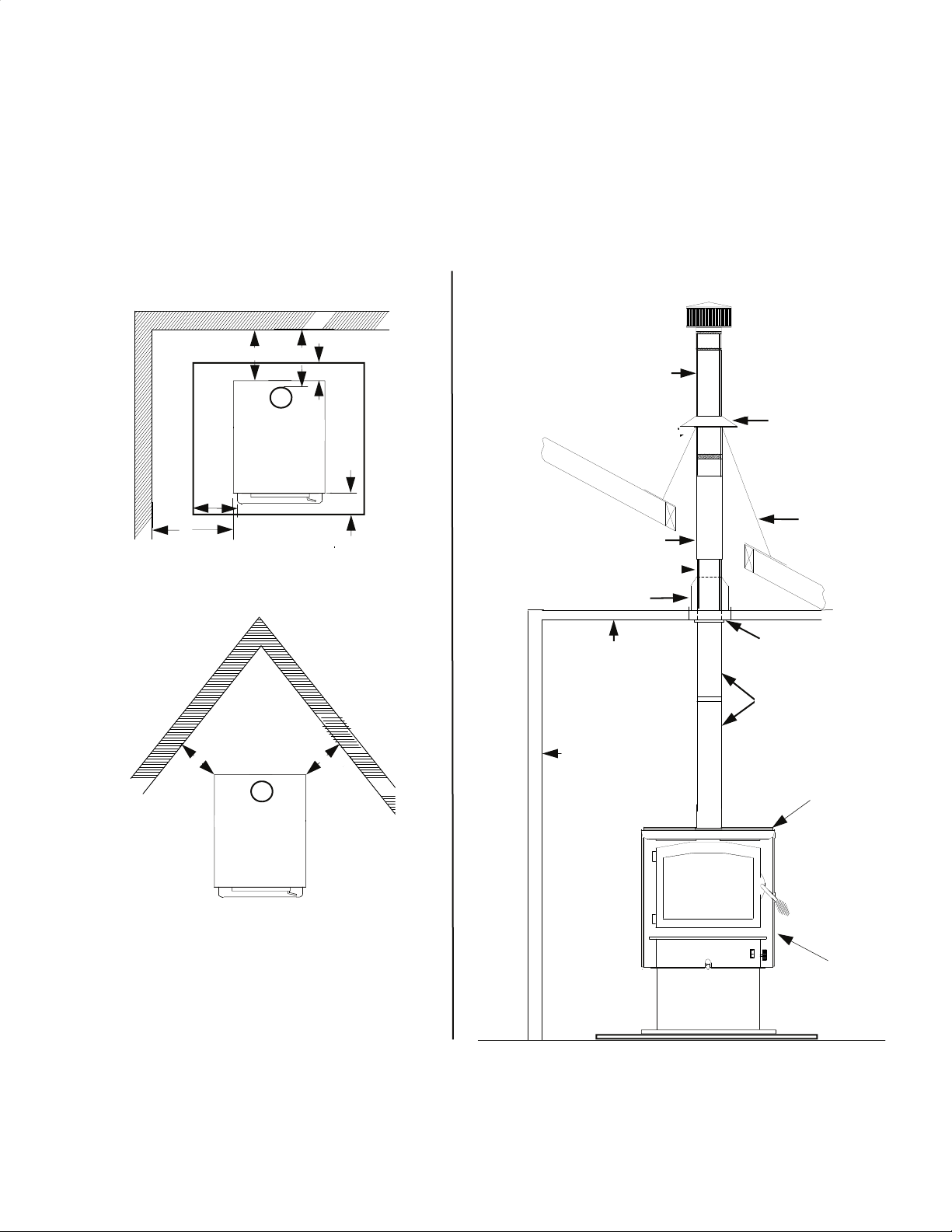

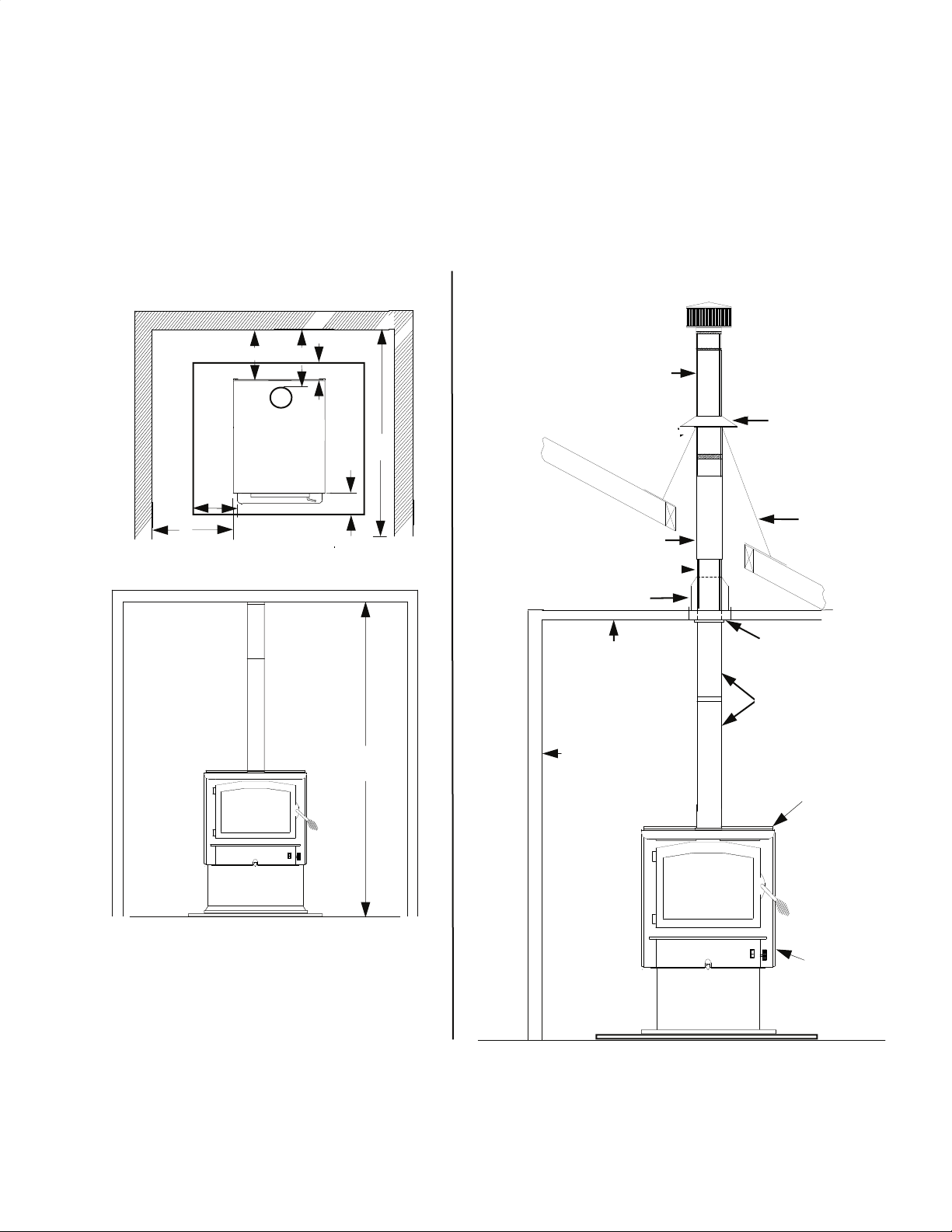

A. Vertical Exit Using Single Wall Pipe /Listed 2100° UL 103 HT chimney w/out
Close Clearance/Pipe Shields……………………………………………....……………....14

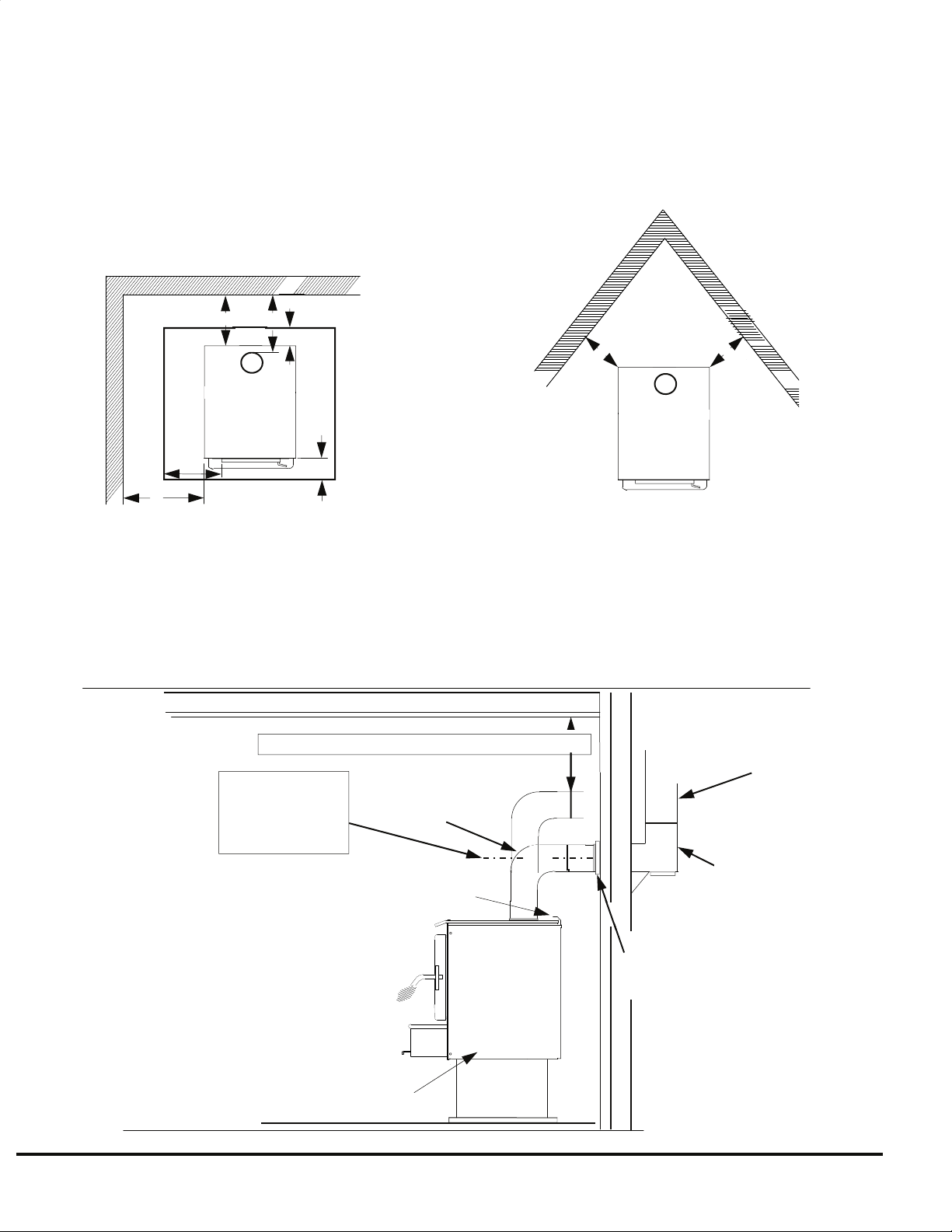

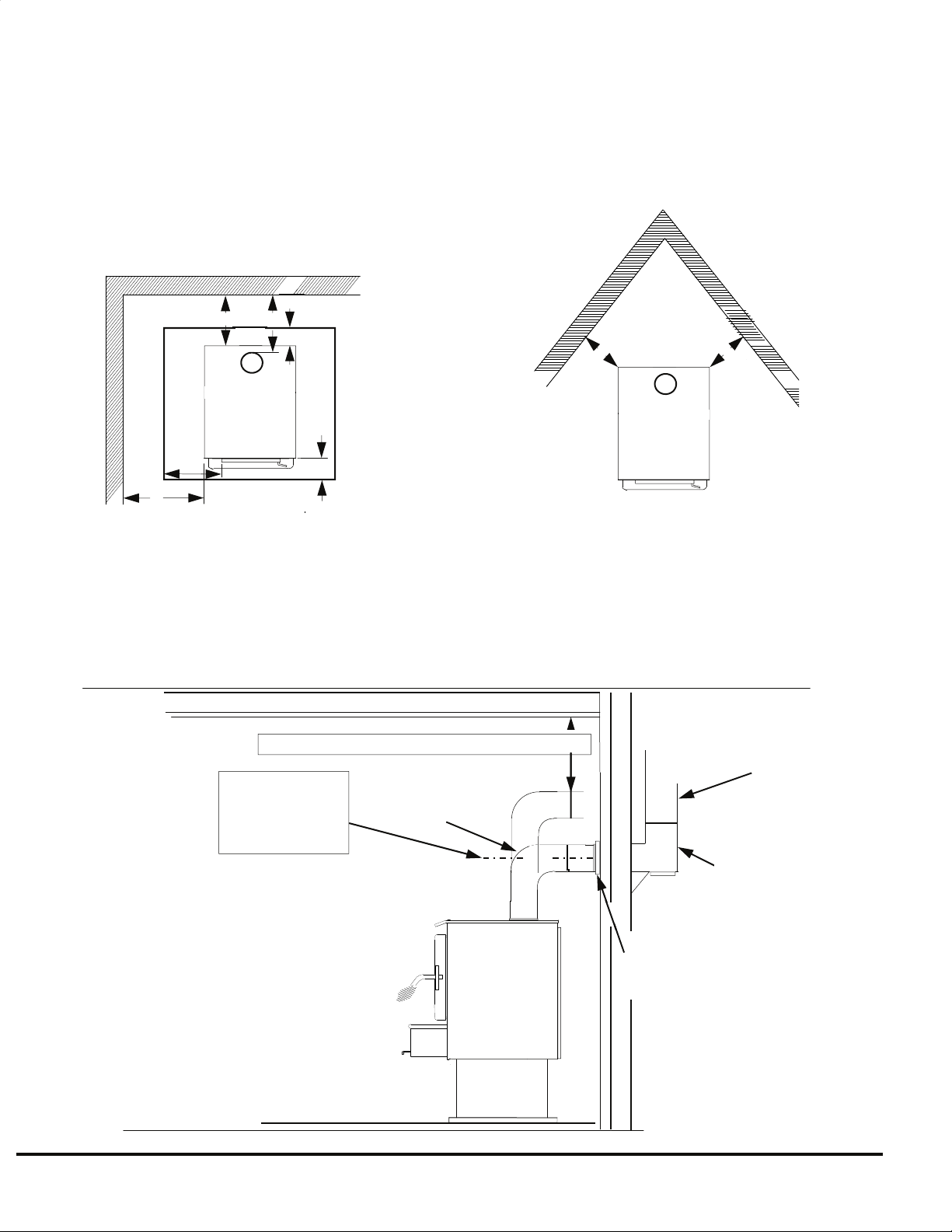

B. Vertical Wall Exit Using Single Wall Pipe and Elbow /Listed 2100° UL 103 HT Chimney
and T-BOX assembily w/out Close Clearance/Pipe Shields……………………………..…16

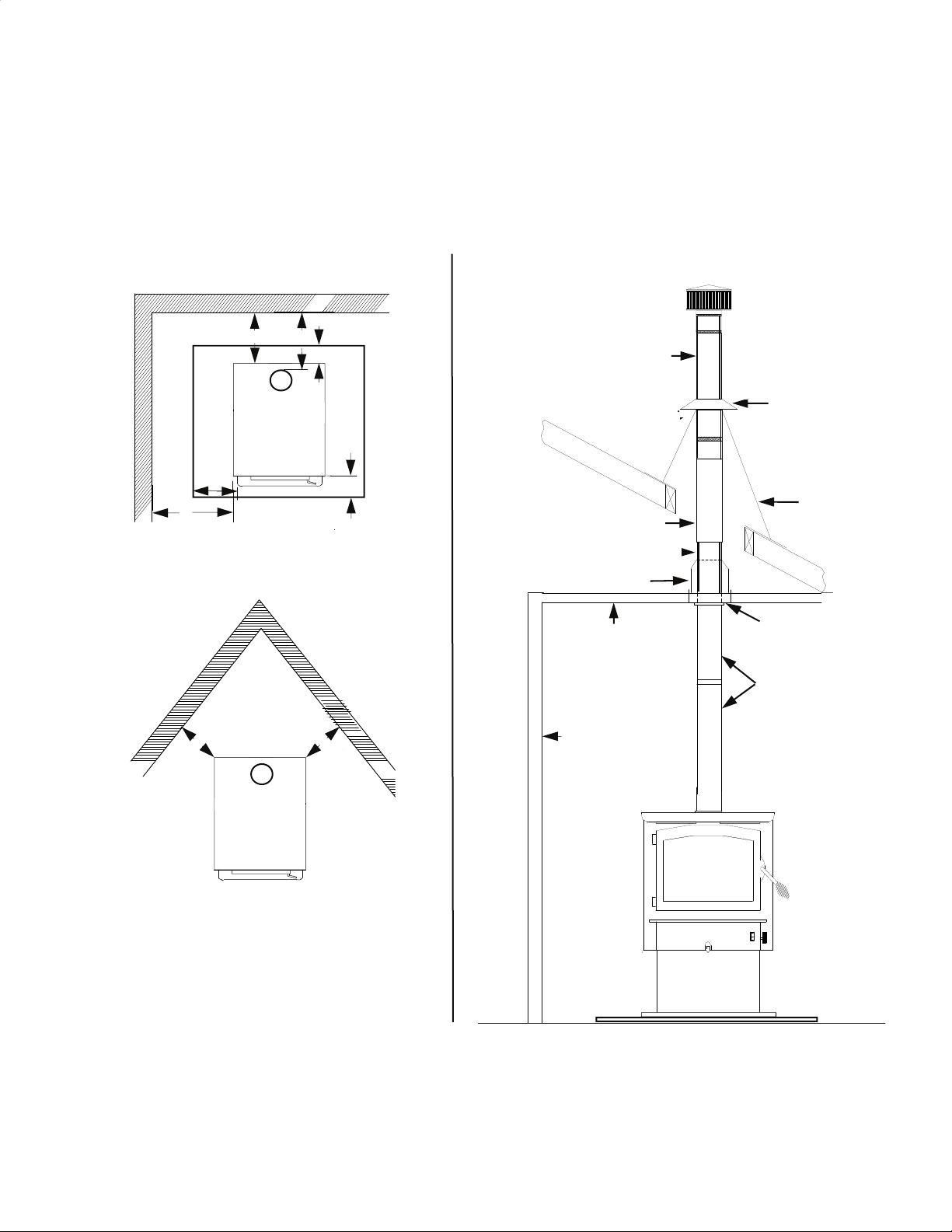

C. Vertical Exit Using DVL Close Clearance Pipe /Listed 2100° UL 103 HT chimney w/out
Close Clearance/Pipe Shields...………………………………………….…....………..…...18
D. Vertical Wall Exit Using DVL Close Clearance Pipe ,and Elbow /Listed 2100° UL 103 HT
Chimney and T-BOX assembly w/out Close Clearance/Pipe Shields..…………………......20
Installation of Close Clearances Shields………………………………………………………..22
E. Vertical Exit Using DVL Close Clearance Pipe /Listed 2100° UL 103 HT chimney w/ith
Close Clearance/Pipe Shields………………………………………………………….
F. Vertical Wall Exit Using DVL Close Clearance Pipe ,and Elbow /Listed 2100° UL 103 HT
Chimney and T-BOX assembly withClose Clearance/Pipe Shields ……………………...…25
Out Side Air Installation ………………………………………………………………………..27
SECTION V: Alcove Installation
……………………………………………………………..30
Floor Protection ………………………………………………………………………………...31
Alcove Installation Clearances………………………………………………………………….31
SECTION VI: Wood Heater Safety…………………………………………………………….35
SECTION VII: Operation………………………………………………………………………36
SECTION VIII: Troubleshooting………………………………………………………………37
LIMITED WARRANTY ……………………………………………………………...………39
…...23
Page 4
INSTALLATION, OPERATION, AND
2
MAINTENANCE INSTRUCTIONS
MODEL 21
READ THIS FIRST
IMPORTANT INSTRUCTIONS
WARNING
THIS UNIT GENERATES A LOT OF HEAT, SO TREAT THE UNIT WITH CARE.
HOT WHILE IN OPERATION! KEEP CHILDREN, CLOTHING AND FURNITURE
AWAY. CONTACT MAY CAUSE SKIN BURNS. READ ALL INSTRUCTIONS
BEFORE INSTALLING AND USING THE APPLIANCE. FAILURE TO FOLLOW
INSTRUC -TIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY, OR
EVEN DEATH. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCES.
• The New Buck Corp. non-catalytic systems have been tested by ITS, Warnock Hersey to
ANSI/UL Standards 1482.
• Install and operate your units according to instructions provided in this manual. Local
building codes may apply; therefore, contact your local building inspector or fire marshal
for necessary installation requirements and permits which may go beyond these
instructions. The authority having jurisdiction should be consulted before installation to
determine the need to obtain a permit.
• If appliance is installed in mobile homes: “DO NOT INSTALL IN SLEEPING
ROOMS.”
• The Model 21 is approved for use in specified Pre-Fabricated fireplaces (ZCF’s). Use the
list on Page 11 or contact your dealer for additional units.
• Examine the masonry fireplace and chimney prior to installation of the fireplace accessory
to determine that the construction meets the minimum fireplace construction requirements
illustrated in the instructions, that it is free from cracks, loose mortar, creosote deposits
and other blockage, or other signs of deterioration.
CAUTION
DO NOT USE MORE THAN ONE STOVE TO A CHIMNEY. DO NOT USE A FLUE
INTENDED FOR A GAS APPLIANCE.
Page 5
3
CAUTION
YOUR CHIMNEY OR FLUE MUST BE CORRECTLY SIZED. A CHIMNEY OR FLUE
THAT IS TOO SMALL OR LARGE IN DIAMETER, OR TOO SHORT, CAN CAUSE
YOUR STOVE TO SPILL SMOKE WHEN THE DOOR IS OPENED.
SECTION I
INTRODUCTION
Your new MODEL 21 is a non-catalytic unit designed to meet the most stringent emissions
standards without the use of a catalytic combustor. This effect is achieved through the use of
secondary air which is mixed with primary air in the unit’s firebox. For peak performance, we
suggest the use of hard seasoned natural wood, loading wood length way from front to
rear. You should not burn trash or garbage, artificial or paper logs, gift wrapping,
treated or painted wood or any type of coal.
“DO NOT USE CHEMICALS OR FLUIDS TO START THE FIRE.”
“DO NOT BURN GARBAGE OR FLAMMABLE FLUIDS.”
The primary air, which is controlled by the user, burns the wood. Secondary air is admitted into
the firebox through the secondary air tubes at the top of the firebox. This secondary air burns
the impurities in the smoke released from the initial wood burning. The temperature necessary
for this combustion is maintained through the firebrick refractory. If any more technical
information is necessary, contact your local dealer.
A factory-built prefabricated chimney may be used for your unit when installed in compliance
with the manufacturer's specification and uniform building code.
These units may also be used with optional room air blower. To order the optional motor
assemblies you must specify the stove model number and give one of the following part
number:
*Model 21 Motor Assembly—MA 210715
For operation and use of these electrical assemblies, see instructions provided with the motor
assembly kits.
Page 6
SECTION II
4
MASONRY INSERT INSTALLATION
The Model 21 may be installed using an all masonry fireplace built in accordance with the
Uniform Building Code and National Fire Protection Association (NFPA). The first step in
this type of installation is to determine the acceptability of the fireplace and chimney for use
with a woodstove. Both the construction and condition of the fireplace are important considerations when installing a woodstove. The chimney should extend at least 3' above the roof
and at least 2' above any point of the roof within 10'.
CAUTION
REMEMBER TO HAVE YOUR CHIMNEY INSPECTED FOR LEAKS AND BLOCKAGE
BEFORE YOU INSTALL YOUR STOVE. ”DO NOT CONNECT THIS UNIT TO A
CHIMNEY FLUE SERVING ANOTHER APPLIANCE.”
MINIMUM CLEARANCES TO FLOOR AND COMBUSTIBLES
MINIMUM CLEARANCE MASONRY INSERT
MODEL 21
A. Side Wall Combustible
B. Front Floor Protector
C. Side Floor Protector
D. Side Wood Trim
E. Top Wood Trim
F. Mantel or Brackets
1. The hearth must be of masonry construction and must extend a minimum of 16" in front of
the firebox opening and a minimum of 6" to either side of the firebox opening.
2. If there is not minimum hearth protection from the front of the firebox opening and the
front of the masonry hearth, a floor protector must be used in front of the hearth to
protect combustible materials. The floor protector must be 3/8" minimum thickness non combustible material or equivalent.(See Page 5.)
25"
16"
6"
17"
17"
25"
C
A
E
D
B
F
Page 7
Floor Protection:
5
When installing freestanding heater ,a floor protector must be use. Floor protection must be
3/8” minimum thickness non-combustible material or equivalent .R=0.06
How to use alternate materials and how to calculate equivalent thickness.
An easy means of determining if a proposed alternate floor protector meets requirements listed
in the appliance manual is to follow this procedure:
1. Convert specification to R-value:
R-value is given—no conversion is needed.
K– factor is given with a required thickness (T) in inches:
C-factor is given: R=1/C
2. Determine the R-value of the proposed alternate floor protector.
Use the formula in step (1) to convert values not expressed as “R”
For multiple layers, add R-values of each layer to determine the overall R-value.
3. If the overall R-value of the system is grater than the R-value of the specified floor
protector, the alternate is acceptable.
Example:
The specified floor protector should be 3/4” thick material with a K-factor of 0.84.
The proposed alternate is 4” brick with a C-factor of 1.25 over 1/8” mineral board with a
K-factor of 0.29.
Step (a): Use formula above to convert specification to R-value. R= 1/K x T = 1/0.84 x .75 =
0.893
Step (b): Calculate R of proposed system. 4” brick of C=1.25, therefore Rbrick = 1/C = 1/1.25
=0.80 1/8” mineral board of K = 0.29, therefore Rmin.bd. =1/029 x0.125 = 0.431
Step (c): Compare proposed system R of 1.231 to specified R of 0.893. Since proposed
system R is greater than required , the system is acceptable.
Definitions:
Thermal conductance = C = Btu = W
(hr)(ft²)(°F) (m²)(°K)
Thermal conductance = K = (Btu)(inch) = W = (Btu)
(hr)(ft²)(°f) (m)(°K) (hr)(tf)(°F)
Thermal conductance = R = (ft²)(hr)(°F) = (m²)(°K)
Btu W
Page 8
6
POSSIBLE TOOLS NEEDED FOR INSTALLATION
If you decide to install your own stove, there are several hand tools you may need to do the job.
If you do not already have them, they are readily available at most hardware stores.
Caulking gun
Large adjustable wrench (may not be needed)
Drop cloths or newspapers
Vacuum cleaner or whisk broom
Flashlight
1 tube of RTV silicone, Code 103 or 106, or high temperature rubber cement rated between
450o F- 600o F
7/32" drill bit and drill
Socket/Ratchet Set
INSTALLATION PREPARATION
1. Locate furniture and other materials away from the front of the fireplace to allow free access
to the fireplace.
2. Cover the hearth and adjacent floor areas with a drop cloths to protect from soiling or
marring the surface.
3. Remove the existing fireplace damper plate.
4. Thoroughly clean the fireplace of ashes and soot.
5. Check the chimney and smoke chamber for excessive buildup of creosote or soot. Also,
check for obstructions, such as bird’s nests. If the chimney is excessively dirty, clean it, or
have someone clean it professionally BEFORE installing or using the room heater.
6. If the fireplace has an ash dump or outside air provision, these must be sealed off with metal
or tightly packed non-combustible insulation to prevent cold air from entering the fireplace
chamber.
MASONRY INSERT INSTALLATION OPTIONS
This unit (appliance) may be installed into an all masonry fireplace, built in accordance with the
Uniform Building Code and the National Fire Protection Association (NFPA 211).
NOTE: Check with local building officials for any permits required for installation of this unit
and notify your insurance company before proceeding with installation
In some cases such as improperly drawing fireplaces , oversize flue liners, or to meet codes in
certain areas it is recommended that one of the flowing procedures be followed.
A. A Chimney Connector be installed from the appliance flue exit through the damper and
a air-tight face seal. See option (A) (page 7).
B. A listed Direct Connect be installed from the appliance flue exit through the damper
into the first section of the flue liner with air-tight seal. See option (B) (page 7).
C. A Positive Connect be installed from the appliance flue exit continuing up through
the entire chimney and exiting at the top of the chimney. See option (C) (page 7).
Page 9
SAFETY NOTICE
7
If this appliance is not properly installed, a house fire may result. For your safety, follow the installation directions.
Contact local building or fire officials about restrictions and installation inspection requirements in your area.
OPTION (A)
AIRTIGHT INSU-
STARTER PIPE
SEAL TRIM PANELS AND UNDER
FRONT OF STOVE UNIT WITH
INSULATION OR HIGH
TEMPERATURE CAULK
NOTE: New Buck Corporation grants no
warranty, implied or stated, for the installation
or maintenance of your appliance, and assumes
no responsibility of any consequential damage
LATED CLEANOUT
REMOVE
DAMPER
OR WIRE
IT OPEN
OPTION (B)
NOTE: Follow installation instruction
with Direct Connection Kit.
(Kit sold separately)
SEAL TRIM PANELS
WITH INSULATION
OR HIGH
TEMPERATURE
CAULK
STAINLESS
STEEL
CHIMNEY
CONNECTOR MUST
EXTEND 1’
PAST THE
BLOCK-OFF
PLATE OR
TO THE
FLUE LINER
AIRTIGHT
INSULATED
CLEAN-
REMOVE
DAMPER
OR WIRE IT
OPEN
OPTION (C)
NOTE: Follow installation
instruction with Positive
Connection Kit.
(Kit sold separately)
INSTALL A NON-COMBUSTIBLE
COVER PLATE TO PREVENT
WATER FROM ENTERING THE
CHIMNEY
TRIM PANELS
CAP PREVENTS
WATER FROM
ENTERING)
FLUE
LINER
THE LINER MUST
BE STAINLESS
STEEL CONNECTOR OR FLEXIBLE
VENT. FOLLOW
THE LINER MANUFACTURER’S INSTRUCTIONS FOR
INSTALLATION
AND SUPPORT.
AIRTIGHT
INSULATED
CLEAN-OUT
REMOVE
DAMPER
OR WIRE
IT OPEN
BLOCK-OFF PLATE
OR DAMPER
ADAPTER
Page 10
INSTALLATION PROCEDURE (Use a Listed Direct or Positive Connect)
8
FIGURE 2 POSITIONING
POSITIONING THE HEATER
NOTE: If the three suggested installations have been
chosen, certain steps must be followed when installing
the heater into a masonry fireplace.
When positioning the heater, the following conditions
MUST be met! (See Figure 2)
1. The front of the damper opening must be positioned
BEHIND the rear edge of the lintel to ensure proper
draft. (See Figure 2)
2. Center the heater in the fireplace opening.
MOUNTING THE TRIM PANELS
After the unit is positioned, as shown in (Figure 2), mark
the mounting position of the trim panels as follows:
1. Set the top (long) trim panel in place on top of the
unit. The panel should be flat against the outside
face of the fireplace, and standing vertically. Mark
along the lower edge of the trim panel with a pencil
to make a reference line for mounting.
2. Set the side trim panels in place behind and against
the intake covers, again, flat against the face of the
fireplace. Mark down the edge of the trim panel to
make a vertical reference line.
FIGURE 3 MOUNTING TRIM PANELS
3. Slide the unit out of the fireplace far enough to work behind the trim panel reference lines.
4. Mount the side trim panels. (See Figure 3)
a. Position the trim panel on the reference line.
b. Drill mounting holes in center of trim panels mounting brackets to allow for adjustment in and out if
necessary.
c. Mount the trim panel using the self-tapping screws provided.
5. Place top panel back on reference mark. Take top trim panel mounting bracket supplied with unit. Position
bracket so it overlaps rear lip of top trim panel. Drill mounting holes in top of stove using holes in bracket as
guide. Tighten down screws.
6. Now, follow the installation procedures in the listed direct connect or positive connect kit you are using and
install the heater and connect kit in the fireplace.
7. Slide the unit back into the fireplace. Check to be sure that the trim panels are properly positioned and lie flat
against the front of the fireplace. If one or more of the panels is out of position, slide the unit out and reset by
loosening the mounting screws and repositioning in the slot.
8. Reinstall the top trim panel by sliding the rear lip of the top trim panel underneath the front lip of the mounting
bracket already secured to top of unit.
NOTE: Mount the top trim panel so that it sits in front of the top of the side trim panels.
9. Obtain the brass trim kit provided with unit and slip over the top and sides of trim panels. (Top ends of brass
may need to be trimmed to fit.)
Page 11
10. If direct connect or positive connect kit is not used, follow instructions in (mounting trim panels, steps 1-4c)
9
on (Page 8).
11. Mount top trim panel by drilling mounting holes in center of trim panel mounting brackets, with top end side
of top panel overlapping side panel.
12. Using insulation provided, peel and stick to back of panels overlapping fireplace dimensions by 1” on each
side and top. (See Page 8, Figure 3).
13. Next using high heat silicone or furnace cement run heavy bead of caulking around where panels meet the
stove. (See Figure 4).
14. Slide the unit back into the fireplace. Check to be sure that the trim panels (and brass) are properly positioned
and lie flat against the front of the fireplace. If panels are out of position, slide the unit out and reset by
loosening the mounting screws and repositioning in the slot. With bar, lift stove in front. Place insulation
across front and the surface of hearth or bottom of fireplace, to make complete seal.
15. To check seal of panels, use candle flame and go around the entire area sealed by silicone and insulation. If
flame leans toward inside of fireplace, add additional insulation. This ensures an airtight seal.
FINAL CHECK
SILICONE
SCREW
FIGURE 4
1. Recheck the specified clearances.
2. Remove all foreign material from the firebox area.
3. Open the primary air draft.
4. Plug the power cord into a 115V AC outlet if optional motor is being used.
5. Place rumpled pieces of newspaper in the stove. Light it and close the doors. Ensure that
the stove draws properly through the primary draft.
6. Check for smoke leaks around the doors.
7. Open the door and check for smoke escaping from the front of the stove. Smoking usually
indicates a defective or poorly positioned chimney. Some chimneys with a marginal draft
can be preheated by lighting newspaper and holding it near the open damper with a
poker or fire tong. Once the chimney heats up, a proper draft can usually be obtained.
If a thorough review of the Troubleshooting Guide in the rear of the manual does not reveal
the problem, contact your dealer for assistance.
Page 12
CAUTION
10
THE UNIT IS PAINTED WITH A SPECIALLY FORMULATED
HIGH TEMPERATURE PAINT THAT CURES DURING THE FIRST TWO OR
THREE FIRINGS. YOU MAY NOTICE A SLIGHT SMOKING EFFECT AND AN
ODOR OF BURNING PAINT WHEN YOU BUILD THE FIRST FIRES. THIS IS
NORMAL AND IS NOT A CAUSE FOR ALARM. IN SOME CASES, THESE FUMES
WILL ACTIVATE A SMOKE ALARM. OPENING A WINDOW NEAR THE UNIT
WILL ALLOW THESE FUMES TO ESCAPE. DO NOT BUILD A LARGE, ROARING
FIRE UNTIL THIS CURING IS COMPLETE OR THE HEATER FINISH MAY BE
DAMAGED.
The connector and/or chimney should be inspected at least once a month during the heating
season to determine if a creosote buildup has occurred.
CAUTION
NEVER USE GASOLINE, GASOLINE-TYPE LANTERN FUEL, KEROSENE,
CHARCOAL LIGHTER FLUID OR SIMILAR LIQUIDS TO START OR "FRESHEN
UP" A FIRE IN THE HEATER. KEEP ALL SUCH LIQUIDS WELL AWAY FROM
THE STOVE WHEN IT IS IN USE. ALL FLUIDS OF THIS TYPE GIVE OFF
VOLATILE FUMES AND CAN AND WILL EXPLODE!! DON'T TAKE A CHANCE
WITH THE SAFETY OF YOUR HOME AND FAMILY.
Page 13
SECTION III
11
PRE-FAB INSERT INSTALLATION
The Model 21 has been tested with the following:
Heatilator Security
Tempco Preway
Marco
Woodside Majestic
NOTE: The Model 21 may be installed in any of the pre-fabricated frieplaces listed above if
they are big enough to accept the heater.
NOTE: A FULL CHIMNEY LINER IS REQUIRED IN A ZERO CLEARANCE OR
PRE -FABRICATED FIREPLACE.
NOTE: The ash lip, smoke baffle, and smoke shelf may be removed if necessary to provide
room for these models. Any other alteration to the unit will void ALL NEW BUCK
CORPORATION. manufacturer's responsibility and liability. The warning label below
must be attached to the pre- fabricated fireplace be for unit is installed.
Except for the
Installation including Minimum Clearances for stove and floor protector in Section II.
NOTE: When installing trim panels “DO NOT COVER ANY EXITING LOVERS OR
AIR OPENING IN PRE-FABRICATED FIREPLACE .”
FMI
“NOTES” above, please follow the instructions for Masonry Insert
WARNING: This fireplace must be
restored to its original condition for safe use, if
the fireplace insert is removed.
Page 14
SECTION IV
12
RESIDENTIAL AND MOBILE HOME FREESTANDING
INSTALLATION
Select an installation location that will give the best airflow from the front of the
heater to the remainder of the home.
PREPARING THE STOVE FOR INSTALLATION
1. Inspect the unit for any obvious physical damage.
2. Plug the power cord into a 115V AC outlet to test the motor and fan when optional motor is
being used. “Do not run power cord under unit or in high traffic areas”.
3. Check the primary air draft control to ensure that it slides freely.
4. Remove any items from within the firebox. Spread a dropcloth on the floor behind the
heater. Next, tilt the heater so that the back is on the drop cloth.

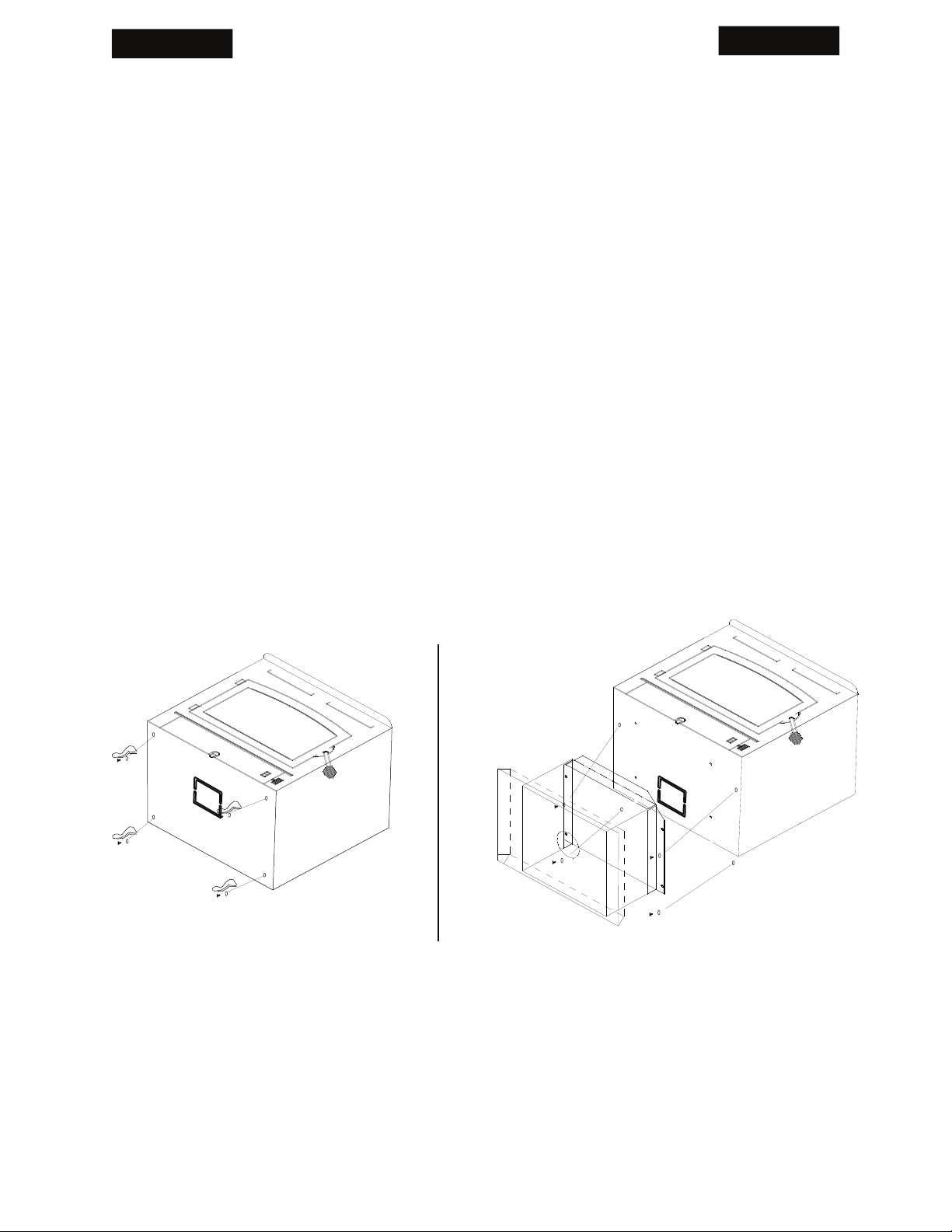

5. If leg kit is to be used follow steps 1-6.
6. Then obtain four legs, attach the legs to holes in bottom of unit with bolts and washers
supplied with the leg kit. (See Figure 5.)
7. If pedestal kit is being used, and out side air is required (See Page 27). Open the
corresponding freestanding kit and obtain the stand. Place the stand against the bottom of
the heater (angle side to heater).Center stand front to rear ,and also center the stand left
and right ,and mark screw locations on bottom of the stove through outer holes of stand
mounting angles. Set stand aside and drill four 7/32" holes in heater bottom.Then mount
stand to bottom of heater with screws provided. (See Figure 6).
8. Obtain four (4) 3/16" self-tapping screws and secure the stand to the heater.
9. Reposition the heater to the upright position.
Figure 5
Figure 6
Chimney
This model is designed for connection to the following listed 2100º UL103 HT chimneys and
parts. Follow chimney manufacturer's instructions carefully.
Simpson Duravent Metal Fab
Security Airjet
Selkirk Metal Bestos Jakes Evans
This room heater must be converted to (1) a chimney complying with the requirements for
Type HT chimneys in the Standard for chimneys, Factory-Built, Residential, Type and
Building Heating Appliance, UL 103, or (2) a code approved masonry chimney with a flue
liner.
Page 15
Floor Protection:
13
Floor protection must be 3/8” minimum thickness non-combustible material or equivalent.
How to use alternate materials and how to calculate equivalent thickness.
An easy means of determining if a proposed alternate floor protector meets requirements listed
in the appliance manual is to follow this procedure:
1. Convert specification to R-value:
R-value is given—no conversion is needed.
K– factor is given with a required thickness (T) in inches:
C-factor is given: R=1/C
2. Determine the R-value of the proposed alternate floor protector.
Use the formula in step (1) to convert values not expressed as “R”
For multiple layers, add R-values of each layer to determine the overall R-value.
3. If the overall R-value of the system is grater than the R-value of the specified floor protector, the alternate is acceptable.
Example:
The specified floor protector should be 3/4” thick material with a K-factor of 0.84.
The proposed alternate is 4” brick with a C-factor of 1.25 over 1/8” mineral board with a
K-factor of 0.29.
Step (a): Use formula above to convert specification to R-value. R= 1/K x T = 1/0.84 x .75 =
0.893
Step (b): Calculate R of proposed system. 4” brick of C=1.25, therefore Rbrick = 1/C =
1/1.25
=0.80 1/8” mineral board of K = 0.29, therefore Rmin.bd. =1/029 x0.125 = 0.431
Step (c): Compare proposed system R of 1.231 to specified R of 0.893. Since proposed
system R is greater than required , the system is acceptable.
Definitions:
Thermal conductance = C = Btu = W
(hr)(ft²)(°F) (m²)(°K)
Thermal conductance = K = (Btu)(inch) = W = (Btu)
(hr)(ft²)(°f) (m)(°K) (hr)(tf)(°F)
Thermal conductance = R = (ft²)(hr)(°F) = (m²)(°K)
Btu W
Install in accordance with 24 CFR, Part 3280 (HUD).
Page 16
PREPARING THE ROOM HEATER LOCATION
14
1. Select an installation location that will give the best airflow from the front of the heater to
the remainder of the home.
2. Place the protective floor pad in position.
3. Place the unit on the pad making sure the minimum clearance specifications are met.
4. If connecting to an existing masonry flue, first ensure that the flue conforms to the NFPA-
211 Code and/or consult your local code for proper procedures.
NOTE: This model is designed for connection to: any Listed 2100° UL 103 HT. TYP chimney
also any Listed UL DVL Close Clearance Pipe or Single wall minimum 24 ga. Blued or Black
Pipe. Follow pipe manufacturer’s instructions carefully.
CHIMNEY
This room heater must be converted to (1) a chimney complying with the requirements for Type
HT chimneys in the Standard for Chimneys, Factory-Built, Residential, Type and Building
Heating Appliance, UL 103, or (2) a code approved masonry chimney with flue liner.
CAUTION: Certain installation types require the use of certain chimney types.
Please follow these instructions exactly.
HOW TO LOCATE CHIMNEY EXIT, AND INSTALL
Residential Installation.
A. Vertical Exit using (6" Single Wall minimum 24 ga. blued or black pipe, and
any Listed 2100° UL 103 HT. chimney).
Without optional close clearance
NOTE: For minimum clearances (See Page 15, Figure 7).
1. Suspend a plumb bob from the ceiling above the unit so that the weight is hanging in the
center of the flue exit. (A small weight on a string will serve as a plumb bob.) Mark the
ceiling where the string is suspended to locate the center of the chimney.
2. After locating the center of the hole, install the ceiling support box, chimney or chimney
connector, flashing, and rain cap per the chimney manufacturer’s instructions, and local
building codes for installation through combustible walls or ceilings.
3. Now connect the stove and ceiling support box using 6" Single Wall minimum 24 ga.
blued or black pipe (DO NOT USE GALVANIZED PIPE). Connect each section so
the crimped end faces downward, and secure each section to each other using at least
three (3) sheet metal screws or rivets. Single wall pipe is to be connected with (3) sheet
metal screws or rivets to connector collar on heater.
shield, and
pipe
shield
(See Page 15, Figure 8).
Page 17
BACK WALL
15
A. Vertical exit using
pipe,
and any listed 2100° UL 103 HT. TYPE Chimney).
(6" Single Wall minimum 24 ga. blued or black
Without optional close clearance shield, and pipe shield.
Model 21 minimum clearance to combustibles.
SIDE WALL
A B C D E F G
MODEL 21 25”
NOTE: All clearances are to combustibles without close clearance shields, and pipe shield, using 6"
Single Wall minimum 24 ga. blued or black pipe , and minimum floor protector . The clearances
above may be reduced. Follow NFPA-211 codes if available or follow instructions on (Pages 18,
and 19, or Pages 22, and 23).
Figure 7.
BACK WALL
F
B
B
PROTECTOR
E
E
A
A
C
C
13" 19" 15.5" 8" 3" 16"
F
D
G
G
D
C
C
Figure 8.
LISTED 2100° UL 103 HT
TYP. CHIMNEY
DO NOT OBSTRUCT
CAULK
RADIATION SHIELD
LISTED 2100° UL 103 HT TYP.
INSTALLATION
CEILING
SIDE
WALL
CEILING SUPPORT
SINGLE WALL
CONNECTOR PIPE
NEW BUCK
BUCK STOVE
CONTEMPORARY CAP
STORM COLLAR
FLASHING
Page 18
HOW TO LOCATE CHIMNEY EXIT, AND INSTALL
16
Residential Installation.
B. Vertical Wall Exit using (6" Single Wall minimum 24 ga. blued or black pipe with elbow,
and any Listed 2100° UL HT chimney and Listed 2100° UL HT. T-Box assembly).
Without optional close clearance shields and pipe shield
NOTE: For minimum clearances (See Page 17, Figure 9).
1. Mark the plumb line on the wall directly behind the center of the heater.
(See Page 17, Figure 10).
NOTE: When using 6" Single Wall minimum 24ga. blued or black pipe,
“ maintain 25" minimum clearances" between pipe and ceiling ”.
2. Place the vertical portion of the heater pipe and the elbow in position and project a
point onto the plumb line level with the center of the elbow.
3. Measure up so there will be at least 1/4" rise per foot of horizontal connector pipe,
maintaining clearances to the ceiling as noted in (Page 17,Figure 10). This will give you
the center of the hole for the chimney penetration.
4. After locating the center of the penetration, install the tee-box and chimney as per the
chimney manufacturer's specifications.
5. Connect the chimney collar to the tee-box using 6" Single Wall minimum 24 ga. blued
or black pipe. (DO NOT USE GALVANIZED PIPE). Connect each section so the
crimped end faces downward, and secure each section to each other using three (3) sheet
metal screws or rivets. Single wall pipe is to be connected with three (3) sheet metal
screws rivets to connector collar on heater.
.
(See Page 17, Figure 10).
Page 19
B. Vertical wall exit using
BACK WALL
17
(6" Single Wall minimum 24 ga. blued or
black pipe with elbow
TYPE Chimney and
Without optional close clearance shield and pipe shield.
Model 21 minimum clearance to combustibles.
BACK WALL
E
A
A
PROTECTOR
E
SIDE WALL
H
B
D
B
G
A B C D E F G
MODEL 21 25” 13" 19" 15.5" 8" 3" 16"
, and any listed 2100° UL 103 HT.
Listed 2100° UL HT. T-Box assembly
Figure 9.
F
F
C
C
G
D
).
C
C
NOTE: All clearances are to combustibles without close clearance shields and pipe shield, 6"
Single Wall minimum 24 ga. blued or black pipe with elbow, and minimum floor
protector.Clearances above may be reduced. Follow NFPA-211 codes if available or follow
instructions on (Pages 20, and 21, or Pages 24, and 25).
LISTED 2100° UL 103 HT TYP.
CHIMNEY REEFER TO
CEILING
Figure 10.
NOTE:
CENTER LINE
OF ELBOW
MARK PLUMB
LINE ON WALL
Maintain 25"Minimum Clearance
SINGLE WALL
CONNECTOR
ELBOW PIPE
IN
SIDE
WALL
INSTALLATION INSTRUCTION
WALL
PASS-THROUGH
CONNECTOR
MANUFACTURES
LISTED 2100° UL 103 HT
TYP. CHIMNEY T-BOX
ASSEMBLY REEFER TO
MANUFACTURES
INSTALLATION
INSTRUCTION
Page 20
HOW TO LOCATE CHIMNEY EXIT, AND INSTALL
18
Residential and Mobile Home Installation.
C. Vertical Exit using (6" DVL Close Clearance pipe, and any Listed 2100° UL 103 HT
chimney).
W
ithout close clearance shield and pipe shield.
NOTE: For minimum clearances (See Page 19, Figure 11).
1. Suspend a plumb bob from the ceiling above the unit so that the weight is hanging in the
center of the flue exit. (A small weight on a string will serve as a plumb bob.) Mark the
ceiling where the string is suspended to locate the center of the chimney.
2. After locating the center of the hole, install the ceiling support box, chimney or chimney
connector, flashing, and rain cap per the chimney manufacturer’s instructions, and local
building codes for installation through combustible walls or ceilings.
3. Now connect the stove and ceiling support box using DVL close clearance pipe.
Connect each section per manufacturer’s instructions.
Secure each section to each other using minimum (3) sheet metal screws or rivets.
DVL close clearance is to be connected with (3) sheet metal screws or rivets to
connector collar on heater (See Page 19,Figure 12).
Page 21
BACK WALL
19
C. Vertical exit using (6" DVL Close Clearance pipe, and
any listed 2100° UL 103 HT. TYPE Chimney).
Without optional close clearance shield, and pipe shield.
Model 21 minimum clearance to combustibles.
Figure 11.
BACK WALL
B
B
F
D
G
F
LISTED 2100° UL 103 HT
TYP. CHIMNEY
DO NOT OBSTRUCT
SIDE WALL
E
A
A
E
PROTECTOR
G
D
RADIATION SHIELD
LISTED 2100° UL 103 HT TYP.
INSTALLATION
CEILING
C
C
C
C
SIDE
WALL
A B C D E F G
MODEL 21 23”
9" 9" 11.5" 8" 3" 16"
NOTE: All clearances are to combustibles without close clearance shields, and pipe shield, using
DVL Close Clearance pipe , and minimum floor protector.protector . The clearances above may be
reduced. Follow NFPA-211 codes if available or follow instructions on (Pages 22, and 23).
Figure 12.
NEW BUCK
CONTEMPORARY CAP
CAULK
STORM COLLAR
FLASHING
CEILING SUPPORT
DVL CLOSE CLEAR-
ANCE PIPE OR
SHIELDED
BUCK STOVE
Page 22
HOW TO LOCATE CHIMNEY EXIT, AND INSTALL
20
Residential and Mobile Home Installation.
D. Vertical Wall Exit using (6" DVL Close Clearance Pipe, and Elbow, and any Listed
2100° UL HT chimney and Listed 2100° UL HT T-Box assembly).
Without optional close clearance shield and pipe shield
NOTE: For minimum clearances (See Page 21, Figure 13).
1. Mark the plumb line on the wall directly behind the center of the heater.
(See Page 21, Figure 14.)
NOTE: When using DVL Close Clearance Pipe , “maintain manufacturer’s minimum
clearances" between pipe and ceiling.
2. Place the vertical portion of the heater pipe and the elbow in position and project a
point onto the plumb line level with the center of the elbow.
3. Measure up so there will be at least 1/4" rise per foot of horizontal connector pipe,
maintaining clearances to the ceiling as noted in (Page 21,Figure 14). This will give you
the center of the hole for the chimney penetration.
4. After locating the center of the penetration, install the tee-box and chimney as per the
chimney manufacturer's specifications.
5. Connect the DVL close clearance pipe to the tee-box per manufacturer’s instructions,.
DVL close clearance pipe is to be connected with (3) sheet metal screws or rivets to
connector collar on heater (See Page 21,Figure 14).
Page 23
D.
BACK WALL
21
Vertical wall exit using (6" DVL Close Clearance pipe with elbow)
and any listed 2100° UL 103 HT. TYPE Chimney,
Listed 2100° UL HT T-Box assembly
).
and
Without optional close clearance shield and pipe shield.
Model 21 minimum clearance to combustibles.
BACK WALL
E
A
A
PROTECTOR
E
SIDE WALL
B
B
F
H
F
D
G
G
D
A B C D E F G
MODEL 21 23” 9" 9" 11.5" 8" 3" 16"
Figure 13.
C
C
C
C
NOTE: All clearances are to combustibles without close clearance shields and pipe shield,
DVL Close Clearance pipe with elbow, and minimum floor protector.The clearances above may
be reduced. Follow NFPA-211 codes if available or follow instructions on (Pages 24, and 25).
LISTED 2100° UL 103 HT TYP.
CHIMNEY REEFER TO
CEILING
Figure 14.
NOTE:
CENTER LINE
OF ELBOW
MARK PLUMB
LINE ON WALL
Maintain 25"Minimum Clearance
DVL CLOSE
CLEARANCE
PIPE
IN
SIDE
WALL
INSTALLATION INSTRUCTION
WALL
PASS-THROUGH
CONNECTOR
MANUFACTURER’S
LISTED 2100° UL 103 HT
TYP. CHIMNEY T-BOX
ASSEMBLY REEFER TO
MANUFACTURER’S
INSTALLATION
INSTRUCTION
Page 24
HOW TO LOCATE CHIMNEY EXIT, AND INSTALL
22
Residential and Mobile Home Installation.
E. Vertical Exit using (6" DVL Close Clearance pipe, and any Listed 2100° UL 103 HT
chimney).
W
ith optional close clearance shield and pipe shield. NOTE: For installation of
of optional close clearance shields and pipe shield (See Page 33).
NOTE: For minimum clearances (See Page 23, Figure 15).
If pedestal kit is being used,and out side air is required (See Page 26).
1. Suspend a plumb bob from the ceiling above the unit so that the weight is hanging in the
center of the flue exit. (A small weight on a string will serve as a plumb bob.) Mark the
ceiling where the string is suspended to locate the center of the chimney.
2. After locating the center of the hole, install the ceiling support box, chimney or chimney
connector, flashing, and rain cap per the chimney manufacturer’s instructions, and local
building codes for installation through combustible walls or ceilings.
3. Now connect the stove and ceiling support box using DVL close clearance pipe.
Connect each section per manufacturer’s instructions.
Secure each section to each other using minimum (3) sheet metal screws or rivets.
DVL close clearance is to be connected with (3) sheet metal screws or rivets to
connector collar on heater (See Page 23,Figure 16).
Page 25
BACK WALL
23
E. Vertical exit using (6" DVL Close Clearance pipe, and
any listed 2100° UL 103 HT. TYPE Chimney).
With optional close clearance shield, and pipe shield.
Model 21 minimum clearance to combustibles.
Figure 15.
BACK WALL
B
B
F
D
G
F
LISTED 2100° UL 103 HT
TYP. CHIMNEY
DO NOT OBSTRUCT
SIDE WALL
E
A
A
E
PROTECTOR
G
D
RADIATION SHIELD
LISTED 2100° UL 103 HT TYP.
INSTALLATION
CEILING
C
C
C
C
SIDE
WALL
A B C D E F G
MODEL 21 19”
7" 7" 8.5" 8" 3" 16"
NOTE: All clearances are to combustibles with optional close clearance shields, and pipe shield,
using DVL Close Clearance pipe, and minimum floor protector.
Figure 16.
NEW BUCK
CONTEMPORARY CAP
CAULK
STORM COLLAR
FLASHING
CEILING SUPPORT
DVL CLOSE
CLEARANCE PIPE
optional pipe shield.
NOTE:
See Page 33 for
installation of
optional close
clearance shields
and pipe shield
optional close
BUCK STOVE
clearance shield
Page 26
HOW TO LOCATE CHIMNEY EXIT, AND INSTALL
24
Residential and Mobile Home Installation.
F. Vertical Wall Exit using (6" DVL Close Clearance Pipe, and Elbow, and any Listed
2100° UL HT chimney and Listed 2100° UL HT T-Box assembly).
With optional close clearance shield and pipe shield NOTE: For installation of
of optional close clearance shields and pipe shield (See Page 33).
NOTE: For minimum clearances (See Page 25, Figure 17).
If pedestal kit is being used,and out side air is required (See Page 26).
1. Mark the plumb line on the wall directly behind the center of the heater.
(See Page 25, Figure 18.)
NOTE: When using DVL Close Clearance Pipe , “maintain manufacturer’s minimum
clearances" between pipe and ceiling.
2. Place the vertical portion of the heater pipe and the elbow in position and project a
point onto the plumb line level with the center of the elbow.
3. Measure up so there will be at least 1/4" rise per foot of horizontal connector pipe,
maintaining clearances to the ceiling as noted in (Page 25,Figure 18). This will give you
the center of the hole for the chimney penetration.
4. After locating the center of the penetration, install the tee-box and chimney as per the
chimney manufacturer's specifications.
5. Connect the DVL close clearance pipe to the tee-box per manufacturer’s instructions,.
DVL close clearance pipe is to be connected with (3) sheet metal screws or rivets to
connector collar on heater.(See Page 25,Figure 18).
Page 27
F.
BACK WALL
25
Vertical wall exit using (6" DVL Close Clearance pipe with elbow
and any listed 2100° UL 103 HT. TYPE Chimney,
Listed 2100° UL HT T-Box assembly
).
and
With optional close clearance shield and pipe shield.
Model 21 minimum clearance to combustibles.
BACK WALL
E
A
A
PROTECTOR
E
SIDE WALL
B
B
F
H
F
D
G
G
D
A B C D E F G
MODEL 21 19” 7" 7" 8.5" 8" 3" 16"
Figure 17.
C
C
C
C
NOTE: All clearances are to combustibles with close clearance shields and pipe shield, DVL
Close Clearance pipe with elbow, and minimum floor protector.
LISTED 2100° UL 103 HT TYP.
CHIMNEY REEFER TO
CEILING
Figure 18.
NOTE:
CENTER LINE
OF ELBOW
MARK PLUMB
LINE ON WALL
NOTE:
See Page 33 for
installation of
optional close
clearance shields
and pipe shield
Maintain 25"Minimum Clearance
DVL CLOSE
CLEARANCE
PIPE
optional pipe shield.
IN
SIDE
WALL
INSTALLATION INSTRUCTION
WALL
PASS-THROUGH
CONNECTOR
MANUFACTURER’S
LISTED 2100° UL 103 HT
TYP. CHIMNEY T-BOX
ASSEMBLY REEFER TO
MANUFACTURER’S
INSTALLATION
INSTRUCTION
optional close clearance shield
Page 28
OUT SIDE AIR INSTALLATION
1. Select an installation location that will give the best airflow from the front of the heater
to the remainder of the home.
CAUTION
THE STRUCTURAL INTEGRITY OF THE MOBILE HOME FLOOR MUST BE MAINTAINED. (MOVE OPENING AND/OR REPOSITION HEATER LOCATION IF
NECESSARY).
2. Place the protective floor pad in position. For minim floor protection
(See Pages 23, 25).
3. Place the unit on the pad making sure the minimumum clearance specifications are met.
4. Lightly mark with a pencil the location of the pedestal on the protective pad.
5. Next, remove the four (4) screws holding the heater to the stand. Position heater out of the
way of the installation area.
6. Check that the pedestal stand is still aligned with the marks on the protective pad, now mark
the outside air opening in bottom of pedestal stand on to the pad.
7. Next, mark the hole for the outside air opening. Set stand aside for now.
8. Next, cut a 4 1/4" diameter hole in the pad and continue through the floor.
9. Now, reposition the pedestal stand and set on the pad being sure to line the stand up with
the reference marks.
10. Using an electric drill and 3/8" masonry bit, drill four (4) holes in the protective pad using
the holes in the bottom side lips of the pedestal stand as a guide. Be careful to drill only
through the pad and not into the floor. Change the bit to a 1/4" metal bit and drill through
the floor.
11. Using the four (4) 3/8" x 1-1/2" lag bolts provided, secure the pedestal stand and pad to
the floor of the mobile home.
CAUTION
IF A THICK FLOOR PROTECTOR IS USED, YOU MAY HAVE TO USE LONGER
LAG BOLTS.
12. Set the heater back onto the stand and resecure using the screws.
13. Obtain the outside air duct from the box in the pedestal kit marked FA P21B.
26
Page 29
27
14. From under the mobile home, slip the duct up through the 4-1/4" hole. Push up until the
face of the outside air duct contacts the underside of the floor of the mobile home. For
certain floor thickness, you may have to shorten the length of the outside air duct.
15. Secure the outside air duct to the floor using the four (4) #10x1 screws provided. (See
Figure 19.)
RAIN CAP
RAIN CAP
RAIN CAP
RAIN CAP
24" min.
24" min.(610mm)
(610 mm)
36" TYP.
FLASHING
36" TYP.
FLASHING
RADIATION
RADIATION SHIELD
SHIELD
20 ft. MAX
OUT SIDE AIR DUCT THROUGH FLOOR WHEN
MOBILE HOME IS NOT UNDERPINNED
OUTSIDE AIR DUCT THROUGH FLOOR WHEN
MOBLE HOME IS NOT UNDERPENNED
20 FT. MAX.
Figure 19
24" min.(610mm)
24" min.
(610 mm)
FLASHING
36" TYP.
36" TYP.
FLASHING
RADIATION
RADIATION SHIELD
SHIELD
OUT SIDE AIR DUCT THROUGH FLOOR WHEN
OUTSIDE AIR DUCT THROUGH UNDERPENNED
MOBILE HOME IS UNDERPINNED
Page 30
FINAL CHECK
28
1. Recheck the specified clearances.
2. Remove all foreign material from the firebox area.
3. Open the primary air draft.
4. Plug the power cord into a 115V AC outlet when using with optional motor.
5. Place crumpled pieces of newspaper in the stove. Light it and close the doors. Ensure
that the stove draws properly through the primary draft.
6. Check for smoke leaks around the door.
CAUTION
Open the doors and check for smoke escaping from the front of the stove. Smoking
usually indicates a defective or poorly positioned chimney. Some chimneys with a
marginal draft can be preheated by lighting newspaper and holding it near the open
damper with a poker or fire tong. Once the chimney heats up, a proper draft can usually
be obtained.
If a thorough review of the Troubleshooting Guide in the rear of the manual does not reveal
the problem, contact your dealer for assistance.
CAUTION
The unit is painted with a specially formulated high temperature paint that cures during
the first two or three firings. You may notice a slight smoking effect and an odor of
burning paint when you build the first fires. This is normal and is not a cause for
alarm. In some cases, these fumes will activate a smoke alarm. Opening a window near
the unit will allow these fumes to escape. DO NOT build a large, roaring fire until this
curing is complete or the heater finish may be damaged.
Page 31
SECTION VI
29
ALCOVE INSTALLATION
AND CLEARANCES
Select an installation location that will give the best airflow from the front of the
heater to the remainder of the home.
PREPARING THE STOVE FOR INSTALLATION
1. Inspect the unit for any obvious physical damage.
2. Plug the power cord into a 115V AC outlet to test the motor and fan when optional motor is
being used. “Do not run power cord under unit or in high traffic areas”.
3. Check the primary air draft control to ensure that it slides freely.
4. Remove any items from within the firebox. Spread a dropcloth on the floor behind the
heater. Next, tilt the heater so that the back is on the drop cloth.
5. If leg kit is to be used follow steps 1-6.
6. Then obtain four legs, attach the legs to holes in bottom of unit with bolts and washers
supplied with the leg kit. (See Figure 20.)
7.
Open the corresponding freestanding kit and obtain the stand. Place the stand against the
bottom of the heater (angle side to heater).Center stand front to rear ,and also
center the stand left and right ,and mark screw locations on bottom of the stove through
outer holes of stand mounting angles. Set stand aside and drill four 7/32" holes in heater
bottom.Then mount stand to bottom of heater with screws provided. (See Figure 21).
8. Obtain four (4) 3/16" self-tapping screws and secure the stand to the heater.
9. Reposition the heater to the upright position.
10.
Figure 20
Figure 21
Chimney
This model is designed for connection to the following listed 2100º UL103 HT chimneys and
parts. Follow chimneys manufacturer's instructions carefully.
Simpson Duravent Metal Fab
Security Airjet
Selkirk Metal Bestos Jakes Evans
This room heater must be converted to (1) a chimney complying with the requirements for
Type HT chimneys in the Standard for chimneys, Factory-Built, Residential, Type and
Building Heating Appliance, UL 103, or (2) a code approved masonry chimney with a flue
liner.
Page 32
Floor Protection:
30
Floor protection must be 3/8” minimum thickness non-combustible material or equivalent.
How to use alternate materials and how to calculate equivalent thickness.
An easy means of determining if a proposed alternate floor protector meets requirements listed
in the appliance manual is to follow this procedure:
1. Convert specification to R-value:
R-value is given—no conversion is needed.
K– factor is given with a required thickness (T) in inches:
C-factor is given: R=1/C
2. Determine the R-value of the proposed alternate floor protector.
Use the formula in step (1) to convert values not expressed as “R”
For multiple layers, add R-values of each layer to determine the overall R-value.
3. If the overall R-value of the system is grater than the R-value of the specified floor protector, the alternate is acceptable.
Example:
The specified floor protector should be 3/4” thick material with a K-factor of 0.84.
The proposed alternate is 4” brick with a C-factor of 1.25 over 1/8” mineral board with a
K-factor of 0.29.
Step (a): Use formula above to convert specification to R-value. R= 1/K x T = 1/0.84 x .75 =
0.893
Step (b): Calculate R of proposed system. 4” brick of C=1.25, therefore Rbrick = 1/C =
1/1.25
=0.80 1/8” mineral board of K = 0.29, therefore Rmin.bd. =1/029 x0.125 = 0.431
Step (c): Compare proposed system R of 1.231 to specified R of 0.893. Since proposed
system R is greater than required , the system is acceptable.
Definitions:
Thermal conductance = C = Btu = W
(hr)(ft²)(°F) (m²)(°K)
Thermal conductance = K = (Btu)(inch) = W = (Btu)
(hr)(ft²)(°f) (m)(°K) (hr)(tf)(°F)
Thermal conductance = R = (ft²)(hr)(°F) = (m²)(°K)
Btu W
Install in accordance with 24 CFR, Part 3280 (HUD).
Page 33
HOW TO LOCATE CHIMNEY EXIT, AND INSTALL
31
Alcove Installation.
E. Vertical Exit using (6" DVL Close Clearance pipe, and any Listed 2100° UL 103 HT
chimney).
W
ith optional close clearance shield and pipe shield. NOTE: For installation of
of optional close clearance shields and pipe shield (See Page 33).
NOTE: For minimum clearances (See Page 32, Figure 22).
1. Suspend a plumb bob from the ceiling above the unit so that the weight is hanging in the
center of the flue exit. (A small weight on a string will serve as a plumb bob.) Mark the
ceiling where the string is suspended to locate the center of the chimney.
2. After locating the center of the hole, install the ceiling support box, chimney or chimney
connector, flashing, and rain cap per the chimney manufacturer’s instructions, and local
building codes for installation through combustible walls or ceilings.
3. Now connect the stove and ceiling support box using DVL close clearance pipe.
Connect each section per manufacturer’s instructions.
Secure each section to each other using minimum (3) sheet metal screws or rivets.
DVL close clearance is to be connected with (3) sheet metal screws or rivets to
connector collar on heater.(See Page 32,Figure 23).
Page 34
ALCOVE INSTALLATION
BACK WALL
32
AND CLEARANCES
E. Vertical exit using (6" DVL Close Clearance pipe, and
any listed 2100° UL 103 HT. TYPE Chimney).
With optional close clearance shield, and pipe shield.
Model 21 minimum clearance to combustibles.
Figure 22.
Figure 23.
SIDE WALL
A B C D E F G H
MODEL 21 19”
NOTE: All clearances are to combustibles with optional close clearance shields, and pipe shield,
using DVL Close Clearance pipe, and minimum floor protector.
BACK WALL
F
B
B
PROTECTOR
E
E
A
A
7" 84" 8.5" 8" 3" 16" 48"
F
D
G
H
G
D
C
BUCK STOVE
LISTED 2100° UL 103 HT
TYP. CHIMNEY
DO NOT OBSTRUCT
RADIATION SHIELD
LISTED 2100° UL 103 HT TYP.
INSTALLATION
CEILING
SIDE
WALL
CONTEMPORARY CAP
CAULK
STORM COLLAR
FLASHING
CEILING SUPPORT
DVL CLOSE
CLEARANCE PIPE
optional pipe shield.
NOTE:
See Page 33 for
installation of
optional close
clearance shields
and pipe shield
NEW BUCK
optional close
clearance shield
BUCK STOVE
Page 35
Installation of (Optional) Close Clearance Shields and Pipe Shield
33
1. Taking close clearance side shields, hold up to side of stove leaving 1/4" gap between
shield and top of stove.
2. Make reference mark in center of pre-punched hole in top & bottom of shield. Drill two
(2) 3/32" holes in back of unit on each side. Insert self tapping screws in through shield into
stove.(SEE PICTURE BELOW)
3. Drill two (2) 3/16" holes in the sides of the stove where the shield meets the front side.
Insert two (2) 3/8" self-tapping screws. (SEE PICTURE BELOW)
4. Next loosen two (2) top screws holding side shield at rear top. Insert pipe shield where
back shield and top rear side shield meets. Leave a 1” gap from the top of stove to the pipe
shield, tighten screws.(SEE PICTURE BELOW)
Pipe Shield
Loosen these top
shield screws
13/16” TYP.
1” TYP.
1/4” TYP.
Close Clearance Shields
Close Clearance Shields
Installation of (Optional) Close Clearance Shields
Installation of (Optional) Pipe Shield
Page 36
FINAL CHECK
34
1. Recheck the specified clearances.
2. Remove all foreign material from the firebox area.
3. Open the primary air draft.
4. Plug the power cord into a 115V AC outlet when using with optional motor.
5. Place crumpled pieces of newspaper in the stove. Light it and close the doors. Ensure
that the stove draws properly through the primary draft.
6. Check for smoke leaks around the door.
CAUTION
Open the doors and check for smoke escaping from the front of the stove. Smoking
usually indicates a defective or poorly positioned chimney. Some chimneys with a
marginal draft can be preheated by lighting newspaper and holding it near the open
damper with a poker or fire tong. Once the chimney heats up, a proper draft can usually
be obtained.
If a thorough review of the Troubleshooting Guide in the rear of the manual does not reveal
the problem, contact your dealer for assistance.
CAUTION
The unit is painted with a specially formulated high temperature paint that cures during
the first two or three firings. You may notice a slight smoking effect and an odor of
burning paint when you build the first fires. This is normal and is not a cause for
alarm. In some cases, these fumes will activate a smoke alarm. Opening a window near
the unit will allow these fumes to escape. DO NOT build a large, roaring fire until this
curing is complete or the heater finish may be damaged.
Page 37
SECTION VI
35
WOOD HEATER SAFETY
Certain safety hazards are inherent in any wood heater installation. You should be aware of
these so that a safe and proper installation can be made.
1. FAULTY CHIMNEY: An older masonry chimney should be thoroughly checked to be sure
there are no holes or weak spots which could allow sparks or hot gases to escape.
2. HEAT CONDUCTION: Placing combustible materials too close to a heater or chimney can
be a fire hazard.
By keeping these particular hazards in mind as you install and use your room heater you can
ensure a safe, reliable installation.
The chimney and chimney connector should be inspected once every two months. Any buildup of soot should be removed to prevent the risk of a chimney fire. To remove chimney or
chimney connector: Remove screws or fasteners. Remove pipe and clean with steel brush.
Replace chimney or chimney connector, and replace screws and/or fasteners.
CAUTION
NEVER USE GASOLINE, GASOLINE TYPE LANTERN FUEL, KEROSENE,
CHARCOAL LIGHTER FLUID OR SIMILAR LIQUIDS TO START OR "FRESHEN
UP" A FIRE IN THE HEATER. KEEP ALL SUCH LIQUIDS WELL AWAY FROM
THE STOVE WHEN IT IS IN USE. ALL FLUIDS OF THIS TYPE GIVE OFF
VOLATILE FUMES AND CAN AND WILL EXPLODE!! DON'T TAKE A CHANCE
WITH THE SAFETY OF YOUR HOME AND FAMILY.
DISPOSAL OF ASHES: Ashes should be placed in a metal container with a tight fitting lid.
The closed container of ashes should be placed on a non-combustible floor or on the ground,
well away from all combustible materials pending final disposal. If the ashes are disposed of by
burial in soil or otherwise locally dispersed, they should be retained in the closed container until
all cinders have thoroughly cooled.
CREOSOTE-FORMATION AND NEED FOR REMOVAL: When wood is burned slowly,
it produces tar and other organic vapors, which combine with expelled moisture to form
creosote. The creosote vapors condense in the relatively cool chimney flue of a slow-burning
fire. As a result, creosote residue accumulates on the flue lining. When ignited this creosote
makes an extremely hot fire.
Page 38
SECTION VII
36
OPERATION
This section of the manual is to help you get the maximum efficiency and maximum smoke
(particulate) reduction from your heater. If you should experience any difficulty or
have any questions concerning your heater, contact your dealer for assistance. The
manufacturer recommends that for maximum performance burn seasoned hard wood.
Build a fire for maximum efficiency. These models burn wood and extract heat so efficiently,
a large fire is not necessary. A large fire not only wastes energy, it usually results in the home
being too warm for comfort.
The following steps will serve as a guide for operating your stove.
BUILDING A FIRE
1. Open the door.
2. Open the primary air control under hearth, push in. To close pull all the way out.
3. Twist two pieces of non-colored newspaper into a roll and place them on the floor of the
firebox.
4. These models are not designed for the use of grates, andirons or other methods of
supporting the fuel.
5. Lay several pieces of dry kindling on top of the newspaper.
6. Place three or four small pieces of firewood, 2-3" in diameter, on top of the kindling.
7. Light the newspaper in the front. Close and latch the door. Don't leave the fire unattended at
this point. The draft system of the heater should start quickly. It may be necessary to
preheat the chimney to get the draft started. To do this, open the door and add newspaper to
the top rear of the wood. Light or let this paper ignite and allow to burn while holding the
door slightly cracked. Once the draft has started, close and lock the door. You are over
heating the unit if the chimney and or connector glows red.
8. After embers and a coal bed have been established, load the heater with wood.
NOTE: THE FUELING DOOR MUST REMAIN CLOSED DURING OPERATION.
NOTE: If the optional blower is being used on the Model 21 Non-Cat, operate the blower
in the “OFF” position for the first thirty (30) minutes after starting the fire and in the
“OFF” position for thirty (30) minutes after refueling the fire.
Page 39
SECTION VIII
37
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
1. Sluggish Heater
1. Obstruction in Chimney
2. Improperly sealed trim
kit or direct connect kit
3. Manual damper in
chimney is closed
4. Wet or unseasoned wood
being burned
5. Poor chimney draft
1. Check for and remove
obstruction
2. (a) Check trim kit
gasketing seal to
fireplace and gasket as
necessary to seal unit.
Gasket under front
bottom of stove if
needed. (b) Check seal
if using direct connect
and correct.
3. Open manual damper
and wire shut with
stainless steel wire or
remove damper
4. Burn dry seasoned wood
5. Improper chimney height
or wrong size flue is
being used. Cooler
temperatures caused by
external chimney.
Page 40
38
PROBLEM POSSIBLE CAUSE SOLUTION
2. High fuel consumption
3. Backpuffing
4. Smoke rollout when heater
door is opened
1. Improper regulation of
draft or inlet air
2. Improper door fitting
1. Gusts of Wind
1. Wind gusts blowing down
the chimney
2. Opening heater door too
fast
1. (a) Close inlet air control
as much as possible to
maintain desired heat
output.
(b) Check gaskets,
reinstall fiberglass
gasketing round doors
and glass as necessary
2. Check door gasket,
check adjustment of door
latch
1. (a) Smoke shelf in
chimney is filled with
creosote & ash
(b) Chimney may need
wind diverter. Raise
chimney for better draft.
1. (a) Smoke shelf in
chimney is filled with
creosote & ash
(b) Chimney may need
wind diverter. Raise
chimney for better draft.
2. Crack door for 15
seconds before fully
opening door.
Page 41
NEW BUCK CORPORATION (NBC)
39
"LIMITED WARRANTY" FOR THE BUCK STOVE
PLEASE READ THIS WARRANTY CAREFULLY
PRODUCTS COVERED
This warranty covers the New Buck Stove heating unit, so long as it is owned by the original
purchaser, including optional and standard accessories purchased at the same time, subject
to terms, limitations, and conditions herein set out.
PRODUCTS NOT COVERED
This warranty does not cover the following:
Glass;
Refractory material such as refractory cement or firebrick;
Gaskets.
This Warranty will also not cover any damage and/or failure caused by abuse or improper
installation of the products covered.
WARRANTY TIME PERIODS
(A) Period I
For one year from the date of purchase, NBC will replace or repair, at its option, any
part defective in materials or workmanship. The costs of parts only are included. The
customer pays any labor or transportation charges required.
Thereafter
B) Period II
For the period after the first year from the date of purchase and extending for 5 years as long
as the Buck Stove is owned by the original purchaser, NBC will repair or replace, at
its option, any part defective in materials or workmanship, with the exception of:
electrical motors, wiring, switches, and components: optional and standard accessories; and
all parts not permanently attached to the heating unit. Parts not permanently attached to
the heating unit are defined as those items designed to be removed from the stove, including
those removable with common hand tools. The costs of parts only are included. The
customer pays any labor or transportation charges required. .
PROCEDURE
Should you feel that your BUCK STOVE is defective, you should contact any Buck Stove
dealer for the name of your nearest authorized Buck Stove service representative, who will
instruct you on the proper procedure, depending on which Warranty Time Period (Period I or
Period II) applies.
Page 42
If for any reason you are dissatisfied with the suggested procedures, you may contact us
40
in writing at:
New Buck Corporation
Customer Service Department
P. O. Box 69
Spruce Pine, NC 28777
CONDITIONS AND EXCLUSIONS
A. Replacement of parts may be in the form of new or fully reconditioned parts, at NBC's
option.
B There is no other express warranty. All implied warranties of Merchantability and
Fitness for Use are limited to the duration of the Express Warranty.
C. New Buck Corporation is not liable for indirect, incidental, or consequential damages in
connection with the use of the product including any cost or expense of providing substitute
equipment or service during periods of malfunction or non-use.
Some states do not allow the exclusion of incidental or consequential damages, so the
above exclusion may not apply to you.
D. All warranty repairs under this warranty must be performed by an
authorized Buck Stove service representative. Repairs or attempted repairs by
anyone other than an authorized service representative are not covered under this
warranty. In addition, these unauthorized repairs may result in additional malfunctions,
the correction of which is not covered by warranty.
OTHER RIGHTS
This warranty gives you specific legal rights, and you may also have other rights, which vary
from state to state.
Loading...
