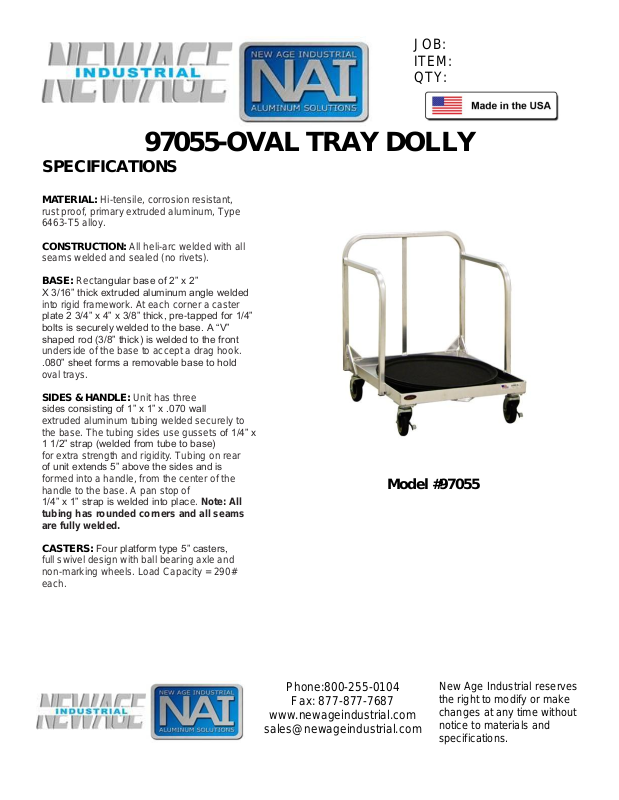

97055-OVAL TRAY DOLLY

SPECIFICATIONS

MATERIAL: Hi-tensile, corrosion resistant,

rust proof, primary extruded aluminum, Type
6463-T5 alloy.

CONSTRUCTION: All heli-arc welded with all

seams welded and sealed (no rivets).

BASE: Rectangular base of 2” x 2”

X 3/16” thick extruded aluminum angle welded

into rigid framework. At each corner a caster

plate 2 3/4” x 4” x 3/8” thick, pre-tapped for 1/4”
bolts is securely welded to the base. A “V”
shaped rod (3/8” thick) is welded to the front

underside of the base to accept a drag hook.
.080” sheet forms a removable base to hold
oval trays.

SIDES & HANDLE: Unit has three

sides consisting of 1” x 1” x .070 wall
extruded aluminum tubing welded securely to
the base. The tubing sides use gussets of 1/4” x
1 1/2” strap (welded from tube to base)
for extra strength and rigidity. Tubing on rear
of unit extends 5” above the sides and is
formed into a handle, from the center of the
handle to the base. A pan stop of

1/4” x 1” strap is welded into place. Note: All
tubing has rounded corners and all seams
are fully welded.

CASTERS: Four platform type 5” casters,

full swivel design with ball bearing axle and
non-marking wheels. Load Capacity = 290#
each.

Model #97055

Phone:[phone]

Fax: [phone]

www.newageindustrial.com

[e-mail]

New Age Industrial reserves
the right to modify or make
changes at any time without
notice to materials and
specifications.

Model No.

Size-W

Size-H

Size-D

Wt. Cap.

97055

26 3/8"

33 3/4"

30"

800#
