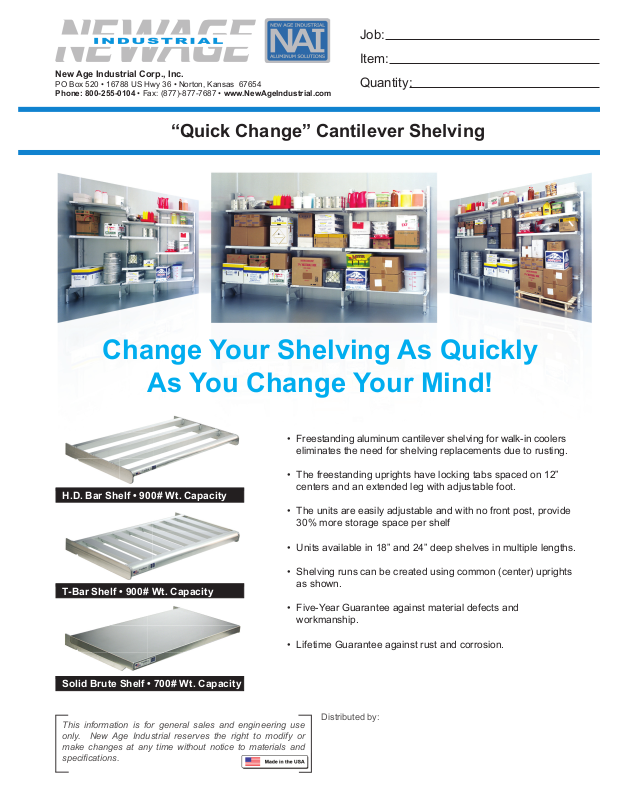

“Quick Change” Cantilever Shelving
Job:
Item:
Quantity:
Change Your Shelving As Quickly
As You Change Your Mind!
H.D. Bar Shelf • 900# Wt. Capacity
T-Bar Shelf • 900# Wt. Capacity
• Freestanding aluminum cantilever shelving for walk-in coolers
eliminates the need for shelving replacements due to rusting.
• The freestanding uprights have locking tabs spaced on 12”
centers and an extended leg with adjustable foot.
• The units are easily adjustable and with no front post, provide
30% more storage space per shelf
• Units available in 18” and 24” deep shelves in multiple lengths.
• Shelving runs can be created using common (center) uprights
as shown.
• Five-Year Guarantee against material defects and
workmanship.
• Lifetime Guarantee against rust and corrosion.
Solid Brute Shelf • 700# Wt. Capacity
This information is for general sales and engineering use
only. New Age Industrial reserves the right to modify or
make changes at any time without notice to materials and
specifi cations.
Distributed by:
Page 2
New Age Industrial Corp., Inc.
PO Box 520 • 16788 US Hwy 36 • Norton, Kansas 67654
Phone: 800-255-0104 • Fax: (877)-877-7687 • www.NewAgeIndustrial.com
“Quick Change” Cantilever Shelving
3
2
6
5
7
The above free-standing unit consists of the following:
1. H.D. Shelf (2)
2. T-Bar Shelf (2)
3. Solid Shelf (2)
4. Right Upright (1)
5. Common Upright (1)
6. Left Upright (1)
7. Horizontal Brace (2 pair)
Note: One pair required
per shelving section.
Ordering Instructions
• Determine the number of shelving sections in the
shelving run – Find type, number, and depth of
shelves required per section. 1, 2, 3
• Add a pair of horizontal braces per shelving
section. 7
• Shelving sections 3’, 4’, and 5’ long require two
uprights, one left and one right. 4, 6
• Run lengths over 5’ require a left and right upright
on the ends and a common upright between each
section. (as shown in the picture above). 4, 5, 6
Note
• Shelving runs are described in one foot increments.
The actual length of a run is an additional 2¾”,
i.e. a typical 7’ run is actually 7’ 2¾” (86¾”) long.
4
1
Job:
Item:
Quantity:
Model Size Wt. Ship
No. D-L Cap. Wt.
H.D. BAR SHELF
2501 ....... 18” x 36” ....... 900# .........7#
2502 ....... 18” x 42” ....... 900# .........8#
2503 ....... 18” x 48” ....... 900# .........8#
2505 ....... 18” x 60” ....... 900# ........10#
2511 ....... 24” x 36” ....... 900# .........8#
2512 ....... 24” x 42” ....... 900# .........8#
2513 ....... 24” x 48” ....... 900# .........9#
2515 ....... 24” x 60” ....... 900# ........11#
Full radius front edge.
T-BAR SHELF
2521 ....... 18” x 36” ....... 900# ........10#
2522 ....... 18” x 42” ....... 900# ........11#
2523 ....... 18” x 48” ....... 900# ........12#
2525 ....... 18” x 60” ....... 900# ........14#
2531 ....... 24” x 36” ....... 900# ........11#
2532 ....... 24” x 42” ....... 900# ........12#
2533 ....... 24” x 48” ....... 900# ........14#
2535 ....... 24” x 60” ....... 900# ........17#
Ideal for smaller product as well as heavier loads.
SOLID REINFORCED SHELF
2541 ....... 18” x 36” ....... 700# ........10#
2542 ....... 18” x 42” ....... 700# ........11#
2543 ....... 18” x 48” ....... 700# ........12#
2545 ....... 18” x 60” ....... 700# ........14#
2551 ....... 24” x 36” ....... 700# ........11#
2552 ....... 24” x 42” ....... 700# ........12#
2553 ....... 24” x 48” ....... 700# ........13#
2555 ....... 24” x 60” ....... 700# ........19#
For smaller products and spill control.
Model Item Ship
No. Description Wt.
HORIZONTAL BRACE — Free-Standing Units Only
2581 ........36” Horizontal Brace (2) ........................ 4#
2582 ........42” Horizontal Brace (2) ........................ 4#
2583 ........48” Horizontal Brace (2) ........................ 5#
2585 ........60” Horizontal Brace (2) ........................ 7#
FREE-STANDING UPRIGHTS — 72” in Height
2561 ........21” Left Upright • 18” Shelves .............. 13#
2563 ........21” Right Upright • 18” Shelves ............ 13#
2565 ........21” Common Upright • 18” Shelves ....... 14#
2571 ........27” Left Upright • 24” Shelves .............. 14#
2573 ........27” Right Upright • 24” Shelves ............ 14#
2575 ........27” Common Upright • 24” Shelves ....... 15#
Uprights have locking tabs spaced on 12” centers and an extended
leg with adjustable foot.
This information is for general sales and engineering use
only. New Age Industrial reserves the right to modify or
make changes at any time without notice to materials and
specifi cations.
