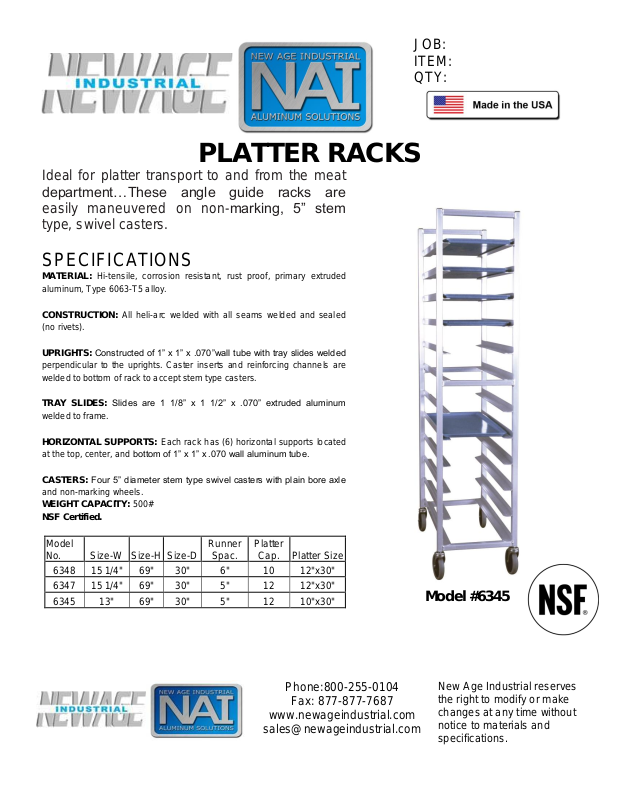

New Age 6345 User Manual

Phone:[phone]

Fax: [phone]

www.newageindustrial.com

[e-mail]

New Age Industrial reserves
the right to modify or make
changes at any time without
notice to materials and
specifications.

JOB:
ITEM:
QTY:

PLATTER RACKS

Ideal for platter transport to and from the meat

department…These angle guide racks are

easily maneuvered on non-marking, 5” stem
type, swivel casters.

SPECIFICATIONS

MATERIAL: Hi-tensile, corrosion resistant, rust proof, primary extruded
aluminum, Type 6063-T5 alloy.

CONSTRUCTION: All heli-arc welded with all seams welded and sealed
(no rivets).

UPRIGHTS: Constructed of 1” x 1” x .070”wall tube with tray slides welded

perpendicular to the uprights. Caster inserts and reinforcing channels are
welded to bottom of rack to accept stem type casters.

TRAY SLIDES: Slides are 1 1/8” x 1 1/2” x .070” extruded aluminum

welded to frame.

HORIZONTAL SUPPORTS: Each rack has (6) horizontal supports located
at the top, center, and bottom of 1” x 1” x .070 wall aluminum tube.

CASTERS: Four 5” diameter stem type swivel casters with plain bore axle

and non-marking wheels.

WEIGHT CAPACITY: 500#

NSF Certified.

Model
No.

Size-W

Size-H

Size-D

Runner

Spac.

Platter

Cap.

Platter Size

6348

15 1/4"

69"

30"

6"

10

12"x30"

6347

15 1/4"

69"

30"

5"

12

12"x30"

6345

13"

69"

30"

5"

12

10"x30"

Model #6345
