New Age 1490 User Manual

New Age Industrial Corp., Inc.
39"
47 1/2"
PO Box 520 • 16788 US Hwy 36 • Norton, Kansas 67654
Phone: 800-255-0104 • Fax: (877)-877-7687 • www.NewAgeIndustrial.com

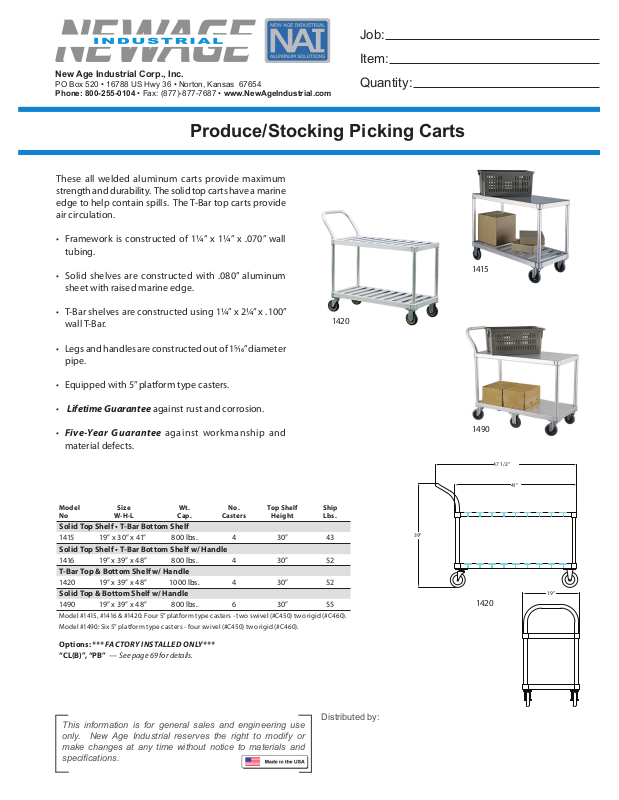

Produce/Stocking Picking Carts
These all welded aluminum carts provide maximum strength and durability. The solid top carts have a marine edge to help contain spills. The T-Bar top carts provide air circulation.
• Framework is constructed of 1¼ ” x 1¼ ” x .070” wall tubing.
Job:
Item:
Quantity:
• Solid shelves are constructed with .080” aluminum
1415
sheet with raised marine edge.
• T-Bar shelves are constructed using 1¼ ” x 2¼ ” x .100” wall T-Bar.
1420
• Legs and handles are constructed out of 1⁄” diameter pipe.
• Equipped with 5” platform type casters.
Lifetime Guarantee against rust and corrosion.
Five-Year Guarantee against workmanship and
1490
material defects.
41"
Model Size Wt. No. Top Shelf Ship No W-H-L Cap. Casters Height Lbs.
Solid Top Shelf • T-Bar Bottom Shelf
1415 19” x 30” x 41” 800 lbs. 4 30” 43
Solid Top Shelf • T-Bar Bottom Shelf w/ Handle
1416 19” x 39” x 48” 800 lbs. 4 30” 52
T-Bar Top & Bottom Shelf w/ Handle
1420 19” x 39” x 48” 1000 lbs. 4 30” 52
Solid Top & Bottom Shelf w/ Handle
1490 19” x 39” x 48” 800 lbs. 6 30” 55
Model #1415, #1416 & #1420: Four 5” platform t ype casters - two swivel (#C450) two rigid (#C460).
Model #1490: Six 5” platform type casters - four swivel (#C450) two rigid (#C460).
Options: *** FACTORY INSTALLED ON LY*** “CL(B)”, “PB”See page 69 for details.
1420
19"
This information is for general sales and engineering use only. New Age Industrial reserves the right to modify or make changes at any time without notice to materials and
specifi cations.
Distributed by:
