New Age Industrial Corp., Inc.
#1331S
PO Box 520 • 16788 US Hwy 36 • Norton, Kansas 67654
Phone: 800-255-0104 • Fax: (877)-877-7687 • www.NewAgeIndustrial.com

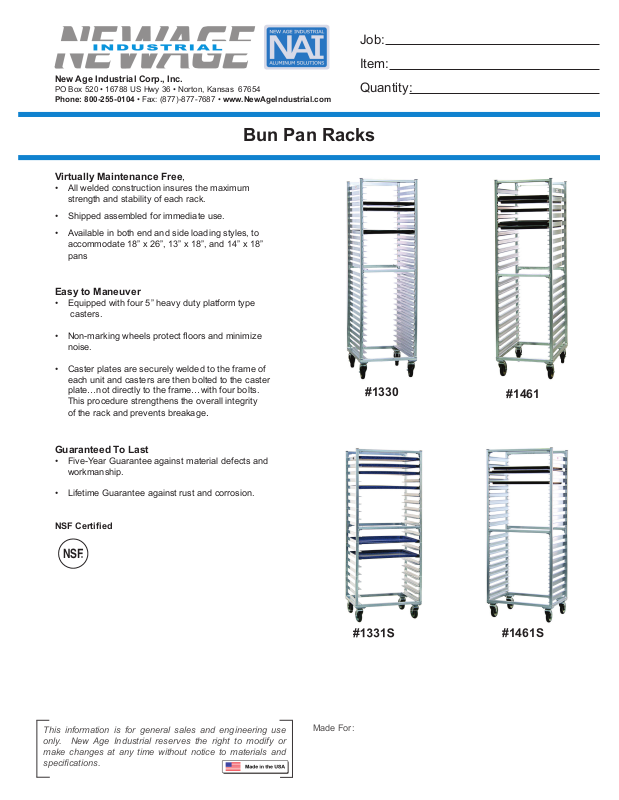

Bun Pan Racks
Virtually Maintenance Free,
• All welded construction insures the maximum
strength and stability of each rack.
• Shipped assembled for immediate use.
• Available in both end and side loading styles, to
accommodate 18” x 26”, 13” x 18”, and 14” x 18”
pans
Easy to Maneuver
• Equipped with four 5” heavy duty platform type
casters.
Job:
Item:
Quantity:
• Non-marking wheels protect fl oors and minimize
noise.
• Caster plates are securely welded to the frame of
each unit and casters are then bolted to the caster
plate…not directly to the frame…with four bolts.
This procedure strengthens the overall integrity
of the rack and prevents breakage
.
Guaranteed To Last
• Five-Year Guarantee against material defects and
workmanship.
• Lifetime Guarantee against rust and corrosion.
NSF Certifi ed
NSF
®
#1330
#1461
This information is for general sales and engineering use
only. New Age Industrial reserves the right to modify or
make changes at any time without notice to materials and
specifi cations.
#1331S #1461S
Made For:
New Age Industrial Corp., Inc.
PO Box 520 • 16788 US Hwy 36 • Norton, Kansas 67654
Phone: 800-255-0104 • Fax: (877)-877-7687 • www.NewAgeIndustrial.com
Bun Pan Racks
Job:
Item:
Quantity:
APPLICATIONS: General storage and movement of
trays and pans.
CONSTRUCTION: Heavy duty, high tensile, extruded
aluminum. Type 6463-T5 alloy.
TRAY SLIDES: Slides are 1¼” x 1⅝” x .100 extruded
aluminum angle welded to frame.
FRAME & CROSS SUPPORTS: Vertical and
horizontal frame members are 1” x 1” x .070 extruded
aluminum tubing. All welded unit.
CORNER GUSSETS: Gussets of 1½” x 1½” x ⅝”
thick angle are welded to the inside angles (bottom
side) where horizontal cross bracing meets vertical
uprights. Note: Each gusset requires 4½” of weld.
CASTERS: Platform type, 5” diameter wheel, full
swivel design with sealed ball bearing. Wheel
material is non-marking polyurethane.
Model Size Pan Runner Ship
No. W-H-D Cap. Spacing Wt.
¾-SIZE END LOADING RACK
1361 20⅜” x 60” x 26” 17 3” 54#
END LOADING RACKS
1461* 20
1330 20⅜” x 69¾” x 26” 30 2” 70#
1331 20⅜” x 69¾” x 26” 20 3” 58#
1332 20⅜” x 69¾” x 26” 15 4” 49#
1333 20⅜” x 69¾” x 26” 12 5” 46#
1334 20⅜” x 69¾” x 26” 10 6” 42#
SIDE LOADING RACKS
1461S* 28⅜” x 69¾” x 19” 38 1 ½” 50#
1330S 28⅜” x 69¾” x 19” 30 2” 60#
1331S 28⅜” x 69¾” x 19” 20 3” 51#
1332S 28⅜” x 69¾” x 19” 15 4” 45#
1333S 28⅜” x 69¾” x 19” 12 5” 42#
1334S 28⅜” x 69¾” x 19” 10 6” 41#
Four 5” platform type swivel casters (#C450).
* #1461 & #1461S Units Hold Pans By The Lip Only.
11
/16” x 69¾” x 26” 38 1½” 56#
20 3/8"
18 3/8"
GUSSETS (8)
1" R-S
TUBE
63"
3" TYP.
30"
1 5/8"
2 3/4"
26"
#1331
NSF
®
This information is for general sales and engineering use
only. New Age Industrial reserves the right to modify or
make changes at any time without notice to materials and
specifi cations.
