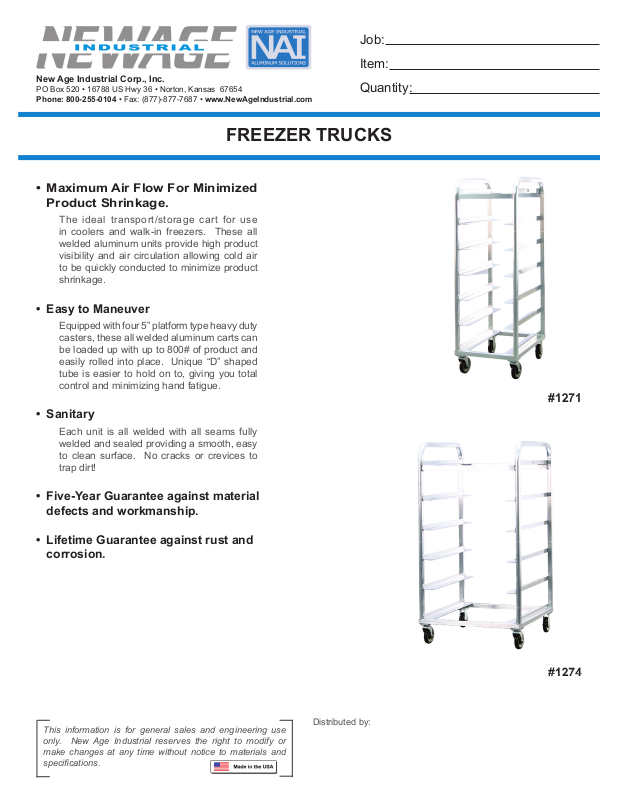

FREEZER TRUCKS

• Maximum Air Flow For Minimized
Product Shrinkage.

The ideal transport/storage cart for use
in coolers and walk-in freezers. These all
welded aluminum units provide high product
visibility and air circulation allowing cold air
to be quickly conducted to minimize product
shrinkage.

• Easy to Maneuver

Equipped with four 5” platform type heavy duty
casters, these all welded aluminum carts can
be loaded up with up to 800# of product and
easily rolled into place. Unique “D” shaped
tube is easier to hold on to, giving you total
control and minimizing hand fatigue.

• Sanitary

Each unit is all welded with all seams fully
welded and sealed providing a smooth, easy
to clean surface. No cracks or crevices to
trap dirt!

Job:

Item:

Quantity:

#1271

• Five-Year Guarantee against material
defects and workmanship.

• Lifetime Guarantee against rust and
corrosion.

This information is for general sales and engineering use
only. New Age Industrial reserves the right to modify or
make changes at any time without notice to materials and

specifi cations.

#1274

Distributed by:

New Age Industrial Corp., Inc.

PO Box 520 • 16788 US Hwy 36 • Norton, Kansas 67654

Phone: [phone] • Fax: [phone] • www.NewAgeIndustrial.com

FREEZER TRUCKS

Job:

Item:

Quantity:

MATERIAL: Hi-tensile, corrosion resistant, rust proof,
primary extruded aluminum, Type 6063-T5 alloy.

CONSTRUCTION: All heli-arc welded with all seams
welded and sealed (no rivets).

FRAME & CROSS SUPPORTS: All welded frame
consists of a rectangular base of 1-¼” x 1-½” x .070
wall extruded aluminum tube with caster plates 2-¾” x

4” x ⅜” thick pre-tapped for caster bolts and welded at

each corner. Uprights are 1-¼” x 1-½” x .080 wall “D”
shaped extruded aluminum tube and cross supports
(2) of 1-¼” x 1-½” x .070 wall extruded aluminum tube
welded between.

ANGLE BASKET SUPPORTS: Freezer baskets are
supported by 1-½” x 3-¼” x .100 thick angle runners,
spaced on 7-¾” centers, angles securely welded to
uprights with 4” of weld per angle.

CASTERS: Four platform type 5” casters, two swivel
and two rigid with ball bearing axle, and non-marking
wheel.

LIFETIME GUARANTEE against rust and corrosion.

20"

17 1/2"

61"

7 3/4" TYP.

3 1/4"

NSF CERTIFIED.

This information is for general sales and engineering use
only. New Age Industrial reserves the right to modify or
make changes at any time without notice to materials and

specifi cations.

#1271

Model Size Basket Runner Between Ship

No. W-H-D Cap. Spacing Uprights Wt.

1271 20” x 61” x 29” 7 7-¾” 17-½” 49#

1272 20” x 68-⅝” x 29” 8 7-¾” 17-½” 55#
1273 20” x 76-⅜” x 29” 9 7-¾” 17-½” 59#
1274 31-½” x 61-⅜ x 35-½” 12 9” 29” 55#

Designed to hold 17”W x 28”L wire freezer baskets and boxes.

Four 5” platform type casters - 2 swivel (#C450), 2 rigid (#C460).
