New Age Industrial Corp., Inc.
49 3/4"
20"
8 1/4"
8"
42"
PO Box 520 • 16788 US Hwy 36 • Norton, Kansas 67654
Phone: 800-255-0104 • Fax: (877)-877-7687 • www.NewAgeIndustrial.com

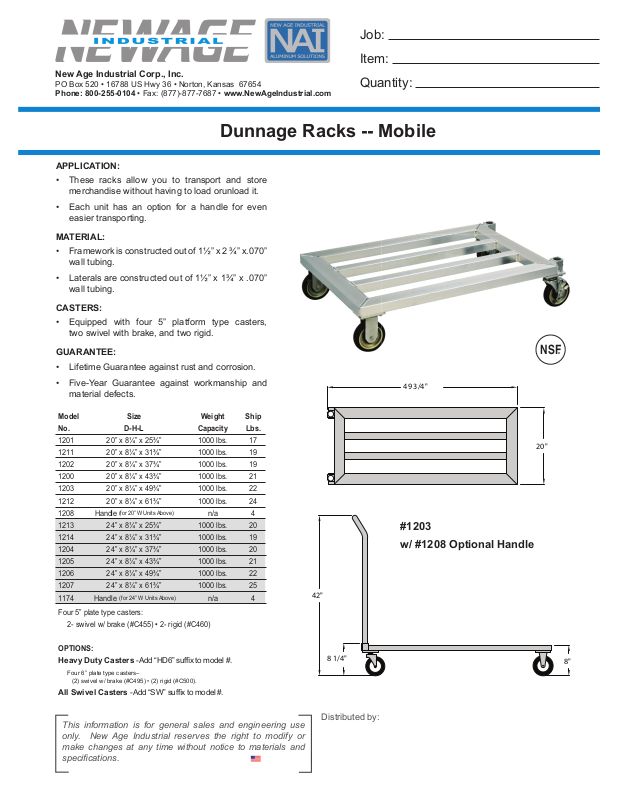

Dunnage Racks -- Mobile
APPLICATION:
• These racks allow you to transport and store
merchandise without having to load orunload it.
• Each unit has an option for a handle for even
easier transporting.
MATERIAL:
• Framework is constructed out of 1½” x 2 ¾” x.070”
wall tubing.
• Laterals are constructed out of 1½” x 1¾” x .070”
wall tubing.
CASTERS:
• Equipped with four 5” platform type casters,
two swivel with brake, and two rigid.
Job:
Item:
Quantity:
GUARANTEE:
• Lifetime Guarantee against rust and corrosion.
• Five-Year Guarantee against workmanship and
material defects.
Model Size Weight Ship
No. D-H-L Capacity Lbs.
1201 20” x 8¼” x 25¾” 1000 lbs. 17
1211 20” x 8¼” x 31¾” 1000 lbs. 19
1202 20” x 8¼” x 37¾” 1000 lbs. 19
1200 20” x 8¼” x 43¾” 1000 lbs. 21
1203 20” x 8¼” x 49¾” 1000 lbs. 22
1212 20” x 8¼” x 61¾” 1000 lbs. 24
1208 Handle
1213 24” x 8¼” x 25¾” 1000 lbs. 20
1214 24” x 8¼” x 31¾” 1000 lbs. 19
1204 24” x 8¼” x 37¾” 1000 lbs. 20
1205 24” x 8¼” x 43¾” 1000 lbs. 21
1206 24” x 8¼” x 49¾” 1000 lbs. 22
1207 24” x 8¼” x 61¾” 1000 lbs. 25
1174 Handle
Four 5” plate type casters:
2- swivel w/ brake (#C455) • 2- rigid (#C460)
(for 20” W Units Above)
(for 24” W Units Above)
n/a 4
n/a 4
#1203
w/ #1208 Optional Handle
NSF
®
OPTIONS:
Heavy Duty Casters -Add “HD6” suffi x to model #.
Four 6” plate type casters–
(2) swivel w/ brake (#C495) • (2) rigid (#C500).
All Swivel Casters -Add “SW” suffi x to model #.
This information is for general sales and engineering use
only. New Age Industrial reserves the right to modify or
make changes at any time without notice to materials and
specifi cations.
