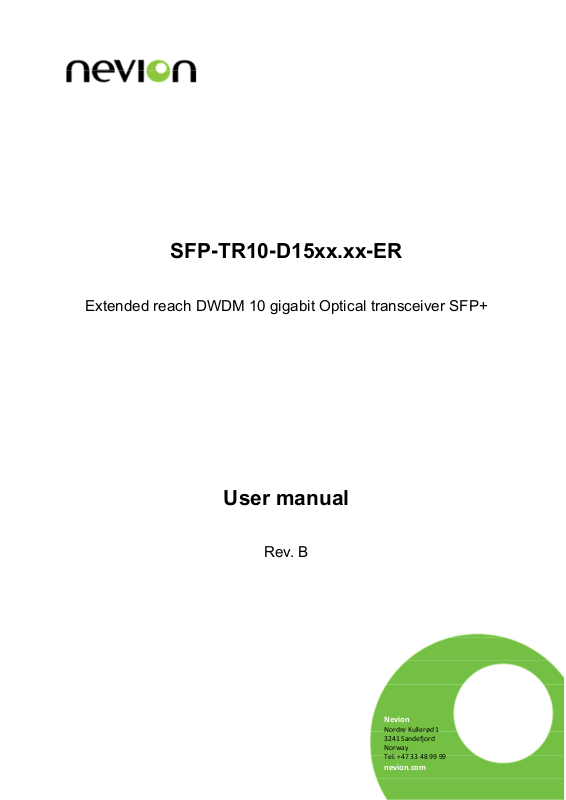

SFP-TR10-D15xx.xx-ER
Extended reach DW DM 10 gigabit Optical tra n s c e iv e r SFP+
User manual
Rev. B
Nevion
Nordre Kullerød 1
3241 Sandefjord
Norway
Tel: +47 33 48 99 99
nevion.com
23045 SFP-TR10-D15xx.xx-ER Rev. B
Rev.
Repl.
Date
Sign
Change
description
Nevion Support
Nevion Europe
P.O. Box 1020
3204 Sandefjord, Norway
Support phone 1: +47 33 48 99 97
Support phone 2: +47 90 60 99 99
E-mail: support@nevion.com
See http://www.nevion.com/support/ for service hours for customer support globally.
Toll free North America: (866) 515-0811
Outside North America: +1 (805) 247-8560
Nevion USA
1600 Emerson Avenue
Oxnard, CA 93033, USA
Revision history
Current revision of this document is the uppermost in the table below.
B A 2015-05-15 OEH Correct optical output power
A - 2014-10-16 AD Initial revision.
nevion.com | 2
23045 SFP-TR10-D15xx.xx-ER Rev. B
Contents
Revision history ........................................................................................................ 2
1 Product overview ................................................................................................... 4
2 Specifications ........................................................................................................ 5
3 Available DWDM wavelengths .............................................................................. 6
General environmental requirements for Nevion equipment .................................... 7
Product Warranty...................................................................................................... 8
Appendix A Materials declaration and recycling information .................................... 9
A.1 Materials declaration ..................................................................................................... 9
A.2 Recycling information .................................................................................................... 9
nevion.com | 3
23045 SFP-TR10-D15xx.xx-ER Rev. B
1 Product overview
SFP-TR10-D15xx.xx-ER is a 10 gigabit SFP+ transceiver that consist of an optical
transmitter and an optical receiver. They are available with 40 DWDM wavelengths at
100MHz spacing enabling transport o f 40 signals over one single-mode fiber and are well
suited for mid/long haul applications.
The SFP+’s have the ability to report information such as wavelength, signal presence,
received signal level, launch power and internal temperature. This information is available
in some of Nevion’s SFP+ based products presented through their respective element
management system.
SFP-TR10-D15xx.xx-ER
nevion.com | 4
23045 SFP-TR10-D15xx.xx-ER Rev. B
2 Specifications
Power < 2W, DWDM
Size SFP+ compliant, dimensions defined by the SFP+
Multi-Sourcing Agreement (MSA).
Control Multicon Gyda control and status
Operating case temperature 0 to +70 °C
Supported standards
Ethernet 10GBASE-ZR/ZW
Fiber Channel 1200-SM-LL-L 10G
SONET OC-192
SDH STM S-64
ITU-T G.709
Optical input
Connector LC/UPC single mode
Wavelength 1520nm to 1600nm
Optical budget 14dB
Sensitivity -15dBm
Overload -8dBm
Optical output
Connector LC/UPC single mode
Center wavelength spacing 100 GHz (0.8nm)
Extinction ratio min 9dB
Power -1 to +4dBm
nevion.com | 5
23045 SFP-TR10-D15xx.xx-ER Rev. B
3 Available D W D M w avelengths
nevion.com | 6
23045 SFP-TR10-D15xx.xx-ER Rev. B
General environmental requirements for Nevion equipment
1. The equipment will meet the guaranteed performance specification under the following
environmental conditions:
- Operating room temperature range: 0°C to 70°C
- Operating relative humidity range: <95% (non-condensing)
2. The equipment will operate without damage under the following environmental
conditions:
- Temperature range: -20°C to 85°C
- Relative humidity range: <95% (non-condensing)
nevion.com | 7
23045 SFP-TR10-D15xx.xx-ER Rev. B
Product Warranty
The warranty terms and conditions for the product(s) covered by this manual follow the
General Sales Conditions by Nevion, which are available on the company web site:
www.nevion.com
nevion.com | 8
23045 SFP-TR10-D15xx.xx-ER Rev. B
Hexavalent
Polybrominated
Appendix A Materials declaration and recycling
in fo r m a tio n
A.1 Materials declaration
For product sold into China afte r 1st March 2007, we comply with the “Administrative
Measure on the Control of Pollution by Electronic Information Products”. In the first stage of
this legislation, content of six hazardous materials has to be declared. The table below
shows the required information.
Toxic or hazardous substances and elements
組成名稱
Part Name
SFP-TR10-D15xx.xx-ER
O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is
below the limit requirement in SJ/T11363-2006.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used
for this part is above the limit requirement in SJ/T11363-2006.
鉛
Lead
(Pb)
O O O O O O
汞
Mercury
(Hg)
镉
Cadmium
(Cd)
六价铬
Chromium
(Cr(VI))
多溴联苯
biphenyls
(PBB)
多溴二苯醚
Polybrominated
diphenyl ethers
(PBDE)
This is indicated by the product marking:
A.2 Recycling information
Nevion provides assistance to customers and recyclers through our web site
http://www.nevion.com/. Please contact Nevion’s Customer Support for assistance with
recycling if this site does not show the information you require.
Where it is not possible to return the product to Nevion or its agents for recycling, the
following general information may be of assistance:
- Before attempting disassembly, ensure the product is completely disconnected from
power and signal connections.
- All major parts are marked or labeled to show their material content.
- Depending on the date of manufacture, this product may contain lead in solder.
- Some circuit boards may contain battery-backed memory devices.
nevion.com | 9
