DA-SDI
SDI Distribution Amplifier
User manual
Rev. H
Nevion
Nordre Kullerød 1
3241 Sandefjord
Norway
Tel: +47 33 48 99 99
nevion.com
DA-SDI Rev. H
Nevion Europe
P.O. Box 1020
3204 Sandefjord, Norway
Support phone 1: +47 33 48 99 97
Support phone 2: +47 90 60 99 99
Nevion USA
1600 Emerson Avenue
Oxnard, CA 93033, USA
Toll free North America: (866) 515-0811
Outside North America: +1 (805) 247-
8560
E-mail: support@nevion.com
See http://www.nevion.com/support/ for service hours for customer support globally.
Rev.
Repl.
Date
Sign
Change description
H 7 2015-05-14
MB
Cover page update; DoC removed; no other
changes to content
7 6 2011-02-24
AA
New template.
Updated Materials Declaration and Declaration
of Conformity,
6 5 2008-07-22
AS
Added Declaration of Conformity
5 4 2007-10-25
AS
New front page.
4 3 2007-10-05
AS
Added Materials Declaration and EFUP
3 2 2007-01-24
SHH
Updated manual to DA-SDI-mkII design with 8
outputs.
2 1 2004-02-12
Added info about termination.
1 0 2003-04-25
Corrected printing errors
0 B 2003-04-23
First release
B A 2003-04-07
Preliminary version 2
A - 2003-04-03
Preliminary version
Nevion Support
Revision history
Current revision of this document is the uppermost in the table below.
nevion.com | 2
DA-SDI Rev. H
Contents
Revision history ...................................................................................................................... 2
1 Product overview ................................................................................................................. 4
2 Specifications ................................................................................................ ...................... 5
3 Format configuration ........................................................................................................... 6
3.1 Configuration Examples ................................................................................................... 7
4 Connector module ............................................................................................................... 8
4.1 Mounting the connector module ....................................................................................... 9
5 Module status .................................................................................................................... 10
5.1 GPI ALARM – Module Status Outputs ............................................................................ 10
5.2 Front Panel - Status Monitoring ...................................................................................... 11
General environmental requirements for Nevion equipment ................................................. 12
Product Warranty ................................................................................................................. 13
Appendix A Materials declaration and recycling information ................................................. 14
A.1 Materials declaration ...................................................................................................... 14
A.2 Recycling information ..................................................................................................... 14
nevion.com | 3
DA-SDI Rev. H
1 Product overview
The Flashlink DA-SDI is a serial digital video distribution amplifier module providing
high performance media distribution for various signal formats from 1Mbps up to
540Mbps. The unit can be configured to do cable equalising and reclocking of SMPTE
259M and DVB-ASI signal formats.
The input typically provides an automatic cable equaliser for up to 300 metres of cable
(Belden 8281A at 270Mbps) with 8 re-clocked outputs. The re-clocker supports the bitrates; 143, 177, 270, 360 and 540Mbps. For other rates, the re-clocker automatically
switches to bypass mode, and the DA-SDI will work as a non-reclocking distribution
amplifier with cable equaliser. The DA-SDI also has a special DVB-ASI mode, enabling
all possible rates including empty transport streams with only K28.5 padding packets.
Outputs 1-6 are non-inverting to support DVB-ASI compatibility. Outputs 7 and 8 are
inverting.
The DA-SDI is designed for all distribution purposes in studio, duplication and
Broadcast applications.
Figure 1: DA-SDI Serial Digital Video Distribution Amplifier
nevion.com | 4
DA-SDI Rev. H
Data rate NRZ:
1 to 540 Mbps
Equalisation:
Automatic
Cable equaliser and reclocker can be bypassed to support
bitrates down to 1Mbps.
Impedance:
75 ohm
Return loss:
>15dB @ 540MHz
Signal level:
nom. 800mV
approx. 200mV min. when equaliser switched to Bypass
Connector:
BNC
Number of outputs:
8 (6)
Connector:
BNC
Impedance:
75 ohm
Return loss:
>15dB @ 540MHz
Jitter:
max 0.2UI
Peak to peak signal
level:
0.8V ± 0.1V
Signal polarity
6 non inverting, 2 inverting
Re-clocking:
Automatic clock rate detection
Selectable loop bandwidth
Low: 500kHz
High: 1MHz
Supported clock rates: 143, 177, 270, 360 and 540 Mbps
Input equaliser:
EQ bypass for non-video formats or low bit rates
Power:
+5V DC / 3W Max.
Control:
Control system for access to setup and module status with
BITE (Built-In Test Equipment) for use with GYDA Control
System.
SMPTE:
SMPTE259M, SMPTE297M, SMPTE305M, SMPTE310M
DVB-ASI:
EN50083-9
AES:
AES-3id (with EQ and RCL switched off)
2 Specifications
Electrical Input
Electrical Output
Features
Electrical
Supported standards
nevion.com | 5
DA-SDI Rev. H
Switch #
Label
Function DIP=OFF
Function DIP=ON
Comment
1
ARB
Output muted when
reclocker not in lock
Automatic Reclocker
Bypass. Output never
muted
Output mute
2
EQM
Equaliser forced not to
mute
Automatic muting of
equaliser when signal
strength is too low
Input mute
3
RCL
Reclocker Bypass
Reclocker ON
Reclocker
mode
4
EQ
Cable equaliser
Bypass
Cable equaliser ON
Equaliser mode
5
ASI
SDI 177Mbps
Reclocker support
DVB-ASI Reclocker
support
ASI mode
6
SLL
NA
NA
NA
7
BWL
Reclocker loopbandwidth high. (apx.
1MHz)
Reclocker loopbandwidth low. (apx.
500kHz)
Loop bandwidth
select
8
OVR
GYDA control Config.
with GYDA
Override GYDA control
Config. with DIP switch
Select GYDA
config. mode
3 Format configuration
The DA-SDI can support a number of different formats. The correct configuration can
either be set with a DIP switch or with the GYDA Control System. The layout of DA-SDI
is shown in the drawing below with the DIP switch to the upper left position.
Figure 2: DA-SDI board layout.
DIP switch configuration must be set according to the table below:
When the default setting is selected, all clock rates for SDI and DVB-ASI are
automatically configured by the module itself.
nevion.com | 6
All DIP switches are off when pointing towards the release handle.
DA-SDI Rev. H
3.1 Configuration Examples
Typical configurations for DA-SDI:
Figure 3: Default; SDI and DVB-ASI
Figure 4: Transparent Mode with equalisation and no reclocking.
Figure 5: AES3id compatible and Transparent Mode without equalisation and reclocking.
nevion.com | 7
DA-SDI Rev. H
4 Connector module
The DA-SDI has two dedicated connector modules: DA-SDI-C1 and DA-SDI-C2. These
modules are mounted at the rear of the sub-rack. The modules are shown in Figure 6
and Figure 7.
Figure 6: Overview of the DA-SDI-C1 connector module.
On DA-SDI-C1 the electrical input signal is connected to the IN BNC and the electrical
outputs are connected to the O1 to O6 BNC’s. Please note that all 6 outputs are noninverted and suitable for DVB-ASI.
Unused outputs should be terminated with 75 ohm.
DA-SDI-C1 also has GPI ALARM outputs on a RJ45 connector.
nevion.com | 8
DA-SDI Rev. H
On DA-SDI-C2 the electrical input signal is connected to the IN BNC and the electrical
outputs are connected to the O1 to O8 BNC’s. Please note that outputs 1 to 6 are noninverted and suitable for DVB-ASI, while outputs 7 and 8 are inverting and cannot be
used for DVB-ASI.
Figure 7: Overview of the DA-SDI-C2 connector module.
Unused outputs should be terminated with 75 ohm.
DA-SDI-C2 does not have any GPI alarm outputs.
4.1 Mounting the connector module
The details of how the connector module is mounted, is found in the user manual for
the sub-rack frame FR-2RU-10-2.
This manual is also available from our web site: http://www.nevion.com/
nevion.com | 9
DA-SDI Rev. H
Signal
Name
Pin #
Mode
Status
General error status for the module.
Pin 1
Open Collector
Rate
Rate SD
Pin 2
Open Collector
LOS
Los Of Signal
Pin 3
Open Collector
LOCK
Reclocker in Lock
Pin 4
Open Collector
Ground
0 volt pin
Pin 8
0V.
5 Module status
The status of the module can be monitored in three ways.
1. GYDA System Controller (optional).
2. GPI at the rear of the sub-rack.
3. LED’s at the front of the sub-rack.
Of these three, the GPI and the LED’s are mounted on the module itself, whereas the
GYDA System Controller is a separate module giving detailed information on the card
status. The functions of the GPI and the LED’s are described in sections 5.1 and 5.2.
The GYDA controller is described in a separate user manual.
5.1 GPI ALARM – Module Status Outputs
These outputs can be used for wiring up alarms for third party control systems. The
GPI outputs are open collector outputs, sinking to ground when an alarm is triggered.
The GPI connector is shown in Figure 8.
Electrical Maximums for GPI outputs
Max current: 100mA
Max voltage: 30V
DA-SDI module GPI pinning (Only supported by DA-SDI-C1 backplane):
Figure 8: GPI Outlet
nevion.com | 10
DA-SDI Rev. H
Diode\state
Red LED
Yellow LED
Green LED
No light
Status
Module is faulty
Module is OK
Module power is
OK
Module
has no
power
Rate
Rate not
detected
SD rate, non
270Mbps, found
SD 270Mbps rate
found
LOS
Loss of signal
No input signal.
LOS detection
de-activated
(EQM=off)
Input signal
present
LOCK
Re-clocker is out
of lock
Re-clocker
switched off
Re-clocker is in
lock on a
supported signal
format
5.2 Front Panel - Status Monitoring
The status of the module can be easily monitored visually by the LED’s at the front of
the module. The LED’s are visible through the front panel as shown in Figure 9 below.
(Text not printed on the front panel).

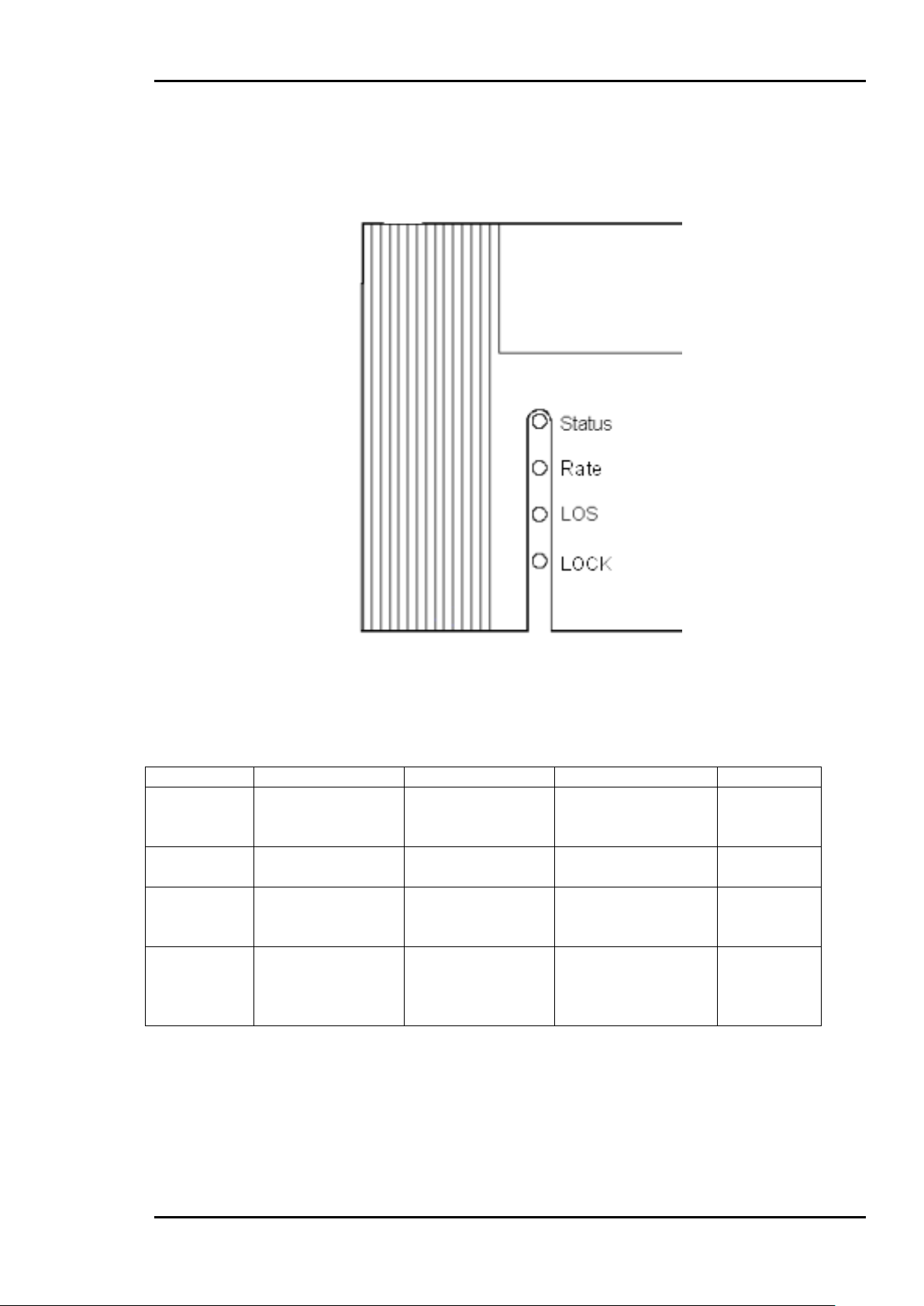

Figure 9: Front panel indicator overview for DA-SDI.
The DA-SDI has 4 LED’s each showing a status corresponding to the GPI pinning. The
position of the different LED’s is shown in Figure 9.
nevion.com | 11
DA-SDI Rev. H
1.
The equipment will meet the guaranteed performance specification under the
following environmental conditions:
-
Operating room temperature
range:
0°C to 40°C
-
Operating relative humidity range:
<90% (non-condensing)
2.
The equipment will operate without damage under the following environmental
conditions:
-
Temperature range:
-10°C to 50°C
-
Relative humidity range:
<95% (non-condensing)
General environmental requirements for Nevion equipment
nevion.com | 12
DA-SDI Rev. H
Product Warranty
The warranty terms and conditions for the product(s) covered by this manual follow the
General Sales Conditions by Nevion, which are available on the company web site:
www.nevion.com
nevion.com | 13
DA-SDI Rev. H
組成名稱
Part Name
Toxic or hazardous substances and elements
鉛
Lead
(Pb)
汞
Mercury
(Hg)
镉
Cadmium
(Cd)
六价铬
Hexavalent
Chromium
(Cr(VI))
多溴联苯
Polybrominated
biphenyls
(PBB)
多溴二苯醚
Polybrominated
diphenyl ethers
(PBDE)
DA-SDI O O O O O O
O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is
below the limit requirement in SJ/T11363-2006.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used
for this part is above the limit requirement in SJ/T11363-2006.
Appendix A Materials declaration and recycling
information
A.1 Materials declaration
For product sold into China after 1st March 2007, we comply with the “Administrative
Measure on the Control of Pollution by Electronic Information Products”. In the first
stage of this legislation, content of six hazardous materials has to be declared. The
table below shows the required information.
This is indicated by the product marking:
A.2 Recycling information
Nevion provides assistance to customers and recyclers through our web site
http://www.nevion.com/. Please contact Nevion’s Customer Support for assistance with
recycling if this site does not show the information you require.
Where it is not possible to return the product to Nevion or its agents for recycling, the
following general information may be of assistance:
Before attempting disassembly, ensure the product is completely disconnected
from power and signal connections.
All major parts are marked or labeled to show their material content.
Depending on the date of manufacture, this product may contain lead in solder.
Some circuit boards may contain battery-backed memory devices.
nevion.com | 14
Loading...
