INSPIRE TRI-CHORUS PLUS

INSPIRE TRI-CHORUS PLUS

USER GUIDE

Thank you for purchasing our product. We really mean it.
We hope to earn your trust by delivering a quality product
that inspires you to make great music.

Neunaber products are designed and manufactured in
Orange, California USA.

Please visit www.neunaber.net for more information and support.

PEDAL MAP

CONNECTIONS

We recommend that Inspire be placed after your preamp or drive pedals but
before any delay-based eects (echo, reverb). If you are using the overdrive
channel of your amplifier, the best result will be achieved by placing this eect in
the eects loop.

The POWER JACK accepts a standard (5.5 mm OD x 2.1 mm ID) center-negative
pedal power adapter (not included). The power adapter must be between 9 V and
12 V and capable of supplying at least 100 mA.

Inspire monitors the voltage from your power adapter and will notify you if:

• The voltage is too low, the LED blinks twice per second. Bypass will be enabled
to prevent any unwanted behavior due to insucient voltage.

• The voltage is too high, the LED blinks five times per second. The voltage will be
internally limited to protect the pedal.

The FOOT SWITCH bypasses the eect. The LED lights when the eect is active.
Bypassing the eect does not turn o power to the pedal.

Inspire implements relay bypassing (i.e., “true bypass”). This is the most appropri­ate type of bypass for this eect in most cases.

The input and output connections are independent. You may—for example—use a
mono input with stereo outputs or stereo inputs with a stereo TRS output.

The INPUT JACKS (right side) accept inputs directly from your instrument,
amplifier eects loop output, or other eect pedals via standard 1/4” (6.35 mm)
phone connectors.

• Input 1 only accepts a mono input.

• Both Inputs 1 & 2 accept a stereo input.

• Input 2 only accepts a stereo TRS input.

Important: Inputs 1 and 2 should not be used with two discrete signals, such as
two dierent instruments.

The OUTPUT JACKS (left side) supply output to another eect pedal, an amplifier,
or eects loop return via standard 1/4” (6.35 mm) phone connectors.

• Output 1 only supplies a summed mono output.

• Both Outputs 1 & 2 supply a stereo output. Using both outputs creates

a stereo signal from a mono input.

• Output 2 only supplies a stereo TRS output.

EFFECTS

TRI

The classic tri-chorus eect.

adjusts the eect

mix from 100% dry to

100% wet

controls the

modulation rate from

0.5 to 6 cycles per
second

adjusts the pitch depth

controls the frequency
response of the eect
only (wet signal)

HEX

Two tri-chorus eects are paralleled for an ultra-dense eect.

adjusts the eect

mix from 100% dry to

100% wet

controls the

modulation rate from

0.5 to 6 cycles per
second

adjusts the pitch depth

controls the frequency
response of the eect
only (wet signal)

CASCADE TONE

Two tri-chorus eects in series create a rich, lush eect.

adjusts the eect

mix from 100% dry to

100% wet

controls the

modulation rate from

0.5 to 6 cycles per
second

adjusts the pitch depth

controls the frequency
response of the eect
only (wet signal)

CASCADE VIBE

A tri-chorus and a tri-vibrato in series makes for a complex sound.

adjusts the eect

mix from 100% dry to

100% wet

controls the

modulation rate from

0.5 to 6 cycles per
second

adjusts the pitch depth

controls the vibrato rate

HARMONIC VIBE

Low-frequency tri-chorus and high-frequency tri-vibrato—more subtle than Cas­cade Vibe, this eect works well with overdrive.

adjusts the eect

mix from 100% dry to

100% wet

controls the

modulation rate from

0.5 to 6 cycles per
second

adjusts the pitch depth

controls the vibrato rate

HARMONIC DETUNE

Low-frequency detune and high-frequency tri-chorus is even more subtle and
sounds great with heavy overdrive.

adjusts the eect

mix from 100% dry to

100% wet

controls the

modulation rate from

0.5 to 6 cycles per
second

adjusts the pitch depth

controls the pitch oset,
from 0 to -20 cents

+DETUNE

Tri-chorus plus detune—for the ultimate in lush 80’s chorus tones.

adjusts the eect

mix from 100% dry to

100% wet

controls the

modulation rate from

0.5 to 6 cycles per
second

adjusts the pitch depth

controls the pitch oset,
from 0 to -20 cents

+ECHO

Tri-chorus plus stereo echo is a classic combo.

adjusts the eect

mix from 100% dry to

100% wet

controls the

modulation rate from

0.5 to 6 cycles per
second

adjusts the echo repeats

controls the echo time,
from 50 to 1000 ms

SPECIFICATIONS

Electrical

Nominal input level -10 dBV, instrument level

Max input level 6.7 dBV

Input impedance 1 MΩ (mono), 2 MΩ (stereo)

Output impedance 500 Ω (mono), 1 kΩ (stereo)

Gain, enabled vs. bypass 0 dB (mix @ 0)

Frequency response 20 Hz—20 kHz, +0.1 dB, -0.5 dB

(dry signal or bypassed)

Total harmonic distortion < 0.002% typical (dry signal or bypassed,

22 Hz—22 kHz, 1.0 Vrms, 1 kHz)

Signal-to-noise ratio 106 dB mono, 103 dB stereo (A-weighted),

22 Hz—22 kHz, mix @ 50%

Power

Power adapter input 9-12 V DC, 95 mA

plug: center-negative, 5.5 mm OD x 2.1 mm ID

Physical

Dimensions 2.9” W, 4.6” L, 2.0” H / 73 mm W, 117 mm L, 51 mm H

Weight 8.84 oz / 251 g

*Specifications subject to change without notice.

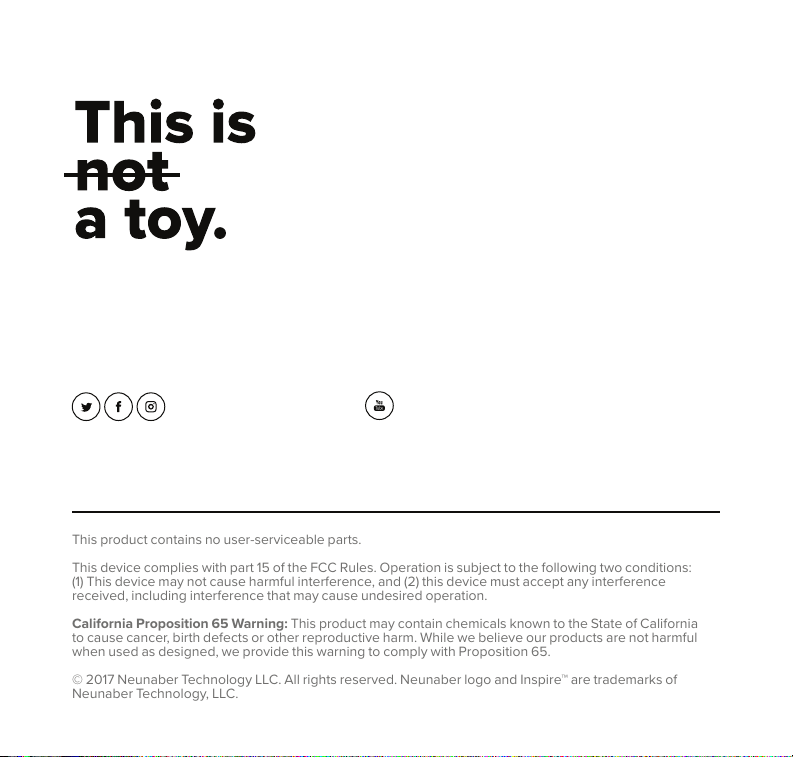

This product contains no user-serviceable parts.
