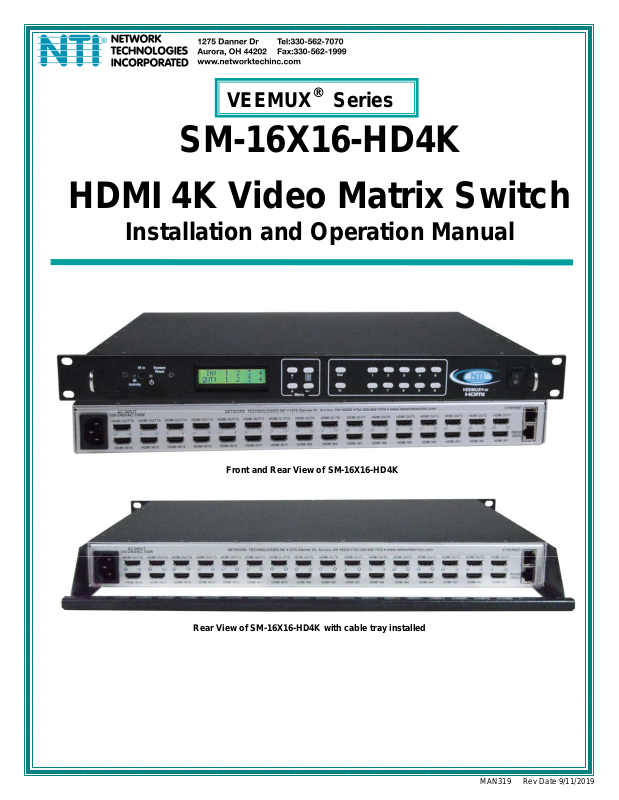

Rear View of SM-16X16-HD4K with cable tray installed

Front and Rear View of SM-16X16-HD4K

MAN319 Rev Date 9/11/2019

Page 2

TRADEMARK

VEEMUX is a registered trademark of Network Technologies Inc in the U.S. and other countries.

COPYRIGHT

Copyright © 2010, 2019 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.

CHANGES

The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the right to make changes in the product design without reservation and without notification to its users.

FIRMWARE VERSION

Current Firmware version 1.0

Page 3

TABLE OF CONTENTS

Introduction....................................................................................................................................................................1

Supported Web Browsers............................................................................................................................................1

Materials.........................................................................................................................................................................2

Features and Functions................................................................................................................................................3

Installation......................................................................................................................................................................4

To Mount to a Rack .....................................................................................................................................................4

Make All Connections..................................................................................................................................................5

Operating the VEEMUX.................................................................................................................................................8

Front Panel LCD with Keypad Control.........................................................................................................................8

LCD Menus............................................................................................................................................................9

Save and Load (Recall) Config............................................................................................................................10

RS232 Control..............................................................................................................................................................11

Baud Rate............................................................................................................................................................11

Command Protocol....................................................................................................................................................12

Autostatus............................................................................................................................................................13

NTI Switch Control Program For Windows 9X, NT, 2000, XP, Vista, 7, 8 and 10 ...................................................13

SerTest- RS232 Interface Test Program...................................................................................................................14

Main Options...........................................................................................................................................................14

Matrix Operations....................................................................................................................................................14

Ethernet Operations................................................................................................................................................14

Setup Options.........................................................................................................................................................15

Ethernet Control..........................................................................................................................................................16

Telnet Interface-Port 2000.........................................................................................................................................16

Telnet Interface-Port 2005.........................................................................................................................................18

Command Summary...............................................................................................................................................18

Command Detail.....................................................................................................................................................19

RU-Read Unit Size..............................................................................................................................................19

RO-Read Connection for Output Port .................................................................................................................19

CS- Connect Output Port to Input Port................................................................................................................19

CA- Connect All Output Ports to Input Port.........................................................................................................19

SS_01- Enable Auto Status Mode.......................................................................................................................20

SS_00- Disable Auto Status Mode......................................................................................................................20

SX- Examine connections ...................................................................................................................................20

Terminate telnet session .....................................................................................................................................21

Web Interface ............................................................................................................................................................22

Enter the Password ................................................................................................................................................22

Main Menu.................................................................................................................................................................23

Video Switch Page..................................................................................................................................................24

Administration.........................................................................................................................................................25

System Configuration..........................................................................................................................................25

Network Configuration.........................................................................................................................................26

Video Input Names..............................................................................................................................................27

Video Output Names...........................................................................................................................................28

Scanning Sequences...........................................................................................................................................29

User Config..........................................................................................................................................................31

DDC Options........................................................................................................................................................32

DDC Mix ..............................................................................................................................................................34

Update Firmware.................................................................................................................................................35

Standby Mode .....................................................................................................................................................36

Logout..................................................................................................................................................................36

Support................................................................................................................................................................37

Reboot.................................................................................................................................................................37

Device Discovery Tool................................................................................................................................................38

Infrared Remote Control.............................................................................................................................................39

Materials ....................................................................................................................................................................39

Buttons.......................................................................................................................................................................40

Operation...................................................................................................................................................................41

Changing Ports.......................................................................................................................................................41

Page 4

Channel Surfing...................................................................................................................................................41

Jump To Input......................................................................................................................................................42

Jump To Output...................................................................................................................................................42

Connect All ..........................................................................................................................................................42

Save and Recall......................................................................................................................................................43

Multiple Switch Control...........................................................................................................................................43

Canceling a Command...........................................................................................................................................43

Technical Specifications For IRT-UNV......................................................................................................................44

Troubleshooting the IRT-UNV ...................................................................................................................................44

Troubleshooting the VEEMUX...................................................................................................................................44

General Technical Specifications..............................................................................................................................45

Index.............................................................................................................................................................................45

Warranty Information..................................................................................................................................................45

Figure 1- Secure switch to a rack ......................................................................................................................................................4

Figure 2- Connect video sources to VEEMUX...................................................................................................................................5

Figure 3- Connect display devices to VEEMUX.................................................................................................................................5

Figure 4- Connect RS232 control terminal to VEEMUX.....................................................................................................................6

Figure 5- Connect VEEMUX to local area network............................................................................................................................6

Figure 6- Attach AC power cord to VEEMUX.....................................................................................................................................7

Figure 7- Web interface Login page................................................................................................................................................22

Figure 8- Administrator Menu ..........................................................................................................................................................23

Figure 9- Main menu and Video Switch page..................................................................................................................................23

Figure 10- System Configuration page ............................................................................................................................................25

Figure 11- Network Configuration page...........................................................................................................................................26

Figure 12- Video Input Names page................................................................................................................................................27

Figure 13- Video Output Names page.............................................................................................................................................28

Figure 14- Scanning Sequence page ..............................................................................................................................................29

Figure 15- Users page.....................................................................................................................................................................31

Figure 16- User configuration page .................................................................................................................................................31

Figure 17- DDC Options page .........................................................................................................................................................32

Figure 18- DDC Mix page................................................................................................................................................................34

Figure 19- Update Firmware page...................................................................................................................................................35

Figure 20- VEEMUX in Standby Mode.............................................................................................................................................36

Figure 21- Logout of the VEEMUX web interface............................................................................................................................36

Figure 22- Support Tab....................................................................................................................................................................37

Figure 23- System Reboot...............................................................................................................................................................37

Figure 24- Device Discovery Tool page...........................................................................................................................................38

TABLE OF FIGURES

iii

Page 5

NTI VEEMUX HDMI 4K VIDEO MATRIX SWITCH

INTRODUCTION

The VEEMUX HDMI 4K Video Matrix switch (VEEMUX) provides non-blocking access to 16 4k x 2k video sources from 16 displays. Locate computers up to 20 feet away from 4K @ 60Hz displays or 50 feet from 1080p @ 60Hz displays, enabling easy access to multiple servers in various locations. Cables longer than 50 feet can be used for 1080p displays provided they have the built-in digital video equalizer (also known as an "active HDMI cable").

Application Note: Greater distances can be achieved using an ST-C64K-300 Video Extender supporting up to 4K@ 30hz. The ST-C64K-300 does not support HDMI2.0 and HDCP2.2. Be sure the video source connected is providing a 4K@30Hz signal for the ST-C64K-300 extender to work.

Features:

 Configure and control the switch through serial port, front panel buttons, web interface, or optional infrared control.

 Supports HDMI interface for crisp and clear video quality on flat panel displays.

 Supports HDMI operation up to 18 Gb/second

 Resolutions to 3840x2160 (UHD), and 4096x2160 (4K) @ 60Hz / RGB/YCBCR 4:4:4.

o Supports up to 12 bits deep color. o Supports 4:4:4, 4:2:2 and 4:2:0 pixel encoding.

 EDID learning for the support of any HDMI display device.

 Built in default EDID configuration tables for 1080p and 4K resolution.

 Each output provides one video signal.

 Each input can be independently connected to any or all outputs.

 Up to 16 users (including “root”) can be configured to control the VEEMUX from the Web Interface

 HDMI 1.4 and 2.0 compatible.

 HDCP 1.4 and 2.2 support.

 Passes embedded audio.

Supported Web Browsers

Most modern web browsers should be supported. The following browsers have been te sted:

 Microsoft Internet Explorer 6.0 or higher  Netscape 7.0 or higher  Mozilla FireFox 40 or higher  Google Chrome 9.0.5 or higher  Apple Safari 5.0.3 or higher  Opera 11.0 or higher

Set your browser to always check if there is a newer version of the page than the version stored in cache. This action will ensure that it will display the most up-to-date information.

Page 6

NTI VEEMUX HDMI 4K VIDEO MATRIX SWITCH

MATERIALS

Materials supplied with this kit:

 NTI SM-16X16-HD4K HDMI 4K Video Matrix Switch  Power Cord- country specific  CT6182 DB9 Female-to-RJ45 Female adapter  CB4352- 5 foot CAT5 patch cable  4pcs #10-32 x 3/4" pan head screws and #10-32 cage nuts (server cabinet mounting hardwar e)  36 pcs zip ties

Materials Not supplied but REQUIRED:

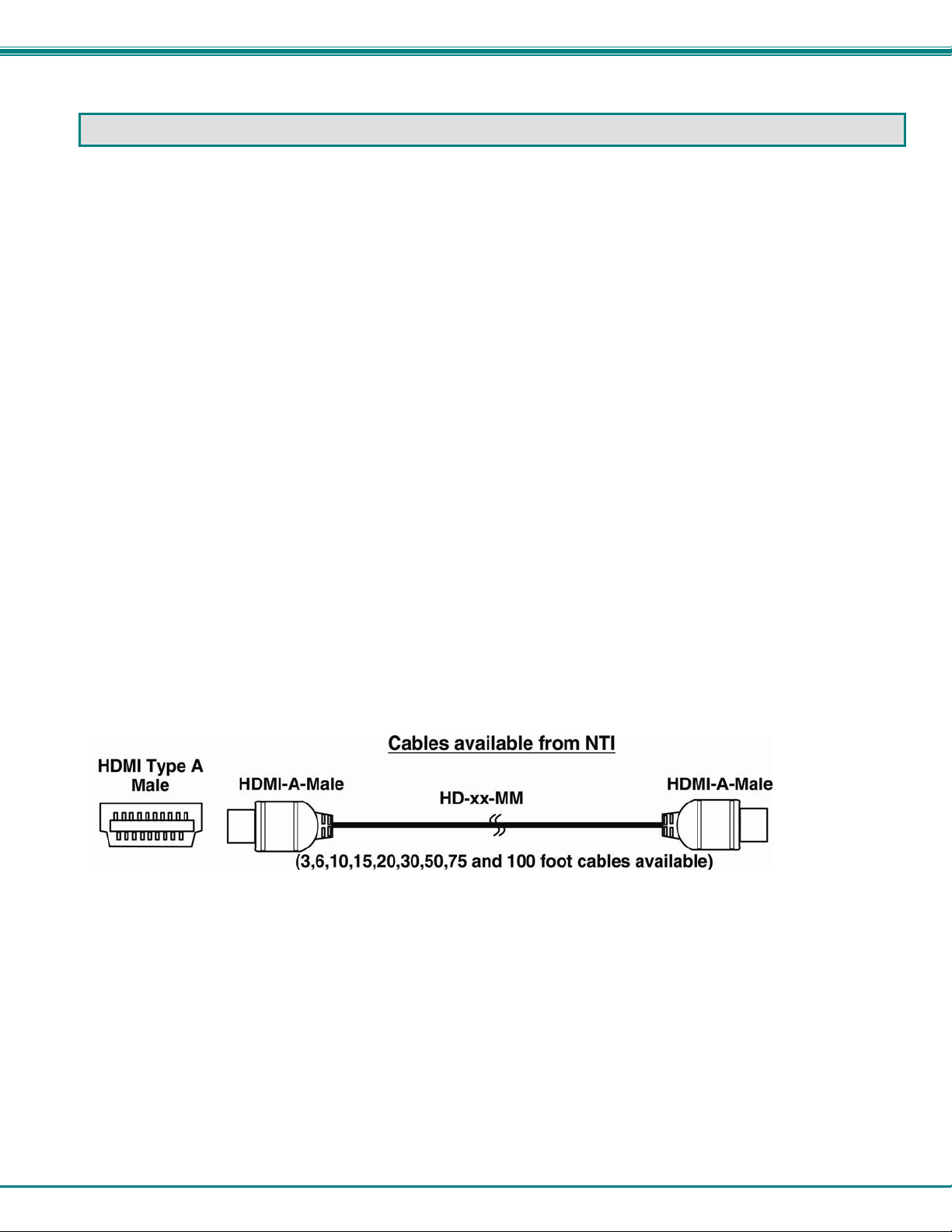

 HD-xx-MM cable for each 4K monitor being connected to the switch and for each PC being connected- available in 3, 6,10,

15,20,30,50,75 and 100 foot lengths

where: xx is the length of the cable in feet MM indicates male-to-male connector

Note:

 HD-3/6/10/15/20-MM supports resolutions to 4Kx2K.

 HD-30/50/75/100-MM supports resolutions to 1080p.

o HD-75/100-MM have a built-in digital video equalizer for extending HD signals up to 1080p at 60Hz. These

cables are directional, with one plug end marked for the display.

Page 7

NTI VEEMUX HDMI 4K VIDEO MATRIX SWITCH

FEATURES AND FUNCTIONS

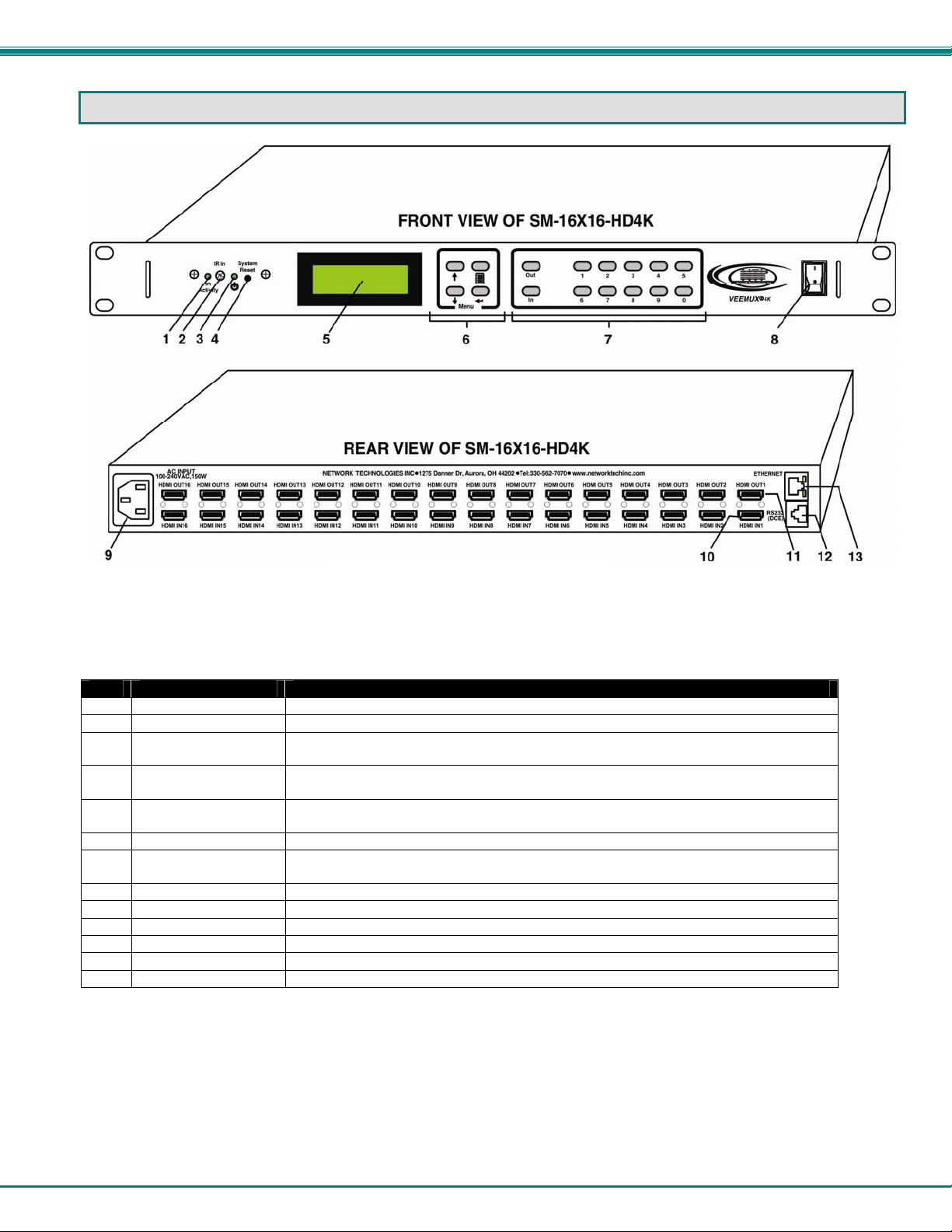

Item Type Description

IR LED

IR Receiver

Power/Standby LED

System Reset button

LCD Display

Menu buttons

Out and In buttons

Power Switch

IEC Connector

HDMI Female

RJ45 Female

(Rear view shown without cable tray)

For indicating when an infrared signal is being received from the IR remote control this receives the IR signal from the infrared remote control (IRT-UNV sold separately) Indicates when the VEEMUX is either ready for user interface (green) or in standby mode (red) press this button to cycle the VEEMUX processor and reboot the system

indicates what inputs (video sources) are connected to the labeled output (display device Used to control LCD menu navigation Used to select which outputs (display devices) to connect to which inputs (video sources) when pressed To control the ON/OFF function of the switch For attachment of country-specific power cord For connecting to HDMI video sources For connection of HDMI display devices RS232 (DCE) connection for attachment of RS232 control cable For connection of CATx cable to Local Area Network (LAN) for WEB interface

Page 8

NTI VEEMUX HDMI 4K VIDEO MATRIX SWITCH

INSTALLATION

This NTI switch was designed to be mounted to a rack. It includes rack mount flanges to make attachment to a rack easy and a cable tray to easily secure attached cables to prevent disconnection.

To Mount to a Rack

1. Install 4 cage nuts (supplied) to the rack in locations that line up with the holes in the mounting flanges on the NTI switch.

2. Secure the NTI switch to the rack using four #10-32X3/4” screws (supplied). Each screw should be of sufficient length to go completely through the NTI mounting flange, rack frame and fully engage all threads in the cage nut. Be sure to tighten all mounting screws securely.

3. Attach all cables securely to the switch and where necessary supply adequate means of strain relief for cables.

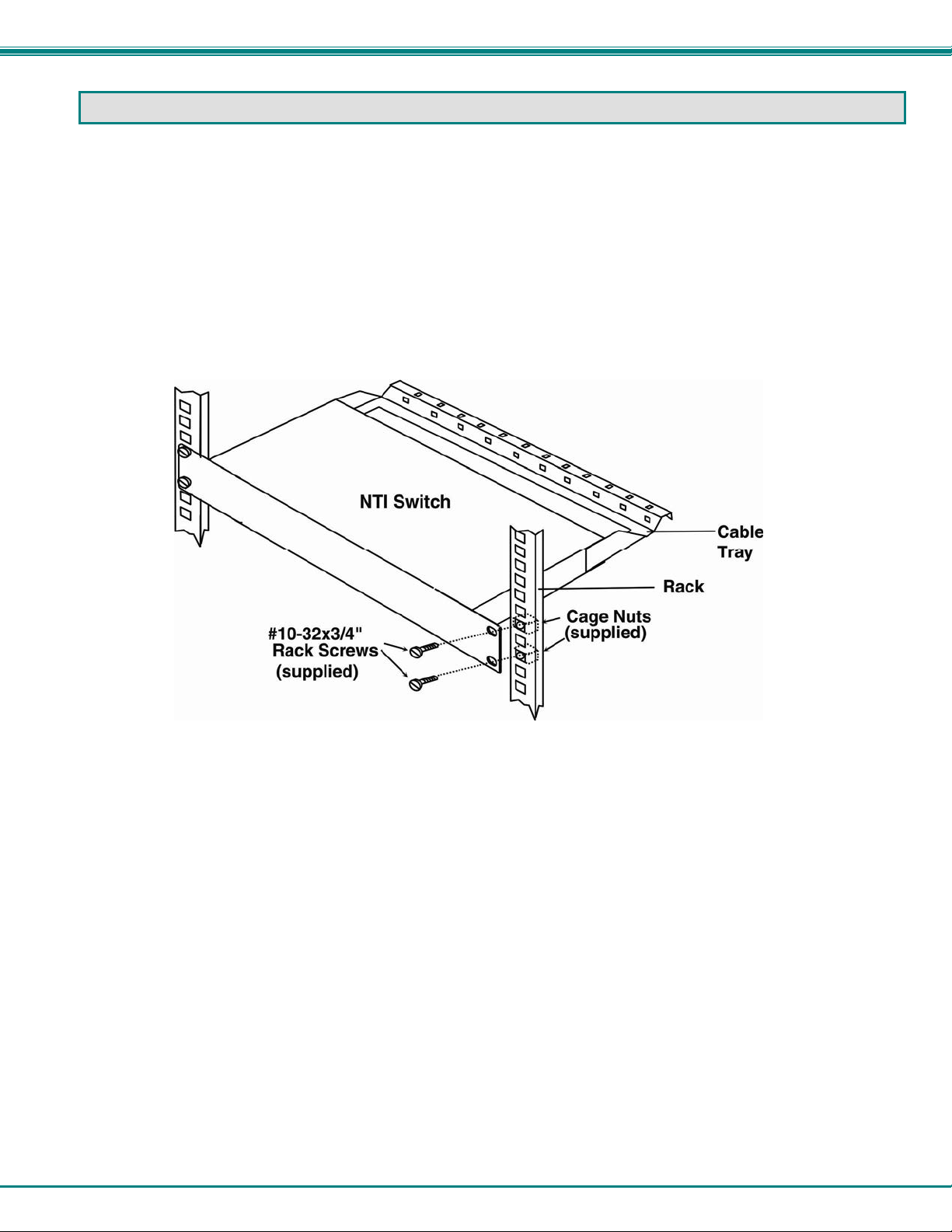

Figure 1- Secure switch to a rack

Page 9

NTI VEEMUX HDMI 4K VIDEO MATRIX SWITCH

Make All Connections

1. Connect a HDMI male cable between each video source and an “HDMI INx” connector on the rear of the VEEMUX.

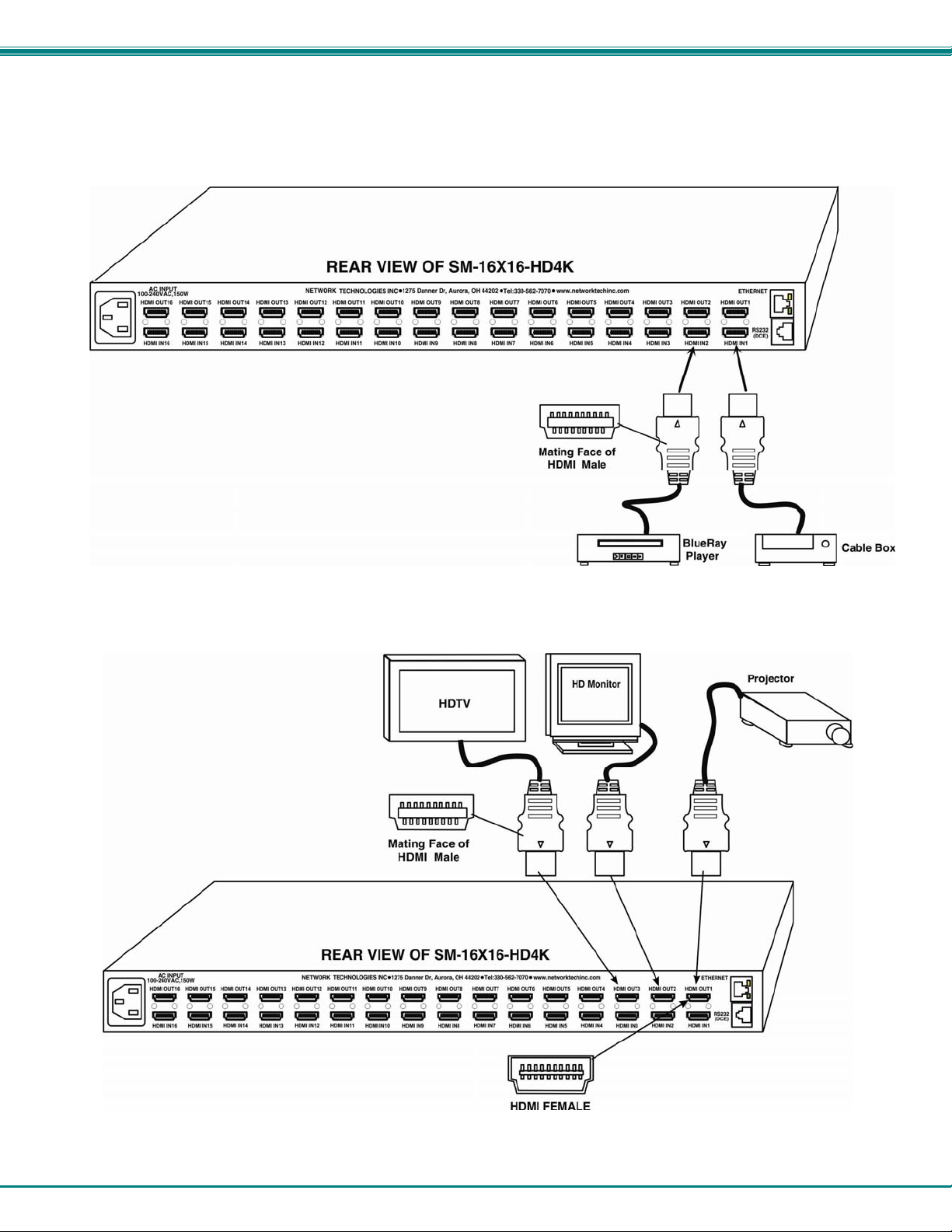

Figure 2- Connect video sources to VEEMUX

2. Connect a HDMI male cable between each display device and an “HDMI OUTx” connector on the rear of the VEEMUX.

Figure 3- Connect display devices to VEEMUX

Page 10

NTI VEEMUX HDMI 4K VIDEO MATRIX SWITCH

3. If the VEEMUX will be controlled using RS232, then make a connection between the “RS232” port on the VEEMUX and a serial port on a PC. A DB9M-to-RJ45F adapter and 5 foot CAT5 patch cable have been provided to help with this connection if needed.

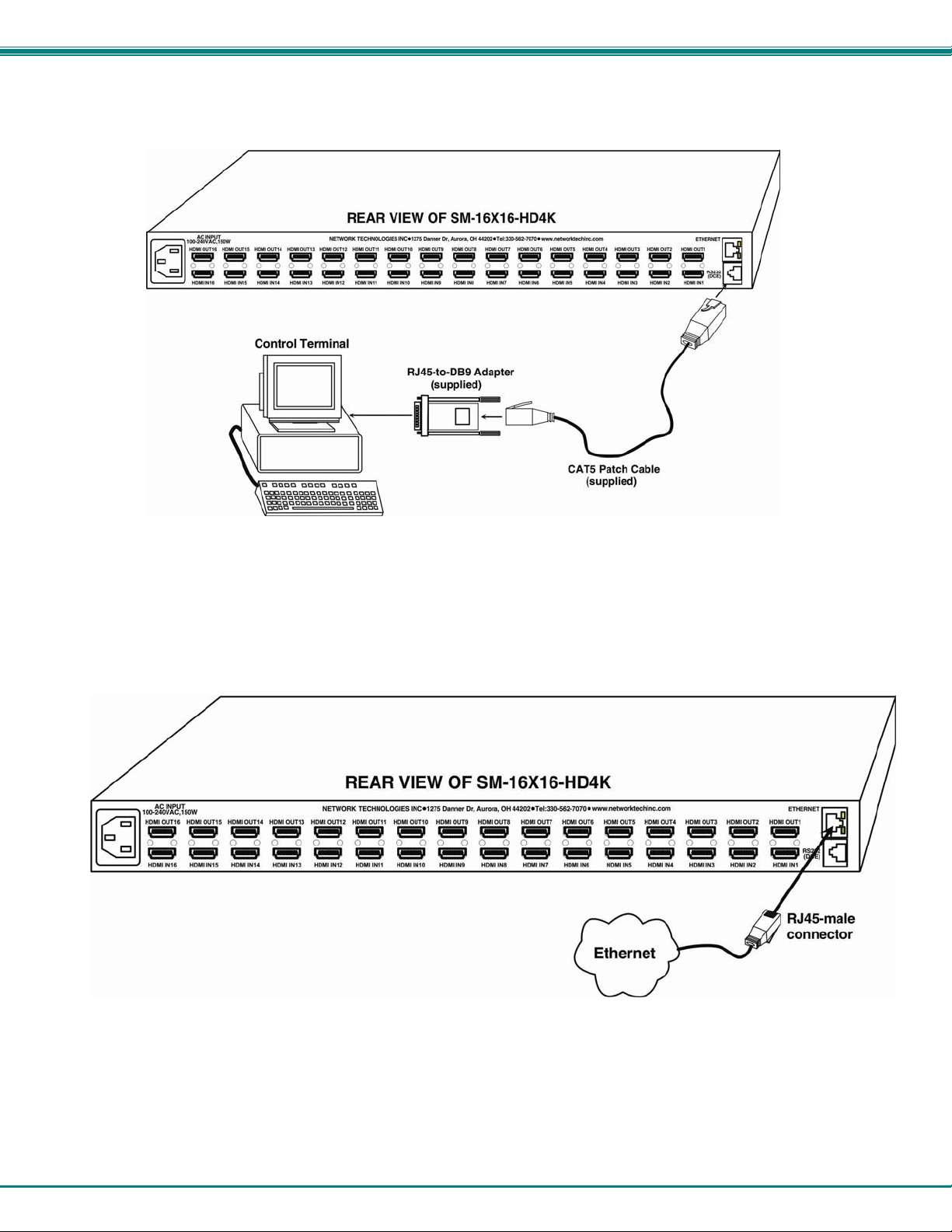

Figure 4- Connect RS232 control terminal to VEEMUX

4. To make a remote connection, over the Ethernet, from anywhere on the local area network, connect a CAT5/5e/6 Ethernet

cable with RJ45 male connectors on the ends, wired straight through (pin 1 to pin 1, pin 2 to pin 2, etc.).

Figure 5- Connect VEEMUX to local area network

Page 11

NTI VEEMUX HDMI 4K VIDEO MATRIX SWITCH

5. Connect the powercord to the VEEMUX and plug it in.

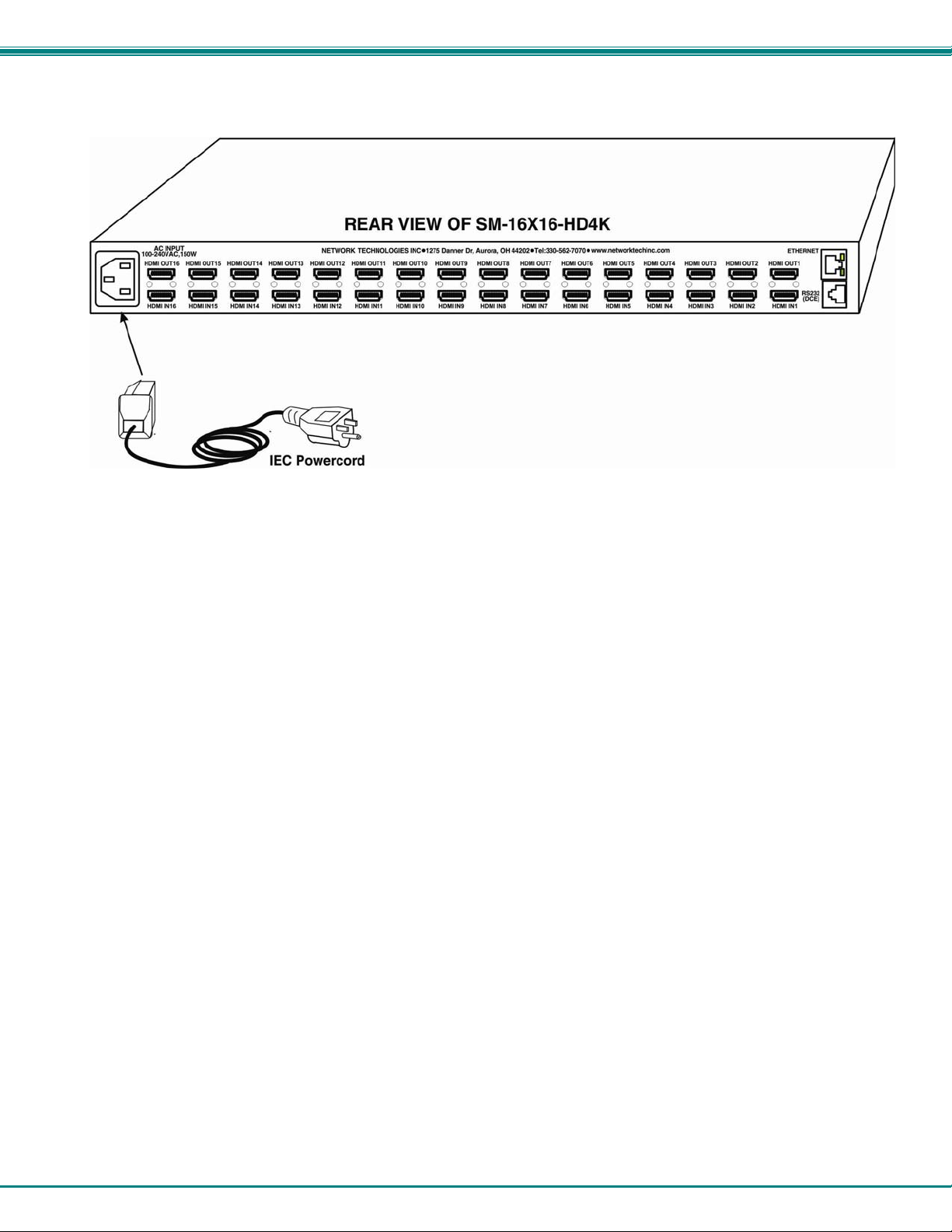

Figure 6- Attach AC power cord to VEEMUX

6. Power ON all components. (In any order, which ones are first and which are last does not matter.)

Page 12

NTI VEEMUX HDMI 4K VIDEO MATRIX SWITCH

OPERATING THE VEEMUX

The VEEMUX video matrix switch has four methods of control:

 Front Panel LCD with Keypad  Directly via an RS232 Interface  Remotely via Ethernet  Infrared Remote

Every unit comes standard with all control methods built-in. An IRT-UNV-IR Remote Control is required to use the Infrared option. No software is involved (see Infrared Control on page 39). With the RS232 option, there are no external devices to be purchased. NTI provides software commands as well as a test program to ensure the RS232 functions properly (see page 11 – RS232 Control).

Front Panel LCD with Keypad Control

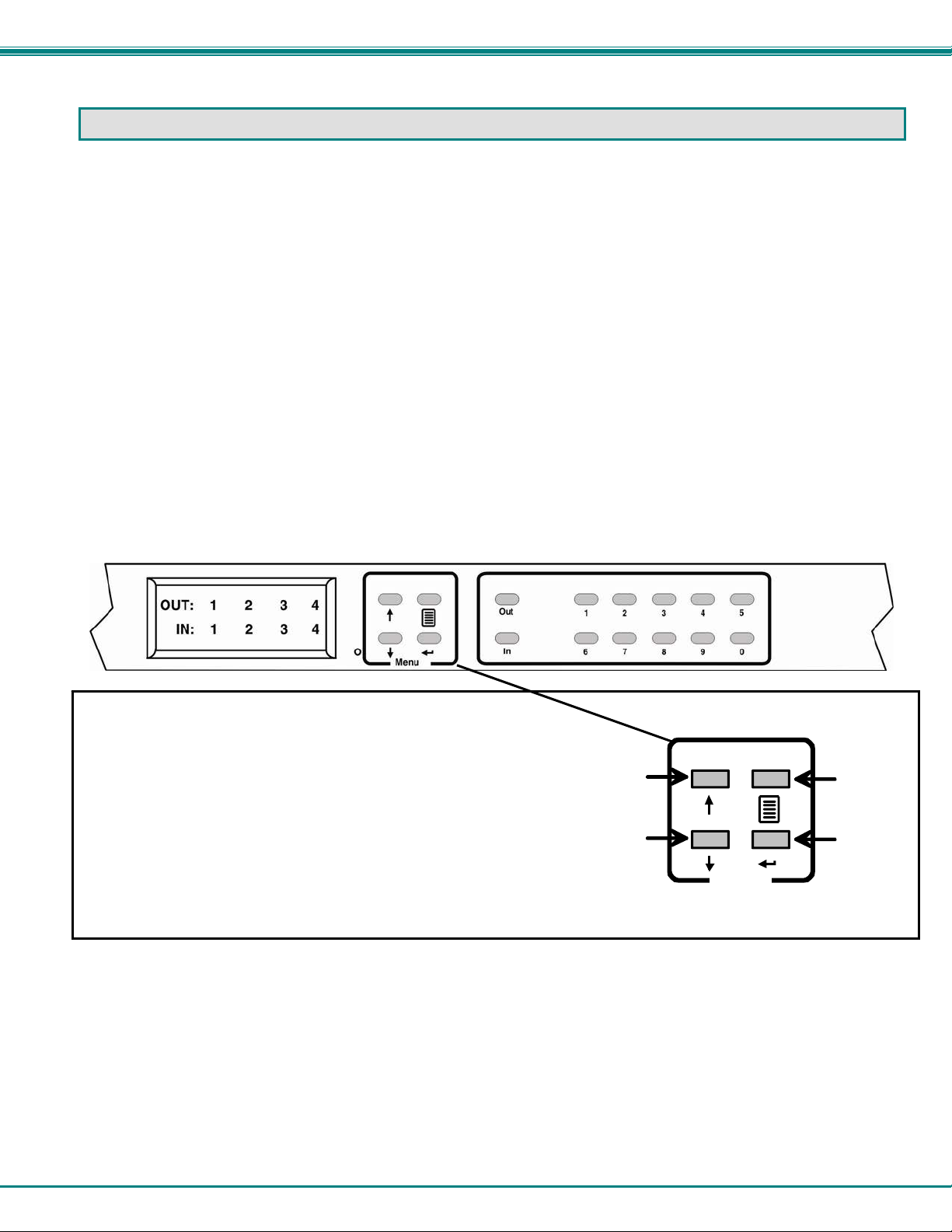

The front panel LCD and keypad allow the user to monitor switch status and route any user to any video source on the switch. When the unit is first powered-up, each monitor is automatically connected to the video source of its equal number (i.e. monitor 1 to source 1, monitor 2 to source 2, monitor 3 to source 3, etc.). (After configurations have been saved (page 24), upon power-up the VEEMUX will load the configuration saved into memory location 0.) Along with the routing of the inputs (video sources) to the outputs (monitors) the keypad and LCD allow the users to configure the RS232 control interface. The keypad buttons perform the following functions:

Key Functions:

Up Arrow- Scroll up the menu Down Arrow- Scroll down the menu Left Arrow (Enter Key)- Select the menu item List - Open the menu, or exit the menu (also used to back

out of the menu, one step at a time) Out-1- through 16 Used in command sequence to select which

output (display device) to connect In-1-though 16 Used in command sequence to select which

input (video source) to connect

Up Arrow

Down Arrow

List

Enter

Page 13

NTI VEEMUX HDMI 4K VIDEO MATRIX SWITCH

To quickly change a connection, simply press the associated port number and then the “In” or “Out” button to designate the

video source or the display (respectively). Alternatively, the “In” or “Out” button can be pressed, then the port number, followed by the “Enter” button.

Multiple displays can be connected to a single video source using one command sequence:

<In> xx<Out>xx<Out>xx<Out>xx<Out>xx<Enter> or <Out>xx<Out>xx<Out>xx<Out>xx <In> xx <Enter> (where xx is the port number)

To configure the VEEMUX, use the Menu keys. Press the List button to list your main menu options:

1- Serial 2- Ethernet 3- DDC 4- Standby 5- Save Config 6- Load Config

Use the Up and Down Arrow keys to scroll through this list. Use the Enter Key to select a menu item. Press the List button again to exit the menu.

If, while in a menu, you pause for more than 5 seconds, you will automatically exit the menu.

LCD Menus

Serial Menu

Under the “Serial” menu are two parameters:

1- Baud rate 2- Address

These parameters are used when the VEEMUX is controlled through an RS232 connection (page 1 1). If you select Baud rate, use the arrow keys to toggle through the available baud rates. The baud rate can be set to 115200, 57600, 38400, 19 200, 9600, 4800, 2400, or 1200.

If you select Address, use the arrow keys to toggle through the address options (01-15). This is also the switch address used in conjunction with the IR Remote operation (page 43).

Ethernet Menu

Under “Ethernet” menu are several parameters:

1- Mode 2- IP Address 3- Mask 4- Gateway 5- Pref. DNS 6- Alt. DNS

The Mode parameter will let you select between a manual IP setting, a DHCP assigned dynamic IP address setting, or disabling the Ethernet port. An asterisk indicates which mode is configured, an arrow shows which mode is being selected. To change the configured setting and move the asterisk, select the desired mode and press the Enter button.

If you choose a manual IP setting, the IP parameter provides the fields for entering a valid IP address. Use the up and down arrows to advance the numbers, and the Enter button to move from field to field. Press List to exit this screen.

Selections 3, 4 are necessary to apply valid values for your Subnet Mask and Gateway. Navigate these settings as described for setting the IP address.

Selections 5 and 6 are not used at this time and are therefore unnecessary.

Page 14

NTI VEEMUX HDMI 4K VIDEO MATRIX SWITCH

DDC Menu

DDC enables the video source to get EDID information from the display device. This enables the video source to automatically select the optimal resolution for the display by receiving, at power up, information from the display device concerning its resolution specifications.

Under the “DDC” menu are five parameters:

1- Chose Input (Choose Input) 2- All Inputs 3-FacDefault1 4-UsrDefault1 5-ReloadOptn

1) Choose Input- select the EDID information source for each input individually, or

2) All Inputs- select EDID information source for all inputs at once.

Within these sections you will need to select between:

default 1- the inputs will get EDID information from a predefined table in the VEEMUX supporting 1080p resolution default 2- the inputs will get EDID information from a predefined table in the VEEMUX supporting UHD resolutions From Out (?)- select which Output port the Input will get EDID information from regardless of which output it is connected to DDC Mix(?)- select which Input will receive EDID information that is common to the Outputs selected on the “DDC Mix”

page (page 34) for that input

3) FacDefault1- Select this to use the factory default EDID data for DDC “Default 1” configuration

4) UsrDefault1- Select this to replace the EDID information stored in the VEEMUX for “Default 1” with the EDID data from the

monitor presently connected to Output 1.

5) ReloadOptn- Select this and choose to enable or disable this feature. When enabled, the switch will refresh DDC data stored in the VEEMUX each time the VEEMUX is power-cycled. The DDC data will be based on the current DDC configuration settings.

Standby

The fourth option in the main menu is ”Standby”. When Standby is selected, the VEEMUX switch will immediately go into a power saver mode and the LCD display will go blank. It will remain in this state until

1) any button is pressed on the front panel,

2) the Standby button is pressed on the optional IR Remote Control (page 40), or

3) the “Disable Standby” button is pressed in the web interface (page 36)

Save and Load (Recall) Config

The SM-16X16-HD4K includes the ability to save and recall up to 100 switch configurations using the LCD menu. The switch

configurations define the current port connections, volume control settings, and video blank status.

Note: The IRT-UNV IR Remote (page 39) can also be used to access these configurations by using the “SAVE” and “RECALL” buttons.

To save a configuration, select “Save Config” from the main menu followed by a numeric button(s) (0-99) corresponding to the memory slot the configuration is to be saved in. Press Enter after your selection to force the current configuration to immediately be saved to the selected memory slot.

Configurations can be loaded (recalled) in much the same manner. To recall, select “Load Config” fro m the main menu followed by the numeric button(s) (0-99) corresponding to the memory slot from which the configuration is to be recalled. Press Enter after your selection to immediately force the switch to change the current switch configuration to match that of the configuration recalled.

Page 15

NTI VEEMUX HDMI 4K VIDEO MATRIX SWITCH

RS232 CONTROL

RS232 enables the VEEMUX to be remotely controlled via RS232. To control the VEEMUX via RS232 the user has four options:

 write a program that runs on a PC using the Comman d Protocol (page 12)  use the Matrix Switcher's Control Program (page 13)  use the SerTest program (page 14)  Remote Connection

The RS232 Interface is designed to meet the RS232C standard and can be controlled from any CPU or other contro ller with an RS232 communications port. The pin-out for the RJ45 connector on the unit is as follows:

RS232 (RJ45) CONNECTOR

PIN SIGNAL FUNCTION

1 - No connection 2 - No connection 3 RX+ Receive data (TXD at host) 4 GND Ground 5 - No connection 6 TX+ Transmit data (RXD at host) 7 - No connection 8 - No connection

A 5 foot patch cable and adapter, RJ45-to-DB9, have been provided for connection to most CPUs (see page 6).

Baud Rate

The baud rate can be changed by selecting MENU on the front panel ke ypad, using the OSD menu, using Telnet commands (page 16) or from the RS232 commands (page 12). The baud rate can be set to 115200, 57600, 38400, 19200, 9600, 4 800, 2400, or 1200. A data protocol of 8 data bits, no parity, and 1 stop bit is used for communications. The default baud rate setting is 9600.

Page 16

NTI VEEMUX HDMI 4K VIDEO MATRIX SWITCH

Command Protocol

CPU controller commands supported by the unit are defined below. All commands must be terminated with a <CR> (carriage return). When a command is sent, the entire string is echoed back along with a response from the addressed unit as shown in the Command Definitions table (below). All characters in the command string are case sensitive (see Command Definiti ons table), and all numbers below 10 must have a leading 0 (ex: 1 = 01).

Legend:

(All numbers must be two digits) SW : Switch (01-15) BR : Baud Rate Code OP : Output Port (01-MAXOUTPUTS) IP : Input Port (01-MAXINPUTS)

Command Definitions

Command String Good Response Description

CS SW,IP,OP *<CR> VIDEO Connect One Output/User Port To Input/CPU Port

CA SW,IP *<CR> VIDEO Connect All Output/User Ports To Input/CPU Port

RO SW,OP *<CR>IP<CR> VIDEO Read Connection For Output/User Port

VB SW,OP,01 *<CR> Blank the video for specific Output/User Port VB SW,OP,00 *<CR> Unblank the video for specific Output/User Port

CC SW,MM *<CR>MM<CR> Save Matrix Connections Into Memory Bank xx

RC SW,LL *<CR>LL<CR> Restore Matrix Connections From Memory Bank

CB 00,BR None Change baud rate of serial line,

BR=11(5200),57(600),38(400),19(200)96(00),48(00),24(00),12(00)

RS SW *<CR> Internal Reset

RV SW,00 *<CR>string\0<CR> Read NTI Version String

RU SW *<CR>IP,OP<CR> Read Unit Size

EA SW,ip *<CR> Set the IP address, ip is in xxx.xxx.xxx.xxx format,

number of digits is minimum 1 and maximum 3 for each field

EM SW,ip *<CR> Set the Subnet mask, ip is in xxx.xxx.xxx.xxx format,

number of digits is minimum 1 and maximum 3 for each field.

EG SW,ip *<CR> Set the default gateway, ip is in xxx.xxx.xxx.xxx format,

number of digits is minimum 1 and maximum 3 for each field

ET SW,timeout *<CR> Set the website timeout; timeout = numeric string of timeout in seconds.

Values: 60, 300, 600, 900, 1800, 3600, 7200, 18000, 28800

RA SW * <CR>ip<CR> Read the IP address, ip is in xxx.xxx.xxx.xxx format,

number of digits is minimum 1 and maximum 3 for each field

RM SW * <CR>ip<CR> Read the Subnet mask, ip is in xxx.xxx.xxx.xxx format,

number of digits is minimum 1 and maximum 3 for each field

RG SW * <CR>ip<CR> Read the default gateway, ip is in xxx.xxx.xxx.xxx format,

number of digits is minimum 1 and maximum 3 for each field

RT SW * <CR>timeout<CR> Read the website timeout; timeout = numeric string of timeout in seconds.

Values: 60, 300, 600, 900, 1800, 3600, 7200, 18000, 28800 SS SW,00 *<CR> Disable Autostatus feature (see below) SS SW,01 *<CR> Enable Autostatus feature (see below)

GO SW,OP *<CR>go

SW,OP,IP<CR>

GM SW,00 *<CR>go SW,OP,IP

(all ports)<CR>

If the first field is not a known command (as listed above) or SW field is different from the serial address programmed in the switch memory, the command will be ignored. If the SW field corresponds to the unit address, but the syntax is wrong after this field, the switch will answer with a bad response ?<CR>.

Read connection of a Video Output Port to Video Input Port

MM : Save Into Memory Bank (00-99) LL : Load From Memory Bank (00-99) <CR> : Carriage Return (Hex 0xD) ip : IP address

Xx=00-99

Factory default is 9600

Leading zeroes are accepted

Read connection matrix of all Video Output ports

Page 17

NTI VEEMUX HDMI 4K VIDEO MATRIX SWITCH

Autostatus

When Autostatus is enabled, any output-to-input connection change in the VEEMUX will cause an Autostatus message to be sent via RS232 to the administrator. The format of the message would be "pc SW,OP:IP<CR>"

Example of an Autostatus message: pc 01,01:04<CR> which means "At the switch with unit address 01, the output (01) has changed connection to input 04."

Notes: Message to the administrator will be delayed by any RS232 traffic being received by the switch from the administrator. Autostatus must be disabled before using SerTest or the Matrix Switcher's Control Program (page 13).

By default, Autostatus is disabled and must be manually enabled. Autostatus is also disabled any time the power to the VEEMUX is interrupted.

NTI Switch Control Program For Windows 9X, NT, 2000, XP, Vista, 7, 8 and 10

The NTI Switch Control Program is an easy and powerful graphical program that controls NTI matrix switches through an RS232 interface. The NTI Switch Control Program is downloaded from http://www.networktechinc.com/download/d-vmtx-dvi.html

To install the Program after downloading

1. Locate the Setup.exe in the directory the program was downloaded to and double-click on it

The NTI Switch Control Program performs best on monitors set to a screen resolution of at least 800 X 600. Instruction for using the NTI Switch Control Program is available by opening "MSCP Help" in the "NTI" program group once the program has been installed and is open on the screen.

To open "MSCP Help" from the Windows desktop

1. Click on START

2. Click on PROGRAMS

3. Click on NTI

4. Click on MSCP Help

2. Follow the instructions o n the screen

Note: While in Scan Mode, the video radio buttons shown on the Switch page of the NTI Switch Control Program may not be in sync with the connection changes within the VEEMUX. Connections will change without updating the image on the screen.
