Netopia 4741 2A4NA, 4741 Administration Manual

Page 1

Netopia™ 4741 ADSL Integrated Access Device

Administration Guide

Page 2

This manual and any associated artwork, software, and product designs are copyrighted with all rights reserved. Under the copyright laws such materials may not be copied, in whole or part, without the prior written consent of Netopia, Inc. Under the law, copying includes translation to another language or format.

Netopia, Inc. 2470 Mariner Square Loop Alameda, CA 94501-1010 U.S.A.

Part Number

For additional copies of this electronic manual, order Netopia part number 6161095-PF-01.

Page 3

CCCCoooonnnntttteeeennnnttttss

Contents iii

Part I: Getting Started

Chapter 1 — Introduction..........................................................1-1

Overview....................................................................... 1-1

Features and Capabilities............................................... 1-1

How to Use This Guide................................................... 1-2

Chapter 2 — Making the Physical Connections..........................2-1

Find a Location.............................................................. 2-1

What You Need.............................................................. 2-2

Important Safety instructions ......................................... 2-3

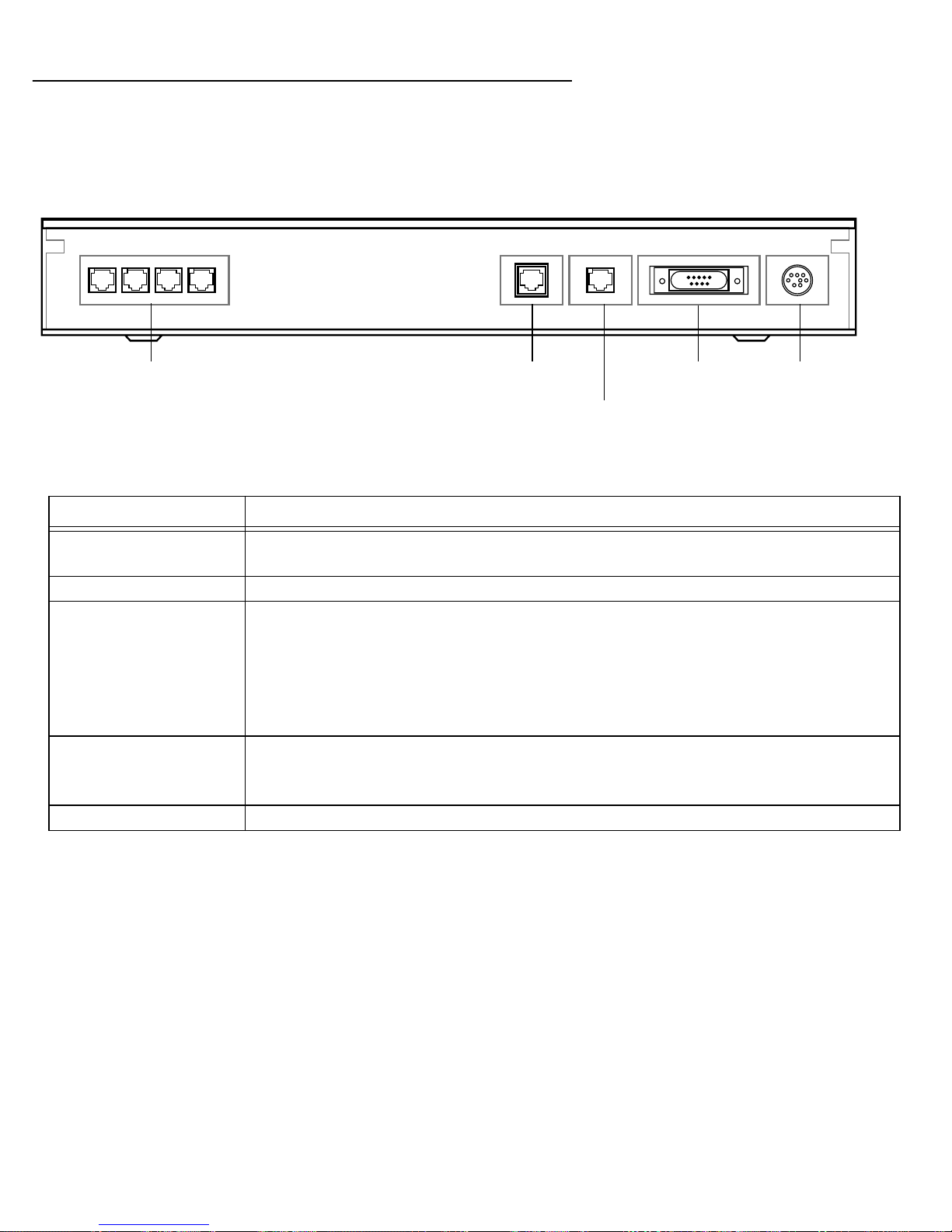

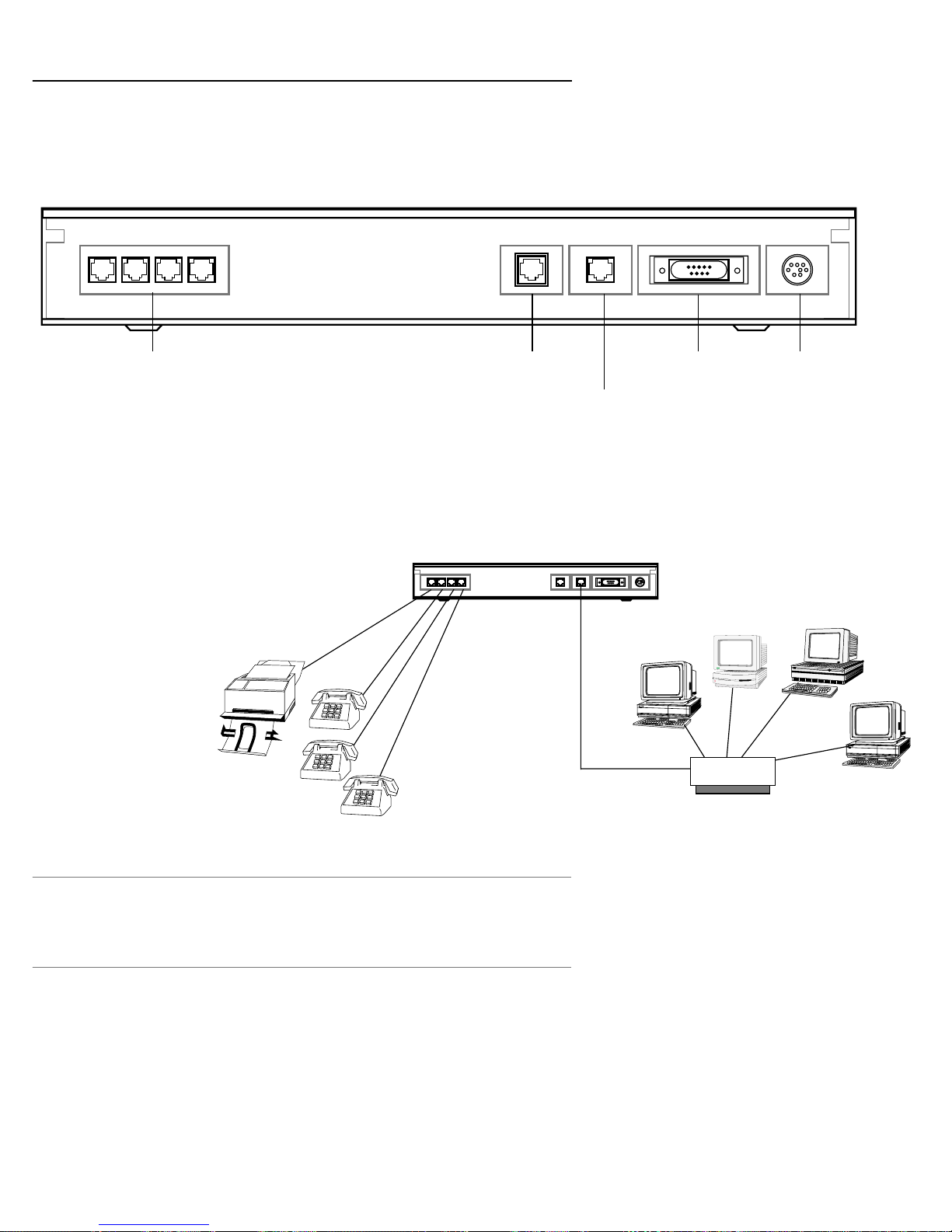

Identify the Connectors and Attach the Cables................. 2-4

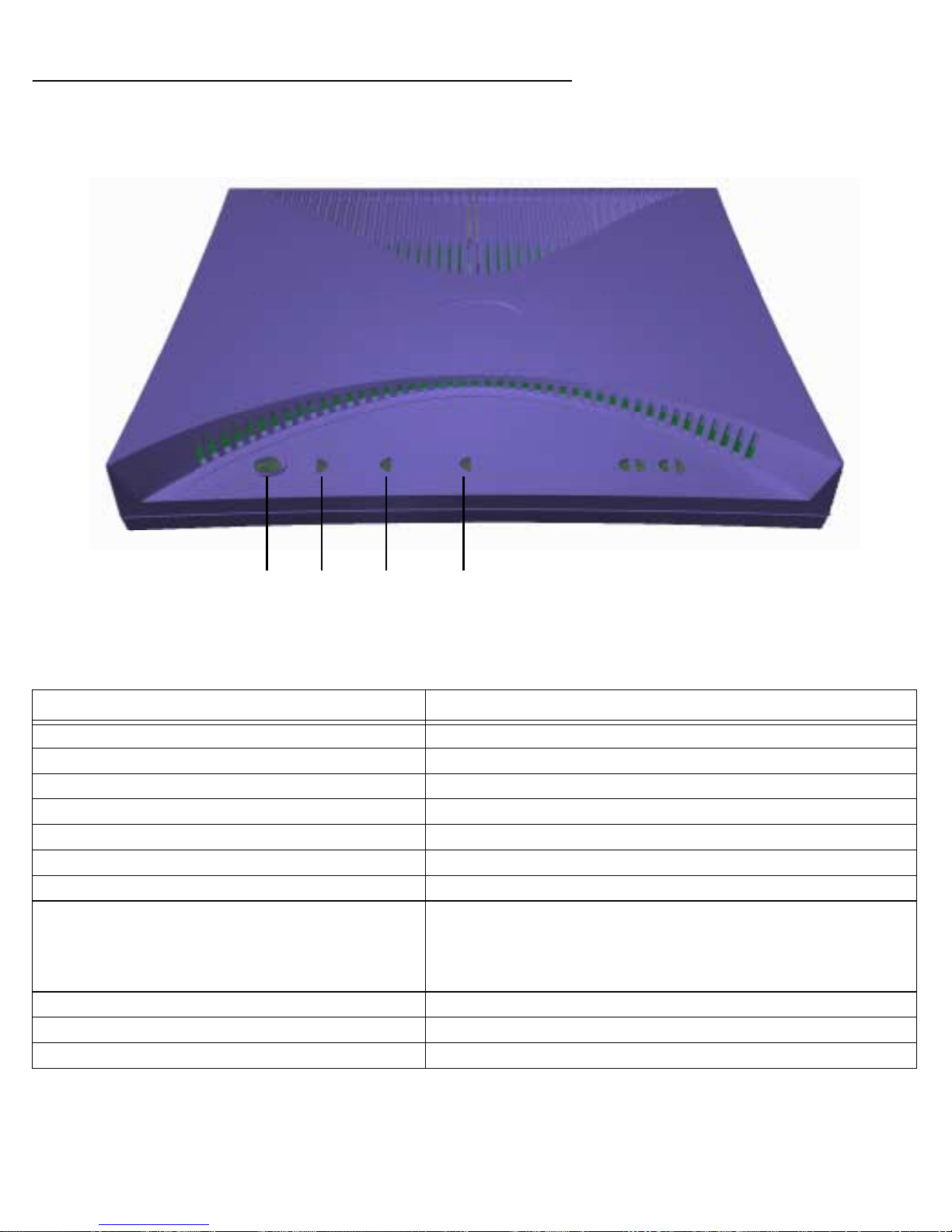

Netopia 4741 Status Lights............................................ 2-5

Chapter 3 — Sharing the Connection.........................................3-1

Conﬁguring TCP/IP on Windows-based Computers............ 3-2

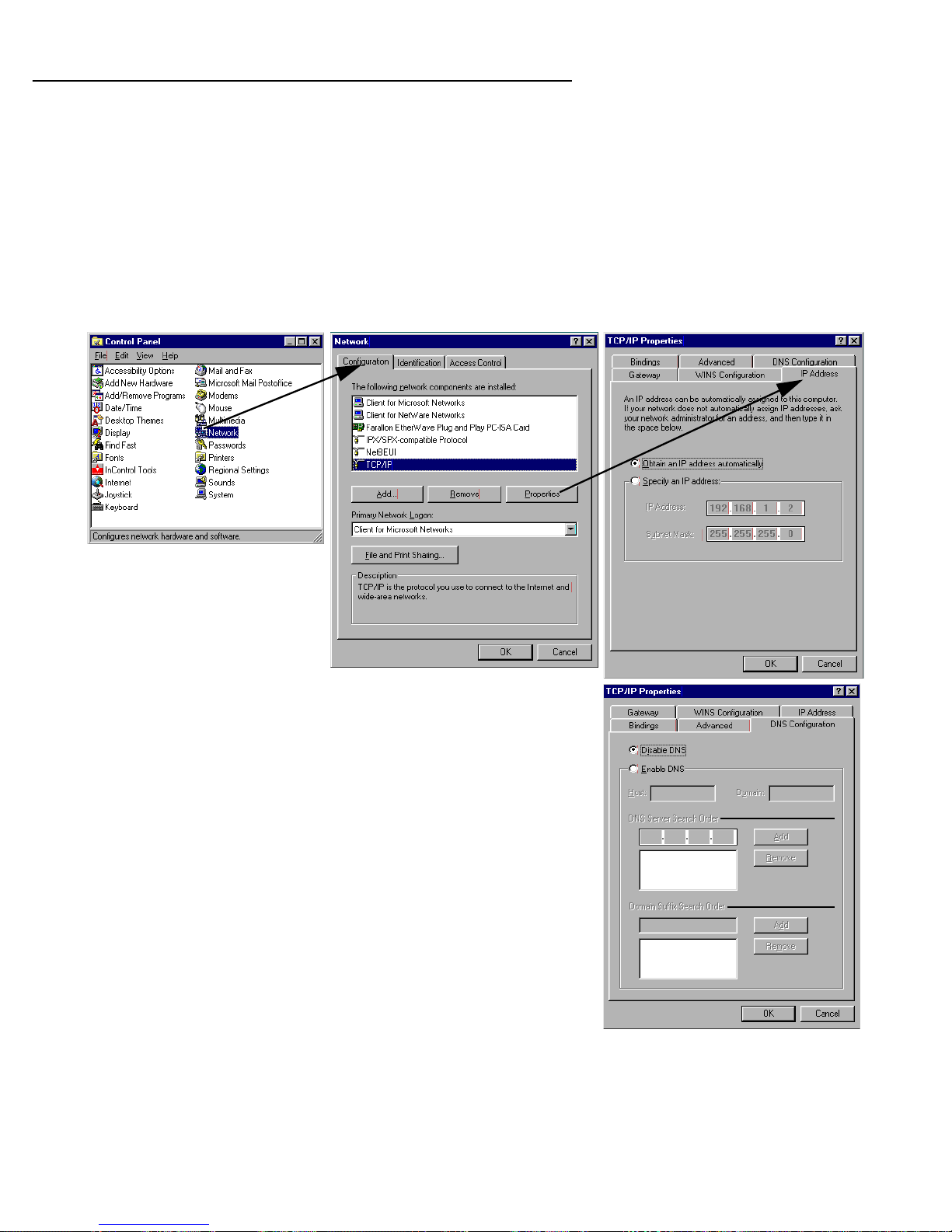

Dynamic conﬁguration (recommended) .................. 3-2

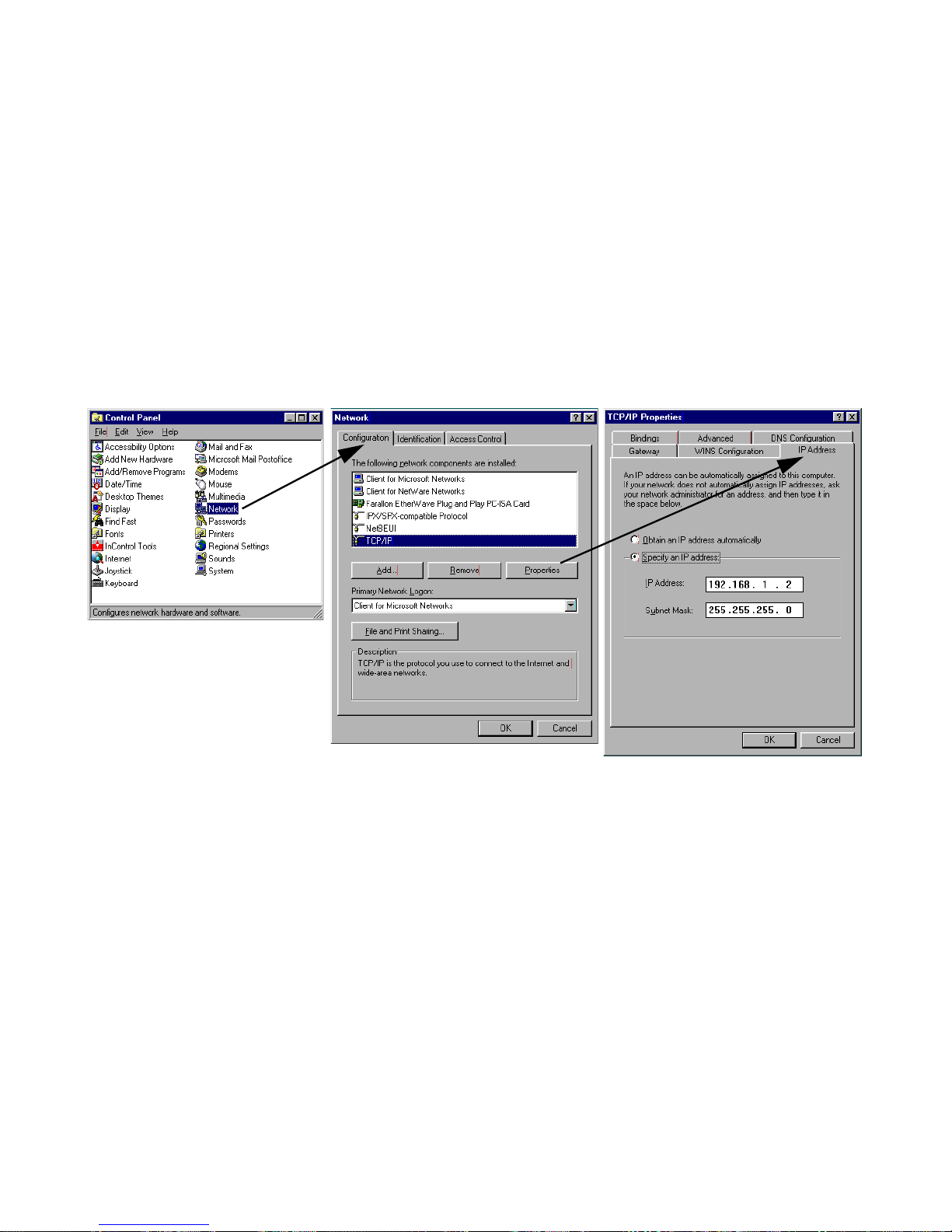

Static conﬁguration (optional) ............................... 3-3

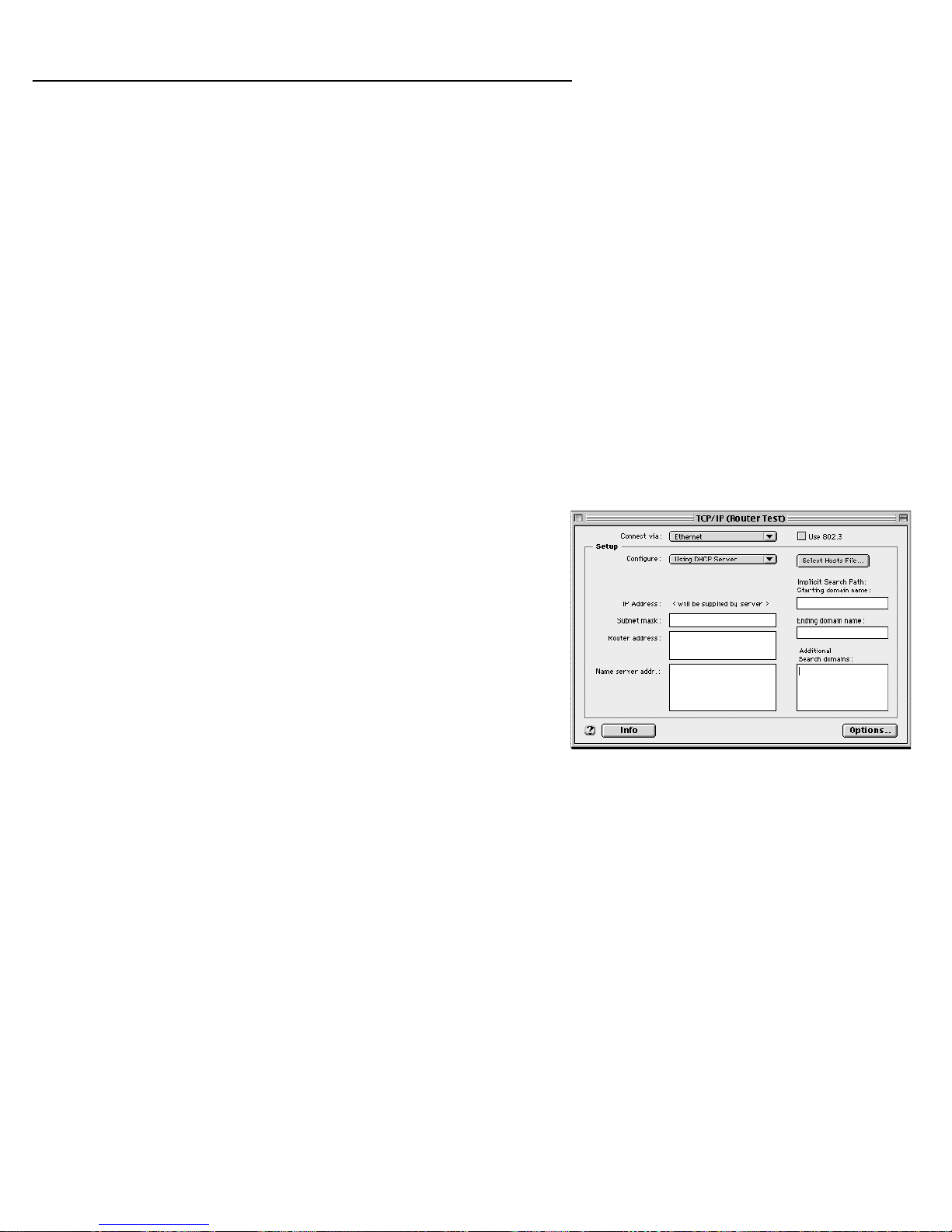

Conﬁguring TCP/IP on Macintosh Computers ................... 3-5

Dynamic conﬁguration (recommended) .................. 3-5

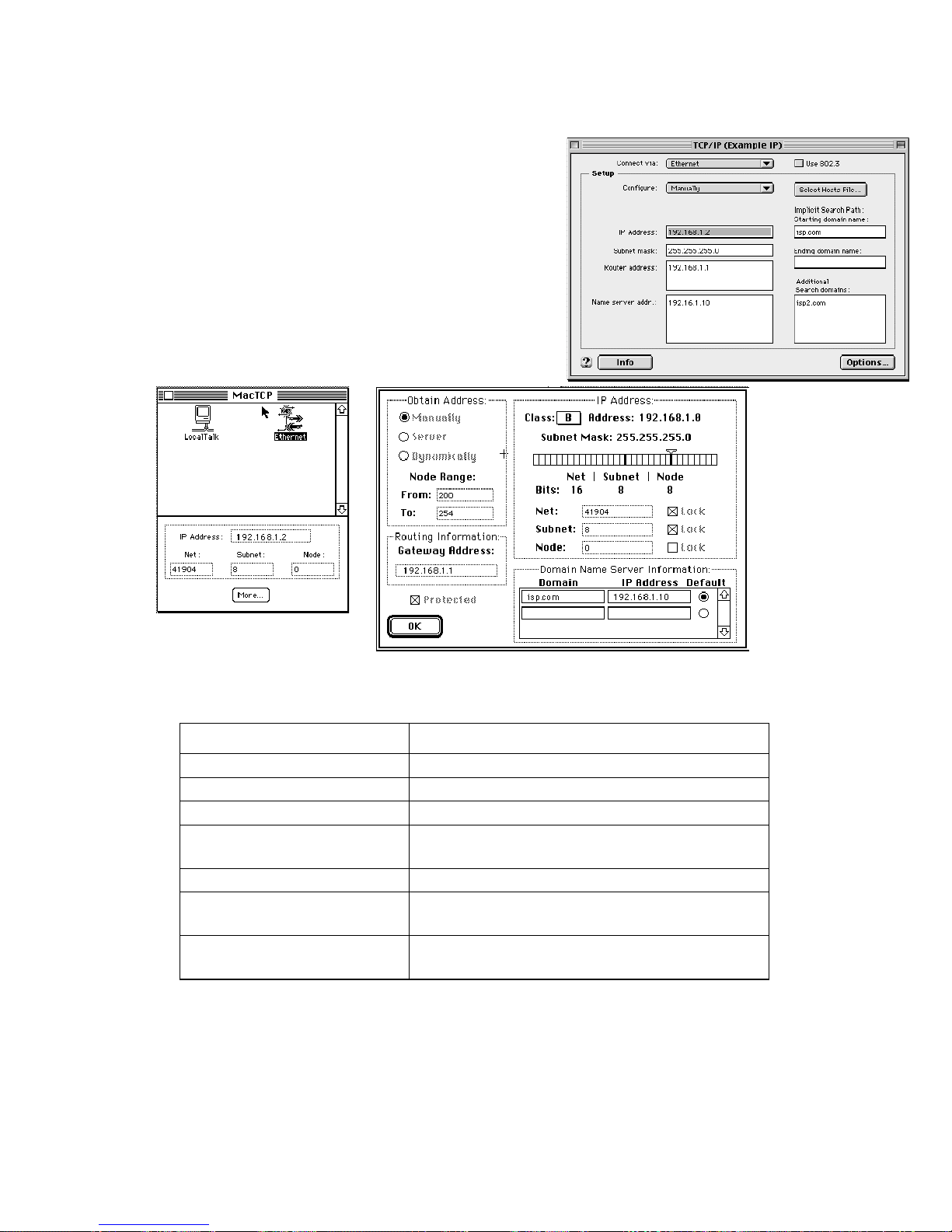

Static conﬁguration (optional) ............................... 3-6

Chapter 4 — Connecting to Your Local Network.........................4-1

Readying Computers on Your Local Network..................... 4-2

Connecting to an IP and Telephone Network..................... 4-3

Chapter 5 — Console-Based Management.................................5-1

Connecting through a Telnet Session............................... 5-2

Conﬁguring Telnet software................................... 5-2

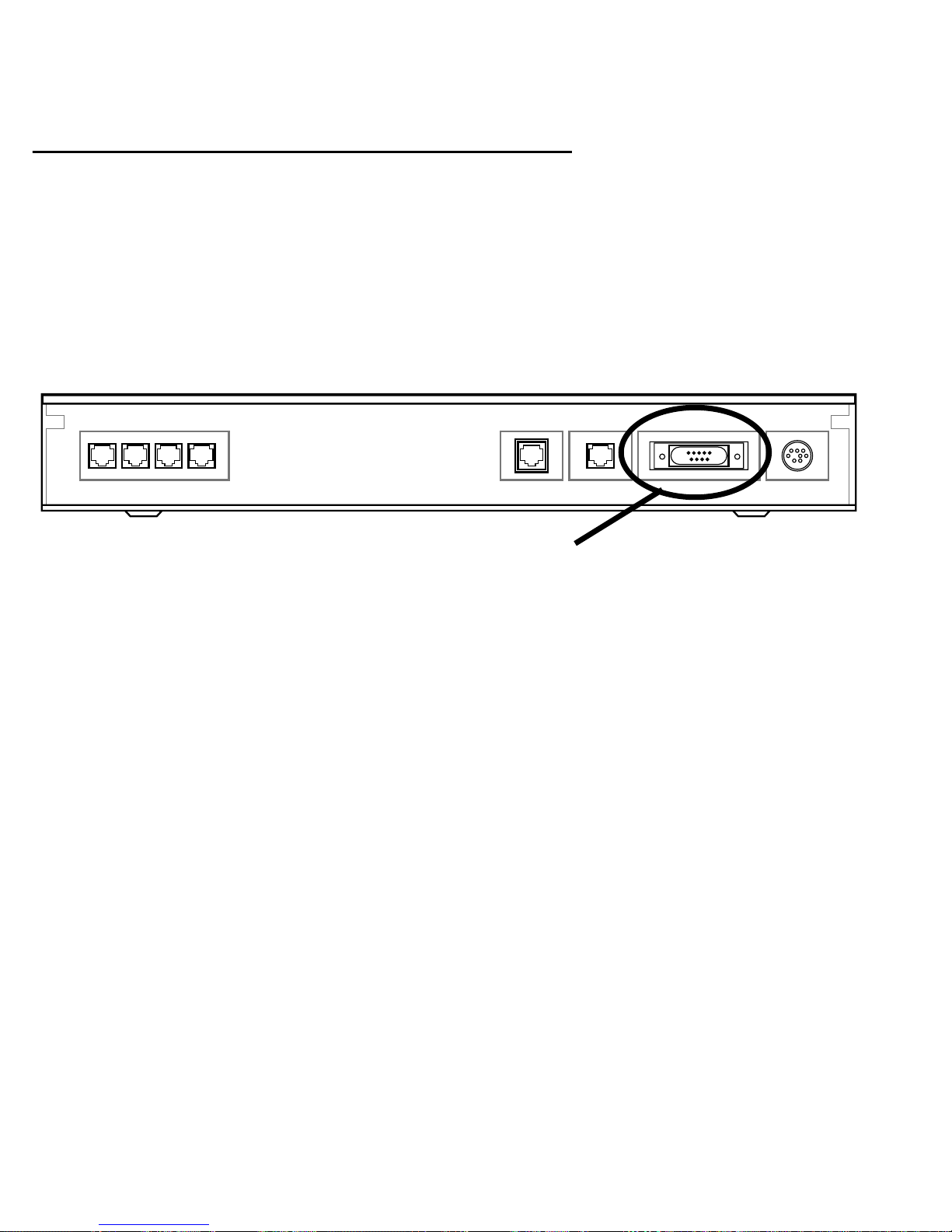

Connecting a Console Cable to Your Device ..................... 5-3

Navigating through the Console Screens.......................... 5-5

Chapter 6 — Easy Setup...........................................................6-1

Easy Setup Console Screens.......................................... 6-1

Accessing the Easy Setup console screens............ 6-1

Quick Easy Setup Connection Path.................................. 6-3

Page 4

iv Administration Guide

DSL Line Conﬁguration......................................... 6-5

Voice Easy Setup ................................................. 6-6

Easy Setup Proﬁle................................................ 6-7

IP Easy Setup...................................................... 6-8

Easy Setup Security Conﬁguration......................... 6-9

Chapter 7 — Voice Conﬁguration...............................................7-1

Introduction................................................................... 7-1

Conﬁguring the Voice Features........................................ 7-2

Part II: Advanced Configuration

Chapter 8 — WAN and System Conﬁguration .............................8-1

WAN Conﬁguration......................................................... 8-2

Multiple ATM Permanent Virtual Circuit Support............... 8-3

Multiple ATM PVC overview................................... 8-3

Multiple ATM PVC conﬁguration............................. 8-4

Changing a circuit................................................ 8-5

Adding a circuit.................................................... 8-7

Monitoring multiple virtual circuits......................... 8-8

Creating a New Connection Proﬁle................................. 8-10

The WAN Default Proﬁle................................................ 8-14

IP Parameters (Default Proﬁle) screen ................. 8-15

The ATMP/PPTP Default Proﬁle..................................... 8-15

Scheduled Connections................................................ 8-15

Viewing scheduled connections........................... 8-16

Adding a scheduled connection........................... 8-17

Set Weekly Schedule.......................................... 8-18

Set Once-Only Schedule ..................................... 8-19

Modifying a scheduled connection....................... 8-20

Deleting a scheduled connection......................... 8-20

System Conﬁguration Screens ..................................... 8-21

Navigating through the System Conﬁguration

screens............................................................. 8-21

Page 5

Contents v

System Conﬁguration Features ..................................... 8-22

IP setup............................................................ 8-23

Filter sets.......................................................... 8-23

IP address serving............................................. 8-23

Date and time (Network Time Protocol)................ 8-23

Console conﬁguration......................................... 8-24

SNMP (Simple Network Management Protocol)..... 8-25

Security............................................................. 8-25

Upgrade feature set........................................... 8-25

Logging............................................................. 8-25

Installing the Syslog client.................................. 8-26

Chapter 9 — IP Setup...............................................................9-1

IP Setup........................................................................ 9-2

IP subnets........................................................... 9-4

Static routes ....................................................... 9-6

IP Address Serving ...................................................... 9-10

IP Address Pools................................................ 9-13

DHCP NetBIOS Options ...................................... 9-15

More Address Serving Options...................................... 9-17

Conﬁguring the IP Address Server options ........... 9-18

DHCP Relay Agent........................................................ 9-23

Connection Proﬁles...................................................... 9-25

Chapter 10 — Multiple Network Address Translation ...............10-1

Overview..................................................................... 10-1

Features ........................................................... 10-1

Supported trafﬁc ............................................... 10-5

MultiNAT Conﬁguration................................................. 10-6

Easy Setup Proﬁle conﬁguration.......................... 10-6

Server Lists and Dynamic NAT conﬁguration......... 10-6

IP setup............................................................ 10-7

Modifying map lists.......................................... 10-13

Moving maps................................................... 10-15

Page 6

vi Administration Guide

Adding Server Lists.................................................... 10-17

Modifying server lists....................................... 10-20

Deleting a server............................................. 10-22

Binding Map Lists and Server Lists............................. 10-23

IP proﬁle parameters........................................ 10-23

IP Parameters (WAN Default Proﬁle) .................. 10-25

NAT Associations....................................................... 10-27

MultiNAT Conﬁguration Example.................................. 10-29

Chapter 11 — Virtual Private Networks (VPNs)........................11-1

Overview..................................................................... 11-1

About PPTP Tunnels..................................................... 11-3

PPTP conﬁguration............................................. 11-4

About IPsec Tunnels..................................................... 11-7

Conﬁguration..................................................... 11-7

IP Proﬁle Parameters........................................ 11-10

Advanced IP Proﬁle Options .............................. 11-11

Interoperation with other features ..................... 11-12

Encryption Support.......................................... 11-12

ATMP/PPTP Default Answer Proﬁle.............................. 11-13

VPN QuickView .......................................................... 11-14

Dial-Up Networking for VPN......................................... 11-15

Installing PPTP and Conﬁguring Dial-up Networking on a

PPTP Client...................................................... 11-15

About ATMP Tunnels................................................... 11-19

ATMP conﬁguration .......................................... 11-19

Allowing VPNs through a Firewall................................. 11-21

PPTP example.................................................. 11-23

ATMP example................................................. 11-26

Chapter 12 — Security ...........................................................12-1

Suggested Security Measures....................................... 12-1

User Accounts............................................................. 12-1

Telnet Access.............................................................. 12-3

Page 7

Contents vii

About Filters and Filter Sets.......................................... 12-4

What’s a ﬁlter and what’s a ﬁlter set?................. 12-4

How ﬁlter sets work ........................................... 12-4

How individual ﬁlters work .................................. 12-6

Design guidelines ............................................ 12-10

Working with IP Filters and Filter Sets.......................... 12-11

Adding a ﬁlter set............................................. 12-12

Viewing ﬁlter sets ............................................ 12-15

Modifying ﬁlter sets.......................................... 12-16

Deleting a ﬁlter set .......................................... 12-16

A sample IP ﬁlter set........................................ 12-16

Firewall Tutorial ......................................................... 12-19

General ﬁrewall terms ...................................... 12-19

Basic IP packet components............................. 12-20

Basic protocol types......................................... 12-20

Firewall design rules ........................................ 12-21

Filter basics..................................................... 12-23

Example ﬁlters................................................. 12-24

LAN IP Filtersets.............................................. 12-27

RADIUS Client Support............................................... 12-30

RADIUS client conﬁguration .............................. 12-30

Warning alerts................................................. 12-32

Chapter 13 — Monitoring Tools...............................................13-1

Quick View Status Overview.......................................... 13-1

General status................................................... 13-2

Current status ................................................... 13-3

Status lights...................................................... 13-3

Statistics & Logs......................................................... 13-4

Event Histories............................................................ 13-4

WAN Event History............................................. 13-5

Device Event History.......................................... 13-5

Voice Logs................................................................... 13-7

Page 8

viii Administration Guide

Voice Log .......................................................... 13-7

Voice Accounting Log.......................................... 13-8

IP Routing Table........................................................... 13-9

Served IP Addresses.................................................. 13-10

General Statistics...................................................... 13-11

System Information.................................................... 13-13

SNMP....................................................................... 13-13

The SNMP Setup screen................................... 13-14

SNMP traps..................................................... 13-15

Chapter 14 — Utilities and Diagnostics...................................14-1

Ping............................................................................ 14-2

Trace Route................................................................. 14-4

Telnet Client................................................................ 14-5

Disconnect Telnet Console Session............................... 14-6

Factory Defaults .......................................................... 14-6

Transferring Conﬁguration and Firmware Files with TFTP.. 14-7

Updating ﬁrmware.............................................. 14-7

Downloading conﬁguration ﬁles........................... 14-8

Uploading conﬁguration ﬁles............................... 14-9

Transferring Conﬁguration and Firmware Files with

XMODEM................................................................... 14-10

Updating ﬁrmware............................................ 14-10

Downloading conﬁguration ﬁles......................... 14-11

Uploading conﬁguration ﬁles............................. 14-12

Restarting the System ............................................... 14-12

Part III: Appendixes

Appendix A — Troubleshooting..................................................A-1

Conﬁguration Problems .................................................. A-1

Console connection problems............................... A-2

Network problems................................................ A-2

How to Reset the Netopia 4741 to Factory Defaults......... A-3

Page 9

Contents ix

Power Outages .............................................................. A-3

Technical Support.......................................................... A-4

How to reach us .................................................. A-4

Appendix B — Understanding IP Addressing ..............................B-1

What is IP?.................................................................... B-1

About IP Addressing....................................................... B-1

Subnets and subnet masks.................................. B-2

Example: Using subnets on a Class C IP internet ... B-3

Example: Working with a Class C subnet................ B-5

Distributing IP Addresses ............................................... B-5

Technical note on subnet masking ........................ B-6

Conﬁguration....................................................... B-7

Manually distributing IP addresses........................ B-8

Using address serving.......................................... B-8

Tips and rules for distributing IP addresses ........... B-9

Nested IP Subnets....................................................... B-11

Broadcasts.................................................................. B-13

Packet header types .......................................... B-13

Appendix C — Binary Conversion Table......................................C-1

Appendix D — Further Reading .................................................D-1

Appendix E — Technical Speciﬁcations and Safety Information...E-1

Description.................................................................... E-1

Power requirements............................................. E-1

Environment........................................................ E-1

Software and protocols ........................................ E-1

Agency Approvals........................................................... E-2

Regulatory notices............................................... E-2

Important Safety instructions ............................... E-5

Netopia 4741 Speciﬁcations .......................................... E-6

Physical interface ................................................ E-6

Data features...................................................... E-6

Page 10

x Administration Guide

Hardware speciﬁcations ....................................... E-8

Voice features ..................................................... E-8

Glossary Index Limited Warranty and Limitation of Remedies

Page 11

PPPPaaaarrrrtttt IIII:::: GGGGeeeettttttttiiiinnnngggg SSSSttttaaaarrrrtttteeeedd

Page 12

Administration Guide

Page 13

Introduction 1-1

CCCChhhhaaaapppptttteeeerrrr 11

IIIInnnnttttrrrroooodddduuuuccccttttiiiioooonn

OOOOvvvveeeerrrrvvvviiiieeeeww

The Netopia 4741 Voice/Data Integrated Access Devices (IADs) make it possible for small businesses to take advantage of the advanced communications technologies previously limited to larger organizations. By integrating multiple voice connections and high-speed Internet access on one DSL line, businesses can squeeze the most out of their communications budget.

The Netopia 4741 ADSL Integrated Access Device combines a complete telephone system with a business-class data router to deliver a customized package of business communications services over DSL. The Netopia 4741 supports the broad array of phone features offered through your service provider and uses your existing analog telephone equipment. The Netopia 4741 includes Netopia's sophisticated data routing engine optimized for small and medium size business needs. These business-class features include IP routing, ﬁrewall, NAT, MultiNAT, DHCP and both PPTP and IPSec VPN functionality.

This section covers the following topics:

■

“Features and Capabilities” on page 1-1

“How to Use This Guide” on page 1-2

■

FFFFeeeeaaaattttuuuurrrreeeessss aaaannnndddd CCCCaaaappppaaaabbbbiiiilllliiiittttiiiieeeess

Small- to medium-sized businesses need two kinds of services: Internet presence and voice telephony. But they don't need the additional burden of maintaining switching equipment or administering IP and voice services for their ofﬁces. An Integrated Access Device (IAD) that offers high-speed DSL for IP connectivity and a voice telephone system that somebody else (the phone company) administers is the simple solution.

At the phone company's central ofﬁce, where all the big switch gear is, there are two kinds of switches for the two kinds of services, voice and data. The IAD must be capable of communicating with a wide array of possible combinations of voice and data switches.

An IAD combines the voice telephony features of a telephone system with the data routing features of an IP data router. The device uses a single outside line connection to carry all voice and data transmissions. If the device uses a DSL interface, it can carry all of these services over a single existing copper telephone line by regulating the ﬂow of voice and data packets on the copper wire for voice and data trafﬁc.

The Netopia 4741 ADSL Integrated Access Device is that device: a Centrex-based system combined with an ADSL internet router.

The Netopia 4741 ADSL Integrated Access Device provides the following features:

Support for ordinary analog phone equipment.

that small businesses use today. No expensive handsets to order, no new interface to learn.

Works with the same FXS analog phone sets and key systems

Centrex support.

call forwarding or conferencing operate exactly as they did before.

Advanced telephone features enabled by your service provider's telephone switch such as

Page 14

1-2 Administration Guide

Netopia data routing engine.

Provides the same advanced, business-class data routing features used by leading DSL service providers around the world. Includes advanced data functionality such as ﬁrewall, VPN client and server (including PPTP and IPSec), DHCP automated address assignment, and Network Address Translation (NAT and MultiNAT).

Physical features include:

ADSL WAN Interface interoperable with major ATM-based DSL equipment.

■

A 10/100 Ethernet LAN Port.

■

Four analog telephone ports (local extensions). One DB-9 serial console port.

■

Front panel status lights. Setup and conﬁguration management via console menu.

■

HHHHoooowwww ttttoooo UUUUsssseeee TTTThhhhiiiissss GGGGuuuuiiiiddddee

This guide is designed to be your source for information about your Netopia 4741 ADSL Integrated Access Device. It is intended to be viewed on-line, using the powerful features of the Adobe Acrobat Reader. The information display has been deliberately designed to present the maximum information in the minimum space on your screen. You can keep this document open while you perform any of the procedures described, and ﬁnd useful information about the procedure you are performing.

If you prefer to work from hard copy rather than on-line documentation, you can also print out all of the manual, or individual sections. The pages are formatted to print on 8 1/2 by 11 inch paper. We recommend that you print on three-hole punched paper, so you can put the pages in a binder for future reference.

This guide is organized into chapters describing the Netopia 4741’s advanced features. You may want to read each chapter’s introductory section to familiarize yourself with the various features available.

Use the guide’s table of contents and index to locate informational topics.

Page 15

Making the Physical Connections 2-1

CCCChhhhaaaapppptttteeeerrrr 22

MMMMaaaakkkkiiiinnnngggg tttthhhheeee PPPPhhhhyyyyssssiiiiccccaaaallll CCCCoooonnnnnnnneeeeccccttttiiiioooonnnnss

This section tells you how to make the physical connections to your Netopia 4741 ADSL Integrated Access Device. This section covers the following topics:

■

“Find a Location” on page 2-1

■

“What You Need” on page 2-2 “Important Safety instructions” on page 2-3

■

“Identify the Connectors and Attach the Cables” on page 2-4

■

“Netopia 4741 Status Lights” on page 2-5

Find a Location

Note:

Appendix E, “Technical Speciﬁcations and Safety Information.”

Before connecting your Netopia 4741, be sure to read the important safety information contained in

When choosing a location for the Netopia Router, consider:

Available space and ease of installation

■

Physical layout of the building and how to best use the physical space available for connecting your Netopia Router to the LAN

Available wiring and jacks

■

Distance from the point of installation to the next device (length of cable or wall wiring)

■

Ease of access to the front of the unit for conﬁguration and monitoring

■

Ease of access to the back of the unit for checking and changing cables Cable length and network size limitations when expanding networks

■

For small networks, install the Netopia 4741 near one of the LANs. For large networks, you can install the Netopia 4741 in a wiring closet or a central network administration site.

Page 16

2-2 Administration Guide

What You Need

Locate all items that you need for the installation. Included in your package are:

The Netopia 4741 ADSL Integrated Access Device

■

A power adapter and cord with a mini-DIN8 connector

■

One 6 ft. RJ45 10/100 Ethernet cable One 6 ft. RJ45 DSL WAN (or Line) cable

■

A DB-9 to DB-9 console cable

■

Printed Installation guide

■

The Netopia CD containing Adobe Acrobat Reader for Windows and Macintosh, ZTerm terminal emulator software for Classic MacOS and NCSA Telnet for Macintosh, and documentation

You will need:

■

A Windows 95 or 98–based PC or a Macintosh computer with Ethernet connectivity for conﬁguring the Netopia 4741. This may be built-in Ethernet or an add-on card, with TCP/IP installed and conﬁgured. See

“Sharing the Connection” on page 3-1.

■

A DSL wall outlet wired for a connection to a Local Exchange Carrier (LEC) who supports ADSL Digital Subscriber Line connections.

Page 17

Making the Physical Connections 2-3

Important Safety instructions

CAUTION: Depending on the power supply provided with the product, either the direct plug-in power supply blades, power supply cord plug or the appliance coupler serves as the main power disconnect. It is important that the direct plug-in power supply, socket-outlet or appliance coupler be located so it is readily accessible.

CAUTION (North America Only): For use only with a CSA Certiﬁed or UL Listed Limited Power Source or Class 2 power supply, rated 12Vdc, 1.5A.

CAUTION (Europe Only): For use only with a GS approved Limited Power Source, rated 12Vdc, 1.5A. TELECOMMUNICATION INSTALLATION CAUTIONS

When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of ﬁre, electric shock and injury to persons, including the following:

1. Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electrical shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

SAVE THESE INSTRUCTIONS

Page 18

2-4 Administration Guide

Identify the Connectors and Attach the Cables

Identify the connectors on the back panel and attach the necessary Netopia cables. The ﬁgure below displays the back of the Netopia 4741 ADSL Integrated Access Device.

Netopia 4741 back panel

1234

Extensions

Telephone Extension ports

DSLTelephone

DSL Line port

10/100

Ethernet

Console Power

Console port Power port

10/100 Ethernet port

The following table describes all the Netopia 4741 ADSL Integrated Access Device back panel ports.

Port Description

Telephone extension

Four RJ-11 telephone jacks for connecting your phone extensions.

ports DSL port An RJ-48 10Base-T-style jack labeled DSL for your DSL connection. Ethernet port An RJ-45 10/100Base-T Ethernet jack. Y ou will use this to conﬁgure the Netopia

4741. For a new installation, use the Ethernet connection. Alternatively, you can use the console connection to run console-based management using a direct serial connection. You can either connect your computer directly the Ethernet port using a crossover cable, or connect both your computer and the Netopia 4741 to an existing Ethernet hub on your LAN.

Console port A DB-9 console port for a direct serial connection to the console screens. You

can use this if you are an experienced user. See “Connecting a Console Cable

to Your Device” on page 5-3.

Power port A mini-DIN8 power adapter cable connection.

1. Connect the mini-DIN8 connector from the power adapter to the power port, and plug the other end into an electrical outlet.

2. Connect one end of the RJ-45 cable to the DSL port, and the other end to your DSL wall outlet.

3. Connect the Ethernet cable to the Ethernet port on the unit and the other end to your Ethernet hub. You should now have: the power adapter plugged in; the Ethernet cable connected between the router and

your Ethernet hub; and the DSL cable connected between the router and the DSL wall outlet.

Page 19

Netopia 4741 Status Lights

The ﬁgure below represents the Netopia 4741 status light (LED) panel.

Netopia 4741 LED front panel

Making the Physical Connections 2-5

1 8

Power

23 4 5

Error

Ethernet

DSL

Voice

The following table summarizes the meaning of the various LED states and colors:

When this happens... the LEDs...

The power is off (button is not pressed in) 1 is The power is on (button pressed in) 1 is No errors are detected on any interface 2 is Errors are detected by the system 2 is The Ethernet interface is connected 3 is The Ethernet interface is not connected 3 is The DSL WAN interface is inactive 4 is The DSL WAN interface is training 4 ﬂashes

dark green dark red

green dark dark

. . .

green

. Initially the LED is dark, then ﬂashes green while attempting to establish connection to the DSLAM. While exchanging connection information with the DSLAM, the LED ﬂashes slightly faster.

The DSL WAN interface is trained 4 is A phone is off-hook 5 through 8 are A phone is on-hook 5 through 8 are

solid green

green

for the corresponding extension.

dark

for the corresponding extension.

Page 20

2-6 Administration Guide

Page 21

Sharing the Connection 3-1

CCCChhhhaaaapppptttteeeerrrr 33

SSSShhhhaaaarrrriiiinnnngggg tttthhhheeee CCCCoooonnnnnnnneeeeccccttttiiiioooonn

Once you have set up your physical local area network, you will need to conﬁgure the TCP/IP stack on each client workstation connected to your Netopia 4741. This chapter describes how to conﬁgure TCP/IP for both Windows-based and Macintosh computers.

This chapter explains the following topics:

■ “Conﬁguring TCP/IP on Windows-based Computers” on page 3-2

■ “Conﬁguring TCP/IP on Macintosh Computers” on page 3-5

Page 22

3-2 Administration Guide

Conﬁguring TCP/IP on Windows-based Computers

Conﬁguring TCP/IP on a Windows computer requires the following:

■ An Ethernet card (also known as a network adapter)

■ The TCP/IP protocol must be “bound” to the adapter or card

Dynamic conﬁguration (recommended)

To conﬁgure your PC for dynamic addressing do the following:

1. Go to the Start Menu/Settings/Control Panels and double click the Network icon. From the Network components list, select the Conﬁguration tab.

2. Select TCP/IP-->Your Network Card. Then select

Properties. In the TCP/IP Properties screen, select the IP Address tab. Click “Obtain an IP Address automatically”.

3. Click on the DNS Conﬁguration tab. Click Disable DNS. DNS will be assigned by the router with DHCP.

Click on the Gateway tab, and if there is an installed gateway, remove it.

4. Click OK in this window and the next window. When prompted, reboot the computer.

Note: You can also use these instructions to conﬁgure other computers on your network to accept IP addresses served by the Netopia 4741.

Page 23

Sharing the Connection 3-3

Static conﬁguration (optional)

If you are manually conﬁguring for a ﬁxed or static IP address, perform the following:

1. Go to Start Menu/Settings/Control Panels and double click the Network icon. From the Network components list, select the Conﬁguration tab.

2. Select TCP/IP-->Your Network Card. Then select Properties. In the TCP/IP Properties screen, select the IP Address tab. Click “Specify an IP Address.”

Enter the following:

IP Address: 192.168.1.2 Subnet Mask: 255.255.255.0

This address is an example of one that can be used to conﬁgure the router. Your ISP or network administrator may ask you to use a different IP address and subnet mask.

Page 24

3-4 Administration Guide

3. Click on the Gateway tab (shown below). Under “New gateway,” enter

192.168.1.1. Click Add. This is the Netopia 4741’s pre-assigned IP address.

Click on the DNS Conﬁguration tab. Click Enable DNS. Enter the following information:

Host: Type the name you want to give to this computer.

Domain: Type your domain name. If you don't have a domain name, type your ISP's domain name; for example, netopia.com.

DNS Server Search Order: Type the

primary DNS IP address given to you by your ISP. Click

Add. Repeat this process for the secondary DNS. Domain Sufﬁx Search Order: Enter the same domain

name you entered above.

4. Click OK in this window and the next window. When prompted, reboot the computer. Note: You can also use these instructions to conﬁgure other computers on your network with manual or static

IP addresses. Be sure each computer on your network has its own IP address.

Page 25

Sharing the Connection 3-5

Conﬁguring TCP/IP on Macintosh Computers

The following is a quick guide to conﬁguring TCP/IP for MacOS computers. Conﬁguring TCP/IP in a Macintosh computer requires the following:

■ You must have either Open Transport or Classic Networking (MacTCP) installed.

Note: If you want to use the Dynamic Host Conﬁguration Protocol (DHCP) server built into your Netopia 4741 to assign IP addresses to your Macintoshes, you must be running Open Transport, standard in MacOS 8 and optional in earlier system versions. You can have your Netopia 4741 dynamically assign IP addresses using MacTCP; however, to do so requires that the optional AppleTalk kit be installed which can only be done after the router is conﬁgured.

■ You must have built-in Ethernet or a third-party Ethernet card and its associated drivers installed in your

Macintosh.

Dynamic conﬁguration (recommended)

The Dynamic Host Conﬁguration Protocol (DHCP), which enables dynamic addressing, is enabled by default in the router. To conﬁgure your Macintosh computer for dynamic addressing do the following:

1. Go to the Apple menu. Select Control Panels and then TCP/IP.

2. With the TCP/IP window open, go to the Edit menu and select User Mode. Choose Basic and click OK.

3. In the TCP/IP window, select “Connect via: Ethernet” and “Conﬁgure: Using DHCP Server.”

Note: You can also use these instructions to conﬁgure other computers on your network to accept IP addresses served by the Netopia 4741.

Page 26

3-6 Administration Guide

Static conﬁguration (optional)

If you are manually conﬁguring for a ﬁxed or static IP address, perform the following:

1. Go to the Apple menu. Select Control Panels and then TCP/IP or MacTCP.

2. With the TCP/IP window open, go to the Edit menu and select User Mode. Choose Advanced and click OK.

Or, in the MacTCP window, select Ethernet and click the More button.

3. In the TCP/IP window or in the MacTCP/More window, select or type information into the ﬁelds as shown in the following table.

Option: Select/Type:

Connect via: Ethernet Conﬁgure: Manually IP Address: 192.168.1.2 Subnet mask: 255.255.255.0, or for 12-user models

255.255.255.240 Router or Gateway address: 192.168.1.1 Name server address: Enter the primary and secondary name server

addresses given to you by your ISP

Implicit Search Path: Starting domain name:

Enter your domain name; if you do not have a domain name, enter the domain name of your ISP

4. Close the TCP/IP or MacTCP control panel and save the settings.

5. If you are using MacTCP, you must restart the computer. If you are using Open Transport, you do not need to restart.

Page 27

Sharing the Connection 3-7

Note: You can also use these instructions to conﬁgure other computers on your network with manual or static IP addresses. Be sure each computer on your network has its own IP address.

More information about conﬁguring your Macintosh computer for TCP/IP connectivity through a Netopia 4741 can be found in Technote NIR_026, “Open Transport and Netopia Routers,” located on the Netopia Web site.

Page 28

3-8 Administration Guide

Page 29

Connecting to Your Local Network 4-1

CCCChhhhaaaapppptttteeeerrrr 44

CCCCoooonnnnnnnneeeeccccttttiiiinnnngggg ttttoooo YYYYoooouuuurrrr LLLLooooccccaaaallll NNNNeeeettttwwwwoooorrrrkk

This chapter describes how to physically connect the Netopia 4741 to your local area network (LAN). Before you proceed, make sure the Netopia 4741 is properly conﬁgured. You can customize the device’s conﬁguration for your particular LAN requirements using console-based management (see “Console-Based Management” on

page 5-1).

This section covers the following topics:

■ “Readying Computers on Your Local Network” on page 4-2

■ “Connecting to an IP and Telephone Network” on page 4-3

Page 30

4-2 Administration Guide

Readying Computers on Your Local Network

PC and Macintosh computers must have certain components installed before they can communicate through the Netopia 4741. The following illustration shows the minimal requirements for a typical PC or Macintosh computer.

Application software

TCP/IP stack

Ethernet

Your PC or Macintosh computer

To the Netopia 4741

Application software: This is the software you use to send e-mail, browse the World Wide Web, read newsgroups, etc. These applications may require some conﬁguration. Examples include the Eudora e-mail client and the Web browsers Microsoft Internet Explorer and Netscape Navigator.

TCP/IP stack: This is the software that lets your PC or Macintosh computer communicate using Internet protocols. TCP/IP stacks must be conﬁgured with some of the same information you used to conﬁgure the Netopia 4741. There are a number of TCP/IP stacks available for PC computers. Windows 95 includes a built-in TCP/IP stack. See “Conﬁguring TCP/IP on Windows-based Computers” on page 3-2. Macintosh computers use either MacTCP or Open Transport. See “Conﬁguring TCP/IP on Macintosh Computers” on page 3-5.

Ethernet: Ethernet hardware and software drivers enable your PC or Macintosh computer to communicate on the LAN.

Once the Netopia 4741 is properly conﬁgured and connected to your LAN, PC and Macintosh computers that have their required components in place will be able to connect to the Internet or other remote IP networks.

Page 31

Connecting to Your Local Network 4-3

Connecting to an IP and Telephone Network

The Netopia 4741 supports Ethernet connections through its Ethernet port. You can connect a standard 10 or 100Base-T Ethernet network to the Netopia 4741 using its Ethernet port.

Netopia 4741 back panel

1234

Extensions

Telephone Extension ports

Add computers by connecting them to an Ethernet hub and connecting the hub to the Ethernet port on the Netopia 4741. Add telephones or fax machines by connecting them directly to the telephone extension ports on the Netopia 4741.

DSL Line port

1234

DSLTelephone

10/100

Ethernet

Console port Power port

10/100 Ethernet port

10/

Co Po

DTel

Console Power

10/100Base-T

Hub

Note: The Ringer Equivalence Number (REN) is used to determine how many devices can be connected to your telephone line. In most areas, the sum of the REN's of all devices on any one line should not exceed two (2.0). If too many devices are attached, they many not ring properly. The REN for telephone devices is usually listed on the product label or stamped or moulded into the body of the device.

Page 32

4-4 Administration Guide

Page 33

Console-Based Management 5-1

CCCChhhhaaaapppptttteeeerrrr 55

CCCCoooonnnnssssoooolllleeee----BBBBaaaasssseeeedddd MMMMaaaannnnaaaaggggeeeemmmmeeeennnntt

Console-based management is a menu-driven interface for the capabilities built into the Netopia 4741. Console-based management provides access to a wide variety of features that the router supports. You can customize these features for your individual setup. This chapter describes how to access the console-based management screens.

This section covers the following topics:

■ “Connecting through a Telnet Session” on page 5-2

■ “Connecting a Console Cable to Your Device” on page 5-3

■ “Navigating through the Console Screens” on page 5-5

Console-based management screens contain eight entry points to the Netopia 4741 conﬁguration and monitoring features. The entry points are displayed in the Main Menu shown below:

Netopia 4741 v5.1.1

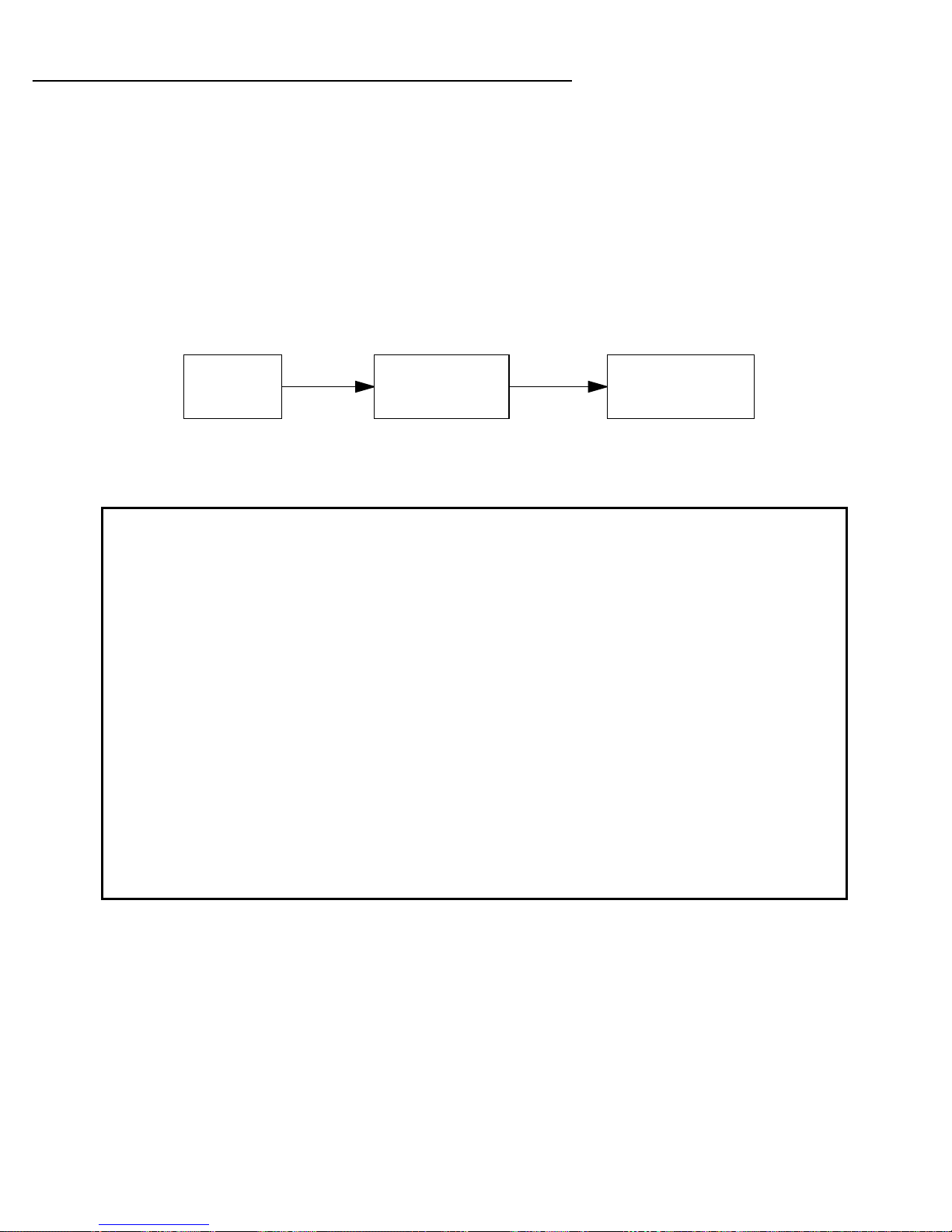

Easy Setup... WAN Configuration... System Configuration... Voice Configuration... Utilities & Diagnostics... Statistics & Logs... Quick Menus... Quick View...

Return/Enter goes to Easy Setup -- minimal configuration. You always start from this main screen.

■ The Easy Setup menus display and permit changing the values contained in the default connection proﬁle.

You can use Easy Setup to initially conﬁgure the router directly through a console session. Easy Setup menus contain up to ﬁve descendant screens for viewing or altering these values. The number

of screens depends on whether you have optional features installed.

■ The WAN Conﬁguration menu displays and permits changing your connection proﬁle(s) and default proﬁle,

creating or deleting additional connection proﬁles, and conﬁguring or reconﬁguring the manner in which you may be using the router to connect to more than one service provider or remote site.

Page 34

5-2 Administration Guide

■ The System Conﬁguration menus display and permit changing:

■ Internet protocol setup. See “IP Setup” on page 9-1.

■ Filter sets (ﬁrewalls). See “Security” on page 12-1.

■ IP address serving. See “IP Address Serving” on page 9-10.

■ Date and time. See “Date and time (Network Time Protocol)” on page 8-23.

■ Console conﬁguration. See “Connecting a Console Cable to Your Device” on page 5-3.

■ SNMP (Simple Network Management Protocol). See “SNMP” on page 13-13.

■ Security. See “Security” on page 12-1.

■ Upgrade feature set. See “Upgrade feature set” on page 8-25.

■ The Voice Conﬁguration menus provide the tools for conﬁguring the voice telephone features available in

the Netopia 4741. See Chapter 7, “Voice Conﬁguration.”

■ The Utilities & Diagnostics menus provide a selection of seven tools for monitoring and diagnosing the

router's behavior, as well as for updating the ﬁrmware and rebooting the system. See “Utilities and

Diagnostics” on page 14-1 for detailed information.

■ The Statistics & Logs menus display nine sets of tables and device logs that show information about your

router, your network, and their history. See “Statistics & Logs” on page 13-4 for detailed information.

■ The Quick Menus screen is a shortcut entry point to 22 of the most commonly used conﬁguration menus

that are accessed through the other menu entry points.

■ The Quick View menu displays at a glance current real-time operating information about your router. See

“Quick View Status Overview” on page 13-1 for detailed information.

Connecting through a Telnet Session

Features of the Netopia 4741 can be conﬁgured through the console screens. Before you can access the console screens through Telnet, you must have:

■ A network connection locally to the router or IP access to the router.

Note: Alternatively, you can have a direct serial console cable connection using the provided console cable for your platform (PC or Macintosh) and the Console port on the back of the router. For more information on attaching the console cable, see “Connecting a Console Cable to Your Device” on page 5-3.

■ Telnet software installed on the computer you will use to conﬁgure the router

Conﬁguring Telnet software

If you are conﬁguring your router using a Telnet session, your computer must be running a Telnet software program.

■ If you connect a PC with Microsoft Windows, you can use a Windows T elnet application or simply run T elnet

from the Start menu.

Page 35

Console-Based Management 5-3

■ If you connect a Macintosh computer, you can use the NCSA Telnet program supplied on the Netopia 4741

CD. You install NCSA Telnet by simply dragging the application from the CD to your hard disk.

Connecting a Console Cable to Your Device

You can perform all of the system conﬁguration activities for your Netopia 4741 through a local serial console connection using terminal emulation software, such as HyperTerminal provided with Windows 95, 98, 2000, or NT on the PC, or ZTerm for Classic MacOS, included on the Netopia CD, for Macintosh computers.

The Netopia 4741 back panel has a connector labeled “Console” for attaching the Router to either a PC or Macintosh computer via the serial port on the computer. (On a Macintosh computer, the serial port is called the Modem port or Printer port.) This connection lets you use the computer to conﬁgure and monitor the Netopia 4741 via the console screens.

Netopia 4741 back panel

1234

Extensions

DSLTelephone

10/100

Ethernet

Console Power

Console connection port DB-9 (male)

To connect the Netopia 4741 to your computer for serial console communication, use a console cable appropriate to your platform:

■ A DB-9 connector end attaches to a PC.

■ A mini-DIN8 or a USB connector end attaches to a Macintosh computer depending on your computer’s

serial bus type. Since Macintosh computers have different serial bus connectors, you will need a mini-DIN8- or USB-to-DB-9 adapter. These are available from a variety of third-party manufacturers.

■ A DB-9 end of the Console cable attaches to the Netopia 4741’s Console port.

■ If you connect a PC with Microsoft Windows 95, 98, 2000 or NT, you can use the HyperTerminal application

bundled with the operating system.

■ If you connect a Macintosh computer, you can use the ZTerm terminal emulation program on the supplied

Netopia 4741 CD.

Page 36

5-4 Administration Guide

Launch your terminal emulation software and conﬁgure the communications software for the values shown in the table below. These are the default communication parameters that the Netopia 4741 uses.

Parameter Suggested Value

Terminal type PC: ANSI-BBS

Mac: ANSI, VT-100, or VT-200

Data bits 8 Parity None Stop bits 1 Speed 57600 bits per second Flow Control None Note: The router ﬁrmware contains an autobaud detection feature. If you are at any

screen on the serial console, you can change your baud rate and press Return (HyperTerminal for the PC requires a disconnect). The new baud rate is displayed at the bottom of the screen.

Page 37

Console-Based Management 5-5

Navigating through the Console Screens

Use your keyboard to navigate the Netopia 4741’s conﬁguration screens, enter and edit information, and make choices. The following table lists the keys to use to navigate through the console screens.

To... Use These Keys...

Move through selectable items in a screen or pop-up menu Up, Down, Left, and Right Arrow Set a change to a selected item or open a pop-up menu of

options for a selected item like entering an upgrade key Change a toggle value (Yes/No, On/Off) Tab Restore an entry or toggle value to its previous value Esc Move one item up Up arrow or Control + K Move one item down Down arrow or Control + O Display a dump of the device event log Control + E Display a dump of the WAN event log Control + F Refresh the screen Control + L

Return or Enter

Page 38

5-6 Administration Guide

Page 39

Easy Setup 6-1

CCCChhhhaaaapppptttteeeerrrr 66

EEEEaaaassssyyyy SSSSeeeettttuuuupp

This chapter describes how to use the Easy Setup console screens on your Netopia 4741 ADSL Integrated Access Device. After completing the Easy Setup console screens, your device will be ready to connect to the Internet or another remote site.

Easy Setup Console Screens

Using ﬁve Easy Setup console screens, you can:

■ Modify a connection proﬁle for your device for the connection to your ISP or remote location

■ Set up the voice connection to your remote voice provider

■ Set up IP addresses and IP address serving

■ Password–protect conﬁguration access to your Netopia 4741 ADSL Integrated Access Device

Accessing the Easy Setup console screens

To access the console screens, Telnet to the Netopia 4741 over your Ethernet network or physically connect with a serial console cable and access it with a terminal emulation program. See “Connecting through a Telnet

Session” on page 5-2 or “Connecting a Console Cable to Your Device” on page 5-3.

Note: Before continuing, make sure you have the information that your telephone service provider, ISP, or network administrator has given you for conﬁguring the Netopia 4741.

The Netopia 4741’s ﬁrst console screen, Main Menu, appears in the terminal emulation window of the attached PC or Macintosh computer when:

■ The Netopia 4741 is turned on

■ The computer is connected to the Netopia 4741

■ Telnet or the terminal emulation software is running and conﬁgured correctly

Page 40

6-2 Administration Guide

A screen similar to the following Main Menu appears:

Netopia 4741 v5.1.1

Easy Setup... WAN Configuration... System Configuration... Voice Configuration... Utilities & Diagnostics... Statistics & Logs... Quick Menus... Quick View...

Return/Enter goes to Easy Setup -- minimal configuration. You always start from this main screen.

If you do not see the Main Menu, verify that:

■ If you are using a serial connection, that your serial port speed is the same as the Netopia 4741’s default

9600 baud, for ﬁrst use.

■ The computer used to view the console screen has its serial port connected to the Netopia 4741’s

Console port or an Ethernet connection to one of its Ethernet ports. See “Connecting a Console Cable to

Your Device” on page 5-3 or “Connecting through a Telnet Session” on page 5-2.

■ Telnet or the terminal emulation software is conﬁgured for the recommended values.

■ If you are connecting via the Console port, your computer’s serial port is not being used by another device,

such as an internal modem, or an application. Turn off all other programs (other than your terminal emulation program) that may be interfering with your access to the port.

■ You have entered the correct password, if necessary. Your Netopia 4741’s console access may be

password protected from a previous conﬁguration. See your system administrator to obtain the password. See Appendix A, “Troubleshooting,” for more suggestions.

■ If all you see is a pound sign (#), you are in the command line interface. Hit Control-N to exit to the Main

Menu.

Page 41

Easy Setup 6-3

Quick Easy Setup Connection Path

This section may be all you need to do to conﬁgure your Netopia 4741 ADSL Integrated Access Device. Your service provider will supply you with several parameter values. Below is a handy checklist:

DSL Line Conﬁguration Screen

Data Link Encapsulation ❑ RFC1483 (default)

❑ PPP PPP Mode:

Data Circuit VPI Data Circuit VPI

Voice Gateway: ❑ CopperCom,

0-255 (0 is default) 0-65535 (35 is default)

Voice Easy Setup Screen

❑ JetStream, ❑ TollBridge, ❑ TDSoft ❑ Zhone

Easy Setup Proﬁle Screen

Address Translation Enabled:

IP Addressing: ❑ Numbered (default) or

❑ Yes (default) or ❑ No

❑ Unnumbered

(for PPP DLEs only) PPP Authentication:

❑ None (default), ❑ PAP or ❑ CHAP

RFC1483 Mode:

❑ Bridged 1483 (default) or ❑ Routed 1483

❑ VC Multiplexed (default) or ❑ LLC SNAP

_______________________ _______________________

(for any Voice Gateway other than TollBridge) Voice VPI:

Voice VCI:

(for Numbered IP Addressing) Local WAN IP Address: _______________________ Local WAN IP Mask: _______________________

(for PAP or CHAP) User Name (or Host Name): _______________________

(for Bridged 1483 only) PPP over Ethernet (PPPoE)

❑ Off (default) or ❑ On

0-255 (0 is default) _______________________ 0-65535 (0 is default) _______________________

(for Unnumbered IP Addressing) Remote IP Address: _______________________ Remote IP Mask: _______________________

(for PAP or CHAP) Password (or Secret): _______________________

Ethernet IP Address:

Ethernet Subnet Mask: Domain Name: _______________________ Primary Domain Name

Server: Secondary Domain Name

Server: Default IP Gateway: _______________________

Write Access Name: _______________________ Write Access Password: _______________________

_______________________

IP Easy Setup Screen

(192.168.1.1

255.255.255.0 are defaults)

Easy Setup Security Conﬁguration Screen

Page 42

6-4 Administration Guide

You can record these values by printing the checklist above. Refer to it as you navigate through the Easy Setup screens.

If your provider assigns your device a Static IP address, do the following:

1. Open a Telnet session to 192.168.1.1 to bring up the Main Menu. If you don't know how to do this, see “Connecting through a Telnet Session” on page 5-2. Alternatively, you can connect the console cable and open a direct serial console connection, using a

terminal emulator program. See “Connecting a Console Cable to Your Device” on page 5-3. The Main Menu appears.

Netopia 4741 v5.1.1

Easy Setup... WAN Configuration... System Configuration... POTS Configuration... Utilities & Diagnostics... Statistics & Logs... Quick Menus... Quick View...

Return/Enter goes to Easy Setup -- minimal configuration. You always start from this main screen.

Page 43

Easy Setup 6-5

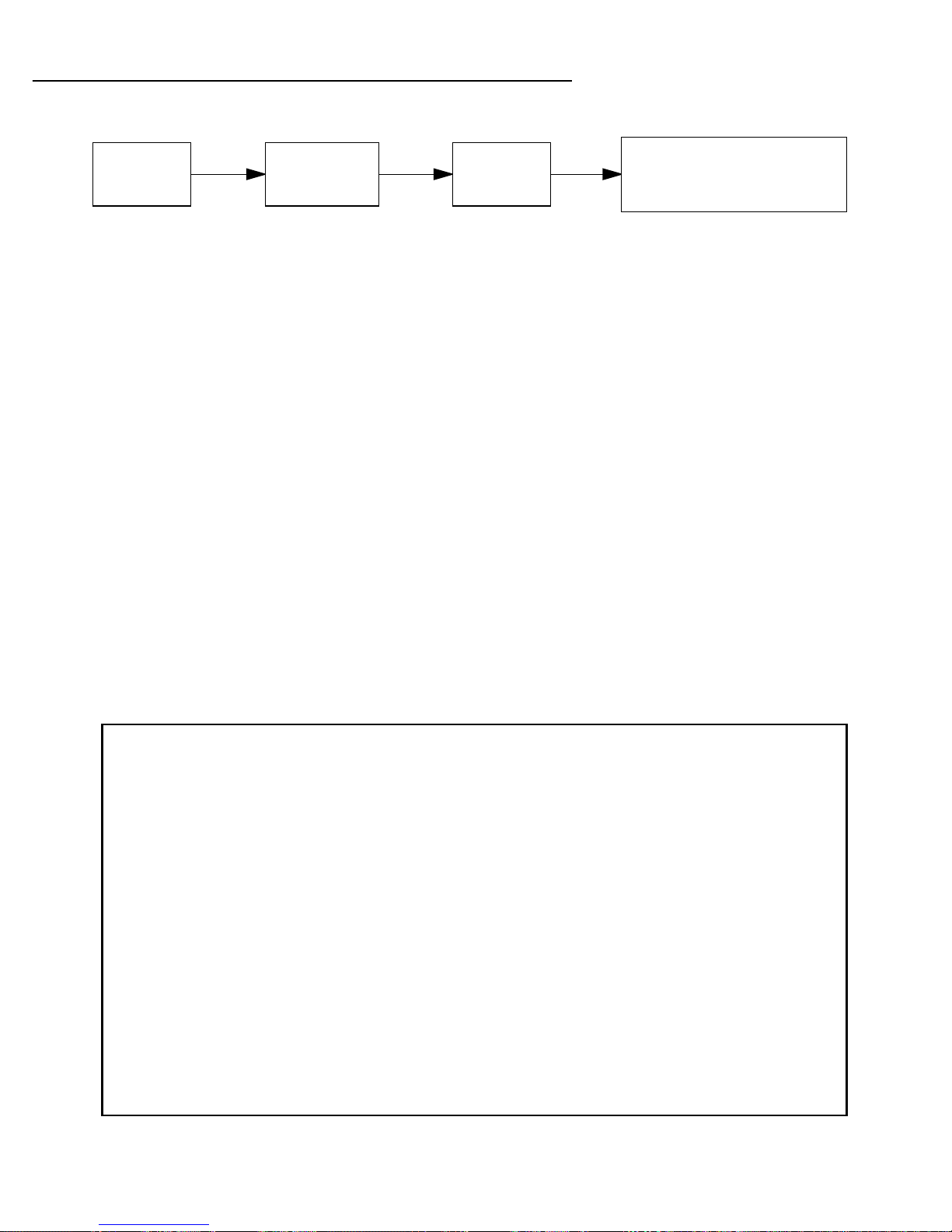

2. Select the ﬁrst item on the Main Menu list, Easy Setup. Press Return to bring up the DSL Line Conﬁguration menu screen.

DSL Line Conﬁguration

ADSL Line Configuration

Data Link Encapsulation... RFC1483 RFC1483 Mode... Bridged 1483 PPP over Ethernet (PPPoE): Off

Data Circuit VPI (0-255): 8 Data Circuit VCI (0-65535): 35

PREVIOUS SCREEN NEXT SCREEN Return/Enter goes to new screen.

1. Select Data Link Encapsulation and from the pop-up menu choose your DLE.

■ The DLE choices are PPP or RFC1483 (the default).

■ If you selected RFC1483, the next pop-up menu RFC1483 Mode offers the choice of Bridged 1483 or

Routed 1483. If you select Bridged 1483, the PPP over Ethernet (PPPoE) option allows you to toggle PPPoE On or Off. Choosing Routed 1483 hides the PPPoE option.

■ If you selected PPP, the next pop-up menu PPP Mode offers the choice of VC Multiplexed or LLC SNAP.

■ The next two ﬁelds, Data Circuit VPI and Data Circuit VCI are editable. Enter the Virtual Path Identiﬁer and

Virtual Channel Identiﬁer values that your provider speciﬁes. For more information on VPIs and VCIs, see

“Multiple ATM Permanent Virtual Circuit Support” on page 8-3.

2. Press the Down arrow key until you reach NEXT SCREEN. Press Return to bring up the next screen.

Page 44

6-6 Administration Guide

Voice Easy Setup

PREVIOUS SCREEN NEXT SCREEN

1. Select Voice Gateway and press Return. The pop-up menu will offer you the choice of popular voice gateway devices. Your selection depends on which type your ISP uses: CopperCom, JetStream, TollBridge, Tdsoft, or Zhone.

2. For any Voice Gateway other than Tollbridge, the Voice VPI and Voice VCI ﬁelds are editable. (If you select Tollbridge, the VPI and VCI ﬁelds do not appear.) Enter the Virtual Path Identiﬁer and Virtual Channel Identiﬁer values that your provider speciﬁes. For more information on VPIs and VCIs, see “Multiple ATM

Permanent Virtual Circuit Support” on page 8-3.

3. Press the Down arrow key until you reach NEXT SCREEN. Press Return to bring up the next screen.

Page 45

Easy Setup 6-7

Easy Setup Proﬁle

The Easy Setup Proﬁle screen is where you conﬁgure the parameters that control the Netopia 4741’s connection to a speciﬁc remote destination, usually your ISP or a corporate site.

On a Netopia 4741 ADSL Integrated Access Device you can add up to 15 more connection proﬁles, for a total of 16, although, except for Virtual Private Networks, you can only use one at a time.

Connection Profile 1: Easy Setup Profile

Connection Profile Name: Easy Setup Profile

Address Translation Enabled: Yes IP Addressing... Numbered

Local WAN IP Address: 0.0.0.0 Local WAN IP Mask: 0.0.0.0

PREVIOUS SCREEN NEXT SCREEN Return accepts * ESC cancels * Left/Right moves insertion point * Del deletes.

Enter basic information about your WAN connection with this screen.

1. To enable address translation, toggle Address Translation Enabled to Yes (the default). For more information on Network Address Translation, see Chapter 9, “IP Setup,” on page 9-1.

The IP Addressing menu item allows you to choose between Unnumbered and Numbered addressing. Numbered is the default for DSL. It assigns a unique IP address to the DSL WAN interface, as required by most ISPs’ routers. Unnumbered may be used for simpler conﬁgurations such as point-to-point short haul applications.

2. Select the editable ﬁeld labeled Local WAN IP Address. The default address is 0.0.0.0, which allows for dynamic addressing, when your ISP assigns an address

each time you connect. However, you can enter another speciﬁc address if you want to use static addressing. In that case, enter the local WAN address your ISP gave you. Press Return.

3. If you selected PPP data link encapsulation in the DSL Line Conﬁguration screen, a PPP Authentication menu item appears. The authentication protocol and user name/password combinations you enter must be assigned or agreed to in advance between you and your ISP. Select PPP Authentication and press Return.

From the pop-up menu that appears, select the authentication method your ISP uses: PAP (Password Authentication Protocol), CHAP (Challenge Handshake Authentication Protocol), or None.

■ PAP is the most common, and requires you to enter a User Name and Password in the next two ﬁelds.

■ CHAP requires you to enter a Host Name and Secret in the next two ﬁelds.

4. Press the Down arrow key until you reach NEXT SCREEN. Press Return to bring up the next screen.

Page 46

6-8 Administration Guide

IP Easy Setup

The IP Easy Setup screen is where you enter information about your Netopia Router’s:

■ Ethernet IP address

■ Ethernet Subnet mask

■ Domain Name

■ Domain Name Server IP address

■ Default gateway IP address

Consult with your network administrator to obtain the information you will need. For more information about setting up IP, see “IP Setup” on page 9-1.

IP Easy Setup

Ethernet IP Address: 192.168.1.1 Ethernet Subnet Mask: 255.255.255.0

Domain Name: Primary Domain Name Server: 0.0.0.0 Secondary Domain Name Server: 0.0.0.0

Default IP Gateway: 0.0.0.0 IP Address Serving: On Number of Client IP Addresses: 100

1st Client Address: 192.168.1.100

PREVIOUS SCREEN NEXT SCREEN Enter an IP address in decimal and dot form (xxx.xxx.xxx.xxx).

Set up the basic IP & IPX attributes of your Netopia in this screen.

1. Select Ethernet IP Address and enter the ﬁrst IP address from the IP address range your ISP has given you. This will be the Netopia Router’s IP address.

The Ethernet IP Address defaults to an address (192.168.1.1) within a range reserved by the Internet address administration authority for use within private networks.

Because this is a private network address, it should never be directly connected to the Internet. Using NAT for all your connection proﬁles will ensure this restriction. See “Multiple Network Address Translation” on

page 10-1 of this guide for more information.

2. Select Ethernet Subnet Mask and enter the subnet mask your ISP has given you. The Ethernet Subnet Mask defaults to a standard class mask derived from the class of the Ethernet IP address you entered in the previous step.

3. Press the Down arrow key until the editable ﬁeld labeled Domain Name is highlighted.

4. Type the Domain Name your ISP gave you. Press Return. The next ﬁeld Primary Domain Name Server will be highlighted.

Page 47

Easy Setup 6-9

5. Type the Primary Domain Name Server address your ISP gave you. Press Return. A new ﬁeld Secondary Domain Name Server will appear. If your ISP gave you a secondary domain name server address, enter it

here. Press Return until the next ﬁeld Default IP Gateway is highlighted.

6. For a PPP connection, if you do not enter a Default IP Gateway value, the router defaults to the remote IP address you entered in the Easy Setup connection proﬁle. If the device does not recognize the destination of any IP trafﬁc, it forwards that trafﬁc to this gateway.

Do not confuse the remote IP address and the Default IP Gateway’s address with the block of local IP addresses you receive from your ISP. You use the local IP addresses for the Netopia 4741’s Ethernet port and for IP clients on your local network. The remote IP address and the default gateway’s IP address should point to your ISP’s router.

7. Toggle IP Address Serving to On or Off, depending on whether you want the device’s IP address server to supply dynamic IP addresses to your client workstations. Normally, you would accept the default On so that workstations on your LAN can use a single IP address assigned by your ISP to connect to the Internet.

8. The IP address server will provide 100 IP addresses automatically to workstations on your LAN. You only need to change the Number of Client IP Addresses if you have some other IP addressing scheme.

9. By default, the 1st Client Address is 192.168.1.100, based on the device’s default IP address of

192.168.1.1. You only need to change this if you have some other IP addressing scheme.

10. Press the Down arrow key until you reach NEXT SCREEN. Press Return.

Easy Setup Security Conﬁguration

The Easy Setup Security Conﬁguration screen lets you password-protect your Netopia 4741. Input your Write Access Name and Write Access Password with names or numbers totaling up to eleven digits.

If you password protect the console screens, you will be prompted to enter the name and password you have speciﬁed every time you log in to the console screens. Do not forget your name and password. If you do, you will be unable to access any of the conﬁguration screens.

Additional security features are available. See “Security” on page 12-1.

Page 48

6-10 Administration Guide

Easy Setup Security Configuration

It is strongly suggested that you password-protect configuration access to your Netopia. By entering a Name and Password pair here, access via serial, Telnet, and SNMP will be password-protected.

Be sure to remember what you have typed here, because you will be prompted for it each time you configure this Netopia.

You can remove an existing Name and Password by clearing both fields below. Write Access Name: Write Access Password:

PREVIOUS SCREEN TO MAIN MENU RESTART DEVICE

Configure a Configuration Access Name and Password here.

The ﬁnal step in conﬁguring the Easy Setup console screens is to restart the Netopia 4741, so that the conﬁguration settings take effect.

1. Select RESTART DEVICE. A prompt asks you to conﬁrm your choice.

2. Select CONTINUE to restart the Netopia Router and have your selections take effect.

Note: You can also restart the system at any time by using the Restart System menu item (see “Restarting the

System” on page 14-12) or by turning the Netopia Router off and on with the power switch.

The Router will restart and your conﬁguration settings will be activated. You can then Exit or Quit your Telnet application.

Easy Setup is now complete.

Page 49

Voice Conﬁguration 7-1

CCCChhhhaaaapppptttteeeerrrr 77

VVVVooooiiiicccceeee CCCCoooonnnnffffiiiigggguuuurrrraaaattttiiiioooonn

This chapter describes the telephony services and conﬁguration of the Netopia 4741 ADSL Integrated Access Device. For speciﬁc details on conﬁguration and use of the Netopia 4741’s Internet connection, refer to Chapter

6, “Easy Setup” and Chapter 8, “WAN and System Conﬁguration.”

This chapter covers the following topics:

■ “Introduction” on page 7-1

■ “Conﬁguring the Voice Features” on page 7-2

IIIInnnnttttrrrroooodddduuuuccccttttiiiioooonn

The Netopia 4741 provides small and medium sized businesses with a complete Centrex PBX system. It supports voice call switching between the ADSL link and four local extensions. Call management features can include distinctive ringing, intelligent call forwarding, Direct Inward Dial (DID), Caller ID, and hunt groups. Important key system features such as call hold, call transfer, and call waiting are all supported.

Note: Since the Netopia 4741 is a Centrex-based IAD, speciﬁc voice features available to you via the Netopia 4741 will depend on the services for which you contract with your service provider.

The Netopia 4741 supports up to four telephone extensions. Like the rest of the 4700-series line, the Netopia 4741 includes the Netopia data routing engine for any number of attached computers or other network devices connected to a single 10/100 Ethernet port.

Key features include:

■ Fax/Modem: Conﬁgurable Voice port for incoming fax or modem calls. Echo cancellation and other items

are changed when a fax is auto detected.

■ Voice Gateway Interoperability: CopperCom, JetStream, Tollbridge TDSoft, Zhone. General Bandwidth

support to follow in an upcoming ﬁrmware release.

Page 50

7-2 Administration Guide

CCCCoooonnnnffffiiiigggguuuurrrriiiinnnngggg tttthhhheeee VVVVooooiiiicccceeee FFFFeeeeaaaattttuuuurrrreeeess

This section describes how to conﬁgure the voice telephone features of the Netopia 4741. From the Main Menu select Voice Conﬁguration.

Netopia 4741 v5.1.1

Easy Setup... WAN Configuration... System Configuration... Voice Configuration... Utilities & Diagnostics... Statistics & Logs... Quick Menus... Quick View...

Return/Enter goes to Easy Setup -- minimal configuration. You always start from this main screen.

The Voice Conﬁguration screen appears.

Voice Configuration Voice Gateway... CopperCom Ring Cadence... 20 Hz Port Configuration...

Voice Coding... mu-law

■ Select Voice Gateway and from the pop-up menu, choose the type of voice gateway device to which you will

be connected. The choices are: CopperCom, JetStream, TollBridge, TDSoft, or Zhone.

■ Select Ring Cadence and press Return. A pop-up menu allows you to choose between 20Hz (the default)

and 25Hz for compliance with several non-North American telephone systems.

Page 51

■ Selecting Port Conﬁguration displays the Port Conﬁguration screen.

Port Configuration Port 1 Echo Cancellation Enabled: Yes

Compression is G711 - PCM 64K Port 2 Echo Cancellation Enabled: Yes Compression is G711 - PCM 64K Port 3 Echo Cancellation Enabled: Yes Compression is G711 - PCM 64K Port 4 Echo Cancellation Enabled: Yes Compression is G711 - PCM 64K

Return/Enter accepts * Tab toggles * ESC cancels.

Voice Conﬁguration 7-3

Echo cancellation is set to Yes by default. With echo cancellation set to Yes, the device auto-detects whether or not the connecting device (a telephone, a modem, or a fax machine) requires echo cancellation (fax machines and modems automatically cancel echoes).

For ordinary telephone handsets, echo cancellation should be set to Yes (turned on) to eliminate echoes on the voice line. Toggling a port to No forces echo cancellation to be disabled. If you want to disable echo cancellation, toggle this item to No. You can enable or disable echo cancellation for each port on the Netopia 4741.

■ The Compression type is normally set at the voice gateway. It is visible for informational purposes, to

ascertain that the provisioning on the voice gateway is in sync with the Netopia 4741. LES stands for Loop Emulation Service, an increasingly popular standard among ATM voice gateway

manufacturers. If the voice gateway is LES-compliant, a pop-up menu allows you to choose between G711 - PCM 64K and

G726 - ADPCM 32K. Your service provider must supply you with the correct provisioning information. The reason is that in those gateway types the voice gateway expects this type of provisioning to be done prior to making any voice calls.

If the voice gateway is not LES-compliant, the pop-up menus are not available, and these ﬁelds are for information only.

Once you have made your settings for each voice port, press Escape to return to the Voice Conﬁguration menu.

■ Select Voice Coding and press Return. From the pop-up menu choose the voice coding method you will be

using. The default is mu-law, which is the standard 8-bit, 8 kHz, mono format intended primarily for the requirements of voice in North America. You can also choose a-law, a more common audio format outside North America.

■ If your service provider is using an LES-compliant voice gateway, an LES Proﬁle Number option becomes

Page 52

7-4 Administration Guide

visible. From the pop-up menu choose either Proﬁle 9 or Proﬁle 10. The Netopia 4741 currently supports LES proﬁle 9 and LES proﬁle 10. LES proﬁle 9 includes only PCM

calls. LES proﬁle 10 includes PCM and ADPCM capabilities.

Page 53

PPPPaaaarrrrtttt IIIIIIII:::: AAAAddddvvvvaaaannnncccceeeedddd CCCCoooonnnnffffiiiigggguuuurrrraaaattttiiiioooonn

Page 54

Administration Guide

Page 55

WAN and System Conﬁguration 8-1

CCCChhhhaaaapppptttteeeerrrr 88

WWWWAAAANNNN aaaannnndddd SSSSyyyysssstttteeeemmmm CCCCoooonnnnffffiiiigggguuuurrrraaaattttiiiioooonn

This chapter describes how to use the console-based management screens to access and conﬁgure advanced features of your Netopia 4741 ADSL Integrated Access Device. You can customize these features for your individual setup. These menus provide a powerful method for experienced users to set up their device’s connection proﬁles and system conﬁguration.

This section covers the following topics:

■ “WAN Conﬁguration” on page 8-2

■ “Multiple ATM Permanent Virtual Circuit Support” on page 8-3

■ “Creating a New Connection Proﬁle” on page 8-10

■ “The WAN Default Proﬁle” on page 8-14

■ “The ATMP/PPTP Default Proﬁle” on page 8-15

■ “Scheduled Connections” on page 8-15

■ “System Conﬁguration Screens” on page 8-21

■ “System Conﬁguration Features” on page 8-22

Page 56

8-2 Administration Guide

WAN Conﬁguration

T o conﬁgure your Wide Area Network (WAN) connection, navigate to the W AN Conﬁguration screen from the Main Menu and select WAN Conﬁguration, then WAN (Wide Area Network) Setup.

Main

The DSL Line Conﬁguration screen appears.

Data Link Encapsulation... RFC1483 RFC1483 Mode... Bridged 1483 PPP over Ethernet (PPPoE): Off

Display/Change Circuit... Add Circuit... Delete Circuit...

WAN

Configuration

WAN

Setup

■ Select Circuit Type and from the pop-up menu choose the type of circuit to which you will be connecting.

The circuit type defaults to Auto-detect. If you accept the default, the device attempts to detect the type of circuit to which you are connecting and self-conﬁgure its parameters accordingly.

If the device is unable to detect the circuit type, you can choose the type that your service provider speciifes: Multimode, T1.413, G.dmt/G.lite, or ADI.

Your service provider should supply you with the appropriate information about the type and capabilities of the access concentrator equipment they use.

■ Select Signalling Mode and from the pop-up menu choose either Echo Cancellation or the default FDM

(Frequency-Division Multiplexing). This setting must match the format used by your service provider . FDM is the most common, so you probably do not need to change it unless your provider speciﬁcally tells you to do so.

■ If you selected Multimode as the circuit type, toggle Trellis Coding Enabled to either On or Off. For any

other circuit type, this option does not appear.

Page 57

WAN and System Conﬁguration 8-3

With transmission over a noisy line, the ability to recover encoded bits is signiﬁcantly improved by using a Trellis Coder/Decoder. The Trellis Coder for ADSL can achieve a better coding gain. Trellis coding can be optionally used only for Multimode. The DSLAM and Netopia 4741 negotiate if Trellis Coding is enabled during part of their initialization.

The default is enabled, so you probably do not need to change it unless your provider speciﬁcally tells you to do so.

■ Select Cell Format and from the pop-up menu select either Scrambled (the default) or Unscrambled. This

setting must match the format used by your service provider. Scrambled is the most common, so you probably do not need to change it unless your provider speciﬁcally tells you to do so.

■ Select Unused Cell Format and from the pop-up menu select either Idle (the default) or Empty . This setting

must match the format used by your service provider. Idle is the most common, so you probably do not need to change it unless your provider speciﬁcally tells you to do so.

■ Select Data Link Encapsulation and from the pop-up menu choose your DLE. The DLE choices are PPP or

RFC 1483 (the default).

■ If you selected RFC1483, the next pop-up menu RFC1483 Mode offers the choice of Bridged 1483 or

Routed 1483. If you select Bridged 1483, a new option PPP over Ethernet (PPPoE) appears. You can then toggle PPPoE On or Off. Choosing Routed 1483 hides the PPPoE option.

■ If you selected PPP, the next pop-up menu PPP Mode offers the choice of VC Multiplexed or LLC SNAP.

■ Select Display/Change Circuit, and from the pop-up menu choose the circuit to use for this connection.

The default circuit is called Circuit 1, and uses the default values for data trafﬁc and the WAN Default Proﬁle for the connection. See “The WAN Default Proﬁle” on page 8-14 for more information.

■ Add Circuit and Delete Circuit allow you to create or delete circuit settings "on the ﬂy." This is useful if you

want to manage sets of circuit values without deleting a previous set or delete sets that no longer apply. For more information on VPIs and VCIs, see “Multiple ATM Permanent Virtual Circuit Support” below.

MMMMuuuullllttttiiiipppplllleeee AAAATTTTMMMM PPPPeeeerrrrmmmmaaaannnneeeennnntttt VVVViiiirrrrttttuuuuaaaallll CCCCiiiirrrrccccuuuuiiiitttt SSSSuuuuppppppppoooorrrrtt

The Netopia 4741 supports up to eight permanent virtual circuits.

MMMMuuuullllttttiiiipppplllleeee AAAATTTTMMMM PPPPVVVVCCCC oooovvvveeeerrrrvvvviiiieeeeww

On cell-based DSL WAN interfaces, the ATM connection between the device and the central ofﬁce equipment (DSLAM) is divided logically into one or more virtual circuits (VCs). A virtual circuit may be either a permanent virtual circuit (PVC) or a switched virtual circuit (SVC). Netopia devices support PVCs.

VCs are identiﬁed by a Virtual Path Identiﬁer (VPI) and Virtual Channel Identiﬁer (VCI). A VPI is an 8-bit value between 0 and 255, inclusive, while a VCI is a 16-bit value between 0 and 65535, inclusive.

■ Circuits now support attributes in addition to their VPI and VCI values. When conﬁguring a circuit, you can

specify an optional circuit name of up to 14 characters. The circuit name is used only to identify the circuit for management purposes as a convenience to aid in selecting circuits from lists. The default circuit name is “Circuit <n>”, where <n> is some number between one and eight corresponding to the circuit’s position in the list of up to eight circuits.

■ You can also individually enable or disable a circuit without deleting it. This is useful for temporarily

Page 58

8-4 Administration Guide

removing a circuit without losing the conﬁgured attributes.

■ In order to function, each circuit must be bound to a Connection Proﬁle or to the Default Proﬁle. Among

other attributes, the proﬁle binding speciﬁes the IP addressing information for use on the circuit. Each circuit must be bound to a distinct Connection Proﬁle. You cannot bind multiple circuits to the same Connection Proﬁle.

MMMMuuuullllttttiiiipppplllleeee AAAATTTTMMMM PPPPVVVVCCCC ccccoooonnnnffffiiiigggguuuurrrraaaattttiiiioooonn

You conﬁgure Virtual Circuits in the Add/Change Circuit screen. From the Main Menu, navigate to the DSL Line Conﬁguration screen.

Main

ADSL Line Configuration Circuit Type... Auto-detect

Signaling Mode... FDM

Cell Format... Scrambled Unused Cell Format... Idle

Data Link Encapsulation... RFC1483 RFC1483 Mode... Bridged 1483 PPP over Ethernet (PPPoE): Off

WAN

Configuration

WAN

Setup

DSL Line

Configuration

Display/Change Circuit... Add Circuit... Delete Circuit...

Return/Enter goes to new screen.

Select Display/Change Circuit and press Return.

Page 59

WAN and System Conﬁguration 8-5

Choosing Display/Change Circuit (or Delete Circuit) displays a pop-up menu that allows you to select the circuit to be modiﬁed or deleted.

ADSL Line Configuration Circuit Type... Auto-detect

Signaling Mode... FDM

Up/Down Arrow Keys to select, ESC to dismiss, Return/Enter to Edit.

CCCChhhhaaaannnnggggiiiinnnngggg aaaa cccciiiirrrrccccuuuuiiiitt

If you want to make any changes to the circuit you select, you make them in the Change Circuit screen.

Change Circuit

Circuit Name: Circuit 1 Circuit Enabled: +---------+

+---------+ Traffic Type... | Voice | | Data | Circuit VPI (0-255): +---------+

Circuit VCI (0-65535): 38 Connection Profile is Easy Setup Profile

■ Circuit Name allows you to associate a one- to fourteen-character name with the circuit. The default circuit

name is “Circuit <n>”, where <n> is some number between one and eight corresponding to the circuit’s position in the list of up to eight circuits.

Page 60

8-6 Administration Guide

■ Circuit Enabled allows you to enable or disable the circuit, using the Tab key. The default is enabled.

■ Trafﬁc Type allows you to select which type of trafﬁc will be routed on this circuit, Voice or Data. If you

choose Voice, the Connection Proﬁle is ﬁeld becomes unavailable and does not display.

■ Circuit VPI allows you to specify the Virtual Path Identiﬁer (VPI) value for the circuit. The default VPI value

for both ADSL and cell-based DSL is zero (0).

■ Circuit VCI allows you to specify the Virtual Channel Identiﬁer (VCI) value for the circuit. The default VCI

value depends on the type of DSLAM to which you are connecting.

■ Accessing the Connection Proﬁle Is ﬁeld in the Change Circuit menu depends not on the number of

Connection Proﬁles you have created, but the number of data VCs you have added. (See “Adding a circuit”

on page 8-7.) If you have more than one data VC you can choose how Connection Proﬁles are associated

with VCs, otherwise you get default behavior and the Connection Proﬁle Is ﬁeld cannot be selected.

Note: With multiple VCs you must explicitly statically bind the second (and all subsequent) VCs to a proﬁle. The ﬁrst VC will automatically statically bind according to pre-deﬁned dynamic binding rules when you add the second VC. It will revert back to dynamic binding if the number of VCs is reduced to one; for example, by deleting previously deﬁned VCs.

When the link comes up the device binds the VC dynamically to the ﬁrst suitable Connection Proﬁle or to the Default Proﬁle if there is no Connection Proﬁle conﬁgured.

• If you factory default the device, the VC binds to the Default Proﬁle.

• If you delete a Connection Proﬁle that is statically bound to a VC, the VC binding is set back to the Default

Proﬁle. If there is only one VC deﬁned, the VC dynamically binds to the ﬁrst suitable proﬁle or to the Default Proﬁle. If there are multiple VCs deﬁned, it binds to the Default Proﬁle.

• If you add a second VC, it is initialized to the Default Proﬁle, and the menu screens display the VC

Connection Proﬁle-related items, allowing you to bind to a speciﬁc Connection Proﬁle instead of the Default Proﬁle. In addition, the device statically binds the ﬁrst VC according to the rules used to select a proﬁle for dynamic binding. At this point, each proﬁle uses static binding when the link is brought up.

If there are no VCs when you add a VC -- for example, if you deleted all your previous VCs and started adding them again -- dynamic binding will occur when the link comes up. If you delete a VC, leaving only one VC, that VC resumes dynamically binding again.

Page 61

WAN and System Conﬁguration 8-7

AAAAddddddddiiiinnnngggg aaaa cccciiiirrrrccccuuuuiiiitt

Choosing Add Circuit displays the Add Circuit screen.

Add Circuit

Circuit Name: Circuit 3 Circuit Enabled: +---------+

+---------+ Traffic Type... | Voice | | Data | Circuit VPI (0-255): +---------+

Circuit VCI (0-65535): 0 Use Connection Profile... Default Profile

Use Default Profile for Circuit

ADD Circuit NOW CANCEL

The ﬁelds in the Add Circuit screen are the similar to the ﬁelds in the Change Circuit screen described above. You can add up to seven circuits (for a total of eight) and bind them to separate Connection Proﬁles.

■ Use Connection Proﬁle and Use Default Proﬁle for Circuit allow you to choose the proﬁle that you want to

associate with that circuit. Choosing Use Connection Proﬁle presents a pop-up menu that lists all of your enabled Connection Proﬁles. Choosing a proﬁle from the list statically binds the circuit to the selected proﬁle. Choosing Use Default Proﬁle for Circuit statically binds the circuit to the Default Proﬁle. When the circuit is bound to a Connection Proﬁle, Use Connection Proﬁle displays the name of the proﬁle; when the circuit is associated with the Default Proﬁle, Use Connection Proﬁle displays Default Proﬁle.

When more than one circuit is enabled, you must explicitly statically bind each circuit to the Connection Proﬁle to be used on the circuit, or to the Default Proﬁle. To do this you use Use Connection Proﬁle or Use Default Proﬁle for Circuit.

Page 62

8-8 Administration Guide

MMMMoooonnnniiiittttoooorrrriiiinnnngggg mmmmuuuullllttttiiiipppplllleeee vvvviiiirrrrttttuuuuaaaallll cccciiiirrrrccccuuuuiiiittttss

The General Statistics screen adds a selection for ATM VC Statistics. To access the ATM VC Statistics screen navigate from the Main Menu to Statistics & Logs then General

Statistics.

Main

Statistics

& Logs

General

Statistics

The General Statistics screen appears.

General Statistics Physical I/F-----Rx Bytes---Tx Bytes---Rx Pkts---Tx Pkts----Rx Err----Tx Err

Ethernet Hub 0 0 0 0 0 0 Aux Async 0 0 0 0 0 0 ATM SDSL 1 22152 5092 403 404 0 0

Network----------Rx Bytes---Tx Bytes---Rx Pkts---Tx Pkts----Rx Err----Tx Err IP 0 0 0 0 0 0

VC Traffic Statistics...

Select VC Trafﬁc Statistics.

Page 63

WAN and System Conﬁguration 8-9

The ATM VC Statistics screen appears.

ATM VC Statistics

VPI/VCI------Local IP Addr---------Frames Rx--Frames Tx---Bytes Rx---Bytes Tx

----------------------------------SCROLL UP---------------------------------- 0/39 111.222.333.4 0 0 0 0 8/36 -- 1 0 70 0

---------------------------------SCROLL DOWN----------------------------------

■ To display more information about each circuit associated with the selected WAN module, use the up or

down arrow key to highlight the circuit you want to view. Press Return. A pop-up window appears, displaying detailed information for the selected circuit.

ATM VC Statistics View St+---------------------------------------------------------------------+

VPI/VCI+---------------------------------------------------------------------+

-------| | 0/39 | Circuit Name: Circuit 4 | 8/36 | Connection Profile Name: Profile 4 | | | | Bytes Rx: 0 | | Bytes Tx 0 | | | | Frames Rx: 0 Frames Tx: 0 | | Frames Rx Discarded: 0 Frames Tx Discarded: 0 | | | | Errors Rx: 0 | | Errors Tx: 0 | | | | OK | | |

-------+---------------------------------------------------------------------+

Page 64

8-10 Administration Guide

Creating a New Connection Proﬁle

For a Netopia 4741, connection proﬁles are useful for conﬁguring the connection and authentication settings for negotiating a PPP connection on the DSL link. If you are using the PPP data link encapsulation method, you can store your authentication information in the connection proﬁle so that your user name and password (or host name and secret) are transmitted when you attempt to connect.

Connection proﬁles deﬁne the networking protocols necessary for the device to make a remote connection. A connection proﬁle is like an address book entry describing how the device is to get to a remote site, or how to recognize and authenticate a connection. To create a new connection proﬁle, you navigate to the WAN Conﬁguration screen from the Main Menu, and select Add Connection Proﬁle.

Main

The Add Connection Proﬁle screen appears.

Add Connection Profile Profile Name: Profile 1

Profile Enabled: Yes Data Link Encapsulation... PPP

Data Link Options...

IP Profile Parameters...

COMMIT CANCEL

WAN

Configuration

Add Connection

Profile

Return accepts * ESC cancels * Left/Right moves insertion point * Del deletes. Configure a new Conn. Profile. Finished? COMMIT or CANCEL to exit.

On a Netopia 4741 ADSL Integrated Access Device you can add up to 15 more connection proﬁles, for a total of 16, but you can only use one at a time.

1. Select Proﬁle Name and enter a name for this connection proﬁle. It can be any name you wish. For example: the name of your ISP.

2. Toggle Proﬁle Enabled to Yes or No. The default is Yes.

Page 65

WAN and System Conﬁguration 8-11

3. Select Data Link Encapsulation and press Return. The pop-up menu offers the possible data link encapsulation methods for connection proﬁles used for a variety of purposes: PPP, RFC1483, ATMP, PPTP, or IPsec. If you select any data link encapsulation method other than RFC1483, a Data Link Options menu item is displayed; if you select RFC1483, Data Link Options is hidden.

4. If you chose any data link encapsulation method other than RFC1483 as your data link encapsulation method in the previous step, select Datalink Options and press Return. The Datalink Options screen appears.

Note: For Datalink Options for the VPN Data Link Encapsulation methods – ATMP, PPTP, and IPsec – see

“Virtual Private Networks (VPNs)” on page 11-1.

Datalink (PPP/MP) Options

Data Compression... Standard LZS Send Authentication... PAP Send User Name:

Send Password: Receive User Name: Receive Password:

Maximum Packet Size: 1500

In this Screen you will configure the PPP/MP specific connection params.

Select Data Compression and press Return. The pop-up menu offers the choices of None, Ascend LZS, or Standard LZS. Unless you are otherwise speciﬁcally directed, you can accept the default.

Select Send Authentication and press Return. From the pop-up menu that appears, select the authentication method your ISP uses, if any: PAP (Password

Authentication Protocol), CHAP (Challenge Handshake Authentication Protocol), or None.

■ PAP is the most common, and requires you to enter a User Name and Password in the next two ﬁelds.

■ CHAP requires you to enter a Host Name and Secret in the next two ﬁelds.

You can specify user name and password for both outgoing and incoming connections. the Send User Name/Password parameters are used to specify your identity when connecting to a remote location. The Receive User Name/Password parameters are used when receiving dial-in clients such as via RAS conﬁguration.

5. You can edit the Maximum Packet Size ﬁeld, if you want packets limited to a lower value than 1500. Return to the Add Connection Proﬁle screen by pressing Escape.

6. Select IP Proﬁle Parameters and press Return. The IP Proﬁle Parameters screen appears.

Page 66

8-12 Administration Guide

The IP Proﬁle Parameters screen displays different options depending on your choice of Data Link Encapsulation method. The screen shown below is for a PPP connection.

Note: For IP Proﬁle Parameters for the VPN Data Link Encapsulation methods – ATMP, PPTP, and IPsec – see

“Virtual Private Networks (VPNs)” on page 11-1.

IP Profile Parameters

Address Translation Enabled: No IP Addressing... Unnumbered

Negotiate LAN IP Addr/Mask: No Remote IP Address: 0.0.0.0

Remote IP Mask: 0.0.0.0 Filter Set...

Remove Filter Set

RIP Profile Options... Return/Enter to select <among/between> ...

Configure IP requirements for a remote network connection here.

7. Toggle or enter the IP Parameters you require.

■ The Netopia 4741 allows a central site router to supply an entire IP subnet, rather than a single IP

address. If the applicable Connection Proﬁle speciﬁes an unnumbered, non-NAT connection and Negotiate LAN IP Addr/Mask is set to On, PPP will attempt to negotiate both an IP Address and subnet

mask. Once the router has reconﬁgured the address serving pool only to conform to the negotiated subnet,

you can adjust the base or extent of the pool and reboot the router. Your adjustments will not be overwritten when the connection is next renegotiated because the router only reconﬁgures the address serving pool if it lies outside the negotiated subnet.

The router does not adjust any address serving parameters other than the base and extent of the address serving pool. This allows you to otherwise conﬁgure address serving as you please using the normal address serving conﬁguration items. For example, if you disable address serving, the router will not enable address serving when it reconﬁgures the address serving pool.

■ This toggle is visible only if the proﬁle’s Data Link Encapsulation is set to PPP, the Address Translation

Enabled toggle is set to No and IP Addressing is set to Unnumbered. The default value is No.

■ RIP Proﬁle Options is not visible if Negotiate LAN IP Addr/Mask is set to Yes and the Remote IP Mask

is set to 0.0.0.0.

For more information, see “Connection Proﬁles” on page 9-25 in Chapter 9, “IP Setup.”

8. Return to the Add Connection Proﬁle screen by pressing Escape. Select COMMIT and press Return. Your new Connection Proﬁle will be added.

Page 67

WAN and System Conﬁguration 8-13

If you want to view the Connection Proﬁles in your device, return to the WAN Conﬁguration screen, and select Display/Change Connection Proﬁle. The list of Connection Proﬁles is displayed in a scrolling pop-up screen.

WAN Configuration +-Profile Name---------------------IP Address----------------+ +------------------------------------------------------------+ | SmartStart Profile 127.0.0.2 | | Profile 02 0.0.0.0 | | | | | | | | | | | | | | | | | | | | | | | | | | | | | +------------------------------------------------------------+

Up/Down Arrow Keys to select, ESC to dismiss, Return/Enter to Edit.

Page 68

8-14 Administration Guide

The WAN Default Proﬁle

If you are using RFC1483 datalink encapsulation, the WAN Default Proﬁle screen controls whether or not the DSL link will come up without an explicitly conﬁgured connection proﬁle. (PPP datalink encapsulation does not support a default proﬁle, and the corresponding menu item is unavailable.) See “Creating a New Connection

Proﬁle” on page 8-10 for more information.

You access the Default Proﬁle screen from the Main Menu by selecting WAN Conﬁguration and then WAN Default Proﬁle.

Main

The Default Proﬁle screen appears.

WAN Default Profile

Must Match a Defined Profile: No

IP Parameters...

WAN

Configuration

WAN

Default Profile

Return/Enter accepts * Tab toggles * ESC cancels. Configure Default WAN Connection Parameters here.

■ You can set Must Match a Deﬁned Proﬁle to Yes or No (the default). This item controls whether or not the

DSL link will come up without an explicitly conﬁgured connection proﬁle. If your ISP is serving you a dynamic IP Address, you need not explicitly conﬁgure a connection proﬁle, and the default behavior of the device will be to connect automatically once it is powered on.

■ If you select IP Parameters the IP Parameters screen appears (see “IP Parameters (Default Proﬁle) screen”

on page 8-15). This screen allows you to conﬁgure various IP parameters for DSL connections established

without an explicitly conﬁgured connection proﬁle.

Page 69

WAN and System Conﬁguration 8-15

IP Parameters (Default Proﬁle) screen

If you are using RFC1483 datalink encapsulation, the IP Parameters (Default Proﬁle) screen allows you to conﬁgure various IP parameters for DSL connections established without an explicitly conﬁgured connection proﬁle:

IP Parameters (Default Profile)

Address Translation Enabled: No

Filter Set (Firewall)... Remove Filter Set

Receive RIP: Both Transmit RIP: Off

Return/Enter accepts * Tab toggles * ESC cancels.

For most DSL links, Network Address Translation (NAT) is disabled by default in the Default Proﬁle. You can enable it by toggling to Yes.

For details on setting up Filter Sets see “About Filters and Filter Sets” on page 12-4. For details on setting up RIP Parameters see “IP Setup” on page 9-1.

The ATMP/PPTP Default Proﬁle

The ATMP/PPTP Default Proﬁle screen controls whether or not your device will answer VPN connection attempts without an explicitly conﬁgured connection proﬁle. See “Virtual Private Networks (VPNs)” on page 11-1 for more information.

Scheduled Connections

Scheduled connections are useful for PPP, PPTP, and ATMP connection proﬁles. To go to the Scheduled Connections screen, select Scheduled Connections in the WAN Conﬁguration screen.

Main

WAN

Configuration

Scheduled

Connections

Page 70

8-16 Administration Guide

Scheduled Connections

Display/Change Scheduled Connection... Add Scheduled Connection... Delete Scheduled Connection...

Navigate from here to add/modify/change/delete Scheduled Connections.

Viewing scheduled connections

To display a table of scheduled connections, select Display/Change Scheduled Connection in the Scheduled Connections screen. Each scheduled connection occupies one row of the table.

Scheduled Connections +-Days----Begin At---HH:MM---When----Conn. Prof. Name----Enabled-----+

+--------------------------------------------------------------------+ | mtWtfss 08:30PM 06:00 weekly Profile 01 No | | | | | | | | | | | +--------------------------------------------------------------------+

The ﬁrst column in the table shows a one-letter representation of the Days of the week, from Monday (M or m) to Sunday (S or s). If a letter representing a day is capitalized, the connection will be activated on that day; a lower-case letter means that the connection will not be activated on that day. If the scheduled connection is conﬁgured for a once-only connection, the word “once” will appear instead of the days of the week.

Page 71

WAN and System Conﬁguration 8-17

The other columns show:

■ The time of day that the connection will Begin At

■ The duration of the connection (HH:MM)

■ Whether it’s a recurring Weekly connection or used Once Only

■ Which connection proﬁle (Conn. Prof.) is used to connect

■ Whether the scheduled connection is currently Enabled

The device checks the date and time set in scheduled connections against the system date and time.

Adding a scheduled connection

To add a new scheduled connection, select Add Scheduled Connection in the Scheduled Connections screen and press Return. The Add Scheduled Connection screen appears.

Add Scheduled Connection

Scheduled Connection Enable: On How Often... Weekly Schedule Type... Forced Set Weekly Schedule... Use Connection Profile...

ADD SCHEDULED CONNECTION CANCEL Scheduled Connections dial remote Networks on a Weekly or Once-Only basis.

Follow these steps to conﬁgure the new scheduled connection:

■ To activate the connection, select Scheduled Connection Enable and toggle it to On. You can make the

scheduled connection inactive by toggling Scheduled Connection Enable to Off.

■ Decide how often the connection should take place by selecting How Often and choosing Weekly or Once

Only from the pop-up menu.

■ The Schedule Type allows you to set the exact weekly schedule or once-only schedule.

Options are:

■ Forced Up, meaning that this connection will be maintained whether or not there is a demand call on

the line.

■ Forced Down, meaning that this connection will be torn down or blocked whether or not there is a

Page 72

8-18 Administration Guide

demand call on the line.

■ Demand-Allowed, meaning that this schedule will permit a demand call on the line.

■ Demand-Blocked, meaning that this schedule will prevent a demand call on the line.

■ Periodic, meaning that the connection is retried several times during the scheduled time.

■ If How Often is set to Weekly, the item directly below How Often reads Set Weekly Schedule. If How Often

is set to Once Only, the item directly below How Often reads Set Once-Only Schedule.

Set Weekly Schedule

If you set How Often to Weekly, select Set Weekly Schedule and go to the Set Weekly Schedule screen.

■ Select the days for the scheduled connection to occur and toggle them to Yes.

Set Weekly Schedule

Monday: No Tuesday: No Wednesday: No Thursday: No Friday: No Saturday: No Sunday: No

Scheduled Window Start Time: 11:50 AM or PM: AM

Scheduled Window Duration Per Day: 00:00

■ Select Scheduled Window Start Time and enter the time to initiate the scheduled connection.

■ You must enter the time in the format H:M, where H is a one- or two-digit number representing the hour and

M is a one- or two-digit number representing the minutes. The colon is mandatory. For example, the entry 1:3 (or 1:03) would be accepted as 3 minutes after one o’clock. The entry 7:0 (or 7:00) would be accepted as seven o’clock, exactly. The entries 44, :5, and 2: would be rejected.

■ Select AM or PM and choose AM or PM from the pop-up menu.

■ Select Scheduled Window Duration Per Day and enter the maximum duration allowed for this scheduled

connection, per call. You are ﬁnished conﬁguring the weekly options. Return to the Add Scheduled Connection screen to

continue.

Page 73

WAN and System Conﬁguration 8-19

Set Once-Only Schedule

If you set How Often to Once Only, select Set Once-Only Schedule and go to the Set Once-Only Schedule screen.

Set Once-Only Schedule

Place Call on (MM/DD/YY): 05/07/1998 Scheduled Window Start Time: 11:50

AM or PM: AM Scheduled Window Duration: 00:00

■ Select Place Call On (Date) and enter a date in the format MM/DD/YY or MM/DD/YYYY (month, day,

year). Note: You must enter the date in the format speciﬁed. The slashes are mandatory. For example, the entry

5/7/98 would be accepted as May 7, 1998. The entry 5/7 would be rejected.

■ Select Scheduled Window Start Time and enter the time to initiate the scheduled connection.

Note: You must enter the time in the format H:M, where H is a one- or two-digit number representing the

hour and M is a one- or two-digit number representing the minutes. The colon is mandatory. For example, the entry 1:3 (or 1:03) would be accepted as 3 minutes after one o’clock. The entry 7:0 (or 7:00) would be accepted as seven o’clock, exactly. The entries 44, :5, and 2: would be rejected.

■ Select AM or PM and choose AM or PM.

■ Select Scheduled Window Duration and enter the maximum duration allowed for this scheduled

connection. Use the same format restrictions noted above.

You are ﬁnished conﬁguring the once-only options. Return to the Add Scheduled Connection screen to continue.

■ In the Add Scheduled Connection screen, select Use Connection Proﬁle and choose from the list of

connection proﬁles you have already created. A scheduled connection must be associated with a connection proﬁle to be useful. The connection proﬁle becomes active during the times speciﬁed in the associated scheduled connection, if any exists.

■ Select ADD SCHEDULED CONNECTION to save the current scheduled connection. Select CANCEL to exit

the Add Scheduled Connection screen without saving the new scheduled connection.

Page 74

8-20 Administration Guide

Modifying a scheduled connection

To modify a scheduled connection, select Display/Change Scheduled Connection in the Scheduled Connections screen to display a table of scheduled connections.

Select a scheduled connection from the table and press Return. The Change Scheduled Connection screen appears. The parameters in this screen are the same as the ones in the Add Scheduled Connection screen (except that ADD SCHEDULED CONNECTION and CANCEL do not appear). To ﬁnd out how to set them, see

“Adding a scheduled connection” on page 8-17.

Deleting a scheduled connection

To delete a scheduled connection, select Delete Scheduled Connection in the Scheduled Connections screen to display a table of scheduled connections.

Select a scheduled connection from the table and press the Return key to delete it. To exit the table without deleting the selected scheduled connection, press the Escape key.

Page 75

WAN and System Conﬁguration 8-21

System Conﬁguration Screens

You can connect to the Netopia 4741’s system conﬁguration screens in either of two ways:

■ By using Telnet with the device’s Ethernet port IP address

■ Through the console port, using a local terminal (see “Connecting a Console Cable to Your Device” on

page 5-3)

You can also retrieve the Netopia 4741’s conﬁguration information and remotely set its parameters using the Simple Network Management Protocol (see “SNMP” on page 13-13).

Open a Telnet connection to the device’s IP address; for example, “192.168.1.1.” The console screen will open to the Main Menu, similar to the screen shown below:

Netopia 4741 v5.1.1

Easy Setup... WAN Configuration... System Configuration... Voice Configuration... Utilities & Diagnostics... Statistics & Logs... Quick Menus... Quick View...

Return/Enter goes to Easy Setup -- minimal configuration. You always start from this main screen.

Navigating through the System Conﬁguration screens

To help you ﬁnd your way to particular screens, some sections in this guide begin with a graphical path guide similar to the following example:

Main

System

Configuration

IP Setup

This particular path guide shows how to get to the IP Setup screens. The path guide represents these steps:

■ Beginning in the Main Menu, select System Conﬁguration and press Return. The System Conﬁguration

Page 76

8-22 Administration Guide

screen appears.

■ Select IP Setup and press Return. The IP Setup screen appears.

To go back in this sequence of screens, use the Escape key.

System Conﬁguration Features

The Netopia 4741 ADSL Integrated Access Device’s default settings may be all you need to conﬁgure your Netopia 4741. Some users, however, require advanced settings or prefer manual control over the default selections. For these users, the Netopia 4741 provides system conﬁguration options.

To help you determine whether you need to use the system conﬁguration options, review the following requirements. If you have one or more of these needs, use the system conﬁguration options described in later chapters.

■ System conﬁguration of dynamic IP address distribution through DHCP or BootP

■ Greater network security through the use of ﬁlters

■ System conﬁguration of connection proﬁles

To access the system conﬁguration screens, select System Conﬁguration in the Main Menu, then press Return.

The System Conﬁguration menu screen appears:

System Configuration

IP Setup... Filter Sets... IP Address Serving...

Date and Time... Console Configuration... SNMP (Simple Network Management Protocol)... Security... Upgrade Feature Set...

Logging... Use this screen if you want options beyond Easy Setup.

Page 77

WAN and System Conﬁguration 8-23

IP setup

These screens allow you to conﬁgure your network’s use of the standard networking protocols:

■ IP: Details are given in “IP Setup” on page 9-2.

Filter sets

These screens allow you to conﬁgure security on your network by means of ﬁlter sets and a basic ﬁrewall.

■ Details are given in “Security” on page 12-1.

IP address serving

These screens allow you to conﬁgure IP address serving on your network by means of DHCP, WANIP , and BootP.

■ Details are given in “IP Address Serving” on page 9-10.

Date and time (Network Time Protocol)

You can set the system’s date and time in the Set Date and Time screen. Select Date and Time in the System Conﬁguration screen and press Return. The Set Date and Time screen

appears.

Set Date and Time

NTP (Network Time Prot.) Enabled: On Time Server Host Name/IP Address 204.152.184.72 Time Zone... GMT -8:00 Pacific Standard Time NTP Update Interval (HHHH:MM) 1:00

System Date Format: MM/DD/YY

System Time Format: AM/PM

The Netopia 4741 uses Network Time Protocol (NTP) by default to set the date and time automatically. You may want to modify the default settings for your own environment.

NTP takes effect ﬁve minutes after the device boots. At that time NTP attempts to connect to a central Time Server and set the device’s clock. If the device is rebooted for any reason, the time settings revert to an internal default date and time for ﬁve minutes until NTP can reconnect to its time server and reset the clock.

Page 78

8-24 Administration Guide

You should pick a time server close to your location, if possible. Lists of public time servers supported by corporations, governments, and educational institutions are available by searching the Internet.

■ Enter a Time Server Host Name or IP Address. This may be in the form hostname.domainname or in

dotted quad (xxx.xxx.xxx.xxx) notation. The default address 204.152.184.72 is a public NTP server and may be suitable for your needs, or you can supply your own choice.

■ From the pop-up Time Zone menu, select your time zone.

■ Set the NTP Update Interval to some convenient interval such as every day (24:00) or every few hours.

■ From the pop-up System Date Format menu select the date format used in your region: MM/DD/YY,

DD/MM/YY, or YY/MM/DD.

■ From the pop-up System Time Format menu select your preferred time notation: AM/PM or 24hr.

If you do not want to use NTP for date and time setting, you can toggle it to Off. In that case, you can set the clock manually (Remember that the clock reverts to a default date and time any time the device is rebooted, so you must reset the clock manually.):

■ From the pop-up System Date Format menu select the date format used in your region: MM/DD/YY,

DD/MM/YY, or YY/MM/DD.

■ Enter the Current Date in whatever format you have chosen.

■ From the pop-up System Time Format menu select your preferred time notation: AM/PM or 24hr.

■ Enter the Current Time in whatever format you have chosen.

■ From the AM or PM pop-up menu, select AM or PM.

Console conﬁguration

You can change the default terminal communications parameters to suit your requirements. To go to the Console Conﬁguration screen, select Console Conﬁguration in the System Conﬁguration screen.

Console Configuration

Baud Rate... 57600

SET CONFIG NOW CANCEL

Page 79

WAN and System Conﬁguration 8-25

Follow these steps to change a parameter’s value:

1. Select the parameter you want to change.

2. Select a new value for the parameter. Return to step 1 if you want to conﬁgure another parameter.

3. Select SET CONFIG NOW to save the new parameter settings. Select CANCEL to leave the parameters unchanged and exit the Console Conﬁguration screen.

SNMP (Simple Network Management Protocol)

These screens allow you to monitor and conﬁgure many of the data routing features of your network by means of a standard Simple Network Management Protocol (SNMP) agent.

■ Details are given in “SNMP” on page 13-13.

Security

These screens allow you to add users and deﬁne passwords on your network.

■ Details are given in “Security” on page 12-1.

Upgrade feature set

You can upgrade your Netopia 4741 by adding new feature sets through the Upgrade Feature Set utility. See the release notes that came with your device or feature set upgrade, or visit the Netopia Web site at

www.netopia.com for information on new feature sets, how to obtain them, and how to install them on your Netopia 4741.

Logging

You can conﬁgure a UNIX-compatible syslog client to report a number of subsets of the events entered in the device’s WAN Event History. See “WAN Event History” on page 13-5.

The Syslog client (for the PC only) is supplied as a .ZIP ﬁle on the Netopia CD. Select Logging from the System Conﬁguration menu.

Page 80

8-26 Administration Guide

The Logging Conﬁguration screen appears.

Logging Configuration

WAN Event Log Options Log Boot and Errors: Yes Log Line Specific: Yes Log Connections: Yes Log PPP, DHCP, CNA: Yes Log IP: Yes

Syslog Parameters Syslog Enabled: No Hostname or IP Address: Facility... Local 0

Return/Enter accepts * Tab toggles * ESC cancels.

By default, all events are logged in the event history.

■ By toggling each event descriptor to either Yes or No, you can determine which ones are logged and which

are ignored.

■ You can enable or disable the syslog client dynamically. When enabled, it will report any appropriate and

previously unreported events.

■ You can specify the syslog server’s address either in dotted decimal format or as a DNS name up to 63

characters.

■ You can specify the UNIX syslog Facility to use by selecting the Facility pop-up.

Installing the Syslog client

The Netopia CD contains a Syslog client daemon program that can be conﬁgured to report the WAN events you speciﬁed in the Logging Conﬁguration screen.

To install the Syslog client daemon, exit from the graphical Netopia CD program and locate the CD directory structure through your Windows desktop or through Windows Explorer. Go to the Goodies directory on the CD and locate the Sds15000.exe program. This is the Syslog daemon installer. Run the Sds15000.exe program and follow the on-screen instructions for enabling the Windows Syslog daemon.

Page 81

WAN and System Conﬁguration 8-27

The following screen shows a sample syslog dump of WAN events:

May 5 10:14:06 tsnext.netopia.com Link 1 down: PPP PAP failure May 5 10:14:06 tsnext.netopia.com >>Issued Speech Setup Request from our DN: 5108645534 May 5 10:14:06 tsnext.netopia.com Requested Disc. from DN: 917143652500 May 5 10:14:06 tsnext.netopia.com Received Clear Confirm for our DN: 5108645534 May 5 10:14:06 tsnext.netopia.com Link 1 down: Manual disconnect May 5 10:14:06 tsnext.netopia.com >>Issued Speech Setup Request from our DN: 5108645534 May 5 10:14:06 tsnext.netopia.com Requested Disc. from DN: 917143652500 May 5 10:14:06 tsnext.netopia.com Received Clear Confirm for our DN: 5108645534 May 5 10:14:06 tsnext.netopia.com Link 1 down: No answer May 5 10:14:06 tsnext.netopia.com --Device restarted----------------------------------------May 5 10:14:06 tsnext.netopia.com >>Received Speech Setup Ind. from DN: (not supplied) May 5 10:14:06 tsnext.netopia.com Requested Connect to our DN: 5108645534 May 5 10:14:06 tsnext.netopia.com ASYNC: Modem carrier detected (more) Modem reports: 26400 V34 May 5 10:14:06 tsnext.netopia.com >>WAN: 56K Modem 1 activated at 115 Kbps May 5 10:14:06 tsnext.netopia.com Connect Confirmed to our DN: 5108645534 May 5 10:14:06 tsnext.netopia.com PPP: Channel 1 up, Answer Profile name: Default Profile May 5 10:14:06 tsnext.netopia.com PPP: NCP up, session 1, Channel 1 Final (fallback) negotiated auth: Local PAP , Remote NONE May 5 10:14:06 tsnext.netopia.com PPP: PAP we accepted remote, Channel 1 Remote name: guest May 5 10:14:06 tsnext.netopia.com PPP: MP negotiated, session 1 Remote EDO: 06 03 0000C5700624 0 May 5 10:14:06 tsnext.netopia.com PPP: CCP negotiated, session 1, type: Ascend LZS Local mode: 1, Remote mode: 1 May 5 10:14:06 tsnext.netopia.com PPP: BACP negotiated, session 1 Local MN: FFFFFFFF, Remote MN: 00000001 May 5 10:14:06 tsnext.netopia.com PPP: IPCP negotiated, session 1, rem: 192.168.10.100 local:

192.168.1.1 May 5 10:14:06 tsnext.netopia.com >>WAN: 56K Modem 1 deactivated May 5 10:14:06 tsnext.netopia.com Received Clear Ind. from DN: 5108645534, Cause: 0 May 5 10:14:06 tsnext.netopia.com Issued Clear Response to DN: 5108645534 May 5 10:14:06 tsnext.netopia.com Link 1 down: Remote clearing May 5 10:14:06 tsnext.netopia.com PPP: IPCP down, session 1 May 5 10:14:06 tsnext.netopia.com >>Received Speech Setup Ind. from DN: (not supplied)

Page 82

8-28 Administration Guide

Page 83

IP Setup 9-1

CCCChhhhaaaapppptttteeeerrrr 99

IIIIPPPP SSSSeeeettttuuuupp

The Netopia 4741 uses Internet Protocol (IP) to communicate both locally and with remote networks. This chapter shows you how to conﬁgure the router to route IP trafﬁc. You also learn how to conﬁgure the router to serve IP addresses to hosts on your local network.

Netopia’s IP routing features Network Address Translation, Virtual Private Networking (VPNs), and IP address serving.

This section covers the following topics:

■ “IP Setup” on page 9-2

■ “IP Address Serving” on page 9-10

■ “More Address Serving Options” on page 9-17

■ “DHCP Relay Agent” on page 9-23

■ “Connection Proﬁles” on page 9-25

Network Address Translation allows communication between the LAN connected to the Netopia 4741 and the Internet using a single (or a few) IP address(es) instead of a routed account with separate IP addresses for each computer on the network.

Network Address Translation also provides increased security by hiding the local IP addresses of the LAN connected to the Netopia 4741 from the outside world.

The setup is simpler, so ISPs typically offer Internet accounts supporting Network Address Translation at a signiﬁcant cost savings.

For a detailed discussion of Network Address Translation, see Chapter 10, “Multiple Network Address

Translation.”

Page 84

9-2 Administration Guide

IP Setup

Main

System

Configuration

IP Setup

The IP Setup options screen is where you conﬁgure the Ethernet side of the Netopia 4741. The information you enter here controls how the router routes IP trafﬁc.

Consult your network administrator or ISP to obtain the IP setup information (such as the Ethernet IP address, Ethernet subnet mask, default IP gateway, and Primary Domain Name Server IP address) you will need before changing any of the settings in this screen. Changes to these settings that you make in this screen will take effect only after the Netopia 4741 is reset.

To go to the IP Setup options screen, from the Main Menu, select System Conﬁguration, then IP Setup. The IP Setup screen appears.

IP Setup Ethernet IP Address: 192.128.117.162

Ethernet Subnet Mask: 255.255.255.0 Define Additional Subnets...

Default IP Gateway: 192.128.117.163 Primary Domain Name Server: 0.0.0.0

Secondary Domain Name Server: 0.0.0.0 Domain Name: yourdomain.com

Receive RIP... Both Transmit RIP... Off

Static Routes... IP Address Serving... Network Address Translation (NAT)...

Set up the basic IP attributes of your Netopia in this screen.

Follow these steps to conﬁgure IP setup for your Netopia 4741:

■ Select Ethernet IP Address and enter the IP address for the Netopia 4741’s Ethernet port.

■ Select Ethernet Subnet Mask and enter the subnet mask for the Ethernet IP address that you entered in

the last step.

■ If you desire multiple subnets select Deﬁne Additional Subnets. If you select this item you will be taken to

the IP Subnets screen. This screen allows you to deﬁne IP addresses and masks for additional subnets. See “IP subnets” on page 9-4 for details.

Page 85

IP Setup 9-3

The Netopia 4741 ADSL Integrated Access Device supports multiple IP subnets on the Ethernet interface. You may want to conﬁgure multiple IP subnets to service more hosts than are possible with your primary subnet. It is not always possible to obtain a larger subnet from your ISP. For example, if you already have a full Class C subnet, your only option is multiple Class C subnets, since it is virtually impossible to justify a Class A or Class B assignment.

If you are using NAT, you can use the reserved Class A or Class B subnet.

■ Select Default IP Gateway and enter the IP address for a default gateway. This can be the address of any

major router accessible to the Netopia 4741. A default gateway should be able to successfully route packets when the Netopia 4741 cannot recognize

the intended recipient’s IP address. A typical example of a default gateway is the ISP’s router.

■ Select Primary Domain Name Server and enter the IP address for a domain name server. The domain

name server matches the alphabetic addresses favored by people (for example, robin.hood.com) to the IP addresses actually used by IP routers (for example, 163.7.8.202).

■ If a secondary DNS server is available, select Secondary Domain Name Server and enter its IP address.

The secondary DNS server is used by the Netopia 4741 when the primary DNS server is inaccessible. Entering a secondary DNS is useful but not necessary.

■ Select Domain Name and enter your network’s domain name (for example, netopia.com). Netopia strongly

recommends that you enter a domain name.

■ Routing Information Protocol (RIP) is needed if there are IP routers on other segments of your Ethernet

network that the Netopia 4741 needs to recognize. If this is the case select Receive RIP and select v1, v2, or Both from the pop-up menu. With Receive RIP set to v1, the Netopia 4741’s Ethernet port will

accept routing information provided by RIP packets from other routers that use the same subnet mask. Set to v2, the Netopia 4741 will accept routing information provided by RIP packets from other routers that use different subnet masks. Set to Both, the Netopia 4741 will accept information from either RIP v1 or v2 routers.

■ If you want the Netopia 4741 to advertise its routing table to other routers via RIP , select T ransmit RIP and

select v1, v2 (broadcast), or v2 (multicast) from the pop-up menu. With Transmit RIP v1 selected, the Netopia 4741 will generate RIP packets only to other RIP v1 routers. With Transmit RIP v2 (broadcast) selected, the Netopia 4741 will generate RIP packets to all other hosts on the network. With Transmit RIP v2 (multicast) selected, the Netopia 4741 will generate RIP packets only to other routers capable of recognizing RIP v2 packets.

■ Select Static Routes to manually conﬁgure IP routes. See the section “Static routes,” below.

■ Select Network Address Translation to conﬁgure advanced MultiNAT features. See “Multiple Network

Address Translation” on page 10-1.

■ If you select IP Address Serving you will be taken to the IP Address Serving screen (see “IP Address

Serving” on page 9-10). Since no two hosts can use the same IP address at the same time, make sure

that the addresses distributed by the Netopia 4741 and those that are manually conﬁgured are not the same. Each method of distribution must have its own exclusive range of addresses to draw from.

■ If you select Filter Sets you will be taken directly to the screen for conﬁguring IP packet ﬁlters. For

information see “About Filters and Filter Sets,” beginning on page 12-4.

Page 86

9-4 Administration Guide

IP subnets

The IP Subnets screen allows you to conﬁgure up to eight Ethernet IP subnets on unlimited-user models, one “primary” subnet and up to seven secondary subnets, by entering IP address/subnet mask pairs:

IP Subnets

IP Address Subnet Mask

---------------- -------------- #1: 192.128.117.162 255.255.255.0

#2: 0.0.0.0 0.0.0.0 #3: #4: #5: #6: #7: #8:

Note: You need not use this screen if you have only a single Ethernet IP subnet. In that case, you can continue to enter or edit the IP address and subnet mask for the single subnet on the IP Setup screen.

This screen displays up to eight rows of two editable columns, preceded by a row number between one and eight. If you have eight subnets conﬁgured, there will be eight rows on this screen. Otherwise, there will be one more row than the number of conﬁgured subnets. The last row will have the value 0.0.0.0 in both the IP address and subnet mask ﬁelds to indicate that you can edit the values in this row to conﬁgure an additional subnet. All eight row labels are always visible, regardless of the number of subnets conﬁgured.

■ To add an IP subnet, enter the Netopia 4741’s IP address on the subnet in the IP Address ﬁeld in a

particular row and the subnet mask for the subnet in the Subnet Mask ﬁeld in that row.

Page 87

For example:

IP Subnets

IP Address Subnet Mask

---------------- -------------- #1: 192.128.117.162 255.255.255.0

#2: 192.128.152.162 255.255.0.0 #3: 0.0.0.0 0.0.0.0 #4: #5: #6: #7: #8:

IP Setup 9-5

■ T o delete a conﬁgured subnet, set both the IP address and subnet mask values to 0.0.0.0, either explicitly

or by clearing each ﬁeld and pressing Return to commit the change. When a conﬁgured subnet is deleted, the values in subsequent rows adjust up to ﬁll the vacant ﬁelds.

The subnets conﬁgured on this screen are tied to the address serving pools conﬁgured on the IP Address Pools screen, and changes on this screen may affect the IP Address Pools screen. In particular, deleting a subnet conﬁgured on this screen will delete the corresponding address serving pool, if any, on the IP Address Pools screen.

Page 88

9-6 Administration Guide

If you have conﬁgured multiple Ethernet IP subnets, the IP Setup screen changes slightly:

IP Setup

Subnet Configuration... Default IP Gateway: 192.128.117.163 Primary Domain Name Server: 0.0.0.0

Secondary Domain Name Server: 0.0.0.0 Domain Name:

Receive RIP... Both Transmit RIP... v2 (multicast)

Static Routes... IP Address Serving... Network Address Translation (NAT)...

Set up the basic IP attributes of your Netopia in this screen.

The IP address and Subnet mask items are hidden, and the Deﬁne Additional Subnets... item becomes Subnet

Conﬁguration.... If you select Subnet Conﬁguration, you will return to the IP Subnets screen that allows you to

deﬁne IP addresses and masks for additional Ethernet IP subnets.

Static routes

Static routes are IP routes that are maintained manually. Each static route acts as a pointer that tells the Netopia 4741 how to reach a particular network. However, static routes are used only if they appear in the IP routing table, which contains all of the routes used by the Netopia 4741 (see “IP Routing T able” on page 13-9).

Static routes are helpful in situations where a route to a network must be used and other means of ﬁnding the route are unavailable. For example, static routes are useful when you cannot rely on RIP.

To go to the Static Routes screen, select Static Routes in the IP Setup screen and press Return.

Page 89

The Static Routes screen will appear.

Static Routes

Display/Change Static Route... Add Static Route... Delete Static Route...

Configure/View/Delete Static Routes from this and the following Screens.

IP Setup 9-7

Viewing static routes

To display a view-only table of static routes, select Display/Change Static Route. The table shown below will appear.

+-Dest. Network---Subnet Mask-----Next Gateway----Priority-Enabled-+ +------------------------------------------------------------------+ | 0.0.0.0 0.0.0.0 163.176.8.1 Low Yes | | | | | | | | | | | | | | | | | | | | | | | | | | | | | +------------------------------------------------------------------+

Select a Static Route to modify.

The table has the following columns: Dest. Network: The network IP address of the destination network.

Page 90

9-8 Administration Guide

Subnet Mask: The subnet mask associated with the destination network. Next Gateway: The IP address of the router that will be used to reach the destination network. Priority: An indication of whether the Netopia 4741 will use the static route when it conﬂicts with information

received from RIP packets. Enabled: An indication of whether the static route should be installed in the IP routing table. To return to the Static Routes screen, press Escape.

Adding a static route

To add a new static route, select Add Static Route in the Static Routes screen. The Add Static Route screen will appear.

Add Static Route

Static Route Enabled: Yes Destination Network IP Address: 0.0.0.0 Destination Network Subnet Mask: 0.0.0.0 Next Gateway IP Address: 0.0.0.0 Route Priority... High Advertise Route Via RIP: No

ADD STATIC ROUTE NOW CANCEL Configure a new Static Route in this Screen.

■ To install the static route in the IP routing table, select Static Route Enabled and toggle it to Yes. To

remove the static route from the IP routing table, select Static Route Enabled and toggle it to No.

■ Be sure to read the rules on the installation of static routes in the IP routing table. See “Rules of static

route installation” on page 9-9.

■ Select Destination Network IP Address and enter the network IP address of the destination network.

■ Select Destination Network Subnet Mask and enter the subnet mask used by the destination network.

■ Select Next Gateway IP Address and enter the IP address for the router that the Netopia 4741 will use to

reach the destination network. This router does not necessarily have to be part of the destination network, but it must at least know where to forward packets destined for that network.

■ Select Route Priority and choose High or Low. High means that the static route takes precedence over RIP

Page 91

IP Setup 9-9

information; Low means that the RIP information takes precedence over the static route.

■ If the static route conﬂicts with a connection proﬁle, the connection proﬁle will always take precedence.

■ To make sure that the static route is known only to the Netopia 4741, select Advertise Route Via RIP and

toggle it to No. To allow other RIP-capable routers to know about the static route, select Advertise Route Via RIP and toggle it to Yes. When Advertise Route Via RIP is toggled to Yes, a new item called RIP Metric

appears below Advertise Route Via RIP. With RIP Metric you set the number of routers, from 1 to 15, between the sending router and the

destination router. The maximum number of routers on a packet’s route is 15. Setting RIP Metric to 1 means that a route can involve 15 routers, while setting it to 15 means a route can only involve one router.

■ Select ADD STA TIC ROUTE NOW to save the new static route, or select CANCEL to discard it and return to

the Static Routes screen.

■ Up to 32 static routes can be created, but one is always reserved for the default gateway, which is

conﬁgured using either Easy Setup or the IP Setup screen in system conﬁguration.

Modifying a static route

To modify a static route, in the Static Routes screen select Display/Change Static Route to display a table of static routes.

Select a static route from the table and go to the Change Static Route screen. The parameters in this screen are the same as the ones in the Add Static Route screen (see “Adding a static route” on page 9-8).

Deleting a static route

To delete a static route, in the Static Routes screen select Delete Static Route to display a table of static routes. Select a static route from the table and press Return to delete it. To exit the table without deleting the selected static route, press Escape.

Rules of static route installation

The Netopia 4741 applies certain rules before installing enabled static routes in the IP routing table. An enabled static route will not be installed in the IP routing table if any of the following conditions are true:

■ The static route’s Next Gateway IP Address matches an IP address in the range of IP addresses being

distributed by DHCP.

■ The static route’s Next Gateway IP Address is determined to be unreachable by the Netopia 4741.

■ The static route’s route information conﬂicts with a connection proﬁle’s route information.

■ The connection proﬁle associated with the static route has a disabled dial-on-demand setting, and there is

no current connection using that connection proﬁle.

A static route that is already installed in the IP routing table will be removed if any of the conditions listed above become true for that static route. However, an enabled static route is automatically reinstalled once the conditions listed above are no longer true for that static route.

Page 92

9-10 Administration Guide

IP Address Serving

Main

System

Configuration

IP Address

Serving

• Serve DHCP Clients

• Serve BootP Clients

• Serve Dynamic WAN Clients

In addition to being a router, the Netopia 4741 is also an IP address server. There are three protocols it can use to distribute IP addresses.

■ The ﬁrst, called Dynamic Host Conﬁguration Protocol (DHCP), is widely supported on PC networks, as well

as Apple Macintosh computers using Open Transport and computers using the UNIX operating system. Addresses assigned via DHCP are “leased” or allocated for a short period of time; if a lease is not renewed, the address becomes available for use by another computer. DHCP also allows most of the IP parameters for a computer to be conﬁgured by the DHCP server, simplifying setup of each machine.

■ The second, called BootP (also known as Bootstrap Protocol), is the predecessor to DHCP and allows older

IP hosts to obtain most of the information that a DHCP client would obtain. However, in contrast, BootP address assignments are “permanent” since there is no lease renewal mechanism in BootP.

■ The third protocol, called Dynamic WAN, is part of the PPP/MP suite of wide area protocols used for WAN

connections. It allows remote terminal adapters and NAT-enabled routers to be assigned a temporary IP address for the duration of their connection.

Since no two hosts can use the same IP address at the same time, make sure that the addresses distributed by the Netopia 4741 and those that are manually conﬁgured are not the same. Each method of distribution must have its own exclusive range of addresses to draw from.

Go to the System Conﬁguration screen. Select IP Address Serving and press Return. The IP Address Serving screen will appear.

Serve DHCP Clients: Yes DHCP Lease Time (Hours): 1 DHCP NetBIOS Options...

Serve BOOTP Clients: Yes Serve Dynamic WAN Clients Yes

Page 93

IP Setup 9-11

Follow these steps to conﬁgure IP Address Serving:

■ If you enabled IP Address Serving, then DHCP, BootP clients and Dynamic WAN clients are automatically

enabled.

■ The IP Address Serving Mode pop-up menu allows you to choose the way in which the Netopia 4741 will

serve IP addresses. The device can act as either a DHCP Server or a DHCP Relay Agent. (See “DHCP Relay

Agent” on page 9-23 for more information.) In most cases, you will use the device to serve its own pool of

IP addresses, hence DHCP Server is the default. Address serving can also be disabled.

■ Select Number of Client IP Addresses and enter the total number of contiguous IP addresses that the

Netopia 4741 will distribute to the client machines on your local area network.

■ Select 1st Client Address and enter the ﬁrst client IP address that you will allocate to your ﬁrst client

machine. For instance, on your local area network you may want to ﬁrst ﬁgure out which machines are going to be allocated speciﬁc static IP addresses so that you can determine the pool of IP addresses that you will be serving addresses from via DHCP, BootP, and/or Dynamic WAN.

Example: Your ISP has given your Netopia 4741 the IP address 192.168.6.137, with a subnet mask of

255.255.255.248. The subnet mask allocated will give you six IP addresses to use when connecting to the ISP over the Internet (for more information on IP addressing refer to Appendix B, “Understanding IP

Addressing.”). Your address range will be from .137-.142. In this example you would enter 192.168.6.138

as the 1st Client Address, since the router itself must have an IP address.

■ To enable DHCP, select Serve DHCP Clients and toggle it to Yes. DHCP serving is automatic when IP

Address Serving is enabled.

■ The default DHCP Lease time is one hour. This may be unnecessarily brief in your network environment.

Consequently, the DHCP lease time is now conﬁgurable. The DHCP Lease Time (Hours) setting allows you to modify the router’s default lease time of one hour. You can enter any number up to and including 168 hours (one week) for the DHCP lease.

Page 94

9-12 Administration Guide

If you have conﬁgured multiple Ethernet IP subnets, the appearance of the IP Address Serving screen is altered slightly:

IP Address Serving

Configure Address Pools... Serve DHCP Clients: Yes

DHCP NetBios Options... Serve BOOTP Clients: Yes Serve Dynamic WAN Clients: Yes

The ﬁrst three menu items are hidden, and Conﬁgure Address Pools... appears instead. If you select Conﬁgure Address Pools... you will be taken to the IP Address Pools screen that allows you to conﬁgure an address

serving pool for each of the conﬁgured Ethernet IP subnets. See “IP Address Pools” on page 9-13.

Page 95

IP Setup 9-13

IP Address Pools

The IP Address Pools screen allows you to conﬁgure a separate IP address serving pool for each of up to eight conﬁgured Ethernet IP subnets:

IP Address Pools

Subnet (# host addrs) 1st Client Addr Clients Client Gateway

--------------------- --------------- ------- --------------

192.128.117.0 (253) 192.128.117.196 16 192.128.117.162

192.129.117.0 (253) 192.129.117.110 8 192.129.117.4

This screen consists of between two and eight rows of four columns each. There are exactly as many rows as there are Ethernet IP subnets conﬁgured on the IP Subnets screen.

■ The Subnet (# host addrs) column is non-selectable and non-editable. It indicates the network address of

the Ethernet IP subnet for which an address pool is being conﬁgured and the number of host addresses available on the subnet. The network address is equal to the router’s IP address on the subnet bitwise-ANDed with the subnet mask. The host address count is equal to the subnet size minus three, since one address is reserved for the network address, one for the subnet broadcast address, and one for the router’s interface address on the subnet.

You can edit the remaining columns in each row.

■ The 1st Client Addr and Clients columns allow you to specify the base and extent of the address serving

pool for a particular subnet. Entering 0.0.0.0 for the ﬁrst client address or 0 for the number of clients indicates that no addresses will be served from the corresponding Ethernet IP subnet.

■ The Client Gateway column allows you to specify the default gateway address that will be provided to

clients served an address from the corresponding pool. The value defaults to the Netopia 4741’s IP address on the corresponding subnet (or the Netopia 4741’s default gateway, if that gateway is located on the subnet in question). You can override the value by entering any address that is part of the subnet.

DHCP, BootP, and dynamic WAN clients may receive an address from any one of the address serving pools conﬁgured on this screen.

Page 96

9-14 Administration Guide

Numerous factors inﬂuence the choice of served address. It is difﬁcult to specify the address that will be served to a particular client in all circumstances. However, when the address server has been conﬁgured, and the clients involved have no prior address serving interactions, the Netopia 4741 will generally serve the ﬁrst unused address from the ﬁrst address pool with an available address. The Netopia 4741 starts from the pool on the ﬁrst row and continues to the pool on the last row of this screen.

Once the address server and/or the clients have participated in address serving transactions, different rules apply:

■ When requesting an address, a client will often suggest an address to be assigned, such as the one it was

last served. The Netopia 4741 will attempt to honor this request if the address is available. The client stores this address in non-volatile storage, for example, on disk, and the speciﬁc storage method/location differs depending on the client operating system.

■ When requesting an address, a client may provide a client identiﬁer, or, if it does not, the Netopia 4741

may construct a pseudo-client identiﬁer for the client. When the client subsequently requests an address, the Netopia 4741 will attempt to serve the address previously associated with the pseudo-client identiﬁer. This is normally the last address served to the client.

■ Otherwise, the Netopia will select the least-recently used available address, starting from the ﬁrst address

in the ﬁrst pool and ending with the last address in the last pool.

Note: The address serving pools on this screen are tied to the IP subnets conﬁgured on the IP Subnets screen. Changes to the IP Subnets screen may affect this screen. In particular, deleting a subnet on the IP Subnets screen will delete the corresponding address serving pool, if any, on this screen.

Page 97

IP Setup 9-15

DHCP NetBIOS Options

If your network uses NetBIOS, you can enable the Netopia 4741 to use DHCP to distribute NetBIOS information. NetBIOS stands for Network Basic Input/Output System. It is a layer of software originally developed by IBM

and Sytek to link a network operating system with speciﬁc hardware. NetBIOS has been adopted as an industry standard. It offers LAN applications a variety of “hooks” to carry out inter-application communications and data transfer. Essentially, NetBIOS is a way for application programs to talk to the network. To run an application that works with NetBIOS, a non-IBM network operating system or network interface card must offer a NetBIOS emulator. Many vendors either provide a version of NetBIOS to interface with their hardware or emulate its transport layer communications services in their network products. A NetBIOS emulator is a program provided by NetWare clients that allow workstations to run applications that support IBM’s NetBIOS calls.

■ Select DHCP NetBios Options and press Return. The DHCP NetBIOS Options screen appears.

DHCP NetBios Options

Serve NetBios Type: Yes NetBios Type... Type B

Serve NetBios Scope: No NetBios Scope:

Serve NetBios Name Server: No NetBios Name Server IP Addr: 0.0.0.0

Configure DHCP-served NetBIOS options here.

■ To serve DHCP clients with the type of NetBIOS used on your network, select Serve NetBios Type and

toggle it to Yes.

Page 98

9-16 Administration Guide

■ From the NetBios Type pop-up menu, select the type of NetBIOS used on your network.

DHCP NetBios Options +--------+

■ To serve DHCP clients with the NetBIOS scope, select Serve NetBios Scope and toggle it to Yes.

Select NetBios Scope and enter the scope.

■ To serve DHCP clients with the IP address of a NetBIOS name server, select Serve NetBIOS Name Server

and toggle it to Yes. Select NetBios Name Server IP Addr and enter the IP address for the NetBIOS name server. You are now ﬁnished setting up DHCP NetBIOS Options. To return to the IP Address Serving screen, press

Escape.

■ To enable BootP’s address serving capability, select Serve BOOTP Clients and toggle to Yes.

Note: Addresses assigned through BootP are permanently allocated from the IP Address Serving pool until

you release them. To release these addresses, navigate back to the Main Menu, then Statistics & Logs, Served IP Addresses, and Lease Management.

Main

Statistics

& Logs

Served IP

Addresses

Lease Management

Page 99

IP Address Lease Management

Reset All Leases Release BootP Leases Reclaim Declined Addresses

Hit RETURN/ENTER, you will return to the previous screen.

IP Setup 9-17

Select Release BootP Leases and press Return.

More Address Serving Options

The Netopia 4741 includes a number of enhancements in the built-in DHCP IP address server. These enhancements include:

■ The ability to exclude one or more IP addresses from the address serving pool so the addresses will not be

served to clients.

■ The ability to reserve a particular IP address for a client with a particular Ethernet MAC address.

■ The ability to view the host name associated with a client to which the router has leased an IP address.

■ The ability for the router’s Ethernet IP address(es) to overlap the DHCP address serving pool(s).

■ The ability to serve as a DHCP Relay Agent.

The Netopia 4741 supports reserving an IP address only for a type 1 client identiﬁer (i.e., an Ethernet hardware address). It does not support reserving an IP address for an arbitrary client identiﬁer. (For more information on client identiﬁers, see RFC 2131, section 9.14.)

Page 100

9-18 Administration Guide

Conﬁguring the IP Address Server options

To access the enhanced DHCP server functions, from the Main Menu navigate to Statistics & Logs and then Served IP Addresses.

Main

Menu Addresses

Statistics & Logs

Served IP

The following example shows the Served IP Addresses screen after three clients have leased IP addresses. The ﬁrst client did not provide a Host Name in its DHCP messages; the second and third clients did.

Served IP Addresses

-IP Address------Type----Expires—-Host Name/Client Identifier-----------------

----------------------------------SCROLL UP-----------------------------------

192.168.1.100

192.168.1.101

192.168.1.102

192.168.1.103 DHCP 00:59 EN: 00-00-C5-70-00-04

192.168.1.104 DHCP 00:59 Bill’s Pentium

192.168.1.105 DHCP 00:45 Steve’s Power Mac

192.168.1.106 DHCP 00:59 Sam’s TiBook

192.168.1.107

192.168.1.108

192.168.1.109

192.168.1.110

192.168.1.111

192.168.1.112

192.168.1.113

---------------------------------SCROLL DOWN--------------------------------- Lease Management...

The rightmost column displays the host name supplied by the client if one was provided; otherwise it displays the client identiﬁer. (If a host name is displayed, the client identiﬁer is still accessible in a Details pop-up menu. See below.)

Note: The server does not query the client for its host name. Macintosh computers running versions of MacOS prior to MacOS version 8.5 (OT 2.0.1, TCP/IP 2.0.1) do not supply a host name option in their DHCP messages, so no host name will appear in the Served IP Addresses list.
