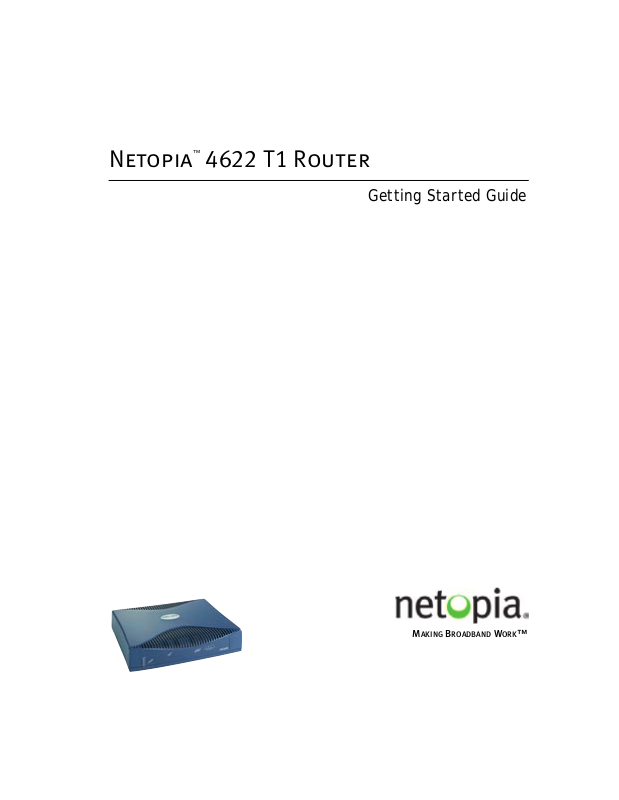

Netopia™ 4622 T1 Router

Getting Started Guide

AKING BROADBAND WORK

™

This manual and any associated artwork, software, and product designs are copyrighted with all rights reserved. Under the copyright laws such materials may not be copied, in whole or part, without the prior written consent of Netopia, Inc. Under the law, copying includes translation to another language or format.

Netopia, Inc. 2470 Mariner Square Loop Alameda, CA 94501-1010 U.S.A.

Part Number

For additional copies of this electronic manual, order Netopia part number 6180038-00-01.

CCCCoooonnnntttteeeennnnttttss

Contents 3

Chapter 1 — Introduction..........................................................1-1

Overview....................................................................... 1-1

Features and Capabilities............................................... 1-1

How to Use this Guide.................................................... 1-2

Chapter 2 — Making the Physical Connections..........................2-1

Find a Location.............................................................. 2-1

What You Need.............................................................. 2-1

Important Safety Instructions ......................................... 2-2

Identify the Connectors and Attach the Cables................. 2-3

Netopia 4622 T1 Router Status Lights ............................ 2-5

Chapter 3 — Connecting to Your Local Area Network.................3-1

Readying Computers on Your Local Network..................... 3-1

Connecting to an Ethernet Network ................................. 3-2

Chapter 4 — Sharing the Connection.........................................4-1

Conﬁguring TCP/IP on Windows-based Computers............ 4-1

Dynamic conﬁguration (recommended)................... 4-2

Static conﬁguration (optional)................................ 4-3

Conﬁguring TCP/IP on Macintosh Computers ................... 4-5

Dynamic conﬁguration (recommended)................... 4-5

Static conﬁguration (optional)................................ 4-6

Chapter 5 — Console-Based Management.................................5-1

Connecting through a Telnet Session............................... 5-2

Conﬁguring Telnet software ................................... 5-3

Connecting a Console Cable to Your Router ..................... 5-3

Navigating through the Console Screens.......................... 5-4

Chapter 6 — Easy Setup...........................................................6-1

Easy Setup Console Screens.......................................... 6-1

Accessing the Easy Setup console screens............ 6-1

Quick Easy Setup Connection Path.................................. 6-3

T1 Line Conﬁguration............................................ 6-6

4 Getting Started Guide

Easy Setup Proﬁle................................................ 6-8

IP Easy Setup ...................................................... 6-9

Easy Setup Security Conﬁguration ....................... 6-11

Appendix A — Technical Speciﬁcations and Safety Information ..A-1

Description.................................................................... A-1

Power requirements ............................................. A-1

Environment ........................................................ A-1

Software and protocols......................................... A-1

Agency Approvals........................................................... A-1

Regulatory notices ............................................... A-2

Important safety instructions ................................ A-4

Introduction 1-1

CCCChhhhaaaapppptttteeeerrrr 11

IIIInnnnttttrrrroooodddduuuuccccttttiiiioooonn

Overview

The Netopia 4622 T1 Router is a full-featured, stand-alone T1 router for connecting diverse local area networks (LANs) to the Internet and other remote networks. The Netopia 4622 T1 Router uses a high performance T1 line to provide your whole network with a high-speed connection to the outside world.

This section covers the following topics:

■

“Features and Capabilities” on page 1-1 “How to Use this Guide” on page 1-2

■

Features and Capabilities

The Netopia 4622 T1 Router provides the following features:

■

Integrated T1 CSU/DSU for fractional or full T1 data service Permanent connection to the Internet or remote sites at up to T1 speeds (1.54 Mbps)

■

Wire-speed routing (up to 1.54 Mbps) for all packet sizes

■

Supports all major T1 deployment models, including ATM, HDLC (Cisco and Copper Mountain), Frame Relay, PPP, and PPP over Frame Relay

DS0 auto-detection for channelized T1 deployments

■

Eight-port 10/100BaseT Ethernet switch connects easily to an existing LAN environment

■

The Ethernet switch ports support auto-crossover and half- or full-duplex auto-sensing Business-class routing features, such as RIP1, RIP2, static routes, and support for multiple subnets on the

■

LAN

■

Network Address Translation (NAT), NAPT, and MultiNAT for ﬂexible use of IP addresses and server hosting

■

DHCP client, server, and relay agent for scalable deployment and private IP address management Various QoS parameters, including ATM: UBR and CBR; IP: TOS bit prioritization

■

High availability solutions via LAN connected back-up default gateway router or dial-back via a modem

■

connected to the console port

■

Built-in ﬁrewall, packet ﬁltering on source/destination address, service, and protocol; up to 255 rules in up to 8 ﬁlter sets

IPSec VPN Gateway, supporting DES, 3DES encryption, along with IKE or manual key management

■

Built-in VPN acceleration for wire speed performance

■

PPTP VPN Gateway, supporting client or server termination

1-2 Getting Started Guide

■

Up to 15 IPSec or PPTP VPN security associations (tunnels) Menu-driven interface via Telnet

■

Easy Setup with menu-driven interface

■

Console Tiered Access, 2 levels of conﬁguration access Conﬁguration Management, up to 3 backup conﬁgurations

■

System diagnostics and logs

■

Command-line interface (CLI)

■

SNMP V1 and V2 TFTP or X-Modem download/upload of new ﬁrmware and conﬁguration ﬁles

■

Utilities: ICMP ping, trace route, Telnet client, and Syslog client LEDs: power, WAN, and Ethernet; link, status, and activity indications for easy monitoring and

■

troubleshooting

■

Wall-mountable, bookshelf (side-stackable), or desktop-stackable design for efﬁcient space usage

How to Use this Guide

In addition to the documentation contained in the accompanying

Firmware User’s Guide

, this guide is designed to get you up and running and connected to your local area network and the Internet. It is intended to be viewed on-line, using the powerful features of the Adobe Acrobat Reader. The information display has been deliberately designed to present the maximum information in the minimum space on your screen. You can keep this document open while you perform any of the procedures described, and ﬁnd useful information about the procedure you are performing.

You can also print out all of the manual, or individual sections, if you prefer to work from hard copy rather than on-line documentation. The pages are formatted to print on standard 8 1/2 by 11 inch paper. We recommend that you print on 3-hole punched paper, so that you can put the pages in a binder for future reference.

This guide is organized into chapters describing the Netopia 4622’s advanced features. You may want to read each chapter’s introductory section to familiarize yourself with the various features available.

Making the Physical Connections 2-1

CCCChhhhaaaapppptttteeeerrrr 22

MMMMaaaakkkkiiiinnnngggg tttthhhheeee PPPPhhhhyyyyssssiiiiccccaaaallll CCCCoooonnnnnnnneeeeccccttttiiiioooonnnnss

This section tells you how to make the physical connections to your Netopia 4622 T1 Router. This section covers the following topics:

■

“Find a Location” on page 2-1

■

“What You Need” on page 2-1 “Identify the Connectors and Attach the Cables” on page 2-3

■

“Netopia 4622 T1 Router Status Lights” on page 2-5

Find a Location

When choosing a location for the Netopia T1 Router, consider:

■

Available space and ease of installation Physical layout of the building and how to best use the physical space available for connecting your Netopia

■

T1 Router to the LAN

■

Available wiring and jacks

■

Distance from the point of installation to the next device (length of cable or wall wiring) Ease of access to the front of the unit for conﬁguration and monitoring

■

Ease of access to the back of the unit for checking and changing cables

■

Cable length and network size limitations when expanding networks

For small networks, install the Netopia 4622 near one of the LANs. For large networks, you can install the Netopia 4622 in a wiring closet or a central network administration site.

What You Need

Locate all items that you need for the installation. Included in your router package are:

The Netopia 4622 T1 Router

■

A power adapter and cord with a mini-DIN8 connector

■

One Category 5 Ethernet cable

■

One Category 5 WAN (or Line) cable A DB-9 to DB-9 console cable

■

The Netopia CD containing software and documentation

2-2 Getting Started Guide

You will need:

■

A Windows–based PC or a Macintosh computer with Ethernet connectivity for conﬁguring the Netopia 4622. This may be built-in Ethernet or an add-on card, with TCP/IP installed and conﬁgured. See “Sharing the

Connection” on page 4-1.

A T1 wall outlet wired for a connection to a telephone carrier who supports T1 connections.

■

Important Safety Instructions

CAUTION: Depending on the power supply provided with the product, either the direct plug-in power supply blades, power supply cord plug or the appliance coupler serves as the main power disconnect. It is important that the direct plug-in power supply, socket-outlet or appliance coupler be located so it is readily accessible.

CAUTION (North America Only): For use only with a CSA Certiﬁed or UL Listed Limited Power Source or Class 2 power supply, rated 12Vdc, 1.5A.

TELECOMMUNICATION INSTALLATION CAUTIONS

When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of ﬁre, electric shock and injury to persons, including the following:

1. Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electrical shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

SAVE THESE INSTRUCTIONS

Making the Physical Connections 2-3

Identify the Connectors and Attach the Cables

Identify the connectors and switches on the back panel and attach the necessary Netopia Router cables. The ﬁgure below displays the back of the Netopia 4622 T1 Router.

Connect your computer, T1 line, and power source as

1 Ethernet

2 T1

Power

shown.

1. For a direct computer to router Ethernet connection, use a standard Ethernet cable, or connect through a hub or switch with a standard Ethernet cable.

2. Use the supplied line cable to connect the router to your T1 wall outlet.

1 Computer

3. Connect the supplied

Ethernet

Console

Power

power brick to a power outlet and the mini-DIN8 connector end to the router.

1 Netopia Router

2-4 Getting Started Guide

Netopia 4622 back panel

Ethernet

WAN Console Power

8 port T1 port Console port Power port

Ethernet switch

Port Description

T1 WAN port An RJ-48 jack labeled WAN for your T1 connection. Ethernet ports Eight RJ-45 10/100Base-T Ethernet jacks. You will use one of these to conﬁgure the

Netopia 4622. For a new installation, use an Ethernet connection. Alternatively, you can use the console connection to run console-based management using a direct serial connection. You can either connect your computer directly to an Ethernet port using a standard Ethernet cable, or connect both your computer and the Netopia 4622 to an existing LAN environment.

Console port A DB-9 console port for a direct serial connection to the console screens. You can use

this if you are an experienced user. See “Connecting a Console Cable to Your Router” on

page 5-3.

Power port A mini-DIN8 power adapter cable connection.

1. Connect the mini-DIN8 connector from the power adapter to the power port, and plug the other end into an electrical outlet.

2. Connect one end of the Category 5 cable to the T1 port, and the other end to your T1 wall outlet.

3. Connect the Ethernet cable to an Ethernet port on the router and the other end to your computer. You should now have: the power adapter plugged in; the Ethernet cable connected between the router and

your computer; and the T1 cable connected between the router and the T1 wall outlet.

Netopia 4622 T1 Router Status Lights

The ﬁgure below represents the Netopia 4622 status light (LED) panel.

Netopia 4622 LED front panel

POWER

ALERT

Making the Physical Connections 2-5

Ethernet

The following table summarizes the meaning of the various LED states and colors:

When this happens... the LEDs...

The power is on The Router detects an error The WAN has trained An Ethernet port is connected to an Ethernet link partner

device

Power

is green.

Alert

is red.

WAN

is green.

The corresponding green.

An Ethernet port has activity The corresponding

green.

Note:

The remaining LEDs are not used.

Ethernet

light is solid

light ﬂashes

2-6 Getting Started Guide

Connecting to Your Local Area Network 3-1

CCCChhhhaaaapppptttteeeerrrr 33

CCCCoooonnnnnnnneeeeccccttttiiiinnnngggg ttttoooo YYYYoooouuuurrrr LLLLooooccccaaaallll AAAArrrreeeeaaaa NNNNeeeettttwwwwoooorrrrkk

This chapter describes how to physically connect the Netopia 4622 to your local area network (LAN). Before you proceed, make sure the Netopia 4622 is properly conﬁgured. You can customize the router’s conﬁguration for your particular LAN requirements using console-based management (see “Console-Based Management” on

page 5-1).

This section covers the following topics:

“Readying Computers on Your Local Network” on page 3-1

■

“Connecting to an Ethernet Network” on page 3-2

■

Readying Computers on Your Local Network

PC and Macintosh computers must have certain components installed before they can communicate through the Netopia 4622. The following illustration shows the minimal requirements for a typical PC or Macintosh computer.

Application software

TCP/IP stack

Ethernet Driver

Your PC or Macintosh computer

To the Netopia 4622

Application software:

newsgroups, etc. These applications may require some conﬁguration. Examples include the Eudora e-mail client and the Web browsers Microsoft Internet Explorer and Netscape Navigator.

TCP/IP stack:

protocols. TCP/IP stacks must be conﬁgured with some of the same information you used to conﬁgure the Netopia 4622. There are a number of TCP/IP stacks available for PC computers. Windows 95 includes a built-in TCP/IP stack. Macintosh computers use either MacTCP or Open Transport. See “Conﬁguring TCP/IP on

Windows-based Computers” on page 4-1. Macintosh computers use either MacTCP or Open Transport. See “Conﬁguring TCP/IP on Macintosh Computers” on page 4-5.

Ethernet:

the LAN.

Ethernet hardware and software drivers enable your PC or Macintosh computer to communicate on

This is the software you use to send e-mail, browse the World Wide Web, read

This is the software that lets your PC or Macintosh computer communicate using Internet

3-2 Getting Started Guide

Once the Netopia 4622 is properly conﬁgured and connected to your LAN, PC and Macintosh computers that have their required components in place will be able to connect to the Internet or other remote IP networks.

Connecting to an Ethernet Network

You can connect a standard 10/100Base-T Ethernet network to the Netopia 4622 using its Ethernet ports.

Netopia 4622 back panel

Ethernet

8 port T1 port Console port Power port

Ethernet switch

WAN Console Power

The Netopia 4622 in a 10/100Base-T network

To connect your 10/100Base-T network to the Netopia 4622 through the Ethernet ports, use standard Category 5 Ethernet cables with RJ-45 connectors.

If you have more than eight devices to connect, you can attach additional devices using another 10- or 100Base-T hub or switch. The Ethernet ports on the router will auto detect 10- or 100Base-T.

Crossover cables are not required.

Macintosh

Ethernet

10Base-T

Hub

Sharing the Connection 4-1

CCCChhhhaaaapppptttteeeerrrr 44

SSSShhhhaaaarrrriiiinnnngggg tttthhhheeee CCCCoooonnnnnnnneeeeccccttttiiiioooonn

Once you have set up your physical local area network, you will need to conﬁgure the TCP/IP stack on each client workstation connected to your Netopia 4622. This chapter describes how to conﬁgure TCP/IP for both Windows-based and Macintosh computers.

This chapter explains the following topics:

■ “Conﬁguring TCP/IP on Windows-based Computers” on page 4-1

■ “Conﬁguring TCP/IP on Macintosh Computers” on page 4-5

Conﬁguring TCP/IP on Windows-based Computers

Conﬁguring TCP/IP on a Windows computer requires the following:

■ An Ethernet card (also known as a network adapter)

■ The TCP/IP protocol must be “bound” to the adapter or card

4-2 Getting Started Guide

Dynamic conﬁguration (recommended)

To conﬁgure your PC for dynamic addressing do the following:

1. Go to the Start Menu/Settings/Control Panels and double click the Network icon. From the Network components list, select the Conﬁguration tab.

2. Select TCP/IP-->Your Network Card. Then select

Properties. In the TCP/IP Properties screen, select the IP Address tab. Click “Obtain an IP Address automatically”.

3. Click on the DNS Conﬁguration tab. Click Disable DNS. DNS will be assigned by the router with DHCP.

4. Click OK in this window and the next window. When prompted, reboot the computer.

Note: You can also use these instructions to conﬁgure other computers on your network to accept IP

addresses served by the Netopia 4622.

Sharing the Connection 4-3

Static conﬁguration (optional)

If you are manually conﬁguring for a ﬁxed or static IP address, perform the following:

1. Go to Start Menu/Settings/Control Panels and double click the Network icon. From the Network components list, select the Conﬁguration tab.

2. Select TCP/IP-->Your Network Card. Then select Properties. In the TCP/IP Properties screen, select the IP Address tab. Click “Specify an IP Address.”

Enter the following:

IP Address: 192.168.1.2 Subnet Mask: 255.255.255.0

This address is an example of one that can be used to conﬁgure the router. Your ISP or network administrator may ask you to use a different IP address and subnet mask.

4-4 Getting Started Guide

3. Click on the Gateway tab (shown below). Under “New gateway,” enter

192.168.1.1. Click Add. This is the Netopia 4622’s pre-assigned IP address.

4. Click OK in this window and the next window. When prompted, reboot the computer.

Click on the DNS Conﬁguration tab. Click Enable DNS. Enter the following information:

Host: Type the name you want to give to this computer.

Domain: Type your domain name. If you don't have a domain name, type your ISP's domain name; for example, netopia.com.

DNS Server Search Order: Type the

primary DNS IP address given to you by your ISP. Click

Add. Repeat this process for the secondary DNS. Domain Sufﬁx Search Order: Enter the same domain

name you entered above.

Note: You can also use these instructions to conﬁgure other computers on your network with manual or static

IP addresses. Be sure each computer on your network has its own IP address.

Sharing the Connection 4-5

Conﬁguring TCP/IP on Macintosh Computers

The following is a quick guide to conﬁguring TCP/IP for MacOS computers. Conﬁguring TCP/IP in a Macintosh computer requires the following:

■ You must have either Open Transport or Classic Networking (MacTCP) installed.

If you want to use the Dynamic Host Conﬁguration Protocol (DHCP) server built into your Netopia 4622 to assign IP addresses to your Macintoshes, you must be running Open Transport, standard in MacOS 8 and higher and optional in earlier system versions.

■ You must have built-in Ethernet or a third-party Ethernet card and its associated drivers installed in your

Macintosh.

Dynamic conﬁguration (recommended)

The Dynamic Host Conﬁguration Protocol (DHCP), which enables dynamic addressing, is enabled by default in the router. To conﬁgure your Macintosh computer for dynamic addressing do the following:

1. Go to the Apple menu. Select Control Panels and then TCP/IP.

2. With the TCP/IP window open, go to the Edit menu and select User Mode. Choose Basic and click OK.

3. In the TCP/IP window, select “Connect via: Ethernet” and “Conﬁgure: Using DHCP Server.”

Note: You can also use these instructions to conﬁgure other computers on your network to accept IP

addresses served by the Netopia 4622.

4-6 Getting Started Guide

Static conﬁguration (optional)

If you are manually conﬁguring for a ﬁxed or static IP address, perform the following:

1. Go to the Apple menu. Select Control Panels and then TCP/IP or MacTCP.

2. With the TCP/IP window open, go to the Edit menu and select User Mode. Choose Advanced and click OK.

Or, in the MacTCP window, select Ethernet and click the More button.

3. In the TCP/IP window or in the MacTCP/More window, select or type information into the ﬁelds as shown in the following table.

Option: Select/Type:

Connect via: Ethernet Conﬁgure: Manually IP Address: 192.168.1.2 Subnet mask: 255.255.255.0 Router or Gateway address: 192.168.1.1 Name server address: Enter the primary and secondary name server

addresses given to you by your ISP

Implicit Search Path: Starting domain name:

Enter your domain name; if you do not have a domain name, enter the domain name of your ISP

4. Close the TCP/IP or MacTCP control panel and save the settings.

5. If you are using MacTCP, you must restart the computer. If you are using Open Transport, you do not need to restart.

Sharing the Connection 4-7

Note: You can use these instructions to conﬁgure other computers on your network to accept IP addresses

served by the Netopia 4622. You can also use these instructions to conﬁgure other computers on your network with manual or static IP

addresses. Be sure each computer on your network has its own IP address. More information about conﬁguring your Macintosh computer for TCP/IP connectivity through a Netopia 4622

can be found in Technote NIR_026, “Open Transport and Netopia Routers,” located on the Netopia Web site.

4-8 Getting Started Guide

Console-Based Management 5-1

CCCChhhhaaaapppptttteeeerrrr 55

CCCCoooonnnnssssoooolllleeee----BBBBaaaasssseeeedddd MMMMaaaannnnaaaaggggeeeemmmmeeeennnntt

Console-based management is a menu-driven interface for the capabilities built into the Netopia 4622. Console-based management provides access to a wide variety of features that the router supports. You can customize these features for your individual setup. This chapter describes how to access the console-based management screens.

This section covers the following topics:

■ “Connecting through a Telnet Session” on page 5-2

■ “Connecting a Console Cable to Your Router” on page 5-3

■ “Navigating through the Console Screens” on page 5-4

Console-based management screens contain seven entry points to the Netopia 4622 conﬁguration and monitoring features. The entry points are displayed in the Main Menu shown below:

Netopia 4622

Easy Setup... WAN Configuration... System Configuration... Utilities & Diagnostics... Statistics & Logs... Quick Menus... Quick View...

Return/Enter goes to Easy Setup -- minimal configuration. You always start from this main screen.

■ The Easy Setup menus display and permit changing the values contained in the default connection proﬁle.

You can use Easy Setup to initially conﬁgure the router directly through a console session. Easy Setup menus contain up to ﬁve descendant screens for viewing or altering these values. The number

of screens depends on whether you have optional features installed. This manual describes the Easy Setup menus to get you up and running quickly. For more advanced

features offered in the menus listed below, see the Firmware User’s Guide.

■ The WAN Conﬁguration menu displays and permits changing your connection proﬁle(s) and default proﬁle,

creating or deleting additional connection proﬁles, and conﬁguring or reconﬁguring the manner in which you

5-2 Getting Started Guide

may be using the router to connect to more than one service provider or remote site.

■ The System Conﬁguration menus display and permit changing:

■ IP Setup

■ Filter Sets

■ IP Address Serving

■ Network Address Translation (NAT)

■ Date and Time

■ Console Conﬁguration

■ SNMP (Simple Network Management Protocol)

■ Security

■ Upgrade Feature Set

■ Change Device to a Bridge

■ Logging

■ The Utilities & Diagnostics menus provide a selection of several tools for monitoring and diagnosing the

router's behavior, as well as for updating the ﬁrmware and rebooting the system.

■ The Statistics & Logs menus display sets of tables and device logs that show information about your

router, your network, and their history.

■ The Quick Menus screen is a shortcut entry point to the most commonly used conﬁguration menus that

are accessed through the other menu entry points.

■ The Quick View menu displays at a glance current real-time operating information about your router.

Connecting through a Telnet Session

Features of the Netopia 4622 can be conﬁgured through the console screens. Before you can access the console screens through Telnet, you must have:

■ A network connection locally to the router or IP access to the router.

Note: Alternatively, you can have a direct serial console cable connection using the provided console cable for

your platform (PC or Macintosh) and the Console port on the back of the router. For more information on attaching the console cable, see “Connecting a Console Cable to Your Router” on page 5-3.

■ Telnet software installed on the computer you will use to conﬁgure the router

Console-Based Management 5-3

Conﬁguring Telnet software

If you are conﬁguring your router using a Telnet session, your computer must be running a Telnet software program.

■ If you connect a PC with Microsoft Windows, you can use a Windows Telnet application or simply run Telnet

from the Start menu.

■ If you connect a Macintosh computer, you can use the NCSA Telnet program supplied on the Netopia 4622

CD. You install NCSA Telnet by simply dragging the application from the CD to your hard disk.

Connecting a Console Cable to Your Router

You can perform all of the system conﬁguration activities for your Netopia 4622 through a local serial console connection using terminal emulation software, such as HyperTerminal provided with Windows 95, 98, 2000, or NT on the PC, or ZTerm, included on the Netopia CD, for Macintosh computers.

The Netopia 4622 back panel has a connector labeled “Console” for attaching the Router to either a PC or Macintosh computer via the serial port on the computer. (On a Macintosh computer , the serial port is called the Modem port or Printer port. Newer Macintosh models have USB ports, so you may need a third-party adapter.) This connection lets you use the computer to conﬁgure and monitor the Netopia 4622 via the console screens.

Netopia 4622 back panel

Ethernet

WAN Console Power

Console connection port

DB-9 (male)

To connect the Netopia 4622 to your computer for serial console communication, use a console cable appropriate to your platform:

■ A DB-9 connector end attaches to a PC.

■ A DB-9 end of the Console cable attaches to the Netopia 4622’s Console port.

■ If you connect a PC with Microsoft Windows 95, 98, 2000, or NT, you can use the HyperTerminal

application bundled with the operating system.

■ If you connect a Macintosh computer, you can use the ZTerm terminal emulation program on the supplied

Netopia 4622 CD.

5-4 Getting Started Guide

Launch your terminal emulation software and conﬁgure the communications software for the values shown in the table below. These are the default communication parameters that the Netopia 4622 uses.

Parameter Suggested Value

Terminal type PC: ANSI-BBS

Mac: ANSI, VT-100, or VT-200

Data bits 8 Parity None Stop bits 1 Speed 9600 - 57600 bits per second Flow Control None Note: The router ﬁrmware contains an autobaud detection feature. If you are at any

screen on the serial console, you can change your baud rate and press Return (HyperTerminal for the PC requires a disconnect). The new baud rate is displayed at the bottom of the screen.

Navigating through the Console Screens

Use your keyboard to navigate the Netopia 4622’s conﬁguration screens, enter and edit information, and make choices. The following table lists the keys to use to navigate through the console screens.

To... Use These Keys...

Move through selectable items in a screen or pop-up menu Up, Down, Left, and Right Arrow Set a change to a selected item or open a pop-up menu of

options for a selected item like entering an upgrade key Change a toggle value (Yes/No, On/Off) Tab Restore an entry or toggle value to its previous value Esc Move one item up Up arrow or Control + K Move one item down Down arrow or Control + O Display a dump of the device event log Control + E Display a dump of the WAN event log Control + F Refresh the screen Control + L

Return or Enter

Easy Setup 6-1

CCCChhhhaaaapppptttteeeerrrr 66

EEEEaaaassssyyyy SSSSeeeettttuuuupp

This chapter describes how to use the Easy Setup console screens on your Netopia 4622. After completing the Easy Setup console screens, your router will be ready to connect to the Internet or another remote site.

Easy Setup Console Screens

Using four Easy Setup console screens, you can:

■ Modify a connection proﬁle for your router for the connection to your ISP or remote location

■ Set up IP addresses and IP address serving

■ Password–protect conﬁguration access to your Netopia 4622

Accessing the Easy Setup console screens

To access the console screens, Telnet to the Netopia Router over your Ethernet network or physically connect with a serial console cable and access the Netopia Router with a terminal emulation program. See “Connecting

through a Telnet Session” on page 5-2 or “Connecting a Console Cable to Your Router” on page 5-3.

Note: Before continuing, make sure you have the information that your ISP or network administrator has given

you for conﬁguring the Netopia Router. The Netopia Router’s ﬁrst console screen, Main Menu, appears in the terminal emulation window of the

attached PC or Macintosh computer when:

■ The Netopia Router is turned on

■ The computer is connected to the Netopia Router

■ Telnet or the terminal emulation software is running and conﬁgured correctly

A screen similar to the following Main Menu appears:

6-2 Getting Started Guide

Netopia 4622

Easy Setup... WAN Configuration... System Configuration... Utilities & Diagnostics... Statistics & Logs... Quick Menus... Quick View...

If you do not see the Main Menu, verify that:

■ If you are using a serial connection, that your serial port speed is the same as the Netopia 4622’s default

9600 baud, for ﬁrst use.

■ The computer used to view the console screen has its serial port connected to the Netopia 4622’s

Console port or an Ethernet connection to its Ethernet port. See “Connecting a Console Cable to Your

Router” on page 5-3 or “Connecting through a Telnet Session” on page 5-2.

■ Telnet or the terminal emulation software is conﬁgured for the recommended values.

■ If you are connecting via the Console port, your computer’s serial port is not being used by another device,

such as an internal modem, or an application. Turn off all other programs (other than your terminal emulation program) that may be interfering with your access to the port.

■ You have entered the correct password, if necessary. Your Netopia 4622’s console access may be

password protected from a previous conﬁguration. See your system administrator to obtain the password. See the Firmware User’s Guide chapter on “Troubleshooting” for more suggestions.

Easy Setup 6-3

Quick Easy Setup Connection Path

This section may be all you need to do to conﬁgure your Netopia 4622 T1 Router. Your service provider will supply you with several parameter values. Below is a handy checklist:

T1 Line Conﬁguration Screen

Operation Mode ❑ HDLC (default)

❑ CM-HDLC (Copper

Mountain)

❑ ATM

Line Encoding ❑ B8ZS (default)

❑ AMI

Framing Mode ❑ ESF (default)

❑ D4

AutoDetect DS0 Channels ❑ No (default) or

❑ Yes

Number of DS0 Channels

_______________________

Channel Data Rate ❑ Nx64k (default)

❑ Nx56k

Data Link Encapsulation ❑ Frame Relay (default)

❑ PPP

First DS0 Channel

PPP over Frame Relay Enabled:

❑ Off (default) or ❑ On

PPP Mode:

❑ VC Multiplexed (default) or ❑ LLC SNAP

_______________________

DLCI:

_______________________

LMI:

❑ ANSI (Annex D) ❑ CCITT (Annex A) ❑ LMI ❑ None

6-4 Getting Started Guide

❑ RFC1483

❑ HDLC

Data Circuit (ATM Operation Mode only)

Address Translation Enabled:

IP Addressing: ❑ Numbered (default) or

VPI (0-255): (default is 0)

VCI (32-65535): (default is 35)

Easy Setup Proﬁle Screen

❑ Yes (default) or ❑ No

❑ Unnumbered

(for Frame Relay DLEs only) Frame Relay Management Type:

❑ ANSI (Annex D) ❑ CCITT (Annex A) ❑ LMI ❑ None

(for PPP DLEs only) PPP Authentication:

❑ None (default), ❑ PAP or ❑ CHAP

IP Easy Setup Screen

Ethernet IP Address:

Ethernet Subnet Mask: Domain Name: _______________________ Primary Domain Name

Server: Secondary Domain Name

Server: Default IP Gateway: _______________________

Write Access Name: _______________________ Write Access Password: _______________________

_______________________

Easy Setup Security Conﬁguration Screen

RFC1483 Mode:

❑ Bridged 1483 (default) or ❑ Routed 1483

_______________________

(for Numbered IP Addressing) Local WAN IP Address: _______________________ Local WAN IP Mask: _______________________

(for PAP or CHAP) User Name (or Host Name):

_______________________

(192.168.1.1

255.255.255.0 are defaults)

(for Bridged 1483 only) PPP over Ethernet (PPPoE)

❑ Off (default) or ❑ On

(for Unnumbered IP Addressing) Remote IP Address: _______________________ Remote IP Mask: _______________________

(for PAP or CHAP) Password (or Secret):

_______________________

Easy Setup 6-5

The following steps will get you up and running quickly:

1. Open a Telnet session to 192.168.1.1 to bring up the Main Menu. If you don't know how to do this, see “Connecting through a Telnet Session” on page 5-2. Alternatively, you can connect the console cable and open a direct serial console connection, using a

terminal emulator program. See “Connecting a Console Cable to Your Router” on page 5-3. The Main Menu appears.

Netopia 4622

Easy Setup... WAN Configuration... System Configuration... Utilities & Diagnostics... Statistics & Logs... Quick Menus... Quick View...

2. Select the ﬁrst item on the Main Menu list, Easy Setup. Press Return to bring up the T1 Line Conﬁguration menu screen.

6-6 Getting Started Guide

T1 Line Conﬁguration

The T1 Line Conﬁguration screen appears.

T1 Line Configuration Operation Mode... HDLC

Line Encoding... B8ZS Framing Mode... ESF

AutoDetect DS0 Channels: No Number of DS0 Channels: 1 First DS0 Channel: 1

Channel Data Rate... Nx64k Data Link Encapsulation... Frame Relay

PPP over Frame Relay Enabled: Off

TO MAIN MENU NEXT SCREEN Return/Enter goes to new screen.

Enter Information supplied to you by your telephone company.

1. Select Operation Mode and press Return. From the pop-up menu, highlight the mode your telephone service provider uses: HDLC (Cisco), CM-HDLC (Copper Mountain), or ATM. The default setting is HDLC. Press Return.

2. Select Line Encoding and press Return. From the pop-up menu, highlight the encoding your telephone service provider uses: B8Zs or AMI. The default setting is B8Zs. Press Return.

3. Select Framing Mode and press Return. From the pop-up menu, highlight either ESF or D4, depending on the framing mode that your telephone service provider advises you to use. The default setting is ESF. Press Return.

4. Select AutoDetect DS0 Channels. Netopia routers whose model number ends in “-T” may be able to use the auto detection feature. Toggle this item to Yes if your service provider uses equipment that supports DS0 channel auto detection. Otherwise accept the default No.

5. Select Number of DS0 Channels and enter the number of DS0 channels that you and your telephone service provider have determined are necessary for your T1 line. The default setting for DS0 Channels is 1 (one). Press Return.

Note: Each DS0 channel represents a 56k or 64k increment in bandwidth. Selecting a number less than the maximum speciﬁes a fractional-T1 interface. You can have a maximum of 24 DS0 channels.

6. Select First DS0 Channel and enter the number of the ﬁrst active DS0 channel you will be using. The default setting is 1 (one). Press Return.

Note: You can change the First DS0 Channel number, which has a valid range from one to the maximum number minus the number of active channels. If the number of active DS0 channels is 24 (maximum), First DS0 Channel is hidden.

If you specify a number of DS0 channels less than the maximum, a Contiguous Channels item appears. For fractional-T1, you can specify whether the DS0 channels are contiguous or alternating by toggling Contiguous Channels to Yes or No.

Easy Setup 6-7

7. Select Channel Data Rate and highlight the data rate that your service provider has designated your channel to connect at. The channel data rate choices are Nx56k or Nx64k. The default is Nx64k. Press Return.

8. Select Data Link Encapsulation and highlight the method of encapsulation that you want to use from the pop-up menu. The choices offered are PPP, RFC1483, HDLC (Cisco), and Frame Relay. The default setting is Frame Relay.

The screen will offer different options depending on your selection.

PPP OptionsFrame Relay Options

T1 Line Configuration Operation Mode... Normal

Line Encoding... B8ZS Framing Mode... ESF

Number of DS0 Channels: 1 First DS0 Channel: 1

Channel Data Rate... Nx64k

Data Link Encapsulation... Frame Relay PPP over Frame Relay Enabled: On DLCI: 16 LMI: None

TO MAIN MENU NEXT SCREEN Return/Enter takes you back to previous screen.

Enter Information supplied to you by your telephone company.

RFC 1483 Options

T1 Line Configuration Operation Mode... Normal

Line Encoding... B8ZS Framing Mode... ESF

Number of DS0 Channels: 1 First DS0 Channel: 1

Channel Data Rate... Nx64k

Data Link Encapsulation... RFC1483 RFC1483 Mode... Bridged 1483 PPP over Ethernet (PPPoE): Off

TO MAIN MENU NEXT SCREEN Return/Enter goes to new screen.

Enter Information supplied to you by your telephone company.

T1 Line Configuration Operation Mode... Normal

Line Encoding... B8ZS Framing Mode... ESF

Number of DS0 Channels: 1 First DS0 Channel: 1

Channel Data Rate... Nx64k

Data Link Encapsulation... PPP PPP Mode... VC Multiplexed

TO MAIN MENU NEXT SCREEN Return/Enter takes you back to previous screen.

Enter Information supplied to you by your telephone company.

ATM Operation Mode Options

T1 Line Configuration Operation Mode... ATM

Line Encoding... B8ZS Framing Mode... ESF

Number of DS0 Channels: 1 First DS0 Channel: 1

Data Link Encapsulation... RFC1483 RFC1483 Mode... Bridged 1483 PPP over Ethernet (PPPoE): Off Data Circuit VPI (0-255): 0 Data Circuit VCI (32-65535): 35

TO MAIN MENU NEXT SCREEN Return/Enter goes to new screen.

Enter Information supplied to you by your telephone company.

■ If you selected Frame Relay as a Data Link Encapsulation method, the PPP over Frame Relay Enabled

toggle appears. If you toggle PPP over Frame Relay Enabled to On, the DLCI ﬁeld appears, allowing you to enter a DLCI

value (16 is the default). The LMI option also appears, allowing you to select from ANSI (Annex D), CCITT (Annex A), LMI, or None from the pull-down menu.

■ If you selected PPP, the next pop-up menu PPP Mode offers the choice of VC Multiplexed or LLC SNAP.

6-8 Getting Started Guide

■ If you selected RFC1483, the next pop-up menu RFC1483 Mode offers the choice of Bridged 1483 or

Routed 1483. If you select Bridged 1483, a new option PPP over Ethernet (PPPoE) appears. You can then toggle PPPoE On or Off. Choosing Routed 1483 hides the PPPoE option.

■ If you selected ATM Operation Mode in Step 1, the Data Circuit VPI and VCI ﬁelds become visible.

These are editable ﬁelds. The default values 0 and 35 are typical for ADSL circuits, so you will only need to change them if your service provider explicitly tells you to do so.

9. Press the Down arrow key until you reach NEXT SCREEN. Press Return to bring up the next screen.

Easy Setup Proﬁle

The Easy Setup Proﬁle screen is where you conﬁgure the parameters that control the Netopia 4622’s connection to a speciﬁc remote destination, usually your ISP or a corporate site.

On a Netopia 4622 you can add up to 15 more connection proﬁles, for a total of 16, although you can only use one at a time, unless you are using Virtual Private Networks (VPNs).

Connection Profile 1: Easy Setup Profile

Connection Profile Name: Easy Setup Profile

Address Translation Enabled: Yes IP Addressing... Numbered

Local WAN IP Address: 0.0.0.0 Local WAN IP Mask: 0.0.0.0

Frame Relay Management Type... ANSI (Annex D)

PREVIOUS SCREEN NEXT SCREEN Return/Enter brings you to next screen.

Enter basic information about your WAN connection with this screen.

Note: The appearance of this screen varies, depending on the settings in the previous screen.

1. To enable address translation, toggle Address Translation Enabled to Yes (the default). For more information on Network Address Translation, see the Firmware User’s Guide chapter on “Multiple Network Address Translation (MultiNAT)“.

2. From the IP Addressing menu item, choose between Unnumbered and Numbered addressing. Numbered is the default for ADSL. It assigns a unique IP address to the ADSL WAN interface, as required by most ISPs’ routers. Unnumbered may be used for simpler conﬁgurations such as point-to-point applications.

Easy Setup 6-9

If you selected Numbered, the following ﬁelds appear.

■ Select the editable ﬁeld labeled Local WAN IP Address.

The default address is 0.0.0.0, which allows for dynamic addressing, when your ISP assigns an address each time you connect. However, you can enter another speciﬁc address if you want to use static addressing. In that case, enter the local WAN address your ISP gave you. Press Return.

■ Select the editable ﬁeld labeled Local WAN IP Mask. Enter the mask address your ISP gave you. Press

Return.

If you selected Unnumbered, the following ﬁelds appear.

■ Select the editable ﬁeld labeled Remote IP Address and enter the remote IP address. Press Return.

■ Select the editable ﬁeld labeled Remote IP Mask and enter the remote mask address. Press Return.

3. If you selected PPP data link encapsulation in the DSL Line Conﬁguration screen, a PPP Authentication menu item appears. The authentication protocol and user name/password combinations you enter must be assigned or agreed to in advance between you and your ISP. Select PPP Authentication and press Return.

From the pop-up menu that appears, select the authentication method your ISP uses: PAP (Password Authentication Protocol), CHAP (Challenge Handshake Authentication Protocol), or None.

■ PAP is the most common, and requires you to enter a User Name and Password in the next two ﬁelds.

■ CHAP requires you to enter a Host Name and Secret in the next two ﬁelds.

4. Press the Down arrow key until you reach NEXT SCREEN. Press Return to bring up the next screen.

IP Easy Setup

The IP Easy Setup screen is where you enter information about your Netopia Router’s:

■ Ethernet IP address

■ Ethernet Subnet mask

■ Domain Name

■ Domain Name Server IP address

■ Default gateway IP address

Consult with your network administrator to obtain the information you will need. For more information about setting up IP, see the Firmware User’s Guide chapter on “IP Setup”.

6-10 Getting Started Guide

IP Easy Setup

Ethernet IP Address: 192.168.1.1 Ethernet Subnet Mask: 255.255.255.0

Domain Name: isp.net Primary Domain Name Server: 209.3.224.21 Secondary Domain Name Server: 209.3.224.20

Default IP Gateway: 127.0.0.2 IP Address Serving: On Number of Client IP Addresses: 100

1st Client Address: 192.168.1.100

PREVIOUS SCREEN NEXT SCREEN Enter an IP address in decimal and dot form (xxx.xxx.xxx.xxx).

Set up the basic IP & IPX attributes of your Netopia in this screen.

1. Select Ethernet IP Address and enter the ﬁrst IP address from the IP address range your ISP has given you. This will be the Netopia Router’s IP address.

The Ethernet IP Address defaults to an address (192.168.1.1) within a range reserved by the Internet address administration authority for use within private networks.

Because this is a private network address, it should never be directly connected to the Internet. Using NAT for all your connection proﬁles will ensure this restriction. See the Firmware User’s Guide chapter on “Multiple Network Address Translation (MultiNAT)” for more information.

2. Select Ethernet Subnet Mask and enter the subnet mask your ISP has given you. The Ethernet Subnet Mask defaults to a standard class mask derived from the class of the Ethernet IP address you entered in the previous step.

3. Press the Down arrow key until the editable ﬁeld labeled Domain Name is highlighted.

4. Type the Domain Name your ISP gave you. Press Return. The next ﬁeld Primary Domain Name Server will be highlighted.

5. Type the Primary Domain Name Server address your ISP gave you. Press Return. A new ﬁeld Secondary Domain Name Server will appear. If your ISP gave you a secondary domain name server address, enter it here. Press Return until the next ﬁeld Default IP Gateway is highlighted.

6. If you do not enter a Default IP Gateway value, the router defaults to the remote IP address you entered in the Easy Setup connection proﬁle. If the Netopia Router does not recognize the destination of any IP trafﬁc, it forwards that trafﬁc to this gateway.

Do not confuse the remote IP address and the Default IP Gateway’s address with the block of local IP addresses you may receive from your ISP. You use the local IP addresses for the Netopia 4622’s Ethernet port and for IP clients on your local network. The remote IP address and the default gateway’s IP address should point to your ISP’s router.

Easy Setup 6-11

7. Toggle IP Address Serving to On or Off, depending on whether you want the device’s IP address server to supply dynamic IP addresses to your client workstations. Normally, you would accept the default On so that workstations on your LAN can have IP addresses assigned dynamically from the router.

8. The IP address server will provide 100 IP addresses automatically to workstations on your LAN. You only need to change the Number of Client IP Addresses if you have some other IP addressing scheme.

9. By default, the 1st Client Address is 192.168.1.100, based on the device’s default IP address of

192.168.1.1. You only need to change this if you have some other IP addressing scheme.

10. Press the Down arrow key until you reach NEXT SCREEN. Press Return.

Easy Setup Security Conﬁguration

The Easy Setup Security Conﬁguration screen lets you password-protect your Netopia 4622. Input your Write Access Name and Write Access Password with names or numbers totaling up to eleven digits.

If you password protect the console screens, you will be prompted to enter the name and password you have speciﬁed every time you log in to the console screens. Do not forget your name and password. If you do, you will be unable to access any of the conﬁguration screens.

Additional security features are available. See the Firmware User’s Guide chapter on “Security”.

Easy Setup Security Configuration

It is strongly suggested that you password-protect configuration access to your Netopia. By entering a Name and Password pair here, access via serial, Telnet, and SNMP will be password-protected.

Be sure to remember what you have typed here, because you will be prompted for it each time you configure this Netopia.

Write Access Name: Write Access Password:

PREVIOUS SCREEN TO MAIN MENU RESTART DEVICE

Configure a Configuration Access Name and Password here.

The ﬁnal step in conﬁguring the Easy Setup console screens is to restart the Netopia 4622, so that the conﬁguration settings take effect.

1. Select RESTART DEVICE. A prompt asks you to conﬁrm your choice.

2. Select CONTINUE to restart the Netopia Router and have your selections take effect.

Note: You can also restart the system at any time by using the Restart System utility in the Utilities and

Diagnostics menu, or by turning the Netopia Router off and on with the power switch.

6-12 Getting Started Guide

The Router will restart and your conﬁguration settings will be activated. You can then Exit or Quit your Telnet application.

Easy Setup is now complete.

Technical Speciﬁcations and Safety Information A-1

AAAAppppppppeeeennnnddddiiiixxxx AA

TTTTeeeecccchhhhnnnniiiiccccaaaallll SSSSppppeeeecccciiiiffffiiiiccccaaaattttiiiioooonnnnssss aaaannnndddd SSSSaaaaffffeeeettttyyyy IIIInnnnffffoooorrrrmmmmaaaattttiiiioooonn

Description

Dimensions: 124.0 cm (w) x 20.0 cm (d) x 5.3 cm (h); 9.4” (w) x 7.9” (d) x 2.1” (h) Communications interfaces: The Netopia 4622 T1 Router has an RJ-48 jack for the T1 connection; eight RJ-45

10/100Base-T Ethernet ports for your LAN connections; and a DB-9 Console port.

Power requirements

■ 12 VDC input

■ 1.5 Amps

Environment

Operating temperature: 0° to +40° C Storage temperature: 0° to +70° C Relative storage humidity: 20 to 80% non-condensing

Software and protocols

Software media: Software preloaded on internal ﬂash memory; ﬁeld upgrades done via download to internal ﬂash memory via XMODEM or TFTP

Routing: TCP/IP Internet Protocol Suite, RIP WAN support: PPP, HDLC, ATM, Frame Relay Security: PAP, CHAP, MS-CHAP, IP ﬁrewalls, and UI password security SNMP network management: SNMPv1, SNMPv2, MIB-II (RFC 1213), Interface MIB (RFC 1229), Ethernet MIB

(RFC 1643), Netopia MIB.

Management/conﬁguration methods: serial console, remote modem console, Telnet, SNMP Diagnostics: PING, event logging, routing table displays, traceroute, statistics counters

Agency Approvals

North America

Safety Approvals:

■ United States – UL Standard for Information Technology Equipment, UL 60950, Third Edition, Dated

A-2 Getting Started Guide

December 1, 2000

■ Canada – CSA: CAN/CSA-C22.2 No. 950-95

EMI:

■ FCC Part 15 Class B

■ FCC Part 68

Regulatory notices

Warnings

This is a Class B product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures. Adequate measures include increasing the physical distance between this product and other electrical devices.

Changes or modiﬁcations to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

United States. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.

■ Increase the separation between the equipment and receiver.

■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

■ Consult the dealer or an experienced radio TV technician for help.

FCC Requirements, Part 68. The Federal Communications Commission (FCC) has established Rules which permit this device to be directly connected to the telephone network. Standardized jacks are used for these connections. This equipment should not be used on party lines or coin phones.

If this device is malfunctioning, it may also be causing harm to the telephone network; this device should be disconnected until the source of the problem can be determined and until repair has been made. If this is not done, the telephone company may temporarily disconnect service.

The telephone company may make changes in its technical operations and procedures; if such changes affect the compatibility or use of this device, the telephone company is required to give adequate notice of the changes. You will be advised of your right to ﬁle a complaint with the FCC.

If the telephone company requests information on what equipment is connected to their lines, inform them of:

a) The telephone number to which this unit is connected. b) The ringer equivalence number c) The USOC jack required. (RJ48C) d) The FCC Registration Number. (14 digits provided by FCC)

Technical Speciﬁcations and Safety Information A-3

Items (b) and (d) are indicated on the label. The Ringer Equivalence Number (REN) is used to determine how many devices can be connected to your telephone line. In most areas, the sum of the REN's of all devices on any one line should not exceed ﬁve (5.0). If too many devices are attached, they many not ring properly.

Service Requirements. In the event of equipment malfunction, all repairs should be performed by our Company or an authorized agent. Under FCC rules, no customer is authorized to repair this equipment. This restriction applies regardless of whether the equipment is in or our of warranty. It is the responsibility of users requiring service to report the need for service to our Company or to one of our authorized agents. Service can be obtained at Netopia, Inc., 2470 Mariner Square Loop, Alameda, California, 94501.

FCC Information. This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of this equipment is a label that contains, among other information, a product identiﬁer in the format US:AAAEQ##TXXXX. If requested, this number must be provided to the telephone company.

The following information may be required when applying to the local telephone company for leased line facilities:

Service Type SOC FIC USOC

1.544 Mbps - SF 6.0F 04DU9-BN RJ-48C

1.544 Mbps – SF and B8ZS 6.0F 04DU9-DN RJ-48C

1.544 Mbps – ESF 6.0F 04DU9-1KN RJ-48C

1.544 Mbps – ESF and B8ZS 6.0F 04DU9-1SN RJ-48C

■ A plug and jack used to connect this equipment to the premises wiring and telephone network must comply

with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details.

■ If this Netopia 4622 causes harm to the telephone network, the telephone company will notify you in

advance that temporary discontinuance of service may be required. But if advance notice isn’t practical, the telephone company will notify you as soon as possible. Also, you will be advised of your right to ﬁle a complaint with the FCC if you believe it is necessary.

■ The telephone company may make changes in its facilities, equipment, operations or procedures that could

affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modiﬁcations to maintain uninterrupted service.

■ If trouble is experienced with this Netopia 4622, for repair or warranty information, please see “Service

Requirements” on page A-3. If the equipment is causing harm to the telephone network, the telephone

company may request that you disconnect the equipment until the problem is resolved.

■ This equipment is of a type that is not intended to be repaired. See “Service Requirements” on page A-3

Electrical Safety Advisory: Users should consider use of a surge arrestor. Telephone companies report that electrical surges, typically lightning transients, are very destructive to customer terminal equipment connected to AC power sources. This has been identiﬁed as a major nationwide problem.

A-4 Getting Started Guide

Important

This product was tested for FCC compliance under conditions that included the use of shielded cables and connectors between system components. Changes or modiﬁcations to this product not authorized by the manufacturer could void your authority to operate the equipment.

Canada. This digital apparatus does not exceed the Class B limits for radio noise emission from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe A prescrites dans le Réglement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada.

Declaration for Canadian users

The Canadian Industry Canada label identiﬁes certiﬁed equipment. This certiﬁcation means that the equipment meets certain telecommunications network protective, operation and safety requirements. The Department does not guarantee the equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. In some cases, the company’s inside wiring associated with a single line individual service may be extended by means of a certiﬁed connector assembly (telephone extension cord.) The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to the certiﬁed equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

Caution

Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate.

The Load Number (LN) assigned to each terminal device denotes the percentage of the total load to be connected to a telephone loop which is used by the device, to prevent overloading. The termination on a loop may consist of any combination of devices subject only to the requirement that the total of the Load Numbers of all the devices does not exceed 100.

Important safety instructions

Caution

■ Depending on the power supply provided with the product, either the direct plug-in power supply blades,

power supply cord plug or the appliance coupler serves as the mains power disconnect. It is important that the direct plug-in power supply, socket-outlet or appliance coupler be located so it is readily accessible.

■ (North America Only) For use only with a CSA Certiﬁed or UL Listed Limited Power Source or Class 2 power

Technical Speciﬁcations and Safety Information A-5

supply, rated 12Vdc, 1.5A.

Telecommunication installation cautions

When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of ﬁre, electric shock and injury to persons, including the following:

■ Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink or laundry tub, in

a wet basement or near a swimming pool.

■ Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk

of electrical shock from lightning.

■ Do not use the telephone to report a gas leak in the vicinity of the leak.Never install telephone wiring

during a lightning storm.

A-6 Getting Started Guide

Netopia 4622 T1 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents 3

Overview

Features and Capabilities

How to Use this Guide

Find a Location

What You Need

Important Safety Instructions

Identify the Connectors and Attach the Cables

Netopia 4622 T1 Router Status Lights

Readying Computers on Your Local Network

Connecting to an Ethernet Network

Connecting through a Telnet Session

Connecting a Console Cable to Your Router

Navigating through the Console Screens

Easy Setup Console Screens

Accessing the Easy Setup console screens

Quick Easy Setup Connection Path

IP Easy Setup

Easy Setup Security Configuration

Description

Power requirements

Environment

Software and protocols

Agency Approvals

Regulatory notices

Important safety instructions
