Netopia 4553 User Manual

Netopia™ 4553 G.SHDSL Router

User’s Reference Guide

This manual and any associated artwork, software, and product designs are copyrighted with all rights reserved. Under the copyright laws such materials may not be copied, in whole or part, without the prior written consent of Netopia, Inc. Under the law, copying includes translation to another language or format.

Netopia, Inc. 2470 Mariner Square Loop Alameda, CA 94501-1010 U.S.A.

Part Number

For additional copies of this electronic manual, order Netopia par t number 6161088-PF-01.

Printed Copies

For printed copies of this manual, order Netopia part number TER/Doc (P/N 6161088-00-01).

CCCCoooonnnntttteeeennnnttttss

Chapter 1 — Introduction.......................................................... 1-9

Overview ....................................................................... 1-9

Features and capabilities ............................................... 1-9

How to use this guide .................................................. 1-10

Chapter 2 — Making the Physical Connections........................2-11

Find a location............................................................. 2-11

What you need ............................................................ 2-11

Identify the connectors and attach the cables ................ 2-12

Netopia Router status lights ......................................... 2-13

Chapter 3 — Sharing the Connections ..................................... 3-15

Conﬁguring TCP/IP on Windows-based Computers.......... 3-15

Dynamic conﬁguration (recommended)................. 3-16

Static conﬁguration (optional).............................. 3-17

Conﬁguring TCP/IP on Macintosh Computers ................. 3-19

Dynamic conﬁguration (recommended)................. 3-19

Static conﬁguration (optional).............................. 3-20

G B

Chapter 4 — Connecting to Your Local Area Network ............... 4-23

Readying computers on your local network..................... 4-23

Connecting to an Ethernet network................................ 4-24

Chapter 5 — Console-Based Management ............................... 5-25

Connecting through a Telnet session............................. 5-26

Conﬁguring Telnet software ................................. 5-27

Connecting a console cable to your router ..................... 5-27

Navigating through the console screens ........................ 5-28

Chapter 6 — Easy Setup ......................................................... 6-29

Easy Setup console screens......................................... 6-29

Accessing the Easy Setup console screens .......... 6-29

Quick Easy Setup connection path ................................ 6-30

DSL Line Conﬁguration ....................................... 6-31

Easy Setup Proﬁle .............................................. 6-32

IP Easy Setup .................................................... 6-33

iv User’s Reference Guide

Easy Setup Security Conﬁguration ....................... 6-35

Chapter 7 — WAN and System Conﬁguration ...........................7-37

WAN conﬁguration........................................................ 7-37

Creating a new Connection Proﬁle ................................. 7-40

The default proﬁle........................................................ 7-43

IP parameters (default proﬁle) screen .................. 7-45

Scheduled Connections ............................................... 7-45

Frame Relay conﬁguration ............................................ 7-50

Frame Relay DLCI conﬁguration ........................... 7-52

System conﬁguration screens ...................................... 7-57

Navigating through the system conﬁguration screens...... 7-57

System conﬁguration features ............................. 7-58

IP setup............................................................. 7-59

Filter sets (ﬁrewalls) ........................................... 7-59

IP address serving ............................................. 7-59

Date and time.................................................... 7-59

Console conﬁguration ......................................... 7-60

SNMP (Simple Network Management Protocol) ..... 7-60

Security............................................................. 7-61

Upgrade feature set ........................................... 7-61

Logging ............................................................. 7-61

Installing the Syslog client .................................. 7-62

Chapter 8 — IP Setup ............................................................. 8-63

IP setup ...................................................................... 8-64

IP subnets ......................................................... 8-66

Static routes...................................................... 8-68

IP Address Serviing...................................................... 8-72

IP Address Pools ................................................ 8-75

DHCP NetBIOS Options....................................... 8-77

More Address Ser ving Options...................................... 8-79

Conﬁguring the IP Address Server options............ 8-80

DHCP Relay Agent........................................................ 8-85

Contents v

Connection Proﬁles ...................................................... 8-87

Chapter 9 — Multiple Network Address Translation .................9-91

Overview ..................................................................... 9-91

Features............................................................ 9-91

Supported Trafﬁc ............................................... 9-95

MultiNAT Conﬁguration ................................................. 9-95

Easy Setup Proﬁle conﬁguration .......................... 9-96

Server Lists and Dynamic NAT conﬁguration......... 9-96

IP setup............................................................. 9-97

Modifying map lists .......................................... 9-102

Adding Server Lists.................................................... 9-104

Modifying server lists ....................................... 9-107

Deleting a server ............................................. 9-109

Binding Map Lists and Server Lists ............................. 9-110

IP proﬁle parameters ........................................ 9-110

IP Parameters (WAN Default Proﬁle)................... 9-112

NAT Associations....................................................... 9-114

MultiNAT Conﬁguration Example.................................. 9-116

Chapter 10 — Virtual Private Networks ............................... 10-121

Overview ................................................................. 10-121

About PPTP Tunnels ................................................. 10-123

PPTP conﬁguration.......................................... 10-124

About IPsec Tunnels................................................. 10-127

Conﬁguration ................................................. 10-127

IP Proﬁle Parameters ...................................... 10-130

Advanced IP Proﬁle Optiona ............................ 10-131

Interoperation with other features.................... 10-132

About ATMP Tunnels................................................. 10-132

ATMP conﬁguration......................................... 10-132

Encryption Support .................................................. 10-135

MS-CHAP V2 and 128-bit strong encryption ...... 10-135

ATMP/PPTP Default Proﬁle........................................ 10-136

vi User’s Reference Guide

VPN QuickView ........................................................ 10-137

Dial-Up Networking for VPN ....................................... 10-138

Installing Dial-Up Networking ........................... 10-138

Creating a new Dial-Up Networking proﬁle ........ 10-139

Conﬁguring a Dial-Up Networking proﬁle ........... 10-140

Installing the VPN Client ........................................... 10-141

Windows 95 VPN installation........................... 10-141

Windows 98 VPN installation........................... 10-142

Connecting using Dial-Up Networking ............... 10-143

Allowing VPNs through a Firewall ............................... 10-143

PPTP example ................................................ 10-144

ATMP example ............................................... 10-146

Chapter 11 — Security ....................................................... 11-151

Suggested security measures ................................... 11-151

User accounts ......................................................... 11-151

Telnet access .......................................................... 11-153

About ﬁlters and ﬁlter sets ....................................... 11-154

What’s a ﬁlter and what’s a ﬁlter set?.............. 11-154

How ﬁlter sets work........................................ 11-154

How individual ﬁlters work............................... 11-156

Design guidelines........................................... 11-161

Working with IP ﬁlters and ﬁlter sets.......................... 11-162

Adding a ﬁlter set ........................................... 11-162

Deleting a ﬁlter set......................................... 11-167

A sample IP ﬁlter set ...................................... 11-167

Firewall tutorial ........................................................ 11-170

General ﬁrewall terms .................................... 11-170

Basic IP packet components ........................... 11-171

Basic protocol types ....................................... 11-171

Firewall design rules....................................... 11-172

Filter basics................................................... 11-174

Example ﬁlters ............................................... 11-175

Contents vii

Chapter 12 — Monitoring Tools...........................................12-179

Quick View status overview ...................................... 12-179

General status ............................................... 12-180

Current status ............................................... 12-181

Status lights .................................................. 12-181

Statistics & Logs ..................................................... 12-182

Event histories ........................................................ 12-182

IP Routing Table....................................................... 12-185

General Statistics .................................................... 12-185

System Information.................................................. 12-187

SNMP ..................................................................... 12-188

The SNMP Setup screen ................................. 12-188

SNMP traps ................................................... 12-189

Chapter 13 — Utilities and Diagnostics ............................... 13-193

Ping ........................................................................ 13-194

Trace Route............................................................. 13-196

Telnet client............................................................. 13-197

Factory defaults....................................................... 13-198

Transferring conﬁguration and ﬁrmware ﬁles with TFTP 13-198

Updating ﬁrmware .......................................... 13-199

Downloading conﬁguration ﬁles ....................... 13-199

Uploading conﬁguration ﬁles ........................... 13-200

Transferring conﬁguration and ﬁrmware ﬁles with

XMODEM................................................................. 13-200

Updating ﬁrmware .......................................... 13-201

Downloading conﬁguration ﬁles ....................... 13-202

Uploading conﬁguration ﬁles ........................... 13-202

Restarting the system.............................................. 13-203

Appendix A — Troubleshooting..............................................A-205

Conﬁguration problems .............................................. A-205

Console connection problems ........................... A-206

Network problems ............................................ A-206

viii User’s Reference Guide

How to reset the router to factor y defaults .................. A-207

Power outages........................................................... A-207

Technical suppor t ...................................................... A-208

How to reach us............................................... A-208

Appendix B — Technical Speciﬁcations and Safety Information

............................................................................................B-211

Warranty

Introduction 1-9

CCCChhhhaaaapppptttteeeerrrr 11

IIIInnnnttttrrrroooodddduuuuccccttttiiiioooonn

Overview

The Netopia 4553 G.shdsl Router is a full-featured, stand-alone DSL router for connecting diverse local area networks (LANs) to the Internet and other remote networks. It suppor ts the newly ratiﬁed ITU G.991.2 standard for symmetric DSL series. The Netopia 4553 G.shdsl Router uses a high performance telecommunications line to provide your whole network with a high-speed connection to the outside world.

This section covers the following topics:

“Features and capabilities” on page 1-9

■

“How to use this guide” on page 1-10

■

Features and capabilities

The Netopia 4553 G.shdsl Router provides the following features:

Support for IP routing for Internet and Intranet connectivity

■

Compatible with G.shdsl ITU standard G.991.2.

■

G.shdsl WAN interface suppor ts symmetric data rates from 144 kbps to 2.32 Mbps

Built-in VPN features offer secure Internet connections between remote of ﬁces and travelers

■

Built-in ﬁrewall protects LAN resources from Internet intruders

■

Support for Ethernet LANs with multiple Ethernet IP subnets

■

10/100-Base T Ethernet port connects easily to an existing LAN hub

Interoperable with a wide array of DSLAM equipment

■

Console-based Telnet client

■

UNIX syslog client

Status lights (LEDs) for easy monitoring and troubleshooting

■

Support for Console-based management

■

NAT/NATP, multi-NAT, and DHCP for security and convenience

■

Wall-mountable, Bookshelf (Side-stackable), or Desktop-stackable design for efﬁcient space usage

1-10 User’s Reference Guide

How to use this guide

In addition to the simple documentation contained in the accompanying designed to be your single source for information about your Netopia 4553 G.shdsl Router. It is intended to be viewed on-line, using the powerful features of the Adobe Acrobat Reader. The information display has been deliberately designed to present the maximum information in the minimum space on your screen. You can keep this document open while you perform any of the procedures described, and ﬁnd useful information about the procedure you are per forming.

You can also print out all of the manual, or individual sections, if you prefer to work from hard copy rather than on-line documentation. The pages are formatted to print on standard 8 1/2 by 11 inch paper. We recommend that you print on 3-hole punched paper, so that you can put the pages in a binder for future reference. For your convenience, a printed copy is available from Netopia. Order par t number TE4553/Doc.

This guide is organized into chapters describing the Netopia 4553’s advanced features. You may want to read each chapter’s introductory section to familiarize yourself with the various features available.

Use the guide’s table of contents and index to locate informational topics.

Getting Started Guide

, this guide is

Making the Physical Connections 2-11

CCCChhhhaaaapppptttteeeerrrr 22

MMMMaaaakkkkiiiinnnngggg tttthhhheeee PPPPhhhhyyyyssssiiiiccccaaaallll CCCCoooonnnnnnnneeeeccccttttiiiioooonnnnss

This section tells you how to make the physical connections to your Netopia 4553 Router. This section covers the following topics:

■

“Find a location” on page 2-11

■

“What you need” on page 2-11

“Identify the connectors and attach the cables” on page 2-12

■

“Netopia 4553 Router status lights” on page 2-13

■

Find a location

When choosing a location for the Netopia 4553 Router, consider:

■

Available space and ease of installation

■

Physical layout of the building and how to best use the physical space available for connecting your Netopia 4553 Router to the LAN

Available wiring and jacks

■

Distance from the point of installation to the next device (length of cable or wall wiring)

■

Ease of access to the front of the unit for conﬁguration and monitoring

Ease of access to the back of the unit for checking and changing cables

■

Cable length and network size limitations when expanding networks

For small networks, install the Netopia near one of the LANs. For large networks, you can install the Netopia in a wiring closet or a central network administration site.

What you need

Locate all items that you need for the installation.

Included in your router package are:

■

The Netopia 4553 Router

A power adapter and cord with a mini-DIN8 connector

■

One Category 5 Ethernet cable

■

One Category 5 DSL WAN (or Line) cable

A DB-9 to DB-9 console cable

■

The Netopia CD containing software and documentation

■

2-12 User’s Reference Guide

You will need:

■

A Windows 95 or 98–based PC or a Macintosh computer with Ethernet connectivity for conﬁguring the Netopia. This may be built-in Ethernet or an add-on card, with TCP/IP installed and conﬁgured. See

“Sharing the Connection” on page 3-15.

■

A G.shdsl wall outlet wired for a connection to a Local Exchange Carrier (LEC) who suppor ts Symmetric Digital Subscriber Line connections.

Identify the connectors and attach the cables

Identify the connectors and switches on the back panel and attach the necessary Netopia Router cables.

The ﬁgure below displays the back of the Netopia 4553 Router.

Netopia back panel

G.shdsl port

Ethernet port

DSL

10/100 Ethernet

Console Power

Power port

Console port

Port Description

Power port A mini-DIN8 power adapter cable connection. Console port A DB-9 console port for a direct serial connection to the console screens. You

can use this if you are an experienced user. See “Connecting a console cable to

your router” on page 5-27.

DSL port An RJ-48 jack labeled DSL for your G.shdsl connection. Ethernet port An RJ-45 10/100Base-T Ethernet jack. You will use this to conﬁgure the

Netopia. For a new installation, use the Ethernet connection. Alternatively, you

can use the console connection to run console-based management using a

direct serial connection. You can either connect your computer directly the

Ethernet port using a crossover cable, or connect both your computer and the

Netopia to an existing Ethernet hub on your LAN.

1. Connect the mini-DIN8 connector from the power adapter to the power port, and plug the other end into an electrical outlet.

2. Connect one end of the Category 5 cable to the DSL port, and the other end to your DSL wall outlet.

Making the Physical Connections 2-13

3. Connect the Ethernet cable to the Ethernet por t on the router and the other end to your computer.

You should now have: the power adapter plugged in; the Ethernet cable connected between the router and your computer; and the DSL cable connected between the router and the DSL wall outlet.

Netopia 4553 Router status lights

The ﬁgure below represents the Netopia status light (LED) panel.

Netopia LED front panel

DSL

Power

Error

Ethernet

The following table summarizes the meaning of the various LED states and colors:

When this happens... the LEDs...

The power is on The Router detects an error The Ethernet link is established The WAN has trained The WAN is training

Note:

The remaining LEDs are not used.

Power

is green.

Error

is red.

Ethernet

DSL

is green. is green. ﬂashes green.

2-14 User’s Reference Guide

Sharing the Connection 3-15

CCCChhhhaaaapppptttteeeerrrr 33

SSSShhhhaaaarrrriiiinnnngggg tttthhhheeee CCCCoooonnnnnnnneeeeccccttttiiiioooonn

Once you have set up your physical local area network, you will need to conﬁgure the TCP/IP stack on each client workstation connected to your Netopia 4553. This chapter describes how to conﬁgure TCP/IP for both Windows-based and Macintosh computers.

This chapter explains the following topics:

■

“Conﬁguring TCP/IP on Windows-based Computers” on page 3-15

■

“Conﬁguring TCP/IP on Macintosh Computers” on page 3-19

Conﬁguring TCP/IP on Windows-based Computers

Conﬁguring TCP/IP on a Windows computer requires the following:

An Ethernet card (also known as a network adapter)

■

The TCP/IP protocol must be “bound” to the adapter or card

■

3-16 User’s Reference Guide

Dynamic conﬁguration (recommended)

To conﬁgure your PC for dynamic addressing do the following:

1. Go to the Start Menu/Settings/Control Panels and double click the Network icon. From the Network components list, select the Conﬁguration tab.

2. Select TCP/IP-->Your Network Card. Then select

Properties. In the TCP/IP Proper ties screen, select the IP Address tab. Click “Obtain an IP Address automatically”.

3. Click on the DNS Conﬁguration tab. Click Disable DNS. DNS will be assigned by the router with DHCP.

4. Click OK in this window and the next window. When prompted, reboot the computer.

Note:

You can also use these instructions to conﬁgure other computers on your network to accept IP addresses

served by the Netopia 4553.

Sharing the Connection 3-17

Static conﬁguration (optional)

If you are manually conﬁguring for a ﬁxed or static IP address, per form the following:

1. Go to Start Menu/Settings/Control Panels and double click the Network icon. From the Network components list, select the Conﬁguration tab.

2. Select TCP/IP-->Your Network Card. Then select Properties. In the TCP/IP Proper ties screen, select the IP Address tab. Click “Specify an IP Address.”

Enter the following:

IP Address: 192.168.1.2 Subnet Mask: 255.255.255.0, or for 12-user models 255.255.255.240

This address is an example of one that can be used to conﬁgure the router. Your ISP or network administrator may ask you to use a different IP address and subnet mask.

3-18 User’s Reference Guide

3. Click on the Gateway tab (shown below). Under “New gateway,” enter

192.168.1.1. Click Add. This is the Netopia 4553’s pre-assigned IP address.

4. Click OK in this window and the next window. When prompted, reboot the computer.

Click on the DNS Conﬁguration tab. Click Enable DNS. Enter the following information:

Host: Type the name you want to give to this computer.

Domain: Type your domain name. If you don't have a domain name, type your ISP's domain name; for example, netopia.com.

DNS Server Search Order: Type the

primary DNS IP address given to you by your ISP. Click

Add. Repeat this process for the secondary DNS.

Domain Sufﬁx Search Order: Enter the same domain

name you entered above.

Note: You can also use these instructions to conﬁgure other computers on your network with manual or static IP addresses. Be sure each computer on your network has its own IP address.

Sharing the Connection 3-19

Conﬁguring TCP/IP on Macintosh Computers

The following is a quick guide to conﬁguring TCP/IP for MacOS computers. Conﬁguring TCP/IP in a Macintosh computer requires the following:

■ You must have either Open Transport or Classic Networking (MacTCP) installed.

Note: If you want to use the Dynamic Host Conﬁguration Protocol (DHCP) server built into your Netopia 4553 to assign IP addresses to your Macintoshes, you must be running Open Transport, standard in MacOS 8 and optional in earlier system versions. You can have your Netopia 4553 dynamically assign IP addresses using MacTCP; however, to do so requires that the optional AppleTalk kit be installed which can only be done after the router is conﬁgured.

■ You must have built-in Ethernet or a third-par ty Ethernet card and its associated drivers installed in your

Macintosh.

Dynamic conﬁguration (recommended)

The Dynamic Host Conﬁguration Protocol (DHCP), which enables dynamic addressing, is enabled by default in the router. To conﬁgure your Macintosh computer for dynamic addressing do the following:

1. Go to the Apple menu. Select Control Panels and then TCP/IP.

2. With the TCP/IP window open, go to the Edit menu and select User Mode. Choose Basic and click OK.

3. In the TCP/IP window, select “Connect via: Ethernet” and “Conﬁgure: Using DHCP Server.”

Note: You can also use these instructions to conﬁgure other computers on your network to accept IP addresses served by the Netopia 4553.

3-20 User’s Reference Guide

Static conﬁguration (optional)

If you are manually conﬁguring for a ﬁxed or static IP address, perform the following:

1. Go to the Apple menu. Select Control Panels and then TCP/IP or MacTCP.

2. With the TCP/IP window open, go to the Edit menu and select User Mode. Choose Advanced and click OK.

Or, in the MacTCP window, select Ethernet and click the More button.

3. In the TCP/IP window or in the MacTCP/More window, select or type information into the ﬁelds as shown in the following table.

Option: Select/Type:

Connect via: Ethernet Conﬁgure: Manually IP Address: 192.168.1.2 Subnet mask: 255.255.255.0, or for 12-user models

255.255.255.240 Router or Gateway address: 192.168.1.1 Name server address: Enter the primary and secondary name server

addresses given to you by your ISP

Implicit Search Path: Starting domain name:

Enter your domain name; if you do not have a domain name, enter the domain name of your ISP

4. Close the TCP/IP or MacTCP control panel and save the settings.

5. If you are using MacTCP, you must restar t the computer. If you are using Open Transport, you do not need to restart.

Note: You can also use these instructions to conﬁgure other computers on your network to accept IP addresses served by the Netopia 4553.

Sharing the Connection 3-21

Note: You can also use these instructions to conﬁgure other computers on your network with manual or static IP addresses. Be sure each computer on your network has its own IP address.

More information about conﬁguring your Macintosh computer for TCP/IP connectivity through a Netopia 4553 can be found in Technote NIR_026, “Open Transport and Netopia Routers,” located on the Netopia Web site.

3-22 User’s Reference Guide

Connecting to Your Local Area Network 4-23

CCCChhhhaaaapppptttteeeerrrr 44

CCCCoooonnnnnnnneeeeccccttttiiiinnnngggg ttttoooo YYYYoooouuuurrrr LLLLooooccccaaaallll AAAArrrreeeeaaaa NNNNeeeettttwwwwoooorrrrkk

This chapter describes how to physically connect the Netopia 4553 to your local area network (LAN). Before you proceed, make sure the Netopia 4553 is properly conﬁgured. You can customize the router’s conﬁguration for your particular LAN requirements using console-based management (see “Console-Based Management” on

page 5-25).

This section covers the following topics:

■ “Readying computers on your local network” on page 4-23

■ “Connecting to an Ethernet network” on page 4-24

Readying computers on your local network

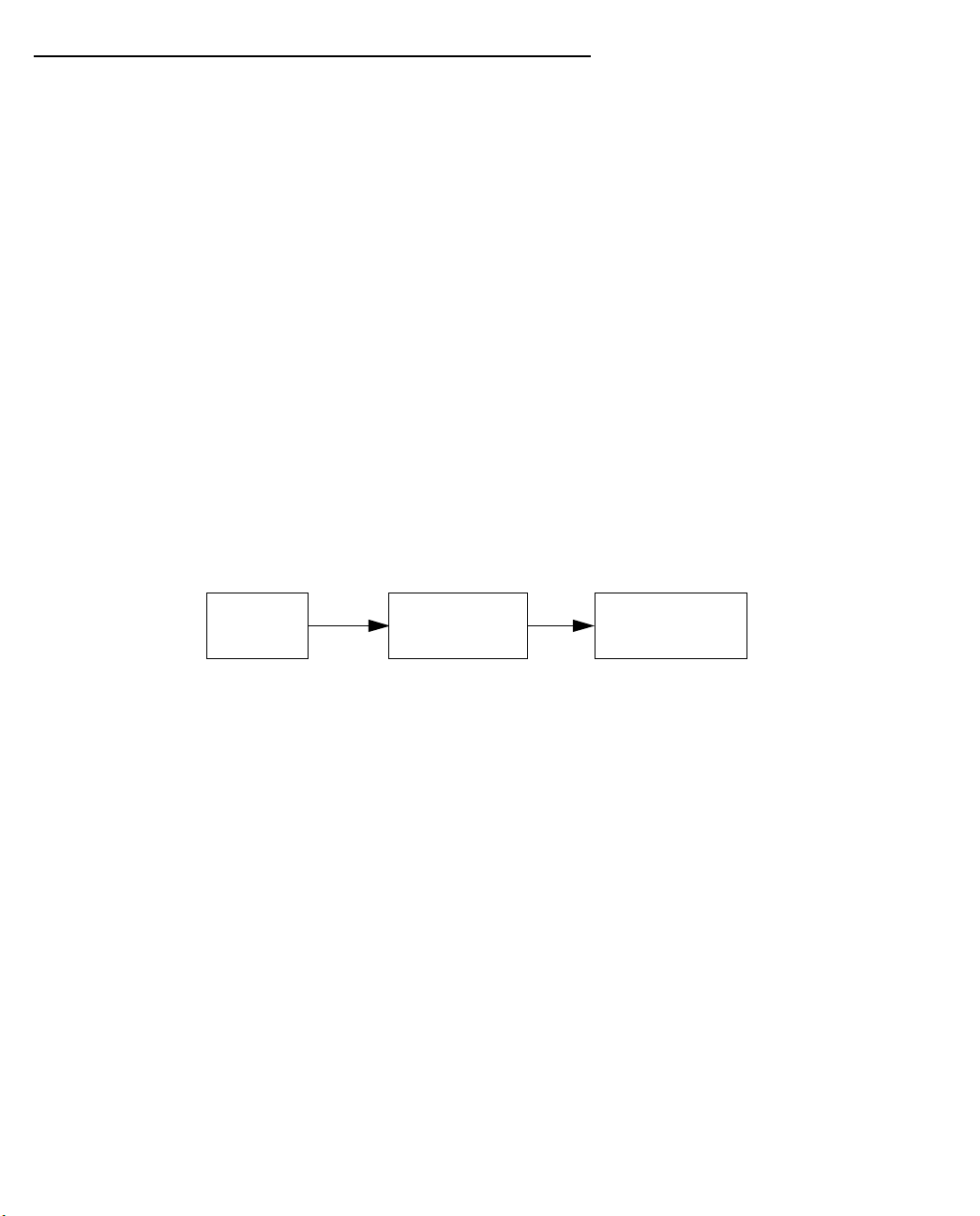

PC and Macintosh computers must have certain components installed before they can communicate through the Netopia 4553. The following illustration shows the minimal requirements for a typical PC or Macintosh computer.

Application software

TCP/IP stack

Ethernet Driver

Your PC or Macintosh computer

To the Netopia 4553

Application software: This is the software you use to send e-mail, browse the World Wide Web, read newsgroups, etc. These applications may require some conﬁguration. Examples include the Eudora e-mail client and the Web browsers Microsoft Internet Explorer and Netscape Navigator.

TCP/IP stack: This is the software that lets your PC or Macintosh computer communicate using Internet protocols. TCP/IP stacks must be conﬁgured with some of the same information you used to conﬁgure the Netopia 4553. There are a number of TCP/IP stacks available for PC computers. Windows 95 includes a built-in TCP/IP stack. Macintosh computers use either MacTCP or Open Transport. See “Conﬁguring TCP/IP on

Windows-based Computers” on page 3-15. Macintosh computers use either MacTCP or Open Transport. See “Conﬁguring TCP/IP on Macintosh Computers” on page 3-19.

Ethernet: Ethernet hardware and software drivers enable your PC or Macintosh computer to communicate on the LAN.

4-24 User’s Reference Guide

Once the Netopia 4553 is properly conﬁgured and connected to your LAN, PC and Macintosh computers that have their required components in place will be able to connect to the Internet or other remote IP networks.

Connecting to an Ethernet network

The Netopia 4553 supports Ethernet connections through its Ethernet port. You can connect a standard 10 or 100Base-T Ethernet network to the Netopia 4553 using its Ethernet por t.

Netopia 4553 back panel

DSL

The Netopia 4553 in a 10Base-T network

To connect your 10Base-T network to the Netopia 4553 through the Ethernet por t, use a 10Base-T cable with RJ-45 connectors.

If you have more than one device to connect, you can attach additional devices using a cross-over cable (not provided) or you can connect through a switch or repeater.

10/100 Ethernet

Console Power

10/100 Ethernet

Console-Based Management 5-25

CCCChhhhaaaapppptttteeeerrrr 55

CCCCoooonnnnssssoooolllleeee----BBBBaaaasssseeeedddd MMMMaaaannnnaaaaggggeeeemmmmeeeennnntt

Console-based management is a menu-driven interface for the capabilities built into the Netopia 4553. Console-based management provides access to a wide variety of features that the router suppor ts. You can customize these features for your individual setup. This chapter describes how to access the console-based management screens.

This section covers the following topics:

■ “Connecting through a Telnet session” on page 5-26

■ “Connecting a console cable to your router” on page 5-27

■ “Navigating through the console screens” on page 5-28

Console-based management screens contain seven entry points to the Netopia 4553 conﬁguration and monitoring features. The entry points are displayed in the Main Menu shown below:

Netopia 4553

Easy Setup...

WAN Configuration...

System Configuration...

Utilities & Diagnostics...

Statistics & Logs...

Quick Menus...

Quick View...

Return/Enter goes to Easy Setup -- minimal configuration. You always start from this main screen.

■ The Easy Setup menus display and permit changing the values contained in the default connection proﬁle.

You can use Easy Setup to initially conﬁgure the router directly through a console session.

Easy Setup menus contain up to ﬁve descendant screens for viewing or altering these values. The number of screens depends on whether you have optional features installed.

■ The WAN Conﬁguration menu displays and permits changing your connection proﬁle(s) and default proﬁle,

creating or deleting additional connection proﬁles, and conﬁguring or reconﬁguring the manner in which you

5-26 User’s Reference Guide

may be using the router to connect to more than one ser vice provider or remote site.

■ The System Conﬁguration menus display and permit changing:

■ IP setup. See “IP Setup” on page 8-64.

■ Filter sets (ﬁrewalls). See “Security” on page 11-151.

■ IP address serving. See “IP Address Ser ving” on page 8-72.

■ Date and time. See “Date and time” on page 7-59.

■ Console conﬁguration. See “Connecting a console cable to your router” on page 5-27.

■ SNMP (Simple Network Management Protocol). See “SNMP” on page 12-188.

■ Security. See “Security” on page 11-151.

■ Upgrade feature set. See “Upgrade feature set” on page 7-61.

■ The Utilities & Diagnostics menus provide a selection of seven tools for monitoring and diagnosing the

router's behavior, as well as for updating the ﬁrmware and rebooting the system. See “Utilities and

Diagnostics” on page 13-193 for detailed information.

■ The Statistics & Logs menus display nine sets of tables and device logs that show information about your

router, your network, and their history. See “Statistics & Logs” on page 12-182 for detailed information.

■ The Quick Menus screen is a shortcut entr y point to 22 of the most commonly used conﬁguration menus

that are accessed through the other menu entr y points.

■ The Quick View menu displays at a glance current real-time operating information about your router. See

“Quick View status overview” on page 12-179 for detailed information.

Connecting through a Telnet session

Features of the Netopia 4553 can be conﬁgured through the console screens.

Before you can access the console screens through Telnet, you must have:

■ A network connection locally to the router or IP access to the router.

Note: Alternatively, you can have a direct serial console cable connection using the provided console cable for your platform (PC or Macintosh) and the Console por t on the back of the router. For more information on attaching the console cable, see “Connecting a console cable to your router” on page 5-27.

■ Telnet software installed on the computer you will use to conﬁgure the router

Console-Based Management 5-27

Conﬁguring Telnet software

If you are conﬁguring your router using a Telnet session, your computer must be running a Telnet software program.

■ If you connect a PC with Microsoft Windows, you can use a Windows Telnet application or simply run Telnet

from the Start menu.

■ If you connect a Macintosh computer, you can use the NCSA Telnet program supplied on the Netopia 4553

CD. You install NCSA Telnet by simply dragging the application from the CD to your hard disk.

Connecting a console cable to your router

You can perform all of the system conﬁguration activities for your Netopia 4553 through a local serial console connection using terminal emulation software, such as HyperTerminal provided with Windows 95, 98, 2000, or NT on the PC, or ZTerm, included on the Netopia CD, for Macintosh computers.

The Netopia 4553 back panel has a connector labeled “Console” for attaching the Router to either a PC or Macintosh computer via the serial port on the computer. (On a Macintosh computer, the serial por t is called the Modem port or Printer port.) This connection lets you use the computer to conﬁgure and monitor the Netopia 4553 via the console screens.

DSL

10/100 Ethernet

Console Power

Console connection port DB-9 (male)

To connect the Netopia 4553 to your computer for serial console communication, use a console cable appropriate to your platform:

■ A DB-9 connector end attaches to a PC.

■ A mini-DIN8 connector end attaches to a Macintosh computer depending on your computer’s serial bus

type. Since Macintosh computers have different serial bus connectors, you will need a mini-DIN8-to-DB-9 adapter. These are available from a variety of third-party manufacturers.

■ A DB-9 end of the Console cable attaches to the Netopia 4553’s Console port.

■ If you connect a PC with Microsoft Windows 95, 98, 2000, or NT, you can use the HyperTerminal

application bundled with the operating system.

■ If you connect a Macintosh computer, you can use the ZTerm terminal emulation program on the supplied

Netopia 4553 CD.

5-28 User’s Reference Guide

Launch your terminal emulation software and conﬁgure the communications software for the values shown in the table below. These are the default communication parameters that the Netopia 4553 uses.

Parameter Suggested Value

Terminal type PC: ANSI-BBS

Mac: ANSI, VT-100, or VT-200

Data bits 8 Parity None Stop bits 1 Speed 9600 - 57600 bits per second Flow Control None Note: The router ﬁrmware contains an autobaud detection feature. If you are at any

screen on the serial console, you can change your baud rate and press Return (HyperTerminal for the PC requires a disconnect). The new baud rate is displayed at the bottom of the screen.

Navigating through the console screens

Use your keyboard to navigate the Netopia 4553’s conﬁguration screens, enter and edit information, and make choices. The following table lists the keys to use to navigate through the console screens.

To... Use These Keys...

Move through selectable items in a screen or pop-up menu Up, Down, Left, and Right Arrow

Set a change to a selected item or open a pop-up menu of options for a selected item like entering an upgrade key

Change a toggle value (Yes/No, On/Off) Tab

Restore an entry or toggle value to its previous value Esc

Move one item up Up arrow or Control + K

Move one item down Down arrow or Control + O

Display a dump of the device event log Control + E

Display a dump of the WAN event log Control + F

Refresh the screen Control + L

Return or Enter

Easy Setup 6-29

CCCChhhhaaaapppptttteeeerrrr 66

EEEEaaaassssyyyy SSSSeeeettttuuuupp

This chapter describes how to use the Easy Setup console screens on your Netopia 4553. After completing the Easy Setup console screens, your router will be ready to connect to the Internet or another remote site.

Easy Setup console screens

Using four Easy Setup console screens, you can:

■ Modify a connection proﬁle for your router for the connection to your ISP or remote location

■ Set up IP addresses and IP address ser ving

■ Password–protect conﬁguration access to your Netopia 4553

Accessing the Easy Setup console screens

To access the console screens, Telnet to the Netopia Router over your Ethernet network or physically connect with a serial console cable and access the Netopia Router with a terminal emulation program. See “Connecting

through a Telnet session” on page 5-26 or “Connecting a console cable to your router” on page 5-27.

Note: Before continuing, make sure you have the information that your telephone ser vice provider, ISP, or network administrator has given you for conﬁguring the Netopia Router.

The Netopia Router’s ﬁrst console screen, Main Menu, appears in the terminal emulation window of the attached PC or Macintosh computer when:

■ The Netopia Router is turned on

■ The computer is connected to the Netopia Router

■ Telnet or the terminal emulation software is running and conﬁgured correctly

6-30 User’s Reference Guide

A screen similar to the following Main Menu appears:

Netopia Router

Easy Setup...

WAN Configuration...

System Configuration...

Utilities & Diagnostics...

Statistics & Logs...

Quick Menus...

Quick View...

Return/Enter goes to Easy Setup -- minimal configuration. You always start from this main screen.

If you do not see the Main Menu, verify that:

■ If you are using a serial connection, that your serial port speed is the same as the Netopia 4553’s default

9600 baud, for ﬁrst use.

■ The computer used to view the console screen has its serial port connected to the Netopia 4553’s

Console port or an Ethernet connection to one of its Ethernet por ts. See “Connecting a console cable to

your router” on page 5-27 or “Connecting through a Telnet session” on page 5-26.

■ Telnet or the terminal emulation software is conﬁgured for the recommended values.

■ If you are connecting via the Console port, your computer’s serial por t is not being used by another device,

such as an internal modem, or an application. Turn off all other programs (other than your terminal emulation program) that may be interfering with your access to the por t.

■ You have entered the correct password, if necessary. Your Netopia 4553’s console access may be

password protected from a previous conﬁguration. See your system administrator to obtain the password.

See Appendix A, “Troubleshooting,” for more suggestions.

Quick Easy Setup connection path

If your ISP assigns your Router a Static IP address, do the following:

1. Open a Telnet session to 192.168.1.1 to bring up the Main Menu.

If you don't know how to do this, see “Connecting through a Telnet session” on page 5-26.

Alternatively, you can connect the console cable and open a direct serial console connection, using a terminal emulator program. See “Connecting a console cable to your router” on page 5-27.

Easy Setup 6-31

The Main Menu appears.

Netopia Router

Easy Setup...

WAN Configuration...

System Configuration...

Utilities & Diagnostics...

Statistics & Logs...

Quick Menus...

Quick View...

2. Select the ﬁrst item on the Main Menu list, Easy Setup. Press Return to bring up the DSL Line Conﬁguration menu screen.

DSL Line Conﬁguration

DSL Line Configuration

WAN DSL Mode... ATM Regional Setting... Annex A

Clock Source... Network

Data Link Encapsulation... RFC1483 RFC1483 Mode... Bridged 1483 PPP over Ethernet (PPPoE): Off

Data Circuit VPI (0-255): 8 Data Circuit VCI (0-65535): 35

PREVIOUS SCREEN NEXT SCREEN

1. Select WAN DSL Mode and from the pop-up menu choose the type of DSLAM to which you will be connecting, either ATM or HDLC.

2. From the Regional Setting pop-up menu, select Annex A for routers in North America, Annex B for routers in Europe, or Annex C for routers in Japan.

Note: Some options may not be visible.

6-32 User’s Reference Guide

3. Select a Clock Source, either Network (the default) or Internal.

If you are using an ATM-based Mode, the DSL Line Conﬁguration screen offers additional parameters.

4. Select Data Link Encapsulation and from the pop-up menu choose either RFC1483 (the default) or PPP.

■ If you selected RFC1483, the next pop-up menu RFC1483 Mode offers the choice of Bridged 1483 or

Routed 1483. If you select Bridged 1483, a new option PPP over Ethernet (PPPoE) appears. You can then toggle PPPoE On or Off. Choosing Routed 1483 hides the PPPoE option.

■ If you selected PPP, the next pop-up menu PPP Mode offers the choice of VC Multiplexed or LLC SNAP.

5. The next two ﬁelds, Data Circuit VPI and Data Circuit VCI are editable. Enter the Vir tual Path Identiﬁer and Virtual Channel Identiﬁer values that your provider speciﬁes.

6. Press the Down arrow key until you reach NEXT SCREEN. Press Return to bring up the next screen.

Easy Setup Proﬁle

The Easy Setup Proﬁle screen is where you conﬁgure the parameters that control the Netopia 4553’s connection to a speciﬁc remote destination, usually your ISP or a corporate site.

On a Netopia 4553 you can add up to 15 more connection proﬁles, for a total of 16, although you can only use one at a time, unless you are using Virtual Private Networks (VPNs).

Connection Profile 1: Easy Setup Profile

Connection Profile Name: Easy Setup Profile

Address Translation Enabled: Yes IP Addressing... Numbered

Local WAN IP Address: 0.0.0.0 Local WAN IP Mask: 0.0.0.0 Remote IP Address: 0.0.0.0 Remote IP Mask: 0.0.0.0

PPP Authentication... None

PREVIOUS SCREEN NEXT SCREEN

1. To enable address translation, toggle Address Translation Enabled to Ye s (the default). For more information on Network Address Translation, see Chapter 9, “Multiple Network Address Translation.”

2. From the IP Addressing menu item, choose between Unnumbered and Numbered addressing. Numbered is the default for G.shdsl. It assigns a unique IP address to the DSL WAN interface, as required by most ISPs’ routers. Unnumbered may be used for simpler conﬁgurations such as point-to-point applications.

Easy Setup 6-33

If you selected Numbered, the following ﬁelds appear.

■ Select the editable ﬁeld labeled Local WAN IP Address.

The default address is 0.0.0.0, which allows for dynamic addressing, when your ISP assigns an address each time you connect. However, you can enter another speciﬁc address if you want to use static addressing. In that case, enter the local WAN address your ISP gave you. Press Return.

■ Select the editable ﬁeld labeled Local WAN IP Mask. Enter the mask address your ISP gave you. Press

Return.

If you selected Unnumbered, the following ﬁelds appear.

■ Select the editable ﬁeld labeled Remote IP Address and enter the remote IP address. Press Return.

■ Select the editable ﬁeld labeled Remote IP Mask and enter the remote mask address. Press Return.

3. If you selected PPP data link encapsulation in the DSL Line Conﬁguration screen, a PPP Authentication menu item appears. The authentication protocol and user name/password combinations you enter must be assigned or agreed to in advance between you and your ISP. Select PPP Authentication and press Return.

From the pop-up menu that appears, select the authentication method your ISP uses: PAP (Password Authentication Protocol), CHAP (Challenge Handshake Authentication Protocol), or None.

■ PAP is the most common, and requires you to enter a User Name and Password in the next two ﬁelds.

■ CHAP requires you to enter a Host Name and Secret in the next two ﬁelds.

4. Press the Down arrow key until you reach NEXT SCREEN. Press Return to bring up the next screen.

IP Easy Setup

The IP Easy Setup screen is where you enter information about your Netopia Router’s:

■ Ethernet IP address

■ Ethernet Subnet mask

■ Domain Name

■ Domain Name Server IP address

■ Default gateway IP address

Consult with your network administrator to obtain the information you will need. For more information about setting up IP, see “IP Setup” on page 8-64.

6-34 User’s Reference Guide

IP Easy Setup

Ethernet IP Address: 192.168.1.1 Ethernet Subnet Mask: 255.255.255.0

Domain Name: isp.net Primary Domain Name Server: 209.3.224.21 Secondary Domain Name Server: 209.3.224.20

Default IP Gateway: 127.0.0.2

IP Address Serving: On

Number of Client IP Addresses: 100 1st Client Address: 192.168.1.100

PREVIOUS SCREEN NEXT SCREEN

Enter an IP address in decimal and dot form (xxx.xxx.xxx.xxx). Set up the basic IP & IPX attributes of your Netopia in this screen.

1. Select Ethernet IP Address and enter the ﬁrst IP address from the IP address range your ISP has given you. This will be the Netopia Router’s IP address.

The Ethernet IP Address defaults to an address (192.168.1.1) within a range reser ved by the Internet address administration authority for use within private networks.

Because this is a private network address, it should never be directly connected to the Internet. Using NAT for all your connection proﬁles will ensure this restriction. See “Multiple Network Address Translation” on

page 9-91 for more information.

2. Select Ethernet Subnet Mask and enter the subnet mask your ISP has given you. The Ethernet Subnet Mask defaults to a standard class mask derived from the class of the Ethernet IP address you entered in the previous step.

3. Press the Down arrow key until the editable ﬁeld labeled Domain Name is highlighted.

4. Type the Domain Name your ISP gave you. Press Return. The next ﬁeld Primary Domain Name Server will be highlighted.

5. Type the Primary Domain Name Server address your ISP gave you. Press Return. A new ﬁeld Secondary Domain Name Server will appear. If your ISP gave you a secondary domain name server address, enter it here. Press Return until the next ﬁeld Default IP Gateway is highlighted.

6. If you do not enter a Default IP Gateway value, the router defaults to the remote IP address you entered in the Easy Setup connection proﬁle. If the Netopia Router does not recognize the destination of any IP trafﬁc, it forwards that trafﬁc to this gateway.

Do not confuse the remote IP address and the Default IP Gateway’s address with the block of local IP addresses you receive from your ISP. You use the local IP addresses for the Netopia 4553’s Ethernet port and for IP clients on your local network. The remote IP address and the default gateway’s IP address should point to your ISP’s router.

Easy Setup 6-35

7. Toggle IP Address Serving to On or Off, depending on whether you want the device’s IP address ser ver to supply dynamic IP addresses to your client workstations. Normally, you would accept the default On so that workstations on your LAN can have IP addresses assigned dynamically from the Router.

8. The IP address server will provide 100 IP addresses automatically to workstations on your LAN. You only need to change the Number of Client IP Addresses if you have some other IP addressing scheme.

9. By default, the 1st Client Address is 192.168.1.100, based on the device’s default IP address of

192.168.1.1. You only need to change this if you have some other IP addressing scheme.

10. Press the Down arrow key until you reach NEXT SCREEN. Press Return.

Easy Setup Security Conﬁguration

The Easy Setup Security Conﬁguration screen lets you password-protect your Netopia 4553. Input your Write Access Name and Write Access Password with names or numbers totaling up to eleven digits.

If you password protect the console screens, you will be prompted to enter the name and password you have speciﬁed every time you log in to the console screens. Do not forget your name and password. If you do, you will be unable to access any of the conﬁguration screens.

Additional security features are available. See “Security” on page 11-151.

Easy Setup Security Configuration

It is strongly suggested that you password-protect configuration access to your Netopia. By entering a Name and Password pair here, access via serial, Telnet, and SNMP will be password-protected.

Be sure to remember what you have typed here, because you will be prompted for it each time you configure this Netopia.

Write Access Name:

Write Access Password:

PREVIOUS SCREEN TO MAIN MENU RESTART DEVICE

Configure a Configuration Access Name and Password here.

The ﬁnal step in conﬁguring the Easy Setup console screens is to restart the Netopia 4553, so that the conﬁguration settings take effect.

1. Select RESTART DEVICE. A prompt asks you to conﬁrm your choice.

2. Select CONTINUE to restart the Netopia Router and have your selections take effect.

Note: You can also restart the system at any time by using the Restar t System utility (see “Restar ting the

system” on page 13-203) or by turning the Netopia Router off and on with the power switch.

6-36 User’s Reference Guide

The Router will restart and your conﬁguration settings will be activated. You can then Exit or Quit your Telnet application.

Easy Setup is now complete.

WAN and System Conﬁguration 7-37

CCCChhhhaaaapppptttteeeerrrr 77

WWWWAAAANNNN aaaannnndddd SSSSyyyysssstttteeeemmmm CCCCoooonnnnffffiiiigggguuuurrrraaaattttiiiioooonn

This chapter describes how to use the console-based management screens to access and conﬁgure advanced features of your Netopia 4553 Router. You can customize these features for your individual setup. These menus provide a powerful method for experienced users to set up their router’s connection proﬁles and system conﬁguration.

This section covers the following topics:

■ “WAN conﬁguration” on page 7-37

■ “Creating a new Connection Proﬁle” on page 7-40

■ “The default proﬁle” on page 7-43

■ “Scheduled connections” on page 7-45

■ “Frame Relay conﬁguration” on page 7-50

■ “System conﬁguration screens” on page 7-57

■ “Navigating through the system conﬁguration screens” on page 7-57

■ “System conﬁguration features” on page 7-58

WAN conﬁguration

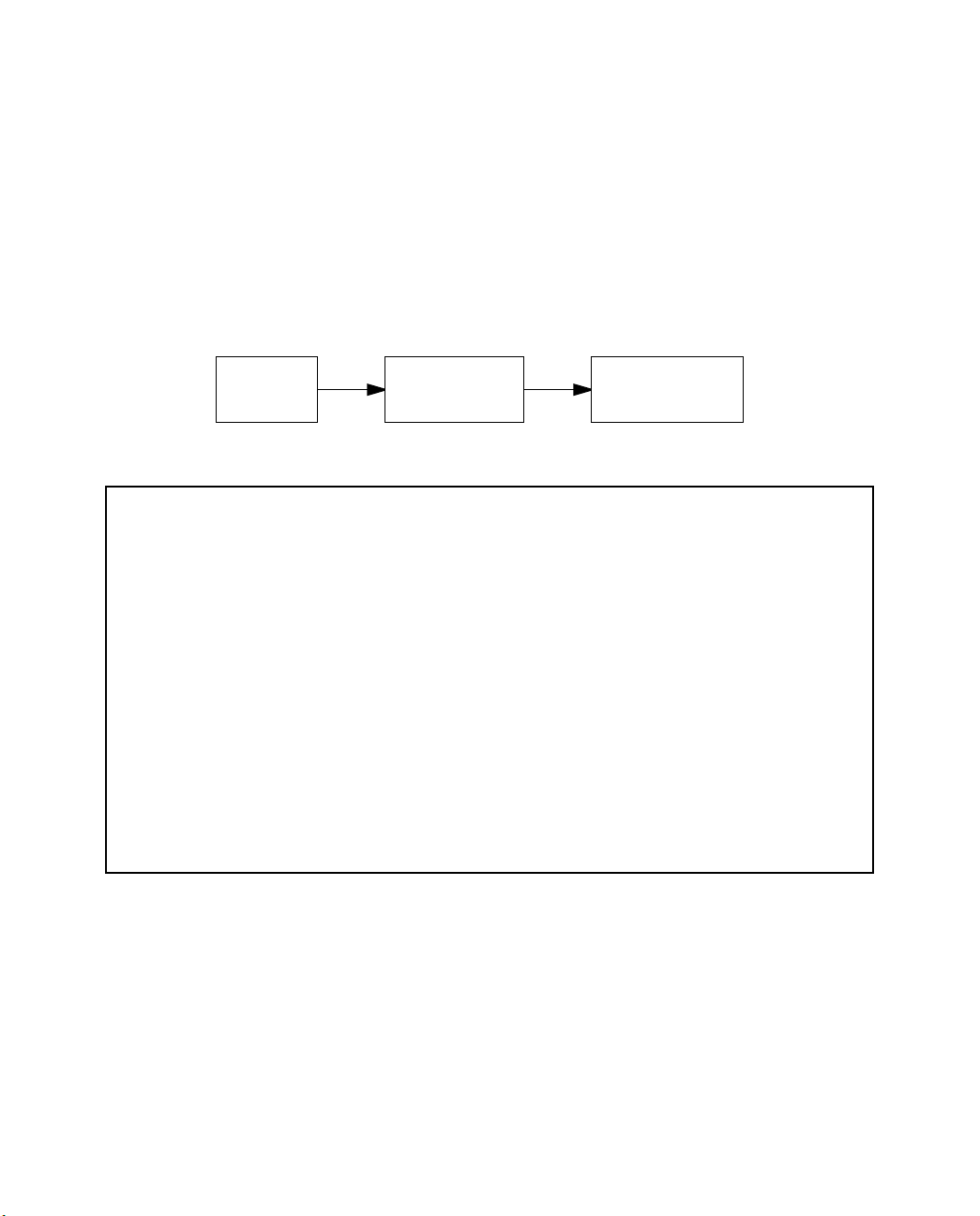

To conﬁgure your Wide Area Network (WAN) connection, navigate to the WAN Conﬁguration screen from the Main Menu and select WAN (Wide Area Network) Setup.

Main

The DSL Line Conﬁguration screen appears.

WAN

Configuration

WAN

Setup

7-38 User’s Reference Guide

DSL Line Configuration

WAN DSL Mode... ATM Regional Setting... Annex A

Clock Source... Network Cell Format... Unscrambled Unused Cell Format... Idle

Data Link Encapsulation... RFC1483 RFC1483 Mode... Bridged 1483 PPP over Ethernet (PPPoE): Off

Display/Change Circuit... Add Circuit... Delete Circuit...

1. Select WAN DSL Mode and from the pop-up menu choose the type of DSLAM to which you will be connecting, either ATM or HDLC.

2. From the Regional Setting pop-up menu, select Annex A for routers in North America, Annex B for routers in Europe, or Annex C for routers in Japan.

Note: Some options may not be visible.

3. Select a Clock Source, either Network (the default) or Internal.

Also select whether the Cell Format is Unscrambled (the default) or Scrambled, and whether the Unused Cell Format is Empty or Idle (the default).

If you are using an ATM-based Mode, the DSL Line Conﬁguration screen offers additional parameters.

4. Select Data Link Encapsulation and press Return. The pop-up menu will offer you the choice of PPP or RFC1483. The HDLC (Copper Mountain) Operation Mode also offers Frame Relay. Your selection depends on which type your ISP uses.

■ If you selected PPP as your data link encapsulation method, the PPP Mode pop-up menu offers the

choice of VC Multiplexed (the default) or LLC SNAP.

■ If you selected RFC1483 your data link encapsulation method, two additional options display: an

RFC1483 Mode pop-up menu offers the choice of Bridged 1483 or Routed 1483. Bridged 1483 permits use of PPP over Ethernet (PPPoE) and is the default. You can then toggle PPPoE On or Off. Choosing Routed 1483 hides the PPPoE option.

5. To add a circuit, select Add Circuit and press Return. The Add Circuit screen appears.

WAN and System Conﬁguration 7-39

Add Circuit

Circuit Name: Circuit 2

Circuit Enabled: Yes

Circuit VPI (0-255): 0

Circuit VCI (0-65535): 0

Use Connection Profile... Default Profile Use Default Profile for Circuit

ADD Circuit NOW CANCEL

■ Enter a name for the circuit in the Circuit Name ﬁeld.

■ Toggle Circuit Enabled to Yes.

■ Enter the Virtual Path Identiﬁer and the Virtual Channel Identiﬁer in the Circuit VPI and Circuit VCI

ﬁelds, respectively.

■ Then, select a Connection Proﬁle for the Circuit. To use the Default Proﬁle, select Use Default Proﬁle

for Circuit and press Return. For other options, select a proﬁle from the Use Connection Proﬁle

pop-up menu.

■ Select ADD Circuit NOW and press Return.

6. To display or change a circuit, select Display/Change Circuit, select a circuit from the pop-up menu, and press Return. The ﬁelds are the same as those in the Add Circuit screen.

7. To delete a circuit, select Delete Circuit, select a circuit from the pop-up menu, and press Return. In the conﬁrmation window, select CONTINUE and press Return.

8. Press Escape to return to the WAN Setup menu.

7-40 User’s Reference Guide

Creating a new Connection Proﬁle

For a Netopia 4553, connection proﬁles are useful for conﬁguring the connection and authentication settings for negotiating a PPP connection on the G.shdsl link. If you are using the PPP data link encapsulation method, you can store your authentication information in the connection proﬁle so that your user name and password (or host name and secret) are transmitted when you attempt to connect.

Connection proﬁles deﬁne the networking protocols necessar y for the router to make a remote connection. A connection proﬁle is like an address book entr y describing how the router is to get to a remote site, or how to recognize and authenticate a connection. To create a new connection proﬁle, you navigate to the WAN Conﬁguration screen from the Main Menu, and select Add Connection Proﬁle.

Main

The Add Connection Proﬁle screen appears.

Add Connection Profile

Profile Name: Profile 1 Profile Enabled: Yes

Data Link Encapsulation... PPP Data Link Options...

IP Profile Parameters...

COMMIT CANCEL

Configure a new Conn. Profile. Finished? ADD or CANCEL to exit.

WAN

Configuration

Add Connection

Profile

On a Netopia 4553 you can add up to 15 more connection proﬁles, for a total of 16, but you can only use one at a time, unless you are using VPNs.

1. Select Proﬁle Name and enter a name for this connection proﬁle. It can be any name you wish. For example: the name of your ISP.

2. Toggle Proﬁle Enabled to Ye s or No. The default is Yes.

WAN and System Conﬁguration 7-41

3. Select Data Link Encapsulation and press Return. The pop-up menu offers the possible data link encapsulation methods for connection proﬁles used for a variety of purposes: PPP, Frame Relay, RFC1483, ATMP, PPTP, or IPsec. If you select any data link encapsulation method other than RFC1483, a Data Link Options menu item is displayed; if you select RFC1483, Data Link Options is hidden.

4. If you chose any data link encapsulation method other than RFC1483, select Datalink Options and press Return.

■ If you selected ATMP, PPTP, or IPSec, see Chapter 10, “Virtual Private Networks (VPNs).”

■ If you selected PPP, the Datalink (PPP/MP) Options screen appears.

Datalink (PPP/MP) Options

Data Compression... Standard LZS

Send Authentication... PAP

Send User Name: Send Password: Receive User Name: Receive Password:

Maximum Packet Size: 1500

In this Screen you will configure the PPP/MP specific connection params.

Select Data Compression and press Return. The pop-up menu of fers the choices of None, Ascend LZS, or Standard LZS. Unless you are other wise speciﬁcally directed, you can accept the default.

Select Send Authentication and press Return.

From the pop-up menu that appears, select the authentication method your ISP uses, if any: PAP (Password Authentication Protocol), CHAP (Challenge Handshake Authentication Protocol), or None.

■ PAP is the most common, and requires you to enter a User Name and Password in the next two

ﬁelds.

■ CHAP requires you to enter a Host Name and Secret in the next two ﬁelds.

You can specify user name and password for both outgoing and incoming connections. the Send User Name/Password parameters are used to specify your identity when connecting to a remote location. The Receive User Name/Password parameters are used when receiving dial-in clients such as via RAS conﬁguration.

■ If you selected Frame Relay, the Datalink (Frame Relay) Options screen appears.

7-42 User’s Reference Guide

Datalink (Frame Realy) Options

Auto-Detect DLCIs: Yes

Multicast DLCI Number: 0

Toggle Auto-Detect DLCIs to Yes (the default) or No.

Select the Multicast DLCI Number ﬁeld and enter a value.

5. You can edit the Maximum Packet Size ﬁeld, if you want packets limited to a lower value than 1500.

Return to the Add Connection Proﬁle screen by pressing Escape.

6. Select IP Proﬁle Parameters and press Return. The IP Proﬁle Parameters screen appears.

IP Profile Parameters

Address Translation Enabled: Yes IP Addressing... Numbered

NAT Map List... Easy-PAT List NAT Server List... Easy-Servers

Local WAN IP Address: 0.0.0.0 Local WAN IP Mask: 0.0.0.0

Filter Set... Remove Filter Set

RIP Profile Options...

7. Toggle or enter any IP Parameters you require and return to the Add Connection Proﬁle screen by pressing Escape. For more information, see “IP Setup” on page 8-64.

8. Select COMMIT and press Return. Your new Connection Proﬁle will be added.

If you want to view the Connection Proﬁles in your device, return to the WAN Conﬁguration screen, and select Display/Change Connection Proﬁle. The list of Connection Proﬁles is displayed in a scrolling pop-up screen.

WAN and System Conﬁguration 7-43

WAN Configuration +-Profile Name---------------------IP Address------+ +--------------------------------------------------+ | Easy Setup Profile 255.225.255.255 | | Profile 1 0.0.0.0 | | | | | | | | | | | | | | | | | | | | | | | | | | | | | +--------------------------------------------------+

The default proﬁle

If you are using RFC1483 datalink encapsulation, the Default Proﬁle screen controls whether or not the G.shdsl link will come up without an explicitly conﬁgured connection proﬁle. (PPP datalink encapsulation does not support a default proﬁle, and the corresponding menu item is unavailable.) See “Connection Proﬁles” on

page 8-87 for more information.

You access the Default Proﬁle screen from the Main Menu by selecting WAN Conﬁguration and then selecting Default Proﬁle.

7-44 User’s Reference Guide

Main

The Default Proﬁle screen appears.

WAN Default Profile

Must Match a Defined Profile: No

IP Parameters...

WAN

Configuration

WAN

Default Profile

■ You can set Must Match a Deﬁned Proﬁle item to Ye s or No (the default). This item controls whether or

not the G.shdsl link will come up without an explicitly conﬁgured connection proﬁle. If your ISP is ser ving you a dynamic IP Address, you need not explicitly conﬁgure a connection proﬁle, and the default behavior of the router will be to connect automatically once it is powered on.

WAN and System Conﬁguration 7-45

IP parameters (default proﬁle) screen

If you are using RFC1483 datalink encapsulation, the IP Parameters (Default Proﬁle) screen allows you to conﬁgure various IP parameters for G.shdsl connections established without an explicitly conﬁgured connection proﬁle:

IP Parameters (Default Profile)

Address Translation Enabled: No

Filter Set (Firewall)... Remove Filter Set

Receive RIP: Both Transmit RIP: Off

Return/Enter accepts * Tab toggles * ESC cancels.

For an G.shdsl link, Network Address Translation (NAT) is disabled by default in the Default Proﬁle. You can enable it by toggling to Yes. For details on setting up IP Parameters see “IP Setup” on page 8-64.

Scheduled connections

Scheduled connections are useful for PPPoE, PPTP, and ATMP connection proﬁles.

To go to the Scheduled Connections screen, select Scheduled Connections in the WAN Conﬁguration screen.

Main

WAN

Configuration

Scheduled

Connections

7-46 User’s Reference Guide

Scheduled Connections

Display/Change Scheduled Connection...

Add Scheduled Connection...

Delete Scheduled Connection...

Navigate from here to add/modify/change/delete Scheduled Connections.

Viewing scheduled connections

To display a table of scheduled connections, select Display/Change Scheduled Connection in the Scheduled Connections screen. Each scheduled connection occupies one row of the table.

Scheduled Connections

+-Days----Begin At---HH:MM---When----Conn. Prof. Name----Enabled-----+ +--------------------------------------------------------------------+ | mtWtfss 08:30PM 06:00 weekly Profile 01 No | | | | | | | | | | | +--------------------------------------------------------------------+

The ﬁrst column in the table shows a one-letter representation of the Days of the week, from Monday (M or m) to Sunday (S or s). If a letter representing a day is capitalized, the connection will be activated on that day; a lower-case letter means that the connection will not be activated on that day. If the scheduled connection is conﬁgured for a once-only connection, the word “once” will appear instead of the days of the week.

WAN and System Conﬁguration 7-47

The other columns show:

■ The time of day that the connection will Begin At

■ The duration of the connection (HH:MM)

■ Whether it’s a recurring Weekly connection or used Once Only

■ Which connection proﬁle (Conn. Prof.) is used to connect

■ Whether the scheduled connection is currently Enabled

The router checks the date and time set in scheduled connections against the system date and time.

Adding a scheduled connection

To add a new scheduled connection, select Add Scheduled Connection in the Scheduled Connections screen and press Return. The Add Scheduled Connection screen appears.

Add Scheduled Connection

Scheduled Connection Enable: On

How Often... Weekly

Schedule Type... Forced

Set Weekly Schedule...

Use Connection Profile...

ADD SCHEDULED CONNECTION CANCEL

Scheduled Connections dial remote Networks on a Weekly or Once-Only basis.

Follow these steps to conﬁgure the new scheduled connection:

■ To activate the connection, select Scheduled Connection Enable and toggle it to On. You can make the

scheduled connection inactive by toggling Scheduled Connection Enable to Off.

■ Decide how often the connection should take place by selecting How Often and choosing Weekly or Once

Only from the pop-up menu.

■ The Schedule Type allows you to set the exact weekly schedule or once-only schedule.

Options are:

■ Forced Up, meaning that this connection will be maintained whether or not there is a demand call on

the line.

■ Forced Down, meaning that this connection will be torn down or blocked whether or not there is a

7-48 User’s Reference Guide

demand call on the line.

■ Demand-Allowed, meaning that this schedule will permit a demand call on the line.

■ Demand-Blocked, meaning that this schedule will prevent a demand call on the line.

■ Periodic, meaning that the connection is retried several times during the scheduled time.

■ If How Often is set to Weekly, the item directly below How Often reads Set Weekly Schedule. If How Often

is set to Once Only, the item directly below How Often reads Set Once-Only Schedule.

Set Weekly Schedule

If you set How Often to Weekly, select Set Weekly Schedule and go to the Set Weekly Schedule screen.

■ Select the days for the scheduled connection to occur and toggle them to Yes .

Set Weekly Schedule

Monday: No Tuesday: No Wednesday: No Thursday: No Friday: No Saturday: No Sunday: No

Scheduled Window Start Time: 11:50 AM or PM: AM

Scheduled Window Duration Per Day: 00:00

■ Select Scheduled Window Start Time and enter the time to initiate the scheduled connection.

■ You must enter the time in the format H:M, where H is a one- or two-digit number representing the hour and

M is a one- or two-digit number representing the minutes. The colon is mandator y. For example, the entry 1:3 (or 1:03) would be accepted as 3 minutes after one o’clock. The entry 7:0 (or 7:00) would be accepted as seven o’clock, exactly. The entries 44, :5, and 2: would be rejected.

■ Select AM or PM and choose AM or PM from the pop-up menu.

■ Select Scheduled Window Duration Per Day and enter the maximum duration allowed for this scheduled

connection, per call.

You are ﬁnished conﬁguring the weekly options. Return to the Add Scheduled Connection screen to continue.

WAN and System Conﬁguration 7-49

Set Once-Only Schedule

If you set How Often to Once Only, select Set Once-Only Schedule and go to the Set Once-Only Schedule screen.

Set Once-Only Schedule

Place Call on (MM/DD/YY): 05/07/1998

Scheduled Window Start Time: 11:50 AM or PM: AM

Scheduled Window Duration: 00:00

■ Select Place Call On (Date) and enter a date in the format MM/DD/YY or MM/DD/YYYY (month, day,

year).

Note: You must enter the date in the format speciﬁed. The slashes are mandator y. For example, the entry 5/7/98 would be accepted as May 7, 1998. The entry 5/7 would be rejected.

■ Select Scheduled Window Start Time and enter the time to initiate the scheduled connection.

Note: You must enter the time in the format H:M, where H is a one- or two-digit number representing the

hour and M is a one- or two-digit number representing the minutes. The colon is mandator y. For example, the entry 1:3 (or 1:03) would be accepted as 3 minutes after one o’clock. The entry 7:0 (or 7:00) would be accepted as seven o’clock, exactly. The entries 44, :5, and 2: would be rejected.

■ Select AM or PM and choose AM or PM.

■ Select Scheduled Window Duration and enter the maximum duration allowed for this scheduled

connection. Use the same format restrictions noted above.

You are ﬁnished conﬁguring the once-only options. Return to the Add Scheduled Connection screen to continue.

■ In the Add Scheduled Connection screen, select Use Connection Proﬁle and choose from the list of

connection proﬁles you have already created. A scheduled connection must be associated with a connection proﬁle to be useful. The connection proﬁle becomes active during the times speciﬁed in the associated scheduled connection, if any exists.

■ Select ADD SCHEDULED CONNECTION to save the current scheduled connection. Select CANCEL to exit

the Add Scheduled Connection screen without saving the new scheduled connection.

7-50 User’s Reference Guide

Modifying a scheduled connection

To modify a scheduled connection, select Display/Change Scheduled Connection in the Scheduled Connections screen to display a table of scheduled connections.

Select a scheduled connection from the table and press Return. The Change Scheduled Connection screen appears. The parameters in this screen are the same as the ones in the Add Scheduled Connection screen (except that ADD SCHEDULED CONNECTION and CANCEL do not appear). To ﬁnd out how to set them, see

“Adding a scheduled connection” on page 7-47.

Deleting a scheduled connection

To delete a scheduled connection, select Delete Scheduled Connection in the Scheduled Connections screen to display a table of scheduled connections.

Select a scheduled connection from the table and press the Return key to delete it. To exit the table without deleting the selected scheduled connection, press the Escape key.

Frame Relay conﬁguration

If the mode is HDLC and you choose Frame Relay as the datalink encapsulation type you can conﬁgure the Frame Relay options from the WAN Conﬁguration menu.

Main

WAN Configuration

WAN (Wide Area Network) Setup...

Display/Change Connection Profile... Add Connection Profile... Delete Connection Profile...

WAN Default Profile... ATMP/PPTP Default Profile... Scheduled Connections...

Configuration Changes Reset WAN Connection: Yes Frame Relay Configuration... Frame Relay DLCI Configuration...

WAN

Configuration

• Frame Relay Configuration

• Frame Relay DLCI Configuration

From the WAN Conﬁguration screen, select WAN Setup, then select the Frame Relay Conﬁguration option and press Return. The Frame Relay Conﬁguration screen appears.

WAN and System Conﬁguration 7-51

Frame Relay Configuration

LMI Type... ANSI (Annex D) T391 (Polling Interval in secs): 10 N391 (Polls/Full Status Cycles): 6 N392 (Error Threshold): 3 N393 (Monitored Event Window): 4

Tx Injection Management... Standard Default CIR: 64000 Default Bc: 64000 Default Be: 0

Congestion Management Enabled: No

Maximum Tx Frame Size: 1520

Return/Enter goes to new screen. Enter Information supplied to you by your telephone company.

1. Select LMI Type (Link Management Type) and press Return. From the pop-up menu, highlight either ANSI (Annex D), CCITT (Annex A), LMI, or No LMI (the default). Press Return.

See “Frame Relay DLCI conﬁguration” on page 7-52 for instructions.

Specifying the Link Management Type is the ﬁrst step in conﬁguring Frame Relay.

■ If you select an LMI Type (Link Management Type) other than None, the T391 option speciﬁes the

number of seconds between the Status Enquiry messages. The default setting is 10.

■ The N391 option speciﬁes the frequency of full status polls, in increments of the basic (T391) polling

cycle. The default setting is 6.

■ The N392 option speciﬁes the maximum number of (link reliability, protocol, and sequence number)

error events that can occur within the N393 sliding window. If an N392 threshold is exceeded, the switch declares the Netopia Router inactive. The default setting is 3.

■ The N393 option allows the user to specify the width of the sliding N392 monitored event window. The

default setting is 4.

2. Select Tx Injection Management and press Return. From the pop-up menu, highlight Standard if you want the frames on your line that exceed the conﬁgured service parameters to be dropped at the router, Buffered if you want the frames on your line that exceed the link capacity to be delayed until the link is less busy, or None if you want all of the frames on your line to be transmitted. Press Return.

Note: If you select None as the Tx Injection Management type, the three Tx Injection Management options listed below will remain hidden. Go to step 4.

If you select Standard or Buffered as the Tx Injection Management type, then the Default CIR, Bc, and Be values will appear (in the corresponding ﬁelds below the Tx Injection Management ﬁeld) in order for you to deﬁne the parameters the management algorithm.

■ The Default CIR (CIR also referred to as Committed Information Rate) represents the average capacity

available to a given PVC (Permanent Vir tual Circuit) or DLCI (Data Link Connection Identiﬁer). This set-

7-52 User’s Reference Guide

ting defaults to 64000, but you may modify the capacity rate if this setting will not be applicable to you.

■ The Default Bc (Bc also referred to as Committed Burst Size) represents the maximum amount of data

that your Frame Relay service provider agrees to transfer from a given PVC (Permanent Virtual Circuit) or DLCI (Data Link Connection Identiﬁer). This setting defaults to 64000, but you may change the capacity rate if this setting needs to be modiﬁed.

■ The Default Be (Be also referred to as Excess Burst Size) represents the maximum amount of data

that your Frame Relay service provider will attempt to deliver to a given PVC (Permanent Virtual Circuit) or DLCI (Data Link Connection Identiﬁer). This setting defaults to 0, but you may change the capacity rate if this setting needs to be modiﬁed.

Note: Some Frame Relay service providers allow for over-subscription of the DLCIs, which occurs when the total number of CIRs for all PVCs exceeds the line rate setup.

3. Select Congestion Management Enabled and toggle to Yes or No depending on whether you use this selection. Press Return.

If Congestion Management is enabled, this option causes the Netopia Router to use in-bound FECNs (Forward Explicit Congestion Notiﬁcation). This feature is designed to notify you that congestion avoidance procedures should be initiated where applicable for trafﬁc in the same direction as the received frame. It indicates that the frame in question, has encountered congested resources.

Note: The Congestion Management Enabled ﬁeld will only appear if Standard or Buffered is selected as the option from the Tx Injection Management ﬁeld.

4. Select Maximum Tx Frame Size and press Return. The default is automatically set to a value suitable for encapsulating a full ethernet packet’s transmission load, however you may change the Maximum Frame Size to suit your networks transmission load. Press Return.

You are now done conﬁguring the Frame Relay Conﬁguration screen. Press the Escape key to return to the WAN Conﬁguration screen. If you need to conﬁgure your DLCIs, go to the next section.

Frame Relay DLCI conﬁguration

If you selected None as your LMI Type then you will need to manually conﬁgure your DLCIs.

A Frame Relay DLCI is a set of parameters that tells the Netopia Router how to initially connect to a remote destination.

The Netopia Router supports up to 16 different Frame Relay DLCI proﬁles.

Each Frame Relay DLCI conﬁguration you set up allows the Netopia Router to connect your network to another network that uses IP or IPX over Frame Relay.

WAN and System Conﬁguration 7-53

To go to the Frame Relay DLCI conﬁguration screen, select Frame Relay DLCI Conﬁguration in the WAN Conﬁguration screen.

Frame Relay DLCI Configuration

Display/Change DLCIs...

Add DLCI...

Delete DLCI...

Add, delete, and modify DLCIs from here.

Displaying a Frame Relay DLCI conﬁguration table

To display a view-only table of the Frame Relay DLCIs, select Display/Change DLCIs in the Frame Relay DLCI Conﬁguration screen, and press Return.

The Frame Relay DLCI Conﬁguration table is a handy way to quickly view the DLCI names and DLCI numbers that you attribute to your Frame Relay proﬁles.

Frame Relay DLCI Configuration +-DLCI Name----------DLCI Number-+ +--------------------------------+ | | | DLCI 16 16 | | | | | | | | | | | | | | | | | | | | | | | | | | | | | +--------------------------------+

Up/Down Arrow Keys to select, ESC to dismiss, Return/Enter to Edit.

7-54 User’s Reference Guide

Changing a Frame Relay DLCI conﬁguration

To modify a Frame Relay DLCI conﬁguration, select Display/Change DLCIs in the Frame Relay DLCI Conﬁguration screen.

Select a DLCI Name from the table and press Return to go to the Change DLCI screen. The parameters in this screen are the same as the parameters in the Add DLCI screen. To ﬁnd out how to set them, see “Adding a

Frame Relay DLCI conﬁguration” on page 7-55.

Change DLCI

DLCI Name: DLCI 33

DLCI Enabled: Yes

DLCI Number (16-991): 32

Remote IP Address: 2.0.0.2

WAN and System Conﬁguration 7-55

Adding a Frame Relay DLCI conﬁguration

To add a new Frame Relay DLCI, select Add DLCI in the Frame Relay DLCI Conﬁguration screen and press Return. The Add DLCI screen appears.

Add DLCI

DLCI Name: DLCI 16

DLCI Enabled: Yes

DLCI Number (16-991): 16

Remote IP Address: 0.0.0.0

Data Flow Parameters---------------Use Default---------Value--- CIR: Yes Bc: Yes Be: Yes

ADD DLCI NOW CANCEL

Return accepts * ESC cancels * Left/Right moves insertion point * Del deletes. Here you configure the parameters for a single DLCI (Data Link Circuit ID).

1. Select DLCI Name and enter a name for this individual Frame Relay DLCI proﬁle. It can be any name you wish. For example: the name of your ISP or remote branch your connecting to such as the corporate headquarters of your company.

Note: The Netopia Router allows Frame Relay DLCIs to be named, so that you can easily reference and differentiate them. This is accomplished by giving a DLCI Name to a DLCI Number.

2. Select DLCI Enabled and toggle it to Yes to activate the proﬁle. If you disable this proﬁle, the Netopia Router will automatically disable and block access to a speciﬁc remote DLCI.

3. Select DLCI Number (16-991) and enter a number for this individual DLCI. Check with your Frame Relay provider to ﬁnd out what numbers are allocated for each of your DLCI proﬁles. The DLCI number range should fall within the range of 16-991.

4. Select Remote IP Address and enter the remote IP address your ISP or network administrator gave you that represents the remote sites IP address for their router. Press Return.

If you select Standard or Buffered as the Tx Injection Management type in the Frame Relay Conﬁguration screen go to the next bulleted item below. If you selected None in the Frame Relay Conﬁguration screen go to step 6.

Below the Remote IP Address ﬁeld, the following Data Flow Parameters appear:

■ The CIR (Committed Information Rate) represents the average capacity available to a given PVC (Per-

manent Virtual Circuit) or DLCI (Data Link Connection Identiﬁer). The setting defaults to 64000, but you may modify the capacity rate by toggling the selection in the Use Default ﬁeld to No. You can then enter a different capacity rate in the Value ﬁeld.

■ The Bc (Committed Burst Size) represents the maximum amount of data that your Frame Relay ser vice

provider agrees to transfer from a given PVC (Permanent Virtual Circuit) or DLCI (Data Link Connection

7-56 User’s Reference Guide

Identiﬁer). The setting defaults to 64000, but you may modify the committed burst size by toggling the selection in the Use Default ﬁeld to No. You can then enter a different committed burst size in the Value ﬁeld.

■ The Be (Excess Burst Size) represents the maximum amount of data that your Frame Relay service

provider will attempt to deliver to a given PVC (Permanent Vir tual Circuit) or DLCI (Data Link Connection Identiﬁer). The setting defaults to 0, but you may modify the excess burst size by toggling the selection in the Use Default ﬁeld to No. You can then enter a different excess burst size in the Value ﬁeld.

Note: Some Frame Relay service providers allow for over-subscription of the DLCIs, which occurs when the total number of CIRs for all PVCs exceeds the line rate set up.

5. Select ADD DLCI NOW to save the current static Frame Relay DLCI proﬁle that you have just entered, and press Return to go back to the Frame Relay DLCI Conﬁguration screen. Alternately, you can cancel the Frame Relay DLCI proﬁle you have just created by selecting CANCEL to exit the Add DLCI screen.

Deleting a Frame Relay DLCI conﬁguration

To delete a Frame Relay DLCI conﬁguration, select Delete DLCI in the Frame Relay DLCI Conﬁguration screen and press Return to display the Frame Relay DLCI conﬁguration table.

Frame Relay DLCI Configuration +-DLCI Name----------DLCI Number-+ +--------------------------------+ | joe 16 | +------------------------------------------------------------------------+ +------------------------------------------------------------------------+ | | | Are you sure you want to delete this DLCI? | | | | CANCEL CONTINUE | | | | | +------------------------------------------------------------------------+ | | | | | | | | | | | | +--------------------------------+

1. Highlight the Frame Relay DLCI conﬁguration you wish to delete. Press Return.

2. A Frame Relay DLCI Conﬁguration table appears with a prompt asking you if you want to delete the connection proﬁle you have just highlighted. Select CONTINUE if you wish to delete this DLCI or CANCEL if you do not.

You are now ﬁnished conﬁguring the Frame Relay DLCI Conﬁguration screen.

WAN and System Conﬁguration 7-57

System conﬁguration screens

You can connect to the Netopia 4553’s system conﬁguration screens in either of two ways:

■ By using Telnet with the Router’s Ethernet por t IP address

■ Through the console port, using a local terminal (see “Connecting a console cable to your router” on

page 5-27)

You can also retrieve the Netopia 4553’s conﬁguration information and remotely set its parameters using the Simple Network Management Protocol (see “SNMP” on page 12-188).

Open a Telnet connection to the router’s IP address; for example, “192.168.1.1.”

The console screen will open to the Main Menu, similar to the screen shown below:

Netopia Router

Easy Setup...

WAN Configuration...

System Configuration...

Utilities & Diagnostics...

Statistics & Logs...

Quick Menus...

Quick View...

Return/Enter goes to Easy Setup -- minimal configuration. You always start from this main screen.

Navigating through the system conﬁguration screens

To help you ﬁnd your way to par ticular screens, some sections in this guide begin with a graphical path guide similar to the following example:

Main

This particular path guide shows how to get to the Network Protocols Setup screens. The path guide represents these steps:

1. Beginning in the Main Menu, select System Conﬁguration and press Return. The System Conﬁguration screen appears.

System

Configuration

IP Setup

7-58 User’s Reference Guide

2. Select IP Setup and press Return. The IP Setup screen appears.

To go back in this sequence of screens, use the Escape key.

System conﬁguration features

The Netopia 4553 Router’s default settings may be all you need to conﬁgure your Netopia 4553. Some users, however, require advanced settings or prefer manual control over the default selections. For these users, the Netopia 4553 provides system conﬁguration options.

To help you determine whether you need to use the system conﬁguration options, review the following requirements. If you have one or more of these needs, use the system conﬁguration options described in later chapters.

■ System conﬁguration of dynamic IP address distribution through DHCP or BootP

■ Greater network security through the use of ﬁlters

■ Use of Network Time Protocol

To access the system conﬁguration screens, select System Conﬁguration in the Main Menu, then press Return.

The System Conﬁguration menu screen appears:

System Configuration

IP Setup... Filter Sets (Firewalls)... IP Address Serving...

Date and Time...

Console Configuration...

SNMP (Simple Network Management Protocol)...

Security...

Upgrade Feature Set...

Logging...

Return/Enter to configure Networking Protocols (such as TCP/IP). Use this screen if you want options beyond Easy Setup.

WAN and System Conﬁguration 7-59

IP setup

These screens allow you to conﬁgure your network’s use of the IP networking protocol.

■ Details are given in “IP Setup” on page 8-64.

Filter sets (ﬁrewalls)

These screens allow you to conﬁgure security on your network by means of ﬁlter sets and a basic ﬁrewall.

■ Details are given in “Security” on page 11-151.

IP address serving

These screens allow you to conﬁgure IP address ser ving on your network by means of DHCP, WANIP, and BootP.

■ Details are given in “IP Address Ser ving” on page 8-72.

Date and time

You can set the system’s date and time parameters in the Set Date and Time screen.

Select Date and Time in the System Conﬁguration screen and press Return. The Set Date and Time screen appears.

Set Date and Time

NTP (Network Time Prot.) Enabled: On Time Server Host Name/IP Address 204.152.184.72 Time Zone... GMT -8:00 Pacific Standard Time NTP Update Interval (HHHH:MM) 0:00

System Date Format: MM/DD/YY

System Time Format: AM/PM

Follow these steps to set the system’s date and time:

1. Toggle NTP (Network Time Prot.) Enabled to On to synchronize the Router’s time and date with a network server. Toggle this ﬁeld to Off to manually set the time and date; the options in this screen will change to allow you to manually enter the time and date parameters.

Note: If time and date are manually set, that information will be lost upon reboot or loss of power.

2. Enter the IP address of the time server in the ﬁeld Time Server Host Name/IP Address.

7-60 User’s Reference Guide

3. Select the Router’s time zone from the Time Zone pop-up menu and press Return.

4. In the NTP Update Interval ﬁeld, enter how often to synchronize with the time ser ver, using the format HHHH:MM where H is hours and M is minutes.

5. Select a System Date Format; the options are MM/DD/YY, DD/MM/YY, and YY/MM/DD, where M is month, D is day, and Y is year.

6. Select a System Time Format, either AM/PM or 24hrs.

7. Press Escape to return to the System Conﬁguration menu.

Console conﬁguration

You can change the default terminal communications parameters to suit your requirements.

To go to the Console Conﬁguration screen, select Console Conﬁguration in the System Conﬁguration screen.

Console Configuration

Baud Rate... 57600

SET CONFIG NOW CANCEL

Follow these steps to change a parameter’s value:

1. Select 57600, 38400, 19200, or 9600.

2. Select SET CONFIG NOW to save the new parameter settings. Select CANCEL to leave the parameter unchanged and exit the Console Conﬁguration screen.

SNMP (Simple Network Management Protocol)

These screens allow you to monitor and conﬁgure your network by means of a standard Simple Network Management Protocol (SNMP) agent.

■ Details are given in “SNMP” on page 12-188.

WAN and System Conﬁguration 7-61

Security

These screens allow you to add users and deﬁne passwords on your network.

■ Details are given in “Security” on page 11-151.

Upgrade feature set

You can upgrade your Netopia 4553 by adding new feature sets through the Upgrade Feature Set utility.

See the release notes that came with your router or feature set upgrade, or visit the Netopia Web site at www.netopia.com for information on new feature sets, how to obtain them, and how to install them on your Netopia 4553.

Logging

You can conﬁgure a UNIX-compatible syslog client to repor t a number of subsets of the events entered in the router’s WAN Event History. See “WAN Event History” on page 12-183.

The Syslog client (for the PC only) is supplied as a .ZIP ﬁle on the Netopia CD.

Select Logging from the System Conﬁguration menu.

The Logging Conﬁguration screen appears.

Logging Configuration

WAN Event Log Options Log Boot and Errors: Yes Log Line Specific: Yes Log Connections: Yes Log PPP, DHCP, CNA: Yes Log IP: Yes

Syslog Parameters Syslog Enabled: No Hostname or IP Address: Facility... Local 0

By default, all events are logged in the event history.

■ By toggling each event descriptor to either Yes or No, you can determine which ones are logged and which

are ignored.

■ You can enable or disable the syslog client dynamically. When enabled, it will report any appropriate and

previously unreported events.

■ You can specify the syslog server’s address either in dotted decimal format or as a DNS name up to 63

7-62 User’s Reference Guide

characters.

■ You can specify the UNIX syslog Facility to use by selecting the Facility pop-up.

■ Erase the log by selecting DUMP WAN LOG

Installing the Syslog client

The Goodies folder on the Netopia CD contains a Syslog client daemon program that can be conﬁgured to report the WAN events you speciﬁed in the Logging Conﬁguration screen.

To install the Syslog client daemon, exit from the graphical Netopia CD program and locate the CD directory structure through your Windows desktop or through Windows Explorer. Go to the Goodies directory on the CD and locate the Sds15000.exe program. This is the Syslog daemon installer. Run the Sds15000.exe program and follow the on-screen instructions for enabling the Windows Syslog daemon.

The following screen shows a sample syslog dump of WAN events:

May 5 10:14:06 tsnext.netopia.com Link 1 down: PPP PAP failure May 5 10:14:06 tsnext.netopia.com >>Issued Speech Setup Request from our DN: 5108645534 May 5 10:14:06 tsnext.netopia.com Requested Disc. from DN: 917143652500 May 5 10:14:06 tsnext.netopia.com Received Clear Confirm for our DN: 5108645534 May 5 10:14:06 tsnext.netopia.com Link 1 down: Manual disconnect May 5 10:14:06 tsnext.netopia.com >>Issued Speech Setup Request from our DN: 5108645534 May 5 10:14:06 tsnext.netopia.com Requested Disc. from DN: 917143652500 May 5 10:14:06 tsnext.netopia.com Received Clear Confirm for our DN: 5108645534 May 5 10:14:06 tsnext.netopia.com Link 1 down: No answer May 5 10:14:06 tsnext.netopia.com --Device restarted----------------------------------------May 5 10:14:06 tsnext.netopia.com >>Received Speech Setup Ind. from DN: (not supplied) May 5 10:14:06 tsnext.netopia.com Requested Connect to our DN: 5108645534 May 5 10:14:06 tsnext.netopia.com ASYNC: Modem carrier detected (more) Modem reports: 26400 V34 May 5 10:14:06 tsnext.netopia.com >>WAN: 56K Modem 1 activated at 115 Kbps May 5 10:14:06 tsnext.netopia.com Connect Confirmed to our DN: 5108645534 May 5 10:14:06 tsnext.netopia.com PPP: Channel 1 up, Answer Profile name: Default Profile May 5 10:14:06 tsnext.netopia.com PPP: NCP up, session 1, Channel 1 Final (fallback) negotiated auth: Local PAP , Remote NONE May 5 10:14:06 tsnext.netopia.com PPP: PAP we accepted remote, Channel 1 Remote name: guest May 5 10:14:06 tsnext.netopia.com PPP: MP negotiated, session 1 Remote EDO: 06 03 0000C5700624 0 May 5 10:14:06 tsnext.netopia.com PPP: CCP negotiated, session 1, type: Ascend LZS Local mode: 1, Remote mode: 1 May 5 10:14:06 tsnext.netopia.com PPP: BACP negotiated, session 1 Local MN: FFFFFFFF, Remote MN: 00000001 May 5 10:14:06 tsnext.netopia.com PPP: IPCP negotiated, session 1, rem: 192.168.10.100 local:

192.168.1.1 May 5 10:14:06 tsnext.netopia.com >>WAN: 56K Modem 1 deactivated May 5 10:14:06 tsnext.netopia.com Received Clear Ind. from DN: 5108645534, Cause: 0 May 5 10:14:06 tsnext.netopia.com Issued Clear Response to DN: 5108645534 May 5 10:14:06 tsnext.netopia.com Link 1 down: Remote clearing May 5 10:14:06 tsnext.netopia.com PPP: IPCP down, session 1 May 5 10:14:06 tsnext.netopia.com >>Received Speech Setup Ind. from DN: (not supplied)

IP Setup 8-63

CCCChhhhaaaapppptttteeeerrrr 88

IIIIPPPP SSSSeeeettttuuuupp

The Netopia 4553 uses Internet Protocol (IP) to communicate both locally and with remote networks. This chapter shows you how to conﬁgure the router to route IP trafﬁc. You also learn how to conﬁgure the router to serve IP addresses to hosts on your local network.

Netopia’s IP routing features Network Address Translation and IP address serving.

This section covers the following topics:

■ “IP Setup” on page 8-64

■ “IP Address Serving” on page 8-72

■ “More Address Ser ving Options” on page 8-79

■ “DHCP Relay Agent” on page 8-85

■ “Connection Proﬁles” on page 8-87

Network Address Translation allows communication between the LAN connected to the Netopia 4553 and the Internet using a single (or a few) IP address(es) instead of a routed account with separate IP addresses for each computer on the network.

Network Address Translation also provides increased security by hiding the local IP addresses of the LAN connected to the Netopia 4553 from the outside world.

The setup is simpler, so ISPs typically offer Internet accounts suppor ting Network Address Translation at a signiﬁcant cost savings.

For a detailed discussion of Network Address Translation, see Chapter 9, “Multiple Network Address

Translation.”

8-64 User’s Reference Guide

IP Setup

Main

System

Configuration

IP Setup

The IP Setup options screen is where you conﬁgure the Ethernet side of the Netopia 4553. The information you enter here controls how the router routes IP traf ﬁc.

Consult your network administrator or ISP to obtain the IP setup information (such as the Ethernet IP address, Ethernet subnet mask, default IP gateway, and Primary Domain Name Ser ver IP address) you will need before changing any of the settings in this screen. Changes to these settings that you make in this screen will take effect only after the Netopia 4553 is reset.

To go to the IP Setup options screen, from the Main Menu, select System Conﬁguration, then IP Setup.

The IP Setup screen appears.

IP Setup

Ethernet IP Address: 192.128.117.162 Ethernet Subnet Mask: 255.255.255.0 Define Additional Subnets...

Default IP Gateway: 192.128.117.163

Primary Domain Name Server: 0.0.0.0 Secondary Domain Name Server: 0.0.0.0 Domain Name: yourdomain.com

Receive RIP... Both Transmit RIP... Off

Static Routes... IP Address Serving... Network Address Translation (NAT)...

Follow these steps to conﬁgure IP setup for your Netopia 4553:

■ Select Ethernet IP Address and enter the IP address for the Netopia 4553’s Ethernet por t.

■ Select Ethernet Subnet Mask and enter the subnet mask for the Ethernet IP address that you entered in

the last step.

■ If you desire multiple subnets select Deﬁne Additional Subnets. If you select this item you will be taken to

the IP Subnets screen. This screen allows you to deﬁne IP addresses and masks for additional subnets. See “IP subnets” on page 8-66 for details.

IP Setup 8-65

The Netopia 4553 supports multiple IP subnets on the Ethernet inter face. You may want to conﬁgure multiple IP subnets to service more hosts than are possible with your primar y subnet. It is not always possible to obtain a larger subnet from your ISP. For example, if you already have a full Class C subnet, your only option is multiple Class C subnets, since it is virtually impossible to justify a Class A or Class B assignment.

If you are using NAT, you can use the reserved Class A or Class B subnet.

■ Select Default IP Gateway and enter the IP address for a default gateway. This can be the address of any

major router accessible to the Netopia 4553.

A default gateway should be able to successfully route packets when the Netopia 4553 cannot recognize the intended recipient’s IP address. A typical example of a default gateway is the ISP’s router.

■ Select Primary Domain Name Server and enter the IP address for a domain name server. The domain

name server matches the alphabetic addresses favored by people (for example, robin.hood.com) to the IP addresses actually used by IP routers (for example, 163.7.8.202).

■ If a secondary DNS server is available, select Secondary Domain Name Server and enter its IP address.

The secondary DNS server is used by the Netopia 4553 when the primar y DNS ser ver is inaccessible. Entering a secondary DNS is useful but not necessary.

■ Select Domain Name and enter your network’s domain name (for example, netopia.com). Netopia strongly

recommends that you enter a domain name.

■ Routing Information Protocol (RIP) is needed if there are IP routers on other segments of your Ethernet

network that the Netopia 4553 needs to recognize. If this is the case select Receive RIP and select v1, v2, or Both from the pop-up menu. With Receive RIP set to v1, the Netopia 4553’s Ethernet por t will

accept routing information provided by RIP packets from other routers that use the same subnet mask. Set to v2, the Netopia 4553 will accept routing information provided by RIP packets from other routers that use different subnet masks. Set to Both, the Netopia 4553 will accept information from either RIP v1 or v2 routers.

■ If you want the Netopia 4553 to advertise its routing table to other routers via RIP, select Transmit RIP and

select v1, v2 (broadcast), or v2 (multicast) from the pop-up menu. With Transmit RIP v1 selected, the Netopia 4553 will generate RIP packets only to other RIP v1 routers. With Transmit RIP v2 (broadcast) selected, the Netopia 4553 will generate RIP packets to all other hosts on the network. With Transmit RIP v2 (multicast) selected, the Netopia 4553 will generate RIP packets only to other routers capable of recognizing RIP v2 packets.

■ Select Static Routes to manually conﬁgure IP routes. See the section “Static routes,” below.

■ Select Network Address Translation to conﬁgure advanced MultiNAT features. See “Multiple Network

Address Translation” on page 9-91.

■ If you select IP Address Serving you will be taken to the IP Address Ser ving screen (see “IP Address

Serving” on page 8-72). Since no two hosts can use the same IP address at the same time, make sure

that the addresses distributed by the Netopia 4553 and those that are manually conﬁgured are not the same. Each method of distribution must have its own exclusive range of addresses to draw from.

8-66 User’s Reference Guide

IP subnets

The IP Subnets screen allows you to conﬁgure up to eight Ethernet IP subnets on unlimited-user models, one “primary” subnet and up to seven secondary subnets, by entering IP address/subnet mask pairs:

IP Subnets

IP Address Subnet Mask

---------------- -------------- #1: 192.128.117.162 255.255.255.0

#2: 0.0.0.0 0.0.0.0

#3:

#4:

#5:

#6:

#7:

#8:

Note: You need not use this screen if you have only a single Ethernet IP subnet. In that case, you can continue to enter or edit the IP address and subnet mask for the single subnet on the IP Setup screen.

This screen displays up to eight rows of two editable columns, preceded by a row number between one and eight. If you have eight subnets conﬁgured, there will be eight rows on this screen. Other wise, there will be one more row than the number of conﬁgured subnets. The last row will have the value 0.0.0.0 in both the IP address and subnet mask ﬁelds to indicate that you can edit the values in this row to conﬁgure an additional subnet. All eight row labels are always visible, regardless of the number of subnets conﬁgured.

■ To add an IP subnet, enter the Netopia 4553’s IP address on the subnet in the IP Address ﬁeld in a

particular row and the subnet mask for the subnet in the Subnet Mask ﬁeld in that row.

IP Setup 8-67

For example:

IP Subnets

IP Address Subnet Mask

---------------- -------------- #1: 192.128.117.162 255.255.255.0

#2: 192.128.152.162 255.255.0.0

#3: 0.0.0.0 0.0.0.0

#4:

#5:

#6:

#7:

#8:

■ To delete a conﬁgured subnet, set both the IP address and subnet mask values to 0.0.0.0, either explicitly

or by clearing each ﬁeld and pressing Return to commit the change. When a conﬁgured subnet is deleted, the values in subsequent rows adjust up to ﬁll the vacant ﬁelds.

The subnets conﬁgured on this screen are tied to the address ser ving pools conﬁgured on the IP Address Pools screen, and that changes on this screen may affect the IP Address Pools screen. In par ticular, deleting a subnet conﬁgured on this screen will delete the corresponding address serving pool, if any, on the IP Address Pools screen.

8-68 User’s Reference Guide

If you have conﬁgured multiple Ethernet IP subnets, the IP Setup screen changes slightly:

IP Setup

Subnet Configuration...

Default IP Gateway: 192.128.117.163

Primary Domain Name Server: 0.0.0.0 Secondary Domain Name Server: 0.0.0.0 Domain Name:

Receive RIP... Both Transmit RIP... v2 (multicast)

Static Routes... IP Address Serving... Network Address Translation (NAT)...

Set up the basic IP attributes of your Netopia in this screen.

The IP address and Subnet mask items are hidden, and the Deﬁne Additional Subnets... item becomes Subnet

Conﬁguration.... If you select Subnet Conﬁguration, you will return to the IP Subnets screen that allows you to

deﬁne IP addresses and masks for additional Ethernet IP subnets.

Static routes

Static routes are IP routes that are maintained manually. Each static route acts as a pointer that tells the Netopia 4553 how to reach a particular network. However, static routes are used only if they appear in the IP routing table, which contains all of the routes used by the Netopia 4553 (see “IP Routing Table” on

page 12-185).

Static routes are helpful in situations where a route to a network must be used and other means of ﬁnding the route are unavailable. For example, static routes are useful when you cannot rely on RIP.

To go to the Static Routes screen, select Static Routes in the IP Setup screen and press Return.

The Static Routes screen will appear.

Static Routes

Display/Change Static Route...

Add Static Route...

Delete Static Route...

Configure/View/Delete Static Routes from this and the following Screens.

Viewing static routes

IP Setup 8-69

To display a view-only table of static routes, select Display/Change Static Route. The table shown below will appear.

+-Dest. Network---Subnet Mask-----Next Gateway----Priority-Enabled-+ +------------------------------------------------------------------+ | 0.0.0.0 0.0.0.0 163.176.8.1 Low Yes | | | | | | | | | | | | | | | | | | | | | | | | | | | | | +------------------------------------------------------------------+

Select a Static Route to modify.

The table has the following columns:

Dest. Network: The network IP address of the destination network.

8-70 User’s Reference Guide

Subnet Mask: The subnet mask associated with the destination network.

Next Gateway: The IP address of the router that will be used to reach the destination network.

Priority: An indication of whether the Netopia 4553 will use the static route when it conﬂicts with information

received from RIP packets.

Enabled: An indication of whether the static route should be installed in the IP routing table.

To return to the Static Routes screen, press Escape.

Adding a static route

To add a new static route, select Add Static Route in the Static Routes screen. The Add Static Route screen will appear.

Add Static Route

Static Route Enabled: Yes

Destination Network IP Address: 0.0.0.0

Destination Network Subnet Mask: 0.0.0.0

Next Gateway IP Address: 0.0.0.0

Route Priority... High

Advertise Route Via RIP: No

ADD STATIC ROUTE NOW CANCEL

Configure a new Static Route in this Screen.

■ To install the static route in the IP routing table, select Static Route Enabled and toggle it to Yes . To

remove the static route from the IP routing table, select Static Route Enabled and toggle it to No.

■ Be sure to read the rules on the installation of static routes in the IP routing table. See “Rules of static

route installation” on page 8-71.

■ Select Destination Network IP Address and enter the network IP address of the destination network.

■ Select Destination Network Subnet Mask and enter the subnet mask used by the destination network.

■ Select Next Gateway IP Address and enter the IP address for the router that the Netopia 4553 will use to

reach the destination network. This router does not necessarily have to be part of the destination network, but it must at least know where to forward packets destined for that network.

■ Select Route Priority and choose High or Low. High means that the static route takes precedence over RIP

IP Setup 8-71

information; Low means that the RIP information takes precedence over the static route.

■ If the static route conﬂicts with a connection proﬁle, the connection proﬁle will always take precedence.

■ To make sure that the static route is known only to the Netopia 4553, select Advertise Route Via RIP and

toggle it to No. To allow other RIP-capable routers to know about the static route, select Advertise Route Via RIP and toggle it to Ye s . When Advertise Route Via RIP is toggled to Ye s, a new item called RIP Metric

appears below Advertise Route Via RIP.

With RIP Metric you set the number of routers, from 1 to 15, between the sending router and the destination router. The maximum number of routers on a packet’s route is 15. Setting RIP Metric to 1 means that a route can involve 15 routers, while setting it to 15 means a route can only involve one router.

■ Select ADD STATIC ROUTE NOW to save the new static route, or select CANCEL to discard it and return to

the Static Routes screen.

■ Up to 32 static routes can be created, but one is always reser ved for the default gateway, which is

conﬁgured using either Easy Setup or the IP Setup screen in system conﬁguration.

Modifying a static route

To modify a static route, in the Static Routes screen select Display/Change Static Route to display a table of static routes.

Select a static route from the table and go to the Change Static Route screen. The parameters in this screen are the same as the ones in the Add Static Route screen (see “Adding a static route” on page 8-70).

Deleting a static route

To delete a static route, in the Static Routes screen select Delete Static Route to display a table of static routes. Select a static route from the table and press Return to delete it. To exit the table without deleting the selected static route, press Escape.

Rules of static route installation

The Netopia 4553 applies certain rules before installing enabled static routes in the IP routing table. An enabled static route will not be installed in the IP routing table if any of the following conditions are true:

■ The static route’s Next Gateway IP Address matches an IP address in the range of IP addresses being

distributed by DHCP.

■ The static route’s Next Gateway IP Address is determined to be unreachable by the Netopia 4553.

■ The static route’s route information conﬂicts with a connection proﬁle’s route information.

■ The connection proﬁle associated with the static route has a disabled dial-on-demand setting, and there is

no current connection using that connection proﬁle.

A static route that is already installed in the IP routing table will be removed if any of the conditions listed above become true for that static route. However, an enabled static route is automatically reinstalled once the conditions listed above are no longer true for that static route.

8-72 User’s Reference Guide

IP Address Serving

Main

System

Configuration

IP Address

Serving

• Serve DHCP Clients

• Serve BootP Clients

• Serve Dynamic WAN Clients

In addition to being a router, the Netopia 4553 is also an IP address server. There are three protocols it can use to distribute IP addresses.

■ The ﬁrst, called Dynamic Host Conﬁguration Protocol (DHCP), is widely supported on PC networks, as well

as Apple Macintosh computers using Open Transport and computers using the UNIX operating system. Addresses assigned via DHCP are “leased” or allocated for a short period of time; if a lease is not renewed, the address becomes available for use by another computer. DHCP also allows most of the IP parameters for a computer to be conﬁgured by the DHCP server, simplifying setup of each machine.

■ The second, called BootP (also known as Bootstrap Protocol), is the predecessor to DHCP and allows older

IP hosts to obtain most of the information that a DHCP client would obtain. However, in contrast, BootP address assignments are “permanent” since there is no lease renewal mechanism in BootP.

■ The third protocol, called Dynamic WAN, is part of the PPP/MP suite of wide area protocols used for WAN

connections. It allows remote terminal adapters and NAT-enabled routers to be assigned a temporary IP address for the duration of their connection.

Since no two hosts can use the same IP address at the same time, make sure that the addresses distributed by the Netopia 4553 and those that are manually conﬁgured are not the same. Each method of distribution must have its own exclusive range of addresses to draw from.

Go to the System Conﬁguration screen. Select IP Address Serving and press Return. The IP Address Ser ving screen will appear.

Serve DHCP Clients: Yes DHCP Lease Time (Hours): 1 DHCP NetBIOS Options...

Serve BOOTP Clients: Yes

Serve Dynamic WAN Clients Yes

IP Setup 8-73

Follow these steps to conﬁgure IP Address Ser ving:

■ If you enabled IP Address Serving, then DHCP, BootP clients and Dynamic WAN clients are automatically

enabled.

■ The IP Address Serving Mode pop-up menu allows you to choose the way in which the Netopia 4553 will

serve IP addresses. The device can act as either a DHCP Ser ver or a DHCP Relay Agent. (See “DHCP Relay

Agent” on page 8-85 for more information.) In most cases, you will use the device to ser ve its own pool of

IP addresses, hence DHCP Server is the default. Address ser ving can also be disabled.

■ Select Number of Client IP Addresses and enter the total number of contiguous IP addresses that the

Netopia 4553 will distribute to the client machines on your local area network. Twelve-user models are limited to twelve IP addresses.

In the screen example shown above, ﬁve Client IP addresses have been allocated.

■ Select 1st Client Address and enter the ﬁrst client IP address that you will allocate to your ﬁrst client

machine. For instance, on your local area network you may want to ﬁrst ﬁgure out which machines are going to be allocated speciﬁc static IP addresses so that you can determine the pool of IP addresses that you will be serving addresses from via DHCP, BootP, and/or Dynamic WAN.

Example: Your ISP has given your Netopia 4553 the IP address 192.168.6.137, with a subnet mask of

255.255.255.248. The subnet mask allocated will give you six IP addresses to use when connecting to the ISP over the Internet. Your address range will be from .137-.143. In this example you would enter

192.168.6.138 as the 1st Client Address, since the router itself must have an IP address.

■ To enable DHCP, select Serve DHCP Clients and toggle it to Yes. DHCP ser ving is automatic when IP

Address Serving is enabled.

■ The default DHCP Lease time is one hour. This may be unnecessarily brief in your network environment.

Consequently, the DHCP lease time is now conﬁgurable. The DHCP Lease Time (Hours) setting allows you to modify the router’s default lease time of one hour. You can enter any number up to and including 168 hours (one week) for the DHCP lease.

8-74 User’s Reference Guide

If you have conﬁgured multiple Ethernet IP subnets, the appearance of the IP Address Ser ving screen is altered slightly:

IP Address Serving

IP Address Serving Mode... DHCP Server

Configure Address Pools...

Serve DHCP Clients: Yes DHCP NetBios Options...

Serve BOOTP Clients: Yes

Serve Dynamic WAN Clients: Yes

The ﬁrst three menu items are hidden, and Conﬁgure Address Pools... appears instead. If you select Conﬁgure Address Pools... you will be taken to the IP Address Pools screen that allows you to conﬁgure an address

serving pool for each of the conﬁgured Ethernet IP subnets. See “IP Address Pools” on page 8-75.

IP Setup 8-75

IP Address Pools

The IP Address Pools screen allows you to conﬁgure a separate IP address ser ving pool for each of up to eight conﬁgured Ethernet IP subnets:

IP Address Pools

Subnet (# host addrs) 1st Client Addr Clients Client Gateway

--------------------- --------------- ------- --------------

192.128.117.0 (253) 192.128.117.196 16 192.128.117.162

192.129.117.0 (253) 192.129.117.110 8 192.129.117.4

This screen consists of between two and eight rows of four columns each. There are exactly as many rows as there are Ethernet IP subnets conﬁgured on the IP Subnets screen.

■ The Subnet (# host addrs) column is non-selectable and non-editable. It indicates the network address of

the Ethernet IP subnet for which an address pool is being conﬁgured and the number of host addresses available on the subnet. The network address is equal to the router’s IP address on the subnet bitwise-ANDed with the subnet mask. The host address count is equal to the subnet size minus three, since one address is reser ved for the network address, one for the subnet broadcast address, and one for the router’s interface address on the subnet.

You can edit the remaining columns in each row.

■ The 1st Client Addr and Clients columns allow you to specify the base and extent of the address serving

pool for a particular subnet. Entering 0.0.0.0 for the ﬁrst client address or 0 for the number of clients indicates that no addresses will be served from the corresponding Ethernet IP subnet.

■ The Client Gateway column allows you to specify the default gateway address that will be provided to

clients served an address from the corresponding pool. The value defaults to the Netopia 4553’s IP address on the corresponding subnet (or the Netopia 4553’s default gateway, if that gateway is located on the subnet in question). You can override the value by entering any address that is par t of the subnet.

DHCP, BootP, and dynamic WAN clients may receive an address from any one of the address ser ving pools conﬁgured on this screen.

8-76 User’s Reference Guide

Numerous factors inﬂuence the choice of served address. It is dif ﬁcult to specify the address that will be served to a particular client in all circumstances. However, when the address server has been conﬁgured, and the clients involved have no prior address serving interactions, the Netopia 4553 will generally ser ve the ﬁrst unused address from the ﬁrst address pool with an available address. The Netopia 4553 star ts from the pool on the ﬁrst row and continues to the pool on the last row of this screen.

Once the address server and/or the clients have par ticipated in address ser ving transactions, different rules apply:

■ When requesting an address, a client will often suggest an address to be assigned, such as the one it was

last served. The Netopia 4553 will attempt to honor this request if the address is available. The client stores this address in non-volatile storage, for example, on disk, and the speciﬁc storage method/location differs depending on the client operating system.

■ When requesting an address, a client may provide a client identiﬁer, or, if it does not, the Netopia 4553

may construct a pseudo-client identiﬁer for the client. When the client subsequently requests an address, the Netopia 4553 will attempt to serve the address previously associated with the pseudo-client identiﬁer. This is normally the last address ser ved to the client.

■ Otherwise, the Netopia will select the least-recently used available address, star ting from the ﬁrst address

in the ﬁrst pool and ending with the last address in the last pool.

Note: The address serving pools on this screen are tied to the IP subnets conﬁgured on the IP Subnets screen. Changes to the IP Subnets screen may affect this screen. In particular, deleting a subnet on the IP Subnets screen will delete the corresponding address serving pool, if any, on this screen.

IP Setup 8-77

DHCP NetBIOS Options

If your network uses NetBIOS, you can enable the Netopia 4553 to use DHCP to distribute NetBIOS information.

NetBIOS stands for Network Basic Input/Output System. It is a layer of software originally developed by IBM and Sytek to link a network operating system with speciﬁc hardware. NetBIOS has been adopted as an industr y standard. It offers LAN applications a variety of “hooks” to carr y out inter-application communications and data transfer. Essentially, NetBIOS is a way for application programs to talk to the network. To run an application that works with NetBIOS, a non-IBM network operating system or network interface card must offer a NetBIOS emulator. Many vendors either provide a version of NetBIOS to interface with their hardware or emulate its transport layer communications services in their network products. A NetBIOS emulator is a program provided by NetWare clients that allow workstations to run applications that support IBM’s NetBIOS calls.

■ Select DHCP NetBios Options and press Return. The DHCP NetBIOS Options screen appears.

DHCP NetBios Options

Serve NetBios Type: Yes NetBios Type... Type B

Serve NetBios Scope: No NetBios Scope:

Serve NetBios Name Server: No NetBios Name Server IP Addr: 0.0.0.0

Configure DHCP-served NetBIOS options here.

■ To ser ve DHCP clients with the type of NetBIOS used on your network, select Serve NetBios Type and

toggle it to Yes .

8-78 User’s Reference Guide

■ From the NetBios Type pop-up menu, select the type of NetBIOS used on your network.

DHCP NetBios Options

■ To ser ve DHCP clients with the NetBIOS scope, select Serve NetBios Scope and toggle it to Ye s .

Select NetBios Scope and enter the scope.

■ To ser ve DHCP clients with the IP address of a NetBIOS name server, select Serve NetBIOS Name Server

and toggle it to Yes .

Select NetBios Name Server IP Addr and enter the IP address for the NetBIOS name ser ver.

You are now ﬁnished setting up DHCP NetBIOS Options. To return to the IP Address Serving screen, press Escape.

■ To enable BootP’s address ser ving capability, select Serve BOOTP Clients and toggle to Yes .

Note: Addresses assigned through BootP are permanently allocated from the IP Address Ser ving pool until

you release them. To release these addresses, navigate back to the Main Menu, then Statistics & Logs, Served IP Addresses, and Lease Management.

Main

Statistics

& Logs

Served IP

Addresses

Lease Management

IP Address Lease Management

Reset All Leases

Release BootP Leases

Reclaim Declined Addresses

Hit RETURN/ENTER, you will return to the previous screen.

Select Release BootP Leases and press Return.

■ Back in IP Address Serving, the Ser ve Dynamic WAN Clients toggle

IP Setup 8-79

More Address Serving Options

The Netopia 4553 includes a number of enhancements in the built-in DHCP IP address server. These enhancements include:

■ The ability to exclude one or more IP addresses from the address ser ving pool so the addresses will not be

served to clients.

■ The ability to reserve a par ticular IP address for a client with a par ticular Ethernet MAC address.

■ The ability to view the host name associated with a client to which the router has leased an IP address.

■ The ability for the router’s Ethernet IP address(es) to overlap the DHCP address ser ving pool(s).

■ The ability to serve as a DHCP Relay Agent.

The Netopia 4553 supports reser ving an IP address only for a type 1 client identiﬁer (i.e., an Ethernet hardware address). It does not support reser ving an IP address for an arbitrary client identiﬁer. (For more information on client identiﬁers, see RFC 2131, section 9.14.)

8-80 User’s Reference Guide

Conﬁguring the IP Address Server options

To access the enhanced DHCP ser ver functions, from the Main Menu navigate to Statistics & Logs and then Served IP Addresses.

Main

Menu Addresses

Statistics & Logs

Served IP

The following example shows the Served IP Addresses screen after three clients have leased IP addresses. The ﬁrst client did not provide a Host Name in its DHCP messages; the second and third clients did.

Served IP Addresses

-IP Address------Type----Expires—-Host Name/Client Identifier-----------------

----------------------------------SCROLL UP-----------------------------------

192.168.1.100

192.168.1.101

192.168.1.102

192.168.1.103 DHCP 00:59 EN: 00-00-C5-70-00-04

192.168.1.104 DHCP 00:59 Bill’s Pentium

192.168.1.105 DHCP 00:45 Steve’s Power Mac

192.168.1.106

192.168.1.107

192.168.1.108

192.168.1.109

192.168.1.110

192.168.1.111

192.168.1.112

192.168.1.113

---------------------------------SCROLL DOWN--------------------------------- Lease Management...

The rightmost column displays the host name supplied by the client if one was provided; otherwise it displays the client identiﬁer. (If a host name is displayed, the client identiﬁer is still accessible in a Details pop-up menu. See below.)

Note: The server does not query the client for its host name. Macintosh computers running versions of MacOS prior to MacOS version 8.5 (OT 2.0.1, TCP/IP 2.0.1) do not supply a host name option in their DHCP messages, so no host name will appear in the Served IP Addresses list.

IP Setup 8-81

You can select the entries in the Served IP Addresses screen. Use the up and down arrow keys to move the selection to one of the entries in the list of served IP addresses.

Served IP Addresses

-IP Address------Type----Expires—-Host Name/Client Identifier-----------------

----------------------------------SCROLL UP-----------------------------------

192.168.1.100

192.168.1.101

192.168.1.102

192.168.1.103

192.168.1.104

192.168.1.105

192.168.1.106 +------------+

192.168.1.107 +------------+

192.168.1.108 | Details... | Barr's XPi 120

192.168.1.109 | Exclude |

192.168.1.110 | Release |

192.168.1.111 | Reserve... |

192.168.1.112 +------------+

192.168.1.113

---------------------------------SCROLL DOWN--------------------------------- Lease Management...

Once you select an entry, pressing Return displays an action pop-up menu that lists operations that can be performed on that entr y. Possible operations are Details…, Exclude, Include, Release, and Reserve… The action popup is context-sensitive and lists only those operations that apply to the selected IP address in its current lease state.

8-82 User’s Reference Guide

■ Details… is displayed if the entry is associated with both a host name and a client identiﬁer.

Selecting Details… displays a pop-up menu that provides additional information associated with the IP address. The pop-up menu includes the IP address as well as the host name and client identiﬁer supplied by the client to which the address is leased.

Served IP Addresses

-IP Address------Type----Expires—-Host Name/Client Identifier-----------------

----------------------------------SCROLL UP-----------------------------------

192.168.1.100

192.168.1.101 +----------------------------------------------------------------------------+ +----------------------------------------------------------------------------+ | | | IP Address is 192.168.1.108 | | Host Name is Barr's XPi 120 | | Client ID is EN: 00-00-c5-45-89-ef | | | | OK | +----------------------------------------------------------------------------+

192.168.1.111 | Reserve... |

192.168.1.112 +------------+

192.168.1.113

---------------------------------SCROLL DOWN--------------------------------- Lease Management...

■ Exclude is displayed if the entry is not already excluded.

Selecting Exclude excludes the IP address from the address serving pool so the address will not be ser ved to a client. If the IP address is currently leased to or reserved for a client, you will be presented with a warning dialog asking you to conﬁrm the operation.

IP Setup 8-83

Served IP Addresses

-IP Address------Type----Expires—-Host Name/Client Identifier-----------------

----------------------------------SCROLL UP-----------------------------------

192.168.1.100

192.168.1.101

192.1+-------------------------------------------------------------+

192.1| |

192.1| You are about to make changes that will affect an address |

192.1| that is currently in use. Are you sure you want to do this? |

192.1| |

192.1| CANCEL OK |

192.1| |

192.1+-------------------------------------------------------------+

192.168.1.111 | Reserve... |

192.168.1.112 +------------+

192.168.1.113

---------------------------------SCROLL DOWN--------------------------------- Lease Management...

■ Include is displayed if the entry is either excluded or declined.

An IP address is marked declined when a client to whom the DHCP server offers the address declines the address. A client declines an address if it determines that a leased address is already in use by another device.

Selecting Include restores the selected IP address to the address ser ving pool so that the IP address is once again eligible to be served to a client.

■ Release is displayed if the entry is currently of fered, leased, or reserved.

Selecting Release puts the selected entry in the available state. You will be presented with a warning dialog asking you to conﬁrm the operation since the IP address is in use. There is no mechanism to notify the client to whom the address is leased that the lease has been terminated. Thus, the client will continue to use the address until the next time it attempts to renew its lease. In the interim, the ser ver may lease the same IP address to a different client, thereby creating an address conﬂict. For this reason, releasing an address that is actively being used by a client is generally not recommended.

■ Reserve… is displayed if the entr y is available, declined, excluded, leased, of fered, or reserved.

Reserving an IP address for a client with a par ticular Ethernet MAC address guarantees that a client with the speciﬁed MAC address will be offered or leased the speciﬁed IP address. Moreover, it prevents the speciﬁed IP address from being offered or leased to any other client.

Selecting Reserve... displays a pop-up dialog box that displays the IP address and editable item in which you can enter an Ethernet MAC address. The pop-up dialog box includes OK and CANCEL buttons for conﬁrming or cancelling the operation. If the IP address is currently offered or leased to, or reser ved for, a client, you will be presented with a warning dialog asking you to conﬁrm the operation. Reserving an IP address guarantees that the IP address will only be leased.

8-84 User’s Reference Guide

Served IP Addresses

-IP Address------Type----Expires—-Host Name/Client Identifier-----------------

----------------------------------SCROLL UP-----------------------------------

192.168.1.100

192.168.1.101

192.168.1.102 +--------------------------------------+

192.168.1.103 +--------------------------------------+

192.168.1.104 | |

192.168.1.105 | IP Address is 192.168.1.108 |

192.168.1.106 | MAC Address: 00-00-c5-45-89-ef |

192.168.1.107 | |

192.168.1.108 | CANCEL OK |

192.168.1.109 | |

192.168.1.110 | |

192.168.1.111 +--------------------------------------+

192.168.1.112 +------------+

192.168.1.113

---------------------------------SCROLL DOWN--------------------------------- Lease Management...

The router’s Ethernet IP address(es) will be automatically excluded from the address serving pool(s) on startup. Entries in the served IP address list corresponding to the router’s Ethernet IP address(es) that have been automatically excluded on startup are not selectable.

Served IP Addresses

-IP Address------Type----Expires--Host Name/Client Identifier-----------------

----------------------------------SCROLL UP-----------------------------------

192.168.1.1 Excluded for the router's IP address

192.168.1.2 Excluded

192.168.1.3 DHCP 00:24 Barr's XPi 120

192.168.1.4

192.168.1.5

192.168.1.6

192.168.1.7

192.168.1.8

192.168.1.9

192.168.1.10

192.168.1.11

192.168.1.12

192.168.1.13

192.168.1.14

---------------------------------SCROLL DOWN--------------------------------- Lease Management...

Hit RETURN/ENTER for available operations.

IP Setup 8-85

DDDDHHHHCCCCPPPP RRRReeeellllaaaayyyy AAAAggggeeeennnntt

The Netopia 4553 offers DHCP Relay Agent functionality, as deﬁned in RFC1542. A DHCP relay agent is a computer system or a router that is conﬁgured to for ward DHCP requests from clients on the LAN to a remote DHCP server, and to pass the replies back to the requesting client systems.

When a DHCP client starts up, it has no IP address, nor does it know the IP address of a DHCP ser ver. Therefore, it uses an IP broadcast to communicate with one or more DHCP ser vers. These broadcasts are normally limited to the network segment on which the client is located, and do not pass through routers such as the Netopia Router. If the Netopia Router is conﬁgured to act as a DHCP server, it will assign the client an address from an address pool conﬁgured locally in the Netopia Router and respond to the client's request itself.

However, if the Netopia Router is conﬁgured to act as a DHCP relay agent, it does not satisfy the DHCP request itself, but instead forwards the request to one or more remote DHCP servers. These servers process the request, assign an address from an address pool conﬁgured on the remote server, and forward the response back to the Netopia Router for delivery back to the client. The agent then sends the response to the client on behalf of the DHCP server. This process is transparent to the client, which doesn't know that it is communicating through an intermediar y rather than directly to a local server. Using DHCP relay, it is possible to centralize the conﬁguration information for the host computers at many remote sites at a single location, easing the burden of administering conﬁguration management for remote sites.

To conﬁgure the Netopia Router to act as a DHCP relay agent, from the Main Menu navigate to the System Conﬁguration menu.

Main

System

Configuration

IP Address

Serving

8-86 User’s Reference Guide

Select IP Address Serving and press Return. The IP Address Serving screen appears.

Serve DHCP Clients: Yes DHCP NetBIOS Options...

Serve BOOTP Clients: Yes

Select IP Address Serving Mode. The pop-up menu offers the choices of Disabled, DHCP Server (the default), and DHCP Relay Agent.

If you select DHCP Relay Agent and press Return, the screen changes as shown below.

IP Address Serving

IP Address Serving Mode... DHCP Relay Agent

Relay Server #1: 10.1.1.1 Relay Server #2: 20.1.1.1 Relay Server #3: 30.1.1.1

Configure Address Serving (DHCP, BOOTP, etc.) here.

Now you can enter the IP address(es) of your remote DHCP ser ver(s), such as might be located in your company’s corporate headquarters. Each time you enter an IP address and press Return, an additional ﬁeld appears. You can enter up to four DHCP server addresses.

In the example above, DHCP requests from clients on the LAN will be relayed to the DHCP ser vers at IP addresses 10.1.1.1, 20.1.1.1, and 30.1.1.1.

IP Setup 8-87

Note: The remote DHCP server(s) to which the Netopia Router is relaying DHCP requests must be capable of servicing relayed requests. Not all DHCP ser vers support this feature. For example, the DHCP server in the Netopia Router does not.

The DHCP server(s) to which the Netopia Router is relaying DHCP requests must be conﬁgured with one or more address pools that are within the Netopia Router’s primar y Ethernet LAN subnet. (There is no mechanism for DHCP clients to receive an address on a secondar y subnet via a relayed DHCP request.)

Connection Proﬁles

Since you will probably only have a single connection to your ISP over the DSL link, you may not need to create multiple connection proﬁles. Additional proﬁles may be useful for creating VPNs.

Connection Proﬁles deﬁne the line and networking protocols necessar y for the router to make a remote connection. A connection proﬁle is like an address book entr y describing how the router is to get to a remote site, or how to recognize and authenticate a remote user connecting to the router. To create a new Connection Proﬁle, you navigate to the WAN Conﬁguration screen from the Main Menu, and select Add Connection Proﬁle.

Main

The Add Connection Proﬁle screen appears.

Add Connection Profile

Profile Name: Profile 1 Profile Enabled: Yes

Data Link Encapsulation... PPP Data Link Options...

IP Profile Parameters...

COMMIT CANCEL

Configure a new Conn. Profile. Finished? COMMIT or CANCEL to exit.

WAN

Configuration

Add Connection

Profile

On a Netopia 4553 you can add up to 15 more connection proﬁles, for a total of 16, although only one can be used at a time, unless you are using VPNs.

1. Select Proﬁle Name and enter a name for this connection proﬁle. It can be any name you wish. For example: the name of your ISP.

8-88 User’s Reference Guide

2. Toggle the Proﬁle Enabled value to Ye s or No. The default is Yes.

3. Select IP Proﬁle Parameters and press Return. The IP Proﬁle Parameters screen appears.

IP Profile Parameters

Address Translation Enabled: Yes IP Addressing... Numbered

NAT Map List... Easy-PAT List NAT Server List... Easy-Servers

Local WAN IP Address: 0.0.0.0 Local WAN IP Mask: 0.0.0.0 Remote IP Address: 0.0.0.0 Remote IP Mask: 0.0.0.0

Filter Set... Remove Filter Set

RIP Profile Options...

Configure IP requirements for a remote network connection here.

4. Toggle or enter any IP parameters you require and return to the Add Connection Proﬁle screen by pressing Escape. For more information on NAT, see “Multiple Network Address Translation,” beginning on

page 9-91.

The Local WAN IP Address is displayed for numbered or NAT proﬁles. The Local WAN IP Mask is displayed for numbered proﬁles. The Remote IP Address and Remote IP Mask are displayed for unnumbered proﬁles.

IP Setup 8-89

5. Select ADD PROFILE NOW and press Return. Your new connection proﬁle will be added.

If you want to view the connection proﬁles in your router, return to the WAN Conﬁguration screen, and select Display/Change Connection Proﬁle. The list of connection proﬁles is displayed in a scrolling pop-up screen.

WAN Configuration +-Profile Name---------------------IP Address------+ +--------------------------------------------------+ | Easy Setup Profile 127.0.0.2 | | Profile 1 0.0.0.0 | | | | | | | | | | | | | | | | | | | | |on: Yes | | | | | | | | +--------------------------------------------------+

Up/Down Arrow Keys to select, ESC to dismiss, Return/Enter to Edit.

8-90 User’s Reference Guide

Multiple Network Address Translation 9-91

CCCChhhhaaaapppptttteeeerrrr 99

MMMMuuuullllttttiiiipppplllleeee NNNNeeeettttwwwwoooorrrrkkkk AAAAddddddddrrrreeeessssssss TTTTrrrraaaannnnssssllllaaaattttiiiioooonn

The Netopia 4553 offers advanced Multiple Network Address Translation functionality.

You should read this chapter completely before attempting to conﬁgure any of the advanced NAT features.

This chapter covers the following topics:

■ Overview on page 9-91

■ MultiNAT Conﬁguration on page 9-95

■ Easy Setup Proﬁle conﬁguration on page 9-96

■ Server Lists and Dynamic NAT conﬁguration on page 9-96

■ Adding Server Lists on page 9-104

■ Binding Map Lists and Server Lists on page 9-110

■ NAT Associations on page 9-114

■ MultiNAT Conﬁguration Example on page 9-116

Overview

NAT (Network Address Translation) is a means of mapping one or more IP addresses and/or IP ser vice ports into different values. This mapping serves two functions:

■ It allows the addresses of many computers on a LAN to be represented to the public Internet by only one or

a few addresses, saving you money.

■ It can be used as a security feature by obscuring the true addresses of impor tant machines from potential

hackers on the Internet.

To help you understand some of the concepts discussed here, it may be helpful to introduce some NAT terminology.

The term mapping refers to rules that associate one or more private addresses on the Netopia Router’s LAN to one or more public addresses on the Netopia Routers WAN interface (typically the Internet).

The terms private and internal refer to addresses on the Netopia Router’s LAN. These addresses are considered private because they are protected or obscured by NAT and cannot be directly accessed from the WAN (or Internet) side of the Netopia Router unless speciﬁcally conﬁgured otherwise.

The terms public and external refer to the WAN (or Internet) side of the Netopia Router.

Features

MultiNAT features can be divided into several categories that can be used simultaneously in different combinations on a per-Connection Proﬁle basis.

9-92 User’s Reference Guide

The following is a general description of these features:

Port Address Translation

The simplest form of classic Network Address Translation is PAT (Port Address Translation). PAT allows a group of computers on a LAN, such as might be found in a home or small ofﬁce, to share a single Internet connection using one IP address. The computers on the LAN can surf the Web, read e-mail, download ﬁles, etc., but their individual IP addresses are never exposed to the public network. Instead, a single IP address acts as the source IP address of trafﬁc originating from the LAN. The Netopia Router allows you to deﬁne multiple PAT mappings, which can be individually mapped to different public IP addresses. This offers more control over the access permitted to users on the LAN.

A limitation of PAT is that communication must be initiated from the internal network. A user on the external side cannot access a machine behind a PAT connection. A PAT enhancement introduced in ﬁrmware version 4.4 is the ability to deﬁne multiple PAT mappings. Each of these can optionally map to a section or range of IP addresses of the internal network. PAT mapping allows only internal users to initiate traf ﬁc ﬂow between the internal and external networks.

Server lists

Server lists, previously known as expor ted ser vices, make it possible to provide access from the public network to hosts on the LAN. Server lists allow you to deﬁne particular ser vices, such as Web, ftp, or e-mail, which are available via a public IP address. You deﬁne the type of ser vice you would like to make available and the internal IP address to which you would like to provide access. You may also deﬁne a speciﬁc public IP address to use for this service if you want to use an IP other than the WAN IP address of the Netopia Router.

Static mapping

If you want to host your own Website or provide other Internet services to the public, you need more than classic NAT. The reason is noted under Port Address Translation above – external users cannot initiate trafﬁc to computers on your LAN because external users can never see the real addresses of the computers on your LAN. If you want users outside your LAN to have access, for example, to a Web or FTP server that you host, you need to make a public representation of the real IP addresses of those ser vers.

Static mappings are a way to make one or more private IP addresses fully accessible from the public network via corresponding public IP addresses. Some applications may negotiate multiple TCP connections in the process of communication, which often does not work with traditional PAT. Static mapping offers the ability to use these applications through NAT. Each private IP address is mapped, on a one-to-one basis, to a public IP address that can be accessed from the Internet or public network. As with PAT mappings, you may have multiple static mappings to map a range of private IP addresses to a range of public IP addresses if desired.

Dynamic mapping

Dynamic mapping, often referred to as many-to-few, offers an extension to the advantages provided by static mapping. Instead of requiring a one-to-one association of public addresses and private addresses, as is required in static mapping, dynamic mapping uses a group of public IP addresses to dynamically allocate static mappings to private hosts that are communicating with the public network. If a host on the private network initiates a connection to the Internet, for example, the Netopia Router automatically sets up a one-to-one mapping of that host’s private IP address to one of the public IP addresses allocated to be used for Dynamic NAT. As long as this host is communicating with the Internet, it will be able to use that address. When trafﬁc from that host ceases, and no trafﬁc is passed from that host for ﬁve minutes, the public address is made available again for other private hosts to use as necessary.

Multiple Network Address Translation 9-93

When addresses are returned to the group of available addresses, they are returned to the head of the group, being the most recently used. If that same host requests a connection an hour later, and the same public address is still available, then it will be mapped to the same private host. If a new host, which has not previously requested a connection, initiates a connection it is allocated the last, or oldest, public address available.

Dynamic NAT is a way of sharing a range of public, or exterior, NAT addresses among one or more groups of private, or interior, hosts. This is intended to provide superior support for applications that traditionally have difﬁculty communicating through NAT. Dynamic NAT is intended to provide functionality beyond many-to-one and one-to-one translation. Netopia’s NAT implementation makes it possible to have a static mapping of one public address to one private address, thus allowing applications such as NetMeeting to work by assuring that any trafﬁc sent back to the source IP address is for warded through to the internal machine.

Static one-to-one mapping works well if you have enough IP addresses for all the workstations on your LAN. If you do not, Dynamic NAT allows machines to make full use of the publicly routable IP addresses provided by the ISP as necessary, on demand. When these public IP addresses are no longer being used by a particular workstation, they are returned to a pool of available addresses for other workstations to use.

A common example is a DSL customer’s application. Most DSL ISPs only provide customers with a few IP addresses for use on their network. For networks with more than four or ﬁve machines it is usually mandator y to use NAT. A customer may have 15 workstations on the LAN, all of which need Internet access. The customer is only provided ﬁve IP addresses by their ISP. The customer has eight hosts, which only need to use email and have Web access, but another seven hosts, which use NetMeeting to communicate with clients once or twice a day. NetMeeting will not work unless a static one-to-one mapping exists for the machine running NetMeeting to use for communication. The customer does not have enough IP addresses to create a one-to-one mapping for each of the seven users. This is where dynamic NAT applies.

The customer can conﬁgure four of these addresses to be used for Dynamic NAT. The ﬁfth address is then used for the eight other machines that do not need one-to-one mappings. As each machine conﬁgured to use addresses from the dynamic pool tries to connect to the Internet it is allocated a public IP address to use temporarily. Once the communication has been terminated, that IP address is freed for one of the other six hosts to use.

Available for Dynamic NAT Used for Normal NAT

172.16.1.25

172.16.1.26

172.16.1.27

172.16.1.28

172.16.1.29

WAN Network

Network Address Translation

LAN Network

192.168.1.16

192.168.1.15

192.168.1.14

192.168.1.13

192.168.1.12

192.168.1.11

192.168.1.10

192.168.1.9

192.168.1.8

192.168.1.7

192.168.1.6

192.168.1.5

192.168.1.4

192.168.1.3

192.168.1.2

9-94 User’s Reference Guide

Exterior addresses are allocated to internal hosts on a demand, or as-needed, basis and then made available when trafﬁc from that host ceases. Once an internal host has been allocated an address, it will use that address for all trafﬁc. Five minutes after all trafﬁc ceases – no pings, all TCP connections closed, no DNS requests, etc. – the address is put at the head of an available list. If an interior host needs an exterior address an hour later, and the previously used address is still available, it will acquire the same address. If an interior host that has not previously been allocated an exterior address needs one, it will be allocated the last, hence the oldest, exterior address on the available list.

All NAT conﬁgurations are rule-based. This means that trafﬁc passed through NAT from either the public or the private network is compared to the rules and mappings conﬁgured in the Netopia Router in a par ticular order. The ﬁrst rule that applies to the trafﬁc being initiated is used.

For example, if a connection is initiated from the public network and is destined for a public IP address conﬁgured on the Netopia Router, the following comparisons are made in this order.

1. The Netopia Router ﬁrst checks its internal NAT cache to see if the data is part of a previously initiated connection, if not…

2. The Netopia Router checks the conﬁgured server lists to see if this trafﬁc is intended to be for warded to an internal host based on the type of service.

3. The Netopia Router then checks to see if there is a static, dynamic, or PAT mapping for the public IP address that the connection is being initiated to.

4. The Netopia Router answers the request itself if the data is destined for the Netopia’s WAN interface IP address. Otherwise the data is discarded.

Complex maps

Map lists and server lists are completely independent of each other. A Connection Proﬁle can use one or the other or both.

MultiNAT allows complex mapping and requires more complex conﬁguration than in earlier ﬁrmware versions. Multiple mapped interior subnets are supported, and the rules for mapping each of the subnets may be different. The ﬁgure below illustrates a possible multiNAT conﬁguration.

Private Addresses IP HostPublic Addresses NAT Type

206.1.1.1

206.1.1.2

206.1.1.3

206.1.1.4

206.1.1.5

206.1.1.6

206.1.2.1 – 6 LAN Users (possible later)

}

192.168.1.1

192.168.1.253

192.168.1.254

192.168.1.1 – 252

Web/FTP Server Email Server

LAN Users

1:1 Static 1:1 Static

1:1 Dynamic

1:Many PAT

1:1 Dynamic

Multiple Network Address Translation 9-95

In order to support this type of mapping, you deﬁne two address ranges. First, you deﬁne a public range which contains the ﬁrst and last public address to be used and the way in which these addresses should be used (PAT, static, or dynamic). You then conﬁgure an address map which deﬁnes the private IP address or addresses to be used and which public range they should be mapped to. You add the address map to the list of address maps which are conﬁgured, creating a map list. The mappings in the map list are order-dependent and are compared in order from the top of the list to the bottom. If a par ticular resource is not available, subordinate mappings can be deﬁned that will redirect trafﬁc.

Supported trafﬁc

MultiNat supports the following IP protocols:

■ PAT: TCP/UDP trafﬁc which does not carry source or destination IP addresses or por ts in the data stream

(i.e., HTTP, Telnet, ‘r’ commands, tftp, NFS, NTP, SMTP, NNTP, etc.).

■ Static NAT: All IP protocol trafﬁc which does not carr y or other wise rely on the source or destination IP

addresses in the data stream.

■ Dynamic NAT: All IP protocol trafﬁc which does not carr y or other wise rely on the source or destination IP

addresses in the data stream.

MultiNAT Conﬁguration

You conﬁgure the MultiNAT features through the console menu:

■ For a simple 1-to-many NAT conﬁguration (classic NAT or PAT), use the Easy Setup Proﬁle conﬁguration,

described below.

■ For the more advanced features, such as ser ver lists and dynamic NAT, follow the instructions in:

■ IP setup, described on page 9-97

■ IP proﬁle parameters, described on page 9-110

9-96 User’s Reference Guide

Easy Setup Proﬁle conﬁguration

The screen below is an example. Depending on the type of router you are using, ﬁelds displayed in this screen may vary.

Connection Profile 1: Easy Setup Profile

Connection Profile Name: Easy Setup Profile

Address Translation Enabled: Yes IP Addressing... Numbered

Local WAN IP Address: 0.0.0.0 Local WAN IP Mask: 255.255.255.0 Remote IP Address: 127.0.0.2 Remote IP Mask: 255.255.255.255

PPP Authentication... PAP Send User Name: tonyf Send Password: ********************

PREVIOUS SCREEN NEXT SCREEN

Return/Enter brings you to next screen.

The Local WAN IP Address is used to conﬁgure a NAT public address range consisting of the Local WAN IP Address and all its ports. The public address map list is named Easy-PAT List and the port map list is named Easy-Servers.

The two map lists, Easy-PAT List and Easy-Servers, are created by default and NAT conﬁguration becomes effective.This will map all your private addresses (0.0.0.0 through 255.255.255.255) to your public address. These map lists are bound to the Easy Setup Proﬁle. See Binding Map Lists and Ser ver Lists on page 9-110.

This is all you need to do if you want to continue to use a single PAT, or 1-to-many, NAT conﬁguration.

Server Lists and Dynamic NAT conﬁguration

You use the advanced NAT feature sets by ﬁrst deﬁning a series of mapping rules and then grouping them into a list. There are two kinds of lists -- map lists, made up of dynamic, PAT and static mapping rules, and ser ver lists, a list of internal services to be presented to the external world. Creating these lists is a four-step process:

1. Deﬁne the public range of addresses that external computers should use to get to the NAT internal machines. These are the addresses that someone on the Internet would see.

2. Create a List name that will act as a rule or ser ver holder.

3. Create a map or rule that speciﬁes the internal range of NATed addresses and the external range they are to be associated with.

4. Associate the Map or Server List to your WAN interface via a Connection Proﬁle or the Default Proﬁle.

The three NAT features all operate completely independently of each other, although they can be used simultaneously on the same Connection Proﬁle.

Multiple Network Address Translation 9-97

You can conﬁgure a simple 1-to-many PAT (often referred to simply as NAT) mapping using Easy Setup. More complex setups require conﬁguration using the Network Address Translation item on the IP Setup screen.

An example MultiNAT conﬁguration at the end of this chapter describes some applications for these features. See the MultiNAT Conﬁguration Example on page 9-116.

In order to conﬁgure the router to make ser vers on your LAN visible to the Internet, you use advanced features in the System Conﬁguration screens, described in IP setup.

IP setup

To access the NAT conﬁguration screens, from the Main Menu navigate to IP Setup:

Main

IP Setup

Ethernet IP Address: 192.168.1.1 Ethernet Subnet Mask: 255.255.255.0 Define Additional Subnets...

Default IP Gateway: 127.0.0.2

Primary Domain Name Server: 0.0.0.0 Secondary Domain Name Server: 0.0.0.0 Domain Name: isp.com

Receive RIP... Both Transmit RIP... Off

Static Routes... IP Address Serving... Network Address Translation (NAT)...

Set up the basic IP attributes of your Netopia in this screen.

System

Configuration

Select Network Address Translation (NAT) and press Return.

Setup

9-98 User’s Reference Guide

The Network Address Translation screen appears.

Network Address Translation

Add Public Range... Show/Change Public Range... Delete Public Range...

Add Map List... Show/Change Map List... Delete Map List...

Add Server List... Show/Change Server List... Delete Server List...

NAT Associations...

Return/Enter to configure IP Address redirection.

Public Range deﬁnes an external address range and indicates what type of mapping to apply when using this range. The types of mapping available are dynamic, static and pat.

Map Lists deﬁne collections of mapping rules. A rule maps interior range addresses to exterior range addresses by the mapping techniques deﬁned in the map list.

Server Lists bind internal IP addresses and ports to external IP addresses and por ts so that connections initiated from the outside can access an interior server.

NAT rules

The following rules apply to assigning NAT ranges and server lists:

■ Static public address ranges must not overlap other static, PAT, public addresses, or the public address

assigned to the router’s WAN interface.

■ A PAT public address must not overlap any static address ranges. It may be the same as another PAT

address or server list address, but the por t range must not overlap.

You conﬁgure the ranges of exterior addresses by ﬁrst adding public ranges.

Select Add Public Range and press Return.

Multiple Network Address Translation 9-99

The Add NAT Public Range screen appears.

Add NAT Public Range

Range Name: my_first_range

Type... pat

Public Address: 206.1.1.6

First Public Port: 49152

Last Public Port: 65535

ADD NAT PUBLIC RANGE CANCEL

■ Select Range Name and give a descriptive name to this range.

■ Select Type and from the pop-up menu, assign its type. Options are static, dynamic, or pat (the default).

■ If you choose pat as the range type, select Public Address and enter the exterior IP address in the

range you want to assign. Select First and Last Public Port and enter the ﬁrst and last exterior por ts in the range. These are the ports that will be used for trafﬁc initiated from the private LAN to the outside world.

Note: For PAT map lists and server lists, if you use the Public Address 0.0.0.0, the list will acquire its public IP address from the WAN IP address speciﬁed by your WAN IP conﬁguration in the Connection Proﬁle. If that is a static IP address, then the PAT map list and server lists will acquire that address. If it is a negotiated IP address, such as may be assigned via DHCP or PPP, the PAT map list and server lists will acquire that address each time it is negotiated.

■ If you choose dynamic as the range type, a new menu item, First Public Address, becomes visible.

Select First Public Address and enter the ﬁrst exterior IP address in the range you want to assign. Select Last Public Address and enter an IP address at the end of the range.

■ If you choose static as the range type, a new menu item, First Public Address, becomes visible.

Select First Public Address and enter the ﬁrst exterior IP address in the range you want to assign. Select Last Public Address and enter an IP address at the end of the range.

■ Select ADD NAT PUBLIC RANGE and press Return. The range will be added to your list and you will be

returned to the Network Address Translation screen.

Once the public ranges have been assigned, the next step is to bind interior addresses to them. Because these bindings occur in ordered lists, called map lists, you must ﬁrst deﬁne the list, then add mappings to it.

From the Network Address Translation screen select Add Map List and press Return.

The Add NAT Map List screen appears.

9-100 User’s Reference Guide

Add NAT Map List

Map List Name: my_map

Add Map...

■ Select Map List Name and enter a descriptive name for this map list. A new menu item, Add Map,

appears.

■ Select Add Map and press Return. The Add NAT Map screen appears.

Add NAT Map ("my_map")

First Private Address: 192.168.1.1

Last Private Address: 192.168.1.254

Use NAT Public Range...

ADD NAT MAP CANCEL

■ Select First and Last Private Address and enter the ﬁrst and last interior IP addresses you want to assign

to this mapping.

■ Select Use NAT Public Range and press Return. A screen appears displaying the public ranges you have

deﬁned.
