Netopia® 3387W-ENT
Cable/DSL Wireless Router
Getting Started Guide
Copyright
©2003 Netopia, Inc., v.081203
All rights reserved. Printed in the U.S.A.
This manual and any associated artwork, software, and product designs are copyrighted with
all rights reserved. Under the copyright laws such materials may not be copied, in whole or
part, without the prior written consent of Netopia, Inc. Under the law, copying includes
translation to another language or format.
Netopia, Cayman, and “Making Broadband Work” are registered trademarks of Netopia, Inc.
All rights reserved.
Netopia, Inc.
6001 Shellmound Street, 4th Floor
Emeryville, CA 94608
U.S.A.
Part Number
Netopia part number 6161161-00-01
CCCCoooonnnntttteeeennnnttttss
ss
Contents 3
Chapter 1 — Introduction..........................................................1-5
Overview ....................................................................... 1-5
Features and Capabilities............................................... 1-5
How to Use this Guide.................................................... 1-6
Chapter 2 — Making the Physical Connections.......................... 2-1
Find a Location.............................................................. 2-1
What You Need.............................................................. 2-1
Important Safety Instructions ......................................... 2-2
POWER SUPPLY INSTALLATION .............................. 2-2
Identify the Connectors and Attach the Cables ................. 2-3
Netopia 3387W-ENT Cable/DSL Wireless Router
Status Lights................................................................. 2-5
Chapter 3 — Connecting to Your Local Area Network.................3-1
Readying Computers on Your Local Network..................... 3-1
Connecting to an Ethernet Network ................................. 3-2
G
Chapter 4 — Configuring TCP/IP...............................................4-5
Configuring TCP/IP on Windows-based Computers............ 4-5
Microsoft Windows......................................................... 4-5
Configuring TCP/IP on Macintosh Computers ................... 4-7
Macintosh MacOS 8 or higher or Mac OS X...................... 4-7
Chapter 5 — Telnet-Based Management ....................................5-1
Connecting through a Telnet Session............................... 5-2
Configuring Telnet software ................................... 5-2
Navigating through the Telnet Screens............................. 5-3
Chapter 6 — Easy Setup ...........................................................6-1
Easy Setup Telnet Screens ............................................. 6-1
Accessing the Easy Setup Telnet screens............... 6-1
Quick Easy Setup Connection Path.................................. 6-2
1. WAN Ethernet Configuration .............................. 6-4
2. Easy Setup Profile ............................................ 6-5
3. IP Easy Setup .................................................. 6-6
4 Getting Started Guide
4. Easy Setup Security Configuration ..................... 6-7
Chapter 7 — Wireless LAN Configuration...................................7-1
Wireless Configuration ................................................... 7-1
Appendix A — Technical Specifications and Safety Information ..A-1
Description.................................................................... A-1
Power requirements ............................................. A-1
Environment ........................................................ A-1
Software and protocols......................................... A-1
Agency approvals........................................................... A-2
Regulatory notices ............................................... A-2
Manufacturer’s Declaration of Conformance .................... A-3
Important Safety Instructions ......................................... A-4
FCC Part 68 Information................................................. A-5
Electrical Safety Advisory ............................................... A-6
Introduction 1-5
CCCChhhhaaaapppptttteeeerrrr 11
IIIInnnnttttrrrroooodddduuuuccccttttiiiioooonn
11
nn
Overview
The Netopia 3387W-ENT Cable/DSL Wireless Router is a full-featured Ethernet router for connecting both wired
and wireless local area networks (LANs) to the Internet and other remote networks. The Netopia 3387W-ENT
Cable/DSL Wireless Router connects easily to the Ethernet port of your cable or DSL modem to provide your
whole network with a high-speed connection to the outside world.
This section covers the following topics:
•
“Features and Capabilities” on page 1-5
•
“How to Use this Guide” on page 1-6
Features and Capabilities
The Netopia 3387W-ENT Cable/DSL Wireless Router provides the following features:
•
10/100-BaseT Ethernet WAN port to connect to any broadband modem, such as DSL or Cable
•
LAN interface: four port 10/100BaseTX RJ-45 Ethernet switch with Auto-crossover suppor t,
Wi-Fi CERTIFIED™ 802.11b wireless support for high-speed wireless LAN connections
•
Dual tuned (internal/external) antennas for 3D-Reach wireless networking
•
Point-to-Point Protocol (PAP/CHAP authentication)
•
PPP over Ethernet Gateway
•
PPP over Ethernet pass-through
•
Transparent bridging option
•
Support for IP routing for Internet connectivity
•
Numbered or unnumbered WAN interface
•
Support for Ethernet LANs with up to eight Ethernet IP subnets
•
NAT/NAPT, Multi-NAT, and DHCP (client, server, and relay) for security and convenience
•
DNS proxy
•
IP Multicast Forwarding, IGMP V1, V2
•
RIP1 and RIP2, static routes
•
IP QoS: TOS bit prioritization
•
VPN Pass-through for PPTP and IPSec
1-6 Getting Started Guide
•
Built-in VPN gateway features offer support for up to 15 PPTP or IPSec VPN tunnels
•
IPSec implementation supports DES or 3DES encryption, MD5 or SHA1 encapsulation, and manual or IKE
keying
•
Built-in firewall protects LAN resources from Internet intruders
•
Backup Default Gateway feature with an external router enables high-availability solutions
•
Menu-driven or CLI interfaces via Telnet
•
Easy Setup with menu-driven interface
•
Tiered Access, 2 levels of configuration access
•
Configuration Management, up to 3 backup configurations
•
TFTP download/upload of new firmware and configuration files
•
System diagnostics and logs
•
SNMP V1 and V2 (read/write access)
•
Management utilities: ICMP ping, trace route, Telnet client, and Syslog client
•
Status lights (LEDs) for easy monitoring and troubleshooting
•
Wall-mountable, Bookshelf (Side-stackable), or Desktop-stackable design for efficient space usage
How to Use this Guide
In addition to the documentation contained in the accompanying
to get you up and running and connected to your local area network and the Internet. It is intended to be viewed
on-line, using the powerful features of the Adobe Acrobat Reader. The information display has been deliberately
designed to present the maximum information in the minimum space on your screen. You can keep this
document open while you perform any of the procedures described, and find useful information about the
procedure you are per forming.
You can also print out all of the manual, or individual sections, if you prefer to work from hard copy rather than
on-line documentation. The pages are formatted to print on standard 8 1/2 by 11 inch paper. We recommend
that you print on 3-hole punched paper, so that you can put the pages in a binder for future reference.
This guide is organized into chapters describing the Netopia 3387W-ENT’s advanced features. You may want to
read each chapter’s introductory section to familiarize yourself with the various features available.
Use the guide’s table of contents and index to locate informational topics.
Firmware User’s Guide
, this guide is designed
Making the Physical Connections 2-1
CCCChhhhaaaapppptttteeeerrrr 22
MMMMaaaakkkkiiiinnnngggg tttthhhheeee PPPPhhhhyyyyssssiiiiccccaaaallll CCCCoooonnnnnnnneeeeccccttttiiiioooonnnnss
This section tells you how to make the physical connections to your Netopia 3387W-ENT Cable/DSL Wireless
Router. This section covers the following topics:
•
“Find a Location” on page 2-1
•
“What You Need” on page 2-1
•
“Identify the Connectors and Attach the Cables” on page 2-3
•
“Netopia 3387W-ENT Cable/DSL Wireless Router Status Lights” on page 2-5
22
ss
Find a Location
When choosing a location for the Netopia Cable/DSL Wireless Router, consider:
•
Available space and ease of installation
•
Physical layout of the building and how to best use the physical space available for connecting your Netopia
Cable/DSL Wireless Router to the LAN
•
Available wiring and jacks
•
Distance from the point of installation to the next device (length of cable or wall wiring)
•
Ease of access to the front of the unit for configuration and monitoring
•
Ease of access to the back of the unit for checking and changing cables
•
Cable length and network size limitations when expanding networks
What Y ou Need
Locate all items that you need for the installation.
Included in your router package are:
•
The Netopia 3387W-ENT Cable/DSL Wireless Router
•
A power adapter and cord
•
One yellow Category 5 Ethernet cable
•
One gray RJ-45 Modem cable
•
The Netopia CD containing software and documentation
2-2 Getting Started Guide
You will need:
•
A Windows–based PC or a Macintosh computer with Ethernet connectivity for configuring the Netopia
3387W-ENT. This may be built-in Ethernet or an add-on card, with TCP/IP installed and configured. See
“Configuring TCP/IP” on page 4-5.
•
An installed and functioning cable or DSL (broadband) modem with an Internet connection to connect to the
WAN port on your Netopia 3387W-ENT Cable/DSL Wireless Router.
Important Safety Instructions
POWER SUPPLY INSTALLATION
Connect the power supply cord to the power jack on the Cayman Router. Plug the power supply into an
appropriate electrical outlet.
CAUTION: Depending on the power supply provided with the product, either the direct plug-in power supply
blades, power supply cord plug or the appliance coupler serves as the main power disconnect. It is
important that the direct plug-in power supply, socket-outlet or appliance coupler be located so it is readily
accessible.
CAUTION (North America Only): For use only with a CSA Cer tified or UL Listed Limited Power Source or
Class 2 power supply, rated 12Vdc, 1.5A.
CAUTION (Europe Only): For use only with a GS approved Limited Power Source, rated 12Vdc, 1.5A.
(Sweden) Apparaten skall anslutas till jordat uttag när den ansluts till ett nätverk
(Norway) Apparatet må kun tilkoples jordet stikkontakt.
TELECOMMUNICATION INSTALLATION CAUTIONS
When using your telephone equipment, basic safety precautions should always be followed to reduce the
risk of fire, electric shock and injury to persons, including the following:
1. Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink or laundry
tub, in a wet basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote
risk of electrical shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
SAVE THESE INSTRUCTIONS
Making the Physical Connections 2-3
Identify the Connectors and Attach the Cables
Identify the connectors on the back panel and attach the necessary Netopia Router cables.
Netopia 3387W-ENT back panel
Modem
3
LAN
4
2
1
Power
Off / On
Modem port
Ethernet
ports
Power port
Wireless antenna
.
Port Description
Modem port An RJ-45 jack labeled Modem to connect to your DSL or cable modem’s Ethernet port.
Ethernet ports Four RJ-45 10/100Base-T Ethernet jacks. You can use one of these to configure the
Netopia 3387W-ENT. You can either connect your computer directly to an Ethernet port
using the supplied Category 5 Ethernet cable, or connect both your computer and the
Netopia 3387W-ENT to an existing LAN environment. The Ethernet ports are
auto-sensing, eliminating the need for a crossover cable.
Power port A DC power adapter cable connection.
Wireless antenna An 802.11b wireless antenna to send and receive traffic from your wireless LAN
computers.
2-4 Getting Started Guide
Connect your computer, DSL line, and power source as shown.
Modem
Modem
2
3
LAN
4
2
1
1
DC Power
Power
Off / On
3
Ethernet
4
DSL or Cable
Modem

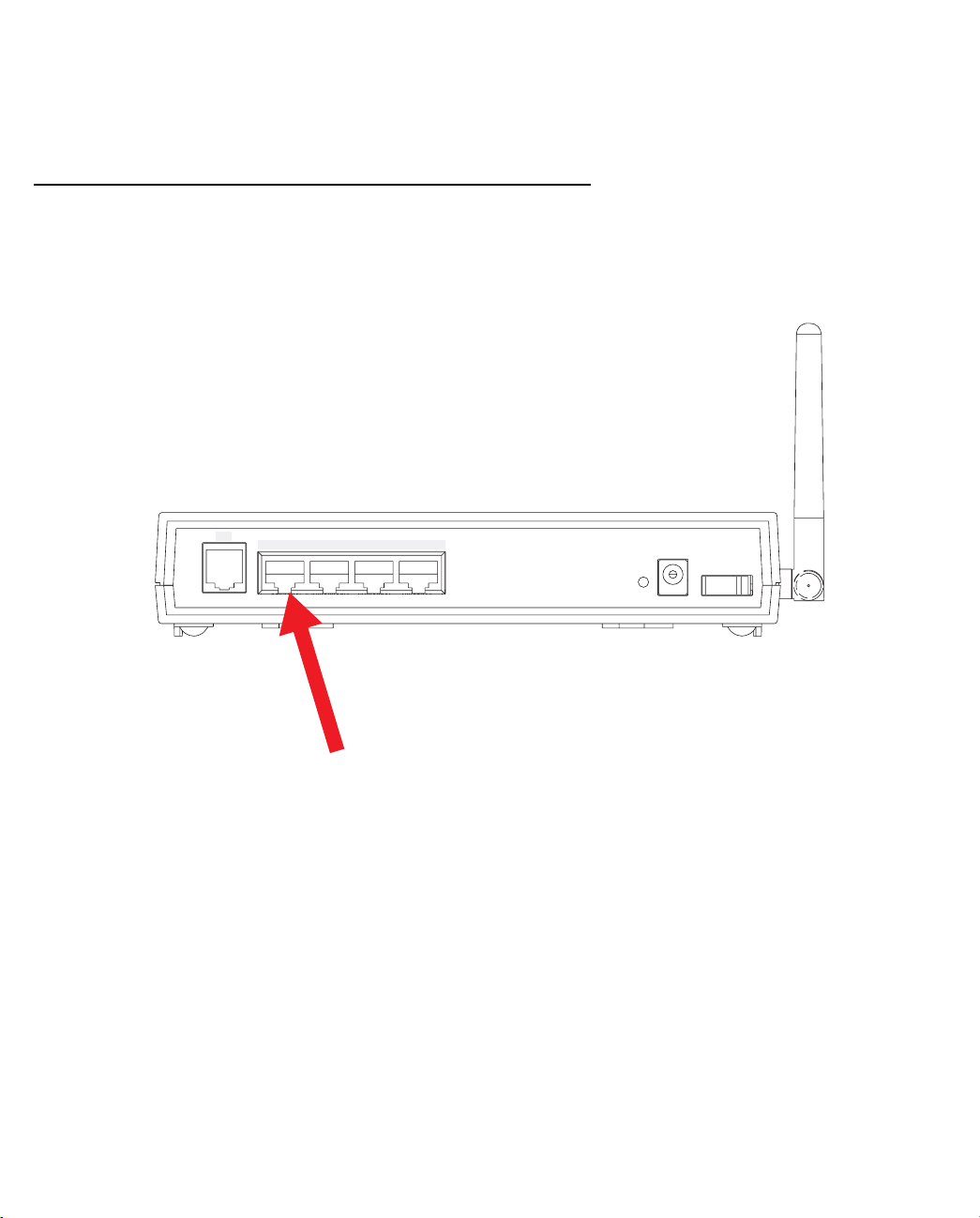

1. For a direct computer to router Ethernet connection, use the standard Ethernet cable included with your
router.
2. Use the supplied RJ-45 Modem cable to connect the router to your cable or DSL modem’s Ethernet port.
Be sure your cable or DSL modem is correctly installed according to its instructions.
3. Connect the supplied power brick to a power outlet and the connector end to the router.
4. Each computer using the wireless network requires its own Wi-Fi CERTIFIED™ 802.11b adapter to be
installed in the computer.
This may be purchased from any Wi-Fi CERTIFIED™ manufacturer for your particular computer.
You should now have: the power adapter plugged in; the Ethernet cable connected between the router and your
computer; and the telephone cable connected to its appropriate wall jack.
Making the Physical Connections 2-5
Netopia 3387W-ENT Cable/DSL Wireless Router Status Lights
The figure below represents the Netopia 3387W-ENT status light (LED) panel.
Netopia 3387W-ENT status indicator lights
Modem
Power:
Solid green when the power is on
Modem -
Solid green when connected
Flashes green for traffic on the WAN
LAN 1, 2, 3, 4 -
Solid green when connected
to each port on the LAN.
Flash green when there is
activity on each port.
Wireless Link -
Flashes green when there is
activity on the wireless LAN.
2-6 Getting Started Guide
Connecting to Your Local Area Network 3-1
CCCChhhhaaaapppptttteeeerrrr 33
CCCCoooonnnnnnnneeeeccccttttiiiinnnngggg ttttoooo YYYYoooouuuurrrr LLLLooooccccaaaallll AAAArrrreeeeaaaa NNNNeeeettttwwwwoooorrrrkk
This chapter describes how to physically connect the Netopia 3387W-ENT to your local area network (LAN).
Before you proceed, make sure the Netopia 3387W-ENT is properly configured. You can customize the router’s
configuration for your particular LAN requirements using console-based management (see “Telnet-Based
Management” on page 5-1).
This section covers the following topics:
• “Readying Computers on Your Local Network” on page 3-1
• “Connecting to an Ethernet Network” on page 3-2
33
kk
Readying Computers on Your Local Network
PC and Macintosh computers must have certain components installed before they can communicate through
the Netopia 3387W-ENT. The following illustration shows the minimal requirements for a typical PC or
Macintosh computer.
Application software
TCP/IP stack
Ethernet Driver
Your PC
or Macintosh
computer
To the Netopia
Application software: This is the software you use to send e-mail, browse the World Wide Web, read
newsgroups, etc. These applications may require some configuration. Examples include the Eudora e-mail client
and the Web browsers Microsoft Internet Explorer and Netscape Navigator.
TCP/IP stack: This is the software that lets your PC or Macintosh computer communicate using Internet
protocols. TCP/IP stacks must be configured with some of the same information you used to configure the
Netopia 3387W-ENT. There are a number of TCP/IP stacks available for PC computers. Windows 95 includes a
built-in TCP/IP stack. Macintosh computers use either MacTCP or Open Transport. See “Configuring TCP/IP on
Windows-based Computers” on page 4-5. Macintosh computers use either MacTCP or Open Transport. See
“Configuring TCP/IP on Macintosh Computers” on page 4-7.
3-2 Getting Started Guide
Ethernet: Ethernet hardware and software drivers enable your PC or Macintosh computer to communicate on
the LAN.
Once the Netopia 3387W-ENT is properly configured and connected to your LAN, PC and Macintosh computers
that have their required components in place will be able to connect to the Internet or other remote IP networks.
Connecting to an Ethernet Network
You can connect a standard 10/100Base-T Ethernet network to the Netopia 3387W-ENT using any of its
Ethernet ports.
Netopia 3387W-ENT back panel
Modem
3
4
LAN
2
1
Power
Off / On
Loading...
