Netopia™ 3346-ENT
ADSL Router
Getting Started Guide
M
AKING BROADBAND WORK
™
Copyright
©2003 Netopia, Inc., v.023003
All rights reserved. Printed in the U.S.A.
This manual and any associated artwork, software, and product designs are copyrighted with
all rights reserved. Under the copyright laws such materials may not be copied, in whole or
part, without the prior written consent of Netopia, Inc. Under the law, copying includes
translation to another language or format.
Netopia and Cayman are registered trademarks, and “Making Broadband Work” is a
trademark of Netopia, Inc. All rights reserved.
Netopia, Inc.
6001 Shellmound Street, 4th Floor
Emeryville, CA 94608
U.S.A.
Part Number
For additional copies of this electronic manual, order Netopia par t number 6161151-00-01
CCCCoooonnnntttteeeennnnttttss
ss
Contents 3
Chapter 1 — Introduction.......................................................... 1-5
Overview ....................................................................... 1-5
Features and Capabilities ............................................... 1-5
How to Use this Guide.................................................... 1-6
Chapter 2 — Making the Physical Connections.......................... 2-1
Find a Location .............................................................. 2-1
What You Need.............................................................. 2-1
Important Safety Instructions ......................................... 2-2
Identify the Connectors and Attach the Cables ................. 2-3
Netopia 3346-ENT ADSL Router Status Lights.................. 2-5
Chapter 3 — Connecting to Your Local Area Network ................. 3-1
Readying Computers on Your Local Network..................... 3-1
Connecting to an Ethernet Network ................................. 3-2
G
Chapter 4 — Sharing the Connection......................................... 4-1
Configuring TCP/IP on Windows-based Computers............ 4-1
Dynamic configuration (recommended)................... 4-1
Static configuration (optional)................................ 4-3
Configuring TCP/IP on Macintosh Computers ................... 4-4
Dynamic configuration (recommended)................... 4-5
Static configuration (optional)................................ 4-5
Chapter 5 — Telnet-Based Management ....................................5-1
Connecting through a Telnet Session............................... 5-2
Configuring Telnet software ................................... 5-2
Navigating through the Telnet Screens............................. 5-3
Chapter 6 — Easy Setup ...........................................................6-1
Easy Setup Telnet Screens ............................................. 6-1
Accessing the Easy Setup Telnet screens............... 6-1
Quick Easy Setup Connection Path.................................. 6-2
1. DSL Line Configuration ..................................... 6-4
2. Easy Setup Profile ............................................ 6-5
4 Getting Started Guide
3. IP Easy Setup .................................................. 6-6
4. Easy Setup Security Configuration ..................... 6-8
Appendix A — Technical Specifications and Safety Information ..A-1
Description.................................................................... A-1
Power requirements ............................................. A-1
Environment ........................................................ A-1
Software and protocols......................................... A-1
Agency approvals........................................................... A-2
Regulatory notices ............................................... A-2
Manufacturer’s Declaration of Conformance .................... A-3
Important Safety Instructions ......................................... A-4
FCC Part 68 Information................................................. A-5
Electrical Safety Advisory ............................................... A-6
Introduction 1-5
CCCChhhhaaaapppptttteeeerrrr 11
IIIInnnnttttrrrroooodddduuuuccccttttiiiioooonn
11
nn
Overview
The Netopia 3346-ENT ADSL Router is a full-featured, stand-alone DSL router for connecting diverse local area
networks (LANs) to the Internet and other remote networks. The Netopia 3346-ENT ADSL Router uses a high
performance ADSL line to provide your whole network with a high-speed connection to the outside world.
This section covers the following topics:
•
“Features and Capabilities” on page 1-5
•
“How to Use this Guide” on page 1-6
Features and Capabilities
The Netopia 3346-ENT ADSL Router provides the following features:
•
ADSL WAN interface supports asymmetric data rates from 32 Kbps to 8 Mbps downstream and 32 Kbps to
800 Kbps upstream over an RJ-11 interface
•
ADSL WAN interface suppor ts ADSL Annex A (POTS, T1.413, G.992.1, G.992.2)
•
Interoperable with all major ADSL DSLAM vendors
•
LAN interface: four port 10/100BaseTX Ethernet switch with Auto-crossover suppor t, RJ-45
•
Support for up to 8 ATM (AAL5) PVCs
•
Bridged or routed Ethernet encapsulation, LLC/SNAP and VC Multiplexing (RFC 1483/RFC 2684)
•
1.610 OAM F5 Loopback
•
ATM QoS: UBR, CBR
•
Point-to-Point Protocol (PAP/CHAP authentication)
•
PPP over Ethernet Gateway
•
PPP over ATM Gateway: LLC and VC Multiplexing
•
PPP over Ethernet pass-through
•
Transparent bridging option
•
Support for IP routing for Internet connectivity
•
Numbered or unnumbered WAN interface
•
Support for Ethernet LANs with up to eight Ethernet IP subnets
1-6 Getting Started Guide
•
NAT/NAPT, Multi-NAT, and DHCP (client, server, and relay) for security and convenience
•
DNS proxy
•
IP Multicast Forwarding, IGMP V1, V2
•
RIP1 and RIP2, static routes
•
IP QoS: TOS bit prioritization
•
VPN Pass-through for PPTP and IPSec
•
Built-in VPN gateway features offer support for up to 15 PPTP or IPSec VPN tunnels
•
IPSec implementation supports DES or 3DES encryption, MD5 or SHA1 encapsulation, and manual or IKE
keying
•
Built-in firewall protects LAN resources from Internet intruders
•
Backup Default Gateway feature with an external router enables high-availability solutions
•
Menu-driven or CLI interfaces via Telnet
•
Easy Setup with menu-driven interface
•
Tiered Access, 2 levels of configuration access
•
Configuration Management, up to 3 backup configurations
•
TFTP download/upload of new firmware and configuration files
•
System diagnostics and logs
•
SNMP V1 and V2 (read/write access)
•
Management utilities: ICMP ping, trace route, Telnet client, and Syslog client
•
Status lights (LEDs) for easy monitoring and troubleshooting
•
Wall-mountable, Bookshelf (Side-stackable), or Desktop-stackable design for efficient space usage
How to Use this Guide
In addition to the documentation contained in the accompanying
to get you up and running and connected to your local area network and the Internet. It is intended to be viewed
on-line, using the powerful features of the Adobe Acrobat Reader. The information display has been deliberately
designed to present the maximum information in the minimum space on your screen. You can keep this
document open while you perform any of the procedures described, and find useful information about the
procedure you are per forming.
You can also print out all of the manual, or individual sections, if you prefer to work from hard copy rather than
on-line documentation. The pages are formatted to print on standard 8 1/2 by 11 inch paper. We recommend
that you print on 3-hole punched paper, so that you can put the pages in a binder for future reference.
This guide is organized into chapters describing the Netopia 3346-ENT’s advanced features. You may want to
read each chapter’s introductor y section to familiarize yourself with the various features available.
Use the guide’s table of contents and index to locate informational topics.
Firmware User’s Guide
, this guide is designed
Making the Physical Connections 2-1
CCCChhhhaaaapppptttteeeerrrr 22
MMMMaaaakkkkiiiinnnngggg tttthhhheeee PPPPhhhhyyyyssssiiiiccccaaaallll CCCCoooonnnnnnnneeeeccccttttiiiioooonnnnss
This section tells you how to make the physical connections to your Netopia 3346-ENT ADSL Router. This
section covers the following topics:
•
“Find a Location” on page 2-1
•
“What You Need” on page 2-1
•
“Identify the Connectors and Attach the Cables” on page 2-3
•
“Netopia 3346-ENT ADSL Router Status Lights” on page 2-5
22
ss
Find a Location
When choosing a location for the Netopia ADSL Router, consider:
•
Available space and ease of installation
•
Physical layout of the building and how to best use the physical space available for connecting your Netopia
ADSL Router to the LAN
•
Available wiring and jacks
•
Distance from the point of installation to the next device (length of cable or wall wiring)
•
Ease of access to the front of the unit for configuration and monitoring
•
Ease of access to the back of the unit for checking and changing cables
•
Cable length and network size limitations when expanding networks
For small networks, install the Netopia 3346-ENT near one of the LANs. For large networks, you can install the
Netopia 3346-ENT in a wiring closet or a central network administration site.
What You Need
Locate all items that you need for the installation.
Included in your router package are:
•
The Netopia 3346-ENT ADSL Router
•
A power adapter and cord
•
One Category 5 Ethernet cable
•
One DSL WAN (or Line) cable
•
The Netopia CD containing software and documentation
2-2 Getting Started Guide
You will need:
•
A Windows–based PC or a Macintosh computer with Ethernet connectivity for configuring the Netopia
3346-ENT. This may be built-in Ethernet or an add-on card, with TCP/IP installed and configured. See
“Sharing the Connection” on page 4-1.
•
A DSL wall outlet wired for a connection to a telephone carrier who supports Asymmetric Digital Subscriber
Line (ADSL) connections.
Important Safety Instructions
CAUTION: Depending on the power supply provided with the product, either the direct plug-in power supply
blades, power supply cord plug or the appliance coupler serves as the main power disconnect. It is
important that the direct plug-in power supply, socket-outlet or appliance coupler be located so it is readily
accessible.
CAUTION (North America Only): For use only with a CSA Cer tified or UL Listed Limited Power Source or
Class 2 power supply, rated 12Vdc, 1.5A.
CAUTION (Europe Only): For use only with a GS approved Limited Power Source, rated 12Vdc, 1.5A.
TELECOMMUNICATION INSTALLATION CAUTIONS
When using your telephone equipment, basic safety precautions should always be followed to reduce the
risk of fire, electric shock and injury to persons, including the following:
1. Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink or laundry
tub, in a wet basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote
risk of electrical shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
SAVE THESE INSTRUCTIONS
Making the Physical Connections 2-3
Identify the Connectors and Attach the Cables
Identify the connectors and switches on the back panel and attach the necessary Netopia Router cables.
Connect your computer, DSL line, and power source as shown.
10/100BT LAN
DSL
3
LAN
4
2
2
DSL
1
1
DC Power
Power
Off / On
Power Switch
3
1. For a direct computer to router Ethernet connection, use the standard Ethernet cable included with your
router.
2. Use the supplied DSL line cable to connect the router to your DSL wall outlet.
3. Connect the supplied power brick to a power outlet and the connector end to the router.
You should now have: the power adapter plugged in; the Ethernet cable connected between the router and your
computer; and the DSL cable connected between the router and the DSL wall outlet.
2-4 Getting Started Guide
Netopia 3346-ENT back panel
DSL
3
4
LAN
2
1
Power
Off / On
DSL port
Ethernet
Power port
Power switch
ports
.
Port Description
DSL port An RJ-48 jack labeled DSL for your ADSL connection.
Ethernet ports Four RJ-45 10/100Base-T Ethernet jacks. You can use one of these to configure the
Netopia 3346-ENT. You can either connect your computer directly to an Ethernet port
using the supplied Category 5 Ethernet cable, or connect both your computer and the
Netopia 3346-ENT to an existing LAN environment. The Ethernet ports are auto-sensing,
eliminating the need for a crossover cable.
Power port A DC power adapter cable connection.
Power switch An On/Off rocker switch for power.
Making the Physical Connections 2-5
Netopia 3346-ENT ADSL Router Status Lights
The figure below represents the Netopia 3346-ENT status light (LED) panel.
Netopia 3346-ENT status indicator lights
LAN 3
LAN 2
LAN 1
LAN 1, 2, 3, 4:
Solid green when Ethernet link is established
Blinks green when traffic is sent or received
over the Ethernet
DSL Sync:
Blinks green with no line attached or training,
Solid green when trained with the DSL line
LAN 4
Power
DSL SYNC
Power:
Solid green when the power is on
2-6 Getting Started Guide
Connecting to Your Local Area Network 3-1
CCCChhhhaaaapppptttteeeerrrr 33
CCCCoooonnnnnnnneeeeccccttttiiiinnnngggg ttttoooo YYYYoooouuuurrrr LLLLooooccccaaaallll AAAArrrreeeeaaaa NNNNeeeettttwwwwoooorrrrkk
This chapter describes how to physically connect the Netopia 3346-ENT to your local area network (LAN). Before
you proceed, make sure the Netopia 3346-ENT is properly configured. You can customize the router’s
configuration for your particular LAN requirements using console-based management (see “Telnet-Based
Management” on page 5-1).
This section covers the following topics:
• “Readying Computers on Your Local Network” on page 3-1
• “Connecting to an Ethernet Network” on page 3-2
33
kk
Readying Computers on Your Local Network
PC and Macintosh computers must have certain components installed before they can communicate through
the Netopia 3346-ENT. The following illustration shows the minimal requirements for a typical PC or Macintosh
computer.
Application software
TCP/IP stack
Ethernet Driver
Your PC
or Macintosh
computer
To the Netopia
Application software: This is the software you use to send e-mail, browse the World Wide Web, read
newsgroups, etc. These applications may require some configuration. Examples include the Eudora e-mail client
and the Web browsers Microsoft Internet Explorer and Netscape Navigator.
TCP/IP stack: This is the software that lets your PC or Macintosh computer communicate using Internet
protocols. TCP/IP stacks must be configured with some of the same information you used to configure the
Netopia 3346-ENT. There are a number of TCP/IP stacks available for PC computers. Windows 95 includes a
built-in TCP/IP stack. Macintosh computers use either MacTCP or Open Transport. See “Configuring TCP/IP on
Windows-based Computers” on page 4-1. Macintosh computers use either MacTCP or Open Transport. See
“Configuring TCP/IP on Macintosh Computers” on page 4-4.
3-2 Getting Started Guide
Ethernet: Ethernet hardware and software drivers enable your PC or Macintosh computer to communicate on
the LAN.
Once the Netopia 3346-ENT is properly configured and connected to your LAN, PC and Macintosh computers
that have their required components in place will be able to connect to the Internet or other remote IP networks.
Connecting to an Ethernet Network
You can connect a standard 10/100Base-T Ethernet network to the Netopia 3346-ENT using any of its Ethernet
ports.
Netopia 3346-ENT back panel
3
4
DSL
LAN
2
1
Power
Off / On
If you add devices connected through a hub or switch, connect the hub or switch to an Ethernet por t on the
Netopia 3346-ENT.
The Netopia 3346-ENT in a 10/100Base-T network
3
LAN
To connect your 10/100Base-T
network to the Netopia 3346-ENT
DSL
4
2
1
Power
Off / On
through the Ethernet por t, use
standard Category 5 Ethernet
cables with RJ-45 connectors.
You can attach additional devices
using standard Category 5
Ethernet cables (not provided)
connected to a 10- or 100Base-T
Ethernet hub or switch. The ports
PC
Macintosh
PC
PC
Macintosh
PC
PC
on the router will auto detect 10or 100Base-T. Crossover cables
are not required.
Ethernet
Switch
Sharing the Connection 4-1
CCCChhhhaaaapppptttteeeerrrr 44
SSSShhhhaaaarrrriiiinnnngggg tttthhhheeee CCCCoooonnnnnnnneeeeccccttttiiiioooonn
Once you have set up your physical local area network, you will need to configure the TCP/IP stack on each
client workstation connected to your Netopia 3346-ENT. This chapter describes how to configure TCP/IP for
both Windows-based and Macintosh computers.
This chapter explains the following topics:
• “Configuring TCP/IP on Windows-based Computers” on page 4-1
• “Configuring TCP/IP on Macintosh Computers” on page 4-4
44
nn
Configuring TCP/IP on Windows-based Computers
Configuring TCP/IP on a Windows computer requires the following:
• An Ethernet card (also known as a network adapter)
• The TCP/IP protocol must be “bound” to the adapter or card
Dynamic configuration (recommended)
To configure your PC for dynamic addressing do the following:
4-2 Getting Started Guide

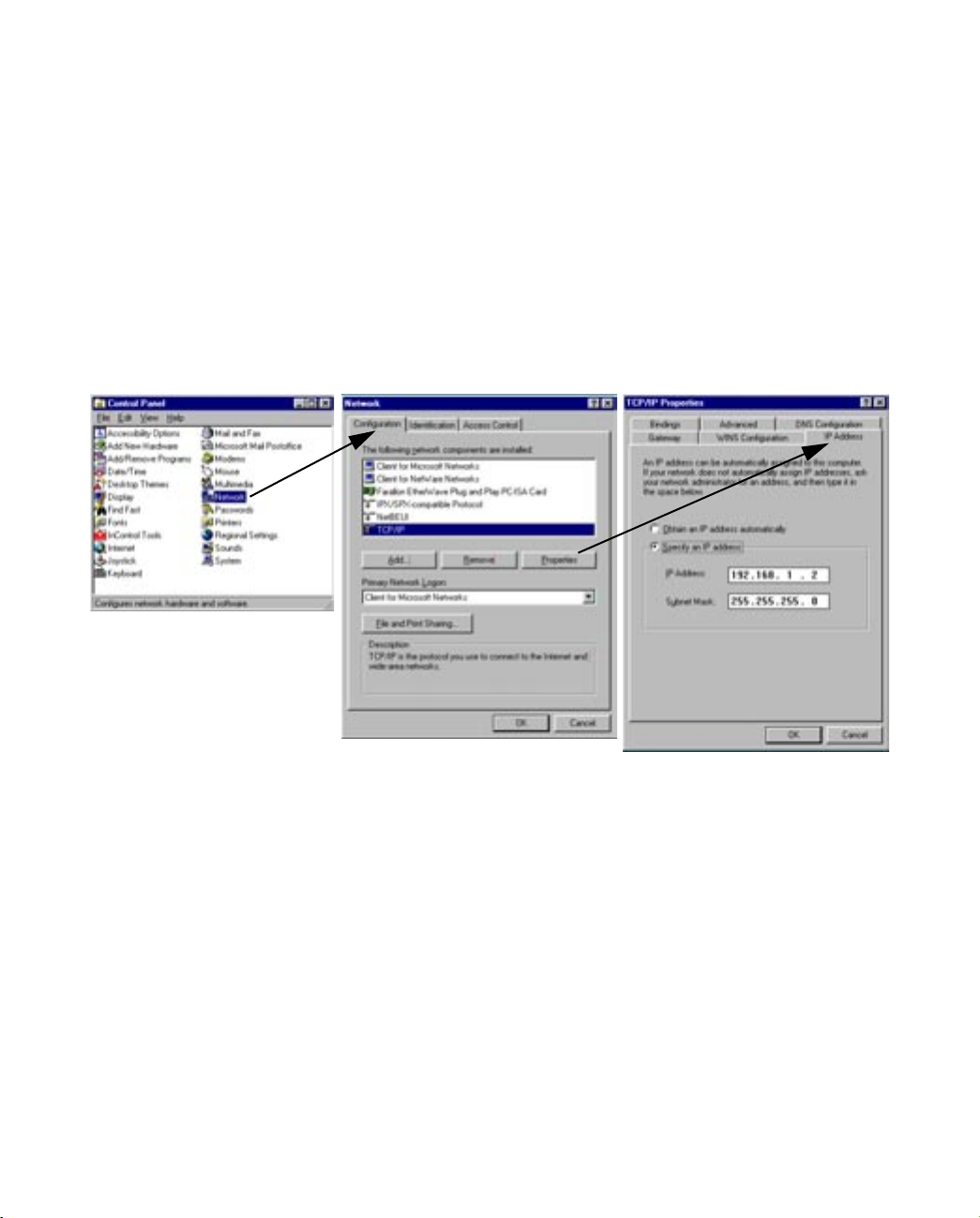

1. Go to the Start
Menu/Settings/Control
Panels and double click
the Network icon. From
the Network components
list, select the
Configuration tab.
2. Select TCP/IP-->Your Network Card. Then select
Properties. In the TCP/IP Properties screen, select the IP
Address tab. Click “Obtain an IP Address automatically”.
3. Click on the DNS Configuration tab. Click Disable DNS.
DNS will be assigned by the router with DHCP.
4. Click OK in this window and the next window. When
prompted, reboot the computer.
Note: You can also use these instructions to configure other computers on your network to accept IP addresses
served by the Netopia 3346-ENT.
Sharing the Connection 4-3
Static configuration (optional)
If you are manually configuring for a fixed or static IP address, per form the following:
1. Go to Start Menu/Settings/Control Panels and double click the Network icon. From the Network
components list, select the Configuration tab.
2. Select TCP/IP-->Your Network Card. Then select Properties. In the TCP/IP Properties screen, select the
IP Address tab. Click “Specify an IP Address.”
Enter the following:
IP Address: 192.168.1.2
Subnet Mask: 255.255.255.0
This address is an example of one that can be used to configure the router. Your ISP or network
administrator may ask you to use a different IP address and subnet mask.
4-4 Getting Started Guide

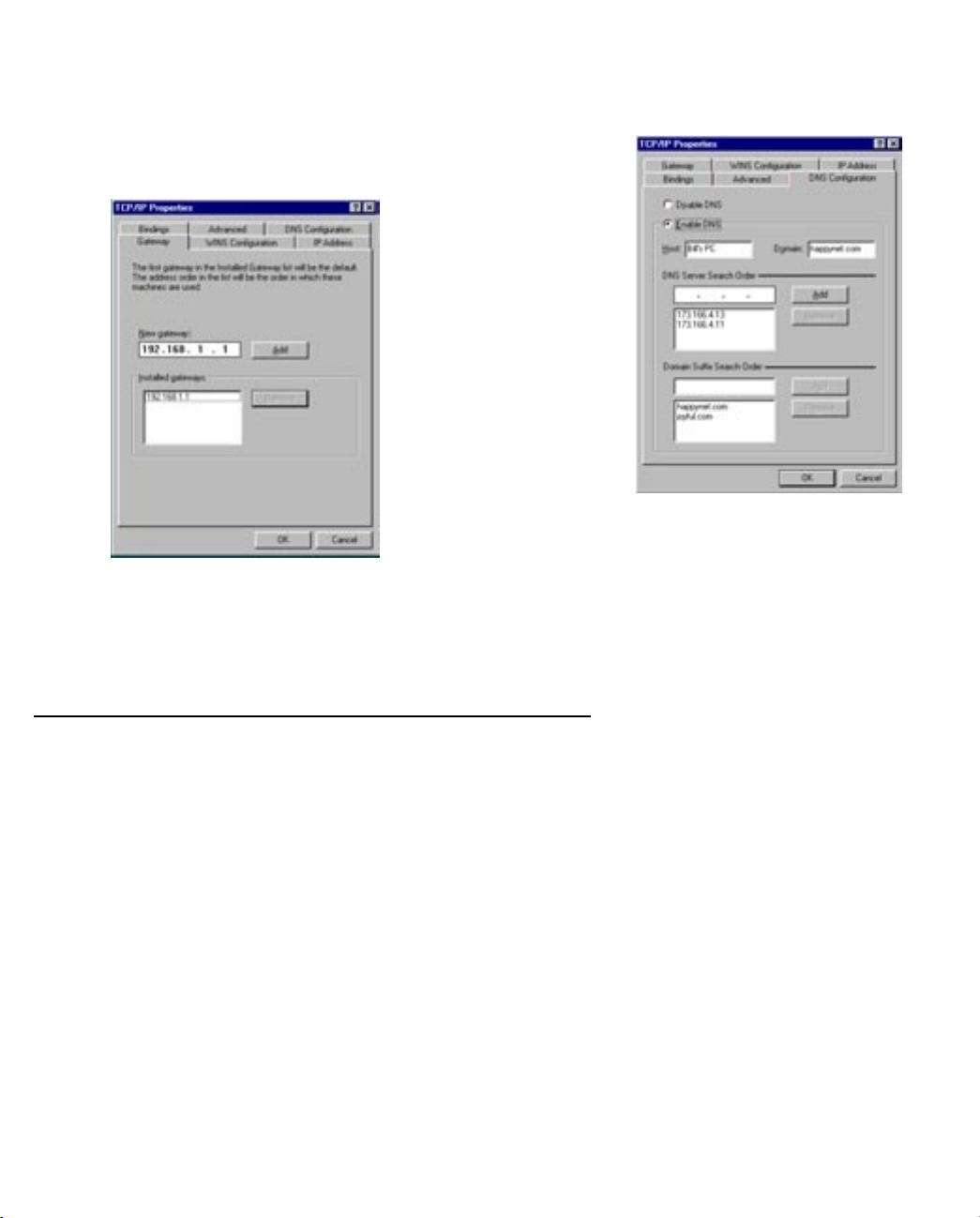

3. Click on the Gateway tab (shown below).
Under “New gateway,” enter
192.168.1.1. Click Add. This is the
Netopia 3346-ENT’s pre-assigned IP
address.
4. Click OK in this window and the next window. When prompted, reboot the computer.
Click on the DNS Configuration tab. Click Enable DNS.
Enter the following
information:
Host: Type the name
you want to give to
this computer.
Domain: Type your
domain name. If you
don't have a domain
name, type your ISP's
domain name; for
example,
netopia.com.
DNS Server Search
Order: Type the
primary DNS IP
address given to you
by your ISP. Click
Add. Repeat this process for the secondary DNS.
Domain Suffix Search Order: Enter the same domain
name you entered above.
Note: You can also use these instructions to configure other computers on your network with manual or static
IP addresses. Be sure each computer on your network has its own IP address.
Configuring TCP/IP on Macintosh Computers
The following is a quick guide to configuring TCP/IP for MacOS computers. Configuring TCP/IP in a Macintosh
computer requires the following:
• You must have either Open Transport or Classic Networking (MacTCP) installed.
If you want to use the Dynamic Host Configuration Protocol (DHCP) server built into your Netopia 3346-ENT
to assign IP addresses to your Macintoshes, you must be running Open Transport, standard in MacOS 8
and higher and optional in earlier system versions.
• You must have built-in Ethernet or a third-party Ethernet card and its associated drivers installed in your
Macintosh.
Sharing the Connection 4-5
Dynamic configuration (recommended)
The Dynamic Host Configuration Protocol (DHCP), which enables dynamic addressing, is enabled by default in
the router. To configure your Macintosh computer for dynamic addressing do the following:
1. Go to the Apple menu. Select Control Panels and then
TCP/IP.
2. With the TCP/IP window open, go to the Edit menu and
select User Mode. Choose Basic and click OK.
3. In the TCP/IP window, select “Connect via: Ethernet” and
“Configure: Using DHCP Server.”
Note: You can also use these instructions to configure other computers on your network to accept IP addresses
served by the Netopia 3346-ENT.
Static configuration (optional)
If you are manually configuring for a fixed or static IP address,
perform the following:
1. Go to the Apple menu. Select Control Panels and then
TCP/IP or MacTCP.
2. With the TCP/IP window open, go to the Edit menu and
select User Mode. Choose Advanced and click OK.
Or, in the MacTCP window, select Ethernet and click the
More button.
4-6 Getting Started Guide
3. In the TCP/IP window or in the MacTCP/More window, select or type information into the fields as shown in
the following table.
Option: Select/Type:
Connect via: Ethernet
Configure: Manually
IP Address: 192.168.1.2
Subnet mask: 255.255.255.0
Router or Gateway address: 192.168.1.1
Name server address: Enter the primary and secondary name server
addresses given to you by your ISP
Implicit Search Path:
Starting domain name:
Enter your domain name; if you do not have a
domain name, enter the domain name of your ISP
4. Close the TCP/IP or MacTCP control panel and save the settings.
5. If you are using MacTCP, you must restart the computer. If you are using Open Transport, you do not need
to restart.
Note: You can use these instructions to configure other computers on your network to accept IP addresses
served by the Netopia 3346-ENT.
You can also use these instructions to configure other computers on your network with manual or static IP
addresses. Be sure each computer on your network has its own IP address.
More information about configuring your Macintosh computer for TCP/IP connectivity through a Netopia
3346-ENT can be found in Technote NIR_026, “Open Transport and Netopia Routers,” located on the Netopia
Web site.
Telnet-Based Management 5-1
CCCChhhhaaaapppptttteeeerrrr 55
TTTTeeeellllnnnneeeetttt----BBBBaaaasssseeeedddd MMMMaaaannnnaaaaggggeeeemmmmeeeennnntt
Telnet-based management is a menu-driven interface for the capabilities built into the Netopia 3346-ENT.
Telnet-based management provides access to a wide variety of features that the router suppor ts. You can
customize these features for your individual setup. This chapter describes how to access the Telnet-based
management screens.
This section covers the following topics:
• “Connecting through a Telnet Session” on page 5-2
• “Navigating through the Telnet Screens” on page 5-3
Telnet-based management screens contain seven entry points to the Netopia 3346-ENT configuration and
monitoring features. The entry points are displayed in the Main Menu shown below:
55
tt
Netopia 3346-ENT
Easy Setup...
WAN Configuration...
System Configuration...
Utilities & Diagnostics...
Statistics & Logs...
Quick Menus...
Quick View...
Return/Enter goes to Easy Setup -- minimal configuration.
You always start from this main screen.
• The Easy Setup menus display and permit changing the values contained in the default connection profile.
You can use Easy Setup to initially configure the router directly through a Telnet session.
Easy Setup menus contain up to five descendant screens for viewing or altering these values. The number
of screens depends on whether you have optional features installed.
This manual describes the Easy Setup menus to get you up and running quickly. For more advanced
features offered in the menus listed below, see the Firmware User’s Guide.
• The WAN Configuration menu displays and permits changing your connection profile(s) and default profile,
creating or deleting additional connection profiles, and configuring or reconfiguring the manner in which you
may be using the router to connect to more than one ser vice provider or remote site.
5-2 Getting Started Guide
• The System Configuration menus display and permit changing:
• IP Setup
• Filter Sets
• IP Address Serving
• Network Address Translation (NAT)
• Date and Time
• SNMP (Simple Network Management Protocol)
• Security
• Upgrade Feature Set
• Change Device to a Bridge
• Logging
• The Utilities & Diagnostics menus provide a selection of seven tools for monitoring and diagnosing the
router's behavior, as well as for updating the firmware and rebooting the system.
• The Statistics & Logs menus display nine sets of tables and device logs that show information about your
router, your network, and their history.
• The Quick Menus screen is a shortcut entry point to 22 of the most commonly used configuration menus
that are accessed through the other menu entr y points.
• The Quick View menu displays at a glance current real-time operating information about your router.
Connecting through a Telnet Session
Features of the Netopia 3346-ENT can be configured through the Telnet screens.
Before you can access the Telnet screens, you must have:
• A network connection locally to the router or IP access to the router.
• Telnet software installed on the computer you will use to configure the router
Configuring Telnet software
If you are configuring your router using a Telnet session, your computer must be running a Telnet software
program.
Telnet-Based Management 5-3
• If you connect a PC with Microsoft Windows, you can use a Windows Telnet application or simply run Telnet
from the Start menu.
• If you connect a Macintosh computer, you can use the NCSA Telnet program supplied on the Netopia
3346-ENT CD. You install NCSA Telnet by simply dragging the application from the CD to your hard disk.
Navigating through the Telnet Screens
Use your keyboard to navigate the Netopia 3346-ENT’s configuration screens, enter and edit information, and
make choices. The following table lists the keys to use to navigate through the Telnet screens.
To... Use These Keys...
Move through selectable items in a screen or pop-up menu Up, Down, Left, and Right Arrow
Set a change to a selected item or open a pop-up menu of
options for a selected item like entering an upgrade key
Change a toggle value (Yes/No, On/Off) Tab
Restore an entry or toggle value to its previous value Esc
Move one item up Up arrow or Control + K
Move one item down Down arrow or Control + O
Display a dump of the device event log Control + E
Display a dump of the WAN event log Control + F
Refresh the screen Control + L
Return or Enter
5-4 Getting Started Guide
Easy Setup 6-1
CCCChhhhaaaapppptttteeeerrrr 66
EEEEaaaassssyyyy SSSSeeeettttuuuupp
This chapter describes how to use the Easy Setup Telnet screens on your Netopia 3346-ENT. After completing
the Easy Setup Telnet screens, your router will be ready to connect to the Internet or another remote site.
66
pp
Easy Setup Telnet Screens
Using four Easy Setup Telnet screens, you can:
• Modify a connection profile for your router for the connection to your ISP or remote location
• Set up IP addresses and IP address ser ving
• Password–protect configuration access to your Netopia 3346-ENT
Accessing the Easy Setup Telnet screens
To access the Telnet screens, Telnet to the Netopia Router over your Ethernet network. See “Connecting
through a Telnet Session” on page 5-2.
Note: Before continuing, make sure you have the information that your ISP or network administrator has given
you for configuring the Netopia Router.
The Netopia Router’s first Telnet screen, Main Menu, appears in the terminal window of the attached PC or
Macintosh computer when:
• The Netopia Router is turned on
• The computer is connected to the Netopia Router
• Telnet software is running and configured correctly
6-2 Getting Started Guide
Quick Easy Setup Connection Path
This section may be all you need to do to configure your Netopia 3346-ENT ADSL Router. Your service provider
will supply you with several parameter values. Below is a handy checklist:
DSL Line Configuration Screen
Trellis Coding Enabled ❑ On (default) or
❑ Off
Fast Retrain Enabled ❑ On (default) or
❑ Off
Wiring Type ❑ Tip/Ring (Inner Pair) (default) or
❑ AutoSense
❑ A/A1 (Outer Pair)
Data Link Encapsulation ❑ RFC1483 (default)
or
❑ PPP PPP Mode:
Data Circuit VPI
Data Circuit VPI
Address Translation
Enabled:
IP Addressing: ❑ Numbered (default) or
0-255 (8 is default)
0-65535 (35 is default)
Easy Setup Profile Screen
❑ Yes (default) or
❑ No
❑ Unnumbered
(for PPP DLEs only)
PPP Authentication:
❑ None (default),
❑ PAP or
❑ CHAP
Ethernet IP Address:
Ethernet Subnet Mask:
Domain Name: _______________________
Primary Domain Name
Server:
Secondary Domain Name
Server:
Default IP Gateway: _______________________
Write Access Name: _______________________ Write Access Password: _______________________
_______________________
_______________________
_______________________
_______________________
Easy Setup Security Configuration Screen
RFC1483 Mode:
❑ Bridged 1483 (default) or
❑ Routed 1483
❑ VC Multiplexed (default) or
❑ LLC SNAP
_______________________
_______________________
(for Numbered IP Addressing)
Local WAN IP Address:
_______________________
Local WAN IP Mask:
_______________________
(for PAP or CHAP)
User Name (or Host Name):
_______________________
IP Easy Setup Screen
(192.168.1.1
255.255.255.0
are defaults)
(for Bridged 1483 only)
PPP over Ethernet (PPPoE)
❑ Off (default) or
❑ On
(for Unnumbered IP Addressing)
Remote IP Address:
_______________________
Remote IP Mask:
_______________________
(for PAP or CHAP)
Password (or Secret):
_______________________
The following steps will get you up and running quickly:
1. Open a Telnet session to 192.168.1.1 to bring up the Main Menu.
If you don't know how to do this, see “Connecting through a Telnet Session” on page 5-2.
The Main Menu appears.
Netopia 3346-ENT
Easy Setup...
WAN Configuration...
System Configuration...
Utilities & Diagnostics...
Statistics & Logs...
Quick Menus...
Quick View...
Easy Setup 6-3
If you do not see the Main Menu, verify that:
• The computer used to view the Telnet screen has an Ethernet connection to the Netopia 3346-ENT’s
Ethernet port. See “Connecting through a Telnet Session” on page 5-2.
• Telnet is configured for the recommended values.
• You have entered the correct password, if necessar y. Your Netopia 3346-ENT’s Telnet access may be
password protected from a previous configuration. See your system administrator to obtain the password.
See the Firmware User’s Guide chapter on “Troubleshooting” for more suggestions.
2. Select the first item on the Main Menu list, Easy Setup. Press Return to bring up the DSL Line
Configuration menu screen.
6-4 Getting Started Guide
1. DSL Line Configuration
ADSL Line Configuration
Trellis Coding Enabled: On
Fast Retrain Enabled: On
Wiring Type... Tip/Ring (Inner Pair)
Data Link Encapsulation... RFC1483
RFC1483 Mode... Bridged 1483
PPP over Ethernet (PPPoE): Off
Data Circuit VPI (0-255): 8
Data Circuit VCI (32-65535): 35
PREVIOUS SCREEN NEXT SCREEN
1. Select Trellis Coding Enabled. Toggle it to On (the default) or Off. Unless other wise specified by your
provider, you can accept this default.
2. Select Fast Retrain Enabled. Toggle it to On (the default) or Off. Unless otherwise specified by your
provider, you can accept this default.
3. The Wiring Type pop-up menu allows you to choose the type of copper pair wiring in use at your location.
Tip/Ring (Inner Pair) is the most common type, and you can usually leave this default. If there is a problem
connecting, you can select AutoSense and the Router will attempt to detect the type and adjust itself
accordingly. If you want to set it yourself, and you know that you have the reversed inner/outer pair type of
wiring, choose A/A1 (Outer Pair) from the pop-up menu.
4. Select Data Link Encapsulation and from the pop-up menu choose either RFC1483 (the default) or PPP.
• If you selected RFC1483, the next pop-up menu RFC1483 Mode offers the choice of Bridged 1483 or
Routed 1483. If you select Bridged 1483, a new option PPP over Ethernet (PPPoE) appears. You can
then toggle PPPoE On or Off. Choosing Routed 1483 hides the PPPoE option.
• If you selected PPP, the next pop-up menu PPP Mode offers the choice of VC Multiplexed or LLC SNAP.
5. The next two fields, Data Circuit VPI and Data Circuit VCI are editable. Enter the Virtual Path Identifier and
Virtual Channel Identifier values that your provider specifies. VPI 8/VCI 35 are the most common. Your
provider must specify these values.
6. Press the Down arrow key until you reach NEXT SCREEN. Press Return to bring up the next screen.
Easy Setup 6-5
2. Easy Setup Profile
The Easy Setup Profile screen is where you configure the parameters that control the Netopia 3346-ENT’s
connection to a specific remote destination, usually your ISP or a corporate site.
On a Netopia 3346-ENT you can add up to 15 more connection profiles, for a total of 16, although you can only
use one at a time, unless you are using Virtual Private Networks (VPNs).
Connection Profile 1: Easy Setup Profile
Connection Profile Name: Easy Setup Profile
Address Translation Enabled: Yes
IP Addressing... Numbered
Local WAN IP Address: 0.0.0.0
Local WAN IP Mask: 0.0.0.0
Remote IP Address: 0.0.0.0
Remote IP Mask: 0.0.0.0
PPP Authentication... None
PREVIOUS SCREEN NEXT SCREEN
Note: The appearance of this screen varies, depending on the settings in the previous screen.
1. To enable address translation, toggle Address Translation Enabled to Yes (the default). For more
information on Network Address Translation, see the Firmware User’s Guide chapter on “Multiple Network
Address Translation (MultiNAT)“.
2. From the IP Addressing menu item, choose between Unnumbered and Numbered addressing. Numbered is
the default for ADSL. It assigns a unique IP address to the ADSL WAN interface, as required by most ISPs’
routers. Unnumbered may be used for simpler configurations such as point-to-point applications.
If you selected Numbered,
• Select the editable field labeled Local WAN IP Address.
The default address is 0.0.0.0, which allows for dynamic addressing, when your ISP assigns an address
using DHCP or PPPoE. However, you can enter another specific address if you want to use static
addressing. In that case, enter the local WAN address your ISP gave you. Press Return.
• Select the editable field labeled Local WAN IP Mask. Enter the mask address your ISP gave you or leave
0.0.0.0 when using DHCP or PPPoE. Press Return.
If you selected Unnumbered, the following fields appear:
• Select the editable field labeled Remote IP Address and enter the remote IP address. Press Return.
• Select the editable field labeled Remote IP Mask and enter the remote mask address. Press Return.
6-6 Getting Started Guide
3. If you selected PPP data link encapsulation in the DSL Line Configuration screen, a PPP Authentication
menu item appears. The authentication protocol and user name/password combinations you enter must
be assigned or agreed to in advance between you and your ISP. Select PPP Authentication and press
Return.
From the pop-up menu that appears, select the authentication method your ISP uses: PAP (Password
Authentication Protocol), CHAP (Challenge Handshake Authentication Protocol), or None.
• PAP is the most common, and requires you to enter a User Name and Password in the next two fields.
• CHAP requires you to enter a Host Name and Secret in the next two fields.
4. Press the Down arrow key until you reach NEXT SCREEN. Press Return to bring up the next screen.
3. IP Easy Setup
The IP Easy Setup screen is where you enter information about your Netopia Router’s:
• Ethernet IP address
• Ethernet Subnet mask
• Domain Name
• Domain Name Server IP address
• Default gateway IP address
Consult with your network administrator to obtain the information you will need. For more information about
setting up IP, see the Firmware User’s Guide chapter on “IP Setup”.
IP Easy Setup
Ethernet IP Address: 192.168.1.1
Ethernet Subnet Mask: 255.255.255.0
Domain Name: isp.net
Primary Domain Name Server: 209.3.224.21
Secondary Domain Name Server: 209.3.224.20
Default IP Gateway: 127.0.0.2
IP Address Serving: On
Number of Client IP Addresses: 100
1st Client Address: 192.168.1.100
PREVIOUS SCREEN NEXT SCREEN
Enter an IP address in decimal and dot form (xxx.xxx.xxx.xxx).
Set up the basic IP & IPX attributes of your Netopia in this screen.
1. Select Ethernet IP Address and enter the first IP address from the IP address range your ISP has given you
only if you are not using Network Address Translation (NAT). This will be the Netopia Router’s IP address.
The Ethernet IP Address defaults to an address (192.168.1.1) within a range reser ved by the Internet
address administration authority for use within private networks.
Easy Setup 6-7
Because this is a private network address, it should never be directly connected to the Internet. Using NAT
for all your connection profiles will ensure this restriction. See the Firmware User’s Guide chapter on
“Multiple Network Address Translation (MultiNAT)” for more information.
2. Select Ethernet Subnet Mask and enter the subnet mask your ISP has given you only if you are not using
NAT. The Ethernet Subnet Mask defaults to a standard class mask derived from the class of the Ethernet IP
address you entered in the previous step.
3. Press the Down arrow key until the editable field labeled Domain Name is highlighted.
4. If you have a static IP Address, type the Domain Name your ISP gave you. Press Return. The next field
Primary Domain Name Server will be highlighted. If you are using DHCP or PPPoE, leave this field blank and
skip Step 5.
5. Type the Primary Domain Name Server address your ISP gave you. Press Return. A new field Secondary
Domain Name Server will appear. If your ISP gave you a secondary domain name server address, enter it
here. Press Return until the next field Default IP Gateway is highlighted.
6. If you do not enter a Default IP Gateway value, the router defaults to the remote IP address you entered in
the Easy Setup connection profile. If the Netopia Router does not recognize the destination of any IP traffic,
it forwards that traffic to this gateway.
Do not confuse the remote IP address and the Default IP Gateway’s address with the block of local IP
addresses you may receive from your ISP. You use the local IP addresses for the Netopia 3346-ENT’s
Ethernet port and for IP clients on your local network. The remote IP address and the default gateway’s IP
address should point to your ISP’s router.
7. Toggle IP Address Serving to On or Of f, depending on whether you want the device’s IP address ser ver to
supply dynamic IP addresses to your client workstations. Normally, you would accept the default On so that
workstations on your LAN can have IP addresses assigned dynamically from the router.
8. The IP address server will provide 100 IP addresses automatically to workstations on your LAN. You only
need to change the Number of Client IP Addresses if you have some other IP addressing scheme.
9. By default, the 1st Client Address is 192.168.1.100, based on the device’s default IP address of
192.168.1.1. You only need to change this if you have some other IP addressing scheme.
10. Press the Down arrow key until you reach NEXT SCREEN. Press Return.
6-8 Getting Started Guide
4. Easy Setup Security Configuration
The Easy Setup Security Configuration screen lets you password-protect your Netopia 3346-ENT. Input your
Write Access Name and Write Access Password with names or numbers totaling up to eleven digits.
If you password protect the Telnet screens, you will be prompted to enter the name and password you have
specified every time you log in to the Telnet screens. Do not forget your name and password. If you do, you will
be unable to access any of the configuration screens.
Additional security features are available. See the Firmware User’s Guide chapter on “Security”.
Easy Setup Security Configuration
It is strongly suggested that you password-protect configuration access to your
Netopia. By entering a Name and Password pair here, access via serial,
Telnet, and SNMP will be password-protected.
Be sure to remember what you have typed here, because you will be prompted for
it each time you configure this Netopia.
Write Access Name:
Write Access Password:
PREVIOUS SCREEN TO MAIN MENU RESTART DEVICE
Configure a Configuration Access Name and Password here.
The final step in configuring the Easy Setup Telnet screens is to restar t the Netopia 3346-ENT, so that the
configuration settings take effect.
1. Select RESTART DEVICE. A prompt asks you to confirm your choice.
2. Select CONTINUE to restart the Netopia Router and have your selections take effect.
Note: You can also restart the system at any time by using the Restart System utility in the Utilities and
Diagnostics menu, or by turning the Netopia Router off and on with the power switch.
The Router will restart and your configuration settings will be activated. You can then Exit or Quit your Telnet
application.
Easy Setup is now complete.
Technical Specifications and Safety Information A-1
Appendix A
TTTTeeeecccchhhhnnnniiiiccccaaaallll SSSSppppeeeecccciiiiffffiiiiccccaaaattttiiiioooonnnnssss aaaannnndddd SSSSaaaaffffeeeettttyyyy
IIIInnnnffffoooorrrrmmmmaaaattttiiiioooonn
nn
Description
Dimensions: 13.5 cm (w) x 13.5 cm (d) x 3.5 cm (h) 5.25” (w) x 5.25” (d) x 1.5” (h)
Communications interfaces: The Netopia 3346-ENT Router has an RJ-45 jack for WAN line connections and a
4–port 10/100Base-T Ethernet switch for your LAN connections.
Power requirements
• 12 VDC input
• 1.0 amps
Environment
Operating temperature: 0° to +40° C
Storage temperature: 0° to +70° C
Relative storage humidity: 20 to 80% noncondensing
Software and protocols
Software media: Software preloaded on internal flash memor y; field upgrades done via download to internal
flash memory via TFTP or web upload.
Routing: TCP/IP Internet Protocol Suite, RIP
WAN support: PPPoE, DHCP, static IP address
Security: PAP, UI password security
Management/configuration methods: HTTP (Web server), Telnet
Diagnostics: Ping, event logging, routing table displays, statistics counters, web-based management
Agency approvals
North America
Safety Approvals:
A-2 Getting Started Guide
• United States – UL: 1950 Third Edition
• Canada – CSA: CAN/CSA-C22.2 No. 950-95
EMC:
• United States – FCC Part 15 Class B
• Canada – ICES-003
Telecom:
• United States – FCC Part 68
• Canada – CS-03
International
Safety Approvals:
• Low Voltage (European directive) 73/23
• EN60950 (Europe)
EMI Compatibility:
• 89/336/EEC (European directive)
• EN55022:1994 CISPR22 Class B
• EN300 386 V1.2.1
Regulatory notices
European Community. This Netopia product conforms to the European Community CE Mark standard for the
design and manufacturing of information technology equipment. This standard covers a broad area of product
design, including RF emissions and immunity from electrical disturbances.
The Netopia 3346-ENT complies with the following EU directives:
• Low Voltage, 73/23/EEC
• EMC Compatibility, 89/336/EEC, conforming to EN 55 022
Manufacturer’s Declaration of Conformance
Note: Warnings:
This is a Class B product. In a domestic environment this product may cause radio inter ference, in which case
the user may be required to take adequate measures. Adequate measures include increasing the physical
distance between this product and other electrical devices.
Changes or modifications to this unit not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
Technical Specifications and Safety Information A-3
United States. This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful inter ference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment of f and on, the user is encouraged to tr y to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for help.
Service requirements. In the event of equipment malfunction, all repairs should be performed by our Company
or an authorized agent. Under FCC rules, no customer is authorized to repair this equipment. This restriction
applies regardless of whether the equipment is in or our of warranty. It is the responsibility of users requiring
service to report the need for ser vice to our Company or to one of our authorized agents. Ser vice can be
obtained at Netopia, Inc., 6001 Shellmound Street, Emeryville, California, 94608.
Note: Important
This product was tested for FCC compliance under conditions that included the use of shielded cables and
connectors between system components. Changes or modifications to this product not authorized by the
manufacturer could void your authority to operate the equipment.
Canada. This Class B digital apparatus meets all requirements of the Canadian Inter ference -Causing
Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel brouilleur du
Canada.
Declaration for Canadian users
The Canadian Industry Canada label identifies certified equipment. This certification means that the equipment
meets certain telecommunications network protective, operation, and safety requirements. The Depar tment
does not guarantee the equipment will operate to the user’s satisfaction.
Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of
the local telecommunications company. The equipment must also be installed using an acceptable method of
connection. In some cases, the company’s inside wiring associated with a single line individual service may be
extended by means of a certified connector assembly (telephone extension cord). The customer should be
aware that compliance with the above conditions may not prevent degradation of ser vice in some situations.
Repairs to the certified equipment should be made by an authorized Canadian maintenance facility designated
by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may
give the telecommunications company cause to request the user to disconnect the equipment.
Users should ensure for their own protection that the electrical ground connections of the power utility,
telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution
may be particularly important in rural areas.
A-4 Getting Started Guide
Caution
Users should not attempt to make such connections themselves, but should contact the appropriate electric
inspection authority, or electrician, as appropriate.
The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum
number of terminals allowed to be connected to a telephone inter face. The termination on an interface may
consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence
Numbers of all the devices does not exceed 5.
Important Safety Instructions
Australian Safety Information
The following safety information is provided in conformance with Australian safety requirements:
Caution
DO NOT USE BEFORE READING THE INSTRUCTIONS: Do not connect the Ethernet ports to a carrier or carriage
service provider’s telecommunications network or facility unless: a) you have the written consent of the network
or facility manager, or b) the connection is in accordance with a connection permit or connection rules.
Connection of the Ethernet ports may cause a hazard or damage to the telecommunication network or facility,
or persons, with consequential liability for substantial compensation.
Caution
• The direct plug-in power supply serves as the main power disconnect; locate the direct plug-in power supply
near the product for easy access.
• For use only with CSA Certified Class 2 power supply, rated 12VDC, 1.0A.
Telecommunication installation cautions
• Never install telephone wiring during a lightning storm.
• Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.
• Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at
the network interface.
• Use caution when installing or modifying telephone lines.
• Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk
of electric shock from lightning.
• Do not use the telephone to report a gas leak in the vicinity of the leak.
FCC Part 68 Information
a) This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the
bottom of this equipment is a label that contains, among other information, a product identifier in the format
US:AAAEQ##TXXXX. If requested, this number must be provided to the telephone company.
Technical Specifications and Safety Information A-5
b) List all applicable certification jack Universal Service Order Codes (“USOC”) for the equipment: RJ11.
c) A plug and jack used to connect this equipment to the premises wiring and telephone network must comply
with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and
modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is
also compliant. See installation instructions for details.
d) The REN is used to determine the number of devices that may be connected to a telephone line. Excessive
RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not
all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be
connected to a line, as determined by the total RENs, contact the local telephone company. For products
approved after July 23, 2002, the REN for this product is par t of the product identifier that has the format
US:AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3).
For earlier products, the REN is separately shown on the label.
e) If this equipment, the Netopia 3300 Series router, causes harm to the telephone network, the telephone
company will notify you in advance that temporary discontinuance of service may be required. But if advance
notice isn’t practical, the telephone company will notify the customer as soon as possible. Also, you will be
advised of your right to file a complaint with the FCC if you believe it is necessary.
f) The telephone company may make changes in its facilities, equipment, operations or procedures that could
affect the operation of the equipment. If this happens the telephone company will provide advance notice in
order for you to make necessary modifications to maintain uninterrupted service.
g) If trouble is experienced with this equipment, the Netopia 3300 Series router, for repair or warranty
information, please contact:
Netopia Technical Support
510-597-5400
www.netopia.com.
If the equipment is causing harm to the telephone network, the telephone company may request that you
disconnect the equipment until the problem is resolved.
h) This equipment not intended to be repaired by the end user. In case of any problems, please refer to the troubleshooting section of the Product User Manual before calling Netopia Technical Support.
i) Connection to party line service is subject to state tariffs. Contact the state public utility commission, public
service commission or corporation commission for information.
j) If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of
this Netopia 3300 Series router does not disable your alarm equipment. If you have questions about what will
disable alarm equipment, consult your telephone company or qualified installer.
Electrical Safety Advisory
Telephone companies report that electrical surges, typically lightning transients, are very destructive to
customer terminal equipment connected to AC power sources. This has been identified as a major nationwide
problem. Therefore it is advised that this equipment be connected to AC power through the use of a surge
arrestor or similar protection device.
A-6 Getting Started Guide
Loading...
