Firmware User Guide
Introduction 1-1
Chapter 1
Introduction
This
Firmware User Guide
Your Netopia equipment offers advanced configuration features accessed through the Main Menu of the Telnet
configuration screen. This
security, monitoring, and configuration. This
Quickstart Guide
Guide
before reading this
and the
What’s New in 8.7
New in Netopia Firmware Version 8.7 are the following features:
•
DoS Detect option in Stateful Inspection. See “Stateful Inspection” on page 3-3.
Default Stateful Inspection installation list of open ports. See “Open ports in default Stateful Inspection
•
installation” on page 3-10.
covers the advanced features of the Netopia ENT Enterprise-Series Router family.
Firmware User Guide
Getting Started Guide
Firmware User Guide
documents the advanced features, including advanced testing,
Firmware User Guide
. You should read the
.
should be used as a companion to the
Quickstart Guide
and the
Getting Started
•
Additional Syslog messages. See “Log event dispositions” on page 3-43.
•
“Procedure for Default Installation for ICSA firewall cer tification of Small/Medium Business Categor y
Module (ADSL Routers)” on page 3-48.
IGMP V3 support. See “IGMP (Internet Group Management Protocol)” on page 3-39.
•
Wireless Multi-media (WMM) support. See “Wireless Multimedia (WMM)” on page 3-25.
•
•
IKE Dead Peer Detection timeout now defaults to 20 seconds. See “Advanced IKE Phase 1 Options” on
page 6-7.
Support of VLAN ID 0. See “VLAN Configuration” on page 3-11.
•
Corresponding commands have been added to the Command Line Inter face (CLI). In addition:
New
•
•
•
See the
show wireless clients
Broadcast WAN routes via RIP "Yes/No" is now a configurable option. See
option to all WAN interfaces.
CLI now supports initiating a telnet session from the command line.
Command Line Interface Commands Reference
and
show wireless statistics
commands.
rip exclude-wan-routes
available on the Netopia website.
CLI
1-2 Firmware User Guide
Telnet-based Management
Telnet-based management is a fast menu-driven interface for the capabilities built into the Netopia Firmware
Version 8.7. Telnet-based management provides access to a wide variety of features that the Router supports.
You can customize these features for your individual setup. This chapter describes how to access the
Telnet-based management screens. This section covers the following topics:
•
“Netopia Telnet Menus” on page 1-2
Netopia Models” on page 1-3
“
•
“Connecting through a Telnet Session” on page 1-4
•
•
“Navigating through the Telnet Screens” on page 1-5
Netopia Telnet Menus
Telnet-based management screens contain the main entry points to Netopia Firmware Version 8.7 configuration
and monitoring features. The entry points are displayed in the Main Menu shown below:
Netopia 3366 V 8.7
Easy Setup...
WAN Configuration...
System Configuration...
Utilities & Diagnostics...
Statistics & Logs...
Quick Menus...
Quick View...
•
The
Easy Setup
You can use Easy Setup to initially configure the Router directly through a Telnet session.
Easy Setup menus contain up to five descendant screens for viewing or altering these values. The number
of screens depends on whether you have optional features installed.
The
Quickstart Guide
menus display and permit changing the values contained in the default connection profile.
describes the Easy Setup menus to get you up and running quickly.
Introduction 1-3
•
The
WAN Configuration
Networks (VPNs) and default profile, creating or deleting additional connection profiles, and configuring or
reconfiguring the manner in which you may be using the Router to connect to more than one ser vice
provider or remote site. See “WAN Configuration,” beginning on page 2-1. See also Chapter 5, “Virtual
Private Networks (VPNs).”
•
The
System Configuration
• IP Setup• Filter Sets
• IP Address Serving• Network Address Translation (NAT)
• Date and Time• SNMP (Simple Network Management Protocol)
• Security• Upgrade Feature Set
• Change Device to a Bridge• Logging
and more. See “System Configuration Features,” beginning on page 3-1.
•
The
Utilities & Diagnostics
the Router's behavior, as well as for updating the firmware and rebooting the system. See Chapter 11,
“Utilities and Diagnostics.”
•
The
Statistics & Logs
your Router, your network, and their history. See “Statistics & Logs,” beginning on page 9-3.
menu displays and permits changing your connection profile(s), Vir tual Private
menus display and permit changing:
menus provide a selection of the various tools for monitoring and diagnosing
menus display several sets of tables and device logs that show information about
The
•
•
Quick Menus
menus that are accessed through the other menu entr y points.
The
Quick View
“Quick View Status Overview” on page 9-1.
screen is a shortcut entry point to a variety of the most commonly used configuration
menu displays at a glance current real-time operating information about your Router. See
Netopia Models
This
Firmware User Guide
information in this guide will only apply to a specific model.
Screen differences
Because different Netopia ENT Enterprise-Series models offer many different features and interfaces, the
options shown on some screens in this
Telnet screen.
These differences are noted throughout the manual.
covers all of the Netopia ENT Enterprise-Series Router models. However some
Firmware User Guide
may not appear on your own particular model’s
1-4 Firmware User Guide
Connecting through a Telnet Session
Features of Netopia Firmware Version 8.7 can be configured through the Telnet screens.
Before you can access the console screens through Telnet, you must have:
•
A network connection locally to the Router or IP access to the Router.
•
Telnet software installed on the computer you will use to configure the Router
Configuring Telnet software
If you are configuring your device using a Telnet session, your computer must be running a Telnet software
program.
•

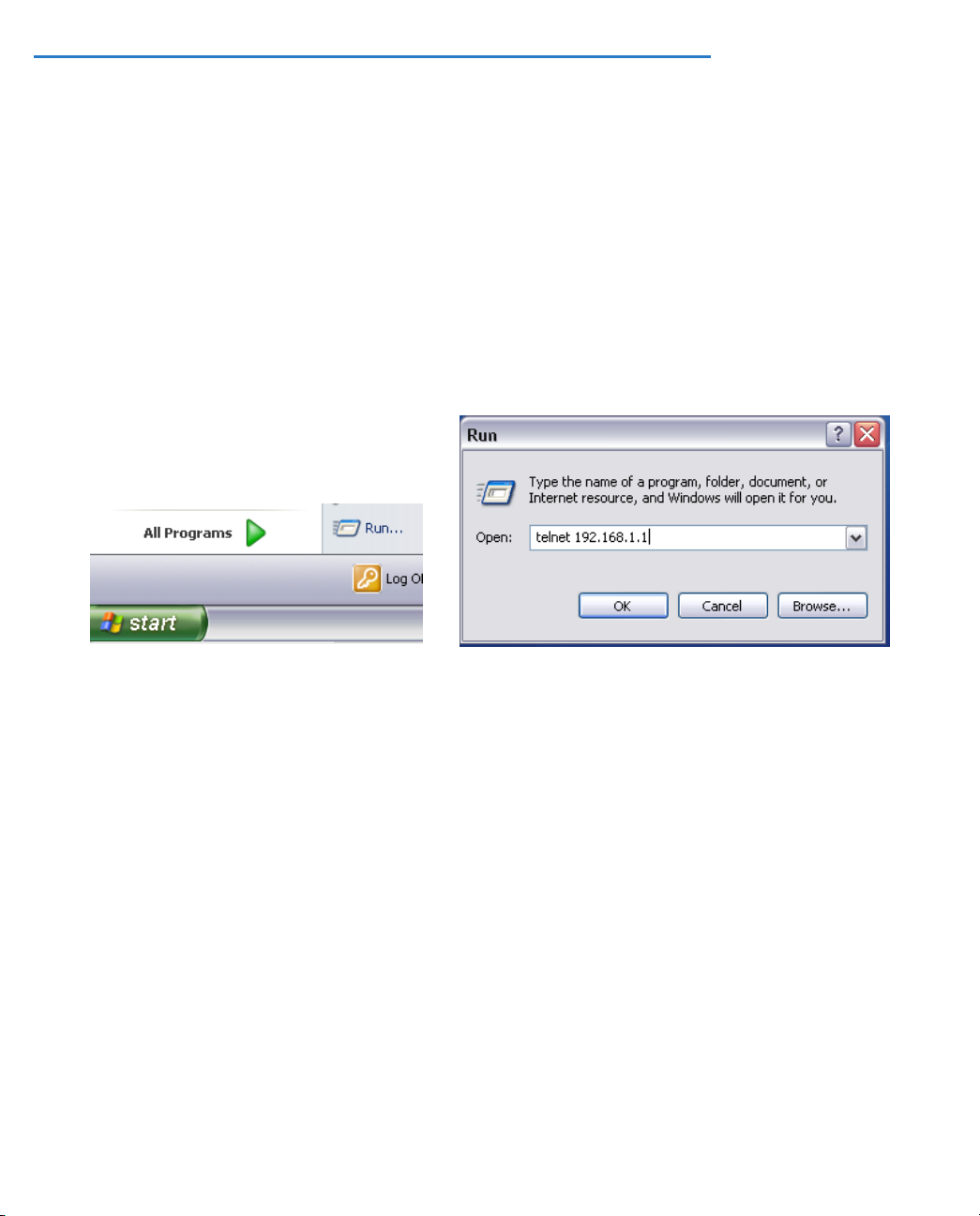

If you connect a PC with Microsoft Windows, you can use a Windows Telnet application or run Telnet from
the Start menu.
•
If you connect a Macintosh computer running Classic Mac OS, you can use the NCSA Telnet program
supplied on the Netopia CD. You install NCSA Telnet by dragging the application from the CD to your hard
disk.
Mac OS X users can use the Terminal application that comes with Mac OS X in the Utilities folder.
Introduction 1-5
Navigating through the Telnet Screens
Use your keyboard to navigate the Netopia Firmware Version 8.7’s configuration screens, enter and edit
information, and make choices. The following table lists the keys to use to navigate through the Telnet screens.
To...Use These Keys...
Move through selectable items in a screen or pop-up menuUp, Down, Left, and Right Arrow
Set a change to a selected item or open a pop-up menu of
options for a selected item like entering an upgrade key
Change a toggle value (Yes/No, On/Off)Tab
Restore an entry or toggle value to its previous valueEsc
Move one item upUp arrow or Control + O
Move one item downDown arrow or Control + K
Page upControl + A
Page downControl + Z
Display a dump of the device event logControl + E
Display a dump of the WAN event logControl + F
Refresh the screenControl + L
To help you find your way to particular screens, some sections in this guide begin with a graphical path guide
similar to the following example:
Main
Menu
System
Configuration
Return or Enter
IP Setup
This particular path guide shows how to get to the Network Protocols Setup screens. The path guide represents
these steps:
1.Beginning in the Main Menu, select System Configuration and press Return. The System Configuration
screen appears.
2.Select IP Setup and press Return. The IP Setup screen appears.
To go back in this sequence of screens, use the Escape key.
1-6 Firmware User Guide
WAN Configuration 2-1
Chapter 2
WAN Configuration
This chapter describes how to use the Telnet-based management screens to access and configure advanced
features of your equipment. You can customize these features for your individual setup. These menus provide a
powerful method for experienced users to set up their Router’s connection profiles configuration.
This section covers the following topics:
•“WAN Configuration” on page 2-1
•“WAN Ethernet Configuration screen” on page 2-2
•“ADSL Line Configuration screen” on page 2-4
•“Creating a New Connection Profile” on page 2-9
•“Advanced Connection Options” on page 2-15
•“Configuration Changes Reset WAN Connection” on page 2-15
•“Scheduled Connections” on page 2-16
•“Backup Configuration” on page 2-21
•“Diffserv Options” on page 2-22
•“Priority Queuing (TOS bit)” on page 2-25
•“VRRP Options (WAN Link Failure Detection)” on page 2-26
WAN Configuration
To configure your Wide Area Network (WAN) connection, navigate to the WAN Configuration screen from the Main
Menu and select WAN (Wide Area Network) Setup.
Main
Menu
The Line Configuration screen appears. The Line Configuration screen will be appropriate to the type of WAN
interface supported by your particular Router model.
WAN
Configuration
WAN
Setup
2-2 Firmware User Guide
WAN Ethernet Configuration screen
The WAN Ethernet Configuration screen appears as follows:
WAN Ethernet Configuration
Address Translation Enabled: Yes
Obtain WAN address via DHCP: On
NAT Map List... Easy-PAT List
NAT Server List... Easy-Servers
NAT Options...
Stateful Inspection Enabled: No
Filter Set...
Remove Filter Set
WAN Ethernet Speed Setting... Auto-Negotiation
Wan Ethernet MAC Address: 00:0f:cc:0b:9d:ce
DHCP Client Mode: Standards-Based
RIP Options...
Set up the basic IP attributes of your Ethernet Module in this screen.
•Address Translation Enabled allows you to specify whether or not the router performs Network Address
Translation (NAT) on the Ethernet WAN port. NAT is enabled by default.
•Obtain WAN address via DHCP allows you to toggle WAN DHCP Off and On. DHCP is On by default. so that
if you do not change the setting, the Router will acquire its WAN IP address automatically. By default, the
router acts as a DHCP client on the Ethernet WAN port and and attempts to acquire an address from a
DHCP server.
•The Local WAN IP Address field allows you to manually configure an IP address for use on the Ethernet
WAN port. This field only becomes visible if you toggle Obtain WAN address via DHCP to Off.
•The Local WAN IP Mask field becomes visible if you specify a Local WAN IP Address. This allows you to
manually configure an IP subnet mask for use on the Ethernet WAN port. This item is visible only if you
have configured a non-zero Ethernet IP Address; other wise, the router obtains a subnet mask via DHCP.
•The NAT Map List and NAT Server List options are set to the defaults, Easy-PAT List and Easy-Servers.
These provide standard NAT mappings. For more advanced NAT configurations, see “Multiple Network
Address Translation” on page 4-1.
•NAT Options allows you to specify IP Passthrough, allowing a single PC on the LAN to have the router’s
public address assigned to it. See “IP Passthrough” on page 4-28.
•If you set Stateful Inspection Enabled to Yes , you can enable a security feature for computers on your LAN
when NAT is disabled. See “Stateful Inspection” on page 3-3.
•The Filter Set pop-up allows you to associate an IP filter set with the Ethernet WAN port. See “About Filters
and Filter Sets” on page 10-21.
•Remove Filter Set allows you to remove a previously associated filter set.
WAN Configuration 2-3
•The WAN Ethernet Speed Setting is configurable via a pop-up menu. Options are:
•Auto-Negotiation (the default)
•100 Mbps Full Duplex
•100 Mbps Half Duplex
•10 Mbps Full Duplex
•10 Mbps Half Duplex
•100 Mbps, Full Duplex, Fixed
•100 Mbps, Half Duplex, Fixed
•10 Mbps, Full Duplex, Fixed
•10 Mbps, Half Duplex, Fixed
This may be useful in mixed networks, where multiple routers have different ethernet speed capability. If
you want to maintain a single speed setting for compatibility with multiple routers on your LAN, you can
select a speed/duplex combination that all of your routers can match.
•The Wan Ethernet MAC Address is the hardware address of the Netopia device. Some ser vice providers
require a specific MAC address as par t of their authentication process. In such a case, you can enter the
MAC address that your service provider requires. If your ser vice provider doesn’t use this method, you
don’t need to change this field.
•The DHCP Client Mode setting depends on the type of access concentrator equipment your service
provider uses. Most use Standards-Based. Alternatively, your provider may instruct you to select Copper Mountain Specific.
•The RIP Options selection displays the WAN Ethernet RIP Parameters screen.
WAN Ethernet RIP Parameters
+----------------+
+----------------+
Receive RIP: | Off |
| v1 |
| v2 |
| Both v1 and v2 |
| v2 MD5 Authentication
+----------------+
•The Receive RIP pop-up menu controls the reception and transmission of Routing Information Protocol
(RIP) packets on the Ethernet WAN port. The default is Both.
2-4 Firmware User Guide
The Transmit RIP pop-up menu is hidden if NAT is enabled.
Routing Information Protocol (RIP) is needed if there are IP routers on other segments of your Ethernet
network that the Netopia Router needs to recognize. Set to “Both” (the default) Netopia Firmware Version
8.7 will accept information from either RIP v1 or v2 routers. Alternatively, select Receive RIP and select v1, v2, or v2 MD5 Authentication from the popup menu. With Receive RIP set to “v1,” the Netopia Router’s
Ethernet por t will accept routing information provided by RIP packets from other routers that use the same
subnet mask. Set to “v2,” the Netopia Firmware Version 8.7 will accept routing information provided by RIP
packets from other routers that use different subnet masks.
For more information on v2 MD5 Authentication, see “RIP Options” on page 7-10.
If you want the Netopia Router to advertise its routing table to other routers via RIP, select Transmit RIP
and select v1, v2 (broadcast), or v2 (multicast) from the popup menu. With Transmit RIP v1 selected, the
Netopia Firmware Version 8.7 will generate RIP packets only to other RIP v1 routers. With Transmit RIP v2
(broadcast) selected, the Netopia Firmware Version 8.7 will generate RIP packets to all other hosts on the
network. With Transmit RIP v2 (multicast) selected, the Netopia Firmware Version 8.7 will generate RIP
packets only to other routers capable of recognizing RIP v2 packets.
ADSL Line Configuration screen
The ADSL Line Configuration screen is shown below:
ADSL Line Configuration
Circuit Type... Multimode
Trellis Coding Enabled: On
Signaling Mode... FDM
Fast Retrain Enabled: On
Wiring Type... AutoSense
Data Link Encapsulation... RFC1483
1.Select Circuit Type and from the pop-up menu choose the type of circuit to which you will be connecting:
Multimode, T1.413, G.dmt, or G.lite.
2.Select Trellis Coding Enabled. Toggle it to On (the default) or Off.
3.Select Signaling Mode and choose Echo Cancellation or FDM (the default).
4.If you selected Multimode Circuit Type, the Fast Retrain Enabled field appears. Toggle it to On (the default)
or Off.
5.For model 3341 and 3366C ADSL modems, a Wiring Type pop-up menu allows you to choose the type of
copper pair wiring in use at your location. For all other models this option is preset and does not appear.
WAN Configuration 2-5
Usually, the default AutoSense will detect the type and adjust itself accordingly. If you want to set it
yourself, and you know the type of wiring you have, choose either Tip/Ring (Inner Pair) or A/A1 (Outer Pair)
from the pop-up menu.
6.Select Data Link Encapsulation and press Return. The pop-up menu will offer you the choice of PPP or
RFC1483.
ATM Circuit Configuration
On ADSL WAN interfaces, the Asynchronous Transfer Mode (ATM) connection between the router and the
central office equipment (DSLAM) is divided logically into one or more virtual circuits (VCs). A virtual circuit may
be either a permanent vir tual circuit (PVC) or a switched vir tual circuit (SVC). Netopia Routers support PVCs.
VCs are identified by a Virtual Path Identifier (VPI) and Virtual Channel Identifier (VCI). A VPI is an 8-bit value
between 0 and 255, inclusive, while a VCI is a 16-bit value between 0 and 65535, inclusive.
•Circuits support attributes in addition to their VPI and VCI values. When configuring a circuit, you can
specify an optional circuit name of up to 14 characters. The circuit name is used only to identify the circuit
for management purposes as a convenience to aid in selecting circuits from lists. The default circuit name
is “Circuit <n>”, where <n> is some number between one and eight corresponding to the circuit’s position
in the list of up to eight circuits.
•You can also individually enable or disable a circuit without deleting it. This is useful for temporarily
removing a circuit without losing the configured attributes.
•In order to function, each circuit must be bound to a Connection Profile or to the Default Profile. Among
other attributes, the profile binding specifies the IP addressing information for use on the circuit. Each
circuit must be bound to a distinct Connection Profile.
ATM VPI/VCI Autodetection. You can bind multiple circuits to the same Connection Profile. Netopia Firmware
Version 8.7 allows you to have a standard configuration that uses, for example, four VCs (0/35, 0/38, 8/35,
8/38) pointing to the same profile.
The unit will now automatically select the active VC on networks with a VPI/VCI of any of these four values
without any custom configuration of the unit. You must, however, manually create these VCs and associate
them with the profile you desire.
You configure Virtual Circuits in the Add/Change Circuit screen.
7.To add a circuit, select Add Circuit and press Return. The Add Circuit screen appears.
Add Circuit
Circuit Name: Circuit 2
Circuit Enabled: Yes
Circuit VPI (0-255): 0
Circuit VCI (32-65535): +-------------+
+-------------+
QoS... | UBR |
Peak Cell Rate (0 = line rate): | CBR |
| VBR |
+-------------+
Use Connection Profile... Default Profile
Use Default Profile for Circuit
ADD Circuit NOW CANCEL
•Enter a name for the circuit in the Circuit Name field.
•Toggle Circuit Enabled to Yes.
•Enter the Virtual Path Identifier and the Virtual Channel Identifier in the Circuit VPI and Circuit VCI
fields, respectively.
•The Peak Cell Rate field is editable. Netopia Firmware Version 8.7 supports three ATM classes of ser-
vice for data connections: Unspecified Bit Rate (UBR), Constant Bit Rate (CBR), and Variable Bit Rate
(VBR). You can configure these classes of service on a per VC basis. The default ATM class of service
is UBR.
Quality of Service (QoS) settings
Note: QoS settings are not available on Ethernet-to-Ethernet WAN models.
•Select the QoS (Quality of Service) setting from the pop-up menu: UBR. CBR, or VBR.
UBR: No configuration is needed for UBR VCs. Leave the default value 0 (maximum line rate).
CBR: One parameter is required for CBR VCs. Enter the Peak Cell Rate that applies to the VC. This
value should be between 1 and the line rate. You set this value according to specifications defined by
your service provider.
Add Circuit
Circuit Name: Circuit 2
Circuit Enabled: Yes
Circuit VPI (0-255): 0
Circuit VCI (32-65535): 32
QoS... VBR
Peak Cell Rate (0 = line rate): 0
Sustained Cell Rate: 0
Maximum Burst Size: 0
Use Connection Profile... Default Profile
Use Default Profile for Circuit
ADD Circuit NOW CANCEL
Return accepts * ESC cancels * Left/Right moves insertion point * Del deletes.
WAN Configuration 2-7
VBR: This class is characterized by:
• a Peak Cell Rate (PCR), which is a temporary burst, not a sustained rate, and
• a Sustained Cell Rate (SCR),
• a Burst Tolerance (BT), specified in terms of Maximum Burst Size (MBS). The MBS is the maximum
number of cells that can be transmitted at the peak cell rate and should be less than, or equal to the
Peak Cell Rate, which should be less than, or equal to the line rate.
VBR has two sub-classes:
a. VBR non-real-time (VBR-nrt): Typical applications are non-real-time traf fic, such as IP data traffic.
This class yields a fair amount of Cell Delay Variation (CDV).
b. VBR real time (VBR-rt): Typical applications are real-time traf fic, such as compressed voice over IP
and video conferencing. This class transmits cells with a more tightly bounded Cell Delay Variation.
The applications follow CBR.
•Then, select a Connection Profile for the Circuit. To use the Default Profile, select Use Default Profile
for Circuit and press Return. For other options, select a profile from the Use Connection Profile
pop-up menu.
2-8 Firmware User Guide
Note: With multiple VCs you must explicitly statically bind the second (and all subsequent) VCs to a profile.
The first VC will automatically statically bind according to pre-defined dynamic binding rules when you add the
second VC. It will revert back to dynamic binding if the number of VCs is reduced to one; for example, by
deleting previously defined VCs.
When the link comes up the router binds the VC dynamically to the first suitable Connection Profile or to the
Default Profile if there is no Connection Profile configured.
• If you factory default the router, the VC binds to the Default Profile.
• If you delete a Connection Profile that is statically bound to a VC, the VC binding is set back to the Default
Profile. If there is only one VC defined, the VC dynamically binds to the first suitable profile or to the Default
Profile. If there are multiple VCs defined, it binds to the Default Profile.
• If you add a second VC, it is initialized to the Default Profile, and the menu screens display the VC
Connection Profile-related items, allowing you to bind to a specific Connection Profile instead of the Default
Profile. In addition, the router statically binds the first VC according to the rules used to select a profile for
dynamic binding. At this point, each profile uses static binding when the link is brought up.
• If there are no VCs when you add a VC -- for example, if you deleted all your previous VCs and star ted adding
them again -- dynamic binding will occur when the link comes up. If you delete a VC, leaving only one VC, that VC
resumes dynamically binding again.
•Select ADD Circuit NOW and press Return.
8.To display or change a circuit, select Display/Change Circuit, select a circuit from the pop-up menu, and
press Return. The fields are the same as those in the Add Circuit screen.
9.To delete a circuit, select Delete Circuit, select a circuit from the pop-up menu, and press Return. In the
confirmation window, select CONTINUE and press Return.
10. Press Escape to return to the WAN Setup menu.
WAN Configuration 2-9
Creating a New Connection Profile
Connection profiles are useful for configuring the connection and authentication settings for negotiating a PPP
connection. If you are using the PPP data link encapsulation method, you can store your authentication
information in the connection profile so that your user name and password (or host name and secret) are
transmitted when you attempt to connect.
Connection profiles define the networking protocols necessar y for the Router to make a remote connection. A
connection profile is like an address book entr y describing how the Router is to get to a remote site, or how to
recognize and authenticate a connection. To create a new connection profile, you navigate to the WAN
Configuration screen from the Main Menu, and select Add Connection Profile.
Main
Menu
The Add Connection Profile screen appears.
Add Connection Profile
Profile Name: Profile 1
Profile Enabled: Yes
Encapsulation Type... RFC1483
RFC1483 Mode... Bridged 1483
IP Profile Parameters...
COMMIT CANCEL
Return accepts * ESC cancels * Left/Right moves insertion point * Del deletes.
Configure a new Conn. Profile. Finished? COMMIT or CANCEL to exit.
WAN
Configuration
Add Connection
Profile
1.Select Profile Name and enter a name for this connection profile. It can be any name you wish. For
example: the name of your ISP.
2.Toggle Profile Enabled to Ye s or No. The default is Yes. You can toggle it to No, if you want to disable it
later.
3.Select Encapsulation Type and press Return. The pop-up menu offers the possible data link encapsulation
methods for connection profiles used for a variety of purposes: PPP, RFC1483, ATMP, PPTP, IPsec, L2TP.
2-10 Firmware User Guide
Multiple Data Link Encapsulation Settings
4.Select Encapsulation Options and press Return.
•If you selected ATMP, PPTP, L2TP, or IPSec, see Chapter 5, “Vir tual Private Networks (VPNs).”
•If you selected PPP or RFC1483, the screen offers different options:
Configure a new Conn. Profile. Finished? COMMIT or CANCEL to exit.
•If you selected PPP, the screen allows you to
choose PPPoE or None as the Underlying Encapsulation.
•If you choose None, the PPP Mode offers the
choice of VC Multiplexed or LLC SNAP.
If you are using PPP, when you select Encapsulation Options, the Datalink (PPP/MP) Options screen
appears. (RFC1483 does not require these options and does not offer the menu selection.)
WAN Configuration 2-11
Datalink (PPP/MP) Options
Data Compression... Standard LZS
Send Authentication... PAP
Send User Name:
Send Password:
Receive User Name:
Receive Password:
•Data Compression defaults to Standard LZS. You
can select Ascend LZS, if you are connecting to
compatible equipment, or None from the pop-up
menu.
•The Send Authentication pop-up menu lets you
select PAP, CHAP, or None.
•Selecting PAP or CHAP allows you to enter your
authentication credentials for both sending and
receiving connections.
PAP requires a User Name and Password;
CHAP requires a Host Name and Secret.
The screen changes to accommodate your
selection.
Datalink (PPP/MP) Options
Data Compression... Standard LZS
Send Authentication... PAP
Send User Name:
Send Password:
Receive User Name:
Receive Password:
Dial on Demand: Yes
Idle Timeout (seconds): 300
•If you are creating a Backup profile, you can
toggle Dial on Demand to Yes (the default) or No
and adjust the idle timeout in seconds from the
default 300 (5 minutes).
See “Line Backup” on page 8-1 for more
information.
Return to the Add Connection Profile screen by pressing Escape.
5.Select IP Profile Parameters and press Return. The IP Profile Parameters screen appears.
2-12 Firmware User Guide
IP Profile Parameters
Address Translation Enabled: Yes
IP Addressing... Numbered
NAT Map List... Easy-PAT List
NAT Server List... Easy-Servers
NAT Options...
Stateful Inspection Enabled: No
Local WAN IP Address: 0.0.0.0
Local WAN IP Mask: 0.0.0.0
Filter Set...
Remove Filter Set
RIP Profile Options...
Return/Enter to select <among/between> ...
Configure IP requirements for a remote network connection here.
RIP Profile Parameters
+-----------------------+
+-----------------------+
Receive RIP: | Off |
| v1 |
| v2 |
| Both v1 and v2 |
| v2 MD5 Authentication |
+-----------------------+
WAN Configuration 2-13
•The Receive RIP pop-up menu controls the reception and transmission of Routing Information Protocol
(RIP) packets on the WAN port. The default is Both v1 and v2.
A Transmit RIP pop-up menu is hidden if NAT is enabled.
Routing Information Protocol (RIP) is needed if there are IP routers on other segments of your Ethernet
network that the Netopia Router needs to recognize. Set to “Both” (the default) Netopia Firmware Version
8.7 will accept information from either RIP v1 or v2 routers. Alternatively, select Receive RIP and select v1, v2, or v2 MD5 Authentication from the popup menu. With Receive RIP set to “v1,” the Netopia Router’s
Ethernet por t will accept routing information provided by RIP packets from other routers that use the same
subnet mask. Set to “v2,” the Netopia Firmware Version 8.7 will accept routing information provided by RIP
packets from other routers that use different subnet masks.
For more information on v2 MD5 Authentication, see “RIP Options” on page 7-10.
PPPoE/PPPoA Autodetection
Beginning with Firmware Version 8.5, if you are using PPP, and you have selected PPPoE as the Underlying
Encapsulation, you can further enable the ability to connect automatically to your ISP’s central office equipment
whether they are using PPP over Ethernet or PPP over ATM.
Note: This feature applies only to ATM-based WAN connections.
7.Select PPPoE Options and press Return.
The PPPoE Options screen appears.
PPPoE Options
PPPoA Autodetect: No
Return/Enter accepts * Tab toggles * ESC cancels.
Toggle PPPoA Autodetect to On.
If your ISP is using PPPoE, the connection will be made normally. If your ISP is using PPPoA, when the
Netopia Gateway detects this, it will automatically switch to PPPoA transparently.
8.Return to the Add Connection Profile screen by pressing Escape.
2-14 Firmware User Guide
9.Select COMMIT and press Return. Your new Connection Profile will be added.
If you want to view the Connection Profiles in your device, return to the WAN Configuration screen, and
select Display/Change Connection Profile. The list of Connection Profiles is displayed in a scrolling pop-up
screen.
You can also delete Connection Profiles by selecting them in the same manner using the Delete Connection
Profile option in the WAN Configuration screen.
WAN Configuration 2-15
Advanced Connection Options
Depending on your model, the Advanced Connection Options screen offers a variety of powerful options for
advanced users. Screens shown in this section may vary from what your par ticular model displays.
Configuration Changes Reset WAN Connection
The menu supports delaying some configuration changes until after the Netopia Router is restarted.
If your Netopia Router is preconfigured by your ser vice provider, or if you are not remotely configuring the router,
you can leave this setting unchanged.
The purpose of this feature is to defer configuration changes only when remotely configuring or reconfiguring the
Netopia Router to prevent premature Telnet disconnection. When this feature is enabled, no changes to the
WAN setup, datalink encapsulation, Connection Profiles, or Default Gateway will take effect until after the
Netopia Router is restarted. Until the Netopia Router is restar ted the WAN link and the routing table remain
unaffected.
A single setting in the Advanced Connection Options screen controls this feature, as shown below.
Advanced Connection Options
Configuration Changes Reset WAN Connection: Yes
Scheduled Connections...
Backup Configuration...
Prioritize Delay-Sensitive Data: No
Diffserv Options...
VRRP Options...
Return/Enter to configure SA Backup Parameters.
2-16 Firmware User Guide
When you toggle Configuration Changes Reset WAN Connection either to Yes or No using the Tab key and
press Return, a pop-up window asks you to confirm your choice.
Advanced Connection Options
+----------------------------------------------------+ No
+----------------------------------------------------+
| The Router will now be restarted to allow this |
| feature to function properly. |
| Are you sure you want to do this? |
| |
| CANCEL CONTINUE |
| |
+----------------------------------------------------+
Toggling from Ye s to No makes the router ready to be configured. If you toggle from No to Yes after any
configuration changes have been entered (and confirm the reboot), your changes are committed and the router
comes up using the newly created configuration.
Scheduled Connections
Scheduled connections are useful for PPPoE, PPTP, and ATMP connection profiles.
To go to the Scheduled Connections screen, from the WAN Configuration screen select Advanced Connection Options and then select Scheduled Connections.
Main
Menu
WAN
Configuration
Advanced
Connection Options
Scheduled
Connections
WAN Configuration 2-17
Scheduled Connections
Display/Change Scheduled Connection...
Add Scheduled Connection...
Delete Scheduled Connection...
Navigate from here to add/modify/change/delete Scheduled Connections.
Viewing scheduled connections
To display a table of scheduled connections, select Display/Change Scheduled Connection in the Scheduled
Connections screen. Each scheduled connection occupies one row of the table.
The first column in the table shows a one-letter representation of the Days of the week, from Monday (M or m)
to Sunday (S or s). If a letter representing a day is capitalized, the connection will be activated on that day; a
lower-case letter means that the connection will not be activated on that day. If the scheduled connection is
configured for a once-only connection, the word “once” will appear instead of the days of the week.
The other columns show:
2-18 Firmware User Guide
•The time of day that the connection will Begin At
•The duration of the connection (HH:MM)
•Whether it’s a recurring Weekly connection or used Once Only
•Which connection profile (Conn. Prof.) is used to connect
•Whether the scheduled connection is currently Enabled
The Router checks the date and time set in scheduled connections against the system date and time.
Adding a scheduled connection
To add a new scheduled connection, select Add Scheduled Connection in the Scheduled Connections screen
and press Return. The Add Scheduled Connection screen appears.
Add Scheduled Connection
Scheduled Connection Enable: On
How Often... Weekly
Schedule Type... Forced Up
Set Weekly Schedule...
Use Connection Profile...
ADD SCHEDULED CONNECTION CANCEL
Scheduled Connections dial remote Networks on a Weekly or Once-Only basis.
Follow these steps to configure the new scheduled connection:
•To activate the connection, select Scheduled Connection Enable and toggle it to On. You can make the
scheduled connection inactive by toggling Scheduled Connection Enable to Off.
•Decide how often the connection should take place by selecting How Often and choosing Weekly or Once
Only from the pop-up menu.
•The Schedule Type allows you to set the exact weekly schedule or once-only schedule.
Options are:
•Forced Up, meaning that this connection will be maintained whether or not there is a demand call on
the line.
•Forced Down, meaning that this connection will be torn down or blocked whether or not there is a
demand call on the line.
•Demand-Allowed, meaning that this schedule will permit a demand call on the line.
WAN Configuration 2-19
•Demand-Blocked, meaning that this schedule will prevent a demand call on the line.
•Periodic, meaning that the connection is retried several times during the scheduled time.
•Random Retry, which operates as follows:
First, it will wait 0 to 60 seconds before starting, then it will try three times to bring the connection up as
quickly as possible;
Second, on each successive retry after these first three attempts it will wait a random number of seconds
between zero and a user-specified maximum.
Should the connection come up, and subsequently go down, the Scheduled Connection will start over with
three retries. Switched connections have a variable redial back-of f time depending on the inter face type.
Consequently, the first three attempts for such connections will be slower. Once the connection is up it will
be forced to remain up.
•If How Often is set to Weekly, the item directly below How Often reads Set Weekly Schedule. If How Often
is set to Once Only, the item directly below How Often reads Set Once-Only Schedule.
Set Weekly Schedule
If you set How Often to Weekly, select Set Weekly Schedule and go to the Set Weekly Schedule screen.
•Select the days for the scheduled connection to occur and toggle them to Yes.
Set Weekly Schedule
Monday: No
Tuesday: No
Wednesday: No
Thursday: No
Friday: No
Saturday: No
Sunday: No
Scheduled Window Start Time: 04:29
AM or PM: AM
Scheduled Window Duration Per Day: 00:00
Retry interval (minutes): 5
Return/Enter accepts * Tab toggles * ESC cancels.
•Select Scheduled Window Start Time and enter the time to initiate the scheduled connection.
•You must enter the time in the format H:M, where H is a one- or two-digit number representing the hour and
M is a one- or two-digit number representing the minutes. The colon is mandator y. For example, the entry
1:3 (or 1:03) would be accepted as 3 minutes after one o’clock. The entry 7:0 (or 7:00) would be accepted
as seven o’clock, exactly. The entries 44, :5, and 2: would be rejected.
•Select AM or PM and choose AM or PM from the pop-up menu.
2-20 Firmware User Guide
•Select Scheduled Window Duration Per Day and enter the maximum duration allowed for this scheduled
connection, per call.
•Retry interval (minutes) becomes visible if you have selected Random Retr y. This option allows you to set
the upper limit for the number of minutes to use for the retry time (the attempts after the first three
attempts). It accepts values of 1 – 255 minutes; the default setting is 5 minutes. With a setting of 5
minutes it will try every 0 – 300 seconds after the first three retries to bring up the connection.
You are finished configuring the weekly options. Return to the Add Scheduled Connection screen to
continue.
Set Once-Only Schedule
If you set How Often to Once Only, select Set Once-Only Schedule and go to the Set Once-Only Schedule
screen.
Set Once-Only Schedule
Place Call on (MM/DD/YY): 05/07/1998
Scheduled Window Start Time: 11:50
AM or PM: AM
Scheduled Window Duration: 00:00
•Select Place Call On (Date) and enter a date in the format MM/DD/YY or MM/DD/YYYY (month, day,
year).
Note: You must enter the date in the format specified. The slashes are mandator y. For example, the entry
5/7/98 would be accepted as May 7, 1998. The entry 5/7 would be rejected.
•Select Scheduled Window Start Time and enter the time to initiate the scheduled connection.
Note: You must enter the time in the format H:M, where H is a one- or two-digit number representing the
hour and M is a one- or two-digit number representing the minutes. The colon is mandator y. For example,
the entry 1:3 (or 1:03) would be accepted as 3 minutes after one o’clock. The entry 7:0 (or 7:00) would be
accepted as seven o’clock, exactly. The entries 44, :5, and 2: would be rejected.
•Select AM or PM and choose AM or PM.
•Select Scheduled Window Duration and enter the maximum duration allowed for this scheduled
connection. Use the same format restrictions noted above.
WAN Configuration 2-21
You are finished configuring the once-only options. Return to the Add Scheduled Connection screen to continue.
•In the Add Scheduled Connection screen, select Use Connection Profile and choose from the list of
connection profiles you have already created. A scheduled connection must be associated with a
connection profile to be useful. The connection profile becomes active during the times specified in the
associated scheduled connection, if any exists.
•Select ADD SCHEDULED CONNECTION to save the current scheduled connection. Select CANCEL to exit
the Add Scheduled Connection screen without saving the new scheduled connection.
Modifying a scheduled connection
To modify a scheduled connection, select Display/Change Scheduled Connection in the Scheduled
Connections screen to display a table of scheduled connections.
Select a scheduled connection from the table and press Return. The Change Scheduled Connection screen
appears. The parameters in this screen are the same as the ones in the Add Scheduled Connection screen
(except that ADD SCHEDULED CONNECTION and CANCEL do not appear). To find out how to set them, see
“Adding a scheduled connection” on page 2-18.
Deleting a scheduled connection
To delete a scheduled connection, select DeleteScheduled Connection in the Scheduled Connections screen
to display a table of scheduled connections.
Select a scheduled connection from the table and press the Return key to delete it. To exit the table without
deleting the selected scheduled connection, press the Escape key.
Backup Configuration
See “Line Backup” on page 8-1.
2-22 Firmware User Guide
Diffserv Options
Netopia Firmware Version 8.7 offers Dif ferentiated Ser vices (Dif fser v) enhancements. These enhancements
allow your Router to make Quality of Service (QoS) decisions about what path Internet traffic, such as Voice
over IP (VoIP), should travel across your network. For example, you may want streaming video conferencing to
use high quality, but more restrictive, connections, or, you might want e-mail to use less restrictive, but less
reliable, connections.
When you select Diffserv Options, the Diffser ve Options configuration screen appears.
Diffserv Options
Diffserv Enabled: No
•Differentiated Services is disabled by default. To enable Differentiated Services, toggle Diffserv Enabled to
Yes and press Return.
WAN Configuration 2-23
The Diffserv options are displayed.
Diffserv Options
Diffserv Enabled: Yes
Lo/Hi Ratio: 0
Show/Change Rules...
Add Rules...
Return accepts * ESC cancels * Left/Right moves insertion point * Del deletes.
•Enter a value from 60 to 100 (percent) in the Lo/Hi Ratio field.
Differentiated Services uses the low-to-high priority queue ratio to regulate traffic flow. For example, to
provide the least possible latency and highest possible throughput for high priority traffic, you could set the
ratio to 100(%). This would cause the Router to forward low priority data only after the high priority queue is
completely empty. In practice, you should set it to something less than 100%, since the low priority traffic
might have to wait too long to be passed, and consequently be subject to time-outs.
You can then define custom Rules. If your applications do not provide Quality of Service (QoS) control, rules
allow you to define streams for some protocols, por t ranges, and between specific end point addresses.
•To define a Rule, select Add Rules and press Return.
(Once you have added one or more rules, you can edit any of them by returning to this screen and selecting
Show/Change Rules.)
2-24 Firmware User Guide
The Diffserv Rule screen appears.
Diffserv Rule
Name:
Protocol... TCP
Priority... off
Direction... outbound
Start Port: 0
End Port: 0
Inside Ip Address: 0.0.0.0
Inside Ip Netmask: 0.0.0.0
Outside Ip Address: 0.0.0.0
Outside Ip Netmask: 0.0.0.0
COMMIT CANCEL
Return accepts * ESC cancels * Left/Right moves insertion point * Del deletes.
•Name – Enter a name in this field to label the rule.
•Protocol – Select the protocol from the pop-up menu: TCP (default), UDP, ICMP, or Other. “Other” is
appropriate for setting up rules on protocols with non-standard port definitions. IPSEC and PPTP are
common examples.
•Priority – This is the Quality of Service setting for the rule, based on the TOS bit information. Select
assure, expedite, or off (default) from the pop-up menu. The following table outlines the TOS bit settings
and behavior:
QoS SettingTOS Bit ValueBehavior
offTOS=000This custom rule is disabled. You can activate it by selecting one of
the two settings below. This setting allows you to pre-define flows
without actually activating them.
assureTOS=001Use normal queuing and throughput rules, but do not drop packets
if possible. Appropriate for applications with no guaranteed delivery
mechanism.
expediteTOS=101Use minimum delay. Appropriate for VoIP and video applications.
•Numerical Protocol – If you select “Other” protocol, this field appears for you to provide its actual protocol
number, with a range of 0 – 255.
•Direction – Choose outbound (default), inbound, or both from the pop-up menu.
•Start Por t – For TCP or UDP protocols, you can optionally specify a range of por ts. Enter the star ting por t
here.
•End Port – Enter the ending por t here.
WAN Configuration 2-25
•Inside IP Address/Netmask – For outbound flows, specify an IP address and subnet mask on your LAN. For
inbound flows, this setting is ignored.
•Outside IP Address/Netmask – If you want traffic destined for and originating from a certain WAN IP
address to be controlled, enter the IP address and subnet mask here. If you leave the default all-zeroes,
the outside address check is ignored.
For outbound flows, the outside address is the destination IP address for traffic; for inbound packets, the
outside address is the source IP address.
When you are finished, select COMMIT and press Return. You will be returned to the Diffser v Options screen
and your settings will take effect.
Priority Queuing (TOS bit)
Netopia Firmware Version 8.7 offers the ability to prioritize delay-sensitive data over the WAN link on DSL
connections.
Certain types of IP packets, such as voice or multimedia packets, are sensitive to latency introduced by the
network. This means that if such packets are not received rapidly, the quality of service degrades. If you expect
to route significant amounts of such traffic you can configure your router to prioritize this type of traffic using the
priority queuing feature.
To configure your router to prioritize delay-sensitive data, navigate to the Advanced Connection Options screen
in the console menu.
Main
Menu
The Advanced Connection Options screen appears.
WAN
Configuration
Advanced Connection
Options
2-26 Firmware User Guide
Advanced Connection Options
Configuration Changes Reset WAN Connection: Yes
Scheduled Connections...
Backup Configuration...
Prioritize Delay-Sensitive Data: No
Diffserv Options...
VRRP Options...
Return/Enter to configure SA Backup Parameters.
The Router will recognize a delay-sensitive packet as having the low-latency bit set in the TOS field of the IP
header.
If you toggle Prioritize Delay-Sensitive Data to Yes the router will place these packets at the front of the
transmission queue to the WAN link, overtaking non-delay-sensitive traf fic. Accepting the default No will allow
the normal sequential queue of data packets.
VRRP Options (WAN Link Failure Detection)
Beginning with Firmware Version 8.5.1, the firmware offers VRRP Options to detect Layer 3 link failures on the
WAN. When you enable this feature, the Netopia Router will continuously Ping one or two hosts that you specify
to determine when a link fails, even if the physical connection remains established. If Layer 3 WAN Link Failure
Detection is enabled, the Netopia Router will send continuous Pings, so the WAN link will stay up and idle
timeout will not occur.
Virtual Router Redundancy (VRRP)” on page 7-34 for a detailed description of VRRP and how to create
See “
Virtual Routers.
To enable WAN Link Failure Detection, select VRRP Options in the Advanced Connection Options menu. The
VRRP Options menu appears.
VRRP Options
WAN Link Failure Detection:
Ping Enable: Off
Return/Enter accepts * Tab toggles * ESC cancels.
Toggle Ping Enable to On and press Return. The Ping settings options appear.
VRRP Options
WAN Link Failure Detection:
Ping Enable: On
Ping Host Name or IP Address #1:
Ping Host Name or IP Address #2:
Delay (s): 5
Ping failures: 10
WAN Configuration 2-27
•The Ping Host Name or IP Address #1 and Ping Host Name or IP Address #2 fields allow you to enter the
fully-qualified host name(s) or IP address(es) in standard dotted-quad format of the hosts you want to Ping
for connection validation. If no ICMP echo(es) are returned from these hosts, the connection is assumed to
be lost, and the Virtual Router will relinquish Master status.
•The Delay (s) field allows you to specify the time in seconds between Pings. The default is five (5) seconds.
•The Ping failures field allows you to specify the number of Ping time-outs or failures after which the
connection is assumed to be lost. The default is ten (10).
2-28 Firmware User Guide
System Configuration 3-1
Chapter 3
System Configuration
This chapter describes how to use the Telnet-based management screens to access and configure advanced
features of your equipment. You can customize these features for your individual setup. These menus provide a
powerful method for experienced users to set up their Router’s system configuration.
System Configuration Features
The Netopia Router’s default settings may be all you need to configure. Some users, however, require advanced
settings or prefer manual control over the default selections. For these users, Netopia Firmware Version 8.7
provides many advanced system configuration options.
This section covers the following topics:
•“IP Setup” on page 3-2•“Wireless configuration” on page 3-23
•“Filter Sets” on page 3-2•“Console Configuration” on page 3-35
•“IP Address Serving” on page 3-2•“SNMP (Simple Network Management Protocol)”
on page 3-36
•“Network Address Translation (NAT)” on
page 3-2
•“Stateful Inspection” on page 3-3•“Upgrade Feature Set” on page 3-36
•“Procedure for Default Installation for ICSA
firewall certification of Small/Medium
Business Category Module (ADSL Routers)”
on page 3-48
•“VLAN Configuration” on page 3-11•“IGMP (Internet Group Management Protocol)” on
•“Date and time” on page 3-22•“Logging” on page 3-42
To access the system configuration screens, select System Configuration in the Main Menu and press Return.
•“Security” on page 3-36
•“Router/Bridge Set” on page 3-37
page 3-39
3-2 Firmware User Guide
The System Configuration menu screen appears:
System Configuration
IP Setup...
Filter Sets...
IP Address Serving...
Network Address Translation (NAT)...
Stateful Inspection...
VLAN Configuration...
Date and Time...
Wireless Configuration...
Console Configuration
SNMP (Simple Network Management Protocol)...
Security...
Upgrade Feature Set...
Router/Bridge Set... Router
IGMP (Internet Group Management Protocol)...
Logging...
Use this screen if you want options beyond Easy Setup.
IP Setup
These screens allow you to configure your network’s use of the IP networking protocol.
•Details are given in “IP Setup” on page 7-2.
Filter Sets
These screens allow you to configure security on your network by means of filter sets and a basic firewall.
•Details are given in “Security” on page 10-1.
IP Address Serving
These screens allow you to configure IP address ser ving on your network by means of DHCP, WANIP, and BootP.
•Details are given in “IP Address Ser ving” on page 7-17.
Network Address Translation (NAT)
These screens allow you to configure the Multiple Network Address Translation (MultiNAT) features.
•Details are given in “Multiple Network Address Translation” on page 4-1.
System Configuration 3-3
Stateful Inspection
Stateful inspection is a security feature that prevents unsolicited inbound access when NAT is disabled.
Stateful inspection can be enabled on a Connection Profile whether NAT is enabled or not. You can configure
UDP and TCP “no-activity” periods that will also apply to NAT time-outs if stateful inspection is enabled on the
interface. Stateful Inspection parameters are active on a WAN interface only if enabled on your Gateway.
Stateful Inspection
UDP no-activity timeout (sec): 180
TCP no-activity timeout (sec): 14400
DoS Detect: No
Add Exposed Address List...
Exposed Address Associations...
Return/Enter goes to new screen.
Return/Enter to configure Xposed IP addresses.
•UDP no-activity time-out: The time in seconds after which a UDP session will be terminated, if there is no
traffic on the session.
•TCP no-activity time-out: The time in seconds after which an TCP session will be terminated, if there is no
traffic on the session.
•DoS Detect: Beginning with Firmware Version 8.7, if you toggle this option to Yes, the device will monitor
packets for Denial of Service (DoS) attack. Offending packets may be discarded if it is determined to be a
DoS attack.
•Add Exposed Address List: Accesses the Add Exposed Address List screen. See “Add Exposed Address
List” on page 3-4.
•Exposed Address Associations: Accesses the Exposed Address Associations screen. See “Exposed
Address Associations” on page 3-8. The hosts specified in Exposed addresses will be allowed to receive
inbound traffic even if there is no corresponding outbound traf fic. This is active only if NAT is disabled on a
WAN interface. An Exposed Address List can be associated with a Connection Profile only if NAT is disabled
and Stateful Inspection is enabled on the profile.
3-4 Firmware User Guide
Add Exposed Address List
You can specify the IP addresses you want to expose by selecting Add Exposed Address List from the Stateful
Inspection menu and pressing Return.
Stateful Inspection
UDP no-activity timeout (sec): 180
TCP no-activity timeout (sec): 14400
Add Exposed Address List...
Exposed Address Associations...
Return/Enter goes to new screen.
Return/Enter to configure Xposed IP addresses.
The Add Exposed Address List screen appears.
Add Exposed Address List
Exposed Address List Name: xposed_list_1
Return accepts * ESC cancels * Left/Right moves insertion point * Del deletes.
Enter a descriptive name for the list and press Return. A new field Add Exposed Address Range appears.
Add Exposed Address List
Exposed Address List Name: xposed_list_1
Add Exposed Address Range...
Return/Enter goes to new screen.
Select Add Exposed Address Range and press Return.
The Exposed Address Range screen appears.
System Configuration 3-5
Add Exposed Address Range ("xposed_list_1")
First Exposed Address: 0.0.0.0
Last Exposed Address: 0.0.0.0
Protocol... ANY
ADD EXPOSED ADDRESS RANGE CANCEL
Enter an IP address in decimal and dot form (xxx.xxx.xxx.xxx).
Enter the First and Last Exposed Addresses in dotted-quad format for the range of IP addresses you want to
expose,
3-6 Firmware User Guide
The pop-up Protocol menu offers the type of protocols to be assigned to this range.
Add Exposed Address Range ("xposed_list_1")
First Exposed Address: 192.168.1.10
Last Exposed Address: +-------------+
+-------------+
Protocol... | TCP and UDP |
| TCP |
| UDP |
| ANY |
+-------------+
ADD EXPOSED ADDRESS RANGE CANCEL
Add Exposed Address Range ("xposed_list_1")
First Exposed Address: 192.168.1.10
Last Exposed Address: 192.168.1.12
Protocol... TCP and UDP
Port Start: 0
Port End: 0
ADD EXPOSED ADDRESS RANGE CANCEL
Return accepts * ESC cancels * Left/Right moves insertion point * Del deletes.
•First Exposed Address: Start IP Address of the exposed host range.
•Last Exposed Address: End IP Address of the exposed host range
•Protocol: Select the Protocol of the traffic to be allowed to the host range from the pop-up menu. Options
are Any, TCP, UDP, or TCP and UDP.
•Port Star t: Star t por t of the range to be allowed to the host range. The acceptable range is from 1 -
65535.
•Port End: End por t of the range to be allowed to the host range. The acceptable range is from 1 - 65535.
System Configuration 3-7
You can edit or delete exposed address lists by selecting Show/Change Exposed Address List or Delete
Exposed Address List. A list of previously configured exposed addresses appears. This allows you to select an
Up/Down Arrow Keys to select, ESC to dismiss, Return/Enter to Edit.
Note: Add, Edit, or Delete exposed addresses options are active only if NAT is disabled on a WAN interface.
The hosts specified in exposed addresses will be allowed to receive inbound traffic even if there is no
corresponding outbound traf fic.
3-8 Firmware User Guide
Exposed Address Associations
Enable and configure stateful inspection on a WAN interface.
IP Profile Parameters
Address Translation Enabled: Yes
IP Addressing... Numbered
NAT Map List... Easy-PAT List
NAT Server List... Easy-Servers
NAT Options...
Stateful Inspection Enabled: No
Local WAN IP Address: 0.0.0.0
Local WAN IP Mask: 0.0.0.0
Filter Set...
Remove Filter Set
RIP Profile Options...
Return/Enter to select <among/between> ...
Configure IP requirements for a remote network connection here.
When you create or modify a Connection Profile, the IP Profile Parameters screen allows you to enable Stateful
Inspection on that profile by toggling Stateful Inspection Enabled to Yes . By default, this is turned of f (No). If
you enable Stateful Inspection, the Stateful Inspection Options field appears.
Stateful Inspection Options
IP Profile Parameters
Address Translation Enabled: No
IP Addressing... Numbered
Stateful Inspection Enabled: Yes
Stateful Inspection Options...
Local WAN IP Address: 0.0.0.0
Local WAN IP Mask: 0.0.0.0
Filter Set...
Remove Filter Set
RIP Profile Options...
Configure IP requirements for a remote network connection here.
System Configuration 3-9
Select Stateful Inspection Options and press Return. The Stateful Inspection Parameters screen appears.
Stateful Inspection Parameters
Max. TCP Sequence Number Difference: 0
Enable default mapping to router: No
Deny Fragmented Packets: No
Exposed Address List...
Enter max. allowed TCP sequence number difference (1 - 65535), 0 to disable.
•Max. TCP Sequence Number Difference: Enter a value in this field. This value represents the maximum
sequence number difference allowed between subsequent TCP packets. If this number is exceeded, the
packet is dropped. The acceptable range is 0 – 65535. A value of 0 (zero) disables this check.
•Enable default mapping to router: This is disabled by default. Toggling this option to Yes will allow the
router to respond to traffic received on this inter face, for example, ICMP Echo requests.
Note: If Stateful Inspection is enabled on a base connection profile (for example, for PPP, RFC1483
bridged/routed, or PPPoE), Enable default mapping to router must be yes to allow inbound VPN terminations.
(for example. for PPTP/ATMP client access to the router)
•Deny Fragmented Packets: Toggling this option to Yes causes the router to discard fragmented packets on
this interface.
•You can apply these parameters to your Exposed Address lists by selecting your Exposed Address List
from the pop-up menu,
A Virtual Local Area Network (VLAN) is a network of computers that behave as if they are connected to the same
wire even though they may be physically located on different segments of a LAN. You set up VLANs by
configuring the Router software rather than hardware. This makes VLANs ver y flexible. VLANs behave like
separate and independent networks.
Beginning with Firmware Version 8.6.1, your Router supports the following:
•Global Enable/Disable of VLANs
•VLANs of “Global” type
•Packet prioritization based on VLAN
To configure VLANs on supported models, select VLAN Configuration in the System Configuration screen and
press Return.
The VLAN Configuration screen appears.
VLAN Configuration
VLAN Enable: Off
Set Up VLAN from this and the following Menus.
Toggle VLAN Enable to On and press Return.
3-12 Firmware User Guide
The Add VLAN selection appears.
VLAN Configuration
VLAN Enable: On
Add VLAN...
Authentication Server Configuration...
Return/Enter to select <among/between> ...
Set Up VLAN from this and the following Menus.
Once a VLAN has been successfully added, configure ports using the
"Add Port Interface" option of the "Display/Change VLAN" menu.
ADD VLAN CANCEL
Return accepts * ESC cancels * Left/Right moves insertion point * Del deletes.
Configure a new VLAN and its associated ports.
You can create up to 8 VLANs, and you can also restrict any VLAN, and the computers on it, from administering
the Router.
•VLAN ID – This must be a unique identifying number between 0 (beginning with Firmware Version 8.7) and
4094.
System Configuration 3-13
•VLAN Type – Beginning with Firmware Version 8.6.1, LAN or WAN Port(s) can be enabled on the VLAN. See
“Adding Port interfaces” on page 3-16 for more information. You can choose a type designation as follows:
port-based: The por ts set up on VLANs for this switch will inser t a default VLAN identifier (VID) into any
non-802.1q-tagged Ethernet packet received, and they will strip out any 802.1q header within a packet
transmitted through the port with a VID matching the VLAN's VID. The default VID for the VLAN is selected
by the Router.
global: Indicates that the ports joining this VLAN are part of a global 802.1q Ethernet VLAN. This VLAN
includes ports on this Router and may include ports within other devices throughout the network. The VID
in this case may define the behavior of traffic between all devices on the network having ports that are
members of this VLAN segment.
•VLAN Name – A descriptive name for the VLAN.
•VLAN Network – From the VLAN Network pop-up menu select None, Primary LAN or, if you have configured
an Additional LAN (ALAN), an Additional LAN. See “Additional LANs” on page 7-37.
Display/Change VLAN...
+-Name---------------------------IP Address------+
+------------------------------------------------+
| Primary LAN 192.168.1.1 |
| Additional LAN 1 1.1.1.1 |
| Additional LAN 2 0.0.0.0 |
| <None> |1
| |
| |
+------------------------------------------------+
Once a VLAN has been successfully added, configure ports using the
"Add Port Interface" option of the "Display/Change VLAN" menu.
Note: VLAN changes require a reboot to take ef fect. See “Restarting the System” on page 11-8.
•802.1x – This option is only available for Router models with VGx technology. Otherwise, it does not
appear. If you are configuring a VLAN for a Netopia Router model with VGx technology (wired or wireless),
you can specify a RADIUS server for user authentication by toggling 802.1x to Yes. The default is No.
Adding a RADIUS Profile
•Authentication Profile – If you toggle 802.1x to Yes, this option displays. Select Authentication Profile and
press Return.
If you have RADIUS server profiles already defined, the pop-up menu allows you to select one for use with
this VLAN. If none are defined, the pop-up menu offers the option to configure a RADIUS Profile.
3-14 Firmware User Guide
Caution!If you enable 802.1x for a VLAN that includes a wireless SSID, you must access the Wireless LAN
Configuration menu and set Enable Privacy to WPA-802.1x as well. See “Enable Privacy” on page 3-26. If
multiple SSIDs are split across several VLANs, the VLANs must either:
• all have 802.1x enabled with WPA-802.1x enabled in Wireless Privacy, or
• have the VLANs set to 802.1x disabled and Wireless Privacy set to some other privacy setting. In that case
Wireless Privacy can be any setting. Wireless does not currently support separate privacy modes per SSID.
When enabling WPA-802.1x, wireless will default to the RADIUS configuration specified in Advanced Security
Options (see “Advanced Security Options” on page 10-6), unless it is part of a VLAN. If it is part of a VLAN it will
use the VLAN authentication profile's specified RADIUS server.
Add VLAN...
VLAN ID (1-4094): 10
VLAN Type... global
VLAN Name: Network A
VLAN Network: Primary LAN
+----------Profile Name-----------+
802.1x: +---------------------------------+
Authentication Profile... | <Add RADIUS Profile> |
| |
Once a VLAN has been successfully| |
"Add Port Interface" option of th| |
+---------------------------------+
ADD VLAN CANCEL
Select Add RADIUS Profile and press Return.
System Configuration 3-15
The Add Server Profile screen appears.
Add Server Profile
Profile Name: Authentication Profile 1
Remote Server Addr/Name:
Remote Server Secret:
Alt Remote Server Addr/Name:
Alt Remote Server Secret:
RADIUS Identifier:
RADIUS Server Authentication Port: 1812
ADD PROFILE CANCEL
Return accepts * ESC cancels * Left/Right moves insertion point * Del deletes.
Configure a new RADIUS or TACACS profile.
The Add Server Profile screen allows you to specify the RADIUS ser ver and its authentication credentials to
be associated with your VLAN.
•Profile Name – Enter a descriptive name for the profile, up to 35 characters.
•Remote Server Addr/Name – Enter the IP address or fully qualified ser ver name.
•Remote Server Secret – Enter the ser ver CHAP secret.
•Alt Remote Server Addr/Name – If you have an alternate RADIUS ser ver, enter the IP address or
server name here, as above.
•Alt Remote Server Secret – If you have an alternate RADIUS server, enter the server CHAP secret
here, as above.
•RADIUS Identifier – Enter the RADIUS Network Access Server (NAS) identifier. The default NAS identi-
fier is an ASCII representation of the ser ver’s base MAC address.
•RADIUS Server Authentication Port – Ordinarily, the RADIUS server por t number is 1812. If you are
using a different port number, enter it here.
Select ADD PROFILE and press Return. You will be returned to the Add VLAN screen.
Select ADD VLAN and press Return.
3-16 Firmware User Guide
Adding Port interfaces
Once you have created a VLAN entry you must associate it with a port inter face. This inter face may be either a
physical port, such as USB or Ethernet, or a Network ID (SSID) of a wireless LAN. If you have a Netopia Router
model that offers Netopia’s VGx technology, you can also associate a VLAN with each of the physical Ethernet
managed switch ports.
When setting up a VLAN, typically you will add one or more physical ports, such as an Ethernet por t or a
wireless SSID, and make the ports routable by specifying Primary LAN as the VLAN Network. To make a set of
VLANs non-routable, the Primary LAN por t must be included in at least one VLAN and must be excluded from
any VLANs that are non-routable.
Note: Beginning with Firmware Version 8.5, you can associate two VLANs, one of which is 802.1x
authenticated and the other is not, with the same port. This allows you to have authenticated access for
PCs on the wired-or wireless LAN to non-authenticated devices such as print ser vers.
Return to the VLAN Configuration screen, select Display/Change VLAN, and from the pop-up menu, select the
VLAN ID to be modified.
Up/Down Arrow Keys to select, ESC to dismiss, Return/Enter to Edit.
The Display/Change VLAN screen appears.
System Configuration 3-17
Display/Change VLAN...
VLAN ID (1-4094): 10
VLAN Type... global
VLAN Name: Network A
VLAN Network: Primary LAN
802.1x: No
Add Port Interface...
Return accepts * ESC cancels * Left/Right moves insertion point * Del deletes.
Select Add Port Inter face and press Return.
The Add Port Interface screen appears. (The Add Port Inter face screen varies depending on the types of por ts
available on your Netopia Router; the example below shows the four Ethernet por ts, the primar y SSID, and the
Ethernet WAN port of a 4-port wireless VGx model.)
Add Port Interface...
+-NAME-----------------TYPE----+
+------------------------------+
Port Interface... | Eth 0/1 Port |
Tag: | Eth 0/2 Port |
TOS-Priority: | Eth 0/3 Port |
IPTOS-Promote: | Eth 0/4 Port |
| SSID 1 Port |
| Eth 2 Port |
| |
| |
| |
| |
| |
| |
| |
| |
| |
+------------------------------+
COMMIT CANCEL
Up/Down Arrow Keys to select, ESC to dismiss, Return/Enter to Edit.
From the Port Interfaces pop-up menu, select the port that you want to associate with this VLAN.
You specify the characteristics of the VLAN by setting the next three parameters:
•Tag – Packets transmitted from this por t through this VLAN must be tagged with the VLAN VID. Packets
received through this por t destined for this VLAN must be tagged with the VLAN VID by the source. The Tag
option is only available on global type ports.
3-18 Firmware User Guide
•TOS-Priority – Use any 802.1p priority bits in the VLAN header to prioritize packets within the Gateway’s
internal queues, according to Dif fSer v priority mapping rules. See “Dif fser v Options” on page 2-22 for
more information.
•IPTOS-Promote – Write any 802.1p priority bits into the IP-TOS header bit field for received IP packets on
this port destined for this VLAN. Write any IP-TOS priority bits into the 802.1p priority bit field for tagged IP
packets transmitted from this port for this VLAN. All mappings between Ethernet 802.1p and IP-TOS are
made according to a pre-defined QoS mapping policy. See “Diffser v Options” on page 2-22 for more
information.
Select COMMIT and press Return. Your VLAN settings will be associated with the port you have selected.
Note: VLAN changes require a reboot to take ef fect. See “Restarting the System” on page 11-8.
Changing or Deleting a VLAN
You can change or delete a VLAN by returning to the VLAN Configuration screen and selecting Display/Change
VLAN or Delete VLAN. In either case, select the VLAN that you want to change or delete from the pop-up menu,
Up/Down Arrow Keys to select, ESC to dismiss, Return/Enter to Edit.
Changing or Deleting an Authentication Server Configuration
You can change or delete a RADIUS or TACACS server profile by returning to the VLAN Configuration screen and
selecting Authentication Server Configuration, then Display/Change Server Profile or Delete Server Profile. In
either case, select the Server Profile that you want to change or delete from the pop-up menu, and press
Return.
System Configuration 3-19
Authentication Server Configuration
+----------Profile Name-----------+
+---------------------------------+
Display/Change Server| ATE1 V1 |
Add Server Profile...| |
Delete Server Profile| |
| |
+---------------------------------+
Up/Down Arrow Keys to select, ESC to dismiss, Return/Enter to Edit.
If you are deleting a profile, you will be challenged to be sure that you want to delete the profile that you have
selected.
Authentication Server Configuration
Display/Change Server+----------Profile Name-----------+
+--------------------------------------------------------+--------+
+--------------------------------------------------------+ |
| Are you sure you want to delete this server profile? | |
| | |
| CANCEL CONTINUE | |
| |--------+
| |
+--------------------------------------------------------+
If you select CONTINUE, the profile will be deleted.
3-20 Firmware User Guide
Configuring additional Authentication Servers
You can configure additional (or your first) Authentication Server from the main VLAN Configuration screen.
VLAN Configuration
Display/Change VLAN...
Add VLAN...
Delete VLAN...
Authentication Server Configuration...
Set Up VLAN from this and the following Menus.
Select Authentication Server Configuration and press Return.
Authentication Server Configuration
Display/Change Server Profile...
Add Server Profile...
Delete Server Profile...
Return/Enter to modify an existing server profile.
Set Up Authentication Server Profiles from this and the following Menus.
Select Add Server Profile and press Return.
System Configuration 3-21
The Add Server Profile screen appears.
Add Server Profile
Profile Name: Authentication Profile 2
Remote Server Addr/Name:
Remote Server Secret:
Alt Remote Server Addr/Name:
Alt Remote Server Secret:
RADIUS Identifier:
RADIUS Server Authentication Port: 1812
ADD PROFILE CANCEL
Return accepts * ESC cancels * Left/Right moves insertion point * Del deletes.
Configure a new RADIUS or TACACS profile.
Configure your profile in the same way as described in “Adding a RADIUS Profile” on page 3-13.
Note: VLAN changes require a reboot to take ef fect. See “Restarting the System” on page 11-8.
3-22 Firmware User Guide
Date and time
You can set the system’s date and time parameters in the Set Date and Time screen. Date and Time
parameters govern the repor ting of system events. These events are recorded in the system logs.
Select Date and Time in the System Configuration screen and press Return. The Set Date and Time screen
appears.
By default, Network Time Protocol (NTP) is enabled, allowing your Router to obtain Date and Time information
periodically over the Internet. You do not have to reset the system clock manually.
However, manual control is available if you desire it.
Set Date and Time
NTP (Network Time Prot.) Enabled: On
Time Server 1 Host Name/IP Address 204.152.184.72
Time Server 2 Host Name/IP Address 18.72.0.3
Time Zone... GMT -8:00 Pacific Standard Time
NTP Update Interval (HHHH:MM) 1:00
System Date Format: MM/DD/YY
System Time Format: AM/PM
Follow these steps to adjust the system’s date and time parameters manually:
1.Toggle NTP (Network Time Prot.) Enabled to On to synchronize the Router’s time and date with a network
server. Toggle this field to Off to manually set the time and date; the options in this screen will change to
allow you to manually enter the time and date parameters. Netopia Firmware Version 8.7 updates
timestamps reported in the system logs with new timestamps as these are updated via NTP. See
“Statistics & Logs” on page 9-3.
Note: If time and date are manually set, that information will be lost upon reboot or loss of power.
2.Enter the IP address of the time server in the field Time Server 1 Host Name/IP Address and,
alternatively, Time Server 2 Host Name/IP Address, if you prefer to use ser ver(s) different from the
defaults.
3.Select the Router’s time zone from the Time Zone pop-up menu and press Return.
4.In the NTP Update Interval field, enter how often to synchronize with the time ser ver, using the format
HHHH:MM where H is hours and M is minutes.
System Configuration 3-23
5.Select a System Date Format; the options are MM/DD/YY, DD/MM/YY, and YY/MM/DD, where M is
month, D is day, and Y is year.
6.Select a System Time Format, either AM/PM or 24hrs.
7.Press Escape to return to the System Configuration menu.
Note: NTP can be blocked by some firewall configurations. To ensure that this feature works, create a filterset
rule to allow UDP por t 123 to be open.
Wireless configuration
If your Router is a wireless model (such as a 3347NWG) you can enable or disable the wireless LAN by
selecting Wireless Configuration. The Wireless LAN Configuration screen appears.
Wireless LAN Configuration
Enable Wireless: No
SSID: 0271 1000
Block Wireless Bridging: No
Channel... 6
AutoChannel... Off
Closed System... Open
Wireless Multimedia (WMM)... Off
Enable Privacy... Off
Wireless Multiple SSID Setup...
MAC Address Authentication...
Turn on WEP or WPA encryption to protect your network.
Enable Wireless is set to Ye s by default. When Enable Wireless is disabled (No), the Gateway will not provide or
broadcast any wireless LAN ser vices. If you toggle Enable Wireless to No or Ye s, you must restar t the Gateway
for the change to take effect. See “Restarting the System” on page 11-8.
•SSID (Wireless ID): The SSID is preset to a number that is unique to your unit. You can either leave it as is,
or change it by entering a freeform name of up to 32 characters, for example “Ed’s Wireless LAN”. On
client PCs’ software, this might also be called the Network Name. The SSID is used to identify this
particular wireless LAN. Depending on their operating system or client wireless card, users must either:
•select from a list of available wireless LANs that appear in a scanned list on their client
•or, if you are in Closed System Mode (see “Closed System” on page 3-24), enter this name on their cli-
ents in order to join this wireless LAN.
You can then configure:
3-24 Firmware User Guide
•Block Wireless Bridging: Toggle this setting to Yes to block wireless clients from communicating with other
wireless clients on the LAN side of the Gateway.
•Channel: (1 through 11) on which the network will broadcast. This is a frequency range within the 2.4Ghz
band. Channel selection depends on government regulated radio frequencies that var y from region to
region. The widest range available is from 1 to 14. However, in North America only 1 to 11 may be
selected. Europe, France, Spain and Japan will differ. Channel selection can have a significant impact on
performance, depending on other wireless activity close to this Gateway. Channel selection is not
necessary at the client computers; the clients will scan the available channels seeking access points using
the same ESSID as the client.
•AutoChannel: (only available for 802.11G models). AutoChannel is a feature that allows the Netopia
Router to determine the best channel to broadcast automatically.
Three settings are available from the pull-down menu: Off, At Startup, and Continuous.
•Off is the default setting; the Netopia Router will use the configured default Channel selected from the
previous menu.
•At Startup causes the Netopia Router at star tup to briefly initialize on the default channel, then per-
form a full two- to three-second scan, and switch to the best channel it can find, remaining on that
channel until the next reboot.
•Continuous performs the at-star tup scan, and will continuously monitor the current channel for any
other Access Point activity. If Access Point activity is detected on the same channel, the Netopia
Router will initiate a scan of the other channels, locate a less active one, and switch. Once it has
switched, it will remain on this channel for at least 30 minutes before switching again if a new Access
Point is detected.
Note: Channel scans can be disruptive to normal wireless activity and may take a few minutes.
•Closed System: If you toggle Closed System to Closed, the wireless network is hidden from the scanning
features of wireless client computers. Unless both the wireless clients and the Router share the same
SSID in Closed System mode, the Router’s wireless LAN will not appear as an available network when
scanned for by wireless-enabled computers. Members of the Closed System WLAN must log onto the
Router’s wireless network with the identical SSID as that configured in the router.
Closed System mode is an ideal way to increase wireless security and to prevent casual detection by
unwanted neighbors, office users, or malicious users such as hackers.
If you toggle it to Open, it is more convenient, but potentially less secure, for clients to access your WLAN
by scanning available access points. You must decide based on your own network requirements.
System Configuration 3-25
Note: Enabling Closed System Mode on your wireless Gateway provides another level of security, since your
wireless LAN will no longer appear as an available access point to client PCs that are casually scanning for one.
Your own wireless network clients, however, must log into the wireless LAN by using the exact SSID of the
Netopia Gateway.
In addition, if you have enabled WEP encryption on the Netopia Gateway, your network clients must also have
WEP encryption enabled, and must have the same WEP encryption key as the Netopia Gateway.
Once the Netopia Gateway is located by a client computer, by setting the client to a matching SSID, the client
can connect immediately if WEP is not enabled. If WEP is enabled then the client must also have WEP enabled
and a matching WEP key.
Wireless client cards from dif ferent manufacturers and dif ferent operating systems accomplish connecting to a
wireless LAN and enabling WEP in a variety of ways. Consult the documentation for your particular wireless card
and/or operating system.
Wireless Multimedia (WMM)
Wireless Multimedia is an advanced feature that allows you to prioritize various types of data travelling over the
wireless network. Certain types of data that are sensitive to delays, such as voice or video, must be prioritized
ahead of other, less delay-sensitive types, such as email.
Wireless Multimedia implements wireless Quality of Ser vice (QoS) by transmitting data depending on Diffserv
priority settings. See “Diffserv Options” on page 2-22. These priorities are mapped into four Access Categories
(AC), in increasing order of priority:
• Background (BK),
• Best Effort (BE),
• Video (VI), and
• Voice (VO).
It requires Wireless Multimedia (WMM)-capable clients, usually a separate feature enabled at the client network
settings, and client PC software that makes use of Differentiated Services (Diffserv). Refer to your operating
system instructions for enabling Diffser v QoS.
Wireless Multiple SSID Setup...
MAC Address Authentication...
To enable the Wireless Multimedia custom settings, select diffserv from the pull-down menu.
Enable Privacy
By default, Enable Privacy is set to Off. IT IS STRONGLY RECOMMENDED THAT YOU ENABLE PRIVACY.
•WPA-PSK: (Wi-Fi Protected Access) The easiest way to enable Privacy on your Wireless network is by
selecting WPA-PSK - (Pre-Shared Key) from the pop-up menu.
Wireless Multiple SSID Setup...
MAC Address Authentication...
System Configuration 3-27
The Pre Shared Key field becomes visible to allow you to enter a Pre Shared Key. The key can be between
8 and 63 characters, but for best security it should be at least 20 characters. Clients wishing to connect
must also be configured to use WPA with this same key.
Wireless LAN Configuration
Enable Wireless: Yes
SSID: 0271 1000
Block Wireless Bridging: No
Channel... 6
AutoChannel... Off
Closed System... Open
Enable Privacy... WPA - PSK (Pre-Shared Key)
Pre Shared Key:
Wireless Multiple SSID Setup...
MAC Address Authentication...
Select an 8 to 63 character passphrase. At least 20 is ideal for best security.
•WPA - 802.1x: If you select WPA - 802.1x you can then configure a RADIUS server to authenticate users of
the wireless network. To do this, you must return to the Security menu, Advanced Security Options to
specify the RADIUS server you want to use. See “Advanced Security Options” on page 10-6 and “VLAN
Configuration” on page 3-11.
Wireless LAN Configuration
Enable Wireless: Yes
SSID: 0271 1000
Block Wireless Bridging: No
Channel... 6
AutoChannel... Off
Closed System... Open
Enable Privacy... WPA - 802.1x
Configure a RADIUS server in the Security menu, under
Advanced Security Options, to authenticate using 802.1x.
If the SSID is part of a VLAN, it will use the VLAN's
configured RADIUS server in the Authentication Profile instead.
Wireless Multiple SSID Setup...
MAC Address Authentication...
3-28 Firmware User Guide
•WPA Version: If you select either WPA-802.1x or WPA-PSK as your privacy setting, the WPA Version
pop-up menu allows you to select the WPA version(s) that will be required for client connections. Choices
are:
•All, for maximum interoperability,
•WPA Version 1, for backward compatibility,
•WPA Version 2, for maximum security.
All clients must support the version(s) selected in order to successfully connect.
Wireless LAN Configuration
Enable Wireless: Yes
SSID: 7101 3245
Block Wireless Bridging: No
Channel... +---------------------------+
AutoChannel... +---------------------------+
Closed System... | All |
Enable Privacy... | WPA Version 1 |
WPA Version... | WPA Version 2 |
Pre Shared Key: +---------------------------+
Wireless Multiple SSID Setup...
MAC Address Authentication...
•WEP: Alternatively, you can provide a level of data security by enabling WEP (Wired Equivalent Privacy) for
encryption of network data. You can enable 40-, 128-, or 256-bit WEP Encryption (depending on the
capability of your client wireless card) for IP traffic on your LAN.
System Configuration 3-29
Wireless LAN Configuration
Enable Wireless: Yes
SSID: 0271 1000
Block Wireless Bridging: No
Channel... 6
AutoChannel... Off
Closed System... Open
Enable Privacy... WEP - Automatic
Default Key... 1
Passphrase: Well I stand up next to a mountain,
Wireless Multiple SSID Setup...
MAC Address Authentication...
You select a single key for encryption of outbound traffic. The WEP-enabled client must have an identical
key of the same length, in the identical slot (1 – 4) as the Gateway, in order to successfully receive and
decrypt the traffic. Similarly, the client also has a ‘default’ key that it uses to encrypt its transmissions. In
order for the Gateway to receive the client’s data, it must likewise have the identical key of the same
length, in the same slot. For simplicity, a Gateway and its clients need only enter, share, and use the first
key.
The pop-up menu for enabling WEP offers these settings: On - Automatic or On - Manual.
•On - Automatic uses a passphrase to generate encryption keys for you. You enter a passphrase that
you choose in the Passphrase field. The passphrase can be any string of words or numbers.
Note: While clients may also have a passphrase feature, these are vendor-specific and may not necessarily
create the same keys. You can passphrase generate a set of keys on one, and manually enter them on the
other to get around this.
Select the Default Key (#1 – #4). The longer the key, the stronger the encr yption and the more dif ficult it is
to break the encryption.
•On - Manual allows you to enter your own encryption keys manually. This is a difficult process, but only
3-30 Firmware User Guide
needs to be done once. Avoid the temptation to enter all the same characters.
Wireless LAN Configuration
Enable Wireless: Yes
SSID: 4405 2605
Channel... 6
Closed System... Open
Enable WEP... On - Manual
Default Key (#1 – #4): Specifies which key the Router will use to encrypt transmitted traffic. The default is
key #1.
Key (#1 – #4): The encryption keys. You enter keys using hexadecimal digits. For 40/64bit encryption, you
need ten digits; 26 digits for 128bit, and 58 digits for 256bit WEP. Hexadecimal characters are 0 – 9, and
a – f. The longer the key, the stronger the encryption and the more dif ficult it is to break the encr yption.
•Wireless Multiple SSID Setup: This feature allows you to add additional network identifiers (SSIDs or
Network Names) for your wireless network.
To enable it, select Wireless Multiple SSID Setup and press Return.
The Multiple SSID Configuration screen appears.
System Configuration 3-31
Multiple SSID Configuration
Enable Multiple SSIDs: No
Second SSID: 0000 0000
Enable Privacy... Off
Third SSID: 0000 0000
Enable Privacy... Off
Fourth SSID: 0000 0000
Enable Privacy... Off
Configure additional wireless SSID's that clients can associate with.
Toggle Enable Multiple SSIDs to Yes, and enter names or other identifiers for up to three additional SSIDs
you want to create.
Multiple SSID Configuration
Enable Multiple SSIDs: Yes
Second SSID: GameRoom
Enable Privacy... +---------------------------+
+---------------------------+
| Off |
Third SSID: | WPA - PSK (Pre-Shared Key)|
Enable Privacy... | WPA - 802.1x |
+---------------------------+
Fourth SSID: Alice in Wonderland
Enable Privacy... Off
You can then specify a Privacy mode for each one from the pop-up menu. Privacy modes available from the
pull-down menu for the multiple SSIDs are: WPA-PSK, WPA-802.1x, or Off.
3-32 Firmware User Guide
Multiple SSID Configuration
Enable Multiple SSIDs: On
Second SSID: GameRoom
Enable Privacy... +---------------------------+
WPA Version... +---------------------------+
Key: | All |
| WPA Version 1 |
Third SSID: | WPA Version 2 |
Enable Privacy... +---------------------------+
Fourth SSID: 0000 0000
Enable Privacy... Off
You can also specify a WPA Version from the pop-up menu in the same way as the primary SSID.
Multiple SSID Configuration
Enable Multiple SSIDs: On
Second SSID: GameRoom
Enable Privacy... WPA - PSK (Pre-Shared Key)
WPA Version... All
Key: oncemoreintothebreach
Third SSID: DJ's Kitchen
Enable Privacy... Off
Fourth SSID: Alice in Wonderland
Enable Privacy... Off
Enter a string of characters (32 max) to identify this wireless network.
Configure additional wireless SSID's that clients can associate with.
These additional SSIDs are “Closed System Mode” Wireless IDs (see page 3-25) that will not be shown by
a client scan, and therefore must be manually configured at the client. In addition, wireless bridging
between clients is disabled for all members of these additional network IDs. See Block Wireless Bridging
on page 3-24.
System Configuration 3-33
MAC Address Authentication
Enhanced in Firmware Version 8.5, MAC Address Authentication allows you to specify which client PCs are
allowed to join the LAN by specific hardware address. Once it is enabled, only entered MAC addresses that have
been set to Allow will be accepted onto the LAN. Alternatively, you can prevent access by certain client PCs by
specifying only those to be denied.
To enable MAC Address Authentication, select MAC Address Authentication, and press Return.
The Authorized MAC Addresses screen appears.
Authorized MAC Addresses
MAC Authentication Mode: Disabled
Wireless Only: Yes
Display/Change MAC Addresses...
Add MAC Address...
Delete MAC Address...
Return/Enter to select <among/between> ...
Add/View/Delete MAC addresses from this and the following Screens.
From the MAC Authentication Mode pull-down menu, select the mode you want to implement:
Authorized MAC Addresses
MAC Authentication Mode: +--------------------------------+
Wireless Only: +--------------------------------+
| Disabled |
| Allow only specified addresses |
Display/Change MAC Addresses... | Deny only specified addresses |
+--------------------------------+
Add MAC Address...
Delete MAC Address...
•Disabled - turns MAC Authentication off.
3-34 Firmware User Guide
•Allow only specified addresses - limits access to only those addresses that you enter.
•Deny only specified addresses - prevents access from only those addresses that you enter.
If you want to apply MAC Authentication to addresses on the wired LAN as well as the wireless LAN, toggle
Wireless Only to No.
Note: The Wireless Only option appears only on models equipped with a wireless inter face.
Select Add MAC Address and press Return. The Add MAC Address screen appears.
Add MAC Address
MAC Allowed: Yes
MAC Address: 00-0a-27-ae-71-a4
ADD MAC NOW CANCEL
Return/Enter accepts * Tab toggles * ESC cancels.
Configure a new MAC in this Screen.
Enter the MAC (hardware) address of the client PC you want to authorize for access to your wireless LAN. MAC
Allowed is set to Yes (enabled) by default. Toggling this to No (disabled) specifically denies access from this
MAC address.
Select ADD MAC NOW, and press Return.
Your entry will be added to a list of up to 32 authorized addresses. To display the list of authorized MAC
addresses, select Display/Change MAC Addresses from the Authorized MAC Addresses menu.
You can continue to Add, Change, or Delete addresses to the list by selecting the respective menu options.
Console Configuration
For those models with a console port, if you are communicating with the Netopia Router via a terminal emulator
application, you can change the default terminal communications parameters to suit your requirements.
To go to the Console Configuration screen, select Console Configuration in the System Configuration screen.
2.Select SET CONFIG NOW to save the new parameter settings. Select CANCEL to leave the parameter
unchanged and exit the Console Configuration screen.
SNMP (Simple Network Management Protocol)
These screens allow you to monitor and configure your network by means of a standard Simple Network
Management Protocol (SNMP) agent.
•Details are given in “Simple Network Management Protocol (SNMP)” on page 9-9.
Security
These screens allow you to add users and define passwords on your network.
•Details are given in “Security” on page 10-1.
Upgrade Feature Set
You can upgrade your Netopia Router by adding new feature sets through the Upgrade Feature Set utility.
See the release notes that came with your Router or feature set upgrade, or visit the Netopia Web site at
www.netopia.com for information on new feature sets, how to obtain them, and how to install them on your
Router.
System Configuration 3-37
Router/Bridge Set
For Netopia DSL Routers, this feature allows you to turn off the routing features and use your device as a
bridge. It is not an option for Ethernet WAN models. Netopia Firmware Version 8.7 further allows you to choose
to have the Router both bridge and route IP traffic. If you select either option, the device will restart itself, and
reset all the settings to factory defaults. Any configurations you have made will be erased. Use this feature with
caution. If you decide to change it again, you must reconfigure the device from scratch.
From the Main Menu, select System Configuration.
System Configuration
IP Setup...
Filter Sets...
IP Address Serving...
Network Address Translation (NAT)...
Stateful Inspection...
VLAN Configuration...
Date and Time...
Wireless Configuration...
Console Configuration
SNMP (Simple Network Management Protocol)...
+------------------------+
Security... +------------------------+
Upgrade Feature Set... | Router |
| Bridge |
Router/Bridge Set... | Mixed-bridging-routing |
IGMP (Internet Group Management+------------------------+
Logging...
Select Router/Bridge Set and form the pop-up menu, choose the option you want:
•Router – retains the full routing features and corresponding menus.
•Bridge – the device becomes a simple bridge, offering no routing features. Corresponding menus are
hidden.
•Mixed-bridging-routing – allows concurrent bridging and routing and retains corresponding menus for
routing features.
You will be challenged to confirm your choice.
+----------------------------------------------------+
+----------------------------------------------------+
| This change requires a reboot and will result |
| in Factory Defaulting the device. |
| |
| CANCEL CONTINUE |
| |
+----------------------------------------------------+
3-38 Firmware User Guide
If you chose CONTINUE, the device will reboot and restar t in the selected mode. Routing features will be
disabled or changed and the Telnet menus corresponding configuration items, such as Easy Setup, will be
removed.
Example of Bridge-only mode menus
Netopia Router
WAN Configuration...
System Configuration...
Utilities & Diagnostics...
Statistics & Logs...
Quick View...
If you decide to return to the previous mode, you can repeat the process. Remember that you will have to
reconfigure all your previous settings.
System Configuration 3-39
IGMP (Internet Group Management Protocol)
Multicasting is a method for transmitting large amounts of information to many, but not all, computers over an
Internet. One common use is to distribute real time voice, video, and data ser vices to the set of computers
which have joined a distributed conference. Other uses include: updating the address books of mobile
computer users in the field or sending out company newsletters to a distribution list.
Since a router should not be used as a passive forwarding device, Netopia Routers use a protocol for
forwarding multicasting: Internet Group Management Protocol (IGMP).
Netopia Gateways support IGMP Version 1, Version 2, or, beginning with Netopia Firmware Version 7.7,
Version 3. See “Multicast Forwarding” on page 7-33 for more information.
IGMP “Snooping” is a feature of Ethernet layer 2 switches that “listens in” on the IGMP conversation between
computers and multicast routers. Through this process, it builds a database of where the multicast routers
reside by noting IGMP general queries used in the querier selection process and by listening to other router
protocols.
From the host point of view, the snooping function listens at a port level for an IGMP repor t. The switch then
processes the IGMP repor t and star ts for warding the relevant multicast stream onto the host's port. When the
switch receives an IGMP leave message, it processes the leave message, and if appropriate stops the
multicast stream to that particular port. Basically, customer IGMP messages although processed by the switch
are also sent to the multicast routers.
In order for IGMP snooping to function with IGMP Version 3, it must always track the full source filter state of
each host on each group, as was previously done with Version 2 only when Fast Leave support was enabled.
To configure the IGMP options available in Netopia Routers, select IGMP (Internet Group Management Protocol) and press Return.
•IGMP Snooping – toggling this option to On enables the Netopia Router to “listen in” to IGMP traffic. The
Router discovers multicast group membership for the purpose of restricting multicast transmissions to only
those ports which have requested them. This helps to reduce overall network traffic from streaming media
and other bandwidth-intensive IP multicast applications.
•Robustness – a way of indicating how sensitive to lost packets the network is. IGMP can recover from
robustness minus 1 lost IGMP packet. The default value is 2.
•Query Interval(s) – the amount of time in seconds between IGMP General Quer y messages sent by the
querier router. The default query inter val is 125 seconds.
•Query Response Interval (deci-sec) – the maximum amount of time in tenths of a second that the IGMP
router waits to receive a response to a General Quer y message. The default quer y response inter val is 10
seconds and must be less than the query interval.
•Unsolicited Report Interval(s) – the amount of time in seconds between repetitions of a particular
computer’s initial report of membership in a group. The default unsolicited repor t inter val is 10 seconds.
•IGMP Querier Version – select a version of the IGMP Querier from the pop-up menu: v1, v2 or v3. If you
know you will be communicating with other hosts that are limited to v1 or v2, for backward compatibility,
select accordingly; otherwise, allow the default v3.
If you have upgraded from earlier firmware versions, and had previously selected v2, v3 will be the new
default.
Note: IGMP Querier version is relevant only if the router is configured for IGMP for warding. If any IGMP v1
routers are present on the subnet, the querier must use IGMP v1. The use of IGMP v1 must be administratively
configured, since there is no reliable way of dynamically determining whether IGMP v1 routers are present on a
network. IGMP forwarding is enabled per IP Profile and WAN Connection Profile.
See “Multicast Forwarding” on page 7-33 for more information.
If you chose IGMP Querier Version v2 or v3, select V2/V3 Settings, and press Return.
System Configuration 3-41
The IGMP V2/V3 Settings screen appears.
IGMP V2/V3 Settings
Last Member Query Interval(deci-sec): 10
Last Member Query Count: 2
Fast Leave: Off
Amount of time in deci-seconds that the IGMP router waits to receive a response
You can configure the following parameters:
•Last Member Query Interval (deci-sec) – the amount of time in tenths of a second that the IGMP router
waits to receive a response to a Group-Specific Quer y message. The last member quer y inter val is also the
amount of time in seconds between successive Group-Specific Query messages. The default last member
query interval is 1 second (10 deci-seconds).
•Last Member Query Count – the number of Group-Specific Quer y messages sent before the router
assumes that there are no members of the host group being queried on this inter face. The default last
member query count is 2.
•Fast Leave – Toggling this option to On enables a non-standard expedited leave mechanism. The querier
keeps track of which client is requesting which channel by IP address. When a leave message is received,
the querier can check its internal table to see if there are any more clients on this group. If there are none,
it immediately sends an IGMP leave message to the upstream querier. By default, Fast Leave is set to Off.
Press Escape twice to return to the System Configuration menu.
3-42 Firmware User Guide
Logging
You can configure a UNIX-compatible (BSD syslog protocol - RFC 3164) syslog client to report a number of
subsets of the events entered in the Router’s WAN Event History. See “WAN Event History” on page 9-4.
Select Logging from the System Configuration menu.
The Logging Configuration screen appears.
Logging Configuration
WAN Event Log Options
Log Boot and Errors: Yes
Log Line Specific: Yes
Log Connections: Yes
Log PPP, DHCP: Yes
Log IP: Yes
Syslog Parameters
Syslog Enabled: No
Hostname or IP Address:
Facility... Local 0
Log Filter Violations: No
Log Accepted Packets: No
Log Access Attempts: No
Return/Enter accepts * Tab toggles * ESC cancels.
By default, all events are logged in the event history.
•By toggling each event descriptor to either Yes or No, you can determine which ones are logged and which
are ignored.
•You can enable or disable the syslog client dynamically. When enabled, it will report any appropriate and
previously unrepor ted events.
•You can specify the syslog server’s address either in dotted decimal format or as a DNS name up to 63
characters.
•You can specify the UNIX syslog Facility to use by selecting the Facility pop-up.
•The following three fields allow you to log exceptions based on your filter policies:
•Filter Violations,
•Accepted Packets, and
•Access Attempts
See “About Filters and Filter Sets” on page 10-21 for more information.
System Configuration 3-43
You will need to install a Syslog client daemon program on your PC and configure it to report the WAN events
you specified in the Logging Configuration screen.
The following screen shows a sample syslog dump of WAN events:
May 5 10:14:06 tsnext.netopia.com Link 1 down: PPP PAP failure
May 5 10:14:06 tsnext.netopia.com >>Issued Speech Setup Request from our DN: 5108645534
May 5 10:14:06 tsnext.netopia.com Requested Disc. from DN: 917143652500
May 5 10:14:06 tsnext.netopia.com Received Clear Confirm for our DN: 5108645534
May 5 10:14:06 tsnext.netopia.com Link 1 down: Manual disconnect
May 5 10:14:06 tsnext.netopia.com >>Issued Speech Setup Request from our DN: 5108645534
May 5 10:14:06 tsnext.netopia.com Requested Disc. from DN: 917143652500
May 5 10:14:06 tsnext.netopia.com Received Clear Confirm for our DN: 5108645534
May 5 10:14:06 tsnext.netopia.com Link 1 down: No answer
May 5 10:14:06 tsnext.netopia.com --Device restarted----------------------------------------May 5 10:14:06 tsnext.netopia.com >>Received Speech Setup Ind. from DN: (not supplied)
May 5 10:14:06 tsnext.netopia.com Requested Connect to our DN: 5108645534
May 5 10:14:06 tsnext.netopia.com ASYNC: Modem carrier detected (more) Modem
reports: 26400 V34
May 5 10:14:06 tsnext.netopia.com >>WAN: 56K Modem 1 activated at 115 Kbps
May 5 10:14:06 tsnext.netopia.com Connect Confirmed to our DN: 5108645534
May 5 10:14:06 tsnext.netopia.com PPP: Channel 1 up, Answer Profile name: Default Profile
May 5 10:14:06 tsnext.netopia.com PPP: NCP up, session 1, Channel 1 Final (fallback)
negotiated auth: Local PAP , Remote NONE
May 5 10:14:06 tsnext.netopia.com PPP: PAP we accepted remote, Channel 1 Remote name: guest
May 5 10:14:06 tsnext.netopia.com PPP: MP negotiated, session 1 Remote EDO: 06 03 0
000C5700624 0
May 5 10:14:06 tsnext.netopia.com PPP: CCP negotiated, session 1, type: Ascend
LZS Local mode: 1, Remote mode: 1
May 5 10:14:06 tsnext.netopia.com PPP: BACP negotiated, session 1 Local MN: FFFFFF
FF, Remote MN: 00000001
May 5 10:14:06 tsnext.netopia.com PPP: IPCP negotiated, session 1, rem:
192.168.10.100 local: 192.168.1.1
May 5 10:14:06 tsnext.netopia.com >>WAN: 56K Modem 1 deactivated
May 5 10:14:06 tsnext.netopia.com Received Clear Ind. from DN: 5108645534, Cause: 0
May 5 10:14:06 tsnext.netopia.com Issued Clear Response to DN: 5108645534
May 5 10:14:06 tsnext.netopia.com Link 1 down: Remote clearing
May 5 10:14:06 tsnext.netopia.com PPP: IPCP down, session 1
May 5 10:14:06 tsnext.netopia.com >>Received Speech Setup Ind. from DN: (not supplied)
Log event dispositions
Note: Syslog must be enabled to comply with Logging requirements mentioned in The Modular Firewall
Certification Criteria - Baseline Module - version 4.1 (specified by ICSA Labs).
For more information, please go to the following URL:
1.Access the Router through the serial interface (if available) or telnet to the product from the private (LAN)
side. DHCP server is enabled on LAN by default. See “Connecting through a Telnet Session” on page 1-4.
Set up a Connection Profile to configure WAN connectivity: (Follow the Easy Setup instructions in the
Quickstart Guide, or create a new Connection Profile. See “Creating a New Connection Profile” on
page 2-9.)
2.Go to Easy Setup…
3.Set Data Circuit VPI (0-255) to the desired value
4.Set Data Circuit VCI (32-65535) to the desired value
5.Select NEXT SCREEN
6.Choose None as the value for Underlying Encapsulation…
7.Local WAN IP Address and Local WAN IP Mask can be left at 0.0.0.0 if WAN interface can receive IP
Address from a DHCP ser ver
8.Select NEXT SCREEN
9.Primary Domain Name Server and Secondary Domain Name Server can be left at 0.0.0.0, if dynamic
address is used on WAN
10. Select RESTART DEVICE
Set up administrative interface access restriction
(See “Telnet Tiered Access – Two Password Levels” on page 10-2 for more information.)
1.Go to System Configuration…
2.Select Security… and then Superuser Configuration
3.Type desired username and password. You will be asked to re-enter password. Navigate to 'ADD SUPERUSER' to add 'Superuser' and restrict access to administrative console.
4.Once 'Superuser' is created, you can add fur ther users, if desired, by going to Add Access Name/Pass-word...
5.Escape once back to Main Menu
System Configuration 3-49
Setting up an encrypted communication channel: (PPTP with MS-CHAP/MPPE)
(See “Virtual Private Networks (VPNs)” on page 5-1 for more information.)
1.From the Main Menu, Go to Quick Menus...
2.Select ATMP/PPTP Default Profile
3.Set Answer ATMP/PPTP Connections: to Yes
4.Under PPTP Configuration Options set Receive Authentication... to MS-CHAP
5.Escape once back to Quick Menus
6.Scroll up to Add Connection Profiles and press Enter
7.Supply a descriptive Profile Name.
8.Set the Encapsulation Type... to PPTP and press Enter
9.Enter Encapsulation Options...
a. Enter the PPTP Partner IP Address - this can be set to 0.0.0.0
b. For Authentication... select MS-CHAP
c. For Data Encryption... select MPPE
d. Enter the Receive Host Name and Receive Secret the client will be entering as their username and
password in their Dial-up Networking VPN profile.
e. Set Initiate Connections to No.
f. Adjust the Idle Timeout (seconds) to whatever you prefer. The default value is 300 seconds.
g. Escape once back to the Add Connection Profile screen.
h. Press Enter on COMMIT to save this profile
10. Select Display/Change Connection Profile... and press Enter on the VPN profile you have just created.
11. Set Profile Enabled: to Ye s
12. Select IP Profile Parameters...
a. Set Address Translation to No
b. If Stateful Inspection Enabled is set to Yes , make sure that Enable default mapping to router under
Stateful Inspection Options... is enabled.
c. Set Remote IP Address: to a static private IP address on this Router’s network that is available and not
being served via DHCP
d. Set Remote IP Mask: to 255.255.255.255. Alternatively, you can leave the Remote IP Address: and
Remote IP Mask: at 0.0.0.0, and your router can assign an IP address to the PPTP client.
e. Do not enable a filter set in the VPN profile. Ignore Rip Profile Options…
f. Escape to the Main Menu and go to Utilities and Diagnostics...
g. Select Restart System... and CONTINUE
The router is now configured for incoming PPTP from a remote Dial-Up Networking client.
3-50 Firmware User Guide
Set up NTP
(See “Date and time” on page 3-22 for more information.)
1.NTP is enabled by default.
2.To change NTP Settings, Go to System Configuration and select Date and Time…
3.Set Date and Time parameters, if desired
a. NTP Enabled can be set to On/Off
b. Time Server 1 Host Name/IP Address and Time Server 2 Host Name/IP Address points to the primary
and secondary Time Servers respectively.
c. Time Zone… can be changed (defaults to Pacific Standard Time)
d. NTP Update Interval can be changed (defaults to one hour)
e. System Date Format can be changed (defaults to MM/DD/YY)
f. System Time Format can be changed (defaults to AM/PM)
g. Escape to the Main Menu and go to Utilities and Diagnostics...
h. Select Restart System... and CONTINUE
Set up Syslog
(See “Logging” on page 3-42 for more information.)
1.Go to System Configuration and select Logging…
2.Under Syslog Parameters,
a. Set Syslog Enabled to Yes
b. Set Hostname or IP Address to the Syslog Server
c. Facility… can be changed (default to Local 0)
d. Set Log Filter Violations to Yes - this will log packets that are dropped by the Router due to violations
e. Set Log Accepted Packets to Yes
f. Set Log Access Attempts to Yes
g. Escape twice to the Main Menu and go to Utilities and Diagnostics...
h. Select Restart System... and CONTINUE
Enable the Stateful Inspection Firewall
See “Stateful Inspection” on page 3-3 for more information.)
1.Go to System Confiuration…, Select Stateful Inspection…
a. UDP no-activity timeout (sec) can be adjusted.
b. TCP no-activity timeout (sec) can be adjusted.
c. Set DoS Detect to Yes
d. Escape twice to get to the Main Menu
System Configuration 3-51
2.Go to WAN Configuration…
3.Select Display/Change Connection Profile…
4.Select Easy Setup Profile (if available) or the desired Connection Profile you have created.
5.Go to IP Profile Parameters
6.Under IP Profile Parameters, Set Stateful Inspection Enabled to Yes
7.Select Stateful Inspection Options…
a. Under Stateful Inspection Parameters, configure Max. TCP Sequence Number Difference, if desired.
b. Set Enable default mapping to router to No
c. Deny Fragmented Packets can be set to Yes
8.Escape twice to Change Connection Profile menu, select COMMIT
9.Escape to the Main Menu and go to Utilities and Diagnostics...
You should read this chapter completely before attempting to configure any of the advanced NAT features.
This chapter covers the following topics:
•Overview on page 4-1
•MultiNAT Configuration on page 4-6
•Easy Setup Profile configuration on page 4-6
•Server Lists and Dynamic NAT configuration on page 4-7
•Adding Server Lists on page 4-15
•Binding Map Lists and Server Lists on page 4-22
•NAT Associations on page 4-26
•IP Passthrough on page 4-28
•MultiNAT Configuration Example on page 4-32
Overview
NAT (Network Address Translation) is a means of mapping one or more IP addresses and/or IP ser vice por ts
into different values. This mapping serves two functions:
•It allows the addresses of many computers on a LAN to be represented to the public Internet by only one or
a few addresses, saving you money.
•It can be used as a security feature by obscuring the true addresses of impor tant machines from potential
hackers on the Internet.
To help you understand some of the concepts discussed here, it may be helpful to introduce some NAT
terminology.
The term mapping refers to rules that associate one or more private addresses on the Netopia Router’s LAN to
one or more public addresses on the Netopia Router’s WAN interface (typically the Internet).
The terms private and internal refer to addresses on the Netopia Router’s LAN. These addresses are
considered private because they are protected or obscured by NAT and cannot be directly accessed from the
WAN (or Internet) side of the Netopia Router unless specifically configured otherwise.
The terms public and external refer to the WAN (or Internet) side of the Netopia Router.
4-2 Firmware User Guide
Features
MultiNAT features can be divided into several categories that can be used simultaneously in different
combinations on a per-Connection Profile basis.
The following is a general description of these features:
Port Address Translation
The simplest form of classic Network Address Translation is PAT (Port Address Translation). PAT allows a group
of computers on a LAN, such as might be found in a home or small office, to share a single Internet connection
using one IP address. The computers on the LAN can surf the Web, read e-mail, download files, etc., but their
individual IP addresses are never exposed to the public network. Instead, a single IP address acts as the
source IP address of traffic originating from the LAN. The Netopia Router allows you to define multiple PAT
mappings, which can be individually mapped to different public IP addresses. This offers more control over the
access permitted to users on the LAN.
A limitation of PAT is that communication must be initiated from the internal network. A user on the external
side cannot access a machine behind a PAT connection. A PAT enhancement is the ability to define multiple PAT
mappings. Each of these can optionally map to a section or range of IP addresses of the internal network. PAT
mapping allows only internal users to initiate traffic flow between the internal and external networks.
Server lists
Server lists, sometimes known as exported services, make it possible to provide access from the public
network to hosts on the LAN. Server lists allow you to define particular services, such as Web, ftp, or e-mail,
which are available via a public IP address. You define the type of service you would like to make available and
the internal IP address to which you would like to provide access. You may also define a specific public IP
address to use for this service if you want to use an IP other than the WAN IP address of the Netopia Router.
Static mapping
If you want to host your own Website or provide other Internet services to the public, you need more than
classic NAT. The reason is noted under Port Address Translation above – external users cannot initiate traffic to
computers on your LAN because external users can never see the real addresses of the computers on your
LAN. If you want users outside your LAN to have access, for example, to a Web or FTP server that you host, you
need to make a public representation of the real IP addresses of those ser vers.
Static mappings are a way to make one or more private IP addresses fully accessible from the public network
via corresponding public IP addresses. Some applications may negotiate multiple TCP connections in the
process of communication, which often does not work with traditional PAT. Static mapping offers the ability to
use these applications through NAT. Each private IP address is mapped, on a one-to-one basis, to a public IP
address that can be accessed from the Internet or public network. As with PAT mappings, you may have multiple
static mappings to map a range of private IP addresses to a range of public IP addresses if desired.
Multiple Network Address Translation 4-3
Dynamic mapping
Dynamic mapping, often referred to as many-to-few, offers an extension to the advantages provided by static
mapping. Instead of requiring a one-to-one association of public addresses and private addresses, as is
required in static mapping, dynamic mapping uses a group of public IP addresses to dynamically allocate static
mappings to private hosts that are communicating with the public network. If a host on the private network
initiates a connection to the Internet, for example, the Netopia Router automatically sets up a one-to-one
mapping of that host’s private IP address to one of the public IP addresses allocated to be used for Dynamic
NAT. As long as this host is communicating with the Internet, it will be able to use that address. When traffic
from that host ceases, and no traffic is passed from that host for five minutes, the public address is made
available again for other private hosts to use as necessary.
When addresses are returned to the group of available addresses, they are returned to the head of the group,
being the most recently used. If that same host requests a connection an hour later, and the same public
address is still available, then it will be mapped to the same private host. If a new host, which has not
previously requested a connection, initiates a connection it is allocated the last, or oldest, public address
available.
Dynamic NAT is a way of sharing a range of public, or exterior, NAT addresses among one or more groups of
private, or interior, hosts. This is intended to provide superior support for applications that traditionally have
difficulty communicating through NAT. Dynamic NAT is intended to provide functionality beyond many-to-one and
one-to-one translation. Netopia’s NAT implementation makes it possible to have a static mapping of one public
address to one private address, thus allowing applications such as NetMeeting to work by assuring that any
traffic sent back to the source IP address is forwarded through to the internal machine.
Static one-to-one mapping works well if you have enough IP addresses for all the workstations on your LAN. If
you do not, Dynamic NAT allows machines to make full use of the publicly routable IP addresses provided by the
ISP as necessary, on demand. When these public IP addresses are no longer being used by a particular
workstation, they are returned to a pool of available addresses for other workstations to use.
A common example is a DSL customer’s application. Most DSL ISPs only provide customers with a few IP
addresses for use on their network. For networks with more than four or five machines it is usually mandator y to
use NAT. A customer may have 15 workstations on the LAN, all of which need Internet access. The customer is
only provided five IP addresses by their ISP. The customer has eight hosts, which only need to use email and
have Web access, but another seven hosts, which use NetMeeting to communicate with clients once or twice a
day. NetMeeting will not work unless a static one-to-one mapping exists for the machine running NetMeeting to
use for communication. The customer does not have enough IP addresses to create a one-to-one mapping for
each of the seven users. This is where dynamic NAT applies.
The customer can configure four of these addresses to be used for Dynamic NAT. The fifth address is then used
for the eight other machines that do not need one-to-one mappings. As each machine configured to use
addresses from the dynamic pool tries to connect to the Internet it is allocated a public IP address to use
temporarily. Once the communication has been terminated, that IP address is freed for one of the other six
hosts to use.
4-4 Firmware User Guide
Available for Dynamic NATUsed for Normal NAT
172.16.1.25
172.16.1.26
172.16.1.27
172.16.1.28
172.16.1.29
WAN Network
Network Address Translation
LAN Network
192.168.1.16
192.168.1.15
192.168.1.14
192.168.1.13
192.168.1.12
192.168.1.11
192.168.1.10
192.168.1.9
192.168.1.8
192.168.1.7
192.168.1.6
192.168.1.5
192.168.1.4
192.168.1.3
192.168.1.2
Exterior addresses are allocated to internal hosts on a demand, or as-needed, basis and then made available
when traffic from that host ceases. Once an internal host has been allocated an address, it will use that
address for all traffic. Five minutes after all traffic ceases – no pings, all TCP connections closed, no DNS
requests, etc. – the address is put at the head of an available list. If an interior host needs an exterior address
an hour later, and the previously used address is still available, it will acquire the same address. If an interior
host that has not previously been allocated an exterior address needs one, it will be allocated the last, hence
the oldest, exterior address on the available list.
All NAT configurations are rule-based. This means that traffic passed through NAT from either the public or the
private network is compared to the rules and mappings configured in the Netopia Router in a par ticular order.
The first rule that applies to the traffic being initiated is used.
For example, if a connection is initiated from the public network and is destined for a public IP address
configured on the Netopia Router, the following comparisons are made in this order.
1.The Netopia Router first checks its internal NAT cache to see if the data is part of a previously initiated
connection, if not…
2.The Netopia Router checks the configured server lists to see if this traffic is intended to be forwarded to an
internal host based on the type of ser vice.
3.The Netopia Router then checks to see if there is a static, dynamic, or PAT mapping for the public IP
address that the connection is being initiated to.
4.The Netopia Router answers the request itself if the data is destined for the Netopia’s WAN interface IP
address. Otherwise the data is discarded.
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
