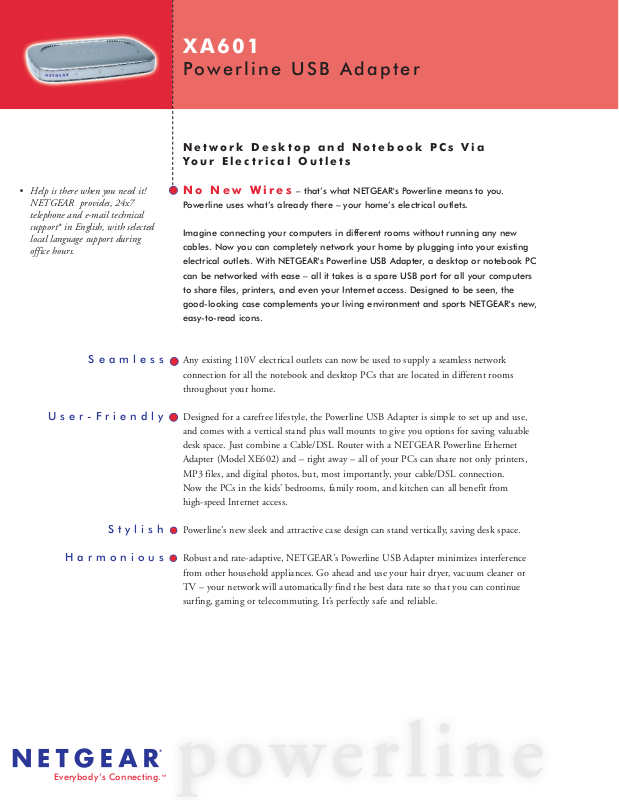

Netgear XA601 PRODUCT BROCHURE

XA601

Powerline USB Adapter

Network Desktop and Notebook PCs Via Your Electrical Outlets

No New Wires – that’s what NETGEAR's Powerline means to you.

Powerline uses what’s already there – your home’s electrical outlets.

Imagine connecting your computers in different rooms without running any new

cables. Now you can completely network your home by plugging into your existing

electrical outlets. With NETGEAR's Powerline USB Adapter, a desktop or notebook PC

can be networked with ease – all it takes is a spare USB port for all your computers

to share files, printers, and even your Internet access. Designed to be seen, the

good-looking case complements your living environment and sports NETGEAR's new,

easy-to-read icons.

Any existing 110V electrical outlets can now be used to supply a seamless network connection for all the notebook and desktop PCs that are located in different rooms throughout your home.

Designed for a carefree lifestyle, the Powerline USB Adapter is simple to set up and use, and comes with a vertical stand plus wall mounts to give you options for saving valuable desk space. Just combine a Cable/DSL Router with a NETGEAR Powerline Ethernet Adapter (Model XE602) and – right away – all of your PCs can share not only printers, MP3 files, and digital photos, but, most importantly, your cable/DSL connection. Now the PCs in the kids’ bedrooms, family room, and kitchen can all benefit from high-speed Internet access.

Powerline's new sleek and attractive case design can stand vertically, saving desk space.

Robust and rate-adaptive, NETGEAR's Powerline USB Adapter minimizes interference from other household appliances. Go ahead and use your hair dryer, vacuum cleaner or TV – your network will automatically find the best data rate so that you can continue surfing, gaming or telecommuting. It’s perfectly safe and reliable.

Seamless

User-Friendly

Stylish

Harmonious

• Help is there when you need it! NETGEAR provides, 24x7 telephone and e-mail technical support* in English, with selected local language support during office hours.

Everybody’s Connecting.™

home office

kids’

room

kids’

room

kitchen

Cable/DSL Modem

Desktop

Router

Powerline Adapter XE602

Powerline Adapter XE602 or XA601

Powerline Adapter XE602

Internet Radio

4500 Great America Parkway Santa Clara, CA 95054 USA Phone: 1-888-NETGEAR E-mail: support@NETGEAR.com www.NETGEAR.com

©2002 NETGEAR, Inc. NETGEAR®, the Netgear Logo, the Gear Guy, and Everybody’s connecting are trademarks or registered trademark of Netgear, Inc. in the United States and/or other countries. Microsoft, Windows, and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries. Other brand and product names are trademarks or registered trademarks of their respective holders. Information is subject to change without notice. All rights reserved.

D-XA601-0

• Environmental Specifications:

- Operating temperature:

0º C to 40ºC (32 to 104°F)

- Operating relative humidity:

10% to 90% noncondensing

• Electromagnetic Emissions:

- FCC Part 15 Class B

• Power and Safety Regulations:

- U/L Certified

• Typical Coverage:

- Up to 5000 square foot home

• Warranty:

- 3 years

Package Contents

- Powerline USB Adapter

-Driver and Documentation CD-ROM

-5-ft. USB Cable

-6-ft power cord

-Vertical Stand

-Wall-mounting screws

-XA601 Installation Guide

-Warranty and registration card

-Support information card

Technical Specifications

• Network Ports :

- One USB 1.1 port

- One 14 Mbps Powerline port

• Network Interface :

- Electrical Plug (Powerline HomePlug Technology)

• PC Interface:

- USB 1.1 Compliant Port

• Performance:

- 10 Mbps 10BASE-T

• Standards:

- 14 Mbps HomePlug 1.0 Compatible

• Power Line Networking Standards:

- HomePlug

• Ethernet Standards Compliance:

- Compliant with HomePlug 1.0 standard

• Modulation Schemes:

- OFDM Symbol Modulation

- DQPSK, DBPSK, ROBO Carrier Modulation

- CSMA/CA

• Frequency Band:

- 4.3 MHz – 20.9 MHz

• Additional Protocols:

- Forward Error Correction (FEC)

- Automatic Channel Adaptation

• Power Supply:

- 85-135 V @ 60 Hz, Internal

• Dimensions:

- W-175 mm (6.9")

- D-115 mm (4.53")

- H-25 mm (1")

• Weight:

- 0.4 kg (0.87 lb)
