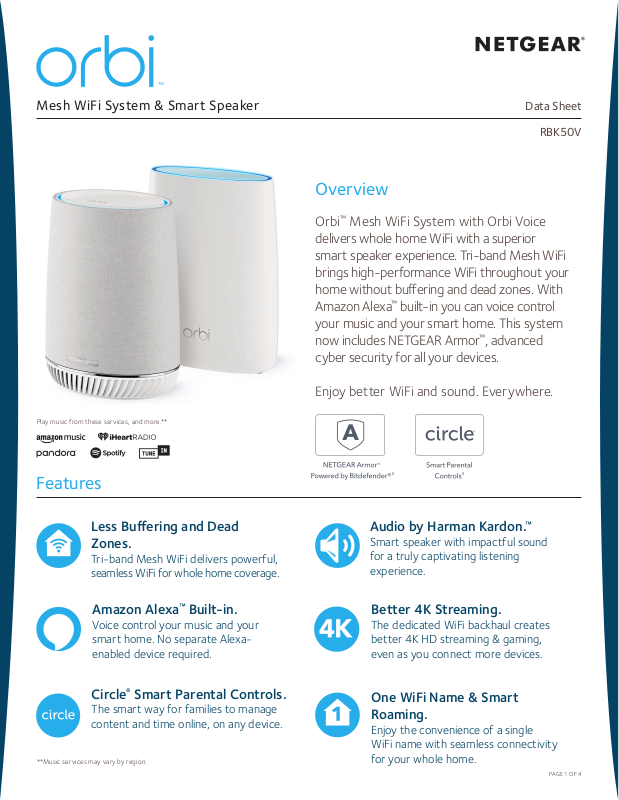

Mesh WiFi System & Smart Speaker
Data Sheet
RBK50V
Overview
Orbi™ Mesh WiFi System with Orbi Voice
delivers whole home WiFi with a superior
smart speaker experience. Tri-band Mesh WiFi
brings high-performance WiFi throughout your
home without buering and dead zones. With
Amazon Alexa™ built-in you can voice control
your music and your smart home. This system
now includes NETGEAR Armor™, advanced
cyber security for all your devices.
Enjoy better WiFi and sound. Everywhere.
Play music from these services, and more.**
Features
Less Buering and Dead
Zones.
Tri-band Mesh WiFi delivers powerful,
seamless WiFi for whole home coverage.
Amazon Alexa™ Built-in.
Voice control your music and your
smart home. No separate Alexaenabled device required.
Circle® Smart Parental Controls.
The smart way for families to manage
content and time online, on any device.
**Music ser vices may vary by region.
Audio by Harman Kardon.
Smart speaker with impactful sound
for a truly captivating listening
experience.
™
Better 4K Streaming.
The dedicated WiFi backhaul creates
better 4K HD streaming & gaming,
even as you connect more devices.
One WiFi Name & Smart
Roaming.
Enjoy the convenience of a single
WiFi name with seamless connectivity
for your whole home.
PAGE 1 OF 4
Mesh WiFi System & Smart Speaker
House Diagram
Whole-home WiFi Coverage
DE D IC AT E D W IF I CONNEC TI O N
Data Sheet
RBK50V
Orbi Voice
1
Internet plan and devices that support
these speeds are required.
INTERNET
Orbi Router
1
NETGEAR Armor empowers you to
eliminate vulnerabilities or simply know
the status of your home network and
devices, anytime, anywhere. Get instant
notications when malicious threats
are detected, block unknown devices
from joining your Orbi home network or
take action on vulnerabilities as they are
discovered easily through the Orbi App.
PAGE 2 OF 4
Mesh WiFi System & Smart Speaker
Data Sheet
RBK50V
Orbi Router (RBR50)
Orbi Voice (RBS40V)
Internet
Gigabit Ethernet ports
Also connect
2 wired devices to WiFi
PAGE 3 OF 4
Mesh WiFi System & Smart Speaker
What’s In the Box?
Data Sheet
RBK50V
• One (1) Orbi Router (RBR50v2)
• One (1) Orbi Voice (RBS40V)
• One (1) 2m Ethernet cable
• Orbi Router: 12V/2.5A power adapter
• Orbi Voice: 19V/3.16A power adapter
• One (1) quick start guide
What Do I Need for Orbi to Work?
• High-speed Internet connection
• Modem or gateway
• Amazon account
Physical Specifications
• Orbi Router
- Dimensions: 6.7 x 3.1 x 8.89 in
- Weight: 1.72lb
• Orbi Voice
- Dimensions: 8.6 x 6.48 x 4.9 in
- Weight: 4.0lb
Technical Specifications
• Orbi Router (AC3000):
- AC3000 Tri-band WiFi
- 2.4GHz (400Mbps†) + 5GHz (867Mbps†) for WiFi
devices to connect to the Internet
- 5GHz (1.7Gbps†) dedicated WiFi link for faster data
connections between Orbi router and Orbi Voice
- Six (6) high-performance internal antennas with
high-power amplifiers
- Implicit & Explicit Beamforming for 2.4GHz &
5GHz bands
- MU-MIMO capable for simultaneous data streaming to
multiple devices
- Powerful quad-core 710MHz processor
- Ports
- Four (4) 10/100/1000Mbps Gigabit Ethernet ports
- Memory
- 512MB NAND flash and 512MB RAM
- Security
- Comprehensive anti-virus & data the protection
for your PC, Mac® and mobile devices with
NETGEAR Armor
™
- Standards-based WiFi Security (802.11i, 128-bit
AES encryption with PSK)
- Guest WiFi network is easy to setup separate &
secure Internet access for guests
- Circle® Smart Parental Controls manage content
and time online for all your devices. Learn more at
netgear.com/circle
• Orbi Voice (AC2200):
- AC2200 Tri-band WiFi
- 2.4GHz (400Mbps†) + 5GHz (867Mbps†) for WiFi
devices to connect to the Internet
- 5GHz (867Mbps†) dedicated WiFi link for faster
data connections between Orbi Router and Orbi Voice
- Speakers
- One (1) 3.5” front-facing woofer
- One (1) 1” front-facing tweeter
- 35W of total peak power for rich, room-filling sound
- Frequency response: 63Hz—20kHz
- Four (4) microphones with far-field voice recognition
support
- Four (4) high-performance antennas with high-
power amplifiers
- Implicit & Explicit Beamforming for 2.4 and 5GHz bands
- MU-MIMO capable for simultaneous data streaming to
multiple devices
- Two (2) 10/100/1000Mbps Gigabit Ethernet ports
This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller. www.netgear.com/warranty
* 90-day complimentary technical support following purchase from a NETGEAR authorized reseller.
‡
Maximum wireless signal rate derived from IEEE standard 802.11 specifications. Network conditions and environmental factors, including volume of network traffic,
building construction, and network overhead may decrease actual data throughput rate.
For regulatory compliance information, visit http://www.NETGEAR.com/about/regulatory
1
Internet plan and devices that support these speeds are required.
2
NETGEAR Armor™ is free during the trial period. A yearly subscription, after the trial period, protects all of your connected devices. Visit www.netgear.com/armor
3
Circle® Smart Parental Controls include the Free Basic Plan. Fees apply for a Premium Plan. Visit netgear.com/circle for more information.
4
Subscriptions may be required for streaming/music services. Service availability varies by region.For indoor use only.
NETGEAR, the NETGEAR Logo, NETGEAR Armor, and Orbi are trademarks of NETGEAR, Inc. Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its
affiliates. Any other trademarks are for reference purposes only. ©2020 NETGEAR, Inc.
NETGEAR, Inc. 350 E. Plumeria Drive, San Jose, CA 95134-1911 USA , www.NETGEAR.com/support D-RBK50Vv2-2
PAGE 4 OF 4
