Netgear FVL328 Reference Guide

Download

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

NETGEAR, Inc.

4500 Great America Parkway Santa Clara, CA 95054 USA Phone 1-888-NETGEAR

202-10030-02 May 24, 2004

May 2004, 202-10030-02

Trademarks

NETGEAR and Auto Uplink are trademarks or registered trademarks of NETGEAR, Inc. Microsoft, Windows, and Wi ndow s NT are registered trademar ks of Microsoft Corporation. Other brand and product names are registered trademarks or trademarks of their respective holders. Portions of this

document are copyright Intoto, Inc.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice.

NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.

EN 55 022 Declaration of Conformance

This is to certify that the FVL328 Prosafe High Speed VPN Firewall is shielded against the generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the application of EN 55 022 Class B (CISPR 22).

Certificate of the Manufacturer/Importer

It is hereby certified that the FVL328 Prosafe High Speed VPN Firewall has been suppressed in accordance with the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the notes in the operating instructions.

The Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market and has been granted the right to test the series for compliance with the regulations.

May 2004, 202-10030-02

Bestätigung des Herstellers/Importeurs

Es wird hiermit bestätigt, daß dasFVL328 Prosafe High Speed VPN Firewall gemäß der im BMPT-AmtsblVfg 243/1991 und Vfg 46/1992 aufgeführten Bestimmungen entstört ist. Das vorschriftsmäßige Betreiben einiger Geräte (z.B. Testsender) kann jedoch gewissen Beschränkungen unterliegen. Lesen Sie dazu bitte die Anmerkungen in der Betriebsanleitung.

Das Bundesamt für Zulassungen in der Telekommunikation wurde davon unterrichtet, daß dieses Gerät auf den Markt gebracht wurde und es ist berechtigt, die Serie auf die Erfüllung der Vorschriften hin zu überprüfen.

Voluntary Control Council for Interference (VCCI) Statement

This equipment is in the second category (information equipment to be used in a residential area or an adjacent area thereto), and conforms to the standards set by the Voluntary Control Council for Interference by Data Processing Equipment and Electronic Office Machines, aimed at preventing radio interference in such residential areas.

When used near a radio or TV receiver , it may become the cause of radio interference. Read instructions for correct handling.

Technical Support

Refer to the Support Information Card that shipped with your FVL328 Prosafe High Speed VPN Firewall.

World Wide Web

NETGEAR maintains a World Wide Web home page that you can access at the universal resource locator (URL) http://www.netgear.com. A direct connection to the Internet and a Web browser such as Internet Explorer or Netscape are required.

May 2004, 202-10030-02

iii

May 2004, 202-10030-02

Chapter 1 About This Manual

Audience ................................... ................ ................ ................. ................ ................ .....1-1

Scope .............................................................................................................................1-1

Typographical Conventions ............................................................................................1-2

Special Message Formats ..............................................................................................1-2

How to Use this Manual ..................................................................................................1-3

How to Print this Manual .................................................................................................1-4

Chapter 2 Introduction

About the FVL328 ...........................................................................................................2-1

Summary of New Features in the FVL328 .....................................................................2-1

Key Features ..................................................................................................................2-2

Virtual Private Networking ........................................................................................2-2

A Powerful, True Firewall .........................................................................................2-3

Content Filtering .......................................................................................................2-3

Configurable Auto Uplink™ Ethernet Connection ....................................................2-3

Protocol Support ......................................................................................................2-4

Easy Installation and Management ..........................................................................2-5

What’s in the Box? ..........................................................................................................2-6

The Firewall’s Front Panel .......................................................................................2-6

The Firewall’s Rear Panel ........................................................................................2-7

Chapter 3 Connecting the FVL328 to the Internet

Connecting the FVL328 to Your LAN ..............................................................................3-1

How to Connect the FVL328 to Y our LAN ................................................................3-1

Configuring for a Wizard-Detected Login Account ...................................................3-6

Configuring for a Wizard-Detected Dynamic IP Account .........................................3-8

Configuring for a Wizard-Detected Fixed IP (Static) Account ..................................3-8

Contents i

May 2004, 202-10030-02

Testing Your Internet Connection ....................................................................................3-9

Manually Configuring Your Internet Connecti on ...........................................................3-10

How to Complete a Manual Configuration .............................................................3-11

Chapter 4 WAN and LAN Configuration

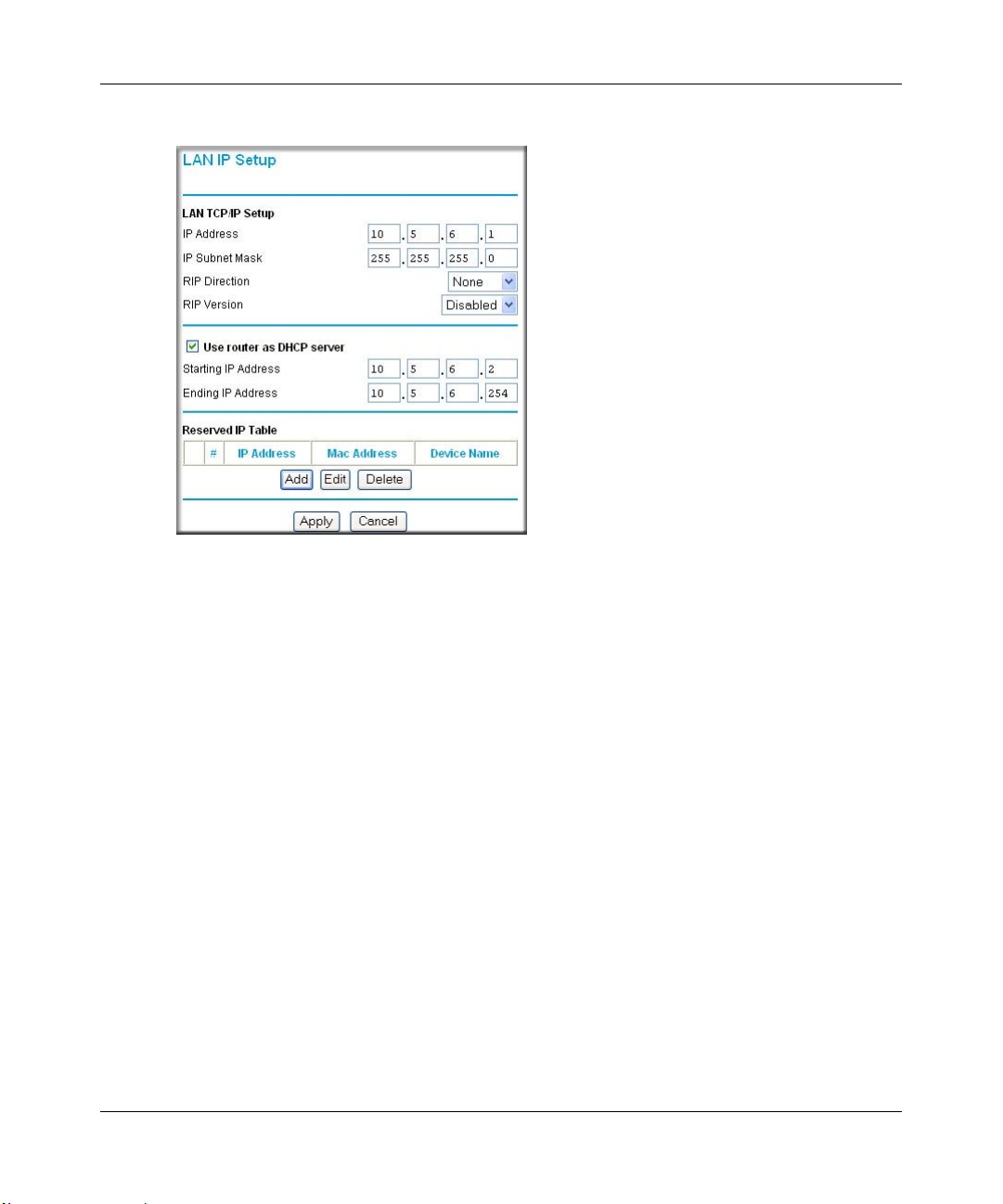

Configuring LAN IP Settings ...........................................................................................4-1

Using the Router as a DHCP Server ........................................................................4-2

How to Configure LAN TCP/IP Settings and View the DHCP Log ...........................4-3

How to Configure Reserved IP Addresses ................... ... .... .....................................4-4

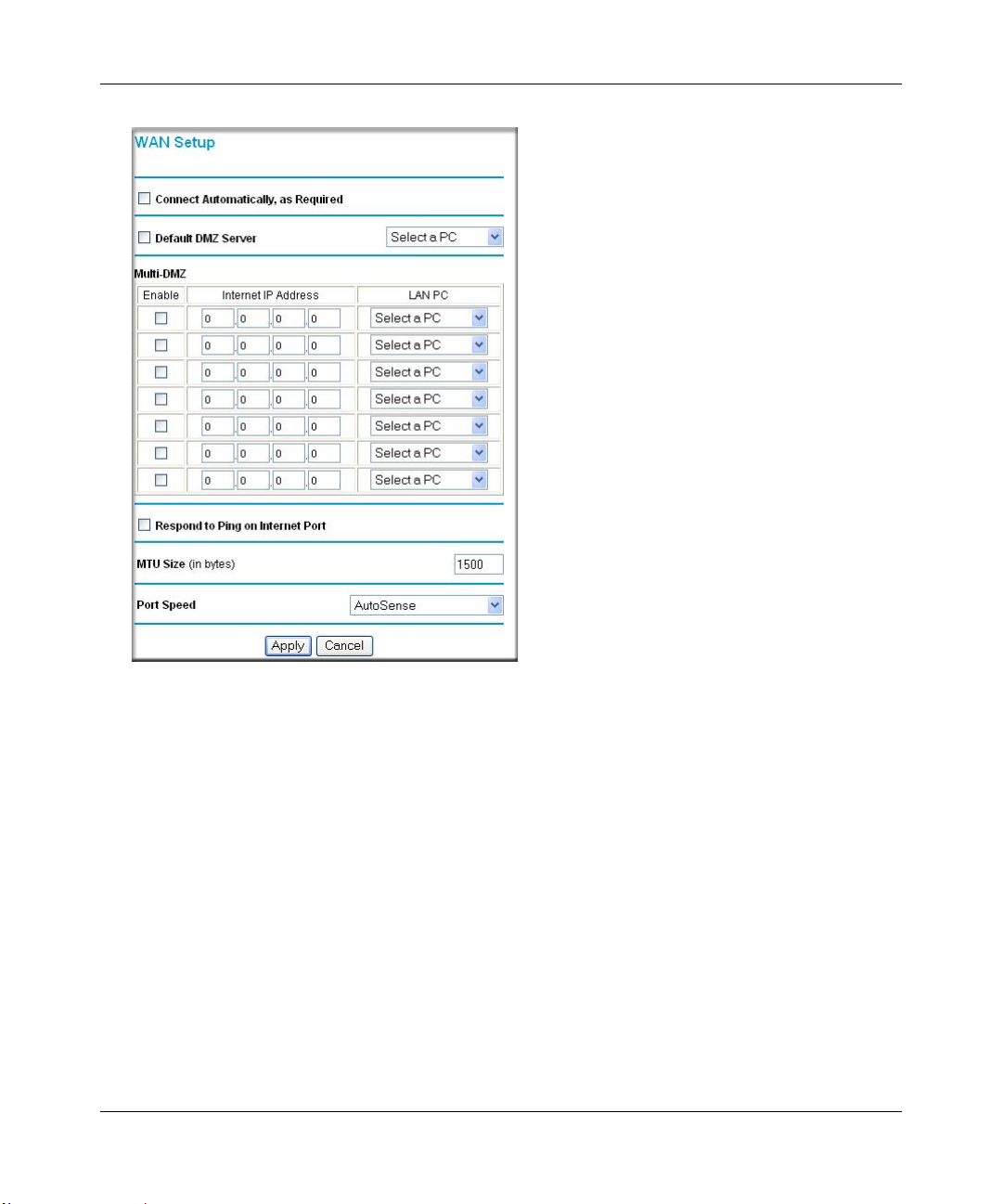

Configuring WAN Settings ..............................................................................................4-5

Connect Automatically, as Required ........................................................................4-6

Setting Up a Default DMZ Server .............................. ... ... .... ... ... ... .... ... ... ... ...............4-7

How to Assign a Default DMZ Server ......................................................................4-7

Multi-DMZ Servers ...................................................................................................4-7

Responding to Ping on Internet WAN Port ...............................................................4-8

MTU Size .................................................................................................................4-8

Port Speed ......................... ... .... ... ... ... .... ... ... ... .......................................... ...............4-8

Port Triggering ............................. .... ... ... ... .... .......................................... ........................4-9

Port Triggering Rules ...................... ... .... ... ... ... .......................................... .............4-10

Adding a new Rule ............. ... .... ... ... ... .... ... ... ... .......................................... .............4-10

Checking Operation and Status .............................................................................4-11

Configuring Dynamic DNS ............................................................................................4-11

How to Configure Dynamic DNS ............................................................................4-12

Using Static Routes ......................................................................................................4-12

Static Route Example .............................................................................................4-12

How to Configure Static Routes .............................................................................4-13

Chapter 5 Protecting Your Network

Firewall Protection and Content Filtering Overview ............ ... .... ... ... ... .... ... ... ... ...............5-1

Using the Block Sites Menu to Screen Content ..............................................................5-1

Apply Keyword Blocking to Groups ..........................................................................5-3

Services and Rules Regulate Inbound and Outbound Traffic .........................................5-3

Defining a Service ....................................................................................................5-4

Using Inbound/Outbound Rules to Block or Allow Services .....................................5-5

Examples of Using Services and Rules to Regulate Traffic ...........................................5-7

ii Contents

May 2004, 202-10030-02

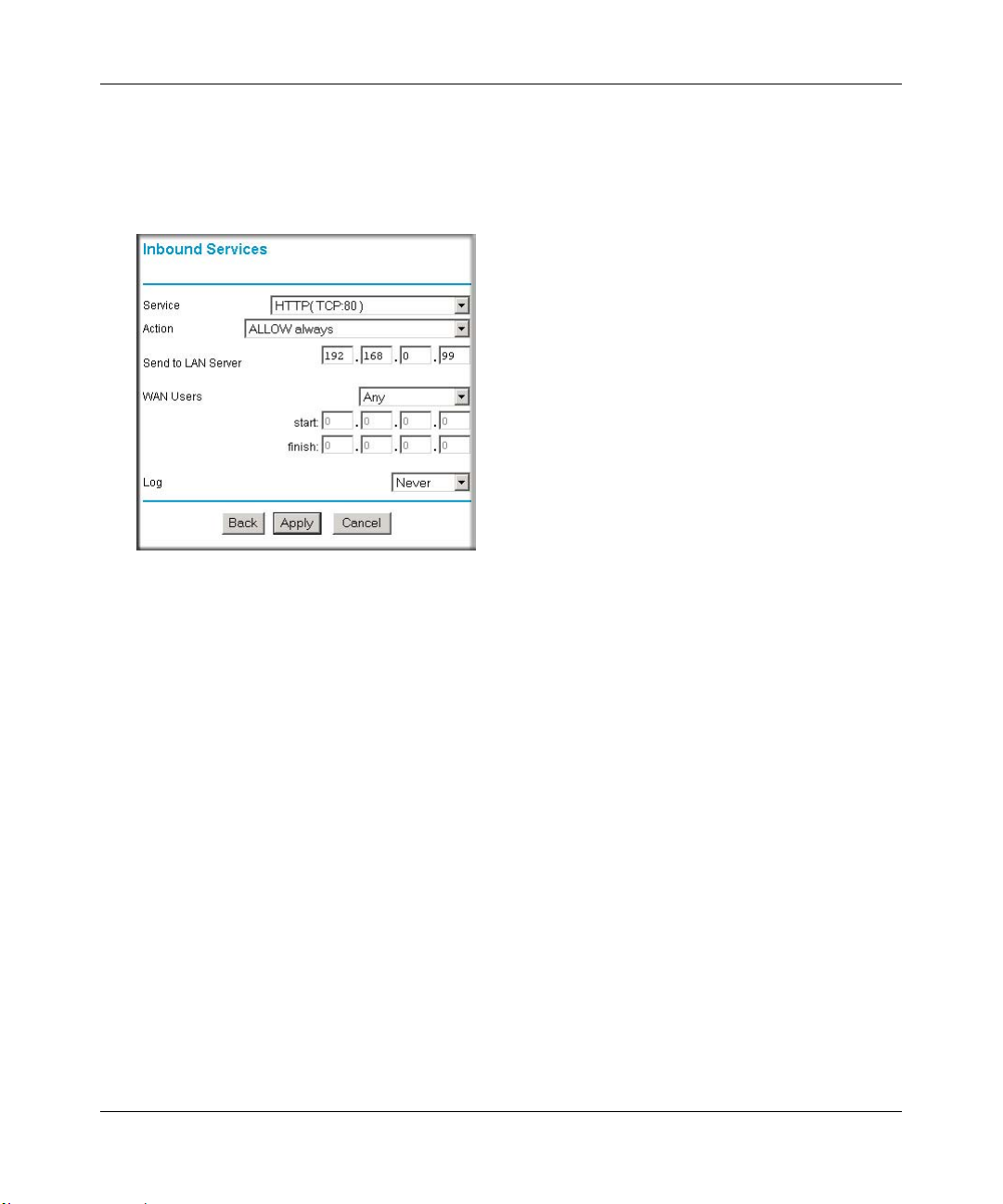

Inbound Rules (Port Forwarding) .............................. ............................................... 5-7

Example: Port Forwarding to a Local Public Web Server ..................................5-8

Example: Port Forwarding for Videoconferencing .............................................5-8

Example: Port Forwarding for VPN Tunnels when NAT is Off ...........................5-9

Outbound Rules (Service Blocking or Port Filtering) ........................ ...... ...... ....... ...5-10

Outbound Rule Example: Blocking Instant Messaging ....................................5-10

Other Rules Considerations ............ .......................................... ...................................5-11

Order of Precedence for Rules ..............................................................................5-11

Rules Menu Options ...............................................................................................5-12

Using a Schedule to Block or Allow Content or Traffic .................................................5-13

Setting the Time Zone ........ ... .... ... ... .......................................... ... .... ... ...................5-14

Set Clock ................................................................................................................5-14

Enable NTP (Network Time Protocol) ....................................................................5-14

User-defined NTP Server ...... .... ... ... ... .... ................................................................5-15

Getting E-Mail Notifications of Event Logs and Alerts ..................................................5-15

Viewing Logs of Web Access or Attempted Web Access .............................................5-17

What to Include in the Event Log ...........................................................................5-19

Chapter 6 Virtual Private Networking

Overview of FVL328 Policy-Based VPN Configuration ..................................................6-1

Using Policies to Manage VPN Traffic .....................................................................6-1

Using Automatic Key Management ..................................... ................................... .. 6-2

IKE Policies’ Automatic Key and Authentication Management ................................6-3

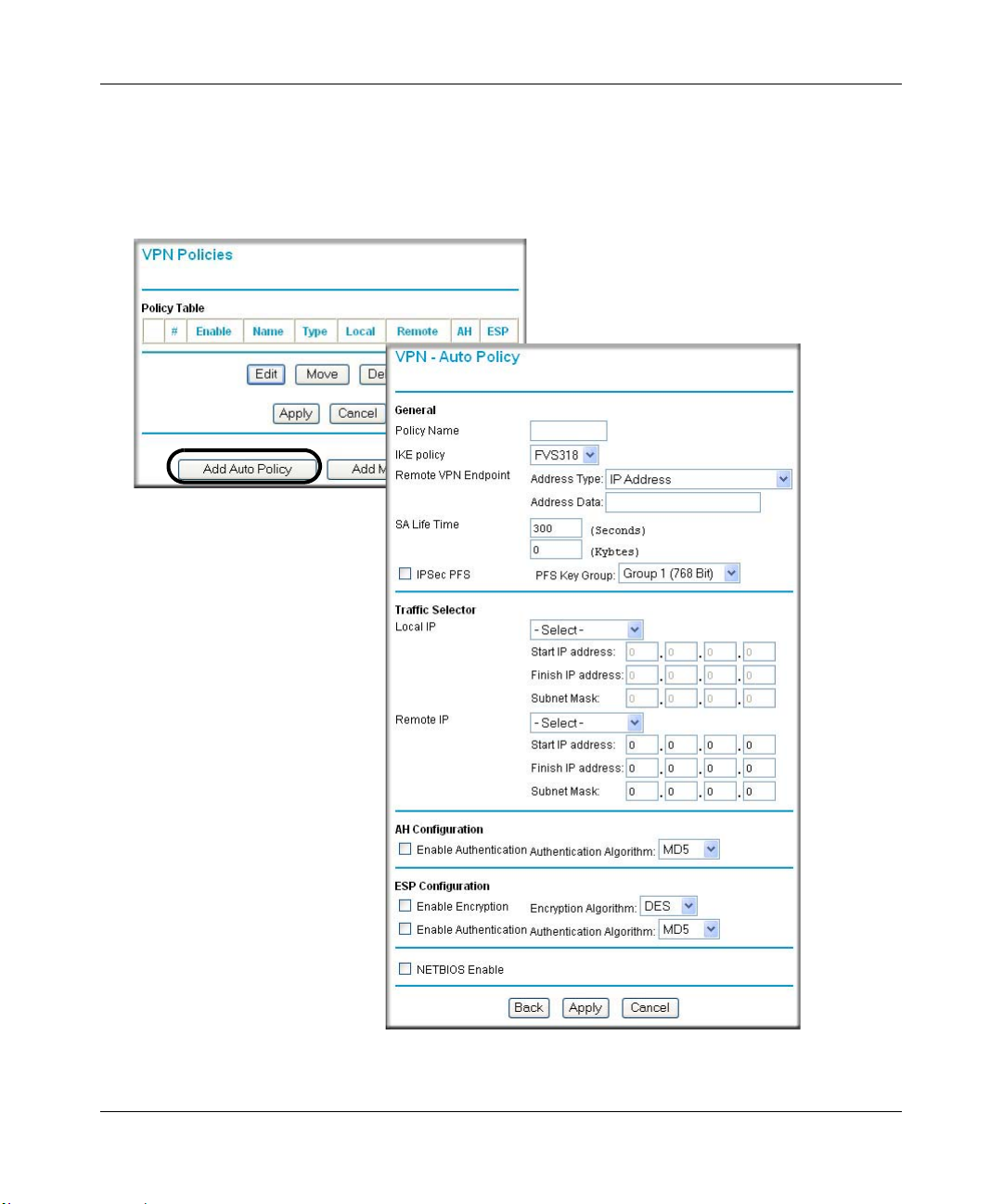

VPN Policy Configuration for Auto Key Negotiation ..................... ............................ 6-6

VPN Policy Configuration for Manual Key Exchange ...............................................6-9

Using Digital Certificates for IKE Auto-Policy Authentication .......................................6-14

Certificate Revocation List (CRL) ...........................................................................6-15

How to Use the VPN Wizard to Configure a VPN Tunnel .............................................6-15

Walk-Through of Configuration Scenarios ....................................................................6-18

VPNC Scenario 1: Gateway-to-Gateway with Preshared Secrets .........................6-19

FVL328 Scenario 1: How to Configure the IKE and VPN Policies .........................6-21

How to Check VPN Connections ...........................................................................6-26

FVL328 Scenario 2: Authenticating with RSA Certificates .....................................6-27

Contents iii

May 2004, 202-10030-02

Chapter 7 Managing Your Network

Protecting Access to Your FVL328 Firewall ....................................................................7-1

How to Change the Built-In Password .....................................................................7-1

How to Change the Administrator Login Timeout ....................................................7-2

Internet Traffic .................................................................................................................7-3

Internet Traffic Limit ..................................................................................................7-3

Enable Monthly Limit .......... ... .... .......................................... ... ... ... .... ... ... ... ...............7-4

Internet Traffic Statistics ...........................................................................................7-4

Traffic by Protocol ........................ ... ... .... ... ... ... ... .... ... .......................................... ... ..7-5

Network Database ..........................................................................................................7-5

Advantages of the Network Database ............................. .... ... ... ... .... ... ... ... ... .... ... ... ..7-6

Known PCs and Devices ..........................................................................................7-7

Operations .................................... ... ... .... .......................................... ........................7-7

Network Management ....................................................................................................7-8

How to Configure Remote Management ..................................................................7-8

Viewing Router Status and Usage Statistics .................................... ... ... ... ... .... ... ... ..7-9

Viewing Attached Devices ......................................................................................7-12

Viewing, Selecting, and Saving Logged Information ..............................................7-13

Changing the Include in Log Settings ..............................................................7-14

Enabling the Syslog Feature ...........................................................................7-15

Enabling Security Event E-mail Notification .................................................................7-15

Backing Up, Restoring, or Erasing Your Settings .........................................................7-17

How to Back Up the FVL328 Configuration to a File ..............................................7-17

How to Restore a Configuration from a File .............................. ............................. 7-18

How to Erase the Configuration .............................................................................7-18

Running Diagnostic Utilities and Rebooting the Router ................................................7-19

Upgrading the Router’s Firmware .................... ......... .......... .......... .......... ......... .......... ...7-20

How to Upgrade the Router ...................................................................................7-20

Chapter 8 Troubleshooting

Basic Functions ..............................................................................................................8-1

Power LED Not On ...................................................................................................8-2

Test LED Never Turns On or Test LED Stays On .....................................................8-2

Local or Internet Port Link LEDs Not On ..................................................................8-3

iv Contents

May 2004, 202-10030-02

Troubleshooting the Web Configuration Interface ..........................................................8-3

Troubleshooting the ISP Connection ..............................................................................8-4

Troubleshooting a TCP/IP Network Using a Ping Utility .................................................8-5

How to Test the LAN Path to Your Firewall ..............................................................8-6

How to Test the Path from Your PC to a Remote Device .........................................8-6

Restoring the Default Configuration and Password ............... .........................................8-7

How to Use the Default Reset Button ......................................................................8-7

Problems with Date and Time .........................................................................................8-8

Appendix A Technical Specifications

Appendix B Networks, Routing, and Firewall Basics

Related Publications ...................................................................................................... B-1

Basic Router Concepts .................................................................................................. B-1

What is a Router? ................................................................................................... B-1

Routing Information Protocol ................................................................................... B-2

IP Addresses and the Internet ......................................... .... ... ... ... .... ... ... ... ... .... ... ... . B-2

Netmask .................................... ................................................................ ..............B-4

Subnet Addressing .................................................................................................. B-4

Private IP Addresses ................................. ... ... ... .......................................... ........... B-7

Single IP Address Operation Using NAT ................................................................. B-7

MAC Addresses and Address Resolution Protocol ................................................. B-8

Related Documents ................................................................................................. B-9

Domain Name Server .............................................................................................. B-9

IP Configuration by DHCP .............................. ... .... ... ... ... .... ... ... .............................. B -9

Internet Security and Firewalls .................................................................................... B-10

What is a Firewall? ................................................................................................ B-10

Stateful Packet Inspection ............................... ... .... ... ... ... .... ... ... ... .... ... ... ... ... .... ..... B-10

Denial of Service Attack .........................................................................................B-11

Ethernet Cabling ................................. ... ... .... ... .......................................... ... ... ... .... ... ...B-11

Category 5 Cable Quality .......................................................................................B-11

Inside Twisted Pair Cables .................................................................................... B-12

Uplink Switches, Crossover Cables, and MDI/MDIX Switching ............................ B-13

Contents v

May 2004, 202-10030-02

Appendix C Preparing Your Network

What You Will Need Before You Begin .................................. .... .................................... C-1

LAN Hardware Requirements ................................................................................. C-1

LAN Configuration Requirements ...........................................................................C-2

Internet Configuration Requirements ...................................................................... C-2

Where Do I Get the Internet Configuration Parameters? ................................. C-2

Worksheet for Recording Your Internet Connection Information .............................C-3

Preparing Your Computers for TCP/IP Networking ................................................ ... ... . C-4

Configuring Windows 95, 98, and Me for TCP/IP Networking ....................................... C-5

Install or V erify Windows Networking Components ................................................. C-5

Enabling DHCP to Automatically Configure TCP/IP Settings .................................C-6

Selecting Windows’ Internet Access Method ................ ......................... ........... C-7

Verifying TCP/IP Properties .................................................................................... C-7

Configuring Windows NT, 2000 or XP for IP Networking .............................. ................. C-8

Installing or Ve rifying Windows Networking Components ................ ... ... ... ... .... ... .... C-8

Verifying TCP/IP Properties .................................................................................... C-8

Configuring the Macintosh for TCP/IP Networking ........................................................ C-9

MacOS 8.6 or 9.x ......................... .......................................... ................................. C-9

MacOS X ...... ... .......................................... .......................................... ..................C-10

Verifying TCP/IP Properties for Macintosh Computers ... .... ... ... ... .... ... ... ... ... .... .....C-10

Restarting the Network ................................................................................................ C-11

Appendix D Firewall Log Formats

Action List ...................................................................................................................... D-1

Field List ........................................................................................................................ D-1

Outbound Log ..................................... .......................................... ................................. D-1

Inbound Log ...................................................................................................................D-2

Other IP Traffic ......................................... .... ... ... ... ....................................... ... ... .... ... ... . D-2

Router Operation ........................................................................................................... D-3

Other Connections and Traffic to this Router ................................................................ D-4

DoS Attack/Scan ...........................................................................................................D-4

Access Block Site .......................................................................................................... D-6

All Web Sites and News Groups Visited ........................................................................D-6

System Admin Sessions ................................................................................................ D-6

vi Contents

May 2004, 202-10030-02

Policy Administration LOG .............................................................................................D-7

Appendix E Virtual Private Networking

What is a VPN? ............................................................................................................. E-1

What is IPSec and How Does It Work? ......................................................................... E-2

IPSec Security Features .............................. ... ... .... ... ... ... .... ... ... ... .... ....................... E-2

IPSec Components ................................................................................................. E-2

Encapsulating Security Payload (ESP) ................................................................... E-3

Authentication Header (AH) ............................... .... ... ... ... .... ... ... ... .... ... ... ... ... .... ... .... E-4

IKE Security Association ........... .......................................... ... ... ... ........................... E-4

Mode ...................................... ...................... .................... ...................... ........... E-5

Key Management .................................................................................................... E-6

Understand the Process Before You Begin .. ................................................................. E-6

VPN Process Overview ......... ... ... .... ... ... ... .......................................... ........................... E-7

Network Interfaces and Addresses ......................................................................... E-7

Interface Addressing ......................................................................................... E-7

Firewalls ........................................................................................................... E-8

Setting Up a VPN Tunnel Between Gateways ........................................................ E-8

VPNC IKE Security Parameters ......... ... ... .... ... ............................................................ E-10

VPNC IKE Phase I Parameters ............................................................................. E-10

VPNC IKE Phase II Parameters .............................................................................E-11

Testing and Troubleshooting .........................................................................................E-11

Additional Reading ...................... .... ... ... ... .... ... .......................................... ... ... ... ..........E-11

Appendix F NETGEAR VPN Configuration FVS318 or FVM318 to FVL328

Configuration Template ... .... ............................................................................................F-1

Step-By-Step Configuration of FVS318 or FVM318 Gateway A ............................. ........F-2

Step-By-Step Configuration of FVL328 Gateway B ........................................................F-5

Test the VPN Connection .............................................................................................F-10

Appendix G NETGEAR VPN Client to NETGEAR FVL328 or FWAG114 VPN Router

Configuration Profile ........................................... ... ... .......................................... ...........G -1

Step-By-Step Configuration of FVL328 or FWAG114 Gateway .....................................G-2

Step-By-Step Configuration of the FVL328 Firewall B ........... .... ... ... ... .... ... ... ... ... .... ... ... .G-7

Contents vii

May 2004, 202-10030-02

Testing the VPN Connection .. ... ... .... ... ... ... .... ... ... ... ... .... ... ... ... .... ..................................G-14

From the Client PC to the FVL328 .................. ... .... ... ... ... .... ... ... ... .... ... ... ... ... .... ... ..G-14

From the FVL328 to the Client PC ......... .......................................... ... ... ... ............G-15

Monitoring the PC VPN Connection ................... ... ... .... ... ... ... .... ..................................G-15

Viewing the FVL328 VPN Status and Log Information ................................................G-17

Appendix H NETGEAR VPN Configuration FVS318 or FVM318 with FQDN to FVL328

Configuration Template ... .... ...........................................................................................H-1

Using DDNS and Fully Qualified Domain Names (FQDN) ..................................... H-2

Step-By-Step Configuration of FVS318 or FVM318 Gateway A ....................................H-3

Step-By-Step Configuration of FVL328 Gateway B .......................................................H-7

Test the VPN Connection ............................................................................................ H-12

Glossary Index

viii Contents

May 2004, 202-10030-02

Chapter 1

About This Manual

This chapter introduces the Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2.

Audience

This reference manual assumes that the reader has basic to intermediate computer and Internet skills. However, basic computer network, Internet, firewall, and VPN technology tutorial information is provided in the Appendices and on the NETGEAR Web site.

Scope

This manual is written for the FVL328 Firewall according to these specifications:

Table 1-1. Manual Specifications

Product FVL328 Prosafe High Speed VPN Firewall Firmware Version Number Version 2.0 Release 05 Manual Part Number 202-10030-02 Manual Publication Date May 24, 2004

Note: Product updates are available on the NETGEAR Web site at

http://kbserver.netgear.com/products/FVL328.asp.

About This Manual 1

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

Typographical Conventions

This guide uses the following typographical conventions:

Table 1-2. Typographical conventions

italics Emphasis.

bold User input. [Enter] Named keys in text are shown enclosed in square brackets. The notation [Enter]

is used for the Enter key and the Return key.

MALL CAPS DOS file and directory names.

Special Message Formats

This guide uses the following formats to highlight special messages:

Note: This format is used to highlight information of importance or special interest.

2 About This Manual

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

How to Use this Manual

This manual is published in both HTML and .PDF file formats. The HTML version of this manual provides links to the .PDF versions of the manual and includes these features. To view the HTML version of the manual, you must have a browser with JavaScript enabled.

2 3

Figure Preface 1-1: HTML version of this manual

1. Left pane. Use the left pane to view the Contents, Index, and Search tabs.

2. Toolbar buttons. Use the toolbar buttons across the top to navigate, print pages, and more.

–The Show in Contents button locates the current topic in the Contents tab.

– Previous/Next buttons display the previous or next topic.

–The PDF button links to a PDF version of the full manual.

–The Print button prints the current topic. Use this button when a

step-by-step procedure is displayed to send the entire procedure to your printer. You do not have to worry about specifying the range of pages.

3. Right pane. Use the right pane to view the contents of the manual. Also, each page of the

manual includes a link at the top right which links to a PDF file containing just the currently selected chapter of the manual.

About This Manual 3

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

How to Print this Manual

To print this manual you can choose one of the following options, according to your needs.

• Printing a “How To” Sequence of Steps in the HTML View. Use the Print button on the

upper right side of the toolbar to print the currently displayed topic. Use this button when a step-by-step procedure is displayed to send the entire procedure to your printer. You do not have to worry about specifying the range of pages.

• Printing a Chapter. Use the link at the top right of any page.

– Click the “PDF of This Chapter” link at the top right of any page in the chapter you want

to print. A new browser window opens showing the PDF version of the chapter you were

viewing. – Click the print icon in the upper left of the window. – Tip: If your printer supports printing two pages on a single sheet of paper, you can save

paper and printer ink by selecting this feature.

• Printing the Full Manual. Use the PDF button in the toolbar at the top right of the browser

window. – Click the PDF button. A new browser window opens showing the PDF version of the full

manual. – Click the print icon in the upper left side of the window. – Tip: If your printer supports printing two pages on a single sheet of paper, you can save

paper and printer ink by selecting this feature.

4 About This Manual

May 2004, 202-10030-02

Chapter 2

Introduction

This chapter describes the features of the NETGEAR FVL328 Prosafe High Speed VPN Firewall. The FVL328 Firewall is now ICSA certified. It provides connections for multiple computers to the Internet through an external broadband access device (such as a cable modem or DSL modem) and supports IPSec-based secure tunnels to IPSec-compatible VPN servers.

About the FVL328

The FVL328 is a complete security solution that protects your network from attacks and intrusions and enables secure communications using Virtual Private Networks (VPN). Unlike simple Internet sharing routers that rely on Network Address Translation (NAT) for security, the FVL328 uses Stateful Packet Inspection for Denial of Service (DoS) attack protection and intrusion detection. The 8-port FVL328 provides highly reliable Internet access for up to 253 users with up to 100 concurrent VPN tunnels.

Summary of New Features in the FVL328

The NETGEAR FVL328 VPN ProSafe Firewall contains many new features, including:

• Multi-DMZ (One-to-One DMZ)

– Up to 7 different WAN IPs can be mapped, one-to-one, to up to 7 private LAN IPs.

• Resettable WAN traffic meter

– Programmable traffic limit – Can block traffic or send e-mail when limit reached

• VPN Wizard that simplifies VPN setup and uses the VPNC defaults

• Four groups for keyword blocking

• E-mail authentication

Introduction 2-1

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

• IP-MAC access control: ensures a computer with an assigned MAC address always gets the same IP address when using DHCP

• Port Triggering

• Ease of Use Improvements

– Period (.) can be used to advance IP address, like using Tab – Clearer VPN status page – Advanced e-mail settings: Authentication, change from address Support for PPPoE with

static IP address – Trace route support added in diagnostic page – On services page, if the Finish port number is blank then the Start port number is used. – Allow broadcast IP for Syslog if e-mail enabled to send logs, log will be sent if reboot, etc. – Logs sent when reboots are initiated if e-mail is enabled

• ICSA Certified firewall, SMB 4.0 criteria

Key Features

The FVL328 features are highlighted below.

Virtual Private Networking

The FVL328 Firewall provides a secure encrypted connection between your local network and remote networks or clients. Its VPN features include:

• VPN Wizard: Simplifies VPN setup, uses VPNC defaults.

• Support for up to 100 simultaneous VPN connections.

• Support for industry standard VPN protocols. The FVL328 Prosafe High Speed VPN Firewall supports standard keying methods (Manual or IKE), standard authentication methods (MD5 and SHA-1), and standard encryption methods (DES, 3DES). It is compatible with many other VPN products.

• Support for up to 168 bit encryption (3DES) for maximum security.

• Support for VPN Main Mode, Aggressive mode, or Manual Keying.

2-2 Introduction

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

• Support for Fully Qualified Domain Name (FQDN) configuration when the Dynamic DNS feature is enabled with one of the supported service providers.

• VPNC Certified.

A Powerful, True Firewall

Unlike simple Internet sharing NAT routers, the FVL328 is a true firewall, using stateful packet inspection to defend against hacker attacks. Its firewall features include:

• Firewall Policies: A firewall policy can be set for each of the 7 private LAN IPs

• DoS protection Automatically detects and thwarts DoS attacks such as Ping of Death, SYN Flood, Land Attack and IP Spoofing.

• Blocks unwanted traffic from the Internet to your LAN.

• Blocks access from your LAN to Internet locations or services that you specify as off-limits.

• Logs security incidents The FVL328 will log security events such as blocked incoming traffic, port scans, attacks, and administrator logins. You can configure the firewall to e-mail the log to you at specified intervals. You can also configure the firewall to send immediate alert messages to your e-mail address or e-mail pager whenever a significant event occurs.

• ICSA Certified, Small/Medium Business (SMB) Category version 4.0

Content Filtering

With its content filtering feature, the FVL328 prevents objectionable content from reaching your computers. The firewall allows you to control access to Internet content by screening for keywords within Web addresses. You can configure the firewall to log and report attempts to access objectionable Internet sites. You can also create up to four groups, each with keyword blocking.

Configurable Auto Uplink™ Ethernet Connection

With its internal 8-port 10/100 switch, the FVL328 can connect to either a 10 Mbps standard Ethernet network or a 100 Mbps Fast Ethernet network. Both the local LAN and the Internet W AN interfaces are 10/100 Mbps, autosensing, and capable of full-duplex or half-duplex operation.

Introduction 2-3

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

The firewall incorporates Auto UplinkTM technology. Each local Ethernet port will automatically sense whether the Ethernet cable plugged into the port should have a ‘normal’ connection such as to a PC or an ‘uplink’ connection such as to a switch or hub. That port will then configure itself to the correct configuration. This feature also eliminates the need to worry about crossover cables, as Auto Uplink will accommodate either type of cable to make the right connection.

Protocol Support

The FVL328 supports the Transmission Control Protocol/Internet Protocol (TCP/IP) and Routing Information Protocol (RIP). Appendix B, “Networks, Routing, and Firewall Basics” provides further information on TCP/IP. Supported protocols include:

• The Ability to Enable or Disable IP Address Sharing by NAT The FVL328 allows several networked computers to share an Internet account using only a single IP address, which may be statically or dynamically assigned by your Internet service provider (ISP). This technique, known as NAT, allows the use of an inexpensive single-user ISP account. This feature can also be turned off completely for using the FVL328 in settings where you want to manage the IP address scheme of your organization.

• Automatic Configuration of Attached computers by DHCP The FVL328 dynamically assigns network configuration information, including IP, gateway, and domain name server (DNS) addresses, to attached computers using Dynamic Host Configuration Protocol (DHCP). This feature greatly simplifies configuration of computers on your local network. IP-MAC address locking ensures the same PC always gets the same IP address.

• DNS Proxy When DHCP is enabled and no DNS addresses are specified, the firewall provides its own address as a DNS server to the attached computers. The firewall obtains actual DNS addresses from the ISP during connection setup and forwards DNS requests from the LAN. There is a checkbox to disable this feature.

• PPP over Ethernet (PPPoE) PPPoE is a protocol for connecting remote hosts to the Internet over a DSL connection by simulating a dial-up connection. This feature eliminates the need to run a login program such as EnterNet or WinPOET on your computer. The FVL328 now supports fixed IP with login.

• Point-to-Point Tunneling Protocol PPTP login support for European ISPs and BigPond login for Telstra cable in Australia.

2-4 Introduction

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

• Dynamic DNS Dynamic DNS services allow remote users to find your network using a domain name when your IP address is not permanently assigned. The firewall contains a client that can connect to many popular Dynamic DNS services to register your dynamic IP address. See “Configuring

Dynamic DNS” on page 4-11.

Easy Installation and Management

You can install, configure, and operate the FVL328 within minutes after connecting it to the network. The following features simplify installation and management tasks:

• Browser-based management Browser-based configuration allows you to easily configure your firewall from almost any type of personal computer, such as Windows, Macintosh, or Linux. A user-friendly Setup Wizard is provided and online help documentation is built into the browser-based Web Management Interface.

• Smart Wizard The firewall automatically senses the type of Internet connection, asking you only for the information required for your type of ISP account.

•VPN Wizard The virtual private networking (VPN) Wizard of the FVL328 Firewall helps you configure VPN tunnels to provide secure, encrypted communications between your local network and a remote network or computer.

• Remote management The firewall allows you to login to the Web Management Interface from a remote location via the Internet using secure SLL protocol. For security, you can limit remote management access to a specified remote IP address or range of addresses, and you can choose a nonstandard port number.

• Diagnostic functions The firewall incorporates built-in diagnostic functions such as Ping, DNS lookup, and remote reboot. These functions allow you to test Intern et connectivity and reboot the firewall. You can use these diagnostic functions directly from the FVL328 when your are connected on the LAN or when you are connected over the Internet via the remote management function. The FVL328 also now supports trace route.

• Visual monitoring The firewall’s front panel LEDs provide an easy way to monitor its status and activity.

• Flash EPROM for firmware upgrades.

Introduction 2-5

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

Note: Product updates are available on the NETGEAR Web site at

http://kbserver.netgear.com/products/FVL328.asp.

• Includes a battery-backed real-time clock so time will persist if power is removed.

• Regional support, including ISPs like Telstra DSL and BigPond or Deutsche Telekom.

What’s in the Box?

The product package should contain the following items:

• FVL328 Prosafe High Speed VPN Firewall

•AC power adapter

• FVL328 Resource CD (230-10061-02), including: — This manual — Application notes, tools, and other helpful information

• Warranty and registration card

• Support information card

If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the carton, including the original packing materials, in case you need to return the product for repair.

The Firewall’s Front Panel

The front panel of the FVL328 (Figure 2-1) contains status LEDs.

MODEL

ProSafe Hi-Speed VPN Firewall

Cable/DSL

PWR TEST

INTERNET LOCAL

100

LNK/ACT

12345678

Figure 2-1: FVL328 Front Panel

2-6 Introduction

May 2004, 202-10030-02

100

LNK/ACT

FVL328

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

You can use some of the LEDs to verify connections. Table 2-1 lists and describes each LED on the front panel of the firewall. These LEDs are green when lit, except for the TEST LED, which is amber.

Table 2-1: LED Descriptions

Label Activity Description

POWER On Power is supplied to the firewall. TEST On

Off

Internet

100 On/Blinking The Internet port is operating at 100 Mbps. LINK/ACT (Activity) On/Blinking The port detected a link with the Internet WAN connection and is

LOCAL

100 On/Blinking The Local port is operating at 100 Mbps. LINK/ACT

(Link/Activity)

On/Blinking The Local port has detected a link with a LAN connection and is

The system is initializing. The system is ready and running.

operating at 10 Mbps. Blinking indicates data transmission.

The Firewall’s Rear Panel

The rear panel of the FVL328 (Figure 2-2) contains the connections identified below.

Figure 2-2: FVL328 Rear Panel

Viewed from left to right, the rear panel contains the following elements:

• Factory Default Reset push button

• Eight Local Ethernet RJ-45 ports for connecting the firewall to local computers

• Internet WAN Ethernet RJ-45 port for connecting the firewall to a broadband modem

• AC power adapter input

Introduction 2-7

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

2-8 Introduction

May 2004, 202-10030-02

Chapter 3

Connecting the FVL328 to the Internet

This chapter describes how to set up the firewall on your Local Area Network (LAN) and connect to the Internet. You can perform basic configurat ion of your FVL328 Prosafe High Speed VPN Firewall using the Setup Wizard, or manually configure your Internet connection.

Connecting the FVL328 to Your LAN

This section provides instructions for connecting the FVL328 Prosafe High Speed VPN Firewall to your Local Area Network (LAN).

Note: Appendix C, "Preparing Your Network" provides instructions for identifying network

configuration parameters.

How to Connect the FVL328 to Your LAN

There are three steps to connecting your firewall:

• Connect the firewall to your network.

• Restart your network in the correct sequence.

• Log in to the firewall.

• Connect to the Internet.

Follow the steps below to connect your firewall to your network.

1. CONNECT THE FIREWALL

a. Turn off your computer. b. Turn off the broadband modem.

Connecting the FVL328 to the Internet 3-1

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

Locate the Ethernet cable (Cable 1 in the diagram below) that runs from your broadband

modem to the computer. Disconnect the cable at the comp uter end only — point (A) in the diagram.

Disconnect

from

computer

Cable 1

%URDGEDQGPRGHP

Figure 3-1: Disconnect the broadband modem

Securely insert the end of the Ethernet cable (Cable 1) that you disconnected from your computer into the Internet port (B) on the FVL328. Cable 1 now connects from your cable or DSL broadband modem to the router.

Internet Port

,/#!,

-

).4%2.%4

,/#!,

-ODEL&6,(I3PEED60.&IREWALL

).4%2.%4

-ODEL&6,(I3PEED60.&IREWALL

-

"ROADBANDMODEM

Figure 3-2: Connect the broadband modem to the router

3-2 Connecting the FVL328 to the Internet

May 2004, 202-10030-02

6$#/!

Cable 1

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

Locate the blue Ethernet cable that came with your router. Securely insert one end of the

cable (Cable 2 in the diagram below) into a LAN port on the router such as LAN port 8 (C), and the other end into the Ethernet port of your computer (D).

Cable 2

,/#!,

-

).4%2.%4

6$#/!

-ODEL&6,(I3PEED60.&IREWALL

Cable 1

Local Port 8

"ROADBANDMODEM

Figure 3-3: Connect the computers on your network to the router

Note: The FVL328 incorporates Auto UplinkTM technology which eliminates the need to worry about crossover cables by automatically adjusting to the cable type.

Connecting the FVL328 to the Internet 3-3

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

RESTART YOUR NETWORK IN THE CORRECT SEQUENCE

Warning: Failure to restart your network in the correct sequence could prevent you from

connecting to the Internet.

a. First, turn on the broadband modem and wait 2 minutes. b. Now, turn on your firewall. c. Last, turn on your computer.

Note: If software usually logs you in to the Internet, do not run that software, or cancel it if it starts automatically.

d. Check the status lights and verify the following:

• Power: The power light goes on when your turn the firewall on.

• Test: The test light turns on, then goes off after less than a minute.

• Local: A Local light on the router is lit. If no Local lights are lit, check that the Ethernet cable connecting the powered on computer to the router is securely attached at both ends.

• Internet: The Internet light on the firewall is lit. If the Internet light is not lit, make sure the Ethernet cable is securely attached to the firewall Internet port and the powered on modem.

3. LOG IN TO THE FIREWALL

a. From your PC, launch your Internet browser.

Because you are not yet connected to the Internet, your browser will display a page not found message.

b. Connect to the firewall by typing http://192.168.0.1 in the address field of Internet

Explorer or Netscape

Figure 3-4: Log in to the firewall

3-4 Connecting the FVL328 to the Internet

Navigator and clicking Enter.

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

A login window opens as shown here:

Figure 3-5: Login window

Enter admin for the router user name and password for the router password, both in lower case letters.

d. After logging in to the router, you will see the Internet connection Setup Wizard on the

settings main page. Note: The user name and password are not the same as any user name or password you

may use to log in to your Internet connection.

4. RUN THE SETUP WIZARD TO CONNECT TO THE INTERNET

Figure 3-6: Setup Wizard

Connecting the FVL328 to the Internet 3-5

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

You are now connected to the firewall. If you do not see the menu above, click the Setup

Wizard link on the upper left of the main menu.

b. Choose NAT or Classical Routing. NAT automatically assigns private IP addresses

(192.168.0.x) to LAN connected devices. Classical routing lets you directly manage the IP addresses the FVL328 uses. Classical routing should be selected only by experienced users.

c. Click Next and follow the steps in the Setup Wizard for inputting the configuration

parameters from your ISP to connect to the Internet. Note: If you choose not to use the Setup Wizard, you can manually configure your

Internet connection settings by following the procedure “Manually Configuring Your

Internet Connection” on page 3-10.

Unless your ISP automatically assigns your configuration automatically via DHCP, you will need the configuration parameters from your ISP as you recorded them previously in

“Worksheet for Recording Your Internet Connection Information” on page C-3

d. When the firewall successfully detects an active Internet service, the firewall’s Internet

LED goes on. The Setup Wizard reports which connection typ e it discovered, and displays the appropriate configuration menu. If the Setup Wi zard finds no connection, you will be prompted to check the physical connection between your firewall and the cable or DSL line.

e. The Setup Wizard will report the type of connection it finds. The options are:

• Connections that require a login using protocols such as PPPoE, Telstra BigPond, or PPTP broadband Internet connections.

• Connections that use dynamic IP address assignment.

• Connections that use fixed IP address assignment.

The procedures for filling in the configuration menu for each type of connection follow below.

Configuring for a Wizard-Detected Login Account

If the Setup Wizard determines that your Internet service account uses a login protocol such as PPP over Ethernet (PPPoE), you will be directed to the PPPoE:

3-6 Connecting the FVL328 to the Internet

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

Enter your Account Name (may also be called Host Name) and Domain Name. These

parameters may be necessary to access your ISP’s services such as mail or news servers. If you leave the Domain Name field blank, the firewall will attempt to learn the domain automatically from the ISP. If this is not successful, you may need to enter it manually.

2. Enter the PPPoE login user name and password provided by your ISP. These fields are case

sensitive. If you want to change the login timeout, enter a new value in minutes.

Note: You will no longer need to launch the ISP’s login program on your computer in order to

access the Internet. When you start an Internet application, the firewall will automatically log you in.

3. Enable or disable NAT (Network Address Translation). NAT allows all LAN computers to

gain Internet access via this Router, by sharing this Router's WAN IP address. In most situations, NAT is essential for Internet access via this Router. You should only disable NAT if you are sure you do not require it. When NAT is disabled, only standard routing is performed by this Router.

4. Perform a DNS Lookup. A DNS (Domain Name Server) converts the Internet name (e.g.

www.netgear.com) to an IP address. If you need the IP address of a Web, FTP, Mail or other Server on the Internet, you can do a DNS lookup to find the IP address.

Domain Name Server (DNS) Address: If you know that your ISP does not automatically transmit DNS addresses to the firewall during login, select “Use these DNS servers” and enter the IP address of your ISP’s Primary DNS Server. If a Secondary DNS Server address is available, enter it also.

If you enter an address here, after you finish configuring the firewall, reboot your computers so that the settings take effect.

5. Enter the Router's MAC Address. Each computer or router on your network has a unique

32-bit local Ethernet address. This is also referred to as the computer's MAC (Media Access Control) address. Usually, select Use default address.

If your ISP requires MAC authentication, then select either Use this Computer's MAC address to have the router use the MAC address of the computer you are now using, or Use This MAC Address to manually type in the MAC address that your ISP expects.

6. Click Apply to save your settings.

7. Click the Test button to test your Internet connection. If the NETGEAR Web site does not

appear within one minute, refer to Chapter 8, Troubleshooting.

Connecting the FVL328 to the Internet 3-7

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

Configuring for a Wizard-Detected Dynamic IP Account

If the Setup Wizard determines that your Internet service account uses Dynamic IP assignment, you will be directed to the Dynamic IP menu.

1. Enter your Account Name (may also be called Host Name) and Domain Name. These

2. If you know that your ISP does not automatically transmit DNS addresses to the firewall

during login, select “Use these DNS servers” and enter the IP address of your ISP’s Primary DNS Server. If a Secondary DNS Server address is available, enter it also.

A DNS server is a host on the Internet that translates Internet names (such as www .netgear.com) to numeric IP addresses. Typically your ISP transfers the IP address of one or two DNS servers to your firewall during login. If the ISP does not transfer an address, you must obtain it from the ISP and enter it manually here. If you enter an address here, you should reboot your computers after configuring the firewall.

3. The Router’s MAC Address is the Ethernet MAC address that will be used by the firewall on

the Internet port. If your ISP allows access from only one specific computer’s Ethernet MAC address, select

“Use this MAC address.” The firewall will then capture and use the MAC address of the computer that you are now using. You must be using the one computer that is allowed by the ISP. Otherwise, you can type in a MAC address.

Note: Some ISPs will register the Ethernet MAC address of the network interface card in your computer when your account is first opened. They will then only accept traffic from the MAC address of that computer. This feature allows your firewall to masquerade as that computer by using its MAC address.

4. Click Apply to save your settings.

5. Click the Test button to test your Internet connection. If the NETGEAR Web site does not

appear within one minute, refer to Chapter 8, Troubleshooting.

Configuring for a Wizard-Detected Fixed IP (Static) Account

If the Setup Wizard determines that your Internet service account uses Fixed IP assignment, you will be directed to the Fixed IP menu.

3-8 Connecting the FVL328 to the Internet

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

Enter your assigned IP Address, Subnet Mask, and the IP Address of your ISP’s gateway

router. This information should have been provided to you by your ISP. You will need the configuration parameters from your ISP you recorded in “Worksheet for Recording Your

Internet Connection Information” on page C-3.

2. Enter the IP address of your ISP’s Primary DNS Server. If a Secondary DNS Server address is

available, enter it also. DNS servers are required to perform the function of translating an Internet name such as

www.netgear.com to a numeric IP address. For a fixed IP address configuration, you must obtain DNS server addresses from your ISP and enter them manually here. You should reboot your computers after configuring the firewall for these settings to take effect.

3. Click Apply to save the settings.

4. Click the Test button to test your Internet connection. If the NETGEAR Web site does not

appear within one minute, refer to Chapter 8, Troubleshooting.

Testing Your Internet Connection

After completing the Internet connection configuration, your can test your Internet connection. Log in to the firewall, then, from the Setup Basic Settings link, click the Test button. If the NETGEAR Web site does not appear within one minute, refer to Chapter 8, Troubleshooting.

Your firewall is now configured to provide Internet access for your network. Your firewall automatically connects to the Internet when one of your computers requires access. It is not necessary to run a dialer or login application such as Dial-Up Networking or Enternet to connect, log in, or disconnect. These functions are performed by the firewall as needed.

To access the Internet from any computer connected to your firewall, launch a browser such as Microsoft Internet Explorer or Netscape Navigator. You should see the firewall’s Internet LED blink, indicating communication to the ISP. The browser should begin to display a Web page.

The following chapters describe how to configure the advanced features of your firewall, and how to troubleshoot problems that may occur.

Connecting the FVL328 to the Internet 3-9

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

Manually Configuring Your Internet Connection

You can manually configure your firewall using the menu below, or you can allow the Setup Wizard to determine your configuration as described in the previous section.

ISP Does Not Require Login

ISP Does Require Login

Figure 3-7: Browser-based configuration Basic Settings menu

3-10 Connecting the FVL328 to the Internet

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

How to Complete a Manual Configuration

Manually configure the firewall in the Basic Settings menu using these steps:

1. Answer the question, “Does Your Internet Connection Require a Login?”

• Select Yes if you normally must launch a login program such as Enternet or WinPOET in order to access the Internet. You must also log in to establish a PPPoE connection that uses a Static IP address.

Note: If you are a T elstra BigPond cable modem customer, or if you are in an area such as Austria that uses PPTP, login is required. Select Yes, then select BigPond or PPTP from the Internet Service Type drop-down box.

• Select No if you do not log in to establish your Internet connection.

2. If you selected Yes, follow the instructions below.

If your Internet connection does not require a login, skip to step 3. – Enter your Account Name (may also be called Host Name) and Domain Name.

These parameters may be necessary to access your ISP’s services such as mail or news servers. These fields are case sensitive.

– If you want to change the login timeout, enter a new value in minutes. This determines

how long the firewall keeps the Internet connection active after there is no Internet activity from the LAN. Entering an Idle Timeout value of zero means never log out.

– If you want to disable NA T, select the Disable radio button. Before disabling NAT, back up

your current configuration settings.

Note: Disabling NAT will reboot the router and reset all the FVL328 configuration

settings to the factory default. Disable NAT only if you plan to install the FVL328 in a setting where you will be manually administering the IP address space on the LAN side of the router.

– Domain Name Server (DNS) Address:

If you know that your ISP does not automatically transmit DNS addresses to the firewall during login, select “Use these DNS servers” and enter the IP address of your ISP’s Primary DNS Server. If a Secondary DNS Server address is available, enter it also

3. If you selected No, follow the instructions below.

– If required, enter your Account Name (may also be called Host Name) and Domain Name.

These parameters may be necessary to access your ISP’s services such as mail or news servers. The Account Name and Domain Name are not always required.

Connecting the FVL328 to the Internet 3-11

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

– If you want to disable NA T, select the Disable radio button. Before disabling NAT, back up

your current configuration settings.

Note: Disabling NAT will reboot the router and reset all the FVL328 configuration

settings to the factory default. Disable NAT only if you plan to install the FVL328 in a setting where you will be manually administering the IP address space on the LAN side of the router.

– Internet IP Address (also commonly called the WAN IP address):

If your ISP has assigned you a permanent, fixed (static) IP address for your computer, select “Use static IP address.” Enter the IP address that your ISP assigned. Also enter the netmask and the Gateway IP address. The Gateway is the ISP’s router to which your firewall will connect.

– Domain Name Server (DNS) Address:

– Router’s MAC Address:

This section determines the Ethernet MAC address that will be used by the firewall on the Internet port. Some ISPs will register the Ethernet MAC address of the network interface card in your computer when your account is first opened. They will then only accept traffic from the MAC address of that computer. This feature allows your firewall to masquerade as that computer by “cloning” its MAC address.

To change the MAC address, select “Use this Computer’s MAC address.” The firewall will then capture and use the MAC address of the computer that you are now using. You should use the one computer that is allowed by the ISP. Or, select “Use this MAC address” and enter it.

4. Click Apply to save your settings.

5. Click the Test button to test your Internet connection.

If the NETGEAR Web site does not appear within one minute, refer to Chapter 8,

Troubleshooting.

3-12 Connecting the FVL328 to the Internet

May 2004, 202-10030-02

Chapter 4

WAN and LAN Configuration

This chapter describes how to configure the W AN and LAN settings of your FVL328 Prosafe High Speed VPN Firewall.

Configuring LAN IP Settings

The LAN IP Setup menu allows configuration of LAN IP services such as DHCP and RIP. These features can be found under the Advanced heading in the Main Menu of the browser interface.

The firewall is shipped preconfigured to use private IP addresses on the LAN side, and to act as a DHCP server. The firewall’s default LAN IP configuration is:

• LAN IP addresses—192.168.0.1

• Subnet mask—255.255.255.0 These addresses are part of the IETF-designated private address range for use in private networks,

and should be suitable in most applications. If your network has a requirement to use a different IP addressing scheme, you can make those changes.

The LAN TCP/IP Setup parameters are:

• IP Address This is the LAN IP address of the firewall.

Note: If you change the LAN IP address of the firewall while connected through the

browser, you will be disconnected. You must then open a new connection to the new IP address and log in again.

• IP Subnet Mask This is the LAN Subnet Mask of the firewall. Combined with the IP address, the IP Subnet Mask allows a device to know which other addresses are local to it, and which must be reached through a gateway or router.

WAN and LAN Configuration 4-1

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

• RIP Direction RIP (Router Information Protocol) allows a router to exchange routing information with other routers. The RIP Direction selection controls how the firewall sends and receives RIP packets. Both is the default.

— When set to Both or Out Only, the firewall will broadcast its routing table periodically. — When set to Both or In Only, it will incorporate the RIP information that it receives. — When set to None, it will not send any RIP packets and will ignore any RIP packets

received.

• RIP Version This controls the format and the broadcasting method of the RIP packets that the router sends. It recognizes both formats when receiving. By default, this is set for RIP-1.

— RIP-1 is universally supported. RIP-1 is probably adequate for most networks, unless you

have an unusual network setup.

— RIP-2 carries more information. Both RIP-2B and RIP-2M send the routing data in RIP-2

format. — RIP-2B uses subnet broadcasting. — RIP-2M uses multicasting.

Note: Multicasting can reduce the load on non-router machines because they do not

listen to the RIP multicast address and will not receive the RIP packets. However, if one router uses multicasting, then all routers on your network must use multicasting.

Using the Router as a DHCP Server

By default, the firewall will function as a DHCP (Dynamic Host Configuration Protocol) server, allowing it to assign IP, DNS server, and default gateway addresses to all computers connected to the router's LAN. The assigned default gateway address is the LAN address of the firewall. IP addresses will be assigned to the attached PCs from a pool of addresses specified in this menu. Each pool address is tested before it is assigned to avoid duplicate addresses on the LAN.

For most applications, the default DHCP and TCP/IP settings of the firewall are satisfactory. See

“IP Configuration by DHCP” on page B-9 for an explanation of DHCP and information about how

to assign IP addresses for your network.

4-2 WAN and LAN Configuration

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

If another device on your network will be the DHCP server, or if you will manually configure the network settings of all of your computers, clear the ‘Use router as DHCP server’ check box. Otherwise, leave it checked.

Specify the pool of IP addresses to be assigned by setting the Starting IP Address and Ending IP Address. These addresses should be part of the same IP address subnet as the firewall’s LAN IP address. Using the default addressing scheme, you should define a range between 192.168.0.2 and

192.168.0.253, although you may wish to save part of the range for device s with fixed addresses.

The firewall will deliver the following parameters to any LAN device that requests DHCP:

• An IP Address from the range you have defined

• Subnet Mask

• Gateway IP Address is the firewall’s LAN IP address

• Primary DNS Server, if you entered a Primary DNS address in the Basic Settings menu; otherwise, the firewall’s LAN IP address

• Secondary DNS Server, if you entered a Secondary DNS address in the Basic Settings menu

How to Configure LAN TCP/IP Settings and View the DHCP Log

1. Log in to the firewall at its default LAN address of http://192.168.0.1 with its default user

name of

admin, default password of password, or using whatever password and LAN address

you have chosen for the firewall.

2. From the Main Menu, under Advanced, click the LAN IP Setup link to view the men u, shown

below. To view the DHCP Log, click DHCP Log.

WAN and LAN Configuration 4-3

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

Figure 4-1: LAN IP Setup Menu

Enter the LAN TCP/IP and DHCP parameters.

4. Click Apply to save your changes.

How to Configure Reserved IP Addresses

When you specify a reserved IP address for a PC on the LAN, that PC will always receive the same IP address each time it accesses the firewall’s DHCP server. Reserved IP addresses should be assigned to servers that require permanent IP settings.

To res erve an IP address:

1. Click the Add button.

2. In the IP Address box, type the IP address to assign to the PC or server.

Choose an IP address from the router’s LAN subnet, such as 192.168.0.X.

4-4 WAN and LAN Configuration

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

Type the MAC Address of the PC or server.

Note: If the PC is already present on your network, you can copy its MAC address from the Attached Devices menu and paste it here.

4. Click Apply to enter the reserved address into the table.

Note: The reserved address will not be assigned until the next time the PC contacts the router's DHCP server. Reboot the PC or access its IP configuration and force a DHCP release and renew.

To edit or delete a res erved address entry:

1. Click the button next to the reserved address you want to edit or delete.

2. Click Edit or Delete.

Configuring WAN Settings

Using this page, you can set up a Default DMZ Server and allow the router to respond to a ping from the Internet. Both of these options have security issues, so use them carefully.

The WAN Setup menu allows configuration of WAN services such as automatic connection, DMZ server, enabling diagnostic PING tests on the WAN interface, setting the MTU size, and the WAN port speed. These features can be found under the Advanced WAN Setup heading in the Main Menu of the browser interface.

Note: Configure the Networking Database (see “Network Database” on page 7-5) before

configuring the DMZ Servers (see “Setting Up a Default DMZ Server” on page 4-7 and

“Multi-DMZ Servers” on page 4-7).

These features are discussed below.

WAN and LAN Configuration 4-5

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

Figure 4-2: WAN Setup

Connect Automatically, as Required

Normally, this option should be Enabled, so that an Internet connection will be made automatically, whenever Internet-bound traffic is detected. If this causes high connection costs, you can disable this setting.

If disabled, you must connect manually, using the sub-screen accessed from the Connection Status button on the Status screen.

4-6 WAN and LAN Configuration

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

Setting Up a Default DMZ Server

Specifying a Default DMZ Server allows you to set up a computer or server that is available to anyone on the Internet for services that you haven't defined. There are security issues with doing this, so only do this if you're willing to risk open access. If you do not assign a Default DMZ Server, the router discards any incoming service requests that are undefined.

The default DMZ server feature is helpful when using some online games and videoconferencin g applications that are incompatible with NAT. The firewall is programmed to recognize some of these applications and to work properly with them, but there are other applications that may not function well. In some cases, one local PC can run the application properly if that PC’s IP address is entered as the default DMZ server.

Note: For security, you should avoid using the default DMZ server feature. When a

computer is designated as the default DMZ server, it loses much of the protection of the firewall, and is exposed to many exploits from the Internet. If compromised, the computer can be used to attack your network.

Incoming traffic from the Internet is normally discarded by the firewall unless the traffic is a response to one of your local computers or a service that you have configured in the Ports menu. Instead of discarding this traffic, you can have it forwarded to one computer on your network. This computer is called the Default DMZ Server.

How to Assign a Default DMZ Server

1. Click Default DMZ Server check box.

2. Type the IP address for that server.

3. Click Apply.

Multi-DMZ Servers

This feature can only be used if your ISP has allocated you multiple fixed Internet IP addresses. In this situation, you can define a separate DMZ server for each Internet IP address. To use the

Multi-DMZ feature, follow this procedure for each Internet IP address:

1. Enable one of the Multi-DMZ checkboxes.

2. To the right of the checkbox, ente r the Internet IP address assigne d to you by your ISP.

WAN and LAN Configuration 4-7

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

Select the PC to be used as the DMZ Server for this IP address.

• Click Apply.

Note:

• All incoming traffic to that IP address will be sent to the selected PC.

• Out-going traffic from the selected PC will use the IP address you entered, not the default WAN IP address.

• If you only have one (1) Internet IP address, you cannot use the Multi-DMZ feature, only the Default DMZ Server setting above.

Responding to Ping on Internet WAN Port

If you want the FVL328 to respond to a ping from the Internet, click this check box. This should only be used as a diagnostic tool, since it allows your firewall to be discovered. Again, like the DMZ server, this can be a security problem. You shouldn't check this box unless you have a specific reason to do so.

MTU Size

The normal MTU (Maximum Transmit Unit) value for most Ethernet networks is 1500 bytes or 1492 Bytes for PPPoE connections. For some ISPs you may need to reduce the MTU. But this is rarely required, and should not be done unless you are sure it is necessary for your ISP connection. Any packets sent through the firewall that are larger than the configured MTU size will be repackaged into smaller packets to meet the MTU requirement.

To change the MTU size:

1. Under MTU Size, select Custom.

2. Enter a new size between 64 and 1500.

3. Click Apply to save the new configuration.

Port Speed

In most cases, your router can automatically determine the connection speed of the Internet (WAN) port. If you cannot establish an Internet connection and the Internet LED blinks continuously, you may need to manually select the port speed.

4-8 WAN and LAN Configuration

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

If you know that the Ethernet port on your broadband modem supports 100BaseT, select 100M; otherwise, select 10M. Use the half-duplex settings unless you are sure you need full duplex.

Port Triggering

Port Triggering is used to allow applications which would otherwise be blocked by the firewall. Using this feature requires that you know the port numbers used by the Application.

Once configured, operation is as follows:

1. A PC makes an outgoing connection using a port number defined in the Port Triggering table.

2. This Router records this connection, opens the INCOMING port or ports associated with this

entry in the Port Triggering table, and associates them with the PC.

3. The remote system receives the PC’s request, and responds using a different port number.

4. This Router matches the response to the previous request, and forwards the response to the PC.

(Without Port Triggering, this response would be treated as a new connection request rather than a response. As such, it would be handled in accordance with the Port Forwarding rules.)

Note

• Only 1 PC can use a Port Triggering application at any time.

• After a PC has finished using a Port Triggering application, there is a Time-out period before the application can be used by another PC. This is required because this Router canno t be sure when the application has terminated.

Figure 4-3: Port Triggering

WAN and LAN Configuration 4-9

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

Port Triggering Rules

This table lists the current rules:

• Enable - Indicates if the rule is enabled or disabled. Generally, there is no need to disable a rule unless it interferes with some other function, such as Port Forwarding.

• Name - The name for this rule.

• Outgoing Ports - The port or port range for outgoing traffic. An outgoing connection using one of these ports will Trigger this rule.

• Incoming Ports - The port or port range used by the remote system when it responds to the outgoing request. A response using one of these ports will be forwarded to the PC which triggered this rule.

Adding a new Rule

Figure 4-4: Port Trigger Add

To add a new rule, click the Add and enter the following data on the resulting screen.

• Name - enter a suitable name for this rule (e.g. the name of the application)

• Enable/Disable - select the desired option.

• Outgoing (Trigger) Port Range - enter the range of port numbers used by the application when it generates an outgoing request.

4-10 WAN and LAN Configuration

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

• Incoming (Response) Port Range - enter the range of port numbers used by the remote system when it responds to the PC's request.

Modifying or Deleting an existing Rule

1. Select the desired rule by clicking the radio button beside the rule.

2. Click Edit or Delete as desired.

Checking Operation and Status

To see which rules are currently being used, click the Status button. The following data will be displayed:

• Rule - the name of the Rule.

• LAN IP Address - The IP address of the PC currently using this rule.

• Open Ports - the Incoming ports which are associated the this rule. Incoming traffic using one of these ports will be sent to the IP address above.

• Time Remaining - The time remaining before this rule is released, and thus available for other PCs. This timer is restarted whenever incoming or outgoing traffic is received.

Configuring Dynamic DNS

If your network has a permanently assigned IP address, you can register a domain name and have that name linked with your IP address by public Domain Name Servers (DNS). However, if your Internet account uses a dynamically assigned IP address, you will not know in advance what your IP address will be, and the address can change frequently. In this case, you can use a commercial dynamic DNS service, which will allow you to register your domain to their IP address, and will forward traffic directed to your domain to your frequently-changing IP address.

The firewall contains a client that can connect to a dynamic DNS service provider. To use this feature, you must select a service provider and obtain an account with them. After you have configured your account information in the firewall, whenever your ISP-assigned IP address changes, your firewall will automatically contact your dynamic DNS service provider, log in to your account, and register your new IP address.

WAN and LAN Configuration 4-11

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

How to Configure Dynamic DNS

1. Log in to the firewall at its default LAN address of http://192.168.0.1 with its default user

name of you have chosen for the firewall.

2. From the Main Menu of the browser interface, under Advanced, click Dynamic DNS.

3. Click the radio button for the dynamic DNS service you will use. Access the Web site of the

dynamic DNS service providers whose, and register for an account. For example, for TZO.com, go to www.TZO.com.

4. Click Apply to save your configuration.

admin, default password of password, or using whatever password and LAN address

Note: If your ISP assigns a private WAN IP address such as 192.168.x.x or 10.x.x.x, the

dynamic DNS service will not work because private addresses will not be routed on the Internet.

Using Static Routes

Static Routes provide additional routing information to your firewall. Under normal circumstances, the firewall has adequate routing information after it has been configured for Internet access, and you do not need to configure additional static routes. You must configure static routes only for unusual cases such as multiple routers or multiple IP subnets located on your network.

Static Route Example

As an example of when a static route is needed, consider the following case:

• Your primary Internet access is through a cable modem to an ISP.

• You have an ISDN router on your home network for connecting to the company where

you are employed. This router’s address on your LAN is 192.168.0.100.

• Your company’s network is 134.177.0.0.

4-12 WAN and LAN Configuration

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

When you first configured your firewall, two implicit static routes were created. A default route was created with your ISP as the gateway, and a second static route was created to your local network for all 192.168.0.x addresses. With this configuration, if you attempt to access a device on the 134.177.0.0 network, your firewall will forward your request to the ISP. The ISP forwards your request to the company where you are employed, and the request will likely be denied by the company’s firewall.

In this case you must define a static route, telling your firewall that 134.177.0.0 should be accessed through the ISDN router at 192.168.0.100. The static route would look like Figure 4-6.

In this example:

• The Destination IP Address and IP Subnet Mask fields specify that this static route applies to all 134.177.x.x addresses.

• The Gateway IP Address fields specifies that all traffic for these addresses should be forwarded to the ISDN router at 192.168.0.100.

• A Metric value of 1 will work since the ISDN router is on the LAN. This represents the number of routers between your network and the des tination. This is a direct connection so it is set to 1.

• Private is selected only as a precautionary security measure in case RIP is activated.

How to Configure Static Routes

1. Log in to the firewall at its default LAN address of http://192.168.0.1 with its default user

name of you have chosen for the firewall.

2. From the Main Menu of the browser interface, under Advanced, click on Static Routes to view

the Static Routes menu, shown in Figure 4-5.

Figure 4-5: Static Routes Table

WAN and LAN Configuration 4-13

admin, default password of password, or using whatever password and LAN address

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

To add or edit a Static Route:

3. a. Click the Edit button to open the Edit Menu, shown below.

Figure 4-6: Static Ro ute Entry and Edit Menu

Type a route name for this static route in the Route Name box under the table. This is for identification purpose only.

c. Select Active to make this route effective. d. Select Private if you want to limit access to the LAN only.

The static route will not be reported in RIP.

e. Type the Destination IP Address of the final destination. f. Type the IP Subnet Mask for this destination.

If the destination is a single host, type 255.255.255.255.

g. Type the Gateway IP Address, which must be a router on the same LAN segment as the

firewall.

h. Type a number between 1 and 15 as the Metric value.

This represents the number of routers between your network and the destination. Usually, a setting of 2 or 3 works, but if this is a direct connection, set it to 1.

4. Click Apply to have the static route entered into the table.

4-14 WAN and LAN Configuration

May 2004, 202-10030-02

Chapter 5

Protecting Your Network

This chapter describes how to use the firewall features of the FVL328 Prosafe High Speed VPN Firewall to protect your network.

Firewall Protection and Content Filtering Overview

The FVL328 Prosafe High Speed VPN Firewall provides you with Web content filtering options, plus browsing activity reporting and instant alerts via e-mail. Parents and network administrators can establish restricted access policies based on time-of-day, Web addresses, and Web address keywords. You can also block Internet access by applications and services, such as chat or games.

A firewall is a special category of router that protects one network (the “trusted” network, such as your LAN) from another (the “untrusted” network, such as the Internet), while allowing communication between the two. A firewall incorporates the functions of a NAT (Network Address Translation) router, while adding features for dealing with a hacker intrusion or attack, and for controlling the types of traffic that can flow between the two networks. Unlike simple Internet sharing NAT routers, a firewall uses a process called stateful packet inspection to protect your network from attacks and intrusions. NAT performs a very limited stateful inspection in that it considers whether the incoming packet is in response to an outgoing request, but true Stateful Packet Inspection goes far beyond NAT.

To configure these features of your router, click on the subheadings under the Content Filtering heading in the Main Menu of the browser interface. The subheadings are described below:

Using the Block Sites Menu to Screen Content

The FVL328 allows you to restrict access based on the following categories:

• Use of a proxy server

• Type of file (Java, ActiveX, Cookie)

• Web addresses

• Web address keywords

Protecting Your Network 5-1

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

Many Web sites will not function correctly if these components are blocked. These options are discussed below. The Keyword Blocking menu is shown here.

Figure 5-1: Block Sites menu

T o enable filtering, click the checkbox next to the type of filtering you want to enable. The filtering choices are:

• Proxy: blocks use of a proxy server

• Java: blocks use of Java applets

• ActiveX: blocks use of ActiveX components (OCX files) used by IE on Windows

5-2 Protecting Your Network

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

• Cookies: blocks all cookies

To enable keyword blocking, check “Turn keyword blocking on”, then click Apply. To add a keyword or domain, type it in the Keyword box, click Add Keyword, then click Apply. To delete a keyword or domain, select it from the list, click Delete Keyword, then click Apply. Keyword application examples:

• If the keyword “XXX” is specified, the URL <http://www.badstuff.com/xxx.html> is blocked, as is the newsgroup alt.pictures.XXX.

• If the keyword “.com” is specified, only Web sites with other domain suffixes (such as .edu or .gov) can be viewed.

• If you want to block all Internet browsing access, enter the keyword “.”.

Up to 255 entries are supported in the Keyword list.

Apply Keyword Blocking to Groups

Select the Groups you wish to apply the Keyword Blocking to.

• To manage these groups, use the Network Database screen on the Maintenance me nu.

• The Web Components settings always apply to all PCs.

Services and Rules Regulate Inbound and Outbound Traffic

The FVL328 Prosafe High Speed VPN Firewall firewall lets you regulate what ports are available to the various TCP/IP protocols. Follow these two steps to configure inbound or outbound traffic:

1. Define a Service

2. Set up an Inbound or Outbound Rule that uses the Service

These steps are discussed below.

Protecting Your Network 5-3

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

Defining a Service

Services are functions performed by server computers at the request of client computers. For example, Web servers serve Web pages, time servers serve time and date information, and game hosts serve data about other players’ moves. When a computer on the Internet sends a request for service to a server computer, the requested service is identified by a service or port number. This number appears as the destination port number in the transmitted IP packets. For example, a packet that is sent with destination port number 80 is an HTTP (Web server) request.

The service numbers for many common protocols are defined by the Internet Engineering Task Force (IETF) and published in RFC1700, “Assigned Numbers.” Service numbers for other applications are typically chosen from the range 1024 to 65535 by the authors of the application.

Although the FVL328 already holds a list of many service port numbers, you are not limited to these choices. Use the Services menu to add additional services and applications to the list for use in defining firewall rules. The Services menu shows a list of services that you have defined.

To define a new service, first you must determine which port number or range of numbers is used by the application. This information can usually be determined by contacting the publisher of the application or from user groups of newsgroups. When you have the port number information, go the Services menu and click on the Add Custom Service button. The Add Services menu will appear.

To add a service:

1. Enter a descriptive name for the service so that you will remember what it is.

2. Select whether the service uses TCP or UDP as its transport protocol.

If you can’t determine which is used, select both.

3. Enter the lowest port number used by the service.

4. Enter the highest port number used by the service.

If the service only uses a single port number, enter the same number in both fields.

5. Click Apply.

The new service will now appear in the Services menu, and in the Service name selection box in the Rules menu.

5-4 Protecting Your Network

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

Using Inbound/Outbound Rules to Block or Allow Services

Firewall rules are used to block or allow specific traffic passing through from one side of the firewall to the other . Inbound rules (WAN to LAN) restrict access by outsiders to private resources, selectively allowing only specific outside users to access specific resources. Outbound rules (LAN to WAN) determine what outside resources local users can have access to.

A firewall has two default rules, one for inbound traffic and one for outbound. The default rules of the FVL328 are:

• Inbound: Block all access from outside except responses to requests from the LAN side.

• Outbound: Allow all access from the LAN side to the outside.

These default rules are shown here:

Figure 5-2: Rules menu

Protecting Your Network 5-5

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

You can define additional rules that will specify exceptions to the default rules. By adding custom rules, you can block or allow access based on the service or application, source or destinat ion IP addresses, and time of day. You can also choose to log traffic that matches or does not match the rule you have defined.

To create a new rule, click the Add button. To edit an existing rule, select its button on the left side of the table and click Edit. To delete an existing rule, select its button on the left side of the table and click Delete. To move an existing rule to a different position in the table, select its button on the left side of the

table and click Move. At the script prompt, enter the number of the desired new position and click OK.

An example of the menu for defining or editing a rule is shown in Figure 5-2. The parameters are:

• Service. From this list, select the application or service to be allowed or blocked. The list already displays many common services, but you are not limited to these choices. Use the Services menu to add any additional services or applications that do not already appear.

• Action. Choose how you would like this type of traffic to be handled. You can block or allow always, or you can choose to block or allow according to the schedule you have defined in the Schedule menu.

• Source Address. Specify traffic originating on the LAN (outbound) or the WAN (inbound), and choose whether you would like the traffic to be restricted by source IP address. You can select Any, a Single address, or a Range. If you select a range of addresses, enter the range in the start and finish boxes. If you select a single address, enter it in the start box.

• Destination Address.The Destination Address will be assumed to be from the opposite (LAN or WAN) of the Source Address. As with the Source Address, you can select Any, a Single address, or a Range unless NAT is enabled and the destination is the LAN. In that case, you must enter a Single LAN address in the start box.

• Log. You can select whether the traffic will be logged. The choices are: – Never - no log entries will be made for this service. – Match - traffic of this type which matches the parameters and action will be logged.

5-6 Protecting Your Network

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

Examples of Using Services and Rules to Regulate Traffic

Use the examples to see how you combine Services and Rules to regulate how the TCP/IP protocols are used on your firewall to enable either blocking or allowing specific Internet traffic on your firewall.

Inbound Rules (Port Forwarding)

Because the FVL328 uses Network Address Translation (NAT), your network presents only one IP address to the Internet, and outside users cannot directly address any of your local computers. However, by defining an inbound rule, also known as port forwarding, you can make a local server (for example, a Web server or game server) visible and available to the Internet. The rule tells the router to direct inbound traffic for a particular service to one local server based on the destination port number. This is also known as port forwarding.

Note: Some home broadband accounts do not allow you to run any server processes

(such as a Web or FTP server). Your ISP may check for servers and suspend your account if it discovers active servers at your location. If you are unsure, refer to the Acceptable Use Policy of your ISP.

Follow these guidelines when setting up port forwarding inbound rules:

• If your external IP address is assigned dynamically by your ISP, the IP address may change periodically as the DHCP lease expires. Consider using the Dynamic DNS feature in the Advanced menus so that external users can always find your network.

• If the IP address of the local server computer is assigned by DHCP, it may change when the computer is rebooted. To avoid this, use the Reserved IP address feature in the LAN IP menu to keep the computer’s IP address constant.

• Local computers must access the local server using the local LAN address of the computer. Attempts by local computers to access the server using the external WAN IP address will fail.

Remember that allowing inbound services opens holes in your FVL328 Firewall. Only enable those ports that are necessary for your network. Following are two application examples of inbound rules:

Protecting Your Network 5-7

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

Example: Port Forwarding to a Local Public Web Server

If you host a public W eb ser ver on your local network, you can define a rule to allow inbound Web (HTTP) requests from any outside IP address to the IP address of your Web server any time of day.

Figure 5-3: Rule example: A Local Public Web Server

This rule is shown in Figure 5-3.

Example: Port Forwarding for Videoconferencing

If you want to allow incoming videoconferencing to be initiated from a restricted range of outside IP addresses, such as from a branch office, you can create an inbound rule. In the example shown in Figure 5-4, CU-SeeMe is a predefined service and its connections are allowed only from a specified range of external IP addresses. In this case, we have also specified logging of any incoming CU-SeeMe requests that do not match the allowed parameters.

5-8 Protecting Your Network

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

Figure 5-4: Rule example: Videoconference from Restrict ed Addresses

Example: Port Forwarding for VPN Tunnels when NAT is Off

If you want to allow incoming VPN IPSec tunnels to be initiated from outside IP addresses anywhere on the Internet when NAT is off, first create a service and then an inbound rule.

Figure 5-5: Service example: port forwarding for VPN when NAT is Off

In the example shown in Figure 5-5, UDP port 500 connections are defined as the IPSec service.

Protecting Your Network 5-9

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

Figure 5-6: Inbound rule example:

VPN IPSec when NAT is off

In the example shown in Figure 5-6, VPN IPSec connections are allowed for any internal LAN IP address.

Outbound Rules (Service Blocking or Port Filtering)

The FVL328 allows you to block the use of certain Internet services by computers on your network. This is called service blocking or port filtering. You can define an outbound rule to block Internet access from a local computer based on:

• IP address of the local computer (source address)

• IP address of the Internet site being contacted (destination address)

•Time of day

• Type of service being requested (service port number)

Outbound Rule Example: Blocking Instant Messaging

If you want to block Instant Messenger usage by employees during working hours, you can create an outbound rule to block that application from any internal IP address to any external address according to the schedule that you have created in the Schedule menu. Y ou can also have the router log any attempt to use Instant Messenger during that blocked period.

5-10 Protecting Your Network

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

Figure 5-7: Rule example: Blocking Instant Messenger

Other Rules Considerations

The order of precedence of rules is determined by the position of the rule on a list of many rules. Also, there are optional Rules settings you can configure. These topics are presented here.

Order of Precedence for Rules

As you define new rules, they are added to the tables in the Rules menu. For any traffic attempting to pass through the firewall, the packet information is subjected to the rules in the order of the entries in the Rules T able, beginning at the top and proceeding to the default rules at the bottom. In some cases, the order of precedence of two or more rules may be important in determining the disposition of a packet. The Move button allows you to relocate a defined rule to a new position in the table.

Protecting Your Network 5-11

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

Rules Menu Options

Figure 5-8: Rules menu options

Use the Options checkboxes to enable the following:

• Enable VPN Passthrough (IPSec, PPTP, L2TP)

If LAN users need to use VPN (Virtual Private Networking) software on their computer, and connect to remote sites or servers, enable this checkbox. This will allow the VPN protocols (IPSec, PPTP, L2TP) to be used. If this checkbox is not checked, these protocols are blocked.

• Drop fragmented IP packets If checked, all fragmented IP pack ets wil l be dropped (discarded). Normally, this should NOT

be checked.

• Block TCP flood If checked, when a TCP flood attack is detected, the port used will be closed, and no traffic

will be able to use that port.

• Block UDP flood If checked, when a UDP flood attack is detected, all traffic from that IP address will be

blocked.

• Block non-standard packets If checked, only known packet types will be accepted; other packets will be blocked. The

known packet types are TCP, UDP , ICMP, ESP, and GRE. Note that these are packet types, not protocols.

5-12 Protecting Your Network

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

Using a Schedule to Block or Allow Content or Traffic

If you enabled content filtering in the Block Sites menu, or if you defined an outbound rule to use a schedule, you can set up a schedule for when blocking occurs or when access is restricted. The router allows you to specify when blocking will be enforced by configuring the Schedule tab shown below.

Figure 5-9: Schedule menu

Protecting Your Network 5-13

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

To block keywords or Internet domains based on a schedule, select Every Day or select one or more days. If you want to limit access completely for the selected days, select All Day. Otherwise, If you want to limit access during certain times for the selected days, type a Start Time and an End Time.

Note: Enter the values in 24-hour time format. For example, 10:30 am would be 10 hours and 30

minutes and 10:30 pm would be 22 hours and 30 minutes. Be sure to click Apply when you have finished configuring this menu.

Setting the Time Zone

The FVL328 Firewall uses the Network Time Protocol (NTP) to obtain the current time and date from one of several Network Time Servers on the Internet. In order to localize the time for your log entries, you must specify your Time Zone:

• Time Zone. Select your local time zone. This setting will be used for the blocking schedule and for time-stamping log entries. At power-up, the clock is set to Saturday 01/01/2001 00:00:00.

• Automatically Adjust for Daylight Savings Time. Select this check box for automatic dayli ght savings time.

Note: If supported for your region, you can check Automatically adjust for Daylight Savings Time. If this is not supported, you must manually adjust the time to allow for Daylight Saving.

Be sure to click Apply when you have finished configuring this menu.

Set Clock

Use this to set a particular Date/Time to the RTC (Real-Time Clock). This is only useful if NTP (below) is not being used. Otherwise, your setting will be lost on the next synchronization with the NTP Server.

Enable NTP (Network Time Protocol)

If enabled, the RTC is updated regularly by contacting a NTP Server on the Internet. The fixed NTP query interval is 2 hours.

5-14 Protecting Your Network

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

User-defined NTP Server

Choose your NTP server. The firewall uses NETGEAR NTP servers by default. If you would prefer to use a particular NTP server as the primary server, enter its IP address under Use this NTP Server.

If you prefer to use a particular NTP server, enable this and enter the name or IP address of an NTP Server in the Server 1 field. If required, you can also enter the address of another NTP server in the Server 2 field.

Getting E-Mail Notifications of Event Logs and Alerts

In order to receive logs and alerts by e-mail, you must provide your e-mail information in the E-Mail subheading:

Figure 5-10: E-mail menu

• Turn e-mail notification on. Select this check box if you want to receive e-mail logs and alerts from the router.

Protecting Your Network 5-15

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

• Send alerts and logs by e-mail. If you enable e-mail notification, these boxes cannot be blank.

• Enter the e-mail address to which logs and alerts will be sent. This e-mail address will also

be used as the From address. If you leave this box blank, log and alert messages will not be sent via e-mail.

– If you wish to set the From E-mail address used by this mail, or your SMTP server

requires you to login before you can send mail, click the Advanced button and configure the Advanced E-mail screen.

Figure 5-11: Advanced E-mail

– Check “My Mail Server requires authentication” if you need to log in to your SMTP

server in order to send e-mail. If this is checked, you must enter the login name and password for your mail server.

• Enter the name or IP address of your ISP’s outgoing (SMTP) mail server (such as

mail.myISP.com). You may be able to find this information in the configuration menu of your e-mail program.

Tip: You used this information when you set up your e-mail program. If you cannot remember it, check the settings in your e-mail program.

• Send E-mail alerts immediately. You can specify that logs are immediately sent to the specified e-mail address when any of the following events occur:

– If a Denial of Service attack is detected. – If a Port Scan is detected.

5-16 Protecting Your Network

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

– If a user on your LAN attempts to access a Web site that you blocked using Keyword

blocking.

• Send logs according to this schedule. You can specify that logs are sent to you according to a schedule. Select whether you would like to receive the logs Hourly , Daily, W eekly, When Full, or None for no logs. Depending on your selection, you may also need to specify:

– Day for sending log

Relevant when the log is sent weekly or daily.

– Time for sending log

Relevant when the log is sent daily or weekly.

If the Weekly, Daily or Hourly option is selected and the log fills up before the specified period, the log is automatically e-mailed to the specified e-mail address. After the log is sent, the log is cleared from the router’s memory. If the router cannot e-mail the log file, the log buffer may fill up. In this case, the router overwrites the log and discards its contents.

Be sure to click Apply when you have finished configuring this menu.

Viewing Logs of Web Access or Attempted Web Access

The router will log security-related events, such as denied incoming and outgoing service requests, hacker probes, and administrator logins. If you enable content filtering in the Block Sites menu, the Log page will also show you when someone on your network tries to access a blocked site. If you enabled e-mail notification, you will receive these logs in an e-mail message. If you do not have e-mail notification enabled, you can view the logs here.

Protecting Your Network 5-17

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

Figure 5-12: Logs menu

See Appendix D, “Firewall Log Formats” for a full explanation of log entry formats. Log action buttons are described in Table 5-1

5-18 Protecting Your Network

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

Table 5-1. Log action buttons

Field Description

Refresh Refreshes the log screen. Clear Log Clears the log entries. Send Log E-mails the log immediately.

What to Include in the Event Log

Use these checkboxes to determ ine whic h even ts ar e included in the log. Checking all options wi ll increase the size of the log, so it is good practice to disable any events which are not really required.

• All Web sites and news groups visited - If checked, all visited Web sites and newsgroups are logged.

• All Incoming TCP/UDP/ICMP traffic - If checked, all incoming TCP/UDP/ICMP connections and traffic is logged.

• All Outgoing TCP/UDP/ICMP traffic - If checked, all outgoing TCP/UDP/ICMP connections and traffic is logged.

• Other IP traffic - If checked, all other traffic (IP packets which are not TCP, UDP, or ICMP) is logged.

• Router operation (start up, get time, etc.) - If checked, Router operations, such as starting up and getting the time from the Internet Time Server, are logged.

• Connection to the Web-based interface of this Router - If checked, Administrator connections to the Web-based interface will be logged.

• Other connections and traffic to this Router - If checked, this will log traffic sent to thi s Router (rather than through this Router to the Internet).

• Allow duplicate log entries - If checked, then events or packets which fall within more than one (1) category above will have a log entry for each category in which they belong. This will generate a large number of log entries. If unchecked, then events or packets will only be logged once. Usually, this should be left unchecked.

Logging programs are available for Windows, Macintosh, and Linux computers. Enable one of these three options, as required:

Protecting Your Network 5-19

May 2004, 202-10030-02

Model FVL328 ProSafe High-Speed VPN Firewall Reference Manual Revision 2

• Disable - select this if you do not have a Syslog server.

• Broadcast on LAN - the Syslog data is broadcast, rather than sent to a specific Syslog server. Use this if your Syslog Server does not have a fixed IP address.

• Send to this Syslog server IP address - If your Syslog server has a fixed IP address, select this option, and enter the IP address of your Syslog server.

5-20 Protecting Your Network

May 2004, 202-10030-02

Chapter 6

Virtual Private Networking

This chapter describes how to use the virtual private networking (VPN) features of the FVL328 Firewall. VPN tunnels provide secure, encrypted communications between your local network and a remote network or computer. See also “How to Use the VPN Wizard to Configure a VPN

Tunnel” on page 6-15.
