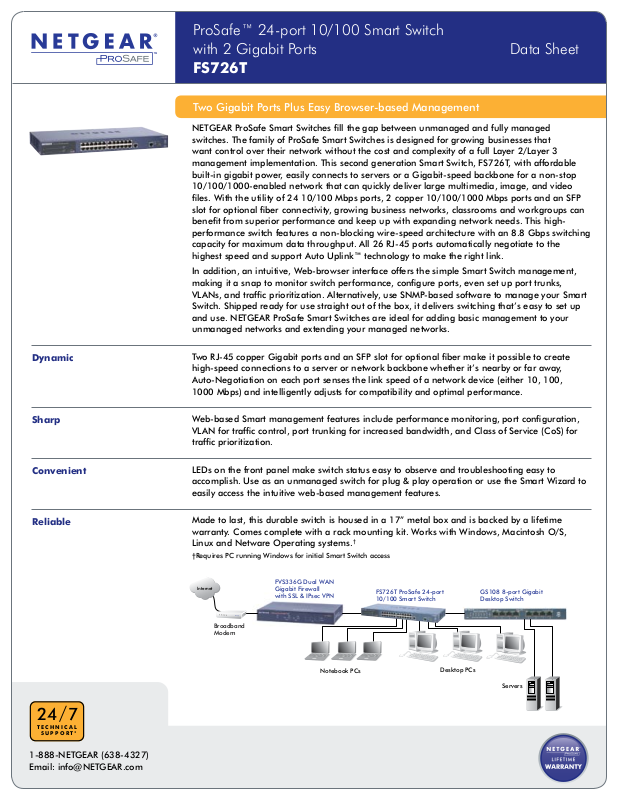

Netgear FS726T Data Sheet

24/7

TECHNICAL

SUPPORT *

ProSafe™ 24-port 10/100 Smart Switch

Desktop PCs

Notebook PCs

FS726T ProSafe 24-port 10/100 Smart Switch

GS108 8-port Gigabit Desktop Switch

Broadband Modem

Internet

Servers

FVS336G Dual WAN Gigabit Firewall with SSL & IPsec VPN

with 2 Gigabit Ports Data Sheet

FS726T

Two Gigabit Ports Plus Easy Browser-based Management

NETGEAR ProSafe Smart Switches ﬁll the gap between unmanaged and fully managed switches. The family of ProSafe Smart Switches is designed for growing businesses that want control over their network without the cost and complexity of a full Layer 2/Layer 3 management implementation. This second generation Smart Switch, FS726T, with affordable built-in gigabit power, easily connects to servers or a Gigabit-speed backbone for a non-stop 10/100/1000-enabled network that can quickly deliver large multimedia, image, and video ﬁles. With the utility of 24 10/100 Mbps ports, 2 copper 10/100/1000 Mbps ports and an SFP slot for optional ﬁber connectivity, growing business networks, classrooms and workgroups can beneﬁt from superior performance and keep up with expanding network needs. This highperformance switch features a non-blocking wire-speed architecture with an 8.8 Gbps switching capacity for maximum data throughput. All 26 RJ-45 ports automatically negotiate to the highest speed and support Auto Uplink™ technology to make the right link.

In addition, an intuitive, Web-browser interface offers the simple Smart Switch management, making it a snap to monitor switch performance, conﬁgure ports, even set up port trunks, VLANs, and trafﬁc prioritization. Alternatively, use SNMP-based software to manage your Smart Switch. Shipped ready for use straight out of the box, it delivers switching that’s easy to set up and use. NETGEAR ProSafe Smart Switches are ideal for adding basic management to your unmanaged networks and extending your managed networks.

Dynamic

Sharp

Convenient

Reliable

Two RJ-45 copper Gigabit ports and an SFP slot for optional ﬁber make it possible to create high-speed connections to a server or network backbone whether it’s nearby or far away, Auto-Negotiation on each port senses the link speed of a network device (either 10, 100, 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Web-based Smart management features include performance monitoring, port conﬁguration, VLAN for trafﬁc control, port trunking for increased bandwidth, and Class of Service (CoS) for trafﬁc prioritization.

LEDs on the front panel make switch status easy to observe and troubleshooting easy to accomplish. Use as an unmanaged switch for plug & play operation or use the Smart Wizard to easily access the intuitive web-based management features.

Made to last, this durable switch is housed in a 17” metal box and is backed by a lifetime warranty. Comes complete with a rack mounting kit. Works with Windows, Macintosh O/S, Linux and Netware Operating systems.

†Requires PC running Windows for initial Smart Switch access

†

1-888-NETGEAR (638-4327) Email: info@NETGEAR.com

ProSafe™ 24-port 10/100 Smart Switch with 2 Gigabit Ports FS726T

Technical Speciﬁcations

Network Protocol and Standards • Compatibility

IEEE 802.3 10BASE-T – IEEE 802.3u 100BASE-TX – IEEE 802.3ab 1000BASE-T – IEEE 802.3z 1000BASE-X – IEEE 802.3x full-duplex ﬂow control –

Power Supply•

Power Consumption: 13 W maximum – 100-240VAC/50-60 Hz universal input –

Network Ports•

24 10/100 Mbps auto sensing Fast – Ethernet - 2 10/100/1000 Mbps auto-sensing Gigabit Ethernet switching ports (RJ-45)

1 SFP slot for SFP GBIC Modules –

Physical Speciﬁcations•

Dimensions (W x D x H): 440 x 205 x – 43 mm (17.8 x 8.1 x 1.6 in.)

Weight: 2.5 kg (5.5 lb) –

Electromagnetic Emissions•

CE mark, commercial – FCC Part 15 Class A – VCCI Class A – C-Tick –

LEDs•

Per port: (10/100 and Gigabit): – Link/ Activity, Speed

Per device: Power –

Electromagnetic Immunity•

EN 55024 –

Safety•

CE mark, commercial – cUL IEC950/EN60950 –

Administrative Switch Management •

IEEE 802.1Q Static VLAN (Up to 64) – Port-based VLAN (Up to 26) – IEEE 802.1p Class of Service (CoS) – Port-based QoS – DSCP – Layer 3 QoS – IEEE802.3ad (manual) Link –

Aggregation IEEE 802.1D Spanning Tree Protocol – RFC 1157 SNMP v1* – RFC 1213 MIB II – RFC 1643 Ethernet Interface MIB – RFC 1493 Bridge MIB – RFC 2131 DHCP client – Static IGMP and IGMP Snooping v1 – Private Enterprise MIB – Port Mirroring Support – Web-based conﬁguration – Rate limiting – Conﬁguration Backup/Restore – Password Access Control – Broadcast storm control – Firmware upgradeable –

Performance Speciﬁcations•

Forwarding modes: Store-and-forward – Bandwidth: 8.8 Gbps – Network latency: <20µs for 64-byte –

frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission

Buffer memory: 256 KB embedded – memory per unit

Address database size: 8,000 media – access control (MAC) addresses per system

Addressing: 48-bit MAC address – Mean Time Between Failure (MTBF): –

305,000 hours (~35 years) Acoustic Noise: 0 dB –

Modules•

AGM731F 1000BASE-SX SFP Module – AGM732F 1000BASE-LX SFP Module – AGM733 1000BASE-ZX SFP Module –

System Requirements•

Category 5 UTP cables or above – Network card for each PC – Network software (e.g., Windows – Web Browser (e.g., Internet Explorer –

5.0 or higher - Netscape 6.0 or higher

Warranty

NETGEAR Lifetime Warranty –

†

ProSupport™ Service Packs Available

OnCall 24x7, Category 1•

PMB0331-100 (US) – PMB0331 (non-US) –

XpressHW, Category 1•

PRR0331 –

Package Contents

24-port Smart Switch with Gigabit – Ports (FS726T)

Rubber footpads – Power cord – Rack-mount kit – Resource CD – Installation guide – Warranty/Support information card –

NETGEAR Related Products

32-bit PCI Copper Gigabit Adapter – (GA311)

1000BASE-SX SFP Module (AGM731F) – 1000BASE-LX SFP Module (AGM732F) – 1000BASE-ZX SFP Module (AGM733) –

Ordering Information

North America: FS726TNA – Europe: FS726T-100EUS – Asia: FS726TAU – Japan: FS726TJP –

)

4500 Great America Parkway Santa Clara, CA 95054 USA 1-888-NETGEAR (638-4327) E-mail: info@NETGEAR.com www.NETGEAR.com

© 2008 NETGEAR, Inc. NETGEAR, the NETGEAR Logo, NETGEAR Digital Entertainer Logo, Connect with Innovation, FrontView, IntelliFi, PowerShift, ProSafe, RAIDar, RAIDiator, X-RAID, RangeMax, ReadyNAS and Smart Wizard are trademarks of NETGEAR, Inc. in the United States and/or other countries. Other brand names mentioned herein are for identiﬁcation purposes only and may be trademarks of their respective holder(s). Information is subject to change without notice. All rights reserved.

*Free basic installation support provided for 90 days from date of purchase. Advanced product features and conﬁgurations are not included in free basic installation support; optional premium support available.

†

Lifetime warranty for product purchased after 05/01/2007. For product purchased before 05/01/2007, warranty is 5 years.

D-FS726T-2
