Netgear FS526T user Manual
Page 1 of 58 Page 1 of 58
© 2003 by NETGEAR, Inc. All rights reserved.
Trademarks
@2003 NETGEAR, Inc. NETGEAR, the Netgear logo, The Gear Guy and Everybody’s connecting are trademarks of Netgear, Inc. in the United
States and/or other countries. Other brand and product names are trademarks of their respective holders. Information is subject to change without
notice. All rights reserved.
Statement of Conditions
In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products
described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or
circuit layout(s) described herein.
Certificate of the Manufacturer/Importer
It is hereby certified that the NETGEAR Model FS526T 26-Port 10/100 Mbps Smart Fast Ethernet Switch with Gigabit Ports has been suppressed
in accordance with the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992.The operation of some equipment (for example, test
transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the notes in the operating
instructions.
Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market and has been granted the right
to test the series for compliance with the regulations.
Voluntary Control Council for Interference (VCCI) Statement
This equipment is in the first category (information equipment to be used in commercial and/or industrial areas) and conforms to the standards set
by the Voluntary Control Council for Interference by Data Processing Equipment and Electronic Office Machines that are aimed at preventing radio
interference in commercial and/or industrial areas.
Consequently, when this equipment is used in a residential area or in an adjacent area thereto, radio interference may be caused to equipment
such as radios and TV receivers.
Federal Communications Commission (FCC) Compliance Notice: Radio Frequenc y Notice
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
EN 55 022 Declaration of Conformance
This is to certify that the NETGEAR Model FS526T 26-Port 10/100 Mbps Smart Fast Ethernet Switch with Gigabit Ports is shielded against the
generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the
application of EN 55024 Class A (CISPR 22).
EN 55 022 and EN 55 024 Statements
This is to certify that the NETGEAR Model FS526T 26-Port 10/100 Mbps Smart Fast Ethernet Switch with Gigabit Ports is shielded against the
generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the
application of EN 55 022 Class A (CISPR 22) and EN 55 024.
Page 2 of 58
Warning: This is a Class A product. In a domestic env ironment, this product may cause radio interferen ce, in
which case the user may be required to take appropriate measure s.
Canadian Department of Communications Radio Interference Regulations
This digital apparatus (NETGEAR Model FS526T 26-Port 10/100 Mbps Smart Fast Ethernet Switch with Gigabit Ports) do not exceed the Class A
limits for radio-noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of
Communications.
Règlement sur le brouillage radioélectrique du ministère des Communications
Cet appareil numérique (NETGEAR Model FS526T 26-Port 10/100 Mbps Smart Fast Ethernet Switch with Gigabit Ports) respecte les limites de
bruits radioélectriques visant les appareils numériques de classe A prescrites dans le Règlement sur le brouillage radioélectrique du ministère des
Communications du Canada.
Customer Support
For assistance with installing and configuring your NETGEAR system or with questions or problems following installation:
• Check the NETGEAR Web page at http://www.NETGEAR.com.
• Call Technical Support in North America at 1-888-NETGEAR. If you are outside North America, please refer to the phone numbers listed
• Email Technical Support at support@NETGEAR.com.
Defective or damaged merchandise can be returned to your point-of-purchase representative.
Internet/World Wide Web
NETGEAR maintains a World Wide Web home page that you can access at the uniform resource locator (URL) http://www.NETGEAR.com. A
direct connection to the Internet and a Web browser such as Internet Explorer or Netscape are required.
on the Support Information Card that shipped with your switch.
Page 3 of 58
CONTENTS
CHAPTER 1: SWITCH MANAGEMENT OVERVIEW...................................................................................................................................................................7
Management Access Overview ..........................................................................................................................................................................................7
CHAPTER 2: GETTING STARTED............................................................................................................................................................................................8
NETWORK WITH DHCP SERVER:................................................................................................................................................................................8
GearDiscovery > Discover .................................................................................................................................................................................................8
GearDiscovery > Web Access............................................................................................................................................................................................9
Web Management...........................................................................................................................................................................................................10
NETWORK WITHOUT DHCP SERVER..........................................................................................................................................................................11
GearDiscovery > Configuration Setting > Default................................................................................................................................................................11
GearDiscovery > Configuration Setting > Assign Static IP....................................................................................................................................................12
NIC setting on the PC that accesses FS526T.....................................................................................................................................................................13
Web Management...........................................................................................................................................................................................................14
CHAPTER 3: SOFTWARE UPGRADE PROCEDURE................................................................................................................................................................15
CHAPTER 4: GEARDISCOVERY UTILITY PROGRAM.............................................................................................................................................................17
Main Screen...................................................................................................................................................................................................................17
Main Screen> Device List> Discover.................................................................................................................................................................................18
Main Screen> Switch Setting> Configuration Setting...........................................................................................................................................................19
Main Screen> Switch Setting> Password Change..............................................................................................................................................................19
Main Screen> Switch Setting> Web Access.......................................................................................................................................................................20
Main Screen> Switch Setting> Firmware Upgrade.............................................................................................................................................................. 21
Main Screen> Switch Setting> Exit ...................................................................................................................................................................................21
CHAPTER 5: WEB MANAGEMENT ACCESS..........................................................................................................................................................................22
System..........................................................................................................................................................................................................................23
System> Switch Status....................................................................................................................................................................................................23
System> IP Access List...................................................................................................................................................................................................28
System> Set-up..............................................................................................................................................................................................................30
System> Password.........................................................................................................................................................................................................31
Switch ...........................................................................................................................................................................................................................32
Switch> Port Configuration...............................................................................................................................................................................................32
Switch> Statistics............................................................................................................................................................................................................36
Switch> VLAN................................................................................................................................................................................................................37
Switch> VLAN> Port-based VLAN....................................................................................................................................................................................37
Switch> VLAN> IEEE802.1Q Tag VLAN............................................................................................................................................................................40
Switch> Trunking............................................................................................................................................................................................................45
Firmware........................................................................................................................................................................................................................47
Firmware> Configuration Backup......................................................................................................................................................................................47
Firmware> Factory Reset.................................................................................................................................................................................................49
Logout...........................................................................................................................................................................................................................50
APPENDIX A: DEFAULT SETTINGS.......................................................................................................................................................................................51
APPENDIX B: VIRTUAL LOCAL AREA NETWORK (VLAN) IEEE 802.1Q..................................................................................................................................52
APPENDIX C: VIRTUAL LO CAL AREA NETWORK (VLAN): PORT-BASED VLAN ..........................................................................................57
Page 4 of 58
Figures
FIGURE 2-1. GEARDISCOVERY UTILITY MAIN SCREEN..........................................................................................................................................................8
FIGURE 2-2. WEB ACCESS ....................................................................................................................................................................................................................9
FIGURE 2-3. WEB MANAGEMENT FRONT PAGE AFTER CLICK “WEB ACCESS” ON GEARDISCOVERY UTILITY......................................10
FIGURE 2-4. CONFIGURATION SETTING ......................................................................................................................................................................................11
FIGURE 2-5. MANUALLY SETTING IP ADDRESS........................................................................................................................................................................12
FIGURE 2-6. SETTING IP ADDRESS AND SUBNET MASK.....................................................................................................................................................13
FIGURE 2-7. WEB MANAGEMENT FRONT PAGE AFTER CLICK “WEB ACCESS” ON GEARDISCOVERY UTILITY......................................14
FIGURE 3-1. SELECT THE SWITCH YO U WANT TO UPGRADE AND CLICK FIRMWARE UPGRADE.................................................................15
FIGURE 3-2. LOCATE NEW FIRMWARE.........................................................................................................................................................................................16
FIGURE 3-3. ENTER PASSWORD AN D CLICK START.............................................................................................................................................................16
FIGURE 4-1. GEARDISCOVERY UTILITY MAIN SCREEN........................................................................................................................................................17
FIGURE 4-2. MAIN SCREEN: DEVICE LIST> DISCOVER.........................................................................................................................................................18
FIGURE 4-3. MAIN SCREEN: SWITCH SETTING> CONFIGURATION SETTING............................................................................................................19
FIGURE 4-4. MAIN SCREEN: SWITCH SETTING> PASSWORD CHANGE.......................................................................................................................19
FIGURE 4-5. WEB MANAGEMENT LOGIN PAGE ........................................................................................................................................................................20

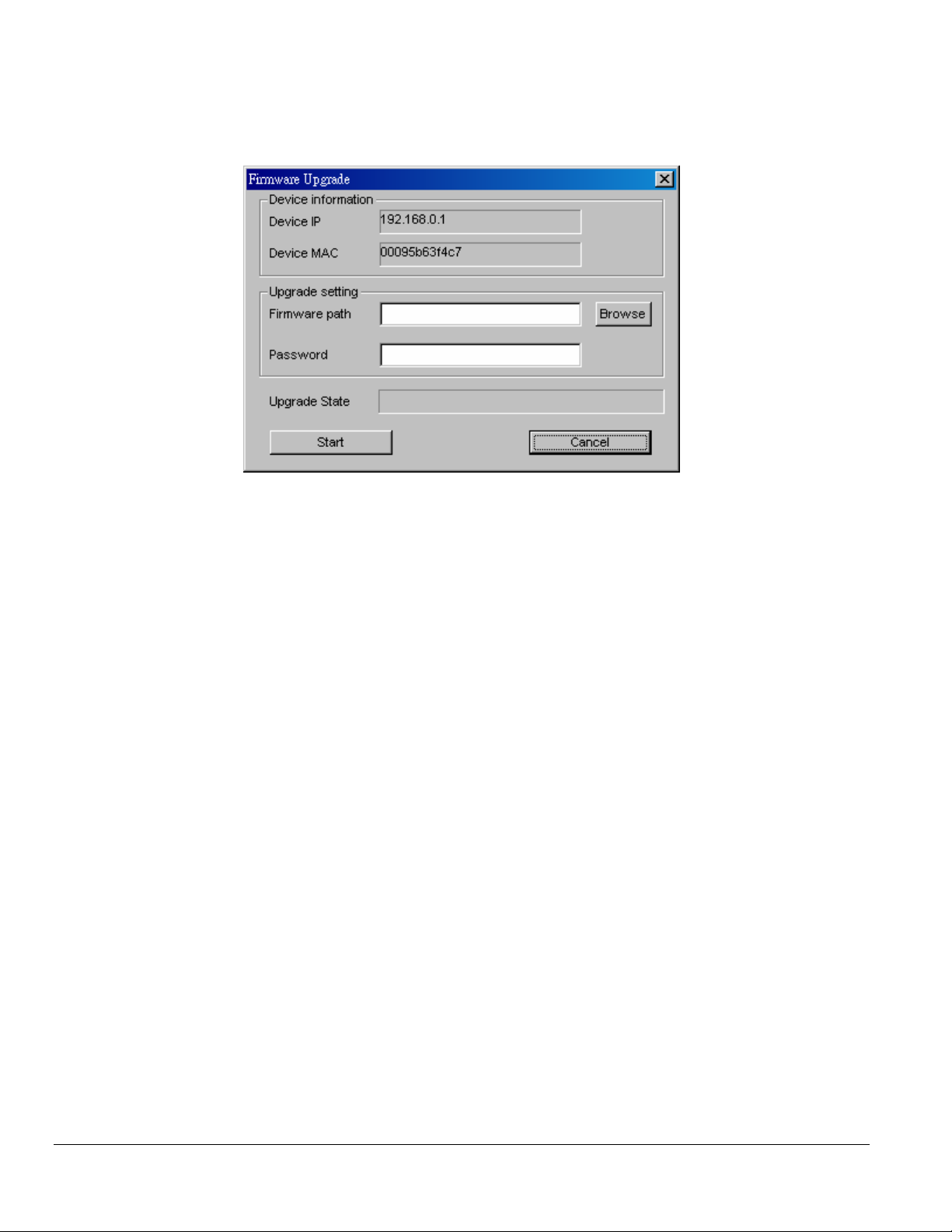

FIGURE 4-6. MAIN SCREEN: SWITCH SETTING> FIRMWARE UPGRADE......................................................................................................................21
FIGURE 5-1. WEB MANAGEMENT LOGIN PAGE ........................................................................................................................................................................22
FIGURE 5-2. SYSTEM> SWITCH STATUS: SWITCH STATUS...............................................................................................................................................23
FIGURE 5-3. SYSTEM> SWITCH STATUS: PORT STATUS....................................................................................................................................................24
FIGURE 5-4. SYSTEM> SWITCH STATUS: PORT-BASED VLAN & TRUNK.....................................................................................................................25
FIGURE 5-5. SYSTEM> SWITCH STATUS: TAG VLAN PVID TABLE...................................................................................................................................26
FIGURE 5-6. SYSTEM> SWITCH STATUS: TAG VLAN SETTINGS......................................................................................................................................27

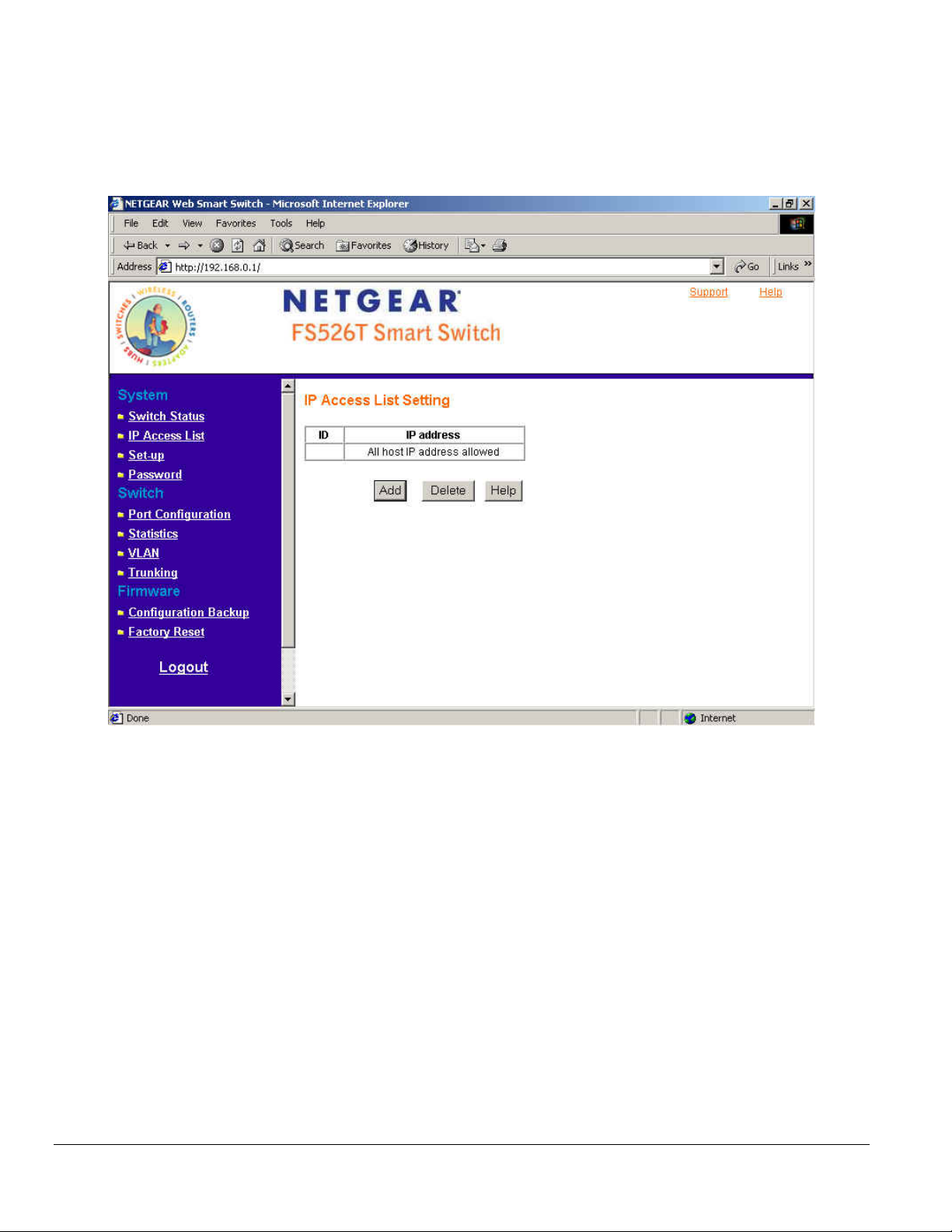

FIGURE 5-7. SYSTEM> IP ACCESS LIST........................................................................................................................................................................................28
FIGURE 5-8. SYSTEM> IP ACCESS LIST> ADD NEW IP..........................................................................................................................................................29
FIGURE 5-9. SYSTEM> SET-UP> SYSTEM SETTING...............................................................................................................................................................30
FIGURE 5-10. SYSTEM> PASSWORD> PASSWORD SETTING............................................................................................................................................31
FIGURE 5-11. SWITCH> PORT CONFIGURATION> PORT SETTING MENU...................................................................................................................32
FIGURE 5-12. SWITCH> PORT CONFIGURATION> PORT SETTINGS: SPEED.............................................................................................................33
FIGURE 5-13. SWITCH> PORT CONFIGURATION> PORT SETTINGS: FLOW CONTROL........................................................................................34
FIGURE 5-14. SWITCH> PORT CONFIGURATION> PORT SETTINGS: QOS..................................................................................................................35

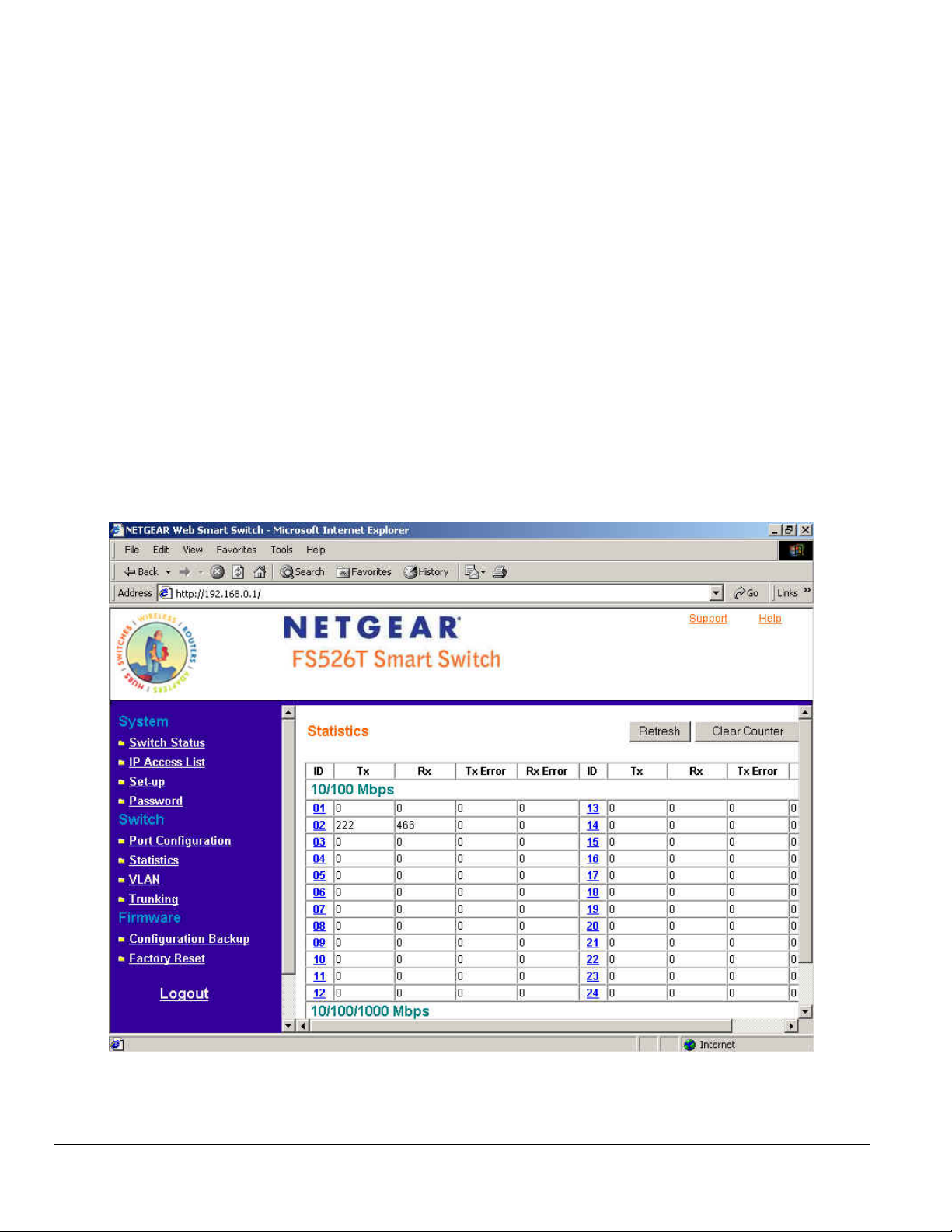

FIGURE 5-15. SWITCH> STATISTICS...............................................................................................................................................................................................36
FIGURE 5-16. SWITCH> VLAN.............................................................................................................................................................................................................37
FIGURE 5-17. SWITCH> VLAN SETTING> PORT-BASED VLAN: ADD GROUP..............................................................................................................38
FIGURE 5-18. SWITCH> VLAN SETTING> PORT-BASED VLAN: DELETE GROUP......................................................................................................39

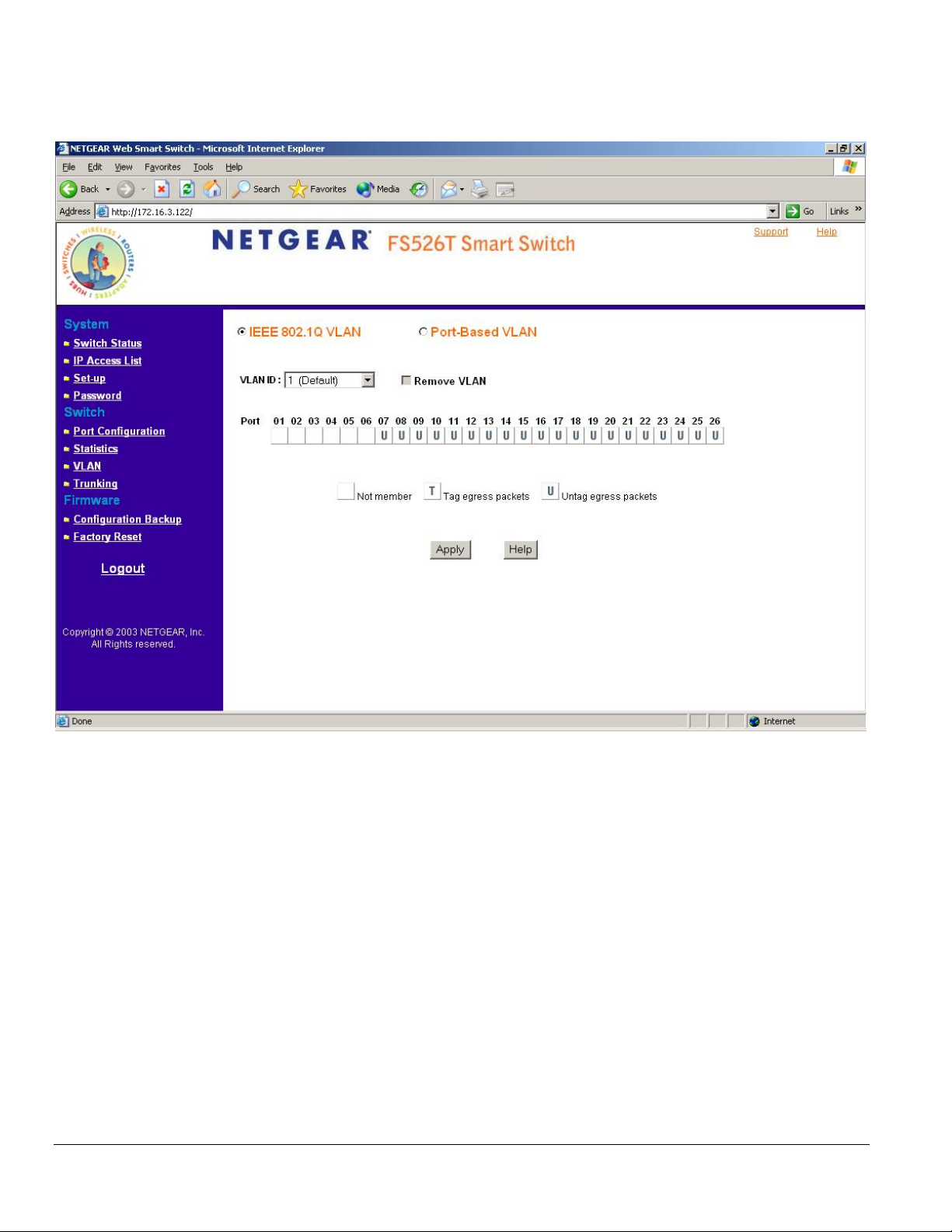

FIGURE 5-19. SWITCH> VLAN SETTING> TAG VLAN...............................................................................................................................................................40
FIGURE 5-20. SWITCH> VLAN SETTING> TAG VLAN: DEFAULT........................................................................................................................................40
FIGURE 5-21. SWITCH> VLAN SETTING> TAG VLAN MENU................................................................................................................................................41

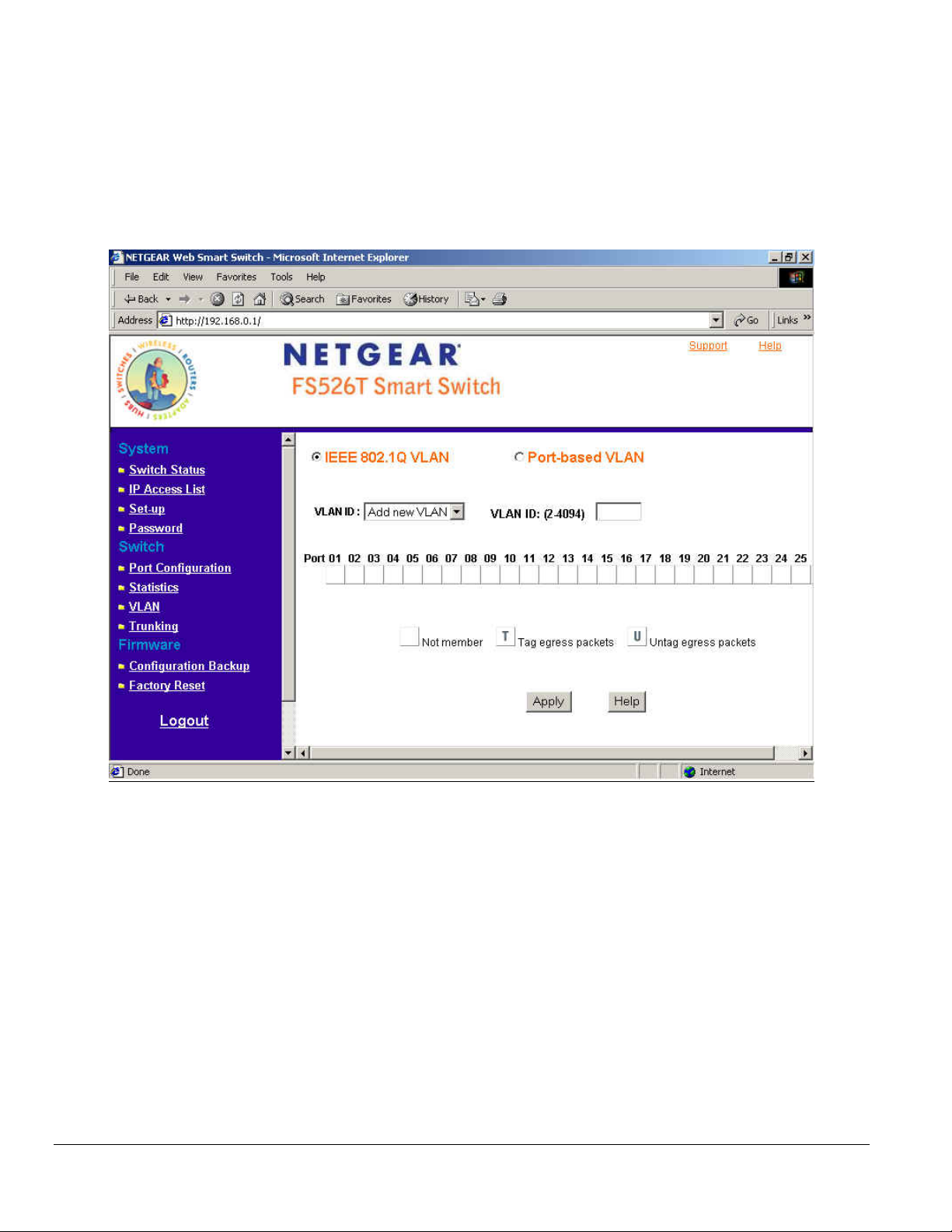

FIGURE 5-22. SWITCH> VLAN SETTING> TAG VLAN: ADD NEW VLAN ..........................................................................................................................42
FIGURE 5-23. SWITCH> VLAN SETTING> TAG VLA N: DELETE A VLAN..........................................................................................................................43
FIGURE 5-24. SWITCH> VLAN SETTING> TAG VLAN: PVID SETTING.............................................................................................................................44

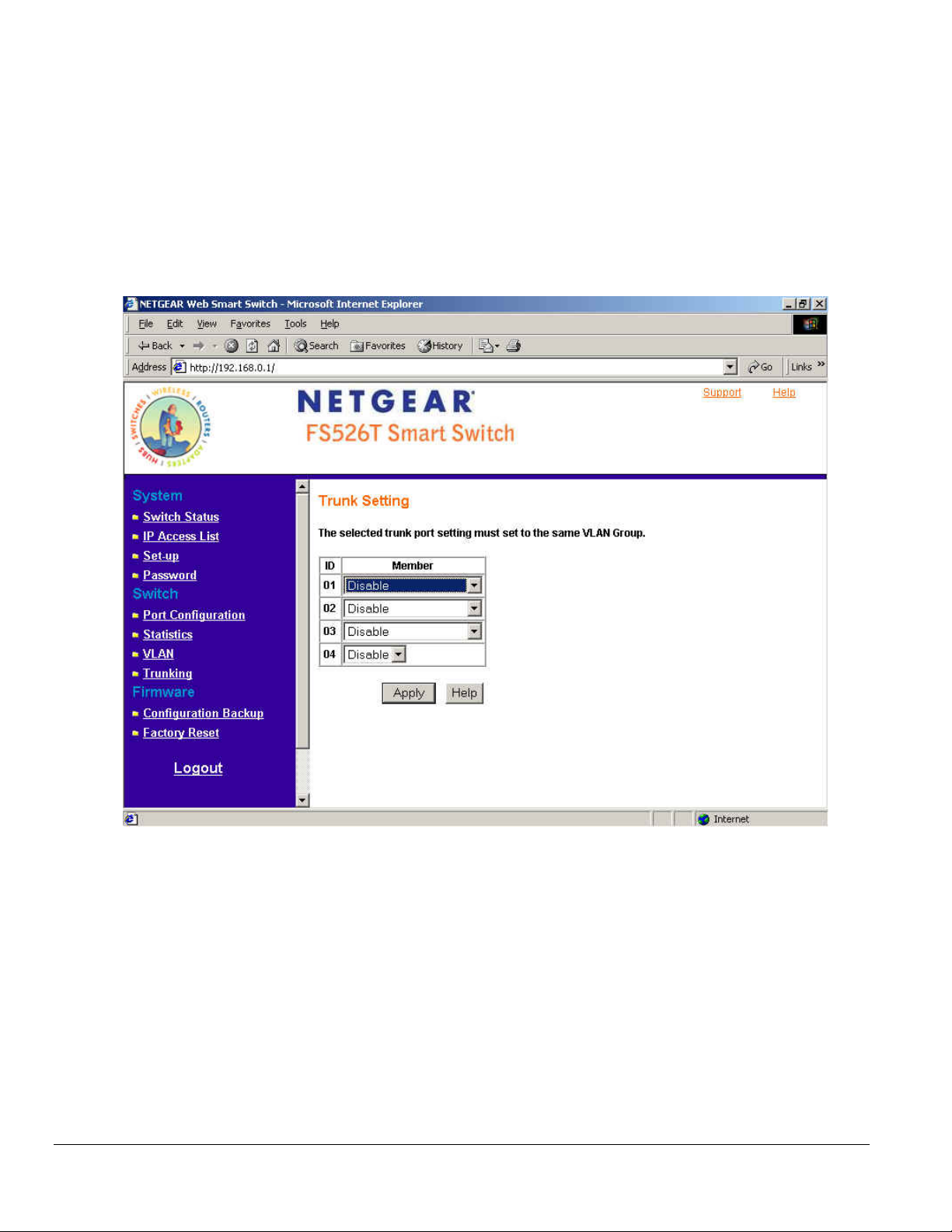

FIGURE 5-25. SWITCH> TRUNK SETTING.....................................................................................................................................................................................45
FIGURE 5-26. SWITCH> TRUNK SETTING: TRUNK GROUP 01...........................................................................................................................................46

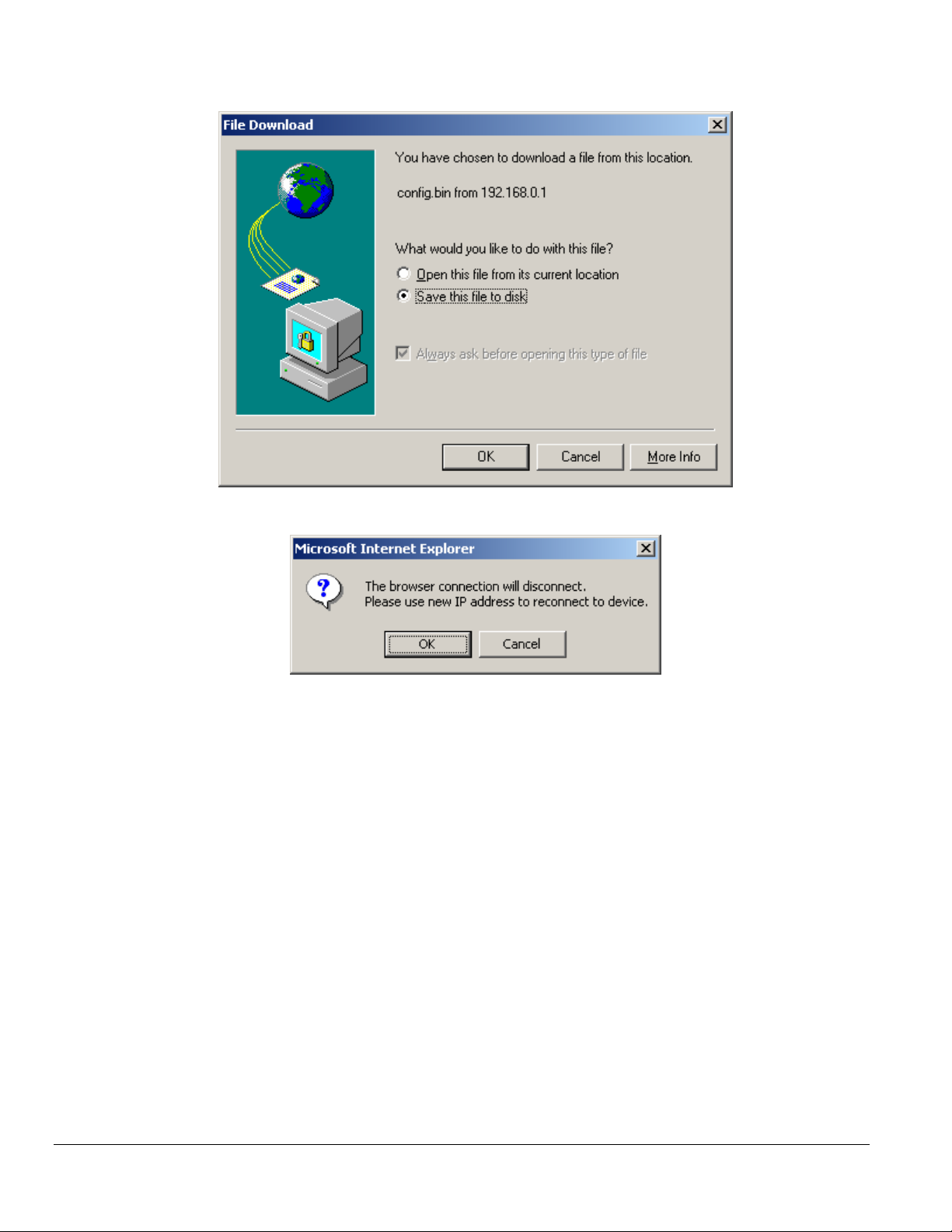

FIGURE 5-30. FIRMWARE> CONFIGURATION BACKUP> BACKUP SETTING : BACKUP..........................................................................................47
FIGURE 5-31. FIRMWARE> CONFIGURATION BACKUP> BACKUP SETTING: RESTORE.......................................................................................48
FIGURE 5-32. FIRMWARE> CONFIGURATION BACKUP> BACKUP SETTING: REBOOT.........................................................................................48
FIGURE 5-33. FIRMWARE> FACTORY RESET............................................................................................................................................................................49

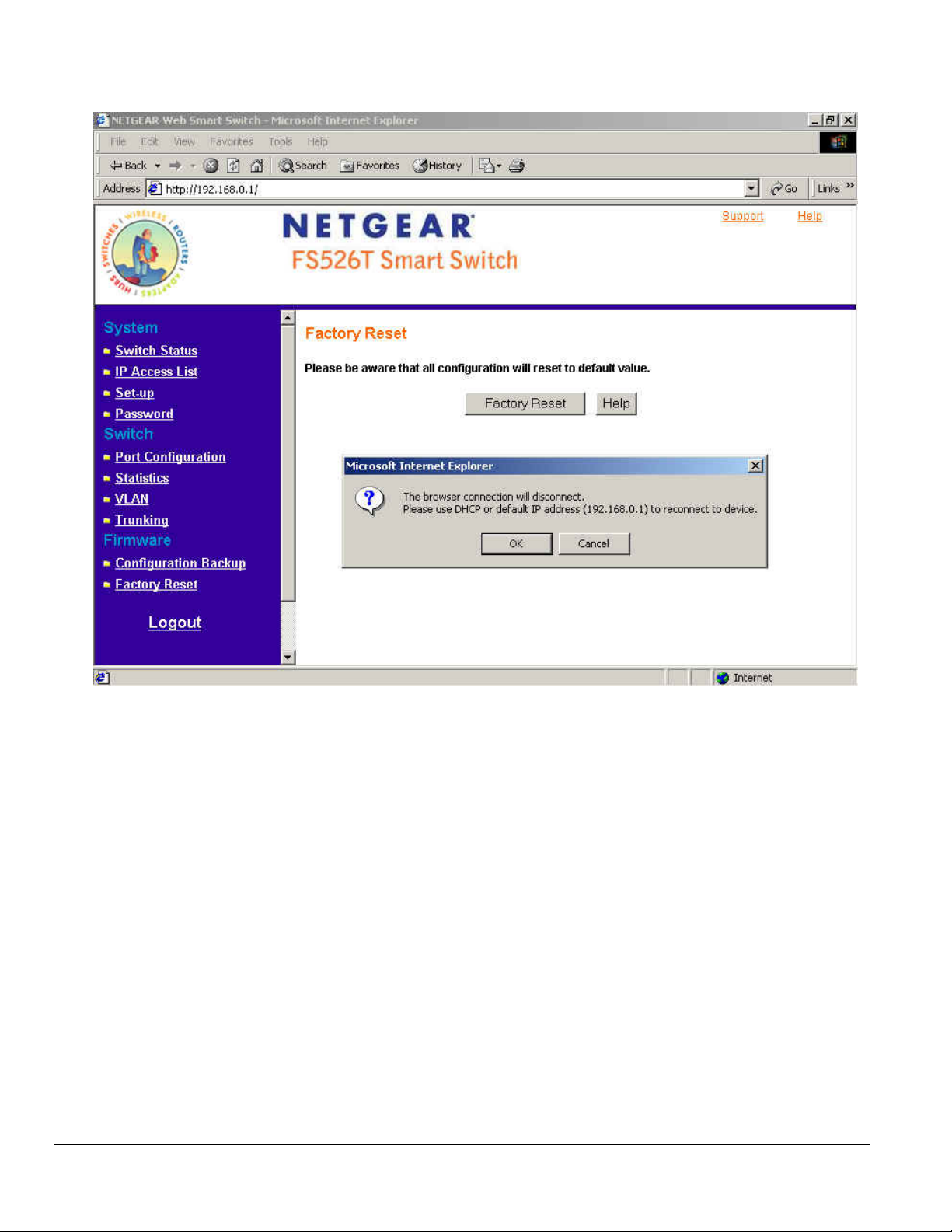

FIGURE 5-34. FIRMWARE> FACTORY RESET: REBOOT.......................................................................................................................................................50
Page 5 of 58
Tables
TABLE 1-1. COMPARING SWITCH MANAGEMENT METHODS......................................................................................................................................................7
TABLE A-1. DEFAULT SETTINGS...........................................................................................................................................................................................................51
Page 6 of 58
CHAPTER 1: SWITCH MANAGEMENT OVERVIEW
This chapter gives an overview of switch management, including the methods you can use to manage your NETGEAR Model FS526T 26-Port
10/100 Mbps Smart Fast Ethernet Switch with Gigabit Ports. Topics include:
Management Access Overview
Management Access Overview
Your NETGEAR Model FS526T 26-Port 10/100 Mbps Smart Fast Ethernet Switch with Gigabit Ports contains software for viewing, changing, and
monitoring the way it works. This management software is not required for the switch to work. You can use the 10/100 Mbps ports and the built-in
Gigabit ports without using the management software. However, the management software allows you configure ports, VLAN and Trunking
features and also improve the efficiency of the switch and, as a result, improve the overall performance of your network. The Switch gives you the
flexibility to access and manage the switch using any of the following methods:
GearDiscovery Utility program
Web browser interface
After you power-up the switch for the first time, you can configure it using a utility program called GearDiscovery or a Web browser. Please refer to
the screenshots in following pages for GearDiscovery Utility and Web Management GUI. Each of these management methods has advantages.
Table 1-1 compares the three management methods.
Table 1-1. Comparing Switch Management Methods
Management Method Advantages
GearDiscovery Utility
program
Web browser
For a more detailed discussion of the GearDiscovery Utility Program, see chapter 4. For a more detailed discussion of the Web Browser Interface,
see chapter 5.
No IP address or subnet needed
Show all switches on the network
User-friendly interface
Firmware upgradeable
Can be accessed from any location via the switch’s
IP address
Password protected
Ideal for configuring the switch remotely
Compatible with Internet Explorer and Netscape
Navigator Web browsers
Intuitive browser interface
More visually appealing
Extensive switch configuration allowed
Configuration backup for duplicating settings to other
switches
Page 7 of 58
CHAPTER 2: Getting Started
This chapter will walk you through the steps to start managing your FS526T switch. This chapter will cover how to get started in a network with a
DHCP server (most common) as well as if you do not have a DHCP server.
Network with DHCP server:
1. Connect FS526T to a DHCP network.
2. Power on FS526T by plugging in power cord.
3. Install GearDiscovery Utility program on your computer
4. Start GearDiscovery utility. (Chapter 4 has detailed instructions on the GearDiscovery utility)
5. Click Discover for the GearDiscovery to find your FS526T switch. You should see a something similar to Figure 2-1.
GearDiscovery > Discover
Figure 2-1. GearDiscovery Utility Main Screen
Page 8 of 58
6. Select your switch by clicking on it. Then click on Web Access, as highlighted in Figure 2-2.
Note: Your PC must be in the same subnet as the switch to use a web browser to manage the switch.
GearDiscovery > Web Access
Figure 2-2. Web Access
Page 9 of 58
7. Start managing your sw itch via your web browser. The default password is ‘password’. For a detailed description on web
management, please refer to Chapter 5.
Web Management
Figure 2-3. Web Management Front page after click “web access” on GearDiscovery utility
Page 10 of 58
Network without DHCP server
1. Connect FS526T to your existing network.
2. Power on FS526T by plugging in power cord.
3. Install GearDiscovery Utility program on your computer.
4. Start GearDiscovery Utility. (Default IP is 192.168.0.239. Chapter 4 has detailed instructions on the GearDiscovery Utility)
5. Click Discover for the GearDiscovery program to find your FS526T switch. You should see a something similar to Figure 2-1.
6. Click on Configuration Setting (See figure 2-4).
Note: You can always assign a Static IP address to your FS526T whether or not your network has a DHCP server.
GearDiscovery > Configuration Setting > Default
Figure 2-4. Configuration Setting
Page 11 of 58
7. Choose Disable on DHCP. See Figure 2-5.
8. Enter your IP address, Gateway and Subnet, and then type your password and click “Set”. Please make sure your PC and FS526T
are in the same subnet. (See Figure 2-6.)
GearDiscovery > Configuration Setting > Assign Static IP
Figure 2-5. Manually setting IP address
Page 12 of 58
NIC setting on the PC that accesses FS526T
Figure 2-6. Setting IP address and Subnet Mask
Page 13 of 58
9. Select your sw itch by clicking on it. Then click on Web Access, as highlighted in Figure 2-2.
10. Start managing your switch via your web browser. The default password is ‘password’. For a detailed description on web
management access, please refer to Chapter 5.
Web Management
Figure 2-7. Web Management Front page after click “web access” on GearDiscovery utility
Page 14 of 58
CHAPTER 3: Software Upgrade Procedure
The application software for the FS526T is upgradeable, enabling your switch to take advantage of improvements and additional features as they
become available. The upgrade procedure and the required equipment are described in the following section.
The upgrade procedure is as follow:
1. Save the new firmware to your computer.
2. Start the GearDiscovery utility program.
3. Select your switch by clicking on it. Then click on Firmware Upgrade, as highlighted in Figure 3-1.
Figure 3-1. Select the switch you want to upgrade and click Firmware Upgrade.
Page 15 of 58
Figure 3-2. Locate New Firmware.
4. Enter the location of the new firmware in the Firmware path below Firmware setting. Alternatively, you can click Browse to locate the
file. See Figure 3-2.
5. Click Start to download the new firmware file in non-volatile memory.
Figure 3-3. Enter Password and click Start.
Note: Once the system finishes firmware upgrade process, the switch will automatically reboot. The GearDiscovery utility will determine success of
upgrade process based on the success of the system reboot.
Page 16 of 58
CHAPTER 4: GearDiscovery Utility Program
The GearDiscovery utility program is a user-friendly, easy to install tool. Using this program, you can view and configure all the FS526T Smart
Switches in your network.
The installation of the GearDiscovery utility is as follows:
1. Insert the disc into your CD-ROM drive.
2. Select the GearDiscovery\Output folder.
3. Run the Setup program to install the GearDiscovery Utility.
4. The Installation Wizard will guide you through.
5. Run ‘GearDiscovery’ from the window start bar.
Main Screen
The main screen displays the available functions. As shown in Figure 4-1, there are six function items to choose from:
o Discover
o Configuration Setting
o Password Change
o Web Access
o Firmware Upgrade
o Exit
Figure 4-1. GearDiscovery Utility Main Screen
Page 17 of 58
Main Screen> Device List> Discover
The GearDiscovery can discover all switches currently connected on the network. Click ‘Discover’ to view the following switch information of any
listed switch:
MAC Address
IP Address
Protocol Version
Product Name
System Name
Location
DHCP
Subnet Mask
Gateway
.
Figure 4-2. Main Screen: Device List> Discover
By double-clicking a listed switch, you can open the Web management for that switch. Alternatively, you can select a switch by clicking on it once,
and then clicking Web Access. For more information on Web management, see Chapter 5.
Page 18 of 58
Loading...
