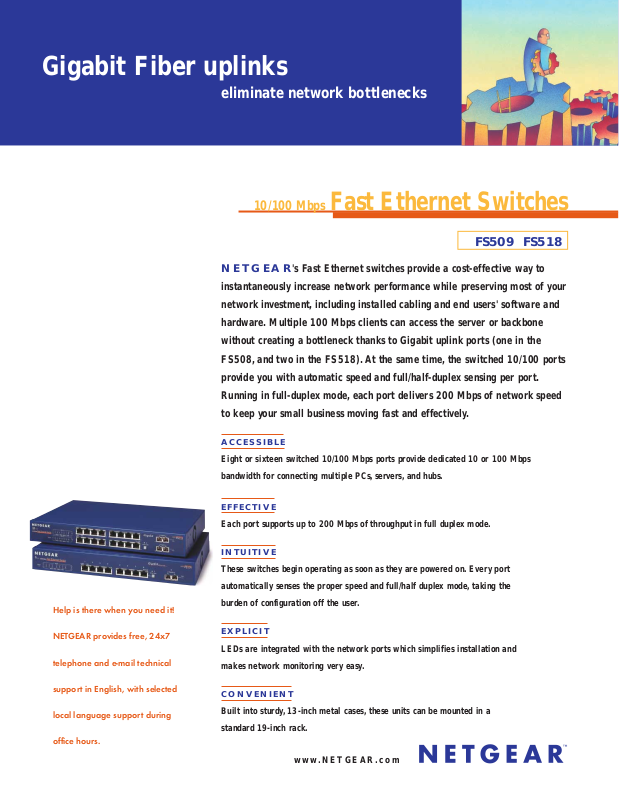

NETGEAR's Fast Ethernet switches provide a cost-effective way to

instantan eously increase n etwork performance while preserving most of your network investment, including installed cabling and end users' software and hardware. Multiple 100 Mbps clients can access the server or backbone without creating a bottleneck thanks to Gigabit uplink ports (one in the FS508, and two in the FS518).At the same time, the switched 10/100 ports provide you with automatic speed and full/half-duplex sensing per port. Running in full-duplex mode, each port delivers 200 Mbps of network speed to keep your small business moving fast and effectively.

ACCESSIBLE

Eight or sixteen switched 10/100 Mbps ports provide dedicated 10 or 100 Mbps bandwidth for connecting multiple PCs, servers,and hubs.

EFFECTIVE

Each port supports up to 200 Mbps of throughput in full duplex mode.

INTUITIVE

These switches begin operating as soon as they are powered on. Every port automatically senses the proper speed and full/half duplex mode, taking the burden of configuration off the user.

EXPLICIT

LEDs are integrated with the network ports which simplifies installation and makes network monitoring very easy.

CONVENIENT

Built into sturdy,13-inch metal cases, these units can be mounted in a standard 19-inch rack.

Gigabit Fiber uplinks

eliminate network bottlenecks

FS509 FS518

Fast Ethernet Switches

10 /100 Mbps

Help is there when you need it!

NETGEAR provides free, 24x7

telephone and e-mail technical

support in English, with selected

local language support during

office hours.

www.NETGEAR.com

TECHNICAL SPECIFICATIONS

FS509

Network Ports

10/100 Mbps twisted-pair

RJ-45 ports: 8

1,000 Mbps Duplex SC fiber port

(for 62.5/125 or 50/125 multimode fiber): 1

25ft 62.5/125 micron multimode

fiber cable included: 1

Performance (64 byte packets)

10/100 buffer memory:

4 MB for 8 ports

Gigabit buffer memory:

2MB for 1 port Switching fabric: 1.2 gigabit per sec Forward rate (10 Mbps port): 14,800 packet per sec Forward rate (100 Mbps port): 148,000 packet per sec Latency (10 to 100 Mbps): 80 usec max MAC addresses: 8,000

AC power

29 W Auto-sensing 100 to 240V, 50/60 Hz Localized power cord for Nor th America, Japan, UK, Europe,Australia

Standards Compliance

IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z 1000BASE-SX Gigabit Ethernet

Status LEDs

Unit: power Per network port: link, Rx/Tx, full duplex/collision

FS518

10/100 Mbps twisted-pair

RJ-45 ports: 16

1,000 Mbps Duplex SC fiber port

(for 62.5/125 or 50/125 multimode fiber): 2

25ft 62.5/125 micron multimode

fiber cable included: 2

10/100 buffer memory:

8 MB for 16 ports

Gigabit buffer memory:

4 MB for 2 ports

45 W

Dimensions

W 330 mm (13”) D 207 mm (8”) H 43 mm (1.7”)

Weight

2.3 kg (5.0 lb)

Environmental Specifications

Operating temperature: 0 to 40°C Operating humidity: 90% maximum

relative humidity, noncondensing

Electromagnetic Compliance

CE mark, commercial FCC Part 15 Class A VCCI Class A EN55022 (CISPR 22), Class A,

EN50082-1 C-Tick TUV EN60950

Safety Agency Approvals

UL Listed (UL 1950)/cUL IEC950/EN60950

Warranty

Switch: 5 years Power supply: 1 year

PACKAGE CONTENTS

Switch Power cord 1 or 2 Fiber cables Rack-mount kit User guide Warranty card and Phone card
