Netcomm NF10W User Manual

Download
VDSL/ADSL WiFi Modem Router
NF10W
USER GUIDE
www.netcommwireless.com
v1.0
DOCUMENT VERSION
DATE
1.0 - Initial document release
28 September 2015
Copyright
Copyright © 2015 NetComm Wireless Limited. All rights reserved.
The information contained herein is proprietary to NetComm Wireless Limited. No part of this document may be translated, transcribed, reproduced, in any form, or by any means without prior written consent of NetComm Wireless Limited. Trademarks and registered trademarks are the property of NetComm Wireless Limited or their respective owners. Specifications are subject to change without notice. Images shown may vary slightly from the actual product.
Note: This document is subject to change without notice.
Save Our Environment
When this equipment has reached the end of its useful life, it must be taken to a recycling centre and processed separately from domestic waste.
The cardboard box, the plastic contained in the packaging, and the parts that make up this device can be recycled in accordance with regionally established regulations. Never dispose of this electronic equipment along with your household waste. You may be subject to penalties or sanctions under the law. Instead, ask for disposal instructions from your municipal government.
Please be responsible and protect our environment.
This manual covers the following products:
NetComm Wireless NF10W VDSL/ADSL WiFi Modem Router
Table 1 - Document Revision History
www.netcommwireless.com
NetComm Wireless NF10W User Guide
3
v1.0
Table of contents
Overview ........................................................................................................................................................................................ 5
Introduction ................................................................................................................................................................................................... 5
Target audience ............................................................................................................................................................................................. 5
Prerequisites.................................................................................................................................................................................................. 5
Notation ........................................................................................................................................................................................................ 5
Welcome ........................................................................................................................................................................................ 6
Product overview ........................................................................................................................................................................................... 6
Package contents .......................................................................................................................................................................................... 6
Product features ............................................................................................................................................................................................ 7
Physical dimensions and indicators ............................................................................................................................................. 8
LED indicators ............................................................................................................................................................................................... 8
Physical Dimensions ...................................................................................................................................................................................... 9
NF10W Default Settings ................................................................................................................................................................................. 9
Interfaces ..................................................................................................................................................................................... 10
Rear ............................................................................................................................................................................................................ 10
Top 11
Safety and product care .............................................................................................................................................................. 12
Transport and handling ............................................................................................................................................................... 12
Installation and configuration of the NF10W .............................................................................................................................. 13
Placement of your NF10W ........................................................................................................................................................................... 13
Avoiding obstacles and interference ..................................................................................................................................................... 13
Cordless phones ................................................................................................................................................................................. 13
Choosing the “quietest” channel for your wireless network .................................................................................................................... 14
Hardware installation.................................................................................................................................................................................... 14
Connecting a client via Ethernet cable .................................................................................................................................................. 14
Connecting a client wirelessly ............................................................................................................................................................... 14
Web based configuration interface ............................................................................................................................................. 15
First-time setup wizard ................................................................................................................................................................................. 15
ADSL .................................................................................................................................................................................................. 15
VDSL .................................................................................................................................................................................................. 16
Ethernet WAN...................................................................................................................................................................................... 16
Device Info .................................................................................................................................................................................................. 18
Summary ............................................................................................................................................................................................. 18
WAN ................................................................................................................................................................................................... 19
Statistics ............................................................................................................................................................................................. 19
Route .................................................................................................................................................................................................. 22
ARP .................................................................................................................................................................................................... 22
DHCP ................................................................................................................................................................................................. 22
Advanced Setup .......................................................................................................................................................................................... 23
Layer2 Interface ................................................................................................................................................................................... 23
WAN Service ....................................................................................................................................................................................... 25
LAN .................................................................................................................................................................................................... 29

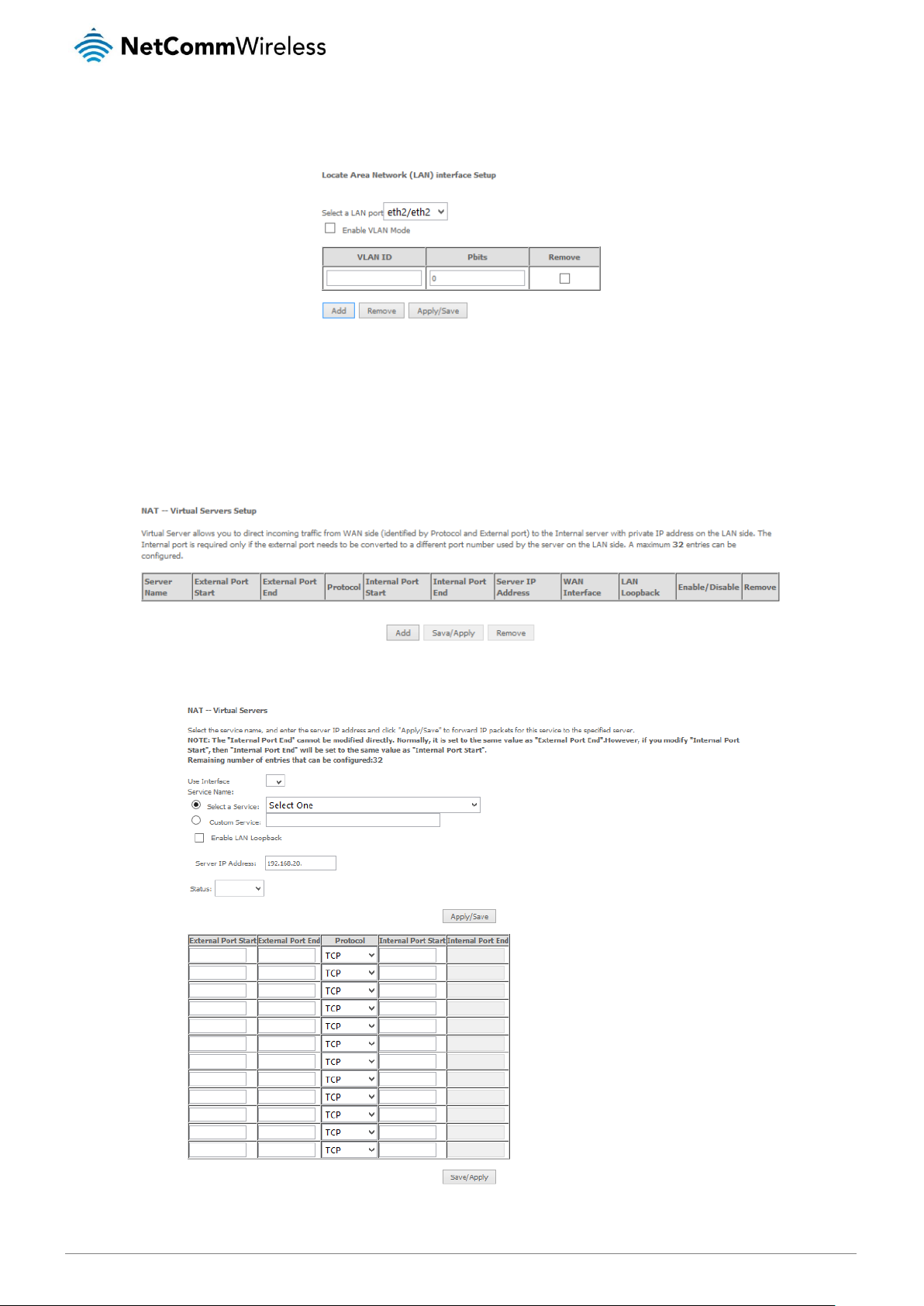

NAT .................................................................................................................................................................................................... 31
Security ............................................................................................................................................................................................... 34
Parental Control ................................................................................................................................................................................... 37
Quality of Service ......................................................................................................................................................................................... 39

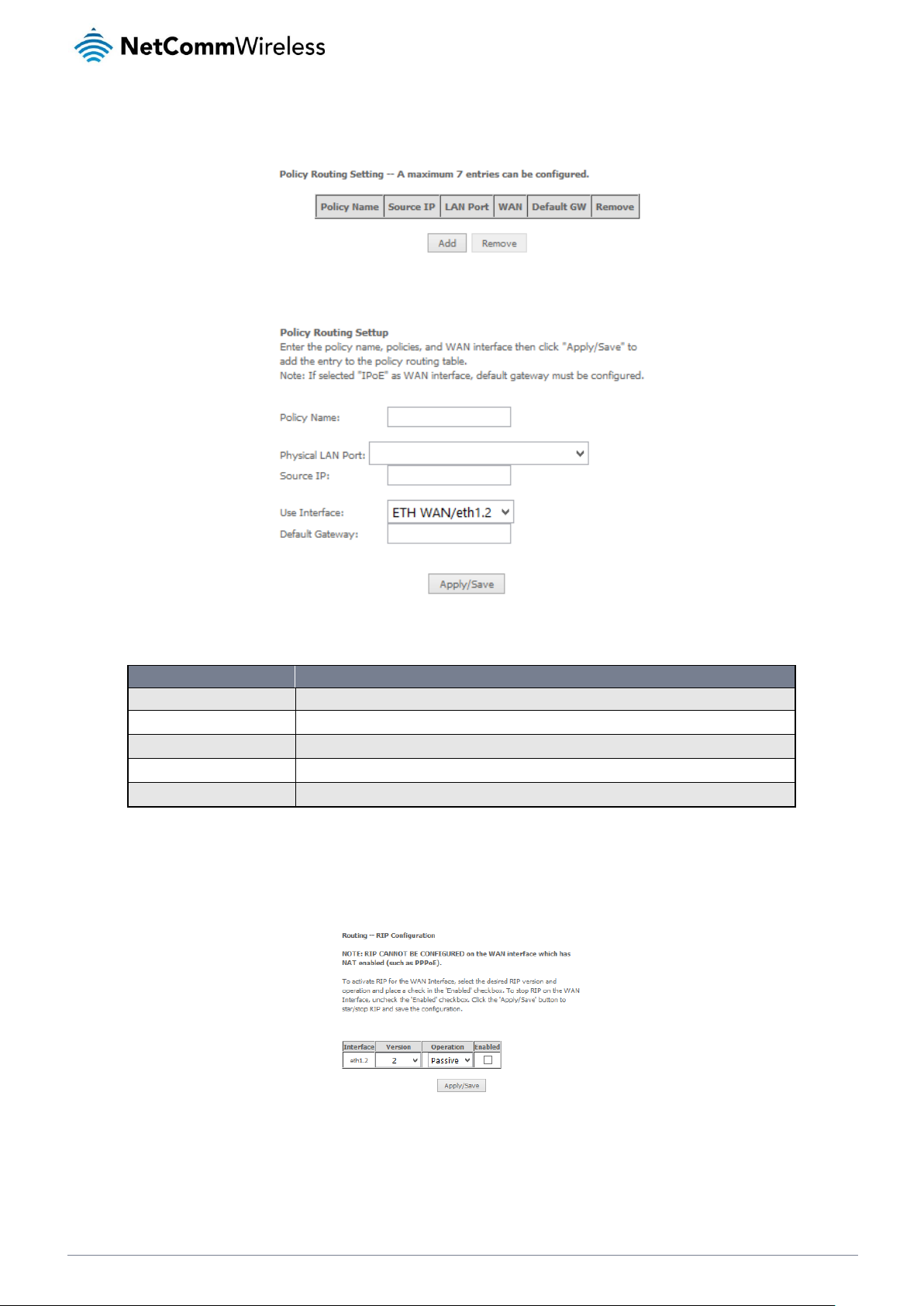

Routing ....................................................................................................................................................................................................... 41

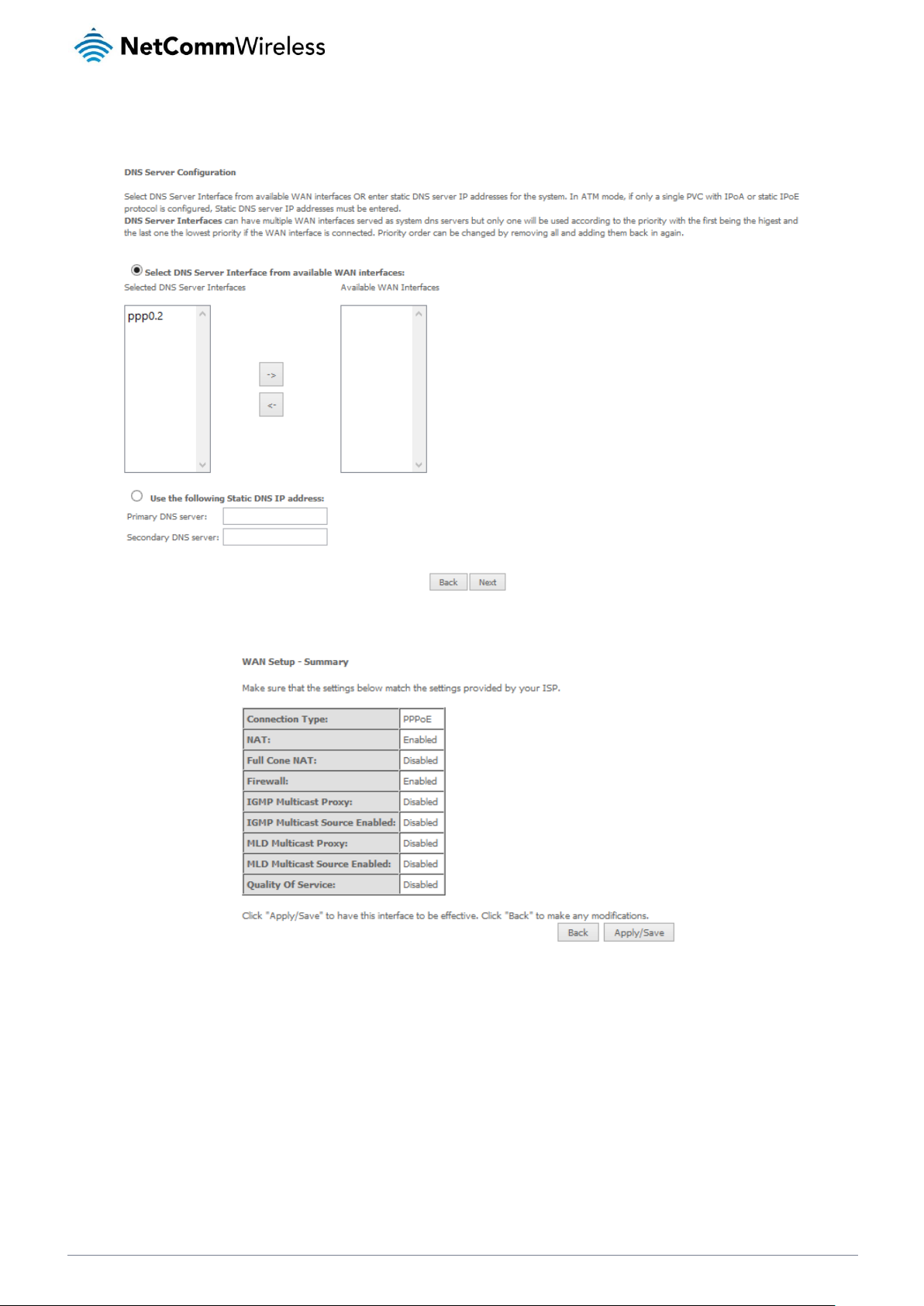

DNS .................................................................................................................................................................................................... 43
DSL ..................................................................................................................................................................................................... 44
UPnP .................................................................................................................................................................................................. 45
DNS Proxy .......................................................................................................................................................................................... 45
DLNA .................................................................................................................................................................................................. 46
Storage Service ................................................................................................................................................................................... 46
Interface Grouping ............................................................................................................................................................................... 47
IP Tunnel ............................................................................................................................................................................................. 48
IPSec .................................................................................................................................................................................................. 49
Multicast (IGMP Configuration) ............................................................................................................................................................. 50
Wireless ...................................................................................................................................................................................................... 51
Basic ................................................................................................................................................................................................... 51
www.netcommwireless.com
v1.0

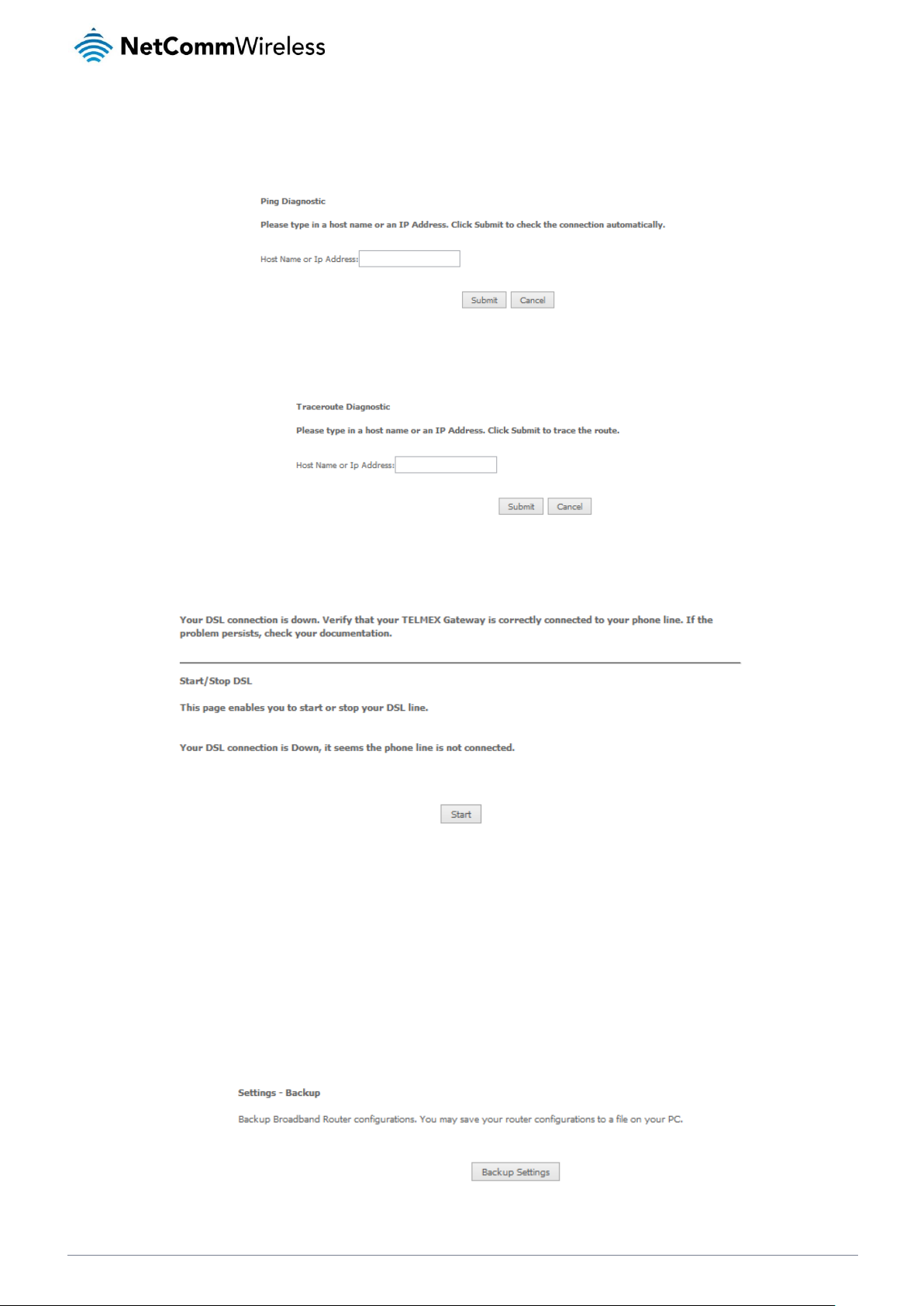

Diagnostics ................................................................................................................................................................................................. 56
Diagnostics.......................................................................................................................................................................................... 56
Ethernet OAM ...................................................................................................................................................................................... 57
Diagnostics.......................................................................................................................................................................................... 58
Management ............................................................................................................................................................................................... 58
Settings ............................................................................................................................................................................................... 58

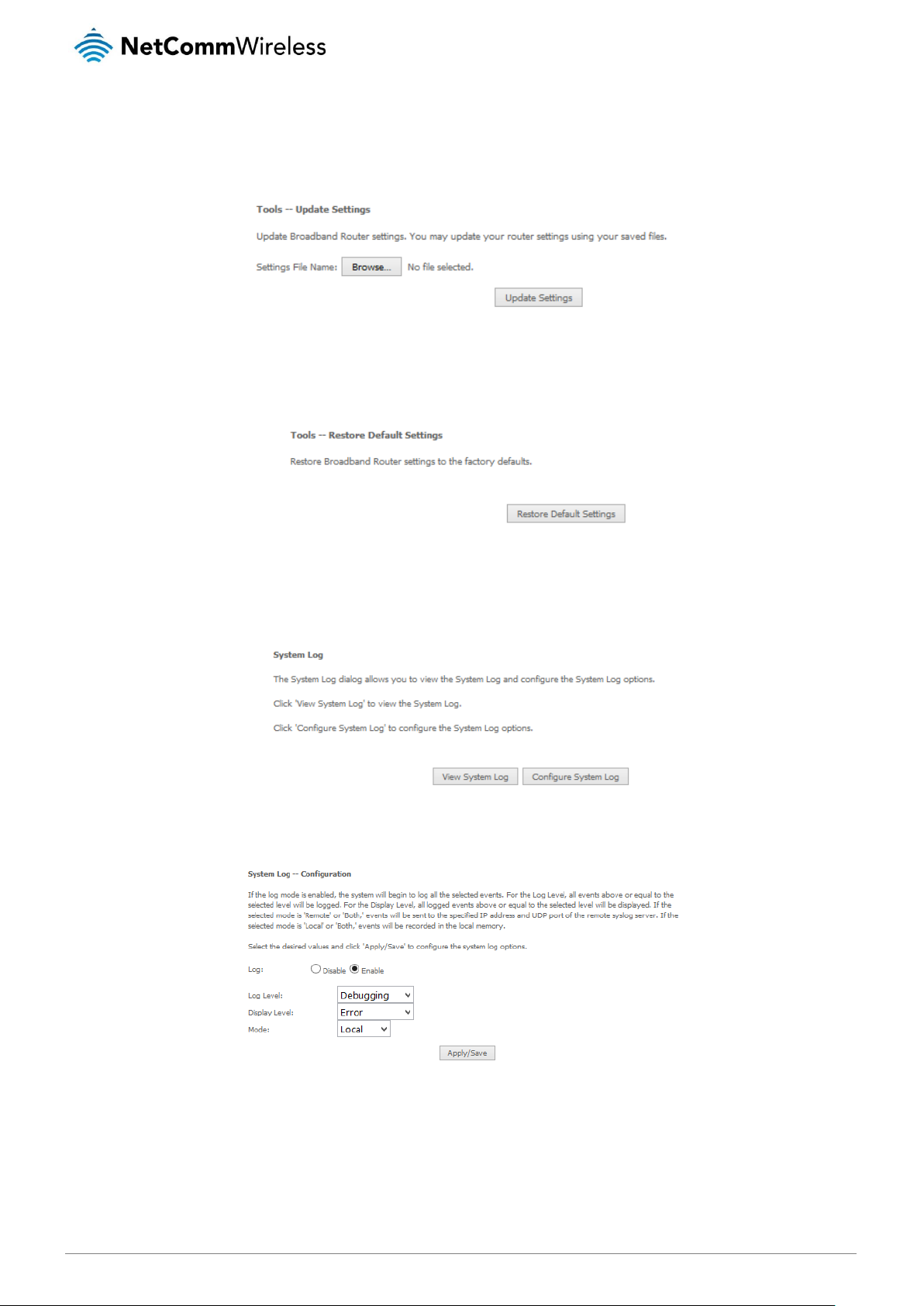

System Log ......................................................................................................................................................................................... 59
SNMP Agent ....................................................................................................................................................................................... 60
TR-069 Client ...................................................................................................................................................................................... 60
Internet Time ....................................................................................................................................................................................... 61
Access Control .................................................................................................................................................................................... 61
Update Firmware ................................................................................................................................................................................. 62
Reboot ................................................................................................................................................................................................ 62
Additional Product Information ................................................................................................................................................... 63
Establishing a wireless connection................................................................................................................................................................ 63
Windows 7 .......................................................................................................................................................................................... 63
Windows 8/8.1/10 ............................................................................................................................................................................... 63
Mac OSX 10.6 ..................................................................................................................................................................................... 63
Troubleshooting ........................................................................................................................................................................................... 64
Using the indicator lights (LEDs) to Diagnose Problems ......................................................................................................................... 64
Appendix: Quality of Service Setup Example ............................................................................................................................. 65
Reserving IP addresses................................................................................................................................................................................ 65
QoS Configuration Settings .......................................................................................................................................................................... 66
High Priority QoS Queue Configuration ................................................................................................................................................. 67
Low Priority QoS Queue Configuration ................................................................................................................................................. 68
High Priority QoS Classification ............................................................................................................................................................ 68
Low Priority QoS Classification ............................................................................................................................................................. 70
Legal & Regulatory Information................................................................................................................................................... 72
Intellectual Property Rights ........................................................................................................................................................................... 72
Customer Information .................................................................................................................................................................................. 72
Consumer Protection Laws .......................................................................................................................................................................... 72
Product Warranty ........................................................................................................................................................................................ 73
Limitation of Liability ..................................................................................................................................................................................... 73
Contact......................................................................................................................................................................................... 74
www.netcommwireless.com
NetComm Wireless NF10W User Guide
5
v1.0
Overview
Introduction
This manual provides information related to the installation, operation, and use of the NF10W.
Target audience
The individual reading this manual is presumed to have a basic understanding of telecommunications terminology and concepts.
Prerequisites
Before continuing with the installation of your NF10W, please confirm that you meet the minimum system requirements below.
An activated ADSL/VDSL or pre-configured WAN connection.
A computer with a working Ethernet adapter or wireless 802.11b/g/n capability and the TCP/IP Protocol installed.
A current version of a web browser such as Internet Explorer®, Mozilla Firefox® or Google Chrome™.
Notation
The following symbols are used in this manual:
Indicates a note requiring attention.
Indicates a note providing a warning.
Indicates a note providing useful information.
www.netcommwireless.com
v1.0
Welcome
Thank you for purchasing a NetComm Wireless VDSL/ADSL WiFi Modem Router. This guide contains all the information you need to configure your device.
Product overview
Fully featured VDSL2 / ADSL2+ Modem Router
4 x 10/100 Fast Ethernet LAN ports for wired connections
1 x 10/100/1000 Gigabit Ethernet WAN port for connection to fibre services
Wireless N Access Point for multiple high speed WiFi connections
2 x USB host ports – supports two USB storage devices for file sharing
NBN ready: carefully developed hardware and software features to ensure this device is optimised for use on the National Broadband Network
IPv6 ready for the next generation IP addressing
WPS button for simple setup of your wireless network
Package contents
The NF10W package consists of:
1 x NetComm Wireless NF10W VDSL/ADSL WiFi Modem Router
1 x Quick Start Guide
1 x 1.5m RJ45 Ethernet cable
1 x RJ11 Telephone cable
1 x WiFi security card
1 x Warranty card
1 x Power supply (12V/1.5A)
If any of these items are missing or damaged, please contact NetComm Wireless Support immediately by visiting the NetComm Wireless Support website at: http://www.netcommwireless.com/contact-forms/support
www.netcommwireless.com
NetComm Wireless NF10W User Guide
7
v1.0
Product features
Featuring a VDSL2/ADSL2+ modem and a Gigabit WAN port, you can choose whether you connect to the Internet via DSL or a fibre service. If you don’t have a fibre connection, the Gigabit WAN port will have you protected should you choose to update in the future. With uncertainty around the future of the NBN, NetComm Wireless will have you covered should the network connection switch to VDSL.
This router also includes 2 x USB host ports that can be used to connect USB devices so that their capabilities can be shared with all connected users. Connect a USB hard drive so that all files stored can be accessed and shared.
All of these features can be shared with multiple users via the built-in wireless access point or the four Ethernet LAN ports. The high speed Wireless N provides a signal strong enough to penetrate the far corners of a house and can connect all WiFi enabled devices, such as laptops, smartphones, gaming consoles, tablets and PCs. The four Fast Ethernet ports provide a wired connection that can be used to connect desktop computers, media devices or any Ethernet equipped product.
Note: Maximum wireless signal rate and coverage values are derived from IEEE Standard 802.11g, and 802.11n specifications. Actual wireless speed and coverage are dependent on network and environmental conditions included but not limited to volume of network traffic, building materials and
.
construction/layout.
www.netcommwireless.com
v1.0
LED INDICATOR
ICON
COLOUR
DEFINITION
Power
Green
The NF10W is powered on and operating normally.
Off
The power is off.
DSL
Off
No DSL signal detected.
Green Blinking
Synching
Green
DSL synchronized.
Internet
Green
The NF10W is connected to an internet service.
Green Blinking
Data is being transmitted to or from the internet.
Off
The NF10W is not connected to the internet.
WAN
Green
A device is connected to the Ethernet WAN port.
Green Blinking
Data is being transmitted to or from the WAN.
Off
No device is connected to the Ethernet WAN port.
LAN 1-4
Green
A device is connected to the Ethernet LAN port.
Green Blinking
Data is being transmitted to or from the Ethernet LAN port.
Off
No device is connected to the Ethernet LAN port.
WiFi
Green
WiFi is enabled.
Green Blinking
Data is being transmitted to or from the Wireless interface.
Off
WiFi is disabled.
WPS
WPS
Green
WPS is enabled
Green Blinking
WPS pairing is triggered.
Off
WPS is disabled.
USB 1 - 2
Green
A USB hard drive is connected.
Green Blinking
Data is being transmitted through the USB interface.
Off
No USB hard drive is connected to the USB interface.
Physical dimensions and indicators
LED indicators
The NF10W has been designed to be placed on a desktop. All of the cables exit from the rear for easy organization. The display is visible on the front of the NF10W to provide you with information about network activity and the device status. See below for an explanation of each of the indicator lights.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
9
v1.0
LAN (MANAGEMENT)
Static IP Address
192.168.20.1
Subnet Mask
255.255.255.0
Default Gateway
192.168.20.1
WIRELESS (WIFI)
SSID
(Refer to the included Wireless Security Card)
Security
WPA2-PSK (AES)
Security Key
(Refer to the included Wireless Security Card)
NF10W WEB INTERFACE ACCESS
Username
admin
Password
admin
160 mm
117 mm
71mm
Physical Dimensions
The following page lists the physical dimensions of the NF10W. The length and width measurements were taken at the base where the dimensions are slightly larger.
Weight: approximately 260 grams
NF10W Default Settings
The following tables list the default settings for the NF10W.
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
NUMBER
INTERFACE
DESCRIPTION
1
Power supply jack
Connection point for the included power adapter. Connect the power supply here.
2
Power button
Press this button to turn the NF10W on or off.
3
Reset button
Reset unit to Default by holding the Reset button down for 3 seconds.
4
USB 2
Connect an external USB hard drive here to use the NAS feature of the NF10W.
5
Ethernet 1 - 4
Fast Ethernet LAN ports. Connect your Ethernet based devices to one of these ports for high­speed internet access.
6
WAN
Gigabit capable WAN port for connection to a WAN network.
7
DSL
Use the provided RJ-11 cable to connect the router to the telephone line operating your xDSL service.
1 3 6
4
5
2
7
Interfaces
Rear
The following interfaces are available on the NF10W:
www.netcommwireless.com
NetComm Wireless NF10W User Guide
11
v1.0
NUMBER
INTERFACE
DESCRIPTION
1
USB 1
Connect an external USB hard drive here to use the NAS feature of the NF10W.
2
WPS / WiFi buttons
Press the WPS button to activate the WPS pairing function. Press the WiFi button to turn the WiFi radio on or off. When the WiFi radio is off, the WiFi LED on the front panel turns off.
WPS feature is Disabled by default, to enabled refer to wireless setup.
1
2
Top
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
Safety and product care
Your router is an electronic device that sends and receives radio signals. Please take the time to read this list of precautions that should be taken when installing and using the router.
Do not disassemble the router. There are no user-serviceable parts.
Do not allow the router to come into contact with liquid or moisture at any time. To clean the device, wipe it with a damp cloth.
Do not restrict airflow around the device. This can lead to the device overheating.
Do not place the device in direct sunlight or in hot areas.
Transport and handling
When transporting the NF10W, it is recommended to return the product in the original packaging. This ensures that the product will not be damaged.
Note: In the event the product needs to be returned, ensure it is securely packaged with appropriate padding to prevent damage during courier transport.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
13
v1.0
Installation and configuration of the NF10W
Placement of your NF10W
The wireless connection between your NF10W and your WiFi devices will be strong when they are in close proximity and have direct line of sight. As your client device moves further away from the NF10W or solid objects block direct line of sight to the router, your wireless connection and performance may degrade. This may or may not be directly noticeable, and is greatly affected by the individual installation environment.
If you have concerns about your network’s performance that might be related to range or obstruction factors, try moving the
computer to a position between three to five meters from the NF10W in order to see if distance is the problem.
Note: While some of the items listed below can affect network performance, they will not prohibit your wireless network from functioning; if you are concerned that your network is not operating at its maximum effectiveness, this check list may help.
If you experience difficulties connecting wirelessly between your WiFi Devices and your NF10W, please try the following steps:
In multi-storey homes, place the NF10W on a floor that is as close to the centre of the home as possible. This may mean placing the NF10W on an upper floor.
Try not to place the NF10W near a cordless telephone that operates at the same radio frequency as the NF10W (2.4GHz).
Avoiding obstacles and interference
Avoid placing your NF10W near devices that may emit radio “noise,” such as microwave ovens. Dense objects that can inhibit wireless communication include:
Refrigerators
Washers and/or dryers
Metal cabinets
Large aquariums
Metallic-based, UV-tinted windows
If your wireless signal seems weak in some spots, make sure that objects such as those listed above are not blocking the signal’s path (between your devices and the NF10W).
Cordless phones
If the performance of your wireless network is impaired after considering the above issues, and you have a cordless phone:
Try moving cordless phones away from your NF10W and your wireless-enabled computers.
Unplug and remove the battery from any cordless phone that operates on the 2.4GHz band (check manufacturer’s
information). If this fixes the problem, your phone may be interfering with the NF10W.
If your phone supports channel selection, change the channel on the phone to the farthest channel from your wireless network. For example, change the phone to channel 1 and move your NF10W to channel 11. See your phone’s user manual for detailed instructions.
If necessary, consider switching to a 900MHz or 5GHz cordless phone.
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
Choosing the “quietest” channel for your wireless network
In locations where homes or offices are close together, such as apartment buildings or office complexes, there may be wireless networks nearby that can conflict with your wireless network. Your wireless adapter may include a utility to assist in scanning for the least congested network, otherwise you may be able to find another piece of software that can be used. These tools display a graphical representation of the wireless networks in range and the channels on which they are operating. Try to find a channel which is not as busy and does not overlap with another one. Channels 1, 6 and 11 are the only channels which do not overlap with one another and you should ideally choose one of these channels. Experiment with more than one of the available channels, in order to find the clearest connection and avoid interference from neighbouring cordless phones or other wireless devices.
Hardware installation
1. Connect the power adapter to the Power socket on the back of the NF10W.
2. Plug the power adapter into the wall socket and switch on the power.
3. Wait approximately 60 seconds for the NF10W to power up.
Connecting a client via Ethernet cable
4. Connect the yellow Ethernet cable provided to one of the ports marked ‘LAN’ at the back of the NF10W.
5. Connect the other end of the yellow Ethernet cable to your computer.
6. Wait approximately 30 seconds for the connection to establish.
7. Open your Web browser, and enter http://192.168.20.1 into the address bar and press enter.
8. Follow the steps to set up your NF10W.
Connecting a client wirelessly
1. Ensure WiFi is enabled on your device (e.g. computer/laptop/smartphone).
2. Scan for wireless networks in your area and connect to the network name that matches the Wireless network name
configured on the NF10W.
Note: Refer to the included Wireless Security Card for the default SSID and wireless security key of your NF10W
3. When prompted for your wireless security settings, enter the Wireless security key configured on the NF10W.
4. Wait approximately 30 seconds for the connection to establish.
5. Open your Web browser, and enter http://192.168.20.1 into the address bar and press Enter.
6. Follow the steps to set up your NF10W.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
15
v1.0
Web based configuration interface
First-time setup wizard
Please follow the steps below to configure your NF10W Wireless router via the web based configuration wizard.
1. Open a web browser and type http://192.168.20.1/ into the address bar at the top of the window.
2. At the login screen, type admin in the username and password field, then click the Login button.
admin
Note:
3. Click on the Basic Setup menu item on the left side of the screen.
is the default username and password for the unit.
ADSL
a) Select ADSL and click the Next button.
b) Select either the PPPoE or PPPoA for your internet connection as specified by your Internet Service Provider (ISP). Click
the Next button.
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
c) In the User ID and Password fields, enter the username and password assigned to you by your Internet Service Provider
(ISP). Click the Finish button.
The account settings are saved and the NF10W connects to the internet.
VDSL
a) Select VDSL and click the Next button. b) Select the WAN mode for your internet connection as specified by your Internet Service Provider (ISP). Click the Next
button.
For New Zealand customers, the requirement for VDSL is VLAN tag 10, if you are not sure of the tagging requirement for
your connection, please contact your ISP.
In the User ID and Password fields, enter the username and password assigned to you by your Internet Service Provider
(ISP).
Click the Finish button when you have entered the required details.
Ethernet WAN
a) Connect an RJ45 Ethernet cable to the WAN port on the NF10W. Connect the other end of the cable to your WAN
service.
b) Select Ethernet WAN then click the Next button.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
17
v1.0
b) Select the WAN mode for your internet connection as specified by your Internet Service Provider (ISP). Click the Next
button.

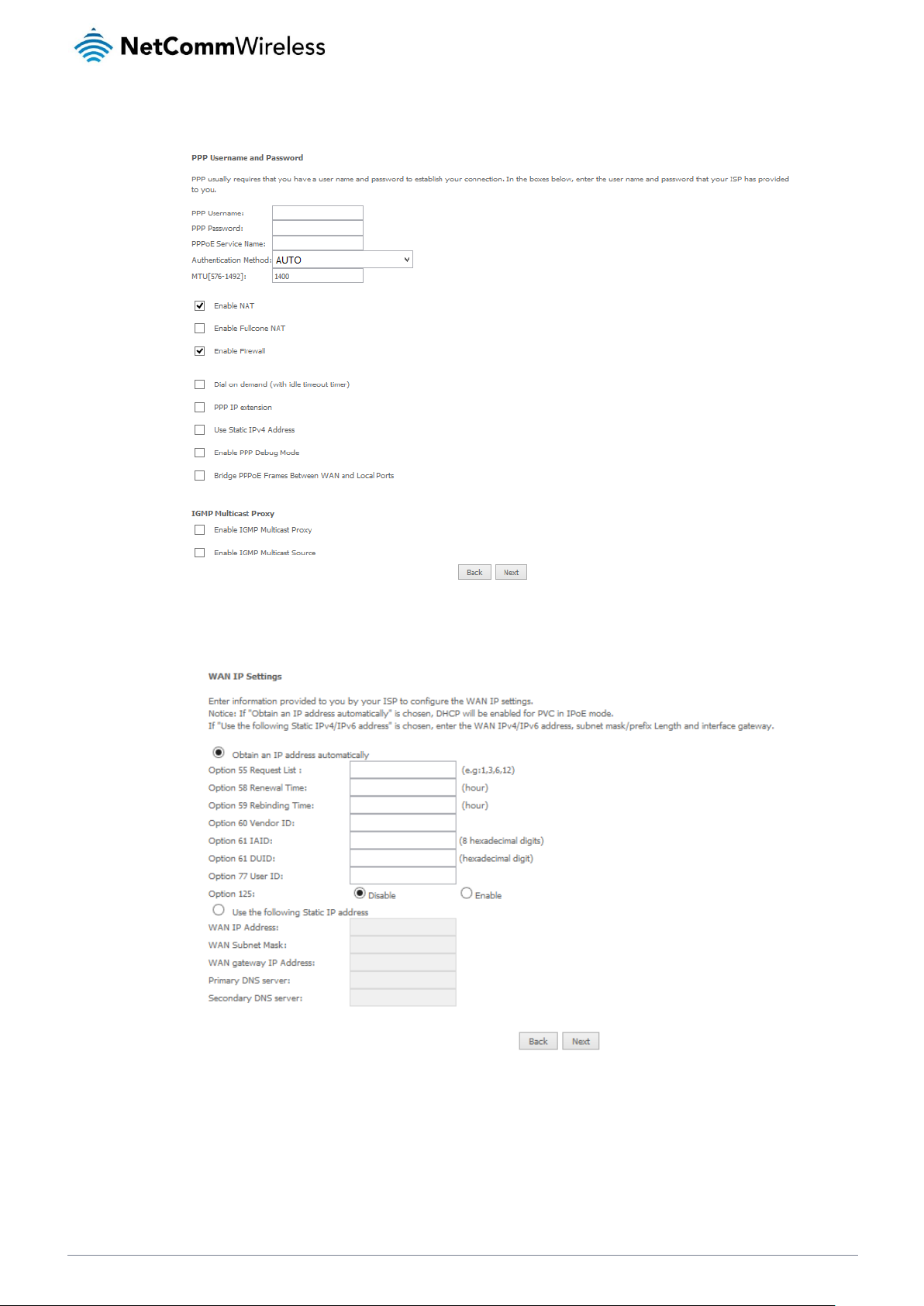

PPP over Ethernet (PPPoE)
In the User ID and Password fields, enter the username and password assigned to you by your Internet Service Provider
(ISP). Click the Finish button when you have entered the required details.
IP over Ethernet (IPoE)
If your ISP has supplied a static IP address, select Use the following Static IP address and enter the details, otherwise
select Obtain an IP address automatically. Click the Next button.
The settings are displayed in a summary. Click Apply/Save to save them.
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
ITEM
DEFINITION
Device Info
Manufacturer
Indicates that NetComm Wireless is the manufacturer of this product.
Product Class
The model of the product.
Serial Number
The unique set of numbers assigned to the routers for identification purposes.
Build Timestamp
The date and time that the software running on the router was published.
Software Version
The current firmware version installed on the router.
Bootloader (CFE) Version
The current boot loader installed on the router.
DSL PHY and Driver Version
The driver version of the on-board DSL chip.
VDSL PROFILE
The VDSL profile in use. Supports 8a, 8b, 12a and 17a VDSL profiles.
DSL PHY and Driver Version
The current line driver installed on the router.
Wireless Driver Version
The current wireless driver installed on the router.
Uptime
The number of days, hours and minutes that the router has been running.
WAN connection
Line Rate – Upstream (Kbps)
The current upstream speed of the DSL connection in Kbps.
Line Rate – Downstream (Kbps)
The current upstream speed of the DSL connection in Kbps.
LAN IPv4 Address
The current version 4 LAN IP address assigned to the router.
Service connection type
Displays whether the WAN connection is ADSL/VDSL or Ethernet WAN.
Default Gateway
The current default gateway of the WAN interface.
Primary DNS Server
The current primary DNS server in use
Secondary DNS Server
The current secondary DNS server is use.
LAN IPv6 ULA Address
The current IPv6 LAN IP address in use if assigned.
Default IPv6 Gateway
The current IPv6 default gateway if assigned.
Date/Time
The current date and time set on the router.
Device Info
Summary
When you log in to the router, the Device Info Summary page is displayed, giving a general overview of the status of the router and the WAN connection.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
19
v1.0
ITEM
DEFINITION
Interface
The Interface of the WAN connection.
Description
The description of the WAN connection.
Type
The type of WAN connection.
VLAN Mux ID
Details the status of VLAN Mux ID if used.
IPv6
The status of IPv6.
IGMP Pxy
Details the status of IGMP on each WAN connection. IGMP is only used with IP v4 connections. IGMP proxy enables the router to issue IGMP host messages on behalf of hosts that the router discovered through standard IGMP interfaces, allowing NAT transversal of Multicast traffic.
IGMP Src Enbl
Details the status of IGMP Src on each WAN connection. IGMP Sources function send a membership report that includes a list of IGMP source addresses.
MLD Pxy
Shows the status of the Multicast Listener Discovery protocol when IPv6 is in use. Multicast Listener Discovery (MLD) proxy enables the router to issue MLD host messages on behalf of hosts that the router discovered through standard MLD interfaces.
MLD Src Enbl
Details the status of MLD Src on each WAN connection. MLD Sources function can send a membership report that includes a list of MLD source addresses.
NAT
The NAT status of the WAN connection.
Firewall
The status of the router firewall across the WAN connection.
Status
The status of the WAN connection.
IPv4 Address
The current IP v4 address of the WAN connection.
IPv6 Address
The current IP v6 address of the WAN connection.
INTERFACE
DESCRIPTION
Received/Transmitted
Bytes
Rx/Tx (receive/transmit) packets in bytes.
Packets
Rx/Tx (receive/transmit) packets.
Errors
Rx/Tx (receive/transmit) packets with errors.
Drops
Rx/Tx (receive/transmit) packets with drops.
WAN
The WAN page shows more detailed information related to the WAN interface configuration, including the firewall status, IPv4 and IPv6 addresses of the router.
Statistics
LAN
The Statistics – LAN page shows detailed information about the number of bytes, packets, errors and dropped packets on each LAN interface in both directions of communication.
Statistics – WAN Service
The Statistics – WAN Service page shows detailed information about the number of bytes, packets, errors and dropped packets on the WAN interface in both directions of communication.
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
INTERFACE
DESCRIPTION
Received/Transmitted
Bytes
Rx/Tx (receive/transmit) packets in bytes.
Packets
Rx/Tx (receive/transmit) packets.
Errors
Rx/Tx (receive/transmit) packets with errors.
Drops
Rx/Tx (receive/transmit) packets with drops.
INTERFACE
DESCRIPTION
Port Number
The port number used by the xTM interface.
In Octets
The number of data packets in octets received over the ATM interface.
Out Octets
The number of data packets in octets transmitted over the ATM interface.
In Packets
The number of data packets received over the ATM interface.
Out Packets
The number of data packets transmitted over the ATM interface.
In OAM Cells
Operation, Administration, and Maintenance (OAM) Cell is the ATM Forum specification for cells used to monitor virtual circuits.
Out OAM Cells
Operation, Administration, and Maintenance (OAM) Cell is the ATM Forum specification for cells used to monitor virtual circuits.
In ASM Cells
The number of Any Source Multicast (ASM) cells received over the interface.
Out ASM Cells
The number of Any Source Multicast (ASM) cells transmitted over the interface.
In Packets Errors
The number of packets with errors detected over the xTM interface.
In Cell Errors
The number of cells with errors detected over the xTM interface.
Statistics – xTM
The Statistics – xTM page shows details related to the xTM interface of the router.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
21
v1.0
Statistics – xDSL
The Statistics – xDSL page shows details related to the DSL interface of the router.
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
Route
The Route page displays any routes that the router has created.
ARP
Click ARP to display the address resolution protocol information.
This option can be used to determine which IP address / MAC address is assigned to a particular host. This can be useful when setting up URL filtering, Time of Day filtering or Static DHCP addressing.
DHCP
Click DHCP to display the DHCP lease information.
You can use this to determine when a specific DHCP lease will expire, or to assist you with setting up Static DHCP addressing.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
23
v1.0
FIELD
DESCRIPTION
Interface
This field shows the interface name.
VPI
This field shows the Virtual Path Identifier (VPI) value. For most Australia connections the VPI is 8, for most new Zealand connections the VPI is 0. Please refer to your ISP for correct value.
VCI
This field shows the Virtual Channel Identifier (VCI) value. For most Australia connections the VCI is 35, for most new Zealand connections the VCI is 100. Please refer to your ISP for correct value.
DSL Latency
The value of the DSL Latency.
Category
This field shows the ATM service classes.
Peak Cell Rate (cell/s)
The maximum number of cells that may be transferred per second over the ATM interface.
Sustainable Cell Rate (cell/s)
An average, long-term cell transfer rate on the ATM interface.
Max Burst Size (bytes)
The maximum allowable burst size of cells that can be transmitted contiguously on the ATM interface.
Min Cell Rate (cell/s)
The minimum allowable rate at which cells may be transferred on the ATM interface.
Link Type
This field shows the type of link in use.
Connection Mode
This field shows the selected mode of connection.
IP QoS
This field shows the status of the Quality of Service (QoS) function.
MPAAL Prec/Alg/Wght
This displays data related to load balancing.
Remove
Select this field to remove the ATM configuration.
Advanced Setup
Layer2 Interface
ATM Interface
The ATM (Asynchronous Transfer Mode) interface page shows the settings of all available DSL ATM interfaces. ATM interface is used for ADSL connections.
To add an ATM interface, click the Add button. Enter the details as required by your Internet Service Provider and click the Apply/Save button.
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
PTM Interface
The router can also establish DSL connections using PTM (Packet Transfer Mode). This page shows you an overview of the PTM interfaces and allows you to add or remove them. PTM interface is used for VDSL connections.
Click the Add button to create a new PTM interface. Enter the details as required by your Internet Service Provider and click the Apply/Save button.
ETH Interface
The ETH interface page allows you to add or remove ETH WAN interfaces.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
25
v1.0
WAN Service
The WAN Service page displays the current Wide Area Network service setup and allows you to configure the router to connect to a larger network for Internet access. WAN service require a preconfigured Layer 2 interface, be it ATM/PTM or Ethernet WAN.
To add a WAN service, click the Add button. Use the drop down list to select the layer 2 interface to use for the WAN service and click the Next button.
Select a WAN service type, enter a Service Description, enter the 802.1P Priority and 802.1 VLAN ID then click the Next button. To disable VLAN tagging, place input value of -1. Refer to your ISP for VLAN information as required by your Internet Service Provider.
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
PPP over Ethernet
Enter the details as required by your Internet Service Provider and click the Next button.
IP over Ethernet
Enter the details as required by your Internet Service Provider and click the Next button.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
27
v1.0

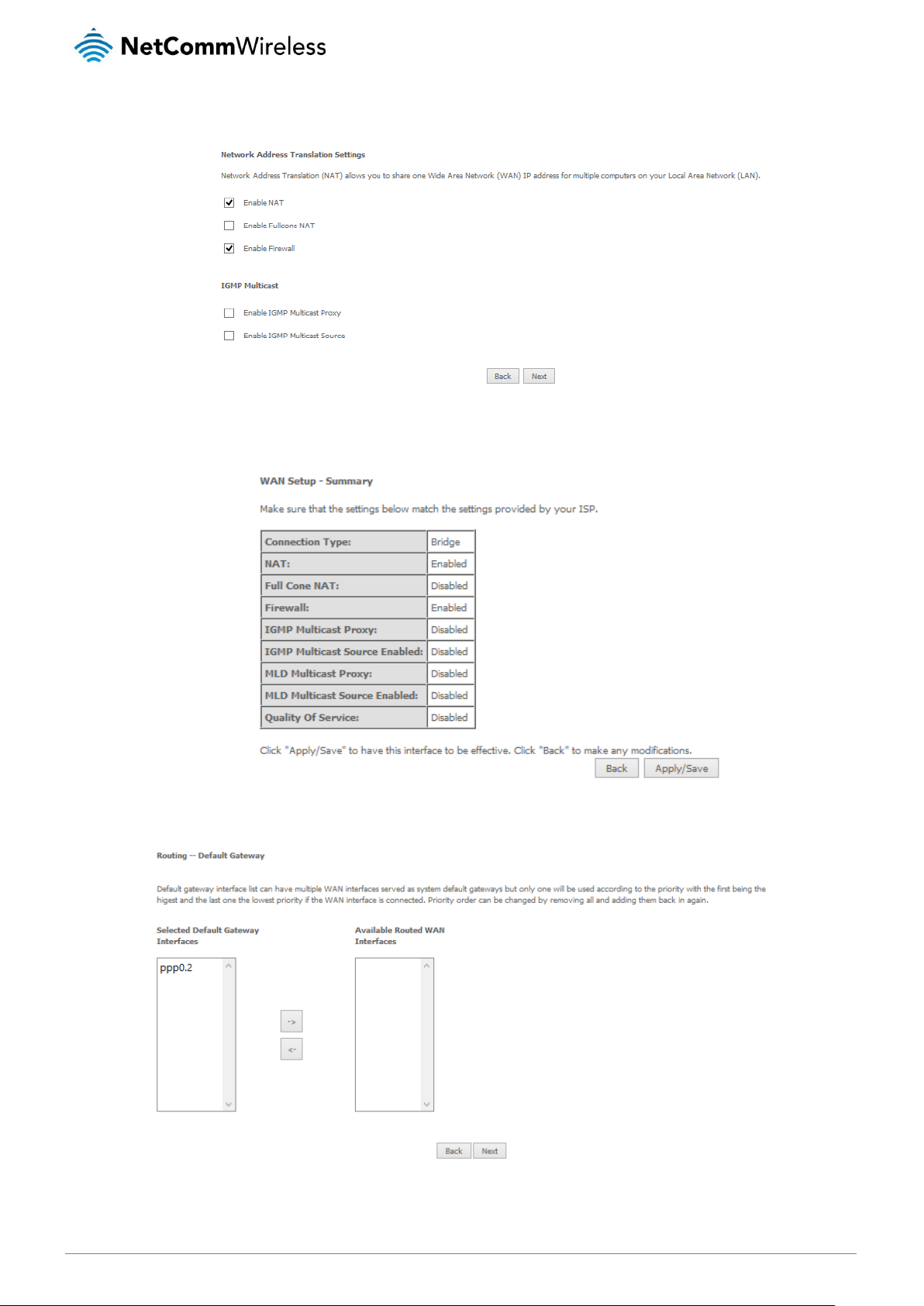

Select the NAT Translation settings as desired and click the Next button.
Bridging
When you select bridging mode, a summary of the settings is displayed. Click Apply/Save to commit the settings.
Use the arrow buttons to move the interfaces required to the list on the left. Click Next.
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
Use the arrow buttons to move the interfaces required as DNS Server interfaces to the left. The interface highest on the list has the highest priority as a DNS server. Click Next to continue.
A summary of your settings is displayed. Click Apply/Save to commit your settings to the router.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
29
v1.0
PARAMETER
DEFINITION
IP Address
Enter the Local IP Address to use for the NF10W.
Subnet Mask
Enter the subnet mask of the Local Network.
Enable IGMP Snooping
Enable IGMP Snooping and select the IGMP Snooping mode to use. Standard: allow all multicast traffic to LAN clients. Blocking: only allow multicast subscribed clients to receive multicast packets.
Enable LAN side Firewall
Enable the LAN side firewall to restrict traffic between LAN hosts.
Enable DHCP Server
Select to enable or disable the DHCP server and enter the start and end address for the DHCP IP Address pool.
Enable DHCP Server Relay
Disabled DHCP server, and relay all request to external server specified by the IP address.
Configure the second IP Address
This option enables you to set a secondary IP Address for the NF10W

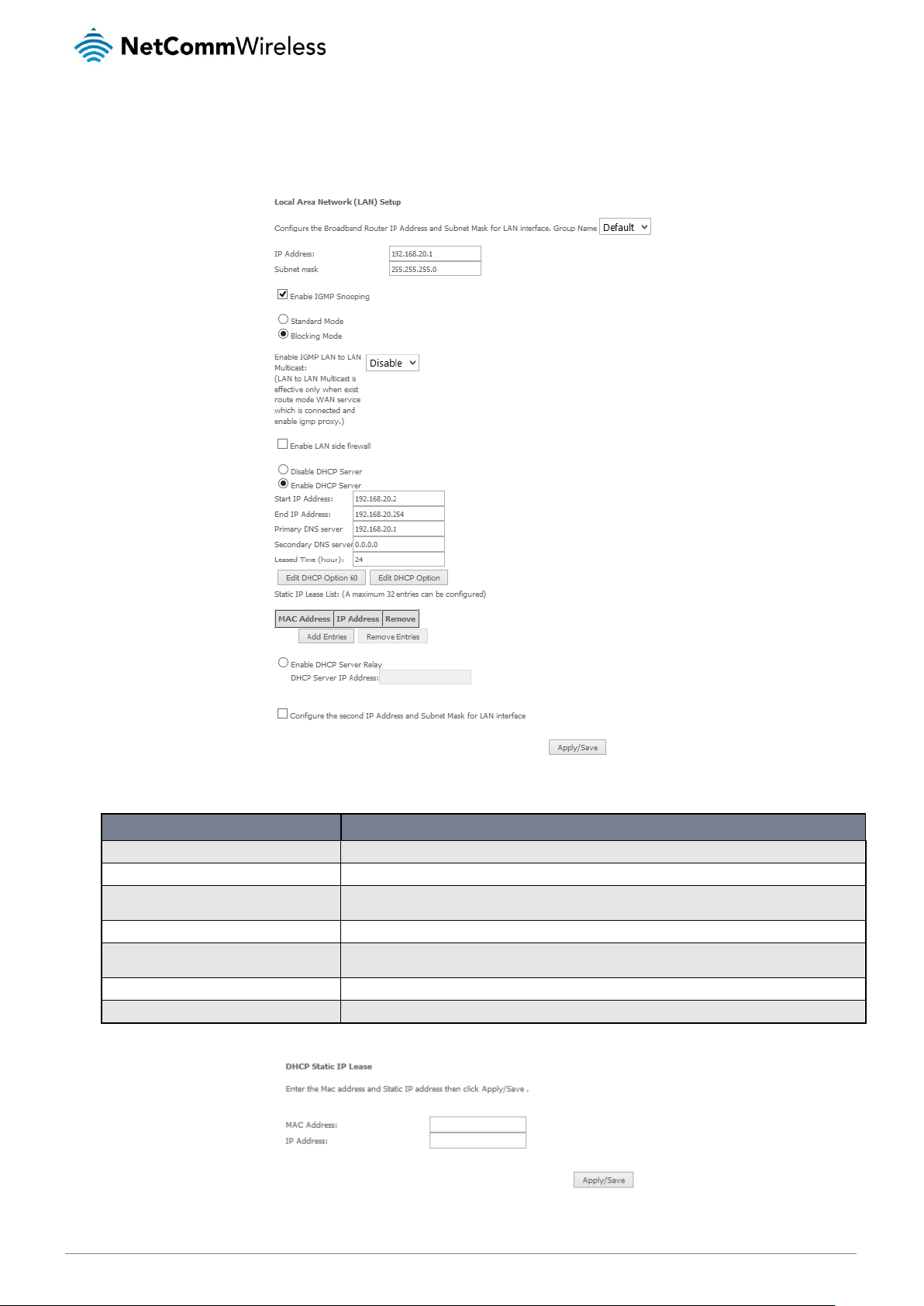

LAN
IPv4 Autoconfig
The LAN window allows you to modify the settings for your local area network (LAN).
The following options are available to configure:
You can also reserve DHCP Addresses for specific hosts as shown below:
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
OPTION
DEFINITION
Enable Unique Local Addresses and Prefix Advertisement
Enable the use of unique local addresses. The router will advertise the IPv6 prefix to new devices on the network.
Randomly Generate
Randomly generates the unique local addresses and the prefix.
Statically Configure
Enter a static IPv6 address for the router if one has been assigned to you by your Internet Service Provider.
IPv6 LAN Applications
Enable IPv6 DHCP server
Enable DHCPv6 Server and RADVD
The Router Advertisement Daemon (radvd) is an open-source software product that implements link-local advertisements of IPv6 router addresses and IPv6 routing prefixes using the Neighbor Discovery Protocol (NDP) as specified in RFC 2461. The Router Advertisement Daemon is used by system administrators in stateless auto-configuration methods of network hosts on Internet Protocol version 6 networks.
When IPv6 hosts configure their network interfaces, they broadcast router solicitation (RS) requests onto the network to discover available routers. The radvd software answers requests with router advertisement (RA) messages. In addition, radvd periodically broadcasts RA packets to the attached link to update network hosts. The router advertisement messages contain the routing prefix used on the link, the link maximum transmission unit (MTU), and the address of the responsible default router.
Stateless
IPv6 hosts can configure themselves automatically when connected to a routed IPv6 network using Internet Control Message Protocol version 6 (ICMPv6) router discovery messages. This type of configuration is suitable for small organizations and individuals. It allows each host to determine its address from the contents of received user advertisements. It makes use of the IEEE EUI-64 standard to define the network ID portion of the address.
Stateful
This configuration requires some human intervention as it makes use of the Dynamic Host Configuration Protocol for IPv6 (DHCPv6) for installation and administration of nodes over a network. The DHCPv6 server maintains a list of nodes and the information about their state to know the availability of each IP address from the range specified by the network administrator.
Enable MLD Snooping
Select whether to enable or disable MLD Snooping on the router. The Multicast Listener Discovery (MLD) snooping function constrains the flooding of IPv6 multicast traffic on VLANs on the router.
To set a DHCP reservation, enter the MAC Address of the chosen host and IP to use and then click Apply/Save. The NF10W enables you to set the DHCP options which are provided to hosts attempting to connect to the DHCP server.
These options should not normally need to be set or changed. Click Apply/Save to save the new LAN configuration settings.

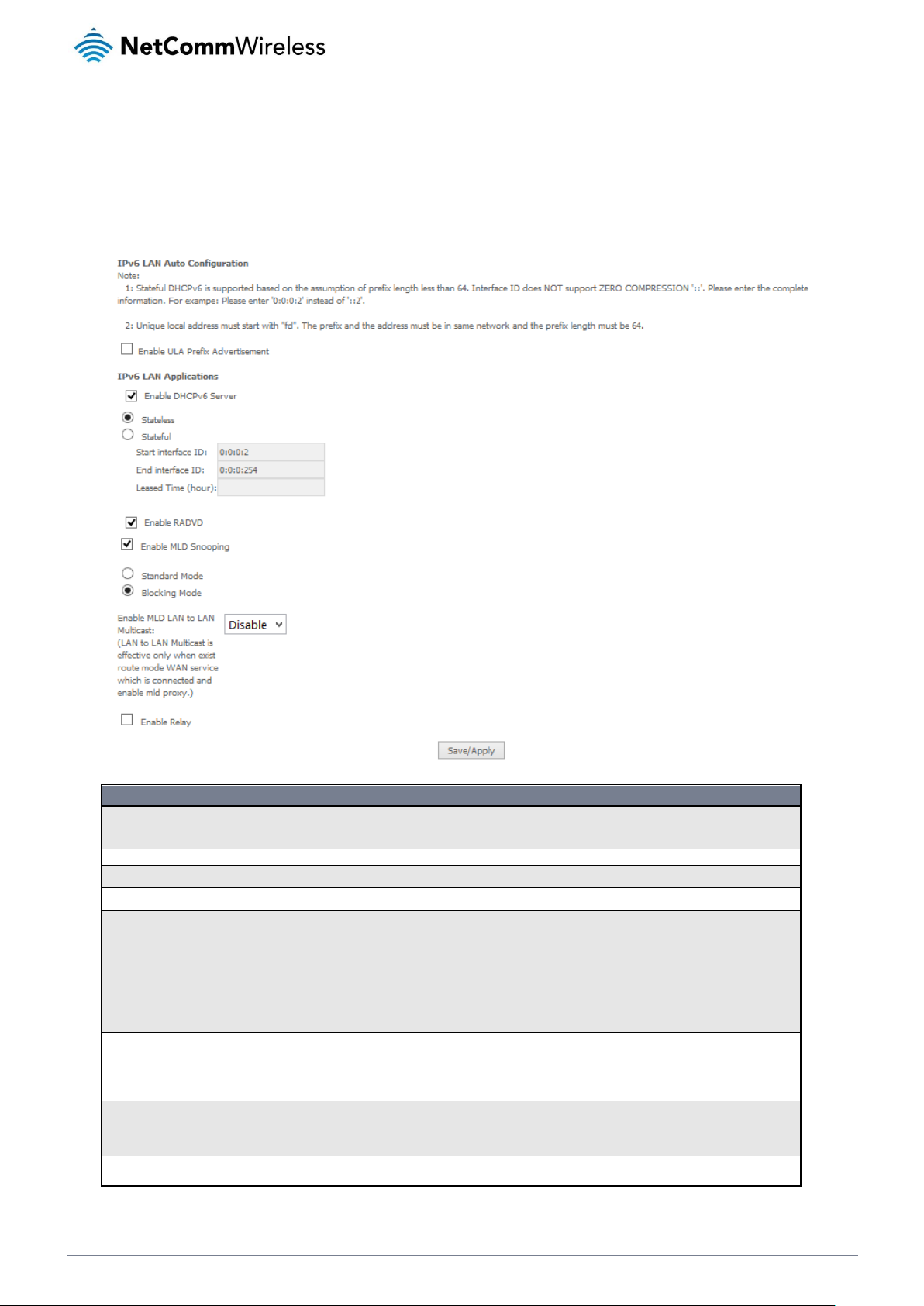

IPv6 Autoconfig
The IPv6 LAN Auto Configuration page allows you to configure settings pertaining to the IPv6 DHCP server.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
31
v1.0
LAN VLAN Setting
This page allows you to specify a LAN port to apply VLAN tagging to.
Select the LAN port using the drop down menu, then click the Add button. Enter the VLAN ID and in the Pbits field, enter a value from 0-7 indicating the priority bits that dictates the priority of the VLAN. Click Apply/Save when you have finished.
NAT
Virtual Servers
A virtual server allows you to direct incoming traffic from the WAN side to the Internal server with a private IP address on the LAN side.
Click the Add button to add a virtual server.
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
FIELD
DESCRIPTION
Select a Service or custom Server
Select a pre-configured port forwarding rule or choose custom server to create your own port forwarding rule.
Server IP Address
Enter the IP address of the local server.
External Port Start
Enter the starting external port number (when custom server is selected). When a service is connected this field will be completed automatically.
External Port End
Enter the ending external port number (when custom server is selected). When a service is connected this field will be completed automatically.
Protocol
Options include TCP, UDP or TCP/UDP.
Internal Port Start
Enter the starting internal port number (when custom server is selected). When a service is connected this field will be completed automatically.
Internal Port End
Enter the ending internal port number (when custom server is selected). When a service is connected this field will be completed automatically.
Click Save/Apply to save your settings when you have finished creating virtual servers.
Port Triggering
Some applications require specific ports in the Router’s firewall to be open for access by remote parties. Port Triggering opens up the ‘Open Ports’ in the firewall when an application on the LAN initiates a TCP/UDP connection to a remote party using the ‘Triggering Ports’.
The Router allows the remote party from the WAN side to establish new connections back to the application on the LAN side using the ‘Open Ports’. A maximum 32 entries can be configured.
To add a Trigger Port, press the Add button.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
33
v1.0
FIELD
DESCRIPTION
Select an Application or Custom Application
A user can select a pre-configured application from the list or select the Custom Application option to create custom application settings.
Trigger Port Start
Enter the starting trigger port number (when you select Custom Application). When an application is selected the port range values are automatically entered.
Trigger Port End
Enter the ending trigger port number (when you select Custom Application). When an application is selected the port range values are automatically entered.
Trigger Protocol Options include TCP, UDP or TCP/UDP.
Open Port Start
Enter the starting open port number (when you select Custom Application). When an application is selected the port range values are automatically entered.
Open Port End
Enter the ending open port number (when you select Custom Application). When an application is selected the port range values are automatically entered.
Open Protocol
Options include TCP, UDP or TCP/UDP.
DMZ Host
The NF10W will forward IP packets from the Wide Area Network (WAN) that do not belong to any of the applications configured in the Virtual Servers table to the DMZ host computer.
Enter the computer’s IP address and click Apply to activate the DMZ host. To deactivate the DMZ Host function clear the IP address field and press the Save/Apply button.
ALG
The Application Layer Gateway (ALG) is a feature which enables the router to parse application layer packets and support address and port translation for certain protocols. We recommend that you leave these protocols enabled unless you have a specific reason for disabling them.
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
PARAMETER
DEFINITION
Filter Name
Enter a name to identify the filtering rule.
IP Version
Select the IP version to apply the filter to.
Protocol
Select the protocol type to block
Source IP Address/Subnet Mask
Enter the IP Address of the PC on the LAN to block
Source Port
Enter the port number used by the application to block
Destination IP Address/Subnet Mask
Enter the IP Address of the Remote Server to which connections should be blocked
Destination Port
Enter the destination port number used by the application to block
Security
IP Filtering
The router supports IP Filtering which allows you to easily set up rules to control incoming and outgoing Internet traffic. The router provides two types of IP filtering: Outgoing IP Filtering and Incoming IP Filtering.
Outgoing IP Filtering
By default, the router allows all outgoing Internet traffic from the LAN but by setting up Outgoing IP Filtering rules, you can block some users and/or applications from accessing the Internet.
To delete the rule, click Remove checkbox next to the selected rule and click Remove.
To create a new outgoing IP filter, click Add. The Add IP Filter-Outgoing page will be displayed.
Enter the following parameters:
Click Apply/Save to take effect the settings. The new rule will then be displayed in the Outgoing IP Filtering table list.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
35
v1.0
PARAMETER
DEFINITION
Filter Name
Enter a name to identify the filtering rule
IP Version
Select the IP version to apply the filter to
Protocol
Select the protocol type to allow
Source IP Address/Subnet Mask
Enter the IP Address of the Remote Server from which to allow connections
Source Port
Enter the port number used by the application to allow
Destination IP Address/Subnet Mask
Enter the IP Address of the PC on the LAN to which connections should be allowed
Destination Port
Enter the destination port number used by the application to allow
WAN Interface
Select the WAN Interface to apply the filter to
Incoming IP Filtering
By default, when NAT is enabled, all incoming IP traffic from WAN is blocked except for responses to requests from the LAN. However, some incoming traffic from the Internet can be accepted by setting up Incoming IP Filtering rules.
To delete the rule, click Remove checkbox next to the selected rule and click Remove.
To create a new incoming IP filter, click Add. The Add IP Filter-Incoming page will be displayed.
Enter the following parameters:
Click Save/Apply to take effect the settings. The new rule will then be displayed in the Incoming IP Filtering table list.
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
MAC Filtering
The NF10W offers the ability to use MAC Address filtering on ATM PVCs. You can elect to block or allow connections based on MAC Address criteria. The default policy is to allow connections which match the criteria.
Click Add to enter a new MAC Address filter.
1. Enter the Protocol type to which the filter should apply.
2. Enter the Source and Destination MAC Address
3. Enter the direction of the traffic to filter
4. Select the WAN interface to which the filter should apply.
Click Apply/Save to save the new MAC filtering configuration.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
37
v1.0
FIELD
DESCRIPTION
Rule Name
A user defined name for the time restriction rule.
Browser’s MAC Address
The MAC address of the network card of the computer running the browser.
Other MAC Address
The MAC address of a second LAN device or network card.
Days of the Week The days of the week for which the rules apply.
Start Blocking Time
The time of day when the restriction starts.
End blocking time
The time of day when the restriction ends.
Parental Control
The Parental Control feature allows you to take advanced measures to ensure the computers connected to the LAN are used only when and how you decide.
Time Restriction
This Parental Control function allows you to restrict access from a Local Area Network (LAN) connected device to an outside network through the router on selected days and at certain times. Make sure to activate the Internet Time server synchronization as described in the SNTP section, so that the scheduled times match your local time.
Figure 1: Advanced - Parental Control – Time Restriction
To add a time restriction rule, press the Add button. The following screen appears.
Figure 2: Advanced - Parental Control - Add Time Restriction
See the instructions below. Press the Apply/Save button to save a time restriction rule.
Table 2: Advanced - Parental Control - Add Time Restriction Settings
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
URL Filter
With the URL filter, you are able to add certain websites or URLs to a safe or blocked list. This will provide you added security to ensure any website you deem unsuitable will not be able to be seen by anyone who is accessing the Internet via the NF10W.
Select the ‘To block’ or ‘To allow’ option and then click Add to enter the URL you wish to add to the URL Filter list.
Figure 3: Advanced - Parental Control - URL Filter
Once you have chosen to add a URL to the list you will be prompted to enter the address. Simply type it in and select the Apply/Save button.
Figure 4: Advanced - Parental Control - Add URL Filter
www.netcommwireless.com
NetComm Wireless NF10W User Guide
39
v1.0
Quality of Service
Quality of Service offers a defined level of performance in a data communications system - for example the ability to guarantee that video traffic is given priority over other network traffic to ensure that video streaming is not disrupted by other network traffic. This means that if you are streaming video and someone else in the house starts downloading a large file, the download won’t disrupt the flow of video traffic.
Figure 5: Advanced - Enable QoS
To enable QoS select the Enable QoS checkbox, and set the Default DSCP (Differentiated Services Code Point) Mark. Then press the Apply/Save button.
QoS Queue
Figure 6: Advanced - QoS Queue Setup
Click the Add button to add a QoS Queue. The following screen is displayed.
The above screen allows you to configure a QoS queue entry and assign it to a specific network interface. Each of the queues can be configured for a specific precedence. The queue entry configured here will be used by the classifier to place ingress packets appropriately.
NOTE: Precedence level 1 relates to higher priority while precedence level 3 relates to lower priority.
Figure 7: Advanced - QoS - Add QoS Queue
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
The QoS Wlan Queue page displays a summary of the QoS configuration.
QoS Classification
Click the Add button to configure network traffic classes.
The above screen creates a traffic class rule to classify the upstream traffic, assign queuing priority and optionally overwrite the IP header TOS (type of service) byte. A rule consists of a class name and at least one condition. All of the specified conditions in this classification rule must be satisfied for the rule to take effect.
Click the Apply/Save button to save and activate the rule.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
41
v1.0
Routing
The Default Gateway, Static Route, Policy Routing and Dynamic Route settings can be found in the Routing option of the Advanced menu.
Default Gateway
Select your preferred WAN interface from the available options.
Static Route
The Static Route screen displays the configured static routes. Click the Add or Remove buttons to change settings.
To add a static route rule click the Add button. The following screen is displayed.
Enter the Destination Network Address, Subnet Mask, Gateway IP Address and/or WAN Interface. Then click Apply/Save to add the entry to the routing table.
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
FIELD
DESCRIPTION
Policy Name
A user defined name for the policy route.
Physical LAN Port
The LAN port to be used for the policy.
Source IP
The IP address of the LAN device involved with the policy.
Use Interface Select the Interface that the policy will employ.
Default Gateway
Enter the gateway address.
Policy Routing
This function allows you to add policy rules to certain situations.
Click the Add button to add a policy rule. The following screen is displayed.
Figure 8: Advanced - Routing - Add Policy Route
Enter the details into the provided fields. The table below describes each field.
RIP (Routing Information Protocol)
To activate this option, select the Enabled checkbox. To configure an individual interface, select the desired RIP version and operation, and select the Enabled checkbox for that interface. Click Apply/Save to save the configuration.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
43
v1.0
DNS
DNS Server
This page allows you to enable automatic DNS settings detected from the Internet Service Provider or specify your own DNS server address manually.
Dynamic DNS
The Dynamic DNS service allows a dynamic IP address to be aliased to a static hostname in any of a selection of domains, allowing the router to be more easily accessed from various locations on the internet. You will require a Dynamic DNS subscription from a Dynamic DNS provider.
Note: The Add/Remove buttons will be displayed only if the router has been assigned an IP address from the remote server.
To add a dynamic DNS service, click the Add button and the following screen will display.
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
FIELD
DESCRIPTION
D-DNS Provider
Select the dynamic DNS provider from the list.
Hostname
The name of the dynamic DNS provider.
Interface
Select the interface from the list.
Username Enter the Dynamic DNS account username.
Password
Enter the Dynamic DNS account password.
Table 3: Advanced - DNS - Add Dynamic DNS Account Settings
DSL
This page allows the user to modify the DSL modulation settings on the unit. By changing the settings, you can specify which DSL modulation that the modem will use.
For advanced DSL options press the Advanced Settings button.
The DSL advanced settings relate to test mode settings. The default selection is ‘Normal’.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
45
v1.0

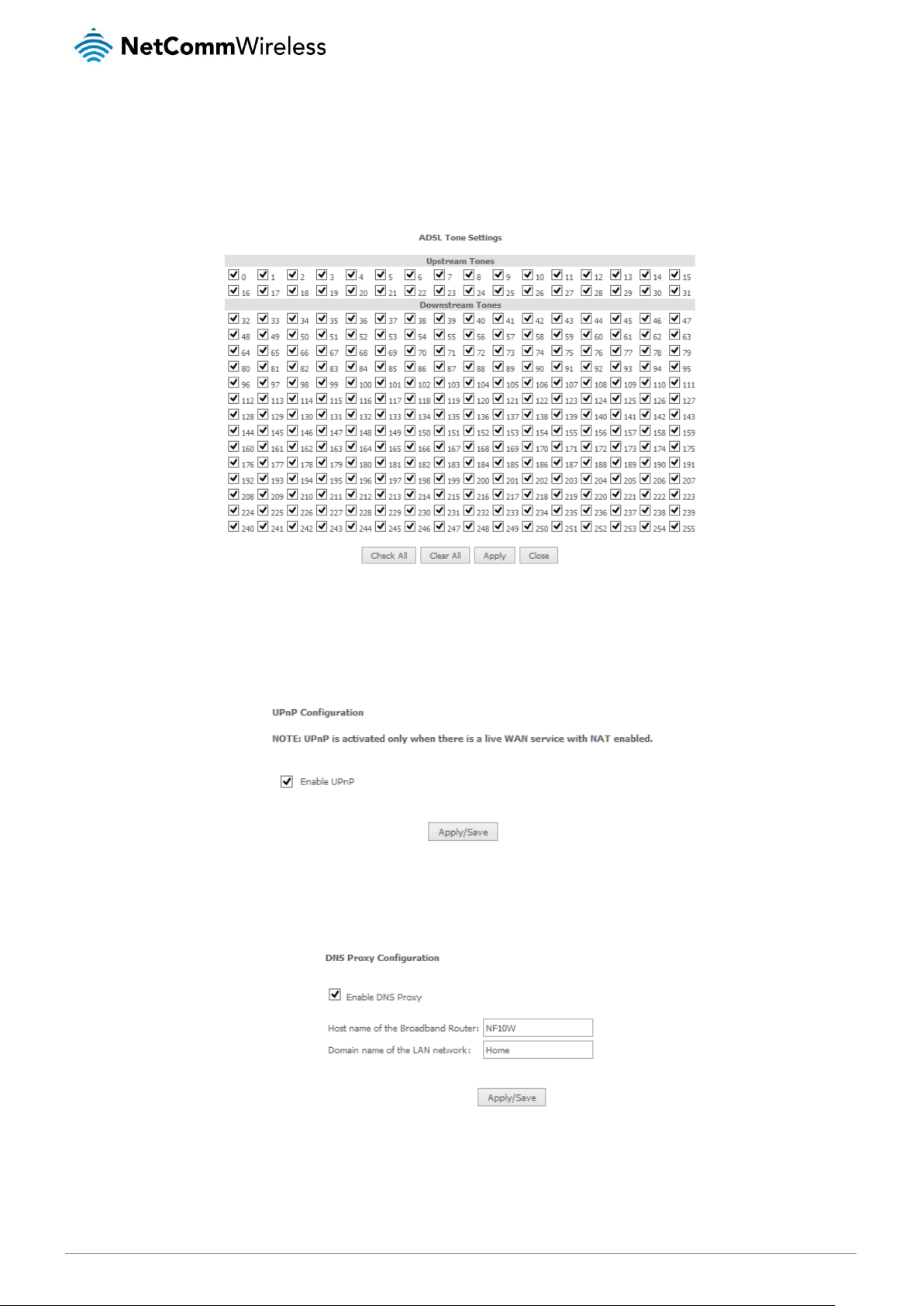

ADSL Tone Settings
For ADSL Tone Settings select the ‘Tone Selection’ button on the DSL Advanced Settings page.
The frequency band of ADSL is split up into 256 separate tones, each spaced 4.3125kHz apart. With each tone carrying separate data, the technique operates as if 256 separate routers were running in parallel. The tone range is from 0 to 31 for upstream traffic and from 32 to 255 for downstream traffic. Do not change these settings unless you are directed by your Internet Service Provider.
UPnP
Universal Plug and Play (UPnP) is a set of networking protocols that can allow networked devices, such as computers, printers, WiFi access points and mobile phones to automatically detect each other's presence on the network and establish functional network services for data sharing, communications, and entertainment. UPnP allow automatic port forwarding configuration form your UPnP devices.
DNS Proxy
To enable DNS Proxy settings, select the corresponding checkbox and then enter the Host and Domain name, as in the example shown below. Click Apply/Save to continue.
The Host name and Domain name are combined to form a unique label that is mapped to the router IP address. This can be used to access the user interface of the router with a local name rather than by using the router IP address. Eg. You can access your router by entering http://NF10W into your web browser.
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0

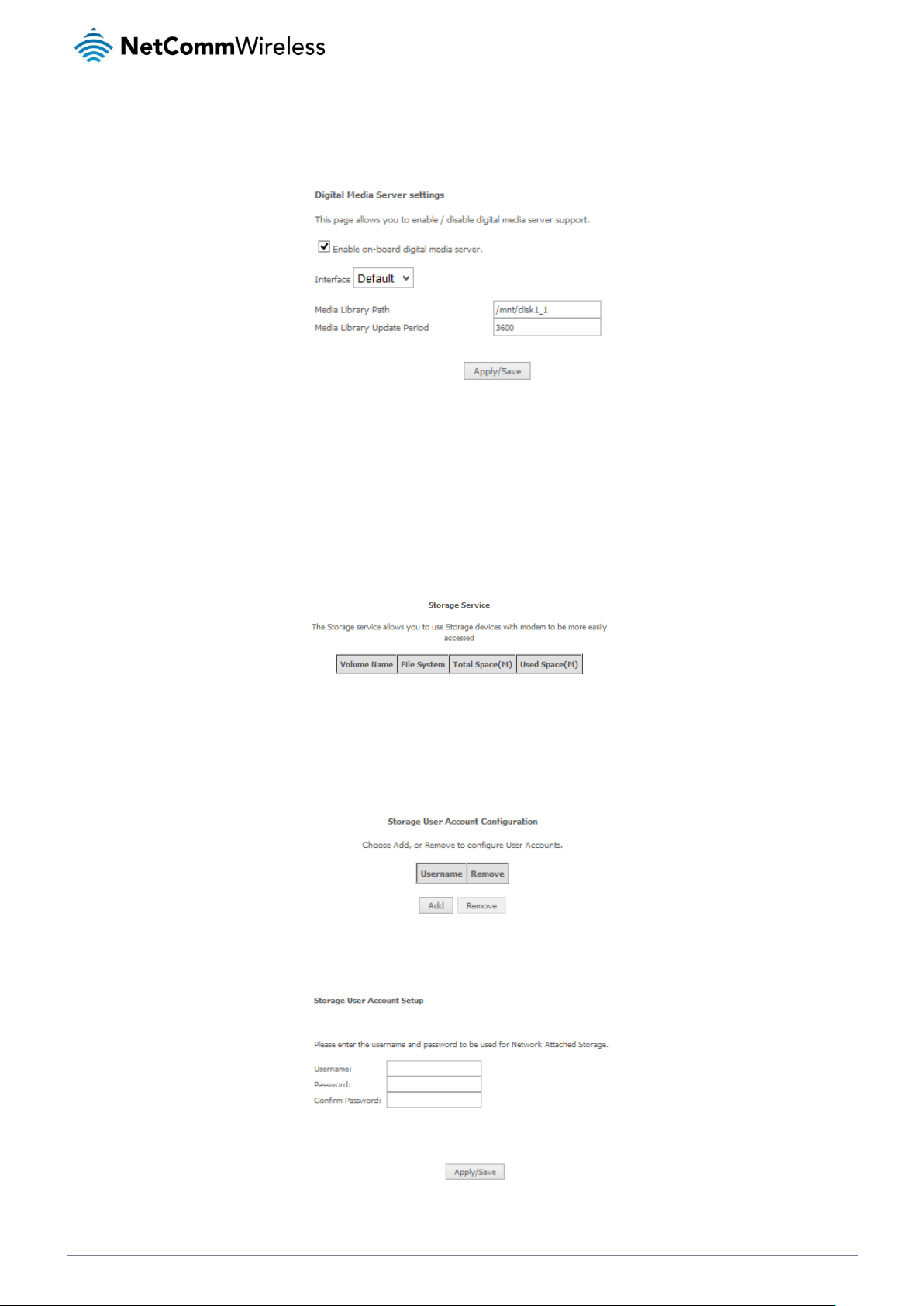

DLNA
The DLNA page allows you to enable or disable and configure the digital media server. This means you can have digital media stored on an external USB hard drive connected to the NF10W and the router will make it accessible to other devices on your network.
Select Enable on-board digital media server and then use the drop down list to select the Interface. In the Media Library Path field, enter the path to the media and then enter a period between media library updates in seconds. Click the Apply/Save button when you have finished.
Storage Service
The Storage Service options enable you to manage attached USB Storage devices and create accounts to access the data stored on the attached USB device.
Storage Device Info
The storage device info page displays information about the attached USB Storage device.
User Accounts
User accounts are used to restrict access to the attached USB Storage device. To delete a User account entry, click the Remove checkbox next to the selected account entry and click Remove. Click Add to create a user account.
Adding an account allows the creation of specific user accounts with a password to further control access permissions. To add an account, click the Add button and then enter the desired username and password for the account.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
47
v1.0
Interface Grouping
Port Mapping allows you to create groups composed of the various interfaces available in your router. These groups then act as separate networks.
To delete an Interface group entry, click the Remove checkbox next to the selected group entry and click Remove.
Click Add to create an Interface group.
Enter a group name and then use the arrow buttons to select which interfaces you wish to group. Click Apply/Save to save the Interface grouping configuration settings.
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
IP Tunnel
The IP Tunnelling feature allows you to configure tunnelling of traffic between IPv6 and IPv4 networks.
IPv6inIPv4
Click the Add button to add a new tunnel.
IPv4inIPv6
Click the Add button to add a new tunnel.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
49
v1.0
PARAMETER
DEFINITION
IPSec Connection Name
Enter a name to identify the IPSec tunnel
Tunnel Mode
Select the applicable IPSec tunnel mode
Remote IPSec Gateway
Enter the IP Address of the IPSec server to connect to
Tunnel access from Local
Select which remote addresses local IPSec connections are able to access
IP Address from VPN
Enter the IP Address to be used locally for the IPSec tunnel
Subnet mask for VPN
Enter the subnet mask to be used locally for the IPSec tunnel
Tunnel Access from Remote
Select which local addresses remote IPSec connections are able to access
IP Address for VPN
Enter the IP Address to be used on the remote end for the IPSec tunnel
Subnet mask for VPN
Enter the subnet mask to be used on the remote end for the IPSec tunnel
Key Exchange Method
Select the type of IPSec exchange is to be used on the IPSec tunnel
Authentication Method
Select the applicable authentication for the IPSec tunnel
Pre-Shared Key
Enter the pre-shared key (if applicable) to grant access to the IPSec tunnel
Perfect Forward Secrecy
Select to use Perfect Forward Secrecy during key exchange for the IPSec tunnel
Advanced IKE Settings
Configure advanced IKE settings for the IPSec tunnel such as the encryption method or key life time
IPSec
The NF10W offers IPSec VPN tunnel functionality. To delete an IPSec entry, click the Remove checkbox next to the selected IPSec tunnel entry and click Remove.
Click Add to create a new IPSec tunnel connection.
Figure 9: Advanced - IPSec
Enter the following parameters:
After entering the required IPSec tunnel service settings, click Apply/Save to save the new IPSec Tunnel configuration settings.
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
FIELD
DEFINITION
Default Version
The version IGMP in use by the router.
Query Interval
The hosts on the segment report their group membership in response to the router’s queries. The query interval timer is also used to define the amount of time a router will store particular IGMP state if it does not hear any reports on the group. The query interval is the time in seconds between queries sent from the router to IGMP hosts.
Query Response Interval
When a host receives the query packet, it starts counting to a random value, less the maximum response time. When this timer expires, the host replies with a report, provided that no other host has responded yet. This accomplishes two purposes:
a) Allows controlling the amount of IGMP reports sent during a time window. b) Engages the report suppression feature, which permits a host to suppress its own report and conserve bandwidth.
Last Member Query Interval
IGMP uses this value when router hears IGMP Leave report. This means that at least one host wants to leave the group. After router receives the Leave report, it checks that the interface is not configured for IGMP Immediate Leave (single-host on the segment) and if not, it sends out an out-of-sequence query.
Robustness Value
The robustness variable is a way of indicating how susceptible the subnet is to lost packets. IGMP can recover from robustness variable minus 1 lost IGMP packets. You can also click the scroll arrows to select a new setting. The robustness variable should be set to a value of 2 or greater. The default robustness variable value
is 2.
Maximum Multicast Groups
The maximum number of multicast groups that the router can control at any one time.
Maximum Multicast Data Sources
The maximum number of data sources a multicast group can have.
Maximum Multicast Group Members
The maximum number of hosts a multicast group can have.
Fast Leave Enable
With IGMP fast-leave processing, which means that the router immediately removes the interface attached to a receiver upon receiving a Leave Group message from a IGMP host.
Multicast (IGMP Configuration)
The Internet Group Management Protocol (IGMP) is a communications protocol used by hosts and adjacent routers on IP networks to establish multicast group memberships. IGMP is a protocol only used on the network between a host and the router. It allows a host to inform the router whenever that host needs to join or leave a particular multicast group. IGMP provides for more efficient allocation of resources when used with online gaming and video streaming.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
51
v1.0
PARAMETER
DEFINITION
Enable Wireless
Select to enable or disable the wireless network function
Hide Access Point
Select to hide or display the wireless network when an SSID scan is performed
Clients Isolation
Select to prevent clients on the wireless network being able to access each other
Disable WMM Advertise
Select to prevent the NF10W advertising its WMM function
Enable Multicast Forwarding (WMF)
Select to enable Wireless Multicast Forwarding. This can reduce latency and improve throughput for wireless clients
Max Clients
Enter the maximum number of wireless clients able to connect to the wireless network
Wireless Guest Network
Select to enable a separate Wireless Guest network, the same options are available for a Guest network as with the main system wireless network.
Wireless
Basic
The Wireless Basic page allows you to enable the wireless network and configure its basic settings.
The following parameters are available:
Click Apply/Save to save the new wireless configuration settings.
Note: Hiding the network may leads to potential connection problems, a non-broadcast network is not undetectable, hiding a SSID is Security through obscurity.
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
PARAMETER
DEFINITION
Enable WPS
Select to enable or disable the WPS function of the NF10W.
Select SSID
Select the SSID to apply the security settings to.
Network Authentication
Select the Wireless security type to use with the wireless network.
WPA/WAPI passphrase
Enter the security key to use with the wireless network.
WPA Group Rekey Interval
Enter the group rekey interval. This should not need to change.
WPA/WAPI Encryption
Select the type of encryption to use on the wireless network.
WEP Encryption
Select to utilise WEP encryption on the wireless network connection.
Security
The NF10W supports all encryptions within the 802.11 standard. The factory default is WPA2-PSK. The NF10W also supports WPA, WPA-PSK, WPA2, WPA2-PSK. You can also select to enable WPS mode.
The following parameters are available:
Note: WPA with TKIP and Open WEP are no longer considered secure. WPA2 with AES is the most secure option. Mixed WPA2/WPA (TKIP+AES) will provide maximum compatibility with legacy devices.
Click Apply/Save to save the new wireless security configuration settings.
MAC Filter
MAC Filter allows you to add or remove the MAC Address of devices which will be allowed or denied access to the wireless network. First use the Select SSID drop down list to select the wireless network you wish to configure, then select to either allow or deny access to the MAC addresses listed.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
53
v1.0
Click Add to add a MAC Address Filter.
Enter the MAC Address to be filtered and click Apply/Save to save the new MAC Address filter settings. To delete a MAC filter entry, click the Remove checkbox next to the selected filter entry and click Remove.
Note: While giving a wireless network some additional protection, MAC filtering can be circumvented by scanning a valid MAC and then spoofing one's own MAC into a validated one, using MAC Filtering may lead to a false sense of security.
Wireless Bridge (Wireless Distribution Service)
Wireless Bridge allows you to configure the router’s access point as a Wireless Distribution Service.
Select the mode for the Wireless Access Point built into the NF10W. You can specify which wireless networks will be allowed to connect to the NF10W by using the ‘Bridge Restrict’ option and then entering the applicable MAC Addresses of the other wireless access points.
Note: WPA/WPA2 encryption may not be compatible with other vendors, when operating in Wireless Bridge (WDS) mode.
Click Apply/Save to save the new wireless bridge configuration settings.
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
Advanced
Advanced Wireless allows you to configure detailed wireless network settings such as the band, channel, bandwidth, transmit power and preamble settings.
Click Apply/Save to save any changes to the wireless network settings configuration.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
55
v1.0
PARAMETER
DEFINITION
Band
Shows your current frequency band.
Channel
Fill in the appropriate channel to correspond with your network settings. All devices in your wireless network must use the same channel in order to work correctly. This router supports auto channeling functionality.
Auto Channel Timer(min)
Specifies the timer of auto channelling.
802.11n/EWC
Select disable 802.11n or Auto.
Bandwidth
Select the bandwidth for the network. In high wireless activity/interference environment, reduce band to 20MHz for better stability.
Control Sideband
If you select 20MHz in Both Bands you cannot select sideband does not work as you are not utilizing side bands. When you select 40MHz in Both Bands as the bandwidth and manual select channel, the following options will appear. Then you can select Lower or Upper as the value of sideband. As the control sideband, when you select Lower, the channel is 1~7. When you select Upper, the channel is 5~11.
802.11n Rate
Select the transmission rate for the network. The rate of data transmission should be set depending on the speed of your wireless network. You can select from a range of transmission speeds, or you can select Auto to have the Router automatically use the fastest possible data rate and enable the Auto-Fallback feature. Auto-Fallback will negotiate the best possible connection speed between the Router and a wireless client. The default value is Auto.
802.11n Protection
The 802.11n standards provide a protection method so 802.11b/g and 802.11n devices can co-exist in the same network without “speaking” at the same time.
Support 802.11n Client Only
Only stations that are configured in 802.11n mode can associate.
54g Rate
Allows you to specify the maximum bandwidth of the 802.11g network.
Multicast Rate
Select the multicast transmission rate for the network. The rate of data transmission should be set depending on the speed of your wireless network. You can select from a range of transmission speeds, or you can select Auto to have the Router automatically use the fastest possible data rate and enable the Auto-Fallback feature. Auto-Fallback will negotiate the best possible connection speed between the Router and a wireless client. The default value is Auto.
Basic Rate
Select the basic transmission rate ability for the AP.
Fragmentation Threshold
Packets that are larger than this threshold are fragmented into multiple packets. Try to increase the fragmentation threshold if you encounter high packet error rates. Do not set the threshold too low, since this can result in reduced networking performance.
RTS Threshold
This value should remain at its default setting of 2347.Should you encounter inconsistent data flow, only minor reductions are recommended. Should you encounter inconsistent data flow, only minor reduction of the default value, 2347, is recommended. If a network packet is smaller than the preset RTS threshold size, the RTS/CTS mechanism will not be enabled. The Router sends Request to Send (RTS) frames to a particular receiving station and negotiates the sending of a data frame. After receiving an RTS, the wireless station responds with a Clear to Send (CTS) fra me to acknowledge the right to begin transmission. The RTS Threshold value should remain at its default value of 2347.
DTIM Interval
(Delivery Traffic Indication Message) Enter a value between 1 and 255 for the Delivery Traffic Indication Message (DTIM.) A DTIM is a countdown informing clients of the next window for listening to broadcast and multicast messages.
Beacon Interval
A beacon is a packet of information that is sent from a connected device to all other devices where it announces its availabi lity and readiness. A beacon interval is a period of time (sent with the beacon) before sending the beacon again. The beacon interval may be adjusted in milliseconds (ms). Default (100) is recommended.
XPress Technology
Select Enable or Disable. This is a special accelerating technology for IEEE802.11g. The default is Enabled.
WMM (Wi-Fi Multimedia)
Select whether WMM is enable or disabled. Before you disable WMM, you should understand that all QoS queues or traffic classes relate to wireless do not take effects.
WMM No Acknowledgement
Select whether ACK in WMM packet. By default, the 'Ack Policy' for each access category is set to Disable, meaning that an acknowledge packet is returned for every packet received. This provides a more reliable transmission but increases traffic load, which decreases performance. To disable the acknowledgement can be useful for Voice, for example, where speed of transmission is important and packet loss is tolerable to a certain degree.
WMM APSD
APSD is short for automatic power save delivery, Selecting enable will make it has very low power consumption. WMM Power Save is an improvement to the 802.11e amendment adding advanced power management functionality to WMM.
Station Info
This page shows the MAC address of authenticated wireless stations that are connected to the NF10W and their status
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
FIELD
DESCRIPTION
eth# Connection
Pass: Indicates the Ethernet connection to your computer is connected to the LAN port of the router. Fail: Indicates that the router does not detect the Ethernet interface of your computer.
Test your Wireless Connection
Pass: Indicates that the wireless card is switched ON.
Fail: Indicates that the wireless card is switched OFF.
Diagnostics
This page is used to test the connection to your local network, the connection to your DSL service provider, and the connection to your Internet service provider. You may diagnose the connection by clicking the Test button or click the Test With OAM F4 button. If the test continues to fail, click Help and follow the troubleshooting procedures.
Note: Your Internet service provider must support diagnostics features in order for correct DSL diagnostics results.
Diagnostics
The Diagnostics menu provides feedback on the connection status of the device. The individual tests are listed below. If a test displays a fail status:
1. Click on the Help link and follow the troubleshooting procedures in the Help screen that appears.
2. Now click Rerun Diagnostic Tests at the bottom of the screen to re-test and confirm the error.
3. If the test continues to fail, contact Technical Support.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
57
v1.0
Ethernet OAM
The Ethernet OAM page provides administrators with operation, administration and management features.
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
Diagnostics
Ping
The ping test page lets you perform a ping to a remote IP address or hostname.
Traceroute
The Traceroute page lets you perform a trace route to a remote IP address or host name.
Start/Stop DSL
This page lets you stop or start the DSL service for troubleshooting purposes.
Management
Settings
The Settings screens allow you to back up, retrieve and restore the default settings of your Router. It also provides a function for you to update your router’s firmware.
Backup
The following screen appears when Backup is selected. Click the Backup Settings button to save the current configuration settings. You will be prompted for the location to save the backup file to on your PC.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
59
v1.0
Update Settings
The following screen appears when selecting Update from the Settings submenu. By clicking on the Browse button, you can locate a previously saved filename as the configuration backup file. Click on the Update settings button to upload the selected file. Please allow up to 5 minutes for system updates
Factory Reset
The following screen appears when selecting Factory Reset from the Settings submenu. By clicking on the Restore Default Settings button, you can restore your Routers default firmware settings. Restore system settings will reboot your Router, please allow up to 2 minutes for restore and reboot.
System Log
The System log page allows you to view the log of the modem and configure the logging level also. To view the system log, click the View System Log button.
To configure the system log, click the Configure System Log button. You can sent system log to remote server via selecting both, or remote under “Mode” option.
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
FIELD
DESCRIPTION
Inform
Set to enable to activate TR-069 client settings.
Inform interval
Time in seconds that data is sent to the Auto-Configuration Server (ACS).
ACS URL
The address where the ACS server is located.
ACS User Name
The user name to access the ACS server.
ACS Password
The password to access the ACS server.
WAN Interface used by TR-069 Client
The connection used to send and receive data to the ACS server.
SNMP Agent
The Simple Network Management Protocol (SNMP) allows a network administrator to monitor a network by retrieving settings on remote network devices. To do this, the administrator typically runs an SNMP management station program such as MIB browser on a local host to obtain information from the SNMP agent, in this case the NF1ADV (if SNMP is enabled). An SNMP ‘community’ performs the function of authenticating SNMP traffic. A ‘community name’ acts as a password that is typically shared among SNMP agents and managers.
TR-069 Client
TR-069 enables provisioning, auto-configuration or diagnostics to be automatically performed on your router if supported by your Internet Service Provider (ISP).
www.netcommwireless.com
NetComm Wireless NF10W User Guide
61
v1.0
Internet Time
The Internet Time page allows you to configure NTP time servers that the NF10W router synchronises with in order to keep accurate time.
Access Control
The Access Control option found in the Management drop down menu configures access related parameters in the following three areas:
Passwords
Services Control
Access Control is used to control local and remote management settings for your router.
Passwords
The Passwords option configures your account access password for your modem. Access to the device is limited to the following three user accounts:
admin is to be used for local unrestricted access control
support is to be used for remote maintenance of the device
user is to be used to view information and update device firmware
Use the fields illustrated in the screen below to change or create your password. Passwords must be 16 characters or less with no spaces. Click the Apply/Save button after making any changes to continue.
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0

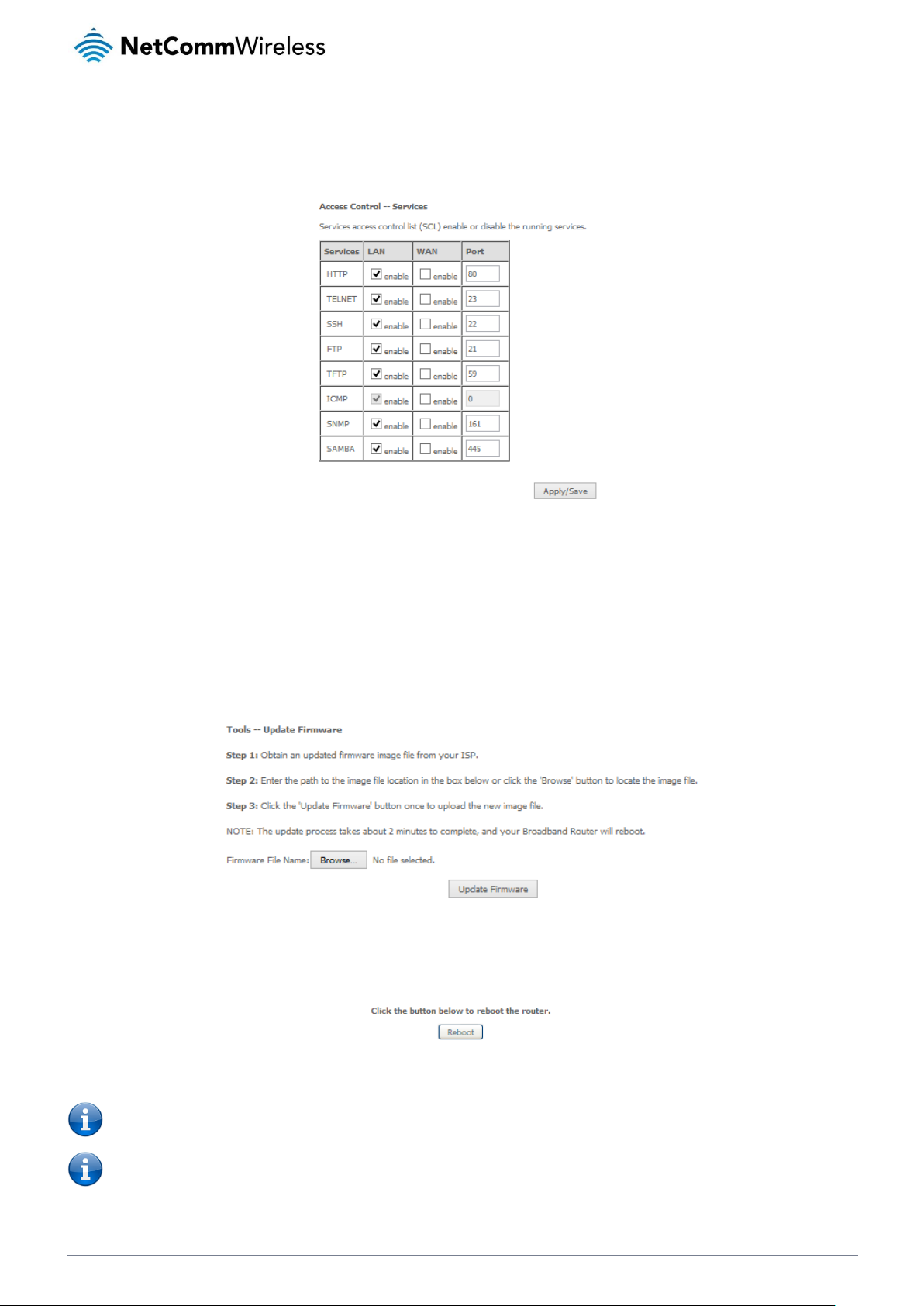

Services
The Service Control List (SCL) allows you to enable or disable your Local Area Network (LAN) or Wide Area Network (WAN) services by ticking the checkbox as illustrated below. The following access services are available: FTP, HTTP, ICMP, SAMBA, SNMP, SSH, TELNET, and TFTP. Click the Apply/Save button after making any changes to continue.
Update Firmware
The following screen appears when selecting the Update Software option from the Management menu. By following this screen’s steps, you can update your modem’s firmware. Manual device upgrades from a locally stored file can also be performed using the following screen.
1. Obtain an updated software image file.
2. Enter the path and filename of the firmware image file in the Software File Name field or click the Browse button to locate
the image file.
3. Click the Update Software button once to upload and install the file.
Reboot
This option reboots the NF10W.
NOTE 1: It may be necessary to reconfigure your TCP/IP settings to adjust for the new configuration. For example, if you disable the Dynamic Host Configuration Protocol (DHCP) server you will need to apply Static IP settings.
NOTE 2: If you lose all access to your web user interface, simply press the reset button on the rear panel for 3 seconds to restore default settings.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
63
v1.0
Additional Product Information
Establishing a wireless connection
Windows 7
1. Open the Network and Sharing Center (Start > Control Panel > Network and Sharing center).
2. Click on "Change Adapter settings" on the left-hand side.
3. Right-click on "Wireless Network Connection" and select "Connect / Disconnect".
4. Select the wireless network listed on your included wireless security card and click Connect.
5. Enter the network key (refer to the included wireless security card
6. You may then see a window that asks you to "Select a location for the 'wireless' network". Please select the "Home" location.
7. You may then see a window prompting you to setup a "HomeGroup". Click "Cancel" on this.
8. You can verify your wireless connection by clicking the "Wireless Signal" indicator in your system tray.
9. After clicking on this, you should see an entry matching the SSID of your NF10W with "Connected" next to it.
Windows 8/8.1/10
1. Open the Network and Sharing Centre (Click on Start, Type “Network and Sharing Centre”)
2. Click on “Change adapter settings” on the left hand column.
3. Right-click on Wireless Network Adaptor and select "Connect / Disconnect".
4. Select the wireless network listed on your included wireless security card and click Connect.
5. Enter the network key (refer to the included wireless security card for the default wireless network key).
6. You can verify your wireless connection by clicking the "Wireless Signal" indicator in your system tray.
7. After clicking on this, you should see an entry matching the SSID of your NF10W with "Connected" under it.
for
the default wireless network key)
.
Mac OSX 10.6
1. Click on the Airport icon on the top right menu.
2. Select the wireless network listed on your included wireless security card and click Connect.
3. On the new window, select “Show Password”, type in the network key
default wireless network key)
4. To check the connection, click on the Airport icon and there should be a tick on the wireless network name.
Note: For other operating systems, or if you use a wireless adaptor utility to configure your wireless connection, please consult the wireless adapter documentation for instructions on establishing a wireless connection.
in the Password field and then click on OK.
(refer to the included wireless security card
for
the
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
STEP
CORRECTIVE ACTION
1
Make sure that the NF10W power adaptor is connected to the device and plugged in to an appropriate power source. Use only the supplied power adaptor.
2
Check that the NF10W and the power source are both turned on and device is receiving sufficient power.
3
Turn the NF10W off and on.
4
If the error persists, you may have a hardware problem. In this case, you should contact technical support.
STEP
CORRECTIVE ACTION
1
Check that you have enabled remote administration access. If you have configured an inbound packet filter, ensure your computer’s IP address matches it.
2
Your computer’s and the NF10W’s IP addresses must be on the same subnet for LAN access. You can check the subnet in use by the router on the Network Setup page.
3
If you have changed the devices IP address, then enter the new one as the URL you enter into the address bar of your web browser.
4
If you are still not able to access the web configuration pages, reset the router to the factory default settings by pressing the reset button for 3 seconds and then releasing it. When the Power LED begins to blink, the defaults have been restored and the NF10W restarts. Navigate to 192.168.20.1 in your web browser and enter “admin” (without the quotes) as the username and password.
STEP
CORRECTIVE ACTION
1
Delete the temporary web files and log in again. In Internet Explorer, click Tools, Internet Options and then click the Delete Files ... button. When a Delete Files window displays, select Delete all offline content and click OK. (Steps may vary depending on the version of your Internet browser.)
STEP
CORRECTIVE ACTION
1
Press the Reset button for 3 seconds, and then release it. When the Power LED begins to blink, the defaults have been restored and the NF10W restarts.
You can now login with the factory default username and password “admin” (without the quotes)
2
It is highly recommended to change the default username and password. Make sure you store the username and password in a safe place.
STEP
CORRECTIVE ACTION
1
Check the Wi-Fi LED on the front of the unit and verify the WLAN is enabled as per the LED Indicator section.
2
If you are using a static IP address for the WLAN connection, make sure that the IP address and the subnet mask of the NF10W and your computer(s) are on the same subnet. You can check the routers configuration from the Network Setup page.
Troubleshooting
Using the indicator lights (LEDs) to Diagnose Problems
The LEDs are useful aides for finding possible problem causes.
Power LED
The Power LED does not light up.
Web Configuration
I cannot access the web configuration pages. CORRECTIVE ACTION
The web configuration does not display properly.
CORRECTIVE ACTION
Login Username and Password
I forgot my login username and/or password.
S CORRECTIVE ACT
WLAN Interface
I cannot access the NF10W from the WLAN or ping any computer on the WLAN.
TE CORREC
www.netcommwireless.com
NetComm Wireless NF10W User Guide
65
v1.0
Appendix: Quality of Service Setup Example
The following Quality of Service (QoS) settings offer a basic setup example, setting up 2 devices connecting to an NF10W router, one with the highest priority for data and the other with the lowest priority for data. All other data packet traffic through the router assumes a default best effort setting.
Quality of Service refers to the reservation of bandwidth resources on the NF10W router to provide different priorities to different applications, users or data flows or to guarantee a certain level of performance to a data flow.
In this implementation, QoS employs DSCP (Differentiated Services Code Point), a computer networking architecture that specifies a simple, scalable and course-grained mechanism for classifying and managing network traffic.
This example guide sets up QoS with two devices (PC and laptop) connecting via Ethernet cable to an NF10W router. One device (PC) is assigned high priority traffic while the other device (laptop) is assigned a low priority. Before Quality of Service can be implemented, the first step involves reserving an IP address for each device, identified by their unique MAC addresses.
Reserving IP addresses
It is necessary to reserve an IP address for each of the devices connecting to the NF10W router so that QoS settings can be managed for each device.
a) Navigate to http://192.168.20.1 in a web browser. b) When prompted, enter admin as both the username and password. c) Select Advanced Setup > LAN
d) Click the Add Entries button.
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
e) Enter the MAC address of the computer/device you are connecting to the router. The MAC address os a 12 character set
of numbers and letters (A-F), with every 2 characters separated by a colon.
f) Enter the IP address of the computer/device. This is the local address in the range of 192.168.1.x where x = a number
between 2 and 254.
g) Click the Apply/Save button. h) Complete steps 4 through 7 for each device connected to the NF10W router. Each entry will be listed in the Static IP
Lease List as shown below.
QoS Configuration Settings
a) Select Advanced Setup > Quality of Service
www.netcommwireless.com
NetComm Wireless NF10W User Guide
67
v1.0
b) Select the Enable QoS option. c) Select the Default DSCP Mark as default(000000). d) Click the Apply/Save button.
High Priority QoS Queue Configuration
a) Select Advanced > Quality of Service > Queue Config.
b) Click the Add button.
c) Enter a name of 15 characters or less to reflect the device that will have high priority QoS, e.g. PC1HighPriority. d) Set the Enable option to Enable. e) Set the Interface (Australian customers use atm0(0_8_35), NZ customers use atm0(0)0)100)). f) Enter a Precedence. For the highest priority, set it to 1. For the lowest priority use 3. g) Set the DSL Latency as Path0. h) Click the Save/Apply button.
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
Low Priority QoS Queue Configuration
a) Select Advanced > Quality of Service > Queue Config. b) Click the Add button.
c) Enter a name of 15 characters or less to reflect the device that will have low priority QoS e.g. PC2LowPriority. d) Set the Enable option to Enable. e) Set the Interface (Australian customers use atm0(0_8_35), NZ customers use atm0(0)0)100)). f) Enter a Precedence. For the lowest priority, set it to 3. For the highest priority use 1. g) Set the DSL Latency as Path0. h) Click the Save/Apply button.
High Priority QoS Classification
a) Select Advanced > Quality of Service > QoS Classification.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
69
v1.0
b) Click the Add button.
c) Enter a Traffic Class Name reflecting the High Priority QoS rule, e.g. PC1HighPriority. d) Leave the Rule Order as Last. e) Set the Rule Status to Enable. f) Set the Class Interface according to how the device connects to the router. In the example above, LAN is selected. Other
options are Wireless, Local and USB.
g) Set the Ether Type to IP(0x800). Other options include ARP(0x8086), Ipv6(0x86DD), PPPoE_DISC(0x8863), 8865(0x8865),
8866(0x8866), 8021Q(0x8100).
h) Enter the Source MAC Address of the device, the unique 12 character signature with every 2 characters separated by a
colon(:), that you previously entered to reserve the device's IP address.
i) Enter the Source IP Address of the device that you previously entered into the Static IP Lease List, in the range of
192.168.1.x In the example above the IP address is 192.168.1.5.
j) Enter a Destination MAC Address if the connection is to a single device. This is useful for VPN connections. If you wish the
destination MAC address to be any address leave the field blank.
k) Enter a Destination IP Address if the connection is to a single device. This is useful for VPN connections. If you wish the
destination IP address to be any address leave the field blank.
l) Enter a Destination Subnet Mask if you have entered a Destination MAC address and Destination IP address. This would
normally be 255.255.255.0 unless your system administrator advises otherwise. If you have not entered a Destination MAC or IP address leave the field blank.
m) Set the Differentiated Service Code Point (DSCP) Check to EF(101110). n) Set the Protocol to TCP. Other options include UDP, ICMP or IGMP. o) Set “Assign Classification Queue” to Priority 1 (in the example above pppoa0&atm0&Path0&Key38&Pre1). Other options or
priority 2 and 3. Priority 1 gives the highest priority with priority 3 being the lowest.
p) Set Mark Differentiated Service Code Point (DSCP) as EF(101110). q) Set Mark 802.1p Priority as 5. In the scale 0-7, 0 is best effort, 6 and 7 are reserved for networking performance so set 5
as the highest priority.
r) Click the Apply/Save button.
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
Low Priority QoS Classification
a) Select Advanced > Quality of Service > QoS Classification. b) Click the Add button.
c) Enter a Traffic Class Name reflecting the High Priority QoS rule; eg. PC2LowPriority. d) Leave the Rule Order as Last. e) Set the Rule Status to Enable. f) Set the Class Interface according to how the device connects to the router. In the example above LAN is selected. Other
options are Wireless, Local and USB.
g) Set the Ether Type to IP(0x800). Other options include ARP(0x8086), Ipv6(0x86DD), PPPoE_DISC(0x8863), 8865(0x8865),
8866(0x8866), 8021Q(0x8100).
h) Enter the Source MAC Address of the device, the unique 12 character signature with every 2 characters separated by a
colon(:), that you previously entered to reserve the device's IP address.
i) Enter the Source IP Address of the device that you previously entered into the Static IP Lease List, in the range of
192.168.1.x. In the example above the IP address is 192.168.1.10.
j) Enter a Destination MAC Address if the connection is to a single device. This is useful for VPN connections. If you wish the
destination MAC address to be any address leave the field blank.
k) Enter a Destination IP Address if the connection is to a single device. This is useful for VPN connections. If you wish the
destination IP address to be any address leave the field blank.
l) Enter a Destination Subnet Mask if you have entered a Destination MAC address and Destination IP address. This would
normally be 255.255.255.0 unless your system administrator advises otherwise. If you have not entered a Destination MAC or IP address leave the field blank.
m) Set the Differentiated Service Code Point (DSCP) Check to AF11(001010). n) Set the Protocol to TCP. Other options include UDP, ICMP or IGMP. o) Set “Assign Classification Queue” to Priority 3 (in the example above pppoa0&atm0&Path0&Key39&Pre3). Other options
are priority 1 and 2. Priority 1 gives the highest priority with priority 3 being the lowest.
p) Set Mark Differentiated Service Code Point (DSCP) as AF11(001010). q) Set Mark 802.1p Priority as 0. In the scale 0-7, 0 is best effort, 6 and 7 are reserved for networking performance so set 0
as the lowest priority.
r) Click the Apply/Save button.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
71
v1.0
s) You now have 2 Quality of Service rules implemented for 2 devices connecting to the NF10W router.
t) Select Management > Reboot. Click the Reboot button to restart the router and save the new settings. u) To test your Quality of Service settings try running speed-tests (http://speedtest.net) on both PCs/devices simultaneously.
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
Legal & Regulatory Information
Intellectual Property Rights
All intellectual property rights (including copyright and trade mark rights) subsisting in, relating to or arising out this Manual are owned by and vest in NetComm Wireless (ACN 002490486) (NetComm Wireless Limited) (or its licensors). This Manual does not transfer any right, title or interest in NetComm Wireless Limited’s (or its licensors’) intellectual property rights to you. You are permitted to use this Manual for the sole purpose of using the NetComm Wireless product to which it relates. Otherwise no part of this Manual may be reproduced, stored in a retrieval system or transmitted in any form, by any means, be it electronic, mechanical, recording or otherwise, without the prior written permission of NetComm Wireless Limited. NetComm, NetComm Wireless and NetComm Wireless Limited are a trademark of NetComm Wireless Limited. All other trademarks are acknowledged to be the property of their respective owners.
Customer Information
The Australian Communications & Media Authority (ACMA) requires you to be aware of the following information and warnings:
1. This unit may be connected to the Telecommunication Network through a line cord which meets the requirements of the
AS/CA S008-2011 Standard.
2. This equipment incorporates a radio transmitting device, in normal use a separation distance of 20cm will ensure radio
frequency exposure levels complies with Australian and New Zealand standards.
3. This equipment has been tested and found to comply with the Standards for C-Tick and or A-Tick as set by the ACMA.
These standards are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio noise and, if not installed and used in accordance with the instructions detailed within this manual, may cause interference to radio communications. However, there is no guarantee that interference will not occur with the installation of this product in your home or office. If this equipment does cause some degree of interference to radio or television reception, which can be determined by turning the equipment off and on, we encourage the user to try to correct the interference by one or more of the following measures:
i. Change the direction or relocate the receiving antenna.
ii. Increase the separation between this equipment and the receiver.
iii. Connect the equipment to an alternate power outlet on a different power circuit from that to which the receiver/TV is
connected.
iv. Consult an experienced radio/TV technician for help.
4. The power supply that is provided with this unit is only intended for use with this product. Do not use this power supply with
any other product or do not use any other power supply that is not approved for use with this product by NetComm Wireless. Failure to do so may cause damage to this product, fire or result in personal injury.
Consumer Protection Laws
Australian and New Zealand consumer law in certain circumstances implies mandatory guarantees, conditions and warranties which cannot be excluded by NetComm and legislation of another country's Government may have a similar effect (together these are the Consumer Protection Laws). Any warranty or representation provided by NetComm is in addition to, and not in replacement of, your rights under such Consumer Protection Laws. If you purchased our goods in Australia and you are a consumer, you are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you purchased our goods in New Zealand and are a consumer you will also be entitled to similar statutory guarantees.
www.netcommwireless.com
NetComm Wireless NF10W User Guide
73
v1.0
Product Warranty
All NetComm Wireless products have a standard one (1) year warranty from date of purchase, however, some products have an extended warranty option (refer to packaging and the warranty card) (each a Product Warranty). To be eligible for the extended warranty option you must supply the requested warranty information to NetComm Wireless Limited within 30 days of the original purchase date by registering online via the NetComm Wireless web site at www.netcommwireless.com. For all Product Warranty claims you will require proof of purchase. All Product Warranties are in addition to your rights and remedies under applicable Consumer Protection Laws which cannot be excluded (see Consumer Protection Laws Section above). Subject to your rights and remedies under applicable Consumer Protection Laws which cannot be excluded (see the Consumer
Protection Laws Section above), the Product Warranty is granted on the following conditions:
1. the Product Warranty extends to the original purchaser (you / the customer) and is not transferable;
2. the Product Warranty shall not apply to software programs, batteries, power supplies, cables or other accessories supplied
in or with the product;
3. the customer complies with all of the terms of any relevant agreement with NetComm and any other reasonable
requirements of NetComm including producing such evidence of purchase as NetComm may require;
4. the cost of transporting product to and from NetComm’s nominated premises is your responsibility;
5. NetComm Wireless Limited does not have any liability or responsibility under the Product Warranty where any cost, loss,
injury or damage of any kind, whether direct, indirect, consequential, incidental or otherwise arises out of events beyond NetComm’s reasonable control. This includes but is not limited to: acts of God, war, riot, embargoes, acts of civil or military authorities, fire, floods, electricity outages, lightning, power surges, or shortages of materials or labour; and
6. the customer is responsible for the security of their computer and network at all times. Security features may be disabled
within the factory default settings. NetComm Wireless Limited recommends that you enable these features to enhance your security.
Subject to your rights and remedies under applicable Consumer Protection Laws which cannot be excluded (see Section 3 above), the Product Warranty is automatically voided if:
1. you, or someone else, use the product, or attempt to use it, other than as specified by NetComm Wireless Limited;
2. the fault or defect in your product is the result of a voltage surge subjected to the product either by the way of power
supply or communication line, whether caused by thunderstorm activity or any other cause(s);
3. the fault is the result of accidental damage or damage in transit, including but not limited to liquid spillage;
4. your product has been used for any purposes other than that for which it is sold, or in any way other than in strict
accordance with the user manual supplied;
5. your product has been repaired or modified or attempted to be repaired or modified, other than by a qualified person at a
service centre authorised by NetComm Wireless Limited; or
6. the serial number has been defaced or altered in any way or if the serial number plate has been removed.
Limitation of Liability
This clause does not apply to New Zealand consumers. Subject to your rights and remedies under applicable Consumer Protection Laws which cannot be excluded (see the Consumer Protection Laws Section above), NetComm Wireless Limited accepts no liability or responsibility, for consequences arising from the use of this product. NetComm Wireless Limited reserves the right to change the specifications and operating details of this product without notice. If any law implies a guarantee, condition or warranty in respect of goods or services supplied, and NetComm Wireless’s liability for breach of that condition or warranty may not be excluded but may be limited, then subject to your rights and remedies under any
applicable Consumer Protection Laws which cannot be excluded, NetComm Wireless’s liability for any breach of that guarantee,
condition or warranty is limited to: (i) in the case of a supply of goods, NetComm Wireless Limited doing any one or more of the following: replacing the goods or supplying equivalent goods; repairing the goods; paying the cost of replacing the goods or of acquiring equivalent goods; or paying the cost of having the goods repaired; or (ii) in the case of a supply of services, NetComm Wireless Limited doing either or both of the following: supplying the services again; or paying the cost of having the services supplied again. To the extent NetComm Wireless Limited is unable to limit its liability as set out above, NetComm Wireless Limited limits its liability to the extent such liability is lawfully able to be limited.
NetComm Wireless NF10W User Guide
www.netcommwireless.com
v1.0
Contact
Address: NETCOMM WIRELESS LIMITED Head Office PO Box 1200, Lane Cove NSW 2066 Australia Phone: +61(0)2 9424 2070 Fax: +61(0)2 9424 2010 Email: sales@netcommwireless.com techsupport@netcommwireless.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
