NetComm NB504 User Manual

User Guide
NB504
YML864 Rev1 NB504 User GuideNB504 User Guide www.netcomm.com.au 1
54Mbps Wireless Router
NB504 User Guide YML864Rev1 2 www.netcomm.com.au
CONTENTS
1.1 Purposes ...........................................................................................................................................5
1.2 Conventions .......................................................................................................................................5
1.3 Overview of this User Guide ................................................................................................................5
2.1 Overview of the Router........................................................................................................................6
2.2 Features ............................................................................................................................................7
2.3 Panel Layout ......................................................................................................................................8
2.3.1 The Front Panel ........................................................................................................................8
2.3.2 The Rear Panel .........................................................................................................................9
3.1 System Requirements .......................................................................................................................10
3.2 Installation Environment Requirements ...............................................................................................10
3.3 Connecting the Router ......................................................................................................................11
4.1 TCP/IP configuration .........................................................................................................................12
4.2 Quick Installation Guide ....................................................................................................................14
5.1 login ................................................................................................................................................19
5.2 Status ..............................................................................................................................................20
5.3 Quick Setup .....................................................................................................................................22
5.4 Network ...........................................................................................................................................22
5.4.1 LAN .......................................................................................................................................22

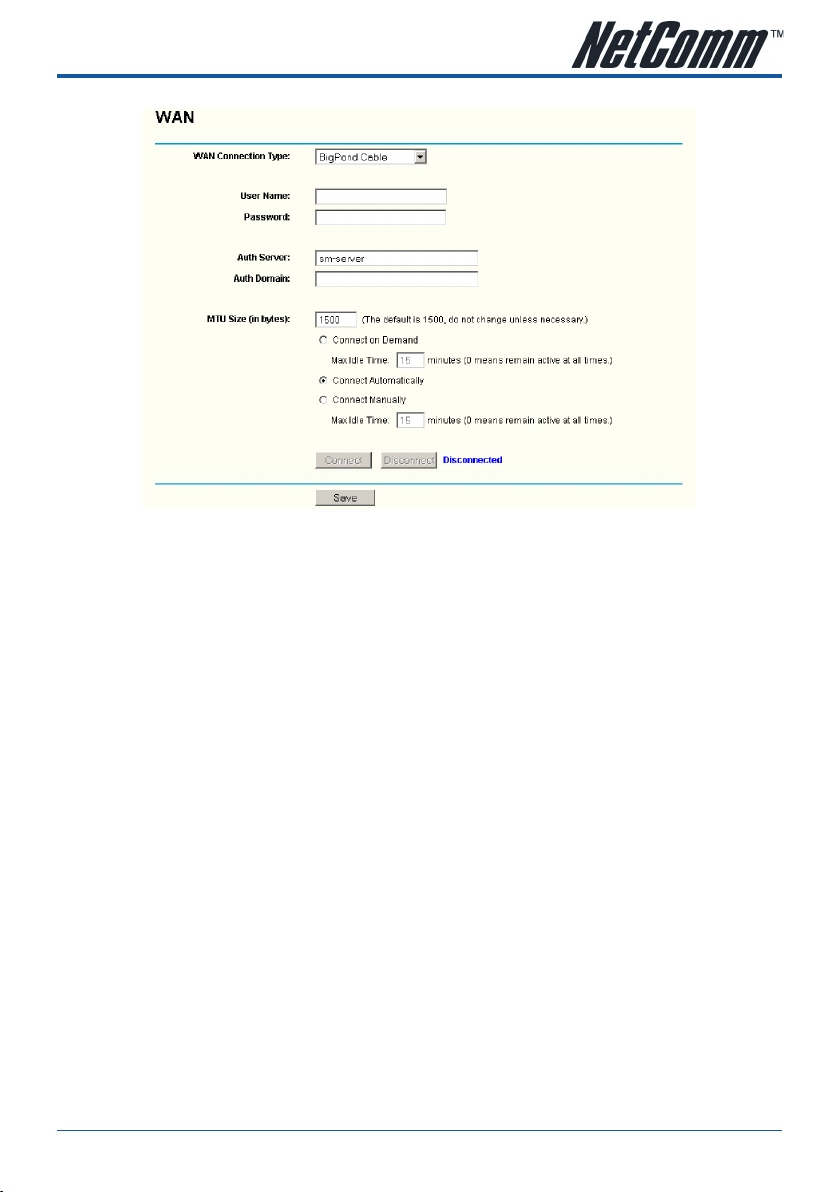

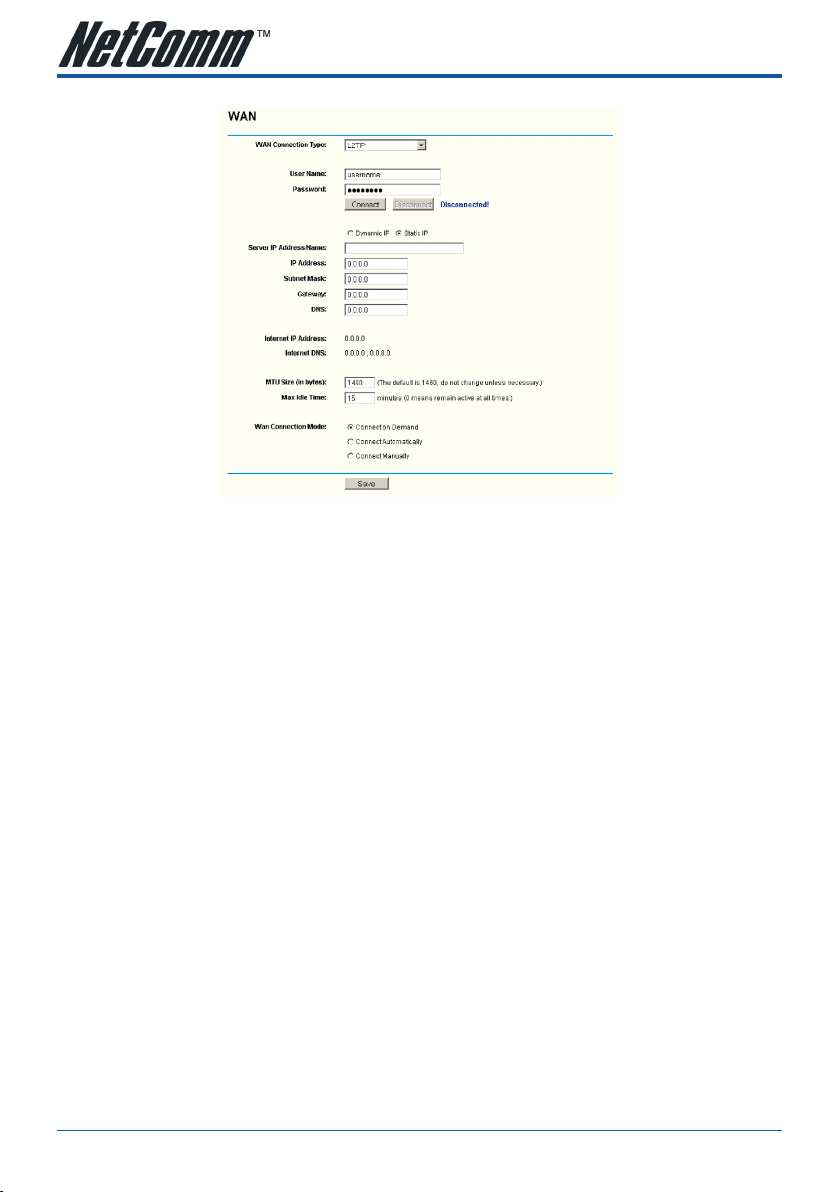

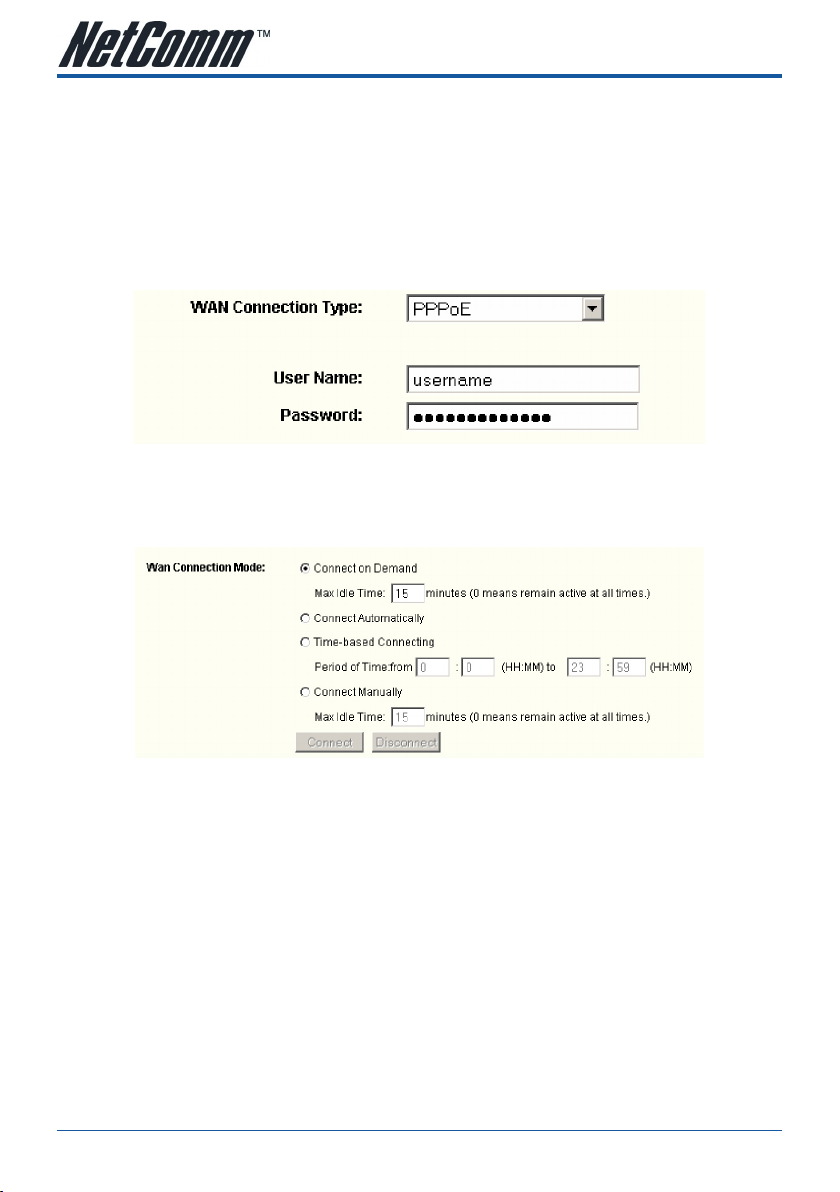

5.4.2 WAN ......................................................................................................................................23

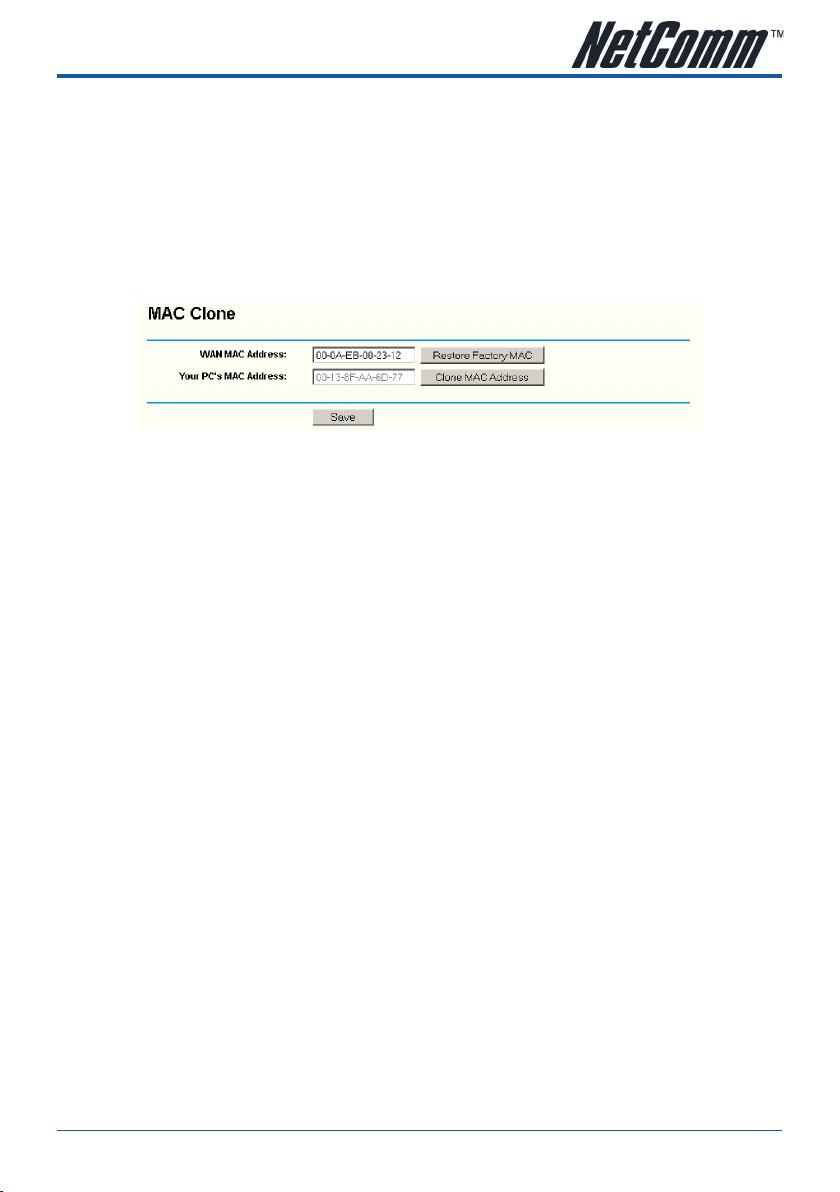

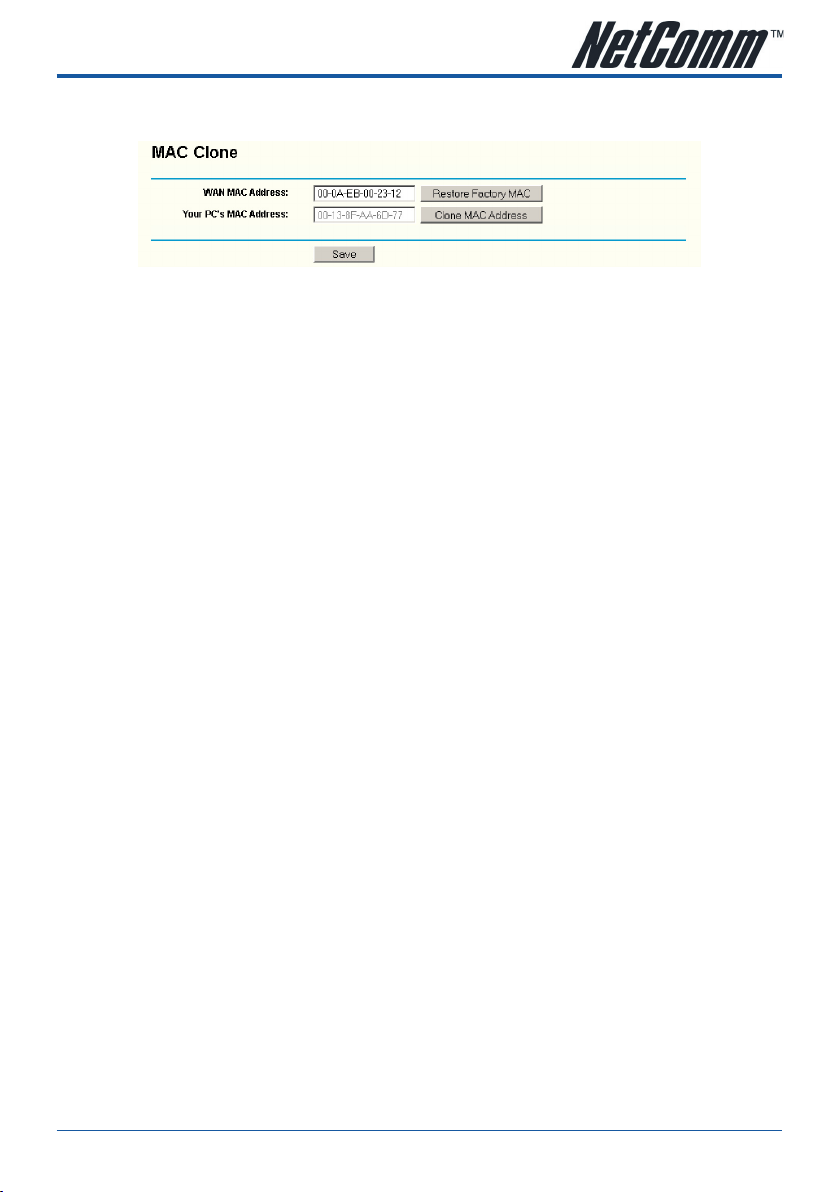

5.4.3 MAC Clone .............................................................................................................................33
5.5 Wireless ...........................................................................................................................................34
5.5.1 Wireless Settings ....................................................................................................................35

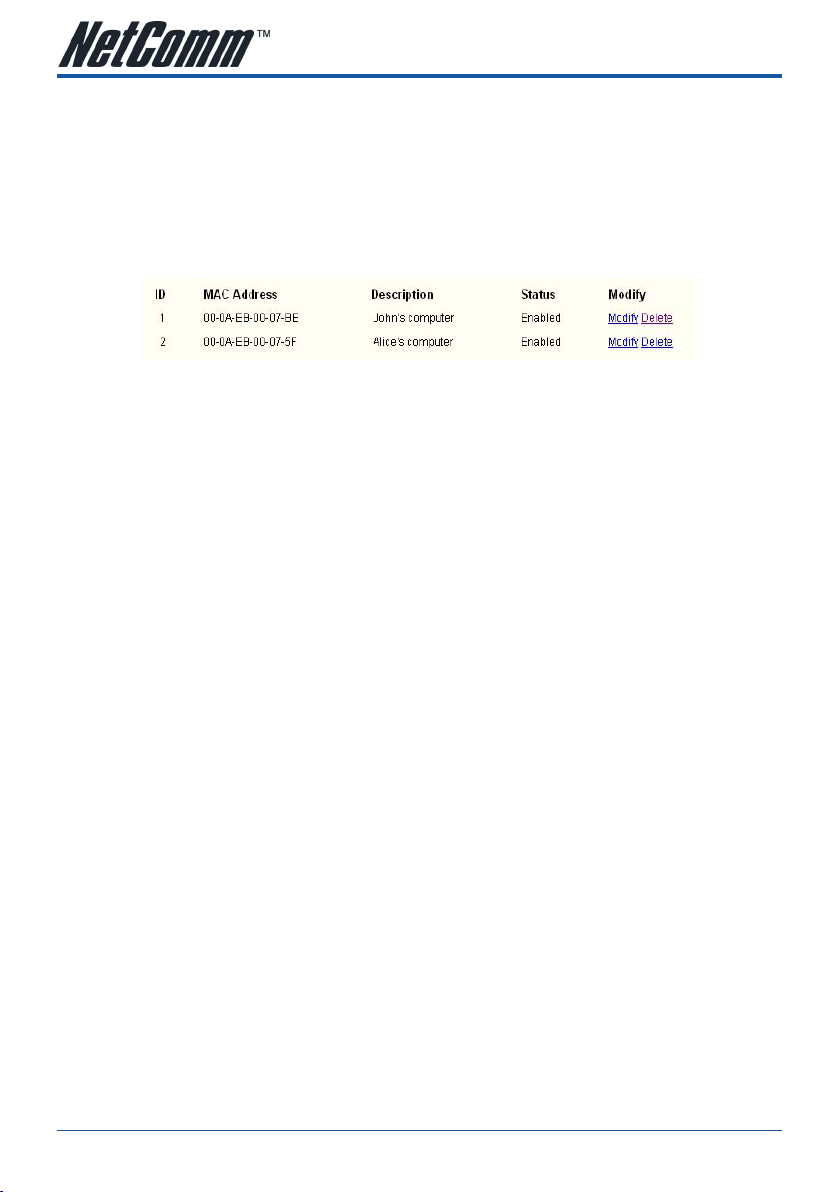

5.5.2 MAC Filtering ..........................................................................................................................38
5.5.3 Wireless Statistics ...................................................................................................................41

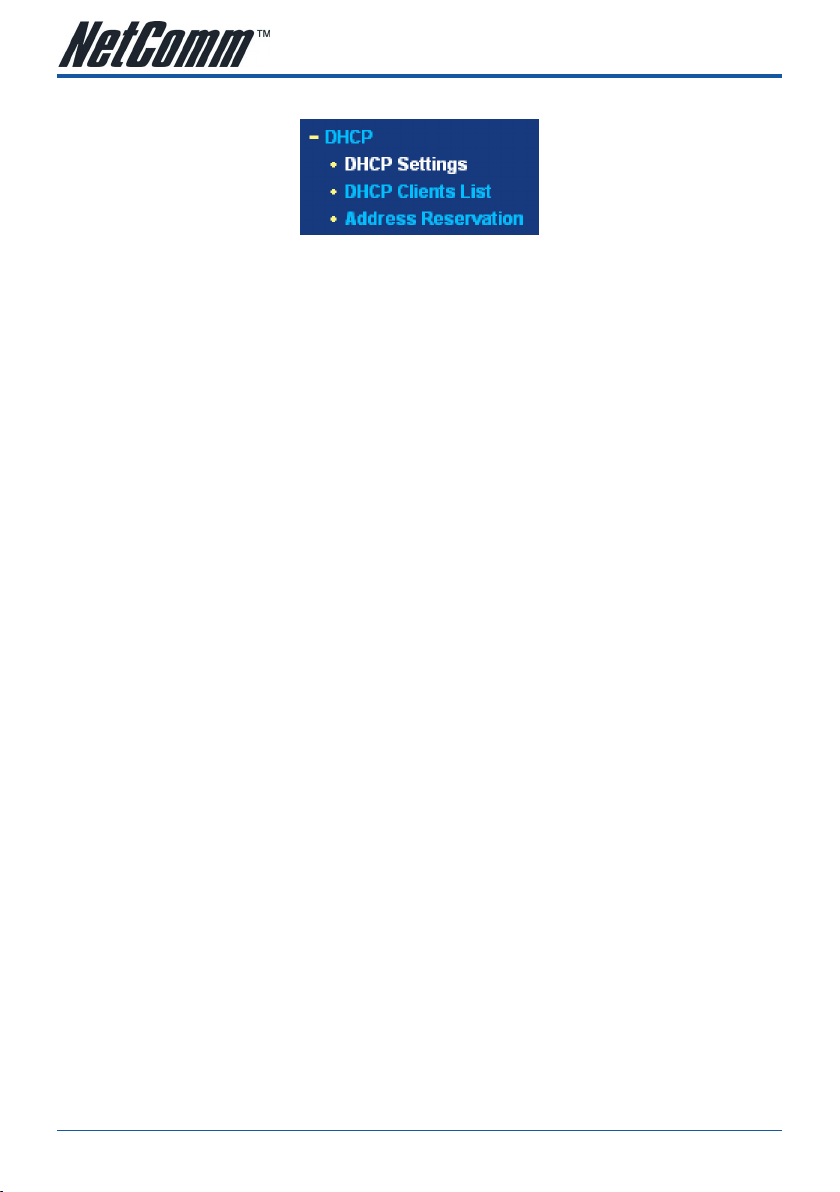

5.6 DHCP ..............................................................................................................................................42
5.6.1 DHCP Settings ........................................................................................................................43
5.6.2 DHCP Clients List ....................................................................................................................44

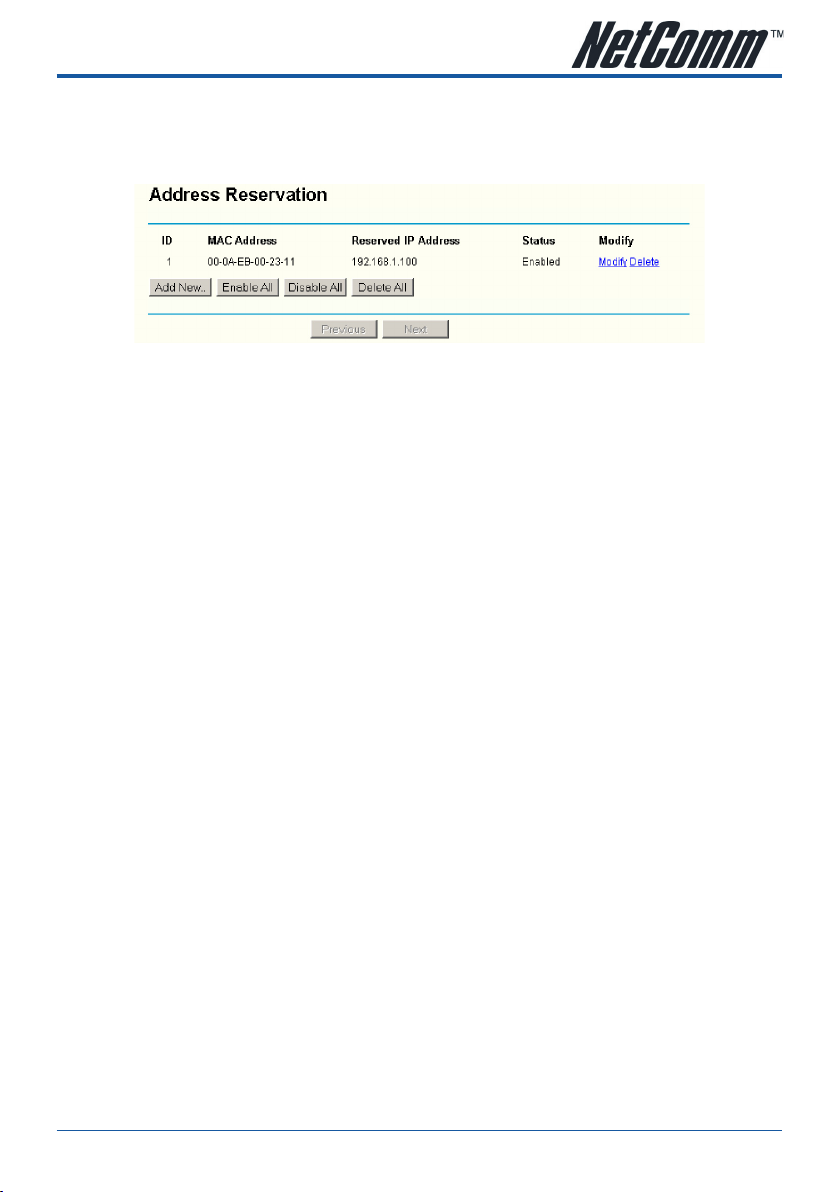

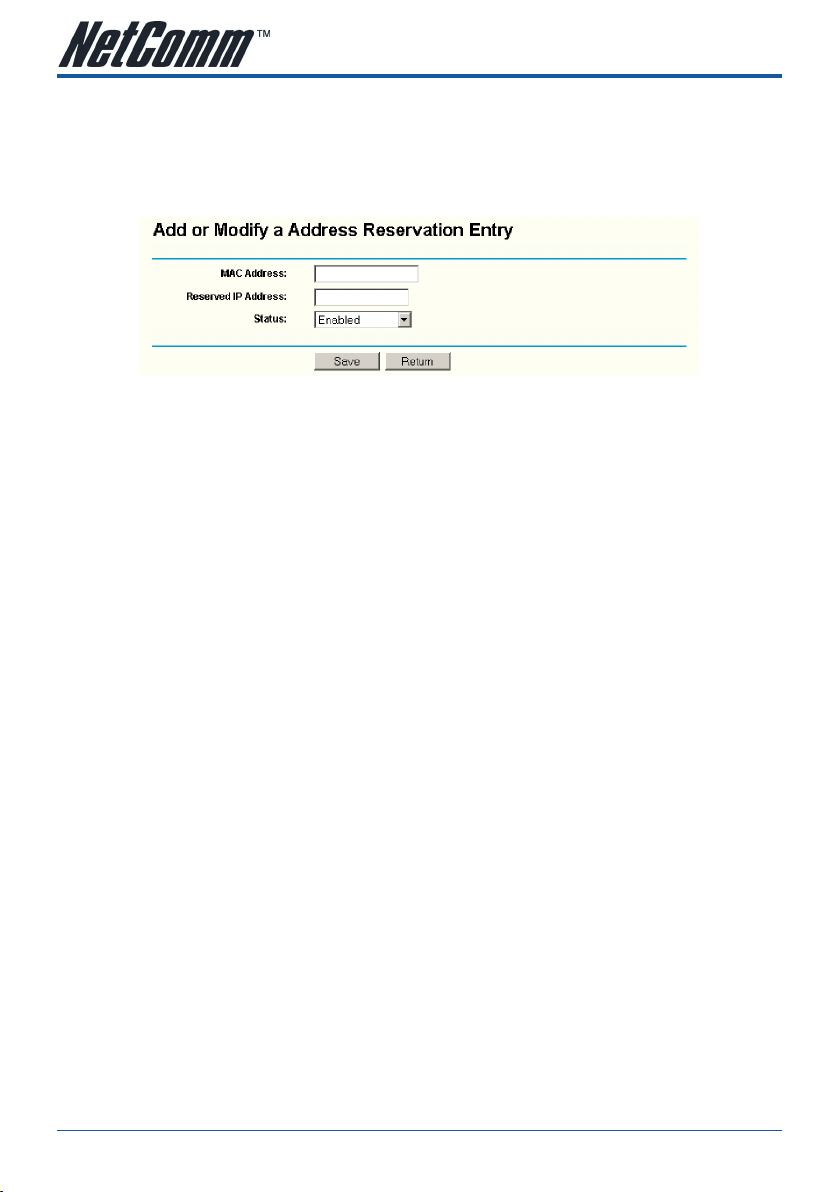

5.6.3 Address Reservation ...............................................................................................................45
5.7 Forwarding .......................................................................................................................................47

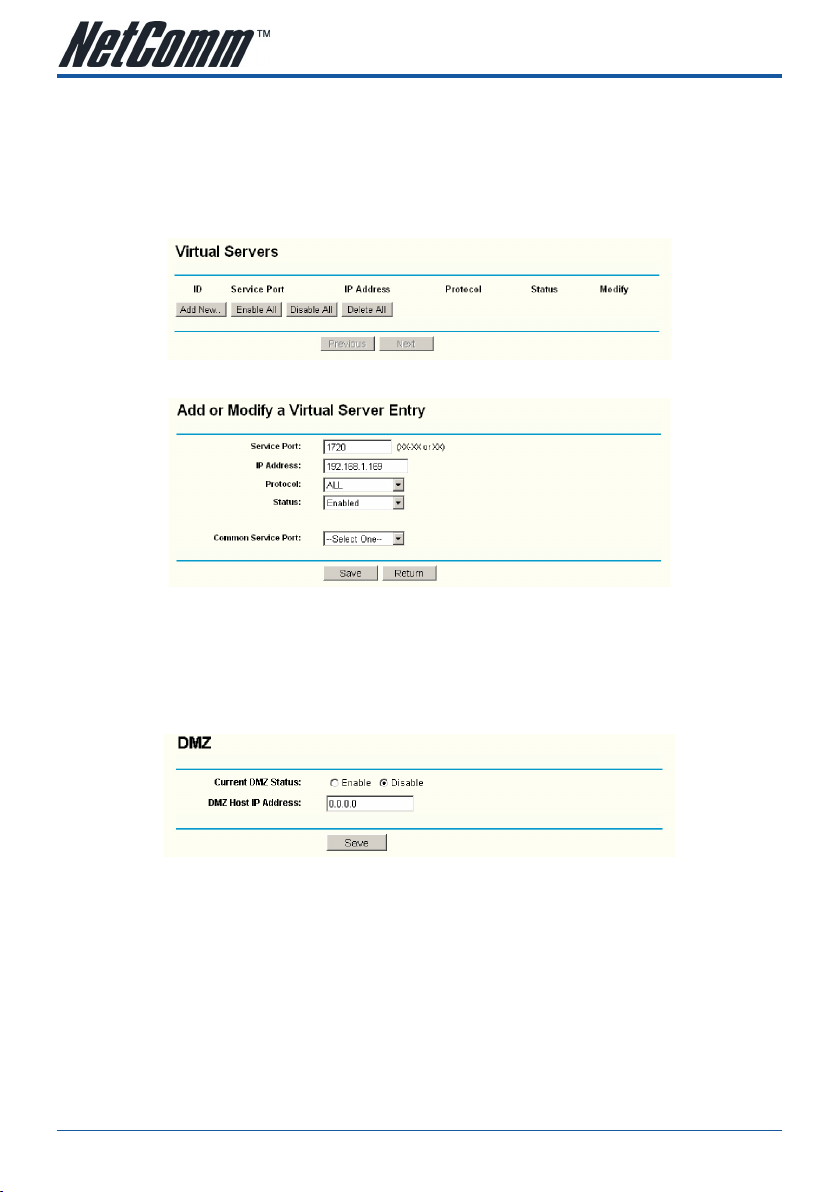

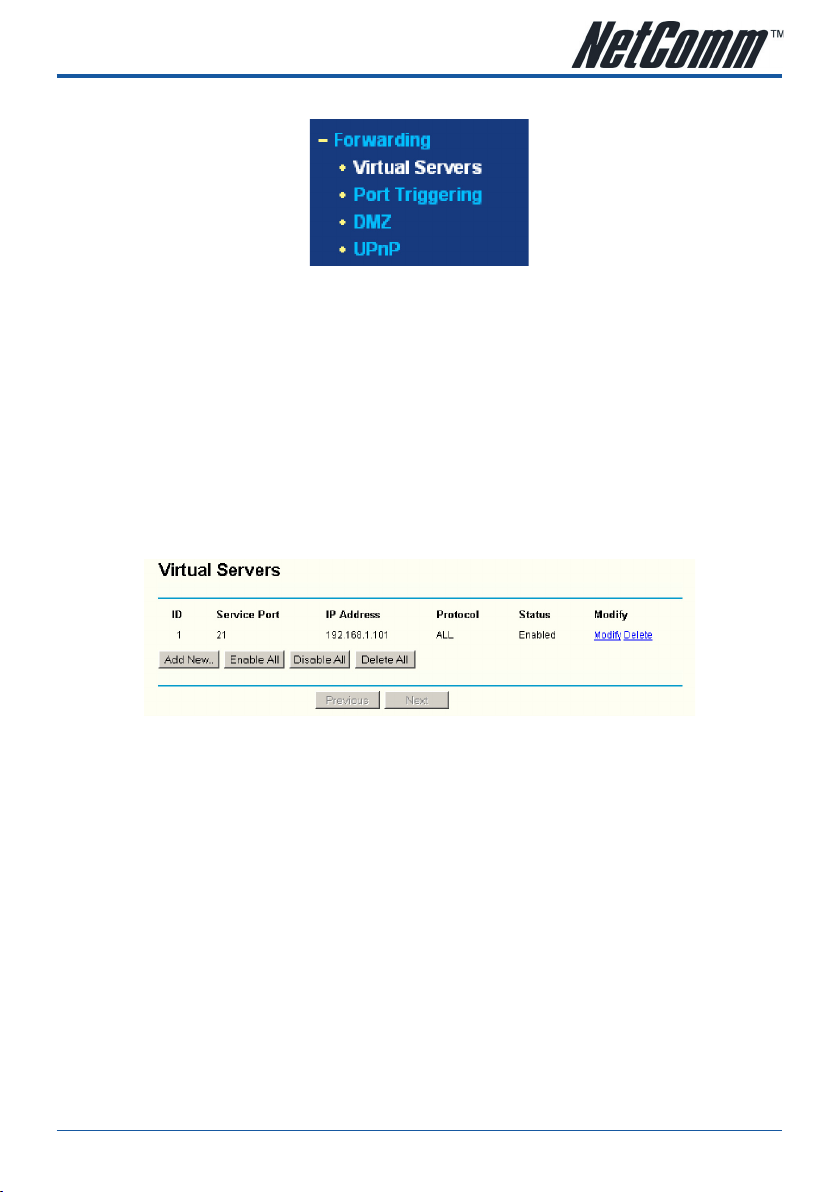

5.7.1 Virtual Servers ........................................................................................................................47
5.7.2 Port Triggering ........................................................................................................................49
5.7.3 DMZ ......................................................................................................................................51
5.7.4 UPnP .....................................................................................................................................52
5.8 Security ...........................................................................................................................................53

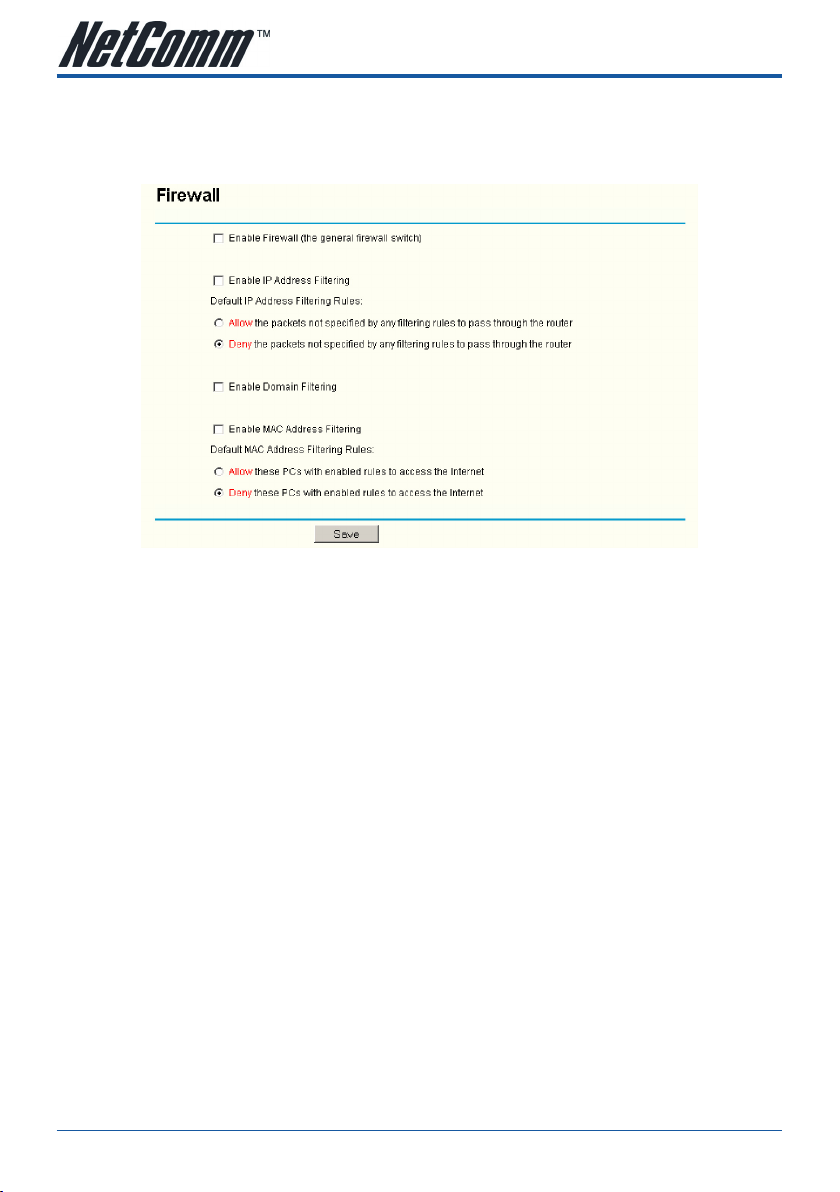

5.8.1 Firewall ..................................................................................................................................54

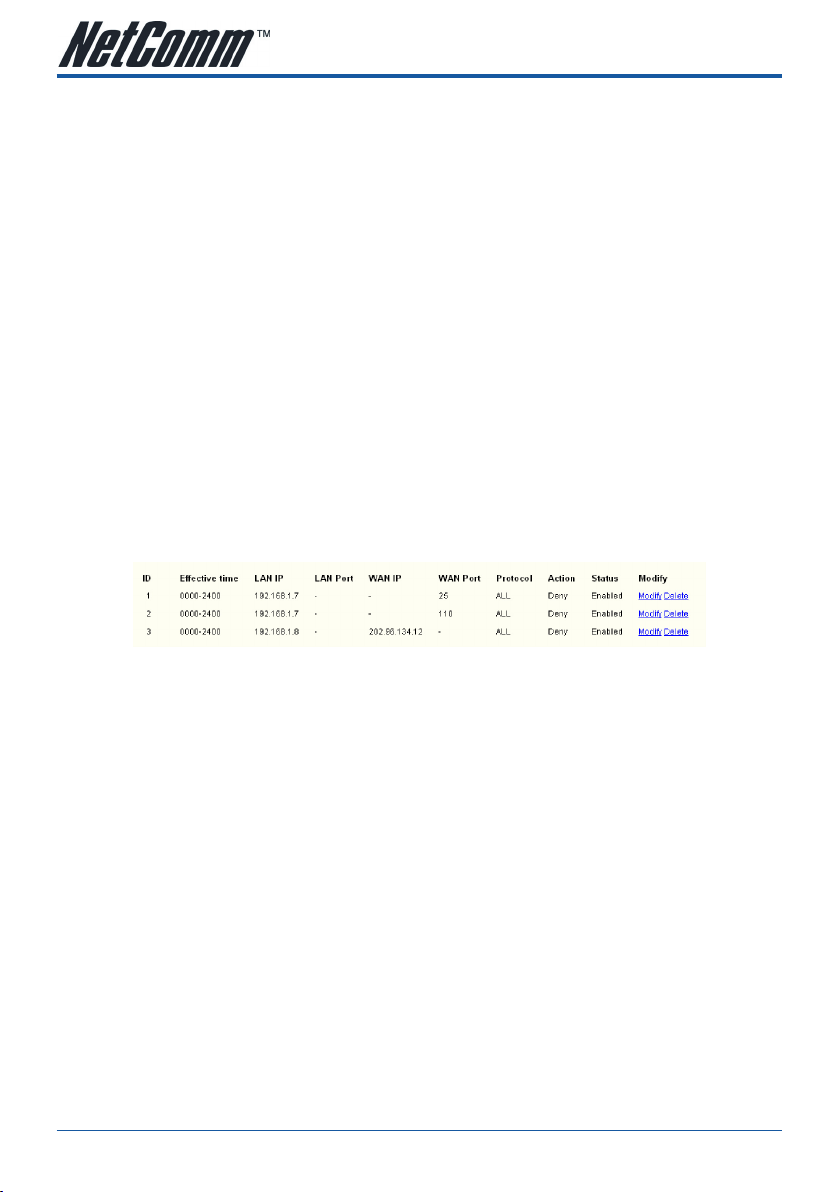

5.8.2 IP Address Filtering .................................................................................................................55

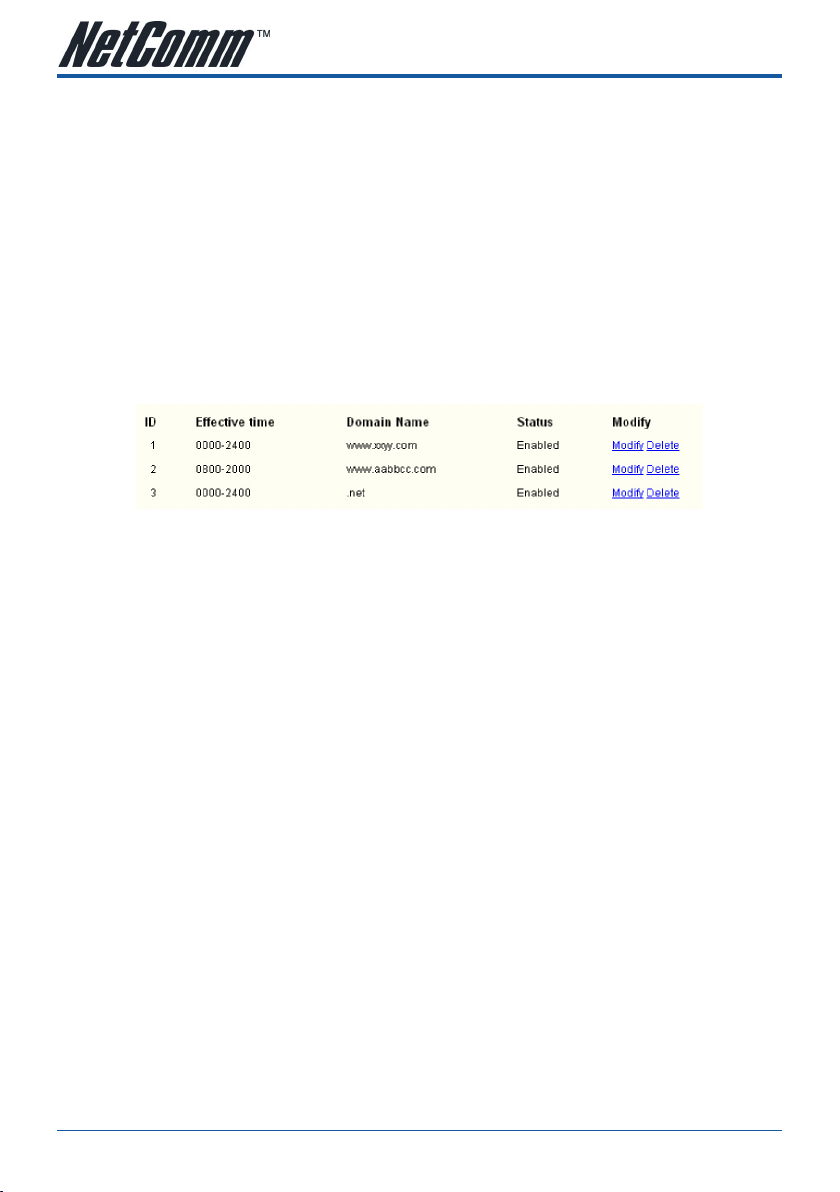

5.8.3 Domain Filtering .....................................................................................................................57
5.8.4 MAC Filtering ..........................................................................................................................59

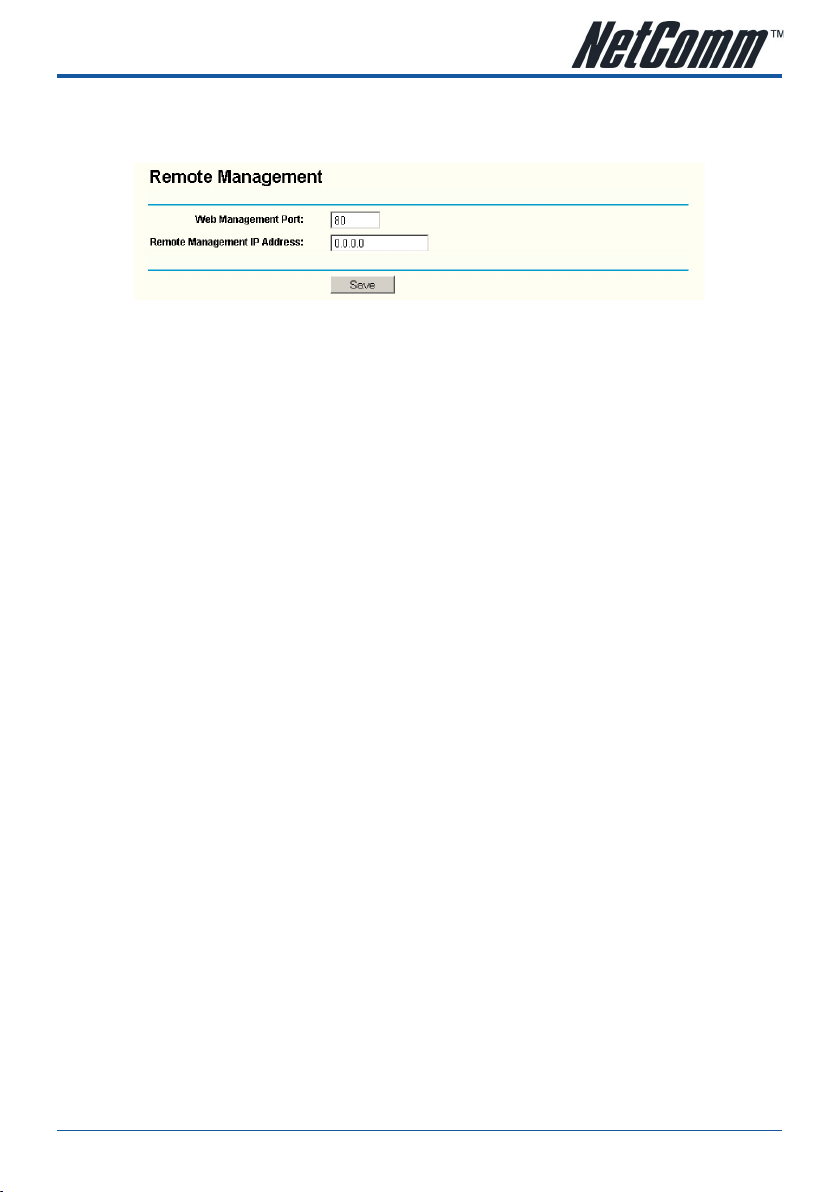

5.8.5 Remote Management ..............................................................................................................61

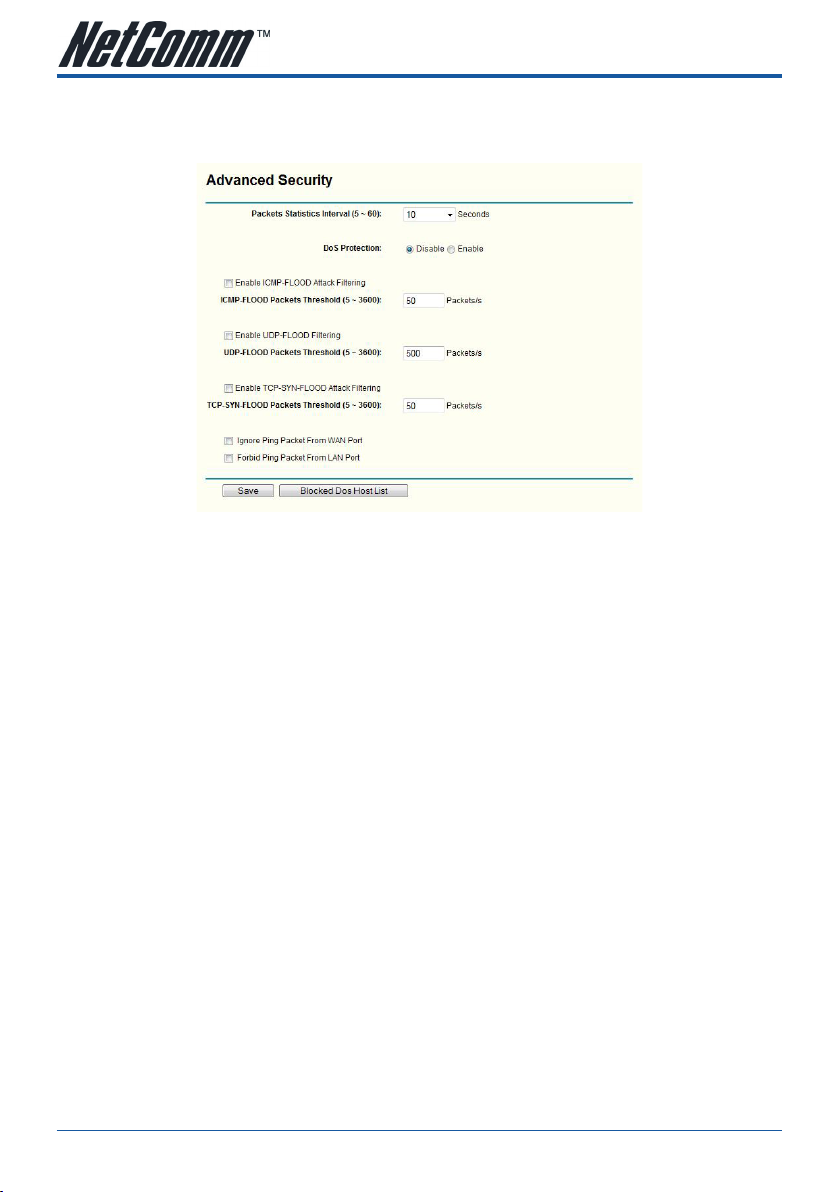

5.8.6 Advanced Security ..................................................................................................................62
5.9 IP & MAC Binding Settings ................................................................................................................64
5.9.1 Binding Setting .......................................................................................................................64
5.9.2 ARP List .................................................................................................................................66
5.10 Static Routing.................................................................................................................................67

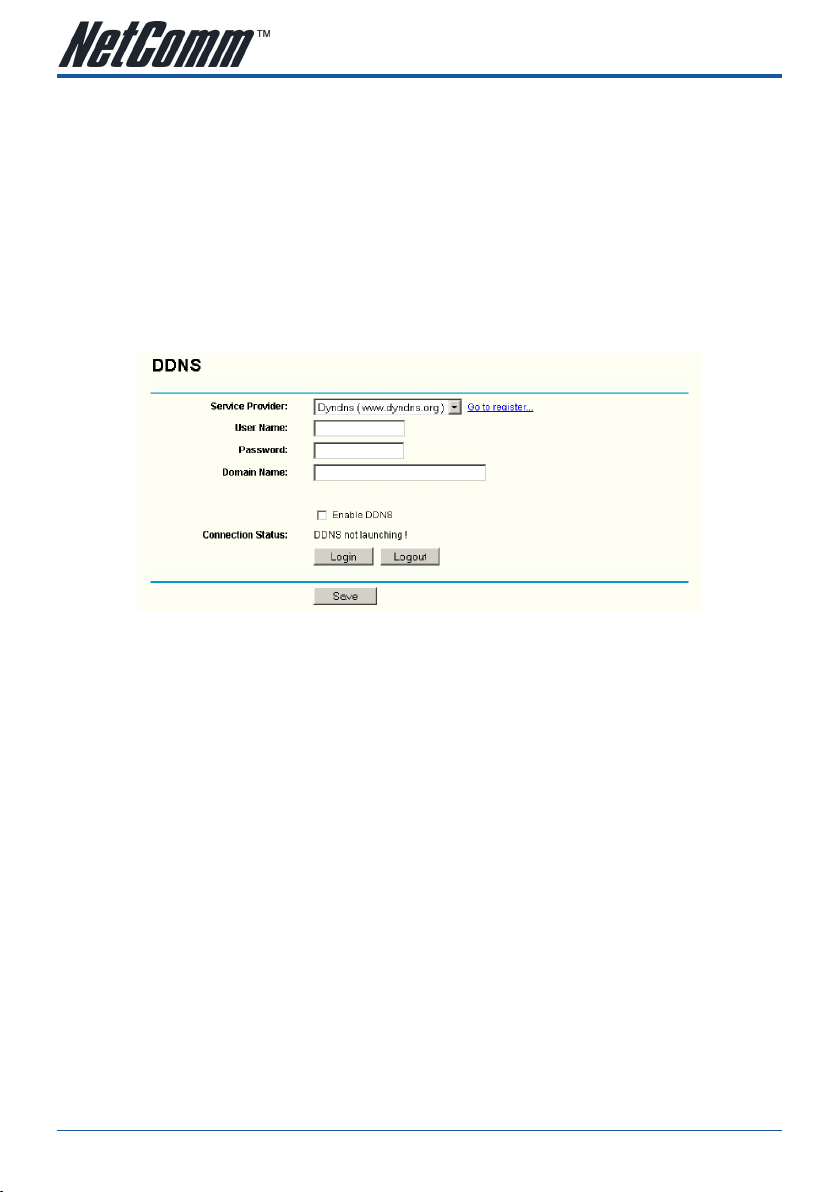

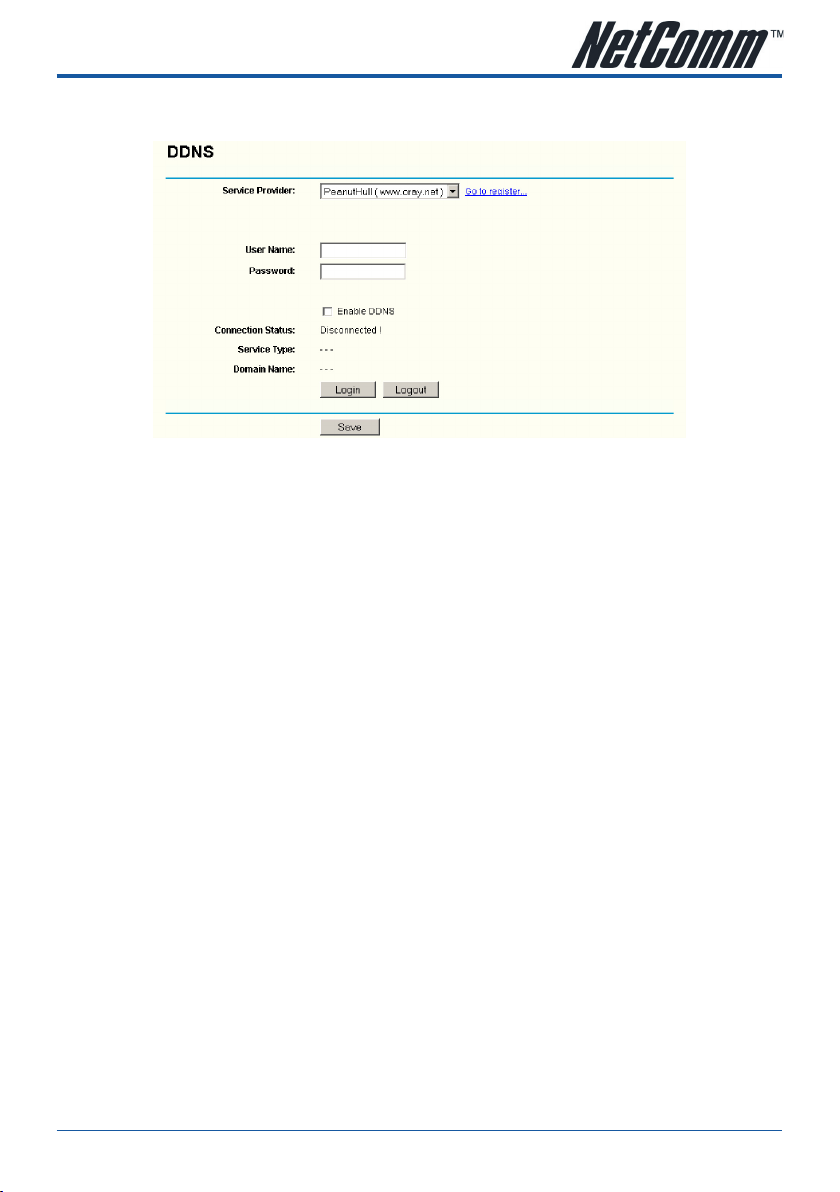

5.11 Dynamic DDNS...............................................................................................................................68
5.11.1Dyndns.org DDNS ..................................................................................................................68
5.11.2 Oray.net DDNS .....................................................................................................................69
5.11.3 Comexe.cn DDNS .................................................................................................................70

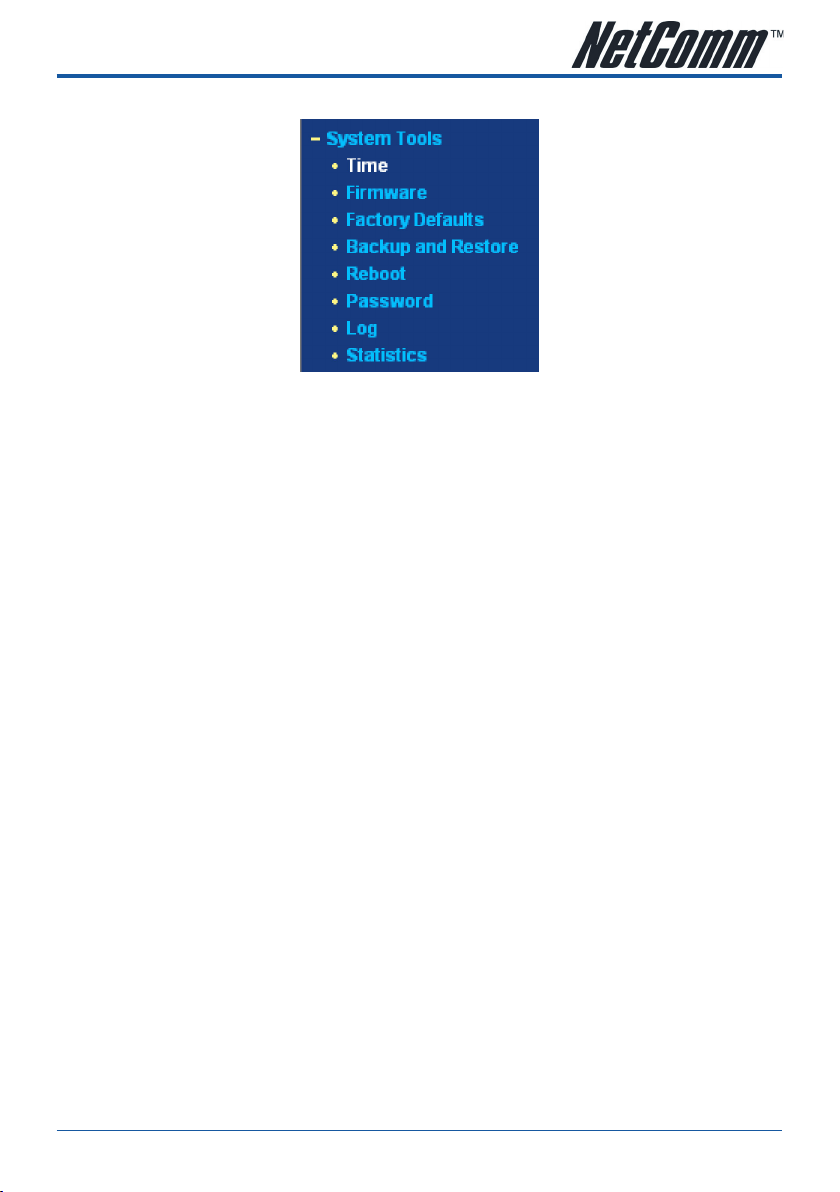

5.12 System Tools ..................................................................................................................................71
5.12.1 Time ....................................................................................................................................72
5.12.2 Firmware ..............................................................................................................................73

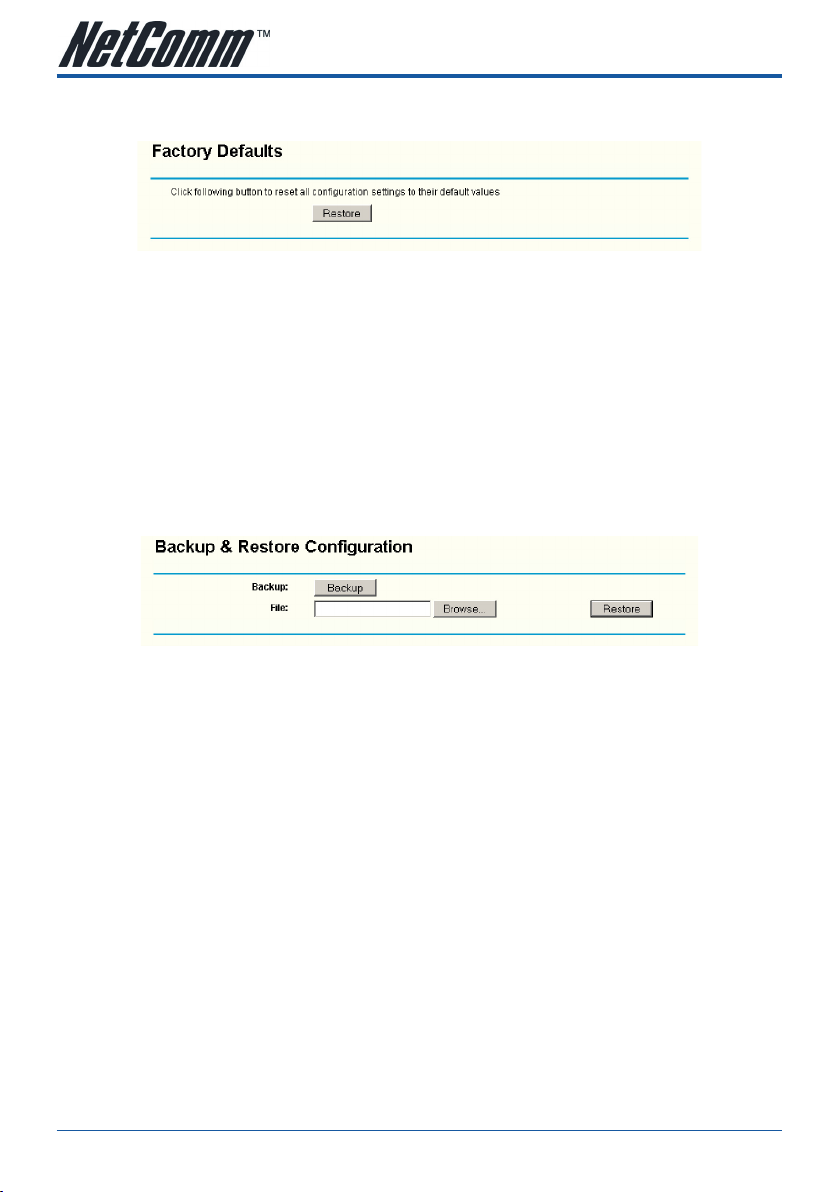

5.12.3 Factory Defaults ....................................................................................................................74
5.12.4 Backup and Restore ..............................................................................................................74
5.12.5 Reboot .................................................................................................................................75
5.12.6 Password .............................................................................................................................75

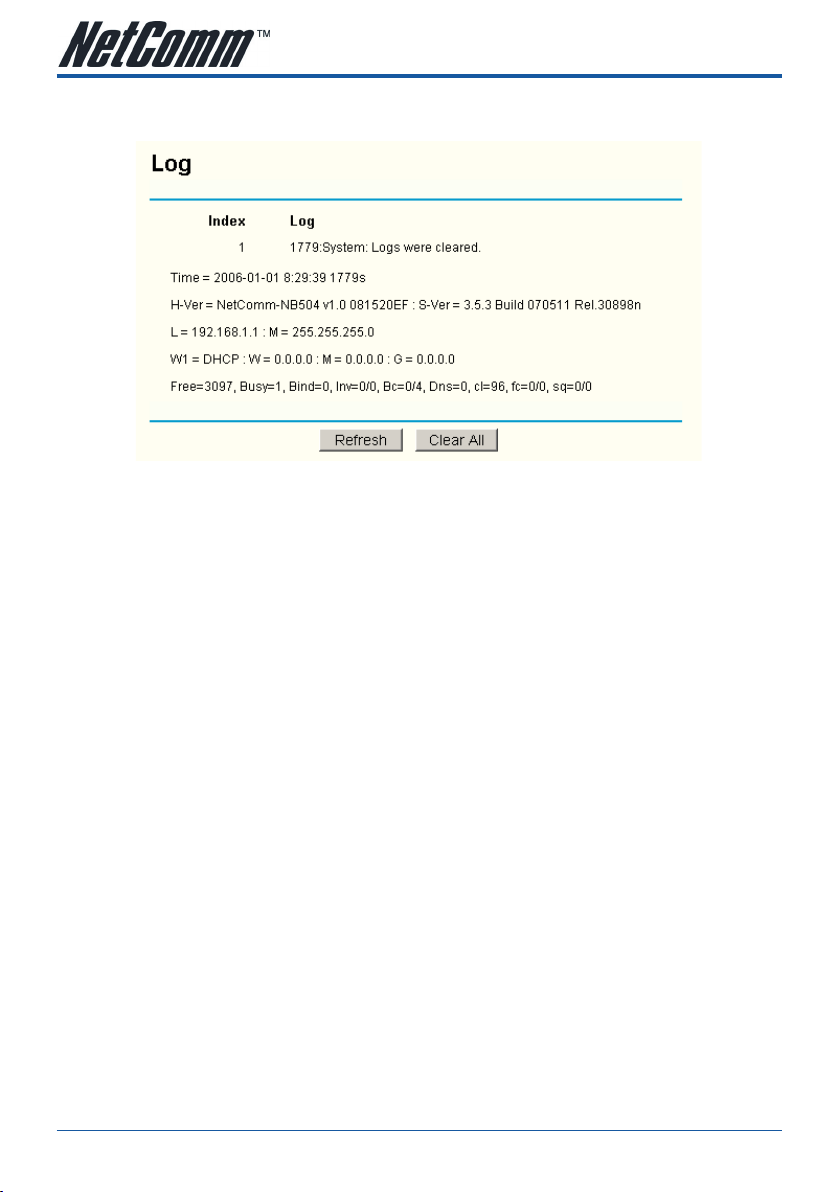

5.12.7 Log ......................................................................................................................................76
5.12.8 Statistics ..............................................................................................................................77
YML864 Rev1 NB504 User GuideNB504 User Guide www.netcomm.com.au 3
NB504 User Guide YML864Rev1 4 www.netcomm.com.au
PACKAGE CONTENTS
The following contents should be found in your box:
• One NB504 54Mbps Wireless Router
• One AC power Adapter for NB504 54Mbps Wireless Router
• Quick Installation Guide
• One Resource CD for NB504 54Mbps Wireless Router, including:
• This Guide
• Other Helpful Information
Note: If any of the listed contents are damaged or missing, please contact the retailer from whom you purchased the NB504 54Mbps Wireless Router for assistance.
CHAPTER 1: ABOUT THIS GUIDE
Thank you for choosing the NB504 54Mbps Wireless Router. This router provides dedicated solution for Small Office/Home Office (SOHO) networks. With your network all connected, your local wired or wireless network can share Internet access, files and fun for multiple PCs through one ISP account.
It is an easy web-based setup for installation and management. Even though you may not be familiar with the router, this guide will make configuring the router easy. Before installing the router, please look through this guide to get to know all the router’s functions.
1.1 Purposes
This Guide tells you how to use the NB504 54Mbps Wireless Router.
1.2 Conventions
The router mentioned in this guide stands for NB504 54Mbps Wireless Router.
1.3 Overview of this User Guide
Chapter 1: About this Guide
Chapter 2: Introduction
Chapter 3: Connecting the Router
Chapter 4: Quick Installation Guide
Chapter 5: Configuring the Router
Appendix A: FAQ

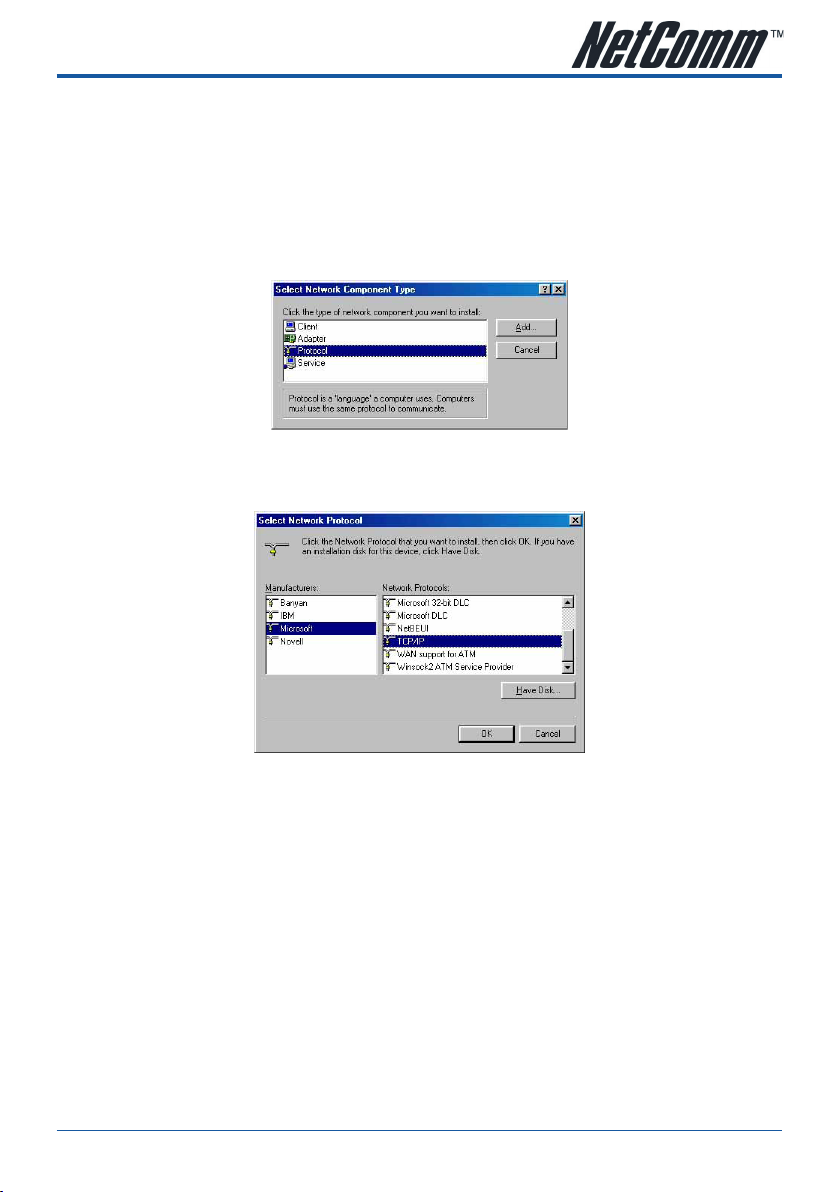

Appendix B: Configuring the PC
Appendix C: Specifications
Appendix D: Glossary
Appendix E: Contact Information
YML864 Rev1 NB504 User GuideNB504 User Guide www.netcomm.com.au 5
NB504 User Guide YML864Rev1 6 www.netcomm.com.au
CHAPTER 2: INTRODUCTION
2.1 Overview of the Router
The NB504 54Mbps Wireless Router integrates 4-port Switch, firewall, NAT-router and Wireless AP. Its design is dedicated to Small Office/Home Office (SOHO) wireless network solutions. The NB504 54Mbps Wireless Router will allow you to connect your network wirelessly better than ever, sharing Internet Access, files and fun, easily and securely.
In the most attentive wireless security, the NB504 54Mbps Wireless Router provides multiple protection measures. It can be set to turn off wireless network name (SSID) broadcast so that only stations that have the SSID can be connected. The router provides wireless LAN 64/128/152-bit WEP encryption security, and WPA/ WPA2 and WPA-PSK/WPA2-PSK authentication, as well as TKIP/AES encryption security. It also supports VPN pass-through for sensitive data secure transmission.
The NB504 54Mbps Wireless Router complies with the IEEE 802.11g/b standards so that the data transmission rate is up to 54Mbps. It is compatible with all IEEE 802.11g and IEEE 802.11b products.
The NB504 54Mbps Wireless Router provides flexible access control so that parents or network administrators can establish restricted access policies for children or staff. It has built-in NAT and DHCP server supporting static IP address distributing. It also supports Virtual Server and DMZ host for Port Triggering needs, and remote management and log so that network administrators can manage and monitor the network in real time.
The NB504 54Mbps Wireless Router is easy-to-manage. Quick Setup is supported and friendly help messages are provided for every step. So you can configure it quickly and share Internet access, files and fun.
2.2 Features
• Complies with IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u standards.
• 1 10/100M Auto-Negotiation RJ45 WAN port, 4 10/100M Auto-Negotiation RJ45 LAN ports, supporting
Auto MDI/MDIX.
• Supports 54/48/36/24/18/12/9/6Mbps or 11/5.5/3/2/1Mbps data transfer rates.
• Provides WPA/WPA2, WPA-PSK/WPA2-PSK authentication, TKIP/AES encryption security.
• Shares data and Internet access for users, supporting PPPoE, Dynamic IP, Static IP, L2TP, PPTP, BigPond
Cable Internet access.
• Supports Virtual Server, Special Application and DMZ host.
• Supports UPnP, Dynamic DNS, Static Routing, VPN Pass-through.
• Connecting Internet on demand and disconnecting from the Internet when idle for PPPoE.
• Built-in NAT and DHCP server supporting static IP address distributing.
• Built-in firewall supporting IP address filtering, Domain Name filtering, and MAC address filtering.
• Supports connecting/disconnecting from the Internet on a specified time of day.
• Supports access control, parents and network administrators can establish restricted access policies
based on time of day for children or staff.
• Provides 64/128/152-bit WEP encryption security and wireless LAN ACL (Access Control List).
• Supports Flow Statistics.
• Supports ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filter.
• Ignores Ping packets from WAN or LAN ports.
• Supports firmware upgrade.
• Supports Web management.
YML864 Rev1 NB504 User GuideNB504 User Guide www.netcomm.com.au 7
NB504 User Guide YML864Rev1 8 www.netcomm.com.au
2.3 Panel Layout
2.3.1 The Front Panel
The front panel of the NB504 consists of several LED indicators, which is designed to indicate connections. View from left. Table 2-1 describes the LEDs on the front panel of the router.
Figure 2-1 Front Panel
Name Action Description
POWER
SYSTEM
WLAN
WAN,1-4
Not lit No Power
Lit up Power on
Lit up The router is initializing
Flashing The router is working properly
Not lit The router has a hardware error
Not lit There is no wireless device linked to the device
Flashing The Wireless function is enabled
Not lit There is no device linked to the corresponding port
Lit up There is a device linked to the corresponding port but no activity
Flashing There is an active device linked to the corresponding port
Table 2-1 The LEDs description
2.3.2 The Rear Panel
The rear panel contains the following features. (View from left to right:)
• AC power socket: only use the power adapter supplied with the NB504 54Mbps Wireless Router, use of a
different adapter may result in product damage.
• Four 10/100Mbps RJ45 LAN ports for connecting the router to the local PCs
• RJ45 WAN port for connecting the router to a cable, DSL modem, or Ethernet
• Factory Default Reset button
• There are two ways to reset the router’s factory defaults:
1) Use the Factory Defaults function on System Tools -> Factory Defaults page in the router’s Web-
based Utility.
2) Use the Factory Default Reset button: First, turn off the router’s power. Second, press and hold
the default reset button then turn on the router’s power, until the System LED lights up (about 3 seconds). Last, release the reset button and wait for the router to reboot.
Note: Ensure the router is powered on before it restarts completely.
• Wireless antenna
YML864 Rev1 NB504 User GuideNB504 User Guide www.netcomm.com.au 9
NB504 User Guide YML864Rev1 10 www.netcomm.com.au
CHAPTER 3: CONNECTING THE ROUTER
3.1 System Requirements
• Broadband Internet Access Service (DSL/Cable/Ethernet)
• One DSL/Cable modem that has an RJ45 connector
• Each PC in the LAN needs a working Ethernet Adapter and an Ethernet cable with RJ45 connectors
• TCP/IP protocol must be installed on each PC
• Web browser, such as Microsoft Internet Explorer 5.0 or later, Netscape Navigator 6.0 or later
3.2 Installation Environment Requirements
• Do not place in direct sunlight or near a heater or heating vent
• Do not cluttered or crowded. There should be at least 2 inches (5 cm) of clear space on all sides of the
router
• Well ventilated (especially if it is in a closet)
• Operating temperature: 0oC~40oC (32oF~104oF)
• Operating Humidity: 10%~90%RH, Non-condensing
3.3 Connecting the Router
Before you install the router, you should connect your PC to the Internet through your broadband service successfully. If there is any problem, please contact your ISP. After that, please install the router according to the following steps. Don’t forget to pull out the power plug and keep your hands dry.
1. Power off your PC, Cable/DSL modem, and the router.
2. Locate an optimum location for the router. The best place is usually near the center of the area in which
your PC will wirelessly connect. The place must accord with the Installation Environment Requirements.
3. Adjust the direction of the antenna. Normally, upright is a good direction.
4. Connect the PCs and each Switch/Hub in your LAN to the LAN Ports on the router. (If you have the
wireless NIC and want to use wireless connector, you can skip this step.)
5. Connect the DSL/Cable Modem to the WAN port on the router.
6. Connect the AC power adapter to the AC power socket on the router, and the other end into an electrical
outlet. The router will start to work automatically.
7. Power on your PC and Cable/DSL modem.
YML864 Rev1 NB504 User GuideNB504 User Guide www.netcomm.com.au 11
NB504 User Guide YML864Rev1 12 www.netcomm.com.au
CHAPTER 4: QUICK INSTALLATION GUIDE
After connecting the NB504 Router into your network, you should configure it. This chapter describes how to configure the basic functions of your NB504 Wireless Router. These procedures only take you a few minutes. You can access the Internet via the router immediately after successfully configuring.
4.1 TCP/IP configuration
The default IP address of the NB504 54Mbps Wireless Router is 192.168.1.1. And the default Subnet Mask is 255.255.255.0. These values can be seen from the LAN. They can be changed as you desire, as an example we use the default values for description in this guide.
Connect the local PC to the LAN ports of the router, with an RJ45 cable (not supplied). There are then two ways to configure the IP address for your PC.
• Configure the IP address manually

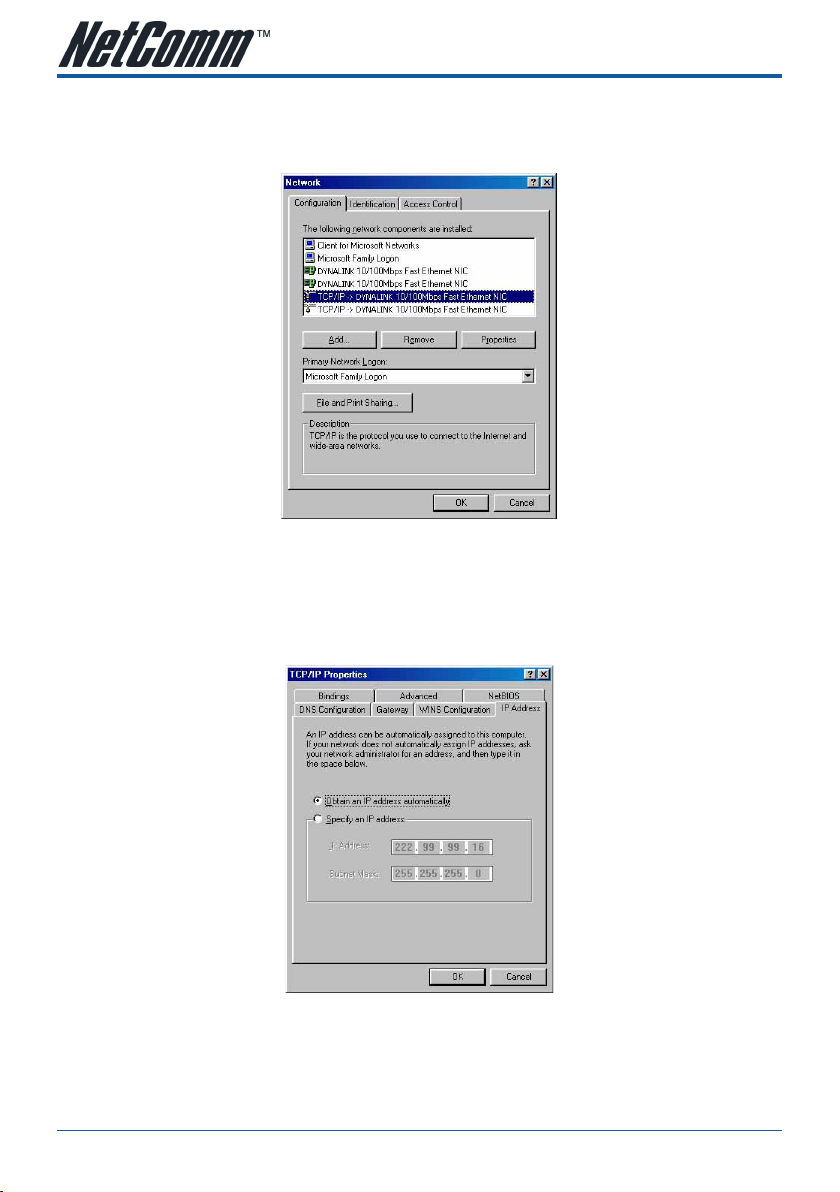

1) Set up the TCP/IP Protocol for your PC. If you need instructions as to how to do this, please refer to
Appendix B: “Configuring the PC.”
2) Configure the network parameters. The IP address is 192.168.1.xxx (“xxx” is from 2 to 254), Subnet
Mask is 255.255.255.0, and Gateway is 192.168.1.1 (The router’s default IP address)
• Obtain an IP address automatically
1) Set up the TCP/IP Protocol in “Obtain an IP address automatically” mode on your PC. If you need
instructions as to how to do this, please refer to Appendix B: “Configuring the PC.”
2) Power off the router and PC. Then turn on the router and restart the PC. The built-in DHCP server
will assign IP address for the PC.
Now, you can run the Ping command in the command prompt to verify the network connection between your PC and the router. The following example is in Windows 2000 OS.
Open a command prompt, and type ping 192.168.1.1, then press Enter.
If the result displayed is similar to that shown in figure 4-1, the connection between your PC and the router has been established.
Figure 4-1 Successful result of Ping command
If the result displayed is similar to that shown in figure 4-2, it means that your PC has not connected to the router.
Figure 4-2 Failed result of Ping command
Please check it following these steps:
1. Is the connection between your PC and the router correct?
Note: The 1/2/3/4 LEDs of LAN port which you link to on the router and LEDs on your PC’s adapter should be lit.
2. Is the TCP/IP configuration for your PC correct?
Note: If the router’s IP address is 192.168.1.1, your PC’s IP address must be within the range of 192.168.1.2 ~ 192.168.1.254, the gateway must be 192.168.1.1
YML864 Rev1 NB504 User GuideNB504 User Guide www.netcomm.com.au 13
NB504 User Guide YML864Rev1 14 www.netcomm.com.au
4.2 Quick Installation Guide
With a Web-based (Internet Explorer or Netscape® Navigator) utility, it is easy to configure and manage the NB504 54Mbps Wireless Router. The Web-based utility can be used on any Windows, Macintosh or UNIX OS with a web browser.
Connect to the router by typing http://192.168.1.1 in the address field of web browser.
Figure 4-3 Login the router
After a moment, a login window will appear similar to that shown in Figure 4-4. Enter admin for the User Name and Password, both in lower case letters. Then click the OK button or press the Enter key.
Figure 4-4 Login Windows
Note: If the above screen does not pop-up, it means that your web-browser has been set to a proxy. Go to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears, cancel the Using Proxy checkbox, and click OK to finish it.
If the User Name and Password are correct, you can configure the router using the web browser. Please click the Quick Setup link on the left of the main menu and the Quick Setup screen will appear.
Figure 4-5 Quick Setup
Click Next, then Choose WAN Connection Type page will appear, shown in figure 4-6.
Figure 4-6 Choose WAN Connection Type
The router supports three popular ways to connect to Internet. Please select one compatible with your ISP. Click Next to enter the necessary network parameters.
If you choose “PPPoE”, you will see this page shown in figure 4-7:
Figure 4-7 Quick Setup - PPPoE
• User Name and Password - Enter the User Name and Password provided by your ISP. These fields are
case sensitive. If you have difficulty with this process, please contact your ISP.
If you choose “Dynamic IP”, the router will automatically receive the IP parameters from your ISP without needing to enter any parameters.
YML864 Rev1 NB504 User GuideNB504 User Guide www.netcomm.com.au 15
NB504 User Guide YML864Rev1 16 www.netcomm.com.au
If you Choose “Static IP”, the Static IP settings page will appear, shown in figure 4-8:
Figure 4-8 Quick Setup - Static IP
Note - The IP parameters should have been provided by your ISP.
• IP Address - This is the WAN IP address as seen by external users on the Internet (including your ISP).
Enter the IP address into the field.
• Subnet Mask - The Subnet Mask is used for the WAN IP address, it is usually 255.255.255.0
• Default Gateway - Enter the gateway IP address into the box if required.
• Primary DNS - Enter the DNS Server IP address into the boxes if required.
• Secondary DNS - If your ISP provides another DNS server, enter it into this field.
Note - For other connection types please refer to section 5.4.2
After you complete the above, click Next, the Wireless settings page will appear, shown in figure 4-9.
Figure 4-9 Quick Setup - Wireless settings
In this page, you can configure the following wireless parameters:
• Wireless Radio - Indicates whether the Access Point feature of the router is enabled or disabled. If
disabled, the WLAN LED on the front panel will not be lit and the wireless stations will not be able to access the router. If enabled, the WLAN LED will be lit up and wireless stations will be able to access the router.
• SSID - Enter a value of up to 32 characters. The same SSID must be assigned to all wireless devices on
your network. The default SSID is Wireless. This value is case-sensitive. For example, NETCOMM is NOT the same as Netcomm.
• Region - Select your region from the pull-down list. This field specifies the region where the wireless
function of the router can be used. It may be illegal to use the wireless function of the router in a region other than one of those specified in this field.
• Channel - The current channel in use. This field determines which operating frequency will be used.
• Mode - Indicates the current mode 54Mbps (802.11g), 11Mbps (802.11b). If you select 54Mbps
(802.11g), it is compatible with 11Mbps (802.11b).
These settings are only for basic wireless parameters, for advanced settings, please refer to Section 5.5: “Wireless.”
Note: The change of wireless settings won’t take effect until the router reboots! You can reboot it manually. If you need instructions as to how to do this, please refer to Section 5.11.5: “Rebooting the Router”
YML864 Rev1 NB504 User GuideNB504 User Guide www.netcomm.com.au 17
NB504 User Guide YML864Rev1 18 www.netcomm.com.au
Click the Next button, you will then see the Finish page:
Figure 4-10 Quick Setup - Finish
After finishing all configurations of basic network parameters, please click Finish button to exit this Quick Setup.
CHAPTER 5: CONFIGURING THE ROUTER
This chapter describes each web page’s key functions.
5.1 login
After your successful login, you can configure and manage the router. There are ten main menus on the left of the web-based utility. Submenus will be available after you click one of the main menus. The ten main menus are: Status, Quick Setup, Network, Wireless, DHCP, Forwarding, Security, Static Routing, Dynamic DDNS and System Tools. On the right of the web-based utility, there are the detailed explanations and instructions for the corresponding page. To apply any settings you have altered on the page, please click the Save button.
The detailed explanations for each web page key’s function is listed.
YML864 Rev1 NB504 User GuideNB504 User Guide www.netcomm.com.au 19
NB504 User Guide YML864Rev1 20 www.netcomm.com.au
5.2 Status
The Status page displays the router’s current status and configuration. All information is read-only.
1. LAN
This field displays the current settings or information for the LAN, including the MAC address, IP address
and Subnet Mask.
2. Wireless
This field displays basic information or status for wireless function, including Wireless Radio, SSID,
Channel, Mode, Wireless MAC address and IP address.
3. WAN
These parameters apply to the WAN port of the router, including MAC address, IP address, Subnet
Mask, Default Gateway, DNS server and WAN connection type. If PPPoE is chosen as the WAN
connection type, the Disconnect button will be shown here while you are accessing the Internet. You can also cut the connection by clicking the button. If you have not connected to the Internet, just click
Connect to establish the connection.
4. Traffic Statistics
This field displays the router’s traffic statistics.
5. System Up Time
The amount of time from when the router was switched on or reset.
Figure 5-1 Router Status
YML864 Rev1 NB504 User GuideNB504 User Guide www.netcomm.com.au 21
NB504 User Guide YML864Rev1 22 www.netcomm.com.au
5.3 Quick Setup
Please refer to Section 4.2: “Quick Installation Guide.”
5.4 Network
Figure 5-2 the Network menu
There are three submenus under the Network menu (shown in figure 5-2): LAN, WAN and MAC Clone. Click any of them, and you will be able to configure the corresponding function. The detailed explanations for each submenu are provided below.
5.4.1 LAN
You can configure the IP parameters of LAN on this page.
Figure 5-3 LAN
• MAC Address - The physical address of the router, as seen from the LAN. The value can’t be changed.
• IP Address - Enter the IP address of your router in dotted-decimal notation (factory default:
192.168.1.1).
• Subnet Mask - An address code that determines the size of the network. Normally use 255.255.255.0
as the subnet mask.
Note:
a. If you change the IP Address of LAN, you must use the new IP Address to login the router.
b. If the new LAN IP Address you set is not in the same subnet, the IP Address pool of the DHCP server will not take effect, until they are re-
configured.
c. If the new LAN IP Address you set is not in the same subnet, the Virtual Server and DMZ Host will change accordingly at the same time.
5.4.2 WAN
You can configure the WAN port parameters on this page.
First, please choose the WAN Connection Type (Dynamic IP/Static IP/PPPoE/802.1X + Dynamic IP/802.1X + Static IP/BigPond Cable/L2TP/PPTP) for Internet. The default type is Dynamic IP. If you aren’t given any login parameters (fixed IP Address, logging ID, etc), please select Dynamic IP. If you are given a fixed IP (static IP), please select Static IP. If you are given a user name and a password, please select the type of your ISP provided(PPPoE/BigPond/L2TP/ PPTP). If you are not sure which connection type you use currently, please contact your ISP to obtain the correct information.
1. If you choose Dynamic IP, the router will automatically get IP parameters from your ISP. You can see the
page as follows (figure 5-4):
Figure 5-4 WAN – Dynamic IP
This page displays the WAN IP parameters assigned dynamically by your ISP, including IP address,
Subnet Mask, Default Gateway, etc. Click the Renew button to renew the IP parameters from your ISP. Click the Release button to release the IP parameters.
MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks is 1500
Bytes. For some ISPs you need to reduce the MTU. But this is rarely required, and should not be done unless you are sure it is necessary for your ISP connection.
If your ISP gives you one or two DNS addresses, select Use These DNS Servers and enter the primary and
secondary addresses into the correct fields. Otherwise, the DNS servers will be assigned dynamically from your ISP.
Note: If you get an address and find error when you go to a Web site, it is likely that your DNS servers are set up improperly. You should contact your ISP to get DNS server addresses.
YML864 Rev1 NB504 User GuideNB504 User Guide www.netcomm.com.au 23
NB504 User Guide YML864Rev1 24 www.netcomm.com.au
Get IP with Unicast DHCP - A few ISPs’ DHCP servers do not support the broadcast applications. If you
cannot get the IP Address normally, you can choose this option. (This is rarely required.)
2. If you choose Static IP, you should have fixed IP Parameters specified by your ISP. The Static IP settings
page will appear, shown in figure 5-5:
Figure 5-5 WAN - Static IP
You should type the following parameters into the spaces provided:
• IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.
• Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP, usually is
255.255.255.0.
• Default Gateway - (Optional) Enter the gateway IP address in dotted-decimal notation provided by
your ISP.
• MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks is 1500
Bytes. For some ISPs you may need to modify the MTU. But this is rarely required, and should not be done unless you are sure it is necessary for your ISP connection.
• Primary DNS - (Optional) Enter the DNS address in dotted-decimal notation provided by your ISP.
• Secondary DNS - (Optional) Type another DNS address in dotted-decimal notation provided by your
ISP if provided.
3. If you choose PPPoE, you should enter the following parameters (figure 5-6):
Figure 5-6 WAN - PPPoE
• User Name/Password - Enter the User Name and Password provided by your ISP. These fields are case-sensitive.
• Connect on Demand - You can configure the router to disconnect your Internet connection after a
specified period of inactivity (Max Idle Time). If your Internet connection has been terminated due to inactivity, Connect on Demand enables the router to automatically re-establish your connection as soon as you attempt to access the Internet again. If you wish to activate Connect on Demand, click the radio button. If you want your Internet connection to remain active at all times, enter 0 in the Max Idle Time field. Otherwise, enter the number of minutes you want to have elapsed before your Internet connection terminates.
Caution: Sometimes the connection cannot be disconnected although you specify a time to Max Idle Time, since some applications are visiting the Internet continually in the background.
• Connect Automatically - Connect automatically after the router is disconnected. To use this option,
click the radio button.
• Time-based Connecting - You can configure the router to make it connect or disconnect based
on time. Enter the start time in HH:MM format for connecting and end time in HH:MM format for disconnecting in the Period of Time fields.
Note: Only when you have configured the system time on System Tools -> Time page, will the Time-based Connecting function can take effect.
• Connect Manually - You can configure the router to make it connect or disconnect manually. After a
specified period of inactivity (Max Idle Time), the router will disconnect from the Internet connection, and you will not be able to re-establish your connection automatically as soon as you attempt to access the Internet again. To use this option, click the radio button. If you want your Internet connection to remain active at all times, enter “0” in the Max Idle Time field. Otherwise, enter the number time in minutes that you wish to have the Internet connecting last unless a new link is requested.
Caution: Sometimes the connection cannot be disconnected although you specify a time to Max Idle Time, since some applications are visiting the Internet continually in the background.
YML864 Rev1 NB504 User GuideNB504 User Guide www.netcomm.com.au 25
NB504 User Guide YML864Rev1 26 www.netcomm.com.au
Click the Connect button to connect immediately, Click the Disconnect button to disconnect
immediately.
Click the Advanced Settings button to set up the advanced option, the page shown in figure 5-7 will
then appear:
Figure 5-7 PPPoE Advanced Settings
• Packet MTU - The default MTU size is 1492 bytes, which value is usually fine. For some ISPs, you
need modify the MTU. This should not be done unless you are sure it is necessary for your ISP.
• Service Name/AC Name - The service name and AC (Access Concentrator) name, these should not
be configured unless you are sure it is necessary for your ISP.
• ISP Specified IP Address - If you know that your ISP does not automatically transmit your IP address
to the router during login, click “Use the IP Address specified by ISP” check box and enter the IP Address in dotted-decimal notation, which your ISP provided.
• Detect Online Interval - The default value is 0, you can input the value between 0 and 120. The
router will detect Access Concentrator online at every interval between seconds. If the value is 0, it means, do not detect.
• DNS IP address - If you know that your ISP does not automatically transmit DNS addresses to the
router during login, click “Use the following DNS servers” checkbox and enter the IP address in dotted-decimal notation of your ISP’s primary DNS server. If a secondary DNS server address is available, enter it as well.
Click the Save button to save your settings.
4. If you choose 802.1X + Dynamic IP, you should enter the follow parameters(figure 5-8) :
Figure 5-8 802.1X + Dynamic IP Settings
• User Name - Enter the user name for 802.1X authentication provided by your ISP
• Password - Enter the password for 802.1X authentication provided by your ISP. Click Login to start 802.1X authentication. Click Logout to end 802.1X authentication.
• Host Name - This field is required to be filled by some service provider.
YML864 Rev1 NB504 User GuideNB504 User Guide www.netcomm.com.au 27
NB504 User Guide YML864Rev1 28 www.netcomm.com.au
5. If you choose 802.1X + Static IP, you should enter the follow parameters(figure 5-9) :
Figure 5-9 802.1X + Static IP Settings
• User Name - Enter the user name for 802.1X authentication provided by your ISP
• Password - Enter the password for 802.1X authentication provided by your ISP. Click Login to start 802.1X authentication. Click Logout to end 802.1X authentication.
• IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.
• Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP.
• Default Gateway - (Optional) Enter the default gateway IP address in dotted-decimal notation
provided by your ISP.
Loading...
+ 64 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
