NetComm NB3100 User Manual

Contents

Default Settings & Facts ............................................................................................................... 3

NetComm Cable/DSL Firewall Router Quick Start .........................................................................4

One page setup for Telstra Bigpond Cable ............................................................................4

One page setup for Optus Cable ........................................................................................... 5

One page setup for most ADSL services. ............................................................................. 6

Introduction ....................................................................................................................................7

Chapter 1: Getting to know your NetComm Cable/DSL Firewall Router ...................................... 9

1-1 About NetComm Cable/DSL Firewall Router .................................................................... 9

1-2 Contents of the NetComm Cable/DSL Firewall Router Package .................................... 10

1-3 Features of the NetComm Cable/DSL Firewall Router ................................................... 10

Chapter 2: Hardware Installation & Setup .................................................................................. 11

2-1 Rear Panel & Connections .............................................................................................. 11

2-2 Front Panel LEDs ............................................................................................................12

2-3 System Requirements and Setup ................................................................................... 13

Chapter 3: Internet Access .........................................................................................................18

3-1 Prepare your network information ................................................................................. 18

3-2 Web-based User Interface ............................................................................................ 19

3-3 Initial Configuration – Setup ............................................................................................20

Chapter 4: Advanced Applications ............................................................................................. 23

4-1 Firewall ........................................................................................................................... 23

4-2 DHCP Configuration ........................................................................................................ 24

4-3 Access Control ............................................................................................................... 25

4-4 Port Forwarding Settings ...............................................................................................27

4-5 Special Application .........................................................................................................28

4-6 Dynamic Routing .............................................................................................................29

4-7 Static Routing .................................................................................................................. 30

4-8 Administration Settings ................................................................................................... 31

4-9 Status Monitor ................................................................................................................. 32

4-10 DMZ Host ...................................................................................................................... 33

4-11 Log ................................................................................................................................ 33

4-12 VPN Passthrough ......................................................................................................... 34

Chapter 5: Configuring IPSec on Windows 2000/XP .................................................................. 35

5-1 Environment .................................................................................................................... 35

5-2 Steps in Windows 2000/XP ........................................................................................... 35

5-3 Steps in Cable/DSL Firewall Router ..............................................................................47

Chapter 6: Macintosh Setup ........................................................................................................ 49

6-1 Hardware Connections .................................................................................................. 49

6-2 Computer Network Configuration ................................................................................... 49

6-3 NetComm Cable/DSL Firewall Router Configuration ...................................................... 50

6-4 Adding NetComm Cable/DSL Firewall Router to Existing Network ............................... 50

Chapter 7: Trouble Shooting ....................................................................................................... 51

Hardware .............................................................................................................................. 51

Client Side (Computers) ........................................................................................................ 52

Appendix A: Frequently Asked Questions ................................................................................. 53

Appendix B: Technical Specifications ........................................................................................54

Appendix C: Glossary ................................................................................................................. 55

Appendix D: Registering your NetComm Product ....................................................................... 58

Contact Information ...............................................................................................................58

Trademarks and Notices ....................................................................................................... 58

Product Warranty .................................................................................................................. 59

Limitations of Warranty .........................................................................................................59

www.netcomm.com.au Rev.2 - YML630 Page 2 Cable/DSL Firewall Router

Default Settings & Facts

The following lists the default settings of your NetComm Cable/DSL Firewall Router.

Note: It is highly recommended that you enable security settings in the router before

connecting your router to your network.

Router

LAN IP: 192.168.1.1

Username: <none>

Password: admin

WAN port MDI: Auto MDI (No cross over cable required)

Resetting

While using or installing your NetComm Cable/DSL Firewall Router you may need to utilise the

reset feature. There are two types of reset:

Soft

A soft reset will restart the unit and reconnect to the internet using the settings stored previously, none of your settings are deleted. To perform a soft reset briefly press the reset button on the back of the unit.

Hard

A hard reset will return your unit to its factory default setting, meaning that you will loose all configurations and logs set/stored previously. To perform a hard reset, press and hold in the reset button on the back of the unit for 10 seconds.

Power

Ensure that you only use the Power Adaptor supplied (5V DC, 3amps, Center pole positive)

with your NetComm Cable/DSL Firewall Router.

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 3

NetComm Cable/DSL Firewall Router Quick Start

The following Quick Start pages are intended to be used by an advanced user to quickly configure the NetComm Cable/DSL Firewall Router. It assumes that you are familiar with Networking and that you already have a Cable or ADSL modem with an Ethernet port. If you need further explanation, please refer to the more detailed sections of this document. This guide presumes that your NetComm Cable/DSL Firewall Router is set to factory defaults (See Resetting on previous page if required).

One page setup for Telstra Bigpond Cable

1. Connect your computer to one of the four LAN ports on the NetComm Cable/DSL Firewall

Router and ensure you have a link. Connect your Cable modem (supplied by your ISP) to

the WAN port of the NetComm Cable/DSL Firewall Router.

2. Set the Network Card of your computer to use DHCP or assign it an IP address in the range

of 192.168.1.2 ~ 254.

3. Open a web browser (ensuring that it is set to access the Internet via the LAN, not by a dial-

up networking account). Browse to the NetComm Cable/DSL Firewall Router's default IP

(192.168.1.1). The main menu of the router should open displaying the “One Page Setup”.

Note: You may be prompted for a log-in, there is no User Name and the Password is

"admin".

4. Change your “WAN Connection Type” to “Heartbeat (E.g. Telstra cable)”.

5. Set your “User Name” and “Password” as provided by your ISP.

6. If you wish to make services available to external Internet users, even when you are not

using Internet services from inside your network, you can choose “Keep Alive”.

Alternatively for extra security you can choose “Connect on Demand”.

7. Click “Apply”. Your NetComm Cable/DSL Firewall Router will attempt to use your settings

to connect to your ISP. You can check the results on the “Status Monitor” page.

www.netcomm.com.au Rev.2 - YML630 Page 4 Cable/DSL Firewall Router

8. If you have a DHCP server already active on your network it is recommended that you disable either the NetComm Cable/DSL Firewall Router's built in DHCP server or the existing DHCP server. Please note that Microsoft Internet Connection Sharing is a DHCP server.

One page setup for Optus Cable

1. Connect your computer to one of the four LAN ports on the NetComm Cable/DSL Firewall Router and ensure you have a link. Connect your Cable modem (supplied by your ISP) to the WAN port of the NetComm Cable/DSL Firewall Router.

2. Set the Network Card of your computer to use DHCP or assign it an IP address in the range of 192.168.1.2 ~ 254.

3. Open a web browser (ensuring that it is set to access the Internet via the LAN, not by a dialup networking account). Browse to the NetComm Cable/DSL Firewall Router's default IP (192.168.1.1). The main menu of the router should open displaying the “One Page Setup”.

Note: You may be prompted for a log-in, there is no User Name and the Password is

"admin".

4. Change your “WAN Connection Type” to “Obtain an IP automatically (E.g. Optus cable)”.

5. Optus cable does not require a “User Name” and “Password” as it uses the modem's MAC address to identify you to your ISP.

6. If you wish to make services available to external Internet users, even when you are not using Internet services from inside your network, you can choose “Keep Alive”. Alternatively for extra security you can choose “Connect on Demand”.

7. Click “Apply”. Your NetComm Cable/DSL Firewall Router will attempt to use your settings to connect to your ISP. You can check the results on the “Status Monitor” page.

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 5

One page setup for most ADSL services.

1. Connect your computer to one of the four LAN ports on the NetComm Cable/DSL Firewall Router and ensure you have a link. Connect your ADSL modem (supplied by your ISP) to the WAN port of the NetComm Cable/DSL Firewall Router.

2. Set the Network Card of your computer to use DHCP or assign it an IP address in the range of 192.168.1.2 ~ 254.

Note: You may be prompted for a log-in, there is no User Name and the Password is

"admin".

4. Change your “WAN Connection Type” to “PPPoE (ADSL)”.

5. Set your “User Name” and “Password” as provided by your ISP.

7. Click “Apply”. Your NetComm Cable/DSL Firewall Router will attempt to use your settings to connect to your ISP. You can check the results on the “Status Monitor” page.

www.netcomm.com.au Rev.2 - YML630 Page 6 Cable/DSL Firewall Router

Introduction

Congratulations on your purchase of the NetComm Cable/DSL Firewall Router. The NetComm Cable/DSL Firewall Router is designed to provide advanced networking security and network resource sharing, utilising fast Ethernet connections with four built-in 10/100 auto-sensing switched Ethernet ports. And best of all, with a powerful firewall engine, this device is able to prevent DoS attack and uses SPI to provide superior protection for your private network from Internet hackers.

The built-in NAT provides a natural Internet firewall, protecting your network from unauthorised access by outside users. The router will share your internet connection with up to 253 users, 25 of which can be connected via NetComm Wireless Client Adaptors (NP7030 and NP7040). Configured as a DHCP server, the NetComm Cable/DSL Firewall Router assigns an IP Address to every computer connected on the LAN automatically. Also, a DHCP client helps the WAN port to acquire an IP address dynamically from your ISP.

Unlike other typical routers, which only share 10Mbps over all of their connections, the NetComm Cable/DSL Firewall Router is equipped with a 4-port 10M/100Mbps auto-sensing switch, dedicating a possible100Mbps to each and every ethernet connected computer.

With a web-based UI (User Interface), this NetComm Cable/DSL Firewall Router is easy to setup and maintain via web browsers such as Netscape Communicator and Internet Explorer.

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 7

About this Guide

This guide contains information about installing and configuring your NetComm Cable/DSL Firewall Router. It is designed to guide users through the correct setup procedures for both hardware installation and basic configuration. Later, it shows how to complete advanced configuration to get the best operating performance from the NetComm Cable/DSL Firewall Router.

Chapter 1: Get to know your NetComm Cable/DSL Firewall Router

This chapter describes the package contents and provides a list of features of the NetComm Cable/DSL Firewall Router.

Chapter 2: Hardware Installation & Setup

This chapter describes the steps for hardware installation of the NetComm Cable/DSL Firewall Router.

Chapter 3: Internet Access

This chapter describes the steps for basic configuration and start up of the NetComm Cable/ DSL Firewall Router.

Chapter 4: Advanced Applications

This chapter describes how to configure advanced functions in order to get the most from your NetComm Cable/DSL Firewall Router.

Chapter 5: Macintosh Setup

This Chapter provides instructions on how to set up Macintosh computers in your network.

Chapter 6: Trouble Shooting

This chapter describes potential problems you may run into and the suggested remedies.

Conventions

The following explains the conventions used throughout this document.

Italics New words, terms, or special emphasis. E.g. Getting to

know your NetComm Cable/DSL Firewall Router.

“Boldface” Buttons, checkboxes, or items that you can select from

screens, menus, or dialog boxes. E.g. Click “OK” to restart

Boldface Italics Items in Bold Italics are samples only and you should enter

other names, numbers, or words to substitute.

www.netcomm.com.au Rev.2 - YML630 Page 8 Cable/DSL Firewall Router

Chapter 1: Getting to know your NetComm Cable/DSL Firewall Router

This chapter describes the package contents and provides a list of features of the NetComm Cable/DSL Firewall Router.

1-1 About NetComm Cable/DSL Firewall Router

The NetComm Cable/DSL Firewall Router is a hybrid product, which combines Ethernet technology with a firewall engine into a single stand-alone unit. The device allows you take advantage of both security and fast connections. All computers on your LAN can securely share files, printers and other network resources, as well as a single Internet account when connected to a DSL/Cable modem.

Ethernet / Fast Ethernet

Ethernet is the most widely-used network access method, especially in LANs. It is defined by the IEEE as 802.3 standard. Normally, Ethernet is a shared media LAN. All stations on the segment share the total bandwidth, which could be 10Mbps (Ethernet), 100Mbps (Fast Ethernet), or 1000Mbps (Gigabit Ethernet). With switched Ethernet, each sender and receiver has the full bandwidth.

Fast Ethernet is defined as IEEE 802.3u standard, a high-speed version of Ethernet with 100Mbps transmission rate.

Firewall

DoS is the acronym for Denial of Service, which refers to the response when a computer or network is overwhelmed to the point that it can no longer function normally. For example, a hacker may use a fake IP address to build connections to flood the server they want to attack. TCP works by sending a SYN packet to the server from the client. After the server receives the SYN packet, a SYN-ACK is sent back to client. The server will then wait for a response to the SYN-ACK. If the hacker sends hundreds of SYN packets to a server with a false address, the server allocates computer and memory resources to establishing a connection - since the server does not know a legitimate SYN message from a false message. By flooding the server with such a large volume of requests, the server’s maximum capacity can easily be used by these false attempts to establish a connection - this is what the firewall is designed to prevent.

SPI is the acronym of Stateful Packet Inspection. The SPI engine examines not just the headers of the packet, but also the contents, to determine more about the packet than just its source and destination information. Moreover, stateful inspection firewalls also close off ports until a connection to the specific port is requested.

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 9

1-2 Contents of the NetComm Cable/DSL Firewall Router Package

After carefully unpacking the shipping carton, check the contents listed below:

■ NetComm Cable/DSL Firewall Router

■ Power Adapter - 5VDC 3A Center Pole Positive

■ This Manual

1-3 Features of the NetComm Cable/DSL Firewall Router

Your NetComm Cable/DSL Firewall Router contains the following features that make it excellent for network connections.

■ Allows multiple users to access the Internet at the same time by using Network Address

Translation to safely share a single public IP Address.

■ Provides network security through a powerful firewall engine.

■ Prevents hackers from launching a DoS attack to overwhelm your LAN computers or server,

offering advanced protection with SPI.

■ Blocks inappropriate web sites, cookies and Javascript, if required.

■ Integrates four 10/100BASE-T/TX auto-sensing switch ports.

■ Supports PPPoE to connect to ISPs.

■ Built-in web-based user interface for easy configuration and management through common

web browsers like Netscape or Internet Explorer.

■ Supports DHCP client to receive both a dynamic IP Address and a fixed IP Address from

your ISP/WAN.

■ Built-in DHCP server to automatically assign and manage LAN IP addresses.

■ Allows administrators to block specific LAN users from accessing specified applications or

services.

■ Allows external Internet users to access information from an internal computer (Virtual

Server).

■ Provides unrestricted two-way communication between one computer on your LAN and

certain Internet services like conferencing, video and gaming applications.

■ Enhances routing performance by using Dynamic or Static routing.

■ Allows administrators to change WAN MAC address.

■ Compatible with all popular Internet applications.

www.netcomm.com.au Rev.2 - YML630 Page 10 Cable/DSL Firewall Router

Chapter 2: Hardware Installation & Setup

This chapter provides information about your NetComm Cable/DSL Firewall Router’s physical

features and gives step-by-step installation instructions.

2-1 Rear Panel & Connections

The following figure shows the rear view of the NetComm Cable/DSL Firewall Router and illustrates how the cables connect to the interfaces on the rear panel.

■ Plug one end of the UTP cable into the WAN port, the other into the RJ45 Ethernet jack on

your ADSL or Cable modem.

■ Connect a computer, with a Network Interface Card installed, to one of the four LAN Ports.

■ Connect the external power supply to the NetComm Cable/DSL Firewall Router.

■ The Reset button is used to reboot the device - press once quickly, or for clearing

configuration settings back to factory default values - press for 10 seconds.

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 11

2-2 Front Panel LEDs

The following figure shows the front view of the NetComm Cable/DSL Firewall Router.

The LEDs on the front panel indicate the status of the unit.

Power: Green On when power is on.

Diag: Red Lights up during system check when the power is initially

connected. If the Router is working properly, the light should switch off after the diagnostic has been completed.

WAN ports

Link/Act: Green On when ADSL/Cable Modem is properly connected and is

operating at 100Mbps.

Yellow On when ADSL/Cable Modem is properly connected and is

operating at 10Mbps.

Green/Yellow Blinking when data is flowing through the LAN port.

FD/Col: Green On when operating in full duplex mode.

Off in half duplex mode.

Blinking when a collision has occurred on this port.

LAN ports

Link/Act: Green On when link is up and is operating at 100Mbps.

Yellow On when link is up and is operating at 10Mbps.

Green/Yellow Blinking when data is flowing through this LAN port.

FD/Col: Green On when operating in full duplex mode.

Off in half duplex mode.

Blinking when a collision is occurring on this port.

www.netcomm.com.au Rev.2 - YML630 Page 12 Cable/DSL Firewall Router

2-3 System Requirements and Setup

To connect to the Internet, an external ADSL or Cable modem and an Internet access account from an ISP are required. In order to operate with the Broadband Switch Router, each computer that is to be connected to the Broadband Switch Router should have the following items installed:

1. Ethernet NIC (Network Interface Card: a 10Base-T or 10/100Base-T/TX Ethernet card).

2. Standard twisted-pair Ethernet cable (UTP network cable) with RJ-45 connectors.

3. System OS: Windows 95, Windows 98, Windows NT4.0, Windows 2000, Windows Me,

Windows XP or Macintosh (refer to Chapter 5).

4. TCP/IP network protocol.

5. Web browser, such as Microsoft Internet Explorer or Netscape Navigator.

Installing the TCP/IP Protocol for Windows

If you are not sure whether the TCP/IP Protocol has been installed, follow these steps to check, and if necessary, install TCP/IP onto your computer.

1. Click the “Start” button. Choose “Settings”, then “Control Panel”.

Double-click the “Network” icon. Your Network window should appear.

Select the “Configuration” tab.

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 13

Note: For Windows 2000 & Windows XP the settings can be reached by clicking the

“Local Area Connection” icon on the right bottom side of your desktop screen.

In the “Local Area Connection Status” window, click “Properties” button then your Network window will appear.

2. Check whether the TCP/IP Protocol has already been installed and bound to your Network Interface Card.

www.netcomm.com.au Rev.2 - YML630 Page 14 Cable/DSL Firewall Router

- If yes, go to step 6.

- If no, click the “Add” button.

3. Double-click “Protocol” on the Select Network Component Type or highlight “Protocol”

then click “Add”.

4. Highlight “Microsoft” under the list of manufacturers.

Double-click “TCP/IP” from the list on the right or highlight “TCP/IP” then click “OK” to install TCP/IP.

5. After a few seconds, you will be brought back to the Network window. The TCP/IP

Protocol should now be on the list of installed network components (refer to point 2).

6. Click the “Properties” button.

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 15

The TCP/IP Properties window consists of several tabs. Choose the “IP Address” tab.

7. Select “Obtain an IP address automatically”. Click “OK”. Restart your computer to complete the TCP/IP installation.

Fixed IP Addresses Configuration

Fixed IP addresses may be assigned to network devices for many reasons, such as the server computers or printers which are consistently accessed by multiple users. To set up computers with fixed IP Addresses, go to the “IP Address” tab of the “TCP/IP Properties” window as shown above.

www.netcomm.com.au Rev.2 - YML630 Page 16 Cable/DSL Firewall Router

1. Select “Specify an IP address” and enter “192.168.1.***” in the “IP Address” location

(where *** is a number between 2 and 254 used by the NetComm Cable/DSL Firewall Router to identify each computer), and the default “Subnet Mask” “255.255.255.0”.

Note: No two computers on the same LAN can have the same IP address but they

should have the same Subnet Mask.

2. Select “Enable DNS” in the “DNS Configuration” tab and enter the “DNS IP Address”

obtained from your ISP in the “Server Search Order” location. Click “OK”.

3. Click “Gateway” tab and enter the NetComm Cable/DSL Firewall Router’s default gateway

value 192.168.1.1 in the “New gateway” field, then click “Add” Button. Click “OK”. Restart your computer to complete the TCP/IP installation.

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 17

Chapter 3: Internet Access

This chapter describes the procedures necessary to configure the basic functions and to start up your NetComm Cable/DSL Firewall Router. On successful completion of these procedures, you

will be able to access the Internet via your NetComm Cable/DSL Firewall Router.

3-1 Prepare your network information

In order to allow a quick reference point when setting up your NetComm Cable/DSL Firewall Router, it is suggested you complete the table below with the necessary information, which

should be supplied by your ISP:

Provided by some ISPs (

Host Name: ______________________________________

Domain Name: ______________________________________

IP address given by ISP:

✓ tick indicates common minimal requirements)

✓❒ Obtain IP Address automatically, or ✓❒ Static IP

IP Address (if static): _________._________._________._________

Subnet Mask: _________._________._________._________

Default Gateway: _________._________._________._________

DNS Server Primary: _________._________._________._________

DNS Server Secondary (optional): _________._________._________._________

DNS Server Third (optional): _________._________._________._________

PPP authentication:

✓❒ PPPoE ❒ PPTP ✓User Name: ______________________________________ ✓Password: ______________________________________

www.netcomm.com.au Rev.2 - YML630 Page 18 Cable/DSL Firewall Router

3-2 Web-based User Interface

The NetComm Cable/DSL Firewall Router uses a Web-based User Interface for configuration. Start your web browser and type http://192.168.1.1 in the browser’s address box. This address is the factory default IP Address of your NetComm Cable/DSL Firewall Router. Press “Enter”.

The “Username and Password Required” prompt box will appear. Leave the “User Name” empty and type “admin” (default password) for the “Password”. Click “OK”. The setup screen will load.

Note: The password can be reset by restoring the factory defaults with the Reset

button.

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 19

3-3 Initial Configuration – Setup

The “OnePage Setup” screen is the first screen you will see when you access the router’s configuration. If the router has already been successfully installed and set up, this screen’s values will already be properly configured. Below is a description of each setting.

■ Host Name This entry is required by certain ISPs.

■ Domain Name This entry is required by certain ISPs.

■ Time Zone: Select the time zone your location belong to from the pop-down list.

■ Private IP Address The Device IP Address and Subnet Mask of the router are used by the

internal LAN. The default values are 192.168.1.1 for IP Address and 255.255.255.0 for Subnet Mask.

WAN Connection Type

There are a number of options for WAN connection types: Obtain IP automatically (eg Optus Cable), Static IP, PPPoE (ADSL), HeartBeat (eg Telstra Cable) and PPTP. If you do not know which connection type you currently use, contact your ISP to get the information.

Obtain IP automatically is the default option for the router. If your ISP automatically assigns the IP addresses and other values to the NetComm Cable/DSL Firewall Router, use this option.

www.netcomm.com.au Rev.2 - YML630 Page 20 Cable/DSL Firewall Router

Static IP

The Public IP Address and Subnet Mask of the router are used by external users of the Internet (including your ISP). If a fixed Public IP Address from your ISP is to be used, select this item

and enter the IP Address and Subnet Mask provided by your ISP.

■ Specify WAN IP Address Enter the IP address provided by your ISP.

■ Subnet Mask Enter the subnet mask values provided by your ISP.

■ Default Gateway IP Address Your ISP will provide you with the Default Gateway IP

Address.

■ Domain Name Server (DNS) Your ISP will provide you with at least one DNS IP

Address. Multiple DNS IP settings are common. The first available DNS entry is used in most cases.

PPPoE

If your ISP provides PPPoE connectivity, choose this item from the drop-down list.

Note: If you select PPPoE, you will no longer need to use any existing PPPoE

applications on any computers to connect to the Internet.

■ User Name Enter the user name as provided by your ISP.

■ Password Enter the password as provided by your ISP.

■ Connect-on-demand Is a utility to trigger the PPPoE session to connect if in a disconnected

state when Internet access is being attempted. Choose “Enable” to make this function active, and enter the number of minutes you wish to wait after network idle time in the “Max Idle Time” location. This function is for PPPoE only.

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 21

■ Keep Alive This function keeps your PPPoE connection always on even during a period of

no WAN activity. In some situations the PPPoE session cannot be restored immediately after disconnection because the ISP’s system may need time to restore. Check with your ISP to ascertain how much time is required before the router starts to re-build the PPPoE session and enter this into the “Redial Period” field.

When you have properly configured the Setup page, click “Apply”. Your Router will then attempt to connect to the Internet. If you experience problems, please refer to the Trouble Shooting section before contacting NetComm Technical Support.

www.netcomm.com.au Rev.2 - YML630 Page 22 Cable/DSL Firewall Router

Chapter 4: Advanced Applications

This chapter provides information on how to set up and use the advanced features of your

NetComm Cable/DSL Firewall Router.

4-1 Firewall

The Firewall setting page allows you to configure advanced Firewall functions to provide superior security for your network environment. You must click “Apply” to make any changes active.

■ Firewall Option Enable this function to prevent DoS (Denial of Service) attacks and to use

SPI (Stateful Packet Inspection). SPI function will check the contents of incoming data packets for malicious attacks.

■ Web Filter This feature provides the ability to filter potential risks contained in web pages

accessed by LAN users.

Web proxy is a server your device will connect to when you access any web site. Setting a web proxy can save accessing time but may create a security issue by bypassing any URL filters or IP blocking you have configured. For example, if you configure the Broadband Firewall Router to block the access of 216.115.102.76 that is the IP address of www.yahoo.com, it will fail because your computer will connect to web proxy server instead to connect to Yahoo’s IP address if you set web proxy.

Java & Active X are programming languages for web pages. However, some Trojan programs are also written in these programming languages. If you deny either of these, you may not be able access some parts of web sites.

A cookie is data stored on your computer, which a web server can retrieve to identify your machine. It is a piece of text with an ID number. Cookies can also be blocked by the router.

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 23

■ Blocked URL This feature allows you to restrict LAN users to access specific web sites.

Enter the key text included in the URLs (Internet address) or whole URLs you wish to block in the fields supplied.

■ Time Filter This feature allows you to limit WAN/Internet access according to a time

schedule. Check “Block LAN” to restrict the connection from your LAN to the WAN/ Internet. Check “Block WAN” to restrict the connection from the WAN/Internet to your LAN servers that were set as virtual servers, port forwards or DMZ host. Check “Block Both” to restrict both connections. Check “Disable” to turn off this function. Set the time schedule from the drop-down list.

Click Apply after making any changes.

4-2 DHCP Configuration

A DHCP (Dynamic Host Configuration Protocol) Server can automatically assign IP Addresses and other information to each computer in your network. Unless you already have a DHCP Service on your LAN, it is highly recommended that you set your router to act as a DHCP server.

Note: The DHCP Server can support a maximum pool of 253 IP Addresses.

■ Dynamic IP Address Select “Enable” to set your Router to act as a DHCP server. If you

already have a DHCP server on your network, set the router’s DHCP option to “Disable”.

■ Starting IP Address Enter a numerical value, from 2 to 254, for the DHCP server to start at

when assigning IP Addresses.

■ Number of Users Enter the maximum number of computers that you want the DHCP

server to assign IP Addresses to, with the absolute maximum being 253.

■ DNS1, 2, 3 Enter the DNS numbers you wish to be assigned to DHCP clients.

■ WINS Enter the WINS number you wish to be assigned to DHCP clients.

■ DHCP Clients Table Click the DHCP Clients Table button to show current DHCP client

information.

www.netcomm.com.au Rev.2 - YML630 Page 24 Cable/DSL Firewall Router

4-3 Access Control

The Access Control feature allows administrators to block certain users from accessing the Internet or specific applications. Before using this function, the network computers that you wish to control should be assigned fixed IP Addresses.

IP Access Setting

Network administrators can restrict access of up to five groups of specified network users/ computers.

■ Protocol Select the protocol type as “TCP” or “UDP” from the drop down box. If you are

not sure which one to choose, select “Both”.

■ Filter Group/LAN IP Range Enter the range of IP addresses which you want to have the

same access limitation (a group).

■ Block Port Range Enter the range of port numbers which are used by the applications you

wish to be blocked. (For example 23 for Telnet)

Here is an example for IP Access Setting. Enter the range of 51~80 in the “Filter Group” column and 20~80 in the “Block Port Range” column, then click the “Apply” button. As a result, the user’s computers which have IP Addresses in the range of 192.168.1.51 to

192.168.1.80 will not be able to use the applications which use port numbers from 20 to 80, such as FTP, Telnet and web browsing.

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 25

Private MAC Filter

This function allows network administrators to insert the MAC addresses that need to be managed.

■ Filtered MAC Address There are fifty sets divided into five groups of ten in this function.

You can choose each group by selecting from the drop-down list. Enter the MAC addresses of the computers you wish to block in the columns, and then those users/computers cannot access Internet at all.

Click “Apply” after making any changes.

Note: To allow or deny access by URL, refer to the firewall configuration in Section

4-1.

www.netcomm.com.au Rev.2 - YML630 Page 26 Cable/DSL Firewall Router

4-4 Port Forwarding Settings

The Port Forwarding Setting application allows you to set up to ten public ports, such as a HTTP (web), SMTP (email), FTP, etc. that can be accessed by external users of the Internet. Each service is forwarded to a dedicated network computer (server) configured with a fixed LAN IP Address. Although the internal service addresses are not directly accessible to the external user, the NetComm Cable/DSL Firewall Router is able to redirect requests to the appropriate internal IP Address/server. To use this application, it is recommended you use a fixed Public IP Address from your ISP.

Note: Your NetComm Cable/DSL Firewall Router supports only one forward to one IP

Address for each port (service).

■ Set up individual network computers to act as servers and configure each with a fixed IP

Address.

■ In the “One Page Setup” screen, ensure the “Private IP Address” is set to the NetComm

Cable/DSL Firewall Router’s default setting of 192.168.1.1. If a fixed Public IP Address is to be used, select “Specify an IP address” and enter the IP Address and other necessary information provided by your ISP.

■ Incoming Ports - Enter the desired service port numbers in the “Ports” fields. You can

specify the protocol type as “TCP” or “UDP” from the drop-down list. If you are not sure which one to select, choose “Both”. A selection of commonly used port numbers is provided on the right of this screen.

■ Redirect IP Address - Enter the appropriate IP Addresses of the service computers in the

“Redirect IP Address” locations.

Example: If the service port number 80~80 (representing an HTTP web address) is entered in “Ports” and 192.168.1.100 is entered in “Redirect IP Address”, then all HTTP requests from

external Internet users will be directed to port 80 of the computer/server with the 192.168.1.100 fixed IP Address.

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 27

Here is a list of the protocols and port ranges that are used by some common applications.

Note: Port 8080 on the Public IP Address is used for Remote Management and can

not be redirected if remote management is enabled.

Application Protocol Port Range

FTP Server TCP 21

Half Life UDP 6003, 7002, 27010, 27015, 27025

MSN Messenger TCP 6891-6900 (File-send)

TCP 1863

UDP 1863

UDP 5190

UDP 6901 (Voice)

TCP 6901 (Voice)

PC Anywhere host TCP 5631

UDP 5632

Quake 2 UDP 27910

Quake III UDP 27660 (first player)

Telnet Server TCP 23

Web Server TCP 80

”C:\Program Files\Quake III Arena\quake3.exe” +set net_port 27660 27661 (second player)

4-5 Special Application

Some applications use multiple TCP/UDP ports to transmit data. Due to the use of NAT in the router, these applications may not work. Port Triggering allows these applications to work properly.

Note: Only one computer can use each Port Triggering setting at any time.

www.netcomm.com.au Rev.2 - YML630 Page 28 Cable/DSL Firewall Router

■ Application Name Enter the name of the application you wish to configure in the

Application Name column to identify this setting. This is just a label and does not govern the function of the settings.

■ Outgoing Port Range Enter the port number or range of numbers this application uses

when it sends packets outbound. The Outgoing Control port numbers act as the trigger. When the NetComm Cable/DSL Firewall Router detects the outgoing packets with these port numbers, it will allow the inbound packets with the Incoming Port Numbers that you set in the next column to pass through the NetComm Cable/DSL Firewall Router.

■ Incoming Control Enter the port number or range of numbers the inbound packets carry.

Click “Apply” after making any changes.

The following table lists the port numbers of some popular applications:

Application Outgoing Control Incoming Data

Battle.net 6112 6112 DialPad 7175 51200, 51201,51210 ICQ 4000 4000 ICU II 2019 2000-2038, 2050-2051, 2069,

IRC 6667 531, 6666, 6667 MSN Gaming Zone 47624 2300-2400, 28800-29000 PC to Phone 12053 12120,12122, 24150-24220 Quick Time4 554 6970-6999

wowcall 8000 4000-4020

2085,3010-3030

4-6 Dynamic Routing

The Dynamic Routing feature allows your NetComm Cable/DSL Firewall Router to exchange routing information with other routers in the network. Enabling this feature is likely to enhance performance of your NetComm Cable/DSL Firewall Router.

■ TX From the drop-down list, select one of the routing information types, “RIP-1”, “RIP-1

Compatible”, or “RIP-2”, to enable the “TX” (transmit) function. “RIP-1” is the protocol used by older routers and newer routers should use “RIP-2”. “RIP-1 Compatible” serves to broadcast RIP-1 and multicast RIP-2.

■ RX From the drop-down list, select one of the routing information types, “RIP-1” or “RIP-

2”, to enable the “RX” (receive) function.

Click “Apply” after making any changes.

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 29

4-7 Static Routing

The Static Routing feature allows computers that are connected to the NetComm Cable/DSL Firewall Router directly or through a hub/switch (on the immediate LAN) to communicate with other computers in the respective LAN segment which are connected to the NetComm Cable/ DSL Firewall Router through another router (destination LAN). Up to 20 route entries may be entered into the NetComm Cable/DSL Firewall Router. The diagram below gives an example of the physical connections required to use Static Routing.

In the above diagram, PC2 in LAN#2 is connected to the NetComm Cable/DSL Firewall Router via another router while PC1 in LAN#1 is connected to the NetComm Cable/DSL Firewall Router directly. Without configuring the Static Routing function, the two computers would not be able to communicate with each other.

■ Select Route entry Select the route entry number from 1 to 20 that you wish to configure.

■ Destination LAN IP and Subnet Mask Enter the IP Address and Subnet Mask of the

destination LAN that the immediate LAN is to communicate with. Taking the above diagram as an example, enter 192.168.2.0 in the “Destination LAN IP” field and 255.255.255.0 in the “Subnet Mask” field.

■ Default Gateway Enter the IP Address of the router that forwards data packets to the

destination LAN. For the above example, enter 192.168.1.2 in the “Default Gateway” field.

■ Hop Count Enter the number of hops required between the LANs to be connected. The

Hop Count represents the “cost” of the routing transmission. The default value is 1.

■ Interface Choose “LAN” if the Destination LAN is on your Router’s LAN side and choose

“WAN” if the Destination LAN is on the Router’s WAN side.

Referring back to the above diagram, with proper setting, PC1 would be able to access LAN 1, LAN 2 and the Internet while PC2 can only access LAN 2 and LAN 1.

Click “Apply” after making any changes.

www.netcomm.com.au Rev.2 - YML630 Page 30 Cable/DSL Firewall Router

4-8 Administration Settings

This feature allows the administrator to manage the NetComm Cable/DSL Firewall Router by setting certain parameters. For security reasons, it is strongly recommended that you set a Password and SNMP communities so that only authorized persons are able to manage your NetComm Cable/DSL Firewall Router. If the “Password” is left blank, all users on your network can access the router simply by entering the unit’s IP Address into their web browser’s location window.

■ Firmware Version This field shows the installed version of the firmware.

■ Administrator Password Enter the password you want to use into the “Password

Change” field and re-enter it into the “Password Confirm” field for confirmation. Be sure that the password is less than 64 characters long and without any spaces.

■ WAN MAC Change The WAN MAC address can be changed from the original values if

necessary. Some ISPs require users to change the WAN MAC address to a registered one when users change their access equipment.

■ External Admin Check “Enable” to allow you to configure the NetComm Cable/DSL

Firewall Router from WAN side. To access the setting page from external side, enter “http:// <WAN IP Address>:8080” into the web browser address column and press the “Enter” key.

■ MTU Check “Enable” if you want to limit the incoming and outgoing packet size for the

router. Enter the maximum packet size you wish to set in the “Size” column. This can assist with the transmission of emails with attachments, etc.

■ Reset Device Select “Yes” if you want to clear connections, reboot, and re-initialize the unit

without affecting any of your configuration settings.

■ Factory Defaults Select “Yes” if you want to return all the router’s current settings to their

factory default settings.

Note: Do not restore to the factory defaults unless it is absolutely necessary.

Click “Apply” to make any changes.

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 31

4-9 Status Monitor

This screen shows the router’s current status. All of the information provided is read-only.

■ Login This column shows the login information of your WAN connection. You can manually

initiate a connection or a disconnection by clicking the buttons. However, if you initiate a disconnection here, the “Connect-on-Demand” will not function until the connection button is clicked. Note that the Login won’t show any information if you select “Obtain IP automatically” or “Static IP” in the “OnePage Setup” page.

■ WAN (Internet) This section shows the IP settings status of the router as seen by external

users of the Internet. If you select “Get IP Address Automatically”, “PPPoE”, or “PPTP” in OnePage Setup, the “ IP Address”, “Subnet Mask”, “Default Gateway”, and “Domain Name Server” (DNS) will show the information received from the DHCP server or ISP currently being used. If you select “ Static IP” in the “One Page Setup: Public IP

Address”, the information will be the same as your input.

DHCP Release: Click this button to eliminate the IP address obtained from the DHCP

server.

DHCP Renew: Click this button to re-acquire the IP address from the DHCP server.

Note: The “DHCP Release” and “DHCP Renew” button only show up when you

select “Get IP Address Automatically” in the OnePage Setup.

■ LAN (Local) This section displays the current “Private IP Address” and “Subnet Mask”

of the router, as seen by users of your internal network.

■ DHCP Clients Table If the router is setup to act as a DHCP server, the LAN side IP

Address distribution table will appear when this button is selected.

www.netcomm.com.au Rev.2 - YML630 Page 32 Cable/DSL Firewall Router

4-10 DMZ Host

The DMZ Host application allows unrestricted 2-way communication between a single LAN computer and other Internet users or servers. This application is useful for supporting specialpurpose services such as video-conferencing and gaming, which require proprietary client software and/or unrestricted 2-way user communication. To use this application, you should have a fixed Public IP Address from your ISP.

Note: In order to provide unrestricted access, the Firewall provided by the NetComm

Cable/DSL Firewall Router to protect this port is disabled, thus creating a potentially serious security risk. It is recommended that this application should be disabled when it is not in use by entering “0” in the “DMZ Host” field.

1. Before setting up a LAN computer to act as a DMZ Host, configure it with a fixed IP

Address.

2. In the “One Page Setup” screen, ensure the Private IP Address is set to the NetComm

Cable/DSL Firewall Router’s default setting of 192.168.1.1. In the Public IP Address area, select “Specify an IP Address”, then enter the IP Address and other necessary information provided by your ISP.

3. Click “DMZ Host” from the Advanced Menu. Enter the fixed IP Address of the Exposed

Host computer in the “DMZ Host” IP Address location. Remember, entering “0” will disable this application.

4. Click “Apply”.

4-11 Log

The Log application allows the administrator to trace Internet access. You can send the record to specific LAN computers for remote monitoring, but can also watch the incoming (WAN to LAN) and outgoing (LAN to WAN) traffic in the “Log Settings” page.

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 33

■ Access Log Set to Enable if you want to activate this function.

■ Send Log To Enter the IP address of the computer that you want to send the Log

information to.

■ Incoming Access log Click this button to go to the incoming (WAN to LAN) traffic log

table. This Table records information on the last fifty incoming packets, including source IP address, destination IP address, and port number.

■ Outgoing Access log Click this button to go to the outgoing (LAN to WAN) traffic log

table. This Table records information on the last fifty outgoing packets, including source IP addresses, destination IP addresses, and port numbers.

Click “Apply” after making any changes.

4-12 VPN Passthrough

Virtual Private Networking (VPN) is a system which allows remote networks to privately exchange data over an existing public network (usually the WAN/Internet). One VPN client can be used to make one VPN connection (Tunnel) to a VPN Server on the Internet. The NetComm Cable/DSL Firewall Router supports one single session VPN Passthrough (PPTP or L2TP/ IPSec). There is no configuration necessary for VPN Passthrough.

www.netcomm.com.au Rev.2 - YML630 Page 34 Cable/DSL Firewall Router

Chapter 5: Configuring IPSec on Windows 2000/XP

This document illustrates the steps of Microsoft Windows 2000/XP computer to establish a secure IPsec tunnel with the Cable/DSL Firewall Router. You can find detailed information on configuring the Microsoft Windows 2000 server at the Microsoft website:

Microsoft KB Q252735 - How to Configure IPSec Tunneling in Windows 2000

http://support.microsoft.com/support/kb/articles/Q252/7/35.asp

Microsoft KB Q257225 - Basic IPSec Troubleshooting in Windows 2000

http://support.microsoft.com/support/kb/articles/Q257/2/25.asp

5-1 Environment

Windows XP or Windows 2000

IP Address: 140.111.1.2 (Note: ISP provided IP Address; this is only an example.)

Subnet Mask: 255.255.255.0

Cable/DSL Firewall Router

WAN

IP Address: 140.111.1.1 (Note: ISP provided IP Address, this is only an example.)

Subnet Mask: 255.255.255.0

LAN

IP Address: 192.168.1.1

Subnet Mask: 255.255.255.0

5-2 Steps in Windows 2000/XP

5-2.1 Create IPSec Policy

1. Click Start button, select Run, and type secpol.msc in the open field.

2. Right-click IP Security Policies on Local Computer, and then click Create IP Security

Policy.

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 35

3. Click Next, and then type a name for your policy (for example, “to_VPNRouter”).

4. Deselect the Activate the default response rule check box, and then click Next button.

5. Click the Finish button, making sure the Edit check box is checked.

5-2.2 Build 2 Filter Lists: “WinXP “Cable/DSL Firewall Router

[Filter List 1] WinXP

! Cable/DSL Firewall Router

!Cable/DSL Firewall Router” and

!WinXP”.

1. In the to_VPNRouter Properties, deselect the Use Add Wizard check box, and then click Add button to create a new rule.

2. From the IP Filter List tab, click the Add button.

3. Type an appropriate name “XP

!Cable/DSL Firewall Router” for the filter list, deselect

the Use Add Wizard check box, and then click Add button.

www.netcomm.com.au Rev.2 - YML630 Page 36 Cable/DSL Firewall Router

4. In the Source address area, click My IP Address.

5. In the Destination address field, select A specific IP Subnet, and fill in the IP Address

“192.168.1.0” and Subnet mask “255.255.255.0”.

6. If you want to type a description for your filter, click the Description tab.

7. Click OK button. Then click OK(for WinXP) or Close (for Win2000) button on the IP

Filter List window.

[Filter List 2] Cable/DSL Firewall Router

!WinXP

8. On the IP Filter List tab, click the Add button.

9. Type an appropriate name “Cable/DSL Firewall RouteràXP” for the filter list, click to

clear the Use Add Wizard check box, and then click Add.

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 37

10. In the Source address area, click A specific IP Subnet, and fill in the IP Address “192.168.1.0” and Subnet mask “255.255.255.0”.

11. In the Destination address area, click My IP Address.

12. If you want to type a description for your filter, click the Description tab.

13. Click OK, and then click OK.

www.netcomm.com.au Rev.2 - YML630 Page 38 Cable/DSL Firewall Router

5-2.3 Configure Individual Rule of 2 Tunnels

[Tunnel 1] WinXP!Cable/DSL Firewall Router

1. From the IP Filter List tab, click the filter list “XP

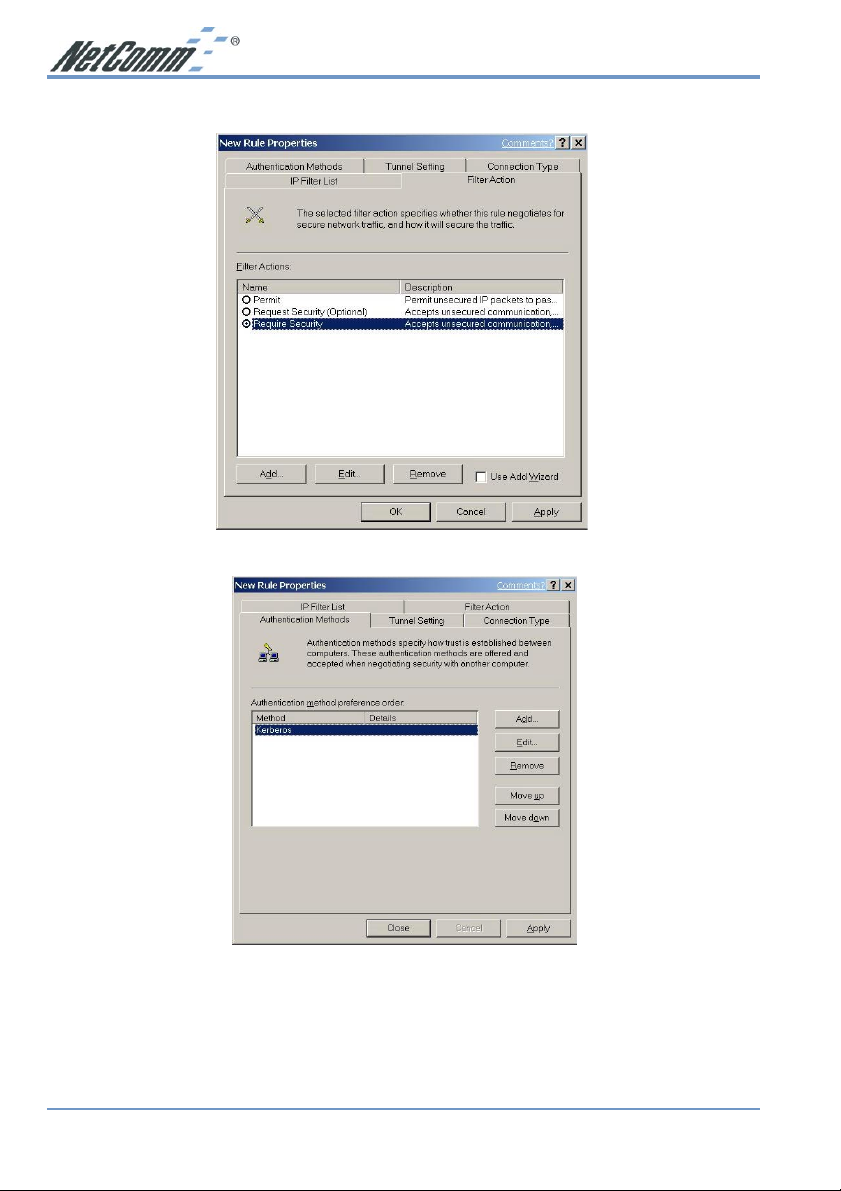

2. From the Filter Action tab, click the filter action “Require Security”, and click the Edit

button.

!Cable/DSL Firewall Router”.

3. Check that the Negotiate security option is enabled, and deselect the Accept unsecured

communication, but always respond using IPsec check box.

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 39

4. Select the Session key Perfect Forward Secrecy (PFS) and remember to check the PFS option on the Cable/DSL Firewall Router, and then click the OK button.

5. From the Authentication Methods tab, click the Edit button.

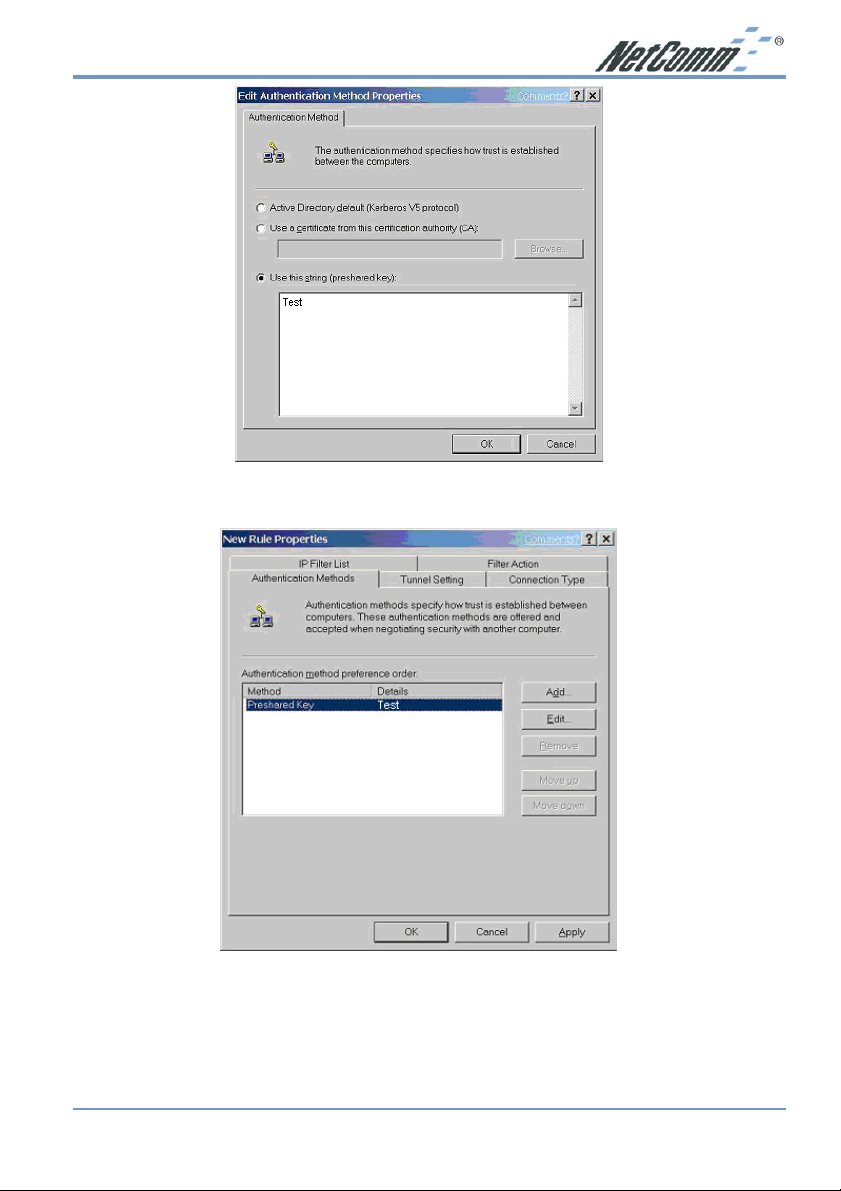

6. Change the authentication method to “Use this string (preshared key)”, enter the string “Test”, and then click the OK button.

www.netcomm.com.au Rev.2 - YML630 Page 40 Cable/DSL Firewall Router

This new Preshared key will be displayed in Authentication method preference order. Click the OK button to continue.

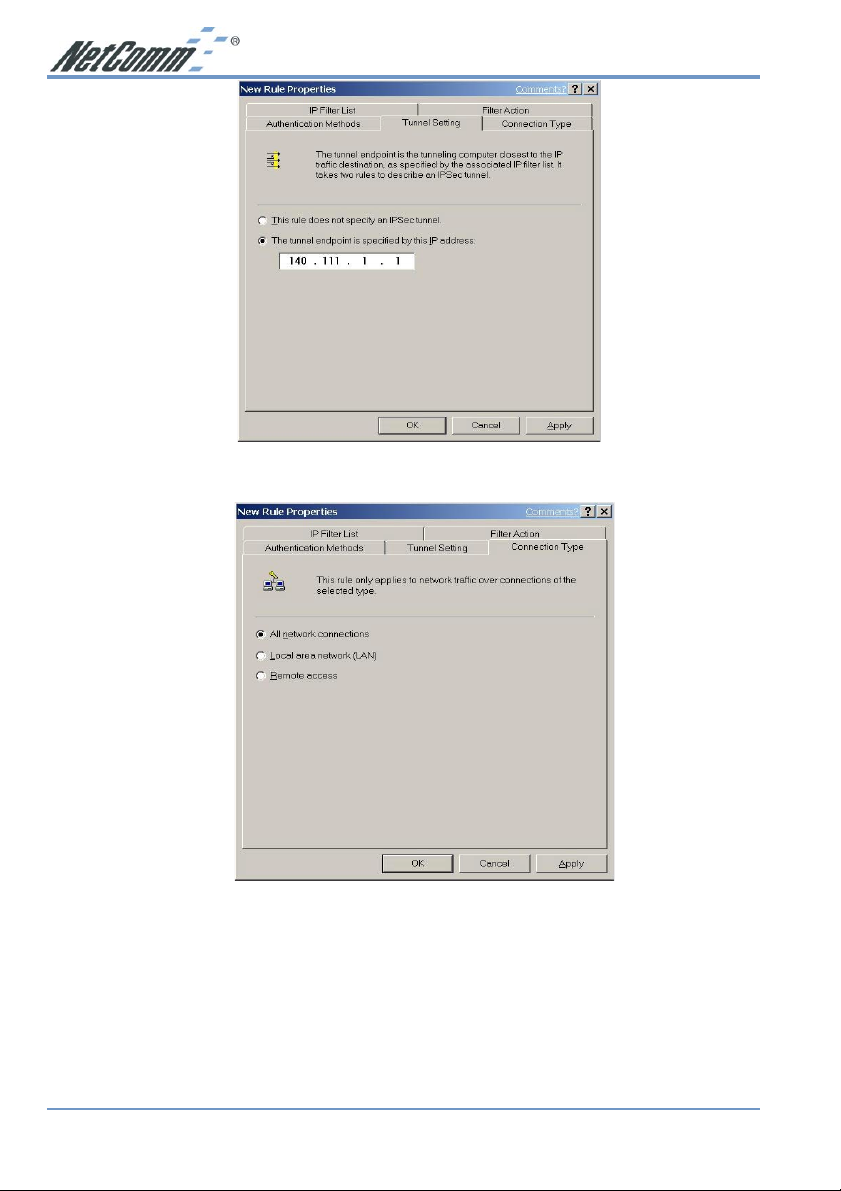

7. From the Tunnel Setting tab, click The tunnel endpoint is specified by this IP Address

box, and then type the WAN IP Address “140.111.1.1” (Note: Use your ISP provided IP Address; this is only an example.) of Cable/DSL Firewall Router.

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 41

8. From the Connection Type tab, select All network connections, and then click the OK or Close button to finish this rule.

www.netcomm.com.au Rev.2 - YML630 Page 42 Cable/DSL Firewall Router

[Tunnel 2] Cable/DSL Firewall Router

! WinXP

9. In the to_VPNRouter Properties, deselect the Use Add Wizard check box, and then click

the Add button to create the second IP Filter.

10. On the IP Filter List tab, click the filter list “Cable/DSL Firewall Router

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 43

!XP”.

11. From the Filter Action tab, click the filter action “Require Security”.

12. From the Authentication Methods tab, click the Edit button.

13. Change the authentication method to “Use this string (preshared key)”, enter the string “Test”, and then click the OK button.

www.netcomm.com.au Rev.2 - YML630 Page 44 Cable/DSL Firewall Router

This new Preshared key will be displayed in Authentication method preference order. Click the OK button to continue.

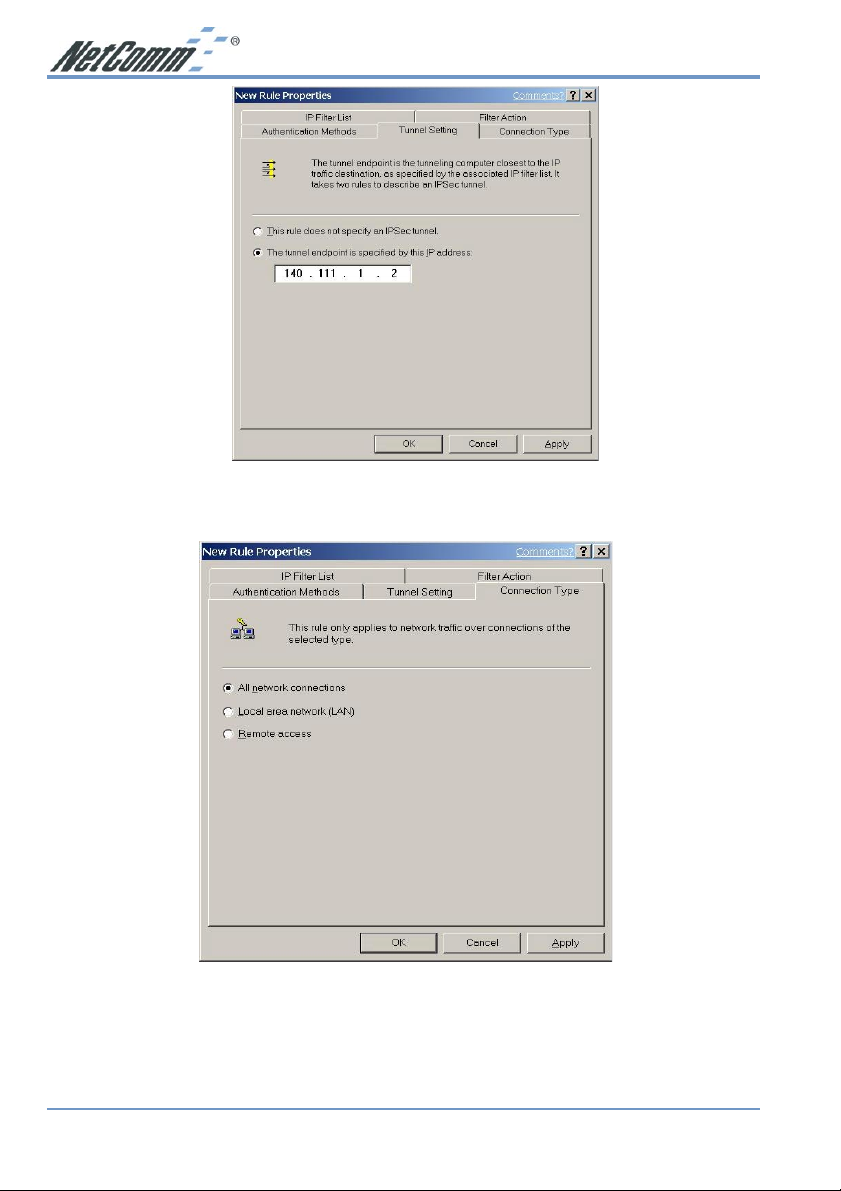

14. From the Tunnel Setting tab, click The tunnel endpoint is specified by this IP Address

box, and then type the Windows 2000/XP IP Address “140.111.1.2”.

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 45

15. From the Connection Type tab, select All network connections, and then click the OK(for WinXP) or Close(for Win2000) button to finish.

16. From the Rules tab, click the OK button to back to the secpol screen.

www.netcomm.com.au Rev.2 - YML630 Page 46 Cable/DSL Firewall Router

5-2.4 Assign New IPsec Policy

1. In the IP Security Policies on Local Computer MMC snap-in, right-click policy named

“to_VPNRouter”, and then click Assign. A green arrow appears in the folder icon.

5-3 Steps in Cable/DSL Firewall Router

5-3.1 OnePage Setup Screen

1. Open your web browser and enter 192.168.1.1 in the Address field and press the Enter key.

2. When the User Name and Password field appears, skip the user name and enter the default

password admin and press the Enter key.

3. Click the OnePage Setup tab to set the configuration as shown below.

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 47

5-3.2 VPN Screen

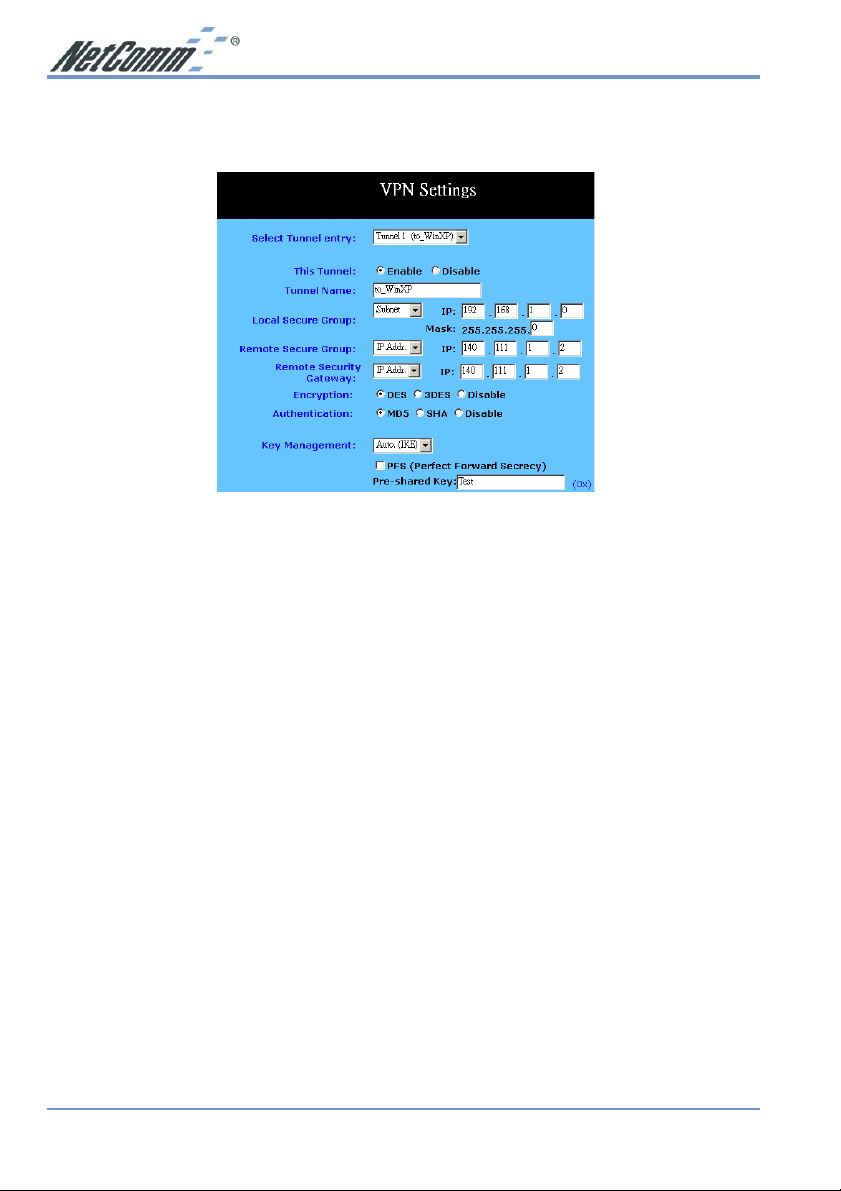

The following Figure is a sample configuration for the Router’s VPN tab.

Once all these have been entered, click the Connect button to establish a VPN connection. The

Status should indicate that the Router is Connected.

www.netcomm.com.au Rev.2 - YML630 Page 48 Cable/DSL Firewall Router

Chapter 6: Macintosh Setup

This chapter provides information on using Macintosh computers in your network. The instructions given here are for system software version 8.0 or above, which comes with the TCP/IP Protocol preloaded and supports DHCP Addressing.

6-1 Hardware Connections

Connect your Macintosh computer to your NetComm Cable/DSL Firewall Router. If you have a newer computer, there will be a 10Base-T Ethernet port on the back. Older computers will need to have an Ethernet card installed. Refer to your computer’s User Manual for instructions on Ethernet card installation.

6-2 Computer Network Configuration

It is assumed that your computer’s system software already has TCP/IP installed. You may manually configure your computer with a fixed IP Address (for example 192.168.1.2) or have an IP Address dynamically assigned to it by the NetComm Cable/DSL Firewall Router’s DHCP server.

6-2.1 Dynamic IP Addressing using DHCP Server.

1. From the “Apple” menu, select “Control Panel” and click on “TCP/IP”.

2. In the “TCP/IP (A New Name For Your Configuration)” window, select “Ethernet” in

the “Connect via” location from the drop-down list.

3. In the “Setup” area:

- Select “Using DHCP Server” in the “Configure” location from the drop-down list.

- No other data needs to be entered.

- Close the window.

4. Click “Save” from the file menu, then “Quit” TCP/IP.

5. Restart the computer.

6-2.2 Manual Configuration of Fixed IP Addresses

1. From the “Apple” menu, select “Control Panel” and click on “TCP/IP”.

2. In the “TCP/IP (A New Name For Your Configuration)” window, select “Ethernet” in

the “Connect via” location from the drop-down list.

3. In the “Setup” area:

- Select “Manually” in the “Configure” location from the drop-down list.

- In the “IP Address” location, enter the IP Address that you want to assign to the computer (for example 192.168.1.2) .

- Enter “255.255.255.0” in the “Subnet Mask” location.

- Enter “192.168.1.1” (the NetComm Cable/DSL Firewall Router’s default IP Address) in the “Router Address” location.

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 49

- Enter the ISP’s IP Address in the “Name Server” location if your ISP has provided this information. (This is the DNS address provided by your ISP.)

- Close the window.

4. Click “Save” from the file menu then “Quit” TCP/IP.

5. Restart the computer.

6-3 NetComm Cable/DSL Firewall Router Configuration

To configure your NetComm Cable/DSL Firewall Router, launch your Web Browser and follow the instructions given in Chapter 3: Internet Access, section 3.3. To configure advanced settings,

refer to Chapter 4: Advanced Configuration.

6-4 Adding NetComm Cable/DSL Firewall Router to Existing Network

If the NetComm Cable/DSL Firewall Router is to be added to an existing Macintosh computer network, the computers will have to be configured to connect to the Internet via the NetComm Cable/DSL Firewall Router.

1. From the “Apple” menu, select “Control Panel” and click on “TCP/IP”.

2. From the “File” menu, select “Configurations” and select your existing network configuration. Click “Duplicate”.

3. Rename your existing configuration. Click “OK”, and “Make Active”.

4. In the Setup area:

- Select “Manually” in the “Configure” location from the drop-down list.

- In the “IP Address” location, enter the IP Address that you want to assign to the

computer (for example 192.168.1.2) .

- Enter “255.255.255.0” in the “Subnet Mask” location.

- Enter “192.168.1.1” (the NetComm Cable/DSL Firewall Router’s default IP Address) in

the “Router Address” location.

- Enter the ISP’s IP Address in the “Name Server” location if your ISP has provided the

information.

- Close the window.

5. Click “Confirm”. TCP/IP is now configured for manual IP Addressing.

6. Configure your NetComm Cable/DSL Firewall Router (see 6.3 above).

www.netcomm.com.au Rev.2 - YML630 Page 50 Cable/DSL Firewall Router

Chapter 7: Trouble Shooting

This chapter provides solutions to problems you may encounter during installation and operation of your NetComm Cable/DSL Firewall Router.

Hardware

T: The Power LED is off.

Check the power cable is properly connected to the NetComm Cable/DSL Firewall Router, the power adapter and the socket.

T: The LAN Link LED is off.

Check the computer, hub or switch is properly connected to the NetComm Cable/DSL Firewall Router.

Check the computer’s Ethernet card is properly installed.

Check the UTP cable connecting the computer to the Router is connected. This cable should not be a crossover cable.

Check the Cable/DSL Firewall Router and the computer are on the same network segment. If you are not sure, initiate the DHCP function (4-1) and set your computer to obtain an IP address automatically (3-3).

Check the computer is using an IP address in the range of 192.168.1.2 ~ 192.168.1.254 and is therefore compatible with the Cable/DSL Firewall Router’s default IP address of 192.168.1.1 (3-

3). Check also the Subnet Mask is set to 255.255.255.0

T: The DIAG LED stays lit.

The DIAG LED should light up when the device is first powered up to indicate it is checking for proper operation. After a few seconds, the LED should go off. If it stays on, the device is experiencing a problem. Please contact your dealer.

T: Why can’t I configure the NetComm Cable/DSL Firewall Router?

First, check whether the NetComm Cable/DSL Firewall Router is properly installed, including the LAN and WAN connections, and all devices’ power.

Next, check the IP configuration of your computer :

■ For Windows 95/98 users: run Winipcfg.exe or Winipcfg from “Run” on the “Start”

menu. If there are no IP addresses, click “Release All” and then click “Renew All” to get an IP address.

For Windows NT 4.0/2000/XP users: Open a command prompt and run IpConfig.

■ Ensure that your computer and the NetComm Cable/DSL Firewall Router are on the same

network segment. If you are not sure, initiate the DHCP function and let the computer get an IP address automatically from the router.

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 51

■ Ensure that your computer is using an IP Address within the range 192.168.1.2 to

192.168.1.253 and thus compatible with the NetComm Cable/DSL Firewall Router’s default IP address of 192.168.1.1

■ Finally, use Ping command in MS-DOS mode to verify the network connection:

■ Ping 127.0.0.1 to check the TCP/IP stack of your computer.

■ Ping the Router’s IP address (Default: 192.168.1.1) to check for IP connectivity between

your computer and the Router.

Note: If you are not able to get to the web configuration screen for the NetComm

Cable/DSL Firewall Router, make sure that you disable the proxy setting within your Internet browser and set your browser to access the Internet via the LAN.

T: What can I do if I have forgotten the password for NetComm Cable/DSL Firewall Router?

You have to reset the Router back to its factory default setting by pushing the Reset button for over 3 seconds.

Note: You will lose all previous settings.

T: I cannot access my ISP’s home page, why?

Some ISPs (such as Telstra BigPond) require their host name be specifically configured into your computer before you can surf their local web pages. If you are unable to access your ISP’s home page, enter your ISP’s Domain Name into the One Page Setup (3-3) to enable all computers in your LAN to access it. If you only want to allow computers to access these home pages, open the TCP/IP Properties window (2-4) on these computers, click open the “DNS

Configuration” tab and enter your ISP’s Domain Name in the “Domain Name Search

Suffix” location.

Client Side (Computers)

T: I can’t browse the Internet via the NetComm Cable/DSL Firewall Router

Ensure your computer can ping or access the Router. See the previous section entitled “Why can’t I configure the NetComm Cable/DSL Firewall Router” for more information.

Check the status page of the Router to ensure connection to your ISP has been established.

T: I get a time out error when I enter a URL or IP address.

Check if other computers on the LAN are experiencing the same problem. If not, ensure the computer’s IP settings are correct (IP Address, Subnet Mask, Gateway IP Address and DNS).

Check the NetComm Cable/DSL Firewall Router’s settings are correct (3-3).

www.netcomm.com.au Rev.2 - YML630 Page 52 Cable/DSL Firewall Router

Appendix A: Frequently Asked Questions

Q: What is the maximum number of IP Addresses the NetComm Cable/DSL Firewall Router can support?

The NetComm Cable/DSL Firewall Router can support up to 253 IP Addresses in the range of 192.168.1.2~192.168.1.254.

Q: Where should the NetComm Cable/ DSL Firewall Router be installed on the network?

In a typical environment, the NetComm Cable/DSL Firewall Router should be installed between the ADSL/Cable modem and your LAN. Connect the NetComm Cable/DSL Firewall Router to the Ethernet port of your ADSL/Cable modem, and connect your computers to the RJ45 jack on the LAN side.

Q: Does the NetComm Cable/DSL Firewall Router support IPX or AppleTalk?

No. The NetComm Cable/DSL Firewall Router was designed to provide a multiple user LAN with shared Internet access and supports only the TCP/IP Protocol. If your Novell or Apple system is configured with TCP/IP, the NetComm Cable/DSL Firewall Router can support them.

Q: Does the NetComm Cable/DSL Firewall Router support 100Mb Ethernet?

Yes, the NetComm Cable/DSL Firewall Router supports both 10Mb & 100Mb Ethernet on the LAN side, but only 10Mb on the WAN side.

Q: What is “NAT” and what is it used for?

The Network Address Translation (NAT) Protocol translates multiple IP Addresses on a private LAN into a single public IP Address that is accessible to the Internet. NAT not only provides the basis for multiple IP Address sharing but also provides security,

since the multiple IP Addresses of LAN computers are never transmitted directly to the Internet.

Q: How can NetComm Cable/DSL Firewall Router share single user account to multiple users?

The NetComm Cable/DSL Firewall Router combines the following technologies to enable this function.

NAT (Network address translation): NAT is a technology which can create a private network domain behind a public IP. It is usually used as a firewall. It can also be used when there are not enough IP Addresses.

DHCP (Dynamic host configuration protocol): DHCP is a protocol to assign IP

Addresses to internal computers automatically. It can save a lot of IP Address configuration. This protocol is supported by Windows 95/NT, Mac OS, and many other popular OS.

DNS (Domain name service): DNS is a protocol which translates Domain Names to IP addresses that an Internet host can handle. Addressing system using Domain names, like www.yahoo.com, is easier to use than its IP address, 204.71.177.70.

Q: What operating systems does NetComm Cable/DSL Firewall Router series support?

The NetComm Cable/DSL Firewall Router uses standard TCP/IP protocol. It can be operated as long as you have TCP/IP protocol installed on your operating system (For example: Windows 9x, Windows NT, Windows 2000, Windows XP, etc.)

Q: Can I use multiple E-mail accounts if I use NetComm Cable/DSL Firewall Router?

Yes, you can. Some people think having one Internet account means that they can have only one E-mail account. However, E-mail is

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 53

set by mailbox accounts and different to the account you use to connect to your ISP. If you want more E-mail accounts, you can contact your ISP or you can browse the Internet to apply for free E-mail account.

Q: Can Internet users access LAN computers?

The NetComm Cable/DSL Firewall Router uses NAT to route all in/out band packets. All external users can only see the IP of the NetComm Cable/DSL Firewall Router but cannot access LAN computers. The LAN computers are well protected with the NetComm Cable/DSL Firewall Router’s natural firewall (NAT). You can allow Internet users access to specific computers by using the Port Forwarding, DMZ Host and Special Application options.

Q: When should I use DMZ host?

Enable DMZ host when you want to have unrestricted communication between your computer and the Internet, for example, playing Internet game (i.e. Ages of Empire) or having multimedia conference (i.e. NetMeeting).

Q: Does the NetComm Cable/DSL Firewall Router support PPTP of VPN packets pass through?

Yes. The NetComm Cable/DSL Firewall Router supports single session PPTP pass through.

Q: Does the NetComm Cable/DSL Firewall Router series support IPsec?

Yes. The NetComm Cable/DSL Firewall Router supports single session IPsec pass

through.

Appendix B: Technical Specifications

Standards Compliance

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX

Interface

One 10Mbps Ethernet RJ45 port on WAN

Four 10/100Mbps auto-sensing Ethernet RJ-

45 ports

Management

Web-based UI Management

LED Display

Power

DIAG

Link/Activity for both WAN and LAN

port(s)

Full Duplex/Collision for LAN ports

Environment

Operating Temperature: 0 ~ 45 degrees C

Storage Temperature: -20 ~ 70 degrees C

Humidity: 0 ~ 90% non-condensing

Dimension

145 (L) x 260 (W) x 38 (H) mm

Power

External, DC 5V, 2.5A

Mounting

Desktop

Wall-mounting

www.netcomm.com.au Rev.2 - YML630 Page 54 Cable/DSL Firewall Router

Appendix C: Glossary

10Base-T / 100Base-T

The adaptation of the Ethernet standard for Local Area Networks (LANs). 10Base-T uses a twisted pair cable with maximum lengths of 100 meters and transmits data at 10Mbps maximum. 100Base-T is similar, but uses two different twisted pair configurations and transmits at 100Mbps maximum.

Ad-hoc Network

Also known as the peer-to-peer network, an ad-hoc network allows all computers participating in a wireless network to communicate each other without an AccessPoint.

Adapter

A device that makes the connection to a network segment, such as Ethernet and modem cards.

ADSL

Asymmetric Digital Subscriber Line (ADSL), as its name indicates, is an asymmetrical data transmission technology with higher traffic rate downstream and lower traffic rate upstream. ADSL technology satisfies the bandwidth requirements of applications which demand “asymmetric” traffic, such as web surfing, file downloads, and telecommuting.

Bandwidth

The amount of data that can be transmitted in a fixed amount of time.

Browser

A software application used to locate and display Web pages. Examples include Netscape Navigator and Microsoft Internet Explorer.

BSS

BSS is the acronym of Basic Service Set that consists of a wireless access point and a group of wireless client computers.

Communications Protocols

Communication between devices requires they agree on the format in which the data is to be transmitted, sent and received. The communications protocols are a set of rules that define the data format.

Cookie is data stored on your computer, which a web server can retrieve, to identify your machine. It is a piece of text with an ID number.

DHCP

DHCP, short for Dynamic Host Configuration Protocol, is a protocol for assigning dynamic IP Addresses to devices on a network. Dynamic Addressing means that a device can have a different IP Address each time it connects to the network.

Domain Name

A name that identifies one or more IP Addresses. For example, the domain name microsoft.com represents about a dozen IP Addresses. Domain names are used in URLs to identify particular Web pages. For example, in the URL http://www.pcwebopedia.com/index.html, the domain name is pcwebopedia.com.

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 55

DoS

DoS is the acronym for Denial of Service. This is the result when a computer or network is overwhelmed to the point that it can no longer function normally.

DNS

Short for Domain Name Server, translates domain names into IP Addresses. To help us recognize and remember domain names they are alphabetic in form, however, the Internet actually runs on numbered IP Addresses. DNS servers translate domain names into their respective IP Addresses.

DSSS

Also known as Direct Sequence Spread Spectrum, it is a radio transmission method that continuously changes frequencies.

Ethernet

One of the most common Local Area Network (LAN) standards. Ethernet uses a bus topology which supports a data transfer rate of 10 or 100 Mbps.

ESS

ESS is the acronym of Extend Service Set that consists of several BSS.

Firewall

A security system used to enforce an access control policy between an organisation’s networks and the Internet.

IEEE

Short for Institute of Electrical and Electronics Engineers, an organization best known for developing standards for the computer and electronics industry.

Internet

A global network connecting millions of computers for the exchange of data, news and opinions.

Intranet

A network based on TCP/IP Protocol belonging to an organization, and accessible

only by that organization’s members, employees, or others with authorization.

Infrastructure Network

Unlike an ad-hoc network (where users on a wireless LAN send data to each other directly), users on an infrastructure network send data through a dedicated access point. Additionally, the access point enables users on a wireless LAN to access an existing wired network to take advantage of sharing the wired network’s resources, such as files, printers, and Internet access.

IP Address

An identifier for a computer or device on a TCP/IP network. Networks using the TCP/IP Protocol route messages based on the IP Address of the destination. The format of an IP address is a 32-bit numeric address written as four numbers separated by periods. Each number can be from zero to 255.

IPSec

Internet Protocol Security is a security standard for network transmission, which is often used for VPN connections. It provides authentication and packet encryption over the Internet.

ISP

Short for Internet Service Provider, a company that provides access to the Internet for a fee.

Local Area Network (LAN)

A computer network that spans a relatively small area. Most LANs are confined to a single building or group of buildings. However, one LAN can be connected to other LANs over any distance. A system of LANs connected in this way is called a wide area network (WAN)

MAC Address

Short for Media Access Control Address, a hardware address that uniquely identifies each node of a network.

www.netcomm.com.au Rev.2 - YML630 Page 56 Cable/DSL Firewall Router

NAT

Short for Network Address Translation, a routing protocol that allows global IP Addresses to be translated into multiple private IP Addresses for use on internal LAN networks. The explosion in the use of the Internet has created a critical problem for the Internet Assigned Numbers Authority (IANA) which is in charge of assigning IP Addresses to Internet users, ISPs etc. NAT is a technology that has been introduced to help maximize the utilization of assigned IANA and global IP Addresses.

Network Protocol

Network protocols encapsulate and forward data packets from one interface to another.

PAP/CHAP

Short for Password Authentication Protocol and Challenge Handshake Authentication Protocol. Most ISPs use either one for user identification. If your ISP doesn’t support these two protocols, contact them for an authentication script.

PPP

Short for Point-to-Point Protocol, a communications protocol for transmitting information over standard telephone lines between devices from different manufacturers.

PPPoE

Short for PPP over Ethernet, relying on two widely accepted standards, Ethernet and the Point-to-Point Protocol. PPPoE is a communications protocol for transmitting information over the Ethernet between devices from different manufacturers.

PPTP

The acronym of Point to Point Tunnelling Protocol, PPTP encapsulates the packet for transmission over the Internet. It creates a private “tunnel” through the large public network to have similar security of private network without actually leasing a private line. PPTP is normally used for VPN connections.

Protocol

An agreed format for transmitting, sending and receiving data between two devices.

Roaming

The ability for a wireless device to move from one access point’s range to another without losing the connection.

Router

An Internet device that routes requests for information to other routers until the information’s location is found and the data can be transmitted back to the origin of the request.

TCP/IP

Short for Transmission Control Protocol and Internet Protocol, the suite of communications protocols that enable hosts on the Internet to connect and exchange streams of data.

VPN

The acronym for Virtual Private Network. Via access control and encryption, VPNs bring security to the data transmission through the Internet as it is transmitted through a private network. It not only takes advantage of economies of scale but also provides a high level of security while the packet is sent over a large public network.

Wide Area Network (WAN)

A system of LANs being connected by telephone lines and radio waves. Although some WANs may be privately owned, they are usually considered a means of public access.

WEP

The acronym for Wired Equivalent Privacy. It is an encryption mechanism used to protect your wireless data communications. WEP uses a combination of 64-bit/128-bit keys to encrypt data that is transmitted between all points in a wireless network to ensure data security. It is described in the IEEE 802.11 standard.

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 57

Appendix D: Registering your NetComm Product

To ensure that the conditions of your warranty are complied with, please go to the NetComm web site for quick and easy registration of your product at

www.netcomm.com.au

Alternatively, you can print out a copy of the Warranty Registration Form and mail it to NetComm Limited, PO Box 1200, Lane Cove NSW 2066.

Note: The Warranty Registration Form can be found at “D:\Manuals\Warranty

Registration Form.pdf” where D:\ is the letter of your CD-ROM drive.

Contact Information

If you have any technical difficulties with your product, please do not hesitate to contact NetComm’s Customer Support Department.

Email: support@netcomm.com.au

Fax: (02) 9424-2010

Web: www.netcomm.com.au

Trademarks and Notices

NetComm™ is a trademark of NetComm Limited. Windows® is a registered trademark of Microsoft Corporation. Other brand and product names are trademarks or registered trademarks of their respective holders. Information is subject to change without notice. All rights reserved.

Please note that the images used in this document may vary slightly from those of the actual product. Specifications are accurate at the time of the preparation of this document but are subject to change without notice.

www.netcomm.com.au Rev.2 - YML630 Page 58 Cable/DSL Firewall Router

Product Warranty

The warranty is granted on the following conditions:

1. This warranty extends to the original

purchaser (you) and is not transferable;

2. This warranty shall not apply to software

programs, batteries, power supplies, cables or other accessories supplied in or with the product;

3. The customer complies with all of the

terms of any relevant agreement with NetComm and any other reasonable requirements of NetComm including producing such evidence of purchase as NetComm may require;

4. The cost of transporting product to and

from NetComm's nominated premises is your responsibility; and,

5. NetComm does not have any liability or

responsibility under this warranty where any cost, loss, injury or damage of any kind, whether direct, indirect, consequential, incidental or otherwise arises out of events beyond NetComm's reasonable control. This includes but is not limited to: acts of God, war, riot, embargoes, acts of civil or military authorities, fire, floods, electricity outages, lightning, power surges, or shortages of materials or labour.

6. The customer is responsible for the

security of their computer and network at all times. Security features may be disabled within the factory default settings. NetComm recommends that you enable these features to enhance your security.

The warranty is automatically voided if:

1. You, or someone else, use the product, or

attempts to use it, other than as specified by NetComm;

2. The fault or defect in your product is the

result of a voltage surge subjected to the product either by the way of power supply or communication line, whether caused by thunderstorm activity or any other cause(s);

Rev.2 - YML630 www.netcomm.com.au Cable/DSL Firewall Router Page 59

3. The fault is the result of accidental damage or damage in transit, including but not limited to liquid spillage;

4. Your product has been used for any purposes other than that for which it is sold, or in any way other than in strict accordance with the user manual supplied;

5. Your product has been repaired or modified or attempted to be repaired or modified, other than by a qualified person at a service centre authorised by NetComm; and,

6. The serial number has been defaced or altered in any way or if the serial number plate has been removed.

Limitations of Warranty

The Trade Practices Act 1974 and corresponding State and Territory Fair Trading Acts or legalisation of another Government ("the relevant acts") in certain circumstances imply mandatory conditions and warranties which cannot be excluded. This warranty is in addition to and not in replacement for such conditions and warranties.

To the extent permitted by the Relevant Acts, in relation to your product and any other materials provided with the product ("the Goods") the liability of NetComm under the Relevant Acts is limited at the option of NetComm to:

■ Replacement of the Goods; or

■ Repair of the Goods; or

■ Payment of the cost of replacing the

Goods; or

■ Payment of the cost of having the Goods

repaired.

All NetComm ACN 002 490 486 products have a standard 12 months warranty from date of purchase. However some products have an extended warranty option (refer to packaging). To be eligible for the extended warranty you must supply the requested warranty information to NetComm within 30 days of the original purchase by registering on-line via the NetComm web site at www.netcomm.com.au.

NetComm reserves the right to request proof of purchase upon any warranty claim.

NetComm NB3100 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Default Settings & Facts

NetComm Cable/DSL Firewall Router Quick Start

One page setup for Telstra Bigpond Cable

One page setup for Optus Cable

One page setup for most ADSL services.

Introduction

Chapter 1: Getting to know your NetComm Cable/DSL Firewall Router

1-1 About NetComm Cable/DSL Firewall Router

1-2 Contents of the NetComm Cable/DSL Firewall Router Package

1-3 Features of the NetComm Cable/DSL Firewall Router

Chapter 2: Hardware Installation & Setup

2-1 Rear Panel & Connections

2-2 Front Panel LEDs

2-3 System Requirements and Setup

Chapter 3: Internet Access

3-1 Prepare your network information

3-2 Web-based User Interface

Chapter 4: Advanced Applications

4-1 Firewall

4-2 DHCP Configuration

4-3 Access Control

4-4 Port Forwarding Settings

4-5 Special Application

4-6 Dynamic Routing

4-7 Static Routing

4-8 Administration Settings

4-9 Status Monitor

4-10 DMZ Host

4-11 Log

4-12 VPN Passthrough

Chapter 5: Configuring IPSec on Windows 2000/XP

5-1 Environment

5-2 Steps in Windows 2000/XP

5-3 Steps in Cable/DSL Firewall Router

Chapter 6: Macintosh Setup

6-1 Hardware Connections

6-2 Computer Network Configuration

6-3 NetComm Cable/DSL Firewall Router Configuration

6-4 Adding NetComm Cable/DSL Firewall Router to Existing Network

Chapter 7: Trouble Shooting

Hardware

Client Side (Computers)

Appendix A: Frequently Asked Questions

Appendix B: Technical Specifications

Appendix C: Glossary

Appendix D: Registering your NetComm Product

Contact Information

Trademarks and Notices

Product Warranty

Limitations of Warranty
