NetComm NB1300PLUS4 User Manual

Contents

Overview ........................................................................................................................4

Package Contents ........................................................................................... 4

Connecting your NB1300Plus4 ....................................................................... 5

Do I need a Micro filter? ................................................................................... 7

LED Indicators ................................................................................................. 8

Using Easy Config ........................................................................................... 9

Factory Defaults .............................................................................................. 11

Resetting to factory defaults ........................................................................... 11

Configuration Types .................................................................................................... 12

ADSL Modem - Ethernet Configuration ......................................................... 13

ADSL Modem - USB Configuration ............................................................... 18

ADSL Gateway Router - Ethernet Configuration ........................................... 23

ADSL Gateway Router - USB Configuration .................................................. 29

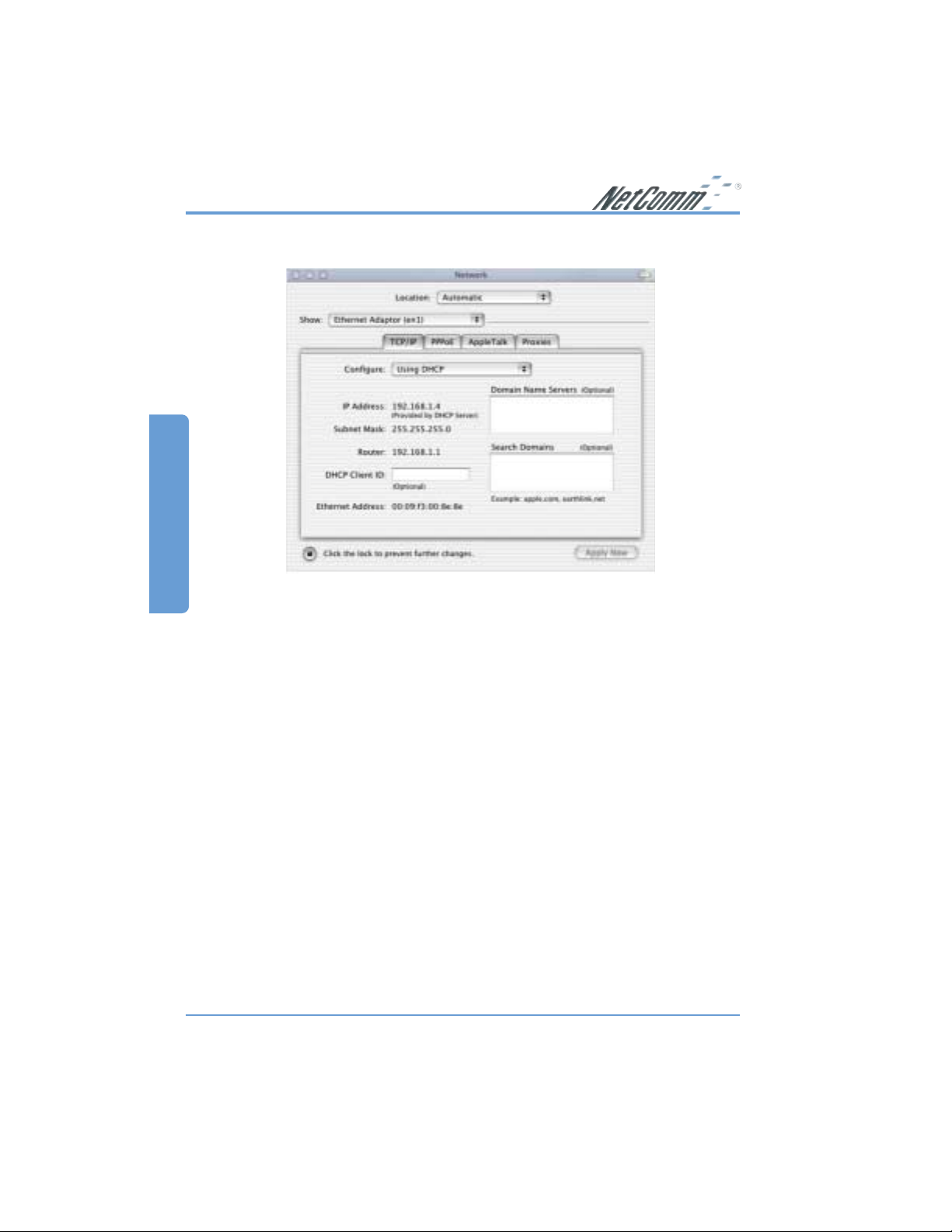

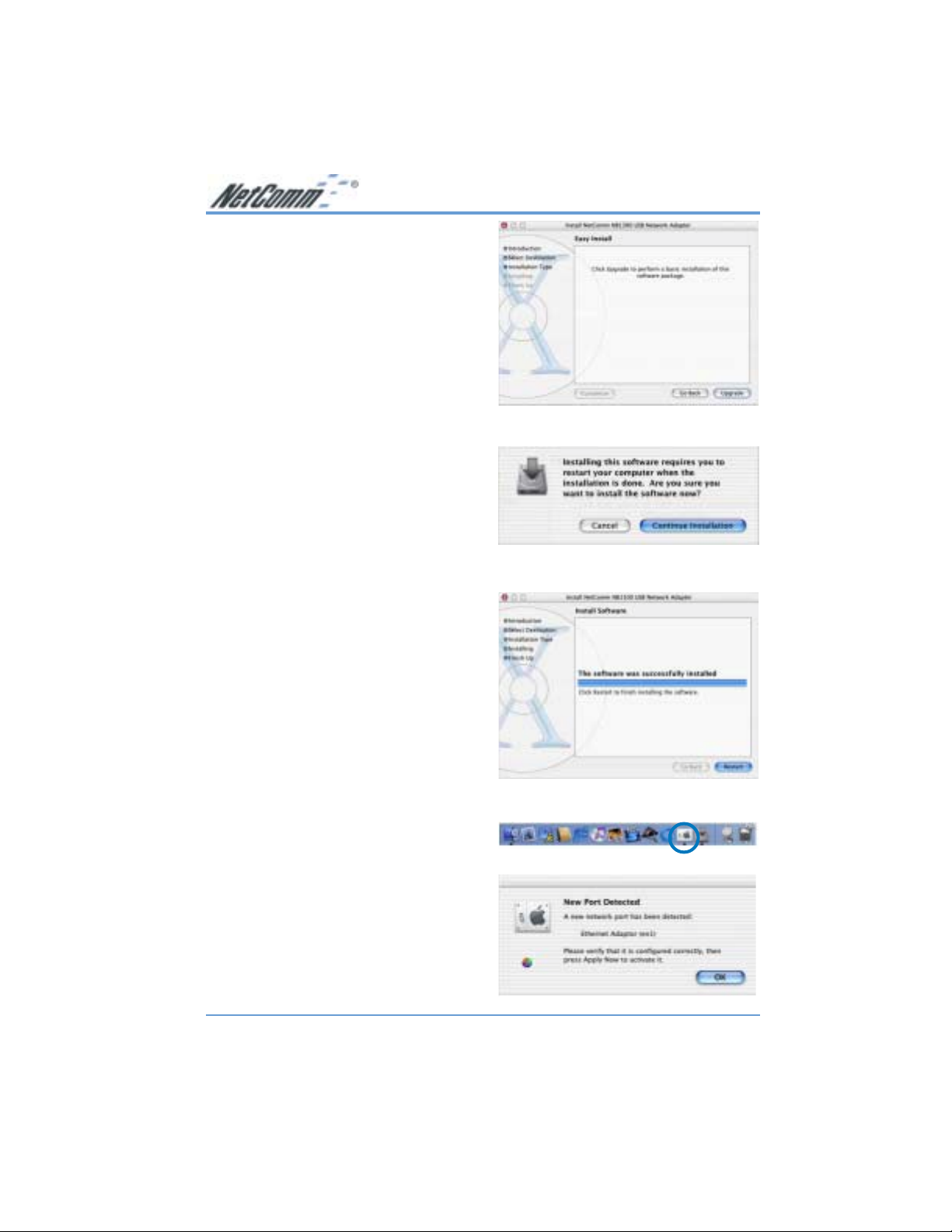

Macintosh OS X USB Configuration .............................................................. 34

Advanced Configuration for your NB1300Plus4 ......................................................... 37

How to make changes ................................................................................... 37

Multiple Virtual Circuits .................................................................................. 37

USB or Ethernet? ........................................................................................... 37

Main Menu - (Simple) ..................................................................................... 38

Basic Menu .................................................................................................... 39

Status ............................................................................................................. 40

Router ............................................................................................................ 41

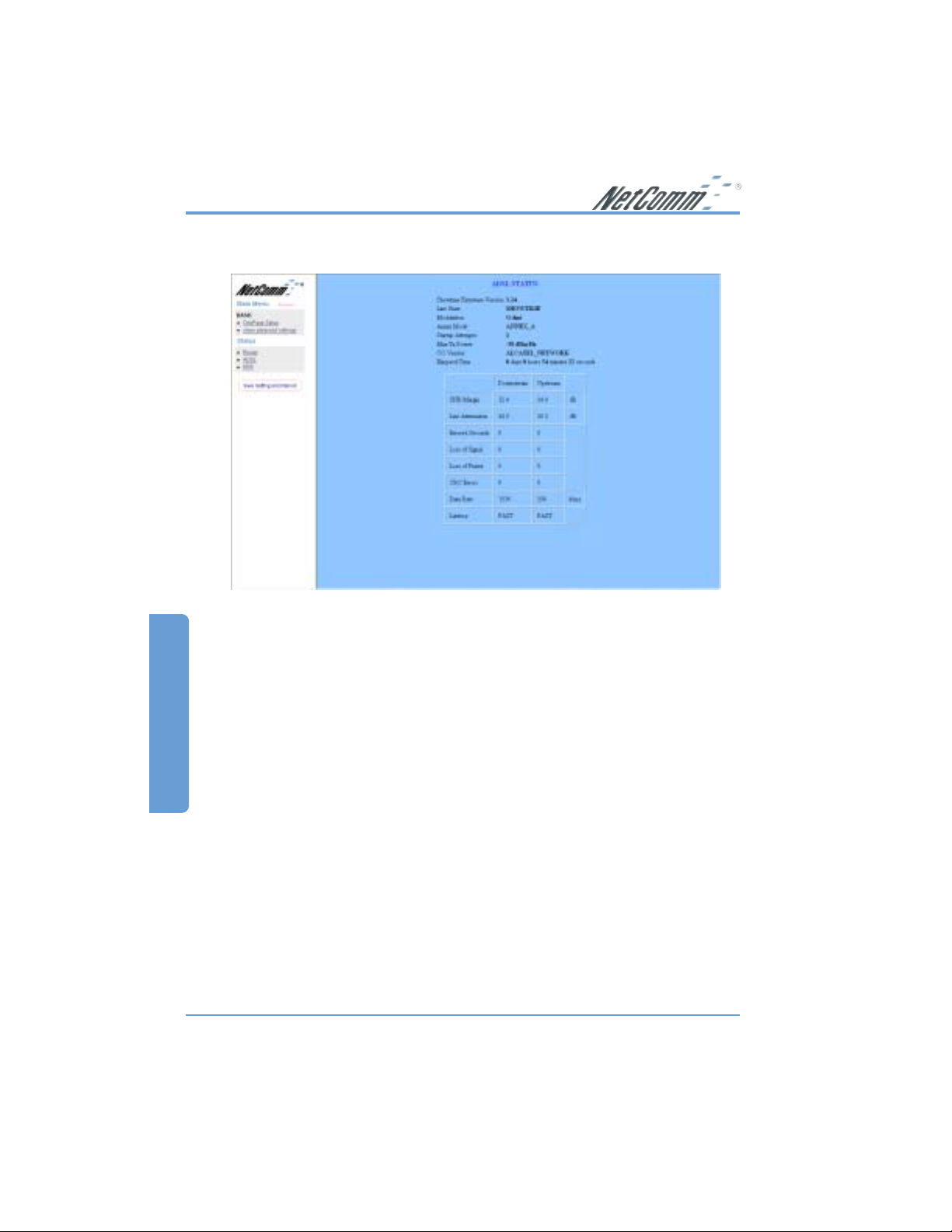

ADSL .............................................................................................................. 42

PPP ................................................................................................................ 43

Main Menu - (Advanced) ................................................................................ 44

Advanced........................................................................................................ 44

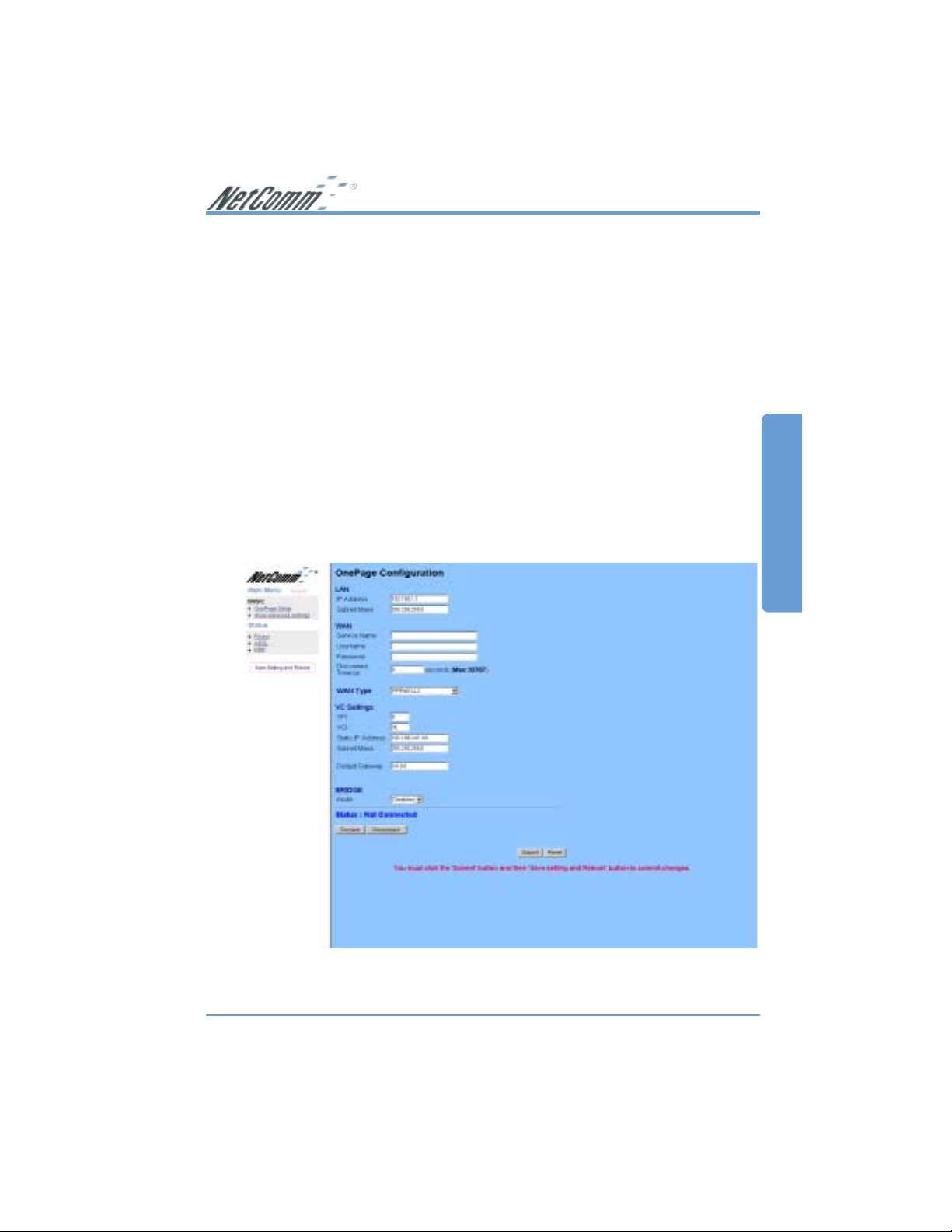

One Page Setup ............................................................................................ 44

Hide Advanced settings ................................................................................. 44

Administration ................................................................................................ 45

WAN ............................................................................................................... 45

LAN/DHCP ..................................................................................................... 48

DNS ................................................................................................................ 49

NAT ................................................................................................................. 50

Port Forwarding ............................................................................................. 52

ADSL Configuration ....................................................................................... 53

RIP Configuration .......................................................................................... 54

Diagnostic Test .............................................................................................. 55

Route Table .................................................................................................... 56

MAC Filtering .................................................................................................. 57

Security ........................................................................................................... 58

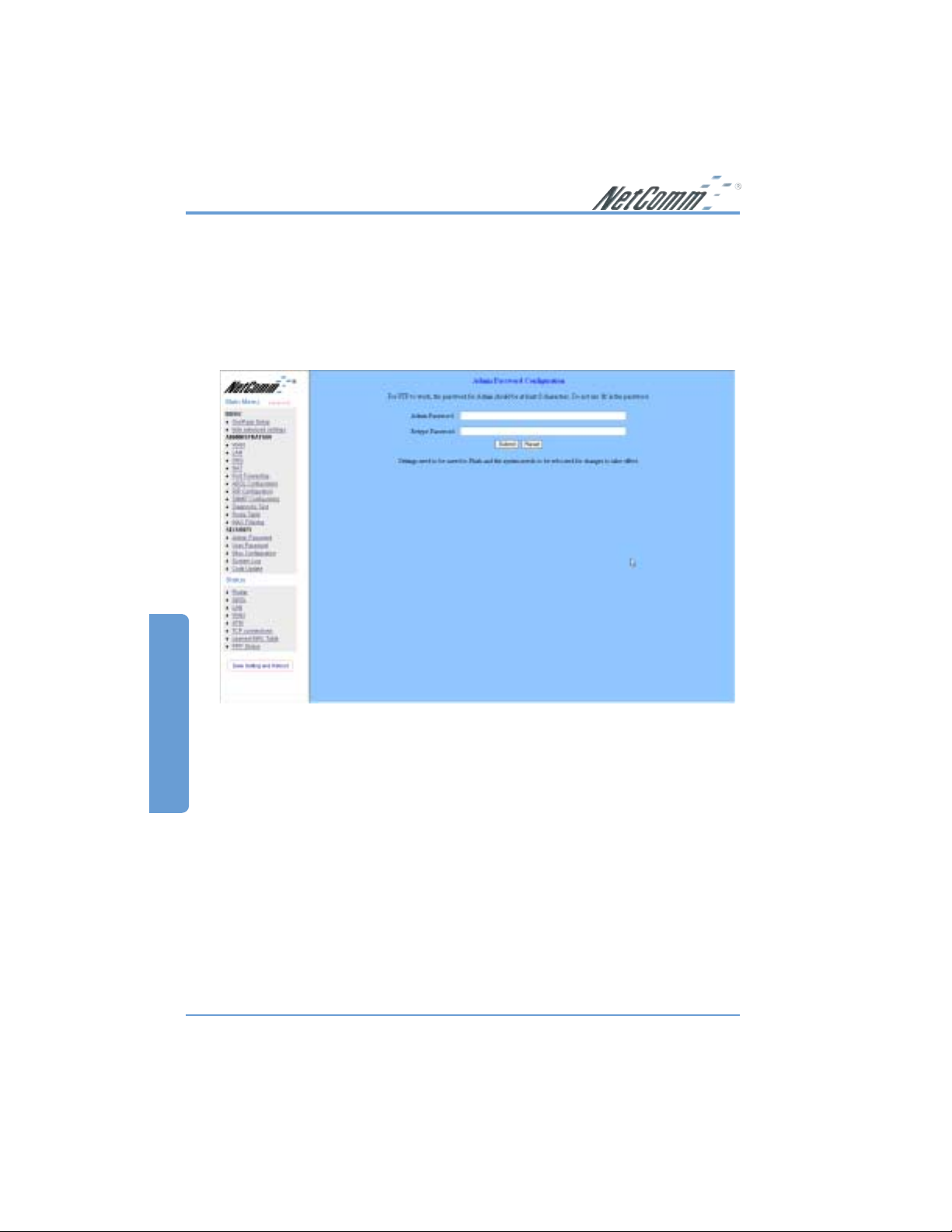

Admin Password ........................................................................................... 58

www.netcomm.com.au Rev. 1- YML674 Page 2 NB1300Plus4 ADSL Modem

User Password .............................................................................................. 59

Misc Configuration ......................................................................................... 60

System Log .................................................................................................... 62

Code Update .................................................................................................. 64

Status ............................................................................................................. 65

Router ............................................................................................................ 65

ADSL .............................................................................................................. 66

LAN ................................................................................................................. 67

WAN ............................................................................................................... 68

ATM ................................................................................................................. 69

TCP Connections .......................................................................................... 70

Learned MAC Table ....................................................................................... 71

PPP ................................................................................................................ 72

Save Settings and Reboot ............................................................................. 73

Appendix A - Connection Instructions .......................................................................... 74

Connect your NB1300Plus4 ADSL Modem via Ethernet ............................... 74

Connect your NB1300Plus4 ADSL Modem via USB ..................................... 75

Macintosh OS X USB Configuration .............................................................. 76

Appendix B - Trouble Shooting .................................................................................... 79

General Modem Operation ............................................................................ 79

Web Based Interface ..................................................................................... 80

Internet / ISP Connection ............................................................................... 81

Testing your TCP/IP Network Using a Ping Utility ......................................... 83

Appendix C - Glossary ................................................................................................. 85

Registering your NetComm Product ........................................................................... 88

Contact Information ....................................................................................... 88

Trademarks and Notices ............................................................................... 88

Warranty Registration Form .......................................................................... 89

Product Warranty ............................................................................................ 91

Limitations of Warranty .................................................................................. 91

Rev. 1 - YML674 www.netcomm.com.au NB1300Plus4 ADSL Modem Page 3

Overview

Package Contents

The following items should be contained in your NB1300Plus4 ADSL Modem Router Package:

❒ One ADSL ModemPlus4 Port Switch

Overview

(NB1300+4)

❒ Package Contents Note and a User Guide

❒ Power Adaptor (9VAC/800mA)

❒ Telephone Line Cable (RJ11) and 605 to RJ11

Adaptor

❒ Ethernet Network Cable (RJ45)

❒ USB Cable

❒ Microfilter

❒ NetComm Communications CD-ROM

Check the contents of your package and, if any parts are missing or damaged, please contact

your Dealer.

www.netcomm.com.au Rev. 1- YML674 Page 4 NB1300Plus4 ADSL Modem

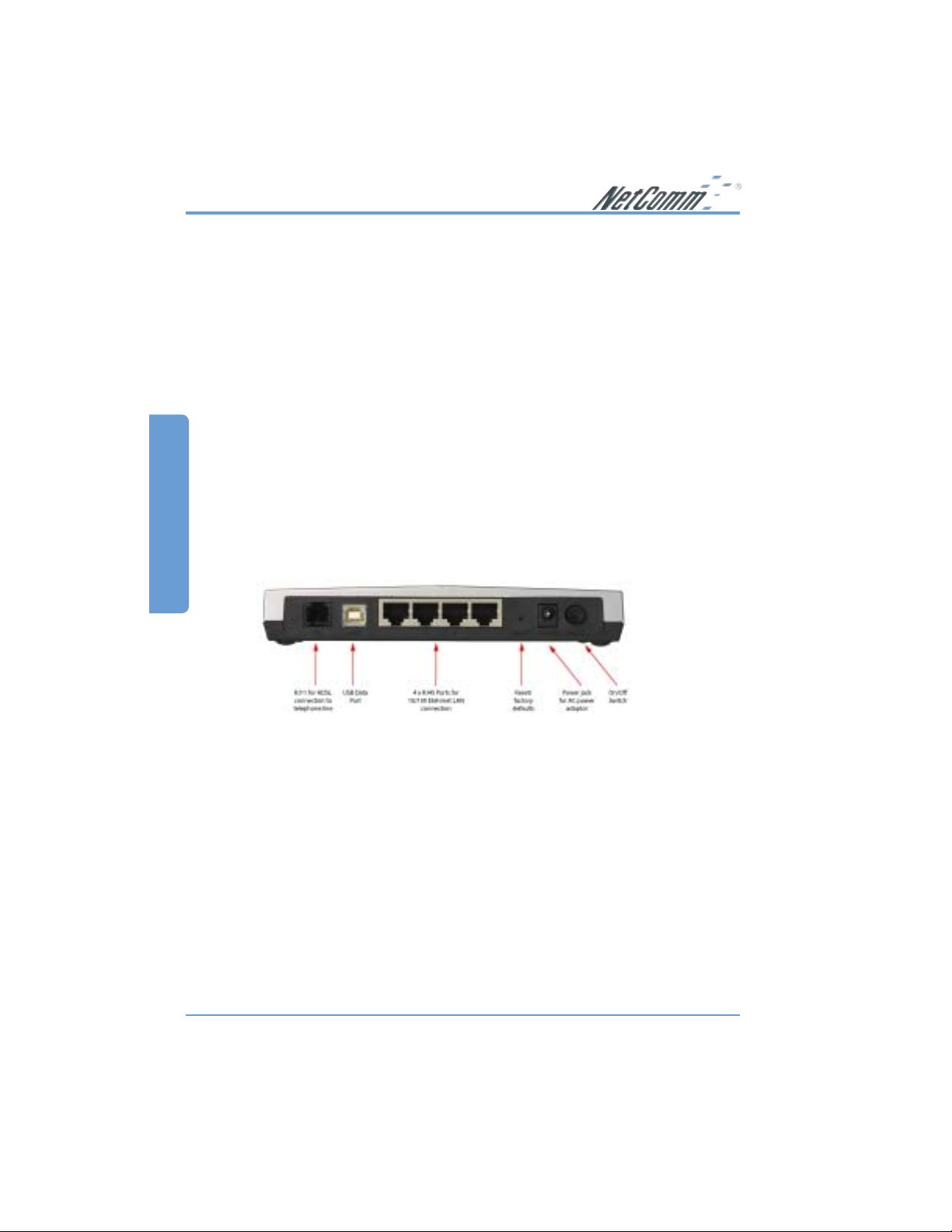

Connecting your NB1300Plus4

The NB1300Plus4 can be connected via a USB cable or an Ethernet cable or both. The reason for this is that the USB connection is simply an ethernet simulation, as far as your computer is concerned the USB connection is an Ethernet connection, hence DHCP and other protocols will work the same as for Ethernet.

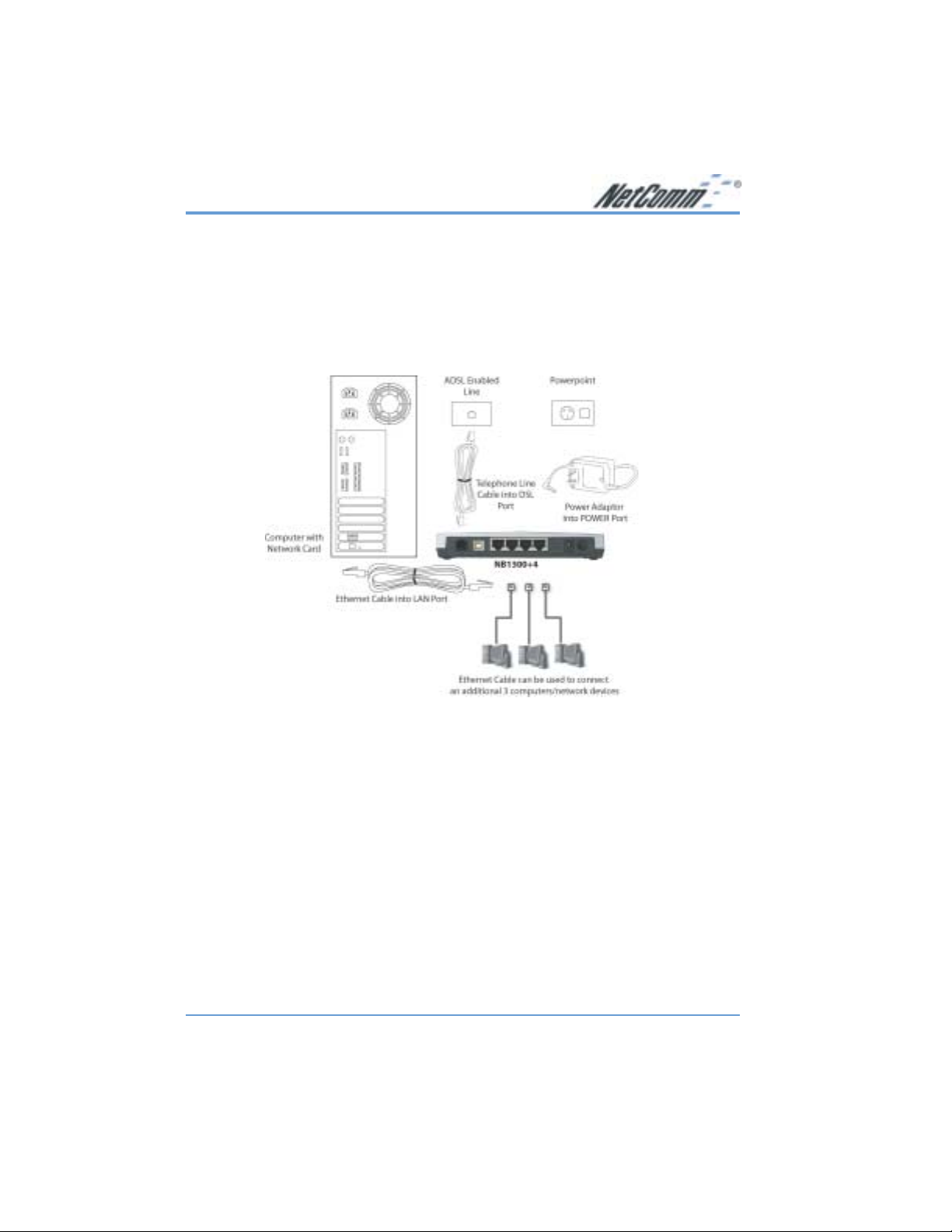

Connecting your NB1300Plus4 ADSL Modem via Ethernet

1. Connect your NB1300Plus4 to either a computer directly or a network hub or switch using cat5 ethernet cables. You need to ensure you are using the correct type of ethernet cable - i.e. straight through or crossover.

Overview

2. Connect the power pack to the NB1300Plus4 ADSL Modem and switch on the power switch.

3. Ensure that the connected port has a LAN led light on the NB1300Plus4.

4. Ensure that the computer you intend to use has an IP address in the same subnet as the NB1300Plus4 ADSL Modem. (e.g. the NB1300Plus4’s default IP is 192.168.1.1 - your computer should be on 192.168.1.100 or similar.) If you have DHCP enabled on your computer, the NB1300Plus4 will assign your computer a suitable IP address.

5. Ensure that your computer has a LAN link light.

6. Connect one end of the ADSL phone line to the NB1300Plus4 ADSL Modem and the other end to the wall socket.

7. Additional network devices or computers can be connected to the remaining LAN ports.

Rev. 1 - YML674 www.netcomm.com.au NB1300Plus4 ADSL Modem Page 5

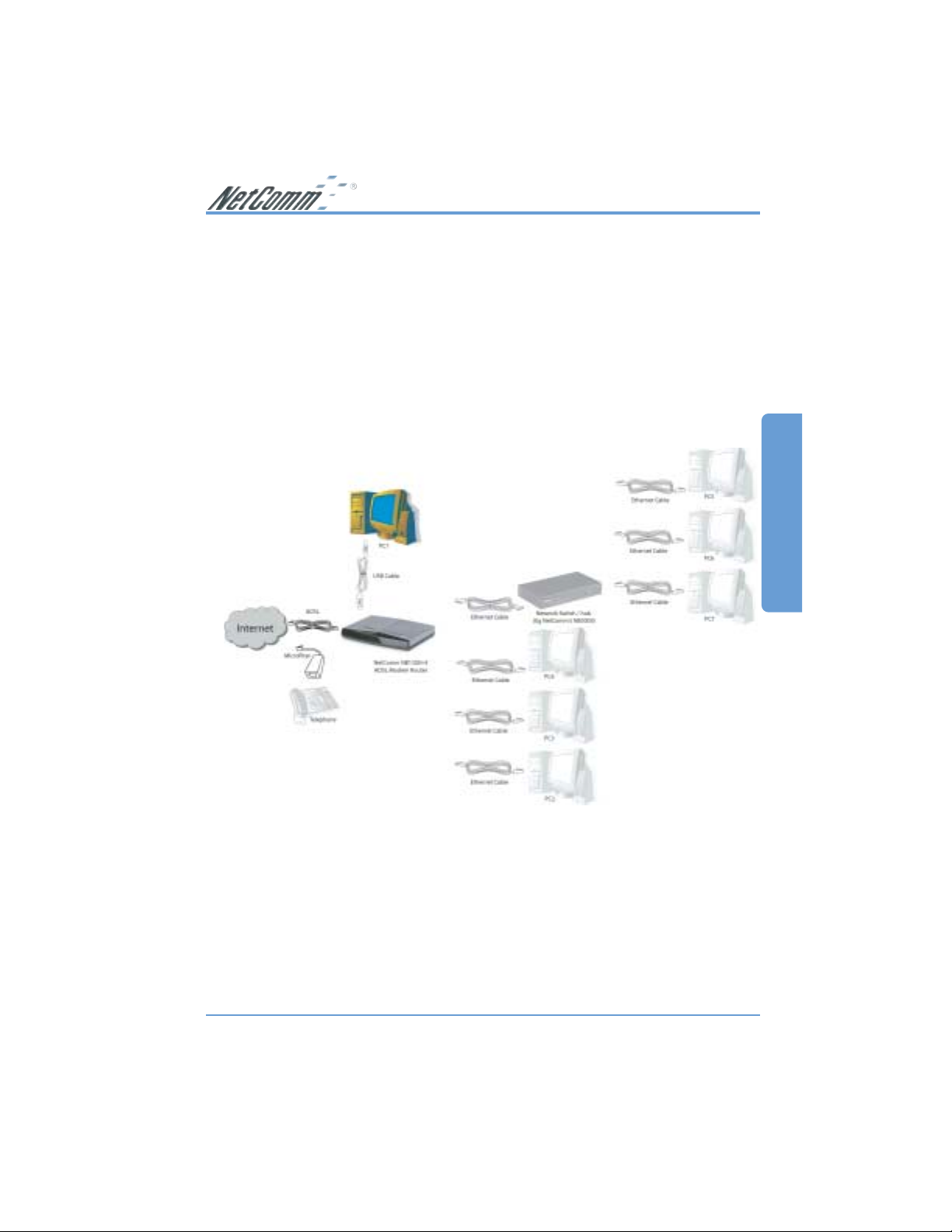

Connecting your NB1300Plus4 ADSL Modem via USB

1. Connect the power pack to the NB1300Plus4 ADSL Modem and switch on the power switch.

Overview

2. Install the USB driver (Windows 98/Me/2000/XP only - for Macintosh see page 34.)

When you install the USB driver on your computer it creates a Virtual Ethernet Adapter, which can be configured in the same way as a Network Interface card with DHCP or static IP address. To install the USB driver please follow the steps below;

a. Boot your machine into Windows 98/Me/2000/XP. b. Insert your NetComm NB1300Plus4 CD ROM into your CD-ROM drive. c. Plug power up to your NB1300Plus4 and switch ON. d. Plug a USB cable from the back of the unit into a spare USB socket on your computer. e. The Windows “Add New Hardware Wizard” should appear. Click Next to continue. f. Ensure the option “Search for the best driver….” is chosen and click Next. g. When prompted where you would like to look for the drivers choose “Specify location”

and untick any other boxes. Then click the browse button to select the CD-ROM drive which you inserted you NetComm CD-ROM into. Then choose the ‘USBdriver’ folder.

3. Connect one end of the ADSL phone line to the NB1300Plus4 ADSL Modem and the other end to the wall socket.

4. In addition to using the USB connection, you my connect up to 4 additional network devices or computers.

www.netcomm.com.au Rev. 1- YML674 Page 6 NB1300Plus4 ADSL Modem

Do I need a Micro filter?

Micro filters are used to prevent common telephone equipment, such as phones, answering machines and fax machines, from interfering with your ADSL service. If your ADSL enabled phone line is being used with any other equipment other than your ADSL Modem then you will need to use one Micro filter for each phone device.

Splitters may be installed when your ADSL line is installed or when your current phone line is upgraded to ADSL. If your telephone line is already split you will not need to use a Microfilter

- check with your ADSL service provider if you are unsure.

Each micro filter is connected in-line with your telephone or fax machine so that all signals pass through it. Telephones and/or facsimiles in other rooms that are using the same extension will also require Microfilters. The following diagram gives an example of connecting your ADSL Modem/Router using a Microfilter.

A suitable Microfilter can be purchased from NetComm or your Service Provider, if required.

Overview

Rev. 1 - YML674 www.netcomm.com.au NB1300Plus4 ADSL Modem Page 7

LED Indicators

The LED Indicators are located on the front of the unit, they are green in colour. The meanings are as follows:

Overview

Label Meaning Status Indicates:

PWR Power On Power is on

O f f Power is off

Flashing Unit is powered up correctly when pulsing steadily.

LNK WAN Link Flashing Link being attempted by router and when receiving

On Link established

O f f No link

LAN 1/2/3/4 LAN Port 1/2/3/4 Flashing Flashes when data is being sent or received on the

On Indicates a link to your LAN or Network card is

O f f Indicates no link to LAN

ON or OFF during reboot or when unit switched OFF. If ON or OFF permanently then there is an error. Try powering unit OFF then ON after a minute.

or sending data on the WAN port (ADSL line)

LAN connection

active

www.netcomm.com.au Rev. 1- YML674 Page 8 NB1300Plus4 ADSL Modem

Using Easy Config

Loading an ISP profile into your NB1300Plus4

NetComm’s Easy Config software is supplied to help you to configure your NB1300Plus4 for a quick connection to the Internet. You can use one of the default profiles provided or you can use a profile that is provided by your Internet Service Provider (e.g. via Email, floppy disk or CDROM).

A number of examples are supplied in the next section to assist you in selecting the appropriate connection configuration to connect your NB1300Plus4 to your Network or Computer.

Note: Before continuing you must connect your ADSL Modem. Refer to the sections on

Connecting your ADSL Modem via Ethernet or via USB for instructions.

1. Switch your router ON and wait for the ‘RDY’ light to start pulsing.

2. Reset your router to factory defaults by using a pen to depress the reset button on the back

of the unit. Ensure you depress the button for 5 seconds.

Note: Refer to the section on resetting your NB1300Plus4 for more information.

3. Start your Windows PC and connect your router to your computer as per the Quick Start

Guide. This can be done either via Ethernet or USB Refer to the sections on connecting your ADSL Modem via Ethernet or via USB for instructions.

4. Launch NetComm’s Easy Config software (Double click EzCfg.exe or launch.bat) from the

CD-ROM or from your downloaded copy. Note: The ISP profile you wish to load into your NB1300Plus4 should be in the same directory as the EzCfg.exe file)

Overview

5. Choose your ISP Profile from the drop down box.

6. Type in your ISP User Name in full as given by your ISP.

7. Type in your ISP Password as supplied by your ISP.

Note: Your password characters will be represented by stars.

Rev. 1 - YML674 www.netcomm.com.au NB1300Plus4 ADSL Modem Page 9

8. Click the Configure My Router button and follow the on-screen prompts. The software will ask you to ensure your router is powered on, click OK to continue.

9. When prompted you should power off your router and then power it back on again. You can close Easy Config at this point by clicking the Exit button.

Note: It may also be beneficial to reboot your computer but this is usually not

required.

10. Once your NB1300Plus4 has booted (RDY light pulses) wait one minute and you should

Overview

now be able to connect to the Internet. You can run Easy Config again just to check your connection status.

www.netcomm.com.au Rev. 1- YML674 Page 10 NB1300Plus4 ADSL Modem

Factory Defaults

The following table lists the Factory Defaults of your NB1300Plus4 ADSL Modem:

Field Setting Details

LAN IP address: 192.168.1.1

LAN Subnet Mask: 255.255.255.0

DHCP Server: Enabled

User Name: admin

Password: password

Main Function: Router (Bridge Disabled)

WAN connection type: PPPoE LLC

VPI: 8

VCI: 35

Note: These defaults may change with firmware updates and factory changes, please

consult the NetComm website to check for the latest defaults.

Resetting to factory defaults

If you forget your passwords, lock out HTTP or FTP access or simply can’t remember what IP address you have set the NB1300Plus4 on you will probably need to perform a factory defaults reset.

To perform a factory defaults reset you must have physical access to the unit then follow these steps;

1. Make sure the NB1300Plus4 is powered on and the RDY light is flashing.

2. Locate the Reset button hole on the back of the unit.

3. Gently press in and hold the button for 5 seconds with a suitably thin appliance (E.g.

straightened paper clip) seconds after release the RDY light will turn off.

4. Watch the RDY light and wait for it to stabilise and start pulsing again (in approximately 1

minute.

Overview

Note: Do not switch off or press reset again until the NB1300Plus4 has completed its

reset and the RDY light is flashing.

5. Your router should now be set to factory defaults (192.168.1.1, ‘admin’ & ‘password’)

Rev. 1 - YML674 www.netcomm.com.au NB1300Plus4 ADSL Modem Page 11

Configuration Types

This section is supplied to help you connect your NB1300Plus4 ADSL Modem quickly to your network or Windows computer. The following are the most common configurations for using your NB1300Plus4 ADSL Modem.

■ ADSL Modem - Ethernet

This is when you plug the modem directly into the Ethernet port of a computer and then run Internet connection software (often supplied by your ISP) on the computer to establish a connection to the Internet. This method means that the computer connected to the Ethernet port of the NB1300Plus4 is exposed to the Internet and is given a public IP address.

■ ADSL Modem - USB

This is when you plug the modem directly into the USB port of just one computer. You then must run Internet connection software (often supplied by your ISP) on the computer to establish a connection to the Internet. This method means that the computer connected to the USB port of the NB1300Plus4 is exposed to the Internet and is given a public IP address.

■ ADSL Gateway Router - Ethernet

This is when the NB1300Plus4 is connected to your network switch or hub and shares the

Configuration Types

Internet connection to all computers on the network. The NB1300Plus4 will log on to your ISP on behalf of your computers and it will shield your computers from direct Internet attack by using Network address Translation (NAT).

■ ADSL Gateway Router - USB

If you do not have an Ethernet port on your computer you can use your USB port like an Ethernet port to connect to the NB1300Plus4. This "simulated" Ethernet port is only for connecting to the NB1300Plus4 and is only available for Windows 98SE, Windows 2000, Windows XP and machintosh OSX.. The NB1300Plus4 will log on to your ISP on behalf of your computer and it will shield your computer from Internet attack by using NAT.

Refer to the instructions in one of the following sections for the configuration you wish to use. If you wish to configure the NB1300Plus4 in a different way to the examples shown, please consult a Network Specialist and the Advanced Configuration section for more information.

Note: If the NB1300Plus4 has already been used, we strongly recommend you reset and

flush all settings of the unit by pressing and holding the RESET button on the rear of the modem for 10 seconds. Wait for the RDY light to begin pulsing before continuing.

We also recommend you change your Router’s password from the factory default before connecting it to a network or the Internet. Refer to the “Admin Password” section in the “Security” Menu.

www.netcomm.com.au Rev. 1- YML674 Page 12 NB1300Plus4 ADSL Modem

ADSL Modem - Ethernet Configuration

Use this configuration if you:

■ Have been told to use the “ADSL Modem” Easy Config Profile, or

■ Want to connect this device to another router, or

■ Want to use your ISP’s software to log on to the Internet directly (not sharing) and your

computer will use a Public IP address, and

■ DO NOT need the NB1300Plus4 to share your Internet service ( You can still use windows

ICS to share your Internet Service), and

■ Do not require your computer to be protected (via NAT) from the Internet, e.g. you may be

running Personal firewall software or a Secondary router.

ADSL Modem - Ethernet

ADSL modem (Transparent Bridge) - This is when you plug the modem directly into the Ethernet port of a computer and then run Internet connection software (often supplied by your ISP) on the computer to establish a connection to the Internet. This method means that the computer connected to the Ethernet port of the NB1300Plus4 is exposed to the Internet and is given a public IP address.

Rev. 1 - YML674 www.netcomm.com.au NB1300Plus4 ADSL Modem Page 13

Before continuing, ensure you have the following items and information ready:

■ A computer with a Network Interface Card installed or a router (such as the NetComm

NB3100 Compact).

■ An Ethernet network cable.

■ A telephone line with ADSL service enabled.

■ User Name, Password, VPI, VCI, encapsulation and DNS server settings for your ADSL

account (ask your ISP if unsure). These are not needed for the NB1300Plus4, but are required for the computer or router that it will be connected to.

Note: The following procedure presumes your NB1300Plus4 is set to a factory default IP

address 192.168.1.1.

Step 1: Connecting your computer to the NB1300Plus4

Note: This unit should only be connected to the Telecommunications Network through a

line cord which meets the requirements of ACA TS008.

a. Using an ethernet network cable, connect an Ethernet port of the NB1300Plus4 into the

Ethernet port of the computer you wish to use to configure the unit.

ADSL Modem - Ethernet

b. Connect the power and switch the NB1300Plus4 on.

c. Ensure the LAN link on the NB1300Plus4 is active.

d. Configure your Computer to use any IP address in the range of 192.168.1.2 to

192.168.1.254.

e. Additional network devices may be connected to the remaining ethernet ports.

Note: When the NB1300Plus4 is used in Bridge mode it is a fairly passive device and

most Internet configuration required (such as User Name, Password, etc.) is done on the computer or another router.

www.netcomm.com.au Rev. 1- YML674 Page 14 NB1300Plus4 ADSL Modem

Step 2: Configuring the NB1300Plus4

After connecting all the ADSL Router cables you can either configure your NB1300Plus4 using the Easy Config software provided (Refer to page 25) or complete the following manual configuration instructions:

a. Power on the ADSL Router and launch a web browser, such as Internet Explorer or

Netscape Navigator, browse to the address http://192.168.1.1.

b. Enter the correct user name and password to access the Configuration tool. The default user

name and password are as below.

User Name : admin Password : password

Note: You must click the Submit button on every page that you make changes on and

when you have made all your changes click the Save Setting and Reboot button from the bottom of the menu.

c. Click on the One Page Setup link under the Basic menu.

ADSL Modem - Ethernet

You will need to Change your WAN and VC settings as provided by your ISP. The following lists an example of the most common ISP settings used in Australia. The fields that require changing from the default settings are highlighted.

Rev. 1 - YML674 www.netcomm.com.au NB1300Plus4 ADSL Modem Page 15

Field Setting Details

Service name: Blank ❖

User Name: Blank ❖

Password: Blank ❖

Disconnect timeout: 0 ❖

Mode/Wan Connection Type: 1483 Bridged IP LLC

VPI: 8 ❖

VCI: 35 ❖

Static IP Address: 192.168.241.101 ❖

Subnet Mask: 255.255.255.0 ❖

Default Gateway: 0.0.0.0 ❖

Bridge mode: Enabled

❖

Default Setting. Although in most cases you will not be required to alter these default settings for your NB1300Plus4, your ISP may identify specific settings to enable connection to their service. Please refer to your ISP or Network Administrator for further information.

ADSL Modem - Ethernet

4. Click Submit and then click the Save Setting and Reboot button from the bottom of the menu. Wait for the configuration to complete.

Step 3: Configuring your Computer/Router to use the NB1300Plus4

ISP Software Method

Install software on your computer (usually provided by your ISP) and enter a User Name and Password. This software usually adds a PPP service to your computer.

Please refer to your ISP for more information on how to configure your software to work with the NB1300Plus4 ADSL Modem when used as a bridge.

Second Router Method

If you are using a second router in conjunction with the NB1300Plus4 as a Bridge, you should unplug the NB1300Plus4 from the computer and plug the NB1300Plus4 into WAN port of the secondary router. Consult the second router’s documentation for information on how to configure your user name and password.

Note: Depending on the second router, you may need to use a “straight through” UTP

cable instead of a “crossover” UTP cable to join the NB1300Plus4 to the WAN port of the other router.

www.netcomm.com.au Rev. 1- YML674 Page 16 NB1300Plus4 ADSL Modem

Operational Diagram for ADSL Modem Configuration

ADSL Modem - Ethernet

Rev. 1 - YML674 www.netcomm.com.au NB1300Plus4 ADSL Modem Page 17

ADSL Modem - USB Configuration

Use this configuration if you:

■ Have been told to use the “ADSL Modem” Easy Config Profile, or

■ Want to connect this device to another router, or

■ Want to use your ISP’s software to log on to the Internet directly (not sharing) and your

computer will use a Public IP address, and

■ DO NOT need the NB1300Plus4 to share your Internet service ( You can still use windows

ICS to share your Internet Service), and

■ Do not require your computer to be protected (via NAT) from the Internet, e.g you may be

running Personal firewall software or a Secondary router.

ADSL Modem - USB

ADSL modem (Transparent Bridge) to be connected to a router - This is when you plug the modem directly into the USB port of just one computer. You then must run Internet connection software (often supplied by your ISP) on the computer to establish a connection to the Internet. This method means that the computer connected to the USB port of the NB1300Plus4 is exposed to the Internet and is given a public IP address.

Note: In this configuration you should not use the 4 port switch.

www.netcomm.com.au Rev. 1- YML674 Page 18 NB1300Plus4 ADSL Modem

Before continuing, ensure you have the following items and information ready:

■ A computer with a Network Interface Card installed or a router (such as the NetComm

NB3100).

■ A USB cable.

■ A telephone line with ADSL service enabled.

■ User Name, Password, VPI, VCI, encapsulation and DNS server settings for your ADSL

account (ask your ISP if unsure). These are not needed for the NB1300Plus4, but are required for the computer or router that it will be connected to.

Note: The following procedure presumes your NB1300Plus4 is set to a factory default IP

address 192.168.1.1.

Step 1: Connecting your computer to the NB1300Plus4

Note: This unit should only be connected to the Telecommunications Network through a

line cord which meets the requirements of ACA TS008.

a. Place the CD-ROM provided into your CD-ROM drive.

b. Connect the USB cable from the NB1300Plus4 into a spare USB port on your computer. If

you are using Macintosh OSX, please refer to the Macintosh USB Configuration section on page 34.

c. Windows will detect the new hardware and launch a New hardware Wizard. When prompted

to search for drivers choose “Specify location”.

d. Browse the drive letter of your CD-ROM drive and locate the “USB driver” folder. E.g.

D:\USB driver\ where D: is the drive letter of your CD-ROM.

e. Continue with the driver search by clicking OK and the Found Hardware Wizard will locate

the USB driver and prompt you to install it.

f. Once the driver is installed, it is configurable as a regular Ethernet adapter and will be set to

automatically accept an IP address from the NB1300Plus4. You can manually set its IP address to any free address in the range of 192.168.1.2 –254 as required.

ADSL Modem - USB

Note: When the NB1300Plus4 is used in Bridge mode it is a fairly passive device and

most Internet configuration required (such as User Name, Password, etc.) is done on the computer or another router.

Rev. 1 - YML674 www.netcomm.com.au NB1300Plus4 ADSL Modem Page 19

Step 2: Configuring the NB1300Plus4

After connecting all the ADSL Router cables you can either configure your NB1300Plus4 using the Easy Config software provided (Refer to page 9) or complete the following manual configuration instructions:

a. Power on the ADSL Router and launch a web browser, such as Internet Explorer or

Netscape Navigator, browse to the address http://192.168.1.1.

b. Enter the correct user name and password to access the Configuration tool. The default user

name and password are as below.

User Name : admin Password : password

Note: You must click the Submit button on every page that you make changes on and

when you have made all your changes click the Save Setting and Reboot button from the bottom of the menu.

c. Click on the One Page Setup link under the Basic menu.

ADSL Modem - USB

www.netcomm.com.au Rev. 1- YML674 Page 20 NB1300Plus4 ADSL Modem

Field Setting Details

Service name: Blank ❖

User Name: Blank ❖

Password: Blank ❖

Disconnect timeout: 0 ❖

Mode/Wan Connection Type: 1483 Bridged IP LLC

VPI: 8 ❖

VCI: 35 ❖

Static IP Address: 192.168.241.101 ❖

Subnet Mask: 255.255.255.0 ❖

Default Gateway: 0.0.0.0 ❖

Bridge mode: Enabled

❖

4. Click Submit and then click the Save Setting and Reboot button from the bottom of the

menu. Wait for the configuration to complete.

Step 3: Configuring your Computer/Router to use the NB1300Plus4

Install software on your computer (usually provided by your ISP) and enter a User Name and Password. This software usually adds a PPP service to your computer.

Please refer to your ISP for more information on how to configure your software to work with the NB1300Plus4 ADSL Modem when used as a bridge.

ADSL Modem - USB

Rev. 1 - YML674 www.netcomm.com.au NB1300Plus4 ADSL Modem Page 21

Operational Diagram for ADSL Modem Configuration

ADSL Modem - USB

www.netcomm.com.au Rev. 1- YML674 Page 22 NB1300Plus4 ADSL Modem

ADSL Gateway Router - Ethernet Configuration

Use this configuration if you:

■ Have been told to use Easy Config “ISP Profile 1, 2, 3, 5 or 6 ”, or

■ Were told by your ISP to use this Configuration with another Easy Config profile, or

■ Have at least one computer with an Ethernet Networking socket, and / or

■ Want to share your Internet Service with more than one computer.

■ Want your computers to be protected by the NB1300Plus4 (via NAT).

■ You want your computers to use Private IP addresses.

Router - Ethernet

ADSL Gateway

Ethernet Gateway (performing Network Address Port Translation) - This is when the NB1300Plus4 is connected to your network switch or hub and shares the Internet connection to all computers on the network. The NB1300Plus4 will log on to your ISP on behalf of your computers and it will shield your computers from direct Internet attack by using Network address Translation (NAT).

Before continuing, ensure you have the following items and information ready:

■ A Windows 98, ME, NT, 2000 or XP client machine with a Network Interface Card

installed.

■ Either a Network Hub and two UTP cables OR one Crossover UTP cable.

■ A telephone line with ADSL service enabled.

■ User Name, Password, VPI, VCI, encapsulation and DNS server settings for your ADSL

account (ask your ISP if unsure) .

Note: The following procedure presumes your NB1300Plus4 is set to a factory default IP

address 192.168.1.1.

Rev. 1 - YML674 www.netcomm.com.au NB1300Plus4 ADSL Modem Page 23

Step 1: Connecting your computer to the NB1300Plus4

Note: This unit should only be connected to the Telecommunications Network through a

line cord which meets the requirements of ACA TS008.

a. Connect your NB1300Plus4 to either a computer directly or a network hub or switch using

cat5 ethernet cables. You need to ensure you are using the correct type of ethernet cable - i.e. straight through or crossover.

b. Connect one end of the ADSL phone line to the NB1300Plus4 ADSL Modem and the other

end to the wall socket.

ADSL Gateway

Router - Ethernet

c. Connect the power pack to the NB1300Plus4 ADSL Modem and switch on the power

switch.

d. Ensure that there is a LAN link light on the NB1300Plus4.

e. Ensure that the computer you intend to use has an IP address in the same subnet as the

NB1300Plus4 ADSL Modem. (e.g. the NB1300Plus4’s default IP is 192.168.1.1 - your computer should be on 192.168.1.100 or similar.) If you have DHCP enabled on your computer, the NB1300Plus4 will assign your computer a suitable IP address.

f. Ensure that your computer has a LAN link light.

Step 2: Configuring the NB1300Plus4

a. After connecting all the ADSL Router cables, powering on the ADSL Router, and launching a

web browser, such as Internet Explorer or Netscape Navigator, browse to the address http://

192.168.1.1.

www.netcomm.com.au Rev. 1- YML674 Page 24 NB1300Plus4 ADSL Modem

b. Enter the correct user name and password to access the Configuration tool. The default user

name and password are as below.

User Name : admin Password : password

Note: You must click the Submit button on every page that you make changes on and

when you have made all your changes click the Save Setting and Reboot button from the bottom of the menu.

c. Click on the One Page Setup link under the Basic menu. You do not need to change the

LAN settings unless you need the NB1300Plus4 to work with an existing network on a subnet other than 192.168.1.x.

Router - Ethernet

ADSL Gateway

Rev. 1 - YML674 www.netcomm.com.au NB1300Plus4 ADSL Modem Page 25

Field Setting Details

Service name: Any name to describe your ISP

User Name: Your ISP will provide a case sensitive User Name in a

Password: Enter your Password as supplied by your Service

Disconnect timeout: 0 ❖

Mode/Wan Connection Type: PPPoE LLC or PPPoA (Your ISP should advise which

VPI: 8 ❖

VCI: 35 ❖

Static IP Address: 192.168.241.101 ❖

Subnet Mask: 255.255.255.0 ❖

Default Gateway: 0.0.0.0 ❖

ADSL Gateway

Router - Ethernet

Bridge mode: Disabled ❖

❖

format similar to your email address. Contact your ISP for details

Provider (characters are usually all lower case)

WAN Type )

d. Click Submit and then click the Save Setting and Reboot button from the bottom of the

menu. Wait for the configuration to complete.

Standard configuration of your NetComm NB1300Plus4 ADSL Modem is now complete. You should be able to access the Internet through the unit, when it is set to be your gateway on your computer/s. Refer to Step 3 for more information.

Step 3: Configuring your Computer to use the NB1300Plus4

To use the NB1300Plus4 ADSL Modem to access the Internet, your computer must have an IP Address that is in the same LAN subnet as the NB1300Plus4 ADSL Router and use the NB1300Plus4 ADSL Router’s IP address as its gateway.

Most applications call for the Primary and Secondary DNS server entries to be made on each computer. These can be automatically assigned by another DHCP server or by enabling the DHCP server on the NB1300Plus4 ADSL Modem, and entering the DNS values in the DNS section of the NB1300Plus4.

The following example shows how a computer could be set up when the NB1300Plus4 ADSL Modem is configured with no DHCP service for this example. The NB1300Plus4 ADSL Modem would be set to a LAN IP Address (Gateway) of 192.168.1.1 with a Subnet Mask of

255.255.255.0

www.netcomm.com.au Rev. 1- YML674 Page 26 NB1300Plus4 ADSL Modem

Open the Control Panel and double click on the Network icon. Scroll down to select TCP/IP-> Ethernet Card and click on the Properties button.

Your DNS numbers are specific to your ISP and should be notified along with your User Name and Password.

Note: When using Internet Explorer as a web

browser, click on the “Tools” menu and select “Internet Options”. Select the “Connections” tab and click on the “LAN Settings” button. Tick the “Automatically detect settings” checkbox and make sure the “Use a Proxy server” checkbox is unchecked.

Router - Ethernet

ADSL Gateway

Rev. 1 - YML674 www.netcomm.com.au NB1300Plus4 ADSL Modem Page 27

Operational Diagram for Ethernet Gateway Configuration

ADSL Gateway

Router - Ethernet

www.netcomm.com.au Rev. 1- YML674 Page 28 NB1300Plus4 ADSL Modem

+ 64 hidden pages
