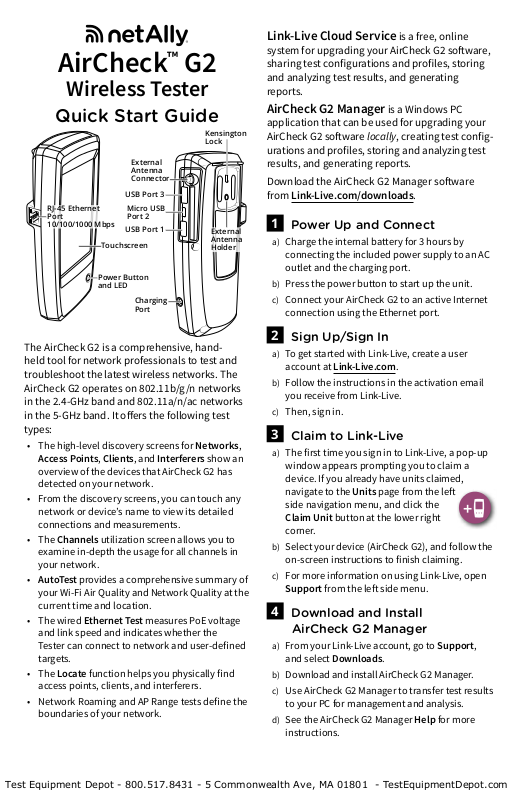

AirCheck™ G2

Kensington

Wireless Tester

Quick Start Guide

Lock

External
Antenna
Connector

USB Port 3

RJ-45 Ethernet
Port
10/100/1000 Mbps

The AirCheck G2 is a comprehensive, hand­held tool for network professionals to test and
troubleshoot the latest wireless networks. The
AirCheck G2 operates on 802.11b/g/n networks
in the 2.4-GHz band and 802.11a/n/ac networks

in the 5-GHz band. It oers the following test

types:

• The high-level discovery screens for Networks,
Access Points, Clients, and Interferers show an
overview of the devices that AirCheck G2 has
detected on your network.

• From the discovery screens, you can touch any
network or device’s name to view its detailed
connections and measurements.

• The Channels utilization screen allows you to
examine in-depth the usage for all channels in
your network.

• AutoTest provides a comprehensive summary of
your Wi-Fi Air Quality and Network Quality at the
current time and location.

• The wired Ethernet Test measures PoE voltage
and link speed and indicates whether the

Tester can connect to network and user-dened

targets.

• The Locate function helps you physically nd
access points, clients, and interferers.

• Network Roaming and AP Range tests dene the
boundaries of your network.

Micro USB
Port 2

USB Port 1

Touchscreen

Power Button
and LED

Charging
Port

External
Antenna
Holder

Link-Live Cloud Service is a free, online

system for upgrading your AirCheck G2 soware,
sharing test congurations and proles, storing

and analyzing test results, and generating
reports.

AirCheck G2 Manager is a Windows PC

application that can be used for upgrading your

AirCheck G2 soware locally, creating test cong­urations and proles, storing and analyzing test

results, and generating reports.

Download the AirCheck G2 Manager soware

from Link-Live.com/downloads.

1

Power Up and Connect

a) Charge the internal battery for 3 hours by

connecting the included power supply to an AC
outlet and the charging port.

b) Press the power button to start up the unit.

c) Connect your AirCheck G2 to an active Internet

connection using the Ethernet port.

2

Sign Up/Sign In

a) To get started with Link-Live, create a user

account at Link-Live.com.

b) Follow the instructions in the activation email

you receive from Link-Live.

c) Then, sign in.

3

Claim to Link-Live

a) The first time you sign in to Link-Live, a pop-up

window appears prompting you to claim a
device. If you already have units claimed,
navigate to the Units page from the left
side navigation menu, and click the
Claim Unit button at the lower right
corner.

b) Select your device (AirCheck G2), and follow the

on-screen instructions to finish claiming.

c) For more information on using Link-Live, open

Support from the left side menu.

4

Download and Install

AirCheck G2 Manager

a) From your Link-Live account, go to Support,

and select Downloads.

b) Download and install AirCheck G2 Manager.

c) Use AirCheck G2 Manager to transfer test results

to your PC for management and analysis.

d) See the AirCheck G2 Manager Help for more

instructions.
