Page 1

Manual

Nero CoverDesigner

Page 2

Nero CoverDesigner

This document, like the software described therein, is provided as a license and may only be used or reproduced in accordance with the licensing agreement. The contents of this document, as well as the associated software, is subject to change without prior notice. Nero AG rejects any responsibility for the correctness of the contents of this document and rejects any claims that transcend the clauses of the guarantee agreement. This document and all of its contents are protected by copyright and are the property of Nero AG. All rights reserved. In addition, this document contains material that is protected by internationally valid copyright. This document may not be reproduced, transmitted, or transcribed in whole or in part without the express written permission of Nero AG. Please keep in mind that existing graphics, pictures, videos, music titles or other materials that you may wish to insert or transcribe into projects may be protected by copyright. The unauthorized use of this type of material in your projects may violate the rights of the owner of the copyright. Make sure that you obtain all necessary authorizations from the owner of the copyright. Unless you own the copyright, have permission from the copyright owner or your actions fall under the "fair use" provisions of copyright law, you may be violating national or international copyright laws. The transcribing, duplication, modification or publication of copyright-protected material may lead to claims for damages and the enforcement of other legal measures against you. If you are unsure of your rights, you should contact your legal advisor. Some Nero Suite applications require technologies developed by third-party manufacturers and may be included in Nero Suite as demo versions. These applications can be activated online free of charge or by sending an activation fax to have unlimited use of the version. Nero will only transmit the data necessary for activation of the technology licensed from third parties. For unlimited use of Nero Suite, it is therefore necessary to have an Internet connection or a fax machine. Copyright © 2006 - 2009 Nero AG and its licensors. All rights reserved. Nero, Nero Digital, Nero BackItUp, Nero Essentials, Nero Express, Nero ImageDrive, Nero LiquidTV, Nero MediaHome, Nero Recode, Nero RescueAgent, Nero ShowTime, Nero Simply Enjoy, Nero StartSmart, Nero Vision, InCD, Move it, PhotoSnap, the SecurDisc logo, Burn-At-Once, DNC Dynamic Noise Control, LayerMagic, Nero DMA Manager, SmartDetect, SmoothPlay, Superresolution, Nero Surround, Nero LiquidMedia, Nero MediaStreaming and UltraBuffer are trademarks or registered trademarks of Nero AG. Adobe, Acrobat, Acrobat Reader and Premiere are trademarks or registered trademarks of Adobe Systems, Incorporated. AMD Athlon, AMD Opteron, AMD Sempron, AMD Turion, ATI Catalyst and ATI Radeon are trademarks or registered trademarks of Advanced Micro Devices, Inc. ATSC is a trademark of the Advanced Television Committee. ICQ is a registered trademark of AOL, LLC. Apple, iPhoto, iPod, iTunes, iPhone, FireWire, and Mac are trademarks or registered trademarks of Apple, Inc. ARM is a registered trademark of ARM, Ltd. AudibleReady is a registered trademark of Audible, Inc. BenQ is a trademark of the BenQ Corporation. Blu-ray Disc is a trademark of Blu-ray Disc Association. CyberLink is a registered trademark of CyberLink Corp. DLNA is a registered trademark of Digital Living Network Alliance. DivX and DivX Certified are registered trademarks of DivX, Inc. Dolby, Pro Logic and the double-D symbol are trademarks or registered trademarks of Dolby Laboratories, Inc. DTS and DTS Digital Surround are registered trademarks of DTS, Inc. DVB is a registered trademark of the DVB Project. Freescale is a trademark of Freescale Semiconductor, Inc. Google and YouTube are trademarks of Google, Inc. WinTV is a registered trademark of Hauppauge Computer Works, Inc. Intel, Intel XScale, Pentium and Core are trademarks or registered trademarks of Intel Corporation. Linux is a registered trademark of Linus Torvalds. Memorex is a registered trademark of Memorex Products, Inc. ActiveX, ActiveSync, DirectX, DirectShow, Internet Explorer, Microsoft, HDI, MSN, Outlook, Windows, Windows Mobile, Windows NT, Windows Server, Windows Vista, Windows Media, Xbox, Xbox 360, the Windows Vista start button and the Windows logo are trademarks or registered trademarks of Microsoft Corporation. My Space is a trademark of MySpace, Inc. NVIDIA, GeForce and ForceWare are trademarks or registered trademarks of NVIDIA Corporation. Nokia is a registered trademark of Nokia Corporation. CompactFlash is a registered trademark of SanDisk Corporation. Sony, Memory Stick, PlayStation, PLAYSTATION and PSP

are trademarks or registered trademarks of Sony Corporation. HDV is a trademark of Sony Corporation and Victor Company of Japan, Limited (JVC). UPnP is a registered trademark of the UPnP Implementers Corporation. Labelflash is a registered trademark of Yamaha Corporation. The trademarks mentioned here are named for information purposes only. All trade names and trademarks are the property of their respective owners. Nero AG, Im Stoeckmaedle 13-15, D-76307 Karlsbad, Germany

Page 3

Table of contents

Nero CoverDesigner III

Table of contents

1 Start Successfully 6

1.1 About the Manual 6

1.2 About Nero CoverDesigner 6

1.3 Nero CoverDesigner Versions 6

1.4 Working With Nero CoverDesigner 7

2 Starting The Program 8 3 Main Screen 9

3.1 Menu Bar 9

3.2 Toolbars 10

3.2.1 Standard Toolbar 10

3.2.2 View Toolbar 11

3.2.3 Text Toolbar 12

3.2.4 Modify Objects Toolbar 12

3.2.5 Tools Toolbar 12

3.2.6 Align Toolbar 13

3.2.7 Floating Toolbar 14

3.3 Drawing Area 14

3.4 Objects 14

3.5 Dynamic Objects 15

4 New Document Window 16

4.1 Document Type 17

4.2 Standard Document Type 17

4.3 DVD Case Document Type 18

4.4 Multi Box Document Type 18

4.5 Maxi Document Type 19

4.6 Slim Pack Document Type 19

4.7 Mini CD Document Type 19

4.8 Biz Card Document Type 20

4.9 Rectangular Biz Card Document Type 20

4.10 Biz Card Envelope Document Type 20

4.11 LightScribe Document Type 20

5 Creating a New Document 21

5.1 Creating a Nero Digital Document 21

5.2 Creating a New Document or Image Document 21

6 Editing a Document 23

6.1 Adding a Cover Element 23

6.2 Modifying the Template Later on 23

6.3 Assigning a Paper Stock 24

Page 4

Table of contents

Nero CoverDesigner IV

7 Designing The Cover Element 25

7.1 Inserting an Object 25

7.2 Editing an Object 26

7.3 Converting Artistic Text 28

7.4 Applying Image Effects 28

7.5 Inserting And Editing a Background 29

8 Document Data Window 31

8.1 Document 32

8.2 Disc 33

8.3 Audio/Chapter Data 33

8.4 File System 33

8.5 Video/Picture Data 34

8.6 Data Entry 34

8.6.1 Track/Chapter 34

8.6.2 File Information 35

8.6.3 Picture 35

9 Properties And Background Properties Window 36

9.1 Pen Tab 37

9.2 Brush Tab 38

9.3 Text Tab 40

9.4 Text Box Tab 40

9.5 Bend Tab 40

9.6 Image Tab 41

9.7 Image Effects 42

9.8 Import Picture Tab 44

9.9 Tracks And Folder Tab 44

9.10 Field Tab 46

10 Geometry Window 48

10.1 Geometry Window For Bent Objects 48

11 Align Elements Window 50 12 Design Tools 51

12.1 Grid 51

12.2 Guidelines 51

13 Creating And Editing a Template 52

13.1 Creating a Template 52

13.2 Modifying a Template 53

14 Saving a Document 54 15 Storing a Cover in a Nero Digital File 55 16 Printing the Document 56

16.1 Print Window 56

Page 5

Table of contents

Nero CoverDesigner V

16.1.1 Properties Tab 57

16.1.2 Elements Tab 58

17 Print Settings And Paper Stocks 60

17.1 Printer Calibration 60

17.2 Paper Stocks Window 60

17.3 Creating a Paper Stock Profile 63

17.4 Default Paper Stock Settings 64

18 Printing LightScribe Label 65

18.1 LightScribe Print Properties Window 66

19 Printing Labelflash Label 67

19.1 Labelflash Print Properties Window 68

20 Program Settings 70

20.1 Application Preferences Window 70

20.2 Specifying Default Settings For Objects 71

21 Technical Information 72

21.1 System Requirements 72

21.2 Image Formats 72

21.3 Formats For Playlists 72

22 Index 73 23 Contact 76

Page 6

Start Successfully

1 Start Successfully

1.1 About the Manual

This manual is intended for all users who want to learn how to use Nero CoverDesigner. It is process-based and explains how to achieve a specific objective on a step-by-step basis.

To make best use of this documentation, please note the following conventions:

Indicates warnings, preconditions or instructions that have to be precisely followed.

Indicates additional information or advice.

1. Start …

The number at the beginning of a line indicates a prompt for action. Carry out these actions in the order specified.

Indicates an intermediate result. Indicates a result.

Indicates text passages or buttons that appear in the program interface. They are shown in boldface.

(see…)

Indicates references to other chapters. They are executed as links and are shown in red and underlined.

[…]

Indicates keyboard shortcuts for entering commands.

1.2 About Nero CoverDesigner

Nero CoverDesigner is a powerful application for creating custom cover elements such as booklets, inlays, and labels. Nero CoverDesigner supports cover elements for a wide rang e of disc types, such as CD jewel cases, DVD cases, multi-boxes, maxi CDs, slim pack s, business cards, and more. Nero CoverDesigner supports LightScribe and Labelflash recorders, which you can use to print labels directly on compatible media.

1.3 Nero CoverDesigner Versions

Nero CoverDesigner is available in two different versions: Nero CoverDesigner and Nero CoverDesigner Essentials.

Nero CoverDesigner Essentials does not offer the following features:



Creating and burning labels with LightScribe



Creating and burning labels with Labelflash

Nero CoverDesigner 6

Page 7

Start Successfully

1.4 Working With Nero CoverDesigner

If you want to design a cover with Nero CoverDesigner, you must create a new document first. If the document should contain a tracklist, directory, and/or fields, enter the document data. You can now design the document as desired. You can:



add cover elements if desired,



assign another template,



insert and edit objects such as text and pictures on the tabs, and



design the background.

Before the document is printed, you can set different printing options.

With a LightScribe recorder and Nero CoverDesigner, you can print labels directly on LightScribe media (see Printing LightScribe Labels

 65).

With a Labelflash recorder and Nero CoverDesigner, you can print labels directly on Labelflash media (see Printing Labelflash Labels

 67).

Creating and burning labels with LightScribe or Labelflash is only available in the full version.

You can always upgrade your Essentials version at www.nero.com

to get the

full version with all the functions.

See also:

 Adding a Cover Element 23  Modifying the Template Later on 23  Inserting And Editing a Background 29  Print Window 56  Printing LightScribe Label 65  Printing Labelflash Label 67

Nero CoverDesigner 7

Page 8

Starting The Program

2 Starting The Program

To start Nero CoverDesigner via Nero StartSmart, proceed as follows:

1. Click the StartSmart icon.

 The Nero StartSmart window opens.

2. Click the button.

 The list of Nero applications appears.

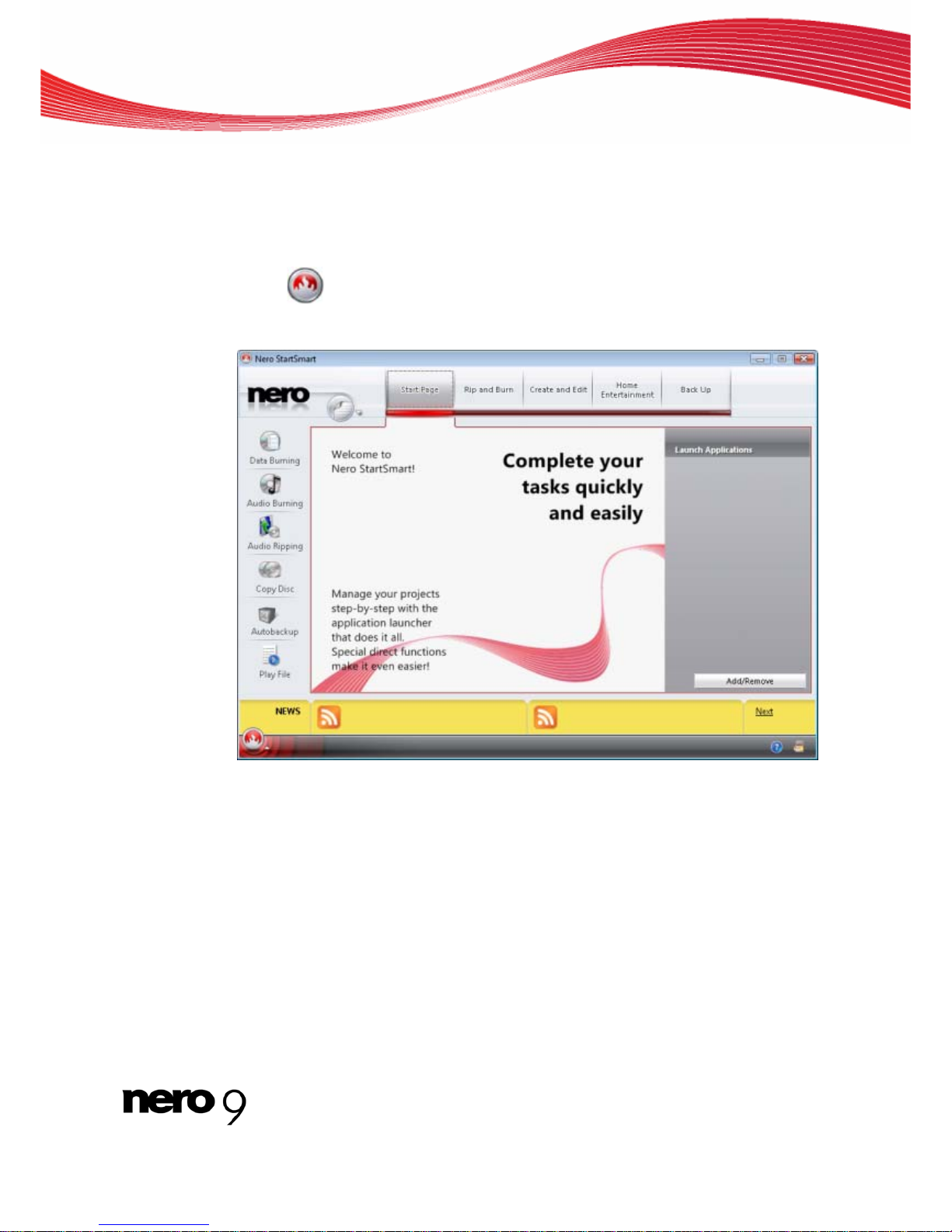

Nero StartSmart window

3. Select the Nero CoverDesigner entry in the selection list.

 The Nero CoverDesigner window opens.  You have launched Nero CoverDesigner via Nero StartSmart.

Nero CoverDesigner 8

Page 9

Main Screen

3 Main Screen

The main screen is the starting point for all actions that can be performed using Nero CoverDesigner. The screen consists of a menu bar, several toolbars, and a drawing area.

Nero CoverDesigner Main Screen

3.1 Menu Bar

The menu bar offers the following menus:

File

Opens the File menu, which provides file-related functions such as open, save, and close. In addition, you can save files as templates, configure your printer and paper stock, make program-specific settings, as well a s import and export information from and to Nero Digital files.

Edit

Opens the Edit menu, which provides editing functions such as cut, paste, duplicate, and delete. In addition, you can copy properties, change the applied template, change the backgrounds of the cover elements as well as add or delete cover elements as desired.

View

Opens the View menu, which allows you to hide and display screen and cover elements. In addition, you can display and use grid and guide lines as well as display objects in the editable area only.

Nero CoverDesigner 9

Page 10

Main Screen

Object

Opens the Object menu, which you can use for editing the individual objects of your drawing: You can insert objects, change their shape and position, group objects, as well as open the Properties window where you can edit the properties of objects. In addition, you can insert a background and set default settings for objects.

Data

Opens the Data menu with the Document Data entry, which allows you to enter document-specific data such as the disc name or track entries.

Window

Opens the Window menu, which allows you to change the position and arrangement of multiple open documents on the main screen (drawing area). All open documents can also be closed.

TWAIN

Opens the TWAIN menu, which allows you to scan pictures if a scanner is attached.

Help

Opens the Help menu, which offers information on different subjects.

3.2 Toolbars

The following toolbars are available in Nero CoverDesigner:

Standard

Provides standard functions for the document and objects.

View

Allows you to zoom in or out of the drawing area. In addition, you can select a paper stock for the current document.

Text

Allows you to format text. In addition, you can choose the font and size of the text.

Modify Objects

Provides functions for modifying and editing objects.

Tools

Provides various tools which you can use for inserting or selecting objects in the drawing area.

3.2.1 Standard Toolbar

The following icons are available in the Standard toolbar:

Opens the New Document window where you can select the document type and template for a new document.

Opens an existing Nero CoverDesigner document or a Nero CoverDesigner template.

Saves the current Nero CoverDesigner document.

Prints the current Nero CoverDesigner document.

Nero CoverDesigner 10

Page 11

Main Screen

Opens the LightScribe Print Properties window, where you can configure the printing options for LightScribe and print a LightScribe label.

This icon is only available if a LightScribe recorder is connected. Cuts out a selected object and stores it on the clipboard.

Copies a selected object to the clipboard.

Deletes a selected object.

Applies the properties of one object to another.

Undoes the last editing step.

Restores an editing step that has been undone.

Opens the About Nero CoverDesigner window, where you can view the version number, for example.

Opens the integrated online help.

Opens the Document Data window, where you can enter data such as the disc title and tracks for the document.

Opens the Labelflash Print Properties window, where you can configure the printing options for Labelflash and print a Labelflash label.

This icon is only available if a Labelflash recorder is connected.

Creating and burning labels with LightScribe or Labelflash is only available in the full version.

You can always upgrade your Essentials version at www.nero.com

to get the

full version with all the functions.

3.2.2 View Toolbar

The following icons are available in the View toolbar:

Magnifies the current view of the drawing area.

Reduces the size of the current view of the drawing area.

Restores the standard view of the drawing area.

Magnifies a selected area of the drawing area.

Nero CoverDesigner 11

Page 12

Main Screen

3.2.3 Text Toolbar

The following icons are available in the Text toolbar:

Changes the selected text to bold. Changes the selected text to italics. Underlines the selected text.

3.2.4 Modify Objects Toolbar

The following icons are available in the Modify Objects toolbar:

Opens the Properties window for a selected object.

Applies a margin color to the selected object.

Applies a fill color to the selected object.

Positions the selected object in front of all the others.

Moves the selected object behind all the others.

Moves the selected object one position towards the top.

Moves the selected object one position towards the back.

Groups multiple selected objects.

Ungroups objects.

See also:

 Properties And Background Properties Window 36

3.2.5 Tools Toolbar

The following icons are available in the Tool toolbar:

Activates the selection tool, used to select objects.

Activates the line tool, which you can use to insert a line.

Activates the rectangle tool, which you can use to insert a rectangle.

Nero CoverDesigner 12

Page 13

Main Screen

Activates the ellipse tool, which you can use to insert an ellipse.

Activates the text tool, which you can use to insert a text graphic.

Activates the text box tool, which you can use to insert a text box.

Activates the track list tool, which you can use to insert a track list. A track list is a list of audio files (tracks).

Activates the directory tool, which you can use to insert a folder. The folder refers to data files.

Activates the image tool, which you can use to insert an image.

Activates the field tool, which you can use to insert different fields.

Track lists, directories, and fields are dynamic objects. The contents that are entered in the document data are entered here. You can modify this data as well. Dynamic objects are particularly useful for creating templates.

3.2.6 Align Toolbar

The following icons are available in the Align toolbar:

Aligns the object to the left margin. Centers the object horizontally. Aligns the object to the right margin. Aligns the object to the top margin.

Centers the object vertically. Aligns the object to the bottom margin. Opens the Align elements window. Here you can align the object relative to another

object.

See also:

 Align Elements Window 50

Nero CoverDesigner 13

Page 14

Main Screen

3.2.7 Floating Toolbar

When you select a dynamic object and leave the mouse over the object, a floating toolbar appears after a brief interval.

The following icons are available in the floating toolbar:

Opens the Properties window. Opens the Document Data window.

3.3 Drawing Area

The cover elements are designed in the drawing area. The drawing area consists of tabs for the different cover elements that belong to the selected document type or that you have added to a user-defined type, as well as the rulers at the top and on the left. You can use the tabs in the drawing area to switch between the individual cover elements. If you want to view multiple cover elements at the same time, you can select the cover elements that should be visible from the View menu: The drawing area will then be divided into subwindows.

On the tabs you will find:



an editable, unshaded area the size and shape of the selected cover element where the cover element is designed, and



a shaded, non-editable area.

The gray line in the editable area is the edge of the cover element. The white outer margin represents the bleed area, which you can configure on the Print- ing tab of the Application Preferences window (see Application Preferences

Window 70).

3.4 Objects

An object in Nero CoverDesigner is a design element that can be placed in the drawing area. Objects can be inserted, duplicated, moved, their size, shape, and appearance modified, and edited. The following objects are available in Nero CoverDesigner:

    

Geometric objects: line, rectangle, ellipse Artistic text Text box Picture Dynamic objects: track list, directory, and fields

Nero CoverDesigner 14

Page 15

Main Screen

Nero CoverDesigner 15

3.5 Dynamic Objects

Track lists, directories, and fields are dynamic objects. These objects take the majority of their contents from the document data. Therefore, you cannot enter text in the objects; you must enter the contents in the document data instead.

The following dynamic objects are available:

Tracklist

The track list takes its contents from the document data that contains the audio/chapter data for the tracks/chapters of an audio CD. Sample contents might be an automatically assigned sequential track number or information about the artist and/or title.

See also:

 Document Data Window 31

Page 16

New Document Window

4 New Document Window

When you start Nero CoverDesigner, the New Document window is automatically opened along with the main screen. This window is your starting point for creating a new document.

You can also open the window with the

icon on the toolbar in the main screen.

The New Document window consists of two selection lists, a preview windo w and setting options.

New Document

The document types are displayed in the left selection list. Templates for the selected document type are displayed in the right selection list, and there are four tabs available:

Audio

For the Audio CD disc type

Data

For the data disc disc type

Audio and Data

For the audio and data disc type

Video

For the video disc type

The tabs contain templates for each disc type. The template can contain relevant fields like the playing time, or a track list for audio CDs. The disc type is automatically correctly set in the document data of a template. The cover elements can be displayed with the template design in the preview window. The following setting options are available in the Ne w Docu-

ment window:

Discs

Sets the number of the Disk cover element in the document. Up to four discs can be added to the document.

Nero CoverDesigner 16

Page 17

New Document Window

Create new template

Creates a template, i.e. the document is saved in *.nct format and appears in the templates list.

Creates a new document and closes the window.

Cancel

Cancels the procedure and closes the window.

4.1 Document Type

With Nero CoverDesigner, you can select different document types. Each document type contains predefined cover elements that you can design.

The following cover elements are available:

Booklet

Insert in the interior of the CD or DVD case as a booklet or individual sheet. Visible from the front in CD cases made from clear plastic. Normally it contains additional information about the disc, such as the track titles for audio CDs.

Inlay

Insert in the back of the CD case. For DVD cases, a continuous sheet that is inserted into the outer case of the DVD. The inlay is visible from the outside.

Disc

Label in the form of a disc.

Mini disc /(rectangular) Biz Card

Label in mini disc / Biz Card / rectangular Biz Card form.

Biz Card Envelope

Envelope for Biz Card.

When you select a document type, predefined cover elements that you can design are automatically added to the document.

If you would like to choose the cover elements yourself, select the Custom document type. Here you can insert any cover element you wish into the current document with the Edit > Insert New Page menu item.

The Full Template document type makes all the cover elements available.

Up to four discs can be added as cover elements to the Standard, DVD Case, Multi Box, Maxi, Slim Pack and Custom document types by adding an additional disc to the document data (see Document Data Window

 31).

4.2 Standard Document Type

The Standard document type corresponds to the customary jewel case for CDs. Jewel case packaging is usually made from clear plastic. The front and the back are joined by a hinge.

Nero CoverDesigner 17

Page 18

New Document Window

There is space for the booklet behind the front piece. The tray holds the CD inside. The tray can be removed. There is room for the inlay under the tray.

The following elements can be designed with Nero CoverDesigner:

CD Booklet (Front) CD Booklet (Rear) Inlay Disc

4.3 DVD Case Document Type

A DVD case is a type of packaging for DVDs. The packaging is larger than a normal CD case and has a fold in the middle. The booklet is placed inside. The inlay is inserted between the plastic film and the exterior.

The following elements can be designed with Nero CoverDesigner:

DVD Booklet for the Interior DVD Inlay for the Case Disc

4.4 Multi Box Document Type

A multi box is a type of packaging for multiple CDs and can usually be opened on two sides. The following elements can be designed with Nero CoverDesigner:

CD Booklet (Front)

Nero CoverDesigner 18

Page 19

New Document Window

CD Booklet (Rear) Front CD Inlay Rear CD Inlay Disk 1 Disk 2

4.5 Maxi Document Type

The maxi format was developed for single CDs, i.e., CDs that contain one track instead of an entire album. A maxi case is thinner than a CD jewel case. Instead of a booklet, it includes a sheet that has been folded twice on the right side so that it has a legible spine. The tray that contains the CD is integrated in the case and cannot be removed.

The following elements can be designed with Nero CoverDesigner:

Maxi Inlay Disc

4.6 Slim Pack Document Type

A slim pack is thinner than a maxi CD. It is used for single CDs and data discs created at home. Instead of a booklet it includes a single sheet that is not folded.

The following elements can be designed with Nero CoverDesigner:

CD Booklet (Front) CD Booklet (Rear) Disc

4.7 Mini CD Document Type

A mini CD is a CD with a diameter of 8 cm. Most drives have a recess in the tray for mini CDs.

The following element can be designed with Nero CoverDesigner:

Mini Inlay (Front) Mini Inlay (Rear) Mini-Disc

Nero CoverDesigner 19

Page 20

New Document Window

4.8 Biz Card Document Type

The oval Biz Card is also known as a business card CD and is often used for advertising purposes.

The following element can be designed with Nero CoverDesigner:

Biz Card

4.9 Rectangular Biz Card Document Type

The rectangular biz card has the same format as a standard business card. The following element can be designed with Nero CoverDesigner:

Rectangular Biz Card

4.10 Biz Card Envelope Document Type

The biz card envelope is a cover for oval or rectangular biz cards. The following element can be designed with Nero CoverDesigner:

Biz Card Envelope

4.11 LightScribe Document Type

If you have a LightScribe recorder, you can print the label side of a LightScribe CD/DVD with Nero CoverDesigner. The label side of the disc has a special color or thermal layer which is heated by the laser in the recorder so that pictures and text are printed.

This function is only available in the full version. You can always upgrade your Essentials version at www.nero.com

to get the full version with all the functions.

This function is only available in recorders that support LightScribe technology.

The following element can be designed with Nero CoverDesigner:

Disc

Nero CoverDesigner 20

Page 21

Creating a New Document

5 Creating a New Document

There are three types of documents in Nero CoverDesigner. The distinguishing feature is how the background of the cover elements is created:

Standard Document

The background is created by the user as desired or taken from the template.

Picture Document

A selected picture is used for the background of all cover elements.

Nero Digital Document

The cover art saved in the Nero Digital file is used for the background of all cover elements.

5.1 Creating a Nero Digital Document

With Nero CoverDesigner, an album cover that has been stored in a Nero Digital file can be extracted and then used as the basis for a Nero CoverDesigner document.

To create a Nero Digital document, proceed as follows:

1. Click the File > New Cover from Nero Digital menu.

 The Open window is opened.

2. Select a Nero Digital file that contains a cover and then click the Open button.

 The New Document window is opened; the Custom document type is selected.

3. If you want to design a cover for Nero Digital audio, click the Audio tab.

If you want to design a cover for Nero Digital video, click the Video tab.

4. Select the Nero Digital Cover template.

5. Click the OK button.

 The New Document window is closed. In the drawing area, the cover elements that we-

re stored in the Nero Digital file are displayed. The cover is used as the background picture.

 You have created a new Nero Digital document and can now finish the design.

See also:

 Designing The Cover Element 25

5.2 Creating a New Document or Image Document

To create a new document or picture document, proceed as follows:

1. If you want to create a new document, click the icon in the toolbar.

 The New Document window is opened.

Nero CoverDesigner 21

Page 22

Creating a New Document

2. If you want to create a new picture document:

1. Click the File > New Cover from Picture menu.

 The Open window is opened.

2. Select the desired image file and then click the Open button.

 The New Document window is opened.

3. Select a document type from the left selection list.

 The right selection list displays the templates for the selected document type; the Audio

tab is selected by default.

4. Click one of the tabs in the right selection list to select a disc type.

 The selection list displays the templates for the selected document and disc type .

5. Select an already designed template or the Empty Document template from the selection

list on the right.

 The selected template is displayed in the preview area.

6. If applicable, enter the number of discs that the document should contain.

You can increase the number of discs in the document afterwards by adding a disc to the document data.

7. Click the OK button.

 The New Document window is closed. If you selected a template that contains dynamic

objects, the Document Data window is opened.

8. If the Document Data was opened, enter the document data, and then click the OK button.

 The document data is applied and the Document Data window is closed. In the drawing

area, the cover elements of the selected document type are displayed on tabs. If you have created a picture document, the selected picture is inserted as the background picture of all the cover elements.

 You have created a new document and can now finish the design.

See also:

 Document Type 17  Designing The Cover Element 25

Nero CoverDesigner 22

Page 23

Editing a Document

6 Editing a Document

6.1 Adding a Cover Element

If you selected the Custom document type, only the cover element for the disc label is initially available on the Disk 1 tab. You can add new cover elements to the document, however.

Proceed as follows:

1. Click the Edit > Insert New Page menu in the main screen.

 The Insert Page window is opened.

2. Select the cover element that you want to add to the current document.

3. Click the Insert button.

 The window is closed. The corresponding tab with the new cover element is added to the

document.

Deleting Cover Elements

You can remove cover elements with the Edit > Remove Current Page menu item. A document must contain at least one cover element, however.

6.2 Modifying the Template Later on

You can later modify the template used for a document in order to select another design.

The document data of the original document remains intact but not necessarily all the inserted objects. Inserted objects are only retained if you select a template with the same document and disc type.

To modify a template, proceed as follows:

1. Click the Edit > Change Template menu in the main screen.

 The Choose New Template window is opened.

2. Select a new template from the right selection list.

 The Choose New Template window is closed.  The document appears with the design of the selected template.

Nero CoverDesigner 23

Page 24

Editing a Document

6.3 Assigning a Paper Stock

You can assign a paper stock to every cover element. The dimensions of the cover element may change when you do so. Assigning a paper stock usually means that you want to print on special stock, from a particular manufacturer, for example.

Changing the Size of Cover Elements

If you change the size of a cover element, objects may end up outside the drawing area: Objects are positioned absolutely in relation to the ruler, i.e., the page dimensions, and not relative to the cover element itself.

To assign a paper stock to a cover element, proceed as follows:

1. Click the tab that contains the desired cover element.

 The cover element is displayed.

2. Click the drop-down menu in the View toolbar.

 The drop-down menu is opened.

3. Select a paper stock.

 The drop-down menu is closed and the selected paper stock is assigned to the cover

element. The size, dimensions, and/or position of the cover element may change.

Nero CoverDesigner 24

Page 25

Designing The Cover Element

7 Designing The Cover Element

Nero CoverDesigner 25

7.1 Inserting an Object

In Nero CoverDesigner, you can insert objects in order to design cover eleme nts for a document. An inserted object is automatically selected and can be edited.

To design a cover element, you can insert objects in the drawing area. Proceed as follows: To insert a line:

1. Click the

icon on the toolbar.

 The cursor changes to a crosshair with a line symbol.

2. Click in the drawing area and drag the cursor.

 The line is inserted.

2. To insert a rectangle:

1. Click the

icon on the toolbar.

 The cursor changes to a crosshair with a rectangle symbol.

2. Click in the drawing area and drag the cursor.

 The rectangle is inserted.

3. To insert an ellipse:

1. Click the

icon on the toolbar.

 The cursor changes to a crosshair with an ellipse symbol.

2. Click in the drawing area and drag the cursor.

 The ellipse is inserted.

4. To insert artistic text:

1. Click the

icon on the toolbar.

 The cursor changes to a crosshair with an A.

2. Click in the drawing area.

 A vertical line is inserted.

3. Enter the text directly in the drawing area.

4. Press the Enter key.

You cannot enter artistic text with a line break. To enter longer text with line breaks, use the Text Box object.

5. To insert a text box:

1. Click the

icon on the toolbar.

 The cursor changes to a crosshair with "Abc".

Page 26

Designing The Cover Element

2. Click in the drawing area and drag the cursor.

 The Properties window is opened at the Text Box tab.

3. Enter the text in the input area.

4. Specify the text options.

5. Click the OK button.

 The text box is inserted with the text that you entered.

Nero CoverDesigner 26

To insert a track list or a folder:

Click the

or icon on the toolbar.

 The cursor changes to a crosshair with a track list or folder symbol.

2. Click in the drawing area and drag the cursor.

 The track list or folder is inserted. If you have completed the document data, the cor-

responding contents are displayed.

7. To insert a picture:

1. Click the

icon on the toolbar.

 The Open browser window is opened.

2. Select an image file and then click on the Open button.

 The Open window is closed. The mouse pointer changes to a crosshair with a cam-

era symbol, and the frame of the selected image is displayed around the pointer.

3. Click in the drawing area.

 The selected image is inserted.

8. To insert a field:

1. Click the

icon on the toolbar.

 The extended dialog box is opened and displays the field types.

2. Select a field type.

 The cursor changes to a crosshair and an outline of the selected field is displayed in

the background.

3. Click in the drawing area.

 The field is inserted. If you have entered something into the document data, the cor-

responding content is displayed. If the document data is empty, the field type name is displayed in angled brackets.

 You have successfully inserted an object. Now you can edit it and continue designing the

cover. The inserted object is automatically selected and displays a frame with the anchor points of the frame and a rotation arrow.

7.2 Editing an Object

You can edit an inserted object with Nero CoverDesigner. You can modify the size, shape, position, and, if desired, color.

Page 27

Designing The Cover Element

In order to change the size, shape, or position of an object, proceed as follows:

1. Click the icon (selection tool) on the toolbar.

2. Select the object that you want to edit.

 A frame with anchor points and a rotation arrow are displayed around the object.

3. To change the position, size, and/or rotation of an object precisely:

1. Click the Object > Geometry menu.

 The Geometry window is opened.

2. Enter the desired position, size, and angle of rotation.

3. Click the OK button.

 The window is closed and the object is modified to match your new entries.

4. To align an object precisely in the drawing area:

1. Click the Object > Align menu.

 The Align Elements window is opened.

2. Set the desired options.

3. Click the OK button.

 The window is closed and the object is positioned according to your new entries.

5. To change the position of an object manually, hold down the mouse button and move the

object.

6. To change the position of the midpoint of a bent text:

1. Click on the midpoint.

 The mouse pointer changes to a crosshair.

2. Move the midpoint while holding down the mouse button.

 The position of the midpoint is modified.

7. To change the size or shape of an object manually:

1. Move the mouse pointer over an anchor point on the frame.

 The mouse pointer changes to a double arrow that shows you which direction you

can pull the object in.

2. Click the anchor point and pull it in the desired direction.

 The object becomes larger or smaller.

8. To change the rotation of an object manually:

1. Move the mouse pointer over the rotation arrow of the frame.

 The mouse pointer changes to a rotation arrow.

Nero CoverDesigner 27

Page 28

Designing The Cover Element

2. Click the rotation arrow and rotate the object in the desired direction.

 The rotation of the object is changed.

9. To change properties such as the pen, brush, font, etc.:

1. Click the

icon.

 The Properties window is opened. The tabs that are visible in the window are a fac-

tor of the currently selected object.

2. Specify the properties in the tabs.

3. Click the OK button.

 The window is closed and the object is modified to match your new entries.

10. To change the contents of artistic text:

1. Click the

icon on the toolbar.

 The cursor changes to a crosshair with an A.

2. Click on the artistic text and change the content as desired.

3. Press the Enter key.

 You have edited the object.

7.3 Converting Artistic Text

With Nero CoverDesigner, you can convert artistic text to a graphic element. The text properties can no longer be edited after the conversion.

To convert artistic text, proceed as follows:

1. Click the icon (selection tool) on the toolbar.

2. Select the artistic text that you want to convert.

 A frame with anchor points and a rotation arrow are displayed around the text.

3. Select Convert to Curves in the context menu.

 A window that informs you that the text will be converted to a graphic element and that

you will no longer be able to edit the text properties appears.

4. Click the OK button.

 The dialog window is closed, and the artistic text is converted.  You have successfully converted artistic text to a graphic element. The Pen and Brush

tabs are available in the Properties window.

7.4 Applying Image Effects

In Nero CoverDesigner, you can apply a wide range of effects to images. Proceed as follows:

1. Click the icon (selection tool) on the toolbar.

Nero CoverDesigner 28

Page 29

Designing The Cover Element

2. Select the image that you want to edit.

 A frame with anchor points and a rotation arrow are displayed around the text.

3. Click the icon.

 The Properties window is opened.

4. Click the Effects button.

 A menu is displayed.

5. Choose the desired effect.

 A corresponding window containing before and after views opens.

For some effects, no window opens; the effect is applied immediately instead, such as with the Negative effect.

6. Select the desired value with the slider.

7. Click the OK button.

 The window is closed. The image area displays the current view of the picture.

8. Add additional effects if you wish.

9. Click the OK button.

 The Properties window is closed. The image in the drawing area is modified to match

your new entries.

If you are not satisfied with the effect(s), you can undo your last action(s) with the icon

on the toolbar.

The number of actions that you can undo depends on the value that was entered in the program settings. You can change this value in the Application Preferences window (see Application Preferences Window

 70).

See also:

 Image Effects 42

7.5 Inserting And Editing a Background

With Nero CoverDesigner, you can insert and edit a background. You can insert or edit the backgrounds for all the cover elements of a document at the same time or insert or edit the background of a cover element separately.

To insert a background and edit its properties, proceed as follows:

1. If you want to insert or edit the background for the current cover element, click the Object >

Background Properties menu. If you want to insert or edit the background for all cover elements, click the Edit > Change All Backgrounds menu.

 The Background Properties window is opened.

Nero CoverDesigner 29

Page 30

Designing The Cover Element

Nero CoverDesigner 30

2. If you want to create a colored background:

1. Click the Brush tab.

2. Select a color and a style, if desired.

3. If you want to insert a background image:

1. Click the Image tab.

2. Select an picture file in the Picture Source area.

 The image is displayed in the Image preview area. The Stretch Mode area is active.

3. In the Stretch Mode area, specify how the background image is scaled.

4. Apply any desired effects to the picture.

4. Click the OK button.

 The background is displayed according to your settings.

See also:

 Image Tab 41  Image Effects 42

Page 31

Document Data Window

8 Document Data Window

You can view and/or enter document data in the Document Data window. Document data determines contents of the dynamic objects track list, directory, and fields that can be applied when designing a cover or label. You can enter the contents, name, etc., of the disc for which you want to create a cover or label.

When you launch from another Nero application, the document data is automatically filled in with the information from the disc, if possible.

You can import data from a Nero Digital file into the document data by selecting File > Import from Nero Digital.

By default, the document data contains at least the Document, Disk 1 and a data type. You can add additional entries yourself. You can open the window by clicking the Data > Document Data menu.

Document data

The window consists of two areas: In the area on the left, the document data elements are displayed in a tree structure; in the area on the right, the input options for the currently selected element are displayed. The tree structure of the document data can have up to four levels and represents the project or disc structure. You can enter information which can then be used by the dynamic objects on each level.

The top, or first level always contains the Document element, which refers to the entire project.

Nero CoverDesigner 31

Page 32

Document Data Window

Nero CoverDesigner 32

   

The next level, the second one, indicates the discs that are contained in the project. You can add up to four discs to the Document element. You can specify a disc type for each disc; this entry affects the third and fourth levels. There are four disc types you can choose from:

Audio for the

Audio CD disc type

Data for data

discs

Audio + Data for the audio

and data disc type

Video for video discs

By default, th

e disc type that you selected when you created the document in the New Do- cument window is used for the discs. The third level contains the data type or types that that are contained on the disc of the selected type. An Audio CD, for example, contains audio files – in other words, the data type

Audio/Chapter Data. A data disc contains pure data – in other words, the data type File System.

The fourth level contains the contents of the disc under its corresponding data type. Audio files (tracks), for example, are listed under Audio/Chapter Data, and data files unde r the

File System data type.

8.1 Document

For the Document element, the following input options are available in the Document area on the right:

Title

Specifies the title of the document. By default, the document title is applied to the Subtitle input field for the disc as well.

This information is used for the Title field type.

Year of release

Specifies the release year. This information is used for the Year field type.

Artist/Publisher

Specifies the artist or publisher. This information is used for the Artist field type.

Apply to all subitems

Applies the artist or publisher entry to the corresponding input fields Artist/Publisher for the Disc and Artist for the Tracks.

Add Disc

Adds a disc to the document data. Up to four discs can be added. The corresponding tabs from Disc 1 to Disc 4 with the new cover element for the disc label are added to the document.

Page 33

Document Data Window

Nero CoverDesigner 33

8.2 Disc

For the Disc element, the following input options are available in the Disc area on the right:

Subtitles

Specifies the title of the disc. By default, the document title is applied to the input field.

This information is used for the Disc Title field type.

Type

Specifies the disc type. Four types are available: Audio, Data, Audio + Data and Video. Depending on the se-

lected disc type, the disc will contain different data types on the next level.

This information is used for the Disc Type field.

Artist/Publisher

Specifies the artist or publisher of the disc. This information is used for the Disc Artist field type.

Apply to all subitems

Applies the artist or publisher entry to the Artist input field for the tracks.

Erase

Deletes the disc from the document data and its corresponding tab from the document.

Import Data

Opens the Read An Import File window, which you can use to select a CDC file.

8.3 Audio/Chapter Data

Audio/Chapter Data appears as an entry for the Audio, Audio + Data, and Video disc ty- pes. Information about the track number and total playing time is displayed in the Audio/Chapter Data area on the right.

The following buttons are available:

Add Track

Adds a track entry to the data.

Delete All

Deletes all tracks from the data.

8.4 File System

File System appears as an entry for the Data, Audio + Data, and Video disc types. Infor-

mation about the number of entries and the total size is displayed in the File System area on the right.

The following buttons are available:

Add Files

Opens the Select the Files You Want to Add to the Disc window so that you can select a file. A new entry is

added to the data and the file information is applied.

Page 34

Document Data Window

Delete All

Deletes all file entries from the data.

Adding folders

Opens the Browse for Folder window in which a folder can be selected. The folder is added to the data as a file entry.

8.5 Video/Picture Data

Video/Picture Data appears as an entry for the Video disc type. The number of pictures is

displayed in the Video / Screen Shot Data area on the right. The following buttons are available:

Adding a Picture

Displays the Open window so that you can select an image. A new entry is added to the data and the file information is automatically applied; the image is stored in the Nero CoverDesigner document.

Delete All

Deletes all file entries from the data.

Adding an Entry

When you add an entry to the data, the information from the entry is applied to the document data, and the data structure is expanded accordingly.

Adding a Picture

If you add a picture, the picture is stored in the document as well. Tracks, folders, and data files are not stored in the document.

8.6 Data Entry

8.6.1 Track/Chapter

For the Track/Chapter data entry, the following input options are available in the Audio Track area on the right:

Title

Specifies the title of the track.

Artist

Specifies the artist of the track.

Playing Time

Specifies the playing time of the track.

Extended Info

Provides additional information about the track.

Erase

Deletes the track entry.

Nero CoverDesigner 34

Page 35

Document Data Window

Nero CoverDesigner 35

8.6.2 File Information

For the File Information data entry, the size and path of the file are displayed in the Audio Track area on the right.

The following input options are available:

Title

Specifies the title of the file.

Erase

Deletes the file entry.

8.6.3 Picture

For the Picture File data entry, the following input options are available in the area on the right:

Title

Specifies the title of the picture.

Erase

Deletes the picture entry.

Page 36

Properties And Background Properties Window

9 Properties And Background Properties Window

The Properties or Background Properties window offers numerous configuration options for objects and the background. Different tabs are available depending on the currently selected object.

The Properties window for a selected object can be opened with the

icon. You can edit

the object by modifying the configuration options in the window. The Background Properties window can be opened for all background s by selecting Edit >

Change All Backgrounds or for the background of the current cover element by selecting Object > Background Properties from the menu. You can insert and edit the background

with the setting options. The following tabs are available:

Pen

Specifies whether the object has an outline. You can set the width and color as well.

This tab is available for all objects.

Brush

Specifies whether or not the object is filled and with what color. You can set the style and color as well.

This tab is available for the rectangle, ellipse, artistic text, text box, track list, directory, and field objects as well as the background.

Text

Determines the content and options for the text. This tab is available for the text and field objects.

Font

Determines the font, style, and size of the text. In addition, you can choose whether the text should be displayed in strikeout, underline and/or small caps. A preview window displays your changes.

This tab is available for the text and field objects.

Text box

Allows you to enter and format text. The tab is available for the text box object.

Bend

Bends the object. This tab is available for the text box, track list, and directory objects.


Allows you to select and edit a picture. This tab is available for the picture, text box, track list, and folder objects as

well as the background.

Import Image

Provides import functions for pictures. This feature is particularly useful for creating templates.

For example, here you can determine whether a preview picture is automatically displayed when you start Nero CoverDesigner by way of Nero Burning ROM and have created a compilation with the Audio Book CD disc format there.

This tab is available for the image object.

Nero CoverDesigner 36

Page 37

Properties And Background Properties Window

Import Text

Allows you to import a comment. This feature is particularly useful for creating templates for Audio Book CDs. This function is only performed when you start Nero CoverDesigner from

Nero Burning ROM and have created a compilation with the Audio Book CD disc format. This tab is available for the text box object.

Tracks

Provides options for the contents and appearance of the track list.

See also:

 Creating a Template 52

9.4 Text Box Tab

You enter the contents of the text box on the Text Box tab. Unlike artistic text, a line break is possible in a text box. The usual text editing options are available: font and size selection, bold face, cursive, underline, align, color, copy, and paste.

The following check boxes are available:

Fit to shape

Displays the text in the editable area only, even if the text box lies partially outside. The font size is not changed.

Read-only

Grays out the contents of the tab so that the text can no longer be modified. This option is particularly useful when you are creating templates.

See also:

 Creating a Template 52

9.5 Bend Tab

The following check boxes are available on the Bend tab:

Bend object

Bends the text with the lower edge around a midpoint.

Page 41

Properties And Background Properties Window

Rotate the text by 180 degrees

Rotates the text by 180 degrees, i.e., the text is rotated with its top edge around the midpoint.

This option is only available if the Bend object check box is selected.

9.6 Image Tab

On the Image tab, you can select a picture and edit it if you wish. A preview of the picture is displayed in the Image area. The Name field displays the name of the file.

Image Tab

The following setting options are available:

Button

Effects

Opens a menu where you can select different effects to apply to the image.

Button

Remove Image

Removes the image.

The following configuration options are available in the Picture Source area:

Button

File

Displays the Open window, where a picture file can be selected.

Button

TWAIN

Scans an image. This feature is only offered if you have a scanner installed.

Nero CoverDesigner 41

Page 42

Properties And Background Properties Window

Nero CoverDesigner 42

The following configuration options are available in the Stretch Mode area:

Option button

Adjust to frame size

Adjusts the image to match the background or frame size. If the background or frame is larger or smaller than the image, the

image is expanded or reduced in size accordingly. This means that the width and/or length of the image may be distorted.

Option button

Proportional, no clipping

Adjusts the image proportionally to the background or frame size; the ratio of the width and length of the image (aspect ratio) remains the same.

If the background or frame is larger or smaller than the image, blank areas may appear above/below or on the left/right of the image. The longest side determines how the image is resized.

Option button

Proportional, clip image

Adjusts the image proportionally to the background or frame size; the ratio of the width and length of the image (aspect ratio) remains the same.

If the background or frame is larger or smaller than the image, areas may be clipped above/below or on the left/right of the image. The shortest side determines how the image is resized.

9.7 Image Effects

There are several effects for pictures available in Nero CoverDesigner.

Color Adjustment effect:

Brightness

Opens the Brightness window with before and after views of the picture. Move the Brightness slider left or right to darken or lighten the picture.

Contrast

Opens the Contrast window with before and after views of the picture. Move the Contrast slider left or right to increase or decrease the contrast of the picture.

Gamma

Opens the Gamma window with before and after views of the picture. Move the Gamma slider left or right to darken or lighten the midtones of the picture.

Equalizer

Applies the Equalize effect to a picture. This effect distributes the brightness values of the colors uniformly.

This effect is appropriate for adjusting a picture that is too light or dark. It is also useful for making objects in the shadows more visible.

Filter effect:

Emboss

Creates an embossed version of the picture.

Page 43

Properties And Background Properties Window

Nero CoverDesigner 43

Erode

Generates a watercolor version of the picture, making the picture softer and coarser.

Mosaic

Opens the Mosaic window with before and after views of the picture. Move the Mosaic slider to the right to make the picture coarser, creating a mosaic effect.

Outline

Draws the edges of the surfaces in the picture, generating an outline effect.

Parabolic > Convex

Generates a convex view.

Parabolic > Concave

Generates a concave view.

Posterize

Opens the Posterize window with before and after views of the picture. Move the Posterize slider right or left to create an oil painting effect.

Sharpen

Opens the Sharpen window with before and after views of the picture. Move the Sharpness slider to the right to make the picture sharper and harder.

Solarize

Opens the Solarize window with before and after views of the picture. Move the Solarize slider to the left to strengthen the lighting effect. Move the slider completely to the left to invert the values and create a negative.

Soften

Opens the Soften window with before and after views of the picture. Move the Soften slider to the right to make the picture softer and less focused. In doing so, areas are merged together.

Flip effect:

Horizontal

Flips the image horizontally, making it appear as the mirror image.

Vertical

Flips the image vertically, the image appears upside down.

Negative

Creates a negative of the image.

Pinch

Opens the Pinch window with before and after views of the picture. Move the Pinch slider right or left to pinch or bloat the picture from the center.

Swirl

Opens the Swirl window with before and after views of the image. Move the Swirl slider right or left to swirl the image to the right or left.

Rotate

Opens the Rotate window with before and after views of the image. Move the Rotate slider to the right to rotate the image 90°, 180° or 270°.

Page 44

Properties And Background Properties Window

9.8 Import Picture Tab

The Import Picture tab provides the following setting options:

Import picture, if possible

Activates the Picture to import drop-down menu.

Picture to import

Selects the image that should be imported. The following entries are available:

Nothing: No image is imported. Thumbnail: Imports a preview image when you start Ne-

ro CoverDesigner from Nero Burning ROM and have created a compilation with the Audio Book CD disc format. This feature is particularly useful for creating templates for Audio Book CDs.

Video Picture: Imports a picture than you have added to the Video/Picture Data entry in the document data. You can determine which picture is imported with the Disc

Number and Picture Number fields. CoverArt: Imports an image from a Nero Digital file (if it

is technically possible).

Import Original Picture

Imports the specified image. If the image has been modified, you can use this button to import the original image again.

9.9 Tracks And Folder Tab

On the Tracks and Folder tabs, you can determine the appearance of the track list or folder and select which contents are displayed. The track list contains information from audio files, the folder contains information from data files. You cannot enter text in the track list/folder yourself – the contents are taken from the document data.

Tracks/Folder Tab

Nero CoverDesigner 44

Page 45

Properties And Background Properties Window

Nero CoverDesigner 45

The following configuration options are available:

Check box

Show sample window

Opens the Sample preview window.

The following configuration options are available in the Data area:

Input field

Disc

Species the disc that the information should be taken from.

Input field

First Track/Entry

Specifies which audio/data file the track list / folder should begin at.

Input field

Last Track/Entry

Specifies which audio/data file the track list / folder should end at.

The following configuration options are available in the Format area:

Drop-down menu

Style

Selects a predefined style with which to display the track list / folder. The style can be modified in the Fields area.

Input field

Column Spacing

Sets the column spacing in percent.

Drop-down menu

Orientation

Specifies the alignment of the text.

Check box

Fit text to shape

Displays the text in the editable area only, even if the track list / folder lies partially outside. The font size is adjusted if necessary.

The following configuration options are available in the Fields area:

Selection list

Displays the fields that are available in the selected style, such as track number or file path. The meaning of each column is as follows:

Use: The field is visible in the track list / folder. If the check box is not selected, the field is not visible in the track list/folder.

Column: Indicates the column that the field will be displayed in. Field Type: Indicates the field type, e.g., track number or title.

Page 46

Properties And Background Properties Window

Left Drop-Down Menu

Selects a format for the selected field. Text can be displayed normally, with uppercase letters, with

lowercase letters, or reversed. Numbers can be displayed as single digits, double digits, or

Roman numerals. Playing times can be displayed in different formats, e.g., in sec-

onds, M:SS, H:MM:SS, etc. File sizes can be displayed in bytes, KB or MB.

Right drop-down menu

Selects the alignment for the selected field. The alignment always refers to the full column that the field is in.

Opens the Select Color window so that you can define a color for the selected field. The window is the same as the one for the Select Color area on the Pen and Brush tabs.

The button shows the currently selected color. Opens the Font window so that you can choose a font, style,

and effects for the selected field. You can also specify the character set to use in the Script drop-down menu. A preview of the text is displayed in the Sample area.

The button displays the currently selected font. The input field (to the right of the button) specifies a relative font size in percent for the selected field.

Input field

Leading Text

Specifies a relative font size in percent for the selected field.

Input field

Trailing Text

Specifies the text that should appear after the selected field in the track list / folder.

See also:

 Brush Tab 38

9.10 Field Tab

The Field tab provides setting options for fields. Fields take their content from the document data for the most part. The Field tab consists of the Field Type selection list, the Options area, and a check box. All of the field types are listed in the Field Type selection list. The Options area refers to the selected field type. Not all setting options are available for each field type.

The following setting options are generally available:

Field type

Specifies the field type. The following field types are available: Title, Artist, Disc Type, Year, Disc Title, Disc Artist, Tracks, Total Playing

Time, Total Size, Last Save Date, Print Date,and Custom Text.

Nero CoverDesigner 46

Page 47

Properties And Background Properties Window

Check box

Fixed Size

Specifies that the text has a fixed height, even if the size of the frame is modified. The text height is based on the font size that is specified on the Font tab.

If the check box is not selected, the text size is adjusted to match the frame size and vice versa.

This feature is not available for bent text.

The following configuration options are available in the Options area:

Drop-down menu

Alignment

Specifies the alignment of the selected field type in the frame.

Drop-down menu

Disc

Specifies which disc the selected field type refers to.

Drop-down menu

Time Format

Specifies the format for the playing time.

Drop-down menu

Size Format

Specifies the format for the file size.

Drop-down menu

Date Format

Specifies the format for the date.

Input text

Custom Text

Specifies the text for the Custom Text field type.

Input text

Leading Text

Specifies the text that appears in front of the selected field type.

Input text

Trailing Text

Specifies the text that should appear after the selected field type.

The field type that you select in the Field Type selection list is applied to the inserted field even if you assigned a different field type beforehand.

Nero CoverDesigner 47

Page 48

Geometry Window

10 Geometry Window

The position, size, and rotation of an object are determined in the Geometry window. You can open the window by clicking the Object > Geometry menu.

Geometry window

The following input fields are available in the Position area:

Specifies the X coordinate of the top left point of the frame.

Specifies the Y coordinate of the top left point of the frame.

The following input fields are available in the Size area:

Width

Specifies the width of the object in millimeters.

Height

Specifies the height of the object in millimeters.

The following input field is available in the Rotation area:

Angle

Specifies the angle of rotation.

10.1 Geometry Window For Bent Objects

For bent objects, the position of the center and the position of the object in terms of the center are specified in the Geometry window. You can open the window by clicki ng the Object > Geometry menu.

Nero CoverDesigner 48

Page 49

Geometry Window

Geometry window for bent objects

The following input fields are available in the Center area:

Specifies the X coordinate of the center point (which the object is rotated around).

Specifies the Y coordinate of the center point (which the object is rotated around).

The following input fields are available in the Rotation area:

Start

Specifies the position of the text in relation to the center point. The starting

point of the text is the left edge of the first character. The division into degrees

is the one commonly used in mathematics: 0 degrees is on the right at the

height of the midpoint and the units progress in a counterclockwise direction.

Arc

Specifies the arc to apply to the text. Selecting 180 degress, for example,

bends the text in a semicircle.

Nero CoverDesigner 49

Page 50

Align Elements Window

11 Align Elements Window

The Align Elements window aligns objects relative to the page, i.e., the editable drawing area, or another object. You can open the window by clicking the Object > Align menu.

This feature is not available for bent objects.

Align Elements window

This window contains the following check boxes and option buttons:

Check box

Horizontal alignment

Specifies the horizontal alignment. There are three option buttons:

Left: Aligns the object along the left edge. Center: Centers the object. Right: Aligns the object along the right edge.

Check box

Vertical alignment

Specifies the vertical alignment. There are three option buttons:

Top: Aligns the object along the top edge. Center: Centers the object. Bottom: Aligns the object along the bottom edge.

Option button

Last Selected Element

Aligns the object with another. In order to use this feature, two objects must be selected; the object that was selected last will be aligned in relation to the first.

This feature is useful for positioning two objects on top of one another, e.g., text on a picture.

Option button

Page

Aligns the object to the page, i.e., to the editable area.

Nero CoverDesigner 50

Page 51

Design Tools

12 Design Tools

12.1 Grid

A grid can be used to position objects. In Nero CoverDesigner, the grid is displayed as a series of dots with equal horizontal and vertical spacing.

The following options are available in the View menu of Nero CoverDesigner:

Show Grid

Displays the grid.

Snap to Grid

Snaps objects to the grid. Objects are snapped to the grid points when they are moved or drawn near them.

Grid Setup

Displays the Grid Setup window where you can specify the horizontal and vertical spacing of the grid points.

12.2 Guidelines

Guidelines are lines that can be used to help position objects. In Nero CoverDesigner, guidelines are displayed as dashed blue lines.

The following options are available in the View menu of Nero CoverDesigner:

Entry

Show Guidelines

Displays the guidelines.

Entry

Snap to Guidelines

Aligns objects along the guidelines. Objects are snapped to the guidelines when they are moved or drawn near them.

Entry

Set Up Guidelines

Opens the Set Up Guidelines window, where you can create horizontal and/or vertical guidelines.

Creating Guidelines Manually

You can create guidelines manually by clicking on the horizontal or vertical ruler and dragging a guideline onto the drawing area.

Nero CoverDesigner 51

Page 52

Creating And Editing a Template

13 Creating And Editing a Template

13.1 Creating a Template

With Nero CoverDesigner, you can create your own templates. To do this, proceed as follows:

Document data is not saved when the document is saved as a template.

1. Click the icon on the toolbar.

 The New Document window is opened.

2. Select the document type and an empty or predesigned template.

3. Select the Create New Template check box.

4. Click the OK button.

 The New Document window is closed and the predefined cover elements for the se -

lected document type are displayed in the drawing area.

If you selected the Custom document type, you can add new cover elements by selecting Edit > Insert New Page from the menu.

5. Design the document as desired.

6. To save the template as a compressed file, select File > Quick Save from the menu.

To save the template without compression, select File > Save from the menu.

 If you attempt to save a template with pictures that total more than 5 MB without com-

pression, a window is opened asking whether you want to save the file with or without compression. The Save As window is then opened.

Saving the template in compressed form may be a good idea if it contains a large number of pictures. The size of the template file will be smaller. Compression can reduce the picture quality in some cases, however.

7. If the My Documents folder is displayed, select the Nero CoverDesigner Templates folder

from the Save In drop-down menu.

8. Enter a file name and click the Save button.

Even if you did not select the Create New Template check box at the beginning, you can still create a template. In this case, simply select Save as Tem- plate from the File menu. Make certain that you save the template file in the Nero CoverDesigner Templates folder so that it appears in the template list.

Nero CoverDesigner 52

Page 53

Creating And Editing a Template

 The template file is saved under the selected name. It will now be available in the tem-

plate list of the New Document window under the document and disc type that you selected when you created it or whose cover elements were contained in the template file.

13.2 Modifying a Template

You can modify templates in Nero CoverDesigner. Proceed as follows:

1. Click the File > Open menu.

 A browser window is opened.

2. Select the desired Nero CoverDesigner template file (*.nct) from the Nero CoverDesigner

Templates folder and then click the Open button.

 The browser window is closed. A window asking if you want to edit the template is ope-

ned.

3. Click the Yes button.

 The template document is opened.

4. Edit the document as desired.

5. Click the button.

 The changes are saved in the template. You can now close the template and use it to

create a new document.

Nero CoverDesigner 53

Page 54

Saving a Document

14 Saving a Document

You can save a document that you have created in Nero CoverDesigner.This saves all of the document's cover elements and any document data that you have entered. You can save the document in compressed or uncompressed form. Compressing a document primarily compresses the pictures in the document.

Saving Compressed Documents

Saving the document in compressed form may be a good idea if it contains many pictures. The size of the document file will be smaller. Compression can reduce the picture quality in some cases, however.

To save a document, proceed as follows:

1. To save the document as a compressed file, select File > Sav e Compressed from the me-

nu. To save the document without compression, select File > Save from the menu.

 If you attempt to save a document containing pictures that total more than 5 MB without

compression, a window opens, asking whether you want to save the file with or without compression. The Save As window then opens.

2. Enter the file name and path to save the file under.

3. Click the Save button.

 The Save As window is closed and the document is saved.

Nero CoverDesigner 54

Page 55

Storing a Cover in a Nero Digital File

15 Storing a Cover in a Nero Digital File

With Nero CoverDesigner, you can save an album cover in a Nero Digital file. Nero Digital is an MPEG-4 storage format for audio and video files that can contain additional information. It was developed by Nero AG. The designed cover element is stored in the file as cover art. This means that an image of your final cover element design is created and saved as a background image.

Any existing cover elements of the same type (e.g., a booklet) in the Nero Digital file are overwritten. We recommend that you create a Nero Digital document beforehand (see Creating a Nero Digital Document

 21), to see whether any

cover art has been stored in the Nero Digital file already.

The following requirement must be fulfilled:

 You have created a document complete with designed cover elements.

To save a cover in a Nero Digital file, proceed as follows:

1. Click the File > Export to Nero Digital menu.

 The Save As window is opened.

2. Select the Nero Digital file that you want to save the cover in.

3. Click the Save button.

 The cover elements are saved in the Nero Digital file. You can now use the Nero Digital

file to create a Nero Digital document that contains the stored cover elements.

See also:

 Creating a Nero Digital Document 21

Nero CoverDesigner 55

Page 56

Printing the Document

Nero CoverDesigner 56

16 Printing the Document

The following requirement must be fulfilled:

 You have already opened a document.

To print a document or part of it, proceed as follows:

1. Click the File > Print menu.

 The Print window is opened.

2. Select a printer on the General tab.

3. Select the desired options on the Properties tab.

4. Select the cover elements that should be printed on the Elements tab.

5. If you have assigned different paper stocks to the cover elements, check below the preview

area to see in which order the paper stock will be printed. Insert the paper/media in the printer in the correct order.

6. Click the OK button.

 The document or selected cover elements are printed.

16.1 Print Window

You set the print options for the document in the Print window prior to printing. The window consists of three tabs:

General

Allows you to select a printer.

Properties

Provides setting options for printing paper borders and crop marks as well as for bleeding.

Elements

Selects the cover elements for printing.

Page 57

Printing the Document

16.1.1 Properties Tab

The Properties tab contains three areas: Print Borders, Print Crop Marks, and Miscellaneous.

Print window, Properties tab

The following configuration options are available in the Print Borders area:

Option button

On all paper stocks

Prints borders for all paper stocks.

Option button

On normal paper only

Prints borders on normal paper stock only.

Option button

Never

Never prints paper borders.

The following configuration options are available in the Print Crop Marks area:

Option button

On all paper stocks

Prints crop marks for all paper stocks.

Nero CoverDesigner 57

Page 58

Printing the Document

Nero CoverDesigner 58

Option button

On normal paper only

Prints crop marks on normal paper stock only.

Option button

Never

Never prints crop marks.

The following configuration options are available in the Miscellaneous area:

Check box/ Input field

Enable Bleeding

Enables bleeding and specifies how far beyond the edge of the cover element printing will occur

Check box

Prompt at each new page

Specifies that printing must be confirmed for each new page.

Input field

Copies

Specifies how many times the document should be printed.

Button

Preview

Opens the Print Preview window.

16.1.2 Elements Tab

The Elements tab contains a selection list, a preview area, and configuration options. You can select the cover elements to print in the selection list. The preview area shows how the cover elements that are to be printed will appear on the page. The paper stock that the currently displayed cover elements will be printed on is displayed below the preview area. Cover elements that will be printed are displayed in blue cover elements that will not be printed are displayed in gray.

Page 59

Printing the Document

Print window, Elements tab

The following configuration options are available on the Elements tab:

Input field

Copies of the Element

Specifies how many times the selected cover element should be printed.

Check box

Print on normal paper

Prints the selected cover element on normal paper. This check box is only available if the normal paper stock

has not been assigned to the cover element.

Nero CoverDesigner 59

Page 60

Print Settings And Paper Stocks

Nero CoverDesigner 60

17 Print Settings And Paper Stocks

17.1 Printer Calibration

With Nero CoverDesigner, you can calibrate your printer to ensure precise print alignments. We recommend that you calibrate your printer once after you have selected the paper stock and printer.

To calibrate you printer, proceed as follows:

1. Prior to calibration, select the desired paper stock and the printer.

2. Click the File > Preferences menu.

 The Application Preferences window is opened.

3. Click the Printing tab.

4. Click the Print Calibration Sheet button.

 The calibration sheet is printed.

5. Fold the calibration sheet in the middle horizontally and vertically.

6. Unfold the calibration sheet and read the values at which both fold lines cross the axis.

7. If the fold lines do not cross in the middle of the axis, enter the horizontal and vertical values

from the calibration page in the Horizontal/Vertical settings fields on the Printing tab.

8. Repeat steps 4 to 6 to check the new entries. If the fold lines cross in the middle of the axis,

proceed to the next step. Otherwise repeat the previous step.

9. Click the OK button.

 The Application Preferences window is closed. The calibration settings are saved, and

your printer is now calibrated.

17.2 Paper Stocks Window

In the Paper Stocks window you can view predefined paper stocks or create your own custom ones. You can open the window by clicking the File > Paper Stocks menu. User-defined paper stocks are useful for modifying the size and depiction of a cover element. Predefined paper stocks have been set to match the manufacturer's specifications for labels and papers. For example, some special papers can require a specific placement and position of the cover element. Or labels may have different sizes. You can select the paper stocks that are listed here or that you create in the main screen area and assign them to the current cover element. The window consists of three areas. User-defined and predefined paper stocks are displayed in a selection list in the area on the left. Each paper stock can contain one or more labels. These labels correspond to the cover elements in Nero CoverDesigner. Setting options for the user-defined paper stocks are displayed in the middle area. These setting options are grayed out for the predefined paper stocks. The size and position of the cover elements are displayed in the preview area on the right.

Page 61

Print Settings And Paper Stocks

Paper Stocks window

The following configuration options are available in the User-defined Paper Stock entry:

Add Stock

Adds a new paper stock.

Importing

Imports a definition file for paper stock in DAT format. New paper stocks are added to the user-defined paper stocks.

Exporting

Exports a definition file for paper stock in DAT format. All user-defined paper stocks are exported.

The following configuration options are available in the paper stock entry:

Name

Specifies the name of the paper stock.

Width/Height

Specifies the width and height.

Portrait

Specifies that the paper is printed in portrait mode.

Landscape

Specifies that the paper is printed in landscape mode.

Add Item

Displays a selection list that you can use to select a cover element.

The selected cover element is added to the paper stock.

Delete Stock

Deletes the current paper stock.

The following configuration options are available in the item / cover element entry:

Width/Height

Specifies the width and height.

Nero CoverDesigner 61

Page 62

Print Settings And Paper Stocks

Nero CoverDesigner 62

Spine Width

Specifies the width of the spine, i.e., the middle part of the inlay.

The input field is available for the DVD inlay, CD inlay, maxi booklet, and mini CD inlay (front and rear covers).

Rear Width

Specifies the width of the rear portion, i.e., the part that is folded around.

This field is available for the maxi booklet and mini CD inlay (back) cover elements.

Indentation Radius

Specifies the radius of the flap. This field is available for the Biz Card envelope cover element.

Fold Width

Specifies the width of the folded seam. This field is available for the business card envelope co-

ver element.

Radius of Outer Boundary

Specifies the outer radius and therefore the size of the printable area (disc edge).

This field is available for the business card cover element.

Center Hole Radius

Specifies the inner radius and therefore the size of the unprintable area.

This input field is available for the Biz Card and rectangular Biz Card cover elements.

Bounding Rectangle

Specifies the size of the rectangle and therefore the oval form of the business card.

This input field is available for the Biz Card cover element.

Rounded Corners (X/Y)

Specifies the radius of the rounded corners on the disc. This field is available for the rectangular business card

cover element.

Outer Radius

Specifies the outer radius and therefore the size of the printable area (disc edge).

This field is available for the disc and mini CD cover elements.

Inner Radius

Specifies the inner radius and therefore the size of the unprintable area (disc hole).

This field is available for the disc and mini CD cover elements.

Position X/Y

Specifies the postion of the cover element on the paper that was defined in the paper stock profile.

Page 63

Print Settings And Paper Stocks

17.3 Creating a Paper Stock Profile

With Nero CoverDesigner, you can create your own custom paper stocks. User-defined paper stocks are available in the main screen area for cover elements that have been added as labels to the paper stock.

The creation of user-defined paper stocks is useful for designing covers and labels whose dimensions vary from standard measurements.

To create a paper stock, proceed as follows:

1. Click the File > Paper Stocks menu.

 The Paper Stocks window is opened.

2. Select the User-defined Stocks entry in the selection list.

3. Click the Add Stock button in the Paper Stocks area.

 A Stock 1 subentry is added to the User-defined Stocks entry.

4. Select the Stock 1 subentry.

 The Paper Stock area is displayed.

5. Enter the name and dimensions of the paper stock in the Paper Stock area.

6. Click the Add Item button.

 A selection list of cover elements is displayed.

7. Select the cover element that you want to add to the paper stock.

 The selected cover element is added to the paper stock.

8. Select the inserted cover element.

9. Specify the desired dimensions such as the height/width and position of the cover element

on the paper in the area in the middle.

10. Repeat the four previous steps for each cover element that you want to add to the paper

stock.

11. Click the OK button.

 The Paper Stocks window is closed.  The paper stock is saved and is now available for the selected cover elements in the

drop-down menu of the View toolbar.

See also:

 Application Preferences Window 70  Paper Stocks Window 60

Nero CoverDesigner 63

Page 64

Print Settings And Paper Stocks

Nero CoverDesigner 64

17.4 Default Paper Stock Settings

On the Paper Stocks tab in the Application Preferences window, you can set the default settings for paper stocks.

The following setting options are available:

Drop-down menu

Stock

Specifies a default paper stock for the selected cover element.

Check box

Print elements by default

Selects all cover elements of a document for printing by default.

If you clear this check box, you must select the cover elements in the Print window manually before you print.

Check box

Show default label metrics

Displays the normal disc size when you assign a paper stock with a radius that deviates from the standard value to a cover element.

Page 65

Printing LightScribe Label

18 Printing LightScribe Label

If you have a LightScribe recorder connected, you can also print the label side of a LightScribe CD/DVD with Nero CoverDesigner. The label side of the disc has a special color or thermal layer which is heated by the laser in the recorder so that pictures and text are printed.

This function is only available in the full version. You can always upgrade your Essentials version at www.nero.com

to get the full version with all the functions.

This function is only available in recorders that support LightScribe technology.

To print a LightScribe label, proceed as follows:

1. Create a new document with the LightScribe document type.

 The document contains a Disk 1 tab with the cover element for the disc label.

2. Design the disc label as desired.

Click the

icon on the toolbar. 3.

 The LightScribe Print Properties window is opened.

4. Set the desired print options.

5. Insert a recordable LightScribe disc into the LightScribe recorder with the label side facing

down.

6. Click the Print button.

 The printing process begins. You can monitor the process status with the progress b ar.

As soon as the printing is finished, the Nero – LightScribe window is opened and displays a message about the result of the printing process.

7. Click the OK button.

 You have successfully created and printed a custom LightScribe label.

Nero CoverDesigner 65

Page 66

Printing LightScribe Label

18.1 LightScribe Print Properties Window

You can customize the print properties of your LightScribe label to suit your requirements in the LightScribe Print Properties window.

LightScribe Print Properties window

The following options are available:

Area

Print contrast

Adjusts the desired print quality. This option button is set to Normal by default.

Input field

Number of copies

Defines the number of copies you require.

Drop-down menu

Drive

Defines the desired recorder. Available only if multiple LightScribe recorders are avail-

able.

Check box

Automatically shut down the PC when done

Shuts down the computer after the label has been printed (if possible).

Button

Starts printing the label.

Button

Preview

Opens the LightScribe Print Preview dialog box. A print preview of the label is displayed here.

Nero CoverDesigner 66

Page 67

Printing Labelflash Label

19 Printing Labelflash Label

You can print a label on the label and/or data side of a Labelflash DVD with Nero CoverDesigner.

This function is only available in the full version. You can always upgrade your Essentials version at www.nero.com

to get the full version with all the functions.

This feature is only available with a Labelflash recorder.

To print a Labelflash label on the label side or a DiskT@2 on the data side of your DVD, proceed as follows:

1. Create a new document with any document type, e.g. Standard.

2. Click the Disc 1 tab.

3. Edit the disc label as desired.

Click the

icon on the toolbar. 4.

 The Labelflash Print Properties window is opened.

5. Set the desired print options.

6. Select the side that you want to print on.

 The logo in the bottom left corner displays the corresponding Labelflash or DiskT@2 lo-

go.

7. If you want to print a Labelflash label on the label side, insert a blank Labelflash disc in the

recorder with the label side facing down. If you want to print a DiskT@2 on the data side, insert a blank Labelflash disc with the data side facing down in the recorder.

8. Click the OK button.

 The Labelflash Print or DiskT@2 Print window is opened and the print process starts.

You can monitor the process status with the progress bar. As soon as printing is finished, a window is opened, indicating the result of the printing process.

9. Click the OK button.

 You have successfully created and printed a custom Labelflash label or a DiskT@2.

See also:

 Creating a New Document or Image Document 21

Nero CoverDesigner 67

Page 68

Printing Labelflash Label

19.1 Labelflash Print Properties Window

You can customize the print properties of your Labelflash label to suit your requirements in the Labelflash Print Properties window.

Labelflash Print Properties window

The following configuration options and buttons are available:

Drop-down menu

Profile for

Adjusts the desired print quality. Select Custom to change the contrast level and rotation

speed.

Slider

Contrast level

Specifies the contrast level for printing.

Drop-down menu

Rotation speed

Specifies the rotation speed of the DVD.

Option button

Data Side

Specifies that the data side should be printed on by default.

Option button

Labels

Specifies that the label side should be printed on by default.

Option button

Both Sides

Specifies that both sides should be printed on by default.

Nero CoverDesigner 68

Page 69

Printing Labelflash Label

Nero CoverDesigner 69

Button

Print Preview

Opens the Print Preview window, which shows an approximation of what the label will look like on the Labelflash DVD.

Check box

Eject disc after printing

Ejects the disc after printing is complete.

Button

Burn (is displayed instead of the OK button)

Starts the print process.

Page 70

Program Settings

20 Program Settings

20.1 Application Preferences Window

You can make settings that determine the general appearance and behavior of Nero CoverDesigner in the Application Preferences window. You can open the window by clicking the File > Preferences menu.

The window contains the following tabs:

General

Provides general setting options for Nero CoverDesigner such as displaying info messages, and country-specific measurement units.

Folders

Specifies the path for documents, templates, and imported files.

Paper Stocks

Provides setting options for paper stocks.

Specifies the bleed area and allows you to calibrate your printer

Undo

Offers options for undoing actions. You can specify the maximum reserved memory, the number of possible undo steps, or unlimited undo steps here.

LightScribe

Allows you to specify setting options for LightScribe recorders such as the print quality, default drive (if multiple LightScribe recorders are installed), default label template, and print resolution.

These setting options are only used if a LightScribe recorder is available.

Creating and burning labels with LightScribe or Labelflash is only available in the full version.

You can always upgrade your Essentials version at www.nero.com

to get the

full version with all the functions.

See also:

 Default Paper Stock Settings 64  Printer Calibration 60

Nero CoverDesigner 70

Page 71

Program Settings

20.2 Specifying Default Settings For Objects

In Nero CoverDesigner, you can specify default settings for objects. The default settings determine the entries in the tabs of the Properties window for an object.

Default settings cannot be configured for pictures.

To specify default settings for objects, proceed as follows:

1. To specify default settings for geometric objects:

1. Click the Object > Default Graphic Properties menu.

 The Default Properties window with the Pen and Brush tabs is opened.

2. Specify the desired properties in the tabs.

3. Click the OK button.

 The window is closed. Geometric objects will now be inserted with the selected prop-

erties by default.

2. To configure default settings for artistic text and fields:

1. Click the Object > Default Artistic Text Properties menu.

 The Default Properties window with the Pen, Brush, Font, and Field tabs is ope-

ned.

2. Specify the desired properties in the tabs.

3. Click the OK button.

 The window is closed. Artistic text and fields will now be inserted with the selected

properties by default.

3. To configure default settings for text boxes, track lists, and folders:

1. Click the Object > Default Text Box Properties menu.

 The Default Properties window with the Pen, Brush, Folder, and Tracks tabs is

opened.

2. Specify the desired properties in the tabs.

3. Click the OK button.

 The window is closed. Text boxes, track lists, and folders will now be inserted with

the selected properties by default.

 You have successfully configured the default settings for objects.

Changes made on the tabs may sometimes not apply to all objects.

See also:

 Properties And Background Properties Window 36

Nero CoverDesigner 71

Page 72

Technical Information

21 Technical Information

21.1 System Requirements

Nero CoverDesigner is installed along with its suite. Its system requirements are the same. You can find more detailed information on the system requirements under www.nero.com



In addition, the following requirements apply:



Printer



Scanner (optional)



Labelflash recorder and disc (optional)



LightScribe capable recorder and LightScribe capable disc (optional)

Using LightScribe Direct Disc Labeling

Your computer requires the latest LightScribe system software when using a CD or DVD recorder with LightScribe support.

If you have downloaded and installed an updated Nero version from the Nero website, install the LightScribe system software separately. You can find the latest version at www.nero.com/link.php?topic_id=114&gen_id=8

21.2 Image Formats



Bitmap (BMP)



Device Independent Bitmaps (DIB)



Graphics Interchange Format (GIF)



Joint Photografic Expert Group (JPEG, JPG, JPE)



Picture Exchange (PCX)



Portable Network Graphics (PNG)



Portable Pixel Map (PPM)



Targa Image File (TGA)



Tagged Image File Format (TIFF, TIF)



Windows Media File (WMF)



Portable BitMap (PBM) - read only



Word Perfect Graphic (WPG)

21.3 Formats For Playlists



Chromeleon Driver Configuration Plugin Nero File (CDC)

Nero CoverDesigner 72

Page 73

Index

Nero CoverDesigner 73

22 Index

Adding a Disc........................................ 22

Angle of rotation.................................... 48

Artistic Text

Edit ..................................................................28

Audiobook CD................................. 36, 44

Background........................................... 29

Fill Titles ..........................................................30

Inserting...........................................................30

Background Properties ......................... 36

Bend...................................................... 36

Bent Text

Edit .................................................................. 27

Biz Card ................................................ 20

Bleeding

Set size............................................................ 70

Border ................................................... 57

Brightness............................................. 42

Brush..................................................... 36

Business Card CD ................................ 20

Calibration Sheet

Printing ............................................................ 60

CD Case................................................ 18

Color

Select......................................................... 37, 39

Color Adjustment .................................. 42

Concave View....................................... 43

Configuration......................................... 71

Contrast................................................. 42

Conventions, manual.............................. 6

Convex View......................................... 43

Cover Art............................................... 55

Cover Element

Add..................................................................17

Booklet............................................................. 17

Disc.................................................................. 17

Inlay................................................................. 17

Creating an Image Document............... 21

Crop Marks............................................ 57

Data....................................................... 10

Deleting Cover Elements...................... 23

Design Element..................................... 14

Directory................................................ 37

Disc

Add.............................................................17, 32

Disc type ......................................... 16, 32

Document data

Document data.................................................31

Enter ................................................................31

Use...................................................................15

Drawing area......................................... 14

DVD Case............................................. 18

Dynamic Object..................................... 14

Edit.......................................................... 9

Effect..................................................... 42

Ellipse.............................................. 13, 25

Emboss................................................. 42

Entry

Add...................................................................34

EqualizeEqualize................................... 42

Field .......................................... 13, 26, 37

Field type............................................... 46

Artist.................................................................32

Title..................................................................32

Year .................................................................32

Fields..................................................... 15

File .......................................................... 9

Filter...................................................... 42

Flip ........................................................ 43

Folder........................................ 13, 15, 26

Font....................................................... 36

Geometric Object.................................. 14

Page 74

Index

Nero CoverDesigner 74

Help....................................................... 10

Horizontal

Flip...................................................................43

Reversed Image..............................................43

Image.................................................... 13

Rotate.............................................................. 43

Scale................................................................ 42

Image.................................................... 36

Import Image......................................... 36

Jewel Case............................................ 18

LightScribe Label

Printing ............................................................ 65

Line ................................................. 12, 25

Line Break............................................. 25

Manual, conventions............................... 6

Maxi....................................................... 19

Midtone Value....................................... 42

Mini CD ................................................. 19

Mosaic................................................... 43

Multi Box ............................................... 18

Negative

Flip...................................................................43

Nero Digital

Exporting a Cover............................................55

Importing.......................................................... 31

Saving the Cover............................................. 55

Nero Digital Cover Extracting................ 21

Object.............................................. 10, 14

Bend................................................................36

Copy................................................................11

Cut................................................................... 11

Delete..............................................................11

Edit .................................................................. 26

Set size............................................................ 48

Transfer properties..........................................11

Object Properties .................................. 36

Oil Painting Effect.................................. 43

Outline................................................... 43

Pen........................................................ 36

Picture................................................... 26

Pinch..................................................... 43

Posterize............................................... 43

Preset

Undo ................................................................70

Print....................................................... 56

Program

Launching the Program......................................8

Startup ...............................................................8

Rectangle........................................ 12, 25

Restore.................................................. 11

Rotate.................................................... 43

Save...................................................... 54

Scan...................................................... 41

Sharpen................................................. 43

Slim Pack.............................................. 19

Solarize................................................. 43

Start

From another application................................. 31

Startup

Program.............................................................8

Swirl ...................................................... 43

System requirements............................ 72

Template

Generate..........................................................17

Save.................................................................52

Select.........................................................16, 22

Text........................................... 13, 25, 36

Importing..........................................................37

Protect..............................................................40

Rotate ..............................................................40

Text box .................................... 13, 25, 36

Protect..............................................................40

Rotate ..............................................................41

Page 75

Index

Nero CoverDesigner 75

Text Line Break..................................... 25

Tracklist........................................... 13, 15

Tracks ................................................... 37

Transfer properties................................ 11

TWAIN................................................... 10

Undo................................................ 11, 29

Vertically

Flip...................................................................43

View ........................................................ 9

Watercolor............................................. 43

Window ................................................. 10

Page 76

Contact

23 Contact

Nero CoverDesigner is a Nero AG product.

Nero AG

Im Stoeckmaedle 13-15

Internet:

www.nero.com

76307 Karlsbad

Help:

http://support.nero.com

Germany

Fax:

+49 724 892 8499

Nero Inc.

330 N Brand Blvd Suite 800

Internet:

www.nero.com

Glendale, CA 91203-2335

Help:

http://support.nero.com

USA

Fax:

(818) 956 7094

E-mail:

US-CustomerSupport@nero.com

Nero KK

Rover Center-kita 8F-B, 1-2-2 Nakagawa-chuou Tsuzuki-ku

Internet:

www.nero.com

Yokohama, Kanagawa

Help:

http://support.nero.com

Japan 224-0003

Nero CoverDesigner 76

Nero 9 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
