Nera F33

User Guide

USER GUIDE

CONTENTS

OPERATION FROM PC ............................5

Starting up ......................................................... 5

Phone book ....................................................... 7

- capacity ........................................................... 7

- abbreviated dialing .......................................... 7

- adding or editing entries .................................. 7

- saving entries to/from PC ................................ 8

Traffic Log .......................................................... 9

Traffic log settings ............................................ 10

Traffic log printout viewer -

normal calls (Cct) .............................................11

Traffic log output to serial printer ...................... 12

CONFIGURATION FROM PC ................. 13

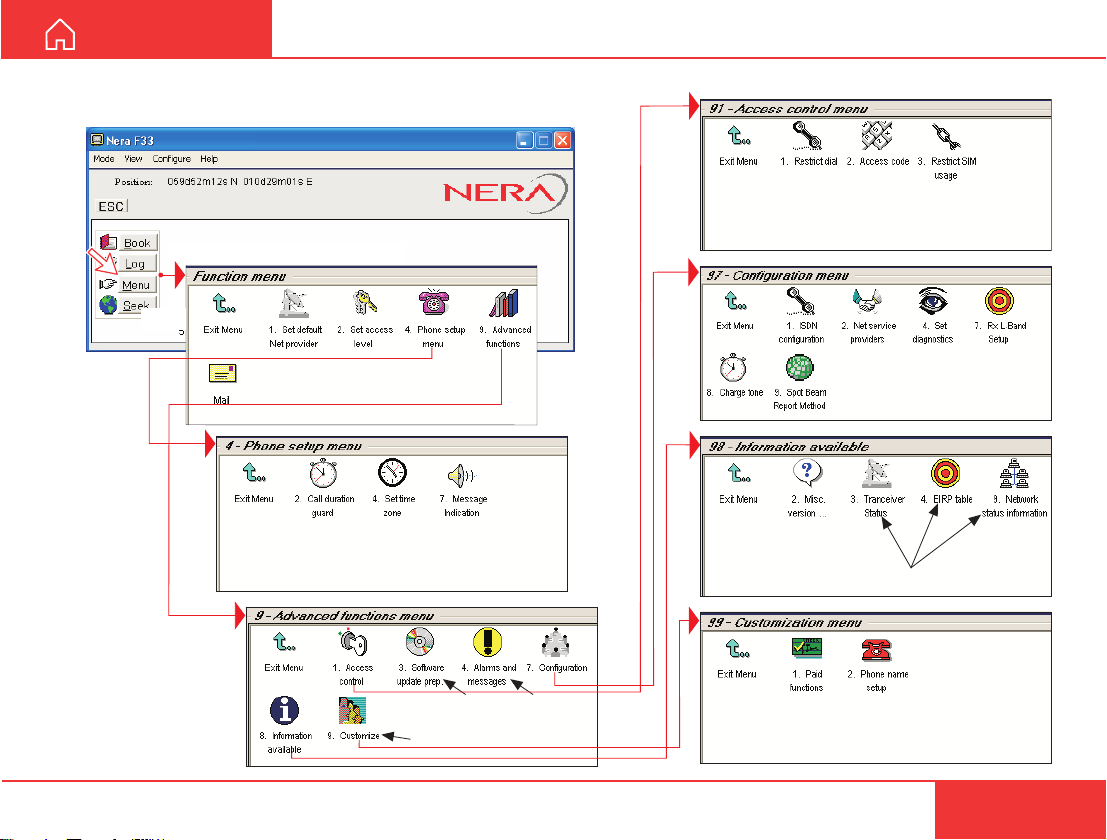

Menu functions ................................................ 13

Function reference list ..................................... 14

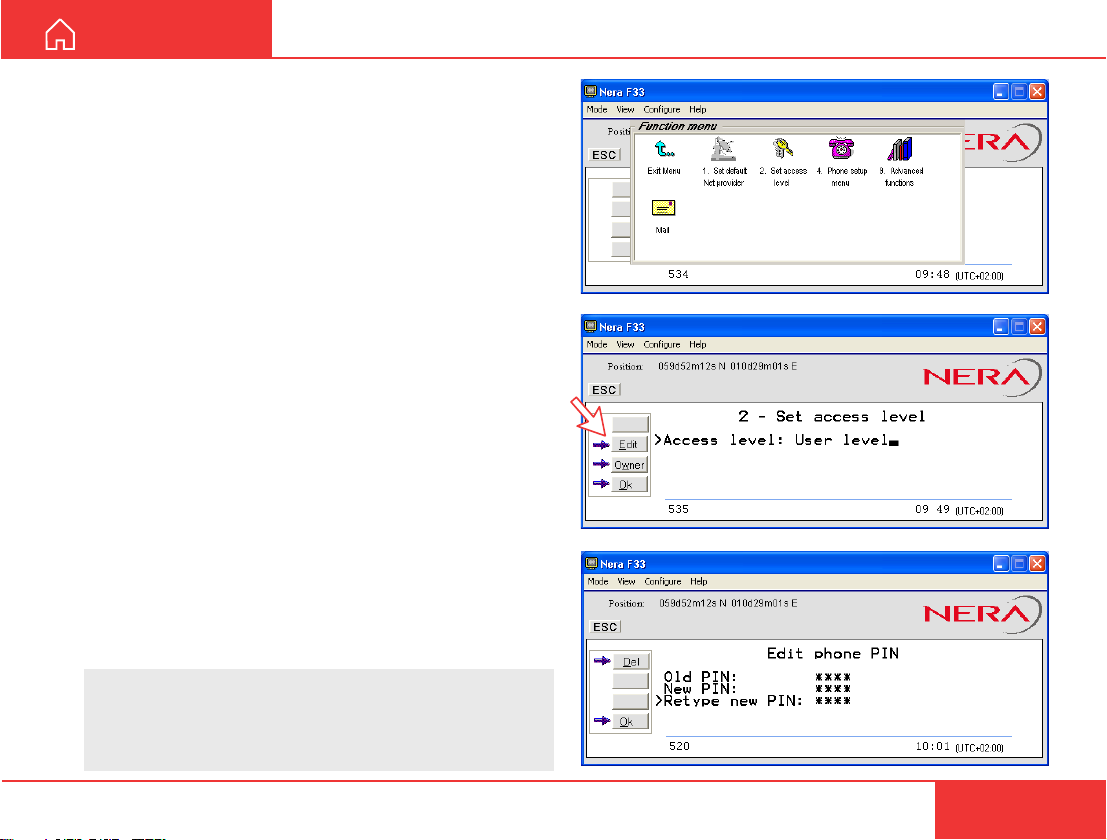

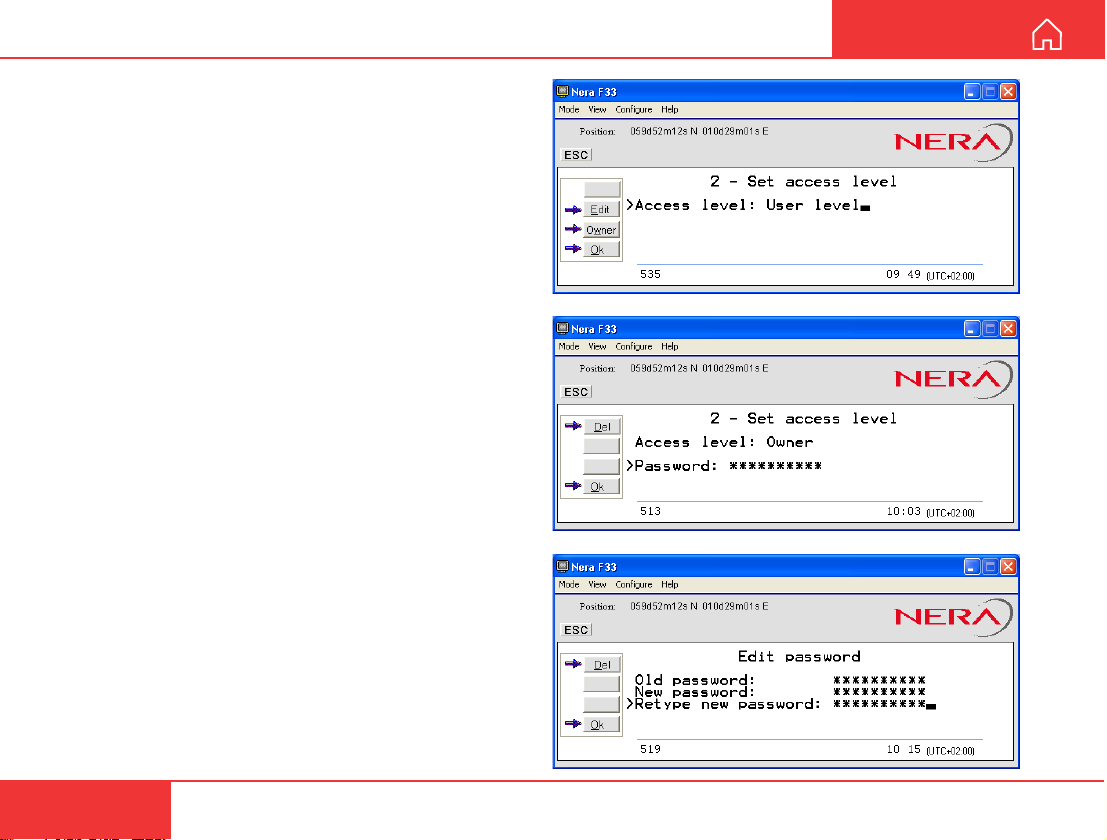

Access level .................................................... 15

- changing the PIN code .................................. 15

- functions requiring owner level ...................... 16

- shifting to owner level .................................... 16

- changing owner level password .................... 16

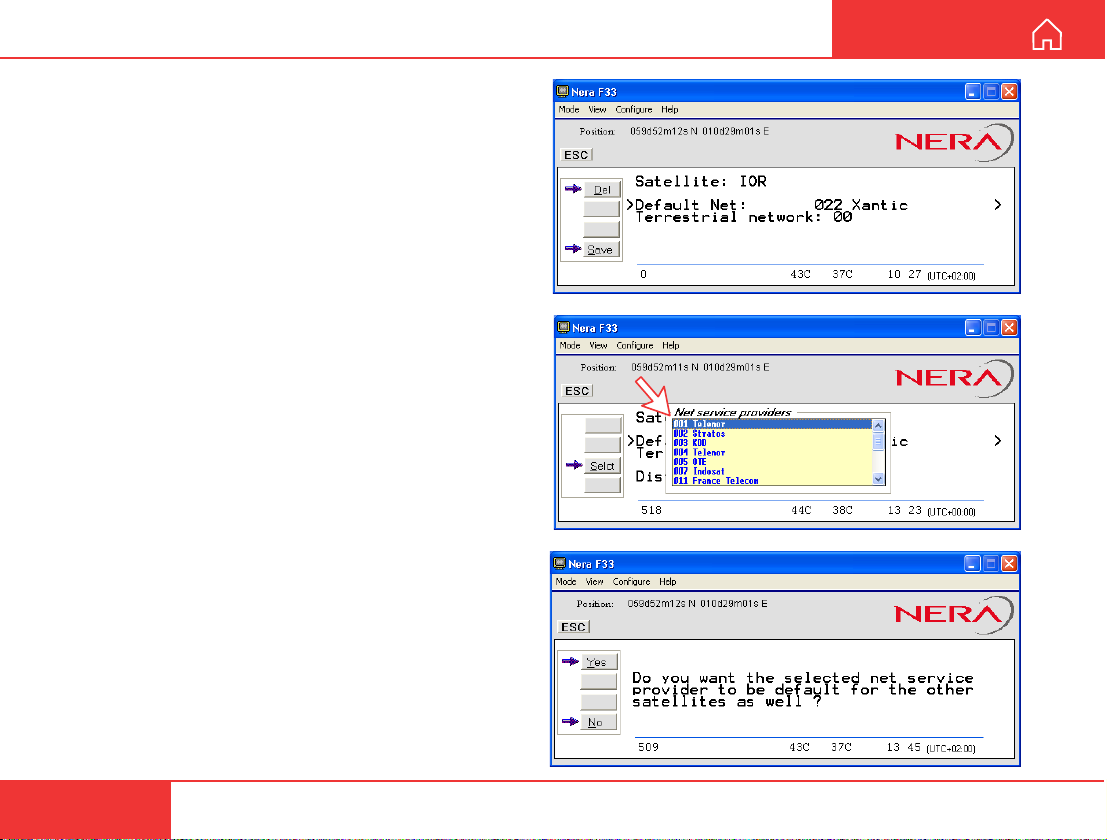

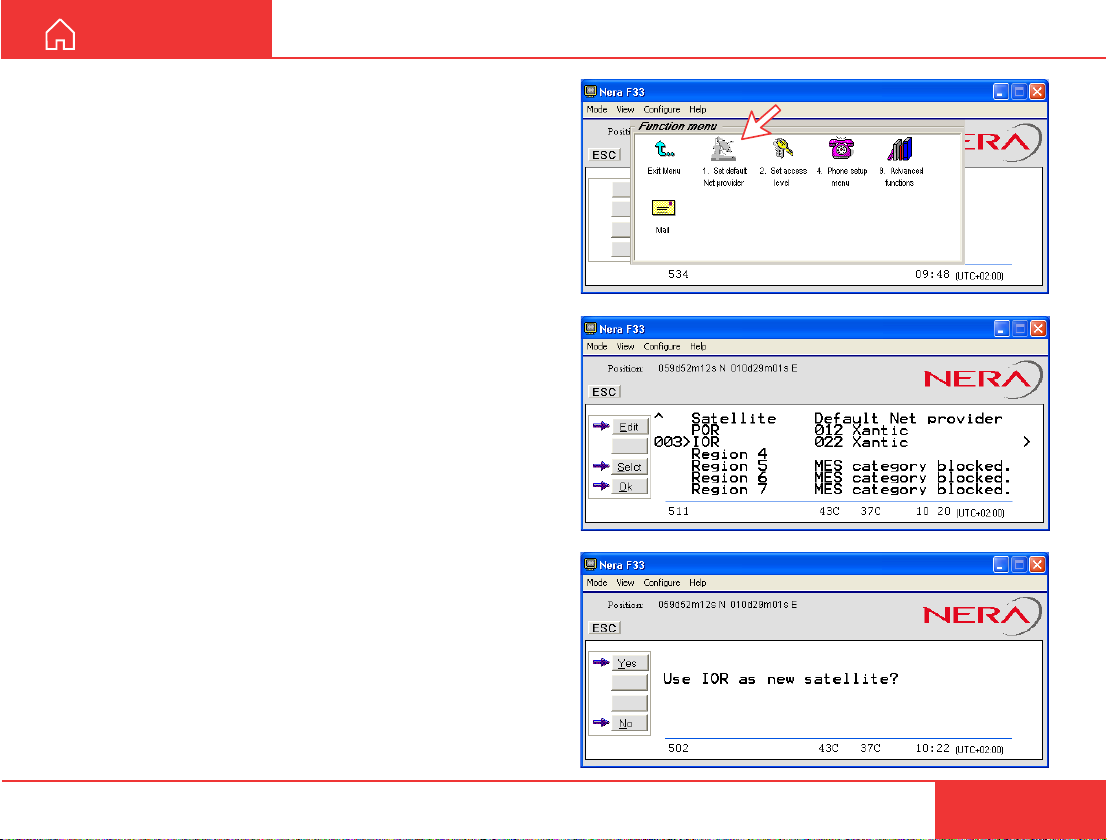

Selecting default Net service provider ............. 17

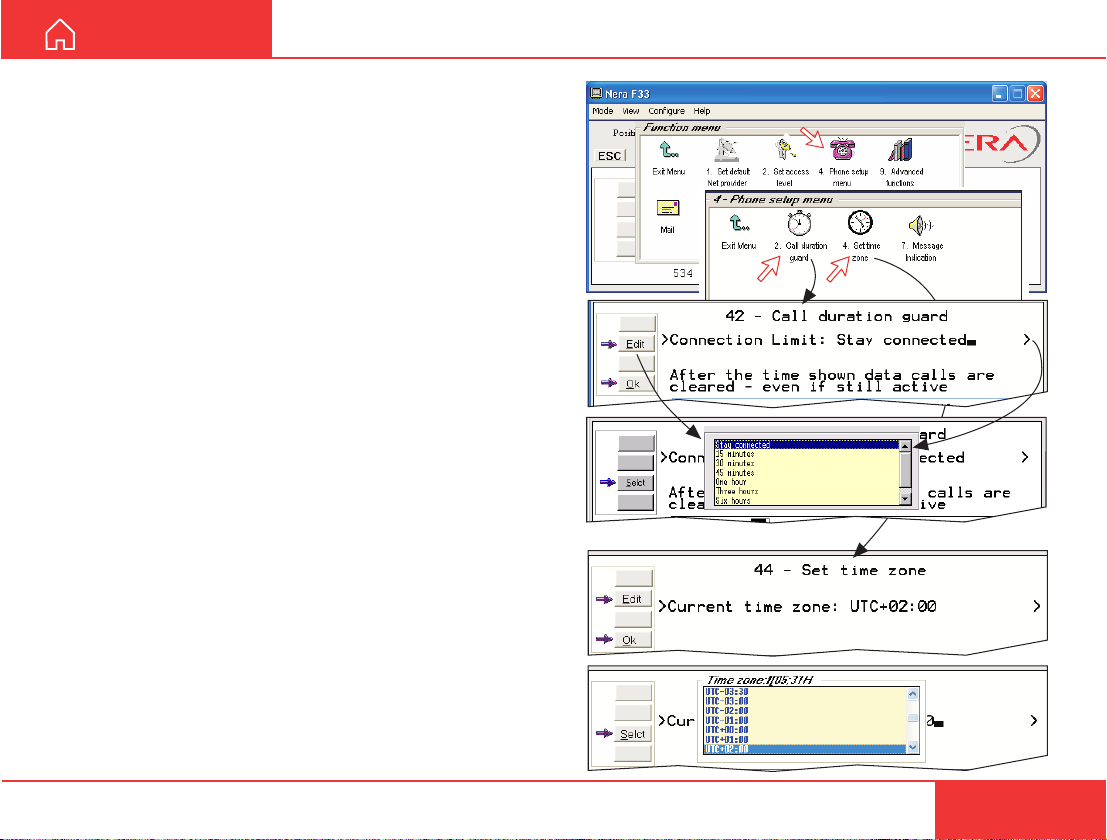

Phone setup .................................................... 19

- setting call duration limit ................................ 19

- setting date and time ..................................... 19

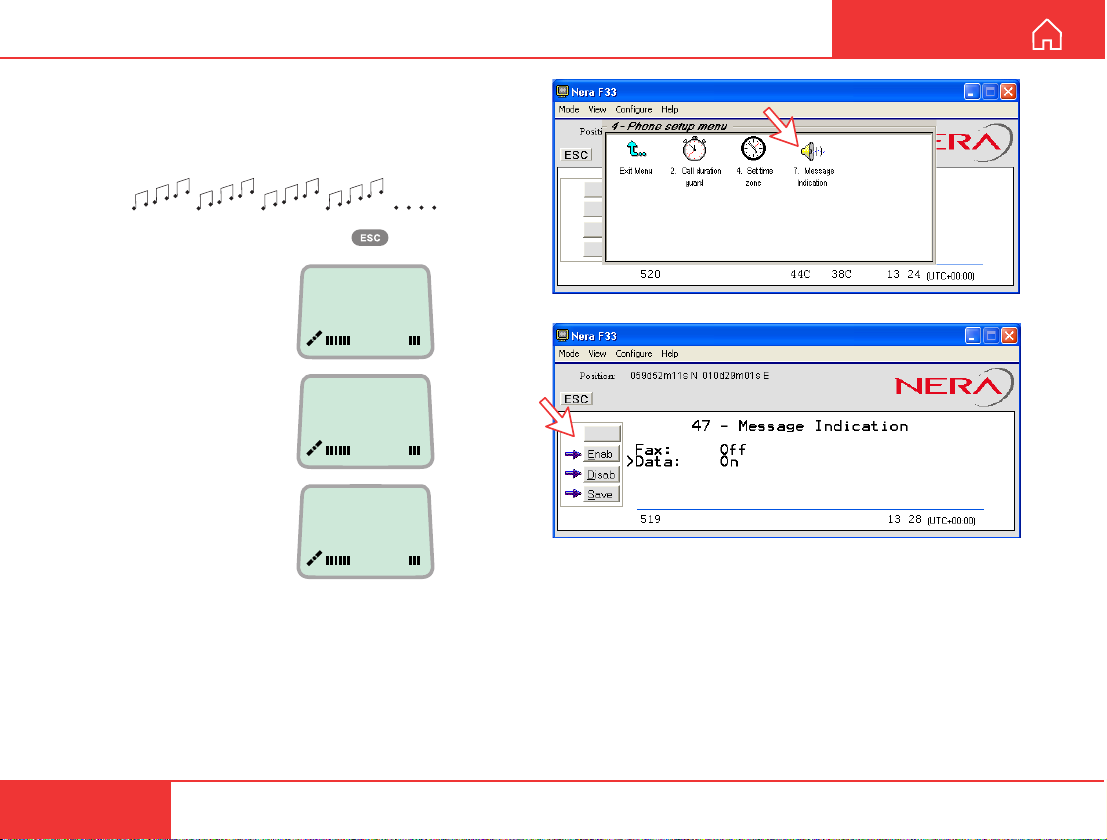

- message indication ........................................ 20

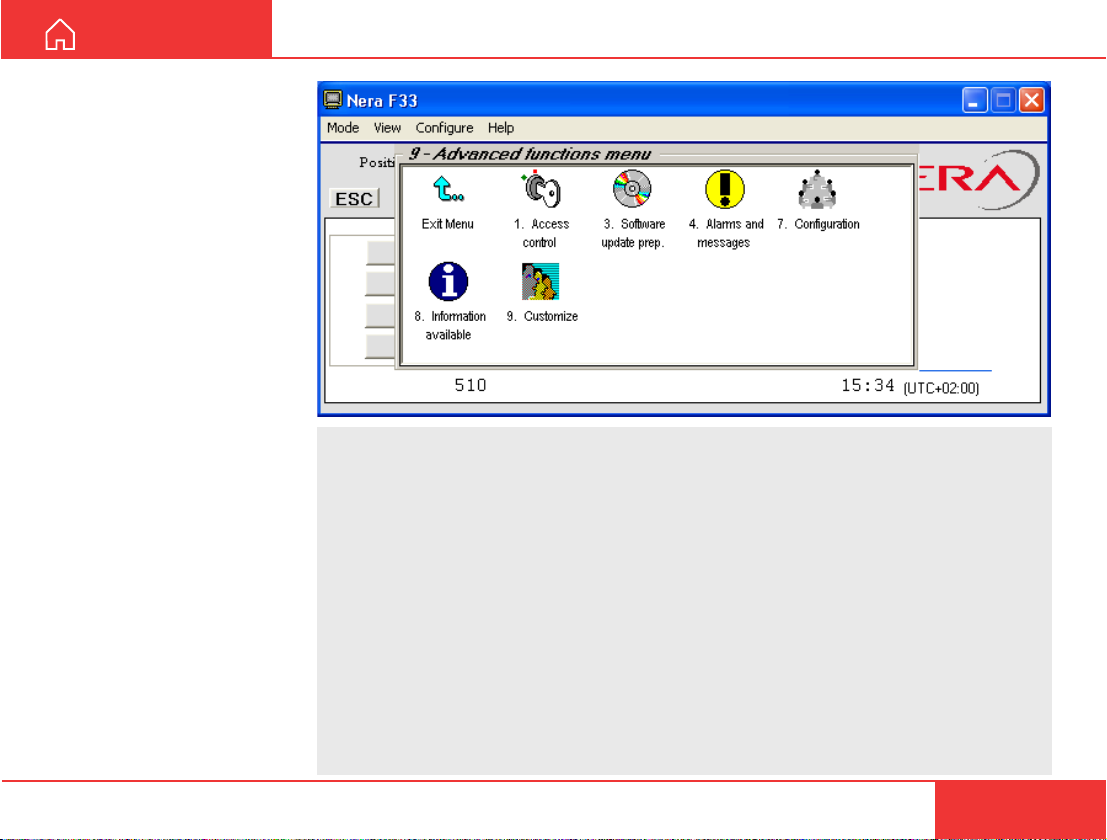

Advanced functions ......................................... 21

Access control ................................................. 22

- restricted dialing ............................................ 22

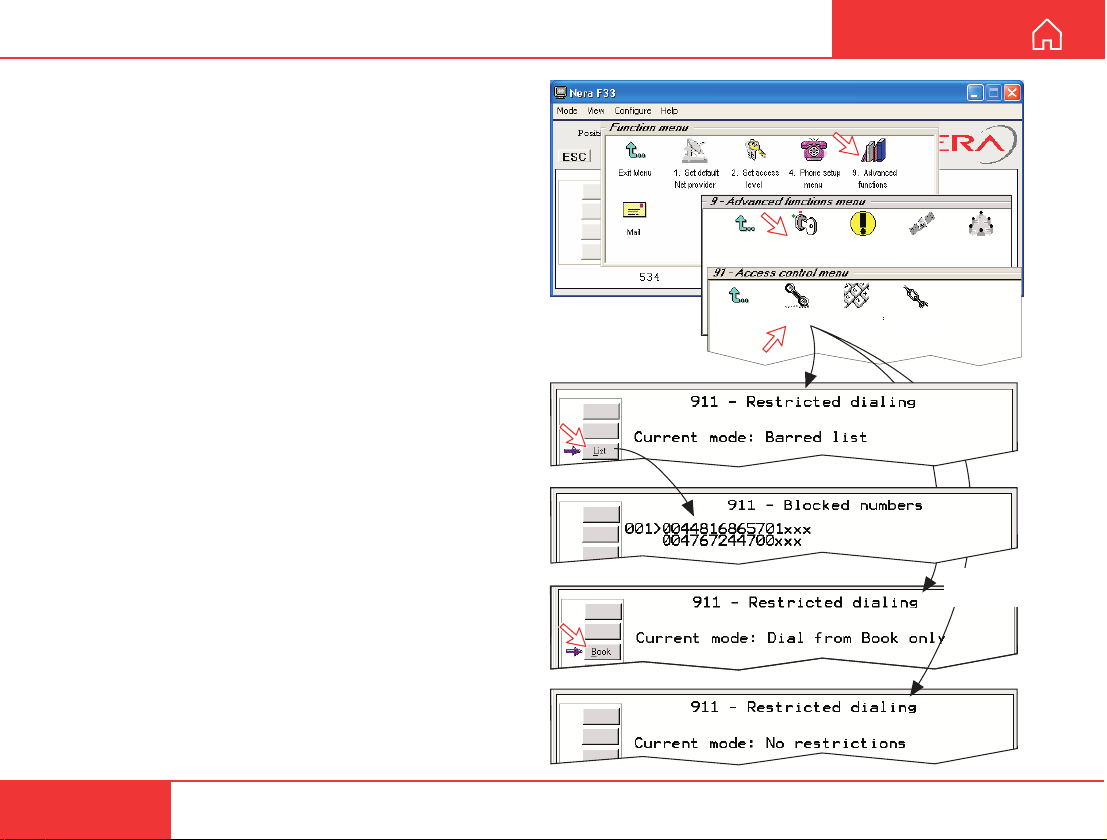

- checking the dialing setup ............................. 22

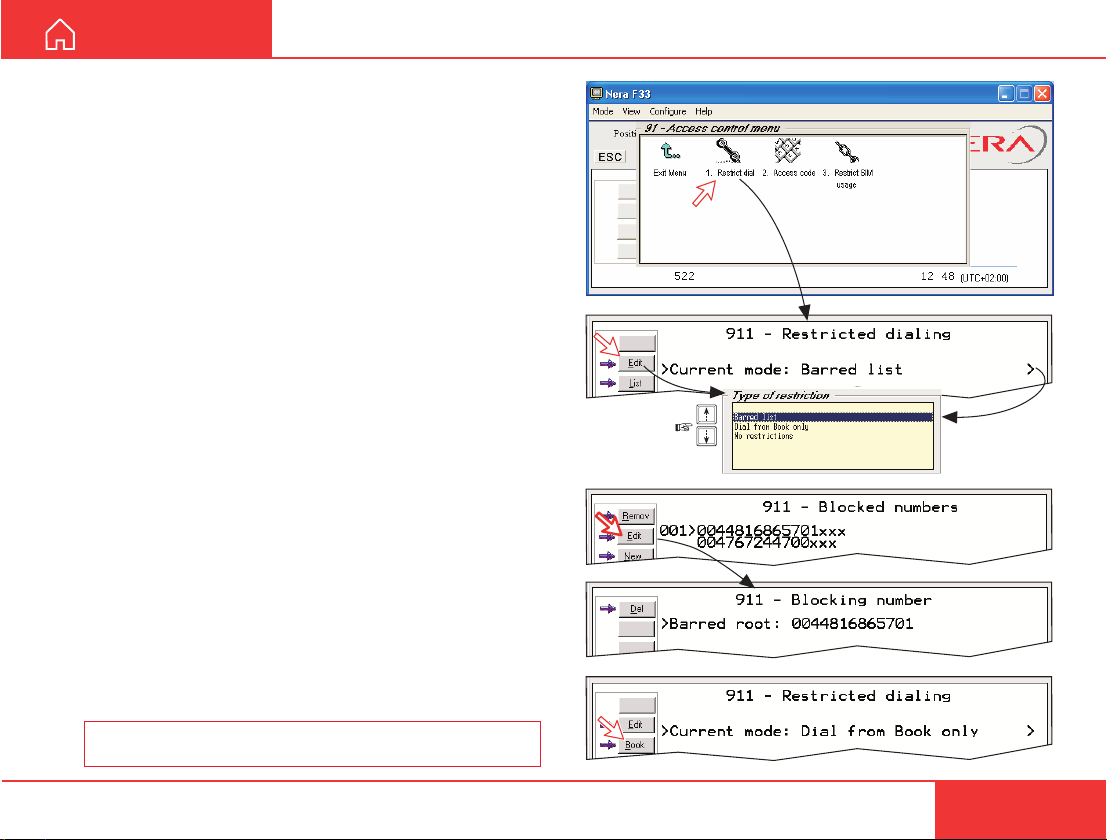

- restricted dialing setup .................................. 23

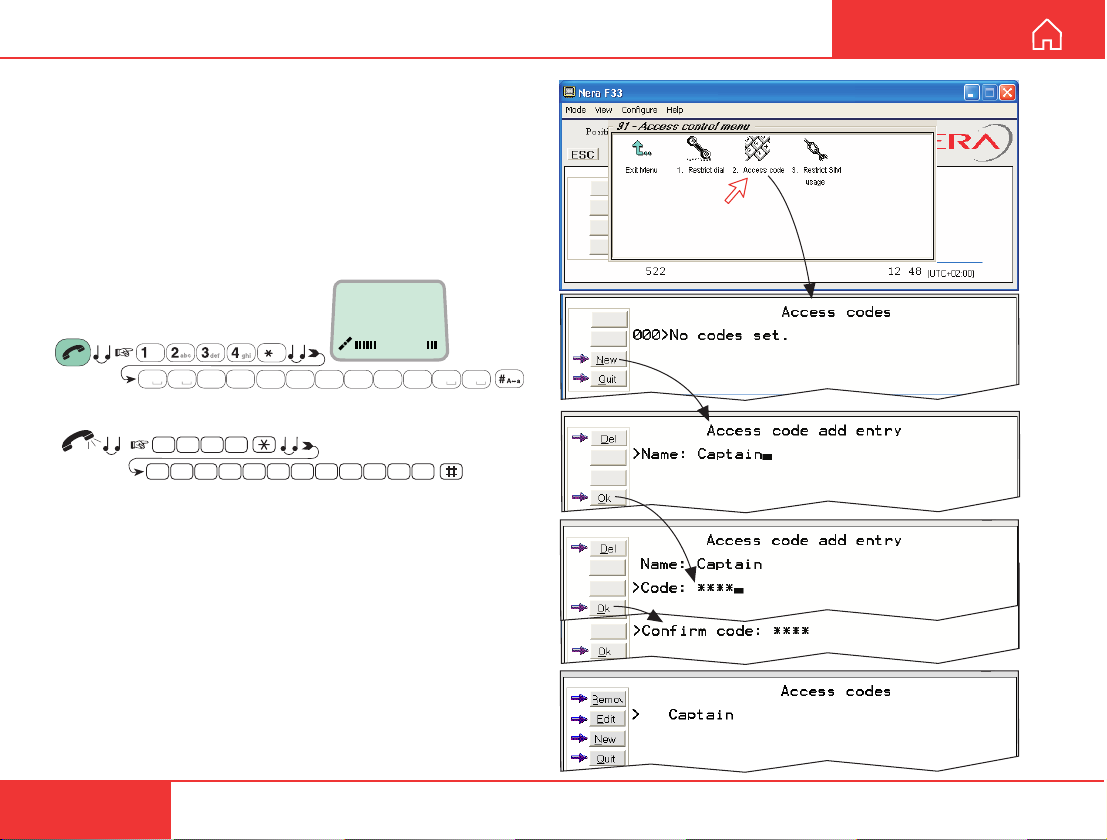

- access code .................................................. 24

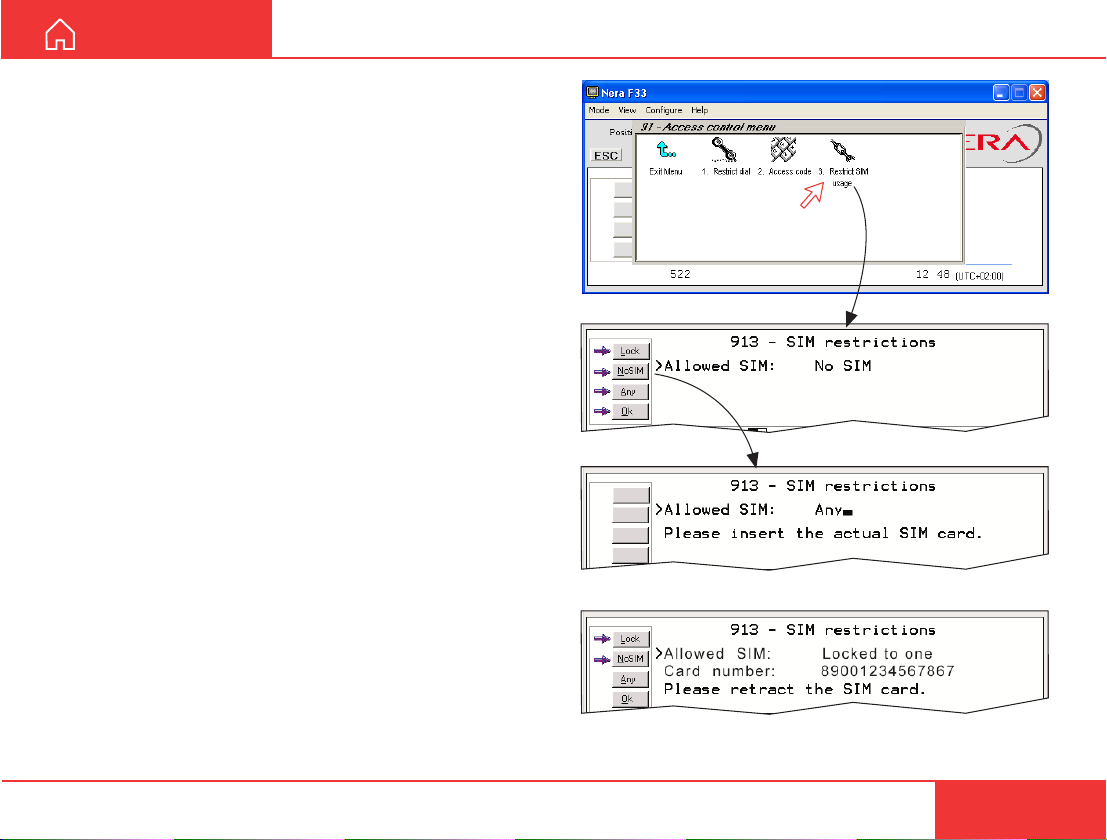

- restricted SIM usage ..................................... 25

- setting SIM restrictions .................................. 25

Configuration menu ......................................... 26

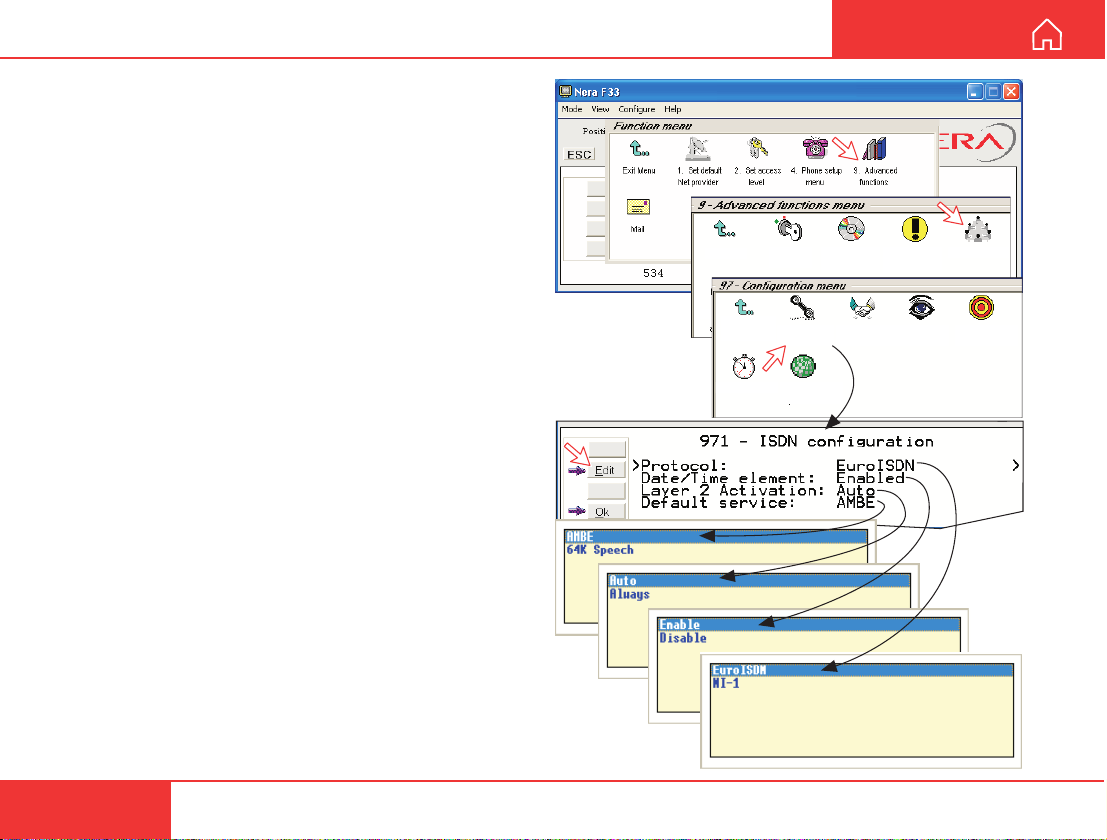

- ISDN protocol configuration ........................... 26

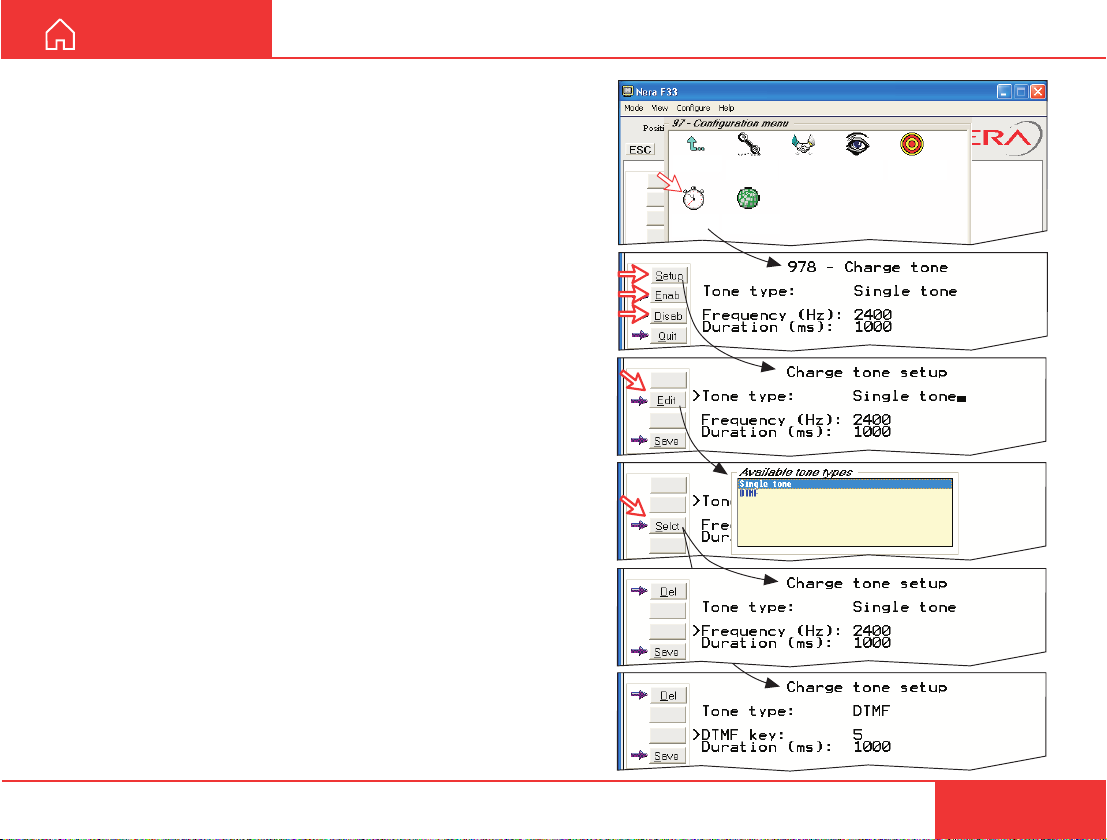

- charge tone setup.......................................... 27

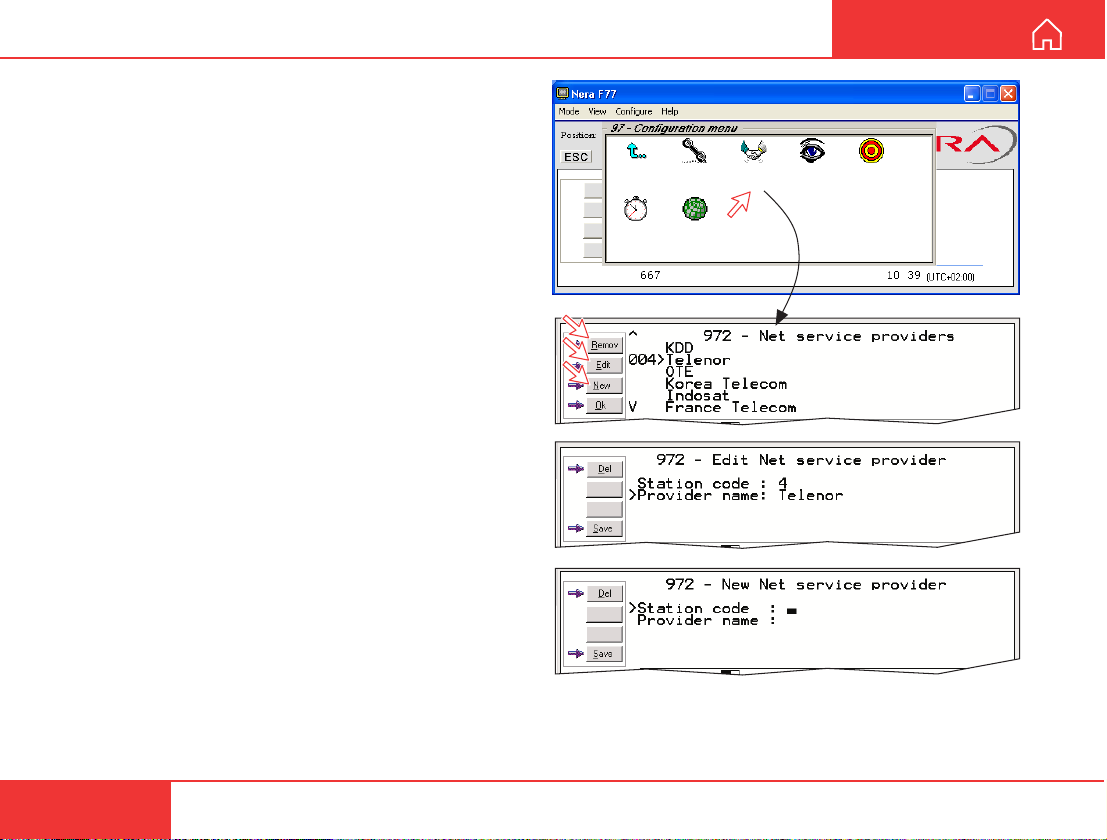

- net service providers ..................................... 28

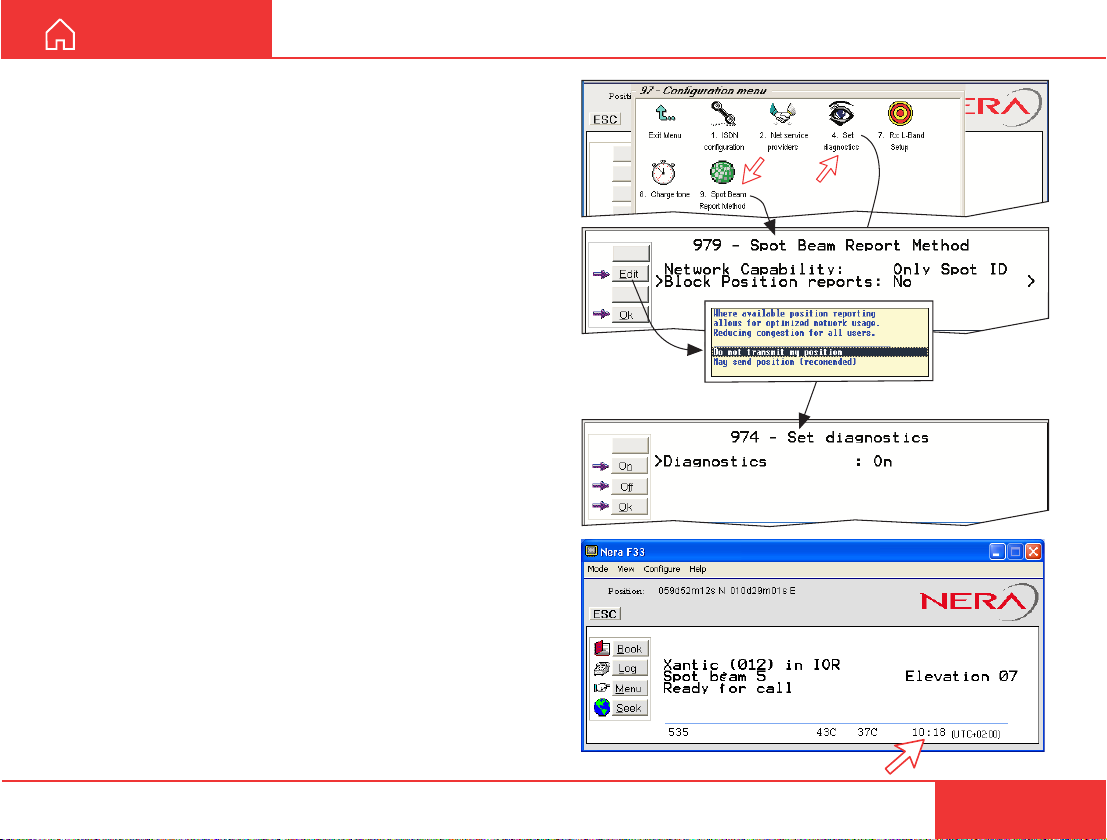

- spot beam report method .............................. 29

- set diagnostics .............................................. 29

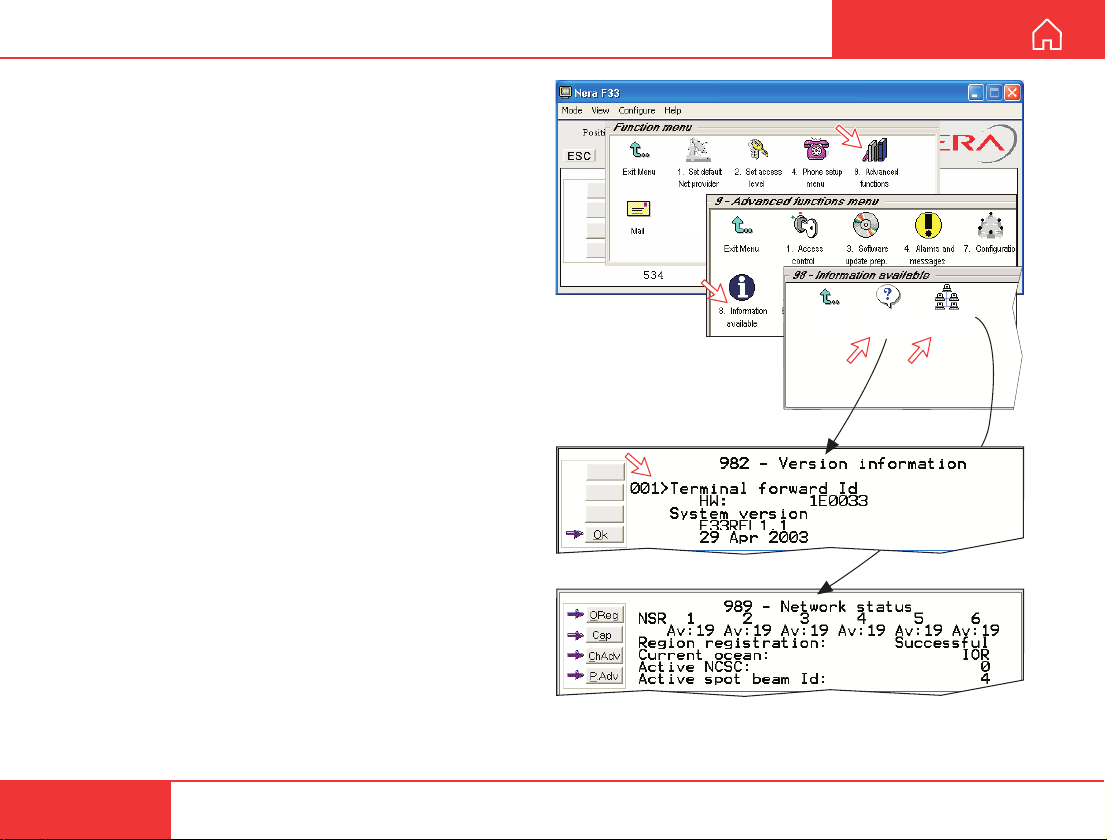

Information available ....................................... 30

- miscellaneous version Id information ............. 30

- network status information............................. 30

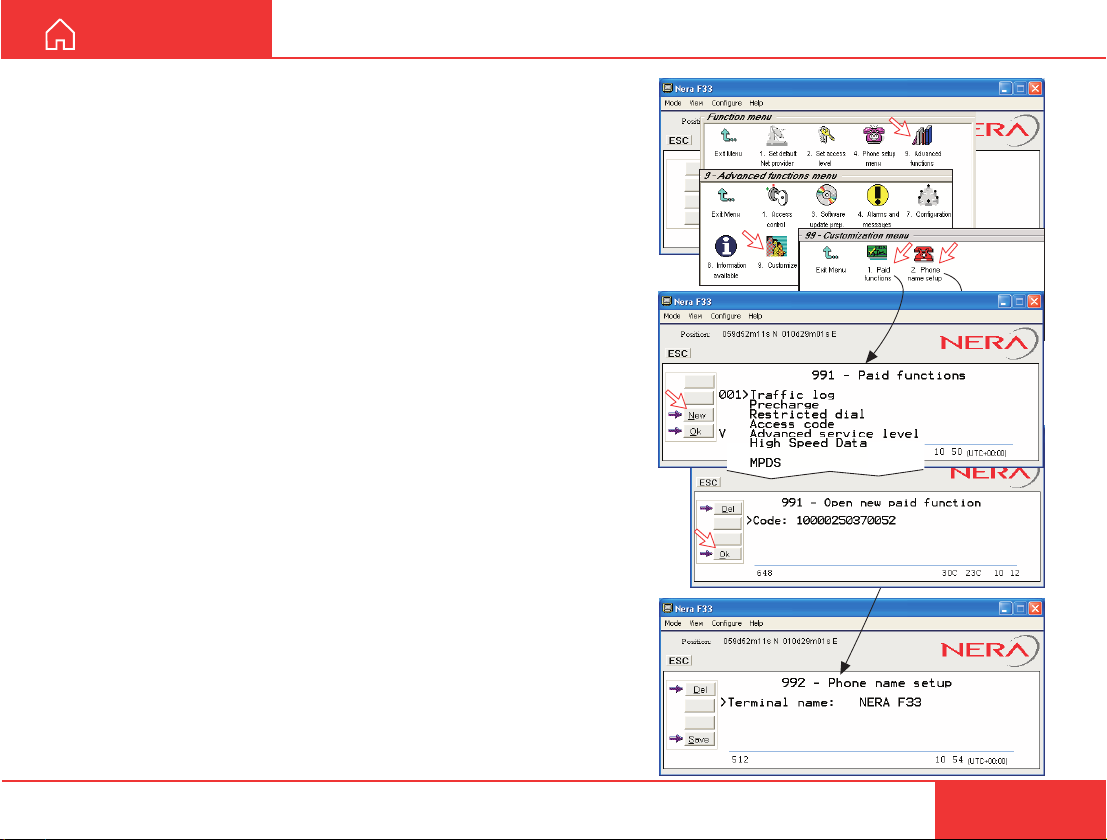

Customize menu .............................................. 31

- paid functions ................................................ 31

- phone name setup ......................................... 31

Routing of incoming calls ................................. 32

- routing of incoming calls (examples) ............. 33

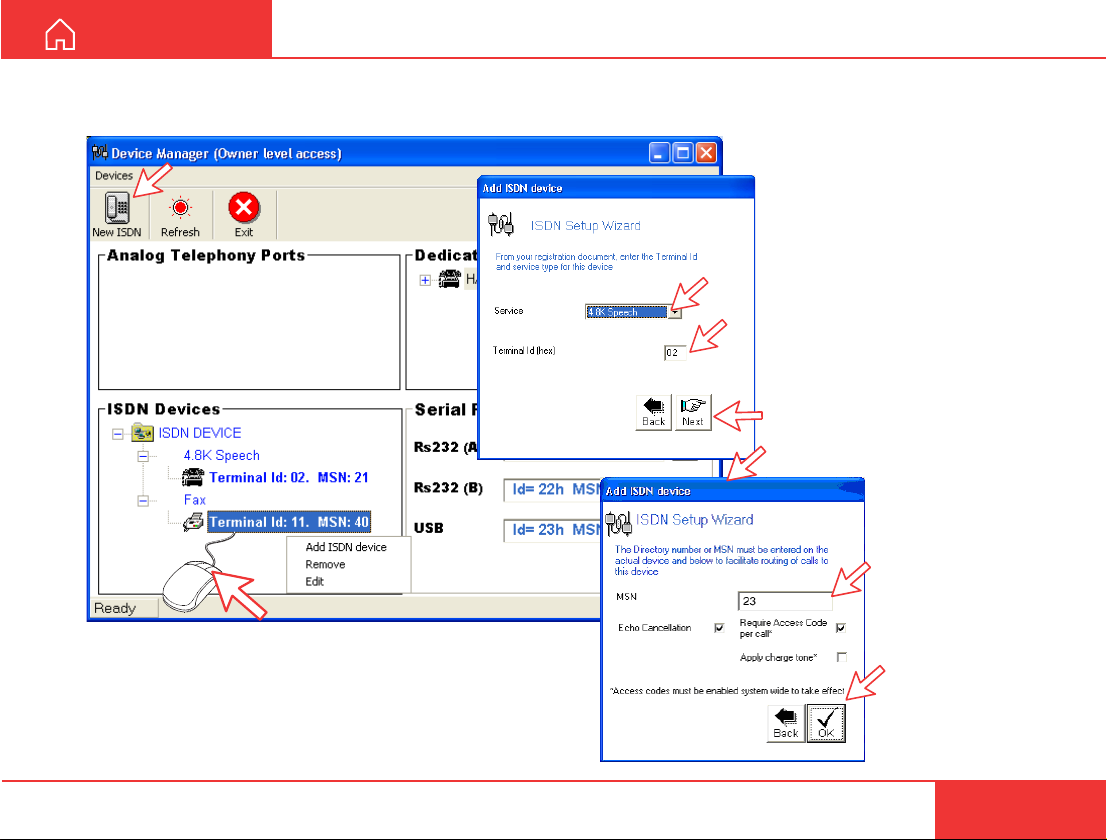

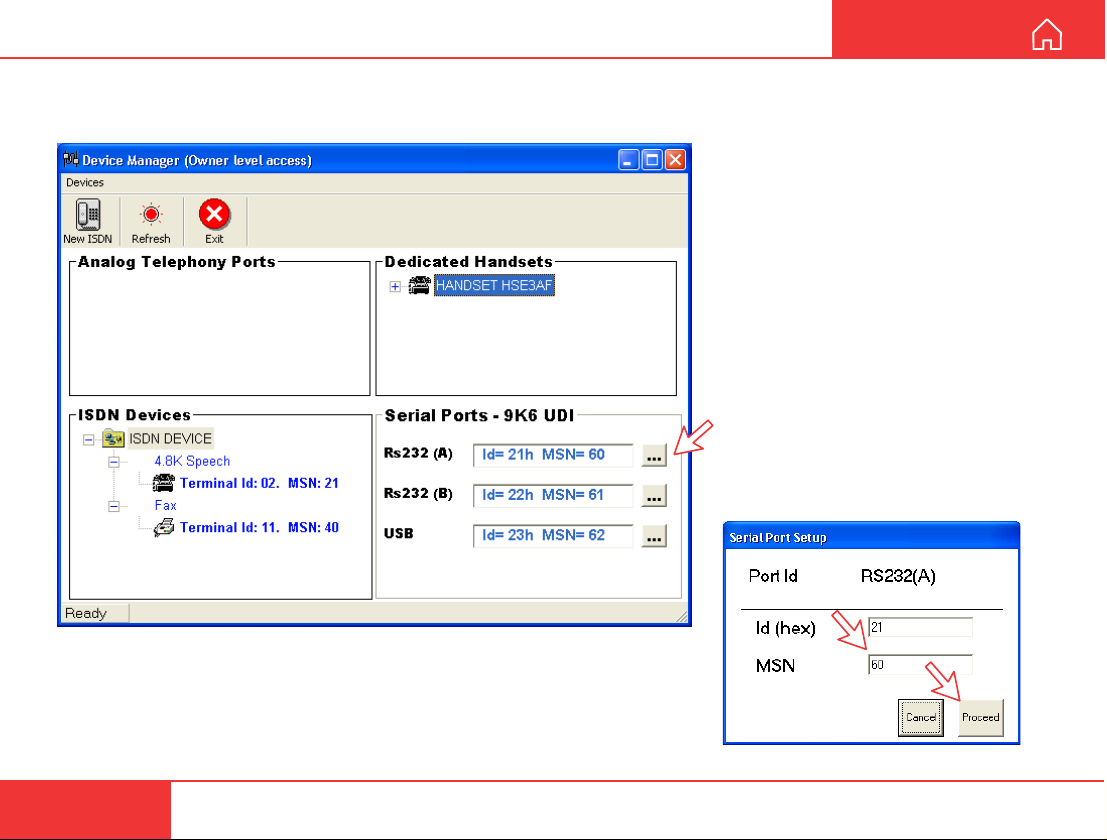

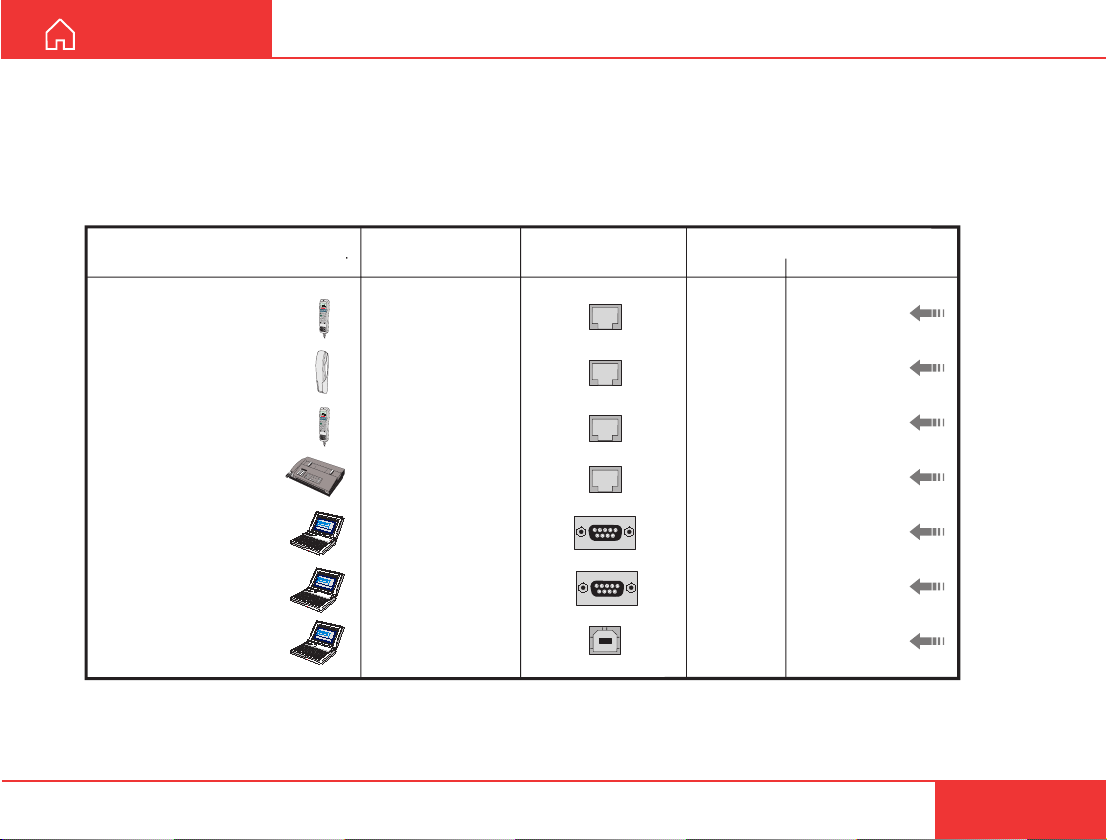

MSN configuration ........................................... 34

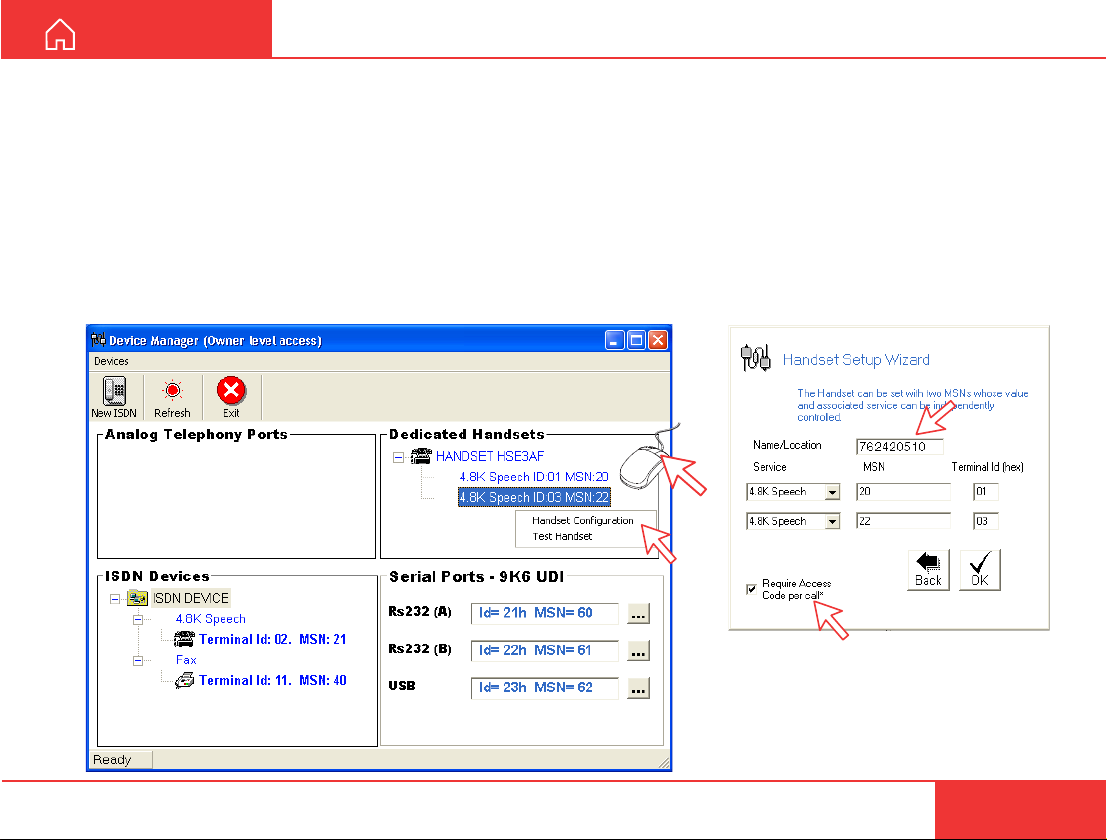

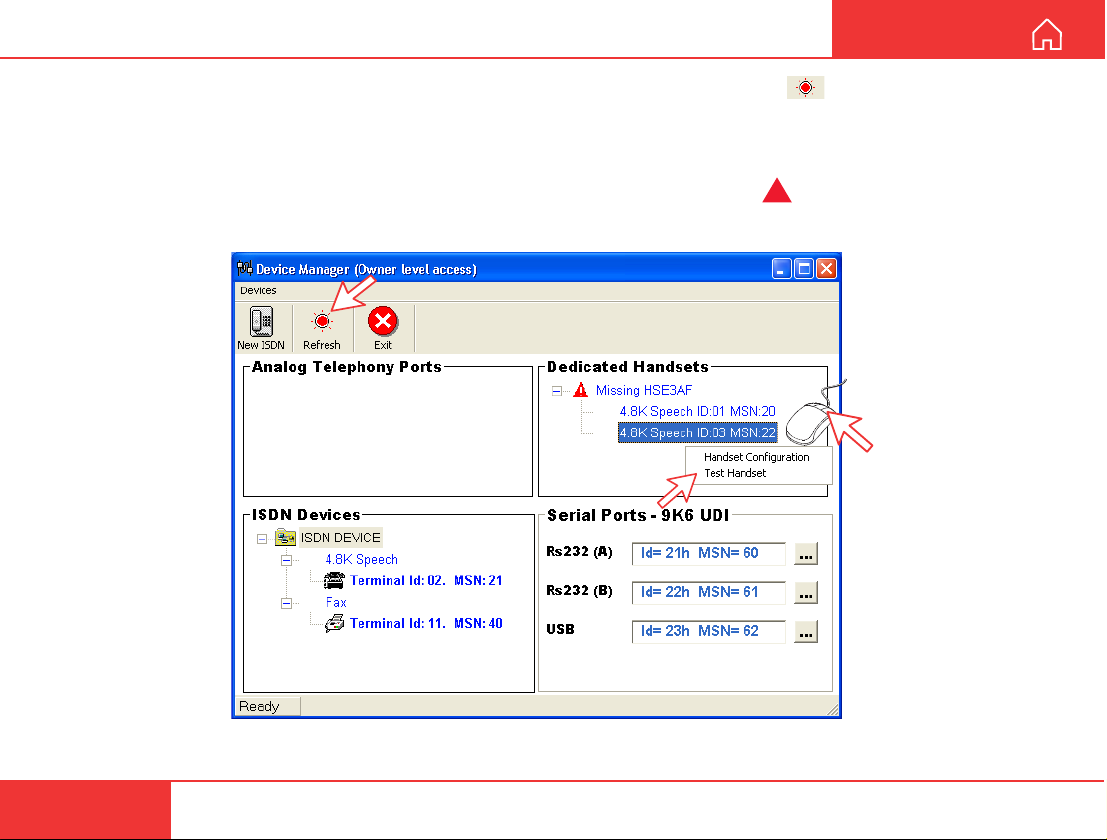

- Nera ISDN Handset ....................................... 35

- ISDN port ...................................................... 37

- RS-232 port ................................................... 38

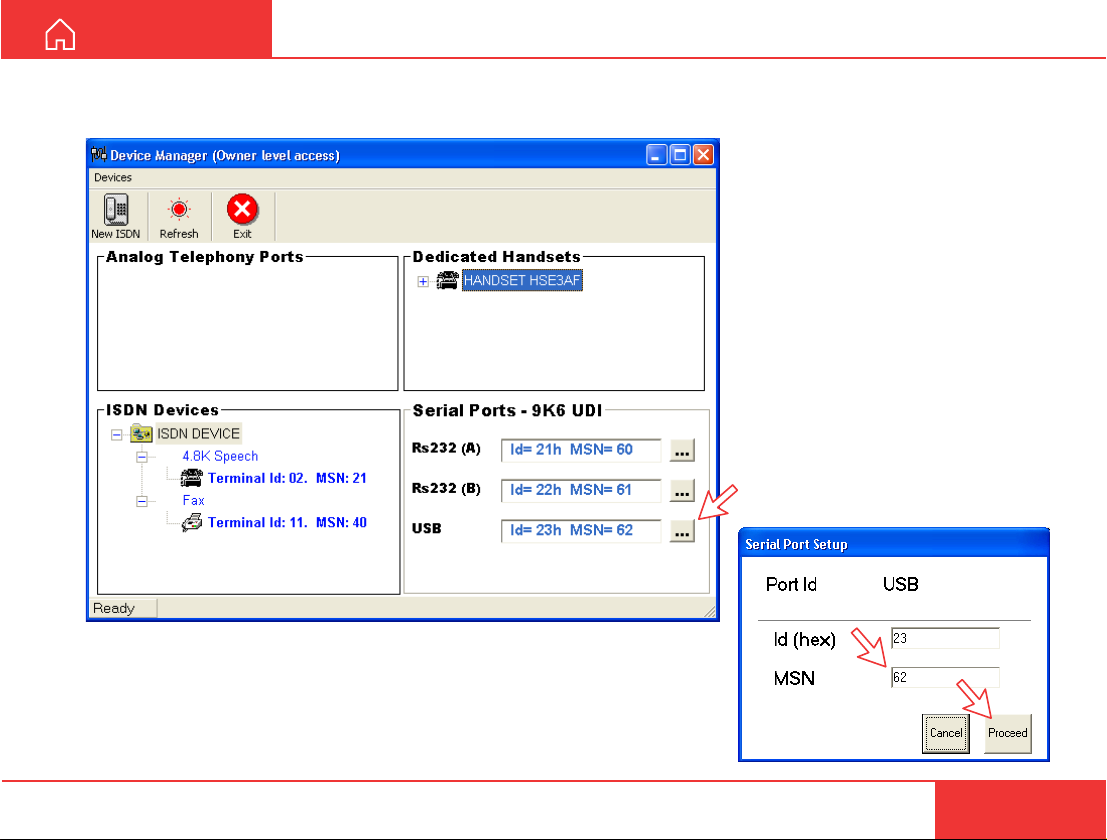

- USB port ........................................................ 39

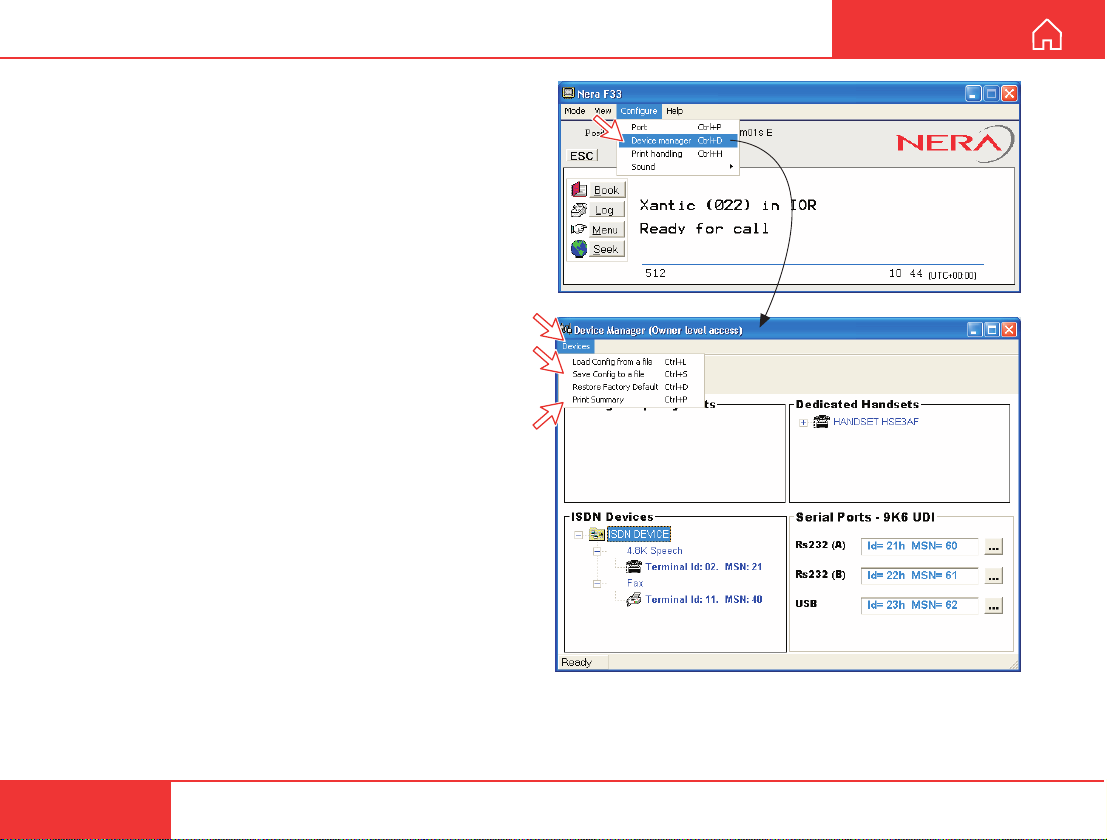

Saving and reloading configurations ................ 40

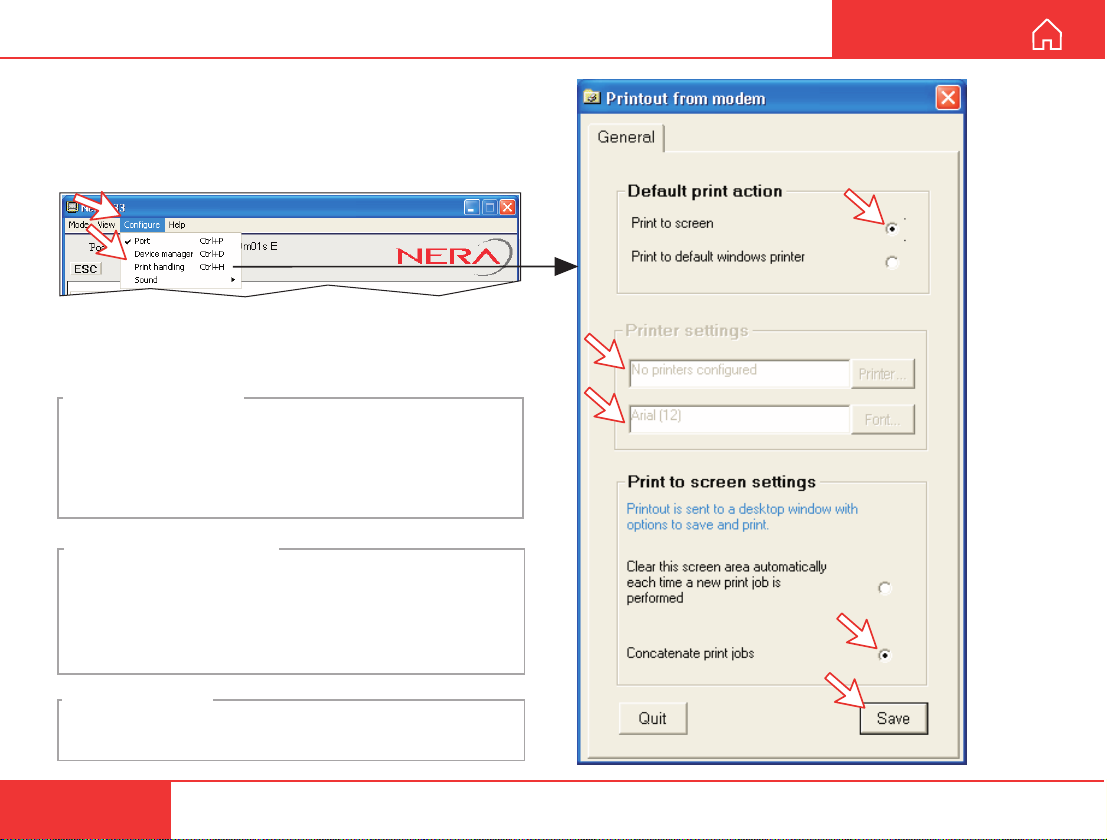

Print handling setup ......................................... 42

Mobile Packet Data Service ............................. 43

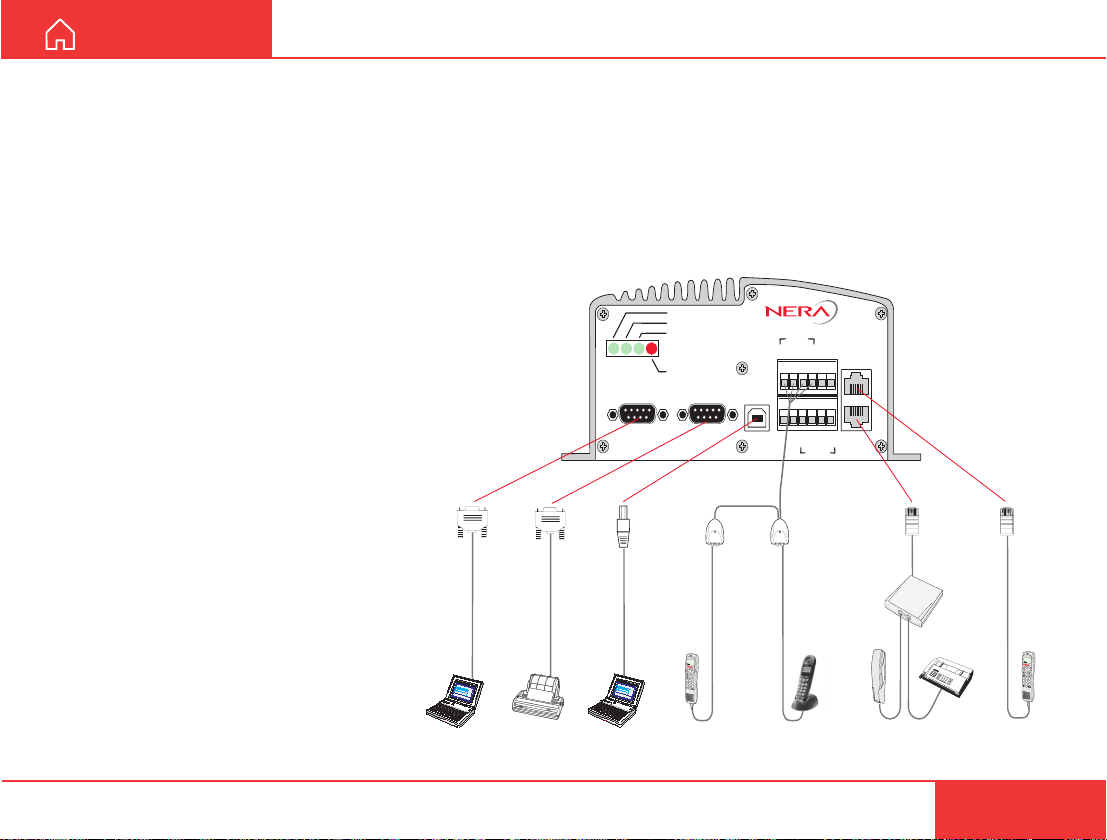

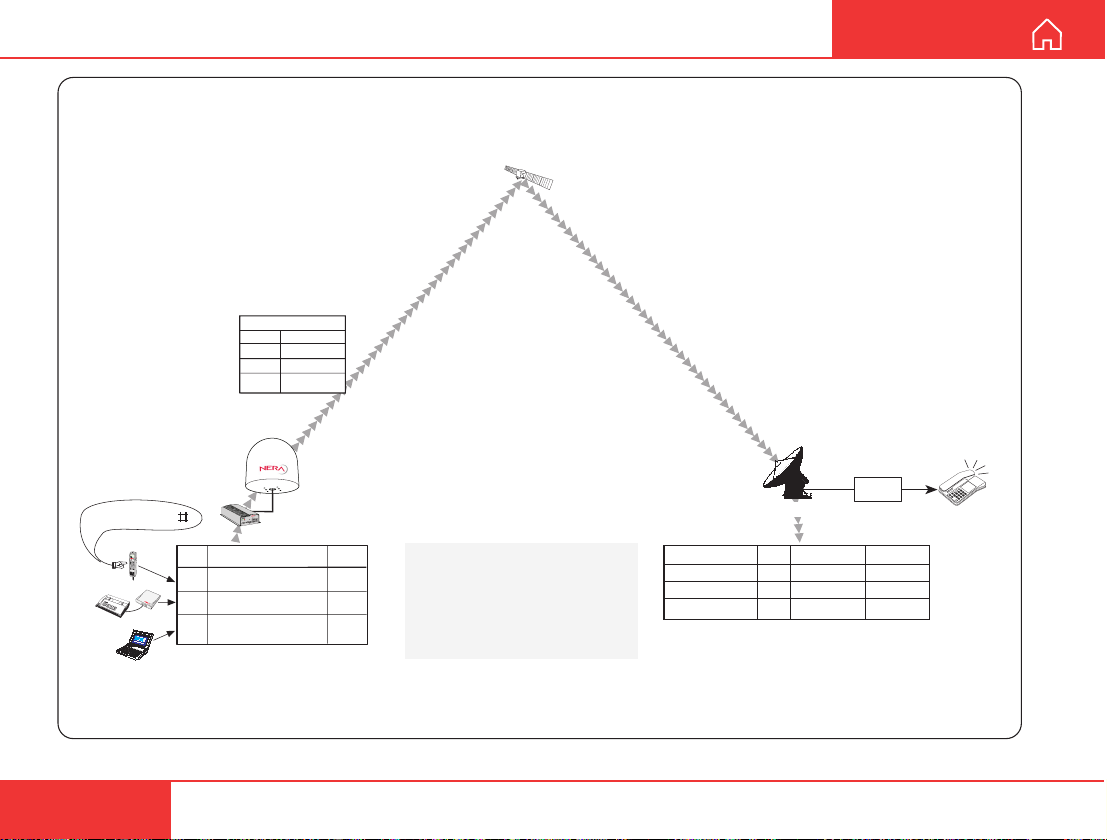

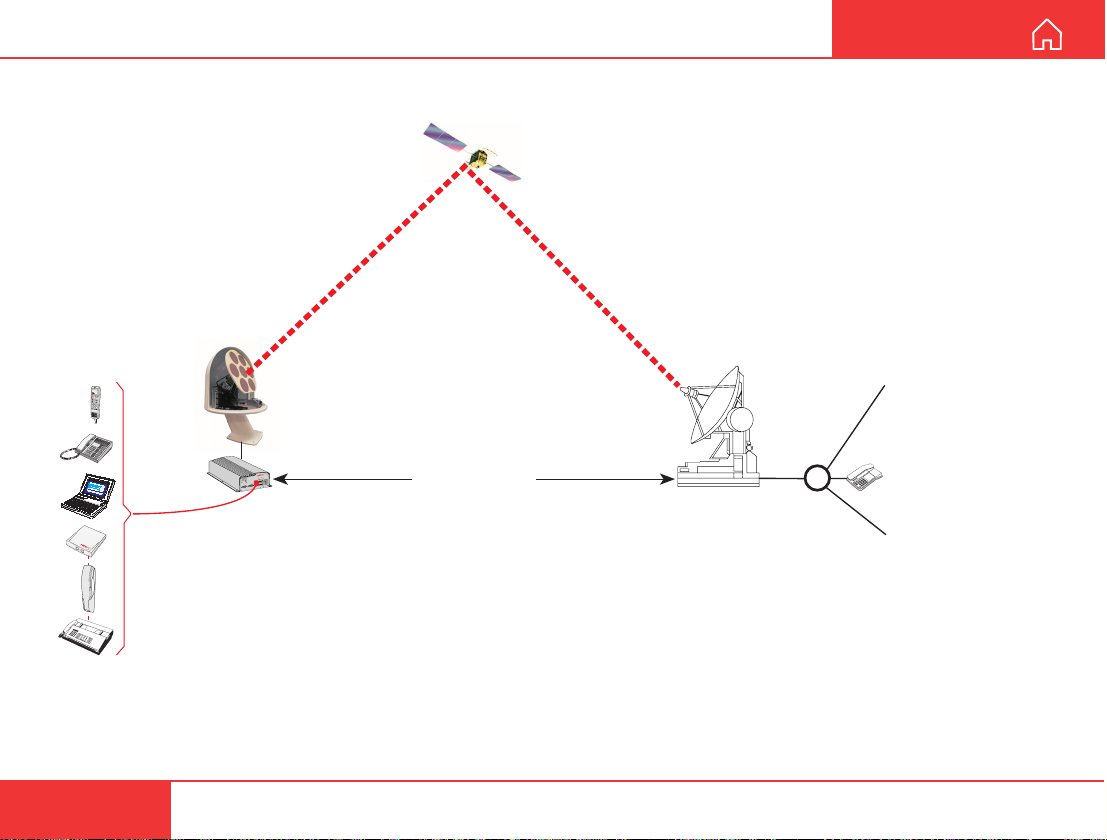

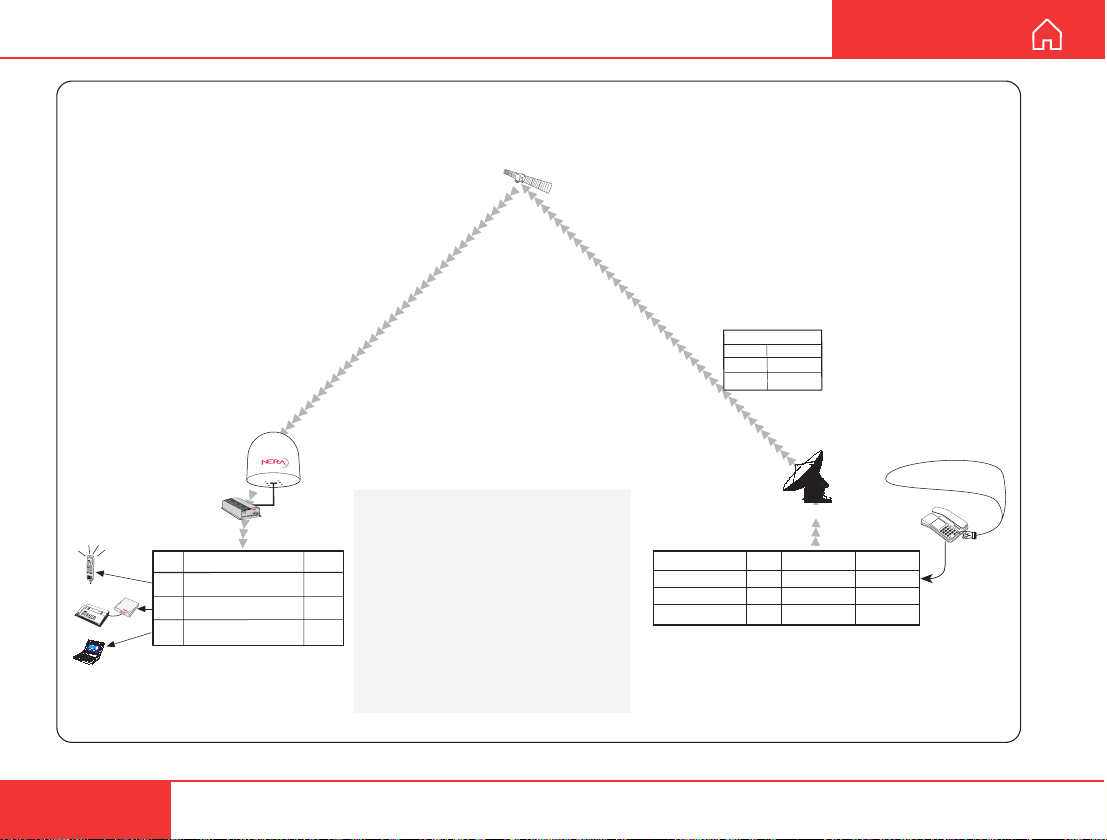

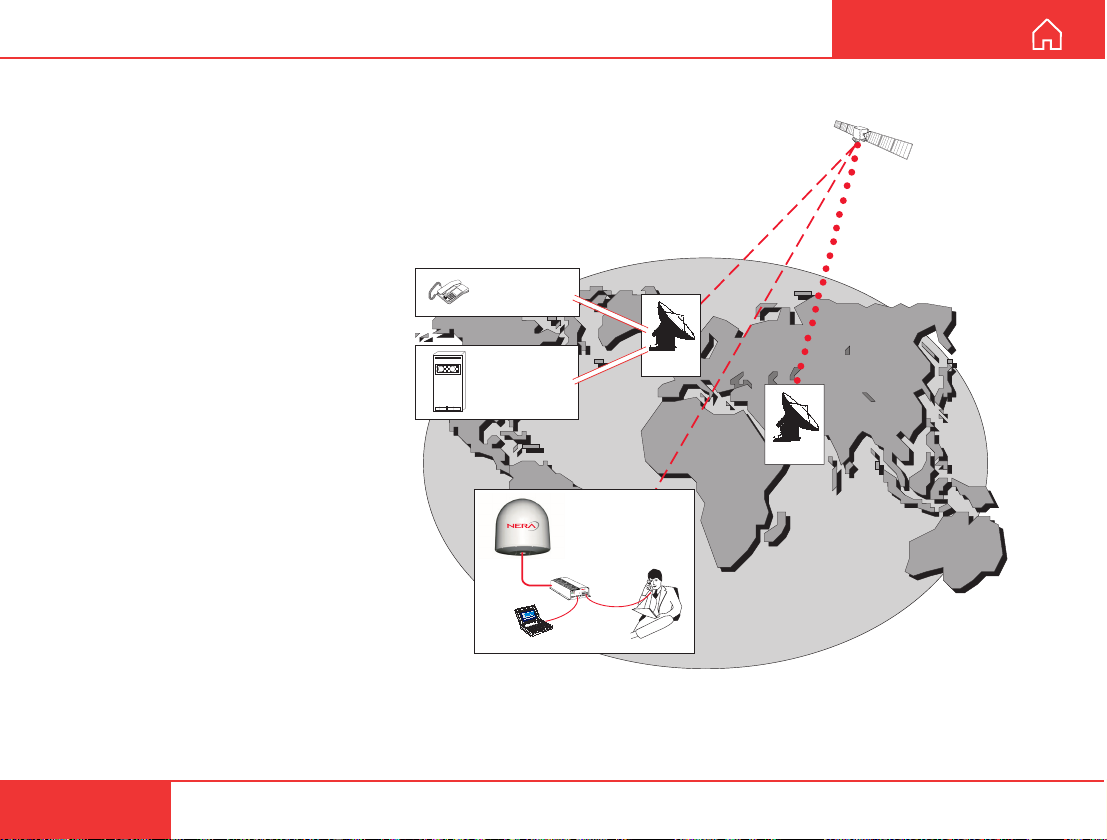

SYSTEM DESCRIPTION ........................ 44

Nera F33

3

USER GUIDE

OPERATION FROM PC

Starting up

• Switch ON Nera F33,

For location of the ON/OFF switch, see "

ing ON" in Getting Started.

Switch-

• Turn ON the PC and click

Start>Programs>vtLite Mobile.

Note! VtLite can only be used on one PC at a time.

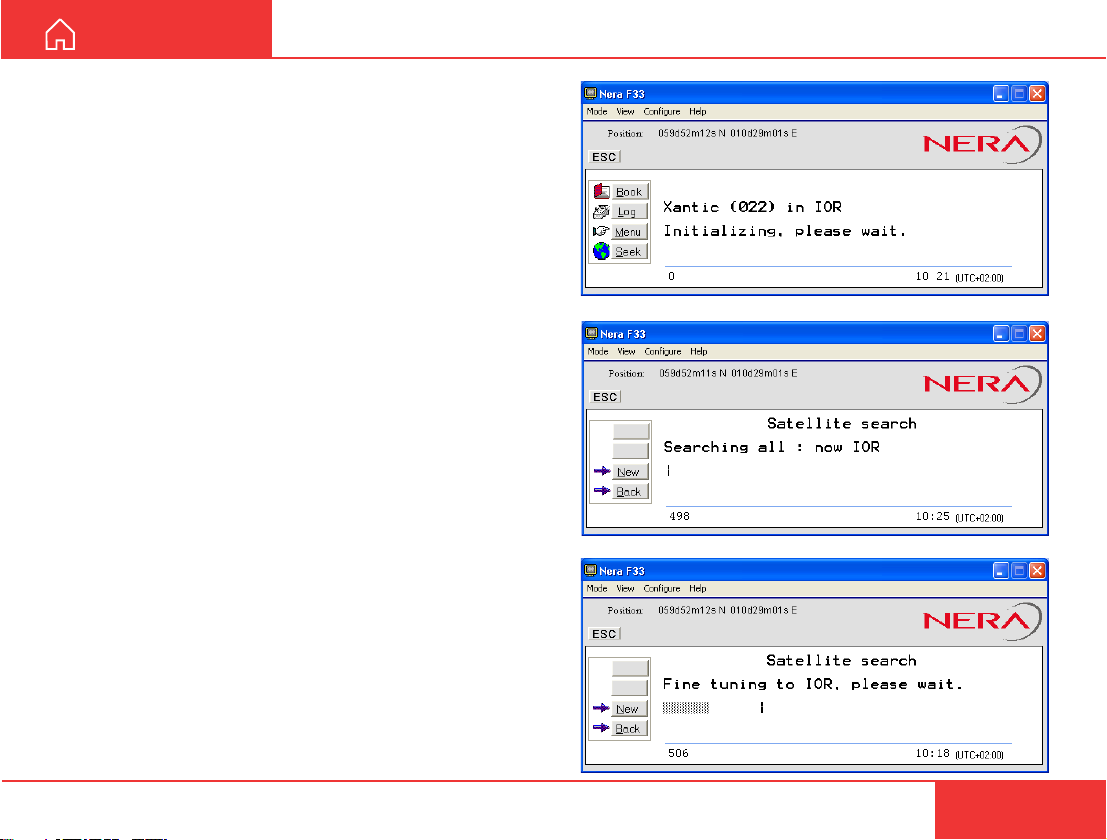

1 The satellite search program is initialized.

See also "Satellite search" in Getting Started.

2 Nera F33 starts searching for last known satel-

lite/elevation (Ocean Region) as default.

3 When receiving a satellite signal, a signal strength

bar will appear in the search window.
The longer the signal bar or higher the signal

strength indicator value, the better the signal quality.
The maximum marker indicates the highest signal

strength achieved during the current search.

Note! It is recommended that the signal strength
reading (S/N=Signal/Noise ratio) should be at least
500, typically 540. The antenna will automatically

1

2

3

Nera F33

5

OPERATION FROM PC CONT’D

USER GUIDE

fine-tune to the best signal and accept it.

Clicking Seek starts the search again.
If required, select a specific satellite by clicking New.

See also "Selecting default Net provider" in
Getting Started.

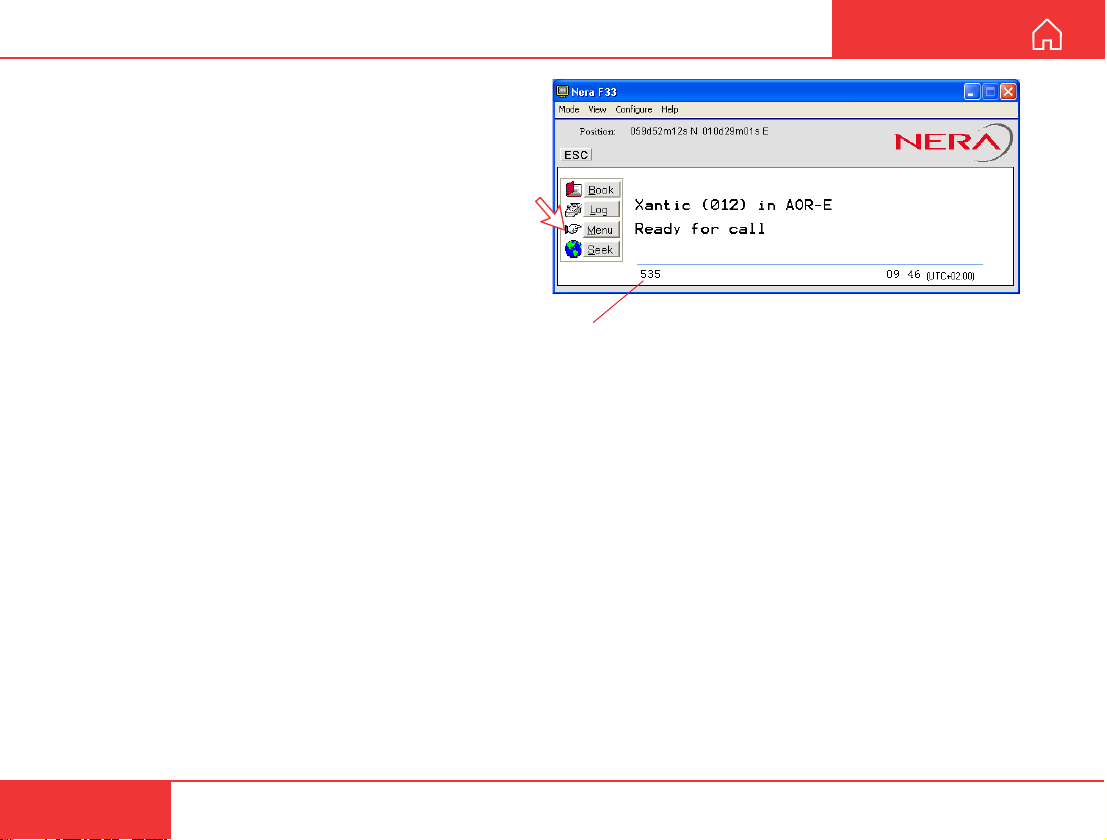

4 The equipment is ready for use when the

Main window appears.

To make a connection, see "

Getting Started.

Making a call" in

4

S/N=Signal/Noise ratio

6

Nera F33

USER MANUAL

USER GUIDE

OPERATION FROM PC CONT’D

Phone book

Adding and editing entries can also be done from the
handset, see

Getting Started.

Phone book capacity

Phone numbers: 100 entries 100 entries
Number length: 19 digits 19 digits
Name length: 29 characters 12 characters
Entry numbers: 0 - 99 100 and up

The SIM card entries and "MCU" entries merge when
the card is inserted. The list is sorted by name.

Abbreviated dialing (prefix 23)

OPERATION FROM HANDSET in

MCU SIM card

(Data vary with card type)

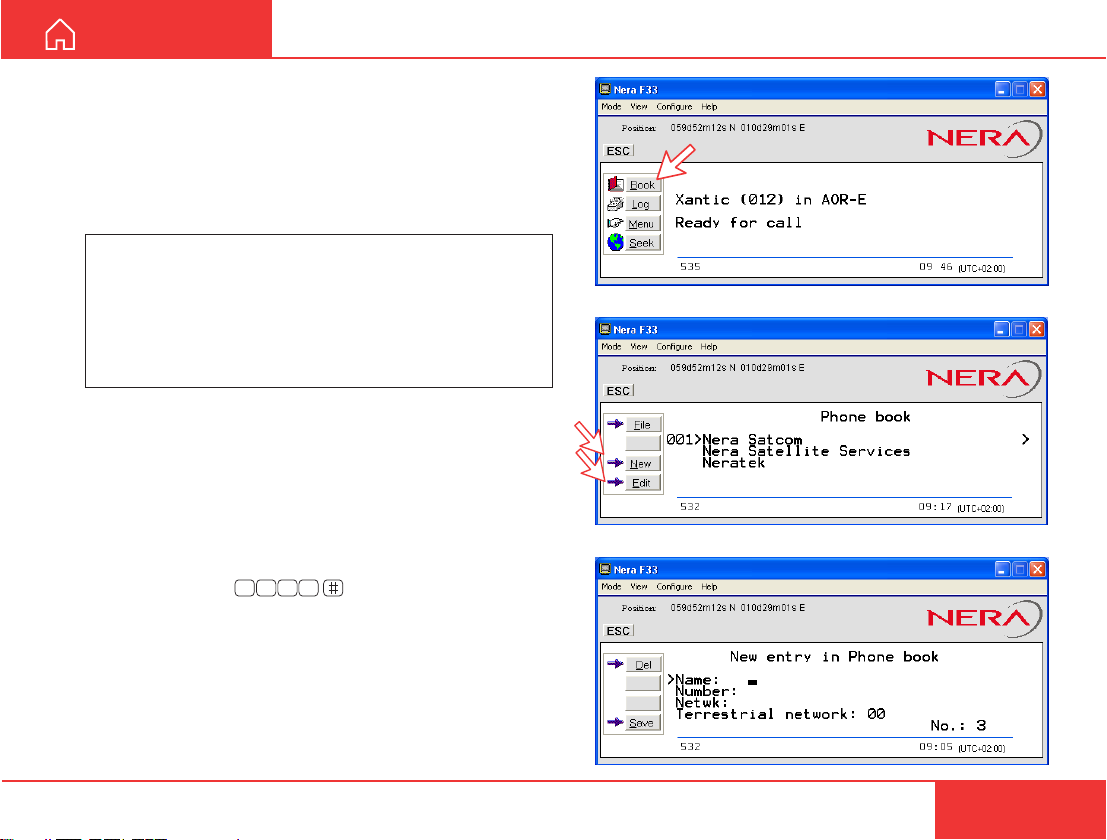

1 Clicking Book opens the Phone book.

2 Scroll through list œ/‘ to wanted entry.

1

Example: dialing

phone or ISDN keypad fetches and sends the tel­ephone number stored under short number entry 15.

2 3

5

on the analogue tele-

1

2

3

Adding or editing entries

3 Clicking New (window 2) opens the window used

to add an entry to the book.
Use Del to modify. Save stores the new entry.

Nera F33

7

OPERATION FROM PC CONT’D

USER GUIDE

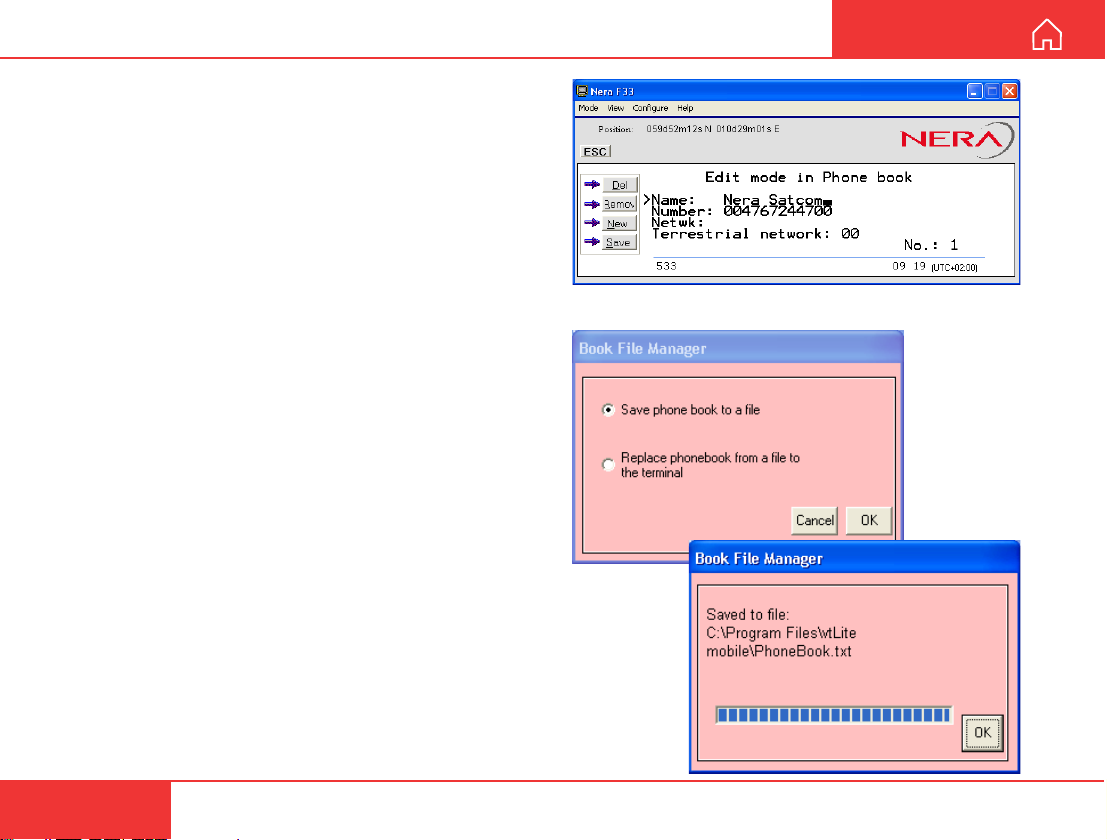

4 Clicking Edit (window 2 on previous page) opens

the window allowing changes to be made in the
Phone book.
Use Del to modify. Remov erases the entry.

Note! The book is also used with the restriction “Dial
from book only”, see "Restricted dialing setup".

Netwk = Net provider

Another Net provider may be selected when dialing
this number from the phone book. If no selection, the
system uses the default one.

Terrestrial network

It is possible to change Terrestrial network on the
selected Net provider (00 is most common).Call your
Net provider for more information.

Saving entries to/from PC

(owner level only, see "

Shifting to owner level")

5 Click File to save phone book, or replace the

stored one.

4

5

8

Nera F33

USER MANUAL

USER GUIDE

OPERATION FROM PC CONT’D

Traffic Log

This function logs all outgoing and incoming calls
both with and without SIM card inserted. Incoming
calls may be logged as well.

Up to 100 calls can be logged:
Circuit switched calls (Cct) including:

• speech

• fax

• data

Packet switched data calls (Mpds) including:

• Mobile Packet Data Service calls

The Nera F33 owner may set the log output mode as
follows, (see "

Traffic log settings"):

• paused

• cleared (stops logging and clears the log)

• enabled

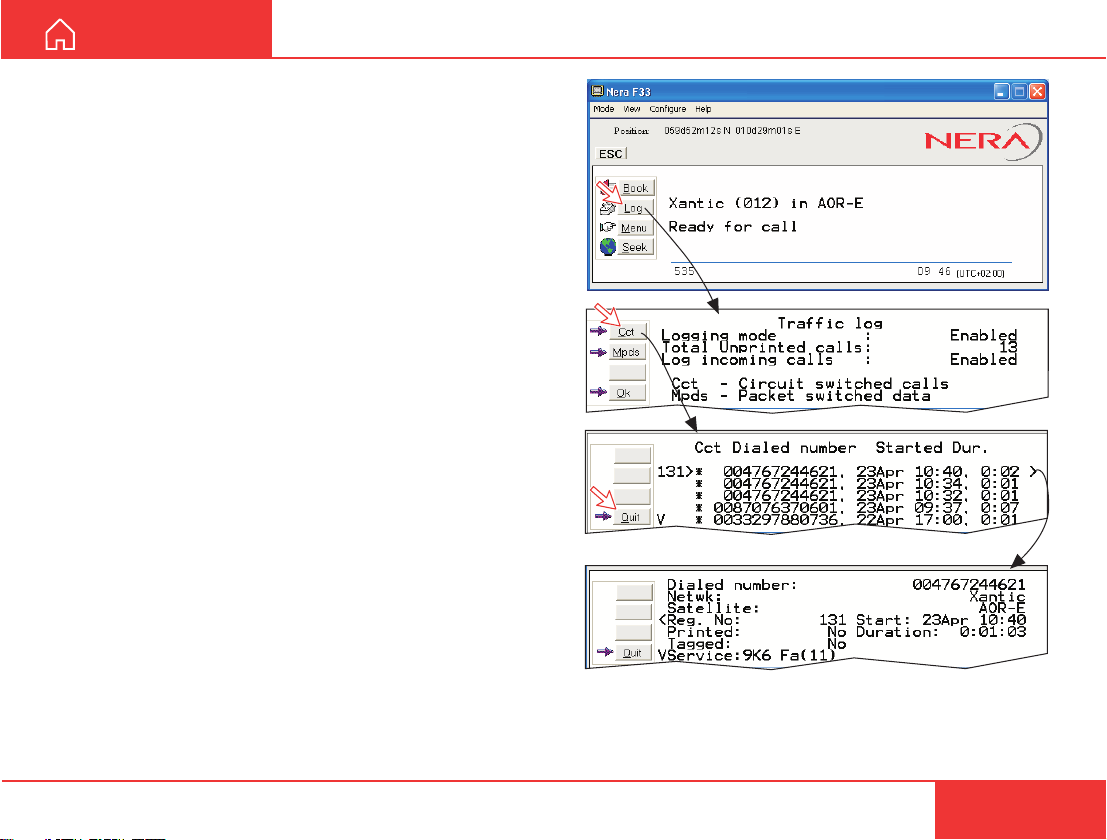

Traffic log readout

1 Clicking Log opens the Traffic log window.
2 The Traffic log window shows whether the logging

is enabled, whether incoming calls are logged, and
the total number of unprinted calls (MPDS and Cct
calls).

Circuit switched calls:

Clicking Cct displays the list of calls.

3 Scroll œ/‘ to wanted call record and press ’ to

display details of the selected call.

1

2

3

#

*

Calls not yet printed

Tagged for printout

4

4 The call details include data such as dialed

number, start of the call, duration, service and
terminal Id.

Quit reverts to main window.

Nera F33

9

OPERATION FROM PC CONT’D

USER GUIDE

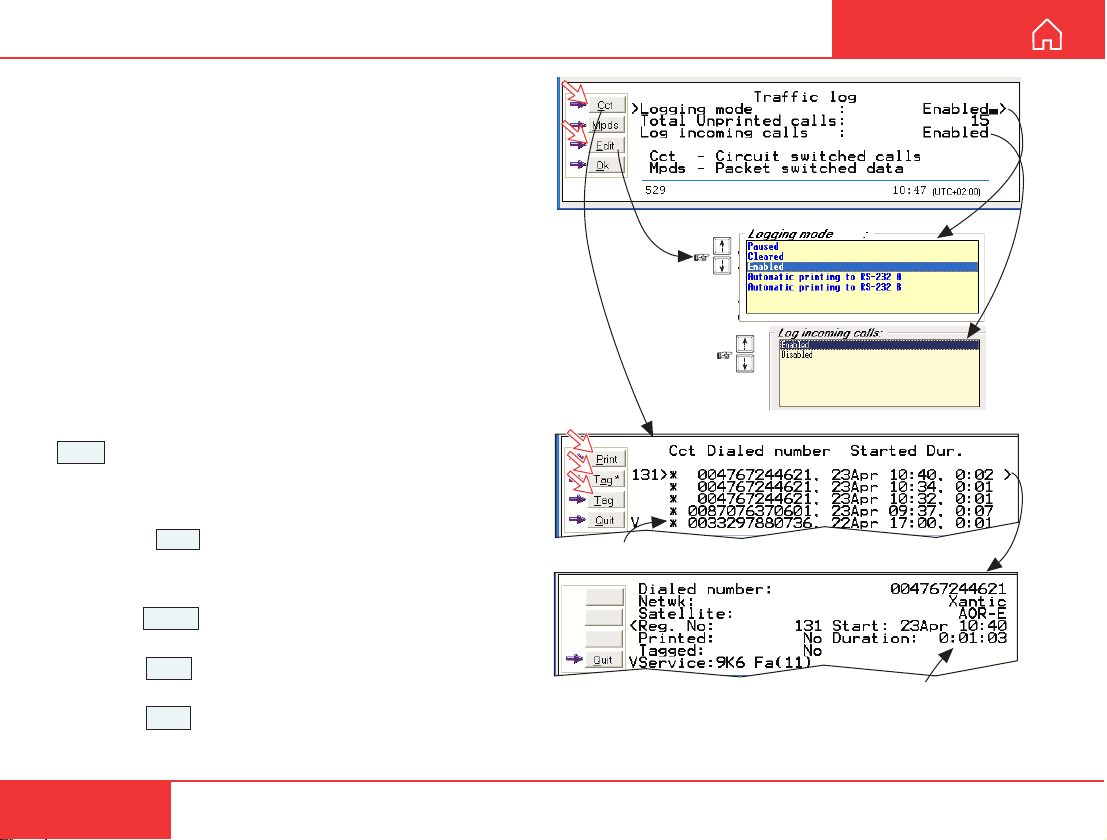

Traffic log settings

(owner level only, see "Shifting to owner level")

1 In the Main window, clicking Log opens the Traffic

log window, which displays the current log mode,
number of unprinted calls, and whether logging of
incoming calls is enabled/disabled.

• Click Edit or ’ to open Logging mode window:

• Paused: any logging is off.

• Cleared:

all log entries are deleted (incoming and outgoing).

• Enabled: outgoing logging is on.

• Automatic printing to RS-232 A:

• Automatic printing to RS-232 B:

Scroll œ/‘ to wanted mode, and click or press ç
to select.

output to local printer
output to local printer

• Scroll down ‘ to Log incoming calls and click

Edit or ’ to enable or disable logging of incoming calls.

Press

ç to select.

Circuit switched calls:

2 Clicking Cct in the Traffic log window (1) opens

the list of all call records except MPDS calls.
Print outputs all unprinted calls (marked with a star):

• Clicking Tag* marks all calls with a hash, which

adds the records to the printout file.

• Clicking Tag marks the selected call with a hash,

which adds the record to the printout file.

• Clicking Tag again untags a selected record.

3 Pressing ’ at a record when in window (2)

displays detailed call data.

1

2

Not printed

3

Hours:minutes:seconds

10

Nera F33

USER MANUAL

USER GUIDE

OPERATION FROM PC CONT’D

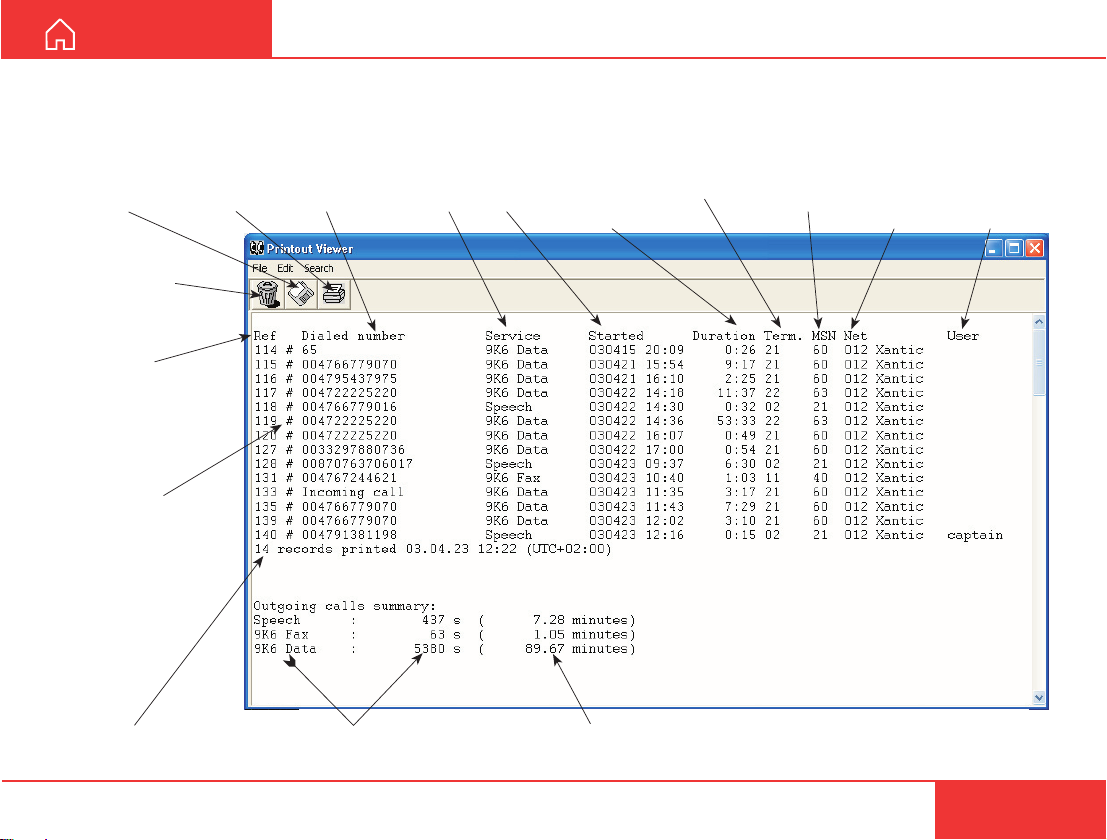

Traffic log printout viewer - normal calls (Cct)

The viewer lists tagged call records.
Records that have been printed out previously are

Click to save
record file

Click to delete
record file

Ref. no.

#: record printed
previously.

"No hash" when
printed first time.

Click for
printout

Subscriber
number

Type of
service

Start date
and time

Call duration
in minutes
and seconds

marked with a hash.
The record file can be printed out or saved to disk.
For default setup, see "

Terminal
Id

PRINT HANDLING SETUP".

MSN
number

Net
service
provider

User name if
access code
is activated

Number of
records

Nera F33

Duration in seconds
per service

Accumulated time in minutes
and 1/100 of a minute

11

OPERATION FROM PC CONT’D

USER GUIDE

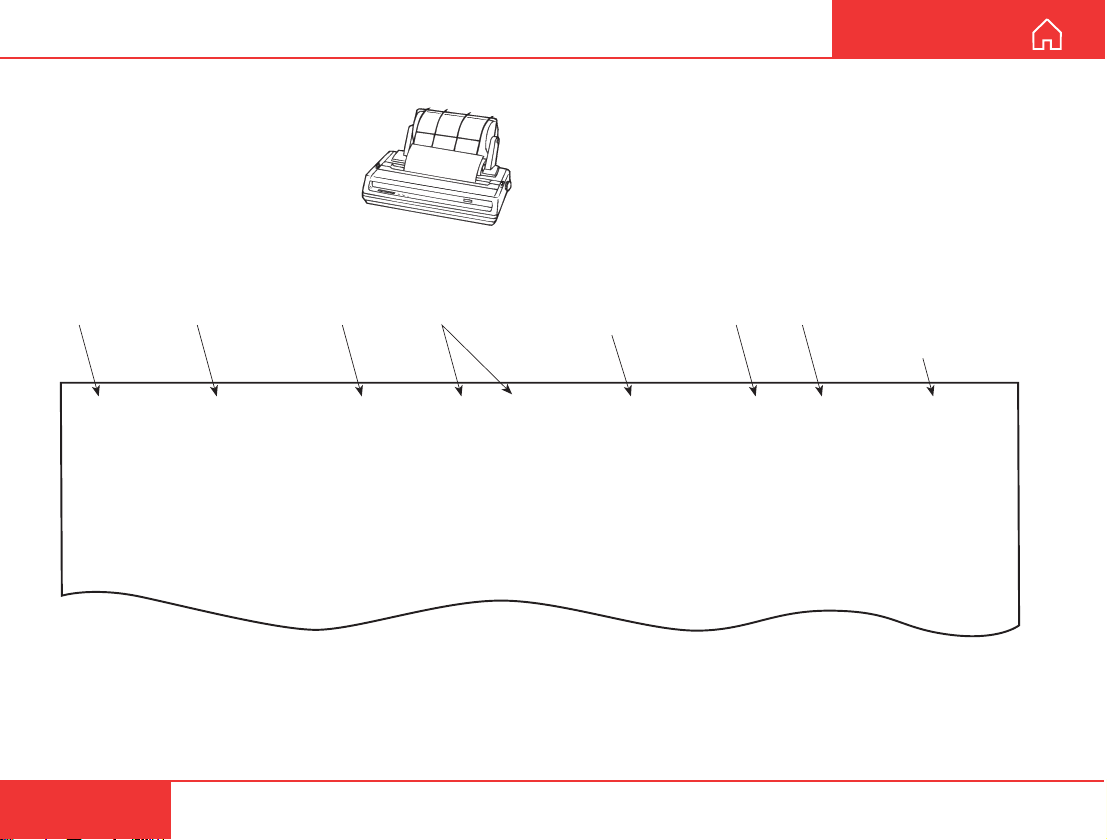

Traffic log output to serial printer

When connected, traffic log
details are automatically output
as indicated below.

One line is printed out after
each call.

Reference
number

018 004766779010 Speech 030508 08 : 33 0:53 20 004Tel captain
019 004766779010 Speech 030508 08 : 35 1:04 20 004Tel captain
020 004791381198 Speech 030508 08 : 38 0:12 20 004Tel
021 004766779016 Speech 030508 08 : 40 0:24 20 004Tel captain
022 004766779016 9k6fax [phone] : 45 0:56 40 004Tel
023 004766779016 9k6fax [phone] : 55 2:06 40 004Tel
024 004766779016 9k6fax [phone] : 05 0:56 40 004Tel
025 004766779070 9k6dat 030508 10 : 40 10:50 60 004Tel
026 004766779070 9k6dat 030508 11 : 50 0:58 60 004Tel

Subscriber
number

Type of
service

Start date
and time

For setting up, see Serial printer settings in Getting
Started.

Select logging mode in vtLite Mobile Traffic log to:
Automatic printing to RS232A or RS232B,
see

Traffic log settings earlier in this manual.

Call duration in
minutes and
seconds

MSN
number

Net service
provider

User name
if access
code is
activated

12

Nera F33

USER GUIDE

Menu functions

Point at icons and double-click the mouse to open menus and functions.

CONFIGURATION FROM PC

Only appears in OWNER level.

Nera F33

Only appears in
OWNER level

Only appears in OWNER level.

Only appears when
Diagnostics is ON

13

CONFIGURATION FROM PC CONT’D

USER GUIDE

Function reference list

Reference number for direct selection. Click menu in main window and then key in the number.

Ref. Function Features

1 Set default Net provider Allows changing Net service provider (and terrestrial network).

2 Set access level Allows shifting between user level and owner level, changing PIN code and

4 Phone setup menu
42 Call duration guard Sets maximum call duration for 64 kbps calls.
44 Set time zone Sets MCU Time Zone (UTC and date are set automatically).
47 Message indication Switches indication of received fax and data cals on/off.

9 Advanced functions menu
91 Access control menu See "Advanced functions".

911 Restrict dial
912 Access code
913 Restrict SIM usage Only allows calls with specific card, no card or any card.

93
94 Alarms and messages See information on CD
97 Configuration menu

971 ISDN configuration Chooses between ISDN protocols.
972 Net service providers Changing Net service provider data.
974 Set diagnostics Allows additional system information to be displayed
977
978 Charge tone Setup and enabling/disabling charge tone.
979

98 Information available See "Advanced functions".
982
983
984
989

99 Customization menu See "Advanced functions".
991 Paid functions Installs additional functions, if any.
992 Phone name setup Allows altering the factory and phone name.

Software update prep Prepares MCU for software update.

Rx L-Band setup Not in use

Spot beam report method

Misc.version Id information

Transceiver status Displays max/min voltages and temperatures in RF unit.
EIRP table Carrier status (not in use)

Network status information

See "Selecting default Net service provider".

owner password. See "Access level".

Only allows calls from Phone Book. List of barred numbers may be established.
Sets personal codes for using the satellite terminal.

Sending spot ID or position

Displays a series of version information windows and FWD ID.

Displays various network status information.

14

Nera F33

USER MANUAL

USER GUIDE

CONFIGURATION FROM PC CONT’D

Access level

The Nera F33 user program (vtLite Mobile) is acces­sible from two levels:

• USER LEVEL

• OWNER LEVEL

Warning! To prevent misuse, passwords other than
default must be entered before putting the Nera F33
in operation.

Activating/changing user PIN code

– accessed by owner level password.

1 Double-click the Set access level icon on the

Function menu.

2 Click Edit to enter/modify the PIN code.
3 Key in:

• Old PIN code (default: 1234)

• New PIN code (4 - 10 digits possible)

• Retype to confirm

Click Ok for each entry and to store the new code.

Note! Clicking Ok without entering any numbers for
New PIN and Retype new PIN disables the PIN code.

NB! The Old PIN code must be entered to reactivate
the previous PIN code.

1

2

3

If the PIN is accidentally lost, it is possible to reset the
user’s password to default (1234) by logging in as owner:

"* + owner’s password"

(Resetting is not possible on the SIM card.)

Nera F33

15

CONFIGURATION FROM PC CONT’D

USER GUIDE

Functions requiring owner level

Programming of the functions below requires that the
user access is set to OWNER LEVEL:

• Traffic log settings/printouts

• Modifying password

• Net Service provider names

• Restricted dial

• Restricted SIM usage

• ISDN configuration (except data/time element)

• Access code

• Paid functions

• Phone name setup

• Spot beam report method

Shifting to owner level

1 Click Owner in Set access level window.
2 Key in the password.

Note! The default password is: 1 2 3 4 5 6 7 8 9 0

Clicking Ok activates the Owner level.

Changing owner level password

3 Open the Set access level window again, and

click Edit to modify the owner password. Key in:

• Current password

• New password (10 – 12 digits)

• Retype to confirm

Click Ok for each entry and to store new password.

To revert to User level, open the "Set access level"
window and click User.

1

2

3

16

Nera F33

USER MANUAL

USER GUIDE

CONFIGURATION FROM PC CONT’D

Selecting default Net service provider

The default Inmarsat Net service provider for a
satellite (Ocean Region) is automatically used if
the user does not select another one when making
a call.

Make sure that you choose the Net service pro­vider who commissioned the equipment. You will
othervise be barred or charged additional rate.

In this menu default Net service provider can be
preprogrammed for the current Ocean Region.

When using SIM card, selection is automatically
restricted to one of the allowed Net service provid­ers and does not need to be programmed!

Procedure:

1 On the Function menu, double-click the Set

default Net provider icon to display the current

selections.

2 Scroll up/down to change satellite:

œ/‘

.

3 Clicking Selct or pressing Ð opens the window

promting you to confirm the choice of satellite with
the current default Net service provider.

To change default Net service provider for a satel­lite region, see next page.

1

2

3

Nera F33

17

CONFIGURATION FROM PC CONT’D

USER GUIDE

4 Clicking Edit or pressing Ð at the satellite region

selected in step 2, displays the list of available Net
service providers.

5 Scroll to required Net provider:

press
Save stores the selected Net provider for this satel­lite (Ocean Region).

to enter chosen Net as default.

ç

œ/‘

, and

6 Click Yes sets Net service provider for all satellites

(Ocean Regions).

4

5

6

18

Nera F33

USER MANUAL

USER GUIDE

CONFIGURATION FROM PC CONT’D

Phone setup

This phone setup menu includes the functions:

• Limitation of call duration.

• Setting date and time.

• Indication of received calls, see next page.

Double-click the Phone setup menu icon in the
Function menu to access the above functions:

Call duration limit

The call duration guard prevents accidental trans­mission of prolonged 9.6 kbps data calls.
The timer sets the point at which the call is auto­matically cleared:

1 Double-click the Call duration guard icon
2 Click Edit to set the timer.
3 Scroll œ/‘ to select the required limit (either

“Stay connected” or in steps between 15 minutes
and 12 hours), and click Selct to store the setting.

Setting time zone

The function sets the time displayed in the window:

1 Double-click Set time zone to change zone.
4 Clicking Edit opens the list.
5 Scroll œ/‘ to select the required zone.

Click Selct to store the selected zone.

1

2

3

4

5

Nera F33

19

CONFIGURATION FROM PC CONT’D

USER GUIDE

Message indication

When the Message Indication function is set On, a
received data and/or fax call is signalled in all Nera
Display Handsets:

The ringing stops when pressing , or when the
call is finished.

Data call:

F2M = Fixed-to-Mobile

Fax call:

When the call is
finished, the display
reverts to idle.

Setup:

F2M data call

Press ESC. . . . . .

F2M fax call

Press ESC. . . . . .

Telenor IOR
Ready for call

1 Double-click the Message Indication icon in the

Phone setup menu.

2 Select Fax or Data and Enable or Disable

indication of received messages, as required.

Press Save to store the settings.

1

2

20

Nera F33

USER MANUAL

USER GUIDE

Advanced functions

Some Advanced

*

functions are accessible

OWNER LEVEL

from
only.

The OWNER LEVEL is
protected by password.

For shifting to owner
level and assignment of
password,

Access level".

see "

Other Advanced

**

functions are accessible
when Diagnostics is
turned ON.

CONFIGURATION FROM PC CONT’D

*

**

*

The Advanced functions include the following menus:

• Access control: Restrict dial

Access code
Restrict SIM usage

• Software update: Prepare software upgrade

• Configuration: ISDN configuration

Net service provider names
Set diagnostics
Spot Beam Report Method

• Information available: Misc. version Id information

Network status information

(when diagnostics is ON, see "Set diagnostics")

• Customize: Paid functions

Phone name setup (owner level)

Nera F33

21

CONFIGURATION FROM PC CONT’D

6. Satellite
setup

8. Information
available

1. Access
control

7.

Configuration

9. Customize

4. Alarms and
messages

Exit Menu

1. Restricted
dial

2. Access
code

3. Restrict SIM
usage

Exit Menu

Access control

Restricted dialing

The restricted dialing function allows the owner to
establish a Barred list of subscriber numbers that
cannot be called; or set Nera F33 for dialing from
Phone Book only. The restricted dialing modes
prevent misuse of Nera F33:

• Barred list, which may contain up to 10 phone

numbers or part of numbers that can not be
called. E.g. the entry "0087" in the barred list
prevents all mobile-to-mobile calls.

• Dial from Book only, which restricts calls to the

numbers in Nera F33 Phone Book. It is still possible
to append: an entry with number field "0047" means
that it is possible to dial all Norwegian numbers.
When a SIM card is inserted, the SIM entries will
not be merged with the "phone" entries.

The function is active for non-SIM operation and for
one specific SIM card, see "

• No restrictions (default).

Only one mode can be active at one time, as se­lected by the owner, see next page.

Checking the dialing setup
Via the Function menu > Advanced functions
menu, double-clicking the Restrict dial icon on the
Access control menu shows the active mode:

• Barred list

22

• Dial from Book only

• No restrictions

Restricted SIM usage".

USER GUIDE

Alternative
modes

Nera F33

USER MANUAL

USER GUIDE

CONFIGURATION FROM PC CONT’D

Restricted dialing setup

(owner level only)

"Barred list" and phone book are established as
follows:

1 Open the Restricted dial window as shown on the

previous page.

2 The Restricted dialing window shows which list is

currently active.
Edit allows selection of restriction mode.
Scroll up/down to select:

(Selct enters the chosen mode)

3 Clicking List displays the blocked phone numbers.

The List key only appears when Current mode is

Barred list.

4 Clicking Edit allows the barred number to be

modified:
The field is empty when clicking New to add a

phone number to the list.

Remove deletes number.
Save stores the changes.

1

2

3

4

5 When the restriction mode "Dial from Book only" is

active, clicking Book allows data to be entered.

Warning! Remember to revert to

user level

Nera F33

5

23

CONFIGURATION FROM PC CONT’D

USER GUIDE

Access code (owner level only)

Access code can be activated for 4.8 speech only.

When the access code function has been activated,
the user is always prompted for a 1 - 8 digit personal
code when making a call.

All telephones are activated.To release a telephone for
use without access code, see

MSN configuration.

Entering the personal code allows the subscriber
number to be dialed, e.g.:

2

abc

7

pqrs

Telenor IOR
Code

Dial #

*

4

4

abc

abc

7

pqrs

0 0

Nera ISDN Handset:

0 4

0

Analogue telephone:

0 0 4 7 6 7 4 42 7 0 0

abc

7

6

pqrs

mno

42 31

Setup:

1 Double-click the Access code icon in the Access

control menu.

2 Pressing New opens the Access code entry

window, allowing a name associated with the

particular code to be entered.

3 Pressing Ok allows entering the personal code.

Pressing Ok again prompts you to confirm the entry.

4 When pressing the Access code icon the next

time (1), the window displays a list of the names
associated with the programmed access codes.

1

2

3

4

24

Nera F33

USER MANUAL

USER GUIDE

CONFIGURATION FROM PC CONT’D

Restricted SIM usage

Allowed SIM
Nera F33 can be set to operate from:

• Lock SIM, locked to one specific SIM card.

Any other SIM user will be rejected.

• No SIM card. All SIM users will be rejected.

• Any SIM card.

Setting SIM restrictions

(owner level only)

1 Double-click the Restrict SIM usage icon.
2 The SIM restrictions window shows an example

with the setting Allowed SIM: No SIM.
Click Any (default) to set Nera F33 for operation

from a specific card only.

Lock SIM:

3 Click Lock and insert the actual SIM card.

Nera F33 can now be operated with that specific
card only.

4 When retracting the card, the Id of the SIM pro-

vider is displayed.

Ok stores the settings.

1

2

3

4

Nera F33

25

CONFIGURATION FROM PC CONT’D

USER GUIDE

Configuration menu

ISDN protocol configuration

1 Open the Configuration menu via the Function

menu > Advanced functions menu.

2 Double-clicking the ISDN configuration displays

the ISDN configurations implemented in Nera F33.

Switch to

• Protocol

Select Euro ISDN for connection of equipment
conforming to the European ISDN standard.
Select NI-1 protocol for equipment conforming to
the NI-1 standard (National ISDN-1).

• Date/time element

When enabled, date and time is sent to the connected
Terminal Equipment during call establishment. Some
ISDN devices do not survive this message. The date
and time transmission may then be disabled.

• Layer 2 Activation

The layer 2 connection is deactivated after some
idle time as default. Some ISDN devices interpret
this as an alarm situation. Layer 2 dectivation can
then be disabled. When the ISDN protocol is set to
NI-1, this option is on as default.

• Default service

Some ISDN devices can not signal their own MSN
number. Such a phone will be not able to use the
64 kbps service since all "unknown" speech devices
are required to use the 4.8 speech service. The
user can set Nera F33 to map all "unknown" de­vices to 4.8 speech (AMBE) service.

NB! Remember to revert to user level.

owner level to edit the entries:

1

Exit Menu

9. Customize

Exit Menu

8. Charge tone

1. Access
control

1. ISDN

configuration

9. Spot Beam

Report Method

3. Software

update prep.

2. Net service
providers

4. Alarms and
messages

4. Set

diagnostics

7. Configuration

7. Rx L-Band
Setup

2

26

Nera F33

USER MANUAL

4. Set

diagnostics

2. Net service
providers

9. Spot Beam

Report Method

Exit Menu

1. ISDN

configuration

7. Rx L-Band
Setup

8. Charge
tone

USER GUIDE

CONFIGURATION FROM PC CONT’D

Charge tone setup (owner level only)

When the charge tone function has been enabled, a
single frequency tone or DTMF is transmitted once
the call has been established. The tone informs an
external debiting system, e.g. a pay phone con­nected to the MCU that charging can start.

Procedure:

1 Double-click the charge tone icon via the

Function menu > Advanced functions menu >
Configuration menu.

2 The Charge tone window appears. The example

indicates that a single 2400 Hz with a duration of
1000 ms will be emitted.
The window provides buttons for enabling/disabling
the charge tone function.

3 Clicking Setup allows selecting a single charge

tone or DTMF.

4 Clicking Edit allows selection between Single

tone and DTMF tone emission.

5 Clicking Selct with the Single tone activated

allows entering the required tone frequency.

6 Clicking Selct with the DTMF tone activated

allows entering the DTMF key and duration.

Valid settings:
Frequency: 400 - 3400 Hz
Duration: 10 - 5000 ms
DTMF key: 0 - 15

1

2

3

4

5

6

Nera F33

27

CONFIGURATION FROM PC CONT’D

USER GUIDE

Net service providers (owner level only)

Adding, editing, or removing entries in the list of Net
service providers:

1 Via the Function menu > Advanced functions

menu, double-clicking the Net service providers

icon in the Configuration menu displays the list of
Net service providers including their station codes.

2 Scroll to required Net service provider, œ/‘.

Clicking Ok returns you to the Configuration window.
Remov deletes entry. Clicking Edit opens the
window allowing the station code and provider name
to be modified (window

3).

4 Clicking New (window 2) opens the window allowing

station code and provider name to be added.
Use Del to modify. Save stores the changes.

NB! Remember to revert to

user level.

1

Exit Menu

8. Charge
tone

1. ISDN

configuration

9. Spot Beam

Report Method

2. Net service
providers

4. Set

diagnostics

7. Rx L-Band
Setup

2

3

4

28

Nera F33

USER MANUAL

USER GUIDE

CONFIGURATION FROM PC CONT’D

Spot beam report method

1 Double-click the Spot beam report method icon

via the Function menu > Advanced functions
menu > Configuration menu.

2 Two selections are provided:

• Do not transmit my position

• May send position (default)

May be changed in

Set diagnostics

Additional system information is displayed when
diagnostics is turned On.

See also

MENU FUNCTIONS.

owner level only

1 Double-click Set diagnostics.
3 Click On or Off as required.
4 Shows idle window with Diagnostics On.

When pointing at the time indication a popup
window shows the year and date.

1

2

3

4

Nera F33

29

CONFIGURATION FROM PC CONT’D

2. Misc.

version I...

9. Network

status inf...

Exit Menu

USER GUIDE

Information available

Miscellaneous version Id information

The Information available function displays the
terminal forward Id and system versions

.

1 Via the Function menu > Advanced functions

menu, double-clicking the Miscellanous version Id
information icon in the Information available
menu displays the available data (window 2).

2 With Diagnostics On, pressing ‘ opens a series

of version information windows.

Network status information

(owner level only)

This function displays various network status
information.

1

2

3

3 Double-click the Network status information icon

in the Information available menu for readout.

NB! Remember to revert to

30

user level.

Nera F33

USER MANUAL

USER GUIDE

CONFIGURATION FROM PC CONT’D

Customize menu

(owner level only)

1 Open the Customization menu via the Function

menu > Advanced functions menu.

Paid functions

2 A paid function is activated by entering an

"Opening key" provided when purchasing the
function.
Double-clicking the Paid functions icon in the

Customization menu displays the list of available
functions.
Clicking New opens the Open new paid functions

menu. Enter the "Opening key" and click Ok.

Phone name setup

3 Double-clicking the Phone name setup icon in the

Customization menu displays the Phone name, i.e.

Nera F33. To change, key in uppercase/lowercase
letters as required.
Use Del to modify.

Save stores the changes

1

2

3

NB! Remember to revert to

Nera F33

user level.

31

CONFIGURATION FROM PC CONT’D

USER GUIDE

Routing of incoming calls

When applying for IMN numbers, a Terminal Id
(OID/DID) is received from the Net service provider.

All devices connected to Nera F33 can make outgo­ing calls. For incoming calls it must be assured that
the Terminal Ids and MSN numbers configured are
as commissioned.

To make an incoming call reach a particular device,
an MSN number and the Terminal Id “connected” to
the IMN number must be programmed into the Main
Communication Unit (MCU). See later in this manual.

The table below lists valid MSN numbers for the
available services.

VALID TERMINAL IDs AND MSN NUMBERS

ISDN PORTS

4.8kbps speech

Term.Id MSN

01* 20*
02* 21*
03* 22*

04 23
05 24
06 25
07 26
08 27
09 28

01/20: - first Nera ISDN Handset
03/22 - first Nera ISDN Handset
02/21 - analogue phone on TA

ISDN / RS-232 / USB PORTS

9.6kbps data

Term.Id MSN

21* 60*
22* 61*
23* 62*

24 63
25 64
26 65
27 66
28 67
29 68

21/60, preset for RS-232A port
22/61, preset for RS-232B port
23/62, preset for USB port

Numbers to be programmed into ISDN devices:

In ISDN device:

MSN number

In Main Communication Unit:

MSN number

and Terminal Id

(the Terminal Id is paired

with a specific IMN number)

For an easy start, some Terminal Ids and MSN
numbers have been preprogrammed into the MCU
(marked with a star in the table).

Note! A Term.Id already entered is not accepted.

9.6FAX VIA TA

9.6kbps fax

Term.Id MSN

11* 40
12 41
13 42

11/40: - fax on TA

32

* Preprogrammed

Nera F33

USER MANUALUSER GUIDE

prog

CONFIGURATION FROM PC CONT’D

Routing of incoming calls (examples)

The table below illustrates the use of appropriate
Terminal Ids for the various services combined with
examples incoming IMN numbers.

* Preprogrammed, see table on previous page.

Name Service MCU ports

Bridge MSN20* 4.8kbps speech 01* 762420510

Nera TA MSN 21 * 4.8 kbps speech 02 * 762420511

Bridge MSN22* 4.8kbps speech 03* 762420512

D
IA

L
0
0
+

I
N
T

L
T
E
L

.
N
O
.

+

S

H

I

F

T BAT

A

L

PH

A

O
N

F
U
N
C

A
L
P
H
A

E

N

T

E

R

S
H

M

I
F

O

T

R
E
/

L

E

S

H
E
L
P

P

T

T

O
N
/
O
F
F

L

I

S

T

D

E

L

E

S

I

S

C

T

L

P
LA
Y

1

A
B
C

2

D
E
F

3

G

H

I

4

JK
L

5

M
N
O

6

P

Q

R

T
A
X

7

S
T
U

L

I

G

H

T

8

V
W
X

9

Y

Z

Æ

D
A
T
A

Ø
Å.

0

Ä
Ö
Ü

S

P

C

D
I
A

L
0
0
+

I

N

T

L
T
E
L

.N
O
.

+

SHIF

T

BA

T

ALPHA

O
N

F
U
N
C

A
L
P
H
A

E

N

T

E

R

S
H

M

I
F

O

T

R
E
/

L

E

S

H
E
L
P

P

T

T

O
N
/
O
F
F

L

I

S

T

D

E

L

E

S

I

S

C

T

L

P
LA
Y

1

A
B
C

2

D
E
F

3

G

H

I

4

J
K
L

5

M
N
O

6

P

Q

R

T
A
X

7

S
T
U

L

I

G

H

T

8

V
W
X

9

Y

Z

Æ

D
A
T
A

Ø
Å.

0

Ä
Ö
Ü

S

P

C

Note! If the Net service provider does not specify
which Terminal Id should be used with the various
IMN numbers, select Term. Id no.1 for the first

4.8 kbps telephone, then no. 2 for the second phone.
Use the same principle for the other type services. It
is advisable to note down the selections.

Provided by ISP:

Term.Id IMN (examples)

ISDN

TA - TEL1

ISDN

TA - TEL2

Nera TA MSN 40 * 9.6 kbps fax 11 * 762420513

Data MSN60* 9.6 kbps data 21* 762420514

RS-232 A

Data MSN 61* 9.6 kbpsdata 22* 762420515

RS-232 B

Data MSN62* 9.6 kbps data 23 * 762420516

USB

* Pre

Nera F33

rammed

33

CONFIGURATION FROM PC CONT’D

MSN configuration

You are prompted to enter the owner level password
(default: 1234567890). For security, the password
should be changed before or after configuration of a
device. See ACCESS LEVEL > Changing owner

level password.

USER GUIDE

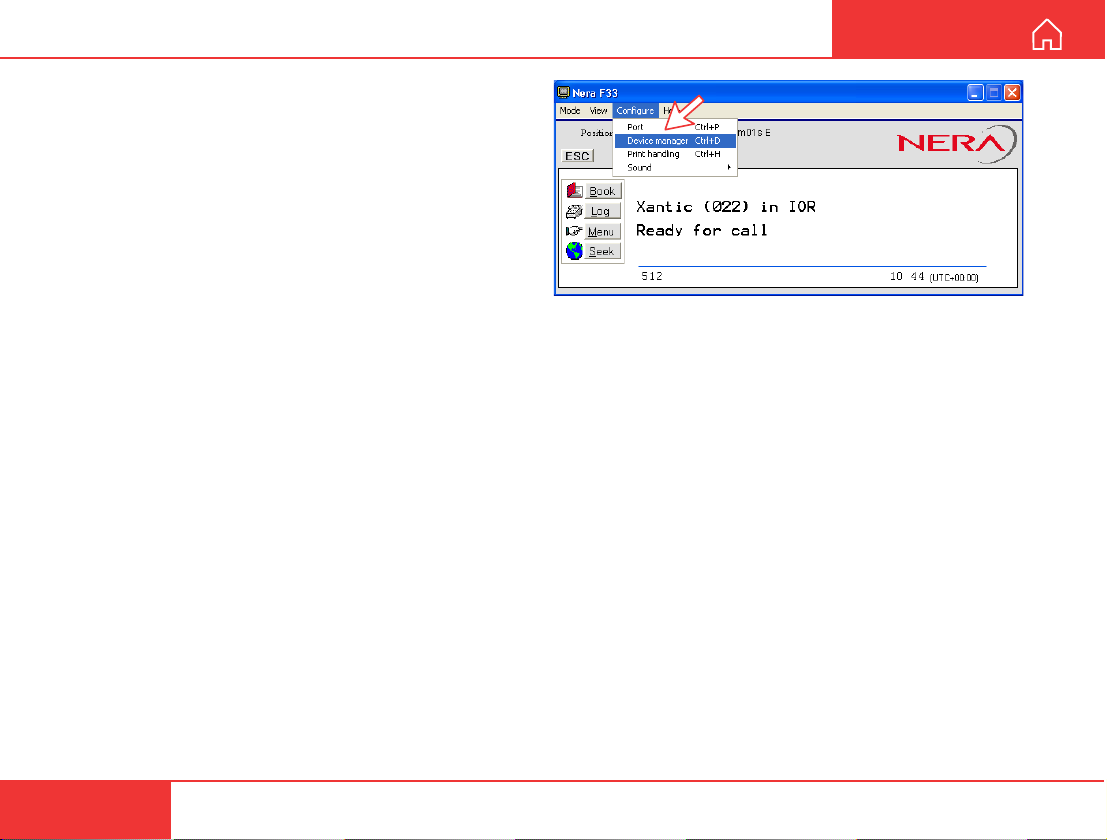

Click to open Device Manager for configuration
of ISDN/analogue/RS-232/RS-422/USB > > > > > >

34

Nera F33

USER MANUALUSER GUIDE

CONFIGURATION FROM PC CONT’D

Nera ISDN Handset

• Nera ISDN Handsets will automatically be
configured with Handset MSNs in the Device
Manager.

• The first Nera ISDN Handset connected will be given
MSN20 & MSN22.

• The next Nera ISDN Handset will be the next
available MSN.

• The MSNs can be controlled independently, e.g. if
two handsets are given the same MSN, they will

both respond to an incoming call to that MSN.

• To verify selected MSN of a handset, check in the
Device Manager or press the "R"-button on the
Handset.

Open the device manager, see previous page.
Right-clicking a Dedicated Handset and then clicking
Handset Configuration starts the Handset Setup
Wizard.

Enter Name/Location of the installed Handset, as
required.

Require Access Code must be
unchecked to allow this Handset to be
used without entering a code.

Nera F33

35

CONFIGURATION FROM PC CONT’D

USER GUIDE

Deleting an ISDN Handset

Unplug the Nera ISDN Handset to be deleted and
rightclick the same in the Dedicated Handset list.
Clicking Test Handset removes its data, leaving the
Terminal Id and MSN number vacant for another
Display Handset.

If necessary, click refresh: and repeat clicking
Test Handset. The Main Communication Unit will
remember the handset connection data. All handsets
are given a unique name.

Note! A triangle symbol
appears when a Display Handset is missing.

!

in the Device Manager

36

Nera F33

USER MANUALUSER GUIDE

ISDN port

Open device manager and right-click to open ISDN Setup Wizard.

CONFIGURATION FROM PC CONT’D

Select the required service:

• 4.8 kbps standard speech service

• 9.6 kbps fax service

Click to continue.
The system selects the Next
available Terminal Id. Check with

Terminal Id received
from Net provider.

Key in MSN number
if not using the
recommended one.

Nera F33

Echo Cancellation is performed
automatically for all voice calls. Uncheck
if problems with echo cancellation.

Require Access Code is checked when
used for 4.8 speech and 64 kbps speech.

Apply charge tone is used when
connecting pay phone.

Click to enter
number.

37

CONFIGURATION FROM PC CONT’D

RS-232 port

Open device manager and right-click to open setup editor.

USER GUIDE

Click to open Serial Port Setup.

Key in MSN number if not using
the recommended one.
Click Proceed to enter number.

38

Nera F33

USER MANUALUSER GUIDE

USB port

Open device manager and right-click to open setup editor.

CONFIGURATION FROM PC CONT’D

Nera F33

Click to open

Serial Port
Setup.

Key in MSN number
if not using the
recommended one.
Click Proceed to
enter number.

39

CONFIGURATION FROM PC CONT’D

Saving and reloading configurations

The Nera F33 configuration settings may be stored
on the PC harddisk, e.g. prior to replacing software.

Procedure:

1 Open the Device Manager window as indicated
2 Clicking Devices >Save config to a file

automatically stores the data in a "Config.cgf" file in
the vtLite directory c:/program files/vtLite Mobile.

3 After installing the software, the settings may be

transferred back to Nera F33 by pressing Load.

4 Clicking Restore Factory Defaults loads default

Nera F33 configurations.

Printout/storing a configuration summary:

5 Clicking Print Summary opens the Printout

Viewer (see next page) which lists the settings of the

end user equipment, and allows filing and/or printout.

Note!

Save config to a file only saves the Device
Manager settings.

Settings such as Net provider / Access codes / ISDN
protocol are not saved.

Phone book data and traffic log must be saved in the
Book and Log menus.

USER GUIDE

40

Nera F33

USER MANUALUSER GUIDE

Configuration printout viewer

The list is sorted by Terminal Id

Print to local printer

Save to disk

Terminal Id and
MSN number

Type of service

Individual device
settings

Name/location,
if entered

CONFIGURATION FROM PC CONT’D

Nera F33

41

CONFIGURATION FROM PC CONT’D

Print handling setup

The Printout from modem window is used for
setting of default output of Traffic log, Modem con­figuration etc.

Clicking Configure > Print handling opens the
Printout from modem window. The following set­tings are selectable:

Default print action:
Normally, choose Print to screen which causes the file

to be output via the Printout viewer. For an example,

see "

TRAFFIC LOG > Printout viewer".

For direct printout, choose Print to default windows
printer.

Print to screen settings:

Determines the output of records via the Printout viewer.
Normally, use Concatenate print jobs which “chains”
the jobs to be printed or saved to file.

The alternative choice clears the screen after each
printout.

USER GUIDE

Printer settings:

For hardcopy printout, make sure that the appropriate
printer and font are selected.

42

Nera F33

USER MANUALUSER GUIDE

Mobile Packet Data Service

The MPDS service can be efficient for applications
such as:

• E-mail

• Internet/intranet

• Navigational updates

• Vessel telemetry transmission

• Database queries

• E-commerce

CONFIGURATION FROM PC CONT’D

The user only pays for the amount of data sent over
the network, and not for the time connected.

Ports supporting MPDS:

• RS232A

• RS232B / RS422

• USB

No configuration is needed!

Dial number **94# to set up an MPDS call.

See the MPDS application on the Nera F33 CD.

Nera F33

43

SYSTEM DESCRIPTION

Inmarsat GAN system/Fleet33

The Inmarsat Global Area Network service (GAN)
provides 4.8 kbps voice communications service and

9.6 kbps data transmission to and from mobile/fixed
subscribers anywhere within the worldwide coverage
of the Inmarsat 3 spot Beam system, see

Coverage Map in Getting Started.

The benefit of the INMARSAT system
is its high capacity, and the rapid and
reliable connection between the land
based (fixed) users and the Mobile
Earth Stations (MESs).

Each satellite region is under the
control of a Network Coordinating
Station (NCS), which controls and
monitors the traffic between the

MESs and the LESs.

Satellite

TELEPHONE

R
P

7



4

8

1

5

9

S

2

6

0

3

#

R

NETWORKS

DATA
NETWORKS

USER GUIDE

LES

NCS

NCS: Network Coordinating Station,

one in each Ocean Region (super­vises all messages and signals sent in
the Inmarsat system).

LES: Land Earth Station w/Net

service providers (interconnects fixed
telecommunication networks with the
Inmarsat system.

MES: Mobile Earth Station

(Nera F33, a user terminal for the
Inmarsat system).

44

MES

ON

ISDN

-

+

­X

48V DC

+

X
X

R

X

R

ISDN

T

T

SYNC

8
1
1
8

ALARM

USB

1
2
3
4
5

RS-232 A RS-232 B

+

1

-

2

ISDN

3
4

+
X

5

­X

+

X

-

R

X

R

A

T

6

A

7

T

8

E

9

E

2
2
4

-

M

S

R

M

6

N

7
8

N

9

Overview of the Inmarsat GAN system.

Nera F33

USER MANUALUSER GUIDE

SYSTEM DESCRIPTION CONT’D

System satellites

The satellites are positioned in a geostationary orbit
above the equator at approximately 35700 km
altitude.

See figure.

In geostationary orbit, each satellite moves at the
same rate as the earth, and so remains in the same
relative position to the earth.

The satellites provide 99% landmass coverage.
Nera F33 can communicate via the four satellite

Ocean Regions:

AOR-W Atlantic Ocean West Region
AOR-E Atlantic Ocean East Region
IOR Indian Ocean Region
POR Pacific Ocean Region

For coverage area of the satellites for Nera F33, see

Satellite Coverage Map in Getting Started.

Transmission frequencies

The Inmarsat terminals operate in the following
frequency bands:

MES transmission frequencies:

1626.5 MHz - 1646.5 MHz
MES receiving frequencies:

1530.0 MHz - 1559.0 MHz

178°E

35700 km

Pacific Ocean Region

Q

U

E

A

T

12000 km

O

R

EARTH

Atlantic Ocean Region (West)

54°W

Atlantic Ocean Region (East)

15.5°W

Indian Ocean Region

64.5°E

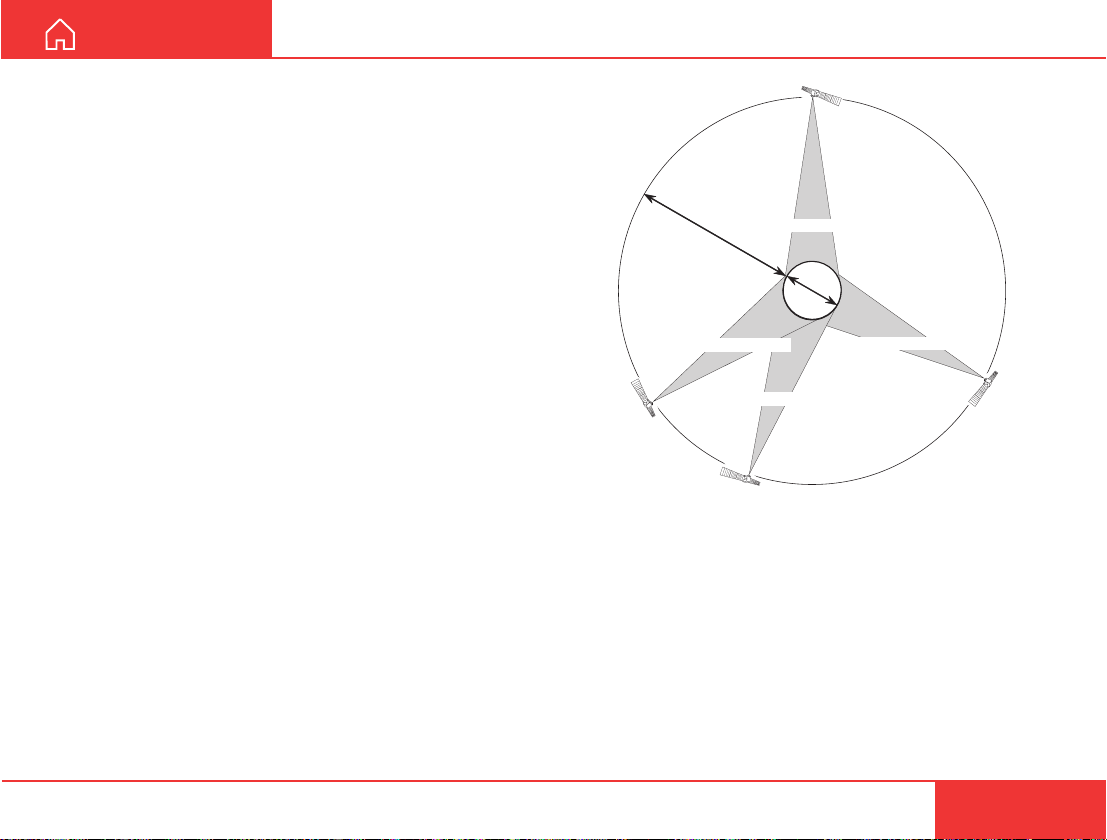

Satellite positions.

A large number of channels are available (20 kHz
channel separation), offering 4.8 kbps voice commu­nication, as well as 9.6 kbps fax or 9.6 kbps data
communication.

Duplex communication uses two channel frequen­cies, one in each direction.

The LESs provide interface to the international
networks for telephony and data: PSTN (Public
Switched Telephone Networks) and PSDN (Packet
Switched Data Networks).

Nera F33

45

SYSTEM DESCRIPTION CONT’D

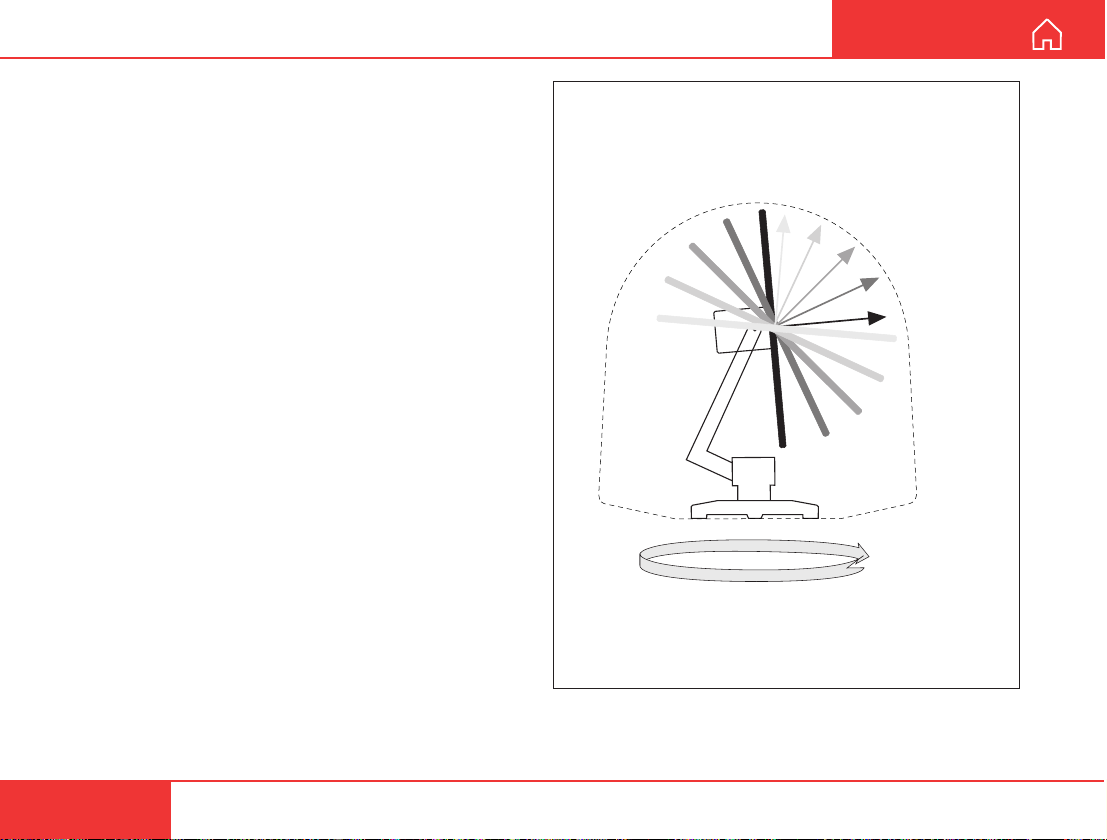

Antenna search pattern

USER GUIDE

Azimuth sweep

A 360° rotation of the antenna in azimuth at a fixed
elevation angle.

Hemispheric search

A hemispheric search is constituted by azimuth
sweeps at elevation angles 5°, 25°, 45°, 65° and 85°.

The antenna searches on the NCS Common TDM
channel frequency (NCSC), initiated by the Nera F33
Main Communication Unit (MCU).

When finding the satellite signal, it completes the
hemispheric search and moves to the position where
the strongest signal was detected.

The Antenna reports back to the MCU for verification
of valid NCSC.

If no valid signal is detected, no further automatic
action occurs until the MCU initiates a new search.

A search request from the MCU may contain channel
frequency and an order to make a full 360° search at
a specific elevation, calculated from map and GPS
information. If no satellite is found, a hemispheric
search will be performed.

Tracking

At the end of a search, Nera F33 performs a fine­tuning of the antenna position around the strongest
detected signal. The fine-tuning is obtained by a
squinting function based on satlite signal quality.

H

E

M

I

S

E

85°

L

E

65°

P

H

V

E

A

R

T

I

I

O

C

N

S

A

E

N

45°

25°

G

A

R

L

E

S

5°

3

6

0

°

A

Z

I

M

Note! Nera F33 remembers the last used Ocean
Region when when switching the terminal off/on.

S

U

T

H

W

P

E

E

C

H

46

Nera F33

USER MANUALUSER GUIDE

SYSTEM DESCRIPTION CONT’D

Communication services

Nera F33 provides the following interfaces & services:

• ISDN connectors:

- 4.8 kbps speech

- 9.6 kbps fax via Terminal Adapter

• RS-232/RS422:

- 9.6 kbps data service

- MPDS

• USB

- 9.6 kbps data service

- MPDS
Requires PC with MS Windows 98
Second Edition, or Apple OS 9.03 (or later).

The Nera F33 MCU has following ports
(see figure):

• ISDN ports for connection of ISDN
telephones or Nera Terminal Adapter;
a total of 8 devices.

• RS-232/RS422 and USB ports for
connection of data equipment.

Internal communication

Equipment connected to the various
interfaces may communicate with
each other via an internal MSN
(Mobile Subscriber Number)
assigned to each unit.

PC

Serial printer

Control interface

The RS-232 or USB port allows connection of a PC
for configuration of Nera F33.

A PC program (vtLite Mobile) that provides the
software to operate and configure Nera F33 terminal
is supplied on the enclosed CD (requires at least
Windows 98).

MCU - Main Communication Unit

ON
48V DC
SYNC

ALARM

RS-232 A RS-232 B

5 4 3 2 1

9 8 7 6

PC

5 4 3 2 1

9 8 7 6

I
S
D

N

T
e

l
e
n

o
r

I
O

R
R
e

a
d

y
f

o
r
c
a

l

l

O
K

D
E
L

1

2

ab
c

3

d

e

f

4

g
h

i

5

j
k
l

6

m

no

7

p
q
r

s

8

t
u
v

9

w

y

z

0

Nera ISDN
Handset

Nera ISDN

USB

ISDN wall
sockets

ISDN

TX+

TX-

RX+

RX-

ISDN

1 8
8 1

ISDN

TX-

TX+

RX-

RX+

RS-422

NMEA-

NMEA+

Nera ISDN

Terminal
Adapter

T
E
L
1

P
O
W
E

R

T
E
L

2

T
e
le
R
e
a

1

4

g
h
i

7

p
q
r
s

DECT
phone

Analogue
telephone

Analogue
telefax (G3)

Nera ISDN
Handset

Nera F33 ports.

I
S
D

N

n
o
r

IO

R
d
y
f

o
r
c
a
l

l

O
K

D
E
L

2

a
b
c

3

d
e

f

5

j
k
l

6

m
n

o

8

t
u
v

9

w
y

z

0

Nera F33

47

SYSTEM DESCRIPTION CONT’D

Nera F33

I
S
D
N

T
e
le
no

r
IO

R
R
e
ad

y
fo

r
ca
ll

O
K

D
EL

1

2

a
bc

3

d
e
f

4

g
h
i

5

j
k
l

6

m
n
o

7

p
q
r
s

8

tu
v

9

w
y
z

0

Land
Earth
Station,
LES

USER GUIDE

Telefax Gr.3,

9.6 kbps fax

48

N
O

ISDN

-

C

+

D

V

­X

8
4

+
X
X

R

X

DN

R

C

IS

T

N
Y

T

S

8
1
1

M

8

R
A
L
A

B
US

B
2
3
2

­S
R

1
2
3

4
5

A
2
3
2

­S
R

+

1

-

2

ISDN

3

4

+

X

5

­X

+

X

-

R

X

R

A

T

6

A

T

7
8

E

9

E

2
2
4

-

M

S

R

M

6

N

7
8

N

9

T
E
L
1

P
O
W
E
R

T
E

L
2

Examples of connections:

Nera ISDN Telephone (s)
Via serial port:
data communication/internet
Via Terminal Adapter:

- analogue telephone(s)

- telefax Gr.3

Path established by

the Nera F33

terminal via satellite

Public
Switched
Telephone
Network,
PSTN

Analogue telephone:

- 4.8 kbps speech

PC/modem:

- 9.6 kbps
data service

Communication path.

Nera F33

USER MANUALUSER GUIDE

SYSTEM DESCRIPTION CONT’D

Net service provider

The Net service provider issues your user licence
and IMN (Inmarsat Mobile Number) phone numbers.
It is also responsible for the billing of calls (charges).

The Nera F33 may respond to individual IMN num­bers, giving the possibility to transfer a call directly to
each device attached to it.

Note! TermlD is a term that includes both Originating
Identity (OlD) and Destination Identity (DID).
The DID is used from LES to MES to identify the
service, whereas OlD is used from MES to LES to
identify the service.TermlD is used in this manual
because the DID and OlD have the same value.

Calls from Mobiles

See figure.

To make an outgoing call, you use a standard inter­national telephone number with the 00 prefix. The
MES automatically includes information to identify
itself and the particular device that originates.

System signalling

The LES uses the identifying information of the
attached device for billing purposes.
The MES transmits the dialing information on a
channel specially assigned by the NCS to the LES.
LES routes the call over the public telecommunica­tions networks to the intended destination. When the
called party responds, the call proceeds.

Call announcement from mobile to fixed:

The MES uses the Return Identity (RTNID) to com­municate with the LES. It uses the TermlD to identify
its IMN number and the service in use.

The attached equipment dials the number and
transmits its MSN number to the MES. The MES
routes the MSN to a TermlD.

LES checks that the RTNID is commissioned before
connecting the call to the fixed net.

Nera F33

49

SYSTEM DESCRIPTION CONT’D

Call announcement

LES

2

Return ID

ABCDEF

Term Id

01

Fixed net

004767244700

number

N
O

N
D
IS

-

C

+

D

V

­X

8
4

+
X
X
R

N

X

D

R

S

C

I

T

N
Y

T

S

8

1

1

M

8

R
A
L
A

B
S

U

B

2

3

2

-

S

R

1

00 47 67 24 47 00

I
S

D
N

T

e
l
e
n
o
r

I
O
R

R

e
a
d
y

f
o
r
c
a
l
l

O
K

D
EL

1

2

a

b
c

3

d
e
f

4

g
h
i

5

j

k
l

6

m
n
o

7

p
q
r
s

8

t
u

v

9

w
y
z

0

T
E
L
1
P

O
W
E
R

T
E
L
2

MSN

20 4.8 kbps speech 01

40 9.6 kbps fax 11

60 9.6 kbps data 21

3 2

4

5

A
2

3
2

­S
R

+

N

1

D

-

2

S
I

3

+

4

X

5

­X

+

X

-

R

X

R

A

T

A

6

T

7

E

9 8

E

2
2
4

-

M

S
R

M
N

7 6
8

N

9

Service

Term.Id

Example of MES Translation Table

Calls from Mobiles

When the MES originates a call it starts
by sending a request to the LES.
This initial request for service contains
the MES Return ID and type of service.
Nera F33 incorporates a configuration
table that contains Terminal Id for every
device connected and type of service.

Forward/return ID
123456/ABCDEF
123456/ABCDEF
123456/ABCDEF

LES

Term Id

Service

01

4.8kbps speech

11

9.6kbps fax

9.6kbps data

21

LES Translation Table

USER GUIDE

6724 4700

R

e

P

7



4

8

1

5

PSTN

IMN

761234567

761234568

761234569

9

S

2

6

0

3
#

R

50

Nera F33

USER MANUALUSER GUIDE

SYSTEM DESCRIPTION CONT’D

Calls to Mobiles

See figure.

The Nera F33 terminal receives incoming calls via
the IMN phone numbers. IMN numbers are assigned
to the following ports by the user:

• ISDN ports

• RS-232 serial data ports

• RS-422 serial data port

• USB serial data port

Calls are made as ordinary international (Satellite)
calls by dialing the international prefix (normally 00)
followed by 870 and the IMN number, e.g.:
00 870 762420510.

The common Ocean Region access no. 870 con­nects the call to the dialed Nera F33 regardless of
the Ocean Region the user currently communicates
through.

If the Net service provider does not support access
no. 870, call the Ocean Region directly:

871 – AOR-E (Atlantic Ocean Region East)
872 – POR (Pacific Ocean Region)
873 – IOR (Indian Ocean Region)
874 – AOR-W (Atlantic Ocean Region West)

Call announcement from fixed to mobile:

The LES uses the MES’s Forward Identity (FWID) to
communicate with the MES, and the Terminal Identity
(TermlD) to identify the IMN number and the service
in use.

The FWID together with the TermlD replaces the
need of the IMN number to be transmitted through
the Inmarsat system in order to identify the MES and
the specific equipment attached to it. This means
that LES routes an IMN number received from the
fixed net to the specific FWID and TermlD identifying
the MES.

The MES identifies the FWID and the TermID and
routes it to a Mobile Subscriber Number (MSN)
which is programmed in the attached equipment.
Nera provides a table to identify which TermlD is
routed to an MSN.

Nera F33

51

SYSTEM DESCRIPTION CONT’D

N
O

N
D
IS

-

C

+

D
V

-

X

8
4

+

X
X

R

N

X

D

R

C

IS

T

N
Y

T

S

8

1

1

M

8

R
A
L
A

B
S
U

B

2
3
2

­S
R

1
3 2
4
5

A
2
3
2

­S
R

+

N

D

-

2 1

S
I

+

4 3

X

5

­X

+

-

X
R
X
R

A

T

A

6

T

7

E

9 8

E

2
2
4

-

M

S
R

M

6

N

7

N

8

9

I
S
D
N

T

e
l
e
n
o
r

I
O
R

R

e
a
d
y
f
o
r

c
a
l
l

OK

DE
L

1

2

a
b
c

3

d
e
f

4

g
h
i

5

j

k
l

6

m
n
o

7

p

q
r
s

8

t
u
v

9

w
y
z

0

MSN

Incoming call route

20 4.8 kbps speech 01

T
E
L
1
P
O

W
E
R

T
E

40 9.6 kbps fax 11

L
2

60 9.6 kbps data 21

Example of MES Translation Table

When requested to call a specific IMN, LES
translates the IMN to a Terminal Id.
The request is then sent to the MES which
translates the Terminal Id to an MSN number.

Term.Id

To "connect" a Terminal Id to a physical line, Nera
F33 incorporates a translation table. This table
can contain up to 100 Id translations, and each
Terminal Id in use is programmed with type of call
and destination.

A call is not allowed to be routed to a device that
is configured to another type than the Terminal Id
specifies. A telephone Terminal Id can only be
routed to a phone type device. A telefax Terminal
Id can only be routed to a fax device.

Calls to Mobiles

LES

Fwd ID

Term ID

Forward/return ID
123456/ABCDEF
123456/ABCDEF
123456/ABCDEF

Call announcement

2

123456

01

LES=2

Service

Term Id

4.8kbps speech

01

9.6 kbps fax

11

9.6kbps data

21

LES Translation Table

USER GUIDE

00 870 761234567

R
e

P

7



4

8

1

5

9

S

2

6

0

3

#

R

IMN

761234567

761234568

761234569

52

Nera F33

Back to Start Page

Nera ASA
Nera SatCom AS

Bergerveien 12, PO Box 91
N-1375 Billingstad, Norway
Tel: [phone]
Fax: [phone]

www.neraworld.com
