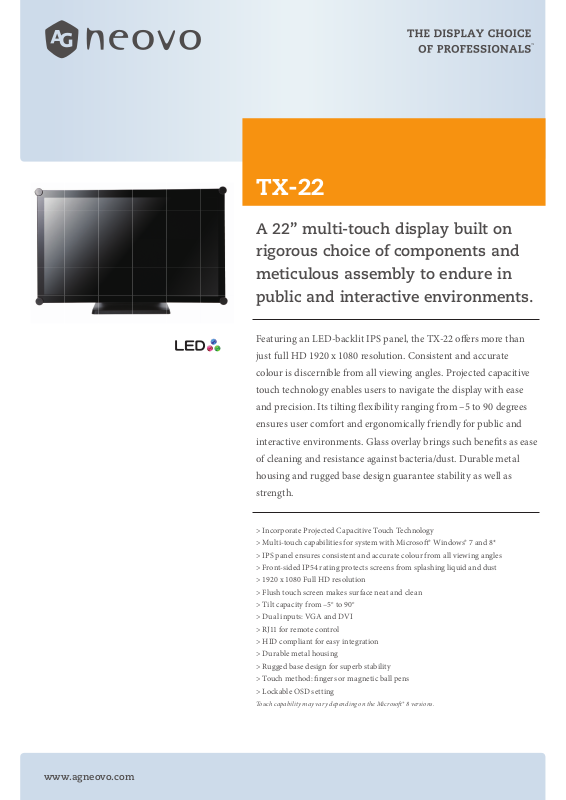

TX-22
A 22” multi-touch display built on
rigorous choice of components and
meticulous assembly to endure in
public and interactive environments.
Featuring an LED-backlit IPS panel, the TX-22 oers more than
just full HD 1920 x 1080 resolution. Consistent and accurate
colour is discernible from all viewing angles. Projected capacitive
touch technology enables users to navigate the display with ease
and precision. Its tilting exibility ranging from –5 to 90 degrees
ensures user comfort and ergonomically friendly for public and
interactive environments. Glass overlay brings such benets as ease
of cleaning and resistance against bacteria/dust. Durable metal
housing and rugged base design guarantee stability as well as
strength.
> Incorporate Projected Capacitive Touch Technology
> Multi-touch capabilities for system with Microso® Windows® 7 and 8*
> IPS panel ensures consistent and accurate colour from all viewing angles
> Front-sided IP54 rating protects screens from splashing liquid and dust
> 1920 x 1080 Full HD resolution
> Flush touch screen makes surface neat and clean
o
> Tilt capacity from –5
> Dual inputs: VGA and DVI
> RJ11 for remote control
> HID compliant for easy integration
> Durable metal housing
> Rugged base design for superb stability
> Touch method: ngers or magnetic ball pens
> Lockable OSD setting
Touch capability may vary depending on the Microso® 8 versions.
to 90
o
www.agneovo.com
TX-22
Specications TX-22
Panel Panel Type
Panel Size
Max. Resolution
Pixel Pitch
Brightness
Contrast Ratio
Viewing Angle (H/V)
Display Colour
Response Time (GTG)
Frequency (H/V) H.Freq
V.Fr eq
Input VGA
DVI
External Control RJ11 RJ11
Touch Screen Technology
Positioning Accuracy
Active Force
Panel Interface
Power Power Supply
Power Requirements
Consumption
Operating
Conditions
Temperature
Humidity
LED-Backlit TFT LCD (IPS Panel)
21.5”
FHD 1920 x 1080
0.248 mm
250 cd/m2 (Typical)
1,000 : 1 (Typical)
178°/178° (Typical)
16.7 M
7 ms
31.47kHz – 82.3kHz
56Hz – 75Hz
15-Pin D-Sub
24-Pin DVI-D
Projected Capacitive
±2.5mm
None required
USB (Type–B, HID compliant)
External
DC 12V
< 27W (On)
< 2W (Stand-by)
< 1W (Off)
0°C ~ 40°C (32°F~104°F)
20%~80% (No condensation)
Integration of dual-touch and projected ca-
pacitive touch technology provides accurate and
precise touch experience
Wide range of tilt exibility from –5o to 90o
Storage
Conditions
Mounting VESA FPMPMI Yes (100 x 100mm)
Dimensions Product (W x H x D)
Weight Product Weight (with base)
Regulation
Approval
Accessories Supplied CD ROM (user manual and touch
Temperature
Humidity
Packaging (W x H x D)
Packaging weight
Certications &
Compliance
-20°C ~ 60°C (-4°F~140°F)
10%~90% (No condensation)
528 x 347 x 214 mm
(20.8” x 13.7” x 8.4”)
450 x 330 x 615 mm
(17.7” x 13.0” x 24.2”)
6.7 kg (14.7 lbs)
9.8 kg (21.6 lbs)
FCC, CB, CE, BSMI, RoHs, GOST-R,
WEEE, REACH
driver), 15-Pin D-Sub cable, 24-Pin
DVI-D cable, power cord, power
adaptor, USB cable, cable cover
screw
A rating of IP54 attests to its extraordinary protection
against dust and water spray
IPS panel provides superb clarity from all angles
Copyright © 2013 AG Neovo. All rights reserved. e name AG Neovo is a trademark of AIC.
All specications are subject to change without prior notice.
All other trademarks are the property of their respective owners.
P/C: TX2200 Version 1.2, 20130701
