Neovo SQ-19 User Guide

TABLE OF CONTENTS

1

Important safeguards ............................................................................... 2

Introduction ............................................................................................... 5

Features ..................................................................................................... 6

Assembling the monitor ........................................................................... 7

Wall hanging Standard ............................................................................. 8

The function of the interface ................................................................... 8

Front panel controls ................................................................................. 9

Control panel .............................................................................................. 9

Changing a monitor parameter ................................................................. 10

Hot keys .................................................................................................... 10

Adjustment procedure ............................................................................ 11

OSD function ........................................................................................... 12

VGA menu ................................................................................................ 12

Cam menu ................................................................................................ 17

HDMI menu ............................................................................................... 22

Self-diagnosis .......................................................................................... 27

Troubleshooting ...................................................................................... 28

Specifications .......................................................................................... 29

IMPORTANT SAFEGUARDS

2

This FCC Class-B compliant digital device complies with
the Interference-Causing Equipment Regulations of
Canada.

FCC Declaimers

This device complies with Section 15 of the FCC listing. The operation procedures
must meet the following conditions: (1) the device must not cause any damaging
interference; and (2) this device must accept any received interference, including
any unpredictable interference that may possibly occur.

Dear users,
This device has passed the Class B digital service regulations and complies with

Section 15 of the FCC listing; these are intended to provide reasonable warranty
against damaging interference for home use. This device will produce, use, and
emit radio frequency energy; therefore, installation or use without following the
instructions given may cause damaging interference to radio communication.

Nonetheless, it is not possible to state with certainty that interference will occur
from specific installations. If this device has caused damaging interference to radio
or TV signals (simply turn the device on and off to check if such interf eren ce is
caused by the device), we recommend that you fix the interference using the
following methods:

• Readjust the direction or location of the antenna.

• Increase the distance between this device and the receiver.

• Consult your local dealer or an experienced radio/TV technician.

IMPORTANT SAFEGUARDS

3

1. Installation cautions

• Do not block any ventilation openings.

• Always ensure that the monitor is located in a well-ventil ated ar ea to preventthe
unit from overheating.

• Only use accessories specified by the manufacturer or those sold with the product

• Avoid operating or placing the monitor in the following environments: extremes of
temperatures, both hot and cold; high humidity; direct sunlight; excessivelydusty
surroundings; avoid close proximity to other equipment that generates a strong
magnetic field

2. Water and moisture

Do not use this appliance near water. To reduce the risk of fire or electric shock, do
not expose this unit to rain or moisture.

3. Power cord and power cord protection

Power cords should be routed so that they not likely to be walked on or pinched. Pay
particular attention to the location of cords and plugs, convenience receptacles, and
the point of exit from the appliance.

4. Product care

Do not touch the screen directly with fingers. The oils from your skin mayleave
marks on the surface of the screen, which are difficult to be removed andmay
damage the screen permanently. Do not apply pressure to the screen.

5. Cleaning

Clean only with a dry cloth.

6. Servicing

Do not attempt to service this unit yourself. Opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualifiedservice
personnel.

7. Lightning

For added protection during a lighting storm or when this unit is left unattended and
unused for long periods of time, unplug the unit from the wall outlet anddisconnect
the cable system. This will prevent damage to the unit due to lightning andpower
line surges.

IMPORTANT SAFEGUARDS

4

8. Mains plug (2 pin/3 pin)

• Do not remove the grounding or earth connection from the power supply / mains
plug.

• Always remember to unplug the monitor from the power supply under the
following circumstances if the monitor will not be used for a long period of time, if
the power supply cable or plug/connector is damaged or if the monitor housingis
damaged or broken.

CAUTION: Do not attempt to dismantle this product. Any attempt to dismantle
or remove the covers from this product will invalidate the warranty and may also
result in serious injury.

INTRODUCTION

5

This manual explains how to correctly install, operate and get the bestperformance
from your monitor. Please read this user manual carefully before installing your
monitor then keep it near your monitor for quick reference. First, please check that
the contents of the box correspond with the following checklist:

• LCD monitor

• Power cord

• Audio cord

• VGA cable

• AC adaptor

• User manual

If any item is missing or damaged, please contact your dealer. Please keep thebox
and packing materials so that you may properly store or transport yourmonitor.

FEATURES

6

• The monitor is designed for use in a small work area or for those who need more

work space on the desk.

• The convenient and user-friendly onscreen display allows for easy and accurate

adjustments of screen size, position and scre en color.

• The monitor complies with the VESA Display Data Channel (DDC) specification

for Plug and Play compatibility. Advanced microcircuitry makes setup and
configuration fast and effortless.

• The monitor features Advanced Color Controls for fine-tuning to meet your own

personal tastes or application requirements. Use the on-screen controls to adjust
the color temperature,

• RGB gain value for the best possible screen color and intensity.

• Press the Menu button and activate the Self-Diagnosis menu to determine

whether your monitor is functioning normally, not receiving a signal or is
receiving a signal that is out of scanning range.

• Activate the higher refresh rates of the monitor to stabilize the screen and

eliminate the annoying flicker that contributes to eye-strain and headaches.

• The monitor supports the optimal display performance with 1280x1024 @ 60 Hz

(SQ-17/SQ-19 Model) and 1920x1080 @ 60 Hz (SQ-22 Model)

• The monitor can be connected to various types of video devices withsupporting

video input signals such as Composite video (CVBS), and Separate video.

• The internal stereo speakers produce a good quality audio sound.

ASSEMBLING THE MONITOR

7

The monitors are designed for use on a desktop.
The arm of the monitor stand is shipped preinstalled on the monitor.

To assemble the monitor:

1. Put a smooth pad or cloth on a level surface. Place the monitor on it facing

downwards.

2. Insert the arm of the monitor stand of the monitor into the pedestal foot provided.

See figures below.

To disassemble the monitor:

1. Put a smooth pad or cloth on a level surface. Place the monitor on it facing
downwards.

2. Shrapnel with fingers or similar objects hold the base below
the supporting arm from the foot by pressing
supporting arm. (Note that the fixation point can be broken if too much force is
applied). See figures below.

, carefully detach

the groove on the back of the

WALL HANGING STANDARD

THE FUNCTION OF THE INTERFACE

8

The monitor’s installation surface is compatible with other types of VESA standard
stands.
Hole spacing: 100 x 100 mm
Screw length: 8 to12 mm

1. DC 12V Input 。

2. VIDEO OUT：VIDEO signal output。
VIDEO IN：

3.

4. RCA AUDIO L ：AUDIO

5. RCA AUDIO R：AUDIO

6. STEREO Input ：AUDIO

7. STEREO Out

8. USB：Service port。

9. HDMI：HDMI signal input。

10. VGA：RGB signal input。

VIDEO

signal Input 。

：AUDIO

signal input left。
signal out Right。
signal input

signal out

。

。

FRONT PANEL CONTROLS

9

Control panel

1. POWER indicator

Show both normal operation and power management status with power LED

2. POWER Switch the monitor on and off.

3. MENU Turn the OSD window on. Secondary Function: Turns the OSD window off and moved from sub menu to top

menu in the OSD window.

4. ◄ (Left Arrow (*))

Primary Function: Used to adjust the volume.
Secondary Function: Moves cursor to the down in the OSD windowand
decreases the value of any selected menu.

5. ► (Right Arrow (*))

Primary Function: Used to select from different input source.
Secondary Function: Moves cursor to the up in the OSD (On-Screen Display)

window and increases the value of any selected menu.

6. AUTO (*) Primary Function: Automatically adjusts the display to the most optimalsetting

possible. (VGA mode only)

Secondary Function: Selects sub menu.

FRONT PANEL CONTROLS

10

Changing a monitor parameter

Press the MENU button on the front panel to obtain the OSD menu screen.

1. Use Left - Right buttons to select the menu.

2. Use AUTO button to select the submenus.

3. Use Left- Right buttons to select a submenu function.

4. Press AUTO button, then using left-right buttons you can make adjustments as
necessary.

5. To exit, press MENU.

Hot keys

►

Right Arrow

When there is no OSD, to select input signal source.
CAM-VGA-HDMI

◄

Left Arrow

AUTO

When there is no OSD, you can adjust the volume directly.

Automatically choose the correct horizontal and vertical
position and the size of the screen image (VGA only).

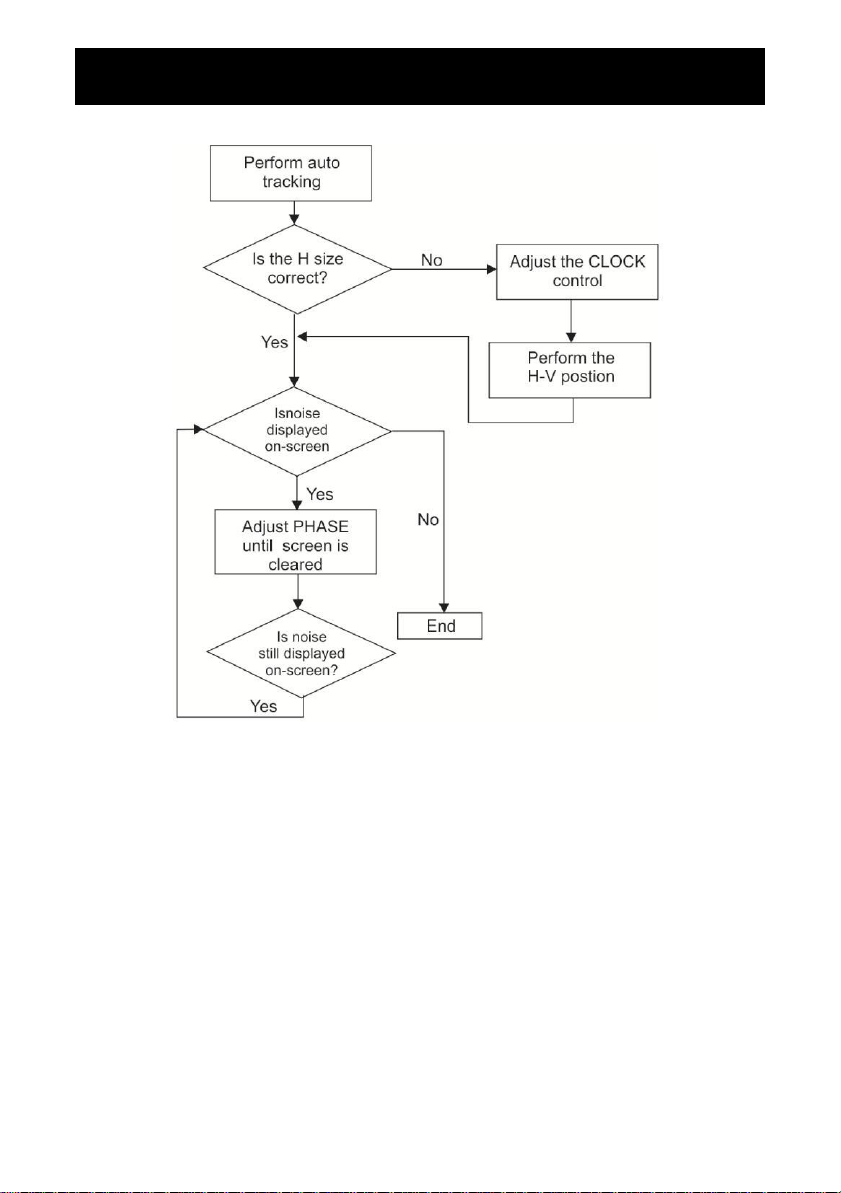

ADJUSTMENT PROCEDURE

11

OSD FUNCTION

Configure the monitor using the on-screen display (OSD) menus and submenus.
Changes are immediately saved and implemented.

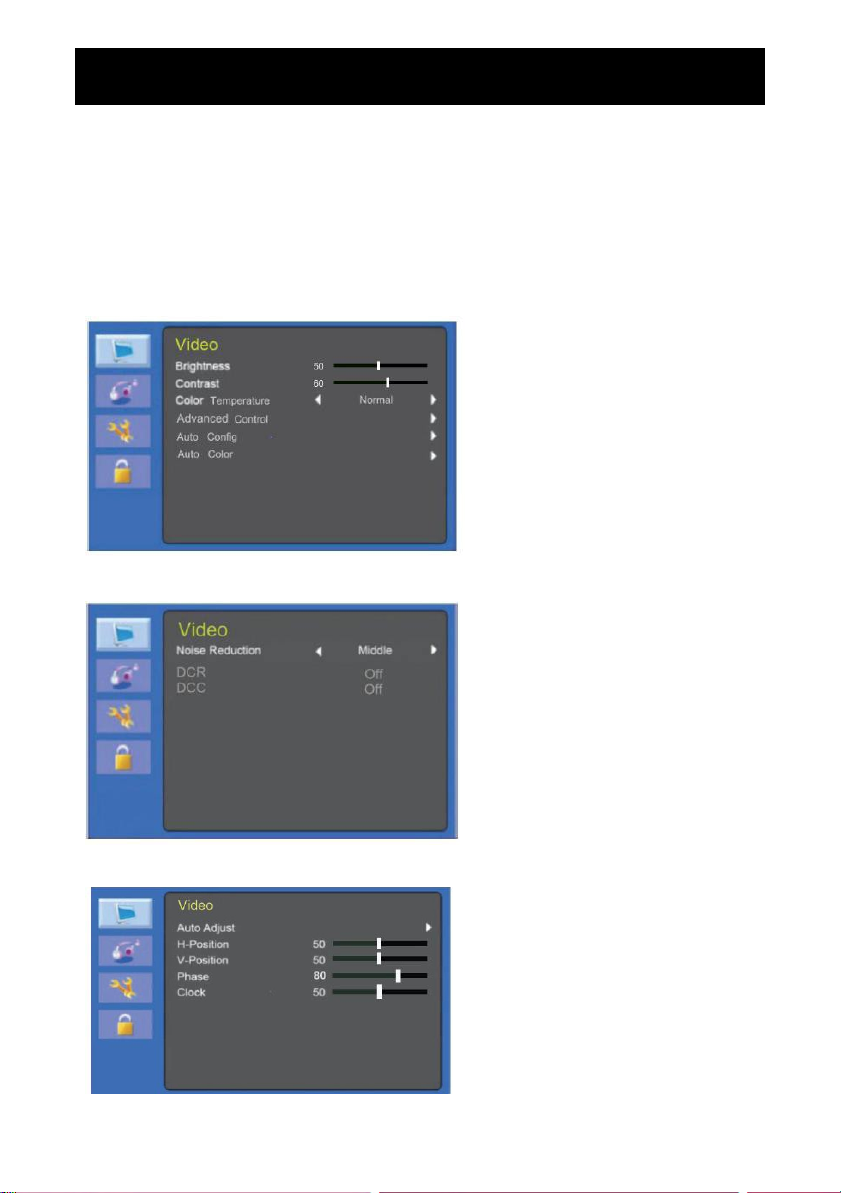

VGA menu

●

Video

(Advanced Control)

(Auto Config)

12

OSD FUNCTION

13

1. Brightness

Adjust the brightness of the image.

2. Contrast

Adjust the contrast of the image, the difference between light and dark areason
the screen.

3. Color Temperature

Choose a different preset color temperature or set your own customized color
parameters.(Normal/ Warm/ Cool/ User).

4. Advanced Setting

4-1 Noise Reduction
4-2 DCR (not support)
4-3 DCC (not support)

5. Auto Config

5-1 Auto adjust
Automatically choose the correct horizontal position and vertical position and size
of the screen image.
5-2 H-Position
Adjust the position of the display horizontally (left or right).
5-3 V-Position
Adjust the position of the display vertically (up or down).
5-4 Phase
Remove any horizontal noise and clear or sharpen the image of thecharacters.
5-5 Clock
Adjust the width (horizontal size) of the screen image.

6. Auto Color

Operate the white balance and automatically adjust the color settings.(Available
only during VGA input source signal)

OSD FUNCTION

14

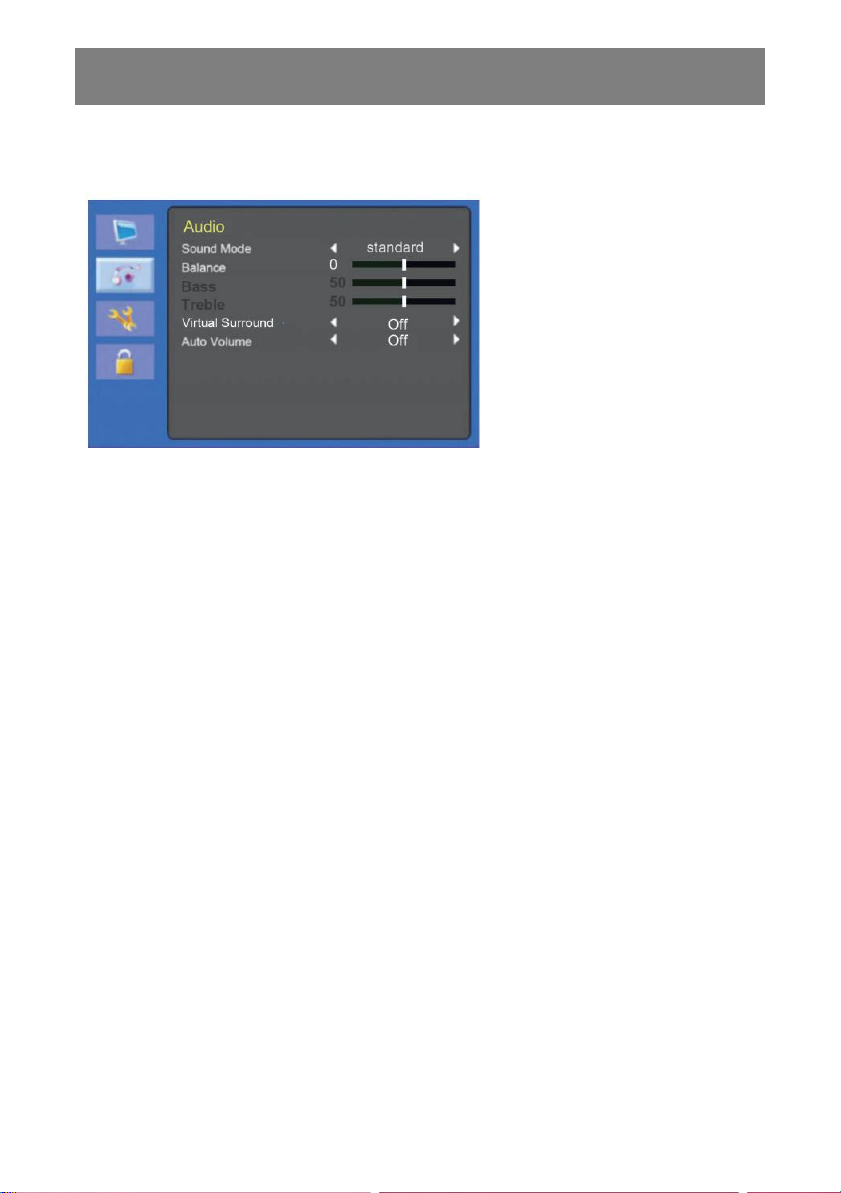

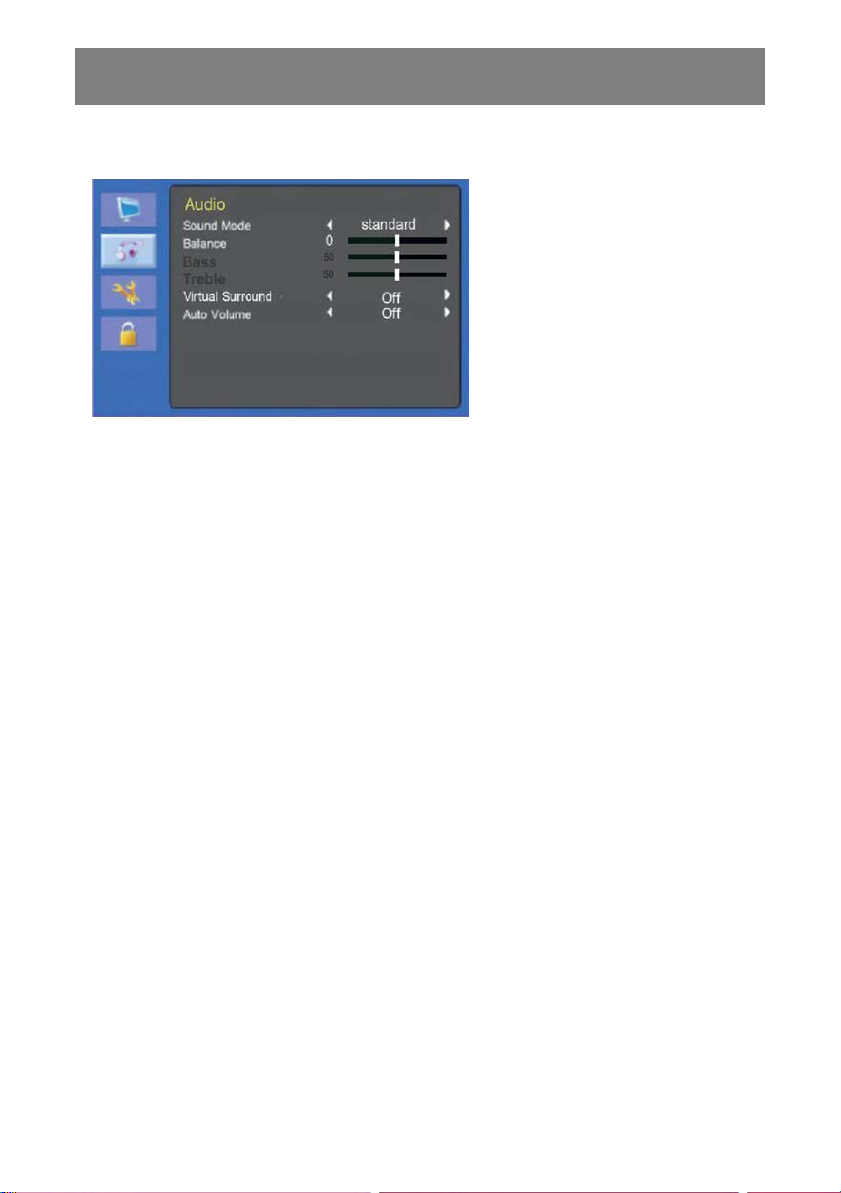

Sound

●

1. Sound Mode

Choose a different preset sound mode or your own customized sound. (Standard/
Speech/ Music/ Personal)

2. Balance

Adjust the sound balance of the left and right speakers.

3. Bass

When you select User mode, adjust the bass sound.

4. Treble

When you select the user mode, adjust the treble sound.

5. Virtual Surround

Provide an enhanced listening experience.

6. Auto Volume

Automatically remains at the same volume level if you change the program.

OSD FUNCTION

15

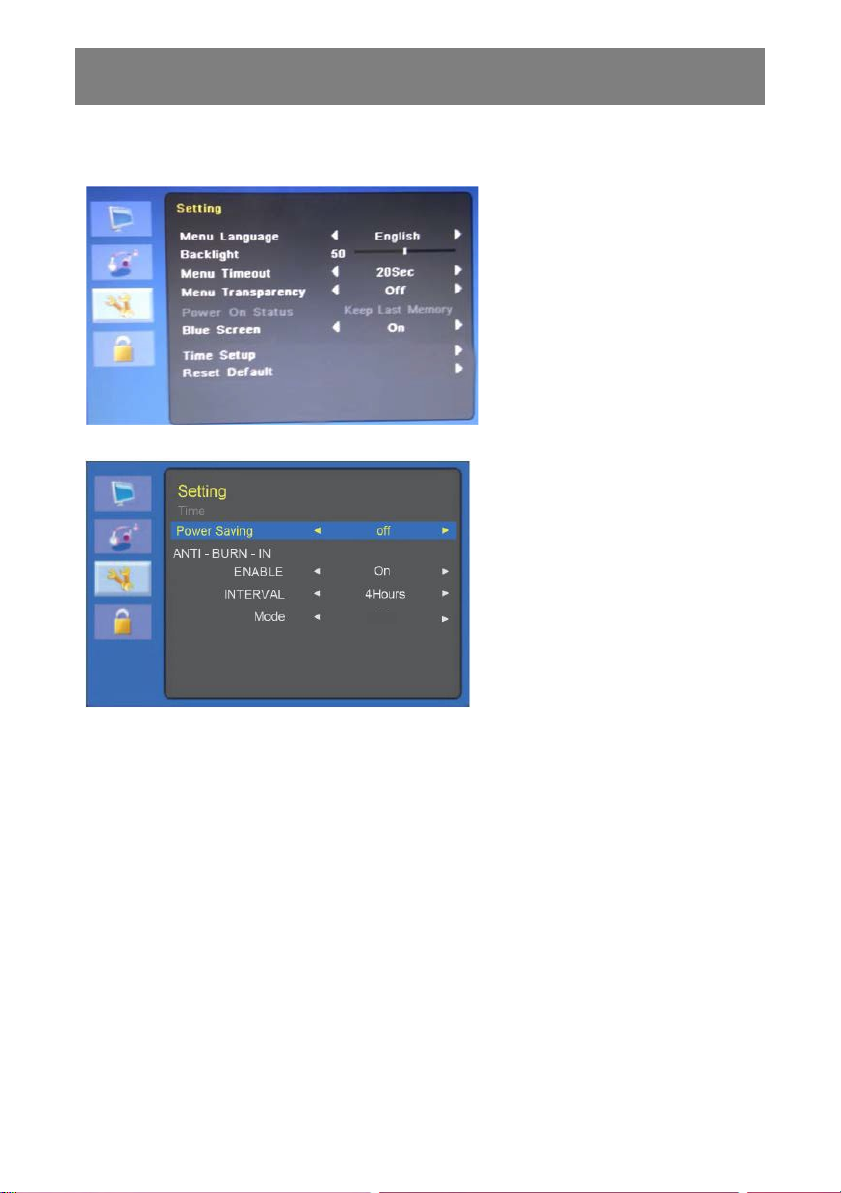

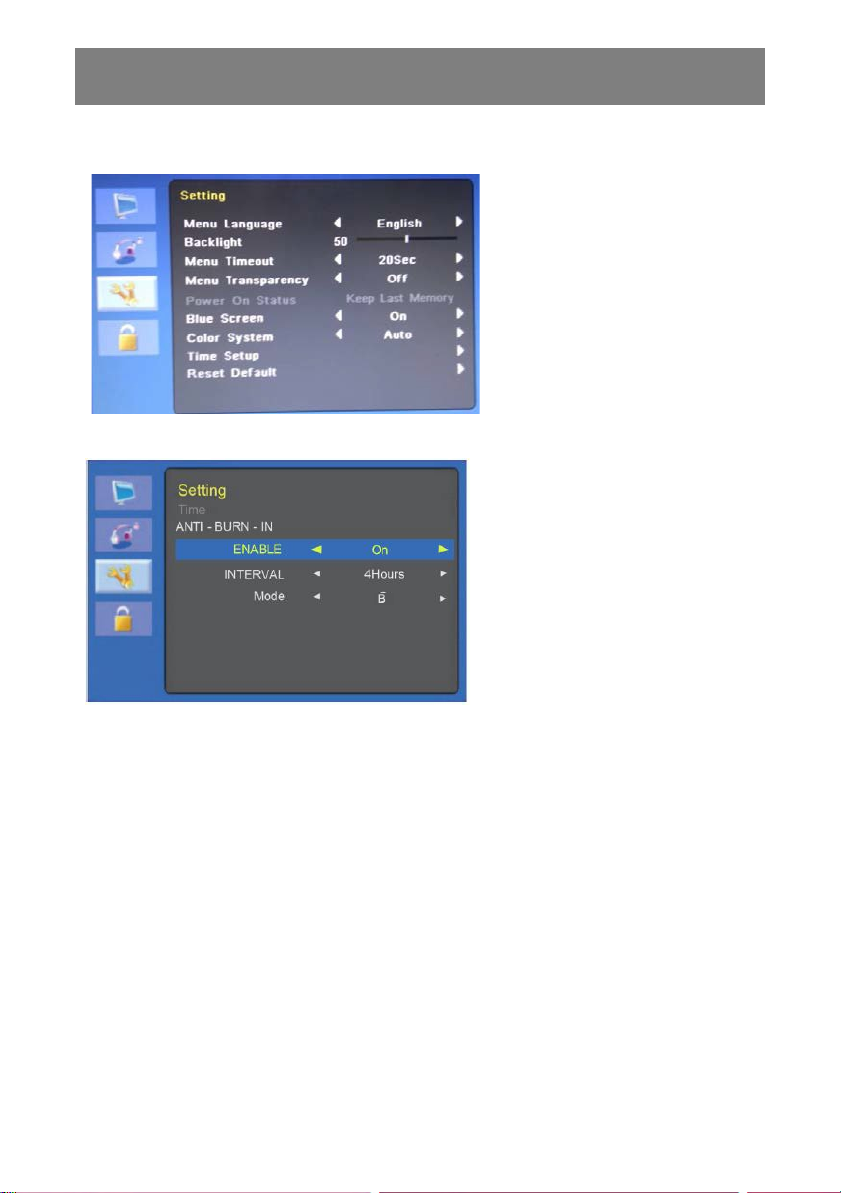

● Setting

(Time setting)

1. Menu Language

Select language for the OSD.

2. Backlight

Adjust the brightness of the image.

3. Menu Time out

Adjust the display of the OSD menu (20 to 60 seconds).

4. Menu Transparency

Adjust the OSD transparency.

5. Power On Status (Not used)

6. Blue Screen

When there is no signal input, select the blue background color.

OSD FUNCTION

1920X1080@60HZ

V1.0

16

7. Time Setting

7-1 Time
Not used.
7-2 Power Saving (ON/OFF)
Set Power Saving ON/OFF.
7-3 ANTI-BURN-IN
7-4 ENABLE(ON/OFF)

Anti Burn In Switch ON/OFF

7-5 INTERVAL
Anti Burn In Time (4Hours/ 5Hours/ 6Hours/ 8Hours)
7-6 Anti Burn Type (A/B/C)

8. Reset Default Reset the screen to the factory preset display settings.

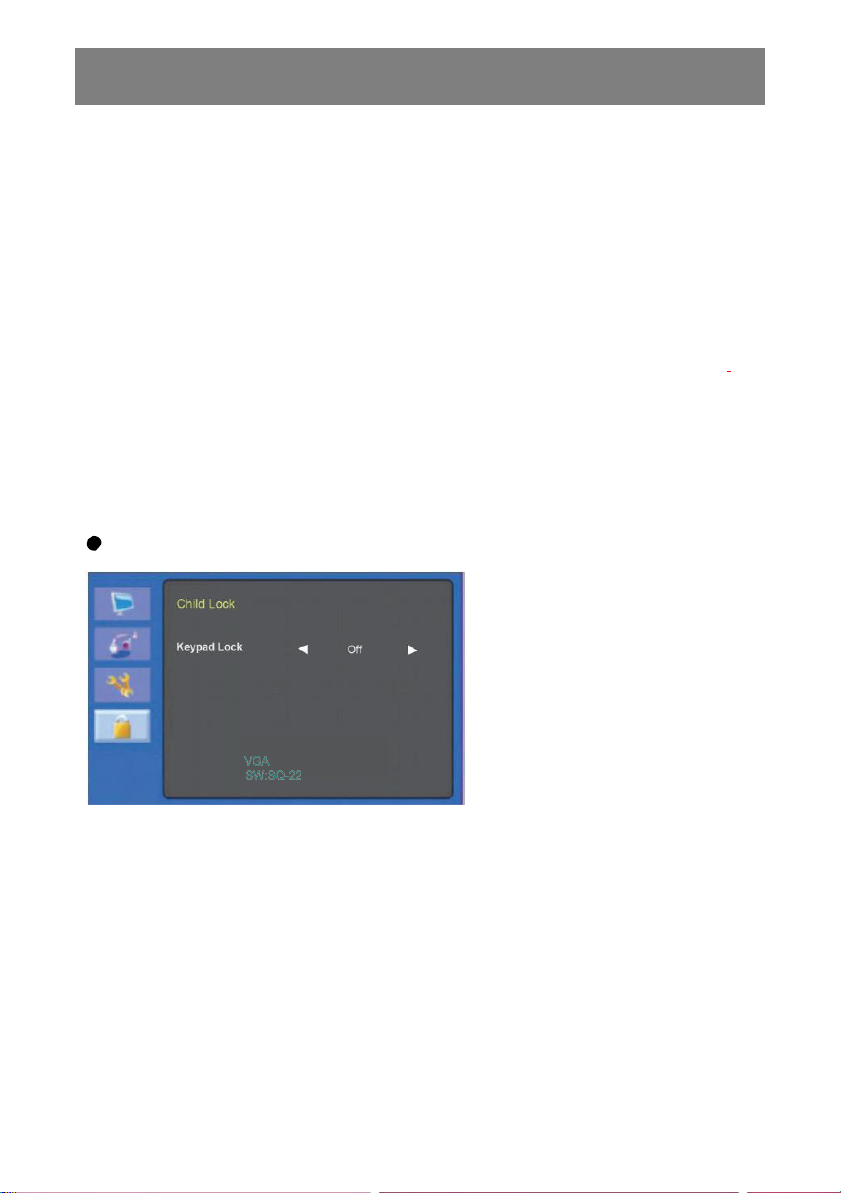

Child Lock

1. Keypad Lock

Turn the keypad lock on or off.

Keyboard lock unlock method:Long press "MENU" key for about 8 seconds,
can be unlocked.

OSD FUNCTION

Standard

Normal

17

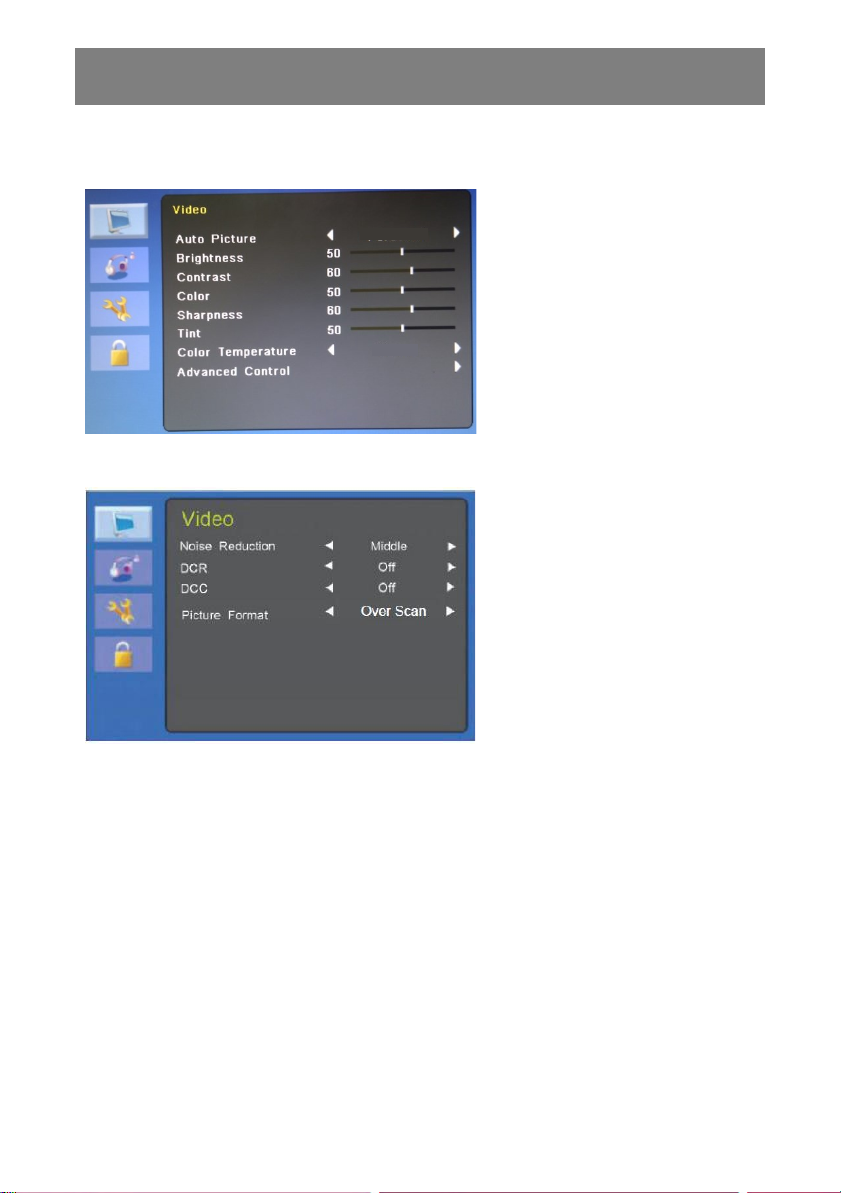

Cam menu

●

Video

(Advanced Control)

1. Auto Picture

Select the picture mode (Standard/Movie/ECO/Personal/ Vivid).

2. Brightness Adjust the brightness of the image.

3. Contrast

Adjust the contrast of the image, the difference between light and dark areason
the screen.

4. Color

Adjust the color of the image.

5. Sharpness

Adjust the display image quality (if the screen proceeds to scaling up).

OSD FUNCTION

18

6. Tint Adjust tint of the image. Only for NTSC signal.

7. Color Temperature Choose a different preset color temperature or set your own customizedcolor parameters (Normal/ Warm/ Cool/ User).

8. Advanced Control 8-1 Noise Reduction Reduce the noise in the picture due to poor reception or poor picture quality. (Middle/ High/Off/ Low) 8-2 DCR Turn DCR on or off. 8-3 DCC Turn DCC on or off. 8-4 Picture Format Select the aspect ratio (SQ-22:

Over Scan/ 4:3/ Underscan)

( SQ-17/19 Underscan/Over Scan)

OSD FUNCTION

19

● Audio

1. Sound Mode

Choose a different preset sound mode or your own customized sound.
(Standard/ Music/ Speech/ Personal)

2. Balance Adjust the sound balance of the left and right speakers.

3. Bass When you select Personal mode, adjust the bass sound.

4. Treble When you select the Personal mode, adjust the treble sound.

5. Virtual Surround Provide an enhanced listening experience.

6. Auto Volume Automatically remains at the same volume level if you change the program.

OSD FUNCTION

20

●

Setting

(Time Setting)

1. Menu Language

Select the OSD language.

2. Backlight

Adjust the brightness of the image.

3. Menu Time Out

Adjust the display time of the OSD menu (20 to 60 seconds).

4. Menu Transparency Adjust the OSD transparency.

5. Power On Status (Not Used)

6. Blue Screen

When there is no signal input, select the blue background color.

7. Color System Select the input signal system Auto or PAL, PAL-60, NTSC, NTSN_44, SECAM.

OSD FUNCTION

CAM NTSC

V1.0

21

8. Time Setting

8-1 Time
Not Used
8-2 ANTI- BURN-IN
8-3 ENABLE (ON/OFF)
8-4 INTERVAL
Anti Burn In Time (4Hours/ 5Hours/ 6Hours/ 8Hours)
8-5 Anti Burn Type (A/B/C)

9. Reset Default Reset the screen to the factory preset display settings.

●

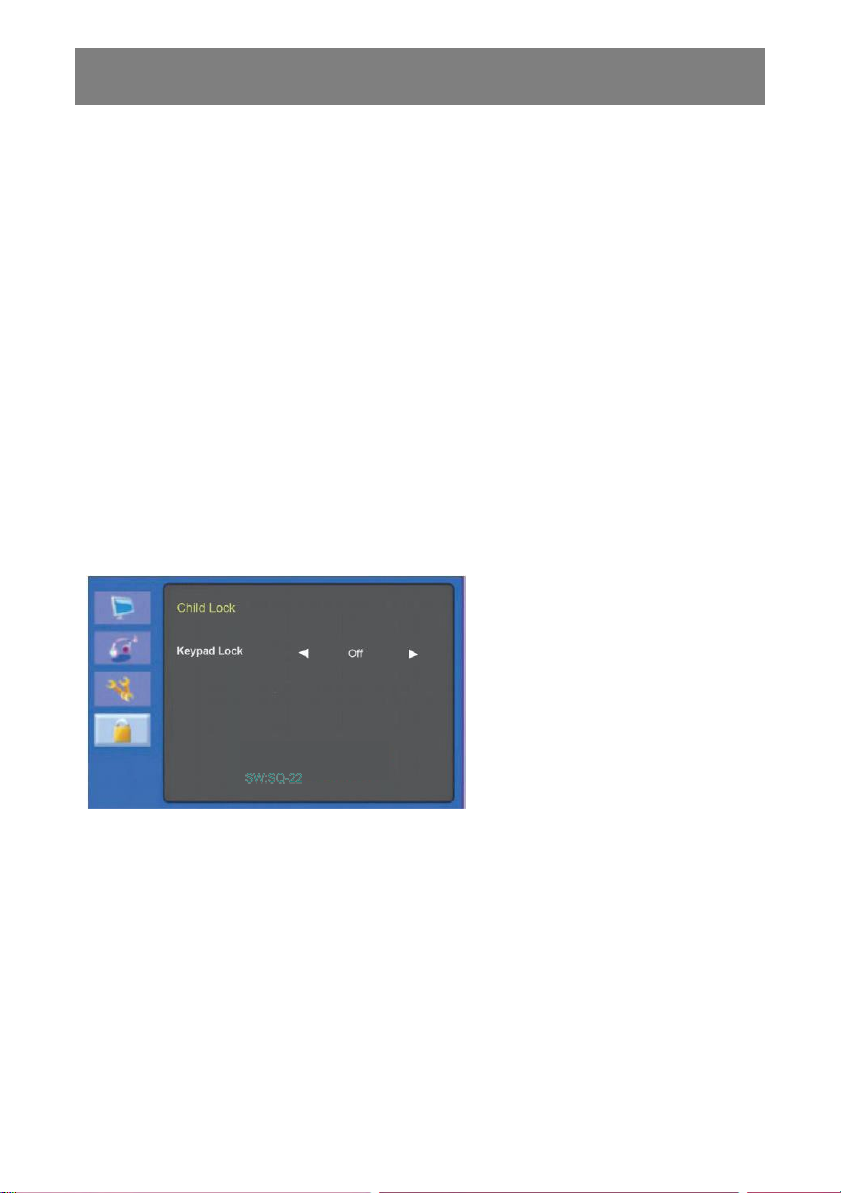

Child Lock

1. Keypad Lock

Turn the keypad lock on or off.

Keyboard lock unlock method:Long press "MENU" key for about 8 seconds, can be unlocked.

OSD FUNCTION

22

HDMI menu

● Video

(Advanced Control)

1. Auto Picture

Select the picture mode (Standard/Movie/ECO/Personal/ Vivid).

2. Brightness

Adjust the brightness of the image.

3. Contrast

Adjust the contrast of the image, the difference between light and dark areason
the screen.

4. Color

Adjust the color of the image.

5. Sharpness

Adjust the display image quality (if the screen proceeds to scaling up).

OSD FUNCTION

23

6. Color Temperature Choose a different preset color temperature or set your own customizedcolor parameters (Normal/ Warm/ Cool/ User).

7. Advanced Control 7-1 Noise Reduction Reduce the noise in the picture due to poor reception or poor picturequality.(Off/ Low/ Middle/ High).

7-2 Color Range
Select the color format(Full/Limit).

7-3 DCR
Turn DCR on or off.
7-4 DCC
Turn DCC on or off.

Picture Format

7-5
Select the aspect ratio (Just Scan/ Over Scan)

OSD FUNCTION

24

Audio

●

1. Sound Mode

Choose a different preset sound mode or your own customizedsound.
(Music/ Speech/ Personal/ Standard)

2. Balance

Adjust the sound balance of the left and right speakers.

3. Bass When you select Personal mode, adjust the bass sound.

4. Treble When you select the Personal mode, adjust the treble sound.

5. Virtual Surround Provide an enhanced listening experience.

6. Auto Volume Automatically remains at the same volume level if you change the program.

OSD FUNCTION

B

25

● Setting

(Time Setting)

1. Menu Language

Select the OSD language.

2. Backlight

Adjust the brightness of the image.

3. Menu Time Out

Adjust the display time of the OSD menu (20 to 60 seconds).

4. Menu Transparency Adjust the OSD transparency.

5. Power On Status (Not Used)

6. Blue Screen

When there is no signal input, select the blue background color.

OSD FUNCTION

HDMI 1920X1080@60HZ

V1.0

26

7. Time Setting

7-1 Time
Not Used
7-2 Power Saving (ON/OFF)

Set Power Saving ON/OFF
7-3 ANTI-BURN-IN

7-4 ENABLE (ON/OFF)
7-5 INTERVAL
Anti Burn In Time (4Hours/ 5Hours/ 6Hours/ 8Hours)
7-6 Anti Burn Type (A/B/C)

8. Reset Default Reset the screen to the factory preset display settings.

Child Lock

●

1. Keypad Lock

Turn the keypad lock on or off.

Keyboard lock unlock method:Long press "MENU" key for about 8 seconds, can be unlocked.

SELF-DIAGNOSIS

27

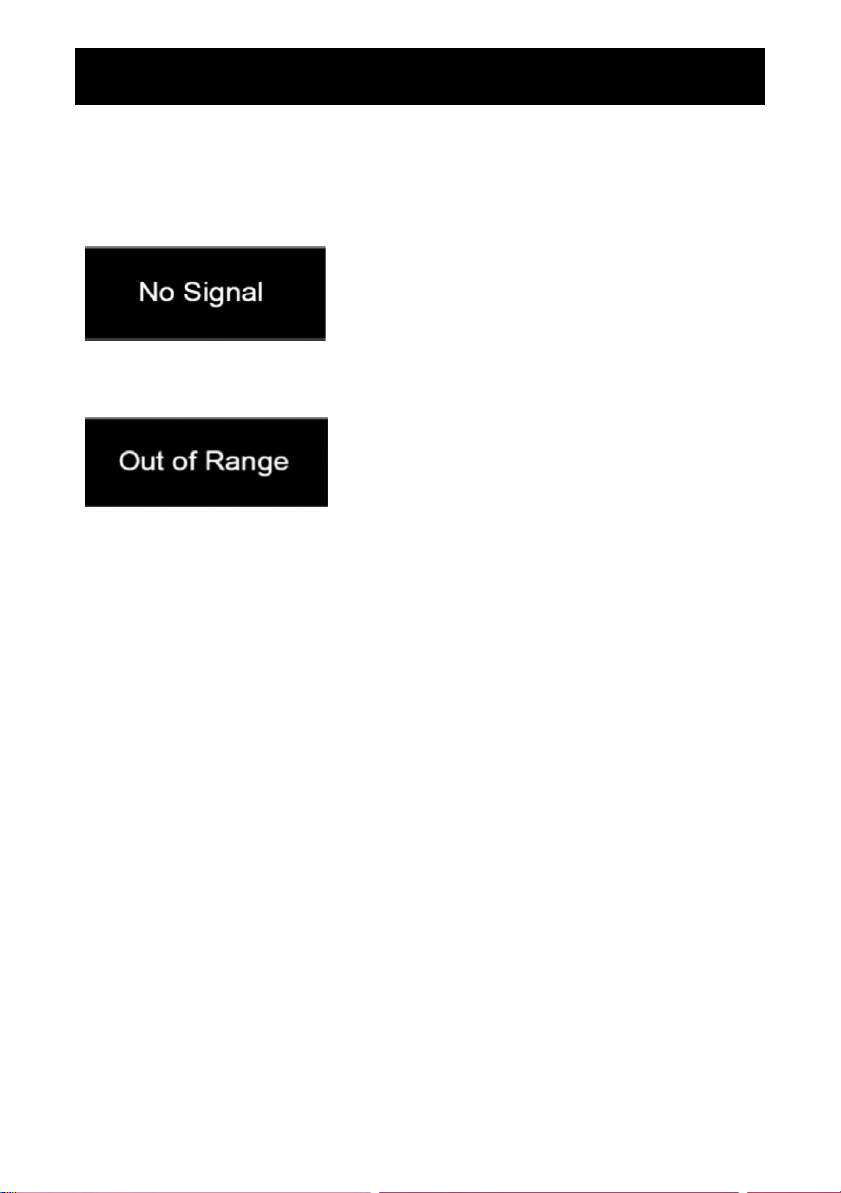

If there is no image, the Self-Diagnosis screen will be displayed. The self-diagnosis
function checks if the status of the monitor screen is No Signal, Out of Range or
None Supported.

The No Signal screen is displayed when the D-Sub signal connector is connected
but the status of the monitor is on DPMS mode.

The Out of Range screen is displayed when the applied frequency is under or over
normal range.

Normal range (Non-inter lac ed mode only):
H: 30 to 80 kHz
V: 50 to 76 Hz

TROUBLESHOOTING

value carefully until there is no noise displayed.

Check if the computer is in the power- saving mode.

Check if the power switch is in the On
Check if the power cord is correctly connected.

Image is unstable

Check if the signal cable is suitable to the video card.

present in the picture

See the FCC information at the front cover of the manual.

Adjust
Check the audio system in the computer.

Adjust the volume of the sound card in the computer.

be seen

Check if the video terminal is properly connected.

Check
computer and set to Functions on the OSD picture menu.

Poor color in the video

Adjust the Color or Tint values on the OSD Picture menu.

video

28

Symptom Check

Picture is jittery

No picture

POWER LED is not lit

Picture bounces or a
wave pattern is

Picture is blurred Adjust Contrast and Brightness.

No sound

Adjust Clock to set the screen position and adjust the Clock

Check if the power switch and computer power switch are in
the On position.
Check if the signal cable is correctly connected to thevideo
card.
Check if the pins of D-sub connector are not bent.

Keep the devices that may cause electrical interference
away from the monitor.

Check the audio cables are correctly connect ed to the
computer.

the volume after checking the sound is muted.

position.

Low sound

VIDEO screen cannot

No video

Grainy picture in the

Adjust the volume on the OSD menu.

Check if PICTURE mode has been set.

if the video cable is correctly connected to the

Adjust the Sharpness on the OSD Picture menu.

SPECIFICATIONS

Items

Panel

Frequency
(H/V)

V: 50 Hz –76 Hz

V: 50 Hz –76 Hz

V: 50 Hz –76 Hz

Interface

(15 Pin D-Sub)

1 1

HDMI in

1 1 1

Audio
Power

Operation
Conditions

Storage
Conditions

(41°F ~ 95°F)

(41°F ~ 95°F)

(41°F ~ 95°F)

Humidity

20%~85%

20%~85%

20%~85%

(-4°F ~ 140°F)

(-4°F ~ 140°F)

(-4°F ~ 140°F)

Weight

weight

29

SQ-17 SQ-19 SQ-22

Screen size 17" (43. cm) 19" (48.3 cm) 22" (54.6 cm)
Max. Resolution 1280 x 1024 1280 x 1024 1920 x 1080

H: 30 kHz –80 kHz

H: 30 kHz –80 kHz

H: 30 kHz –80 kHz

VGA in

Audio (L/R) 1/1 1/1 1/1
BNC (in/out) 1/1 1/1 1/1
PC Audio in Yes Yes Yes
Head phone out Yes Yes Yes
Service (USB) Yes Yes Yes
Speaker power 2 W x 2 2 W x 2 2 W x 2
Speakers Built-in Built-in Built-in
Sound features Stereo R/L Stereo R/L Stereo R/L
Consumption 25 W 25 W 30 W
Source 12 VDC, 3 A 12 VDC, 3 A 12 VDC, 3 A

Temperature

Temperature

Humidity 5%~85% 5%~85% 5%~85%

Note: All specifications are subject to change without prior notice.

Product weight
(with base)
Packaging

5°C ~ 35°C

-20°C ~ 60°C

2.57 kg (5.7 lb.)

3.7 kg (8.2 lb.)

5°C ~ 35°C

-20°C ~ 60°C

2.9 kg (6.4 lb.)

4.1 kg (9.0 lb.)

1

5°C ~ 35°C

-20°C ~ 60°C

3.2 kg (7.1 lb.)

4.6 kg (10.1 lb.)

SPECIFICATIONS

30

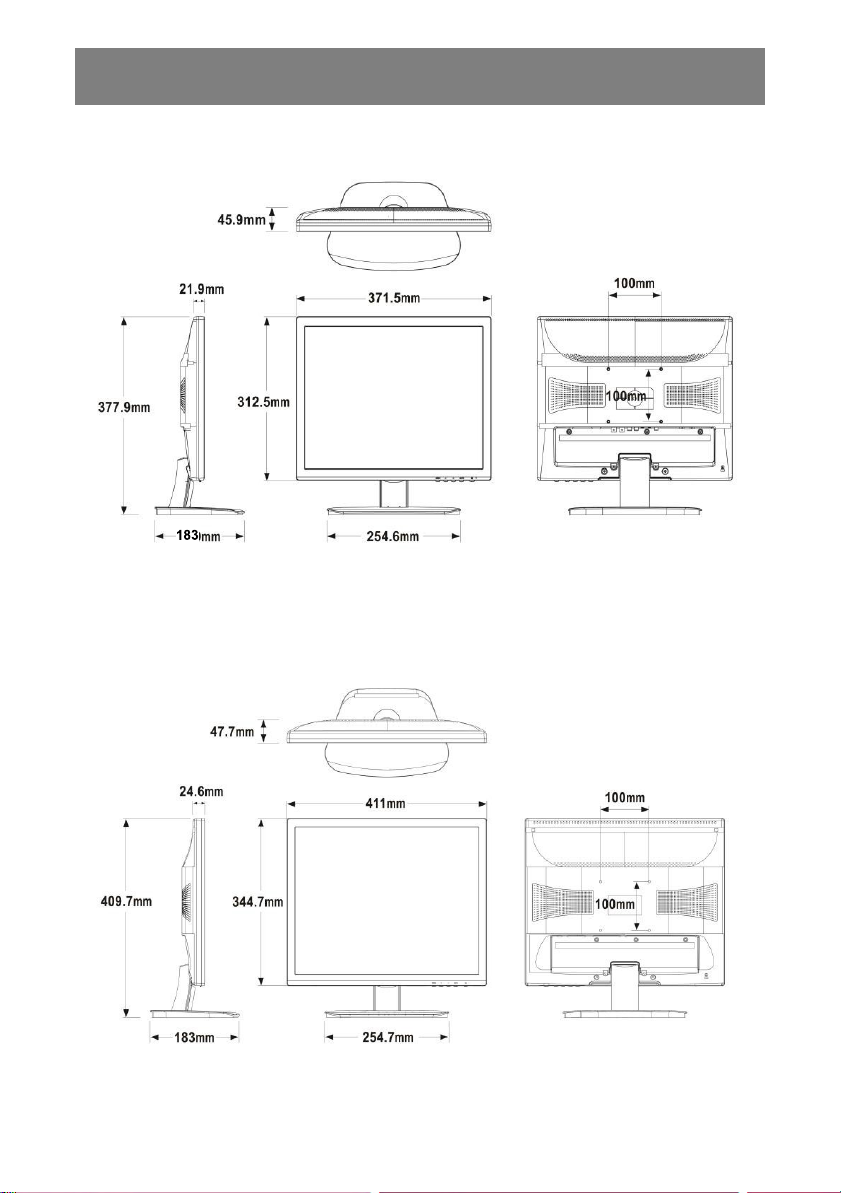

SQ-17 Dimensions

SQ-19 Dimensions

SPECIFICATIONS

183

31

SQ-22 Dimensions

Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan.
