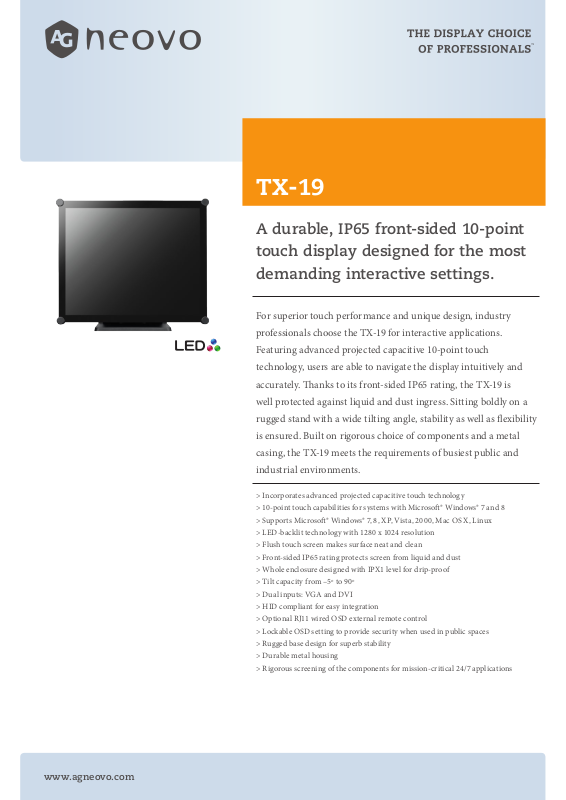

Neovo TX-19 Datasheet
TX-19
A durable, IP65 front-sided 10-point
touch display designed for the most
demanding interactive settings.
For superior touch performance and unique design, industry
professionals choose the TX-19 for interactive applications.
Featuring advanced projected capacitive 10-point touch
technology, users are able to navigate the display intuitively and
accurately. anks to its front-sided IP65 rating, the TX-19 is
well protected against liquid and dust ingress. Sitting boldly on a
rugged stand with a wide tilting angle, stability as well as exibility
is ensured. Built on rigorous choice of components and a metal
casing, the TX-19 meets the requirements of busiest public and
industrial environments.
> Incorporates advanced projected capacitive touch technology
> 10-point touch capabilities for systems with Microso® Windows® 7 and 8
> Supports Microso® Windows® 7, 8, XP, Vista, 2000, Mac OS X, Linux
> LED-backlit technology with 1280 x 1024 resolution
> Flush touch screen makes surface neat and clean
> Front-sided IP65 rating protects screen from liquid and dust
> Whole enclosure designed with IPX1 level for drip-proof
o
> Tilt capacity from –5
> Dual inputs: VGA and DVI
> HID compliant for easy integration
> Optional RJ11 wired OSD external remote control
> Lockable OSD setting to provide security when used in public spaces
> Rugged base design for superb stability
> Durable metal housing
> Rigorous screening of the components for mission-critical 24/7 applications
to 90
o
www.agneovo.com
TX-19
Specications TX-19
Panel Panel Type
Panel Size
Max. Resolution
Pixel Pitch
Brightness
Contrast Ration
Viewing Angle (H /V)
Disply Colour
Response Time (GTG)
Frequency (H/V)
H.Freq
V.Freq
Input VGA
DVI
LED-Backlit TFT LCD
19.0”
1280 x 1024
0.294 mm
250 cd/m
1000 : 1 (Typical)
170°/160°
16.7 M
3 ms (GTG)
31.5kHz - 80kHz
56Hz - 75Hz
15-Pin D-Sub
24-Pin DVI-D
External Control RJ11 RJ11
Touch Screen Technology
Positioning Accuracy
Active Force
Panel Interface
Power Power Supply
Power Requirements
Consumption
Projected Capacitive
±2.5mm
Non-required
USB (Type-B, HID compliant)
Exter nal
DC 12V
< 22W (On)
< 2W (Stand-by)
< 1W (Off)
Operating
Conditions
Temperature
Humidit y
0°C ~ 40°C (32°F~104°F)
10% ~ 80% (No condensation)
2
(Typical)
Integration of 10-point touch and projected
capacitive touch technology provides accurate
and precise touch experience
Wide range of tilt exibility from –5
o
to 90o
Storage
Conditions
Temperature
Humidit y
-20°C ~ 60°C (-4°F~140°F)
10% ~ 90% (No condensation)
Mounting VESA FPMPMI Yes (100 x 100mm)
Dimensions with Base (W x D x H)
427 x 375 x 214 mm
(16.8” x 14.8” x 8.4”)
w/o Base (W x H x D)
427 x 355 x 49 mm
(16.8” x 14.0” x 1.9”)
Packaging (W x H x D)
500 x 295 x 460 mm
(19.7” x 11.6” x 18.1”)
Weight Product Weight (with base)
Packaging weight
Regulation
Approval
Certications &
Compliance
6.5 kg (14.3 lbs)
8.3 kg (18.3 lbs)
CE, RoHS, WEEE, REACH
Accessories Supplied CD ROM (user manual and touch
driver), 15-Pin D-Sub cable, power
cord, power adaptor, USB cable,
cable cover and screw, warranty
card
A rating of IP65 attests to its extraordinary
protection against dust and liquid
Durable metal housing and the whole enclosure designed
with IPX1 level for drip-proof
Copyright © 2014 AG Neovo. All rights reserved. e name AG Neovo is a trademark of AIC.
All specications are subject to change without prior notice.
All other trademarks are the property of their respective owners.
P/C: TX1900 Version 1.0, 20140901
