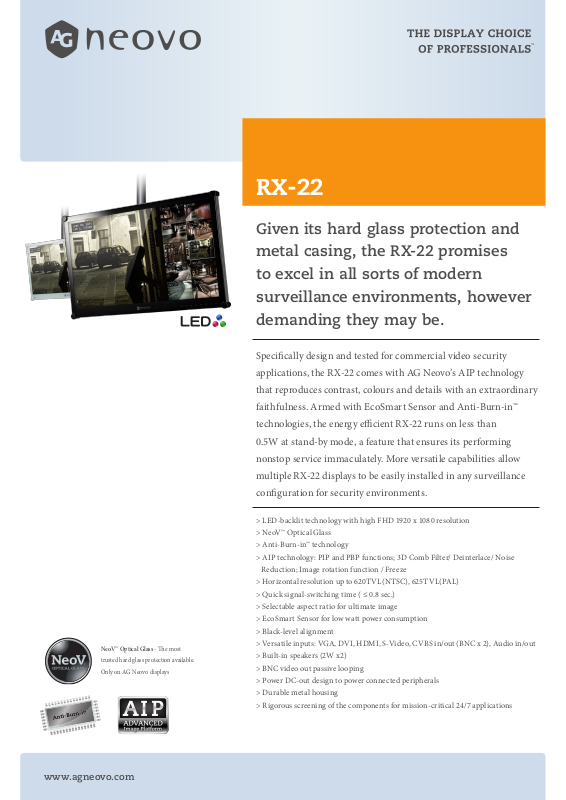

Neovo RX-22, RX-22W Datasheet

RX-22

Given its hard glass protection and metal casing, the RX-22 promises to excel in all sorts of modern surveillance environments, however demanding they may be.

Specically design and tested for commercial video security

applications, the RX-22 comes with AG Neovo’s AIP technology

that reproduces contrast, colours and details with an extraordinary

faithfulness. Armed with EcoSmart Sensor and Anti-Burn-in™

technologies, the energy ecient RX-22 runs on less than

0.5W at stand-by mode, a feature that ensures its performing

nonstop service immaculately. More versatile capabilities allow

NeoV™ Optical Glass - e most

trusted hard glass protection available.

Only on AG Neovo displays

multiple RX-22 displays to be easily installed in any surveillance

conguration for security environments.

> LED-backlit technolog y with high FHD 1920 x 1080 resolution

> NeoV™ Optical Glass

> Anti-Burn-in™ technology

> AIP technology: PIP and PBP functions; 3D Comb Filter/ Deinterlace/ Noise

Reduction; Image rotation function / Freeze

> Horizontal resolution up to 620TVL(NTSC), 625TVL(PAL)

> Quick signal-switching time ( ≤ 0.8 sec.)

> Selectable aspect ratio for ultimate image

> EcoSmart Sensor for low watt power consumption

> Black-level alignment

> Versatile inputs: VGA, DVI, HDMI, S-Video, CVBS in/out (BNC x 2), Audio in/out

> Built-in speakers (2W x2)

> BNC video out passive looping

> Power DC-out design to power connected peripherals

> Durable metal housing

> Rigorous screening of the components for mission-critical 24/7 applications

www.agneovo.com

RX-22

Specications RX-2 2

Panel Panel Type

Panel Size Max. Resolution Pixel Pitch Brightness Contrast Ratio Viewing Angle (H/ V) Display Colour Response Time

Horizontal Resolution

Frequency (H/V) H: 24 kHz - 83 kHz

Input VGA

Output CVBS

Audio Audio In

TV Lines 620TVL (NTSC), 625TVL (PAL)

DVI CVBS S-Video HDMI

DC Output

Audio Out Speaker

LED-backlit TFT LCD

21.5” FHD 1920 x 1080

0.2482 mm 250 cd/m2 (Typical) 1,000 : 1 (Typical) 170°/160° (Typical)

16.7M 3 ms (GTG)

V: 50 Hz - 85 Hz

15-Pin D-Sub 24-Pin DVI-D BNC x 2 4-Pin mini DIN HDMI x 1

BNC x 2 12V/500mA, DC jack 2.5Ø

1 x stereo audio in for PC (audio jack, 3.5 Ø) RCA L+R for video RCA L+R 2W x 2

Available in black or white

NeoV™ Optical Glass protects against scratches,

impacts and other physical damage

Power AC-DC Adaptor

Power Consumption

Sync Format Video System NTSC/PAL/SECAM

NeoV™ Optical Glass

Operating Conditions

Storage Conditions

Mounting VESA FPMPMI Yes (100mm x 100mm & 75mm x

Dimensions Product

Weight (net) Product Weight

Regulation Approval

Accessories Supplied Quick Guide, CD ROM(user manual),

Thickness Reection Rate Coating Hardness

Temperat ure Humidity

(W x H x D) Packaging (W x H x D)

Packaging Weight

Certications & Compliance

Exter nal DC 12V 100 – 240V, 50 – 60Hz <25W (On) <0.5W (Active Off ) <0.5W (Off)

3.0 mm (0.18”) < 1% > 9H

0°C ~ 40°C (32°F~104°F) 10%~90% (No condensation)

-20°C ~ 60°C (-4°F~140°F) 5%~95% (No condensation)

75 mm)

513 x 369 x 155 mm (20.2” x 14.5” x 6.1”) 633 x 497 x 213 mm (24.9” x 19.6” x 8.4”)

6.9 kg (15.2 lbs)

9.5 kg (20.9 lbs)

FCC, CB, CE, BSMI, RoHs, WEEE, REACH

power cord, power adapter, 15-Pin D-Sub cable, audio cable

On top of PIP and PBP, Smart Omni Viewer oers selectable

aspect ratios and the option of 180° image rotation

Multiple video inputs (HDMI, DVI, VGA, CVBS, S-Video)

make possible eortless system integration

EcoSmart Sensor and versatile capabilities ensure

round-the-clock operations

All specications are subject to change without prior notice.

All other trademarks are the property of their respective owners.

P/C: RX2200, Version 1.2, 20130101
